Study on the Intensity and Coherence Information of High-Resolution ALOS-2 SAR Images for Rapid Massive Landslide Mapping at a Pixel Level

1
Graduate School of Engineering, The University of Tokyo, 4-6-1 Komaba, Meguro-ku, Tokyo 153-8505, Japan
2
School of Knowledge Management, Japan Advanced Institute of Science and Technology, 1-1 Asahidai, Nomi, Ishikawa 923-1292, Japan
3
Institute of Industrial Science, The University of Tokyo, 4-6-1 Komaba, Meguro-ku, Tokyo 153-8505, Japan
4
International Research Institute of Disaster Science, Tohoku University, Aoba 468-1-E301, Aramaki, Aoba-ku, Sendai 980-8572, Japan
*
Author to whom correspondence should be addressed.
Remote Sens. 2019, 11(23), 2808; https://doi.org/10.3390/rs11232808
Received: 30 October 2019 / Revised: 20 November 2019 / Accepted: 26 November 2019 / Published: 27 November 2019

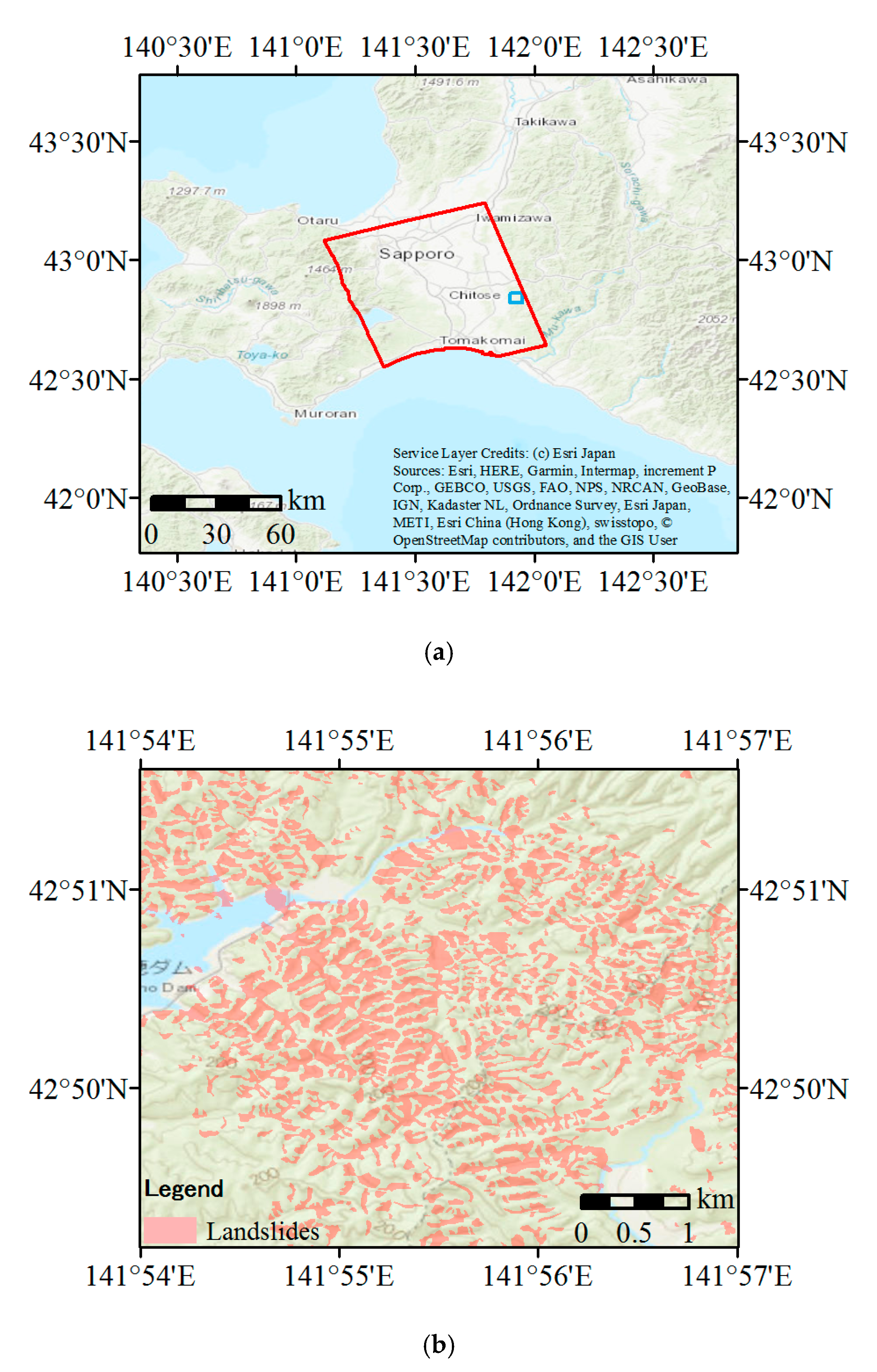

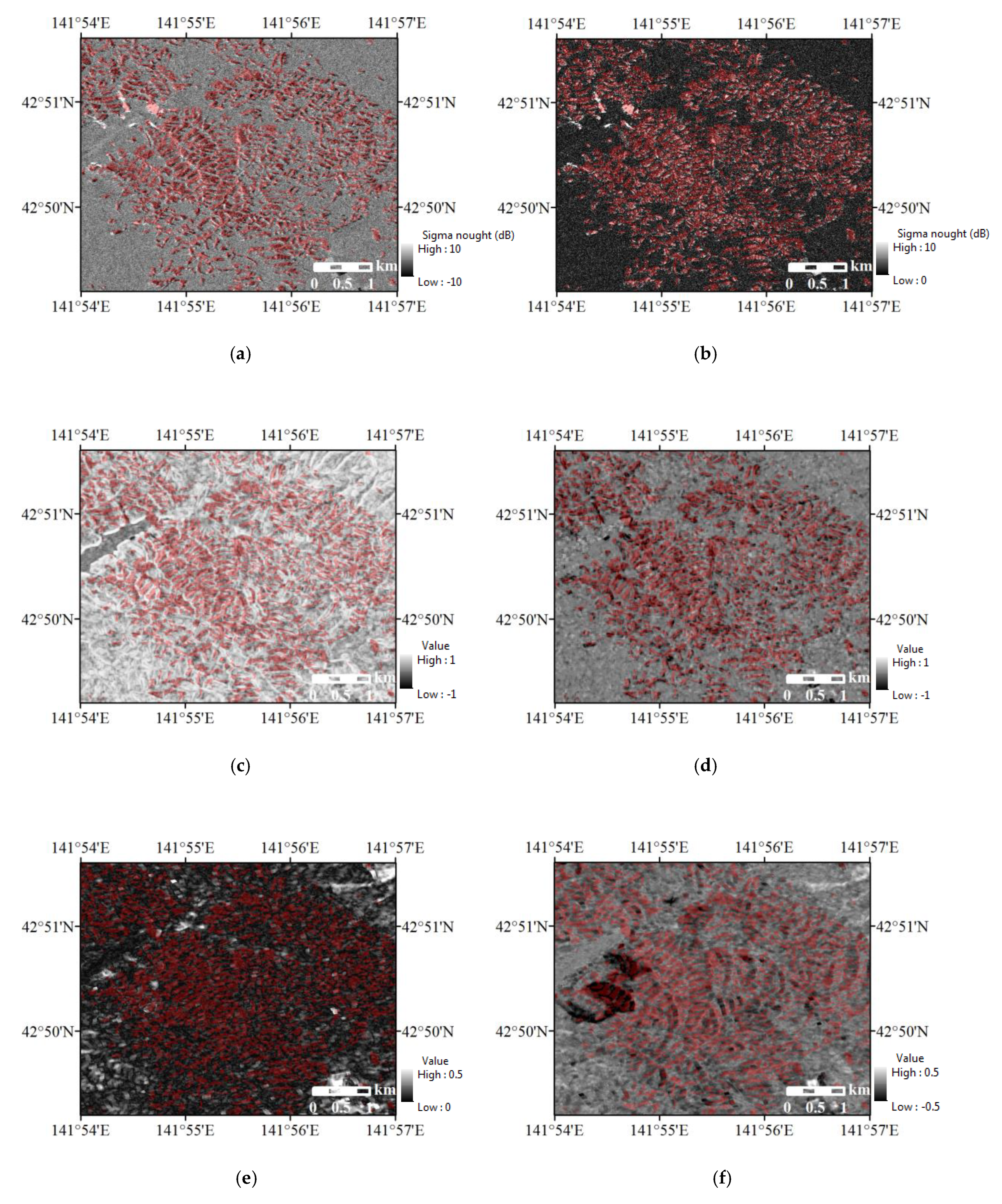

A rapid mapping of landslides following a disaster is important for coordinating emergency response and limiting rescue delays. A synthetic aperture radar (SAR) can provide a solution even in harsh weather and at night, due to its independence of weather and light, quick response, no contact and broad coverage. This study aimed to conduct a comprehensive exploration on the intensity and coherence information of three Advanced Land Observing Satellite-2 (ALOS-2) SAR images, for rapid massive landslide mapping in a pixel level, in order to provide a reference for future applications. Applied data were two pre-event and one post-event high-resolution ALOS-2 products. Studied area was in the east of Iburi, Hokkaido, Japan, where massive shallow landslides were triggered in the 2018 Hokkaido Eastern Iburi Earthquake. Potential parameters, including intensity difference (d), co-event correlation coefficient (r), correlation coefficient difference ( r ), co-event coherence ( γ ), and coherence difference ( γ ), were first selected and calculated based on a radar reflection mechanism, to facilitate rapid detection. Qualitative observation was then performed by overlapping ground truth landslides to calculated parameter images. Based on qualitative observation, an absolute value of d ( d a b s 1 ) was applied to facility analyses, and a new parameter ( d a b s 2 ) was proposed to avoid information loss in the calculation. After that, quantitative analyses of the six parameters ( d a b s 1 , d a b s 2 , r, r , γ and γ ) were performed by receiver operating characteristic. d a b s 2 and r were found to be favorable parameters, which had the highest AUC values of 0.82 and 0.75, and correctly classified 69.36% and 64.57% landslide and non-landslide pixels by appropriate thresholds. Finally, a discriminant function was developed, combining three relatively favorable parameters ( d a b s 2 , r , and γ ) with one in each type, and achieved an overall accuracy of 74.31% for landslide mapping. View Full-Text
Keywords: landslide; synthetic aperture radar (SAR); intensity; coherence; ALOS-2 landslide; synthetic aperture radar (SAR); intensity; coherence; ALOS-2
Show Figures

Graphical abstract

MDPI and ACS Style

Ge, P.; Gokon, H.; Meguro, K.; Koshimura, S. Study on the Intensity and Coherence Information of High-Resolution ALOS-2 SAR Images for Rapid Massive Landslide Mapping at a Pixel Level. Remote Sens. 2019, 11, 2808.
