Sustainability 2017, 9(2), 285;

Effective Height of a Floor Splitter Anti-Vortex Device under Varying Flow Conditions

Korea Institute of Civil Engineering and Building Technology, 283, Goyang-daero, Ilsanseo-gu, Goyang-si, Gyeonggi-do 10223, Korea
Author to whom correspondence should be addressed.
Academic Editor: Marc A. Rosen
Received: 9 November 2016 / Revised: 31 January 2017 / Accepted: 14 February 2017 / Published: 16 February 2017
Full-Text   |   PDF [8095 KB, uploaded 16 February 2017]   |


A pump station is a crucial flood control facility for mitigating inundation of urban lowland areas. Securing a site to increase the capacity of a pump station or to maximize the discharge capacity of the pump sump in an urban area is difficult because of various limitations. Moreover, adding a facility to improve the pump capacity of a pump station may affect flow characteristics, e.g., unexpected increases in flow velocity and vorticity, and cause severe problems in pump station operation. To solve those problems, anti-vortex devices (AVDs) have been developed and adopted according to the appropriate design standards. The Korean design criteria for AVDs are based on experience and the standards of other countries because of the lack of adequate data on AVDs. In this study, flow in the sump was numerically simulated at various AVD heights to obtain data for improving the design and efficiency of a pump station. Consequently, the appropriate height for the AVD and changes in the flow pattern and vortex in the pump sump were determined and compared with 12 cases of inflow conditions with respect to the vertical location. View Full-Text
Keywords: pump station; sump; anti-vortex device; flow pattern; vortex pump station; sump; anti-vortex device; flow pattern; vortex

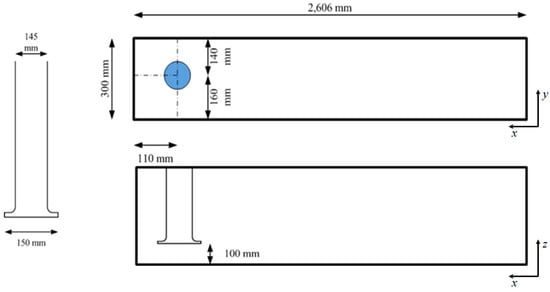

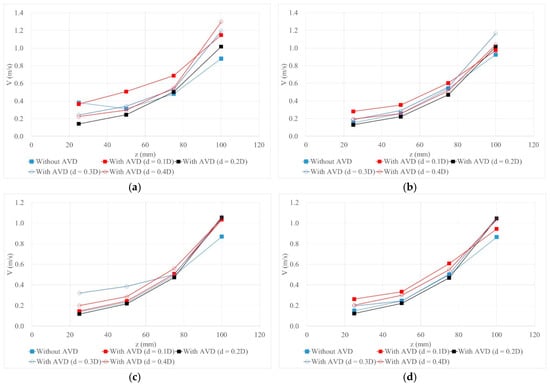

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
