# A Time-Varying Potential Evaluation Method for Electric Vehicle Group Demand Response Driven by Small Sample Data

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Motivation and Background

#### 1.2. Literature Overview

- The short-term DR potential of EVs is directly related to the vehicle scheduling strategy. Different DR control types and methods have a direct impact on the potential. It is necessary to consider travel needs and willingness to participate, so as to achieve non-inductive DR control and maximize potential.
- It is difficult to obtain refined travel data and charging load data of large-scale EVs. How to evaluate the potential of large-scale EVs based on the small sample data in the DR pilot project is an urgent problem to be solved.
- Due to the randomness of the time and space of EV travel, and the state changes of vehicles in DR, the DR potential is diverse at different times of day, and the potential during DR also changes with time. Considering the time-varying nature can further improve the accuracy of potential evaluation.

#### 1.3. Contributions

- The travel activity model of large-scale EVs is established. Based on the actual travel data of a sample of residents, the probability distributions of the key parameters in the travel model are obtained by kernel density estimation (KDE) and probability statistical fitting. The fitting results reflect the irregular distribution of variables, with high accuracy and robustness.
- Considering the temporal and spatial distribution of the SOC and the travel demand of the EVs, the non-inductive control strategies of three DR modes (peak-cutting, V2G discharge, and valley-filling) are analyzed. The three DR strategies are independent of each other, which maximizes the DR potential while meeting the travel needs of the EVs.
- Based on the three DR strategies, the time-varying characteristics of DR are analyzed separately, including the change in potential with the duration of DR and the change at different periods of in a day. Furthermore, the power change index is defined to quantify the DR potential.

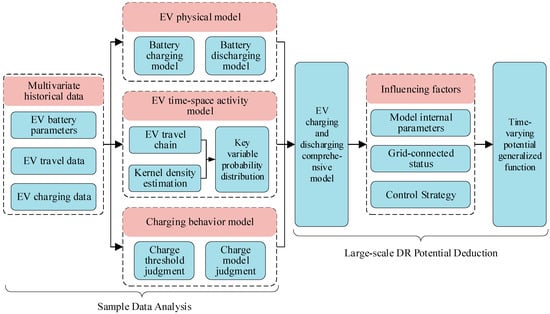

## 2. DR Potential Evaluation Method of EV

#### 2.1. EV Load Model

#### 2.2. DR Control Strategy Analysis of EVs

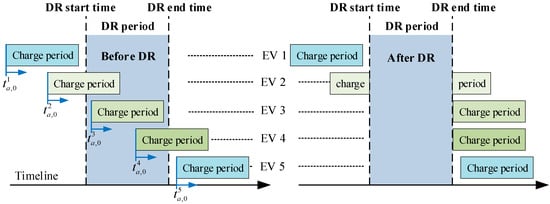

#### 2.2.1. Peak-Shaving DR Strategy

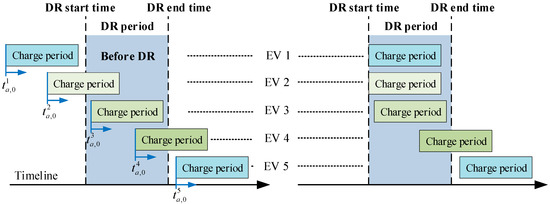

#### 2.2.2. Valley-Filling DR Strategy

#### 2.2.3. V2G Discharge Strategy

#### 2.3. DR Potential Evaluation of EVs

## 3. Model of EV Behavior

#### 3.1. Time–Space Activity Model of EVs

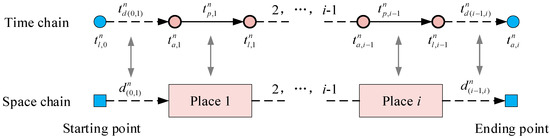

#### 3.1.1. Travel Chain Model

#### 3.1.2. Probability Distribution of Characteristic Values

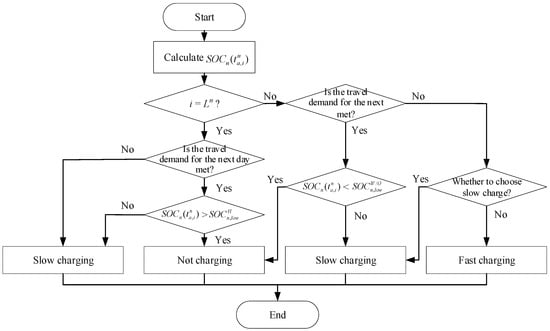

#### 3.2. Charging and Discharging Behavior Model of EVs

- After the EV arrives at the parking location, if the remaining power is not enough to support the next drive, it must be charged. There are two charging powers to choose from: slow charge or fast charge. Slow charge is preferred; however, if in the slow charge mode the supplementary power is still not enough to support the next drive, then the fast charge mode is adopted.
- If the remaining power is sufficient for the next drive, slow charging or no charging can be selected. Considering factors such as battery safety and remaining power anxiety, every residential consumer has his own minimum acceptable SOC. ${\mathrm{SOC}}_{n,low}^{H}$ is the minimum acceptable SOC at home, and ${\mathrm{SOC}}_{n,low}^{W/O}$ is the minimum acceptable SOC at the work place or other location. If the remaining SOC of the battery is lower than the minimum SOC, the slow charge is still selected for charging.

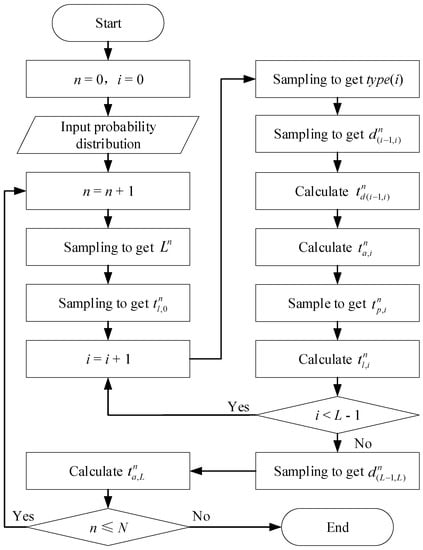

#### 3.3. Travel Chain and Load Simulation of EVs

- Enter the probability distribution of the characteristic values of the travel chain ${t}_{l,0}^{n}$, ${d}_{(i-1,i)}^{n}$, ${t}_{p,i}^{n}$, $P[typ{e}_{i}^{n}|{t}_{l,i}^{n},typ{e}_{i-1}^{n}]$,${P}_{L}^{n}$.
- Sampling to obtain the total length ${L}^{n}$ of the travel chain.
- Sampling to obtain the time ${t}_{l,0}^{n}$ of the first trip of the day.
- Sampling to obtain the travel destination. According to the current location type and travel time, select the corresponding spatial transition probability and conduct sampling.
- Sampling to obtain the driving distance. Considering the starting point and end point of the drive, select the corresponding probability distribution for sampling.
- Calculate travel time. Considering different driving periods, calculate the corresponding driving time based on Equation (11). Calculate the arrival time at the destination based on Equation (4).
- Sampling to obtain the parking time. Calculate the next travel time based on Equation (5).
- Return to step (4) and re-enter the loop until the travel chain length meets the requirements.

## 4. Case Study

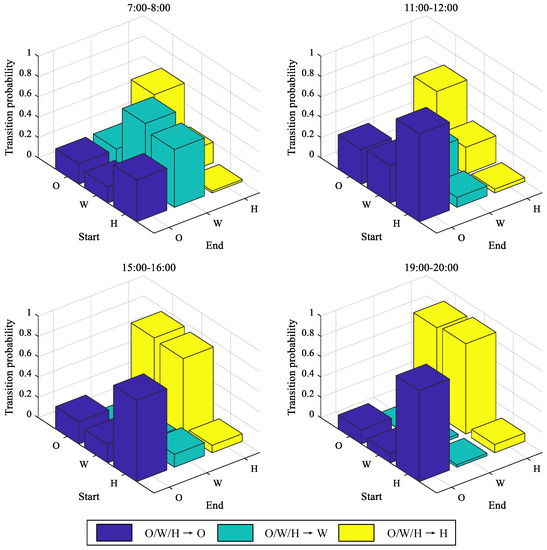

#### 4.1. Calculation of Characteristic Values in the Travel Chain

#### 4.2. Verification of Simulation Results of the Travel Chain

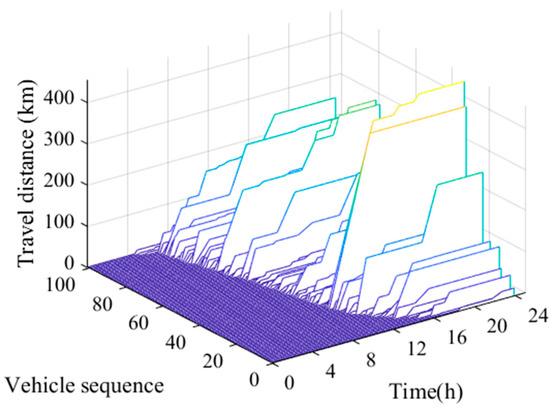

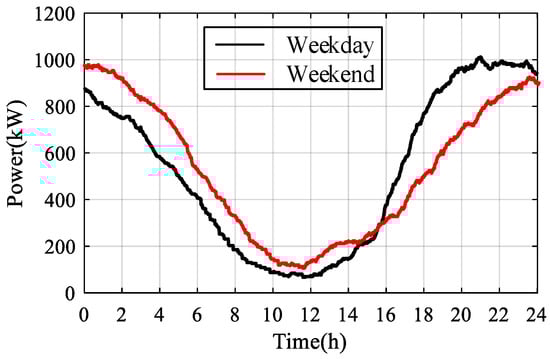

#### 4.3. Simulation Results of Charge Load

#### 4.4. DR Potential Calculation Results

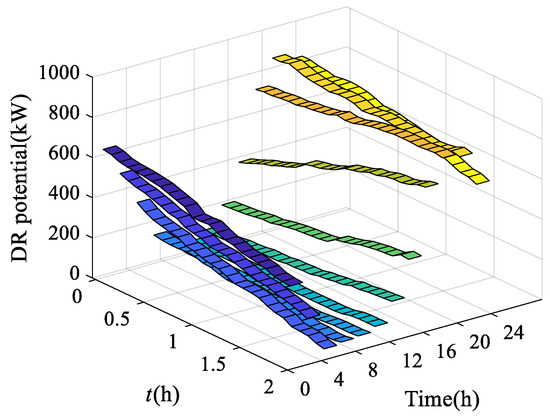

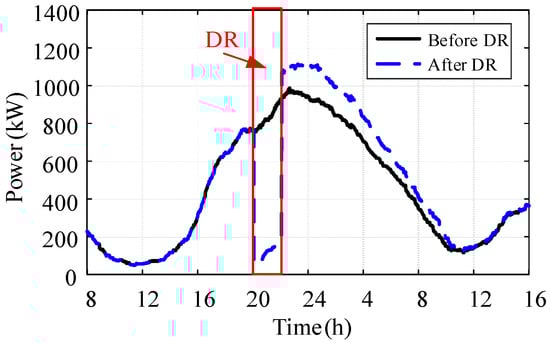

#### 4.4.1. Peak-Shaving DR Potential

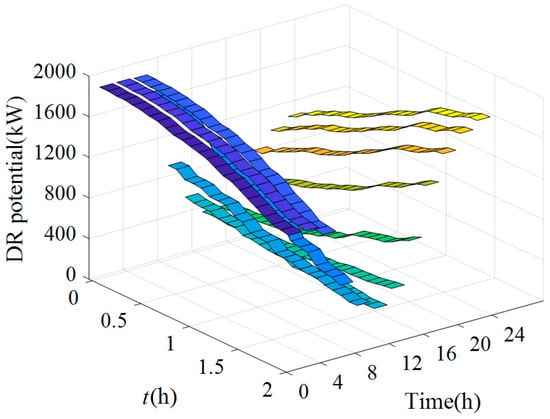

#### 4.4.2. Valley-Filling DR Potential

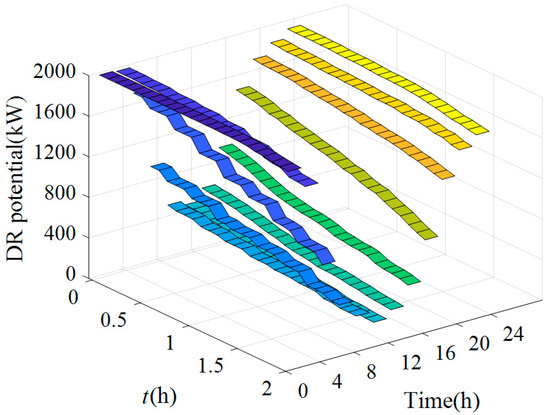

#### 4.4.3. V2G Discharge DR Potential

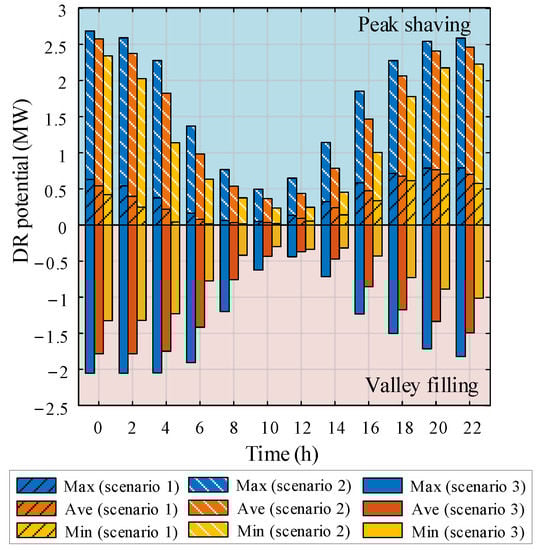

#### 4.4.4. Comparative Analysis of Three Types of Potential

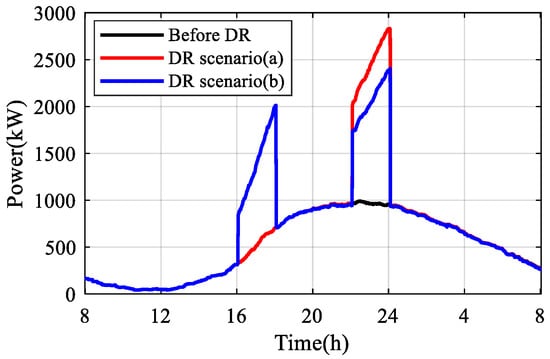

#### 4.4.5. Interaction Analysis of Potential in Different Periods

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

DR | Demand response | i | Index of trips and locations |

EV | Electric vehicle | ${\eta}_{c/d}$ | Charging and discharging efficiency of EV |

H | Region type–Home | N | Number of EVs |

KDE | Kernel density estimation | n | Index of EVs |

MC | Monte Carlo | $P[typ{e}_{i}^{n}|{t}_{l,i}^{n},typ{e}_{i-1}^{n}]$ | Spatial transition probability |

NHTS | National household travel survey | ${P}_{L}$ | Travel chain length probability |

O | Region type–Other location | ${P}_{c/d}$ | Charge and discharge power |

RMSE | Root Mean Squared Error | $S$ | State of EV connected to the power grid |

SOC | State of charge | ${\mathrm{SOC}}_{n,low}^{H}$ | Minimum SOC for charging at home |

V2G | Vehicle-to-grid | ${\mathrm{SOC}}_{n,low}^{W/O}$ | Minimum SOC for charging at work or other location |

W | Region type–Work place | t | Index of times |

Variables | ${t}_{a,i}^{n}$ | Time when EV n arrives at location i | |

$C$ | Battery capacity of EV | ${t}_{l,i}^{n}$ | Time when EV n leaves location i |

$D$ | Cruising distance of EV | ${t}_{d(i-1,i)}^{n}$ | The time for EV n to arrive at location i from location i−1 |

$\widehat{DR}\left(t\right)$ | Time-varying potential of the EV at time t | ${t}_{p,i}^{n}$ | Parking time of EV n at location i |

${d}_{(i-1,i)}^{n}$ | Distance from location i−1 to location i | $typ{e}_{i}^{n}$ | Type of location i |

$G$ | DR potential generalized function of EV | ${v}_{(i-1,i)}^{n}$ | The average speed of the vehicle from location i−1 to location i |

${\epsilon}_{(i-1,i)}^{n}$ | Distance error from location i−1 to location i |

## References

- Li, L.; Lin, J.; Wu, N.; Xie, S.; Meng, C.; Zheng, Y.; Wang, X.; Zhao, Y. Review and outlook on the international renewable energy development. Energy Built Environ.
**2022**, 3, 139–157. [Google Scholar] [CrossRef] - Macioszek, E.; Sierpiński, G. Charging Stations for Electric Vehicles—Current Situation in Poland. Transp. Syst. Telemat. (TST)
**2020**, 124–137. [Google Scholar] [CrossRef] - Kakran, S.; Chanana, S. Smart operations of smart grids integrated with distributed generation: A review. Renew. Sustain. Energy Rev.
**2018**, 81, 524–535. [Google Scholar] [CrossRef] - Zhu, L.; Liu, S.; Tang, L.; Ji, J.; Hang, C. Uncertain response modeling of charge and discharge and day-ahead scheduling strategy of electric vehicle agents. Power Syst. Technol.
**2018**, 42, 3305–3314. [Google Scholar] [CrossRef] - Mohammad, A.; Zuhaib, M.; Ashraf, I.; Alsultan, M.; Ahmad, S.; Sarwar, A.; Abdollahian, M. Integration of electric vehicles and energy storage system in home energy management system with home to grid capability. Energies
**2021**, 14, 8557. [Google Scholar] [CrossRef] - Ling, Z.; Cherry, C.R.; Wen, Y. Determining the Factors That Influence Electric Vehicle Adoption: A Stated Preference Survey Study in Beijing, China. Sustainability
**2021**, 13, 11719. [Google Scholar] [CrossRef] - Macioszek, E. Electric Vehicles—Problems and Issues. Transp. Syst. Theory Pract. (TSTP)
**2019**, 169–183. [Google Scholar] [CrossRef] - Chen, S.; Chen, Q.; Xu, Y. Strategic Bidding and Compensation Mechanism for a Load Aggregator with Direct Thermostat Control Capabilities. IEEE Trans. Smart Grid
**2018**, 9, 2327–2336. [Google Scholar] [CrossRef] - Qi, N.; Cheng, L.; Xu, H.; Wu, K.; Li, X.; Wang, Y.; Liu, R. Smart meter data-driven evaluation of operational DR potential of residential AC loads. Appl. Energy
**2020**, 279, 115708. [Google Scholar] [CrossRef] - Wen, J.; Tao, S.; Xiao, X.; Luo, C.; Liao, K. Analysis on Charging Demand of EV Based on Stochastic Simulation of Trip Chain. Power Syst. Technol.
**2015**, 6, 1477–1484. [Google Scholar] [CrossRef] - Chen, L.; Zhang, X.; Figueiredo, A. Summary of Research on Electric Vehicle Charge and Discharge Load Forecast. Autom. Electr. Power Syst.
**2019**, 43, 177–191. [Google Scholar] [CrossRef] - Qian, T.; Li, Y.; Guo, X.; Chen, X.; Liu, J.; Mao, W. Calculation of electric vehicle charging power and evaluation of demand response potential based on spatial and temporal activity model. Power Syst. Prot. Control
**2018**, 46, 127–134. [Google Scholar] [CrossRef] - Zhang, J.; Yan, J.; Liu, Y.; Zhang, H.; Lv, G. Daily electric vehicle charging load profiles considering demographics of vehicle users. Appl. Energy
**2020**, 274, 115063. [Google Scholar] [CrossRef] - Chen, L.; Zhang, Y.; Figueiredo, A. Spatio-Temporal Model for Evaluating Demand Response Potential of Electric Vehicles in Power-Traffic Network. Energies
**2019**, 12, 1981. [Google Scholar] [CrossRef] [Green Version] - Zhan, X.; Yang, J.; Han, S.; Zhou, T.; Wu, F.; Liu, S. Two-stage Market Bidding Strategy of Charging Station Considering Schedulable Potential Capacity of Electric Vehicle. Autom. Electr. Power Syst.
**2021**, 45, 86–96. [Google Scholar] [CrossRef] - Gan, L.; Chen, X.; Yu, K.; Zheng, J.; Du, W. A Probabilistic Evaluation Method of Household EVs Dispatching Potential Considering Users’ Multiple Travel Needs. IEEE Trans. Ind. Appl.
**2020**, 56, 5858–5867. [Google Scholar] [CrossRef] - Wu, F.; Yang, J.; Zhan, X.; Liao, S.; Xu, J. The Online Charging and Discharging Scheduling Potential of Electric Vehicles Considering the Uncertain Responses of Users. IEEE Trans. Power Syst.
**2021**, 36, 1794–1806. [Google Scholar] [CrossRef] - Das, S.; Acharjee, P.; Bhattacharya, A. Charging Scheduling of Electric Vehicle Incorporating Grid-to-Vehicle and Vehicle-to-Grid Technology Considering in Smart Grid. IEEE Trans. Ind. Appl.
**2021**, 57, 1688–1702. [Google Scholar] [CrossRef] - Wei, Z.; Li, Y.; Cai, L. Electric Vehicle Charging Scheme for a Park-and-Charge System Considering Battery Degradation Costs. IEEE Trans. Intell. Veh.
**2018**, 3, 361–373. [Google Scholar] [CrossRef] - Ding, T.; Zeng, Z.; Bai, J.; Qin, B.; Yang, Y.; Shahidehpour, M. Optimal Electric Vehicle Charging Strategy with Markov Decision Process and Reinforcement Learning Technique. IEEE Trans. Ind. Appl.
**2020**, 56, 5811–5823. [Google Scholar] [CrossRef] - Iwafune, Y.; Ogimoto, K.; Kobayashi, Y.; Murai, K. Driving Simulator for Electric Vehicles Using the Markov Chain Monte Carlo Method and Evaluation of the Demand Response Effect in Residential Houses. IEEE Access
**2020**, 8, 47654–47663. [Google Scholar] [CrossRef] - Zhang, T.; Chen, X.; Zhe, Y.; Zhu, X.; Di, S. A Monte Carlo Simulation Approach to Evaluate Service Capacities of EV Charging and Battery Swapping Stations. IEEE Trans. Ind. Inform.
**2018**, 14, 3914–3923. [Google Scholar] [CrossRef] - Gao, Y.; Sun, Y.; Yang, W.; Xue, F.; Sun, Y.; Liang, H.; Li, P. Study on Load Curve’s Classification Based on Nonparametric Kernel Density Estimation and Improved Spectral Multi-Manifol Clustering. Power Syst. Technol.
**2018**, 42, 1605–1612. [Google Scholar] [CrossRef] - Liu, S.; Fu, X.; Ye, C.; Ding, J.; Ma, Z.; Huang, M. Spatial Load Distribution Based on Clustering Analysis and Non-Parametric Kernel Density Estimation. Power Syst. Technol.
**2017**, 41, 604–609. [Google Scholar] [CrossRef] - Iversen, E.; Møller, J.; Morales, J.; Madsen, H. Inhomogeneous Markov Models for Describing Driving Patterns. IEEE Trans. Smart Grid
**2017**, 8, 581–588. [Google Scholar] [CrossRef] [Green Version] - Li, M.; Lenzen, M.; Keck, F.; McBain, B.; Rey-Lescure, O.; Li, B.; Jiang, C. GIS-based probabilistic modeling of BEV charging load for Australia. IEEE Trans. Smart Grid
**2019**, 10, 3525–3534. [Google Scholar] [CrossRef] - Yu, D.; Yang, C.; Jiang, L.; Li, T.; Yan, G.; Gao, F.; Liu, H. Review on Safety Protection of Electric Vehicle Charging. Proc. CSEE
**2021**, 29, 2145–2164. [Google Scholar] [CrossRef] - Wang, D.; Gao, J.; Li, P.; Wang, B.; Zhang, C.; Saxena, S. Modeling of plug-in electric vehicle travel patterns and charging load based on trip chain generation. J. Power Sources
**2017**, 359, 468–479. [Google Scholar] [CrossRef] - Wang, C.; Shi, Z.; Liang, Z.; Li, Q.; Hong, B.; Huang, B.; Jiang, L. Key Technologies and Prospects of Demand-side Resource Utilization for Power Systems Dominated by Renewable Energy. Autom. Electr. Power Syst.
**2021**, 45, 37–48. [Google Scholar] [CrossRef] - He, S.; Xu, Y.; Chen, S.; Yuan, J.; Gong, F. Prospect and the 14th Five-Year Plan of power demand response development effect in China. Power DSM
**2021**, 23, 1–6. [Google Scholar] [CrossRef] - U.S. Department of Transportation Federal Highway Administration. 2017 National Household Travel Survey; U.S. Department of Transportation Federal Highway Administration: Washington, DC, USA, 2017.

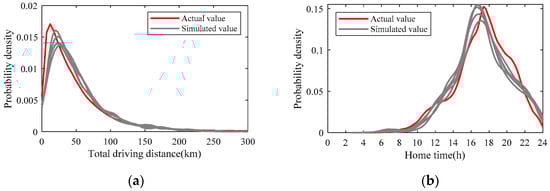

**Figure 9.**The comparison of simulated value and actual value. (

**a**) Total driving distance, (

**b**) Home time.

Years | Peak-Shaving Type/Times | Valley- Filling Type/Times | Peak-Shaving Response/10,000 kW | Valley-Filling Response/10,000 kW | Number of Participating Users/Number | Number of Participating Provinces /Number |
---|---|---|---|---|---|---|

2016 | 9 | 0 | 419.1 | 0 | 3340 | 2 |

2017 | 2 | 0 | 7.7 | 0 | 36 | 2 |

2018 | 8 | 5 | 244.8 | 374.3 | 2394 | 6 |

2019 | 51 | 16 | 703.3 | 543.6 | 111,218 | 8 |

2020 | 16 | 18 | 477.8 | 1007.2 | 18,862 | 8 |

Time | 1 | 2 | 3 | 4 | 5 | Average | |
---|---|---|---|---|---|---|---|

Index | |||||||

Total driving distance | RMSE | 0.0013 | 0.0014 | 0.0017 | 0.0014 | 0.0012 | 0.0014 |

r | 0.9600 | 0.9527 | 0.9322 | 0.9512 | 0.9608 | 0.9522 | |

Home time | RMSE | 0.0139 | 0.0112 | 0.0081 | 0.0110 | 0.0118 | 0.0112 |

r | 0.9555 | 0.9719 | 0.9859 | 0.9725 | 0.9669 | 0.9705 |

DR Event Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
---|---|---|---|---|---|---|---|---|---|---|---|---|

DR start time | 0:00 | 2:00 | 4:00 | 6:00 | 8:00 | 10:00 | 12:00 | 14:00 | 16:00 | 18:00 | 20:00 | 22:00 |

DR end time | 2:00 | 4:00 | 6:00 | 8:00 | 10:00 | 12:00 | 14:00 | 16:00 | 18:00 | 20:00 | 22:00 | 24:00 |
