# Simplified Super Twisting Sliding Mode Approaches of the Double-Powered Induction Generator-Based Multi-Rotor Wind Turbine System

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

_{S}). The IFOC strategy is characterized by its simplicity, ease of use, and fast dynamic speed. However, there are drawbacks to this method. Among its disadvantages is the presence of ripples in the level of torque, active power, and current. In addition, the total harmonic distortion (THD) value of the electric current is higher compared to the direct torque control method. In order to overcome these shortcomings and in terms of improving the effectiveness and performance of this method, a new algorithm is proposed for the super twisting algorithm (STA). In this work, a new STA method called simplified STA (SSTA) algorithm is proposed and applied to the traditional IFOC strategy in order to reduce the ripples of torque, current, and active power. On the other hand, the inverter of the DPIG is controlled by using a five-level fuzzy simplified space vector modulation (FSSVM) technique to obtain a signal at the inverter output of a fixed frequency. The results obtained from this proposed IFOC-SSTA method with FSSVM strategy are compared with the classical IFOC method which uses the classical controller based on a proportional-integral (PI) controller. The proposed method is achieved using the Matlab/Simulink software, where a generator with a large capacity of 1.5 megawatts is used. The generator is placed in a multi-rotor electric power generation system. On the other hand, the two methods are compared in terms of ripple ratio, dynamic response, durability, and total harmonic distortion (THD) value of the electric current. Through the results obtained from this work, the proposed method based on SSTA provided better results in terms of ripple ratio, response dynamic, and even THD value compared to the classical method, and this shows the robustness of the proposed method in improving the performance and efficiency of the generator in the multi-rotor wind system.

## 1. Introduction

- A new super twisting algorithm is proposed and confirmed.
- A new space vector modulation (SVM) scheme is proposed based on the fuzzy logic controller to control the five-level inverter of the DPIG.
- A new IFOC strategy scheme is proposed to control the DPIG-based multi-rotor wind turbine system.
- A new SSTA algorithm is designed to improve the dynamic characteristics of DPIG-based multi-rotor wind turbine systems.

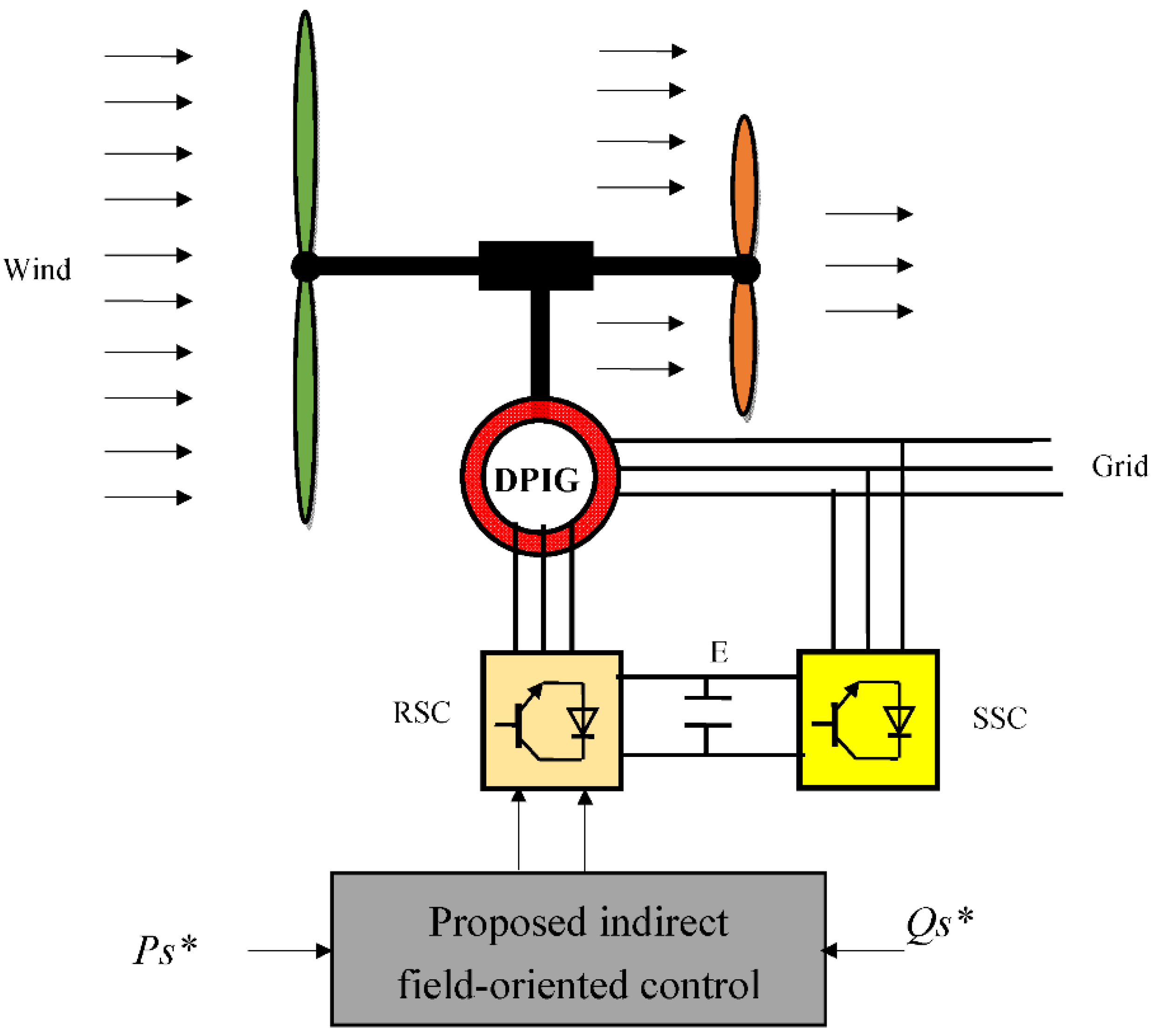

## 2. Multi-Rotor Wind Turbine System

_{t}is the output torque of the dual-rotor wind turbine, T

_{LT}and T

_{ST}are the output torque of the large and small wind turbines, P

_{t}is the output mechanical power of the dual-rotor wind turbine, P

_{LT}and P

_{ST}are the output mechanical power of the large and small wind turbine torque.

_{p}), the mechanical speed of the small and large turbines (w

_{ST}and w

_{LT}), the blade radius of the small and large turbines (R

_{ST}, R

_{LT}), and the tip speed ration of the small and large turbines (λ

_{ST}and λ

_{LT}).

_{ST}and V

_{LT}), The speed of the large and small turbine (w

_{ST}and w

_{LT}), and the blade radius of the small and large turbines (R

_{ST}, R

_{LT}).

_{LT}) and a constant value (C

_{T}= 0.9), as well as the separation distance (x) between the large and small turbine. In this case, this distance between the center of the large and small turbine is 15 m [15].

_{s}), direct and quadrature stator current (I

_{ds}and I

_{qs}), direct and quadrature stator (Ψ

_{qs}and Ψ

_{ds}), and electrical pulsation of the stator (w

_{s}). The direct and quadrature stator flux are represented in Equation (14). These two fluxes are related to both the inductance of the stator (L

_{s}), direct and quadrature rotor current (I

_{dr}and I

_{qr}), and direct and quadrature rotor current (I

_{ds}and I

_{qs}).

_{e}) is related to rotor current, the number of pole pairs (p), and stator flux and its expression can be given by Equation (15) [19].

_{r}is the load torque, Ω is the mechanical rotor speed, J is the inertia, f is the viscous friction coefficient.

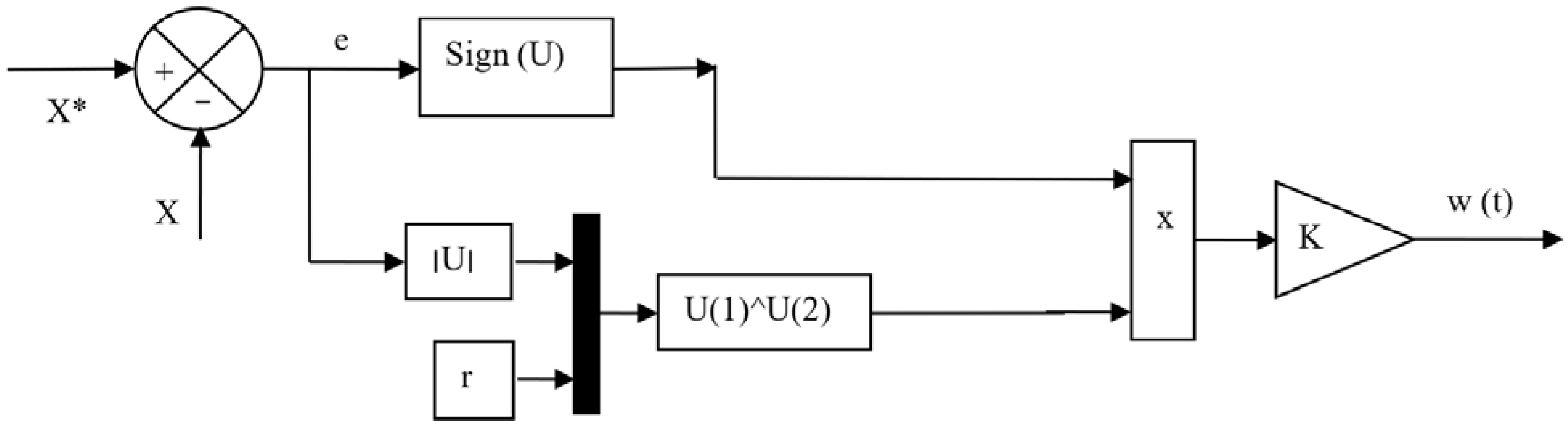

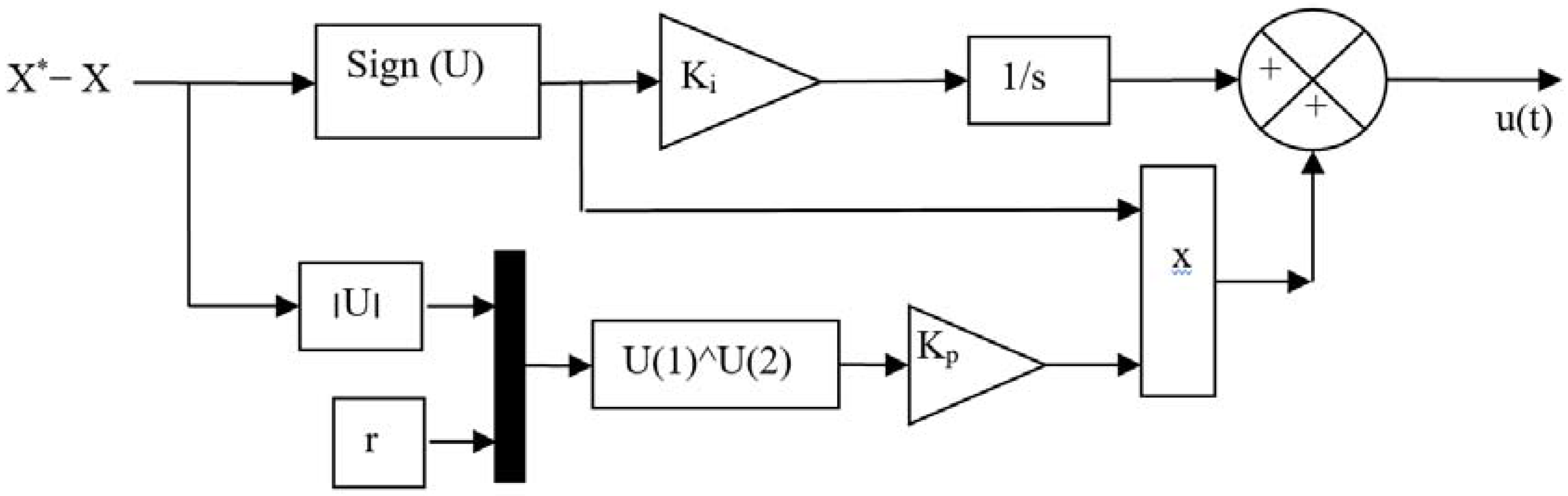

## 3. Simplified STA Controller

_{i}and K

_{p}are positive values.

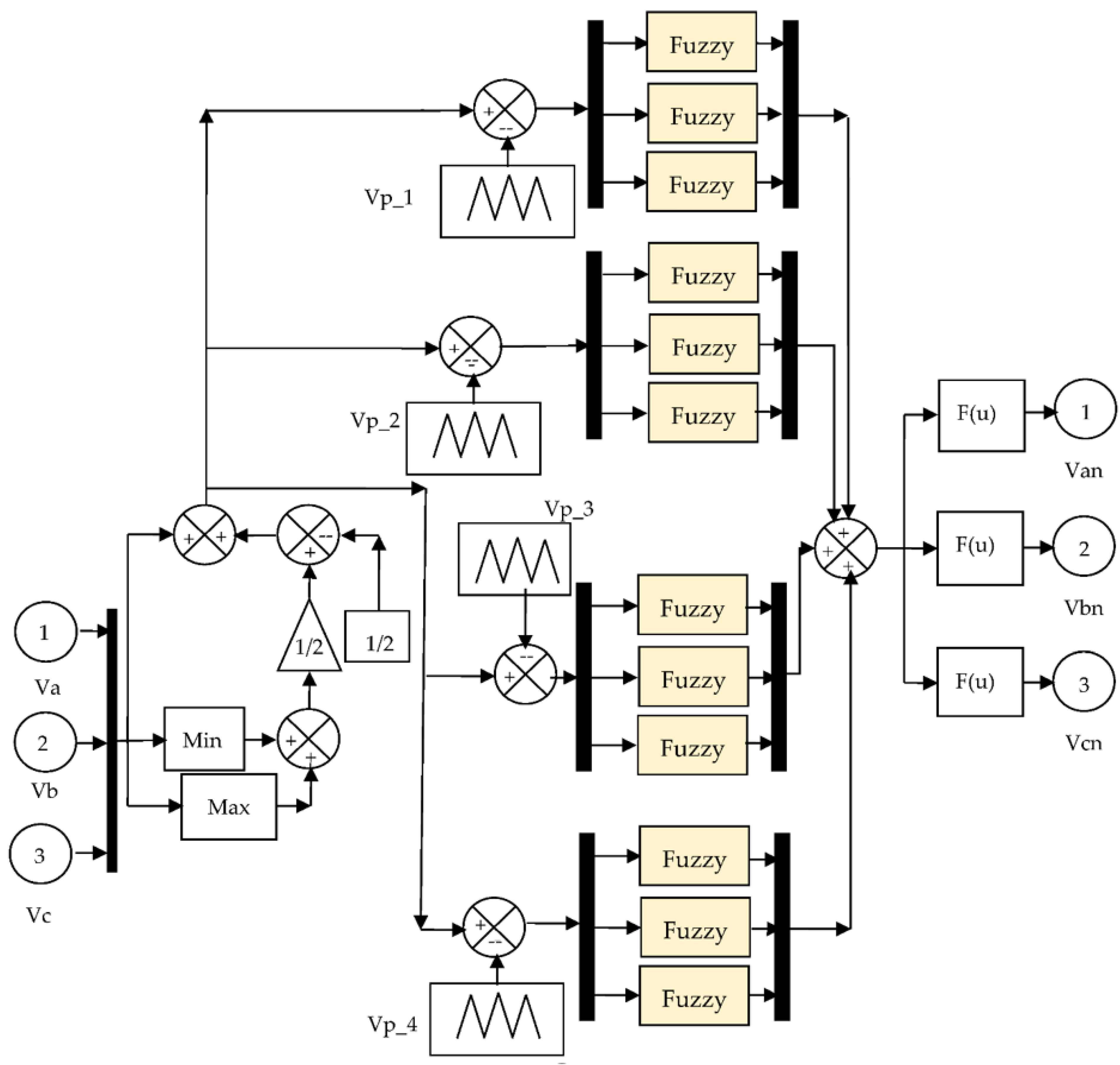

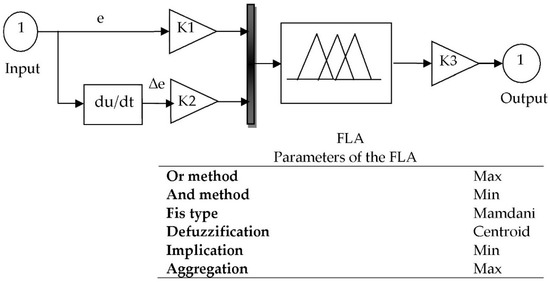

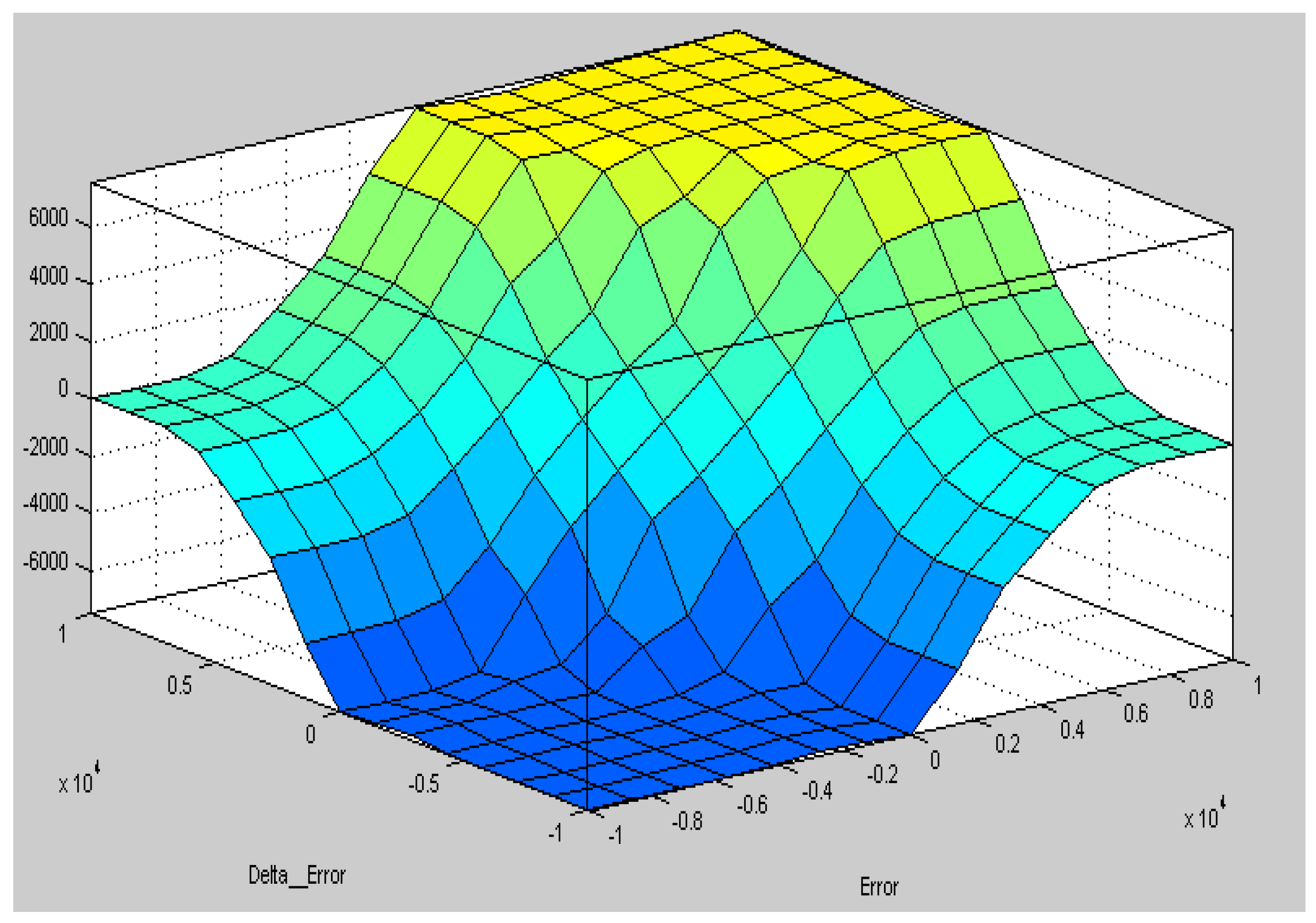

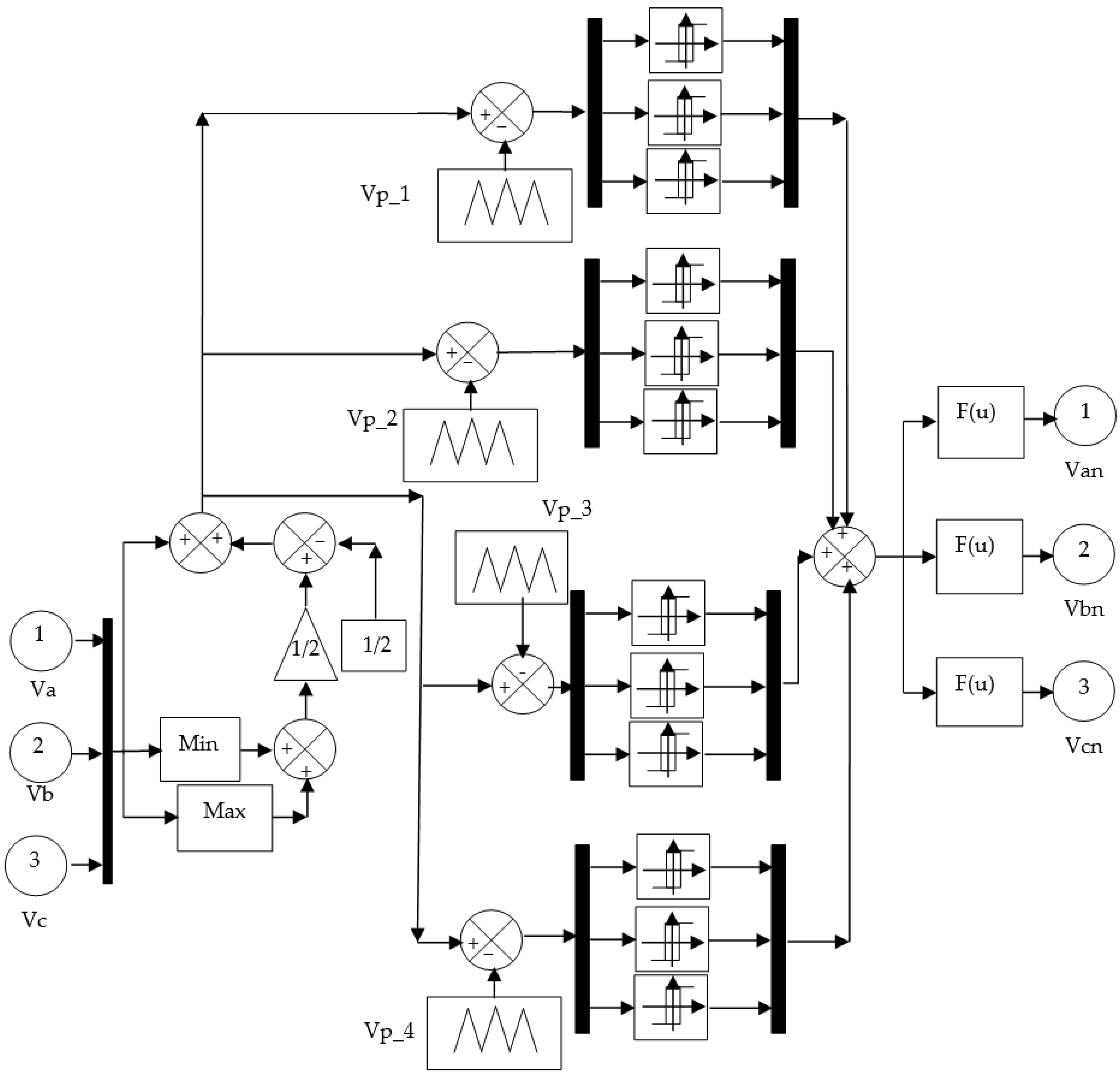

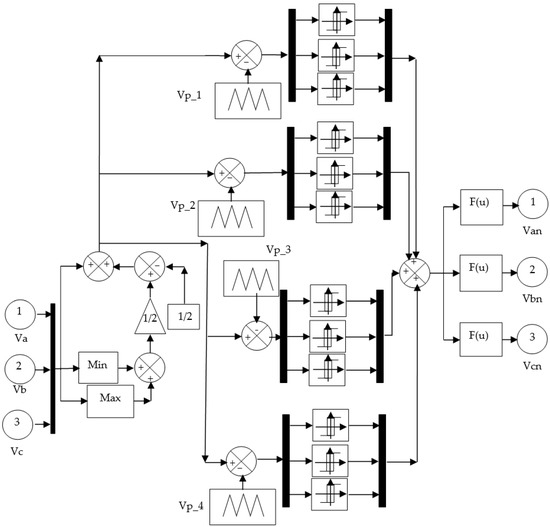

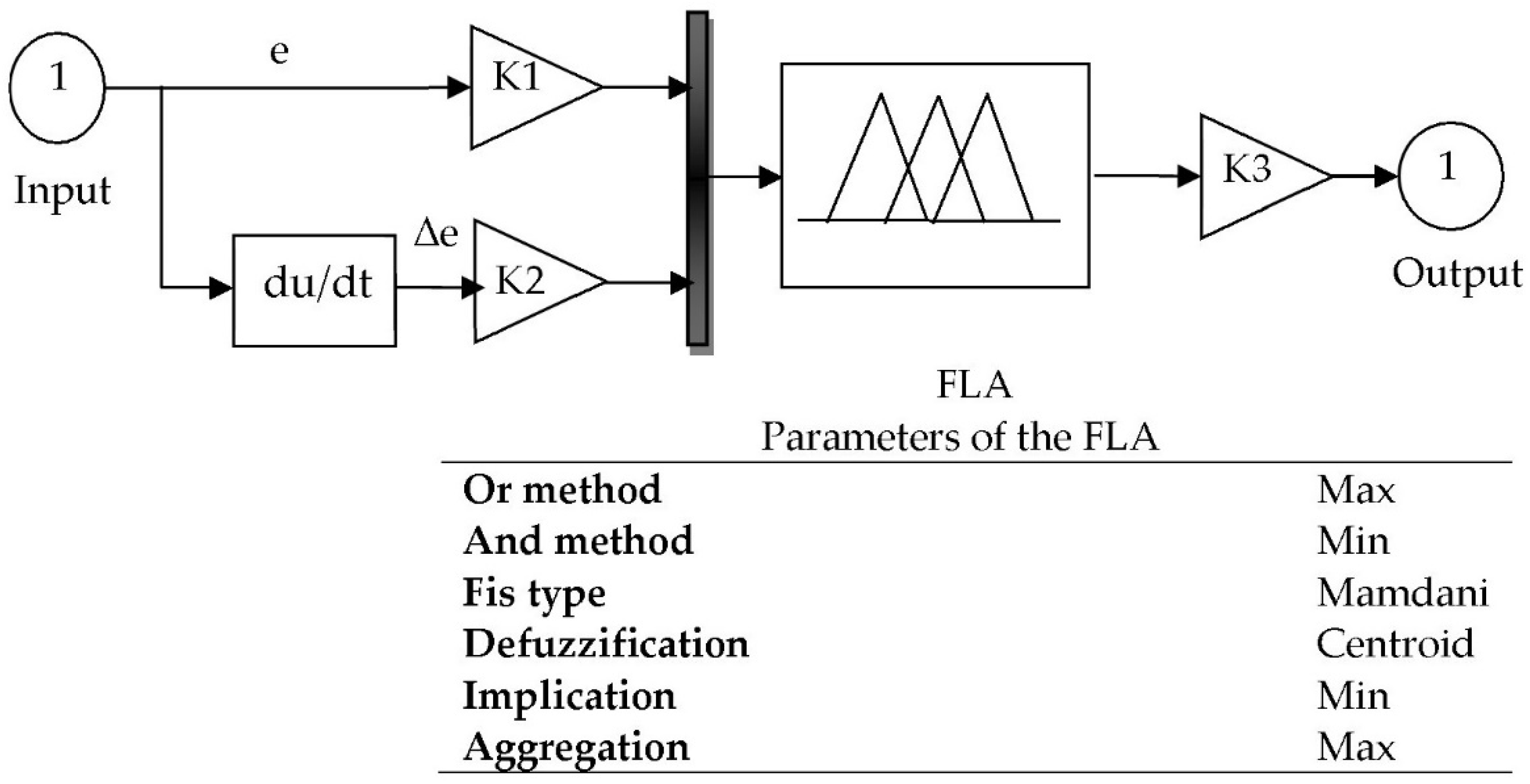

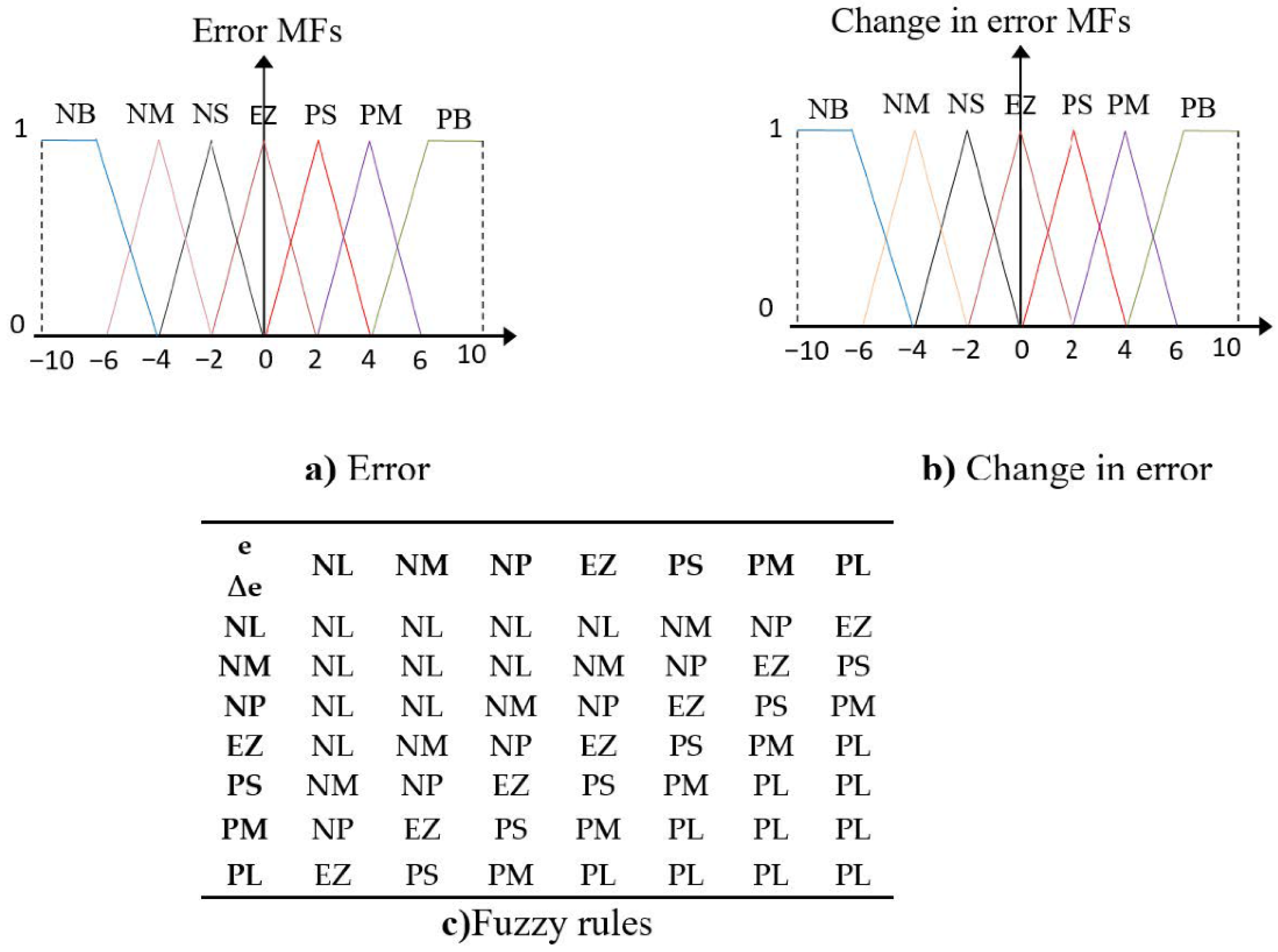

## 4. Proposed Five-Level Fuzzy SVM Strategy

_{1}, K

_{2}, and K

_{3}) are used to improve the response and adjust the response of fuzzy logic. The characteristics of the FLA method used to improve the performance and effectiveness of the proposed five-level SVM technique are shown in the bottom of the Figure 6. The type of fuzzy controller used in this work is the Mamdani controller.

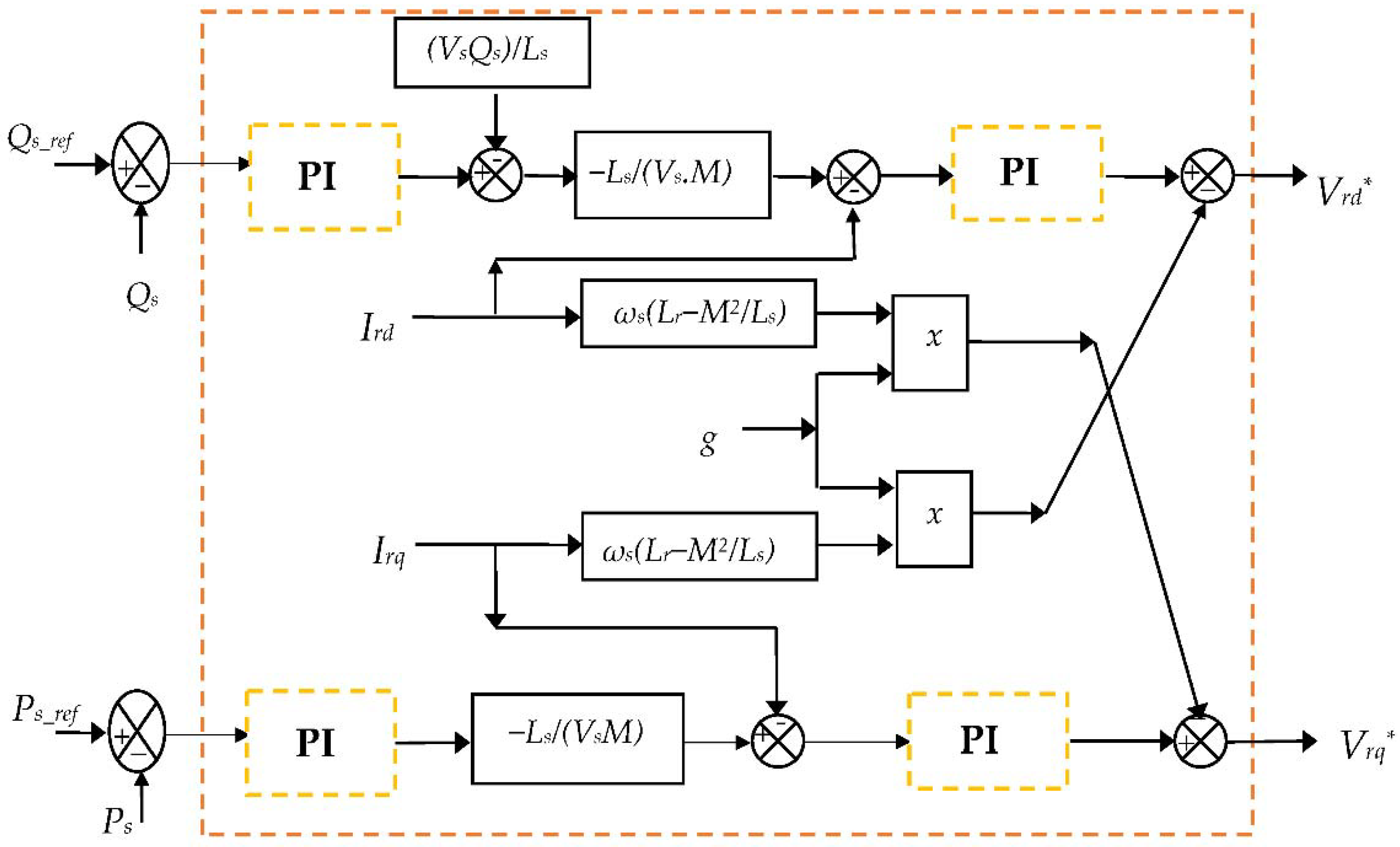

## 5. Traditional IFOC Strategy

_{qr}* and V

_{dr}*).

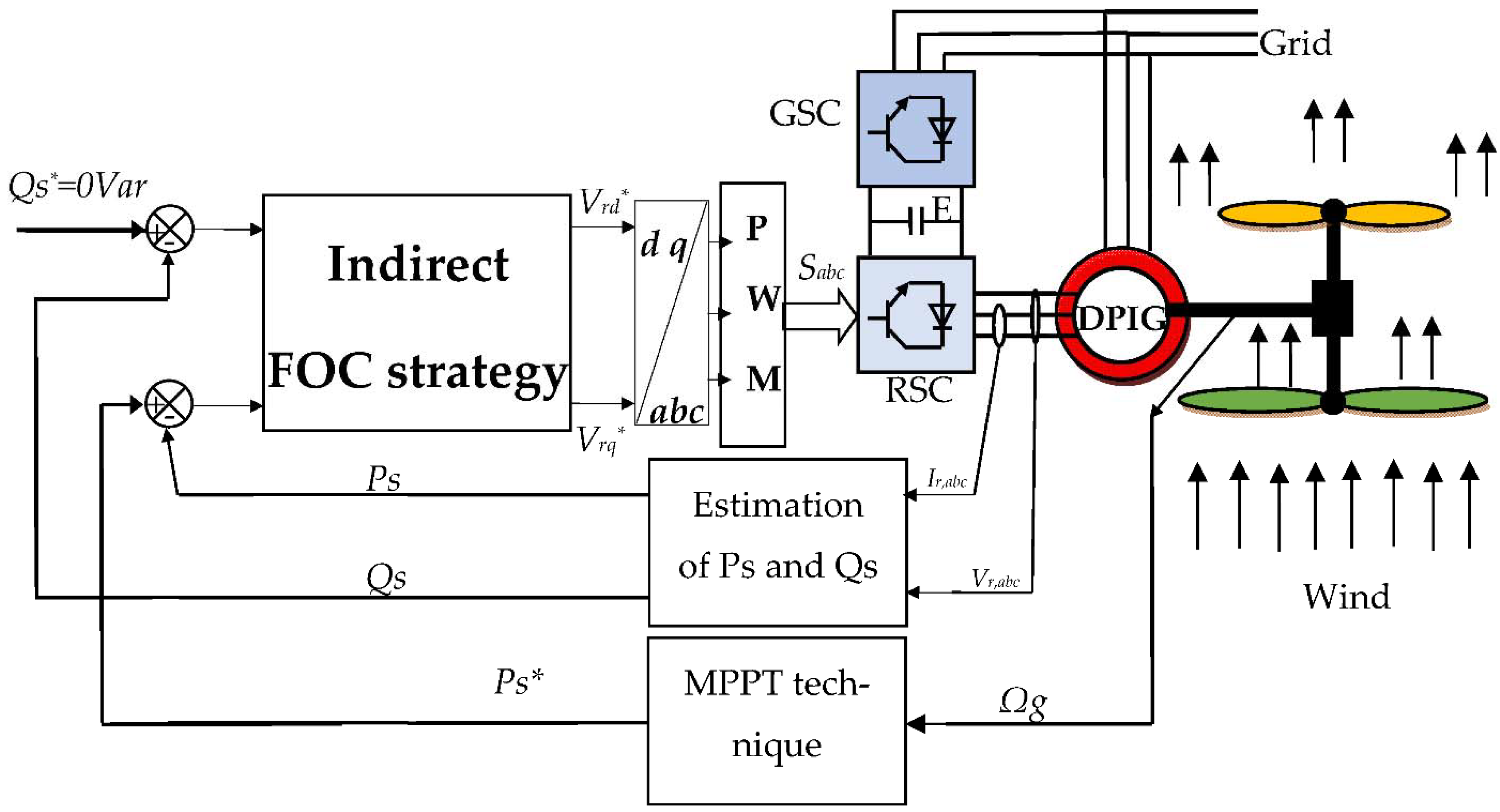

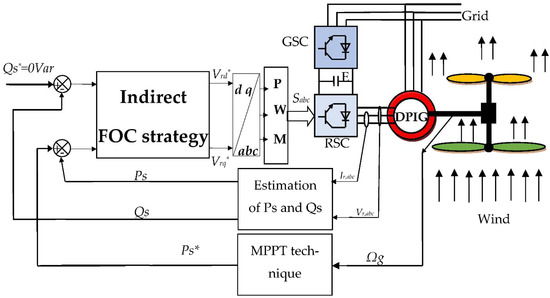

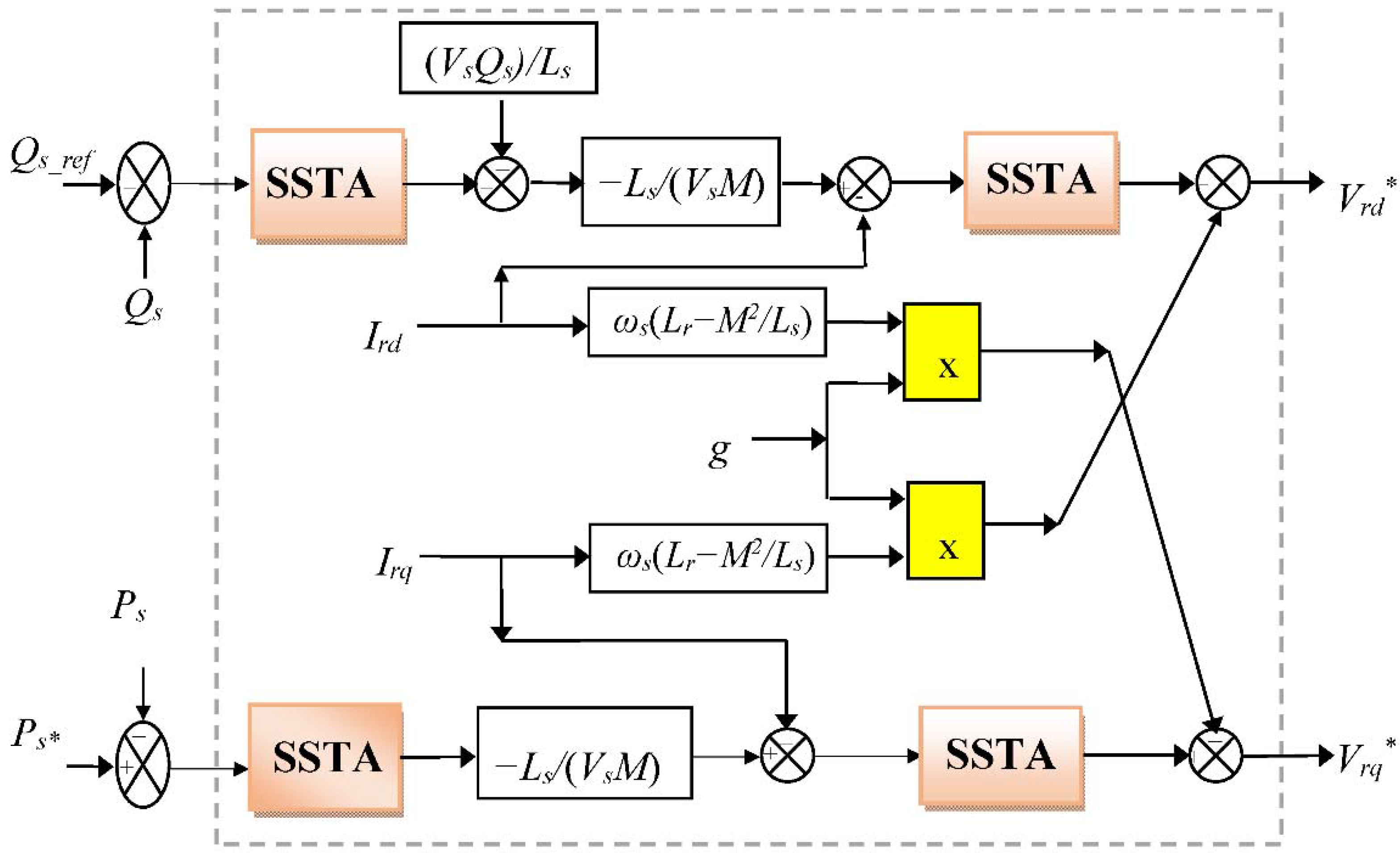

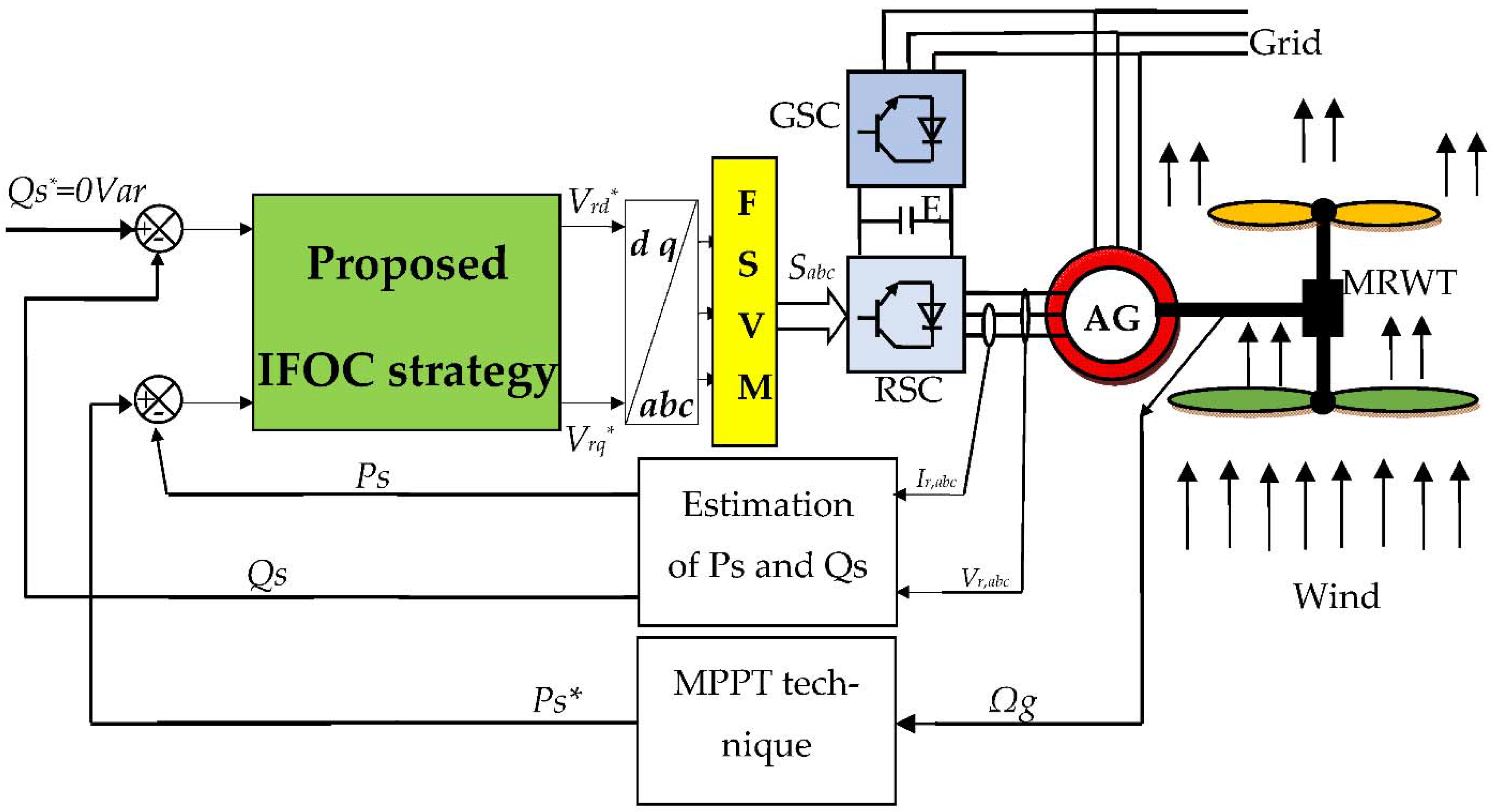

## 6. Proposed Indirect FOC Strategy

_{qr}* and V

_{dr}* from active and reactive power references for the inverter DPIG control. Controlling the latter very well leads to obtaining a high quality of stator current and active power. On the other hand, the reactive power reference is set to zero. As for the reference value of the active power, it is obtained using the maximum power point tracking (MPPT) technique. The system studied using the proposed indirect FOC method is represented in Figure 12, where almost the same structure as the classical indirect FOC method is preserved.

## 7. Results

_{s}= 0.012 Ω, L

_{r}= 0.0136 H, L

_{m}= 0.0135 H, p = 2, J = 1000 kg·m

^{2}, P

_{sn}= 1.5 MW, R

_{r}= 0.021 Ω, L

_{s}= 0.0137 H, and f

_{r}= 0.0024 N·m/s [35].

_{1}= 13.2 m, R

_{2}= 25.5 m, r

_{1}= 1 m, r

_{2}= 0.5 m, r

_{g}= 0.75 m, J

_{1}= 500 kg·m

^{2}, J

_{2}= 1000 kg·m

^{2}, G

_{1}= r

_{1}/r

_{g}, and G

_{2}= r

_{2}/r

_{g}.

#### 7.1. First Test

#### 7.2. Second Test

## 8. Conclusions

- A new fuzzy SVM technology was introduced to control the five-level inverter to give a constant frequency at the inverter output, with this method confirmed by numerical simulation.
- A new simplified STA controller was proposed in this paper.
- A new indirect FOC strategy based on the simplified STA controller and the proposed five-level fuzzy SVM technique was presented and confirmed with numerical simulation.
- The robustness of the proposed indirect FOC strategy was presented.
- The characteristics of the designed indirect FOC strategy was analyzed, showing that the undulations of the reactive power, stator current, torque, and active power were minimized.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Mohamed Ahmed, S.A.; Montaser Abd El Sattar, M.A. Dynamic Performance and Effectiveness of Voltage Disturbances on the Improvement of Power Quality for Grid-Connected DFIG System Based Wind Farm. J. Electr. Eng. Electron. Control. Comput. Sci.
**2020**, 5, 25–30. Available online: https://jeeeccs.net/index.php/journal/article/view/126 (accessed on 9 April 2022). - Talla, J.; Leu, V.Q.; Šmídl, V.; Peroutka, Z. Adaptive Speed Control of Induction Motor Drive With Inaccurate Model. IEEE Trans. Ind. Electron.
**2018**, 65, 8532–8542. [Google Scholar] [CrossRef] - Wolkiewicz, M.; Tarchała, G.; Orłowska-Kowalska, T.; Kowalski, C.T. Online Stator Interturn Short Circuits Monitoring in the DFOC Induction-Motor Drive. IEEE Trans. Ind. Electron.
**2016**, 63, 2517–2528. [Google Scholar] [CrossRef] - Candelo-Zuluaga, C.; Riba, J.-R.; Garcia, A. PMSM Parameter Estimation for Sensorless FOC Based on Differential Power Factor. IEEE Trans. Instrum. Meas.
**2021**, 70, 1–12. [Google Scholar] [CrossRef] - Alexandrou, A.D.; Adamopoulos, N.K.; Kladas, A.G. Development of a Constant Switching Frequency Deadbeat Predictive Control Technique for Field-Oriented Synchronous Permanent-Magnet Motor Drive. IEEE Trans. Ind. Electron.
**2016**, 63, 5167–5175. [Google Scholar] [CrossRef] - Amrane, F.; Chaiba, A.; Babes, B.E.; Mekhilef, S. Design and implementation of high performance field oriented control for grid-connected doubly fed induction generator via hysteresis rotor current controller. Rev. Roum. Sci. Tech.-Electrotech. Energ
**2016**, 61, 319–324. [Google Scholar] - Eltamaly, A.M.; Al-Saud, M.; Sayed, K.; Abo-Khalil, A.G. Sensorless active and reactive control for DFIG wind turbines using opposition-based learning technique. Sustainability
**2020**, 12, 3583. [Google Scholar] [CrossRef] - Habib, B.; Lemdani, S. Combining synergetic control and super twisting algorithm to reduce the active power undulations of doubly fed induction generator for dual-rotor wind turbine system. Electr. Eng. Electromech.
**2021**, 2021, 8–17. [Google Scholar] - Benbouhenni, H.; Bizon, N. A Synergetic Sliding Mode Controller Applied to Direct Field-Oriented Control of Induction Generator-Based Variable Speed Dual-Rotor Wind Turbines. Energies
**2021**, 14, 4437. [Google Scholar] [CrossRef] - Habib, B. Application of STA methods and modified SVM strategy in direct vector control system of ASG integrated to dual-rotor wind power: Simulation studies. Int. J. Smart Grid
**2021**, 5, 62–72. [Google Scholar] - Habib, B. Amelioration effectiveness of torque and rotor flux control applied to the asynchronous generator (AG) for dual-rotor wind turbine using neural third-order sliding mode approaches. Int. J. Eng. Trans. C: Asp.
**2022**, 35, 517–530. [Google Scholar] - Benbouhenni, H.; Bizon, N. Terminal Synergetic Control for Direct Active and Reactive Powers in Asynchronous Generator-Based Dual-Rotor Wind Power Systems. Electronics
**2021**, 10, 1880. [Google Scholar] [CrossRef] - Amrane, F.; Chaiba, A. A novel direct power control for grid-connected doubly fed induction generator based on hybrid artificial intelligent control with space vector modulation. Rev. Sci. Tech.-Electrotech. Et Energ.
**2016**, 61, 263–268. [Google Scholar] - Brando, G.; Dannier, A.; Spina, I. Performance Analysis of a Full Order Sensorless Control Adaptive Observer for Doubly-Fed Induction Generator in Grid Connected Operation. Energies
**2021**, 14, 1254. [Google Scholar] [CrossRef] - Yahdou, A.; Hemici, B.; Boudjema, Z. Second order sliding mode control of a dual-rotor wind turbine system by employing a matrix converter. J. Electr. Eng.
**2016**, 16, 1–11. [Google Scholar] - Erturk, E.; Sivrioglu, S.; Bolat, F.C. Analysis Model of a Small Scale Counter-Rotating Dual Rotor Wind Turbine with Double Rotational Generator Armature. Int. J. Renew. Energy Res.
**2018**, 8, 1849–1858. [Google Scholar] - Fukami, T.; Momiyama, M.; Shima, K.; Hanaoka, R.; Takata, S. Steady-State Analysis of a Dual-Winding Reluctance Generator With a Multiple-Barrier Rotor. IEEE Trans. Energy Convers.
**2008**, 23, 492–498. [Google Scholar] [CrossRef] - Worku, M.Y.; Hassan, M.A.; Abido, M.A. Real Time-Based under Frequency Control and Energy Management of Microgrids. Electronics
**2020**, 9, 1487. [Google Scholar] [CrossRef] - Wang, L.; Kerrouche, K.D.E.; Mezouar, A.; Van Den Bossche, A.; Draou, A.; Boumediene, L. Feasibility Study of Wind Farm Grid-Connected Project in Algeria under Grid Fault Conditions Using D-Facts Devices. Appl. Sci.
**2018**, 8, 2250. [Google Scholar] [CrossRef] [Green Version] - Han, Y.; Ma, R. Adaptive-Gain Second-Order Sliding Mode Direct Power Control for Wind-Turbine-Driven DFIG under Balanced and Unbalanced Grid Voltage. Energies
**2019**, 12, 3886. [Google Scholar] [CrossRef] [Green Version] - Alhato, M.M.; Ibrahim, M.N.; Rezk, H.; Bouallègue, S. An Enhanced DC-Link Voltage Response for Wind-Driven Doubly Fed Induction Generator Using Adaptive Fuzzy Extended State Observer and Sliding Mode Control. Mathematics
**2021**, 9, 963. [Google Scholar] [CrossRef] - Alhato, M.M.; Bouallègue, S.; Rezk, H. Modeling and Performance Improvement of Direct Power Control of Doubly-Fed Induction Generator Based Wind Turbine through Second-Order Sliding Mode Control Approach. Mathematics
**2020**, 8, 2012. [Google Scholar] [CrossRef] - Djilali, L.; Badillo-Olvera, A.; Rios, Y.Y.; López-Beltrán, H.; Saihi, L. Neural High Order Sliding Mode Control for Doubly Fed Induction Generator based Wind Turbines. IEEE Lat. Am. Trans.
**2022**, 20, 223–232. [Google Scholar] [CrossRef] - Halabi, L.M.; Alsofyani, I.M.; Lee, K.-B. Multi Open-/Short-Circuit Fault-Tolerance Using Modified SVM Technique for Three-Level HANPC Converters. IEEE Trans. Power Electron.
**2021**, 36, 13621–13633. [Google Scholar] [CrossRef] - Habib, B. Utilization of an ANFIS-STSM algorithm to minimize total harmonic distortion. Int. J. Smart Grid
**2020**, 4, 56–67. [Google Scholar] - Habib, B.; Boudjema, Z.; Belaidi, A. Direct power control with NSTSM algorithm for DFIG using SVPWM technique. Iranian J. Electr. Electron. Eng.
**2021**, 17, 1–11. [Google Scholar] - Habib, B.; Boudjema, Z.; Belaidi, A. Neuro-second order sliding mode control of a DFIG supplied by a two-level NSVM inverter for wind turbine system. Iran. J. Electr. Electron. Eng.
**2018**, 14, 362–373. [Google Scholar] - Fayssal, A.; Bruno, F.; Azeddine, C. Experimental investigation of efficient and simple wind-turbine based on DFIG-direct power control using LCL-filter for stand-alone mode. ISA Trans. 2021; 1–34, in press. [Google Scholar] [CrossRef]
- Evangelista, C.; Valenciaga, F.; Puleston, P. Active and Reactive Power Control for Wind Turbine Based on a MIMO 2-Sliding Mode Algorithm With Variable Gains. IEEE Trans. Energy Convers.
**2013**, 28, 682–689. [Google Scholar] [CrossRef] - Habib, B.; Boudjema, Z.; Belaidi, A. Indirect vector control of a DFIG supplied by a two-level FSVM inverter for wind turbine system. Majlesi J. Electr. Eng.
**2019**, 13, 45–54. [Google Scholar] - Tang, Z.; Akin, B. A New LMS Algorithm Based Deadtime Compensation Method for PMSM FOC Drives. IEEE Trans. Ind. Appl.
**2018**, 54, 6472–6484. [Google Scholar] [CrossRef] - Yahdou, A.; Djilali, A.B.; Boudjema, Z.; Mehedi, F. Improved Vector Control of a Counter-Rotating Wind Turbine System Using Adaptive Backstepping Sliding Mode. J. Eur. Des Systèmes Autom.
**2020**, 53, 645–651. [Google Scholar] [CrossRef] - Boulaam, K.; Mekhilef, A. Output power control of a variable wind energy conversion system. Rev. Sci. Techn.-Electrotech. Energ.
**2017**, 62, 197–202. [Google Scholar] - Pan, L.; Zhu, Z.; Xiong, Y.; Shao, J. Integral Sliding Mode Control for Maximum Power Point Tracking in DFIG Based Floating Offshore Wind Turbine and Power to Gas. Processes
**2021**, 9, 1016. [Google Scholar] [CrossRef] - Yahdou, A.; Hemici, B.; Boudjema, Z. Sliding mode control of dual rotor wind turbine system. Mediterr. J. Meas. Control
**2015**, 11, 412–419. [Google Scholar] - Ibrahim, Y.; Semmah, A.; Patrice, W. Neuro-Second Order Sliding Mode Control of a DFIG based Wind Turbine System. J. Electr. Electron. Eng.
**2020**, 13, 63–68. [Google Scholar] - Hamid, C.; Aziz, D.; Eddine, C.S.; Othmane, Z.; Mohammed, T.; Hasnae, E. Integral sliding mode control for DFIG based WECS with MPPT based on artificial neural network under a real wind profile. Energy Rep.
**2021**, 7, 4809–4824. [Google Scholar] [CrossRef] - Ayrira, W.; Ourahoua, M.; El Hassounia, B.; Haddib, A. Direct torque control improvement of a variable speed DFIG based on a fuzzy inference system. Math. Comput. Simul.
**2020**, 167, 308–324. [Google Scholar] [CrossRef] - Beniss, M.A.; El Moussaoui, H.; Lamhamdi, T.; El Markhi, H. Improvement of power quality injected into the grid by using a FOSMC-DPC for doubly fed induction generator. Int. J. Intell. Eng. Syst.
**2021**, 14, 556–567. [Google Scholar] [CrossRef] - Quan, Y.; Hang, L.; He, Y.; Zhang, Y. Multi-Resonant-Based Sliding Mode Control of DFIG-Based Wind System under Unbalanced and Harmonic Network Conditions. Appl. Sci.
**2019**, 9, 1124. [Google Scholar] [CrossRef] [Green Version] - Zeghdi, Z.; Barazane, L.; Bekakra, Y.; Larbi, A. Improved backstepping control of a DFIG based wind energy conversion system using ant lion optimizer algorithm. Period. Polytech. Electr. Eng. Comput. Sci.
**2022**, 66, 1–17. [Google Scholar] [CrossRef] - Boudjema, Z.; Taleb, R.; Djerriri, Y.; Yahdou, A. A novel direct torque control using second order continuous sliding mode of a doubly fed induction generator for a wind energy conversion system. Turk. J. Elec-Trical Eng. Comput. Sci.
**2017**, 25, 965–975. [Google Scholar] [CrossRef] [Green Version] - El Ouanjli, N.; Aziz, D.; El Ghzizal, A.; Mohammed, T.; Youness, E.; Khalid, M.; Badre, B. Direct torque control of doubly fed induction motor using three-level NPC inverter. Prot. Control Mod. Power Syst.
**2019**, 17, 1–9. [Google Scholar] [CrossRef] [Green Version] - Benbouhenni, H.; Bizon, N. Advanced direct vector control method for optimizing the operation of a double-powered induction generator-based dual-rotor wind turbine system. Mathematics
**2021**, 9, 2297. [Google Scholar] [CrossRef] - Yaichi, I.; Semmah, A.; Wira, P.; Djeriri, Y. Super-twisting sliding mode control of a doubly-fed induction generator based on the SVM strategy. Period. Polytech. Electr. Eng. Comput. Sci.
**2019**, 63, 178–190. [Google Scholar] [CrossRef] - Benbouhenni, H. Synergetic control theory scheme for asynchronous generator based dual-rotor wind power. J. Electr. Eng. Electron. Control. Comput. Sci.
**2021**, 7, 19–28. Available online: https://jeeeccs.net/index.php/journal/article/view/215 (accessed on 9 April 2022). - Nnem, L.N.; Lonla, B.L.; Sonfack, G.B.; Mbih, J. Review of a Multipurpose Duty-Cycle Modulation Technology in Electrical and Electronics Engineering. J. Electr. Eng. Electron. Control Comput. Sci.
**2018**, 4, 9–18. Available online: https://jeeeccs.net/index.php/journal/article/view/101 (accessed on 9 April 2022).

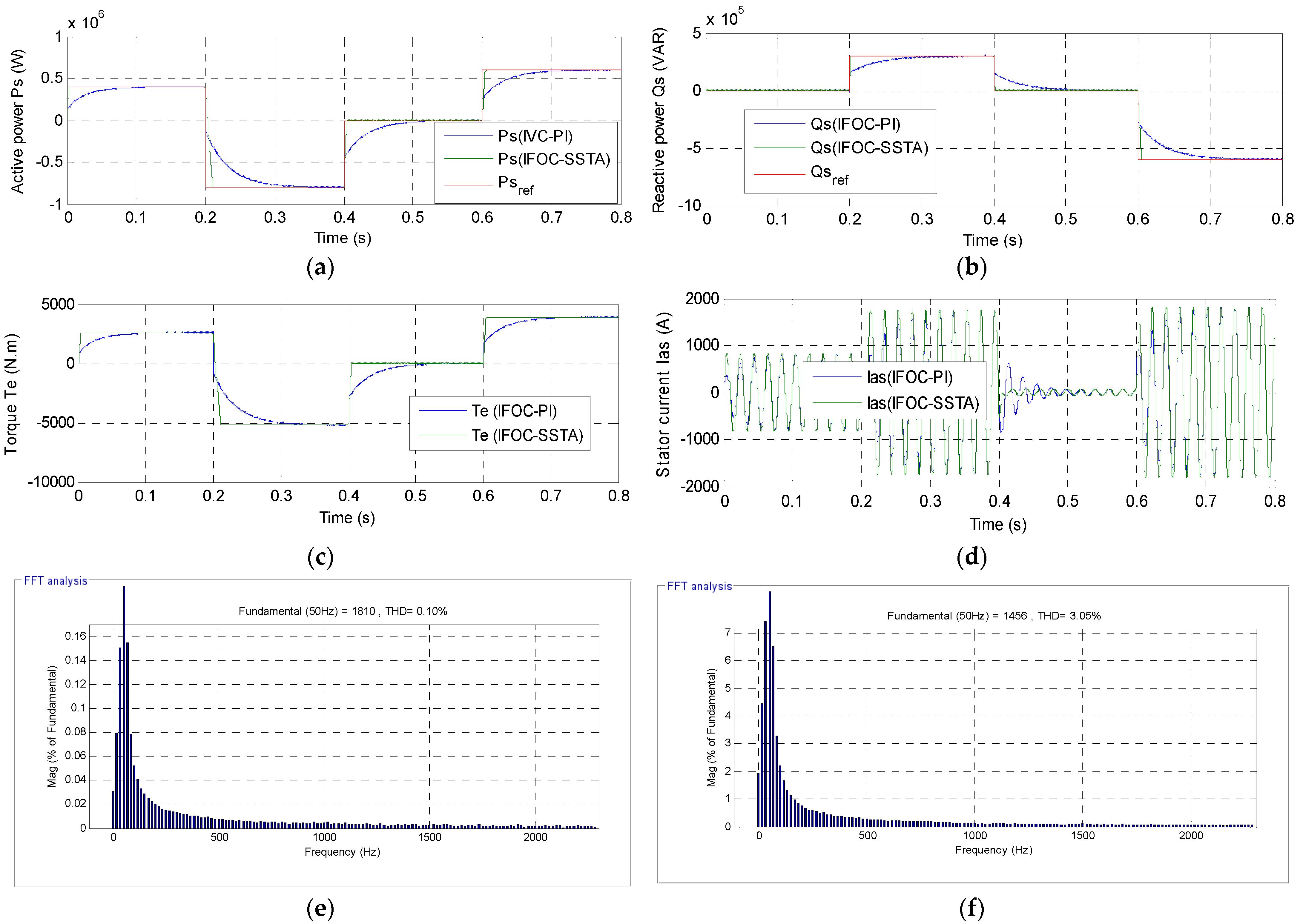

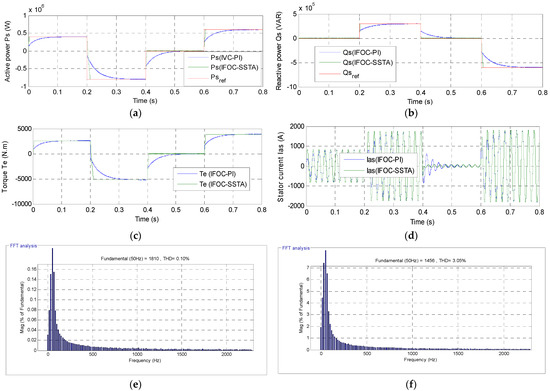

**Figure 13.**First test results. (

**a**) Active power; (

**b**) Reactive power; (

**c**) Torque; (

**d**) Stator current; (

**e**) THD value of stator current (IFOC-SSTA strategy); (

**f**) THD value of stator current (IFOC strategy).

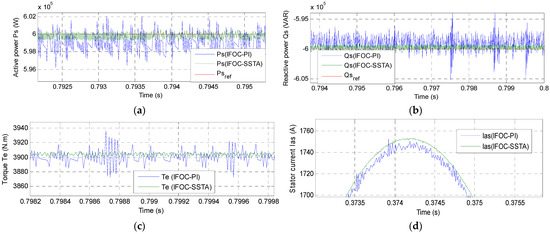

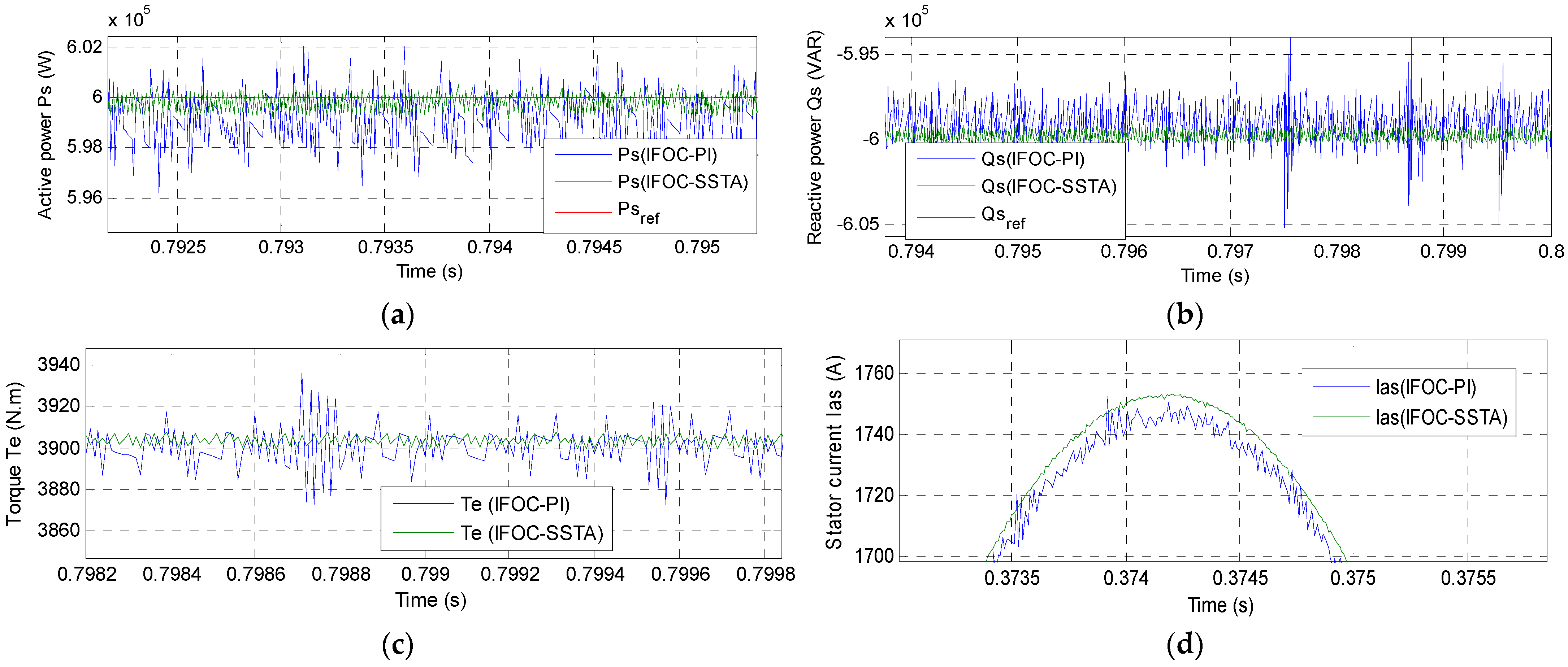

**Figure 14.**Zoom in the first test results. (

**a**) Active power; (

**b**) Reactive power; (

**c**) Torque; (

**d**) Stator current.

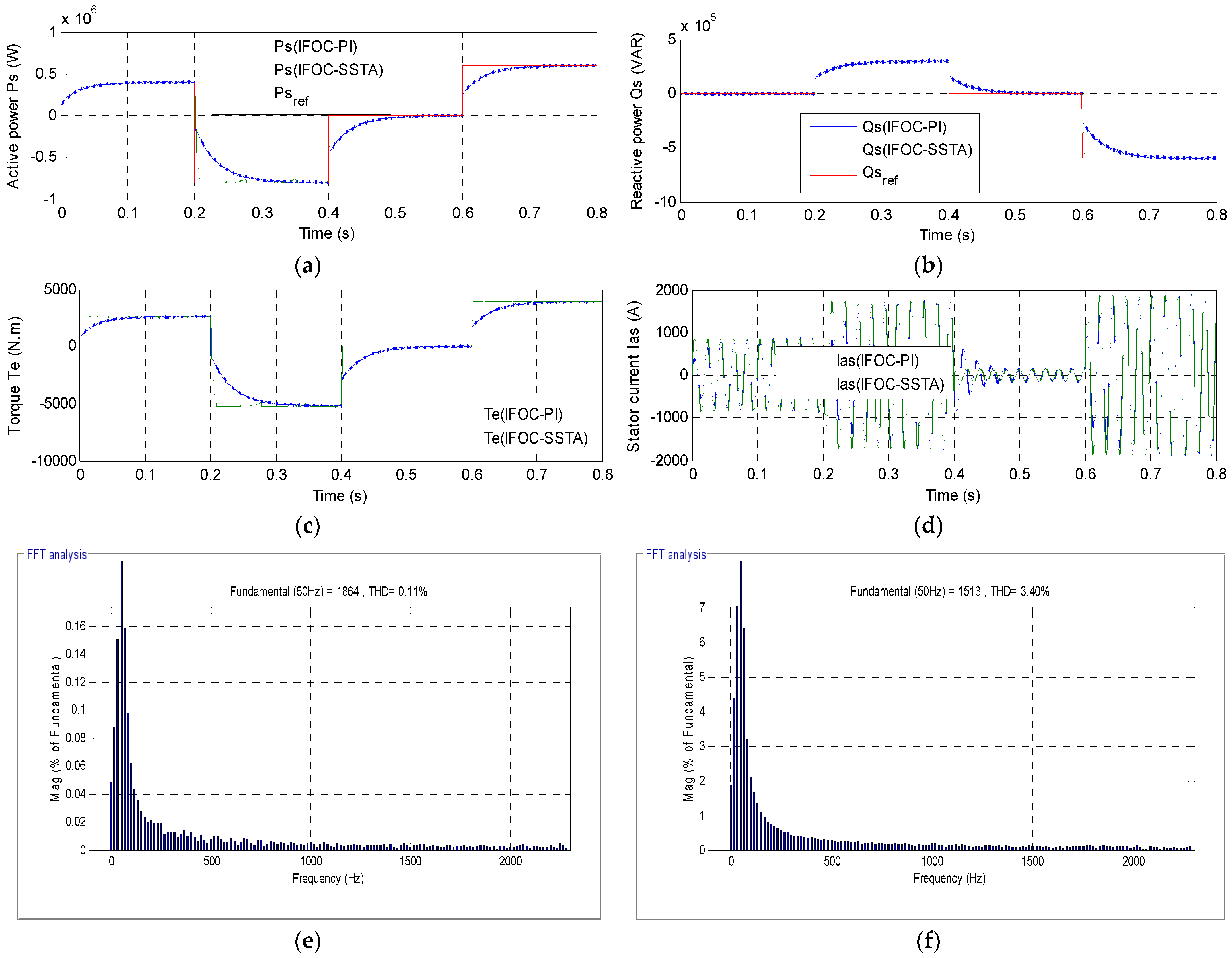

**Figure 15.**Second test results. (

**a**) Active power; (

**b**) Reactive power; (

**c**) Torque; (

**d**) Stator current; (

**e**) THD value of current (IFOC-SSTA strategy); (

**f**) THD value of current (IFOC strategy).

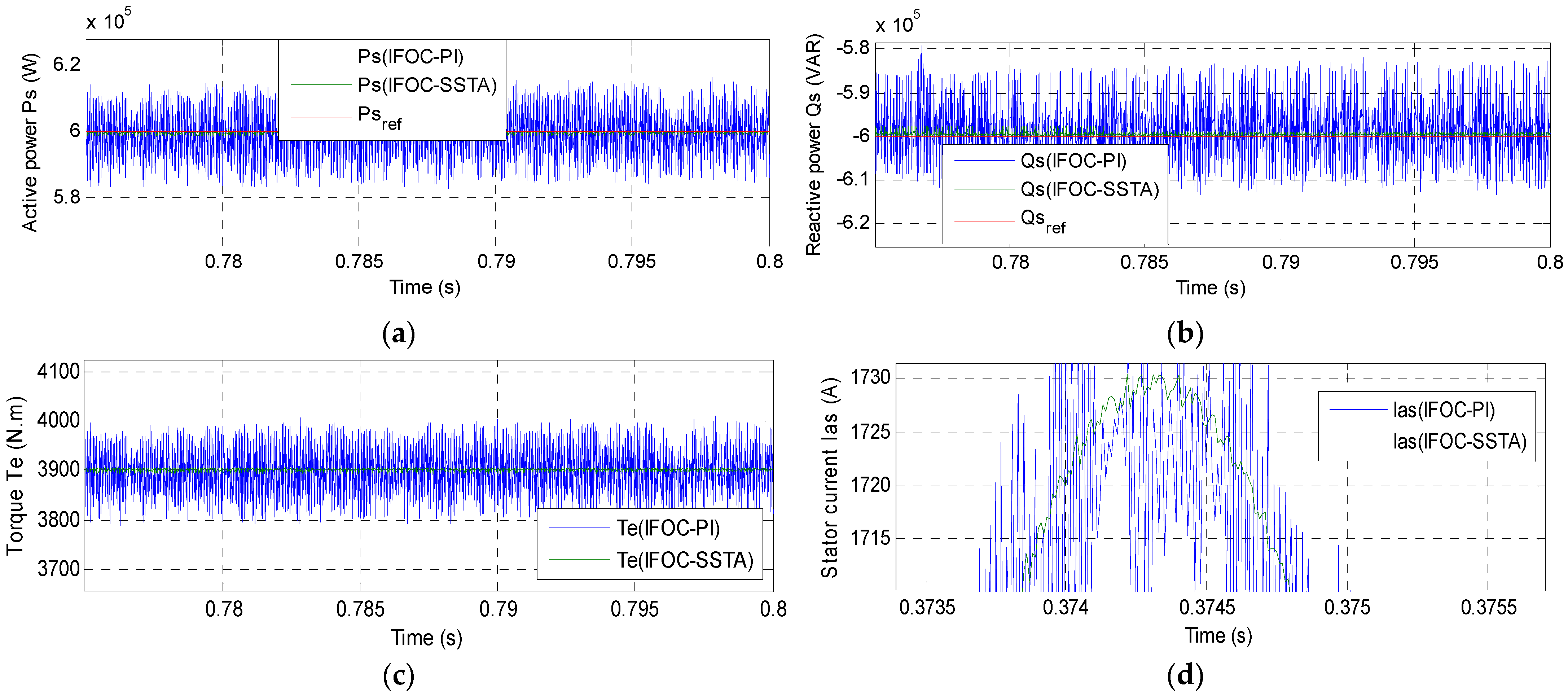

**Figure 16.**Zoom in the second test results. (

**a**) Active power; (

**b**) Reactive power; (

**c**) Torque; (

**d**) Stator current.

Traditional Indirect FOC Technique | Proposed Indirect FOC Technique | |
---|---|---|

Type controller used | PI controller | SSTA controller |

Rise time | High | Low |

Modulation | PWM | Fuzzy SVM |

Degree of complexity | Medium | High |

Ease | Medium | Complicated |

Simplicity of implementation | Medium | Complicated |

Response dynamic | Slow | Quick |

Robustness | Low | High |

THD | High | Low |

Power ripple | High | Low |

Classical IFOC Technique | Proposed IFOC Technique | Ratios | |
---|---|---|---|

Torque ripple (N·m) | Around 60 | Around 5 | 91.66% |

Reactive power ripple (VAR) | Around 8000 | Around 500 | 93.75% |

Active power ripple (W) | Around 10,000 | Around 880 | 91.20% |

Stator current (A) | Around 19 | Around 3 | 84.21% |

Response Time | |||
---|---|---|---|

Torque | Reactive Power | Active Power | |

Classical IFOC strategy | 0.12 s | 0.13 s | 0.12 s |

Proposed IFOC strategy | 2.95 ms | 0.0023 s | 2.95 ms |

Ratios | 97.54% | 98.23% | 97.54% |

Response Time | ||||
---|---|---|---|---|

Torque | Reactive Power | Active Power | ||

Proposed technique: IFOC-SSTA | 2.95 ms | 0.0023 s | 2.95 ms | |

[36] | Direct power control | 18 ms | 17 ms | 18 ms |

Neuro-second order SMC technique | 5 ms | 9 ms | 5 ms |

Traditional IFOC Strategy | Designed IFOC Technique | Ratios | |
---|---|---|---|

Torque ripple (N·m) | Around 172 | Around 11.60 | 93.35% |

Reactive power ripple (VAR) | Around 25,000 | Around 500 | 98% |

Active power ripple (W) | Around 30,000 | Around 5000 | 83.33% |

Stator current (A) | Around 40 | Around 5 | 87.50% |

References | Techniques | THD (%) |
---|---|---|

[37] | Field-oriented control with PI controllers | 0.77 |

Super twisting algorithm (STA) | 0.28 | |

[38] | Fuzzy DTC strategy | 2.40 |

[39] | Fractional-order sliding mode control | 1.31 |

[40] | Integral SMC technique | 9.71 |

Multi-resonant-based sliding mode controller (MRSMC) | 3.14 | |

[41] | Backstepping control | 2.19 |

[6] | Field-oriented control | 3.7 |

[12] | DPC control with PI controllers | 0.46 |

DPC control with terminal synergetic controllers | 0.25 | |

[42] | Direct torque control with second-order continuous SMC technique | 0.78 |

[28] | DPC control with integral-proportional controllers | 0.43 |

[9] | DFOC control with PI controllers | 1.45 |

DFOC control with synergetic- SMC technique | 0.50 | |

[13] | Field-oriented control with neuro-fuzzy controller | 0.78 |

Field-oriented control with type-2 fuzzy logic controllers | 1.14 | |

[43] | Multilevel DTC strategy | 1.57 |

[32] | Vector control | 2.20 |

Adaptive backstepping sliding mode control | 1.15 | |

[44] | Traditional direct vector control | 1.65 |

[45] | DPC with sliding mode controller | 1.66 |

DPC with super twisting sliding mode controller | 0.11 | |

Proposed IFOC strategy | First test | 0.10 |

Second test | 0.11 |
