Article

Using Tree Height, Crown Area and Stand-Level Parameters to Estimate Tree Diameter, Volume, and Biomass of Pinus radiata, Eucalyptus globulus and Eucalyptus nitens

1
Department of Forest Engineering, Resources and Management, College of Forestry, Oregon State University, Corvallis, OR 97331, USA
2
Departamento de Ecosistemas y Medio Ambiente, Facultad de Agronomía e Ingeniería Forestal, Pontificia Universidad Católica de Chile, Santiago 7820436, Chile
3
Centro Nacional de Excelencia para la Industria de la Madera (CENAMAD), Pontificia Universidad Católica de Chile, Santiago 7820436, Chile
4
Centro UC de Innovación en Madera, Pontificia Universidad Católica de Chile, Santiago 7820436, Chile
5
Facultad de Ciencias Forestales y Recursos Naturales, Universidad Austral de Chile, Valdivia 5110566, Chile
6
Forestal Mininco SpA, CMPC, Los Ángeles 4440000, Chile
7
Washington State Department of Natural Resources, Olympia, WA 98504, USA
*
Author to whom correspondence should be addressed.
Forests 2022, 13(12), 2043; https://doi.org/10.3390/f13122043
Submission received: 24 October 2022 / Revised: 23 November 2022 / Accepted: 26 November 2022 / Published: 1 December 2022
(This article belongs to the Special Issue Assessment of Forest Biomass Using Inventory Plots and Modeling)

Abstract

:
Accurate estimates of tree diameter, height, volume, and biomass are important for numerous economic and ecological applications. In this study, we report exponential equations to predict tree DBH (cm), stem volume over bark (VOB, m3), and total above-stump biomass (TASB, kg) using three varying levels of input data for Pinus radiata D. Don, Eucalyptus globulus Labill., and Eucalyptus nitens (H.Deane & Maiden) Maiden planted trees. The three sets of input data included: (1) tree height (HT, m), (2) tree HT and ground projected living crown area (CA, m2), and (3) tree HT, CA, and additional stand parameters. The analysis was performed using a large dataset covering the range of distribution of the species in central Chile and included stands of varying ages and planting densities. The first set of equations using only HT were satisfactory with Adj-R2 values ranging from 0.78 to 0.98 across all species and variables. For all three species, estimation of DBH, VOB, and TASB as a function of HT improved when CA was added as an additional independent variable, increasing Adj-R2 and reducing RMSE. The inclusion of stand variables, such as age and stand density, also resulted in further improvement in model performance. The models reported in this study are a robust alternative for DBH, VOB, and TASB estimations on planted stands across a wide range of ages and densities, when height and CA are known, especially when input data are derived from remote sensing techniques.

1. Introduction

Accurate estimates of tree diameter, height, volume, and biomass are important for numerous economic and ecological applications, such as describing stand structure, determining the merchantability of stands, and calculating the carbon stock of forests [1,2]. Historically, these metrics have been determined through a combination of direct field sampling and allometric equations. Forest inventories typically involve field-based measurements of tree height and diameter and allometric equations to predict tree biomass from these measurements [3,4]. Conducting inventories of a large number of individual trees, however, can be an expensive and a time-consuming process [5]. Tree height can often be especially difficult to measure at a large scale and, due to this, foresters often use allometric equations to predict tree height from tree diameter at breast height (DBH) [4]. Recently, there has been a growing interest in the use of remote sensing as an alternative to field-based forest inventories due to the lower labor requirements of the former. Remote sensing also offers the advantage of providing estimates of forest characteristics at larger spatial and temporal scales [6].
Light detection and ranging (LiDAR) and aerial photogrammetry (AP) are remote sensing techniques well suited to characterizing numerous tree characteristics, such as height, crown area, crown height, leaf area, and aboveground biomass [7,8,9,10,11,12]. These techniques can provide accurate estimates of individual tree height; however, tree DBH is not directly imaged by LiDAR or AP. Therefore, in order for LiDAR or AP to estimate aboveground biomass, equations to derive tree DBH from other tree and stand variables must be used, as individual tree biomass equations typically require DBH [11]. Research has shown that tree DBH is well correlated with crown radius and stem height [13,14,15,16,17,18]. It is also likely that the inclusion of stand-level variables could improve DBH prediction equations, as crown, stem, and stand attributes are interrelated [16,19].With the proper algorithms, LiDAR or AP can also provide estimates of stand density using individual tree detection and crown delineation [20,21].
Equations to predict tree DBH from tree height and stand parameters has been reported for several important tree species [5,11,22,23,24]; however, there is currently limited information for Eucalyptus globulus Labill. (E. globulus), Eucalyptus nitens (H.Deane & Maiden) Maiden (E. nitens), and Pinus radiata D. Don (P. radiata). Furthermore, the functions reported by Bi et al. [22] for P. radiata use only tree height to estimate DBH and do not include crown area or any stand attribute.
Traditional inventory data are often the key input used for silvicultural decision making, harvesting planning, growth projections, site quality assessments, fuel evaluations, and risks assessments, among other uses. The use of unmanned aerial vehicles (UAVs) with Lidar, RGB, and/or multispectral cameras, however, is becoming an increasingly useful tool for forest monitoring [25], allowing for larger scale, more frequent, and lower cost assessments, in comparison with traditional ground-based forest inventories. This is particularly true in regions with poor accessibility. Advancements in remote sensing now allows for the observation of structural, compositional, and functional forest attributes in near-real-time, which will enable more agile, adaptive, and efficient silviculture [26], which is important under the present circumstances of changing social and environmental conditions. Therefore, it is important to incorporate the new information acquired by these new techniques into decision support systems that have historically relied on traditional inventory data.
The species in this study represent the most important commercial tree species in Chile and many other countries due to their high yield and plasticity across a wide range of environmental conditions [27,28]. There are over two million ha of P. radiata and Eucalyptus plantations in Chile alone [29]. Developing equations to predict the DBH, volume, and biomass of these species from LiDAR (or other remote sensing techniques), the estimated height would prove valuable for estimating the merchantability of stands and determining the amount of carbon sequestration provided by plantations, especially considering the extent of these species across the world.
The main objective of this study was to produce equations to estimate DBH, stem volume, and whole-tree above-stump biomass for individual E. globulus, E. nitens, and P. radiata trees using tree height, crown area, and stand attributes as independent variables. The specific objectives were (1) to develop equations for the three species to predict tree DBH, stem volume, and whole-tree above-stump biomass using height alone; (2) to determine if the inclusion of crown area in these functions improved model predictions; and (3) to assess if the inclusion of stand level attributes generates further improvements in the prediction functions.

2. Materials and Methods

2.1. Data Description

The dataset used in this study was previously reported by Gonzalez-Benecke et al. [30] and consisted of two sources previously used to publish general biomass and volume functions in Chile [31,32] and unpublished data provided by the Chilean forestry company CMPC. The dataset consisted of 200 E. globulus, 119 E. nitens, and 316 P. radiata trees measured at 22 (E. globulus), 20 (E. nitens), and 55 (P. radiata) sites, respectively. The data were collected under different site, age, and management conditions, reflecting a variety of silvicultural inputs (planting density, soil preparation, fertilization, weed control, and thinning), site characteristics (physiographic region, soil type, and climate), genetics, and developmental stage. The stand characteristics at the time of sampling were thought to integrate differences in allometry due to varying silviculture practices, site qualities, and stand ages. Details on site conditions and sampling procedures can be found in each of the publications previously mentioned. Sample trees included the range of sizes encountered at each study.
The data covered the geographic range where the species are planted in central Chile (Figure 1), spanning 750 km from North to South. The climate ranged between warm-summer Mediterranean (Csb) and temperate oceanic (Cfb) climates. The range of rainfall was between 660 and 2280 mm year−1 and mean annual temperatures ranged between 10.4 to 14 °C [33]. Trees ages ranged from 2 to 13 (E. globulus), 2 to 16 (E. nitens), and 1 to 24 (P. radiata) years old with diameter outside bark at 1.3 m height (DBH, cm) and total height (HT, m) ranging between 2.1 to 48.5 cm and 1.3 to 39.0 m, respectively (Table 1).
The dataset had several tree-level attributes, including DBH, HT, living crown width (CW, m), dry weight of the whole-tree above-stump biomass (TASB, kg), and total stem volume over bark (VOB, m3). CW was measured in two opposite directions and ground projected living crown area (CA, m2) was calculated based on CW measurements assuming the shape as an ellipse. Further details on TASB determination can be found in Gonzalez-Benecke et al. [30]. In addition to tree-level attributes, the dataset also contained several stand-level attributes, including the number of living trees per hectare (TPH, ha−1) and stand age (AGE, years) (Table 1). TPH was not obtained for 3 stands of E. globulus, 4 stands of E. nitens, and 6 stands of P. radiata. Site index (SI) was not available as a stand-level attribute. A comparison among species for the general relationships of HT and CA with DBH, TASB, and VOB is presented in Figure 2.

2.2. Model Description

We defined three sets of equations to estimate DBH, VOB, and TASB that depended on data availability.
Set I. When only HT is known:
The model to estimate DBH, VOB, and TASB when only HT is known was:
DBH   = a 1 · ( HT 1.3 ) a 2 + ε i
TASB ,   VOB   = a 1 · ( HT a 2 ) + ε i
where a1 and a2 are curve fit parameter estimates, and ε i is the error term, with ε i ~N(0, σi2).
Set II: When HT and CA are known:
The model to estimate DBH, VOB, and TASB when HT and CA are known was:
DBH = b 1 · ( HT 1.3 ) b 2 · ( CA b 3 ) + ε i
TASB ,   VOB = b 1 · ( HT   b 2 ) · ( CA b 3 ) + ε i
where b1 to b3 are curve fit parameter estimates, and ε i is the error term, with ε i ~N(0, σi2).
Set III: When HT, CA, AGE, and TPH are known:
Model fitting was conducted for all equations that include AGE and/or TPH in addition to HT and CA. Within each species and for each of the DBH/biomass/volume components, the model with significant parameters estimates for AGE and/or TPH with the lowest AIC was finally selected. In order to detect multicollinearity among explanatory variables, the variance inflation factor (VIF) was monitored, discarding variables included in the model with VIF larger than 5 [34].
For E. globulus, the models to estimate DBH, VOB, and TASB when HT, CA, and the stand-level variables AGE and TPH are known were:
DBH   = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( AGE c 4 ) + ε i
TASB ,   VOB = c 1 · ( HT   c 2 ) · ( CA c 3 ) · ( AGE c 4 ) · ( TPH c 5 ) + ε i
For E. nitens, the models to estimate DBH, VOB, and TASB when HT, CA, and the stand-level variables AGE and TPH are known were:
DBH   = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( TPH c 5 ) + ε i
TASB   = c 1 · ( HT   c 2 ) · ( CA c 3 ) · ( AGE c 4 ) · ( TPH c 5 ) + ε i
VOB = c 1 · ( HT   c 2 ) · ( CA c 3 ) · ( AGE c 4 ) + ε i
For P. radiata, the models to estimate DBH, VOB, and TASB when HT, CA, and the stand-level variables AGE and TPH are known were:
DBH   = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( TPH c 5 ) + ε i
TASB   = c 1 · ( HT   c 2 ) · ( CA c 3 ) · ( AGE c 4 ) · ( TPH c 5 ) + ε i
VOB   = c 1 · ( HT   c 2 ) · ( CA c 3 ) · ( TPH c 5 ) + ε i
where c1 to c6 are curve fit parameter estimates, and ε i is the error term, with ε i ~N(0, σi2).

2.3. Model Fitting and Evaluation

All statistical analyses were performed using SAS 9.4 (SAS Inc., Cary, NC, USA). For all parameter estimates reported, non-linear model fitting was carried out using the procedure PROC NLIN. As the number of sampled trees per plot was seven or less trees, plot effect was not included in the analysis as we assumed that trees were taken from spatially independent locations. We used a 10-fold cross validation [34] to evaluate the predictive ability of all equations, randomly splitting the dataset into 10 subsets with approximately equal numbers of observations. In the 10-fold cross validation two measures of accuracy were used for each variable: (i) root mean square difference (RMSD) and (ii) mean bias error (Bias, predicted-observed).

3. Results

3.1. Model Fitting

The prediction equations and parameter estimates to calculate DBH, TASB, and VOB using tree HT, CA, and stand-level parameters for E. globulus, E. nitens, and P. radiata trees growing in central Chile are presented in Table 2, Table 3 and Table 4. All parameter estimates were significant at p < 0.05. The models to calculate DBH, TASB, and VOB using tree HT alone (model set I) had satisfactory predictive power for all species and variables. The models to estimate DBH from HT alone showed a better fit than for TASB and VOB with Adj-R2 values ranging from 0.933 for E. globulus to 0.975 for P. radiata. The Adj-R2 values for TASB and VOB were still high for all species ranging from 0.784 (VOB for E. globulus) to 0.901 (VOB for P. radiata).
For E. globulus, the models to estimate DBH, TASB, and VOB that use only HT (model set I) were improved when CA was included (model set II) (Table 2). For example, when CA was included for DBH, the Adj-R2 increased from 0.933 to 0.953, the RMSE decreased from 3.85 to 3.24 cm, and the coefficient of variation of the RMSE (CV) decreased from 29% to 24%. For TASB and VOB, the Adj-R2 increased from 0.813 to 0.833 and from 0.784 to 0.797 when CA was included, respectively. The RMSE also decreased from 78.4 to 74.0 kg, and from 0.127 to 0.123 m3, for TASB and VOB, respectively. When the stand attributes AGE, and/or TPH were included (model set III), further improvements were observed. For example, for DBH, the Adj-R2 increased to 0.956 and RMSE decreased to 3.12 cm. A similar trend was observed for TASB and VOB such that the Adj-R2 increased to 0.863 and 0.837, and RMSE decreased to 67.2 kg and 0.110 m3, respectively (Table 2). The parameter estimate for AGE was significant for all three traits, being always positive. The parameter estimate for TPH was only significant for TASB, being negative.
The models for estimating the DBH, TASB, and VOB of E. nitens were also improved when CA was included in addition to HT (model set II). When CA was included in the model to estimate TASB, the Adj-R2 increased from 0.864 to 0.898, the RMSE decreased from 95.8 to 83.1 kg, and the CV decreased from 53 to 46% (Table 3). For DBH and VOB, the Adj-R2 increased from 0.964 to 0.973 and from 0.881 to 0.915 while the RMSE decreased from 3.6 to 3.1 cm and from 0.130 to 0.110 m3, respectively. Similar to E. globulus, when the stand attributes AGE and/or TPH were also included (model set III), further improvements were observed. For example, for TASB, the Adj-R2 increased to 0.915, the RMSE decreased to 76.6 kg, and the CV decreased to 42.5%. A similar trend was observed for VOB with the Adj-R2 increasing to 0.920 while the RMSE decreased to 0.107 m3 (Table 3). For DBH, even though the parameter estimate for TPH was significant, it produced little improvement in model performance. When significant, the parameter estimate for TPH was negative. By contrast, when significant, the parameter estimate for AGE was positive.
The dataset of P. radiata included 116 pruned and 200 unpruned trees. Covariance test showed no effect of pruning condition on the relationship between CA and both DBH and HT (p > 0.137). Based on those results, we decided to fit a single function for both pruned and unpruned P. radiata trees. Similar to the other species, the models to estimate the DBH, TASB, and VOB of P. radiata that used only HT (model set I) were improved when CA was included (model set II) (Table 4). For example, when CA was included in the model to estimate VOB, the Adj-R2 increased from 0.901 to 0.947, the RMSE decreased from 0.232 to 0.170 m3, and the CV decreased from 44 to 33%. DBH and TASB also showed improvements, with Adj-R2 increasing from 0.975 to 0.986 and from 0.890 to 0.952 while RMSE decreased from 4.01 to 3.05 cm and from 109.9 to 76.6 kg, respectively (Table 4). For TASB, further improvement was observed when the stand attributes AGE and TPH were also included (model set III), with Adj-R2 increasing to 0.952 and RMSE decreased to 73.4 kg. For DBH and VOB, little improvement was observed when the stand attributes AGE and/or TPH were included. The parameter estimate for TPH was significant for all variables, being always negative. When significant, the parameter estimate for AGE was negative.

3.2. Model Evaluation

Figure 3 shows examples of model evaluation for the DBH/VOB/TASB estimations for all three species. Scatterplots of the observed against the predicted values for all three variables in model set I revealed significant heteroscedasticity, such that prediction errors tended to increase with tree size (upper panel in Figure 3). When CA was included in addition to HT (model set II), the heteroscedasticity was not observed (center panel in Figure 3). Further improvement was observed when AGE and/or TPH were included (model set III), such that the variability of DBH, TASB, and VOB was similar across the range of predicted values (bottom panel in Figure 3).
A summary of the 10-fold cross validation test used for all selected models is shown in Table 5. There was good agreement between observed and predicted values across all variables for all three species. For the models to estimate DBH/VOB/TASB using only HT as the explanatory variable (model set I), bias ranged between an 8.5% underestimation for VOB of E. globulus to a 2.4% overestimation for VOB of E. nitens. Estimates agreed better with observed values when CA was included (model set II). For example, for VOB, the RMSD was reduced from 75.6, 47.6, and 43.2% (model V1) to 72.6, 36.2, and 31.3% (model V2) for E. globulus, E. nitens, and P. radiata, respectively. For TASB, the RMSD was reduced from 67.8, 48.3, and 44.8% (model B1) to 63.2, 39.3, and 31.0% (model B2) for E. globulus, E. nitens, and P. radiata, respectively. Further improvement was observed when AGE and/or TPH were added to the model that already included HT and CA (model set III). For example, for DBH, the RMSD was reduced from 23.8, 15.9, and 12.8% (model D2) to 23.2, 15.7, and 12.8% (model D3) for E. globulus, E. nitens, and P. radiata, respectively. Including stand variables AGE and/or TPH had little effect on model bias for all three species.

4. Discussion

The presented functions provided adequate estimates of E. globulus, E. nitens, and P. radiata for DBH, TASB, and VOB using various combinations of tree height, crown area, and stand parameters, such as age and stocking. The dataset used in this analysis included a large number of individual trees with a wide range of sizes over a large geographical area in central Chile with varying soils, climates, and productivities. The dataset for P. radiata included pruned and unpruned trees and the reported functions were fit using both pruned and unpruned trees as we found no effect of the pruning condition on the relationship between CA and DBH and HT. The stands where tree measurements were collected also represent a wide range of ages, stocking levels, and basal areas. Due to this, we are confident that the presented functions may be applied to stands planted with these species across a broad range of sites with varying environmental and management conditions. Furthermore, the height data included in our dataset was measured directly as trees were felled for destructive sampling and, therefore, avoided potential errors associated with other methods of measuring tree height [7]. When combined with LiDAR or other remote sensing techniques capable of estimating tree height, the simple inputs, generality, and accuracy of the presented functions provide a powerful tool for assessing tree diameter, aboveground biomass, and stem volume over a large geographic area.
Three sets of functions were presented for each species and variable that varied in the number of inputs required allowing for the selection of different functions depending on desired accuracy and available inputs. The functions using only HT to predict DBH were able to explain 93%–98% of the variability in field measured DBH. This is higher than the Adj-R2 of 0.77 reported by Gonzalez-Benecke et al. [5] for P. palustris but similar to the R2 values reported by Filipescu et al. for several conifer species, which ranged between 0.84–0.91 [24]. The functions in model set I did demonstrate some degree of heteroscedasticity such that prediction errors increased with increasing tree size. This is likely due to the fact that trees tend to plateau in height as they age while continuing to grow in diameter, an effect that has been observed for several tree species [22,23]. When CA was added to the prediction function, there was no longer heteroscedasticity likely due to trees continuing to increase in crown area as they age even while HT plateaus, at least for the range of data included in this study.
The inclusion of CA increased the accuracy of the prediction functions for all the species in this study. This effect was also seen to a much greater degree in Gonzalez-Benecke et al. [5] where the Adj-R2 of functions to predict the DBH of P. palustris increased from 0.77 to 0.90 when CA was included in addition to HT. The Adj-R2 of the functions to estimate tree DBH from HT and CA in this study (0.96–0.99) were higher than those reported elsewhere [5,11,18].
The inclusion of stand variables further improved the accuracy of the prediction functions, although to a lesser degree than the inclusion of CA. The effect of TPH and AGE on DBH was significant for all species with the exception of AGE for E. globulus. When significant, the parameter estimates for AGE were always positive, indicating that older trees of the same HT and CA would have larger DBH (and, hence, VOB and TASB) or higher wood density. When significant, the parameter estimates for TPH were always negative, indicating that trees of the same HT, CA, and AGE would have smaller DBH (and, hence, VOB and TASB) as stand density increases. A similar effect was reported by Pinkard and Neilsen [35] for E. nitens, who reported smaller TASB for trees growing in denser stands. It is possible that the inclusion of stand variables that reflect site quality, such as site index or dominant height, could further improve the functions, as these factors have been shown to be important by others [5]. Unfortunately, we were not able to include either site index or dominant height into the dataset. Nevertheless, the Adj-R2 of the presented functions that included AGE/TPH was already high (0.86–0.98).
The accuracy and precision of the functions to estimate tree TASB were lower than for DBH, but still had Adj-R2 values above 0.81. The functions to estimate TASB from HT alone had an average Adj-R2 of 0.85, which was improved to 0.89 when CA was included. This effect was most pronounced for P. radiata. Our Adj-R2 values are similar to the value of 0.87 reported by Popescu [11] for estimating the biomass of P. taeda from LiDAR derived measurements. Similar to DBH, the TASB functions were improved by including stand variables, although to a lesser degree than including CA. The effect of AGE on TASB was significant and positive for all species, reflecting that trees increase in biomass as they age. When significant (E. globulus and P. radiata), the effect of TPH on TASB was negative reflecting that, for a given HT, the biomass of individual trees of these species decreased with increasing stocking density. The lack of significance of TPH on E. nitens may be an effect of the reduced range of stocking on the stands of E. nitens sampled, where TPH varied between 919 and 1408 trees ha−1, a smaller span when compared to E. globulus (625–1960 trees ha−1) or P. radiata (220–1600 trees ha−1). It is worth noting that Eucalyptus stands in Chile are managed mainly for pulp production and stands with densities outside the observed ranges are unusual [36,37].
Similar to DBH and TASB, the functions to estimate VOB were improved by adding CA and, to a lesser degree, stand variables. This effect was also seen in Gonzalez-Benecke et al. [5]. The only stand variable that was significant for E. globulus and E. nitens was AGE, which was positive and reflects the increases in stem volume seen as trees age. For P. radiata, TPH was significant and negative reflecting that trees of a given HT tend to have lower VOB when growing at higher densities. The wide range of stocking for P. radiata sampled stands, where TPH ranged between 220 and 1600 trees ha−1, contributed to capture this effect. In Chile, P. radiata stands are commonly managed with one or two thinnings, with standard planting density of about 1250 to 1667 trees ha−1, reaching a final stocking between 300 to 500 trees ha−1 on thinned stands [37,38].

5. Conclusions

The reported functions have many important economic and ecological applications, especially when combined with remote sensing techniques capable of estimating tree height and projected crown area. Potential uses include estimating timber appraisal and the carbon stock of forest ecosystems, determining feedstocks for bioenergy production [39,40,41], evaluating fire hazard [42,43], and assessing the risk of soil erosion [40].
Even though the extensive model fitting dataset used in this study gives us confidence that the equations can be used over a wide range of sites and management conditions, we recommend using these equations within the range of the dataset shown in Table 2. These new equations are intended as a tool to support and guide management decisions for the three species. The integration of these functions with remote sensing techniques into stand-level productivity models should enhance the flexibility and strength of the DBH, volume, and biomass predictions from those models, at a larger scale and in a more time efficient way. Future research is planned in order to use the equations for estimating stand basal area, volume, and biomass using LiDAR data.

Author Contributions

C.A.G.-B. and M.G.W. analyzed the data and wrote the paper. M.P.F., J.G. and M.P. leaded field measurements and wrote the paper. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this work was provided in part by Chilean National Commission for Scientific and Technological Research with ANID BASAL FB210015 Project Grant, and by Marie Skłodowska-Curie Research and Innovation Staff Exchange (Call:H2020-MSCARISE-2020) grant number 101007950 (Decision ES: Decision Support for the Supply of Ecosystem Services under Global Change). Funding was also provided by the Forest Engineering, Resources and Management Department at Oregon State University.

Data Availability Statement

Data may be available upon request to the authors.

Acknowledgments

The authors thank all persons who helped to collect the biomass data used in this study, including landowners and field crews. We acknowledge the support provided by Forestal Mininco SpA. CMPC Chile.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tomppo, E.; Heikkinen, J.; Henttonen, H.M.; Ihalainen, A.; Katila, M.; Mäkelä, H.; Tuomainen, T.; Vainikainen, N. Designing and Conducting a Forest Inventory—Case: 9th National Forest Inventory of Finland Managing Forest Ecosystems, 1st ed.; Springer: Dordrecht, The Netherlands, 2011; Volume 3, pp. 93–174. [Google Scholar]
  2. Didion, M.; Herold, A.; Thürig, E. Swiss National Inventory—Methods and Models of the Fourth Assessment. In Proceedings of the Managing Forest Ecosystems 35; Fischer, C., Traub, B., Eds.; Springer: Berlin/Heidelberg, Germany, 2019; pp. 243–248. [Google Scholar]
  3. Satoo, T.; Madwick, H.A. Forest Biomass, Forestry Science; Springer: Dordrecht, The Netherlands, 1982. [Google Scholar]
  4. Burkhart, H.E.; Tomé, M. Modeling Forest Trees and Stands; Springer: Dordrecht, The Netherlands, 2012; Volume 9789048131709. [Google Scholar]
  5. Gonzalez-Benecke, C.A.; Gezan, S.A.; Samuelson, L.J.; Cropper, W.P.; Leduc, D.J.; Martin, T.A. Estimating Pinus Palustris Tree Diameter and Stem Volume from Tree Height, Crown Area and Stand-Level Parameters. J. For. Res. 2014, 25, 43–52. [Google Scholar] [CrossRef]
  6. Du, L.; Zhou, T.; Zou, Z.; Zhao, X.; Huang, K.; Wu, H. Mapping Forest Biomass Using Remote Sensing and National Forest Inventory in China. Forests 2014, 5, 1267–1283. [Google Scholar] [CrossRef] [Green Version]
  7. Andersen, H.E.; Reutebuch, S.E.; McGaughey, R.J. A Rigorous Assessment of Tree Height Measurements Obtained Using Airborne Lidar and Conventional Field Methods. Can. J. Remote Sens. 2006, 32, 355–366. [Google Scholar] [CrossRef]
  8. Caccamo, G.; Iqbal, I.A.; Osborn, J.; Bi, H.; Arkley, K.; Melville, G.; Aurik, D.; Stone, C. Comparing Yield Estimates Derived from LiDAR and Aerial Photogrammetric Point-Cloud Data with Cut-to-Length Harvester Data in a Pinus radiata Plantation in Tasmania. Aust. For. 2018, 81, 131–141. [Google Scholar] [CrossRef]
  9. Dean, T.J.; Cao, Q.V.; Roberts, S.D.; Evans, D.L. Measuring Heights to Crown Base and Crown Median with LiDAR in a Mature, Even-Aged Loblolly Pine Stand. Ecol. Manag. 2009, 257, 126–133. [Google Scholar] [CrossRef]
  10. Lefsky, M.A.; Cohen, W.B.; Parker, G.G.; Harding, D.J. Lidar Remote Sensing for Ecosystem Studies. Bioscience 2002, 52, 19–30. [Google Scholar] [CrossRef]
  11. Popescu, S.C. Estimating Biomass of Individual Pine Trees Using Airborne Lidar. Biomass Bioenergy 2007, 31, 646–655. [Google Scholar] [CrossRef]
  12. Roberts, S.D.; Dean, T.J.; Evans, D.L.; McCombs, J.W.; Harrington, R.L.; Glass, P.A. Estimating Individual Tree Leaf Area in Loblolly Pine Plantations Using LiDAR-Derived Measurements of Height and Crown Dimensions. Ecol. Manag. 2005, 213, 54–70. [Google Scholar] [CrossRef]
  13. Arabatzis, A.A.; Burkhart, H.E. An Evaluation of Sampling Methods and Model Forms for Estimating Height-Diameter Relationships in Loblolly Pine Plantations. For. Sci. 1992, 38, 192–198. [Google Scholar]
  14. Gill, S.J.; Biging, G.S.; Murphy, E.C. Modeling Conifer Tree Crown Radius and Estimating Canopy Cover. Ecol. Manag. 2000, 126, 405–416. [Google Scholar] [CrossRef] [Green Version]
  15. Smith, W.R.; Farrar, R.M., Jr.; Murphy, P.A.; Yeiser, J.L.; Meldahl, R.S.; Kush, J.S. Crown and Basal Area Relationships of Open-Grown Southern Pines for Modeling Competition and Growth. .Can. J. For. Res. 1992, 22, 341–347. [Google Scholar] [CrossRef]
  16. Sprinz, P.T.; Burkhart, H.E. Relationships between Tree Crown, Stem, and Stand Characteristics in Unthinned Loblolly Pine Plantations. Can. J. For. Res. 1987, 17, 534–538. [Google Scholar] [CrossRef]
  17. Kuyah, S.; Muthuri, C.; Jamnadass, R.; Mwangi, P.; Neufeldt, H.; Dietz, J. Crown Area Allometries for Estimation of Aboveground Tree Biomass in Agricultural Landscapes of Western Kenya. Agrofor. Syst. 2012, 86, 267–277. [Google Scholar] [CrossRef]
  18. Jucker, T.; Caspersen, J.; Chave, J.; Antin, C.; Barbier, N.; Bongers, F.; Dalponte, M.; van Ewijk, K.Y.; Forrester, D.I.; Haeni, M.; et al. Allometric Equations for Integrating Remote Sensing Imagery into Forest Monitoring Programmes. Glob. Change Biol. 2017, 23, 177–190. [Google Scholar] [CrossRef] [Green Version]
  19. Forrester, D.I.; Wiedemann, J.C.; Forrester, R.I.; Baker, T.G. Effects of Planting Density and Site Quality on Mean Tree Size and Total Stand Growth of Eucalyptus Globulus Plantations. Can. J. For. Res. 2013, 43, 846–851. [Google Scholar] [CrossRef]
  20. Leite, R.V.; Silva, C.A.; Mohan, M.; Cardil, A.; de Almeida, D.R.A.; e Carvalho, S.d.P.C.; Jaafar, W.S.W.M.; Hernández, J.G.; Weiskittel, A.; Hudak, A.T.; et al. Individual Tree Attribute Estimation and Uniformity Assessment in Fast-Growing Eucalyptus Spp. Forest Plantations Using Lidar and Linear Mixed-Effects Models. Remote Sens. 2020, 12, 3599. [Google Scholar] [CrossRef]
  21. Silva, C.A.; Hudak, A.T.; Vierling, L.A.; Valbuena, R.; Cardil, A.; Mohan, M.; de Almeida, D.R.A.; Broadbent, E.N.; Almeyda, A.M.; Wilkinson, B.; et al. A Shiny-Based Application and R Package for Extracting Forest Information from LiDAR Data for Ecologists and Conservationists Treetop. Methods Ecol. Evol. 2022, 13, 1164–1176. [Google Scholar] [CrossRef]
  22. Bi, H.; Fox, J.C.; Li, Y.; Lei, Y.; Pang, Y. Evaluation of Nonlinear Equations for Predicting Diameter from Tree Height. Can. J. For. Res. 2012, 42, 789–806. [Google Scholar] [CrossRef]
  23. Kalliovirta, J.; Tokola, T. Functions for Estimating Stem Diameter and Tree Age Using Tree Height, Crown Width and Existing Stand Database Information. Silva. Fenn. 2005, 39, 227–248. [Google Scholar] [CrossRef] [Green Version]
  24. Filipescu, C.N.; Groot, A.; Maclsaac, D.A.; Cruickshank, M.G.; Stewart, J.D. Prediction of Diameter Using Height and Crown Attributes: A Case Study. West. J. Appl. For. 2012, 27, 30–35. [Google Scholar] [CrossRef] [Green Version]
  25. Ecke, S.; Dempewolf, J.; Frey, J.; Schwaller, A.; Endres, E.; Klemmt, H.J.; Tiede, D.; Seifert, T. UAV-Based Forest Health Monitoring: A Systematic Review. Remote Sens. 2022, 14, 3205. [Google Scholar] [CrossRef]
  26. Achim, A.; Moreau, G.; Coops, N.C.; Axelson, J.N.; Barrette, J.; Bédard, S.; Byrne, K.E.; Caspersen, J.; Dick, A.R.; D’Orangeville, L.; et al. The Changing Culture of Silviculture. Forestry 2022, 95, 143–152. [Google Scholar] [CrossRef]
  27. Álvarez, J.; Allen, H.L.; Albaugh, T.J.; Stape, J.L.; Bullock, B.P.; Song, C. Factors Influencing the Growth of Radiata Pine Plantations in Chile. Forestry 2013, 86, 13–26. [Google Scholar] [CrossRef] [Green Version]
  28. Flores, F.J.; Allen, H.L. Efectos Del Clima y Capacidad de Almacenamiento de Agua Del Suelo En La Productividad de Rodales de Pino Radiata En Chile: Un Análisis Utilizando El Modelo 3-PG. Bosque 2004, 25, 11–24. [Google Scholar] [CrossRef] [Green Version]
  29. INFOR. Chilean Forestry Sector 2020; Instituo Forestal, Ministerio de Agricultura: Santiago, Chile, 2020.
  30. Gonzalez-Benecke, C.A.; Fernández, M.P.; Albaugh, T.J.; Ahumada, R.; Bown, H.E.; Gayoso, J.; Gerding, V.; Mardones, O.B.; Rodríguez, A.R.; Rubilar, R. General Above-Stump Volume and Biomass Functions for Pinus radiata, Eucalyptus globulus and Eucalyptus nitens. Biomass Bioenergy 2021, 155, 106280. [Google Scholar] [CrossRef]
  31. Fernández, M.P.; Menéndez-Miguélez, M. How Environmental Variables Are Related to Shoot and Foliage Development and Wood Ring Formation: An Integrated Analysis for Functional-Structural Modeling Purposes. In Proceedings of the WCTE 2016—World Conference on Timber Engineering, Vienna, Austria, 22–25 August 2016. [Google Scholar]
  32. Gayoso, J.; Guerra, J.; Alarcón, D. Medición de La Capacidad de Captura de Carbono En Bosques de Chile y Promoción En El Mercado Mundial: Contenido de Carbono y Funciones de Biomasa En Especies Nativas y Exóticas. Universidad Austral de Chile. Informe Final, Proyecto FONDEF D98I1076; Universidad Austral: Valdivia, Chile, 2002. [Google Scholar]
  33. Explorador Climático. Available online: https://explorador.cr2.cl/ (accessed on 8 January 2022).
  34. Neter, J.; Kutner, M.H.; Nachtsheim, J.; Wasserman, W. Applied Linear Statistical Models, 4th ed.; Irwin: Chicago, IL, USA, 1996. [Google Scholar]
  35. Pinkard, E.A.; Neilsen, W.A. Crown and Stand Characteristics of Eucalyptus Nitens in Response to Initial Spacing: Implications for Thinning. Ecol. Manag. 2003, 172, 215–227. [Google Scholar] [CrossRef]
  36. Corvalán, P.; Hernández, J. Tablas de Rendimiento En Biomasa Aérea En Pie Para Plantaciones de Eucalyptus Globulus En Chile; Universidad de Chile: Santiago, Chile, 2012. [Google Scholar]
  37. Olmedo, G.F.; Guevara, M.; Gilabert, H.; Montes, C.R.; Arellano, E.C.; Barría-Knopf, B.; Gárate, F.; Mena-Quijada, P.; Acuña, E.; Bown, H.E.; et al. Baseline of Carbon Stocks in Pinus radiata and Eucalyptus Spp. Plantations of Chile. Forests 2020, 11, 1063. [Google Scholar] [CrossRef]
  38. Corvalán, P.; Hernández, J. Tablas de Estimación de Biomasa Aérea Bruta En Pie Para Plantaciones de Pino Insigne En Chile; Universidad de Chile: Santiago, Chile, 2011. [Google Scholar]
  39. Cartes-Rodríguez, E.; Rubilar-Pons, R.; Acuña-Carmona, E.; Cancino-Cancino, J.; Rodríguez-Toro, J.; Burgos-Tornería, Y. Potential of Pinus radiata Plantations for Use of Harvest Residues in Characteristic Soils of South-Central Chile. Rev. Chapingo Ser. Cienc. For. Ambiente 2016, XXII, 221–233. [Google Scholar] [CrossRef] [Green Version]
  40. Acuña, E.; Cancino, J.; Rubilar, R.; Parra, C. Bioethanol Potential from High Density Short Rotation Woody Crops on Marginal Lands in Central Chile. Cerne 2017, 23, 133–145. [Google Scholar] [CrossRef] [Green Version]
  41. Albaugh, T.J.; Rubilar, R.A.; Maier, C.A.; Acuña, E.A.; Cook, R.L. Biomass and Nutrient Mass of Acacia Dealbata and Eucalyptus Globulus Bioenergy Plantations. Biomass Bioenergy 2017, 97, 162–171. [Google Scholar] [CrossRef] [Green Version]
  42. Cruz, M.G.; Alexander, M.E.; Fernandes, P.A.M. Development of a Model System to Predict Wildfire Behaviour in Pine Plantations. Aust 2008, 71, 113–121. [Google Scholar] [CrossRef]
  43. Goodrick, S.L.; Stanturf, J.A. Evaluating Potential Changes in Fire Risk from Eucalyptus Plantings in the Southern United States. Int. J. For. Res. 2012, 2012, 680246. [Google Scholar] [CrossRef]

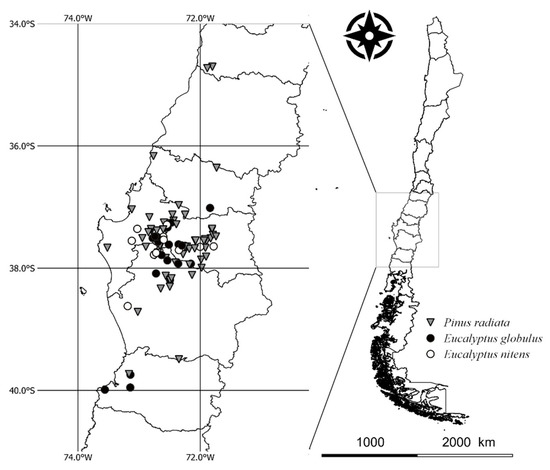

Figure 1. Location of sample sites for E. globulus (filled circle), E. nitens (open circle), and P. radiata (grey triangle) trees growing in central Chile (map includes administrative divisions of the country).
Figure 1. Location of sample sites for E. globulus (filled circle), E. nitens (open circle), and P. radiata (grey triangle) trees growing in central Chile (map includes administrative divisions of the country).
Forests 13 02043 g001

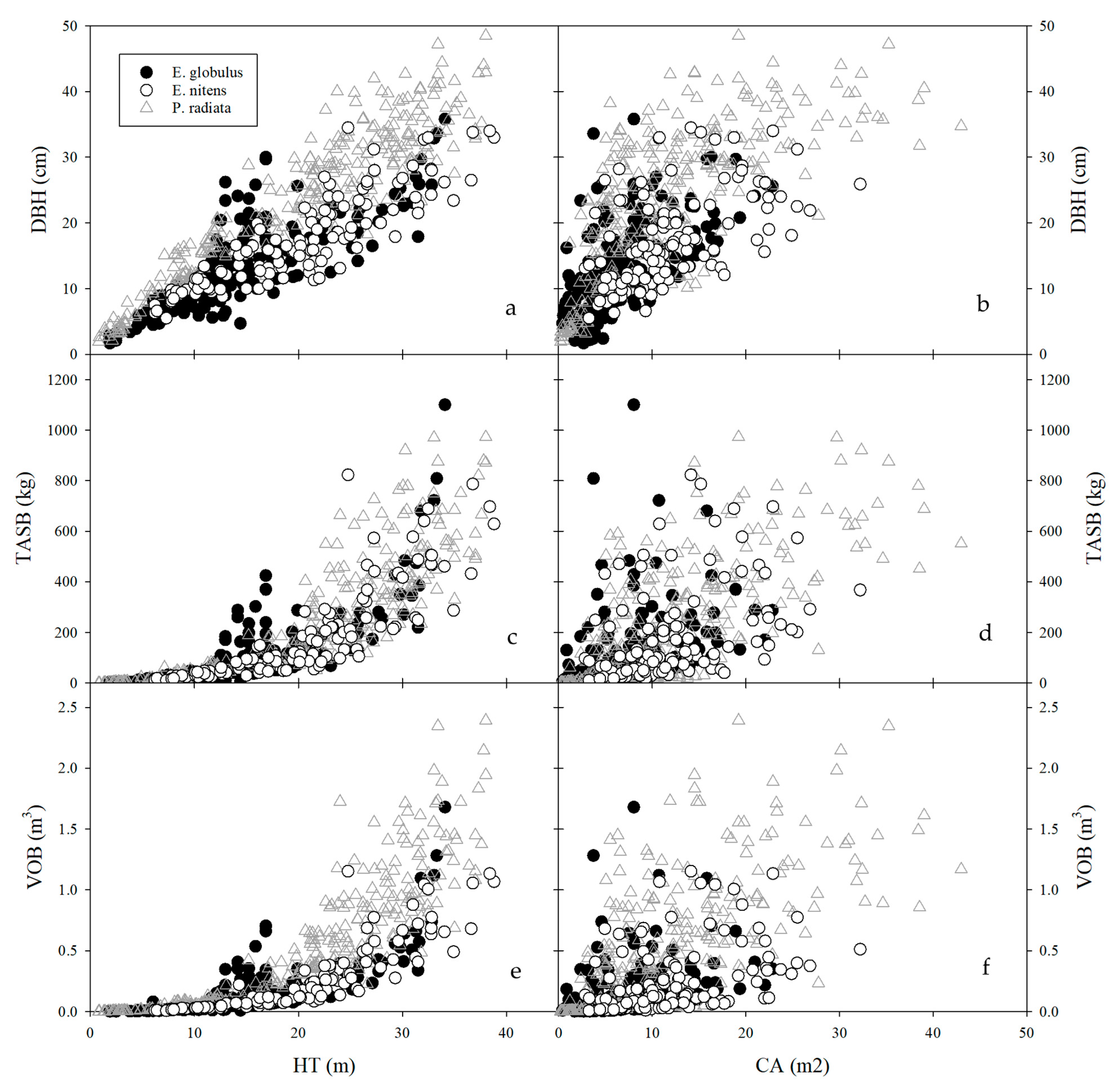

Figure 2. Relationships between total tree height (HT, m) and ground projected crown area (CA, m2) with stem outside bark diameter at 1.3 m height (DBH, cm) (a,b), total above-stump biomass (TASB, kg) (c,d), and stem volume over bark (VOB, m3) (e,f) for E. globulus (filled circle), E. nitens (open circle), and P. radiata (grey open triangle) trees growing in central Chile.
Figure 2. Relationships between total tree height (HT, m) and ground projected crown area (CA, m2) with stem outside bark diameter at 1.3 m height (DBH, cm) (a,b), total above-stump biomass (TASB, kg) (c,d), and stem volume over bark (VOB, m3) (e,f) for E. globulus (filled circle), E. nitens (open circle), and P. radiata (grey open triangle) trees growing in central Chile.
Forests 13 02043 g002

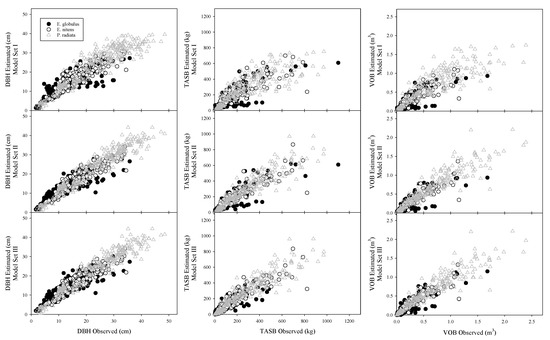

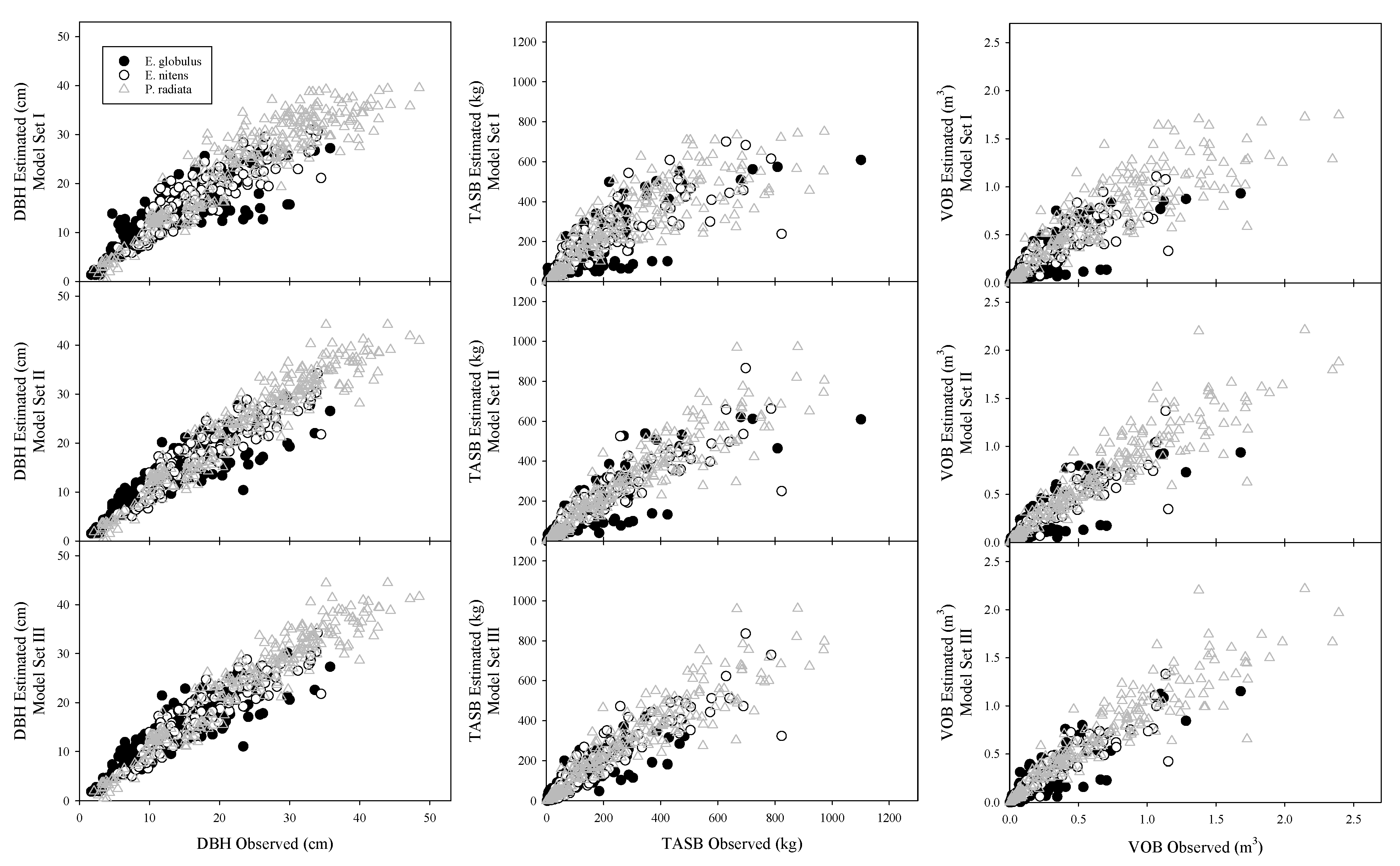

Figure 3. Model evaluation of DBH (left), TASB (center), and VOB (right) models for E. globulus, E. nitens, and P. radiata. Observed vs predicted (simulated) values using model set I (upper panel; only HT as independent variable), model set II (center panel; HT and CA as independent variables), and model set III (bottom panel; HT, CA, and AGE and/or TPH as independent variables).
Figure 3. Model evaluation of DBH (left), TASB (center), and VOB (right) models for E. globulus, E. nitens, and P. radiata. Observed vs predicted (simulated) values using model set I (upper panel; only HT as independent variable), model set II (center panel; HT and CA as independent variables), and model set III (bottom panel; HT, CA, and AGE and/or TPH as independent variables).
Forests 13 02043 g003
Table 1. Summary statistics of measured E. globulus (n = 200), E. nitens (n = 119), and P. radiata (n = 316, trees.
Table 1. Summary statistics of measured E. globulus (n = 200), E. nitens (n = 119), and P. radiata (n = 316, trees.
SpeciesAttributeUnitMeanStdDevMinimumMaximum
E. globulusAGEyear7.03.72.313.3
HTm14.87.43.832.8
DBHcm13.25.43.427.0
CWm2.81.00.75.4
CAm26.84.70.422.8
BAm2 ha−117.110.60.644.4
TPHtrees ha−112692926251960
TASBkg104.5148.31.71100.9
VOBm30.1520.2270.0021.680
E. nitensAGEyear8.04.42.316.3
HTm19.98.16.238.8
DBHcm17.37.05.534.5
CWm3.81.01.97.3
CAm212.57.02.842.2
BAm2 ha−129.318.03.962.7
TPHtrees ha−111391169191408
TASBkg180.1187.910.8823.2
VOBm30.250.280.011.15
P. radiataAGEyear14.06.51.324.3
HTm19.810.11.338.0
DBHcm23.010.92.148.5
CWm3.61.40.58.3
CAm211.99.00.254.1
BAm2 ha−127.817.40.765.9
TPHtrees ha−17393232201600
TASBkg238.2230.60.4972.8
VOBm30.520.520.002.39
AGE: tree age (yrs.); HT: total tree height (m); DBH: outside bark diameter at 1.3 m height (cm); CW: living crown width (m); CA: ground projected living crown area (m2); BA: basal area (m2 ha−1); TPH: number of living trees per hectare (ha−1); TASB: total above-stump biomass (kg); VOB: stem volume over bark (m3).
Table 2. Parameter estimates and fit statistics of the selected general DBH/biomass/volume functions for E. globulus trees growing in Central Chile.
Table 2. Parameter estimates and fit statistics of the selected general DBH/biomass/volume functions for E. globulus trees growing in Central Chile.
Model SetVariableModelParameterParameter
Estimate
SEAdj-R2RMSECV %
IDBH = a 1 · ( HT 1.3 ) a 2 a12.0754750.2411440.9333.8529.1
a20.7373530.040622
TASB = a 1 · ( HT a 2 ) a10.075820.0404130.81378.3975.0
a22.547990.160292
VOB = a 1 · ( HT a 2 ) a10.0000649290.0000421880.7840.12783.5
a22.7122350.19464
IIDBH = b 1 · ( HT 1.3 ) b 2 · ( CA b 3 ) b11.7663670.1810480.9533.2424.5
b20.6421740.036413
b30.2247410.026321
TASB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.0591270.0294410.83374.0470.8
b22.4525310.14752
b30.2812970.060094
VOB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.0000501980.0000313310.7970.12380.8
b22.6425330.184052
b30.243990.067749
IIIDBH = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( AGE c 4 ) c11.9093690.1957510.9563.1223.6
c20.3803610.07423
c30.2131890.024686
c40.3075180.078219
TASB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( AGE c 4 ) · ( TPH c 5 ) c11.606931.6780050.86267.2264.3
c21.5221110.188442
c30.3531280.061234
c40.421110.22933
c5−0.2338540.150093
VOB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( AGE c 4 ) c10.0000443650.0000239450.8370.11072.4
c21.4963240.220388
c30.2487550.05662
c41.5106070.215681
HT: total tree height (m); DBH: outside bark diameter at 1.3 m height (cm); CA: grown projected living crown area (m2); AGE: tree/stand age (yrs.); TPH: number of living trees per hectare (ha−1); TASB: total above-stump biomass (kg); VOB: stem volume over bark (m3); SE: standard error; Adj-R2: adjusted coefficient of determination; RMSE: root mean square error (same units as variable); CV: coefficient of variation of the RMSE (100∙RMSE/mean). For all parameter estimates, p < 0.05.
Table 3. Parameter estimates and fit statistics of the selected general DBH/biomass/volume functions for E. nitens trees growing in Central Chile.
Table 3. Parameter estimates and fit statistics of the selected general DBH/biomass/volume functions for E. nitens trees growing in Central Chile.
Model SetVariableModelParameterParameter
Estimate
SEAdj-R2RMSECV %
IDBH = a 1 · ( HT 1.3 ) a 2 a11.5937240.2460160.9643.5720.6
a20.8190120.049207
TASB = a 1 · ( HT a 2 ) a10.1082870.0624180.86495.8253.2
a22.3984040.168986
VOB = a 1 · ( HT a 2 ) a10.0000613490.000033860.8810.13051.9
a22.6791730.160883
IIDBH = b 1 · ( HT 1.3 ) b 2 · ( CA b 3 ) b11.107180.1593780.9733.0917.8
b20.7712310.043692
b30.205420.029766
TASB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.0395410.0207780.89883.1146.2
b22.3995470.146035
b30.3963690.064146
VOB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.0000213830.0000103410.9150.11043.8
b22.6950270.133308
b30.3945970.057055
IIIDBH = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( TPH c 5 ) c11.2202360.8929180.9733.0417.6
c20.7707660.043979
c30.2053580.029863
c5−0.0135960.10031
TASB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( AGE c 4 ) c10.0344780.0188950.91576.6142.5
c21.98370.177463
c30.4169250.05913
c40.6004510.173335
VOB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( AGE c 4 ) c10.0000210010.0000102660.9200.10742.7
c22.3605920.167086
c30.415020.054414
c40.4430790.149888
HT: total tree height (m); DBH: outside bark diameter at 1.3 m height (cm); CA: grown projected living crown area (m2); AGE: tree/stand age (yrs); TPH: number of living trees per hectare (ha−1); TASB: total above-stump biomass (kg); VOB: stem volume over bark (m3); SE: standard error; Adj-R2: adjusted coefficient of determination; RMSE: root mean square error (same units as variable); CV: coefficient of variation of the RMSE (100∙RMSE/mean). For all parameter estimates, p < 0.05.
Table 4. Parameter estimates and fit statistics of the selected local and general DBH/biomass/volume functions for P. radiata trees growing in central Chile.
Table 4. Parameter estimates and fit statistics of the selected local and general DBH/biomass/volume functions for P. radiata trees growing in central Chile.
Model SetVariableModel ParameterParameter
Estimate
SEAdj-R2RMSECV %
IDBH = a 1 · ( HT 1.3 ) a 2 a12.7804380.2125480.9754.0117.4
a20.7367760.023889
TASB = a 1 · ( HT a 2 ) a10.2564620.094210.890109.9046.1
a22.1942590.107627
VOB = a 1 · ( HT a 2 ) a10.0003166720.0001152230.9010.23244.4
a22.3686010.10628
IIDBH = b 1 · ( HT 1.3 ) b 2 · ( CA b 3 ) b12.3931910.1428120.9863.0513.3
b20.6403710.019586
b30.1798480.01211
TASB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.1809180.0465620.94776.5632.1
b21.9473920.076617
b30.4450830.025744
VOB = b 1 · ( HT b 2 ) · ( CA b 3 ) b10.0002135940.0000581070.9470.17032.6
b22.1799690.080019
b30.3894410.024942
IIIDBH = c 1 · ( HT 1.3 ) c 2 · ( CA c 3 ) · ( TPH c 5 ) c13.5954950.6388040.9863.0613.3
c20.6284860.022015
c30.156170.014439
c5−0.0488040.020124
TASB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( AGE c 4 ) · ( TPH c 5 ) c11.2293410.5496640.95273.3830.8
c21.7027260.106506
c30.3501390.02972
c40.1644280.106054
c5−0.2149030.041324
VOB = c 1 · ( HT c 2 ) · ( CA c 3 ) · ( TPH c 5 ) c10.0011770.0005187750.9490.16832.2
c22.082490.081596
c30.3009460.030124
c5−0.1839820.039884
HT: total tree height (m); DBH: outside bark diameter at 1.3 m height (cm); CA: grown projected living crown area (m2); AGE: tree/stand age (yrs); TPH: number of living trees per hectare (ha−1); TASB: total above-stump biomass (kg); VOB: stem volume over bark (m3); SE: standard error; Adj-R2: adjusted coefficient of determination; RMSE: root mean square error (same units as variable); CV: coefficient of variation of the RMSE (100∙RMSE/mean). For all parameter estimates, p < 0.05.
Table 5. Summary of model evaluation statistics using 10-fold cross validation for DBH/biomass/volume estimations for E. globulus, E. nitens, and P. radiata trees.
Table 5. Summary of model evaluation statistics using 10-fold cross validation for DBH/biomass/volume estimations for E. globulus, E. nitens, and P. radiata trees.
SpeciesVariableModel IDExplanatory Variables O ¯ P ¯ RMSDBias
E. globulusDBHD1HT13.2213.163.67(27.8)0.06(0.4)
D2HT, CA 13.2213.163.15(23.8)0.06(0.4)
D3HT, CA, AGE 13.2213.163.07(23.2)0.07(0.5)
TASBB1HT107.28100.0372.73(67.8)7.25(6.8)
B2HT, CA 107.28101.3167.82(63.2)5.97(5.6)
B3HT, CA, AGE, TPH107.2898.8763.44(59.1)8.41(7.8)
VOBV1HT0.160.140.12(75.6)0.01(8.5)
V2HT, CA 0.160.150.11(72.6)0.01(7.6)
V3HT, CA, AGE 0.160.140.10(66.0)0.01(9.1)
E. nitensDBHD1HT17.2317.213.37(19.6)0.03(0.2)
D2HT, CA 17.2317.132.74(15.9)0.10(0.6)
D3HT, CA, TPH17.2317.142.70(15.7)0.09(0.5)
TASBB1HT177.19178.6885.62(48.3)−1.49(−0.8)
B2HT, CA 177.19176.7769.63(39.3)0.42(0.2)
B3HT, CA, AGE 177.19172.3468.64(38.7)4.85(2.7)
VOBV1HT0.250.250.12(47.6)−0.01(−2.4)
V2HT, CA 0.250.250.09(36.2)0.00(−1.5)
V3HT, CA, AGE0.250.250.09(36.2)0.00(−0.3)
P. radiataDBHD1HT23.1823.123.95(17.0)0.07(0.3)
D2HT, CA 23.1823.102.96(12.8)0.09(0.4)
D3HT, CA, TPH23.1423.062.96(12.8)0.08(0.3)
TASBB1HT240.55241.74107.88(44.8)−1.19(−0.5)
B2HT, CA 240.55242.1274.67(31.0)−1.57(−0.7)
B3HT, CA, AGE, TPH240.13242.2370.53(29.4)−2.10(−0.9)
VOBV1HT0.530.530.23(43.2)0.00(−0.8)
V2HT, CA 0.530.530.17(31.3)0.00(−0.8)
V3HT, CA, TPH0.530.530.16(30.5)−0.01(−1.1)
HT: total tree height (m); DBH: outside bark diameter at 1.37 m height (cm); CA: ground projected living crown area (m2); AGE: tree/stand age (yrs.); TPH: number of living trees per hectare (a−1); BA: basal area (m2 ha−1); TASB: total above-stump biomass (kg); VOB: stem volume over bark (m3); O ¯ : mean observed value; P ¯ : mean predicted value; RMSD: root of mean square difference (same unit as observed value); Bias: mean absolute bias (predicted-observed; same unit as observed value). Values in parenthesis are percentage relative to observed mean.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gonzalez-Benecke, C.A.; Fernández, M.P.; Gayoso, J.; Pincheira, M.; Wightman, M.G. Using Tree Height, Crown Area and Stand-Level Parameters to Estimate Tree Diameter, Volume, and Biomass of Pinus radiata, Eucalyptus globulus and Eucalyptus nitens. Forests 2022, 13, 2043. https://doi.org/10.3390/f13122043

AMA Style

Gonzalez-Benecke CA, Fernández MP, Gayoso J, Pincheira M, Wightman MG. Using Tree Height, Crown Area and Stand-Level Parameters to Estimate Tree Diameter, Volume, and Biomass of Pinus radiata, Eucalyptus globulus and Eucalyptus nitens. Forests. 2022; 13(12):2043. https://doi.org/10.3390/f13122043

Chicago/Turabian Style

Gonzalez-Benecke, Carlos A., M. Paulina Fernández, Jorge Gayoso, Matias Pincheira, and Maxwell G. Wightman. 2022. "Using Tree Height, Crown Area and Stand-Level Parameters to Estimate Tree Diameter, Volume, and Biomass of Pinus radiata, Eucalyptus globulus and Eucalyptus nitens" Forests 13, no. 12: 2043. https://doi.org/10.3390/f13122043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
