Improved Water Repellency and Dimensional Stability of Wood via Impregnation with an Epoxidized Linseed Oil and Carnauba Wax Complex Emulsion

by
Jinyu Chen
,
Yujiao Wang
,
Jinzhen Cao
and
Wang Wang
*
MOE Key Laboratory of Wooden Material Science and Application, Beijing Forestry University, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Forests 2020, 11(3), 271; https://doi.org/10.3390/f11030271
Submission received: 6 February 2020 / Revised: 26 February 2020 / Accepted: 27 February 2020 / Published: 28 February 2020
(This article belongs to the Section Wood Science and Forest Products)
Browse Figures
Review Reports Versions Notes

Abstract

:
Natural wood is susceptible to moisture during its practical use, limiting not only service life but also the range of uses. In this study, plant extracts, specifically linseed oil and carnauba wax (both environmentally friendly and water-repellent substances), were examined as a means to mitigate limitations of natural wood. Stable and homogenous epoxidized linseed oil/carnauba wax emulsions with an average particle size less than 230 nm were used as a modifier to enhance the performance of wood. Weight percentage gain, bulking coefficient, micromorphology, chemical structure, moisture adsorption, contact angle, water repellency, and dimensional stability of treated wood were measured. Using a scanning electron microscope (SEM), it was observed that carnauba wax and epoxidized linseed oil acted as a mechanical barrier and could partially cover or block vessels, pits, and wood rays. Furthermore, the hydrophobicity of wood increased significantly after emulsion impregnation. However, there was no obvious chemical reaction between epoxidized linseed oil and the main components of wood in the Fourier transform infrared spectroscopy (FTIR) results. The combined effect of epoxidized linseed oil and carnauba wax was apparent in both decreased water absorption and dimensional deformation. Poplar wood impregnated with an epoxidized linseed oil/carnauba wax complex emulsion shows potential for improving water-related properties. Thus, the complex emulsion modification can improve the inherent shortcoming of poplar wood effectively.

1. Introduction

Owing to natural advantages, such as renewability, processability, superior strength-to-weight ratio, and heat insulation, wood has long been used in furniture, decking, cladding, and wooden frames. However, wood is a hygroscopic, anisotropic biopolymer, mainly formed by cellulose, hemicellulose, and lignin. The moisture interaction with wood fiber composites may result in dimensional instability [1,2,3], which limits its applications under certain environmental conditions.
Water repellent treatments could increase water repellency and dimensional stability of wood, as well as reduce wood checking increased by outdoor weathering. The most common water repellent applied to the wood industry is paraffin wax [4]. The paraffin wax deposited in wood capillaries can reduce water penetration by capillary action, thus limiting dimensional swelling [5]. However, the failure of protection is associated with the nonbond between the cell wall and deposits [6]. A superhydrophobic surface provided by microstructure could resist the contact between water and the wood surface [7]. The waterproof effect relies entirely on the fabrication of the structure on the wood surface, but this microstructure might be damaged when exposed to environmental weathering. More than that, the hygroscopicity can be minimized by the decreased or covered hydroxy achieved via chemical modification of wood, such as acetylation [8], esterification [9], furfurylation [10], and so on. However, the chemical modifications might be somewhat environmentally unfavorable [11]. It is well-known that there is an increasing need for green and renewable materials, such as waxes and oils, derived from plants [12].
Linseed oil (LO) is a hydrophobic, ecofriendly, non-expensive product derived from dried seeds of flax plant (Linum usitatissimum L.) [6]. As a drying oil, LO can block the lumen of the wood and form a stable LO film on pore surfaces after entering the interior of the wood by conventional impregnation techniques [13]. LO could reduce water uptake and increase biological resistance of wood [6,14]. Since no chemical linking is established between wood and oil, the LO impregnation could only reduce the water adsorption rate but not the final moisture content [15]. Furthermore, the oxidative polymerization of LO needs extensive time, resulting in oil to exude from the wood [16]. Linseed oil that has been epoxidized (ELO) may speed up oxidative polymerization [17]. Compared with wood treated with LO, ELO-treated wood has shown significant performance improvements in anti-swelling efficiency (ASE), water repellency, biodegradation resistance, and leaching resistance [18,19,20]. The main improvement mechanism of ELO-modified wood was correlated to the covalent bonding to the wood cell wall after the epoxy ring opening [19,21]. ELO impregnation seems to be a feasible process for water repellent treatment. However, the hydrophobicity may be restricted by intrinsic properties of polymerized ELO with a contact angle less than 90° [22]. Besides, new hydroxy and carbonyl groups are generated during the polymerization reaction of ELO [19], which is likely to have negative effects on wood surface wettability.
Carnauba wax (CW) is the hardest natural wax, extracted from the leaves of carnauba (Copernicia prunifera (Miller) H. E. Moore) [23]. Consisting of esters, straight-chain primary alcohols, hydroxy fatty acids, and other chemical components, it is used commonly for a wide range of applications in the food industry [23], cosmetics [24], and in medical products [25]. CW has been frequently employed in wood modification due to its hydrophobicity and good dispersibility. The deposition of wax particles onto wood surface introduced additional roughness at the micron level [26]. Therefore, the CW-treated wood has been shown to have a water contact angle to be higher than 120°, as well as improved moisture buffering based on noncontinuous coating of CW particles [27]. The wax film is durable, and consecutive thermal treatment leads to melting of the wax particles, even causing no decrease in the hydrophobicity [28]. It can be concluded that wood coated with a CW emulsion may repel water well. Polymerized ELO could bond with wood composites, but shows a low water contact angle. CW could decrease the wettability of wood significantly, but it only works as a mechanical barrier. Thus, incorporating CW into ELO may further improve the hydrophobicity of wood. Both ELO and CW could be easily dispersed in surfactant [29,30], making an ELO/CW complex emulsion a feasible choice.
In China, planted forests have been increasingly utilized due to the logging bans of natural forests. Poplar wood, as one of the most economic and fast-growing species, has been used in packaging, pulping, papermaking, construction production, etc. Unfortunately, undesirable drawbacks of unmodified poplar wood, including poor dimensional stability and durability, restricts its full utilization. In this study, poplar wood (Populus cathayana Rehd) was modified using a synthesized ELO/CW complex emulsion to enhance its water-related performance. Following the characterization of chemical components and stabilization of current synthesis formulations, it was impregnated with the emulsion via vacuum pressure. The equilibrium moisture content, water contact angle, water absorption rate, and dimensional stability of the modified wood were subsequently evaluated.

2. Materials and Methods

2.1. Materials

The samples were cut from poplar wood (Populus cathayana Rehd), logged from plantations in Liaoning province, China. The sapwood from the samples was sawed mechanically in the dimensions of 20 × 20 × 20 mm3 (tangential × radical × longitudinal). The air-dried density of detect-free experimental specimens was 0.42 g/cm3 and the average growth ring width was 3.7 mm. There were eight groups in the study of a total of 128 specimens. These specimens were oven-dried at 103 °C to constant weights and dimensions. Commercially available linseed oil (LO), with an initial iodine number of 160.1 g/100 g, and carnauba wax (CW), with a melting point of 80–86 °C, were used. Formic acid (FA), hydrogen peroxide (H2O2), and acetic acid (AA) were used as catalysts for synthesis and the ring-opening of epoxidized linseed oil (ELO). Sodium chloride (NaCl) and sodium bicarbonate (NaHCO3) were used for the purification of ELO. Cyclohexane (CYH), potassium iodide (KI), and sodium thiosulfate solution were used for titration. They were obtained from Beijing Chemical Works Co., Ltd. Alkylphenol ethoxylates (APE-40 and APE-4) purchased from Shandong Usolf Chemical Technology Co., Ltd. were used as the surfactants for emulsion preparation.

2.2. Synthesis of Epoxidized Linseed Oil (ELO)

LO (300 g), contained in a three-necked flask, was placed in a constant temperature water bath. A mixture of FA (45 g) and H2O2 (300 g) was added to the flask in drop-wise manner, at approximately 10–15 mL/min, under mechanical stirring at 30 °C. After the FA and H2O2 mixture was consumed, the epoxidation reaction was continued at 52 °C for an additional 5 h. The organic layer was separated from the cooled mixture and then washed repeatedly with a saturated NaCl solution warmed to 45–50 °C, followed by 2% NaHCO3 to remove free acid. The final product was dehydrated by vacuum evaporation and then analyzed for chemical composition and iodine value.
Fourier transform infrared spectroscopy (FTIR) was measured by an FTIR spectrometer (Nicolet 6700 Thermo Scientific, Waltham, MA, America) in wavelengths ranging between 4000 to 600 cm−1 with a resolution of 4 cm−1 after 32 scans. The spectra of LO and ELO were detected by adding a drop of the oil sample on the infrared probe to investigate the chemical group. The spectra were normalized to the peak at 1460 cm−1 (CH2 scissors deformation vibration) [19].
The iodine value, i.e., grams of iodine that can be absorbed by 100 g of sample [31], represented the desaturation of fats and oils. The iodine value of LO and ELO were determined by the Wijs method according to ASTM D5554-15 [32]. Briefly, LO and ELO were dissolved in a mixture of CYH and AA prior to the addition of the Wijs reagent. After placing the solution in a dark environment, KI solution and deionized water were added. Finally, the sodium thiosulfate solution was added to titrate-liberated iodine, using starch as the indicator. Conversion ratio (CR) of the resultant product was analyzed with the iodine number of LO and ELO [29], and the CR was calculated using the following equation:
CR   ( % ) = I V 0 − I V I V 0 × 100
where I V 0   is   iodine number of LO, and I V is the iodine value of ELO.

2.3. Preparation and Characterization of Emulsion

All developed formulations were based on an oil-in-water (o/w) emulsion. ELO or CW was mixed with the suitable amount of APE-40 and APE-4 and melted in a beaker. Heated water was added to the mixture under electric agitation, and placed in a high-pressure homogenizer for 10 min. These formulations were then diluted with deionized water to the required concentration and the necessary amount of catalyst introduced. The ELO:AA ratio was 70:30 (w/w). These dilution emulsions were labeled as ELO20, CW2, CW4, CW6, E20/C2, E20/C2, and E20/C6.
The centrifuge stability, particle size, and viscosity of emulsions were tested at ambient temperature. Centrifuge stability was evaluated by using an acceleration centrifuge (LD5-10, Beijing Jingli Freelance Machine Co. Ltd., China) following a previous study [33]. The viscosity of emulsions was assessed using a viscometer (DV-1, Shanghai Fangrui Instrument Co. Ltd., China). The average particle size of diluted emulsions (2–6%) was determined using a laser particle size analyzer (Delsa Nano C, Beckman Coulter, Brea, CA, America).

2.4. Wood Impregnation

The specimens were impregnated with dilution emulsions using an identical full-cell impregnation process. After subjecting them to a vacuum of −0.1 MPa for 30 min, the specimens immersed in the dilution emulsions were introduced at a subsequent pressure of 0.5 MPa for 2 h. After being wiped with tissue paper, specimens were dried in ambient room conditions for 4–5 days and then oven-cured at 80 °C for 15 days. Mass and volume of individual specimens were recorded.
The weight percentage gain (WPG) was dependent on the weight dissimilarity before and after impregnation. The bulking coefficient (BC) was dependent on the volume dissimilarity before and after impregnation [34].
The WPG and BC were calculated using the following:
WPG   ( % ) = M − M 0 M 0 × 100
where M 0   is the mass of untreated wood and M   is the mass of the treated wood.
BC   ( % ) = V − V 0 V 0 × 100
where V 0   is the volume of untreated wood and V   is volume of treated wood.

2.5. Micromorphology Characteristic

In order to observe the structure and distribution of modifiers, a scanning electron microscope (JSM-6700F, JEOL Japan) was utilized, with an acceleration voltage of 3–5 kV. Prior to sample preparation, the cubic specimens were cut into small strips and immersed in deionized water. Subsequently, the strips were cut along a cross section and tangential section of the wood using a sliding microtome (REM-710, Yamato Kohki industrial Co., Ltd., Japan). The samples were oven-dried and then secured to a specimen holder with double-sided conductive tape. Fractured surfaces of the samples were coated with gold prior to characterization.

2.6. Fourier Transform Infrared Spectroscopy (FTIR) Analysis of Wood

The FTIR spectra were identified with KBr pellet method by using the FTIR spectrometer (Bruker Alpha II, Germany) to investigate the possible chemical change. Prior to FTIR test, the specimens were finely ground to obtain wood powder (200 mesh) and then dried at 80 °C for 2 h. The recorded spectra ranged from 4000 to 400 cm−1 with a resolution 4 cm−1 after 64 scans. The chosen normalized spectrum had a peak at 1505 cm−1 (lignin aromatic ring vibration) after measurement [19].

2.7. Equilibrium Moisture Content (EMC)

The moisture adsorption was determined with 5 replicates for each group according to GB/T 1931–2009 [35]. The untreated and treated specimens were conditioned in a climate chamber at 20 °C and 65% relative humidity (RH) for 4 weeks to the constant weight. The EMC was calculated according to:
EMC   ( % ) = M e − M M 0 × 100
where M e is the weight of specimens after being conditioned in a climate chamber.

2.8. Water Contact Angle (WCA) Characterization

Wettability of the wood transversal surface was determined via contact angle meter (SL200KS, USA KINO Industry Co. Ltd., USA) using a 4 µL droplet of deionized water. The sanded wood specimens (1500 mesh sandpaper sanding for 5 min before impregnation) were preconditioned at 20 °C and 65% RH for two weeks. The time-dependent WCA was recorded once per second for a total of 80 s. The result was an average value of 5 replicates of samples.

2.9. Water Uptake and Swelling Test

For determination of water absorption rate (WA) and anti-swelling efficiency (ASE) of wood, a total of 40 samples (5 replicates per group) were prepared. Samples were immersed in deionized water at room temperature. The wet weights and dimensions were measured after 1, 6, 12, 24, 48, 96, and 192 h immersion periods [3]. The WA and ASE were calculated according to:
WA   ( % ) = M i − M M 0 × 100
S   ( % ) = V i − V V × 100
ASE   ( % ) = S C − S T S C × 100
where M i   is the weight and V i is volume after soaking. S C and S T represent the volumetric swelling coefficients of control wood specimens and treated wood, respectively.

3. Results and Discussion

3.1. Characterization of ELO and Emulsions

The iodine value reflects the degree of unsaturation of vegetable oils, and the larger iodine value reflects the more carbon-carbon double bonds per vegetable oil triglyceride [36]. Therefore, the iodine value can be used to evaluate the conversion efficiency of the epoxidation reaction.
In situ epoxidation of linseed oil in the presence of catalysts is a two-step functional group conversion process. Peroxyacid formation is followed by an epoxy group formation, which is produced by the reaction of an unsaturated double bond with peroxyacid [37,38]. The FTIR spectra of LO and ELO are shown in Figure 1. The band at 3011 cm−1, which represented a carbon-carbon double bond [39,40], disappeared after epoxidation. A new band at 820 cm−1, attributed to epoxy groups [40,41], was found in ELO, indicating that the unsaturated bond had been converted. In addition, the iodine value decreased from 160.1 g/100 g of LO to 8.2 g/100 g of ELO. The calculated conversion ratio was 94.8%, suggesting the epoxidation reaction in this study reached a high conversion efficiency.
Figure 2 illustrates the stable and uniform appearance of the emulsions. There was no phase separation nor uneven viscosity, and all were uniformly white or light-yellow in color. The most common instability within emulsions occurred during the dispersed-phase separation, due to the density dissimilarity between phases. Centrifugation may speed up the collisions between globule the emulsion particles [42]. Thus, to better estimate the stability of emulsion during storage, the particle size and viscosity were detected before and after centrifugation. Average particle diameters were no more than 230 nm (Table 1), and all of the particle diameters were smaller than those of the vessel, wood fibers, and wood rays, as reported by Carlquist [43]. Thus, the prepared emulsions could penetrate easily into the interior of the wood. A slight increase in particle diameters was observed after centrifugation (< 250 nm), and the maximum particle size change rate was 2.6% for the E20/C4 emulsion. The emulsions retained a consistent constant outward appearance and the viscosity had no noticeable change after centrifugation.

3.2. Weight Percent Gain (WPG) and Bulking Coefficient (BC)

The WPG of ELO emulsion-treated specimens were 30.95%. Table 2 illustrates that the WPG of wood treated with CW emulsions was proportional to the content of CW. However, there was no significant difference between the WPG of the samples treated with complex emulsions that had differing CW content. Compared with the sum of WPG obtained from the corresponding ELO and CW emulsion-treated groups, the ELO/CW emulsion-treated groups showed a lower WPG (except for the E20/C2 group), suggesting that WPG was limited by the penetration threshold of wood.
BC of ELO emulsion-treated specimen was 2.45%, as presented in Table 2. The effect of the CW emulsion-based treatment on BC of wood was notably inferior to that of the ELO emulsion-based treatment. However, there was no distinct difference in BC values among samples treated by ELO/CW complex emulsions with different solid contents. We hypothesize that modifiers are primarily filling the wood lumen, but not further bulking the cell wall in the treated specimens [44].

3.3. Morphological Observation of Wood

Comparing within the same treated group, there was no significant difference among wood treated with varying emulsion concentrations. Therefore, only different types of SEM results are shown in Figure 3. The cell lumens, pits, and ray cells were empty and visible in the untreated wood (Figure 3a,e). The results demonstrate that cell lumens are partially filled after impregnation with the different emulsions (Figure 3b–d), and that the pits and ray cells are covered or blocked by CW and ELO (Figure 3f–h).
Moreover, there were a few wax particles attached to cell walls (Figure 3g) in the CW emulsion-treated wood, as viewed in tangential sections. Wax particles (Figure 3h) might be partially covered by oil layers in the ELO/CW emulsion-treated wood. Unlike the lumen of CW emulsion-treated wood, the lumens in the ELO-treated wood were blocked by solidified modifiers, as shown in the transverse section (Figure 3b,d). Perhaps this is because emulsified CW has a lower viscosity than ELO, thus facilitating improved diffusion into the wood. This could also explain the more uniformly layered seal on the lumen surface (Figure 3d), despite the higher WPG, as demonstrated in Table 2.
These results confirm that various emulsions can penetrate the wood through vessel, pits, and rays. Continuous and discontinuous layers block the transport path of free water, especially within the longitudinal pathways of emulsion-treated wood. The small amount of granular structure may reduce the possible contact between free water and wood, thus enhancing the hydrophobicity of the wood.

3.4. Chemical Structure Analysis Using FTIR Spectroscopy

Variations in chemical functional groups of treated wood were detected by FTIR. The structures of both CW and ELO contain long alkyl chains, therefore asymmetric and symmetric stretching peaks representing C-H (CH3 and CH2) at 2921 and 2852 cm−1 appeared in the treated specimens (Figure 4). AA was added to the ELO emulsion and ELO/CW emulsion formulations, and thus the spectral results were more complicated than those of the CW emulsion-treated wood. The bands at 1375 and 1740 cm−1 correspond with a methoxy group and C=O, respectively [19,45]. The enhancement of band intensities at 1740 cm−1 is attributed to an intrinsic triglyceride structure and the grafting of acetic acid onto epoxidized linseed oil [19]. The reaction mechanism between wood and ELO has been discussed previously [21,29,46]. ELO occupied the hydroxyl sites of wood and produced new ether functions 1300–1193 cm−1 [19]. Contrary to expectations, there was no increased intensity in bands at 1200–1120 cm−1 attributed to the ether bond peak, which suggests no chemical reaction between ELO and wood. This difference may be attributed to the specific formulation system and to oil loading.

3.5. Equilibrium Moisture Content (EMC)

Table 2 demonstrates the EMC after conditioning in a chamber at 20 °C and 65% RH. The EMC of untreated wood was 8.46%. Water vapor adsorption in the cell wall was decreased by CW and ELO. Compared with untreated wood, the EMC of ELO emulsion-treated wood, CW emulsion-treated wood, and ELO/CW emulsion-treated wood averaged 8.11%, 8.26%, and 7.75%, respectively. Although the treatment did not change the chemical structure of wood, the ELO/CW emulsion markedly decreased the vapor adsorption of treated wood, and therefore enhanced dimensional stability.

3.6. Hydrophobicity of Wood

The dynamic water contact angle (WCA) of treated and untreated wood are illustrated in Figure 5. The initial WCA of untreated wood was 127° and it consistently fell to 0° within 80 s. However, the WCA for CW emulsion-treated wood was more stable. It ranged between 135-140°, indicating that a hydrophobic water barrier on the wood surface was initiated by CW. The contact angle is affected by dominant factors that include surface roughness and surface free energy [47]. The natural roughness of wood, combined with the low surface energy of the CW granular structure (Figure 3g), made the CW emulsion-treated wood more hydrophobic [27].
As described in previous work, the WCA of polymerized ELO decreases slowly, from 50° to 38° within 30 s [48]. However, the ELO emulsion-treated wood showed a rapid decrease in WCA, from 80° to 0° within 23 s. This rapid decrease in WCA might be attributed to the enhancement of the hydrophilic carbonyl group (Figure 4a) after the ELO film polymerized on the wood surface. Although the complex emulsion-treated wood did not perform as well as the CW emulsion-treated wood, the initial WCAs are all above 120°, demonstrating a slow decrease, but were maintained over 80° after 80 s. The performance may be strongly influenced by decreased surface energy. Additionally, the intensity of the carbonyl group observed from ELO/CW emulsion-treated wood was lower than that of the ELO emulsion-treated wood (Figure 4a), which might contribute to the less hydrophilic wood surface. When the CW content was 4%, the WAC remained above 120° after 80 s.

3.7. Liquid Water Uptake and Dimensional Stability

Both vegetable oil emulsion and wax emulsion have been proven to be efficient water repellents [49,50]. Three kinds of emulsions in this study showed differential effects of inhibiting water absorption (Figure 6a). The WAs of untreated wood were approximately 27% and 132% after soaking for 1 and 192 h, respectively. The WA of CW emulsion-treated wood was approximately 53% lower than untreated wood after soaking for 1 h, but the WA increased to 129% after 192 h. This result indicates that CW emulsion only has short-term effectiveness. CW forms a hydrophobic film-barrier on wood surface, which could separate the contact between the wood surface and water to slow water movement [33,51]. However, there are no chemical reactions occurring between CW and the hydroxyl groups of wood [52]. Thus, film-barriers may be lost during long periods of immersion, allowing water molecules to swell the wood, opening up the inaccessible region of wood cell walls to water absorption [53]. ELO emulsion-treated wood seems to have better water resistance than CW emulsion-treated wood, although it has a poor WCA. The ELO/CW emulsion-treated wood exhibited the lowest value of WA among all groups. Waterproofing of the wood is related to the tendency of the wood surface to be resistant to interactions with water [52]. Although ELO has no reaction with hydroxyl groups of wood, the ELO could open its epoxy ring and react with AA (Figure 4b). The reaction would produce inter- and intramolecular crosslinking [54], which results in a denser, more durable film than with the CW membrane.
This study explores the synergic effect of mixing hydrophobic CW and polymerized ELO. ELO can form macromolecular material via self-polymerization and form a complete film on a wooden surface. However, due to the relatively high surface energy of the ELO film, wood surfaces are more prone to forming attachments with water molecules, which exposes the ELO film to long-term contact with moisture and oxygen. This action results in accelerated weakness of the mechanical bonding between ELO and wood components, and may cause aging or a cracking of the ELO polymer film. When CW is added, the surface energy of the film is significantly lower. The wood surface is no longer vulnerable to moisture attachment, which reduces the possibility of microcracks in the ELO polymer film. Hence, water molecules cannot penetrate into wood spontaneously via capillary action, thus restricting the rate of water absorption [49].
ASE results are demonstrated in Figure 6b. The ASE of CW emulsion-treated wood after 1 h is 50%, whereas that of ELO emulsion-treated wood is 38%. However, the ASE value of ELO emulsion-treated wood is larger than the CW emulsion-treated wood with increased immersion time. Obviously, there is a reduction in ASE in all groups with immersion time (Figure 6b), but the ELO/CW emulsion-treated wood shows the best dimensional stability, with a maximum ASE of 15.3% after 192 h. There are two factors that may relate to this improved dimensional stability.
One is that the ELO/CW treatment creates a mechanical hindrance to free water absorption. This explanation is supported by the water absorption test, which demonstrates lower average WA of ELO/CW emulsion-treated wood (95%) after 192 h. Decreased water absorption could reduce dimensional variation within a short time period [21]. The water-repellent acts to partially block water passage, thereby reducing water’s capacity to penetrate the wood structure.
Previous reports have suggested that emulsion particles (>100 nm) were too large to penetrate cell walls [40], whereas our data suggest a different result. The cell wall may partially fill with ELO, providing the other explanation for moderate ASE. Similar results have been reported by Panov et al. [21], in which the ELO penetrated the wood structure and was present in the wood cell walls.

4. Conclusions

Impregnation of newly prepared ELO/CW emulsions effectively improved the water-related performance of wood. The emulsions had a small particle size (<230 nm) and were stable before and after centrifugation. After impregnation, the main water passages, such as pits and ray cells in wood, were covered or blocked by both CW and ELO, resulting in enhanced wood protection. Adding a small quantity of CW did not contribute to weight percentage gain and not affect the bulking coefficient of treated wood, but decreased the surface energy in complex emulsion systems. The WCA of ELO/CW emulsion-treated wood was as high as 120°, dropping to 80° within 80 s. Although the FTIR analysis showed no evidence confirming the chemical reaction between ELO and wood cell walls, ELO could polymerize itself in the presence of catalyst, forming a dense film on the wood surface. Combining ELO and CW could enhance the water repellency of treated wood, and thus less moisture was absorbed by the treated wood, resulting in an increased ASE. The joint effect was demonstrated in complex emulsion-treated wood with a WA of 92.2% and ASE of 15.3% after 192 h. In conclusion, the ELO/CW emulsion treatment provides sustainable modified wood with excellent water repellency and dimensional stability. This method can provide possibilities to extend the service life of poplar wood.

Author Contributions

W.W. and J.C. (Jinyu Chen) conceived and designed the experiments; J.C. (Jinyu Chen) and Y.W. performed the experiments and analyzed the data; J.C. (Jinyu Chen) wrote the original draft; J.C. (Jinzhen Cao) and W.W. reviewed and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 31600452) and the Fundamental Research Funds for the Central Universities in China (2019JQ3013).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, T.; Ma, E.; Cao, J. Synergistic effects of partial hemicellulose removal and furfurylation on improving the dimensional stability of poplar wood tested under dynamic condition. Ind. Crop. Prod. 2019, 139, 111550. [Google Scholar] [CrossRef]
  2. Glass, S.V.; Zelinka, S.L. Moisture relations and physical properties of wood. In Wood Handbook: Wood as An Engineering Material; US Dept. of Agriculture, Forest Service, Forest Products Laboratory: Madison, WI, USA, 2010; Volume 190, pp. 4.1–4.19. [Google Scholar]
  3. Wang, W.; Zhu, Y.; Cao, J.; Liu, R. Improvement of dimensional stability of wood by in situ synthesis of organo-montmorillonite: preparation and properties of modified Southern pine wood. Holzforschung 2014, 68, 29–36. [Google Scholar] [CrossRef]
  4. Schultz, T.; Nicholas, D.D.; Ingram, L.L. Laboratory and outdoor water repellency and dimensional stability of southern pine sapwood treated with a waterborne water repellent made from resin acids. Holzforschung 2007, 61, 317–322. [Google Scholar] [CrossRef]
  5. Evans, P.D.; Wingate-Hill, R.; Cunningham, R.B. Wax and oil emulsion additives: How effective are they at improving the performance of preservative-treated wood? Forest Prod. J. 2009, 59, 66–70. [Google Scholar]
  6. Humar, M.; Lesar, B. Efficacy of linseed- and tung-oil-treated wood against wood-decay fungi and water uptake. Int. Biodeterior. Biodegradation 2013, 85, 223–227. [Google Scholar] [CrossRef]
  7. Wang, S.; Shi, J.; Liu, C.; Xie, C.; Wang, C. Fabrication of a superhydrophobic surface on a wood substrate. Appl. Surf. Sci. 2011, 257, 9362–9365. [Google Scholar] [CrossRef]
  8. Ma, C.Y.; Wood, D.F. Functional properties of oat proteins modified by acylation, trypsin hydrolysis or linoleate treatment. J. Am. Oil Chem. Soc. 1987, 64, 1726–1731. [Google Scholar] [CrossRef]
  9. Thiebaud-Roux, S.; Borredon, M.; Baziard, G.; Senocq, F. Properties of wood esterified by fatty-acid chlorides. Bioresour. Technol. 1997, 59, 103–107. [Google Scholar] [CrossRef]
  10. Esteves, B.; Nunes, E.; Pereira, H. Properties of furfurylated wood (Pinus pinaster). Eur. J. Wood Wood Prod. 2011, 69, 521–525. [Google Scholar] [CrossRef]
  11. Pilgård, A.; De Vetter, L.; Van Acker, J.; Westin, M. Toxic hazard of leachates from furfurylated wood: Comparison between two different aquatic organisms. Environ. Toxicol. Chem. 2010, 29, 1067–1071. [Google Scholar] [CrossRef]
  12. He, Z.; Qian, J.; Qu, L.; Yan, N.; Yi, S. Effects of Tung oil treatment on wood hygroscopicity, dimensional stability and thermostability. Ind. Crop. Prod. 2019, 140, 111647. [Google Scholar] [CrossRef]
  13. Ulvcrona, T.; Lindberg, H.; Bergsten, U. Impregnation of Norway spruce (Picea abies L. Karst.) wood by hydrophobic oil and dispersion patterns in different tissues. Forestry 2005, 79, 123–134. [Google Scholar] [CrossRef] [Green Version]
  14. Paajanen, L.; Ritschkoff, A.C. Effect of crude tall oil, linseed oil and rapeseed oil on the growth of the decay fungi. In Proceedings of the International Research Group on Wood Protection, Cardiff, UK, 12–17 May 2002. [Google Scholar]
  15. Fredriksson, M.; Wadsö, L.; Ulvcrona, T. Moisture sorption and swelling of Norway spruce (Picea abies (L.) Karst.) impregnated with linseed oil. Wood Mater. Sci. Eng. 2010, 5, 135–142. [Google Scholar] [CrossRef]
  16. Hyvönen, A.; Nelo, M.; Piltonen, P.; Hormi, O.; Niinimäki, J. Using iron catalyst to enhance the drying properties of crude tall oil-based wood preservative. Holz als Roh- und Werkst. 2006, 65, 105–111. [Google Scholar] [CrossRef]
  17. Janković, M.R.; Govedarica, O.; Sinadinović-Fišer, S.V. The epoxidation of linseed oil with in situ formed peracetic acid: A model with included influence of the oil fatty acid composition. Ind. Crop. Prod. 2020, 143, 111881. [Google Scholar] [CrossRef]
  18. Jebrane, M.; Fernandez-Cano, V.; Panov, D.; Terziev, N.; Daniel, G. Novel hydrophobization of wood by epoxidized linseed oil. Part 1. Process description and anti-swelling efficiency of the treated wood. Holzforschung 2015, 69, 173–177. [Google Scholar] [CrossRef]
  19. Jebrane, M.; Fernandez-Cano, V.; Panov, D.; Terziev, N.; Daniel, G. Novel hydrophobization of wood by epoxidized linseed oil. Part 2. Characterization by FTIR spectroscopy and SEM, and determination of mechanical properties and field test performance. Holzforschung 2015, 69, 179–186. [Google Scholar] [CrossRef] [Green Version]
  20. Temiz, A.; Kose, G.; Panov, D.; Terziev, N.; Alma, M.H.; Palanti, S.; Akbas, S. Effect of bio-oil and epoxidized linseed oil on physical, mechanical, and biological properties of treated wood. J. Appl. Polym. Sci. 2013, 130, 1562–1569. [Google Scholar] [CrossRef]
  21. Panov, D.; Terziev, N.; Daniel, G. Using plant oils as hydrophobic substances for wood protection. In Proceedings of the International Research Group on Wood Protection, Biarritz, France, 9–13 May 2010. [Google Scholar]
  22. Sahoo, S.K.; Khandelwal, V.; Manik, G. Development of completely bio-based epoxy networks derived from epoxidized linseed and castor oil cured with citric acid. Polym. Adv. Technol. 2018, 29, 2080–2090. [Google Scholar] [CrossRef]
  23. De Freitas, C.A.S.; De Sousa, P.H.M.; Soares, D.J.; Da Silva, J.Y.G.; Benjamin, S.R.; Guedes, M.I.F. Carnauba wax uses in food - A review. Food Chem. 2019, 291, 38–48. [Google Scholar] [CrossRef]
  24. Villalobos-Hernández, J.; Müller-Goymann, C.C. Sun protection enhancement of titanium dioxide crystals by the use of carnauba wax nanoparticles: The synergistic interaction between organic and inorganic sunscreens at nanoscale. Int. J. Pharm. 2006, 322, 161–170. [Google Scholar] [CrossRef] [PubMed]
  25. Uhumwangho, M.U.; Okor, R.S. A comparative study of dissolution characteristics of polymeric and wax granulations of theophylline and their tablets. Pak. J. Pharm. Sci. 2008, 21, 230–236. [Google Scholar] [PubMed]
  26. Lozhechnikova, A.; Vahtikari, K.; Hughes, M.; Österberg, M. Toward energy efficiency through an optimized use of wood: The development of natural hydrophobic coatings that retain moisture-buffering ability. Energy Build. 2015, 105, 37–42. [Google Scholar] [CrossRef] [Green Version]
  27. Lozhechnikova, A.; Bellanger, H.; Michen, B.; Burgert, I.; Österberg, M. Surfactant-free carnauba wax dispersion and its use for layer-by-layer assembled protective surface coatings on wood. Appl. Surf. Sci. 2017, 396, 1273–1281. [Google Scholar] [CrossRef] [Green Version]
  28. Forsman, N.; Lozhechnikova, A.; Khakalo, A.; Johansson, L.-S.; Vartiainen, J.; Österberg, M. Layer-by-layer assembled hydrophobic coatings for cellulose nanofibril films and textiles, made of polylysine and natural wax particles. Carbohydr. Polym. 2017, 173, 392–402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Demirel, K.D.; Temiz, A.; Jebrane, M.; Terziev, N. Micro-distribution, water absorption and dimensional stability of wood treated with epoxidized plant oils. Bioresources 2018, 13, 5124–5138. [Google Scholar]
  30. Milanovic, J.; Levic, S.; Djordjević, V.; Nedovic, V.; Bugarski, B. Carnauba wax microparticles produced by melt dispersion technique. Chem. Pap. 2011, 65, 213–220. [Google Scholar] [CrossRef]
  31. Toscano, G.; Riva, G.; Pedretti, E.F.; Duca, D. Vegetable oil and fat viscosity forecast models based on iodine number and saponification number. Biomass- Bioenergy 2012, 46, 511–516. [Google Scholar] [CrossRef]
  32. ASTM D5554-15. Standard Test Method for Determination of the Iodine Value of Fats and Oils; American Society for Testing and Materials: West Conshohocken, PA, USA, 2015. [Google Scholar]
  33. Wang, J.; Zhong, H.; Ma, E.; Cao, J. Properties of wood treated with compound systems of paraffin wax emulsion and copper azole. Holz als Roh- und Werkst. 2016, 315–323. [Google Scholar] [CrossRef]
  34. Donath, S.; Militz, H.; Mai, C. Wood modification with alkoxysilanes. Wood Sci. Technol. 2004, 38, 555–566. [Google Scholar] [CrossRef]
  35. GB/T 1931-2009. Method for Determination of Moisture Content of Wood; (ISO 3130:1975, Wood-Determination of moisture content for physical and mechanical test); National Committee for Standardization of Wood: Beijing, China, 2009. [Google Scholar]
  36. Xia, Y.; LaRock, R.C. Vegetable oil-based polymeric materials: synthesis, properties, and applications. Green Chem. 2010, 12, 1893–1909. [Google Scholar] [CrossRef]
  37. Dinda, S.; Patwardhan, A.V.; Goud, V.V.; Pradhan, N.C. Epoxidation of cottonseed oil by aqueous hydrogen peroxide catalysed by liquid inorganic acids. Bioresour. Technol. 2008, 99, 3737–3744. [Google Scholar] [CrossRef] [PubMed]
  38. Sinadinović-Fišer, S.; Janković, M.; Petrovic, Z.S. Kinetics of in situ epoxidation of soybean oil in bulk catalyzed by ion exchange resin. J. Am. Oil Chem. Soc. 2001, 78, 725–731. [Google Scholar] [CrossRef]
  39. Jia, L.K.; Gong, L.X.; Ji, W.J.; Kan, C.Y. Synthesis of vegetable oil based polyol with cottonseed oil and sorbitol derived from natural source. Chin. Chem. Lett. 2011, 22, 1289–1292. [Google Scholar] [CrossRef]
  40. Park, S.; Jin, F.-L.; Lee, J.-R. Synthesis and Thermal Properties of Epoxidized Vegetable Oil. Macromol. Rapid Commun. 2004, 25, 724–727. [Google Scholar] [CrossRef]
  41. Adhvaryu, A.; Erhan, S. Epoxidized soybean oil as a potential source of high-temperature lubricants. Ind. Crop. Prod. 2002, 15, 247–254. [Google Scholar] [CrossRef]
  42. Latreille, B.; Paquin, P. Evaluation of Emulsion Stability by Centrifugation with Conductivity Measurements. J. Food Sci. 1990, 55, 1666–1668. [Google Scholar] [CrossRef]
  43. Carlquist, S. Wood Anatomy of Begoniaceae, with Comments on Raylessness, Paedomorphosis, Relationships, Vessel Diameter, and Ecology. Bull. Torrey Bot. Club 1985, 112, 59. [Google Scholar] [CrossRef]
  44. Ghosh, S.C.; Militz, H.; Mai, C. The efficacy of commercial silicones against blue stain and mould fungi in wood. Holz als Roh- und Werkst. 2009, 67, 159–167. [Google Scholar] [CrossRef] [Green Version]
  45. Supanchaiyamat, N.; Shuttleworth, P.S.; Hunt, A.J.; Clark, J.H.; Matharu, A.S. Thermosetting resin based on epoxidised linseed oil and bio-derived crosslinker. Green Chem. 2012, 14, 1759–1765. [Google Scholar] [CrossRef]
  46. Terziev, N.; Panov, D. Plant Oils as “Green” Substances for Wood Protection; Minimising the Environmental Impact of the Forest Products Industries: Porto, Portugal, September 2010; pp. 143–149. [Google Scholar]
  47. Miwa, M.; Nakajima, A.; Fujishima, A.; Hashimoto, K.; Watanabe, T. Effects of the Surface Roughness on Sliding Angles of Water Droplets on Superhydrophobic Surfaces. Langmuir 2000, 16, 5754–5760. [Google Scholar] [CrossRef]
  48. Boquillon, N. Use of an epoxidized oil-based resin as matrix in vegetable fibers-reinforced composites. J. Appl. Polym. Sci. 2006, 101, 4037–4043. [Google Scholar] [CrossRef]
  49. Hyvönen, A.; Piltonen, P.; Niinimäki, J. Tall oil/water – emulsions as water repellents for Scots pine sapwood. Holz als Roh- und Werkst. 2005, 64, 68–73. [Google Scholar] [CrossRef]
  50. Garai, R.M.; Sánchez, I.C.; García, R.T.; Rodriguez-Valverde, M.A.; Vílchez, M.A.C.; Hidalgo-Alvarez, R. Study on the Effect of Raw Material Composition on Water?Repellent Capacity of Paraffin Wax Emulsions on Wood. J. Dispers. Sci. Technol. 2005, 26, 9–18. [Google Scholar] [CrossRef]
  51. Lesar, B.; Humar, M. Use of wax emulsions for improvement of wood durability and sorption properties. Holz als Roh- und Werkst. 2010, 69, 231–238. [Google Scholar] [CrossRef] [Green Version]
  52. Rowell, R.M.; Banks, W.B. Water repellency and dimensional stability of wood. In Water Repellency and Dimensional Stability of Wood; USDA Forest Service: Washington, DC, USA, 1985; Volume 50, pp. 1–24. [Google Scholar]
  53. Lesar, B.; Pavlič, M.; Petrič, M.; Škapin, A.S.; Humar, M. Wax treatment of wood slows photodegradation. Polym. Degrad. Stab. 2011, 96, 1271–1278. [Google Scholar] [CrossRef]
  54. Lligadas, G.; Ronda, J.C.; Galià, M.; Cadiz, V. Renewable polymeric materials from vegetable oils: A perspective. Mater. Today 2013, 16, 337–343. [Google Scholar] [CrossRef]
Forests 11 00271 g001 550

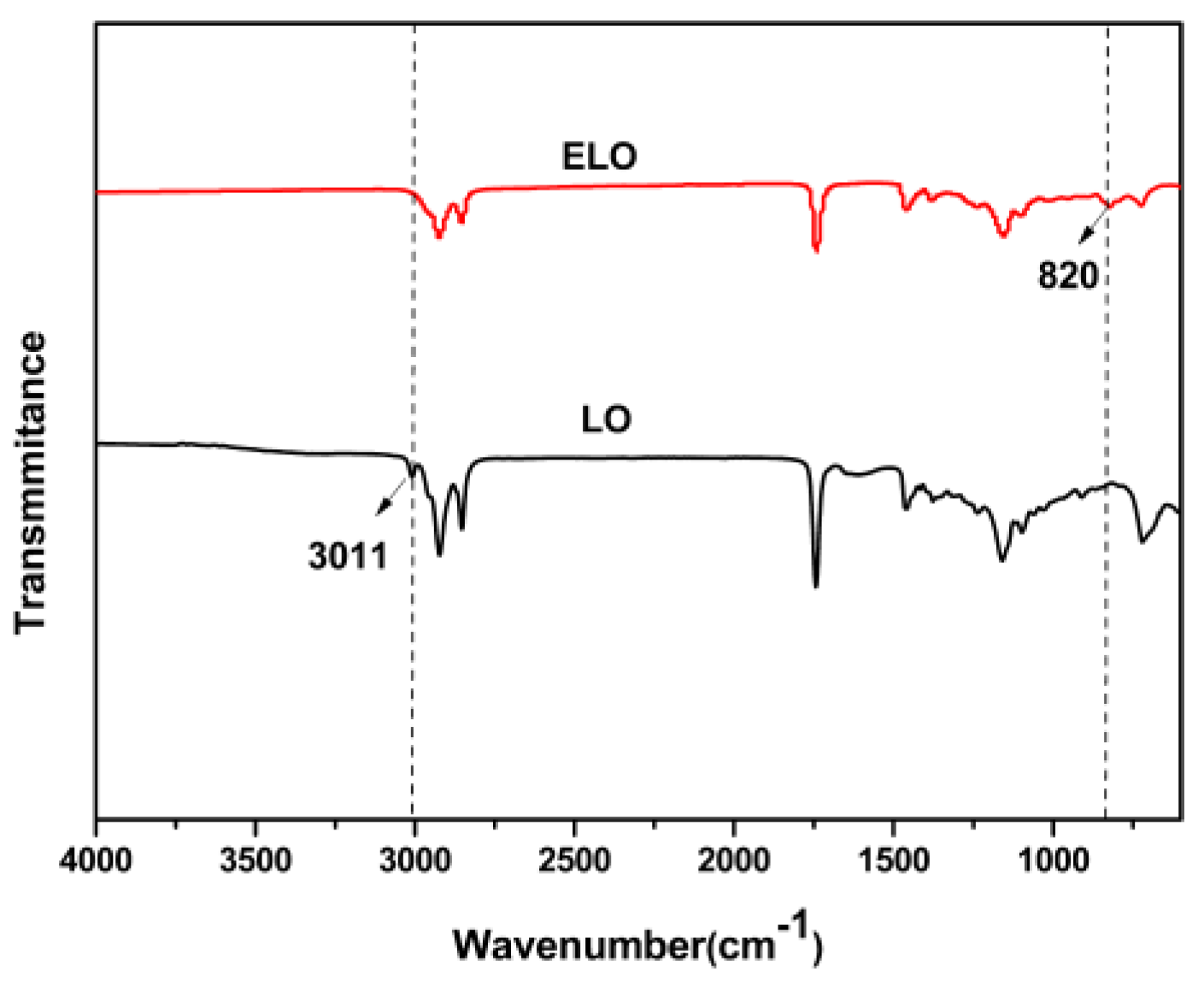

Figure 1. Fourier transform infrared spectroscopy (FTIR) spectrum of linseed oil (LO) and epoxidized linseed oil (ELO).
Figure 1. Fourier transform infrared spectroscopy (FTIR) spectrum of linseed oil (LO) and epoxidized linseed oil (ELO).
Forests 11 00271 g001
Forests 11 00271 g002 550

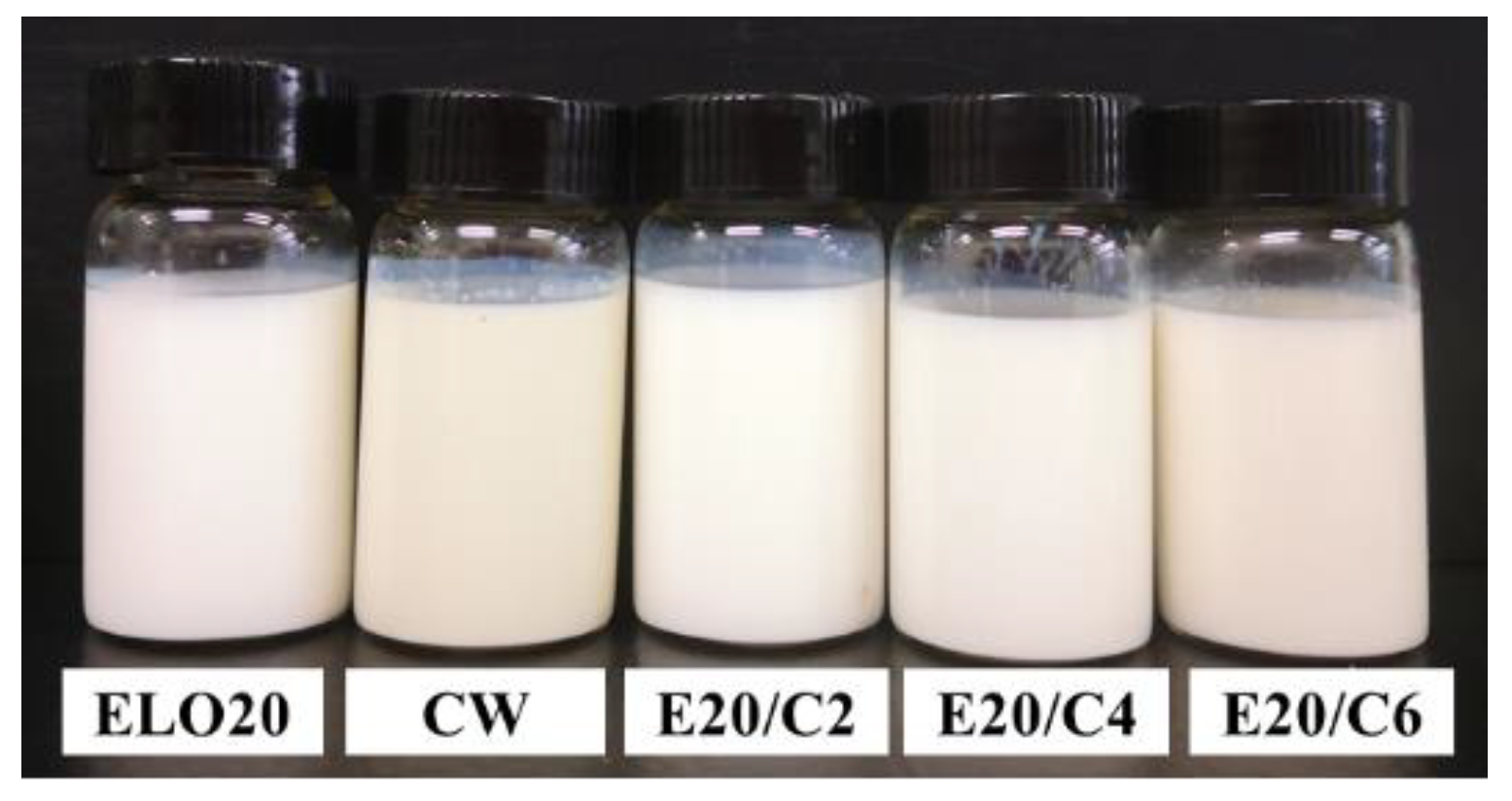

Figure 2. The appearance of different emulsions.
Figure 2. The appearance of different emulsions.
Forests 11 00271 g002
Forests 11 00271 g003 550
Figure 3. SEM observations on the transverse and tangential sections of untreated wood (a and b), ELO20-treated wood (c and d), CW4-treated wood (e and f), and E20/C4-treated wood (g and h).
Figure 3. SEM observations on the transverse and tangential sections of untreated wood (a and b), ELO20-treated wood (c and d), CW4-treated wood (e and f), and E20/C4-treated wood (g and h).
Forests 11 00271 g003
Forests 11 00271 g004 550

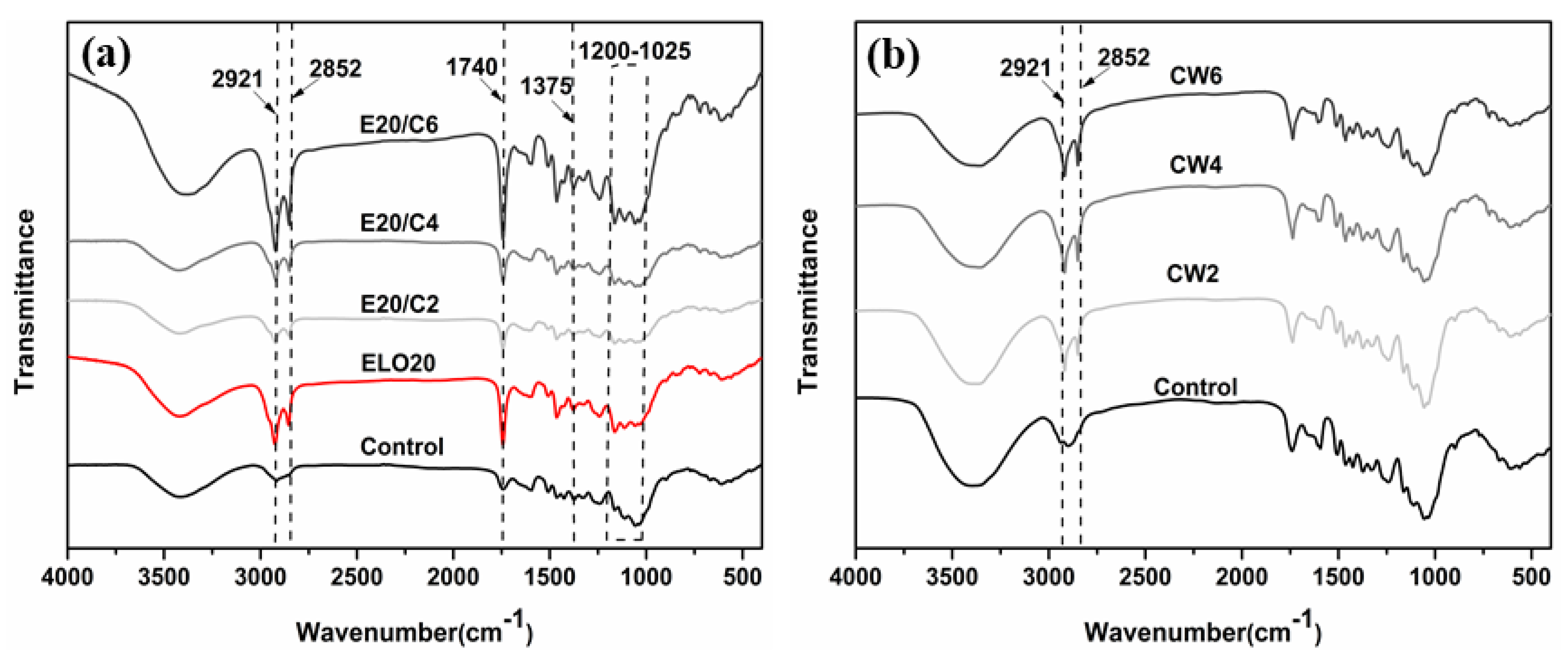

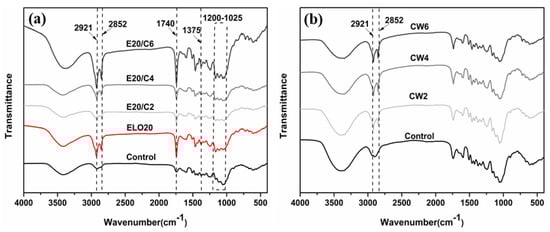

Figure 4. The FTIR spectrum of untreated wood and carnauba wax emulsion-treated wood (a), and ELO emulsion-treated wood and complex-emulsion treated wood (b).
Figure 4. The FTIR spectrum of untreated wood and carnauba wax emulsion-treated wood (a), and ELO emulsion-treated wood and complex-emulsion treated wood (b).
Forests 11 00271 g004
Forests 11 00271 g005 550

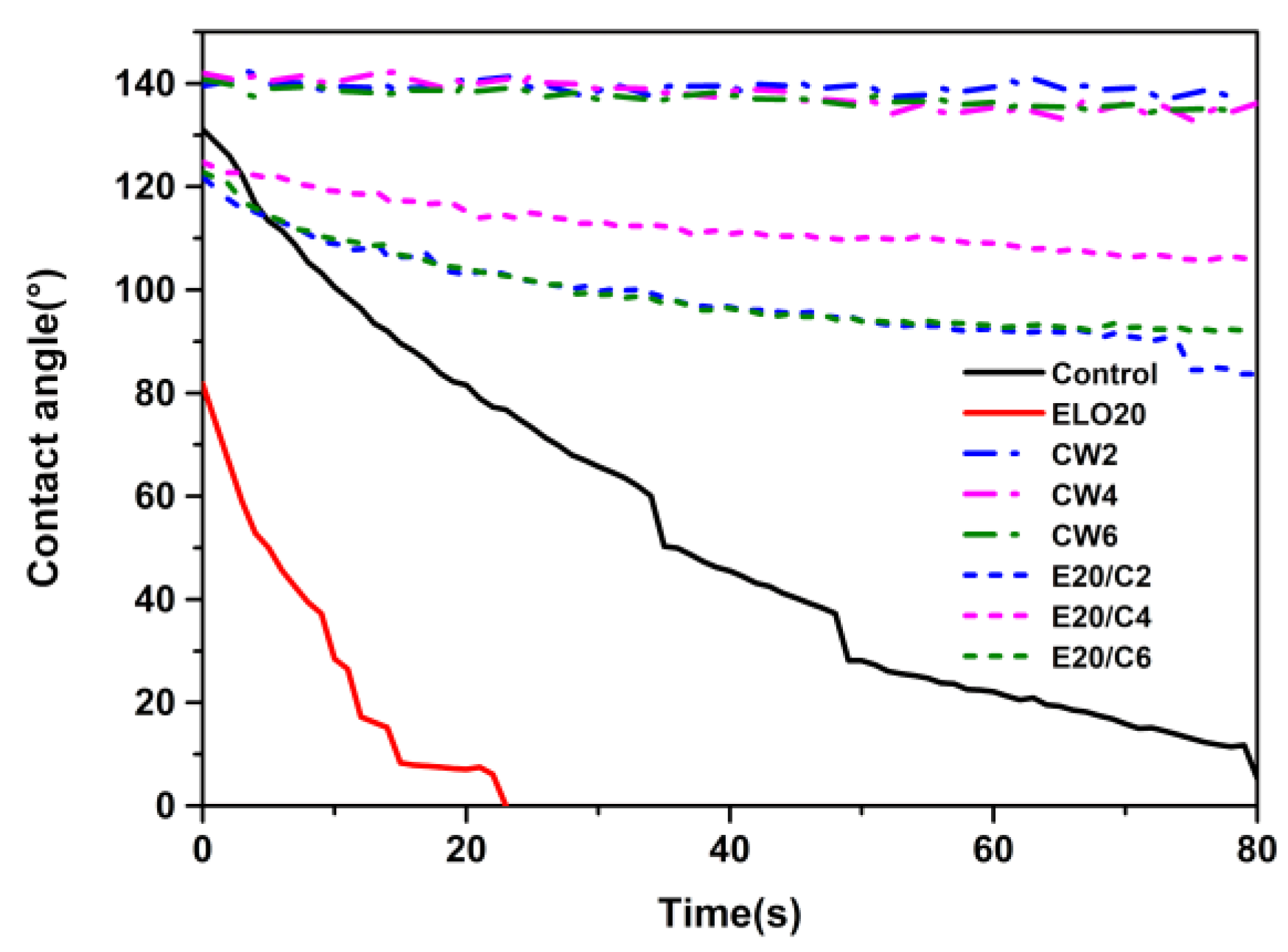

Figure 5. Water contact angle (WCA) of treated and untreated wood on transverse sections as a function of time.
Figure 5. Water contact angle (WCA) of treated and untreated wood on transverse sections as a function of time.
Forests 11 00271 g005
Forests 11 00271 g006 550

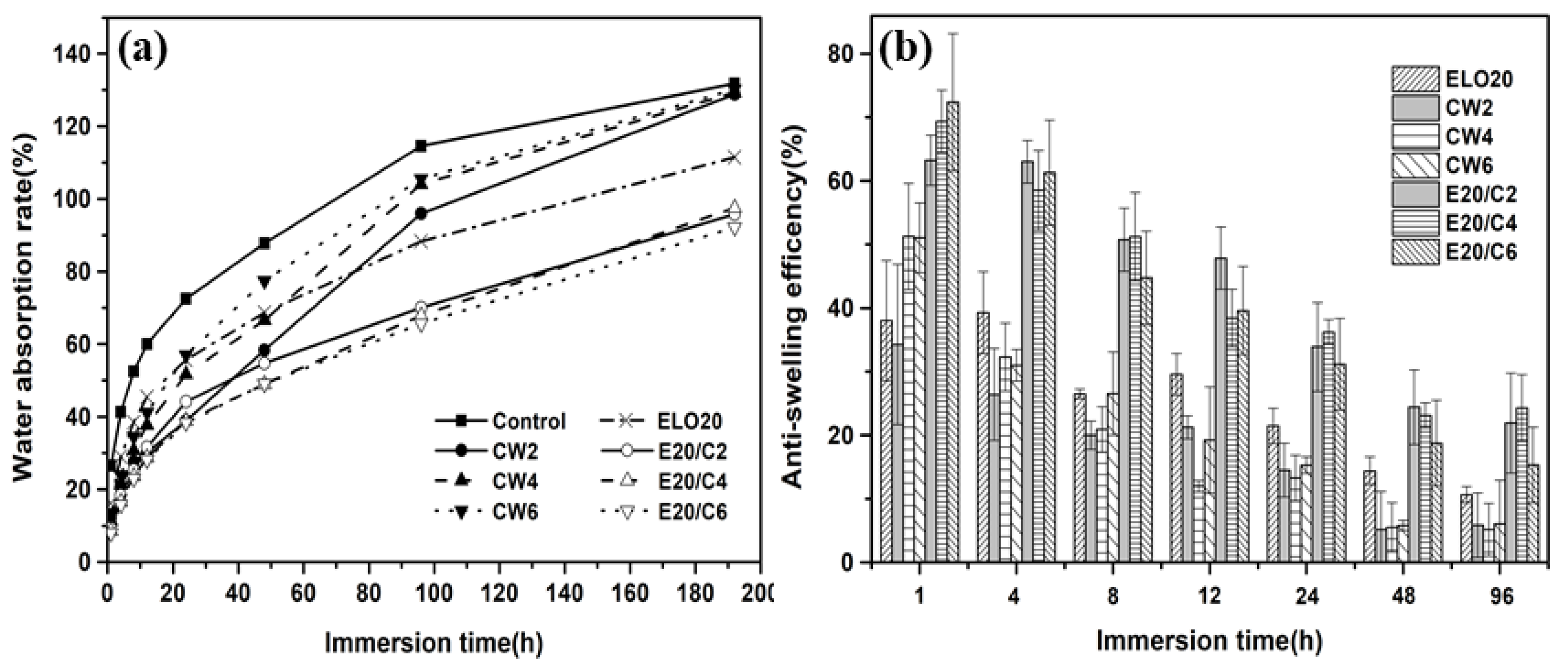

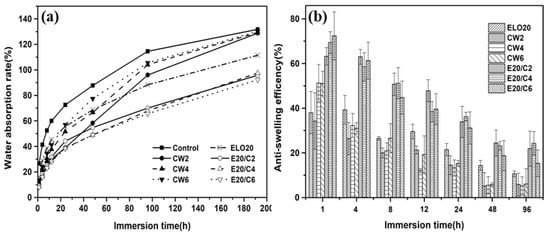

Figure 6. Results of water absorption rate (WA) (a) and anti-swelling efficiency (ASE) (b) of untreated wood, CW emulsion-treated wood, ELO emulsion-treated wood, and ELO/CW emulsion-treated wood.
Figure 6. Results of water absorption rate (WA) (a) and anti-swelling efficiency (ASE) (b) of untreated wood, CW emulsion-treated wood, ELO emulsion-treated wood, and ELO/CW emulsion-treated wood.
Forests 11 00271 g006
Table
Table 1. The ELO or carnauba wax (CW) content, particle size, and viscosity before and after centrifugation of emulsions.
Table 1. The ELO or carnauba wax (CW) content, particle size, and viscosity before and after centrifugation of emulsions.
GroupsELOCWParticle SizeViscosity
ContentContent(Before)(After)(Before)(After)
(%)(%)(nm)(nm)(mPa·s)(mPa·s)
ELO2020-195.0194.24552
CW2-2219.8222.52222
CW4-4219.8221.92223
CW6-6220.3225.72322
E20/C2202195.3197.52627
E20/C4204188.8205.12828
E20/C6206229.9237.93030
Table
Table 2. The weight percent gain (WPG), bulking coefficient (BC), and equilibrium moisture content (EMC) of untreated and treated wood.
Table 2. The weight percent gain (WPG), bulking coefficient (BC), and equilibrium moisture content (EMC) of untreated and treated wood.
GroupsWPG (%)BC (%)EMC (%)
control−0.52 ±0.030.56 ± 0.238.46 ± 0.55
ELO2030.95 ± 1.312.45 ± 0.388.11 ± 0.16
CW23.67 ± 0.550.57 ± 0.358.28 ± 0.07
CW46.98 ± 0.530.89 ± 0.498.28 ± 0.14
CW69.93 ± 1.271.17 ± 0.498.24 ± 0.06
E20/C236.06 ± 1.822.71 ± 0.257.89 ± 0.66
E20/C434.65 ± 1.912.11 ± 0.617.76 ± 0.05
E20/C635.80 ± 1.142.48 ± 0.257.59 ± 0.27

Share and Cite

MDPI and ACS Style

Chen, J.; Wang, Y.; Cao, J.; Wang, W. Improved Water Repellency and Dimensional Stability of Wood via Impregnation with an Epoxidized Linseed Oil and Carnauba Wax Complex Emulsion. Forests 2020, 11, 271. https://doi.org/10.3390/f11030271

AMA Style

Chen J, Wang Y, Cao J, Wang W. Improved Water Repellency and Dimensional Stability of Wood via Impregnation with an Epoxidized Linseed Oil and Carnauba Wax Complex Emulsion. Forests. 2020; 11(3):271. https://doi.org/10.3390/f11030271

Chicago/Turabian Style

Chen, Jinyu, Yujiao Wang, Jinzhen Cao, and Wang Wang. 2020. "Improved Water Repellency and Dimensional Stability of Wood via Impregnation with an Epoxidized Linseed Oil and Carnauba Wax Complex Emulsion" Forests 11, no. 3: 271. https://doi.org/10.3390/f11030271

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
