Comparison of the Internal and Marginal Adaptation of Implant-Supported Restorations on Titanium Base Using Various Materials: An In Vitro Study

by
Oriol Cantó-Navés
,
Jordi Martí-Vigil
*,
Javier de Medrano
,
Jiaxing Wu
and
Oscar Figueras-Alvarez
Faculty of Dentistry, Universitat Internacional de Catalunya (UIC), 08017 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Materials 2025, 18(7), 1590; https://doi.org/10.3390/ma18071590
Submission received: 10 February 2025 / Revised: 18 March 2025 / Accepted: 27 March 2025 / Published: 1 April 2025
(This article belongs to the Section Biomaterials)
Browse Figures
Versions Notes

Highlights

  1. Inadequate fit may contribute to plaque retention and related periodontal diseases.
  2. Digital silicone replicas ensure accurate crown fit measurements.
  3. Statistical analysis revealed significant differences in fit based on material type and measurement location.
  4. Dopped graphene PMMA exhibited superior marginal fit compared to zirconia materials.
  5. Marginal adaptation was similar between single-density and dual-density zirconia.

Abstract

:
The adaptation of restorations to the titanium base (TiBase) abutments varies depending on the materials and methods used, playing a crucial role in implant and prosthetic success. This in vitro study aims to compare the internal and marginal fit of a titanium interface among three different milled materials: doped graphene PMMA, single-density zirconia, and dual-density zirconia, used for the rehabilitation of CAD-CAM implant-supported single crowns. A digital method based on the silicone replica technique was employed. The silicone reproduction of each fabricated restoration’s inner and basal parts was digitally aligned to the titanium base, measuring the space between them at three predetermined planes: basal, middle, and superior. The material with the worst overall adaptation was dual-density zirconia (0.1 ± 0.03 mm), followed by single-density zirconia (0.09 ± 0.03 mm), and doped graphene PMMA (0.06 ± 0.02 mm). No statistical differences were found in the internal fit, represented by the measurements made at the middle and superior plane, among the materials used (p > 0.05). However, the marginal fit of doped graphene PMMA restorations was statistically better than zirconia restorations (p < 0.05). No significant differences were observed between the marginal fit of both types of zirconia (p > 0.05). Across all three materials, the superior plane showed the best fit, while the marginal plane exhibited the worst.

1. Introduction

The introduction of industrially manufactured titanium base (TiBase) abutments, integrated into CAD/CAM libraries, has allowed commercial laboratories to fabricate customized milled abutments or crowns. The main advantage of TiBase abutments is their precise fit, ensuring stable implant connections. Cementing the final prosthesis directly to the TiBase using CAD/CAM blocks with screw access holes permits extraoral bonding, minimizes excess cement, and reduces the risk of cement-related peri-implant bone loss. This approach also optimizes the fit with the implant connection [1,2,3].
Prosthetic design plays a crucial role in the long-term success of implant-supported restorations. One of the key factors influencing peri-implant disease is bacterial plaque accumulation at the abutment–implant interface, which is a major contributor to late-stage implant failure [3,4,5,6].
The basal or marginal gap is the vertical distance between the restoration’s finish line and its cervical margin. This factor is critical for maintaining structural integrity, as marginal discrepancies can expose cement to the oral environment, leading to dissolution and potential microleakage. Over time, this can promote bacterial plaque accumulation [7,8,9]. Although there is no consensus on the acceptable marginal gap, several studies suggest a threshold of 120 μm for successful restorations [7,10,11,12,13,14].
Poor marginal adaptation can significantly compromise the durability of restorations, increasing the risks of plaque accumulation, microleakage, caries, and periodontal or peri-implant disease [10,15,16,17,18,19,20,21]. Similarly, inadequate internal adaptation increases the risk of prosthetic fractures. Ensuring optimal marginal and internal adaptation is essential for implant restorations’ long-term success [7,8,10,15,16,21,22,23,24].
With the widespread adoption of CAD-CAM technology in implant dentistry [11,21], digital methods for assessing marginal and internal fit have become increasingly prevalent. These techniques are used to evaluate inlays, onlays, veneers, crowns, fixed partial dentures, implant abutments, and even full oral restorations. CAD-CAM technology was developed to address three key challenges: ensuring adequate strength for restorations (especially in posterior teeth), achieving high-quality esthetics, and enhancing manufacturing accuracy and efficiency [21,25,26].
Recent computer-assisted technology advancements have refined digital evaluation methods for marginal and internal fit. Various assessment techniques have been proposed [9,12,14,27,28]. One widely used technique is the silicone replica technique (SRT), in which silicone is injected to replicate the internal and marginal adaptation. This technique allows for quantitative analysis after slicing the silicone duplicate [10,14,29,30]. While SRT is cost-effective and non-invasive, it has limitations, including a restricted number of measurable sections and potential material distortion. To improve precision and eliminate manual sectioning, recent studies have integrated digital methodologies with traditional SRTs [14,27,28,31].
Zirconia (Zirconium Dioxide-ZrO2) is a high-strength polycrystalline ceramic known for its superior mechanical properties compared to other ceramics. Its natural color and reduced bacterial plaque adhesion have contributed to its widespread use in dentistry [29,30,32,33]. Zirconia can be processed through soft zirconia pre-sintering or hard, fully sintered zirconia milling. Soft zirconia undergoes a 20–30% shrinkage during sintering, a factor that varies depending on the manufacturer [29,30,32].
Polymethyl methacrylate (PMMA) is widely used due to its low density, low elastic modulus, and esthetic qualities [34,35,36]. Graphene, a unique allotropic form of carbon, consists of a single layer of sp2 hybridized carbon atoms arranged in a two-dimensional honeycomb structure [35,37,38,39,40]. Recognized as the strongest and thinnest material in the world [25,26,31,41], graphene has been incorporated into PMMA (doped graphene PMMA) [22,23,34,36,38].
Zirconia is one of the leading metal-free materials for fabricating implant-supported restorations [16,24,29,30,32]. In contrast, doped graphene PMMA is a newer material still under research but exhibits promising properties for implant restorations [36,38,39,40]. Both materials are produced through subtractive manufacturing, ensuring high precision in large-scale production [22,32,36]. However, milling has limitations, including reduced precision, tool wear, calibration issues, and challenges in creating complex structures [16,17,21,22,42].
Given the critical role of TiBase adaptation in the success of implant prosthetics, this in vitro study aims to compare the internal and marginal fit of three different CAD-CAM milled materials for implant-supported single restorations: doped graphene PMMA, single-density zirconia, and dual-density zirconia, at the time of manufacturing.

2. Materials and Methods

Zirconia and doped graphene PMMA were selected for this comparative study assessing the marginal fit of crowns on titanium implant interfaces (TiBase). The study samples were produced by milling a zirconia disk with a hardness of 1100 MPa and an A3.5 color (BioDynamic, Parma, Italy), a dual-density zirconia disk with 1200/600 MPa hardness and A3.5 color (BioDynamic, Parma, Italy), and a doped graphene PMMA disk (Acrylgraph, Soneja, Spain). Detailed information is provided in Table 1. The crowns were evaluated for their fit to the titanium base (REF: 57657) (Bego Implants, Bremen, Germany).
The study measurements were obtained using the tooth-supported digital silicone replica method workflow [28,31]. This method consists of three phases: digitalization of the silicone replica, STL superimposition, and digital measurement (Figure 1).

2.1. Computer-Aided Design (CAD)

The sample design was created using Exocad DentalCAD 3.1 Rijeka (exocad GmbH, Darmstadt, Germany). A right maxillary first molar was designed on a TiBase, incorporating the marginal and internal fit parameters specified in the manufacturer’s proprietary dental software library. The design was then exported as a standard tessellation language (STL) file for manufacturing.

2.2. Computer-Aided Manufacturing (CAM)

The STL file was imported into the milling machine software DentalCAM (version 8.07.00) to fabricate the samples. A five-axis milling machine (E5 Vhf, vhf camfacture AG, Ammerbuch, Germany) was used, strictly following the manufacturer’s specifications. A total of 51 crowns (17 from each material group) were milled (Figure 2). A new set of milling burs was employed for each material disk to minimize tool wear and ensure precision. The milling process was conducted under controlled temperature conditions in the same laboratory environment.
A statistical power analysis using a one-way ANOVA was conducted based on the reported means and standard deviations. For 90% statistical power (reducing the Type II error risk to 10%), approximately 27 samples (9 samples per group) were required. The study included 51 samples (17 per group), ensuring sufficient statistical power to detect meaningful differences.
Group 1 consisted of doped graphene PMMA crowns. After milling, the individual crowns were separated from the disk using a bur (Diambconflat end FG M 014, Dentsply Sirona, Charlotte, NC, USA). Group 2 included single-density zirconia crowns, while Group 3 comprised dual-density zirconia crowns with a hardness of 600 MPa in the coronal half and 1200 MPa in the basal half. Individual zirconia crowns were separated from the disk following milling using the same bur type. The zirconia samples were sintered in the TABEO-1/M/ZIRKON-100 sintering furnace (MIHM-VOGT GmbH & Co. KG, Stutensee, Germany), following the manufacturer’s specifications (BioDynamic).

2.3. Silicone Replica

A silicone replica of each crown’s internal part was created by injecting light-flow addition silicone (Flexitime, Kulzer GmbH, Hanau, Germany) into the TiBase abutment space. The silicone was injected from the occlusal aspect of the crown to the most apical area, ensuring full internal replication. Each crown was then positioned in a heavy body addition silicone base (Flexitime, Kulzer GmbH, Hanau, Germany), and any excess material was trimmed away using a No. 15 scalpel blade (Swann-Morton®, Sheffield, UK).
A custom mold was created to ensure that all samples were fabricated in an identical position. A plaster base form was constructed on a previously made silicone replica without removing the crown from the silicone (Figure 3a). This crown with the base form was then placed in a custom silicone mold made from laboratory heavy condensation silicone (Zhermack SpA, Badia Polesine, Italy), allowing for the preparation of a standardized base for all samples (Figure 3 and Figure 4a,b).
A perforated lid was created on the replicating silicone base to facilitate casting all samples in the same base form (Figure 4c–f). This method ensured consistency across samples during scanning, superimposition, and digital measurement. Finally, the TiBase abutment was secured with light addition silicone in one of the crowns, and a silicone replica was produced using the same protocol to maintain the interface position.

2.4. Digitization

The 51 silicone replicas and the original TiBase abutment on their plaster bases were scanned using an extraoral scanner (OPTICAL-REVENGE, Open Technologies S.R.l., Rezzato, BS, Italy). The meshes of the silicone replicas and the scanned TiBase were aligned to digitally measure the discrepancy between the original TiBase and the silicone replicas using Limaguide® software (version 1.9.3) (Innovación Dental, S.L., Barcelona, Spain).

2.5. Data Collection

The Limaguide® software was used to measure the inner surface of the crowns and the TiBase. Three cutting planes were established: basal, middle, and superior. Four reference points were selected in each plane to ensure consistent measurement across all samples: two in the mesiodistal direction and two in the buccal–lingual direction. Thus, the space between the TiBase and the fabricated crowns was measured at twelve points.
Each plane was created using two perpendicular prisms, positioned horizontally to the interface, forming fixed buccal–lingual and mesiodistal planes (Figure 5). The 12 measurement points were labeled from A to L and divided into three groups: basal (A–D), middle (E–H) and superior (I–L). The basal plane represented the marginal fit, while the middle and superior planes represented the internal fit (Figure 6). Vertical measurements were taken at the basal plane for the marginal fit, and horizontal measurements were collected at the middle and superior planes for the internal fit.
The results were obtained by aligning silicone replicas from Groups 1, 2, and 3 with the reference TiBase scan using fixed planes. The space between the inner crown areas and the TiBase was measured in millimeters at four points on each plane across the 51 samples. These measurements were then exported to a Microsoft Excel spreadsheet.

2.6. Statistical Analysis

Statistical analysis was performed using SPSS® Statistics 27.0 software (IBM, Armonk, NY, USA). After verifying normality and homoscedasticity using the Shapiro–Wilk and Levene tests, descriptive statistics (means and standard deviations) were computed.
A multifactorial analysis of variance (ANOVA) was conducted with misfit as the dependent variable and two independent factors: material type (doped graphene PMMA, single-density zirconia, and dual-density zirconia) and measurement plane (basal, middle, and superior). A post hoc Least Significant Difference (LSD) test was performed to identify the significant differences between groups. The statistical significance threshold was established at p < 0.05 with a 95% confidence interval.

3. Results

The mean values and standard deviations for each crown’s measured space, along with the statistical significance levels, are represented in Table 2.
The fit between the titanium base and the 51 crowns fabricated—17 in doped graphene PMMA (Group 1), 17 in single-density zirconia (Group 2), and 17 in dual-density zirconia (Group 3)—was analyzed through multifactorial variance analysis at the three measurements planes: basal, middle, and superior. Both the measurement location (F = 399.930, p < 0.001) and the material type (F = 15.500, p < 0.001) significantly influenced the measured misfit between the titanium base and the crowns.
No significant differences were found in the internal fit (middle and superior planes) among the materials used (p > 0.05). However, doped graphene PMMA restorations exhibited a statistically inferior marginal fit compared to zirconia restorations (p < 0.05). No significant differences were observed between the marginal fit of single-density and dual-density zirconia (p > 0.05) (Figure 7).

4. Discussion

The success and longevity of indirect restorations are closely linked to their internal and marginal adaptation [10,15]. A poor marginal fit can lead to plaque accumulation, inflammation of adjacent tissues, and an increased risk of periodontal or peri-implant disease [6,15,16,27]. Although the acceptable clinical threshold for the marginal fit varies across studies, many suggest a 120 µm limit, which is lower than the values obtained in this study [10,16,17,18,19,32,33]. Doped graphene PMMA samples demonstrated a near-acceptable marginal fit, while zirconia samples exhibited larger marginal discrepancies, potentially affecting their long-term clinical performance.
Previous studies indicate that the positioning of the samples within the milling disk can influence fabrication accuracy, with centrally positioned samples exhibiting better adaptation than peripheral ones [43]. This factor could explain some of the misfit values observed in this study, as only one disk per material was used. While sample positioning within the disk may introduce minor variations, it does not alter the comparative results between materials, as all samples were milled under the same conditions.
The adaptation of restorations to TiBase abutments plays a crucial role in prosthetic success, as misfit can facilitate bacterial plaque accumulation, leading to gingival inflammation and potential peri-implant bone loss due to occlusal loading (functional or parafunctional) [5,6].
In this in vitro study, we aimed to compare the misfit between a Tibase framework and crowns milled from different materials at the time of manufacturing, using only the methodology previously described in the literature. Doped graphene PMMA, single-density zirconia, and dual-density zirconia were analyzed using the digital silicone replica and digital measurement techniques.
Significant differences in adaptation were observed across measurement planes in all groups. The basal plane (marginal fit) exhibited the poorest adaptation, whereas the middle and superior planes showed better fit across all materials. The middle and superior planes represent the space allowed for the cementing agent, which is pre-set in the proprietary CAD software (Exocad DentalCAD 3.1 Rijeka) parameters.
Doped graphene PMMA restorations exhibited significantly better marginal fit than zirconia restorations. This could be attributed to the material’s lower hardness, which enhances milling accuracy [42,44], the shrinkage effect during zirconia sintering [29,32,44], or the effect of tool wear on harder materials. However, in this study, tool wear effects were minimized by using a new set of burs for each milled disk.
Additional tests, including thermal aging and extraction retention assessments, may impact the basal fit over time. Future studies could employ methodologies such as X-ray diffraction (XRD), scanning electron microscopy (SEM), field emission scanning electron microscopy (FESEM), finite element analysis (FEA), optical microscopy, or stereomicroscopy to observe potential long-term changes.
Several studies have investigated the internal and external adaptations using different methodologies. Refaie et al. compared the adaptation of milled monolithic zirconia and 3D-printed crowns using the silicon replica technique and a microscope at 50× magnification. Their study found that milled zirconia crowns had a mean misfit of 60 ± 20 μm, which was smaller than the values observed in our study [16]. However, their study included printed restorations, while ours focused exclusively on milled materials.
Using the triple-scan protocol, Cantó-Navés et al. evaluated the internal and marginal adaptation of onlay restorations fabricated via subtractive and additive manufacturing methods. Their findings revealed a fit range of 160.57 ± 67.72 to 225.73 ± 11.31 μm, which aligns with the misfit values observed in our study for doped graphene PMMA and zirconia restorations [17].
Park et al. compared the marginal and internal discrepancies of provisional implant restorations fabricated by additive, subtractive, and conventional thermoplastic resin techniques. They found that milled restorations exhibited a total discrepancy of 109.59 μm and a marginal fit of 58.02 μm, ranking second in adaptation after additively manufactured crowns [22]. Our study reported larger marginal discrepancies, particularly in zirconia samples.
Goujat et al. conducted a systematic review of in vitro studies evaluating CAD/CAM inlay and onlay restorations. Most studies reported acceptable fit below 120 μm, highlighting the significant influence of the material used on restoration adaptation [18]. Similarly, our study confirms that material selection plays a critical role in the marginal fit, with doped graphene PMMA outperforming zirconia in this aspect. However, systematic reviews aggregate data from multiple methodologies, which may impact comparability.
El-Farag et al. used a 3D finite element analysis and in vitro testing to assess the impact of CAD/CAM materials on internal and marginal adaptation, fracture resistance, and failure probability of endocrown restorations. Their study, which used the silicone replica technique and a stereomicroscope at ×25 magnification, found that zirconia restorations exhibited the highest marginal discrepancies, while PEEK restorations showed the lowest [23]. These findings align with our results, as zirconia restorations in our study demonstrated greater marginal misfit compared to doped graphene PMMA.
Ferrini et al. analyzed the marginal precision in CAD/CAM crowns fabricated from zirconia, lithium disilicate, and composite over cobalt-chromium dies, using microphotographs at 580× magnification. They reported significant variations between the materials, with zirconia showing the best fit, followed by composite, and lithium disilicate. Their mean values for zirconia restorations (21.45 ± 12.58 μm) were considerably lower than those observed in our study [19]. These discrepancies may be due to the differences in scanning and milling precision or the methodologies used in each study.
One limitation of this study is the use of a single disk for each material, which may introduce variability in the milling process. However, since all samples were fabricated under identical conditions and positioned the same way within the disk, this limitation does not undermine the comparative validity of our results.
Additionally, this study did not incorporate thermal aging or mechanical testing. Future research should include mechanical strength evaluations, thermal cycling, and retention for assessments, particularly for doped graphene PMMA, which remains a promising but less-explored material. Moreover, alternative evaluation methodologies such as XRD, SEM, FESEM, FEA, optical microscopy, and stereomicroscopy could provide additional insights into material behavior over time. These techniques should be considered in future investigations to explore long-term adaptation and clinical performance further.

5. Conclusions

Within the limits of this study, which evaluated the misfit at the time of manufacturing, the following conclusions can be drawn:
  • Doped graphene PMMA restorations demonstrated better marginal adaptation to TiBase compared to both single-density and dual-density zirconia.
  • No statistically significant differences were found in the internal adaptation of restorations fabricated from doped graphene PMMA, single-density zirconia, and dual-density zirconia.
  • Among the three tested materials, the marginal plane exhibited the highest degree of misfit, whereas the superior plane demonstrated the best adaptation.
  • The digital silicone replica technique combined with a digital measurement proved to be a reliable method for assessing the fit of different CAD-CAM milled materials in implant-supported restorations.
  • Material selection significantly influences marginal adaptation, with doped graphene PMMA achieving superior marginal fit at the time of manufacturing compared to zirconia.
Although doped graphene PMMA demonstrated a better marginal fit, this study does not assess its long-term clinical performance or mechanical properties. Further in vitro research, including thermal aging, mechanical strength testing, pull-out retention analysis, bacterial adhesion assessments, and SEM/TEM imaging, are required to validate these findings and evaluate their implications for prosthetic success.

Author Contributions

Conceptualization, O.C.-N. and O.F.-A.; methodology, O.C.-N., J.d.M. and J.W.; software, J.d.M.; validation, O.C.-N. and O.F.-A.; formal analysis, O.F.-A.; investigation, J.W., O.C.-N. and J.M.-V.; resources, O.C.-N.; data curation, O.C.-N. and O.F.-A.; writing—original draft preparation, J.W. and J.M.-V.; writing—review and editing, O.F.-A., J.M.-V. and O.C.-N.; visualization, J.d.M., J.W. and J.M.-V.; supervision, O.F.-A. and O.C.-N.; project administration, O.C.-N. and O.F.-A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
SRTSilicone replica technique
PMMAPolymethyl methacrylate
STLStandard tessellation language
CADComputer-aided design
CAMComputer-aided manufacturing

References

  1. Ramalho, I.S.; Bergamo, E.T.P.; Witek, L.; Coelho, P.G.; Lopes, A.C.O.; Bonfante, E.A. Implant-Abutment Fit Influences the Mechanical Performance of Single-Crown Prostheses. J. Mech. Behav. Biomed. Mater. 2020, 102, 103506. [Google Scholar] [CrossRef] [PubMed]
  2. Alves, K.A.F.; Damasceno, J.E.; de Oliveira, V.M.B.; Bastos, L.G.C.; Cavalcanti, A.N. In Vitro Study of Marginal, Internal and Proximal Adaptation of Implant-Supported Single-Crown CAD/CAM Restorations. Braz. J. Oral Sci. 2020, 19, e207286. [Google Scholar] [CrossRef]
  3. Sarafidou, K.; Vasileiadi, G.; Louvrou, M.K.; Moldovani, E.; Koidis, P.; Kokoti, M.; Bakopoulou, A. Screwmentable Implant-Supported Prostheses: A Systematic Review. J. Prosthet. Dent. 2023, 130, 35–47. [Google Scholar] [PubMed]
  4. Lauritano, D.; Moreo, G.; Lucchese, A.; Viganoni, C.; Limongelli, L.; Carinci, F. The Impact of Implant-Abutment Connection on Clinical Outcomes and Microbial Colonization: A Narrative Review. Materials 2020, 13, 1131. [Google Scholar] [CrossRef]
  5. Hamilton, A.; Putra, A.; Nakapaksin, P.; Kamolroongwarakul, P.; Gallucci, G.O. Implant Prosthodontic Design as a Predisposing or Precipitating Factor for Peri-Implant Disease: A Review. Clin. Implant Dent. Relat. Res. 2023, 25, 710–722. [Google Scholar]
  6. Oliveira, J.A.; de Oliveira Alves, R.; Nascimento, I.M.; Hidalgo, M.A.R.; Scarel-Caminaga, R.M.; Cristina Pigossi, S. Pro- and Anti-Inflammatory Cytokines and Osteoclastogenesis-Related Factors in Peri-Implant Diseases: Systematic Review and Meta-Analysis. BMC Oral Health 2023, 23, 420. [Google Scholar] [CrossRef]
  7. Fakhr, M.W.Z.F.; Alansary, H.; Hassanien, E.E.Y. Internal Fit and Marginal Adaptation of All-Ceramic Implant-Supported Hybrid Abutment Crowns with Custom-Milled Screw-Channels on Titanium-Base: In-Vitro Study. BMC Oral Health 2024, 24, 1073. [Google Scholar] [CrossRef]
  8. Zhu, H.; Zhou, Y.; Jiang, J.; Wang, Y.; He, F. Accuracy and Margin Quality of Advanced 3D-Printed Monolithic Zirconia Crowns. J. Prosthet. Dent. 2023, in press. [CrossRef]
  9. Meirowitz, A.; Bitterman, Y.; Levy, S.; Mijiritsky, E.; Dolev, E. An In Vitro Evaluation of Marginal Fit Zirconia Crowns Fabricated by a CAD-CAM Dental Laboratory and a Milling Center. BMC Oral Health 2019, 19, 103. [Google Scholar] [CrossRef]
  10. Son, K.; Lee, S.; Kang, S.H.; Park, J.; Lee, K.B.; Jeon, M.; Yun, B.J. A Comparison Study of Marginal and Internal Fit Assessment Methods for Fixed Dental Prostheses. J. Clin. Med. 2019, 8, 785. [Google Scholar] [CrossRef]
  11. Zeller, S.; Guichet, D.; Kontogiorgos, E.; Nagy, W.W. Accuracy of Three Digital Workflows for Implant Abutment and Crown Fabrication Using a Digital Measuring Technique. J. Prosthet. Dent. 2019, 121, 276–284. [Google Scholar] [CrossRef]
  12. Bayrak, A.; Akat, B.; Ocak, M.; Kılıçarslan, M.A.; Özcan, M. Micro-Computed Tomography Analysis of Fit of Ceramic Inlays Produced with Different CAD Software Programs. Eur. J. Prosthodont. Restor. Dent. 2021, 29, 160–165. [Google Scholar] [CrossRef]
  13. Revilla-León, M.; Gómez-Polo, M.; Barmak, A.B.; Yilmaz, B.; Rutkunas, V.; Kois, J.C. Influence of the Manufacturing Trinomial (Technology, Printer, and Material) on the Marginal and Internal Discrepancies of Printed Metal Frameworks for the Fabrication of Tooth-Supported Prostheses: A Systematic Review and Meta-Analysis. Int. J. Prosthodont. 2024, 37, s285–s307. [Google Scholar] [CrossRef]
  14. Ayres, A.P.; Cuschieri, L.A.; Bianchi, D.M.; Pradíes, G.; Côrtes, A.R.G. Advantages and Drawbacks of Different Methods to Measure Marginal Gaps in Fixed Dental Prostheses: A Scoping Review. J. Dent. 2024, 151, 105400. [Google Scholar]
  15. Rues, S.; Zehender, N.; Zenthöfer, A.; Bömicke, W.; Herpel, C.; Ilani, A.; Erber, R.; Roser, C.; Lux, C.J.; Rammelsberg, P.; et al. Fit of Anterior Restorations Made of 3D-Printed and Milled Zirconia: An in-Vitro Study. J. Dent. 2023, 130, 104415. [Google Scholar] [CrossRef]
  16. Refaie, A.; Fouda, A.; Bourauel, C.; Singer, L. Marginal Gap and Internal Fit of 3D Printed versus Milled Monolithic Zirconia Crowns. BMC Oral Health 2023, 23, 448. [Google Scholar] [CrossRef]
  17. Cantó-Navés, O.; Michels, K.; Figueras-Alvarez, O.; Fernández-Villar, S.; Cabratosa-Termes, J.; Roig, M. In Vitro Comparison of Internal and Marginal Adaptation between Printed and Milled Onlays. Materials 2023, 16, 6962. [Google Scholar] [CrossRef]
  18. Goujat, A.; Abouelleil, H.; Colon, P.; Jeannin, C.; Pradelle, N.; Seux, D.; Grosgogeat, B. Marginal and Internal Fit of CAD-CAM Inlay/Onlay Restorations: A Systematic Review of in Vitro Studies. J. Prosthet. Dent. 2019, 121, 590–597.e3. [Google Scholar]
  19. Ferrini, F.; Paolone, G.; Di Domenico, G.L.; Pagani, N.; Gherlone, E.F. SEM Evaluation of the Marginal Accuracy of Zirconia, Lithium Disilicate, and Composite Single Crowns Created by CAD/CAM Method: Comparative Analysis of Different Materials. Materials 2023, 16, 2413. [Google Scholar] [CrossRef]
  20. Alarcón-Sánchez, M.A.; Heboyan, A.; Fernandes, G.V.D.O.; Castro-Alarcón, N.; Romero-Castro, N.S. Potential Impact of Prosthetic Biomaterials on the Periodontium: A Comprehensive Review. Molecules 2023, 28, 1075. [Google Scholar] [CrossRef]
  21. Da Silva, S.E.G.; da Silva, N.R.; Santos, J.V.D.N.; Moreira, F.G.D.G.; Özcan, M.; Souza, R.O.D.A.E. Accuracy, Adaptation and Margin Quality of Monolithic Zirconia Crowns Fabricated by 3D Printing versus Subtractive Manufacturing Technique: A Systematic Review and Meta-Analysis of In Vitro Studies. J. Dent. 2024, 147, 105089. [Google Scholar] [CrossRef]
  22. Park, J.Y.; Jeong, I.D.; Lee, J.J.; Bae, S.Y.; Kim, J.H.; Kim, W.C. In Vitro Assessment of the Marginal and Internal Fits of Interim Implant Restorations Fabricated with Different Methods. J. Prosthet. Dent. 2016, 116, 536–542. [Google Scholar] [CrossRef] [PubMed]
  23. El-Farag, S.A.A.; Elerian, F.A.; Elsherbiny, A.A.; Abbas, M.H. Impact of Different CAD/CAM Materials on Internal and Marginal Adaptations and Fracture Resistance of Endocrown Restorations with: 3D Finite Element Analysis. BMC Oral Health 2023, 23, 421. [Google Scholar] [CrossRef] [PubMed]
  24. Turkyilmaz, I.; Benli, M.; Yun, S. Evaluation of Marginal and Internal Fit of Lithium Disilicate and Zirconia All-Ceramic CAD-CAM Crowns Using Digital Impressions: A Systematic Review. Prim. Dent. J. 2023, 12, 88–95. [Google Scholar] [CrossRef] [PubMed]
  25. Branco, A.C.; Colaço, R.; Figueiredo-Pina, C.G.; Serro, A.P. Recent Advances on 3D-Printed Zirconia-Based Dental Materials: A Review. Materials 2023, 16, 1860. [Google Scholar] [CrossRef]
  26. Su, G.; Zhang, Y.; Jin, C.; Zhang, Q.; Lu, J.; Liu, Z.; Wang, Q.; Zhang, X.; Ma, J. 3D Printed Zirconia Used as Dental Materials: A Critical Review. J. Biol. Eng. 2023, 17, 78. [Google Scholar]
  27. Di Fiore, A.; Zuccon, A.; Carraro, F.; Basilicata, M.; Bollero, P.; Bruno, G.; Stellini, E. Assessment Methods for Marginal and Internal Fit of Partial Crown Restorations: A Systematic Review. J. Clin. Med. 2023, 12, 5048. [Google Scholar] [CrossRef]
  28. Yang, Y.; Yang, Z.; Zhou, J.; Chen, L.; Tan, J. Effect of Tooth Preparation Design on Marginal Adaptation of Composite Resin CAD-CAM Onlays. J. Prosthet. Dent. 2020, 124, 88–93. [Google Scholar] [CrossRef]
  29. Alghauli, M.; Alqutaibi, A.Y.; Wille, S.; Kern, M. 3D-Printed versus Conventionally Milled Zirconia for Dental Clinical Applications: Trueness, Precision, Accuracy, Biological and Esthetic Aspects. J. Dent. 2024, 144, 104925. [Google Scholar]
  30. Teegen, I.S.; Schadte, P.; Wille, S.; Adelung, R.; Siebert, L.; Kern, M. Comparison of Properties and Cost Efficiency of Zirconia Processed by DIW Printing, Casting and CAD/CAM-Milling. Dent. Mater. 2023, 39, 669–676. [Google Scholar] [CrossRef]
  31. de Kok, P.; Liao, P.; Chien, E.C.; Morgano, S. A Meta-Analysis of the Accuracy of Different Measuring Techniques to Evaluate the Marginal and Internal Gap of a Fixed Dental Prosthesis: The American Academy of Fixed Prosthodontics, Research in Fixed Prosthodontics Committee. J. Prosthet. Dent. 2025, in press.
  32. Zarone, F.; Di Mauro, M.I.; Ausiello, P.; Ruggiero, G.; Sorrentino, R. Current Status on Lithium Disilicate and Zirconia: A Narrative Review. BMC Oral Health 2019, 19, 134. [Google Scholar] [CrossRef]
  33. Al Farawati, F.; Nakaparksin, P. What Is the Optimal Material for Implant Prosthesis? Dent. Clin. N. Am. 2019, 63, 515–530. [Google Scholar]
  34. Zafar, M.S. Prosthodontic Applications of Polymethyl Methacrylate (PMMA): An Update. Polymers 2020, 12, 2299. [Google Scholar] [CrossRef] [PubMed]
  35. De Angelis, F.; Vadini, M.; Buonvivere, M.; Valerio, A.; Di Cosola, M.; Piattelli, A.; Biferi, V.; D’Arcangelo, C. In Vitro Mechanical Properties of a Novel Graphene-Reinforced PMMA-Based Dental Restorative Material. Polymers 2023, 15, 622. [Google Scholar] [CrossRef]
  36. Selva-Otaolaurruchi, E.J.; Fernández-Estevan, L.; Solá-Ruiz, M.F.; García-Sala-Bonmati, F.; Selva-Ribera, I.; Agustín-Panadero, R. Graphene-Doped Polymethyl Methacrylate (PMMA) as a New Restorative Material in Implant-Prosthetics: In Vitro Analysis of Resistance to Mechanical Fatigue. J. Clin. Med. 2023, 12, 1269. [Google Scholar] [CrossRef]
  37. Tahriri, M.; Del Monico, M.; Moghanian, A.; Tavakkoli Yaraki, M.; Torres, R.; Yadegari, A.; Tayebi, L. Graphene and Its Derivatives: Opportunities and Challenges in Dentistry. Mater. Sci. Eng. C 2019, 102, 171–185. [Google Scholar]
  38. Bonilla-Represa, V.; Abalos-Labruzzi, C.; Herrera-Martinez, M.; Guerrero-Pérez, M.O. Nanomaterials in Dentistry: State of the Art and Future Challenges. Nanomaterials 2020, 10, 1770. [Google Scholar] [CrossRef]
  39. Bokobza, L. On the Use of Nanoparticles in Dental Implants. Materials 2020, 10, 1770. [Google Scholar]
  40. Herrero-Climent, M.; Sanchez-Lasheras, F.; Martinez-Lopez, J.; Gil, J.; Brizuela-Velasco, A. Mechanical Behavior of PEEK and PMMA Graphene and Ti6Al4V Implant-Supported Frameworks: In Silico Study. Materials 2025, 18, 441. [Google Scholar] [CrossRef]
  41. Erdinc, G. Graphene on Dentistry: A Bibliometric and Scientometric Analysis. Niger. J. Clin. Pract. 2023, 26, 65–72. [Google Scholar] [CrossRef]
  42. Pilecco, R.O.; Machry, R.V.; Baldi, A.; Tribst, J.P.M.; Sarkis-Onofre, R.; Valandro, L.F.; Kleverlaan, C.J.; Scotti, N.; Pereira, G.K.R. Influence of CAD-CAM Milling Strategies on the Outcome of Indirect Restorations: A Scoping Review. J. Prosthet. Dent. 2024, 131, e1–e811. [Google Scholar]
  43. Turkyilmaz, I.; Wilkins, G.N. Milling Machines in Dentistry: A Swiftly Evolving Technology. J. Craniofac. Surg. 2021, 32, 2259–2260. [Google Scholar] [CrossRef] [PubMed]
  44. Suzuki, S.; Katsuta, Y.; Ueda, K.; Watanabe, F. Marginal and Internal Fit of Three-Unit Zirconia Fixed Dental Prostheses: Effects of Prosthesis Design, Cement Space, and Zirconia Type. J. Prosthodont. Res. 2020, 64, 460–467. [Google Scholar] [CrossRef] [PubMed]
Materials 18 01590 g001

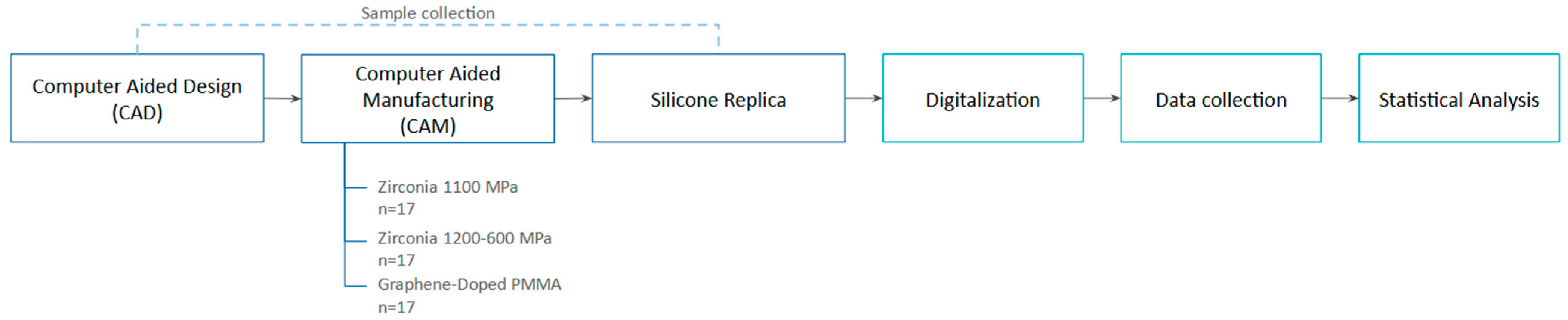

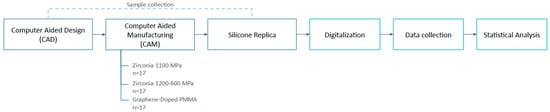

Figure 1. Workflow of the study.
Figure 1. Workflow of the study.
Materials 18 01590 g001
Materials 18 01590 g002

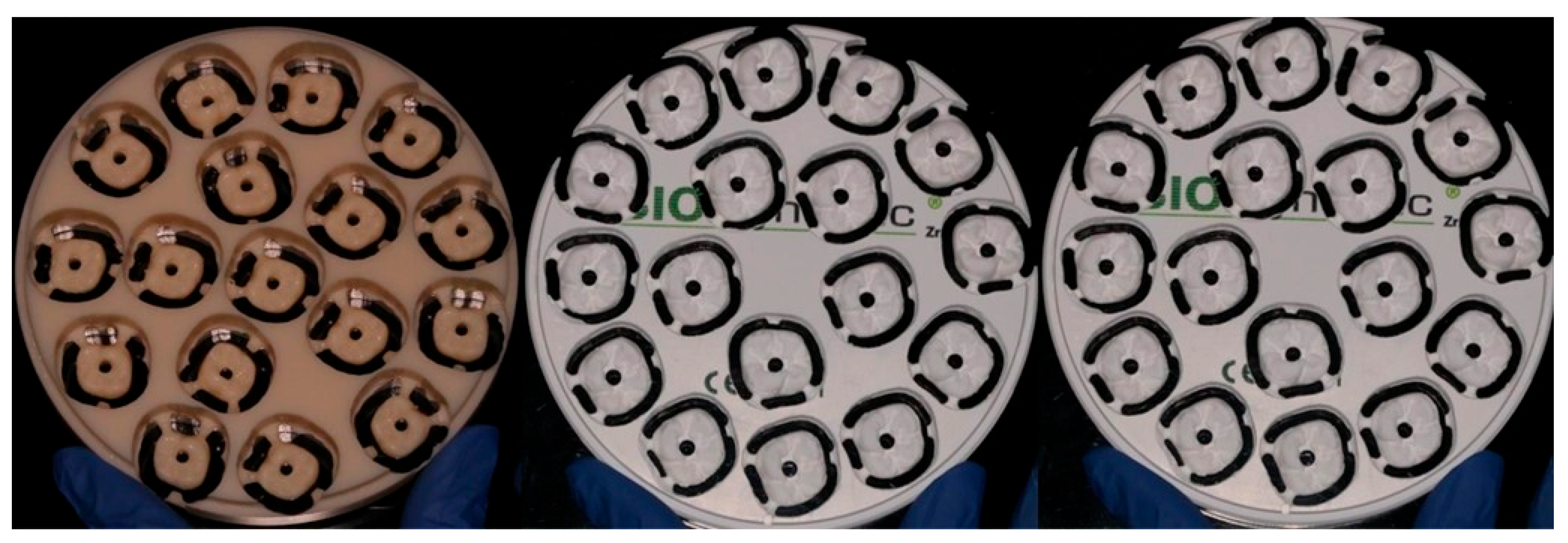

Figure 2. Milled Acrylgraph-doped graphene PMMA disk, BioDynamic 1100 MPa zirconia disk, and 1200/600 MPa disk.
Figure 2. Milled Acrylgraph-doped graphene PMMA disk, BioDynamic 1100 MPa zirconia disk, and 1200/600 MPa disk.
Materials 18 01590 g002
Materials 18 01590 g003

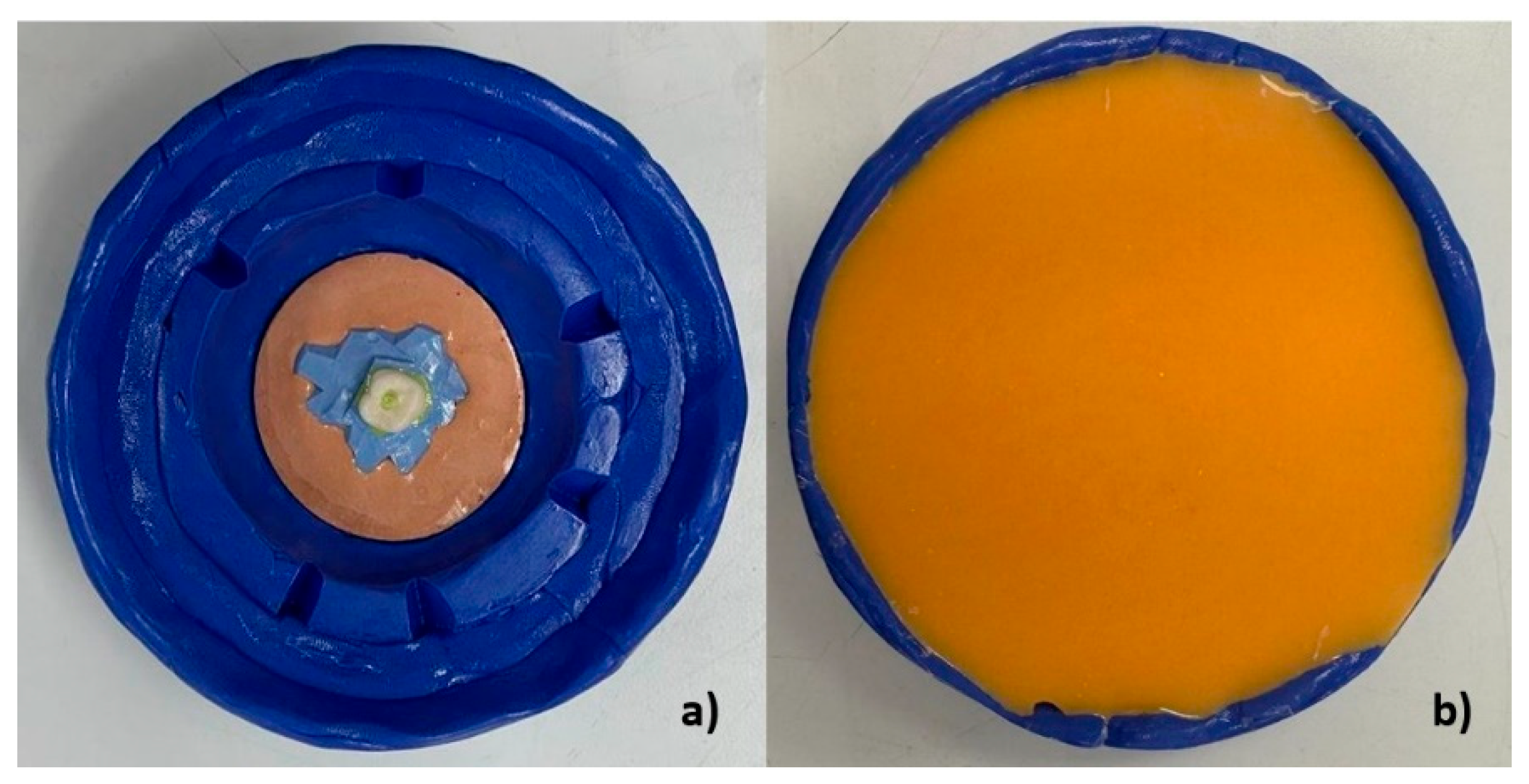

Figure 3. (a) Heavy silicone mold with guide crown. (b) Custom mold manufacturing with replicating silicone on the heavy silicone mold.
Figure 3. (a) Heavy silicone mold with guide crown. (b) Custom mold manufacturing with replicating silicone on the heavy silicone mold.
Materials 18 01590 g003
Materials 18 01590 g004

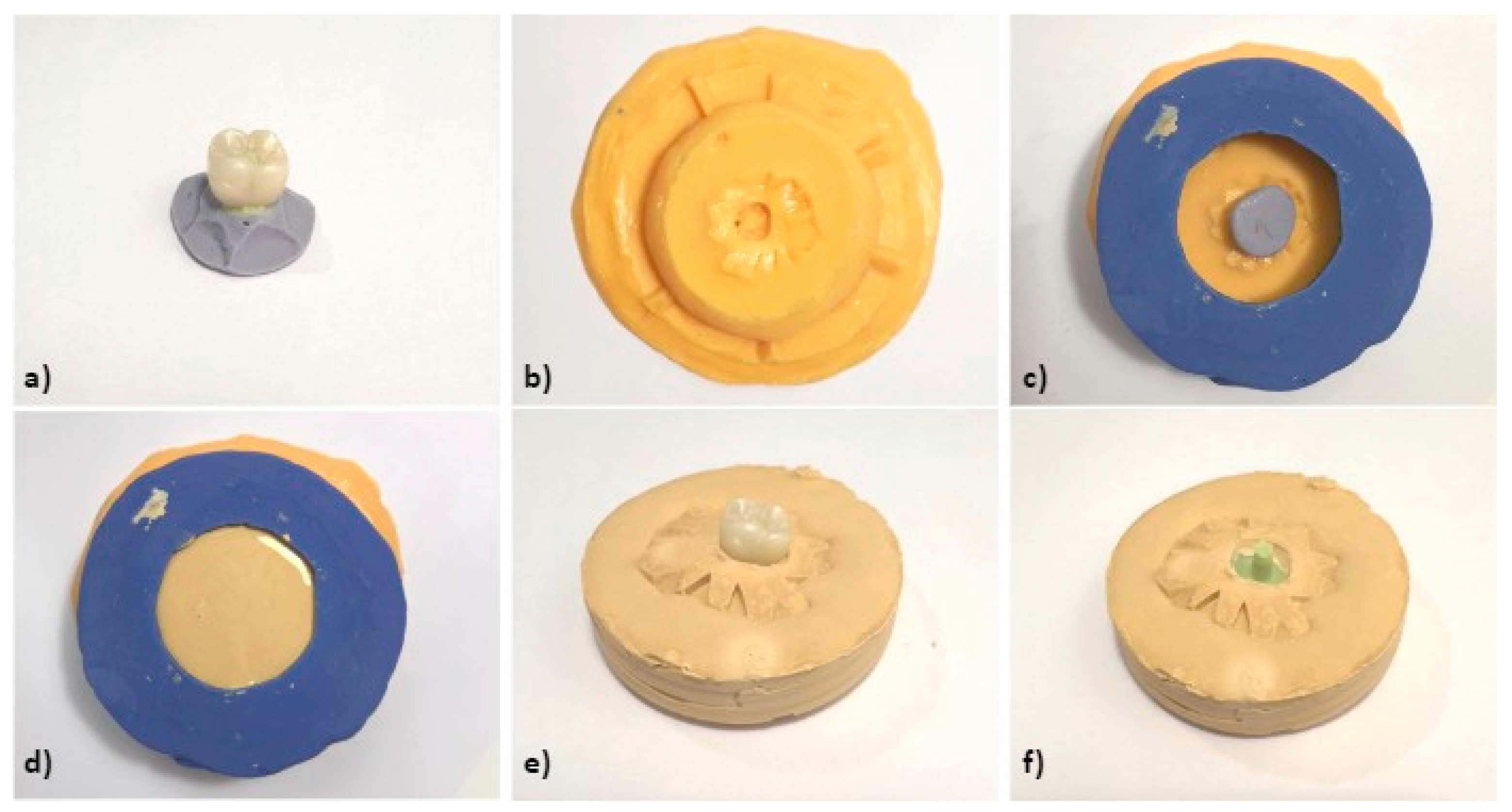

Figure 4. (a) Crown with fluid silicone injected inside and heavy silicone base (silicone replica). (b) Custom silicone mold for casting. (c) Silicone mold with crown and silicone replica. (d) Casting process. (e) Silicone replica with crown on plaster base. (f) Silicone replica on plaster base.
Figure 4. (a) Crown with fluid silicone injected inside and heavy silicone base (silicone replica). (b) Custom silicone mold for casting. (c) Silicone mold with crown and silicone replica. (d) Casting process. (e) Silicone replica with crown on plaster base. (f) Silicone replica on plaster base.
Materials 18 01590 g004
Materials 18 01590 g005

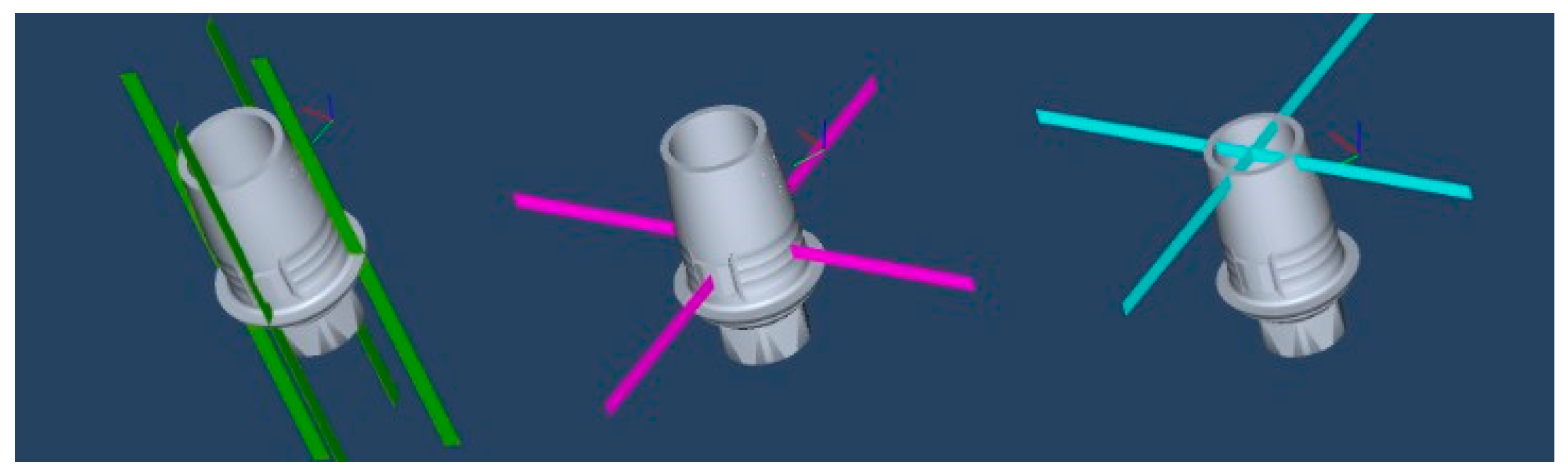

Figure 5. Three predetermined planes: basal (green), middle (purple), and superior (blue).
Figure 5. Three predetermined planes: basal (green), middle (purple), and superior (blue).
Materials 18 01590 g005
Materials 18 01590 g006

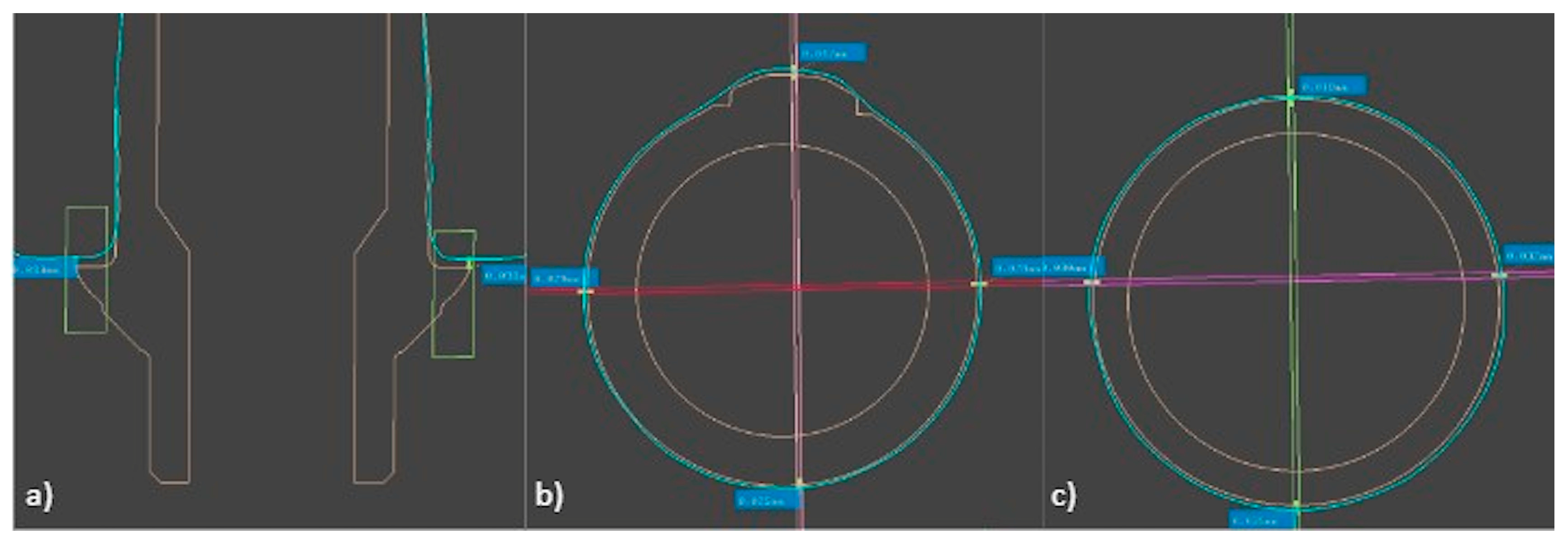

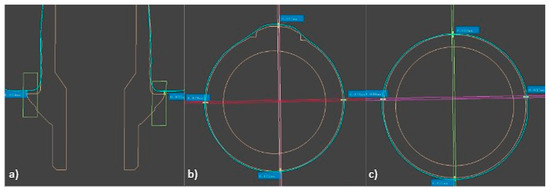

Figure 6. Measurement points of: (a) basal plane, (b) middle plane, (c) superior plane.
Figure 6. Measurement points of: (a) basal plane, (b) middle plane, (c) superior plane.
Materials 18 01590 g006
Materials 18 01590 g007

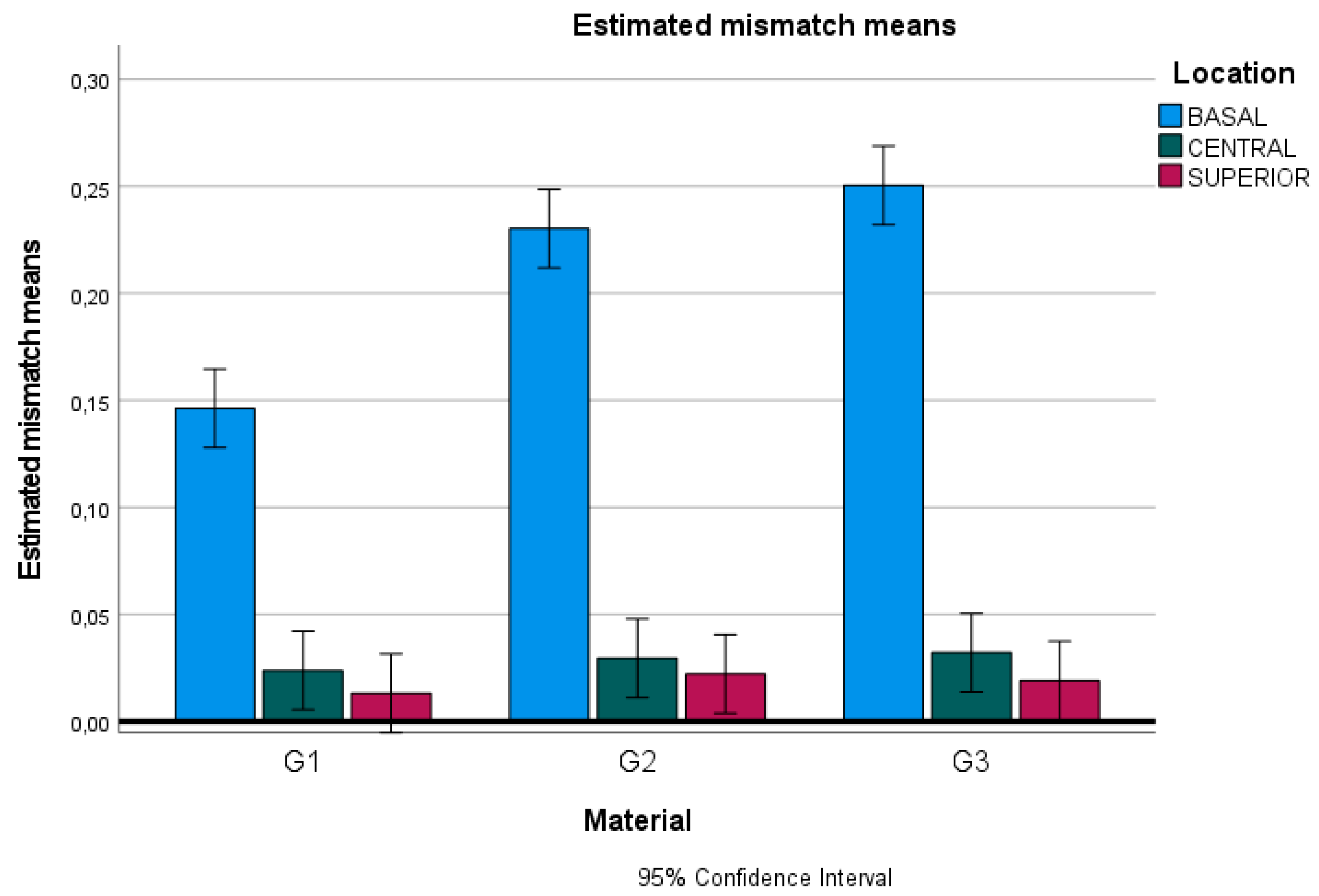

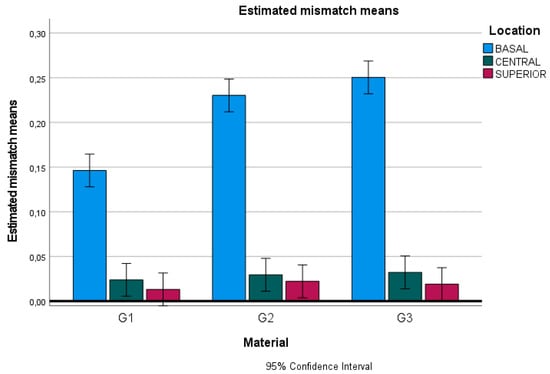

Figure 7. Chart of estimated mismatch means: G1, doped graphene PMMA; G2, zirconia 1100 MPa; and G3, zirconia 600–1200 MPa.
Figure 7. Chart of estimated mismatch means: G1, doped graphene PMMA; G2, zirconia 1100 MPa; and G3, zirconia 600–1200 MPa.
Materials 18 01590 g007
Table 1. Materials used in this study, their product name, manufacturer, location, and manufacturing method.
Table 1. Materials used in this study, their product name, manufacturer, location, and manufacturing method.
MaterialProduct NameManufacturerLocationManufacturing Method
Zirconia 1100 MPaBioDynamic ZrBiodynamicParma, ItalyMilling + Sintering
Zirconia 1200-600 MPaBioDynamic ZrBiodynamicParma, ItalyMilling + Sintering
Doped graphene PMMAAcrylgraphKPT59 S.L.Soneja, SpainMilling
Table 2. Means ± standard deviations of the crown fit from group 1, group 2, and group 3 in the three predetermined planes, and p-value according to ANOVA. Superscript letters indicate significantly different groups at p < 0.05. * indicate significant differences at p < 0.05.
Table 2. Means ± standard deviations of the crown fit from group 1, group 2, and group 3 in the three predetermined planes, and p-value according to ANOVA. Superscript letters indicate significantly different groups at p < 0.05. * indicate significant differences at p < 0.05.
Basal PlaneMiddle PlaneSuperior Plane
Doped graphene PMMA (G1)0.1463 ± 0.4025 a0.0238 ± 0.006690.0132 ± 0.00446
Zirconia 1100 MPa (G2)0.2303 ± 0.7744 b0.0295 ± 0.008960.0222 ± 0.00819
Zirconia 1200-600 MPa (G3)0.2505 ± 0.7268 b0.0321 ± 0.007410.0190 ± 0.00767
<0.05 *>0.05>0.05
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Cantó-Navés, O.; Martí-Vigil, J.; de Medrano, J.; Wu, J.; Figueras-Alvarez, O. Comparison of the Internal and Marginal Adaptation of Implant-Supported Restorations on Titanium Base Using Various Materials: An In Vitro Study. Materials 2025, 18, 1590. https://doi.org/10.3390/ma18071590

AMA Style

Cantó-Navés O, Martí-Vigil J, de Medrano J, Wu J, Figueras-Alvarez O. Comparison of the Internal and Marginal Adaptation of Implant-Supported Restorations on Titanium Base Using Various Materials: An In Vitro Study. Materials. 2025; 18(7):1590. https://doi.org/10.3390/ma18071590

Chicago/Turabian Style

Cantó-Navés, Oriol, Jordi Martí-Vigil, Javier de Medrano, Jiaxing Wu, and Oscar Figueras-Alvarez. 2025. "Comparison of the Internal and Marginal Adaptation of Implant-Supported Restorations on Titanium Base Using Various Materials: An In Vitro Study" Materials 18, no. 7: 1590. https://doi.org/10.3390/ma18071590

APA Style

Cantó-Navés, O., Martí-Vigil, J., de Medrano, J., Wu, J., & Figueras-Alvarez, O. (2025). Comparison of the Internal and Marginal Adaptation of Implant-Supported Restorations on Titanium Base Using Various Materials: An In Vitro Study. Materials, 18(7), 1590. https://doi.org/10.3390/ma18071590

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
