Abstract

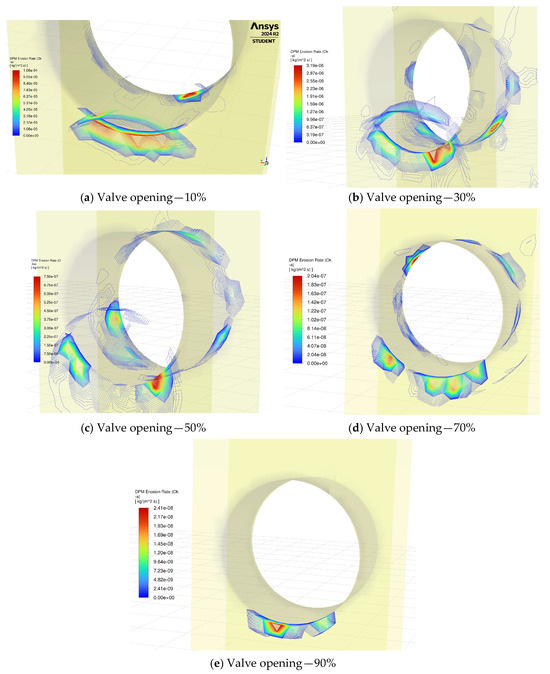

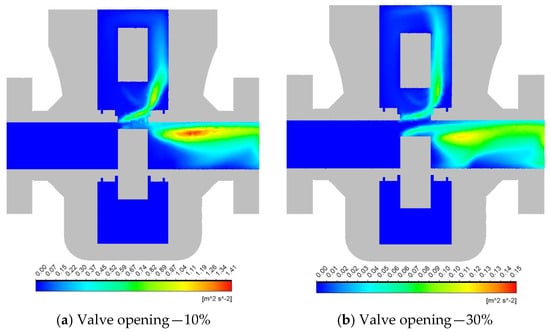

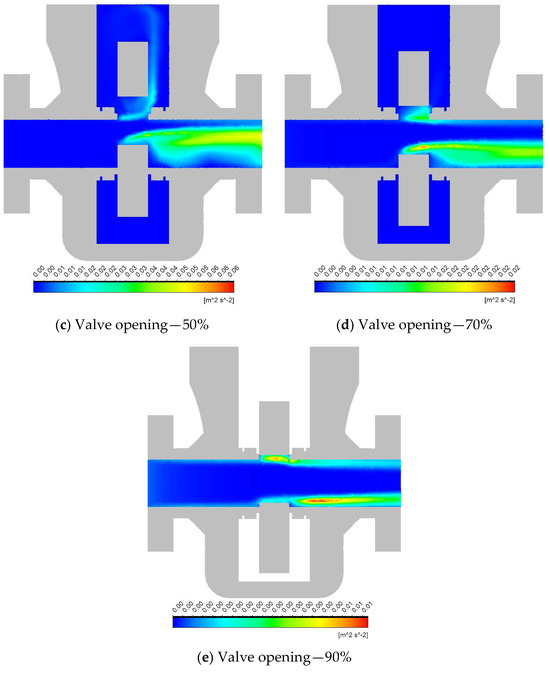

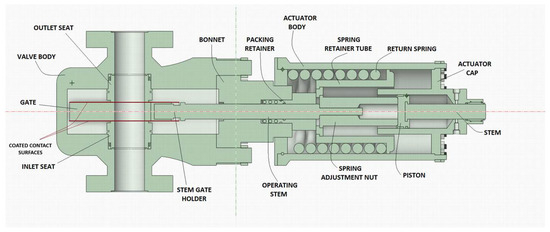

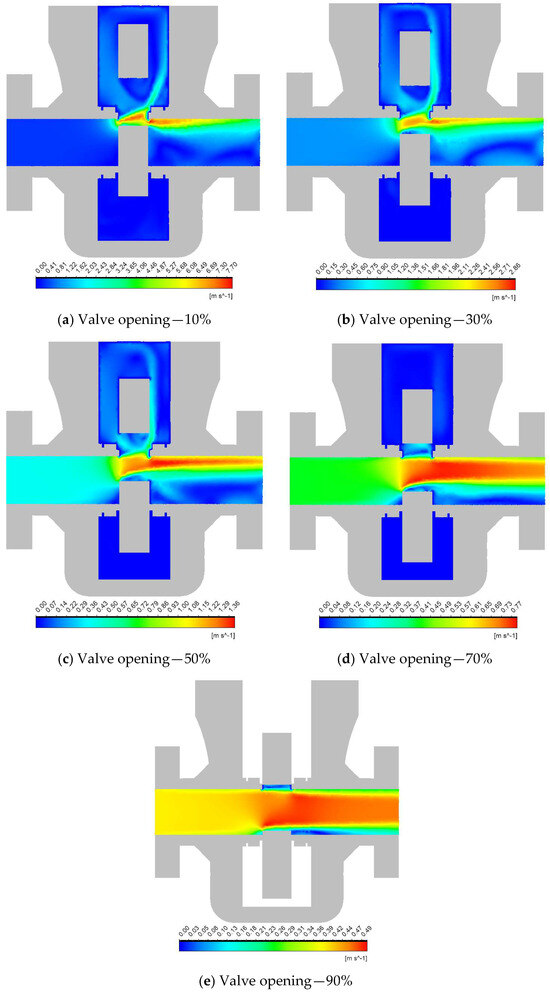

Produced well flow is controlled through valves placed in the Christmas tree. Being mostly gate-type valves, they isolate the well from the surface when commanded or automatically in an emergency. The reliability of these valves is essential for subsea wells, as maintenance and replacement involve high cost, time, and HSE risks. Their design must withstand harsh conditions such as high temperature, pressure, solid particles, and corrosive environments. However, failures caused by leakage, cold welding, and the erosion of sealing elements are still common. These issues motivated the initial stage of this research, which experimentally showed that replacing the current tungsten carbide (WC) coating with polycrystalline diamond compact (PDC) material reduces friction and wear due to its high hardness and thermal stability. Based on these results, a 3D subsea gate valve model was developed and simulated in Ansys Fluent 2024 R2 under API slurry test conditions using the Oka erosion and Discrete Phase Models. A comparative analysis of WC and PDC coatings for a 5-inch gate valve exposed to a 2% sand slurry (250–400 μm) showed that PDC reduces the erosion depth by 77.6% and extends the valve lifetime by 4.5 times. The findings support the use of PDC for improved erosion resistance in subsea valve applications.
