Article

Ultrasonic-Assisted K+ Modification of Industrial Hemp Stalk Hydrothermal Biochar for Highly Effective Adsorption of Pb2+

1
Faculty of Metallurgical and Energy Engineering, Kunming University of Science and Technology, Kunming 650093, China
2
State Key Laboratory of Fluorinated Greenhouse Gases Replacement and Control Treatment, Zhejiang Research Institute of Chemical Industry, Hangzhou 310023, China
3
Research Center for Analysis and Measurement, Kunming University of Science and Technology, Kunming 650093, China
4
Faculty of Materials Science and Engineering, Kunming University of Science and Technology, Kunming 650093, China
*
Authors to whom correspondence should be addressed.
Materials 2025, 18(10), 2348; https://doi.org/10.3390/ma18102348
Submission received: 16 April 2025 / Revised: 13 May 2025 / Accepted: 15 May 2025 / Published: 18 May 2025
(This article belongs to the Section Porous Materials)

Abstract

:
Biochar modification represents an effective approach for enhancing adsorption capacity. In the research, industrial hemp straw-derived biochar was synthesized through hydrothermal carbonization coupled with ultrasound-assisted KOH activation, demonstrating exceptional Pb2+ adsorption efficiency. The optimal HBS50-K0.5M exhibited excellent adsorption performance, achieving the maximum adsorption capacity of 345.8 mg/g within 2 h. The etching effect of KOH on the biochar surface increased the O-containing functional groups, which enhanced the adsorption of Pb2+. The adsorption kinetics revealed that the adsorption process of Pb2+ was aligned with the pseudo-second-order kinetics as well as the Langmuir model. The complexation, ion exchange, π-π interaction, as well as electrostatic interaction participated in the adsorption. This study demonstrates that ultrasound-assisted KOH-activated biochar has great potential for removing Pb2+ from wastewater.

1. Introduction

Lead is one of the most toxic and carcinogenic heavy metals. The discharge of lead without effective treatment poses a threat to the environment and human health [1]. Lead contamination not only damages soil and water quality but also enters living organisms through the food chain and water, causing serious damage to the central nervous system, kidneys, and reproductive system and increasing the risk of illness and even death [1]. In response, numerous conventional and innovative approaches have been employed to address wastewater treatment, like ion exchange processes, membrane filtration systems, chemical precipitation techniques, electrochemical treatment technologies, and reverse osmosis methods [2,3]. These techniques can meet discharge standards for lead-containing wastewater, but they have certain disadvantages, including insufficient treatment, costly equipment, high labor as well as monitoring costs, chemically intensive systems, the production of secondary contaminants (such as sludge and solid waste), as well as the requirement for additional treatment [4]. Sorption has been found to be an effective and convenient method. Among the many types of adsorbents, carbon materials are known for their excellent sorption stability with little or no secondary contamination [5,6]. In particular, carbon materials made from different biomasses (i.e., biochar) have received more attention because of their high adsorption capacity, easy synthesis, and low cost [7,8]. Thus, biochar has broad prospects in removing Pb2+.
Traditional biochar is synthesized from high-temperature pyrolysis in an oxygen-limited or quarantined condition, in which a series of reactions that degrades the organic macromolecules drastically diminishes the content of O, N, and H elements from the biomass for forming the porous carbon material is necessary [7]. However, the surface organic functional groups, which are the key heavy metal ions binding factor of biochar, would fall off dramatically in these violent reactions under high temperatures and undoubtedly weaken its sorption ability [8]. To compensate for this disadvantage, researchers have attempted to develop a hydrothermal carbonization method. The liquid hydrothermal medium will discharge a lot of H+ and OH in the hydrothermal environment with high pressure, comparatively low temperature, and an airtight chamber. This can catalyze the dehydration, deterioration, and breaking of organic macromolecules. The hydrothermal process offers a more moderate reaction condition compared to high-temperature pyrolysis for the formation of porous carbon material so that the organic functional groups in biomass can be reserved abundantly during the carbonization [7,8]. Therefore, hydrothermal biochar is considered a better adsorbent for heavy metals.
In a previous study, hydrochar was prepared from industrial hemp stalk waste cores. The 50% H2SO4-activated hydrochar (HBS50) exhibited a high adsorption capacity of 195.9 mg/L, demonstrating good performance [8]. However, further activation could significantly enhance its adsorption capability. According to the previous literature, the K+ ions have a significant activation effect on biochar. The K+ ions could infiltrate into the carbon lattice, react with organic matter, and release H2, CO, and CO2 gas, enlarging the pore structure and increasing the water permeation rate [9,10,11]. Meanwhile, K+ ions could corrode the surface of biochar and generate more active functional groups [12,13]. Moreover, the residual K atoms attached to biochar undergo ion exchange with Pb2+, which provides assistance in sorption [14].
However, traditional K+ modification is often accompanied by cumbersome procedures or strict temperature and gas shield requirements for pyrolysis. Generally, the biomass or prepared biochar is mixed with K+ solution, and the mixture is pyrolyzed in the range of 500 to 1000 °C under N2 protection after drying, which was incompatible with the currently advocated “energy saving as well as emission reduction” [15]. According to a report, ultrasonic-assisted modification has been established as a promising technique in materials engineering, where acoustic cavitation effects facilitate complete ion migration at reduced energy expenditure [16]. Therefore, we attempted to synthesize K+-modified biochar using ultrasonic oscillation for Pb2+ sorption. The effect of KOH concentrations on the physicochemical properties, Pb2+ sorption ability, as well as the mechanisms of biochars are studied systematically. The work provides a reference for the adsorption of heavy metals by modified biochar.

2. Experimental

2.1. Material

The industrial hemp stalk cores were gathered from the industrial hemp cultivation site in Chenggong, Yunnan University.
The chemicals used in this study, including HNO3, NaNO3, HCl, NaOH, KOH, H2SO4, CaCl2, and KCl were analytically pure and purchased from China National Pharmaceutical Chemical Reagent Company; Pb(NO3)2 was analytically pure and purchased from China Tianjin Fengchuan Chemical Reagent Technology Co., Tianjin, China. The water leveraged in the research was deionized water.

2.2. Prepared Material

The industrial hemp stalk cores were subjected to a drying process at 80 °C for a duration of 12 h. Subsequently, they were stripped, chopped into smaller pieces, and further pulverized to acquire industrial hemp stalk core (IHSC) powder with a diameter of less than 150 μm. Thereafter, 1.0 g of the obtained IHSC powder was blended with 25 mL of a 50% H2SO4 solution within a polytetrafluoroethylene (PTFE)-lined steel autoclave. The autoclave was then heated to 200 °C and maintained at this temperature for 12 h. Upon natural cooling, the resulting mixture was washed with deionized water and filtered repetitively until the washing solution achieved a clear and neutral state. Thereafter, the material obtained was subjected to a drying treatment and subsequently ground into fine particles, thus generating the hydrothermal biochar denoted as HBS50. Following that, 0.5 g of HBS50 was mixed separately with three different concentrations (0.25, 0.5, and 1 mol/L) of KOH solutions in amounts of 20 mL each. The suspensions were ultrasonicated for one hour and then stirred at 30 °C for 6 h. Finally, the mixture was washed and filtered until the filtrate became clear and neutral again. The KOH-modified hydrothermal biochar obtained after drying was named HBS50-KxM (x represents the concentration of KOH solution utilized).

2.3. Characterization

Microstructural and compositional characterization. Sample morphology was investigated using two scanning electron microscopy systems (Verios G4 UC, Thermo Scientific, Waltham, MA, USA, as well as Nova NanoSEM 450, FEI NanoPorts, Hillsboro, OR, USA). Elemental analysis was performed with LECO elemental analyzers (CS844 for carbon/sulfur and ONH836 for oxygen/nitrogen/hydrogen determination). Textural properties, including specific surface area (SBET), pore volume, as well as pore size distribution, were quantified through nitrogen physisorption measurements via a Micromeritics ASAP-2460 surface area analyzer. X-ray diffraction (XRD) patterns were attained via an XRD device (model: BRUKERD8, manufacturer: Bruker, country: USA) operating with Cu Kα radiation (wavelength, λ = 1.5406 Å) at 40 kV and 30 mA. The wide-angle XRD data were gathered across a 2θ range of 10°–90°, with a scanning rate of 8° per minute. FTIR spectroscopy was conducted on an FTIR spectrometer (model: Nicolet560 IR, manufacturer: Thermo Nicolet, Madison, WI, USA) at a resolution of 2 cm−1 covering a spectral range of 4000–400 cm−1. For X-ray photoelectron spectroscopy (XPS; model: ESCALAB250 Xi, manufacturer: Thermo Scientific, country: USA), the samples were pressed into pellets and loaded into the ultra-high vacuum to determine the elemental composition of carbon (C), oxygen (O), and lead (Pb) in the samples.
The zero-charge point (pHpzc) of biochar was assessed through the utilization of an adapted pH drift technique. Specifically, 0.04 g of biochar was introduced into conical flasks and combined with 50 mL of a 0.01 mol/L NaNO₃ solution, which had been adjusted to different initial pH levels (3, 4, 5, 6, 7, 8, and 9). The resulting mixtures were agitated at 25 °C for a duration of 24 h. The pHpzc was identified as the pH value where the plotted curve intersected the line, denoting equivalence between the initial and final pH values (pHinitial = pHfinal).

2.4. Sorption Experiment

Stock solutions with varying concentrations of Pb2+ (ranging from 20 to 500 mg/L) were formulated by dissolving Pb(NO3)2 as the dissolving agent in deionized water. Subsequently, the pH of these solutions was adjusted using 0.1 mol/L NaOH and 0.1 mol/L HNO₃.
Batch experiments examining Pb2+ sorption onto activated hydrothermal biochar were conducted by combining 25 mL of a Pb2+ solution (500 mg/L, pH = 5) with 0.02 g of biochar in a conical flask. The mixture was then agitated using a magnetic stirrer at 25 °C for a duration of 2 h.
Additional sorption trials were executed on HBS50-K0.5M to assess the influence of varying parameters, including pH level, adsorbent quantity, Pb2+ concentration, and interaction duration, on sorption efficacy. The adsorbent quantities evaluated were 0.01, 0.02, 0.03, and 0.04 g; pH levels tested were 2, 3, 4, 5, as well as 6; Pb2+ concentrations ranged from 20 to 500 mg/L in increments (20, 40, 80, 120, 160, 200, 300, 500 mg/L); and interaction times spanned 10 to 1440 min in specified intervals (10, 20, 40, 60, 120, 240, 480, 720, 1440 min).
Following the predetermined sorption duration, the suspensions were filtered, and an inductively coupled plasma optical emission spectrometer was leveraged to measure the Pb2+ concentrations in the solution both before and after sorption. The Pb2+ sorption capacity was computed through the application of Equations (1) and (2), as delineated below.
q = c o c t × v m
η = c 0 c t c 0 × 100 %
where q (mg/g) is the sorption capacity of sorbent for Pb2+, C0 (mg/L) is the initial concentration of Pb2+, Ct (mg/L) is the concentration of Pb2+, V (L) is the volume of sorption solution, m (g) is the mass of biochar utilized. η (%) is the removal efficiency for Pb2+.
Based on the sorption experiment results for HBS50-K0.5M, sorption kinetics, as well as isotherm parameters, were determined and plotted via the pseudo-first-order (PF) and pseudo-second-order (PS) kinetic models, together with the Langmuir and Freundlich isotherm models. The relevant equations are detailed as follows (Equations (3)–(6)):
PF :   I n q e q t = I n q e k 1 × t
PS :   t q t = 1 k 2 × q e 2 + t q e
where qe (mg/g) and qt (mg/g) represent the adsorption capacity at equilibrium and at time (min), while k1 and k2 (min−1) denote the rate constants for the PF as well as PS kinetic models. By plotting time (t) on the x-axis and either ln(qeqt) or (t/qt) on the y-axis, a linear regression can be performed on the experimental data. The kinetic parameters are then determined from the slope as well as the intercept of the fitted line.
Langmuir   isotherm :   q e = q m × k l × c e 1 + k l × c e
Freundlich   isotherm :   q e = k f × c e 1 / n
where qe (mg/g) denotes the equilibrium adsorption capacity, while ce (mg/L) represents the solute concentration in solution at equilibrium. The parameter qₘ (mg/g) corresponds to the theoretical maximum adsorption capacity. Additionally, kl is the Langmuir isotherm constant, kf is the Freundlich constant, and 1/n (dimensionless) characterizes the adsorption intensity.

3. Results and Discussion

3.1. Physicochemical Properties of KOH-Modified Industrial Hemp Stalk Core Hydrothermal Biochar

The makeup of diverse constituents within the industrial hemp stalk core (IHSC), HBS50, and hydrothermal biochar modified with ultrasonic-assisted KOH is displayed in Table 1. Compared to IHSC, the increasing C content and decreasing O content in HBS50 can be observed, which may be associated with degradation, pyrolysis, and dehydration reactions of organic macromolecules during hydrothermal processes. The O content in HBS50-KxM increased after ultrasonic treatment with KOH compared with HBS50, suggesting the increase of oxygen-containing groups on the biochar surface. Nevertheless, when the concentration of KOH solution was increased to 1 mol/L, the content of elemental oxygen decreased, which may be because of the damage of O-containing functional groups on the biochar surface by excessive KOH etching [10]. According to the previous literature, the surface of carbon materials was attacked and destroyed by K ions (relevant reaction as following Equations (7) to (11)), leading to an increase in active sites on the surface, as well as the generation of abundant functional groups.
6KOH + 2C → 2K + 3H2 + 2K2CO3
K2CO3 → K2O + CO2
CO2 + C → 2CO
K2CO3 + 2C → 2K + 3CO
C + K2O → 2K + CO
The morphology of HBS50 and HBS50-K0.5M was characterized by SEM. From Figure 1a,b, it can be seen that the dispersion of the material was significantly improved after ultrasonic-assisted KOH activation. This change may be ascribed to the etching effect of KOH on the biochar, which disrupts the structure of the biochar and generates smaller biochar fragments [12,13]. Under high magnification observation, HBS50-K0.5M has a rough morphology and stereoscopic properties (Figure 1c). This is because the K ions undergo a series of reactions during the modification process that erode the carbon chain structure, enlarge the carbon lattice, and release gases, thus forming a surface with abundant organic functional groups, which is favorable for the adsorption of pb2+ [12,13].
SEM characterization revealed distinct morphological differences between HBS50 and KOH-modified HBS50-K0.5M. Figure 1 clearly demonstrates the enhanced dispersion of HBS50-K0.5M, resulting from KOH-induced etching of the carbon matrix. The specific surface area and pore structure of biochar are examined utilizing the Brunauer–Emmett–Teller (BET) technique and compiled in Table 1. As the KOH concentration increased, the specific surface area, total pore volume, and average pore diameter displayed visible changes. The average pore size of HBS50-KxM has increased from 8.95 nm to 18.65–19.15 nm, which might be related to a series of reactions—between KOH and biochar, releasing CO, CO2, and other gases. These gases overflowed from the suspension, expanding the pore size of the biochar.
FTIR results of biochars are displayed in Figure 2, which illustrates the functional groups of HBS50, HBS50-K0.25M, HBS50-K0.5M, and HBS50-K1M. The -OH bonds between the hydroxyl group and the H2O molecule were stretched, resulting in broad and strong bands at 3450 cm−1 [17]. The -CH2 bonds were associated with the peaks at 2850 cm−1 [18]. The peaks near 1680 and 1590 cm−1 were due to the stretching vibrations of C=O and C=C [17,18]. The stretching vibration of -COO generates peaks near 1390 and 1250 cm−1, while the C-O-C bond appeared near the 1060 cm−1 peak [19]. Aromatic C-H is attributed to peaks at 800–600 cm−1 [10]. Notably, the adsorption peak enhancement of C-O-C and -COOH was observed in HBS50-KxM, indicating an increase in O-containing groups, which is in agreement with the results of the elemental analysis.
The point of zero charge (pHpzc) corresponds to the pH level at which the net surface charge reaches neutrality, serving as a key indicator for assessing the surface charge properties of biochar. After activation in KOH solutions of different concentrations (0.25, 0.5, 1 mol/L), the pHpzc of HBS50 exhibited a slight increase from 3.35 to a range between 4.33 and 4.49, as indicated in Table 1. In previous literature, the presence of residual alkali metal elements in biochar has been found to impact the pHpzc of biochar [20]. The K+ ions in solution may be adsorbed through complexation reactions with -COOH or -OH to produce -COOK and -OK groups (as Equations (12) and (13)). Thereby, the number of surface groups that could provide H+ for deprotonation was reduced. Besides that, some K+ ions may also attach to biochar surfaces or pores in the form of electrostatic sorption [10]. For these reasons, the pHpzc of KOH-modified biochar increased.
-COOH + K+ → -COOK + H+
-OH + K+ → -OK + H+
In summary, the activation of KOH has a significant impact on the physical and chemical properties of hemp core biochar synthesized by the hydrothermal carbonization method and thus affects the sorption characteristics of hydrothermal biochar for Pb2+.

3.2. Adsorption Ability and Performance of Ultrasonic-Assisted K+-Modified Hydrothermal Biochar in Industrial Hemp Stalk Core

3.2.1. Result of Batch Adsorbent Experiment

To determine the effect of different KOH solution concentrations on the sorbent performance in hydrothermal biochar. HBS50, HBS50-K0.25M, HBS50-K0.5M, and HBS50-K1M were used for sorbent experiments. As illustrated in Figure 3, the results of Pb2+ sorbent experiments on unmodified hydrothermal biochar and ultrasonic treatment by different KOH concentrations were presented. The Pb2+ sorption capacity of hydrothermal biochar was significantly improved through KOH ultrasonic treatment. Among them, the hydrothermal biochar (HBS50-K0.5M) treated by ultrasonic methods with 0.5 mol/L KOH solution had the best Pb2+ sorption capacity and removal rate (345.8 mg/g and 50.76%). Meanwhile, a preliminary investigation was conducted to determine the preparation conditions (sonication time and stirring time) of HBS50-K0.5M (Figure 4). HBS50-K0.5M exhibited the highest adsorption capacity by sonicating for 1 h and stirring for 6 h. Increasing ultrasound and stir time caused a slight decrease, which may be related to the collapse of pores. The increase in sorbent capacity was attributed to the corrosion of the hydrothermal biochar surface during KOH ultrasonic treatment, leading to the formation of abundant functional groups, thus improving its sorbent capacity [12]. It was noteworthy that when the KOH concentration increased to 1 M, the sorbent capacity and efficiency of hydrothermal biochar for Pb2+ were reduced. This was primarily because of the excessively high KOH concentration due to over-activation, causing the collapse of the carbon structure, destruction of carbon tissue, and loss of functional groups [21].

3.2.2. Result of Further Adsorbent Experiments

To evaluate the influence of sorbent dosage, Pb2+ concentration, initial pH, as well as reaction time on the adsorption performance, systematic experiments were performed using HBS50-K0.5M.
The pH affects the surface charge of sorbents, which affects the adsorption properties. According to previous research results, when pH > 6, Pb exists mainly as Pb(OH)2 precipitation. Therefore, the initial pH of Pb2+ solution was adjusted, ranging from 2 to 6 [22]. As displayed in Figure 5a, at the pH value of 2, a Pb2+ removal rate of 10.99% and sorbent capacity of 59.9 mg/g were observed. Subsequently, the removal rate and sorbent capacity increased with the initial pH of the solution. They increased to 50.76% and 354.8 mg/g when the pH was increased to 5, eventually reaching a maximum at a pH of 6 (54.43% and 361.3 mg/g). It was certain that higher pH values favor the sorption of Pb2+ because, in high pH environments, the -COOH, as well as -OH groups, on the surface of biochar, were more likely to capture OH, undergo deprotonation and carry negative charges. As illustrated in Equations (14) and (15), the transformation of surface -COOH and -OH functional groups to their deprotonated forms (-COO⁻ and -O⁻) resulted in enhanced surface electronegativity of HBS50-K0.5M, consequently improving its affinity for Pb2+ adsorption [23].
-OH + OH → -O + H2O
-COOH + OH → -COO + H2O
The influence of sorbent dosage on Pb2+ removal was examined using HBS50-K0.5M quantities varying between 0.01 and 0.04 g. Figure 5b demonstrates a progressive enhancement in Pb2+ removal efficiency corresponding to increased sorbent dosage across this range. The growth trend stabilized when the adsorbent dosage exceeded 0.03 g. However, the sorbent capacity decreased significantly with the increase in adsorbent dose, which can be attributed to the oversaturation of adsorption sites caused by excessive sorbent dose [22,24]. Furthermore, excessive biochar application may induce competitive deprotonation among functional groups, resulting in reduced surface electronegativity per unit mass compared to lower doses. This phenomenon could potentially diminish the Pb2+ adsorption capacity due to site dilution effects [10,12].
The influence of sorption time, as well as the initial concentration of Pb2+ on the Pb2+ sorption behavior of HBS50-K0.5M, is shown in Figure 5c,d. The initial efficiency of Pb2+, which subsequently experienced a deceleration in growth rate, culminated in the approach towards equilibrium values (50.76% and 345.8 mg/g) around 120 min of sorption time—significantly outpacing previous benchmarks [8,25]. It was observed that HBS50-K0.5M, while significantly enhancing the equilibrium sorption capacity, still retained the rapid equilibrium attainment characteristic of the unmodified hydrothermal biochar (HBS50). Despite physicochemical analyses indicating that ultrasonic-assisted KOH activation caused some disruption to the pore structure, it concurrently reduced the particle size and improved dispersion. This enhancement in dispersion increased the possibility of interactions between the biochar’s active sites and Pb2+ ions, thereby leading to an enhanced sorption rate [12,14]. As shown in Figure 5d, at higher Pb2+ concentrations (100 mg/L), the minimum dose (0.8 g/L) of HBS50-K0.5M can achieve a removal efficiency of over 99.3%, manifesting its excellent Pb2+ removal ability. Although the removal efficiency gradually diminished with increasing initial Pb2+ concentrations, the sorption capacity concurrently increased [12,14]. At lower initial Pb2+ concentrations, the increment in biochar’s Pb2+ sorption capacity was pronounced as the initial concentration increased. When the initial concentration attained around 300 mg/L, the sorption capacity reached 334.0 mg/g, after the growth rate of sorption capacity tended to be slow and gradual. This slowing was attributed to higher Pb2+ content in the solution, elevating the chances of interactions between active sorption sites and Pb2+ compared with lower concentration solutions [12,14,19]. Therefore, the initial increase in sorption capacity was notable, but as the capacity grew to a certain level, implying that a large number of the biochar’s active sites were nearing saturation, the trend in capacity growth decelerated [14,26].
To comprehend the kinetics and mechanisms behind the sorption of Pb2+ by HBS50-K0.5M, a number of kinetic equations were applied in order to fit the data obtained from the sorption experiments. The kinetic equations included the PF and PS equations. As illustrated in Figure 5e, within 40 min, the rate of increase in Pb2+ sorption capacity was notably rapid. After 40 min, the rate of increase slowed down. When the time reached around 120 min, the amplification in sorption capacity became gentle and approached the equilibrium value (345.8 mg/g). According to Table 2, the fitting regression coefficient (R2) for the PS kinetic equation was greater than that for the PF. Therefore, it can be inferred that the PS kinetic model more closely approximates the sorption behavior of HBS50-K0.5M toward Pb2+. This manifested that the sorption rate in this process was predominantly driven by chemical interactions (such as complexation, precipitation, ion exchange, etc.) between the sorbent and the sorbate [27].
In addition, the Langmuir and Freundlich isotherms were employed to model the data obtained from sorption experiments. The results are illustrated in Figure 5f and Table 2. Initial observations from the graph indicated a sharp rise in sorption capacity with increasing amounts of Pb2+, which then transitions to a more gradual increase, eventually reaching an equilibrium capacity of approximately 345.8 mg/g. The graph shows that the Langmuir isotherm model is more closely aligned with the experimental data. Furthermore, as indicated by Table 2, the Langmuir model’s correlation coefficient (R2) exceeded that of the Freundlich model, revealing a better fit for the sorption characteristics, thereby implying that the sorption of Pb2+ by HBS50-K0.5M occurred via monolayer sorption [27]. Moreover, according to the Langmuir model’s fit, the theoretical maximum Pb2+ sorption capacity (qm) of HBS50-K0.5M was predicted to be 353.3 mg/g. Table 3 compares and shows the Pb2+ adsorption capacities of different hydrothermal biochars reported in the previous literature. It has been observed that ultrasonic-assisted KOH-activated hydrothermal biochar for removing Pb2+ from the water has some advantages.

3.2.3. Effect of Coexisting Ions

Industrial wastewater matrices typically contain diverse competing ions that may occupy available adsorption sites, thereby reducing Pb2+ uptake through competitive sorption mechanisms [31]. To study this phenomenon, a range of coexisting anions and cations were used and tested. These included Na+, K+, Ca2+, NO3−, Cl, and SO42−. The test subjects were HBS50-K0.5M. The findings are depicted in Figure 6. It was self-evident that various coexisting anions in the solution do not significantly impact the Pb2+ sorption capacity of HBS50-K0.5M. This was attributable to the electrostatic repulsion between the surface of HBS50-K0.5M, with its negative charge, and the anions in the solution, thus rendering the influence of anions on Pb2+ minuscule. Considering the various coexisting cations, the influence of Na+ and Ca2+ on the Pb2+ sorption capacity of HBS50-K0.5M was minimal. Nevertheless, the presence of K+ in the solution caused a noticeable reduction in the Pb2+ sorption capacity of HBS50-K0.5M, dropping from 345.8 mg/g to 299.8 mg/g. This indicated that ion exchange between K+ and Pb2+ was one of the mechanisms through which HBS50-K0.5M adsorbed Pb2+. In solutions with high concentrations of K+, the release of biochar into the solution was inhibited, which weakens the ion exchange and leads to a decrease in adsorption capacity [32].

3.3. Sorption Mechanisms

The changes in functional groups were found with FT-IR after Pb2+ sorption by the ultrasonic-assisted KOH activation biochars, as shown in Figure 7. It was clear that the binding of Pb atoms to the surface of the biochar caused the overall sorption intensity to decrease following sorption. Moreover, the distinctive peaks of -OH (3450 cm−1) as well as -COOH (1390 and 1220 cm−1) moved to the right, possibly due to complexation between Pb atoms as well as functional groups that incorporate oxygen [8]. The broadening and shifting of peaks at C=C (1590 cm−1) as well as C=O (1680 cm−1) was observed, suggesting π-π interactions between HBS50-K0.5M with Pb2+ [8].
XPS analysis of HBS50-K0.5M and HBS50-K0.5M-Pb was carried out, and the pre-adsorption XPS revealed that the adsorbed material consisted of the elements C and O, while the post-adsorption consisted of the elements C, O, and Pb, as shown in Figure 8. In Figure 8a, the HBS50-K0.5M-Pb spectrum exhibits characteristic peaks of Pb 4f, indicating the successful binding of Pb atoms to the biochar surface. Figure 8b shows the Pb 4f spectrum of HBS50-K0.5M-Pb, where most Pb atoms on the biochar surface were found in Pb-O, as well as a small amount of Pb2+, indicating that most Pb atoms underwent complex reactions with oxygen-containing functional groups resulting in the generation of complex compounds, such as 2O-Pb, 2COO-Pb, COO-Pb-O. Furthermore, a tiny percentage of Pb atoms are bonded to the surface of the biochar by π-π bonds, as well as electrostatic attraction [16]. The presence of chelating interactions between Pb atoms and oxygen-containing functional groups is further demonstrated by the C 1s spectra shown in Figure 8c,d, which show a small decrease in the binding energies of -C=O (288.01 eV), as well as C-O (286.09 eV) bonds after sorption [33,34]. The π-π bonding effect on unsaturated carbon bonds was thought to be responsible for the shift seen at 284.56 eV, which corresponds to C-C as well as C=C bonds. According to the O1s spectra in Figure 8e,f, the peak at 531.10 eV denotes C=O functionality, while the peak at 532.90 eV represents hydroxyl groups or water molecules [8]. The slight decrease in binding energies for these peaks after sorption implies a chelating interaction between Pb atoms and oxygen-containing functional groups [35].
According to previous studies, ion exchange and precipitation reactions have been considered potential mechanisms for biochar’s sorption of Pb2+ [36]. To investigate these two potential sorption mechanisms, this study utilized ICP–OES to measure the concentrations of Na, Mg, K, and Ca, i.e., common alkali metal elements, in the solution before and after sorption (Table 4) and conducted X-ray diffraction (XRD) analyses on samples HBS50-K0.5M and HBS50-K0.5M-Pb to verify the presence of any Pb(II) precipitates (as shown in Figure 9). In the XRD pattern of HBS50-K0.5M and HBS50-K0.5M-Pb, a broad peak near 23° associated with the (002) diffraction plane of disordered amorphous carbon was observed [37,38]. Furthermore, no precipitates containing Pb elements were detected, indicating that precipitation was not the dominant mechanism in the sorption process of HBS50-K0.5M for Pb2+. Table 4 indicates that the concentrations of Na, Mg, as well as Ca in the sorption solution, remained almost unchanged before and after the sorption experiment, while the concentration of K element in the solution increased by 20.9 mg/L after sorption, indicating that K ions attached to the surface of biochar by complexation or electrostatic attraction and exchange with Pb2+ ions in solution take part in adsorption. The exchange of Pb2+ ions in solution is shown in Equation (16).
(Biochar)-2K + Pb2+ → (Biochar)- Pb + 2K+
Based on the conclusions drawn from sorption experiments and the aforementioned characterizations, the mechanism of KOH ultrasonic modified hydrothermal biochar (HBS50-K0.5M) for Pb2+ sorption was proposed as follows: During the sorption process, the -OH and -COOH groups on the biochar surface deprotonated in water, becoming negatively charged (as shown in Equation (14) as well as Equation (15)), and attracted Pb2+ to the biochar surface through electrostatic interactions [12]. Then, Pb2+ ions attached to the biochar surface through four sorption mechanisms: complexation with oxygen-containing functional groups (as shown in Equations (16)–(19), ion exchange with K atoms attached to the biochar surface (as shown in Equation (16)), π-π electron donor–acceptor interactions, and electrostatic attraction. A schematic diagram of the sorption mechanism is presented in Figure 10.
2-O + Pb2+ → 2O-Pb+
2-COO + Pb2+ → 2COO-Pb
-O + -COO + Pb2+ → COO-Pb-O

4. Conclusions

This study investigated the adsorption of Pb2+ by ultrasonic-assisted KOH-modified hydrothermal biochar, revealing the intrinsic mechanism of activation. The results showed that ultrasonic-assisted KOH activation has a remarkable effect on the physicochemical properties of hydrothermal biochar. Compared with HBS50, the etching effect induced by KOH activation contributes to a decrease in particle size, as well as an increase in the number of O-containing functional groups on the biochar surface, which can provide more available adsorption sites for Pb2+ adsorption. The hydrothermal biochar HBS50-K0.5M modified with 0.5 mol/L KOH solution exhibits the best sorption capacity with a maximum sorption capacity of 345.8 mg/g, which is significantly better than HBS50 (195.9 mg/g). This modified hydrothermal biochar is environmentally friendly and is expected to be an efficient adsorbent for Pb2+ removal.

Author Contributions

L.L.: investigation, data curation, validation, writing—original draft. W.Y.: visualization, data curation, formal analysis. Z.Z.: investigation, data curation, validation. Q.L.: data curation, resources. C.P.: data curation, resources. K.W.: data curation, resources. D.L.: data curation, resources. S.H.: conceptualization, methodology, funding acquisition. N.L.: conceptualization, methodology, writing—review and editing, funding acquisition, supervision. X.L.: conceptualization, methodology, writing—review and editing, supervision. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Yunnan Major Scientific and Technological Projects (Grant No. 202302AG050002). Yunnan Ten Thousand Talents Plan Young and Elite Talents Project (YNWR-QNBJ-2020-002). Yunnan Fundamental Research Projects (grant no. 202301AT070441); National Natural Science Foundation of China (51704137).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Wang, Z.; Zhang, Z.Y.; Yuan, T.; Shimizu, K.Z.Y.; Wang, D.; Luo, D.J.; Wang, D.X.; Ru, J.J. Direct electroseparation of zinc from zinc sulfide in eco-friendly deep eutectic solvent: Highlighting the role of malonic acid. Sep. Purif. Technol. 2023, 306, 122686. [Google Scholar] [CrossRef]
  2. Mason, L.H.; Jordan, P.H.; Dong, Y.H. Pb neurotoxicity: Neuropsychological effects of lead toxicity. BioMed Res. Int. 2014, 2014, 840547. [Google Scholar] [CrossRef] [PubMed]
  3. Cinperi, N.C.; Ozturk, E.; Yigit, N.O.; Kitis, M. Treatment of woolen textile wastewater using membrane bioreactor, nanofiltration and reverse osmosis for reuse in production processes. J. Clean. Prod. 2019, 223, 837–848. [Google Scholar] [CrossRef]
  4. Sarode, S.; Upadhyay, P.; Khosa, M.A.; Mak, T.; Shakir, A.; Song, S.; Ullah, A. Overview of wastewater treatment methods with special focus on biopolymer chitin-chitosan. Int. J. Biol. Macromol. 2019, 121, 1086–1100. [Google Scholar] [CrossRef]
  5. Wadhawan, S.; Jain, A.; Nayyar, J.; Mehta, S.K. Role of nanomaterials as adsorbents in heavy metal ion removal from waste water: A review. J. Water Process Eng. 2019, 33, 101038. [Google Scholar] [CrossRef]
  6. Guimarães, T.G.S.; Barros, A.L.; Silva, R.S.; Gonzalez, M.H.; Carrilho, E.N.V.M.; Labuto, G. Synthesis and characterization of biochars modified with natural deep eutectic solvent (NADES) for dipyrone removal from aqueous medium. Sustain. Chem. Pharm. 2023, 35, 101205. [Google Scholar] [CrossRef]
  7. Zeng, Q.; Huang, Y.J.; Huang, L.M.; Hu, L.; Sun, W.; Zhong, H.; He, Z.H. High adsorption capacity and super selectivity for Pb (II) by a novel adsorbent: Nano humboldtine/almandine composite prepared from natural almandine. Chemosphere 2020, 253, 126650. [Google Scholar] [CrossRef]
  8. Zhang, Z.; Liu, N.; Li, X.; Wang, Y.Z.; Xiong, Y.K.; Meng, R.R.; Liu, L.; He, S.F. Single-step hydrothermal synthesis of biochar from waste industrial hemp stalk core for Pb2+ sorption: Characterization and mechanism studies. Sustain. Chem. Pharm. 2023, 36, 101316. [Google Scholar] [CrossRef]
  9. Cao, Y.; Shen, G.; Zhang, Y.; Gao, C.F.; Li, Y.F.; Zhang, P.Z.; Xiao, W.H.; Han, L.J. Impacts of carbonization temperature on the Pb (II) adsorption by wheat straw-derived biochar and related mechanism. Sci. Total Environ. 2019, 692, 479–489. [Google Scholar] [CrossRef]
  10. Zhou, N.; Chen, H.; Feng, Q.; Yao, D.; Chen, H.; Wang, H.; Zhou, Z.; Li, H.; Tian, Y.; Lu, X. Effect of phosphoric acid on the surface properties and Pb (II) adsorption mechanisms of hydrochars prepared from fresh banana peels. J. Clean. Prod. 2017, 165, 221–230. [Google Scholar] [CrossRef]
  11. Jiang, H.; Deng, F.; Luo, Y.; Xie, Z.; Chen, Y.; Zhou, P.; Liu, X.; Li, D. Hydrothermal carbonization of corn straw in biogas slurry. J. Clean. Prod. 2022, 353, 131682. [Google Scholar] [CrossRef]
  12. Herath, A.; Layne, C.A.; Perez, F.; Hassan, E.B.; Pittman, C.U.; Mlsna, T.E. KOH-activated high surface area Douglas Fir biochar for adsorbing aqueous Cr (VI), Pb (II) and Cd (II). Chemosphere 2021, 269, 128409. [Google Scholar] [CrossRef] [PubMed]
  13. Su, X.; Wang, X.; Ge, Z.; Bao, Z.; Lin, L.; Chen, Y.; Dai, W.; Sun, Y.; Yuan, H.; Yang, W.; et al. KOH-activated biochar and chitosan composites for efficient adsorption of industrial dye pollutants. Chem. Eng. J. 2024, 486, 150387. [Google Scholar] [CrossRef]
  14. Chen, H.; Yang, X.; Liu, Y.; Lin, X.; Wang, J.; Zhang, Z.; Li, N.; Li, Y.; Zhang, Y. KOH modification effectively enhances the Cd and Pb adsorption performance of N-enriched biochar derived from waste chicken feathers. Waste Manag. 2021, 130, 82–92. [Google Scholar] [CrossRef] [PubMed]
  15. Fu, Y.; Shen, Y.; Zhang, Z.; Ge, X.; Chen, M. Activated bio-chars derived from rice husk via one-and two-step KOH-catalyzed pyrolysis for phenol adsorption. Sci. Total Environ. 2019, 646, 1567–1577. [Google Scholar] [CrossRef]
  16. Noureen, S.; Rehman, S.U.; Batool, S.M.; Ali, J.; Zhang, Q.; Batool, S.S.; Wan, Y.; Li, C. Tailoring Bi2Se3 Topological Insulator for Visible-NIR Photodetectors with Schottky Contacts Using Liquid Phase Exfoliation. ACS Appl. Mater. Interfaces 2024, 16, 8158–8168. [Google Scholar] [CrossRef]
  17. Jiang, S.; Yan, L.; Wang, R.; Li, G.; Rao, P.; Ju, M.; Jian, L.; Guo, X.; Che, L. Recyclable nitrogen-doped biochar via low-temperature pyrolysis for enhanced lead (II) removal. Chemosphere 2022, 286, 131666. [Google Scholar] [CrossRef]
  18. Rajapaksha, A.U.; Chen, S.S.; Tsang, D.C.W.; Zhang, M.; Vithanage, M.; Mandal, S.; Gao, B.; Bolan, N.S.; Ok, Y.S. Engineered/designer biochar for contaminant removal/immobilization from soil and water: Potential and implication of biochar modification. Chemosphere 2016, 148, 276–291. [Google Scholar] [CrossRef]
  19. Liu, Y.; Li, G.; Chen, C.; Zhang, X.; Zhou, K.; Long, X. Banana stem and leaf biochar as an effective adsorbent for cadmium and lead in aqueous solution. Sci. Rep. 2022, 12, 1584. [Google Scholar] [CrossRef]
  20. Sun, T.; Pei, P.; Sun, Y.; Xu, Y.; Jia, H. Performance and mechanism of As (III/V) removal from aqueous solution by novel positively charged animal-derived biochar. Sep. Purif. Technol. 2022, 290, 120836. [Google Scholar] [CrossRef]
  21. Bashir, S.; Zhu, J.; Fu, Q.; Hu, H. Comparing the adsorption mechanism of Cd by rice straw pristine and KOH-modified biochar. Environ. Sci. Pollut. Res. 2018, 25, 11875–11883. [Google Scholar] [CrossRef] [PubMed]
  22. Abdelhafez, A.A.; Li, J. Removal of Pb (II) from aqueous solution by using biochars derived from sugar cane bagasse and orange peel. J. Taiwan Inst. Chem. Eng. 2016, 61, 367–375. [Google Scholar] [CrossRef]
  23. Sun, L.; Wu, I.; Wang, J.; Xu, M.; Zhou, W.; Du, Y.; Li, Y.; Li, H. Fabricating hydroxyapatite functionalized biochar composite using steel slag and Hami melon peel for Pb (II) and Cd (II) removal. Colloids Surf. A Physicochem. Eng. Asp. 2023, 666, 131310. [Google Scholar] [CrossRef]
  24. Teng, D.; Zhang, B.; Xu, G.; Wang, B.; Mao, K.; Wang, J.; Sun, J.; Feng, X.; Yang, Z.; Zhang, H. Efficient removal of Cd (II) from aqueous solution by pinecone biochar: Sorption performance and governing mechanisms. Environ. Pollut. 2020, 265, 115001. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, Y.; Xu, F.; Li, H.; Li, Y.; Liu, Y.; Chen, Y.; Li, M.; Li, L.; Jiang, H.; Chen, L. Simple hydrothermal synthesis of magnetic MnFe2O4-sludge biochar composites for removal of aqueous Pb2+. J. Anal. Appl. Pyrolysis 2021, 156, 105173. [Google Scholar] [CrossRef]
  26. Deng, S.; Ren, B.; Hou, B.; Deng, X.; Deng, X.; Zhu, G.; Cheng, S. Adsorption of Sb (III) and Pb (II) in wastewater by magnetic γ-Fe2O3-loaded sludge biochar: Performance and mechanisms. Chemosphere 2024, 349, 140914. [Google Scholar] [CrossRef]
  27. Liu, Z.; Zhang, F.-S. Removal of lead from water using biochars prepared from hydrothermal liquefaction of biomass. J. Hazard. Mater. 2009, 167, 933–939. [Google Scholar] [CrossRef]
  28. Ding, Z.; Zhang, Z.; Mo, H.; Chen, Y.; Hu, X. Microwave-assisted catalytic hydrothermal carbonization of Laminaria japonica for hydrochars catalyzed and activated by potassium compounds. Bioresour. Technol. 2021, 341, 125835. [Google Scholar] [CrossRef]
  29. Jung, K.-W.; Lee, S.Y.; Lee, Y.J. Facile one-pot hydrothermal synthesis of cubic spinel-type manganese ferrite/biochar composites for environmental remediation of heavy metals from aqueous solutions. Bioresour. Technol. 2018, 261, 1–9. [Google Scholar] [CrossRef]
  30. Guo, S.; Gao, Y.; Wang, Y.; Liu, Z.; Wei, X.; Peng, P.; Xiao, B.; Yang, Y. Urea/ZnCl2 in situ hydrothermal carbonization of Camellia sinensis waste to prepare N-doped biochar for heavy metal removal. Environ. Sci. Pollut. Res. 2019, 26, 30365–30373. [Google Scholar] [CrossRef]
  31. Soria, R.I.; Rolfe, S.A.; Betancourth, M.P.; Thornton, S.F. The relationship between properties of plant-based biochars and sorption of Cd (II), Pb (II) and Zn (II) in soil model systems. Heliyon 2020, 6, e05388. [Google Scholar] [CrossRef] [PubMed]
  32. Cheng, S.; Zhao, S.; Guo, H.; Xing, B.; Liu, Y.; Zhang, C.; Ma, M. High-efficiency removal of lead/cadmium from wastewater by MgO modified biochar derived from crofton weed. Bioresour. Technol. 2022, 343, 126081. [Google Scholar] [CrossRef] [PubMed]
  33. Luo, L.; Cheng, S.; Yue, L.; You, Z.; Cai, J. N-doped biochar from chitosan gel-like solution: Effect of hydrothermal temperature and superior aqueous Cr (VI) removal performance. Colloids Surf. A Physicochem. Eng. Asp. 2022, 641, 128426. [Google Scholar] [CrossRef]
  34. Chen, Q.; Zhang, T.C.; Ouyang, L.; Yuan, S. Single-step hydrothermal synthesis of biochar from H3PO4-activated lettuce waste for efficient adsorption of Cd (II) in aqueous solution. Molecules 2022, 27, 269. [Google Scholar] [CrossRef] [PubMed]
  35. Cui, S.; Zhao, Y.; Liu, Y.; Pan, J. Preparation of copper-based biochar adsorbent with outstanding H2S adsorption capacity and study on H2S removal. J. Energy Inst. 2022, 105, 481–490. [Google Scholar] [CrossRef]
  36. Wu, J.; Wang, T.; Zhang, Y.; Pan, W. The distribution of Pb (II)/Cd (II) adsorption mechanisms on biochars from aqueous solution: Considering the increased oxygen functional groups by HCl treatment. Bioresour. Technol. 2019, 291, 121859. [Google Scholar] [CrossRef]
  37. Wei, Y.; Wang, L.; Wang, J. Cerium alginate cross-linking with biochar beads for fast fluoride removal over a wide pH range. Colloids Surf. A Physicochem. Eng. Asp. 2022, 636, 128161. [Google Scholar] [CrossRef]
  38. Nautiyal, P.; Subramanian, K.A.; Dastidar, M.G. Adsorptive removal of dye using biochar derived from residual algae after in-situ transesterification: Alternate use of waste of biodiesel industry. J. Environ. Manag. 2016, 182, 187–197. [Google Scholar] [CrossRef]
Figure 1. SEM images of HBS50 and HBS50−K0.5M: (ac) HBS50−K0.5M.
Figure 1. SEM images of HBS50 and HBS50−K0.5M: (ac) HBS50−K0.5M.
Materials 18 02348 g001

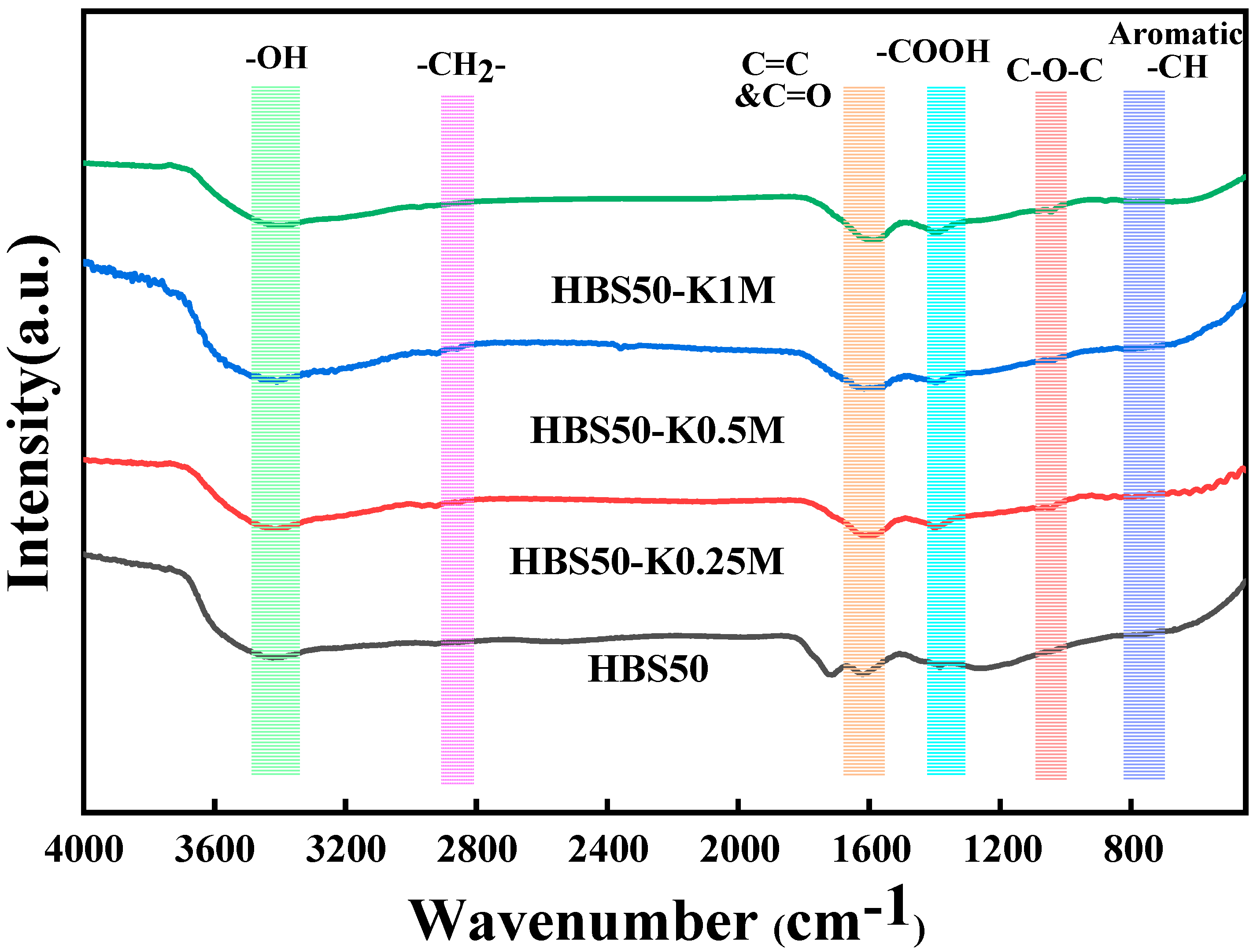

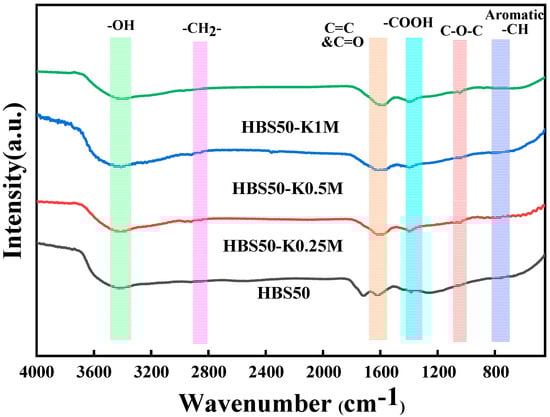

Figure 2. FTIR spectra of HBS50 and KOH−modified industrial hemp stalk core hydrothermal biochar.
Figure 2. FTIR spectra of HBS50 and KOH−modified industrial hemp stalk core hydrothermal biochar.
Materials 18 02348 g002

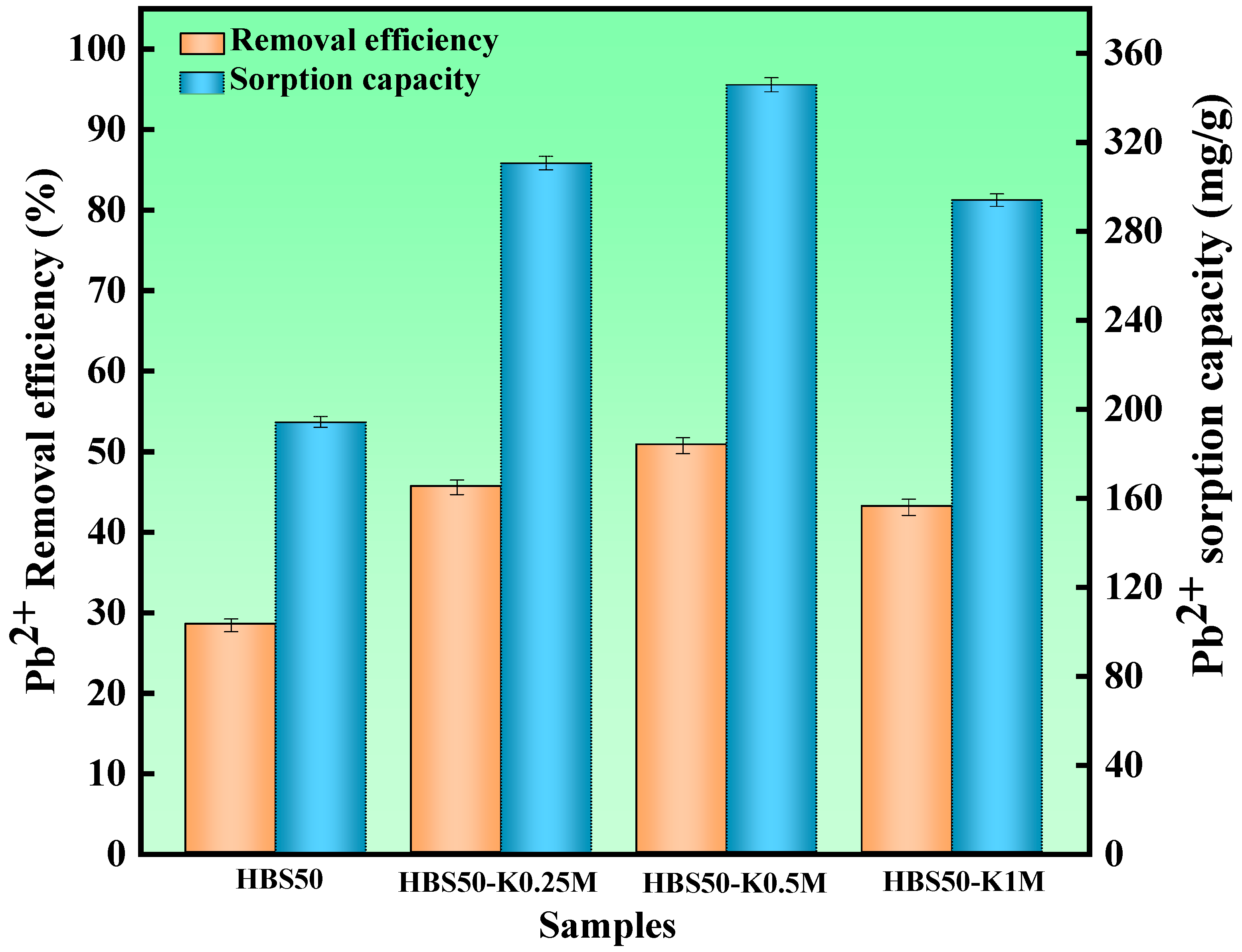

Figure 3. The Pb2+ removal experiments for HBS50 and KOH-ultrasonically modified carbon materials were conducted under the following conditions: adsorbent dosage = 20 mg, initial pH = 5, temperature = 25 °C, time = 120 min, solution volume = 25 mL.
Figure 3. The Pb2+ removal experiments for HBS50 and KOH-ultrasonically modified carbon materials were conducted under the following conditions: adsorbent dosage = 20 mg, initial pH = 5, temperature = 25 °C, time = 120 min, solution volume = 25 mL.
Materials 18 02348 g003

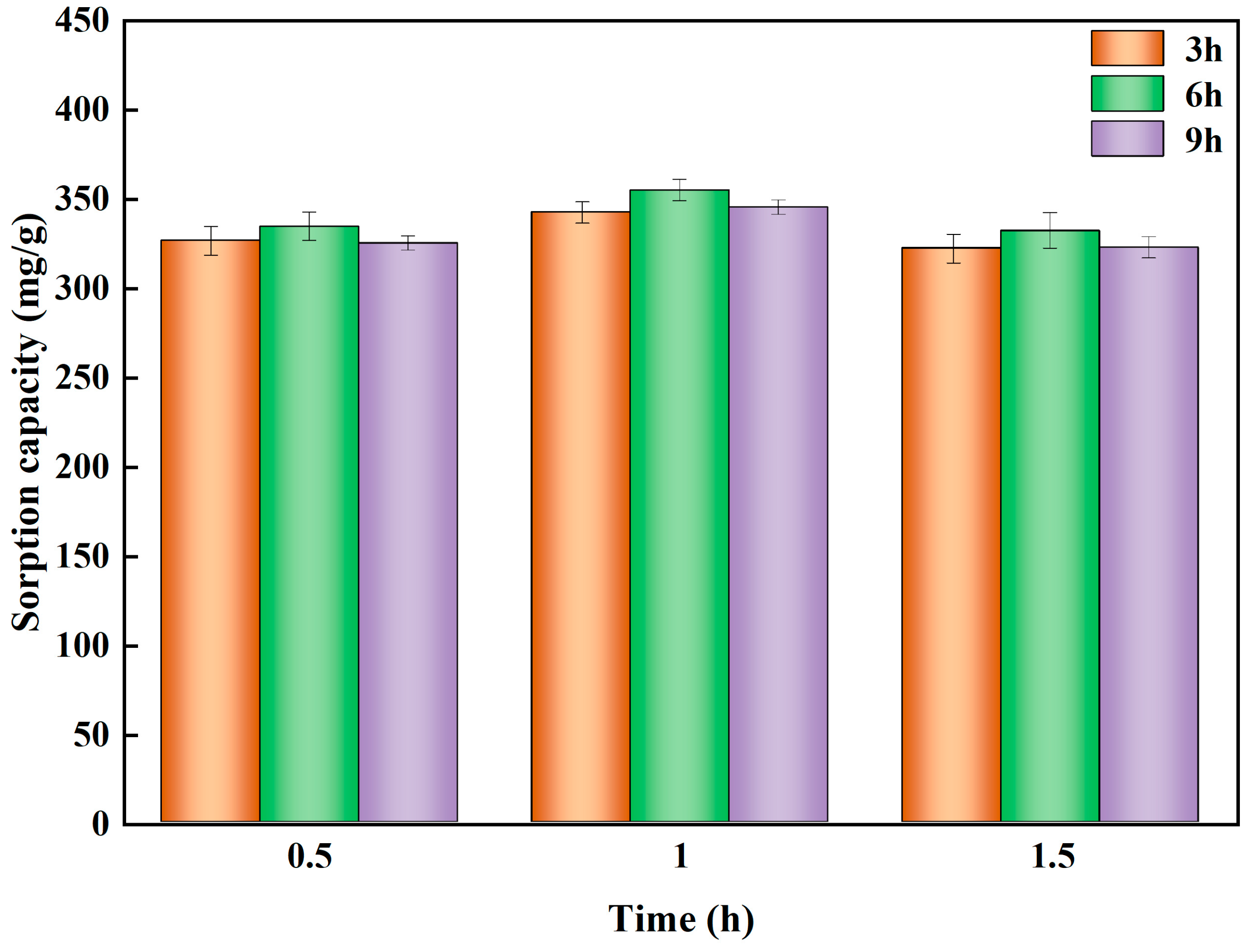

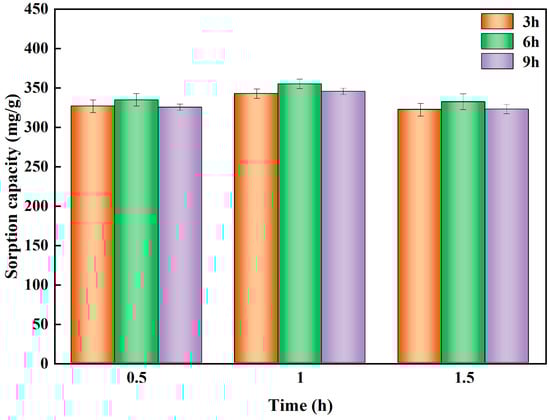

Figure 4. Experimental conditions: adsorbent dosage = 20 mg, initial pH = 5, temperature = 25 °C, time = 120 min, solution volume = 25 mL.
Figure 4. Experimental conditions: adsorbent dosage = 20 mg, initial pH = 5, temperature = 25 °C, time = 120 min, solution volume = 25 mL.
Materials 18 02348 g004

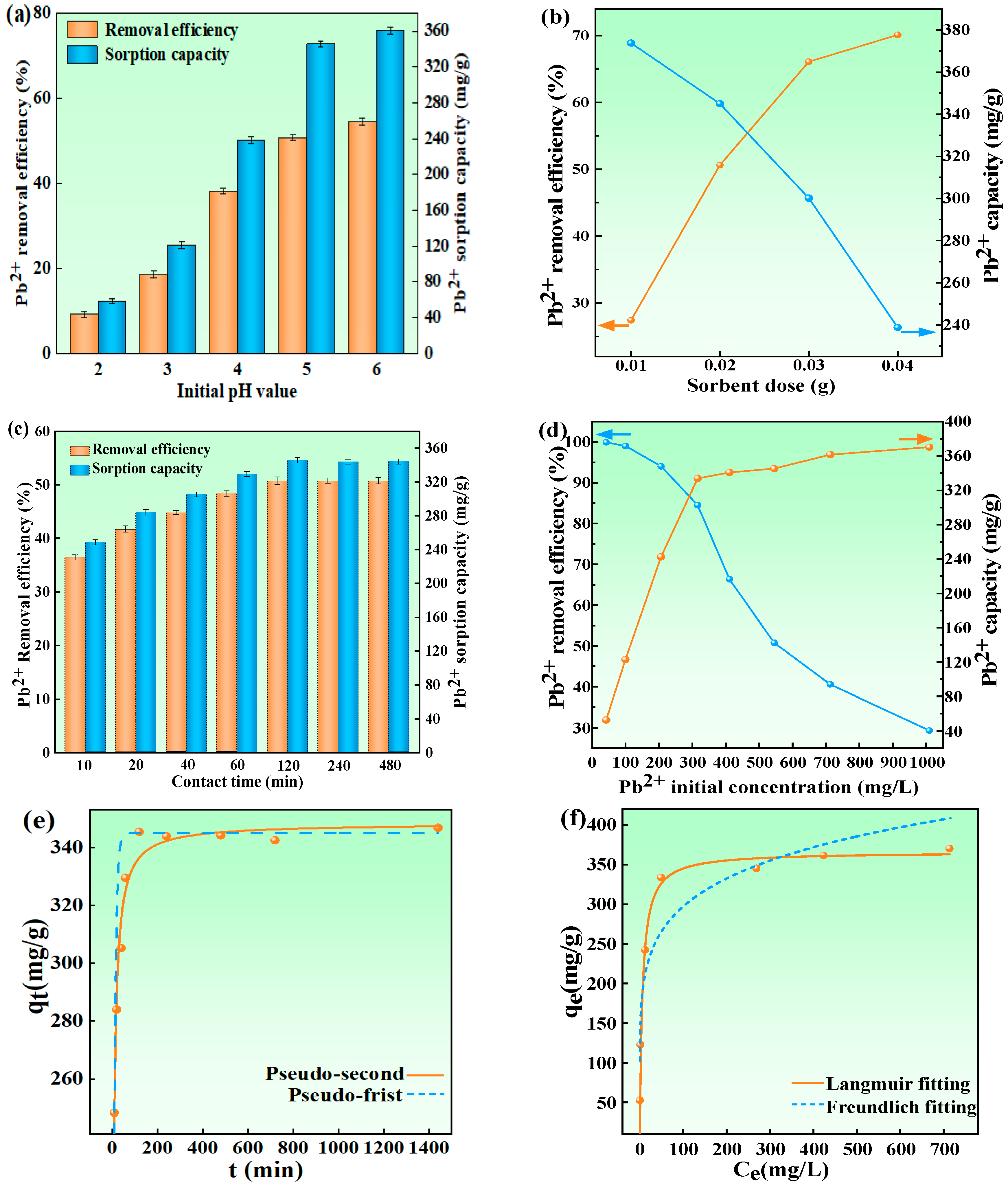

Figure 5. Impact of experimental variables on HBS50-K0.5M’s ability to remove Pb2+. Initial pH (a), dose of the adsorbent (b), reaction time (c,d), and initial Pb2+ concentration (e,f). Pb2+ concentrations of 0.02, 0.04, 0.08, 0.12, 0.16, 0.2, 0.3, and 0.5 g/L; reaction times of 10, 20, 40, 60, 120, 240, 480, 720, and 1440 min; sorbent quantities of 10, 20, 30, and 40 mg; beginning pH of 2, 3, 4, 5, and 6 were all employed in the experiment.
Figure 5. Impact of experimental variables on HBS50-K0.5M’s ability to remove Pb2+. Initial pH (a), dose of the adsorbent (b), reaction time (c,d), and initial Pb2+ concentration (e,f). Pb2+ concentrations of 0.02, 0.04, 0.08, 0.12, 0.16, 0.2, 0.3, and 0.5 g/L; reaction times of 10, 20, 40, 60, 120, 240, 480, 720, and 1440 min; sorbent quantities of 10, 20, 30, and 40 mg; beginning pH of 2, 3, 4, 5, and 6 were all employed in the experiment.
Materials 18 02348 g005

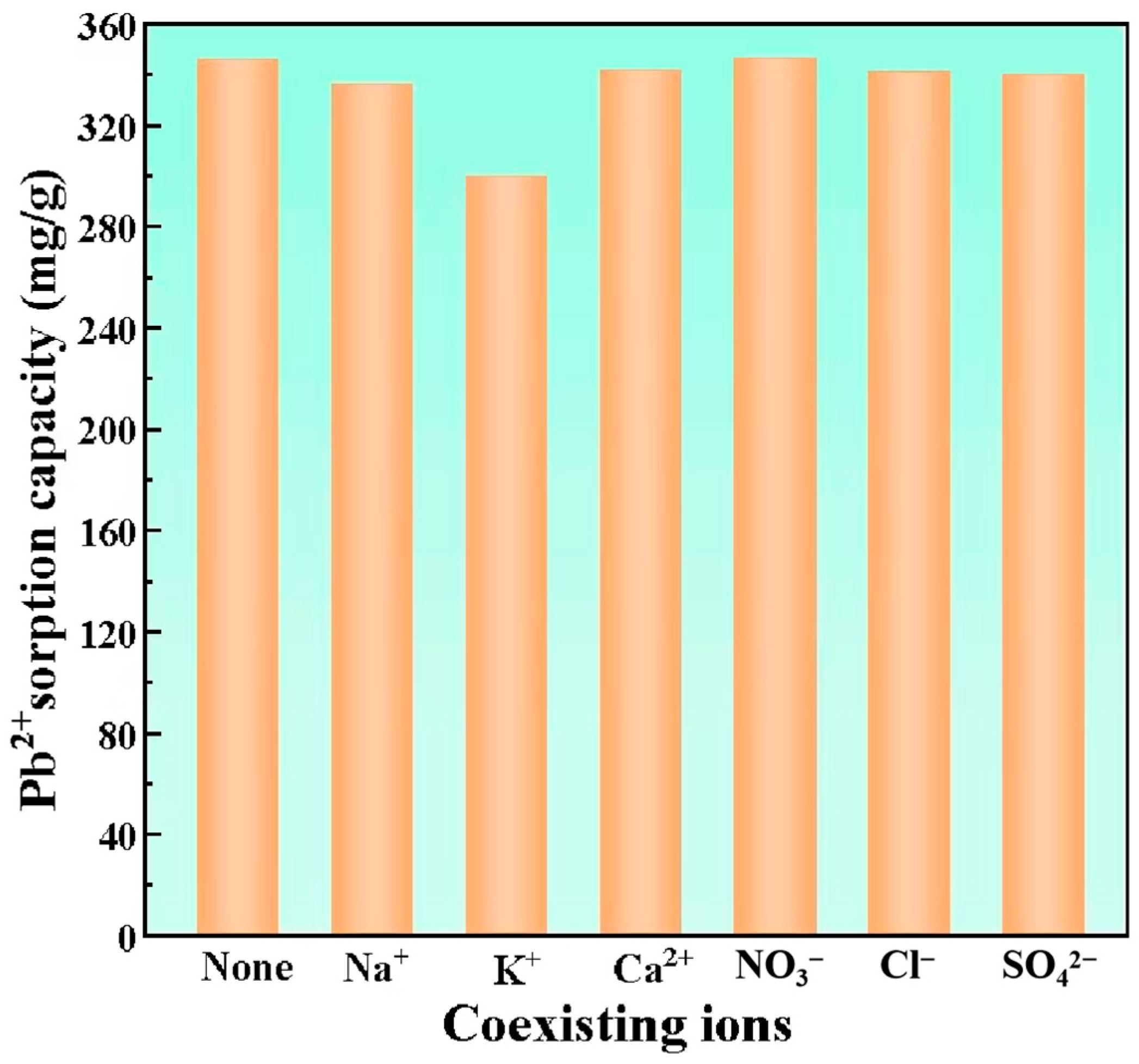

Figure 6. Coexisting ion factors. Starting Pb2+ concentration = 120 mg/L, starting pH = 5, temperature = 25 °C, duration = 120 min, volume of solution = 25 mL, concentration of various coexisting ions in the solution = 0.1 mol/L, and adsorbent = 20 mg were the experimental conditions.
Figure 6. Coexisting ion factors. Starting Pb2+ concentration = 120 mg/L, starting pH = 5, temperature = 25 °C, duration = 120 min, volume of solution = 25 mL, concentration of various coexisting ions in the solution = 0.1 mol/L, and adsorbent = 20 mg were the experimental conditions.
Materials 18 02348 g006

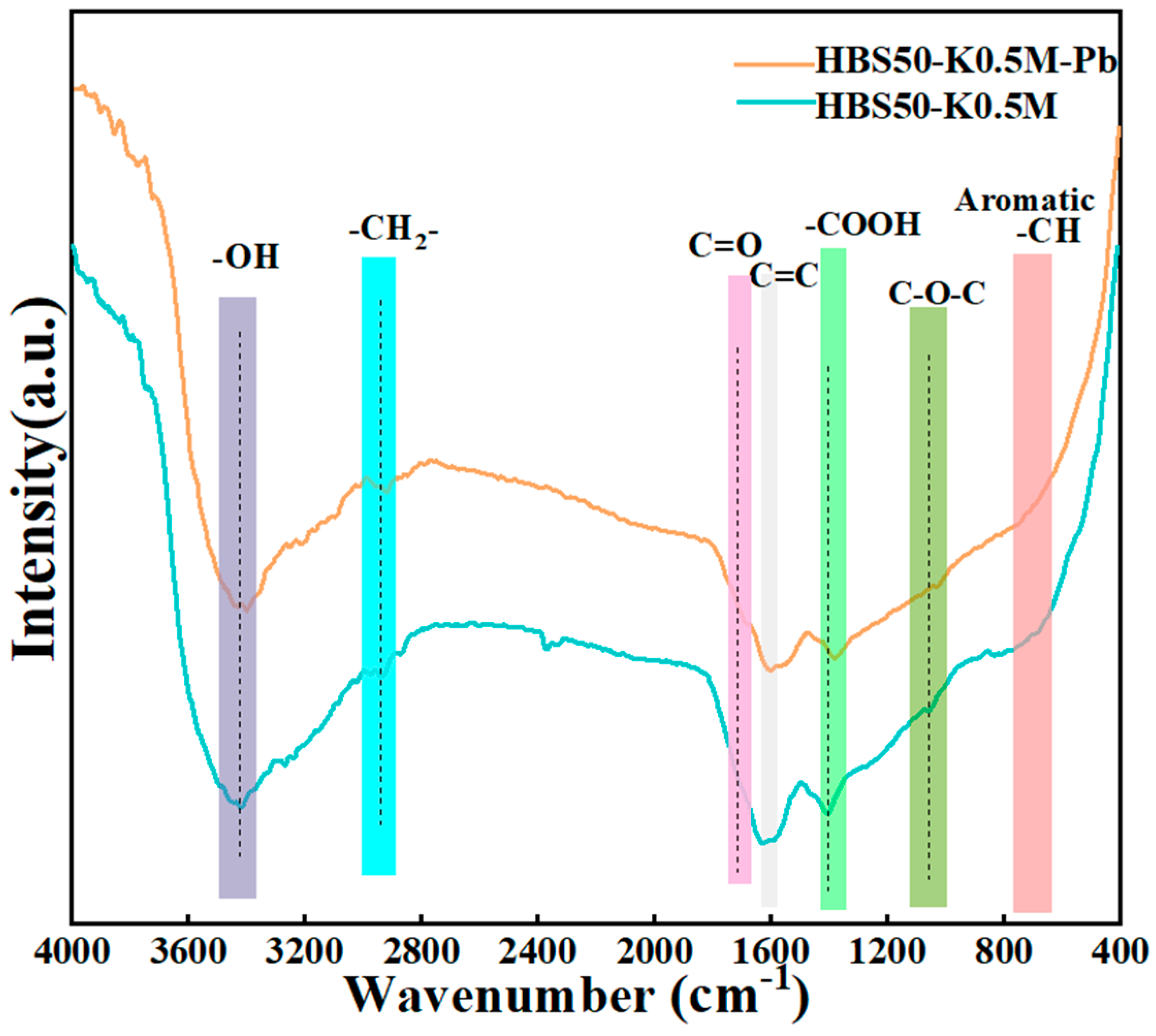

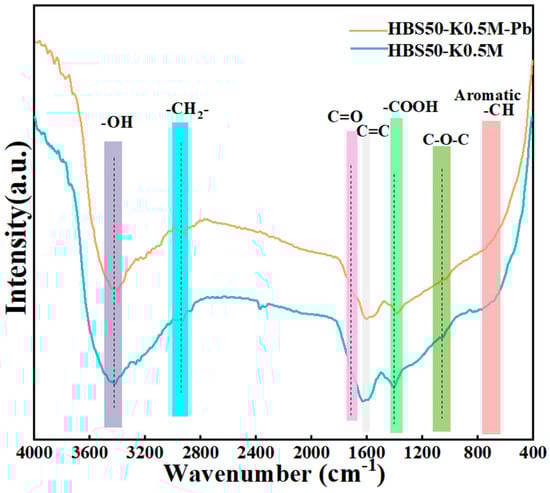

Figure 7. FTIR spectra of HBS50−K0.5M and HBS50-K0.5M−Pb.
Figure 7. FTIR spectra of HBS50−K0.5M and HBS50-K0.5M−Pb.
Materials 18 02348 g007

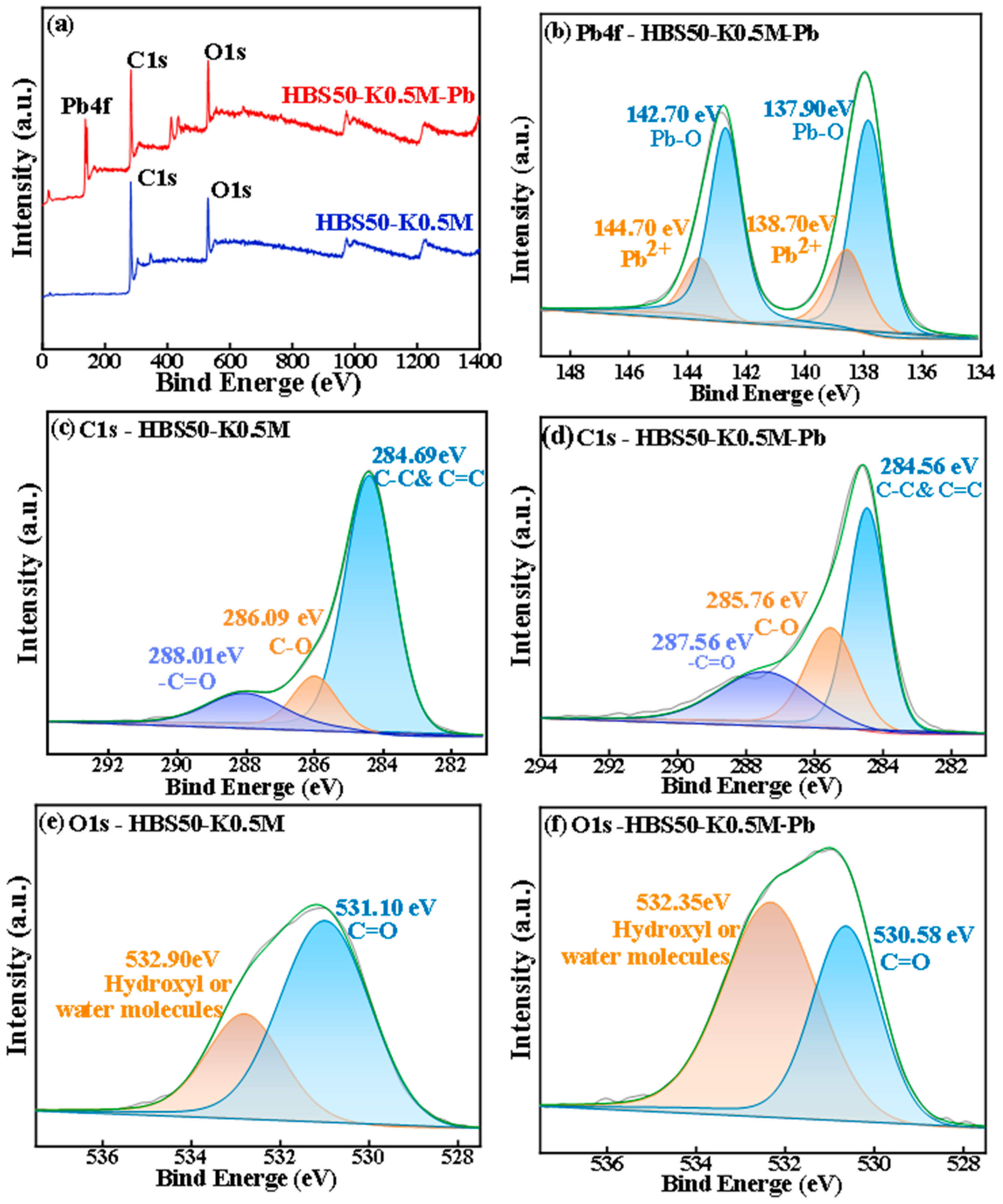

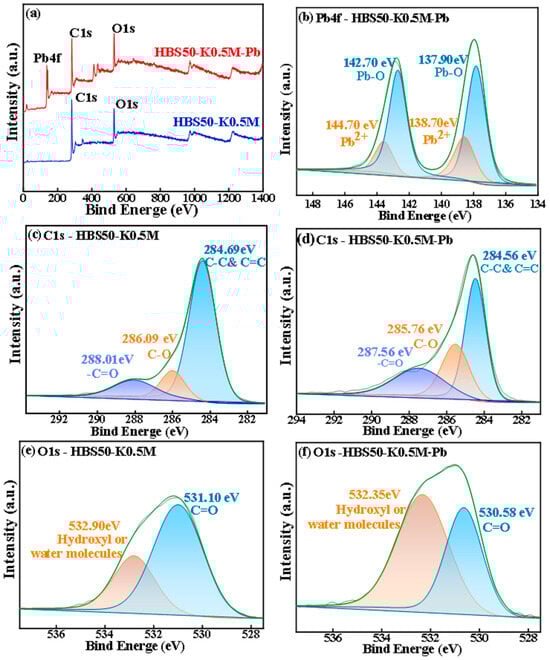

Figure 8. XPS spectra of HBS50-K0.5M before and after the reaction of (a) total photoelectron energy spectrum, (b) Pb4f after the reaction, (c) C1s before the reaction, (d) C1s after the reaction, (e) O1s before the reaction, (f) O1s after the reaction.
Figure 8. XPS spectra of HBS50-K0.5M before and after the reaction of (a) total photoelectron energy spectrum, (b) Pb4f after the reaction, (c) C1s before the reaction, (d) C1s after the reaction, (e) O1s before the reaction, (f) O1s after the reaction.
Materials 18 02348 g008

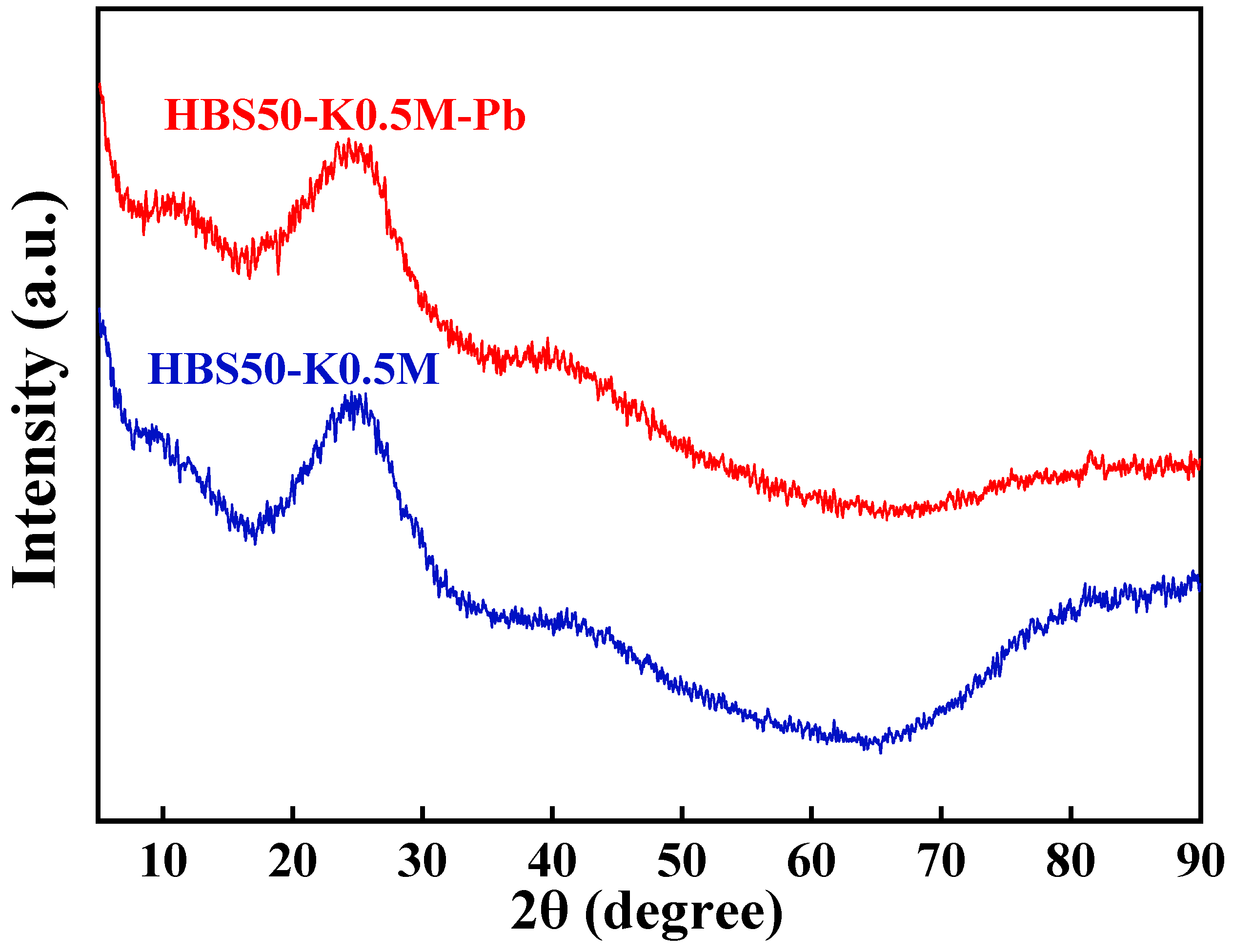

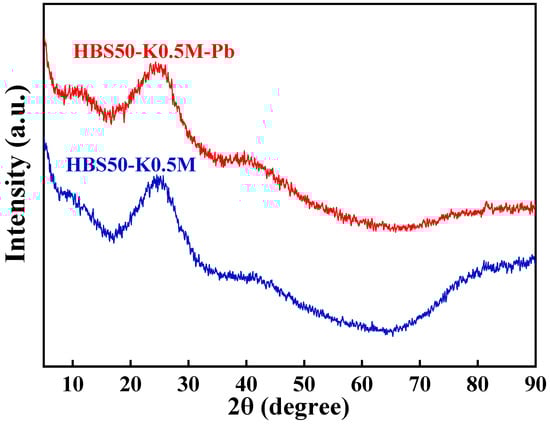

Figure 9. XRD spectra of HBS50-K0.5M before and after sorption.
Figure 9. XRD spectra of HBS50-K0.5M before and after sorption.
Materials 18 02348 g009

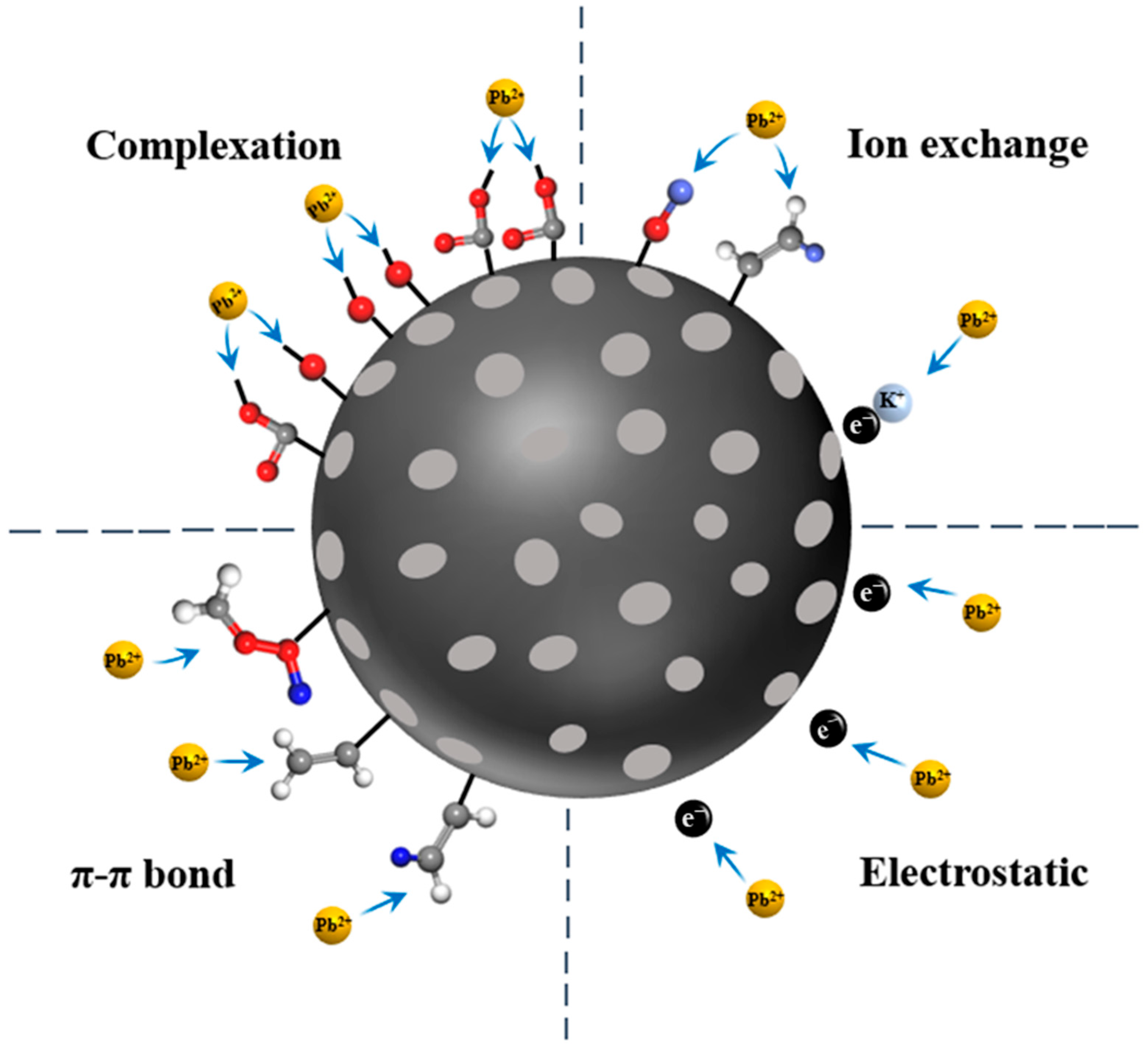

Figure 10. Mechanisms of Pb2+ adsorption by HBS50-K0.5M.
Figure 10. Mechanisms of Pb2+ adsorption by HBS50-K0.5M.
Materials 18 02348 g010
Table 1. The elemental compositions and the corresponding elemental ratios, zero potential (pHpzc), preparation yield, specific surface area and pore structure parameters of IHSC, HBS50 and KOH ultrasonic modified biochars.
Table 1. The elemental compositions and the corresponding elemental ratios, zero potential (pHpzc), preparation yield, specific surface area and pore structure parameters of IHSC, HBS50 and KOH ultrasonic modified biochars.
SampleElemental Content (%)O/CSpecific Surface Area (m2/g)Total Pore Volume (cm3/g)Average
Pore Diameter (nm)
pHpzc
COHN
IHSC46.5845.101.771.170.968----------------
HBS5056.5334.302.540.250.607359.110.3578.953.35
HBS50-K0.25M52.9837.592.520.280.71030.710.12219.154.61
HBS50-K0.5M51.4838.662.640.210.75121.330.09918.814.49
HBS50-K1M57.1833.202.690.310.58117.610.08218.654.33
Table 2. Fitted parameters of the kinetic and isotherm sorption models for Pb2+ onto HBS50-K0.5M.
Table 2. Fitted parameters of the kinetic and isotherm sorption models for Pb2+ onto HBS50-K0.5M.
Sorption kineticsPseudo-first-order ModelPseudo-second-order Model
k1 (min−1)qe (mg/g)R2k2 (min−1)qe (mg/g)R2
0.102284.50.8677.073344.70.988
Sorption isothermLangmuir isothermFreundlich isotherm
kl (min−1)qm (mg/g)R2kf (min−1)nR2
3.123353.30.963146.660.1550.891
Table 3. Comparison of preparation yield and Pb2+ sorption capacity of hydrothermal biochars at the temperature of 25℃.
Table 3. Comparison of preparation yield and Pb2+ sorption capacity of hydrothermal biochars at the temperature of 25℃.
Hydrothermal BiocharsPreparation Yield (%)pHQm (mg/g)Ref.
Rice husk hydrothermal biochars----5.01.84[17]
MnFe2O4-activated sludge hydrothermal biochar----Natural pH174.2[25]
H3PO4-activated banana peel hydrothermal biochar28.9Natural pH356.2[10]
K2CO3-activated Laminaria japonica hydrothermal biochar16.6Natural pH108.0[28]
MnFe2O4-activated Undaria pinnatifida roots hydrothermal biochar----5.0175.4[29]
Urea/ZnCl2-activated Camellia sinensis waste hydrothermal biochar43.7Natural pH73.1[30]
H2SO4-activated industrial hemp stalk core-driven hydrothermal biochar49.25.0195.9[8]
KOH-modified industrial hemp straw core hydrothermal biochar39.05.0345.8This work
Table 4. Contents of alkali metal elements in solution before and after the reaction.
Table 4. Contents of alkali metal elements in solution before and after the reaction.
SolutionsAlkali Metal Elemental Content (mg/L)
NaMgK Ca
Before 0.3890.47800.620
After 0.4210.42220.900.700
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, L.; Yu, W.; Zhang, Z.; Li, Q.; Peng, C.; Wu, K.; Liu, D.; He, S.; Liu, N.; Li, X. Ultrasonic-Assisted K+ Modification of Industrial Hemp Stalk Hydrothermal Biochar for Highly Effective Adsorption of Pb2+. Materials 2025, 18, 2348. https://doi.org/10.3390/ma18102348

AMA Style

Liu L, Yu W, Zhang Z, Li Q, Peng C, Wu K, Liu D, He S, Liu N, Li X. Ultrasonic-Assisted K+ Modification of Industrial Hemp Stalk Hydrothermal Biochar for Highly Effective Adsorption of Pb2+. Materials. 2025; 18(10):2348. https://doi.org/10.3390/ma18102348

Chicago/Turabian Style

Liu, Le, Wanjin Yu, Zheren Zhang, Qiyao Li, Chun Peng, Kaisheng Wu, Duoduo Liu, Sufang He, Nengsheng Liu, and Xiang Li. 2025. "Ultrasonic-Assisted K+ Modification of Industrial Hemp Stalk Hydrothermal Biochar for Highly Effective Adsorption of Pb2+" Materials 18, no. 10: 2348. https://doi.org/10.3390/ma18102348

APA Style

Liu, L., Yu, W., Zhang, Z., Li, Q., Peng, C., Wu, K., Liu, D., He, S., Liu, N., & Li, X. (2025). Ultrasonic-Assisted K+ Modification of Industrial Hemp Stalk Hydrothermal Biochar for Highly Effective Adsorption of Pb2+. Materials, 18(10), 2348. https://doi.org/10.3390/ma18102348

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
