# Numerical Reliability Study Based on Rheological Input for Bingham Paste Pumping Using a Finite Volume Approach in OpenFOAM

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Numerical Framework

#### 2.1. Numerical Methodology

#### 2.2. Numerical Regularisation

#### 2.3. Numerical Control

#### 2.4. Numerical Cases

#### 2.5. Mesh Independence

## 3. Experimental Framework

#### 3.1. Rheometry

#### 3.1.1. Rotational Rheometry

#### 3.1.2. Sliding Pipe Rheometry

#### 3.2. Small-Scale Pumping

## 4. Reliability Irrespective of Rheological Input

#### 4.1. Comparison with the Literature

^{®}, with the re-simulated ones performed in this work by OpenFOAM. No under-relaxation was considered, and a more strict regularisation was applied ($GNAR\approx 1500$). The error is presented relative to the expected Buckingham–Reiner pressure loss.

^{®}.

#### 4.2. Comparison with the Theory

## 5. Reliability Dependent on Rheological Input

#### Comparison with Experiments

## 6. Discussion

## 7. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A. Simulation Settings

Discretisation | Field | Scheme |
---|---|---|

ddtSchemes | default | Gauss linear |

gradSchemes | default | Gauss linear |

grad(p) | leastSquares | |

divSchemes | default | none |

div(phi,U) | Gauss linear corrected | |

laplacianSchemes | default | none |

laplacian(nu,U) | Gauss linear corrected | |

laplacian(1|A(U),p) | Gauss linear corrected | |

interpolationSchemes | default | linear |

snGradSchemes | default | corrected |

Application | nonNewtonianIcoFoam | |
---|---|---|

Pressure-Velocity Coupling | PISO | |

nCorrectors | 5 | |

nNonOrthogonalCorrectors | 0 | |

Fields | ||

Solver Settings | p | U |

Solver | GAMG | smoothSolver |

Smoother | GaussSeidel | symGaussSeidel |

Tolerance | 1 × 10^{−6} | 1 × 10^{−6} |

Relative Tolerance | $0.1$ | 0 |

Final Relative Tolerance | 0 | |

Relaxation Factor | $1.0$ | $0.95$ |

## References

- De Schutter, G.; Lesage, K. Active control of properties of concrete: A (p)review. Mater. Struct. Constr.
**2018**, 51, 1–16. [Google Scholar] [CrossRef] - Roussel, N.; Geiker, M.R.; Dufour, F.; Thrane, L.N.; Szabo, P. Computational modeling of concrete flow: General overview. Cem. Concr. Res.
**2007**, 37, 1298–1307. [Google Scholar] [CrossRef] [Green Version] - Gram, A.; Silfwerbrand, J. Numerical simulation of fresh SCC flow: Applications. Mater. Struct.
**2011**, 44, 805–813. [Google Scholar] [CrossRef] - Thrane, L.N. 10—Modelling the flow of self-compacting concrete. In Understanding the Rheology of Concrete; Roussel, N., Ed.; Woodhead Publishing Series in Civil and Structural Engineering; Woodhead Publishing Limited: Sawston, UK, 2012; pp. 259–285. [Google Scholar] [CrossRef]
- Roussel, N.; Gram, A. Simulation of Fresh Concrete Flow; RILEM State-of-the-Art Reports; Springer: Dordrecht, The Netherlands, 2014; Volume 15. [Google Scholar] [CrossRef]
- Tichko, S.; Van De Maele, J.; Vanmassenhove, N.; De Schutter, G.; Vierendeels, J.; Verhoeven, R.; Troch, P. Numerical simulation of formwork pressure while pumping self-compacting concrete bottom-up. Eng. Struct.
**2014**, 70, 218–233. [Google Scholar] [CrossRef] - Roussel, N.; Gram, A.; Cremonesi, M.; Ferrara, L.; Krenzer, K.; Mechtcherine, V.; Shyshko, S.; Skocec, J.; Spangenberg, J.; Svec, O.; et al. Numerical simulations of concrete flow: A benchmark comparison. Cem. Concr. Res.
**2016**, 79, 265–271. [Google Scholar] [CrossRef] [Green Version] - Wallevik, J.E.; Wallevik, O.H. Analysis of shear rate inside a concrete truck mixer. Cem. Concr. Res.
**2017**, 95, 9–17. [Google Scholar] [CrossRef] - Wallevik, J.E. Rheological properties of cement paste: Thixotropic behavior and structural breakdown. Cem. Concr. Res.
**2009**, 39, 14–29. [Google Scholar] [CrossRef] - Patzák, B.; Bittnar, Z. Modeling of fresh concrete flow. Comput. Struct.
**2009**, 87, 962–969. [Google Scholar] [CrossRef] - Kolařík, F.; Patzák, B.; Thrane, L. Modeling of fiber orientation in viscous fluid flow with application to self-compacting concrete. Comput. Struct.
**2015**, 154, 91–100. [Google Scholar] [CrossRef] - Kolařík, F.; Patzák, B.; Zeman, J. Computational homogenization of fresh concrete flow around reinforcing bars. Comput. Struct.
**2018**, 207, 37–49. [Google Scholar] [CrossRef] [Green Version] - Tichko, S. Hydrodynamic Modelling of the Flow of Self-Compacting Concrete in Formworks. Ph.D. Dissertation, Ghent University, Ghent, Belgium, 2016. [Google Scholar]
- Hočevar, A.; Kavčič, F.; Bokan-Bosiljkov, V. Rheological parameters of fresh concrete-comparison of rheometers. Gradevinar
**2013**, 65, 99–109. [Google Scholar] [CrossRef] - Wallevik, O.H.; Feys, D.; Wallevik, J.E.; Khayat, K.H. Avoiding inaccurate interpretations of rheological measurements for cement-based materials. Cem. Concr. Res.
**2015**, 78, 100–109. [Google Scholar] [CrossRef] - Kwon, S.H.; Jang, K.P.; Kim, J.H.; Shah, S.P. State of the Art on Prediction of Concrete Pumping. Int. J. Concr. Struct. Mater.
**2016**, 10, 75–85. [Google Scholar] [CrossRef] [Green Version] - Kim, J.S.; Kwon, S.H.; Jang, K.P.; Choi, M.S. Concrete pumping prediction considering different measurement of the rheological properties. Constr. Build. Mater.
**2018**, 171, 493–503. [Google Scholar] [CrossRef] - Ley-Hernández, A.M.; Feys, D.; Kumar, A. How do different testing procedures affect the rheological properties of cement paste? Cem. Concr. Res.
**2020**, 137, 106189. [Google Scholar] [CrossRef] - Haist, M.; Link, J.; Nicia, D.; Leinitz, S.; Baumert, C.; von Bronk, T.; Cotardo, D.; Eslami Pirharati, M.; Fataei, S.; Garrecht, H.; et al. Interlaboratory study on rheological properties of cement pastes and reference substances: Comparability of measurements performed with different rheometers and measurement geometries. Mater. Structs.
**2020**, 53, 92. [Google Scholar] [CrossRef] - Wallevik, O.H.; Wallevik, J.E. Rheology as a tool in concrete science: The use of rheographs and workability boxes. Cem. Concr. Res.
**2011**, 41, 1279–1288. [Google Scholar] [CrossRef] - Schaer, N.; Vazquez, J.; Dufresne, M.; Isenmann, G.; Wertel, J. On the determination of the yield surface within the flow of yield stress fluids using computational fluid dynamics. J. Appl. Fluid Mech.
**2018**, 11, 971–982. [Google Scholar] [CrossRef] - Bercovier, M.; Engelman, M. A finite-element method for incompressible non-Newtonian flows. J. Comput. Phys.
**1980**, 36, 313–326. [Google Scholar] [CrossRef] - O’Donovan, E.J.; Tanner, R.I. Numerical study of the Bingham squeeze film problem. J. Non-Newton. Fluid Mech.
**1984**, 15, 75–83. [Google Scholar] [CrossRef] - Beverly, C.R.; Tanner, R.I. Numerical Analysis of Extrudate Swell in Viscoelastic Materials with Yield Stress. J. Rheol.
**1989**, 33, 989–1009. [Google Scholar] [CrossRef] - Frigaard, I.A.; Nouar, C. On the usage of viscosity regularisation methods for visco-plastic fluid flow computation. J. Non-Newton. Fluid Mech.
**2005**, 127, 1–26. [Google Scholar] [CrossRef] - Syrakos, A.; Georgiou, G.C.; Alexandrou, A.N. Performance of the finite volume method in solving regularised Bingham flows: Inertia effects in the lid-driven cavity flow. J. Non-Newton. Fluid Mech.
**2014**, 208-209, 88–107. [Google Scholar] [CrossRef] [Green Version] - El Khouja, N.; Roquet, N.; Cazacliu, B. Analysis of a Regularized Bingham Model with Pressure-Dependent Yield Stress. J. Math. Fluid Mech.
**2015**, 17, 723–739. [Google Scholar] [CrossRef] - Jahromi, H.R.; Raisi, A.; Ghasemi, B.; Nadooshan, A.A. Numerical study of the Bingham fluid flow in a cylindrical enclosure with exact Bingham model. J. Braz. Soc. Mech. Sci. Eng.
**2020**, 42, 1–15. [Google Scholar] [CrossRef] - Ahmadi, A.; Karimfazli, I. A quantitative evaluation of viscosity regularization in predicting transient flows of viscoplastic fluids. J. Non-Newton. Fluid Mech.
**2021**, 287, 104429. [Google Scholar] [CrossRef] - Gram, A.; Lagerblad, B. Obtaining Rheological Parameters from Slump Flow Test for Self-Compacting Concrete. In Proceedings of the International Conference on Sustainable Construction Materials & Technologies, SCMT3, Kyoto, Japan, 18–21 August 2013. [Google Scholar]
- Choi, M.S.; Kim, Y.J.; Kwon, S.H. Prediction on pipe flow of pumped concrete based on shear-induced particle migration. Cem. Concr. Res.
**2013**, 52, 216–224. [Google Scholar] [CrossRef] - Roussel, N.; Spangenberg, J.; Wallevik, J.; Wolfs, R. Numerical simulations of concrete processing: From standard formative casting to additive manufacturing. Cem. Concr. Res.
**2020**, 135, 106075. [Google Scholar] [CrossRef] - Wallevik, J.E. Thixotropic investigation on cement paste: Experimental and numerical approach. J. Non-Newton. Fluid Mech.
**2005**, 132, 86–99. [Google Scholar] [CrossRef] - Secrieru, E.; Mohamed, W.; Fataei, S.; Mechtcherine, V. Assessment and prediction of concrete flow and pumping pressure in pipeline. Cem. Concr. Compos.
**2020**, 107, 103495. [Google Scholar] [CrossRef] - Perrot, A.; Al, E. From analytical methods to numerical simulations: A process engineering toolbox for 3D-concrete printing. Cem. Concr. Compos.
**2021**, 122, 104164. [Google Scholar] [CrossRef] - Welty, J.R.; Wicks, C.E.; Wilson, R.E.; Rorrer, G.L. Fundamentals of Momentum, Heat, and Mass Transfer; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2008; p. 201. [Google Scholar]
- Wallevik, J.E. Rheology of Particle Suspension: Fresh Concrete, Mortar and Cement Paste with Various Types of Lignosulfates. Ph.D. Thesis, The Norwegian University of Science and Technology, Trondheim, Norway, 2003. [Google Scholar]
- Banfill, P.F.G. Rheology of Fresh Cement and Concrete. Rheol. Rev.
**2006**, 2006, 61–130. [Google Scholar] [CrossRef] - Feys, D.; Verhoeven, R.; De Schutter, G. Evaluation of time independent rheological models applicable to fresh self-compacting concrete. Appl. Rheol.
**2007**, 17, 1–10. [Google Scholar] [CrossRef] - Ferraris, C.F.; Martys, N.S. 3—Concrete Rheometers. In Understanding the Rheology of Concrete; Roussel, N., Ed.; Woodhead Publishing Series in Civil and Structural Engineering; Woodhead Publishing Limited: Sawston, UK, 2012; pp. 63–82. [Google Scholar] [CrossRef]
- Feys, D.; Wallevik, J.E.; Yahia, A.; Khayat, K.H.; Wallevik, O.H. Extension of the Reiner-Riwlin equation to determine modified Bingham parameters measured in coaxial cylinders rheometers. Mater. Struct.
**2013**, 46, 289–311. [Google Scholar] [CrossRef] - Yim, H.; Kim, J.; Kwon, S. Effect of Admixtures on the Yield Stresses of Cement Pastes under High Hydrostatic Pressures. Materials
**2016**, 9, 147. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Saramito, P.; Wachs, A. Progress in numerical simulation of yield stress fluid flows. Rheol. Acta
**2017**, 56, 211–230. [Google Scholar] [CrossRef] [Green Version] - Bleyer, J.; Maillard, M.; De Buhan, P.; Coussot, P. Efficient numerical computations of yield stress fluid flows using second-order cone programming. Comput. Methods Appl. Mech. Eng.
**2015**, 283, 599–614. [Google Scholar] [CrossRef] [Green Version] - Pimenta, F.; Alves, M.A. Stabilization of an open-source finite-volume solver for viscoelastic fluid flows. J. Non-Newton. Fluid Mech.
**2017**, 239, 85–104. [Google Scholar] [CrossRef] - Bullough, W.; Ellam, D.; Wong, A.; Tozer, R. Computational fluid dynamics in the flow of ERF/MRF in control devices and of oil through piezo-hydraulic valves. Comput. Struct.
**2008**, 86, 266–280. [Google Scholar] [CrossRef] - Papanastasiou, T.C. Flows of Materials with Yield. J. Rheol.
**1987**, 31, 385–404. [Google Scholar] [CrossRef] - Papanastasiou, T.C.; Boudouvis, A.G. Flows of viscoplastic materials: Models and computations. Comput. Struct.
**1997**, 64, 677–694. [Google Scholar] [CrossRef] - Cremonesi, M.; Frangi, A.; Perego, U. A Lagrangian finite element approach for the simulation of water-waves induced by landslides. Comput. Struct.
**2011**, 89, 1086–1093. [Google Scholar] [CrossRef] - Saramito, P.; Roquet, N. An adaptive finite element method for viscoplastic fluid flows in pipes. Comput. Methods Appl. Mech. Eng.
**2001**, 190, 5391–5412. [Google Scholar] [CrossRef] - Burgos, G.R.; Alexandrou, A.N.; Entov, V. On the determination of yield surfaces in Herschel-Bulkley fluids. J. Rheol.
**1999**, 43, 463–483. [Google Scholar] [CrossRef] - Chupin, L.; Dubois, T. A bi-projection method for Bingham type flows. Comput. Math. Appl.
**2016**, 72, 1263–1286. [Google Scholar] [CrossRef] [Green Version] - De Schutter, G.; Feys, D. Pumping of Fresh Concrete: Insights and Challenges. RILEM Tech. Lett.
**2016**, 1, 76. [Google Scholar] [CrossRef] [Green Version] - Mechtcherine, V.; Nerella, V.N.; Kasten, K. Testing pumpability of concrete using Sliding Pipe Rheometer. Constr. Build. Mater.
**2014**, 53, 312–323. [Google Scholar] [CrossRef] - De Schryver, R.; De Schutter, G. Insights in thixotropic concrete pumping by a Poiseuille flow extension. Appl. Rheol.
**2020**, 30, 77–101. [Google Scholar] [CrossRef] - Billingham, J.; Ferguson, J.W. Laminar, unidirectional flow of a thixotropic fluid in a circular pipe. J. Non-Newton. Fluid Mech.
**1993**, 47, 21–55. [Google Scholar] [CrossRef] - Frigaard, I.A.; Howison, S.D.; Sobey, I.J. On the Stability of Poiseuille Flow of a Bingham Fluid. J. Fluid Mech.
**1994**, 263, 133–150. [Google Scholar] [CrossRef] - Frigaard, I.; Nouar, C. On three-dimensional linear stability of Poiseuille flow of Bingham fluids. Phys. Fluids
**2003**, 15, 2843–2851. [Google Scholar] [CrossRef] - Feys, D.; Verhoeven, R.; Schutter, G.D. Pipe flow velocity profiles of complex suspensions, like concrete. In Proceedings of the 8th National Congress on Theoretical and Applied Mechanics, Brussels, Belgium, 28–29 May 2009; pp. 66–73. [Google Scholar]
- Haustein, M.A.; Kluwe, M.N.; Schwarze, R. Experimental investigation of the pumping of a model-concrete through pipes. Materials
**2020**, 13, 1161. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Fataei, S.; Secrieru, E.; Mechtcherine, V. Experimental insights into concrete flow-regimes subject to shear-induced particle migration (SIPM) during pumping. Materials
**2020**, 13, 1233. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Salinas, A.; Feys, D. Estimation of Lubrication Layer Thickness and Composition through Reverse Engineering of Interface Rheometry Tests. Materials
**2020**, 13, 1799. [Google Scholar] [CrossRef] [Green Version] - Kaplan, D. Pompage Des Bétons. Ph.D. Thesis, École Nationale des Ponts et Chaussées, Marne-la-Vallée, France, Laboratoire Central des Ponts et Chaussées, Paris, France, 2001. [Google Scholar]

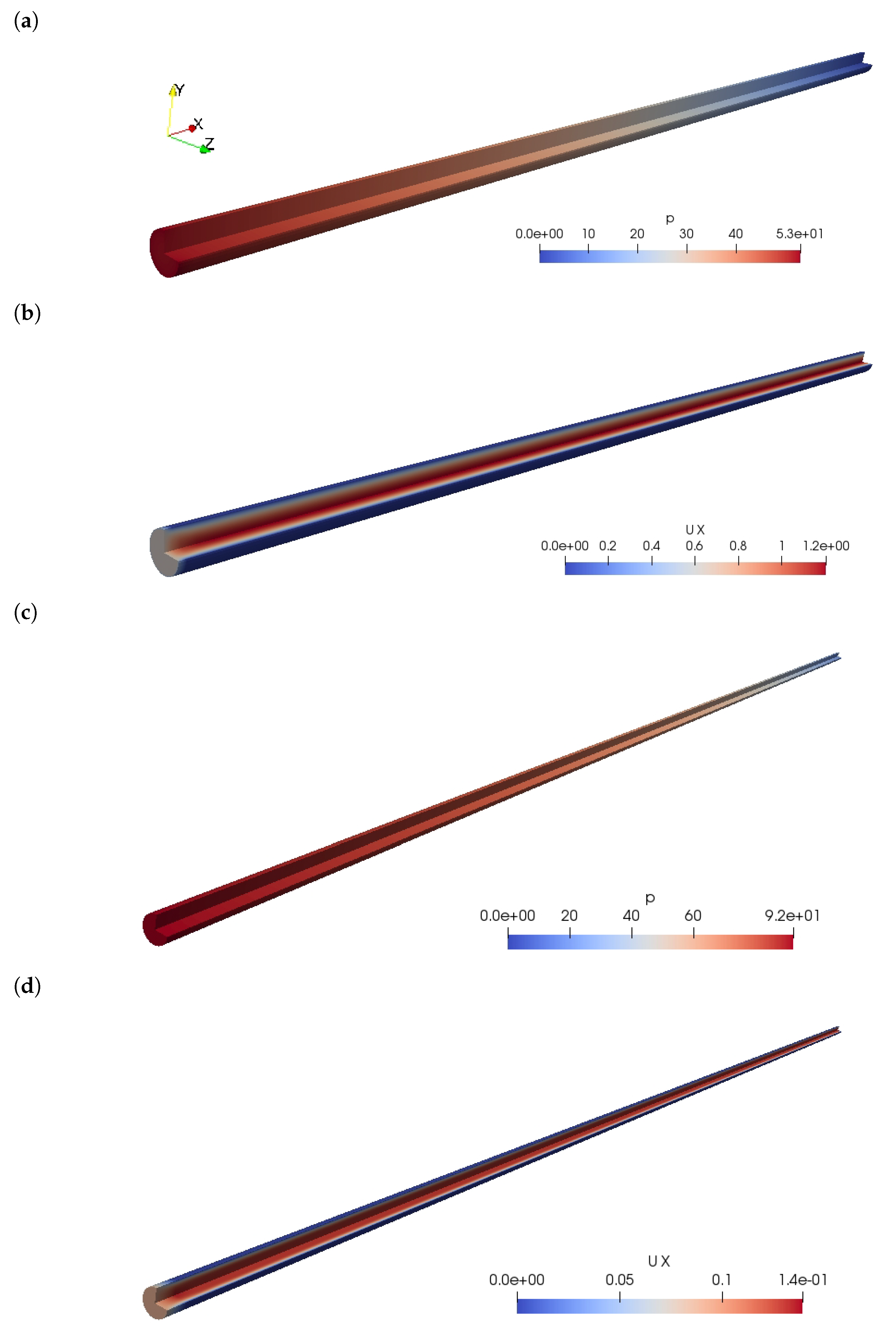

**Figure 2.**Illustrations of the numerical outcome. Examples of the kinematic pressure field p (m${}^{2}$/s${}^{2}$) and the x-component velocity field ${U}_{x}$ (m/s) are shown for both the DN100 and DN25 pipe cases. (

**a**) Pressure field p for a DN100 pipe. (

**b**) Velocity field ${U}_{x}$ for a DN100 pipe. (

**c**) Pressure field p for a DN25 pipe. (

**d**) Velocity field ${U}_{x}$ for a DN25 pipe.

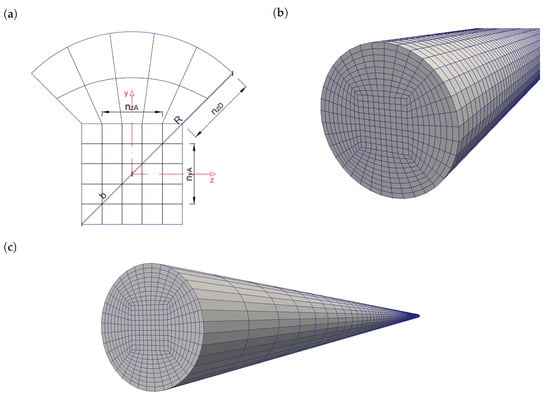

**Figure 3.**Hexagonal cross-sectional mesh configuration, with an inner square (${n}_{yA}$×${n}_{zA}$) with diagonal $2b$ and outer circle segments (${n}_{zA}$×${n}_{zD}$) to pipe radius R. (

**a**) Cross-sectional view. (

**b**) Three-dimensionally rendered mesh view of a DN100 pipe. (

**c**) Rescaled mesh of experimental pumping circuit, with an equal radial mesh resolution for a DN25 pipe.

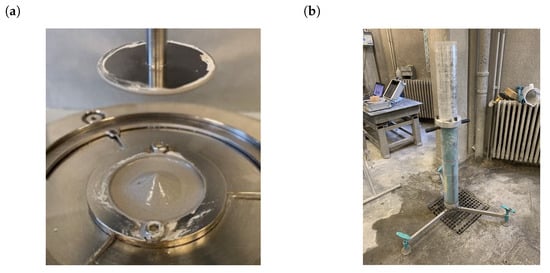

**Figure 4.**Rheometer test set-up configurations: (

**a**) rotational parallel plate rheometer configuration (Anton Paar MCR-102 with a 1 mm gap); (

**b**) sliding pipe rheometer (Sliper).

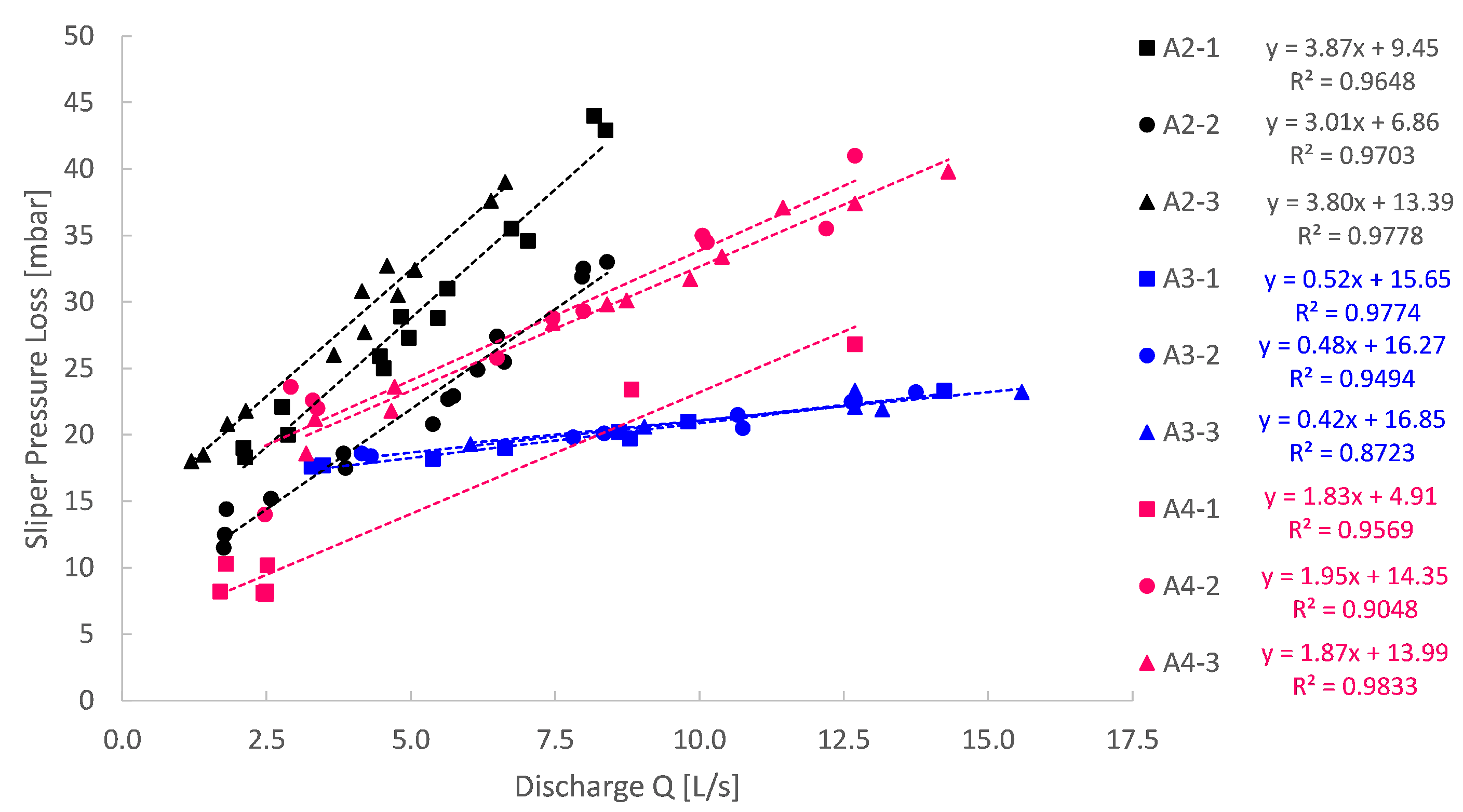

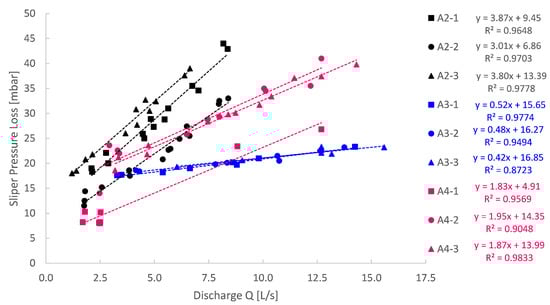

**Figure 5.**Sliper pressure loss recorded as a function of the discharge for all conducted experiments (mix design A2 to A4). No feasible results could be obtained for mix design A1. Rheological parameters were obtained from the linear regressions.

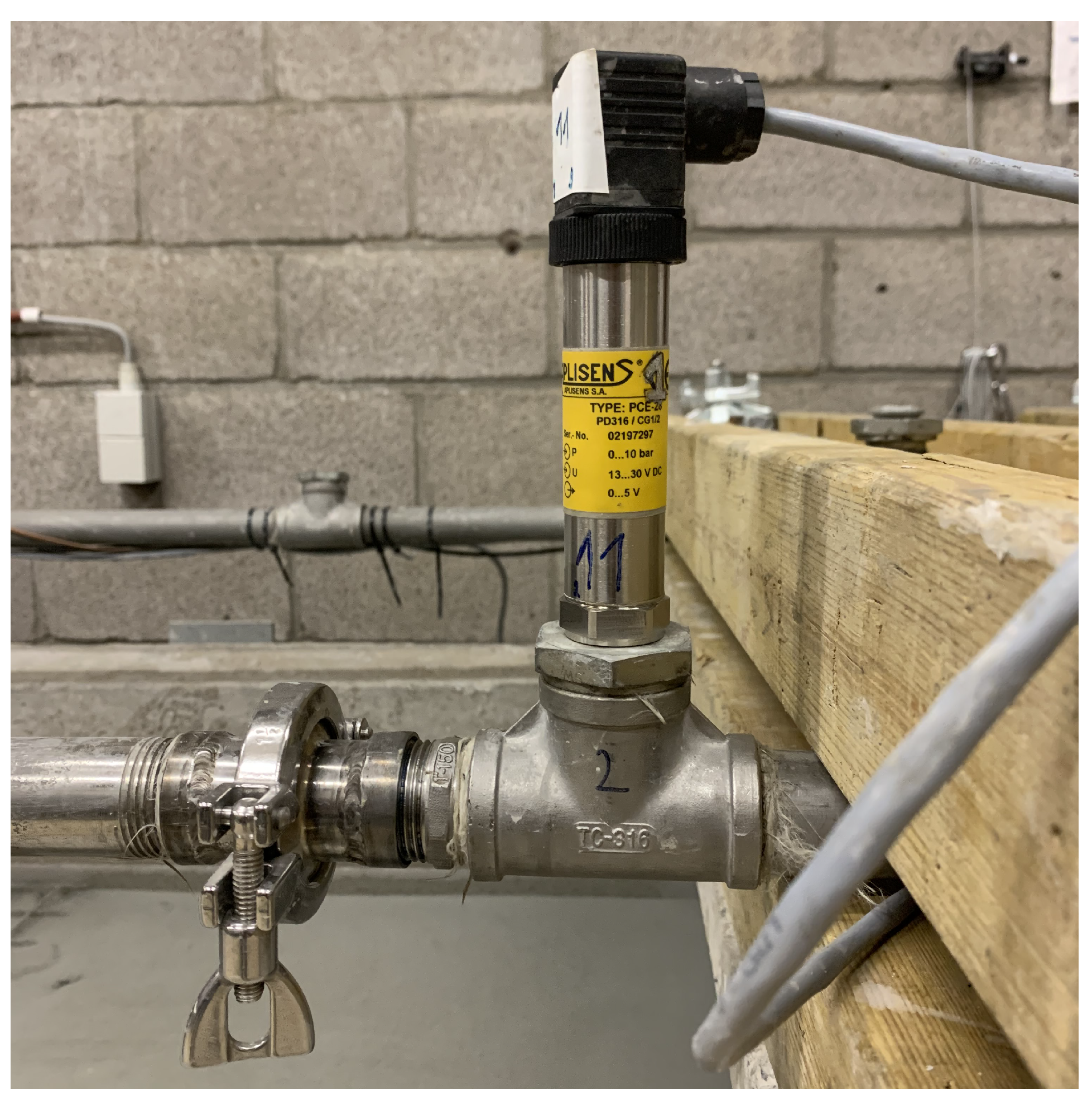

**Figure 6.**Example of a pressure sensor being screwed in a T-connector as close as possible to the virtual pipe wall.

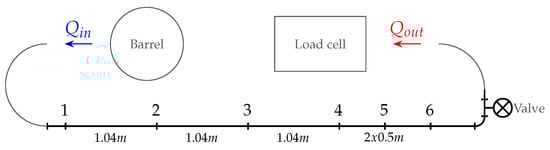

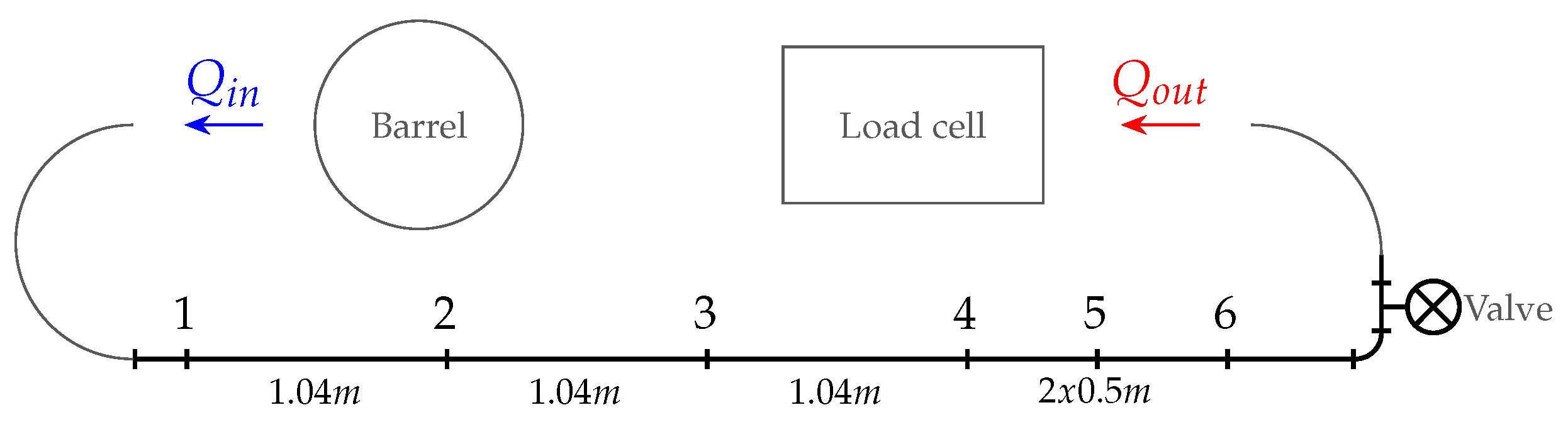

**Figure 7.**Layout of a small-scale pumping circuit. Each number corresponds to a pressure sensor position. At the inlet, the paste was injected via a pressure barrel, for which the outlet discharge ${Q}_{out}$ was measured by a load cell.

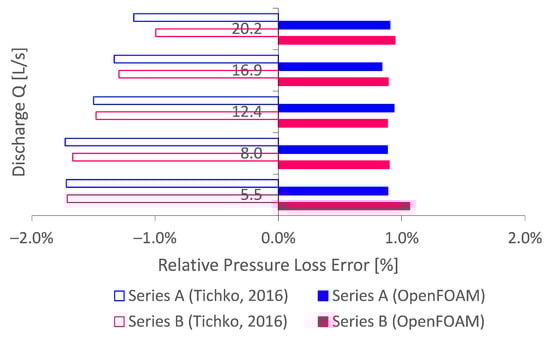

**Figure 8.**Literature comparison of the numerical concrete pipe flow simulations performed by Tichko [13], relative to the expected Buckingham–Reiner theory. The results indicate that OpenFOAM performs at least as good as, if not better than, commercial CFD software ANSYS FLUENT

^{®}.

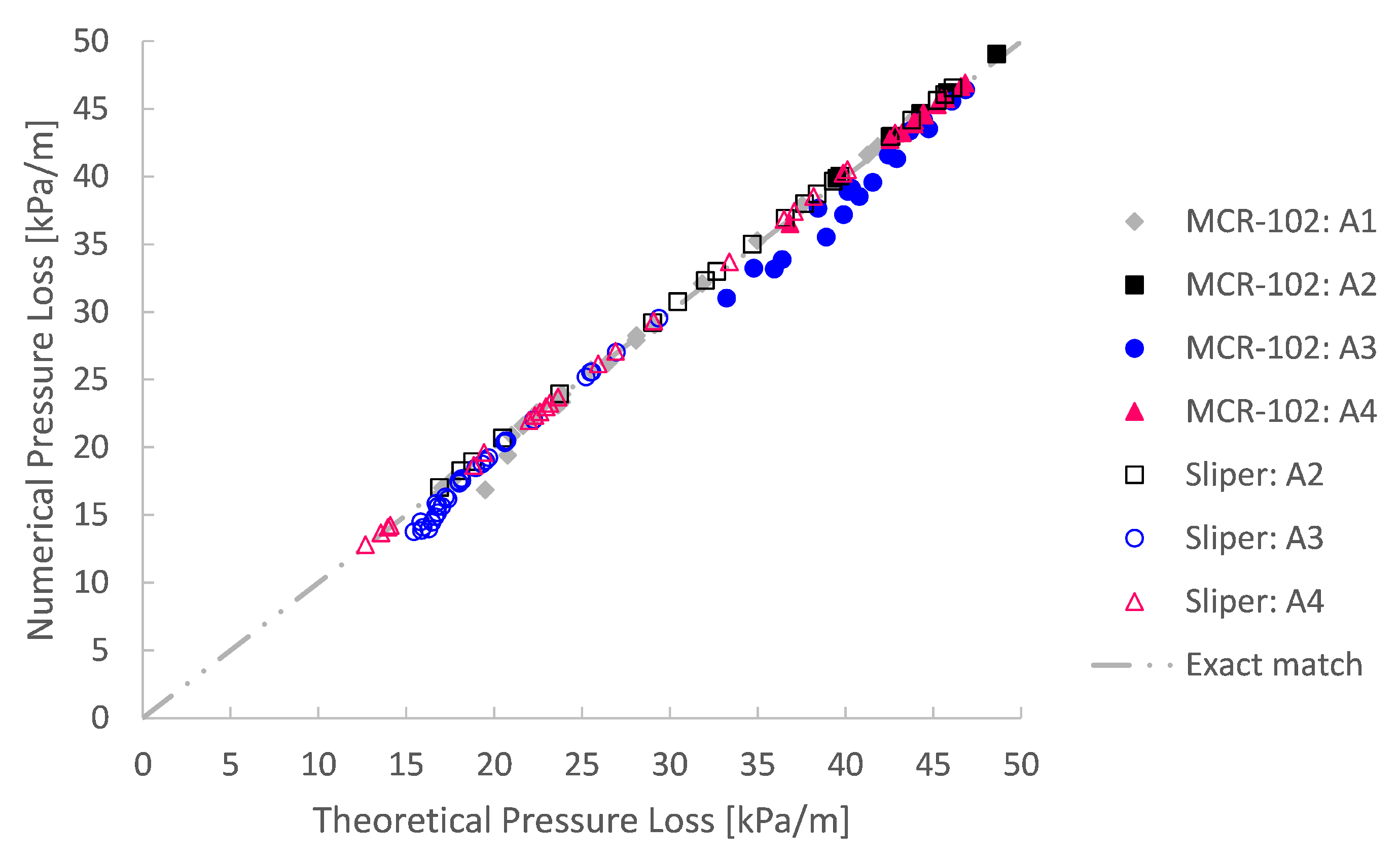

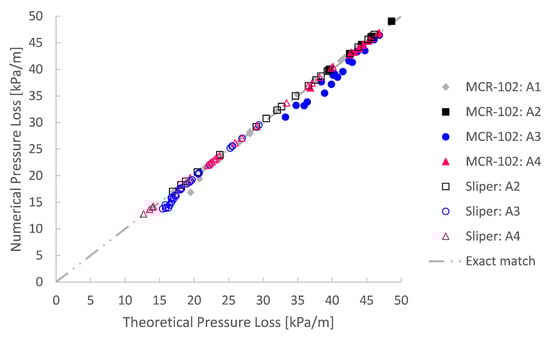

**Figure 9.**A good agreement is obtained between the simulated pressure loss and the expected theoretical Buckingham–Reiner theory.

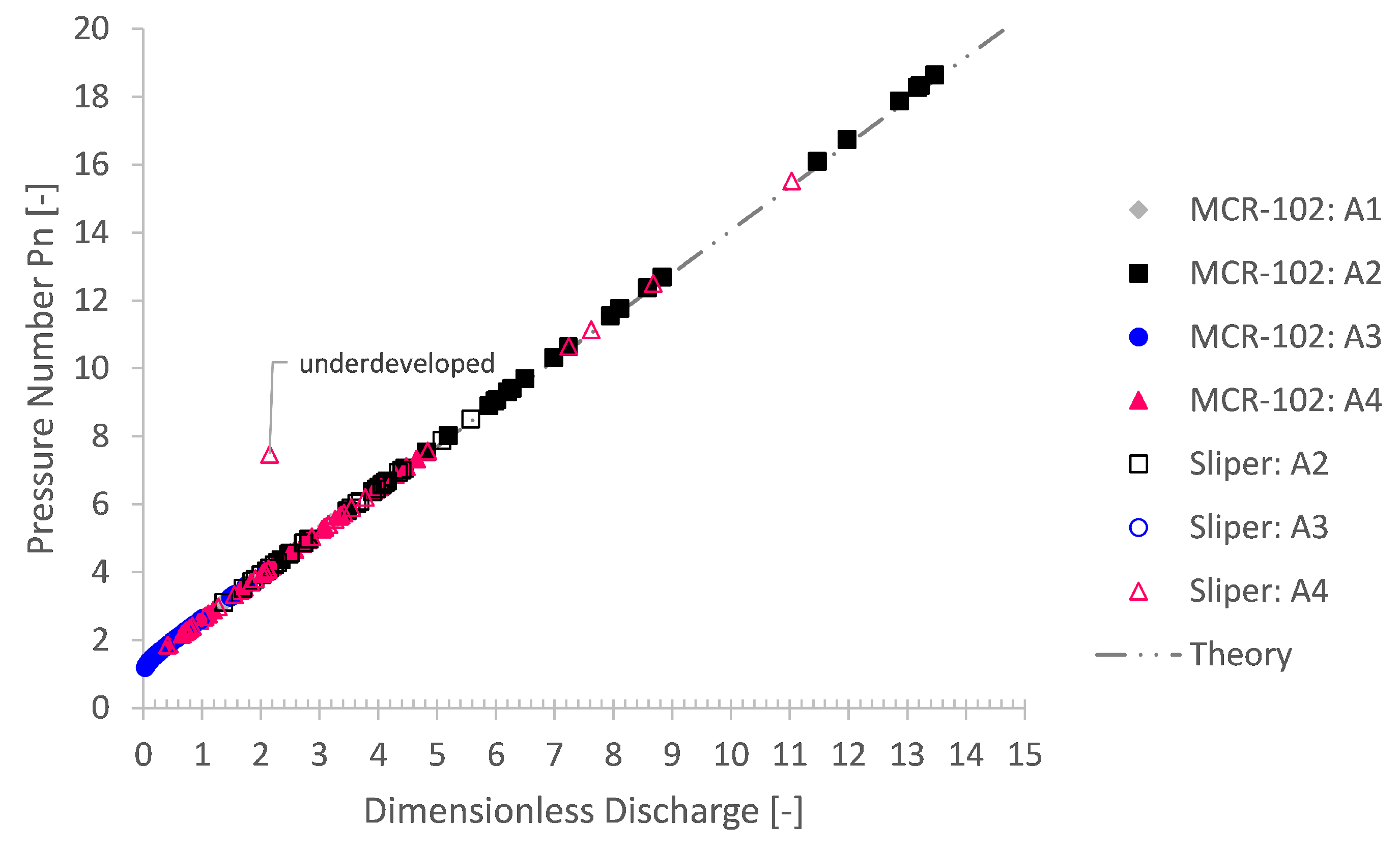

**Figure 10.**Using a dimensionless form of the Bingham Poiseuille flow, again, a good agreement is achieved between the simulated pressure loss and the expected Buckingham–Reiner theory. Indeed, the simulations map onto a single Bingham discharge curve.

**Figure 11.**Significantly accurate simulations can be obtained in comparison with the Buckingham–Reiner theory. For higher discharges, a relative pressure loss error below $1\%$ can be obtained. Simulations with lower discharges or higher yield stresses can be more influenced by the unregularised viscoplastic problem [25,43].

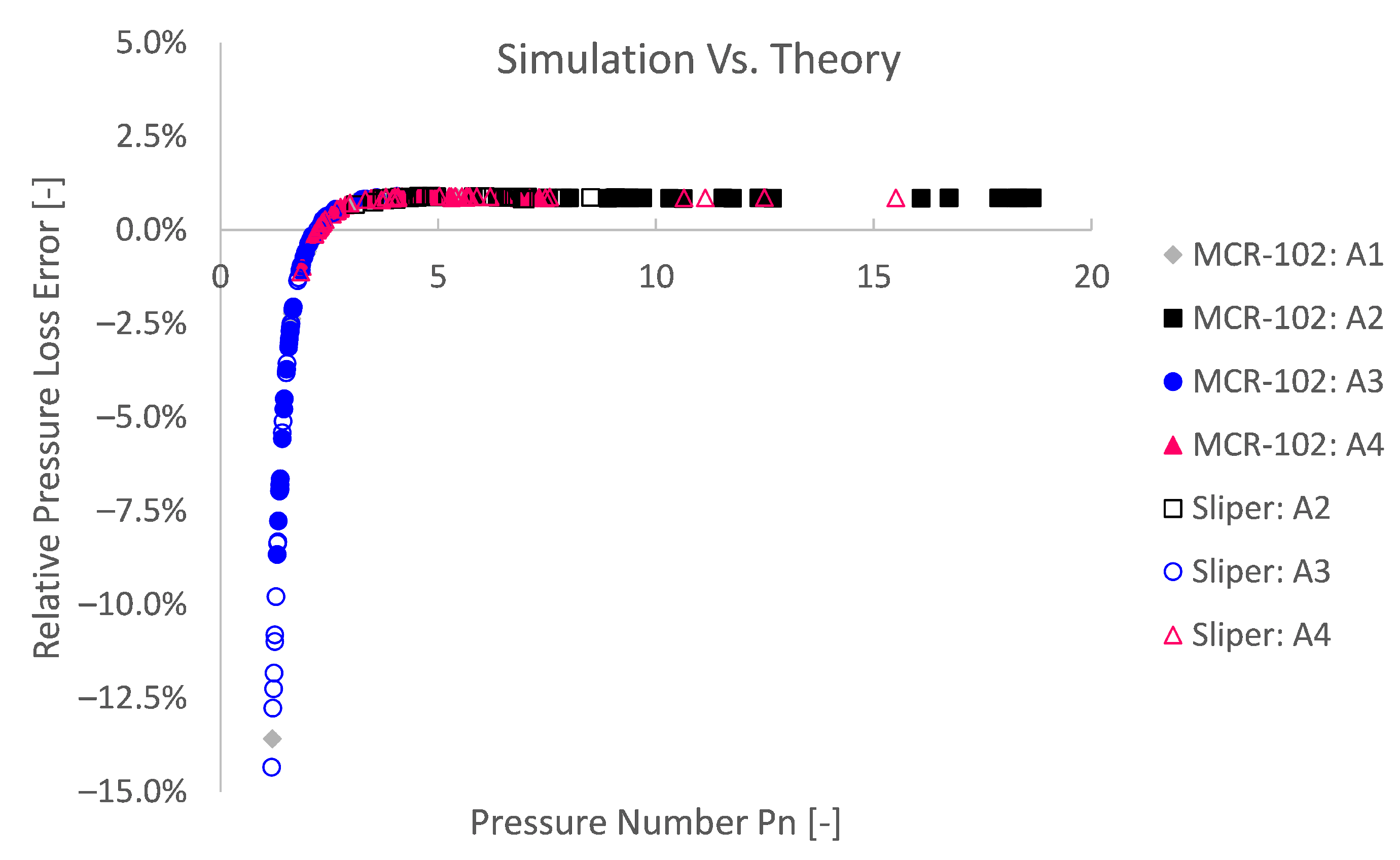

**Figure 12.**The relative simulation pressure loss error (compared to Buckingham–Reiner) as a function of the pressure number $Pn$ reveals the influence of the flow regime or unregularised viscoplastic problem. The accuracy decreases for lower pressure numbers or for more yield stress dominant flow regimes.

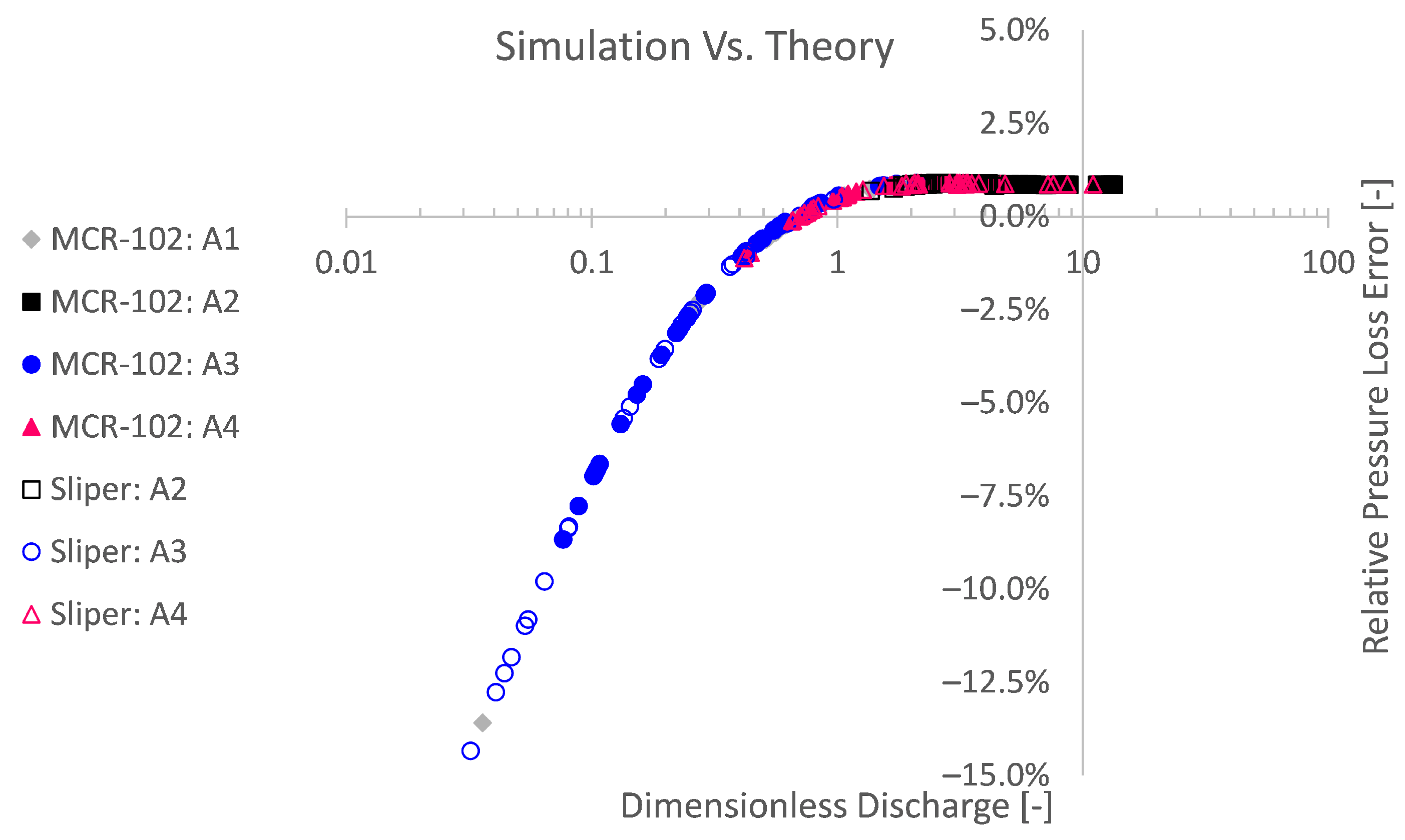

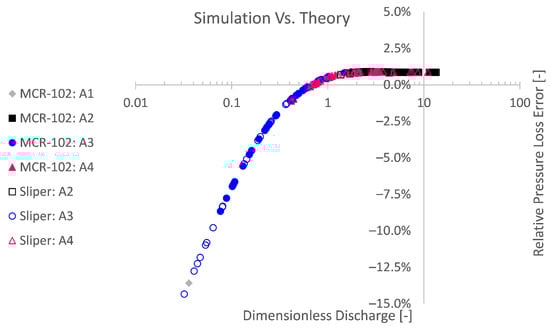

**Figure 13.**Plotting the relative simulation error as a function of the dimensionless discharge $\widehat{Q}$ also shows that low discharges or more yield stress dominated pipe flows impede numerical accuracy.

**Figure 14.**The relative pressure loss error as a function of the inverse pressure number is equivalent to the degree of plug formation. The ratio of plug radius ${R}_{p}$ to pipe radius R equals the inverse pressure number $1/Pn$.

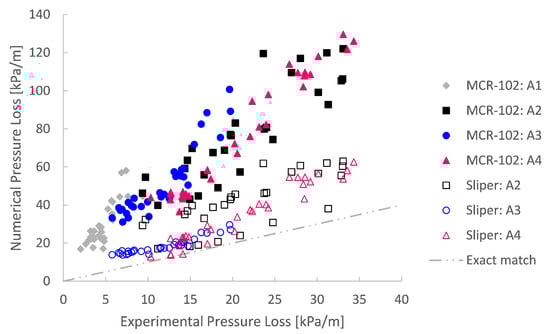

**Figure 15.**Comparison of numerically simulated pressure loss with experimentally obtained pumping results, for four different mix designs (A1 to A4) and based on rheological input from the MCR-102 rheometer and the Sliper.

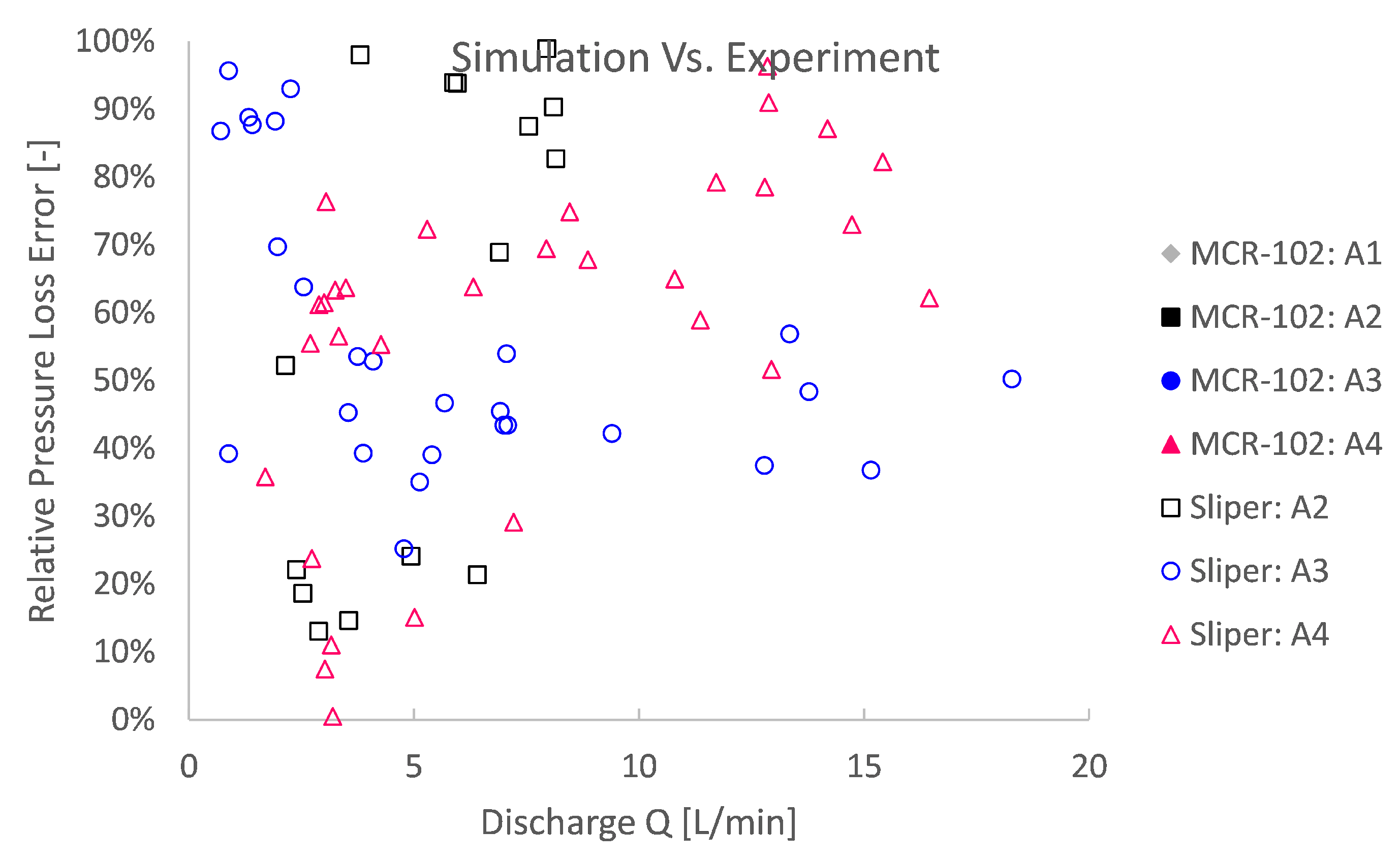

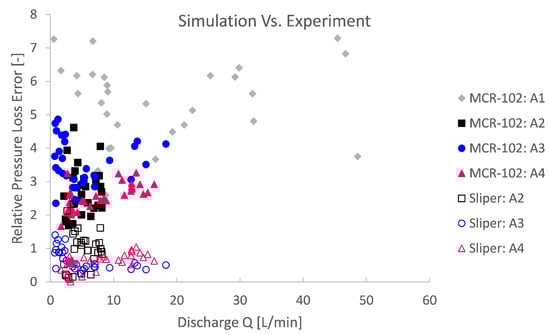

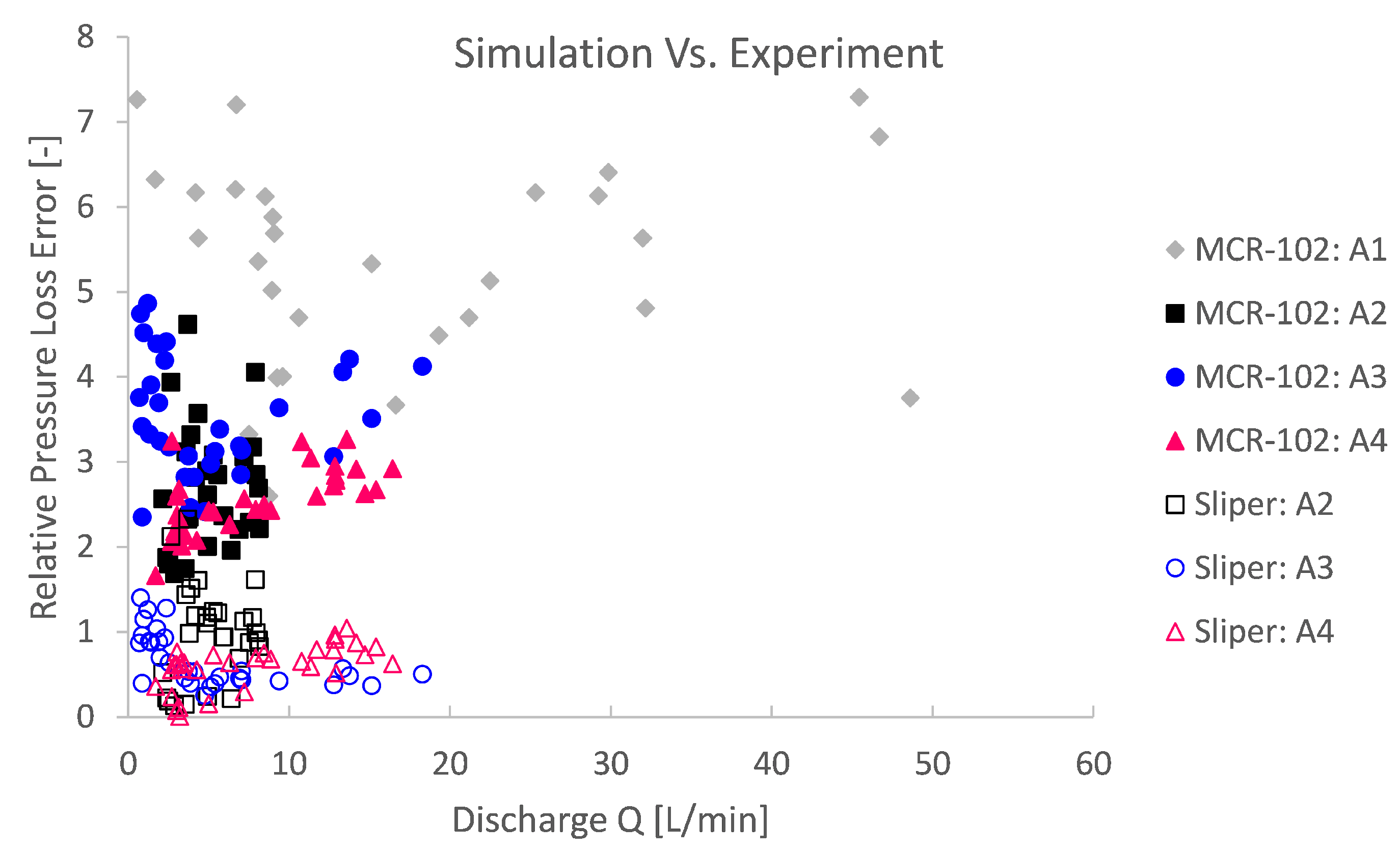

**Figure 16.**The relative simulation pressure loss error compared to the pumping experiment series indicates that the rheolocigal input from the Sliper is in better agreement than that based on MCR-102.

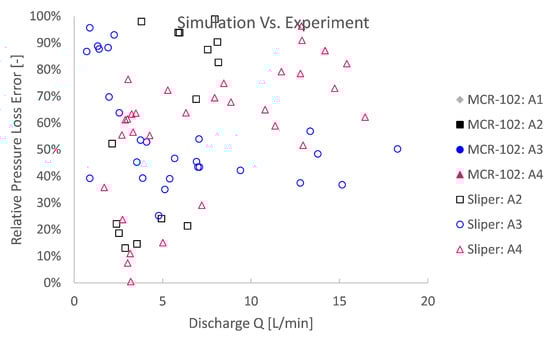

**Figure 17.**A close-up of the comparison between numerical simulations and pumping experiments shows that the rheological input based on Sliper is significantly better than that for MCR-102, with relative errors ranging from 0% to ca. 100%.

**Table 1.**Pipe flow boundary conditions of the velocity field U and the pressure field p. Herein, Q is the imposed discharge, uniformly distributed over the inlet surface A.

Boundary | Field | Type | Definition | |
---|---|---|---|---|

Inlet | U | Dirichlet | uniform value | $U=Q/A$ |

p | Neumann | zero gradient | $\nabla p=0$ | |

Wall | U | Dirichlet | noSlip | $U=0$ |

p | Neumann | zero gradient | $\nabla p=0$ | |

Outlet | U | Neumann | zero gradient | $\nabla U=0$ |

p | Dirichlet | zero value | $p=0$ |

**Table 2.**Conceptual overview of rheological mixture designs of the considered four Bingham model pastes (A1 to A4), as a function of the water (W), powder (P) and superplasticiser (SP) content.

Mix Designs | Plastic Viscosity $\mathit{\mu}$ | ||||
---|---|---|---|---|---|

Low | High | ||||

Yield Stress ${\mathit{\tau}}_{0}$ | Mix | $\mathit{W}/\mathit{P}$ | Mix | $\mathit{W}/\mathit{P}$ | $\mathbf{SP}/\mathit{P}$ |

Low | A1 | $0.40$ | A2 | $0.20$ | $0.175\%$ |

High | A3 | $0.33$ | A4 | $0.25$ | $0.100\%$ |

**Table 3.**Rheological overview of several mixture design samples, depicting the paste density $\rho $, Bingham yield stress ${\tau}_{0}$ and plastic viscosity $\mu $ obtained from different rheometers.

MCR-102 | Sliper | ||||
---|---|---|---|---|---|

Mixture | $\mathbf{\rho}$ | ${\mathbf{\tau}}_{\mathbf{0}}$ | $\mathbf{\mu}$ | ${\mathbf{\tau}}_{\mathbf{0}}$ | $\mathbf{\mu}$ |

Sample | [kg/L] | [Pa] | [Pa.s] | [Pa] | [Pa.s] |

A1-1 | 1.776 | 55.5 | 0.5 | N/A | N/A |

A1-2 | 1.786 | 69.7 | 0.7 | N/A | N/A |

A1-3 | 1.792 | 67.7 | 0.7 | N/A | N/A |

A1-4 | 1.794 | 94.1 | 0.9 | N/A | N/A |

A2-1 | 2.035 | 57.2 | 8.5 | 44.3 | 4.6 |

A2-2 | 2.075 | 65.7 | 9.1 | 32.2 | 3.6 |

A2-3 | 2.047 | 43.6 | 10.3 | 62.8 | 4.6 |

A3-1 | 1.903 | 150.5 | 2.6 | 73.4 | 0.6 |

A3-2 | 1.865 | 165.6 | 2.7 | 76.3 | 0.6 |

A3-3 | 1.896 | 181.1 | 2.8 | 79.0 | 0.5 |

A4-1 | 1.980 | 135.1 | 4.6 | 23.0 | 2.2 |

A4-2 | 1.979 | 129.3 | 4.8 | 67.3 | 2.3 |

A4-3 | 1.981 | 110.7 | 5.0 | 65.6 | 2.2 |
