Next Article in Journal
On Characteristics of Ferritic Steel Determined during the Uniaxial Tensile Test
Next Article in Special Issue
Possibilities of the Utilization of Ferritic Nitrocarburizing on Case-Hardening Steels
Previous Article in Journal
Comparison of Mechanical Properties of Chairside CAD/CAM Restorations Fabricated Using a Standardization Method
Previous Article in Special Issue
Cyclic Fatigue of Dental NiTi Instruments after Plasma Nitriding
Article

Effect of Fire Temperature and Exposure Time on High-Strength Steel Bolts Microstructure and Residual Mechanical Properties

1
Division of Concrete and Metal Structures, Faculty of Civil Engineering, Institute of Building Engineering, Warsaw University of Technology, 16 Armii Ludowej Ave., 00-637 Warsaw, Poland
2
Faculty of Mechanical Engineering, Military University of Technology, 2 Gen. S. Kaliskiego St., 00-908 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Academic Editor: Adam Grajcar
Materials 2021, 14(11), 3116; https://doi.org/10.3390/ma14113116
Received: 7 May 2021 / Revised: 2 June 2021 / Accepted: 3 June 2021 / Published: 6 June 2021

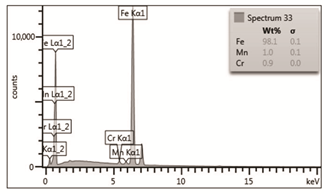

In this study, the influence of different fire conditions on tempered 32CrB3 steel bolts of Grade 8.8 was investigated. In this research different temperatures, heating time, and cooling methods were correlated with the microstructure, hardness, and residual strength of the bolts. Chosen parameters of heat treatments correspond to simulated natural fire conditions that may occur in public facilities. Heat treated and unheated samples cut out from a series of tested bolts were subjected to microstructural tests using light microscopy (LM), scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), XRD phase analysis, and the quantitative analysis of the microstructure. The results of the microstructure tests were compared with the results of strength tests, including hardness and the ultimate residual tensile strength of the material (UTS) in the initial state and after the heat treatments. Results of the investigations revealed considerable microstructural changes in the bolt material as a result of exposing it to different fire conditions and cooling methods. A conducted comparative analysis also showed a significant effect of all such factors as the temperature level of the simulated fire, its duration, and the fire-fighting method on the mechanical properties of the bolts. View Full-Text
Keywords: effect of temperature; exposure time; steel microstructure; residual mechanical properties; high-strength steel bolts; heat treatment of steel; phase transformation; fire; cooling method effect of temperature; exposure time; steel microstructure; residual mechanical properties; high-strength steel bolts; heat treatment of steel; phase transformation; fire; cooling method
Show Figures

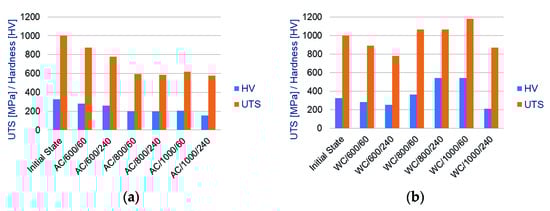

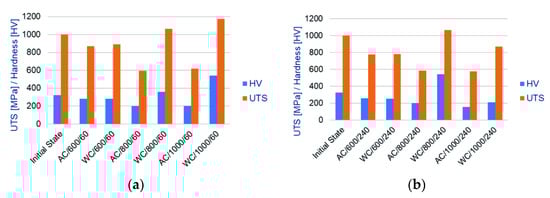

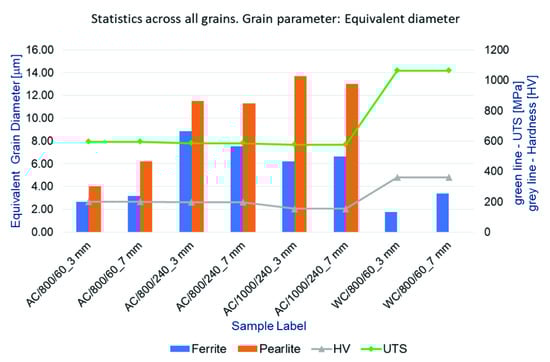

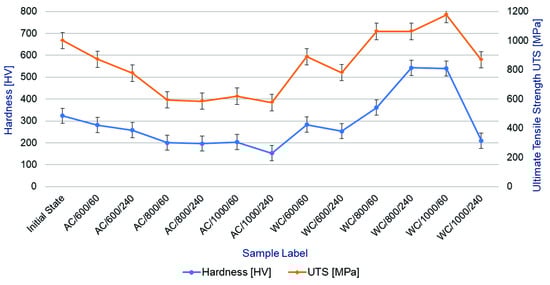

Figure 1

MDPI and ACS Style

Król, P.A.; Wachowski, M. Effect of Fire Temperature and Exposure Time on High-Strength Steel Bolts Microstructure and Residual Mechanical Properties. Materials 2021, 14, 3116. https://doi.org/10.3390/ma14113116

AMA Style

Król PA, Wachowski M. Effect of Fire Temperature and Exposure Time on High-Strength Steel Bolts Microstructure and Residual Mechanical Properties. Materials. 2021; 14(11):3116. https://doi.org/10.3390/ma14113116

Chicago/Turabian Style

Król, Paweł A., and Marcin Wachowski. 2021. "Effect of Fire Temperature and Exposure Time on High-Strength Steel Bolts Microstructure and Residual Mechanical Properties" Materials 14, no. 11: 3116. https://doi.org/10.3390/ma14113116

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
