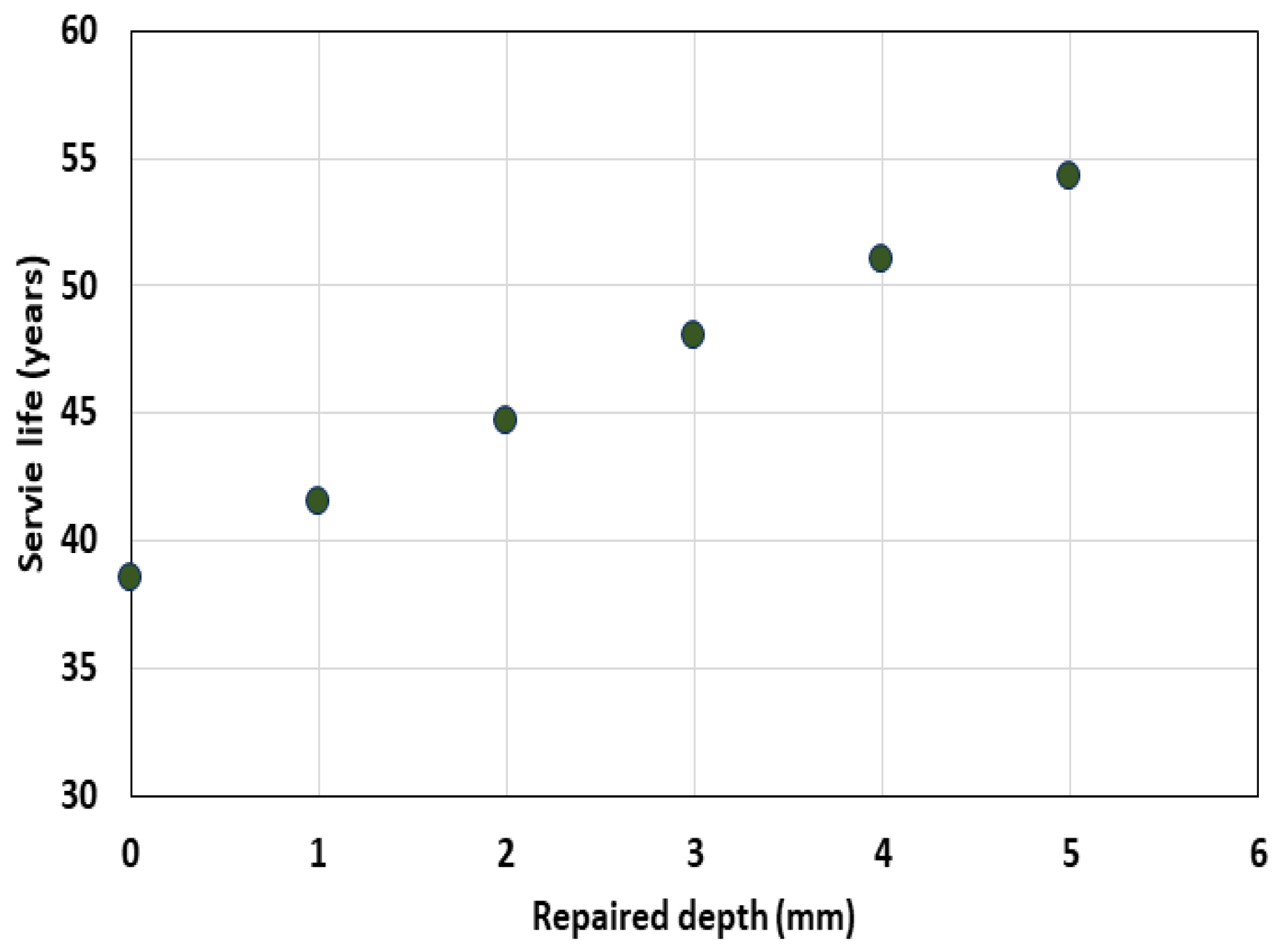

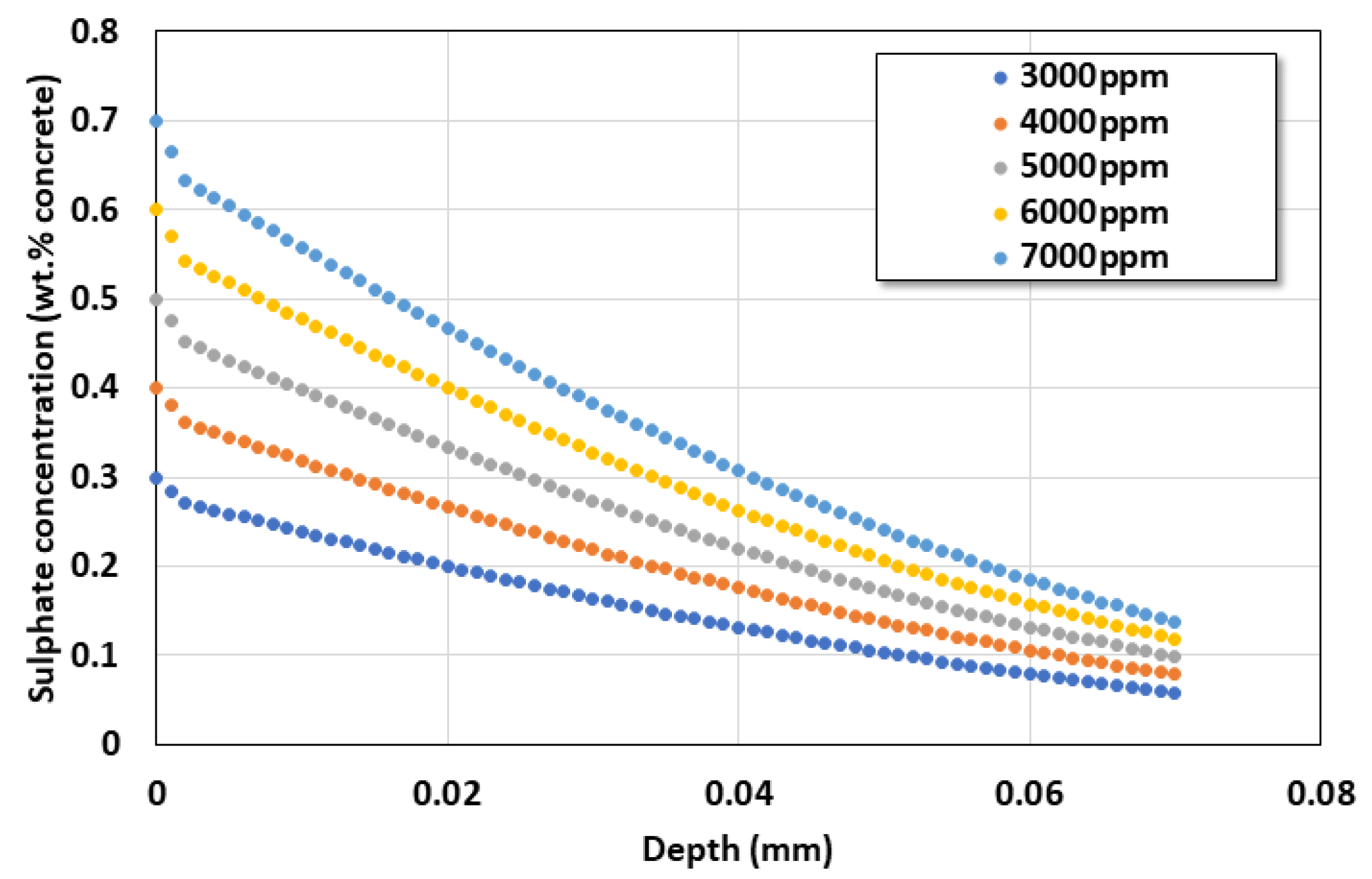

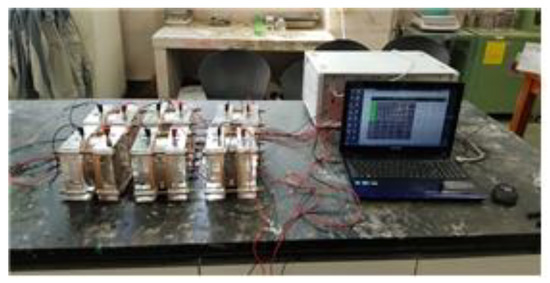

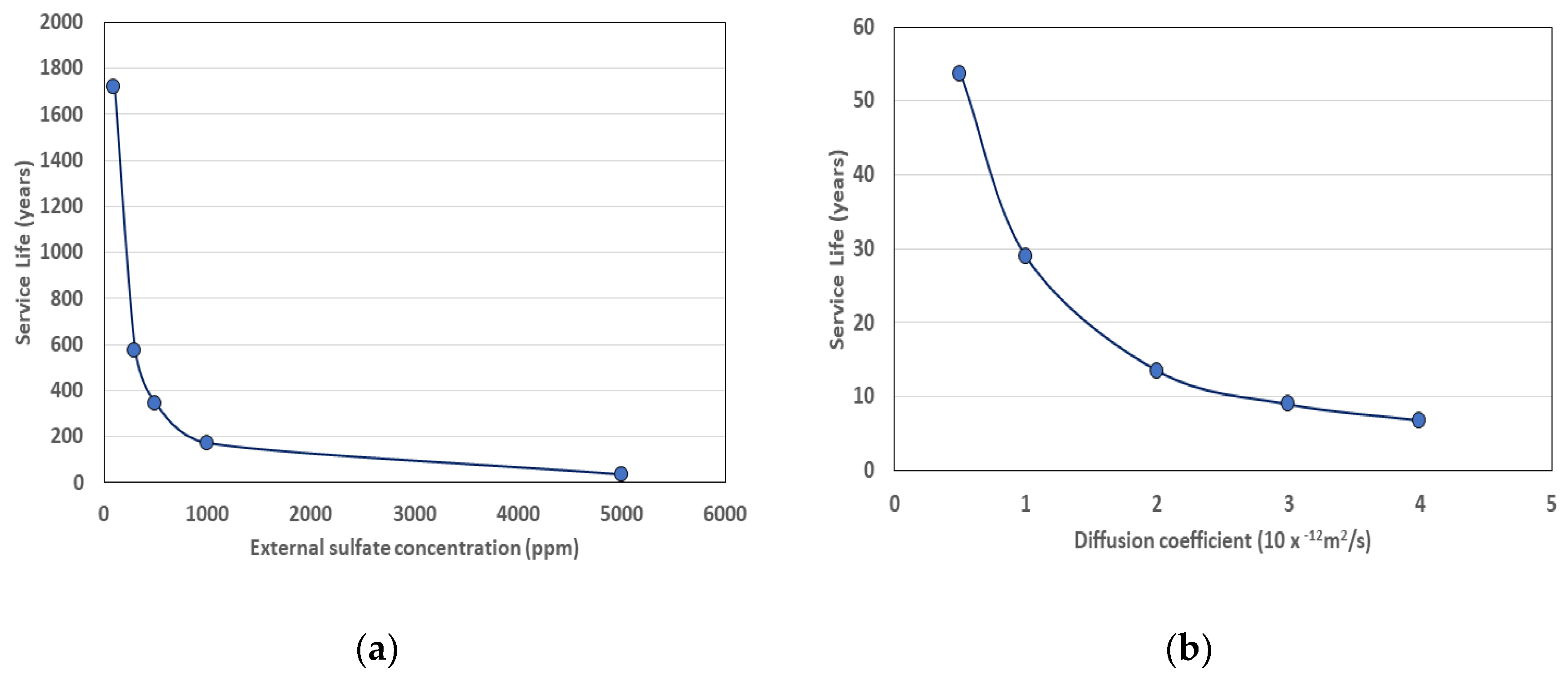

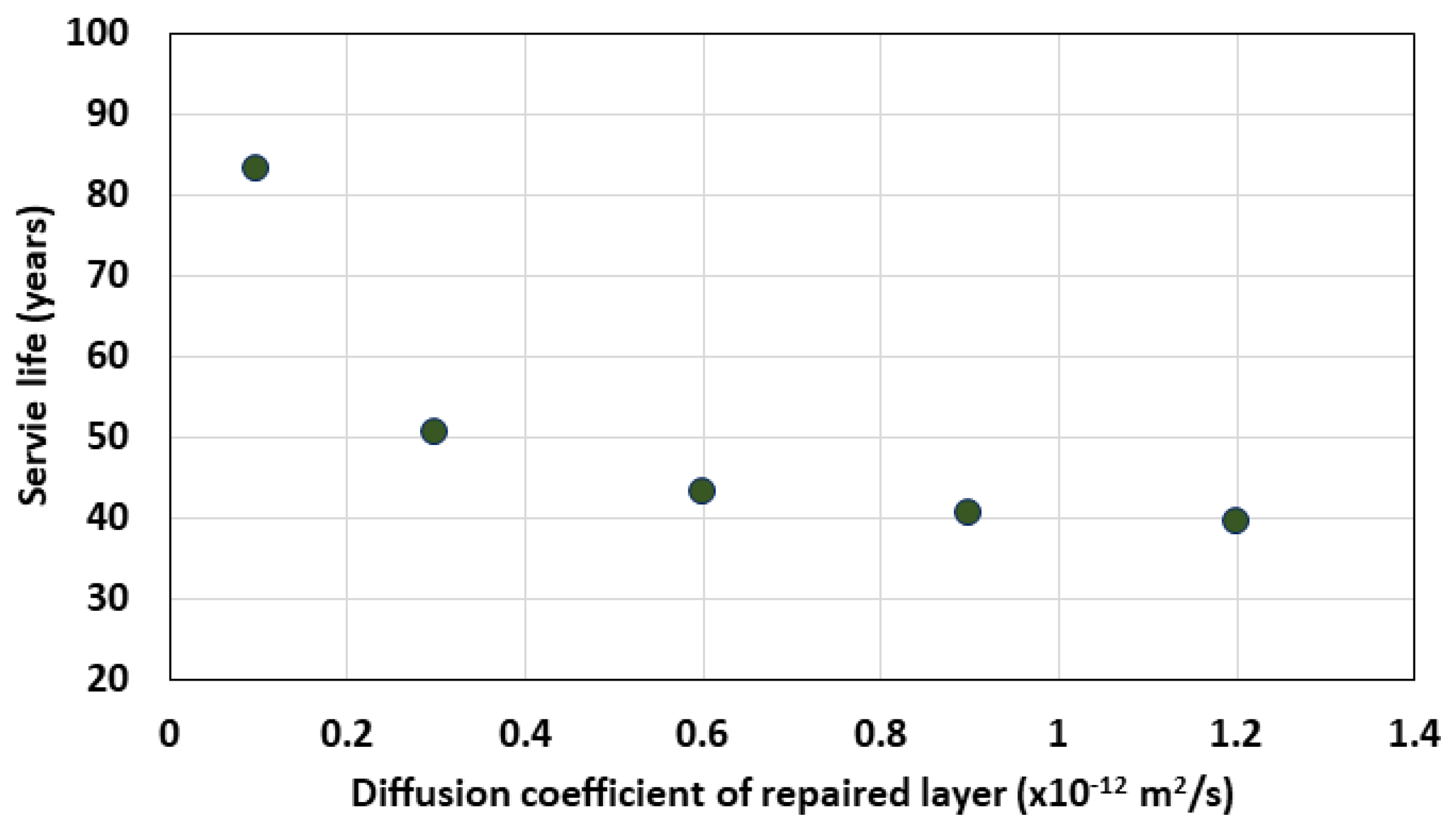

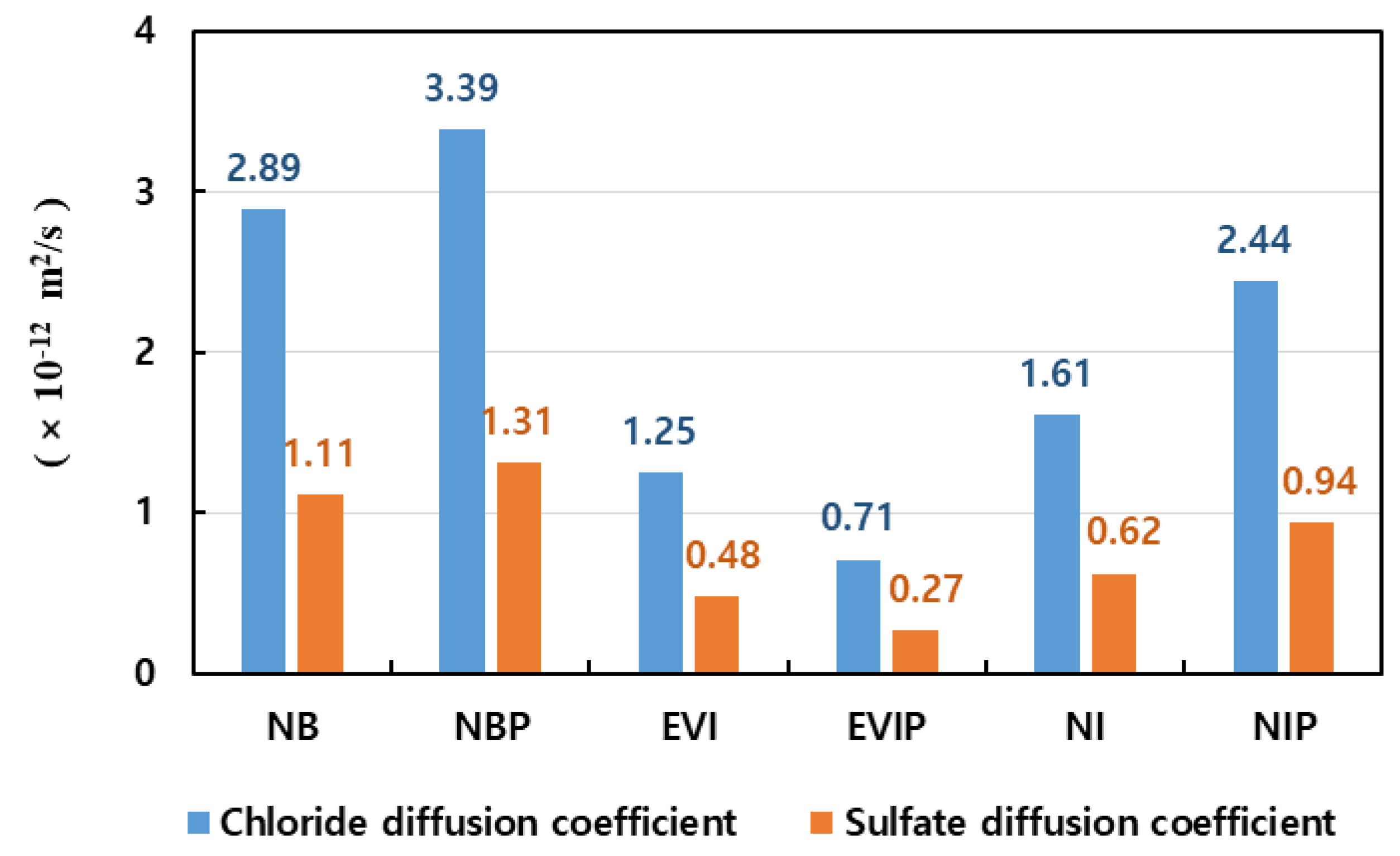

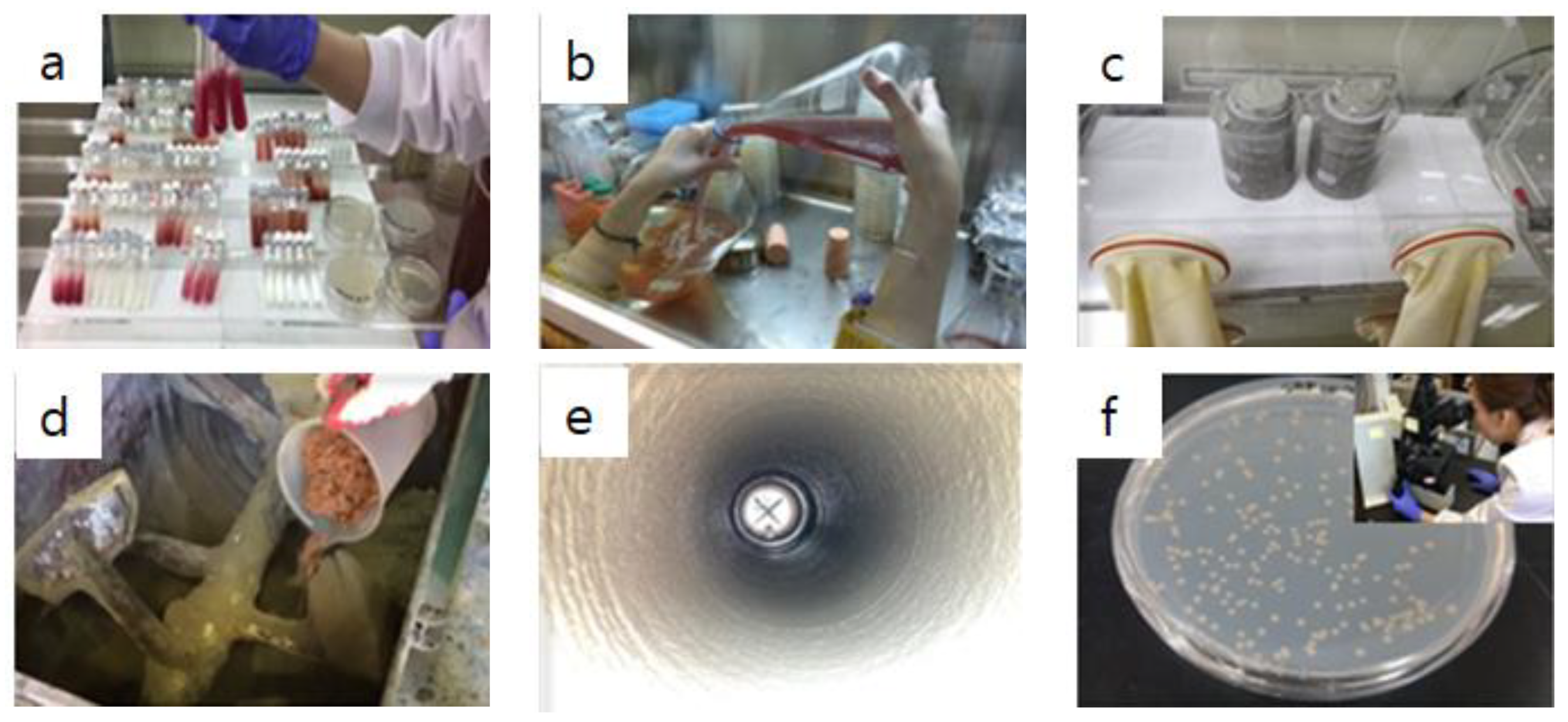

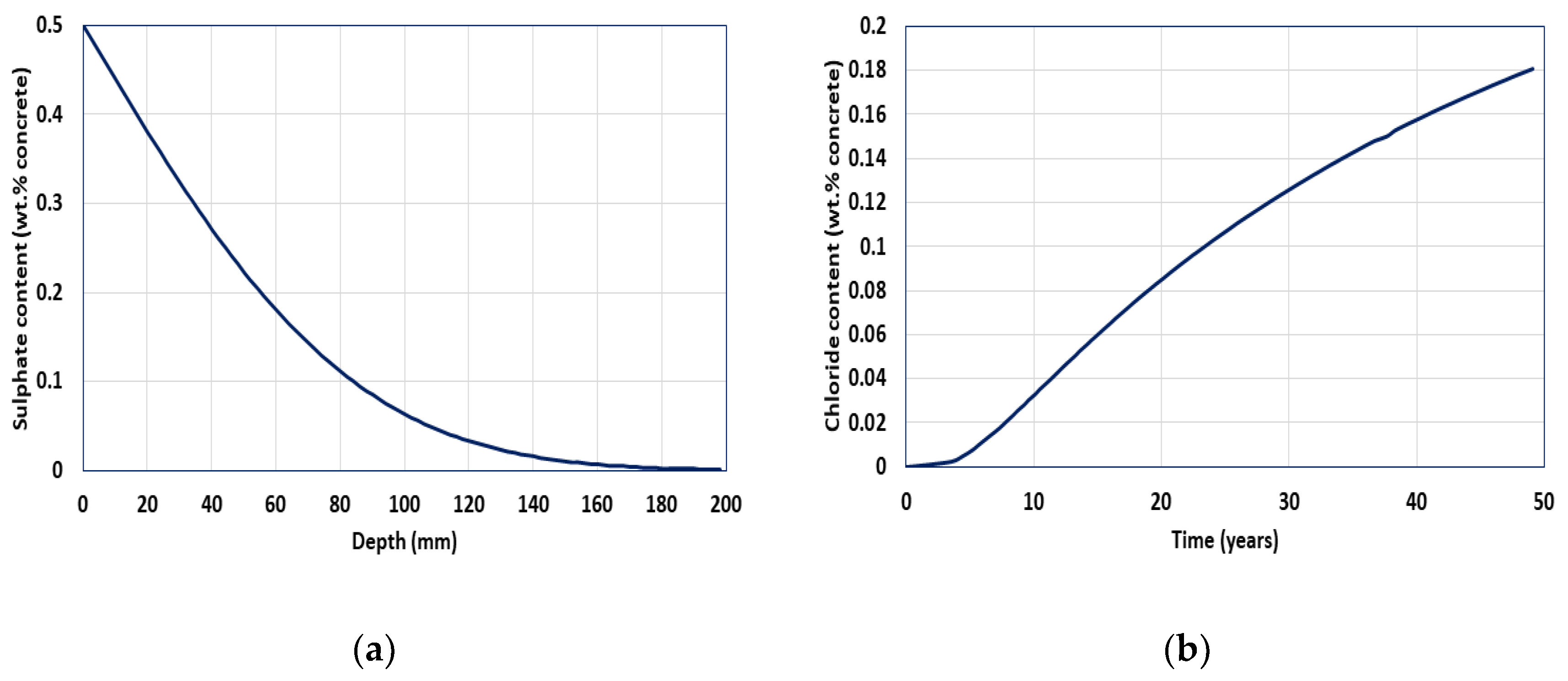

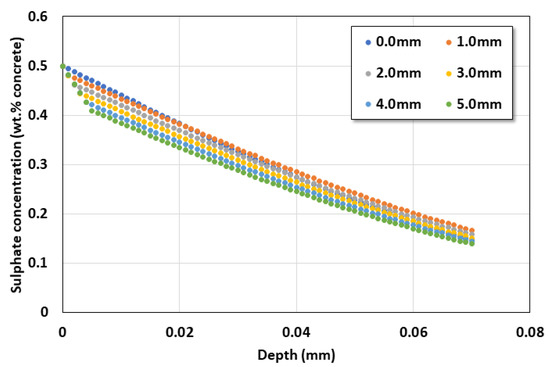

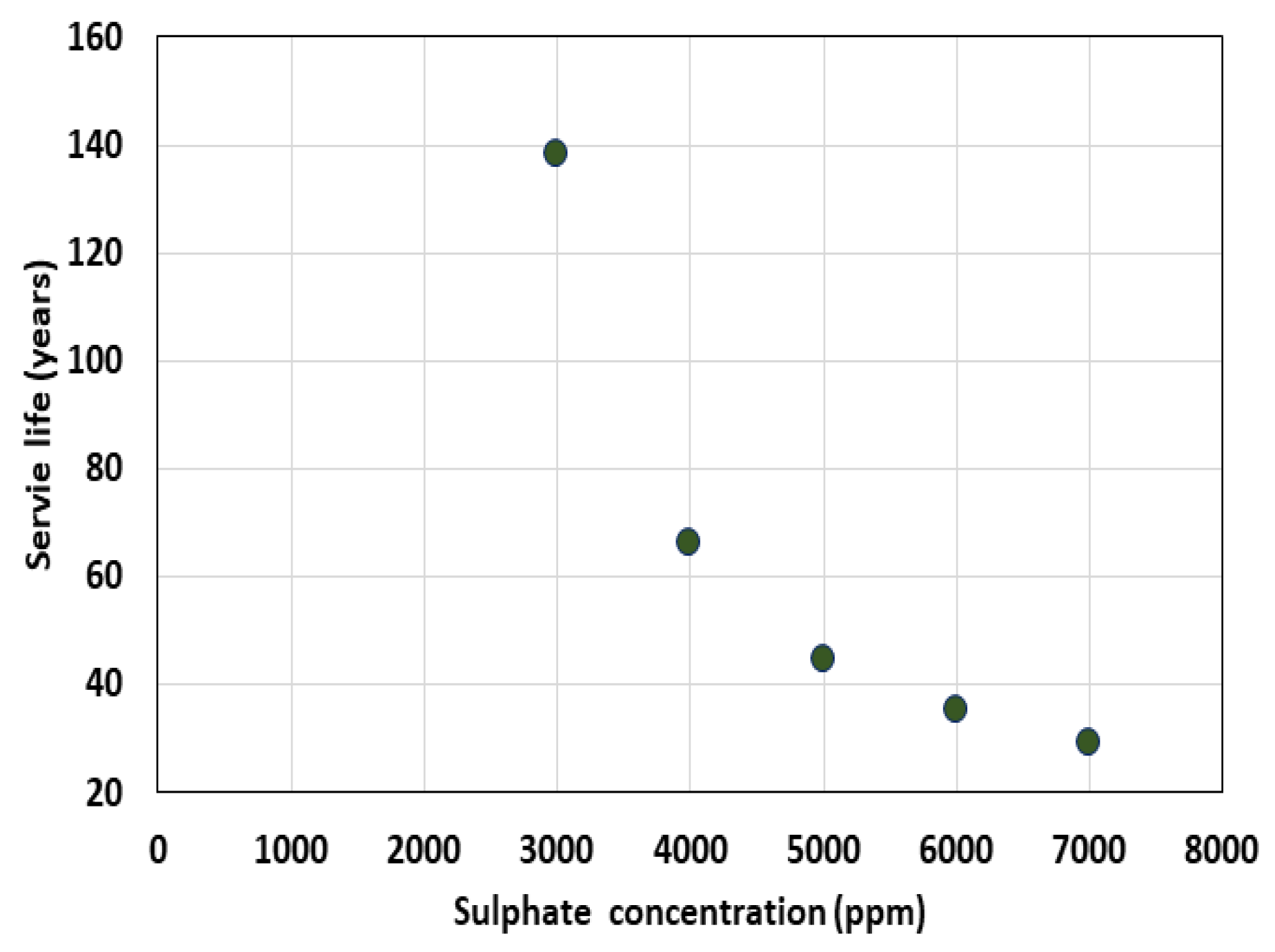

The service life of concretes exposed to sulfate decreases as the concrete body expands due to the formation of gypsum and ettringite. Bacteria-based repair coating layers, which have been studied lately, are aerobic and very effective on the sulfate attack. In this study, bio-slime repair coating layers were fabricated using bacteria, and chloride diffusion experiments were performed. In addition, the service life of concrete under sulfate attack was evaluated using time-dependent diffusivity and a multi-layer technique. Chloride diffusivity was compared with sulfate diffusivity based on literature review, and the results were used to consider the reduction in the diffusion coefficient. In the analysis results, the service life of concrete was evaluated to be 38.5 years without bio-slime coating layer, but it was increased to 41.5–54.3 years using it. In addition, when the thickness of the bio-slime coating layer is 2.0 mm, the service life can be increased by 1.31–2.15 times if the sulfate diffusion coefficient of the layer is controlled at a level of 0.1 ~ 0.3 × 10−12
/s. Eco-friendly and aerobic bio-slime coating layers are expected to effectively resist sulfate under appropriate construction conditions.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
