Biofilm Formation Plays a Crucial Rule in the Initial Step of Carbon Steel Corrosion in Air and Water Environments
Abstract
:1. Introduction
2. Materials and Methods
2.1. Thermal Sprayed Coupons

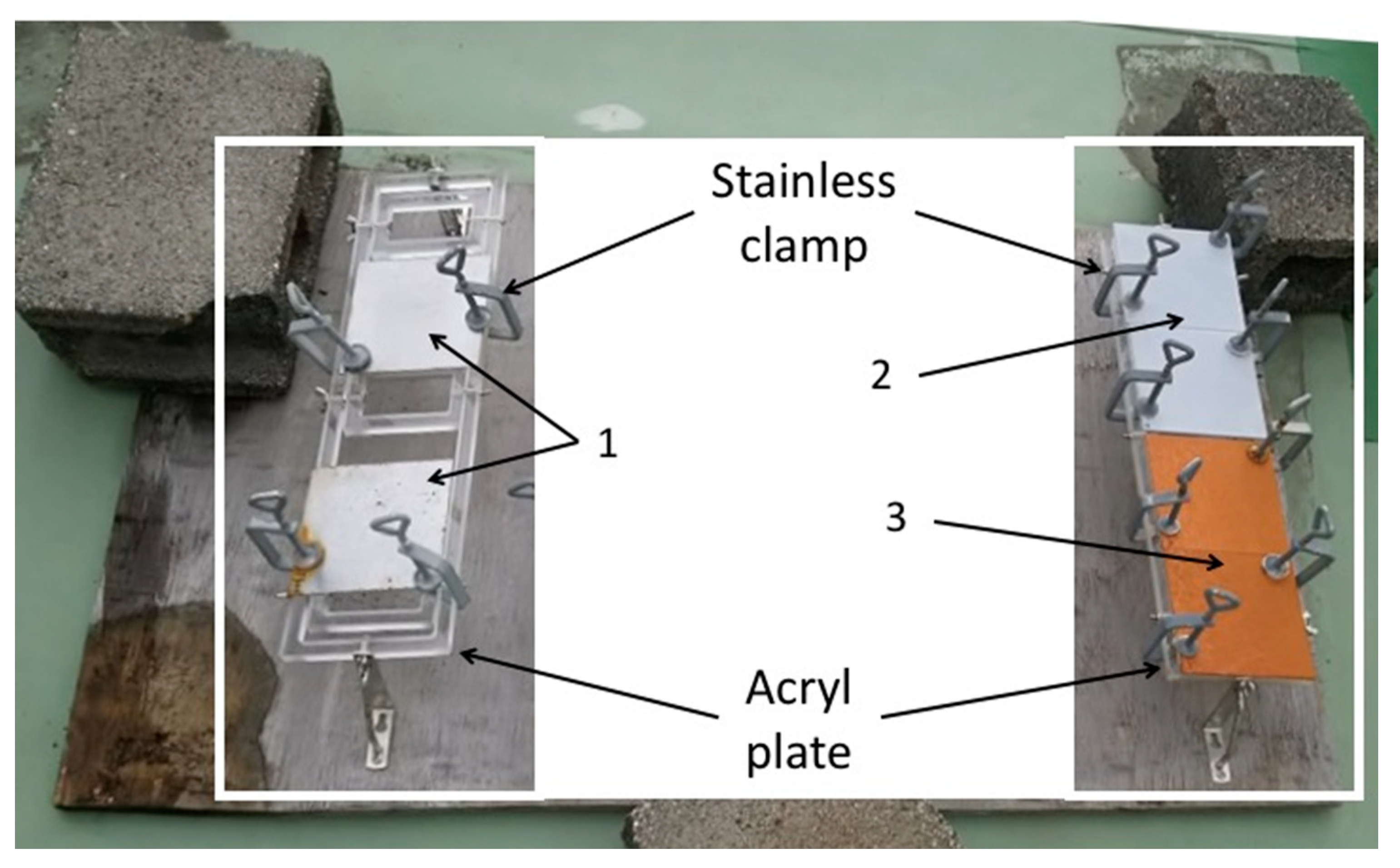

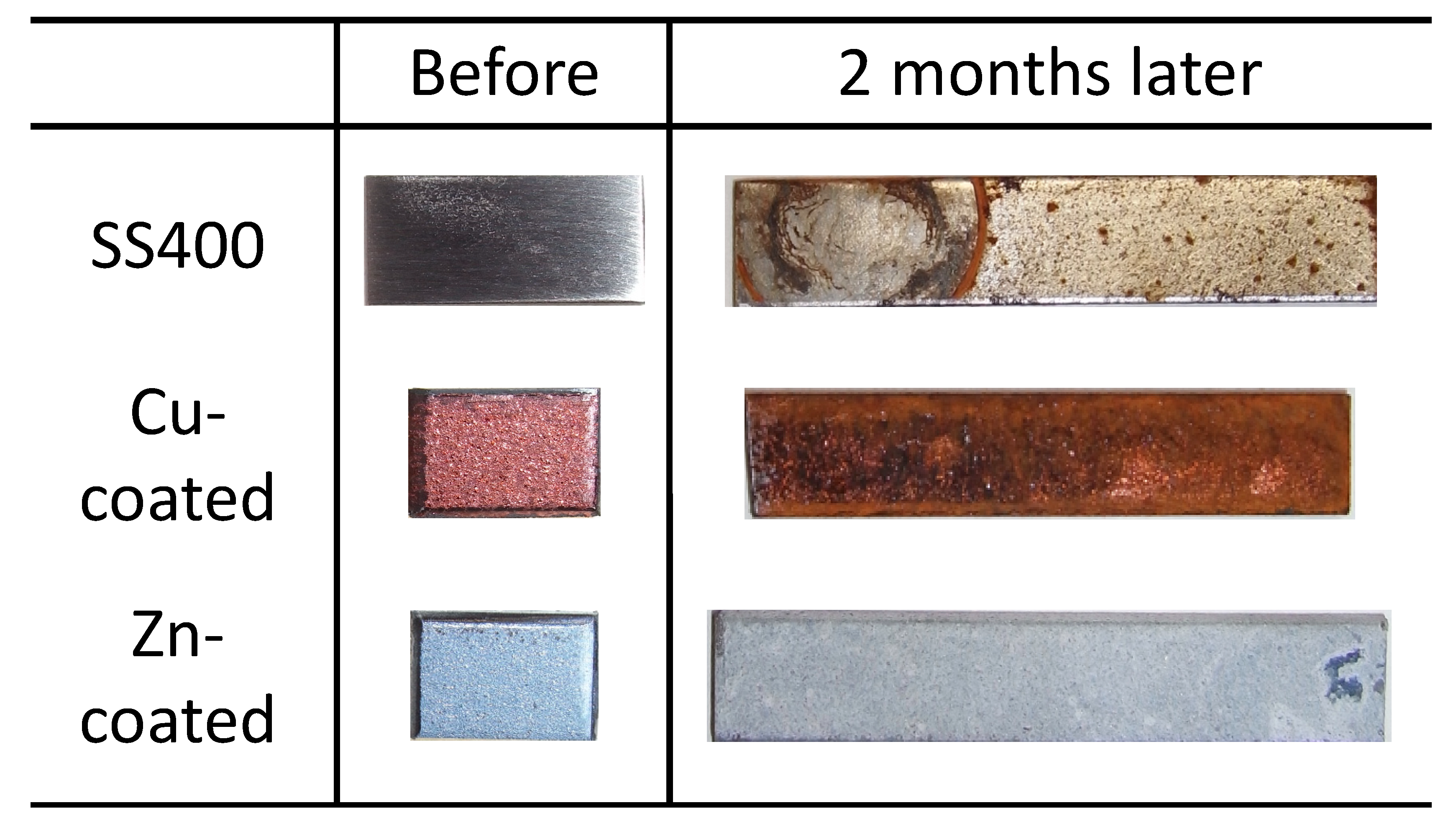

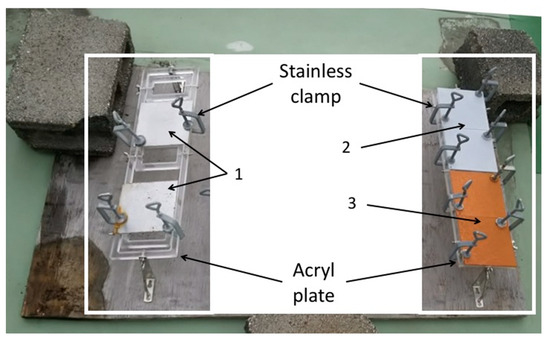

2.2. Outdoor Exposure Test

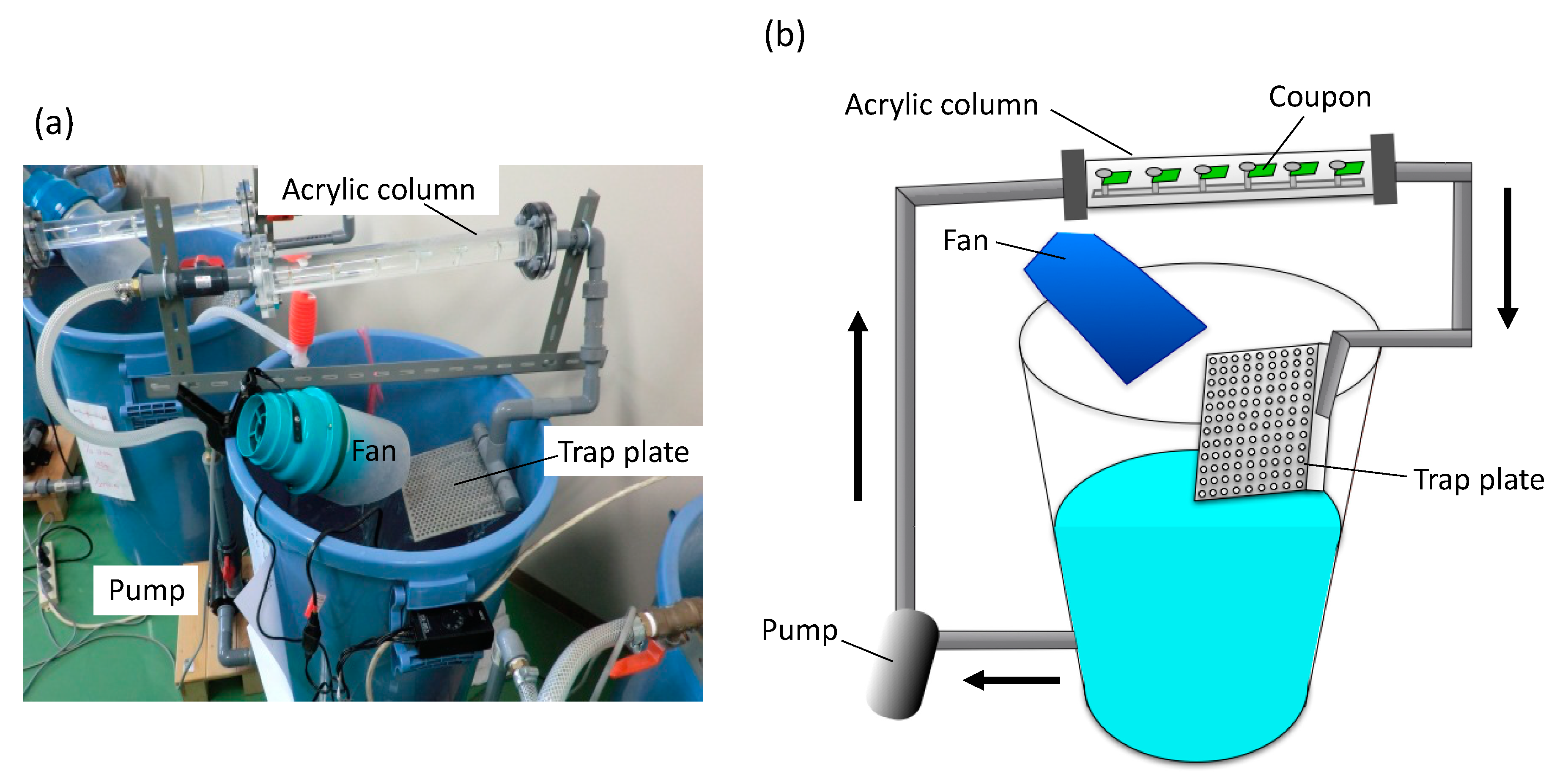

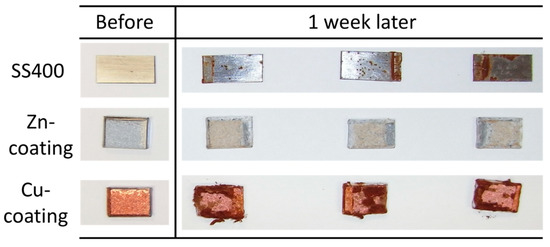

2.3. Aquatic Immersion Test

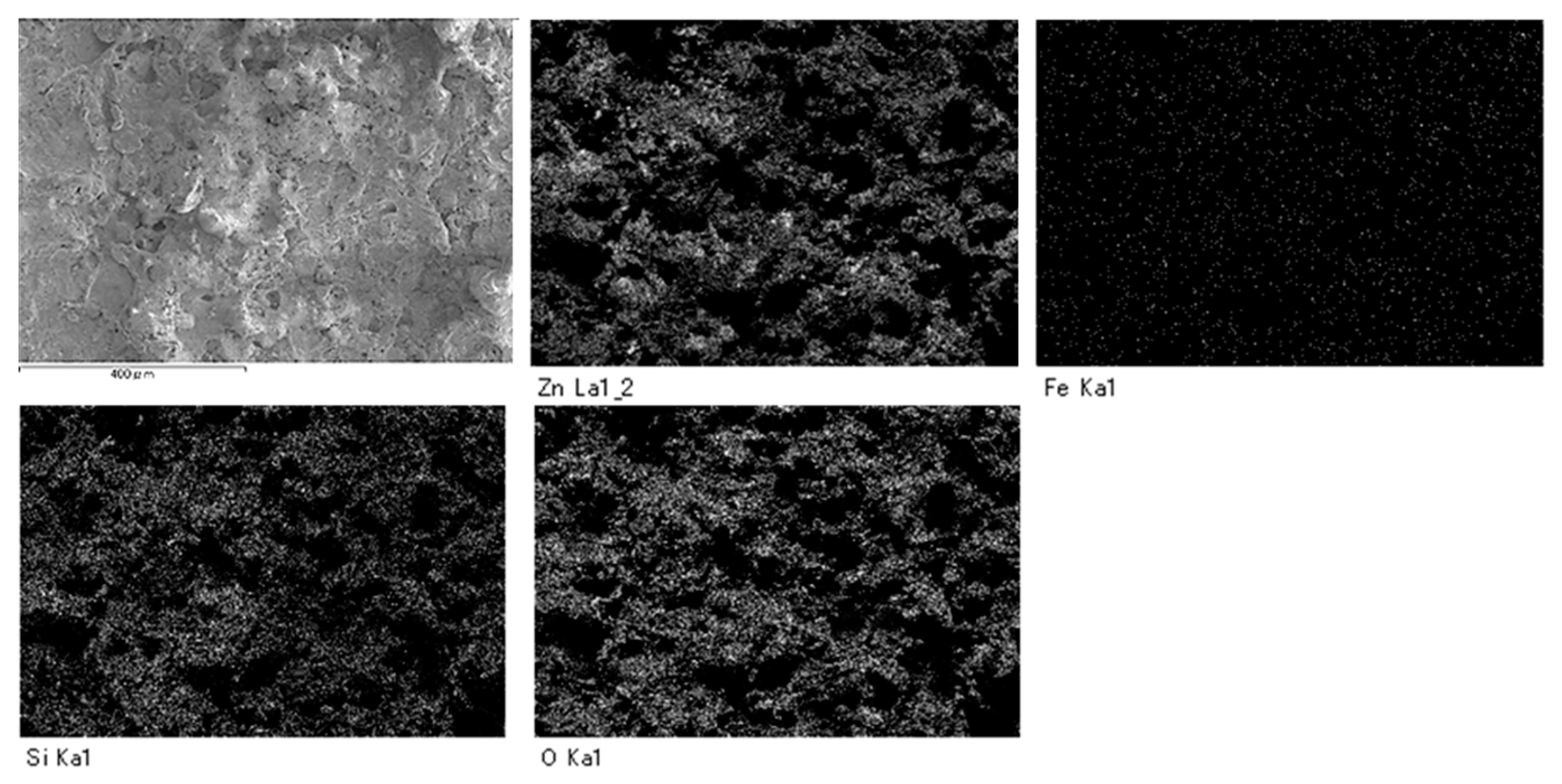

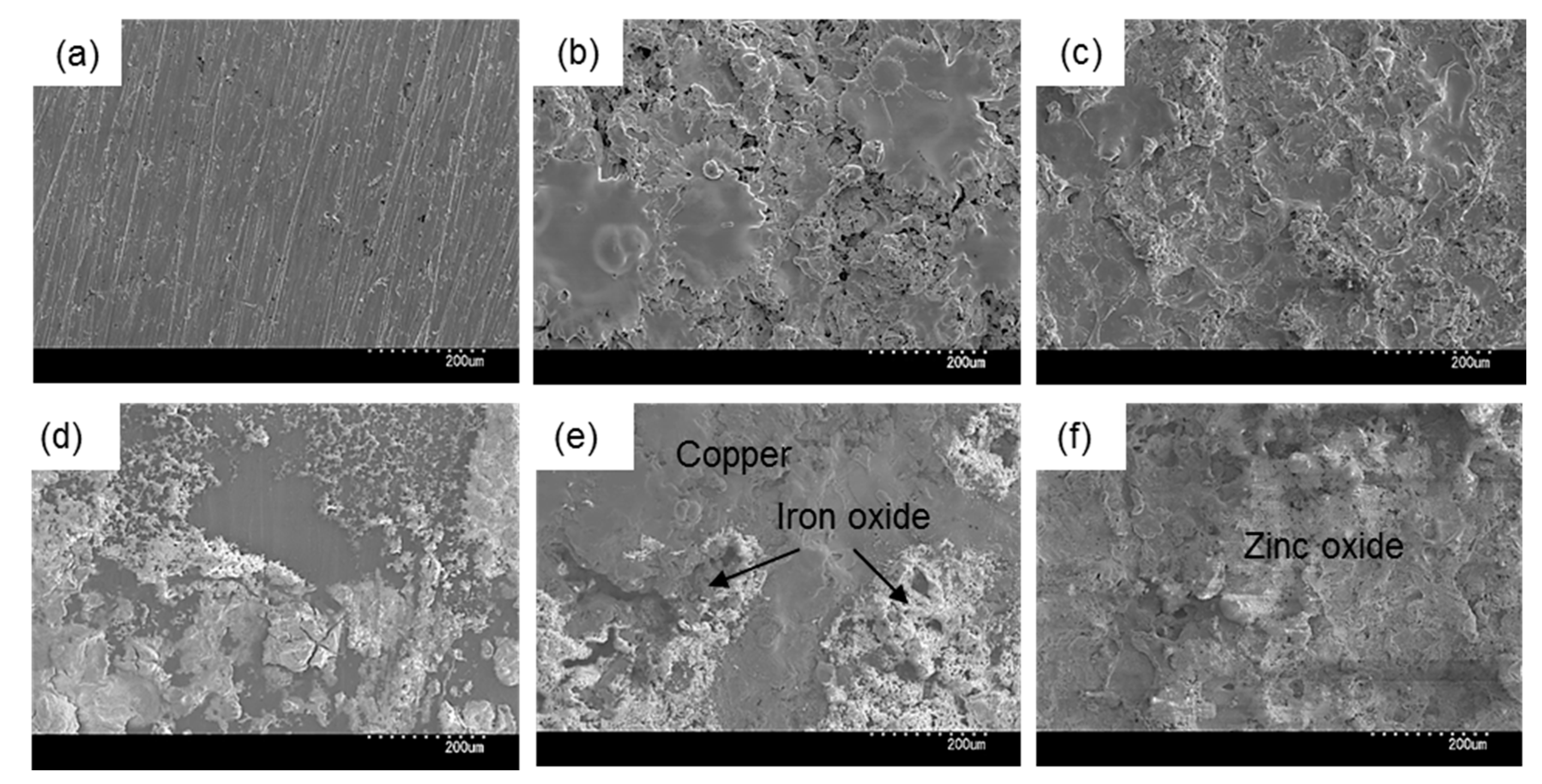

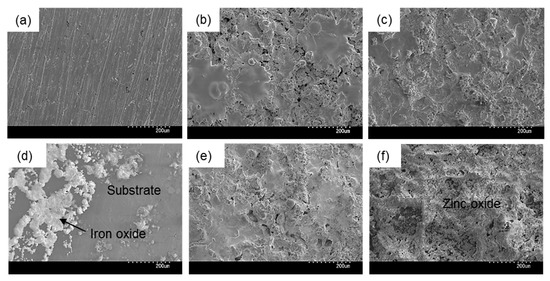

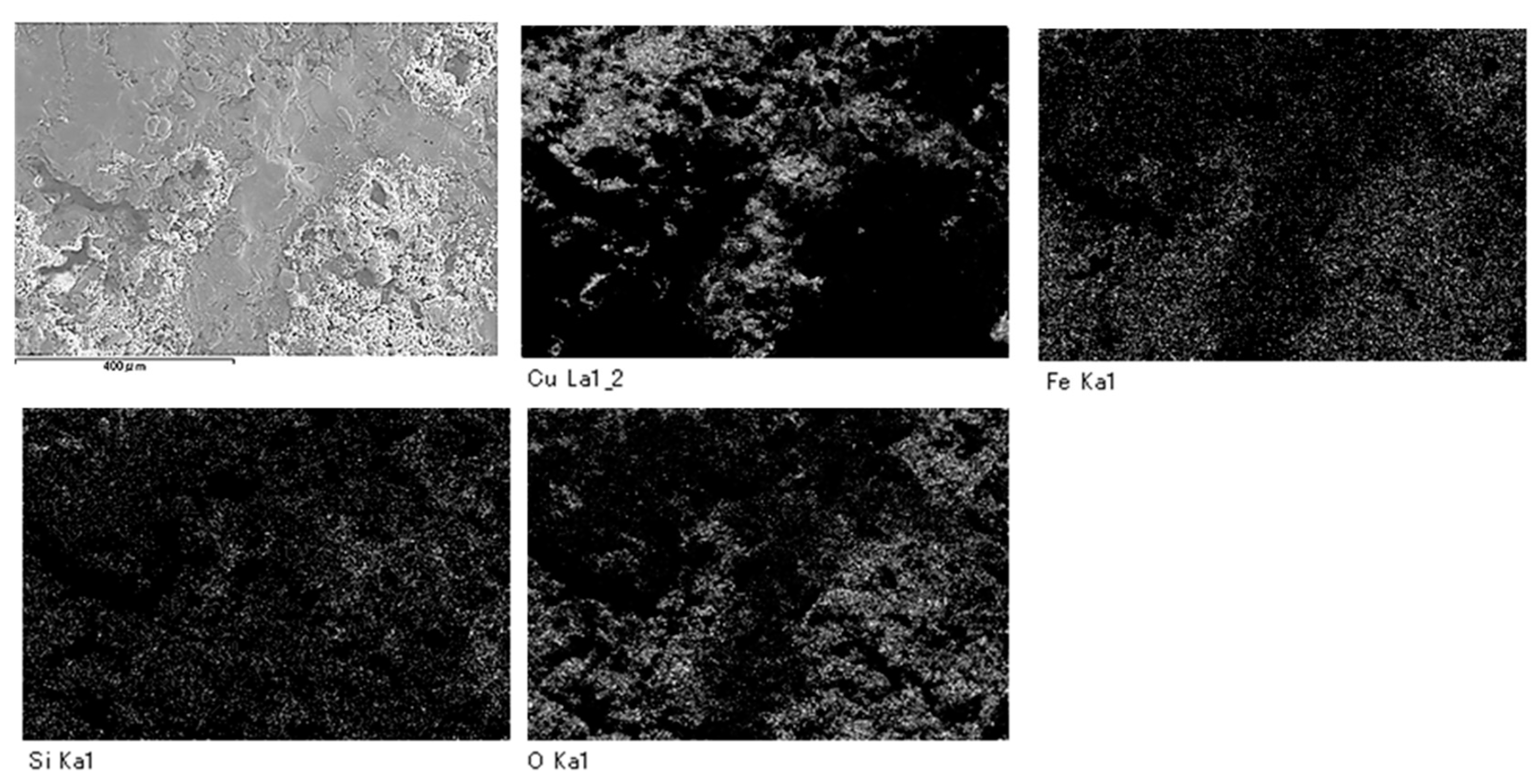

2.4. Observation of Morphology and Element Visualization on the Surface of Coupons
2.5. Quantification of Elements on the Surface of Coupons
2.6. DNA Extraction

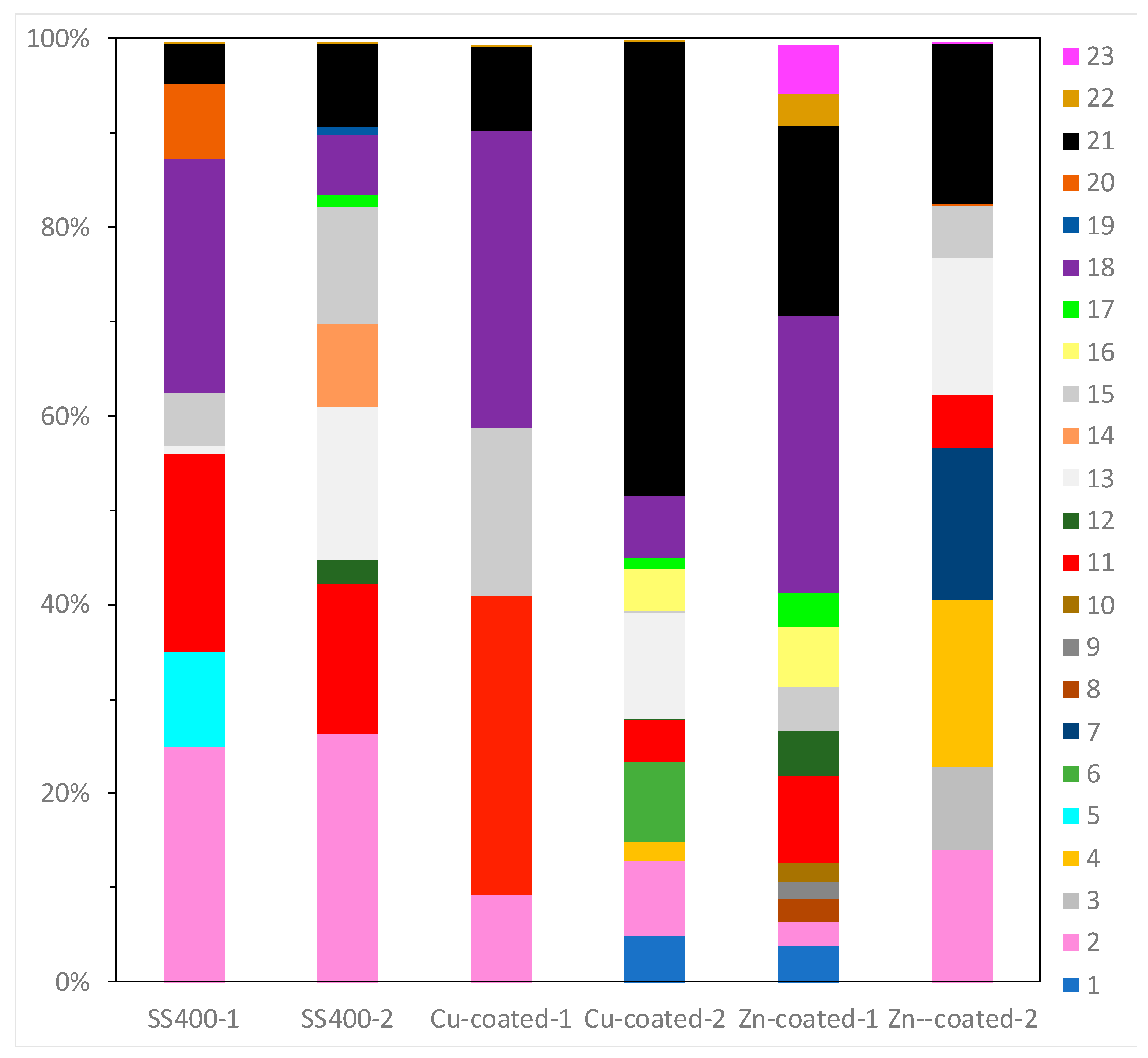

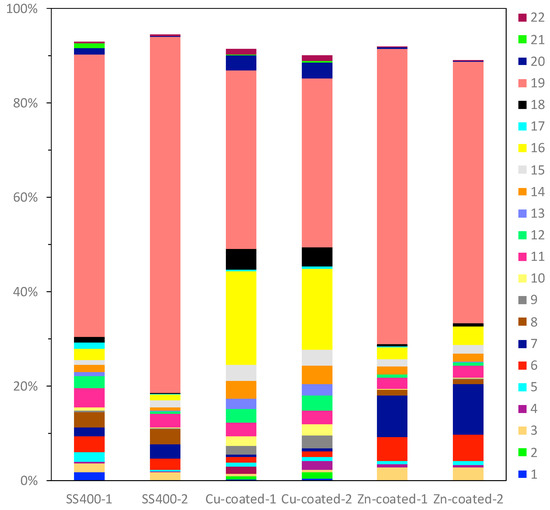

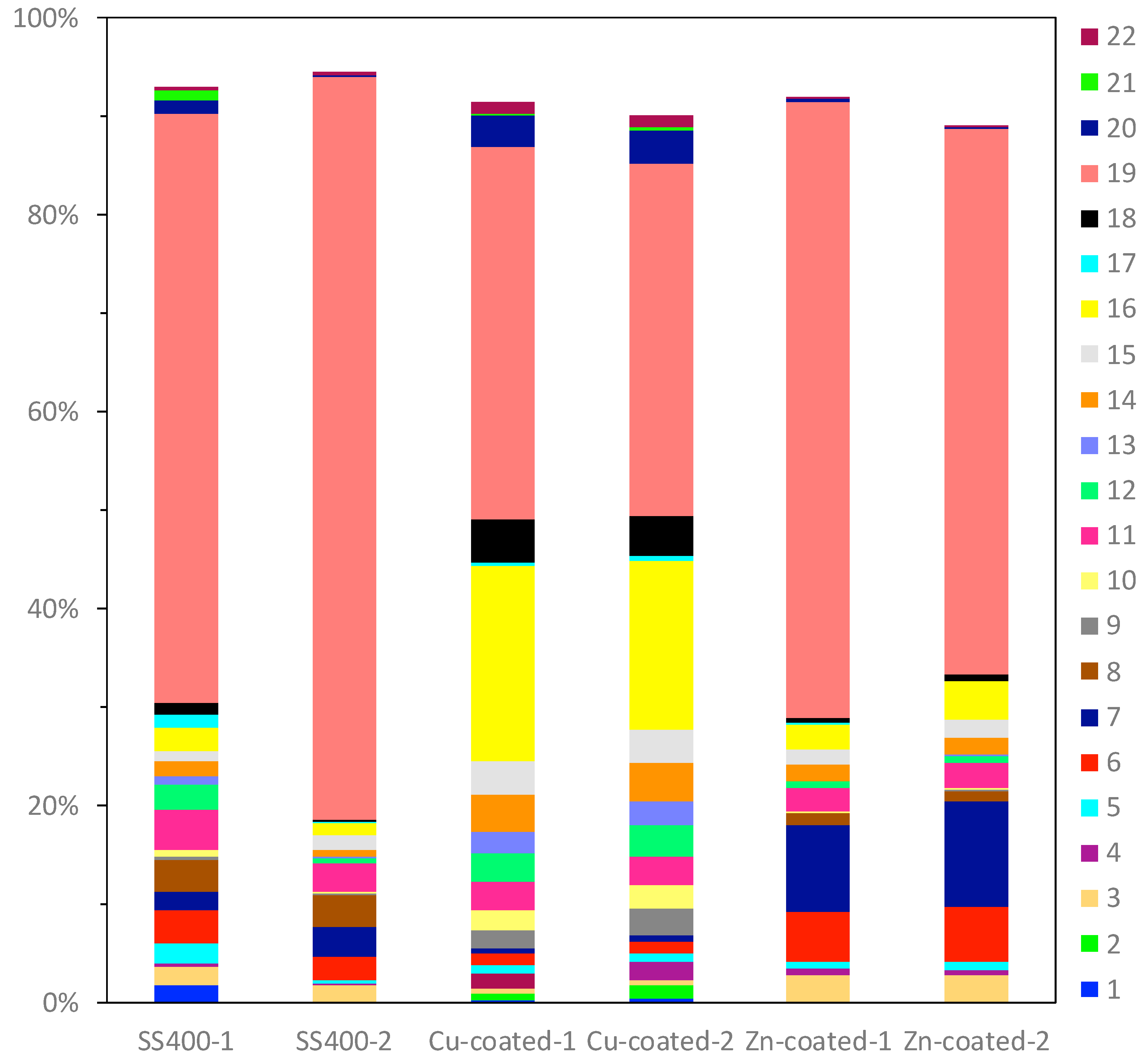

2.7. 16S rRNA Gene-Based Bacterial Community Analysis

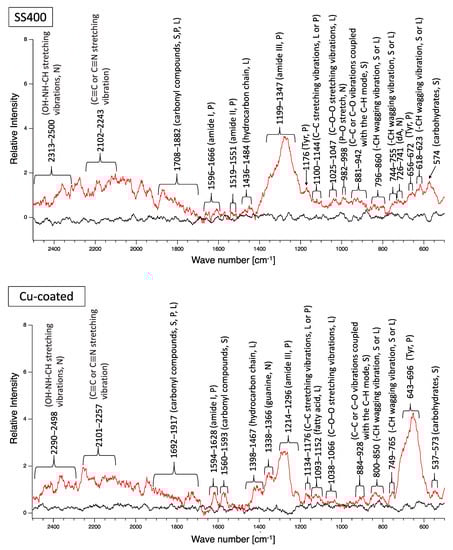

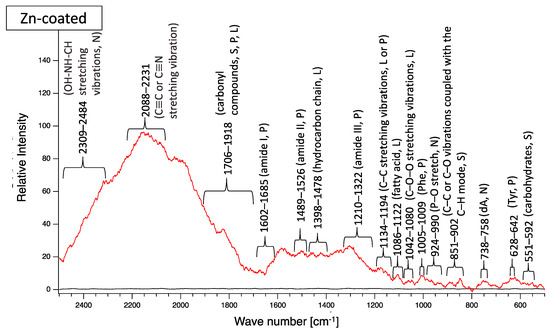

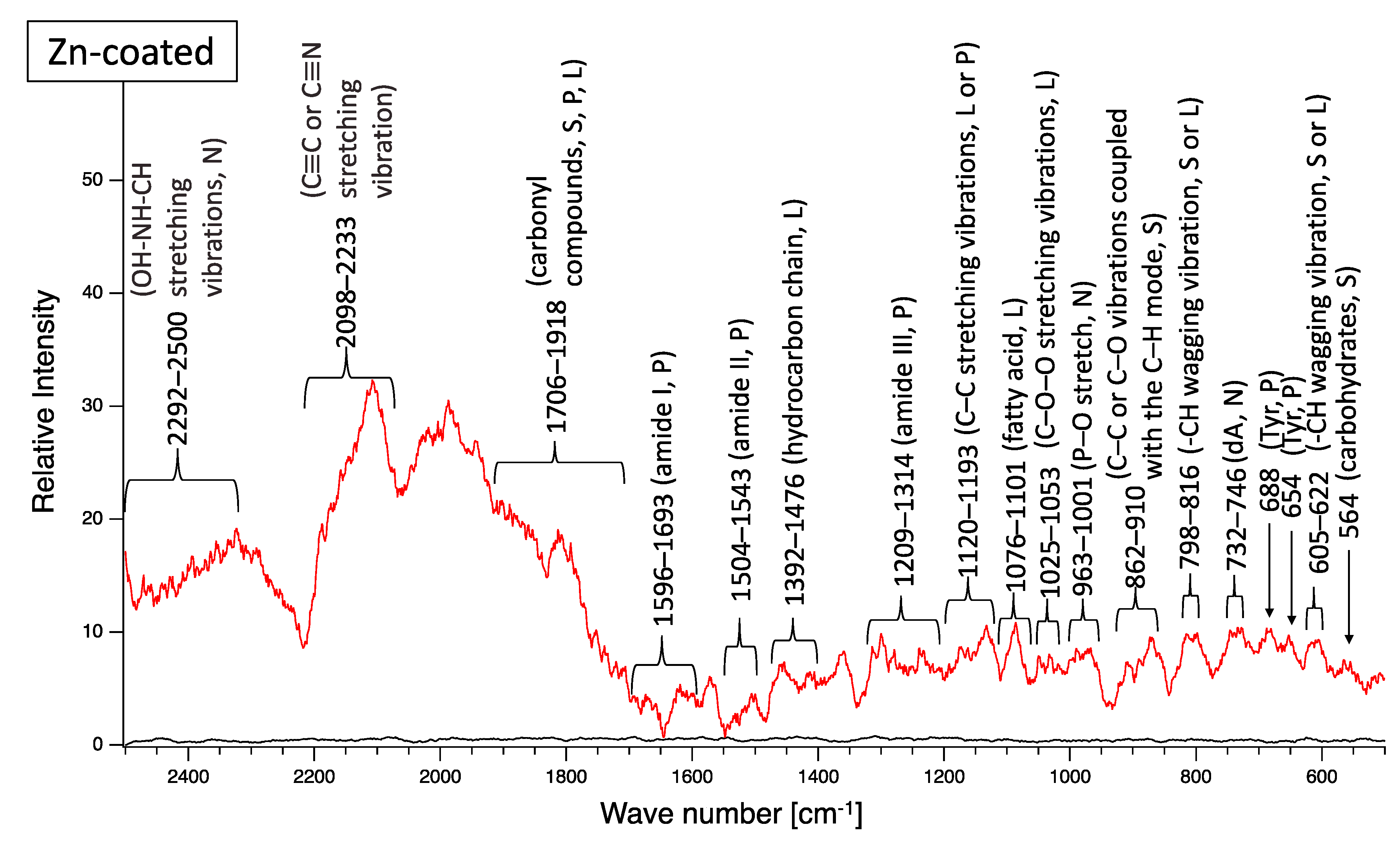

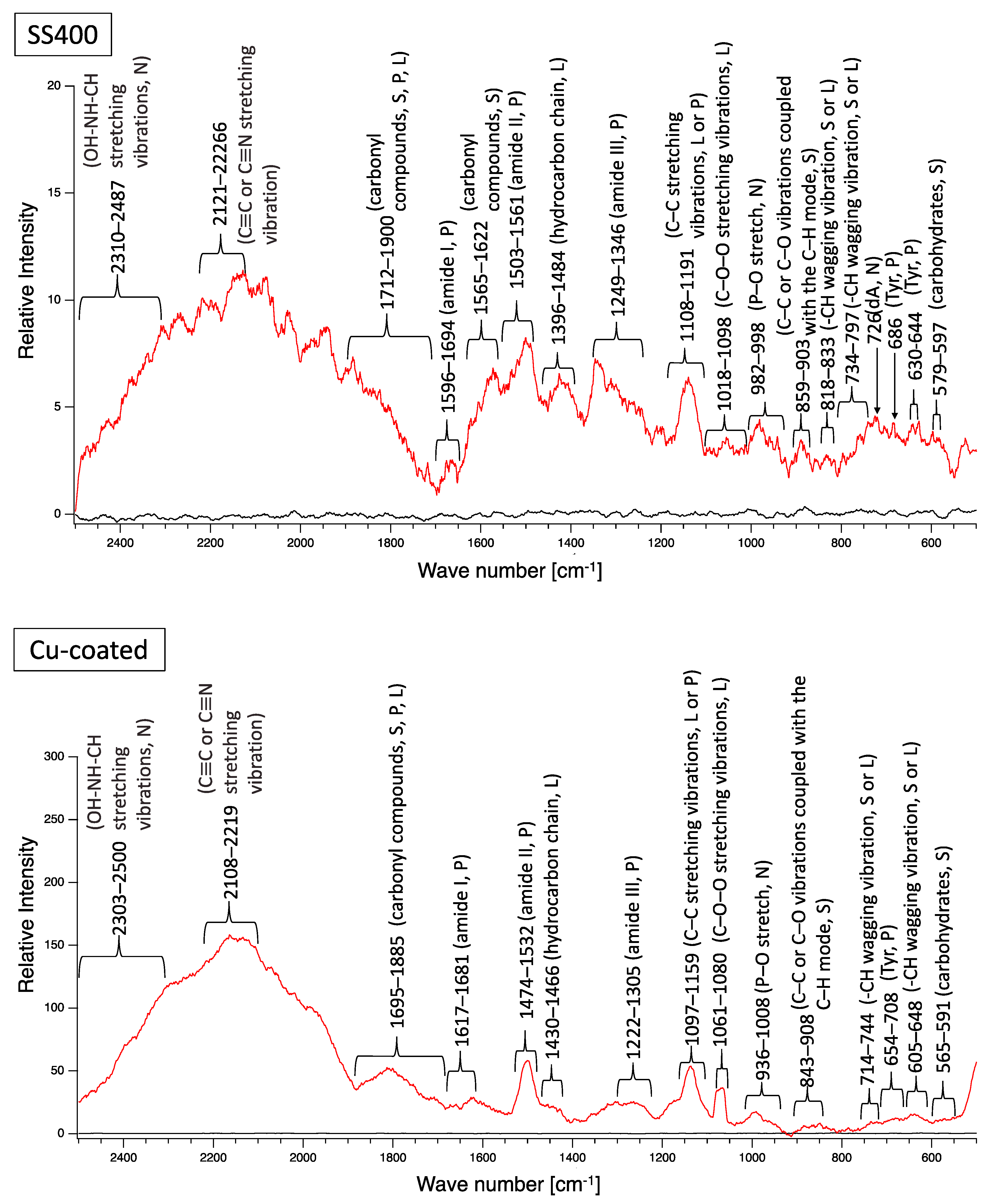

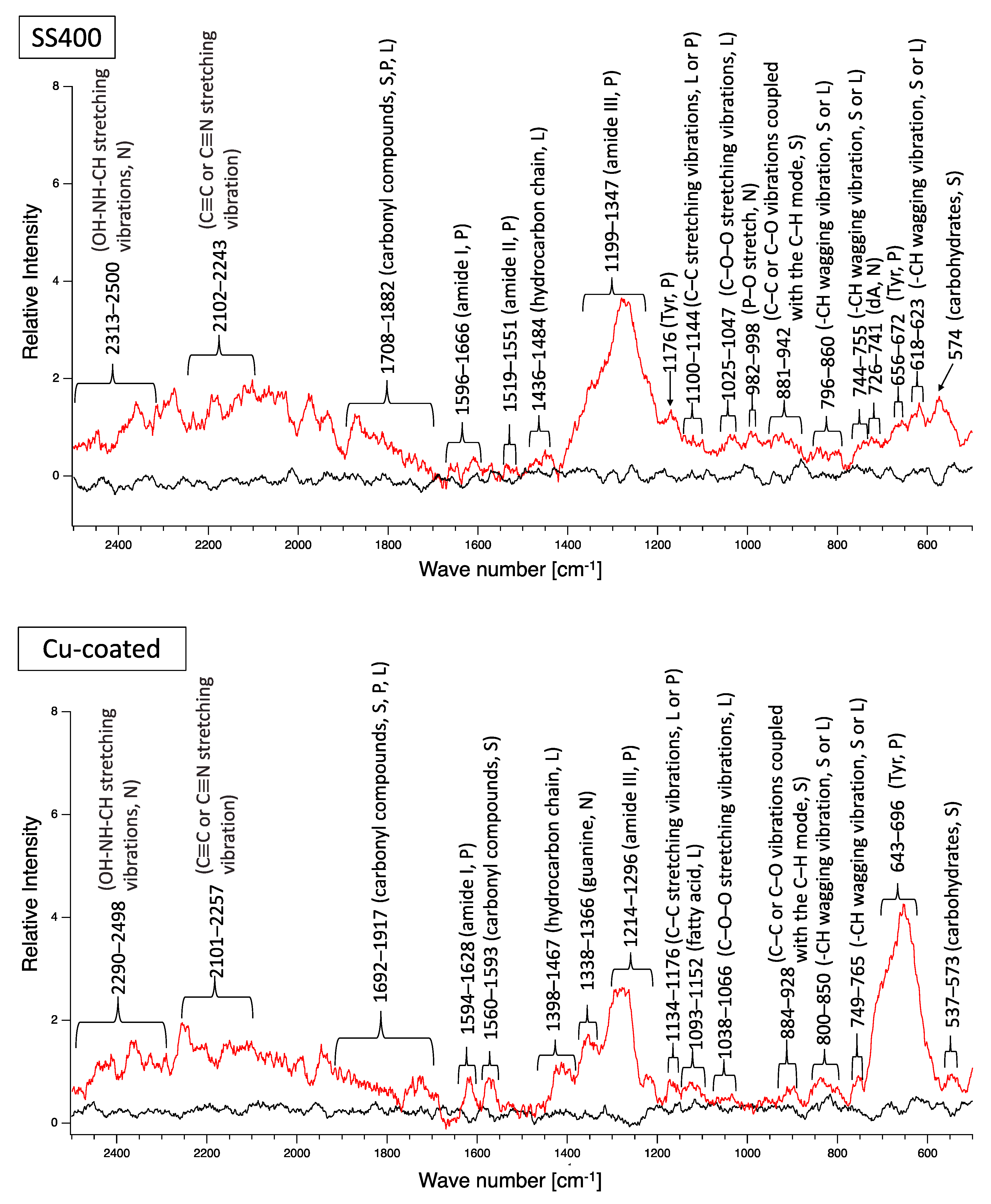

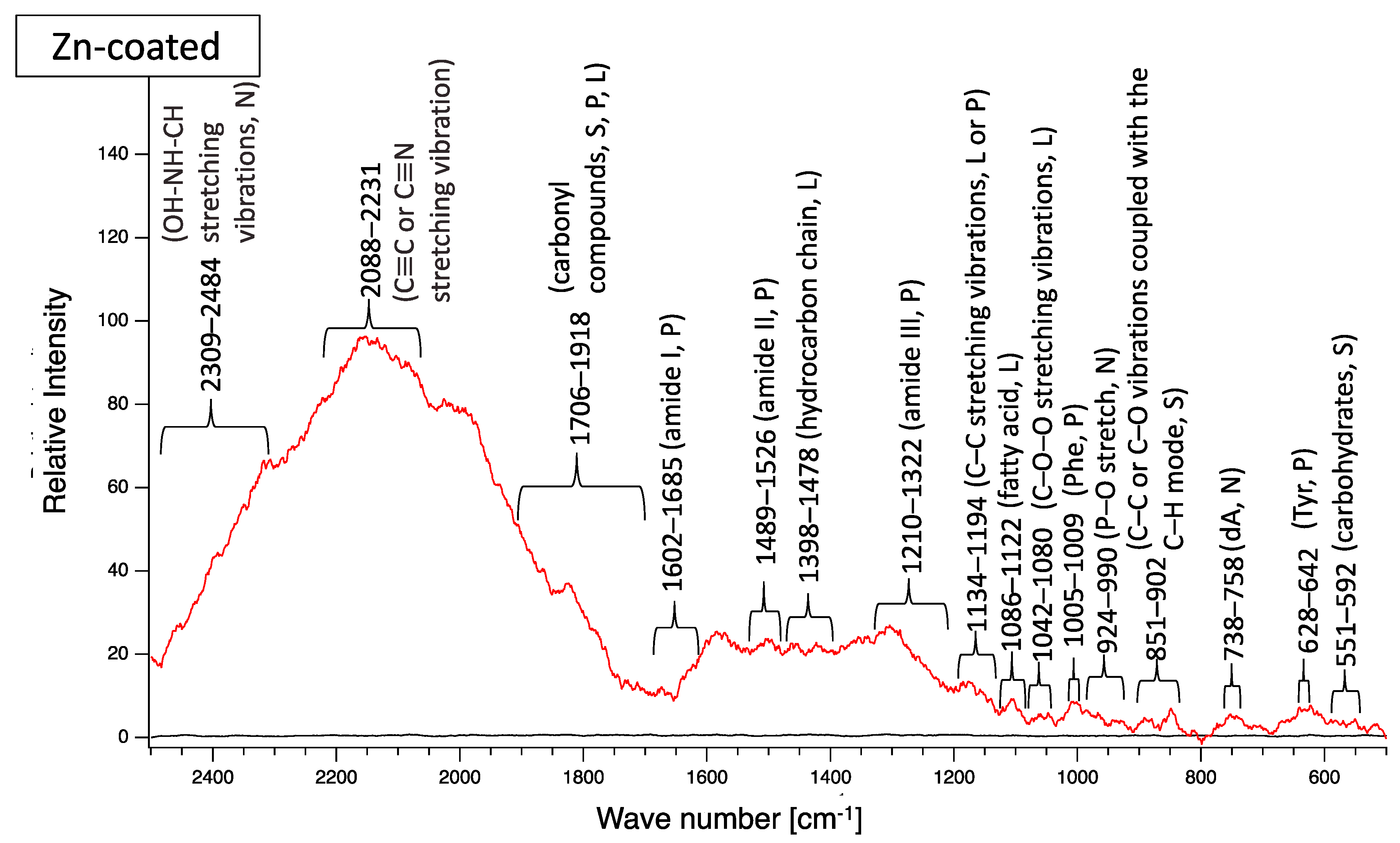

2.8. Raman Spectroscopy Analysis

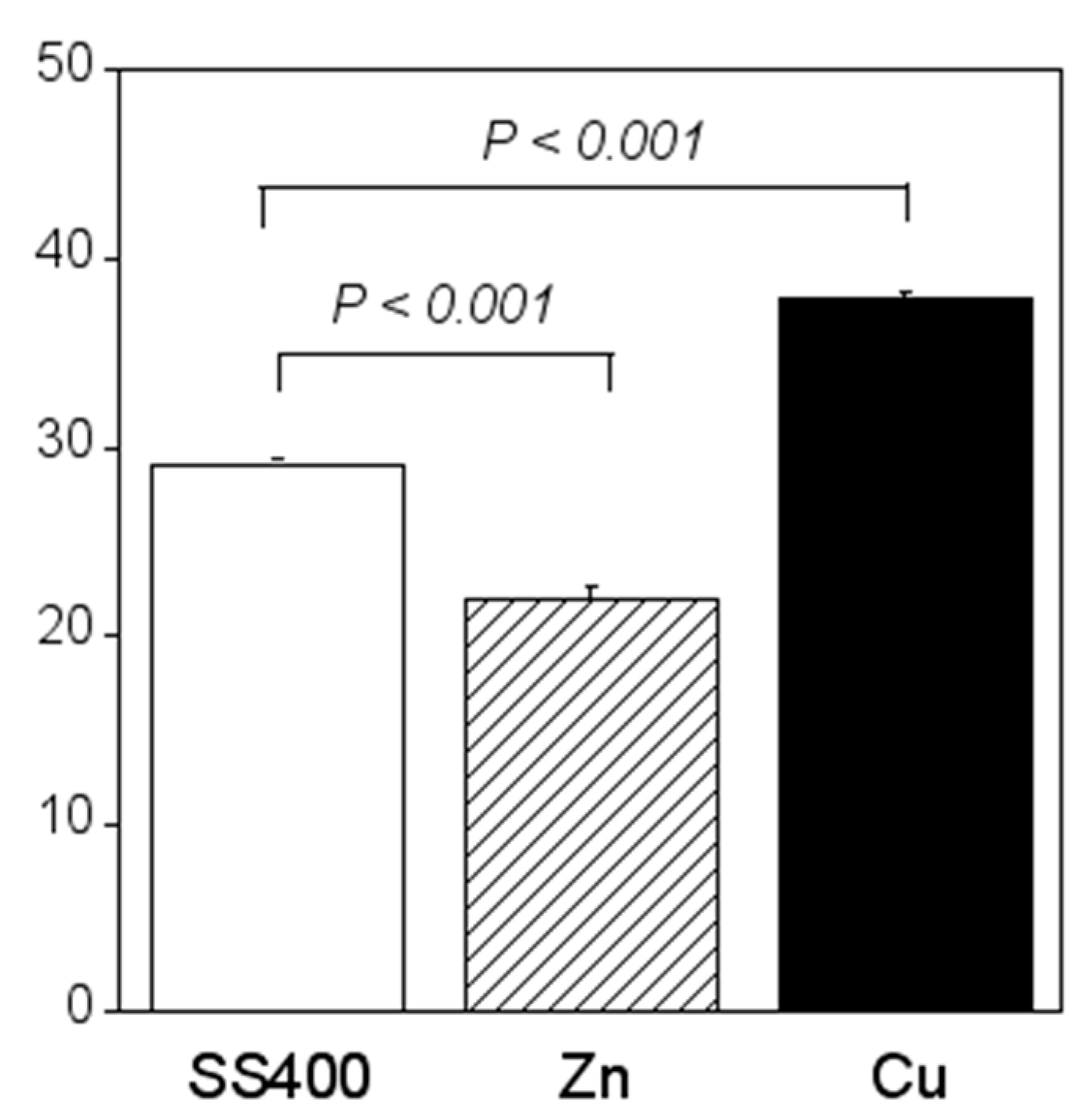

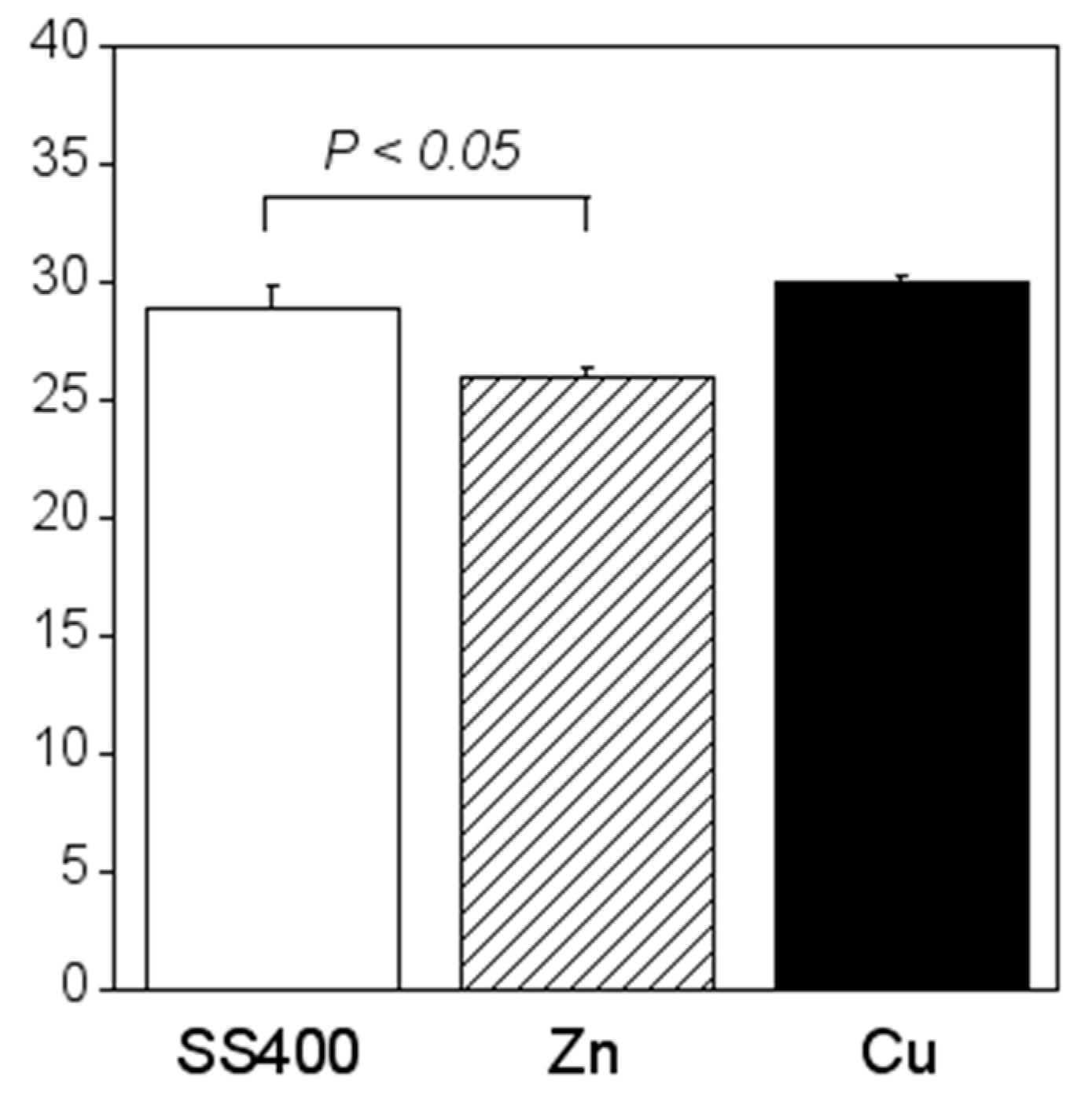

2.9. Quantitative Biofilm Formation
3. Results and Discussion
3.1. Outdoor Exposure Tests
3.2. Aquatic Immersion Tests
3.3. Comparison of Corrosion in the Outdoor Exposure Test with that of the Water-Immersion Test
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Marder, A.R. The metallurgy of zinc-coated steel. Prog. Mater. Sci. 2000, 45, 191–271. [Google Scholar] [CrossRef]
- American Galvanizers Association. Zinc Coating 2011. Available online: https://galvanizeit.org/education-and-resources/publications/zinc-coatings (accessed on 19 February 2020).
- Wang, P.; Zhang, D.; Qiu, R.; Wu, J.; Wan, Y. Super-hydrophobic film prepared on zinc and its effect on corrosion in simulated marine atmosphere. Corros. Sci. 2013, 69, 23–30. [Google Scholar] [CrossRef]
- Little, B.J.; Lee, J.S.; Ray, R.I. The influence of marine biofilms on corrosion: A concise review. Electrochim. Acta 2008, 54, 2–7. [Google Scholar] [CrossRef]
- Wilking, J.N.; Angelini, T.E.; Seminara, A.; Brenner, M.P.; Weitz, D.A. Biofilms as complex fluids. MRS Bull. 2011, 36, 385–391. [Google Scholar] [CrossRef]
- Usher, K.M.; Kaksonen, A.H.; Cole, I.; Marney, D. Critical review: Microbially influenced corrosion of buried carbon steel pipes. Int. Biodeterior. Biodegrad. 2014, 93, 84–106. [Google Scholar] [CrossRef]
- Xing, X.; Wang, H.; Hu, C.; Liu, L. Characterization of bacterial community and iron corrosion in drinking water distribution systems with O3-biological activated carbon treatment. J. Environ. Sci. 2008, 69, 192–204. [Google Scholar] [CrossRef]
- Khoshnaw, F.; Gubner, F. Corrosion Atlas Case Studies; 2019 Edition; Elsevier Amsterdam: Oxford, UK, 2019. [Google Scholar]
- Huttunen-Saarivirta, E.; Rajala, P.; Marja-aho, M.; Maukonen, J.; Sohlberg, E.; Carpén, L. Ennoblement, corrosion, and biofouling in brackish seawater: Comparison between six stainless steel grades. Bioelectrochemistry 2018, 120, 27–42. [Google Scholar] [CrossRef]
- Jia, R.; Yang, D.; Xu, D.; Gu, T. Anaerobic Corrosion of 304 Stainless Steel Caused by the Pseudomonas aeruginosa Biofilm. Front. Microbiol. 2017, 8, 2335. [Google Scholar] [CrossRef]
- Sano, K.; Kanematsu, H.; Kogo, T.; Hirai, N.; Tanaka, T. Corrosion and biofilm for a composite coated iron observed by FTIR-ATR and Raman spectroscopy. Trans. IMF 2016, 94, 139–145. [Google Scholar] [CrossRef]
- Dwivedi, D.; Lepková, K.; Becker, T. Carbon steel corrosion: A review of key surface properties and characterization methods. RSC Adv. 2017, 7, 4580–4610. [Google Scholar] [CrossRef] [Green Version]
- Xu, D.; Li, Y.; Gu, T. Mechanistic modeling of biocorrosion caused by biofilms of sulfate reducing bacteria and acid producing bacteria. Bioelectrochemistry 2016, 110, 52–58. [Google Scholar] [CrossRef] [PubMed]
- Kanematsu, H.; Barry, D.M. (Eds.) Corrosion control and surface finishing: Environmentally Friendly Approaches; Springer Nature: Tokyo, Japan, 2016. [Google Scholar]
- Melchers, R.E. 9—Modelling long term corrosion of steel infrastructure in natural marine environments; Liengen, T., Féron, D., Basséguy, R., Beech, I.B., Eds.; Understanding Biocorrosion. Woodhead Publishing: Oxford, UK, 2014; pp. 213–241. [Google Scholar]
- Faúndez, G.; Troncoso, M.; Navarrete, P.; Figueroa, G. Antimicrobial activity of copper surfaces against suspensions of Salmonella enterica and Campylobacter jejuni. BMC Microbiol. 2004, 4, 19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Mehtar, S.; Wiid, I.; Todorov, S.D. The antimicrobial activity of copper and copper alloys against nosocomial pathogens and Mycobacterium tuberculosis isolated from healthcare facilities in the Western Cape: An in vitro study. J. Hosp. Infect. 2008, 68, 45–51. [Google Scholar] [CrossRef] [PubMed]
- Grass, G.; Rensing, C.; Solioz, M. Metallic copper as an antimicrobial surface. Appl. Environ. Microbiol. 2011, 77, 1541–1547. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Ogawa, A.; Kanematsu, H.; Sano, K.; Sakai, Y.; Ishida, K.; Beech, I.; Suzuki, O.; Tanaka, T. Effect of silver or copper nanoparticles-dispersed silane coatings on biofilm formation in cooling water systems. Materials 2016, 9, 632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Kanematsu, H.; Barry, D.M.; Ikigai, H.; Yoshitake, M.; Mizunoe, Y. Biofilm evaluation methods outside body to inside -Problem presentations for the future. Med. Res. Arch. 2017, 5, 1–17. [Google Scholar]
- Kuroda, D.; Kamakura, N.; Ito, H.; Ikegai, H.; Kanematsu, H. Adhesion of microorganisms on the surfaces of various metallic immersed in a cooling water tank of the package type cooling tower. Tetsu Hagané 2012, 98, 1–8. [Google Scholar] [CrossRef]
- Ogawa, A.; Takakura, K.; Sano, K.; Kanematsu, H.; Yamano, T.; Saishin, T.; Terada, S. Microbiome analysis of biofilms of silver nanoparticle-dispersed silane-based coated carbon steel using a next-generation sequencing technique. Antibiotics 2018, 7, 91. [Google Scholar] [CrossRef] [Green Version]
- Ogawa, A.; Kiyohara, T.; Kobayashi, Y.; Sano, K.; Kanematsu, H. Nickel, molybdenum, and tungsten nanoparticle-dispersed alkylalkoxysilane polymer for biomaterial coating: Evaluation of effects on bacterial biofilm formation and biosafety. Biomed. Res. Clin. Pract. 2017, 2, 1–7. [Google Scholar] [CrossRef] [Green Version]
- Iron Corrosion Products. Available online: https://corrosion-doctors.org/Experiments/iron-products.htm (accessed on 29 December 2019).
- PubChem Compound Summary for CID 14806. Available online: https://pubchem.ncbi.nlm.nih.gov/compound/zinc_oxide#section=Top (accessed on 29 December 2019).
- Lewandowski, B. Chapter 1, Fundamentals of Biofilm Research, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2014; pp. 1–65. [Google Scholar]
- George, J.; Thomas, Jr. Raman spectroscopy of protein and nucleic acid assembles. Annu. Rev. Biophys. Biomol. Struct. 1999, 28, 1–27. [Google Scholar]
- Yuen, S.N.; Choi, S.M.; Phillips, D.L.; Ma, C.Y. Raman and FTIR spectroscopic study of carboxymethylated non-starch polysaccharides. Food Chem. 2009, 114, 1091–1098. [Google Scholar] [CrossRef]
- Chao, Y.; Zhang, T. Surface-enhanced Raman scattering (SERS) revealing chemical variation during biofilm formation: From initial attachment to mature biofilm. Anal. Bioanal. Chem. 2012, 404, 1465–1475. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Czamara, K.; Majzner, K.; Pacia, M.Z.; Kochan, K.; Kaczor, A.; Baranska, M. Raman spectroscopy of lipids: A review. J. Raman Spectrosc. 2015, 46, 4–20. [Google Scholar] [CrossRef]
- Benevides, J.M.; Overman, S.A.; Thomas, G.J. Raman, polarized Raman and ultraviolet resonance Raman spectroscopy of nucleic acids and their complexes. J. Raman Spectrosc. 2005, 36, 279–299. [Google Scholar] [CrossRef]
- Movasaghi, Z.; Rehman, S.; Rehman, I.U. Raman spectroscopy of biological tissues. Appl. Spectrosc. Rev. 2007, 42, 493–541. [Google Scholar] [CrossRef]
- Rygula, A.; Majzner, K.; Marzec, K.M.; Kaczor, A.; Pilarczyk, M.; Baranska, M. Raman spectroscopy of proteins: A review. J. Raman Spectrosc. 2013, 44, 1061–1076. [Google Scholar] [CrossRef]
- Larkin, P. Chapter 7—General Outline and Strategies for IR and Raman Spectral Interpretation; Elsevier: Oxford, UK, 2011. [Google Scholar]
- Larkin, P. Chapter 6—IR and Raman Spectra-Structure Correlations: Characteristic Group Frequencies; Elsevier: Oxford, UK, 2011. [Google Scholar]
- Pantanella, F.; Valenti, P.; Natalizi, T.; Passeri, D.; Berlutti, F. Analytical techniques to study microbial biofilm on abiotic surfaces: Pros and cons of the main techniques currently in use. Ann Ig 2013, 25, 31–42. [Google Scholar]
- Kanematsu, H.; Ikigai, H.; Yoshitake, M. Evaluation of Various Metallic Coatings on Steel to Mitigate Biofilm Formation. Int. J. Mol. Sci. 2009, 10, 559–571. [Google Scholar] [CrossRef]
- Hamzah, E.; Hussain, M.Z.; Ibrahim, Z.; Abdolahi, A. Influence of Pseudomonas aeruginosa bacteria on corrosion resistance of 304 stainless steel. Corros. Eng. Sci. Technol. 2013, 48, 116–120. [Google Scholar] [CrossRef]
- Abdolahi, A.; Hamzah, E.; Ibrahim, Z.; Hashim, S. Microbially influenced corrosion of steels by Pseudomonas aeruginosa. Corros. Rev. 2014, 32, 129–141. [Google Scholar] [CrossRef]
- Beech, I.B.; Sztyler, M.; Gaylarde, C.C.; Smith, W.L.; Sunner, J. 2—Biofilms and Biocorrosion. In Understanding Biocorrosion; Liengen, T., Féron, D., Basséguy, R., Beech, I.B., Eds.; Woodhead Publishing: Oxford, UK, 2014; pp. 33–56. [Google Scholar]
- Chen, Y.; Tang, Q.; Senko, J.M.; Cheng, G.; Newby, B.M.Z.; Castaneda, H.; Ju, L.K. Long-term survival of Desulfovibrio vulgaris on carbon steel and associated pitting corrosion. Corros. Sci. 2015, 90, 89–100. [Google Scholar] [CrossRef]
- Donati, E.; Curutchet, G.; Pogliani, C.; Tedesco, P. Bioleaching of covellite using pure and mixed cultures of Thiobacillus ferrooxidans and Thiobacillus thiooxidans. Process Biochem. 1996, 31, 129–134. [Google Scholar] [CrossRef]
- Jones, D.S.; Albrecht, H.L.; Dawson, K.S.; Schaperdoth, I.; Freeman, K.H.; Pi, Y.; Pearson, A.; Macalady, J.L. Community genomic analysis of an extremely acidophilic sulfur-oxidizing biofilm. ISME J. 2012, 6, 158–170. [Google Scholar] [CrossRef] [PubMed]
- Ray, R.I.; Lee, J.S.; Little, B.J. Iron-Oxidizing Bacteria: A Review of corrosion mechanisms in fresh water and marine environments. In Proceedings of the NACE Corrosion 2010 Conference, Atlanta, GA, USA, 14–18 March 2010. [Google Scholar]
- Yeager, C.M.; Gallegos-Graves, V.; Dunbar, J.; Hesse, C.N.; Daligault, H.; Kuske, C.R. Polysaccharide degradation capability of Actinomycetales soil isolates from a Semiarid Grassland of the Colorado Plateau. Appl. Environ. Microbiol. 2017, 83, e03020-16. [Google Scholar] [CrossRef] [Green Version]
- Brahmaprakash, G.P.; Pramod Kumar Sahu, G.; Pramod Kumar Sahu, G.; Lavanya, G.; Nair, S.S.; Gangaraddi, V.K.; Gupta, A. Microbial functions of the Rhizosphere. Plant-microbe interactions in agro-ecological perspectives volume 1: Fundamental mechanisms. Methods Funct. 2017, 1, 177–210. [Google Scholar]
- Paredes-Sabja, D.; Setlow, P.; Sarker, M.R. Germination of spores of Bacillales and Clostridiales species: Mechanisms and proteins involved. Trends Microbiol. 2011, 19, 85–94. [Google Scholar] [CrossRef]
- Baldani, J.I.; Rouws, L.; Cruz, L.M.; Olivares, F.L.; Schmid, M.; Hartmann, A. The family Oxalobacteraceae. In the Prokaryotes; Rosenberg, E., DeLong, E.F., Lory, S., Stackebrandt, E., Thompson, F., Eds.; Springer: Berlin/Heidelberg, Germany, 2014. [Google Scholar]
- Percival, S.; Knapp, J.; Wales, D.; Edyvean, R.G.J. The effect of turbulent flow and surface roughness on biofilm formation in drinking water. J. Ind. Microbiol. Biotech. 1999, 22, 152. [Google Scholar] [CrossRef]
- Yang, L.; Liu, Y.; Wu, H.; Høiby, N.; Molin, S.; Song, Z.J. Current understanding of multi--species biofilms. Int. J. Oral Sci. 2011, 3, 74–81. [Google Scholar] [CrossRef]
- Zhang, S.; Pang, S.; Wang, P.; Wang, C.; Guo, C.; Addo, F.G.; Li, Y. Responses of bacterial community structure and denitrifying bacteria in biofilm to submerged macrophytes and nitrate. Sci. Rep. 2016, 6, 36178. [Google Scholar] [CrossRef] [Green Version]
- Pantanella, F.; Berlutti, F.; Passariello, C.; Sarli, S.; Morea, C.; Schippa, S. Violacein and biofilm production in Janthinobacterium lividum. J. Appl. Microbiol. 2007, 102, 992–999. [Google Scholar] [CrossRef]
- Alec Groysman. Chapter 1 Corrosion mechanism and corrosion factors. In Corrosion for Everybody; Springer: Berlin/Heidelberg, Germany, 2010; pp. 1–52. [Google Scholar]
- Ericsson, R. The influence of sodium chloride on the atmospheric corrosion of steel. Mater. Corros. 1978, 29, 400–403. [Google Scholar] [CrossRef]
- Burns, R.M. Chemical reactions in the corrosion of metals. J. Chem. Educ. 1953, 30, 318–321. [Google Scholar] [CrossRef]
- Tamura, H. The role of rusts in corrosion and corrosion protection of iron and steel. Corros. Sci. 2008, 50, 1872–1883. [Google Scholar] [CrossRef] [Green Version]
- Derelle, R.; Lopez-Garcia, P.; Timpano, H.; Moreira, D.; Loy, A.; Schulz, C.A. Phylogenomic framework to study the diversity and evolution of Stramenopiles (=Heterokonts). Mol. Biol. Evol. 2016, 33, 2890–2898. [Google Scholar] [CrossRef] [Green Version]
- Loy, A.; Schulz, C.; Lucker, S.; Schopfer-Wendels, A.; Stoecker, K.; Baranyi, C.; Lehner, A.; Wagner, M. 16S rRNA gene-based oligonucleotide microarray for environmental monitoring of the betaproteobacterial order “Rhodocyclales”. Appl. Environ. Microbiol. 2005, 71, 1373–1386. [Google Scholar] [CrossRef] [Green Version]
- Kalyuzhnaya, M.G.; De Marco, P.; Bowerman, S.; Pacheco, C.C.; Lara, J.C.; Lidstrom, M.E.; Chistoserdova, L. Methyloversatilis universalis gen. nov., sp. nov., a novel taxon within the Betaproteobacteria represented by three methylotrophic isolates. Int. J. Syst. Evol. Microbiol. 2006, 56, 2517–2522. [Google Scholar] [CrossRef] [Green Version]
- Doronina, N.V.; Kaparullina, E.N.; Trotsenko, Y.A. Methyloversatilis thermotolerans sp. nov., a novel thermotolerant facultative methylotroph isolated from a hot spring. Int. J. Syst. Evol. Microbiol. 2014, 64, 158–164. [Google Scholar] [CrossRef] [Green Version]
- Smalley, N.E.; Taipale, S.; De Marco, P.; Doronina, N.V.; Kyrpides, N.; Shapiro, N.; Woyke, T.; Kalyuzhnaya, M.G. Functional and genomic diversity of methylotrophic Rhodocyclaceae: Description of Methyloversatilis discipulorum sp. nov. Int. J. Syst. Evol. Microbiol. 2015, 65, 2227–2233. [Google Scholar] [CrossRef]
- White, D.C.; Sutton, S.D.; Ringelberg, D.B. The genus Sphingomonas: Physiology and ecology. Curr. Opin. Biotechnol. 1996, 7, 301–306. [Google Scholar] [CrossRef]
- Gusman, V.; Medić, D.; Jelesić, Z.; Mihajlović-Ukropina, M. Sphingomonas paucimobilis as a biofilm producer. 64. Arch. Biol. Sci. 2012, 64, 1327–1331. [Google Scholar] [CrossRef]
- Leys, N.M.E.J.; Ryngaert, A.; Bastiaens, L.; Verstraete, W.; Top, E.M.; Springael, D. Occurrence and phylogenetic diversity of Sphingomonas strains in soils contaminated with polycyclic aromatic hydrocarbons. Appl. Environ. Microbiol. 2004, 70, 1944–1955. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Blencowe, D.K.; Morby, A.P. Zn(II) metabolism in prokaryotes. FEMS Microbiol. Rev. 2003, 27, 291–311. [Google Scholar] [CrossRef]
- Kakooei, S.; Che Ismail, M.; Ariwahjoedi, B. Mechanisms of microbiologically influenced corrosion: A review. World Appl. Sci. J. 2012, 17, 524–531. [Google Scholar]
Rank | SS400-1 | SS400-2 | Cu-Coated-1 | Cu-Coated-2 | Zn-Coated-1 | Zn-Coated-2 |
---|---|---|---|---|---|---|
1st | Bacillus (19.8) | Staphylococcus (15.9) | New someone of Oxalobacteraceae (18.7) | Acinetobacter (47.9) | New someone of Oxalobacteraceae (19.5) | Acinetobacter (17.0) |
2nd | New someone of Oxalobacteraceae (14.8) | Peptoniphilus (9.1) | Rhodoplanes (17.8) | New someone of Chitinophagaceae (8.4) | Pseudomonas (19.0) | New someone of JG30-KF-AS9 (order) (16.1) |
3rd | Someone of Intrasporangiaceae (12.9) | Corynebacterium (8.9) | Bacillus (16.7) | New someone of Ruminococcaceae (7.8) | Janthinobacterium (6.7) | Coprococcus (14.3) |
Genus | SS00-1 | SS400-2 | Cu-Coated-1 | Cu-Coated-2 | Zn-Coated-1 | Zn-Coated-2 |
---|---|---|---|---|---|---|
Azoarcus | 0.15 | 0.09 | 0 | 0 | 0.15 | 0.19 |
Azospira | 0.02 | 0.05 | 0.02 | 0.02 | 0.01 | 0.01 |
Dechloromonas | 1.24 | 2.17 | 1.13 | 1.06 | 0.67 | 0.74 |
Methyloversatilis | 39.01 | 22.25 | 0.23 | 0.27 | 55.31 | 48.43 |
Rhodocyclus | 0.03 | 0.01 | 0 | 0 | 0.03 | 0.03 |
untitled | 16.92 | 48.76 | 36.27 | 34.25 | 3.74 | 3.40 |
new genus | 1.57 | 1.22 | 0.18 | 0.12 | 1.68 | 1.61 |
Family | Genus | SS400-1 | SS400-2 | Cu-coated-1 | Cu-coated-2 | Zn-coated-1 | Zn-coated-2 |
---|---|---|---|---|---|---|---|
Erythrobacteraceae | Azoarcus | 0 | 0 | 0.04 | 0.03 | 0 | 0 |
Sphingomonadaceae | Novosphingobium | 0.07 | 0.02 | 0.13 | 0.15 | 0.13 | 0.22 |
Sphingobium | 0.18 | 0.10 | 0.11 | 0.12 | 1.17 | 2.31 | |
Sphingomonas | 2.08 | 1.08 | 19.32 | 16.58 | 1.07 | 1.22 | |
untitled | 0.01 | 0 | 0.02 | 0.03 | 0.01 | 0.01 | |
new genus | 0.05 | 0.02 | 0.17 | 0.14 | 0.02 | 0.02 |
Family | Genus | SS400-1 | SS400-2 | Cu-coated-1 | Cu-coated-2 | Zn-coated-1 | Zn-coated-2 |
---|---|---|---|---|---|---|---|
Pseudomonadaceae | Pseudomonas | 0.01 | 0 | 0.01 | 0 | 0.01 | 0 |
Hydrogenophilaceae | Thiobacillus | 0 | 0 | 0 | 0 | 0 | 0 |
Gallionellaceae | Gallionella | 0 | 0 | 0 | 0 | 0 | 0 |
Desulfarculaceae | new genus | 0 | 0 | 0 | 0 | 0 | 0 |
Desulfobulbaceae | new genus | 0 | 0 | 0 | 0 | 0 | 0 |
Desulfuromonadaceae | untitled | 0 | 0 | 0 | 0 | 0 | 0 |
Geobacteraceae | new genus | 0 | 0 | 0 | 0 | 0 | 0 |
Coupon | Test Type | Element | ||||
---|---|---|---|---|---|---|
Fe | Cu | Zn | Ca | Si | ||
SS400 | before | 100 | 0 | 0 | 0 | 0 |
outdoor exposure | 99.98 | 0 | 0 | 0.02 | 0 | |
water exposure | 98.41 | 0 | 0 | 0.36 | 1.23 | |
Cu-coated | before | 0.68 | 99.01 | 0 | 0 | 0.31 |
outdoor exposure | 6.27 | 93.73 | 0 | 0 | 0 | |
water exposure | 11.34 | 77.95 | 0 | 8.46 | 2.25 | |
Zn-coated | before | 0.09 | 0 | 99.52 | 0 | 0.39 |
outdoor exposure | 0.13 | 0 | 99.17 | 0 | 0.70 | |
water exposure | 0.33 | 0 | 90.23 | 2.84 | 6.60 |
