Microstructure and Thermal Stability of Cu/TixSiyN/AlSiN Solar Selective Absorbing Coating
Abstract

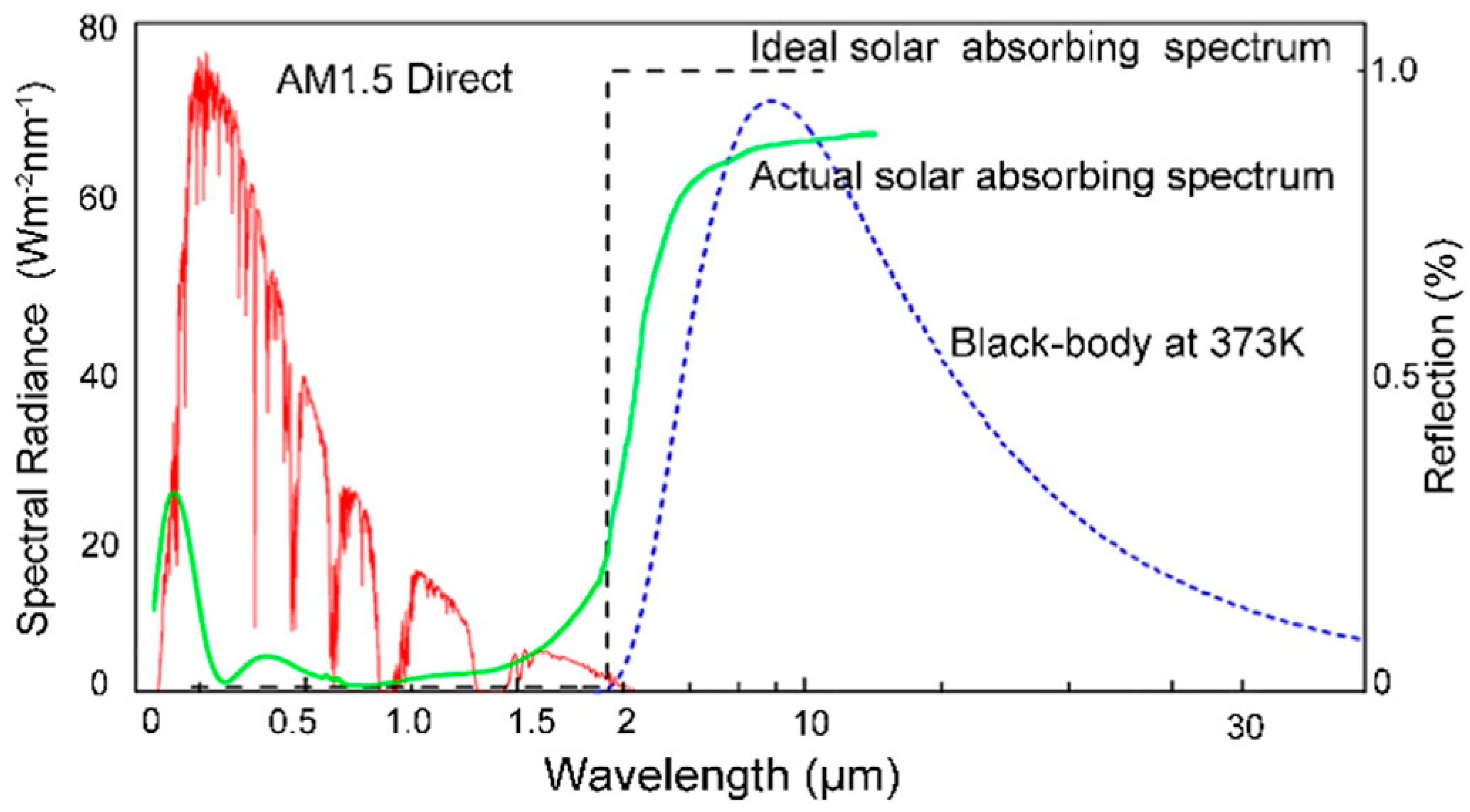

:1. Introduction
2. Experiment Details
3. Results and Discussions

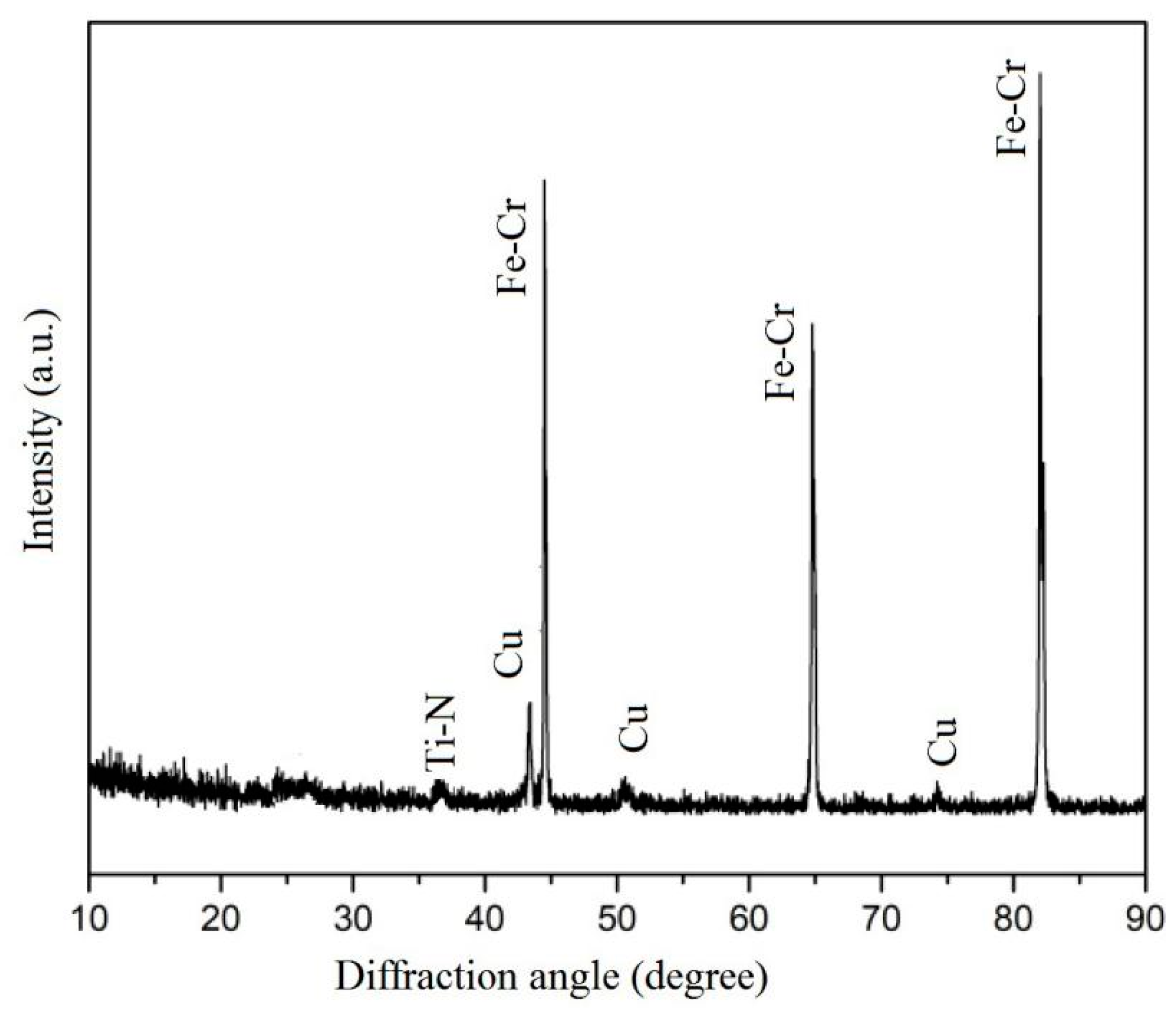

3.1. Microstructure and Optical Characterization

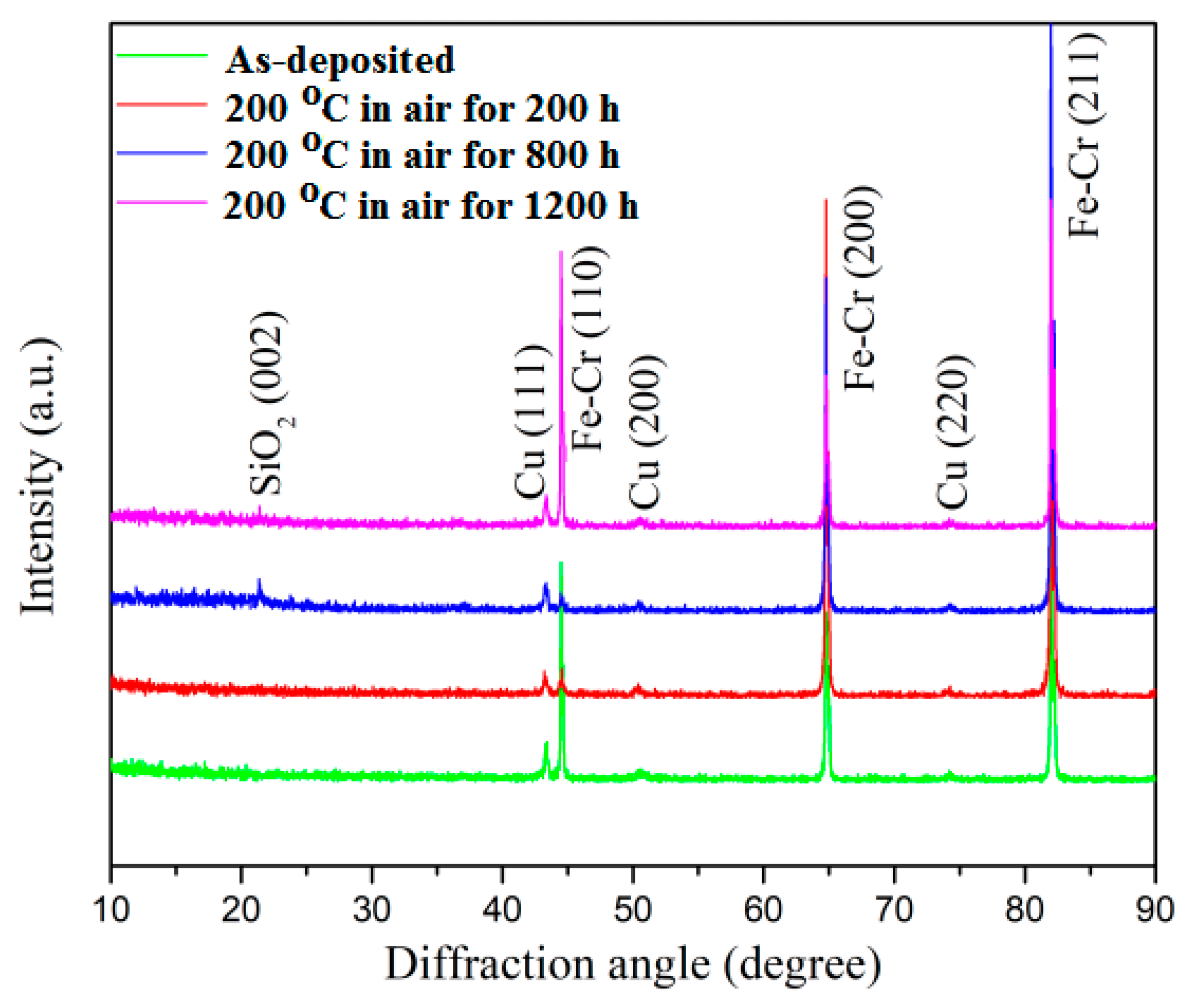

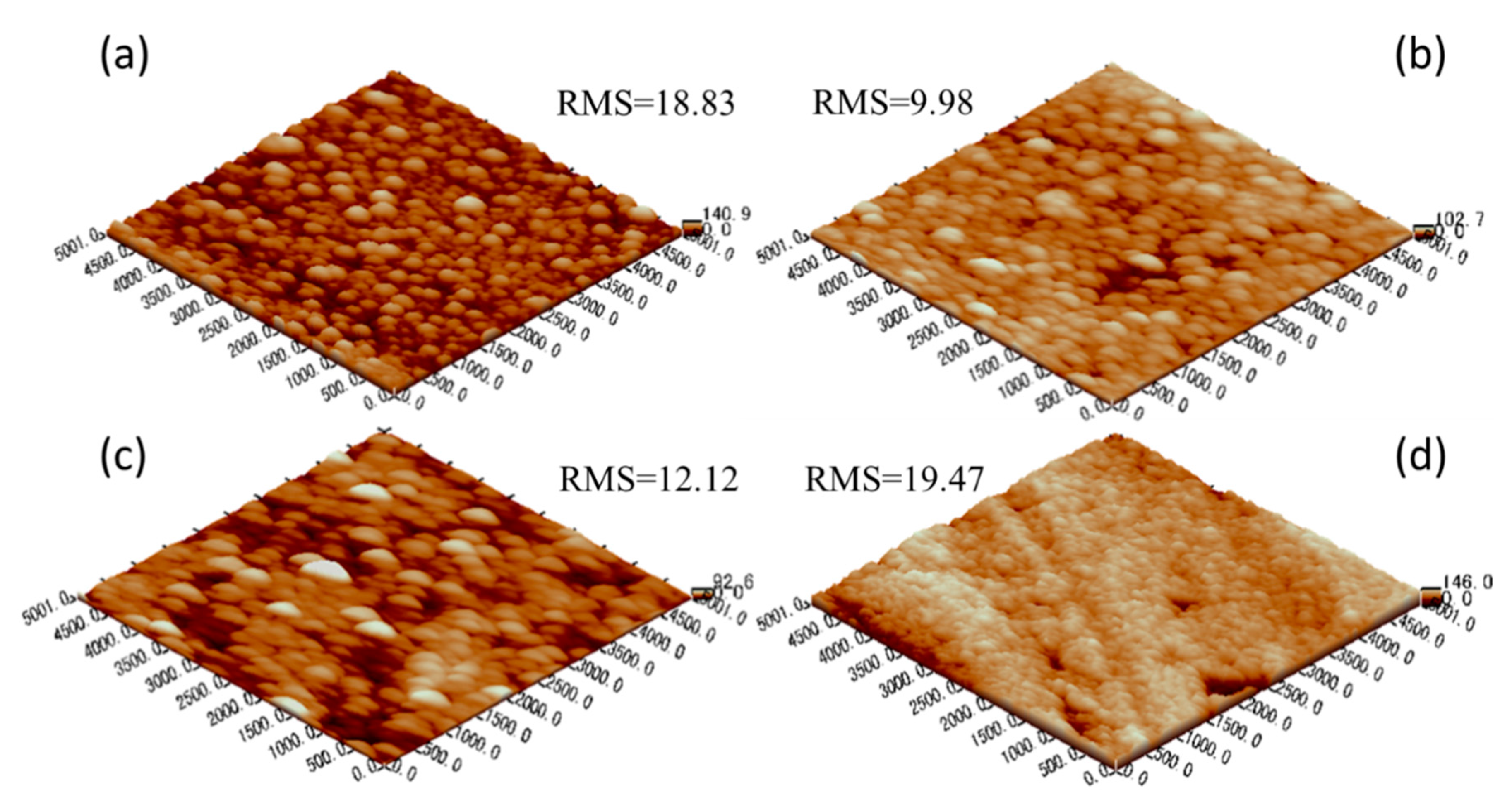

3.2. Thermal Stability
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Cao, F.; McEnaney, K.; Chen, G.; Ren, Z. A review of cermet-based spectrally selective solar absorbers. Energy Environ. Sci. 2014, 7, 1615–1627. [Google Scholar] [CrossRef] [Green Version]
- Wang, X.; Luo, T.; Li, Q.; Cheng, X.; Li, K. High performance aperiodic metal-dielectric multilayer stacks for solar energy thermal conversion. Sol. Energy Mater. Sol. Cells 2019, 191, 372–380. [Google Scholar] [CrossRef]
- Qiu, X.-L.; Gao, X.-H.; Zhou, T.-H.; Chen, B.-H.; Lu, J.-Z.; Guo, H.-X.; Li, X.-T.; Liu, G. Structure, thermal stability and chromaticity investigation of TiB2 based high temperature solar selective absorbing coatings. Sol. Energy 2019, 181, 88–94. [Google Scholar] [CrossRef]
- Amri, A.; Jiang, Z.T.; Pryor, T.; Yin, C.-Y.; Djordjevic, S. Developments in the synthesis of flat plate solar selective absorber materials via sol–gel methods: A review. Renew. Sustain. Energy Rev. 2014, 36, 316–328. [Google Scholar] [CrossRef] [Green Version]
- Cao, B.; Du, G.; Wu, H. World energy trend to 2030—Analysis of major global energy outlook reports. Int. Pet. Econ. 2016, 24, 8–16. [Google Scholar]
- Kim, T.K.; VanSaders, B.; Caldwell, E.; Shin, S.; Liu, Z.; Jin, S.; Chen, R. Copper-alloyed spinel black oxides and tandem-structured solar absorbing layers for high-temperature concentrating solar power systems. Sol. Energy 2016, 132, 257–266. [Google Scholar] [CrossRef] [Green Version]
- El-Mahallawy, N.; Atia, M.R.A.; Khaled, A.; Shoeib, M. Design and simulation of different multilayer solar selective coatings for solar thermal applications. Mater. Res. Express 2018, 5, 046402. [Google Scholar] [CrossRef]
- Ma, P.; Geng, Q.; Gao, X.; Yang, S.; Liu, G. Aqueous solution-chemical derived spinel Cu1.5Mn1.5O4 thin film for solar absorber application. Mater. Lett. 2016, 179, 170–174. [Google Scholar] [CrossRef]
- Dan, A.; Chattopadhyay, K.; Barshilia, H.C.; Basu, B. Colored selective absorber coating with excellent durability. Thin Solid Films 2016, 620, 17–22. [Google Scholar] [CrossRef] [Green Version]
- Nuru, Z.Y.; Msimanga, M.; Arendse, C.J.; Maaza, M. Heavy ion elastic recoil detection analysis of AlxOy/Pt/AlxOy multilayer selective solar absorber. Appl. Surf. Sci. 2014, 298, 176–181. [Google Scholar] [CrossRef]
- Rodríguez-Palomo, A.; Céspedes, E.; Hernández-Pinilla, D.; Prieto, C. High-temperature air-stable solar selective coating based on MoSi2–Si3N4 composite. Sol. Energy Mater. Sol. Cells 2018, 174, 50–55. [Google Scholar] [CrossRef]
- Ahmad, N.; Stokes, J.; Cryan, M.J. Solar absorbers using 1D and 2D periodic nanostructured nickel films. J. Opt. 2014, 16, 125003–125010. [Google Scholar] [CrossRef]
- Feng, J.; Zhang, S.; Liu, X.; Yu, H.; Ding, H.; Tian, Y.; Ouyang, J. Solar selective absorbing coatings TiN/TiSiN/SiN prepared on stainless steel substrates. Vacuum 2015, 121, 135–141. [Google Scholar] [CrossRef]
- Bichotte, M.; Dubost, L.; Pouit, T.; Soum-Glaude, A.; Le Gal, A.; Glenat, H.; Itskhokine, D. Arc deposited TiAlN selective absorber for high temperature CSP applications. Mater. Rev. 2016, 1734, 030006. [Google Scholar]
- Yuan, W.; Liu, X.; Li, L. Synthesis, characterization and photocatalytic activity of cubic-like CuCr2O4 for dye degradation under visible light irradiation. Appl. Surf. Sci. 2014, 319, 350–357. [Google Scholar] [CrossRef]
- Maaza, M.; Nemraoui, O.; Sella, C.; Lafait, J.; Gibaud, A.; Pischedda, V. Thermal morphological evolution of platinum nano-particles in Pt–Al2O3 nano-composites. Phys. Lett. A 2005, 344, 57–63. [Google Scholar] [CrossRef]
- Nuru, Z.Y.; Arendse, C.J.; Muller, T.F.; Khamlich, S.; Maaza, M. Thermal stability of electron beam evaporated AlxOy/Pt/AlxOy multilayer solar absorber coatings. Sol. Energy Mater. Sol. Cells 2014, 120, 473–480. [Google Scholar] [CrossRef]
- Zou, C.; Xie, W.; Shao, L. Functional multi-layer solar spectral selective absorbing coatings of AlCrSiN/AlCrSiON/AlCrO for high temperature applications. Sol. Energy Mater. Sol. Cells 2016, 153, 9–17. [Google Scholar] [CrossRef]
- Gao, X.-H.; Guo, Z.-M.; Geng, Q.-F.; Ma, P.-J.; Wang, A.-Q.; Liu, G. Microstructure, chromaticity and thermal stability of SS/TiC-WC/Al2O3 spectrally selective solar absorbers. Sol. Energy Mater. Sol. Cells 2017, 164, 63–69. [Google Scholar] [CrossRef]
- Wang, H.; Haechler, I.; Kaur, S.; Freedman, J.; Prasher, R. Spectrally selective solar absorber stable up to 900 °C for 120 h under ambient conditions. Sol. Energy 2018, 174, 305–311. [Google Scholar] [CrossRef] [Green Version]
- Khelifa, A.B.; Soum-Glaude, A.; Khamlich, S.; Glénat, H.; Balghouthi, M.; Guizani, A.A.; Maaza, M.; Dimassi, W. Optical simulation, characterization and thermal stability of Cr2O3/Cr/Cr2O3multilayer solar selective absorber coatings. J. Alloys Compd. 2019, 783, 533–544. [Google Scholar] [CrossRef]
- Li, B.; Qi, D.; Wang, X.; Wang, F.; Nie, Y.; Gong, R. Enhanced spectra selectivity of solar absorber film with Ti/Si3N4 photonic structures. Mater. Lett. 2017, 201, 5–8. [Google Scholar] [CrossRef]
- Rebouta, L.; Sousa, A.; Capela, P.; Andritschky, M.; Santilli, P.; Matilainen, A.; Pischow, K.; Barradas, N.P.; Alves, E. Solar selective absorbers based on Al2O3:W cermets and AlSiN/AlSiON layers. Sol. Energy Mater. Sol. Cells 2015, 137, 93–100. [Google Scholar] [CrossRef] [Green Version]
- Liu, H.D.; Wan, Q.; Xu, Y.R.; Luo, C.; Chen, Y.M.; Fu, D.J.; Ren, F.; Luo, G.; Cheng, X.D.; Hu, X.J.; et al. Long-term thermal stability of CrAlO-based solar selective absorbing coating in elevated temperature air. Sol. Energy Mater. Sol. Cells 2015, 134, 261–267. [Google Scholar] [CrossRef]
- Rebouta, L.; Sousa, A.; Andritschky, M.; Cerqueira, F.; Tavares, C.J.; Santilli, P.; Pischow, K. Solar selective absorbing coatings based on AlSiN/AlSiON/AlSiO y layers. Appl. Surf. Sci. 2015, 356, 203–212. [Google Scholar] [CrossRef] [Green Version]
- Moumouh, J.; Tahiri, M.; Salouhi, M. Solar thermal energy combined with humidification–dehumidification process for desalination brackish water: Technical review. Int. J. Hydrogen Energy 2014, 39, 15232–15237. [Google Scholar] [CrossRef]
- Ning, Y.; Wang, W.; Wang, L.; Sun, Y.; Song, P.; Man, H.; Zhang, Y.; Dai, B.; Zhang, J.; Wang, C.; et al. Optical simulation and preparation of novel Mo/ZrSiN/ZrSiON/SiO2 solar selective absorbing coating. Sol. Energy Mater. Sol. Cells 2017, 167, 178–183. [Google Scholar] [CrossRef]

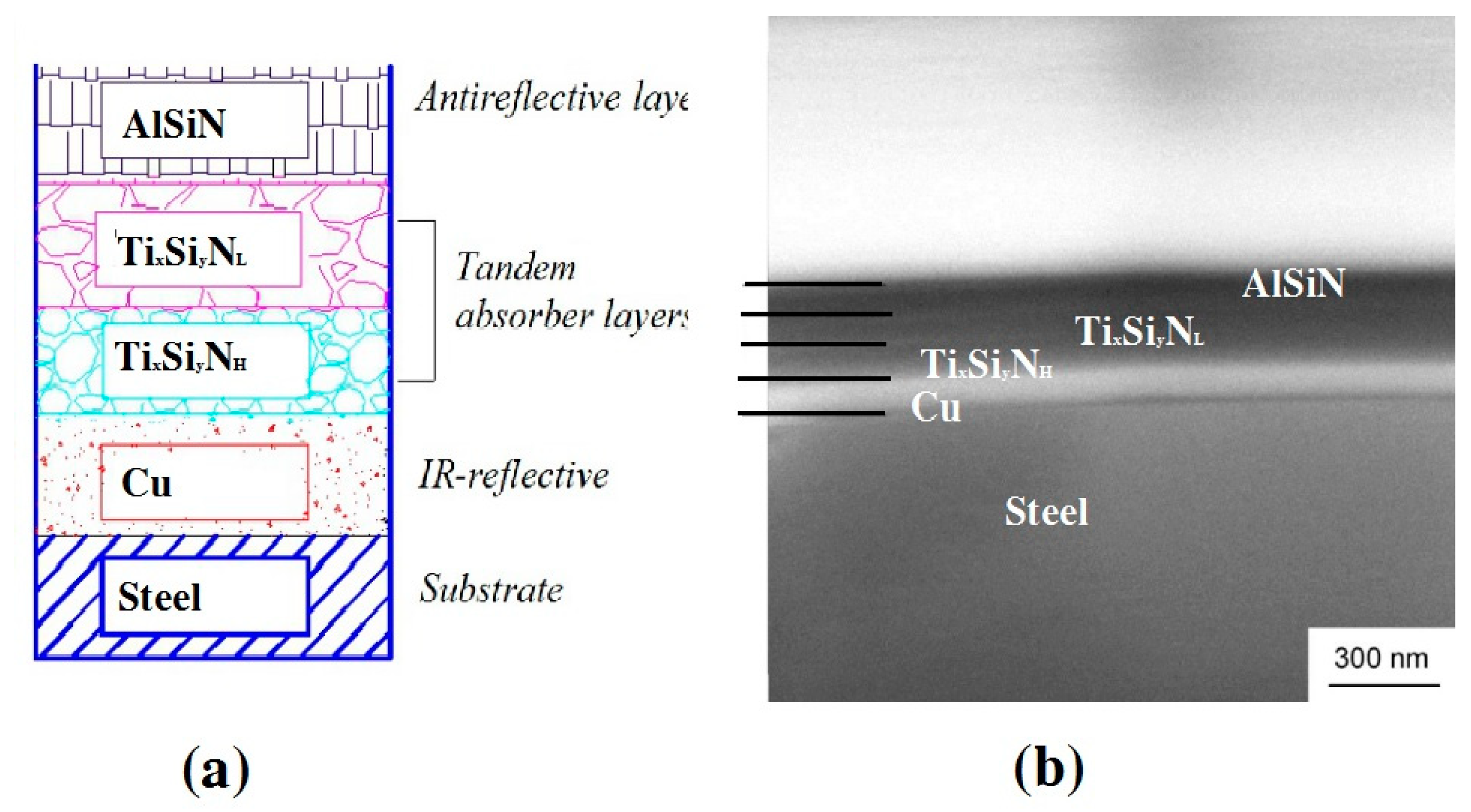

Layer | Flow Rate (sccm) | Sputtering Pressure (Pa) | Deposition Voltage (V) | Average Current (A) | Deposition Time (min) | Thickness (nm) | |
---|---|---|---|---|---|---|---|
Ar | N2 | ||||||
Cu | 40 | 0 | 0.6 | 368 | 0.5 | 15 | 100 |
TixSiyNH | 40 | 25 | 1.0 | 470 | 0.6 | 10 | 80 |
TixSiyNL | 40 | 40 | 1.0 | 460 | 0.5 | 10 | 70 |
AlSiN | 40 | 40 | 0.6 | 510 | 0.5 | 7 | 70 |

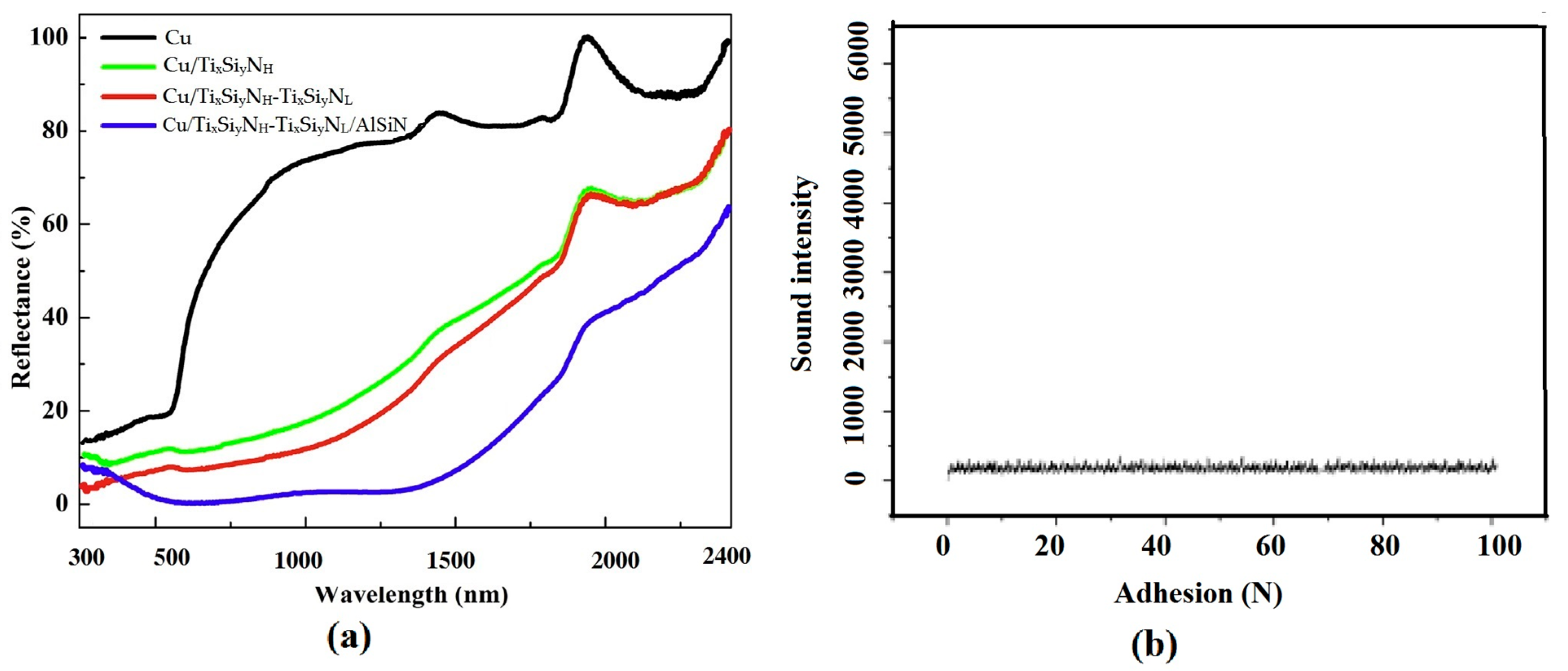

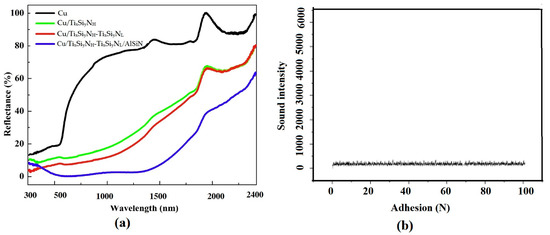

Layer | Absorptance (α) | Emittance (ε) | Solar Selectivity (S) |
---|---|---|---|
Cu | 0.317 | 0.063 | 5.03 |
Cu/TixSiyNH | 0.786 | 0.069 | 11.39 |
Cu/TixSiyNH-TixSiyNL | 0.827 | 0.074 | 11.18 |
Cu/TixSiyNH-TixSiyNL/AlSiN | 0.934 | 0.044 | 21.23 |
TixSiyNH-TixSiyNL/AlSiN | 0.958 | 0.150 | 6.39 |
Sample # | Absorptance (α) | Emittance (ε) | Solar Selectivity (α/ε) |
---|---|---|---|
1 | 0.948 | 0.053 | 17.89 |
2 | 0.945 | 0.054 | 17.50 |
3 | 0.947 | 0.075 | 12.63 |
4 | 0.942 | 0.068 | 13.85 |
5 | 0.943 | 0.047 | 20.06 |
6 | 0.932 | 0.053 | 17.58 |
7 | 0.940 | 0.070 | 13.43 |
8 | 0.934 | 0.044 | 21.23 |
Average | 0.941 | 0.058 | 16.23 |
Standard deviation | 0.0058 | 0.0107 | 2.9581 |

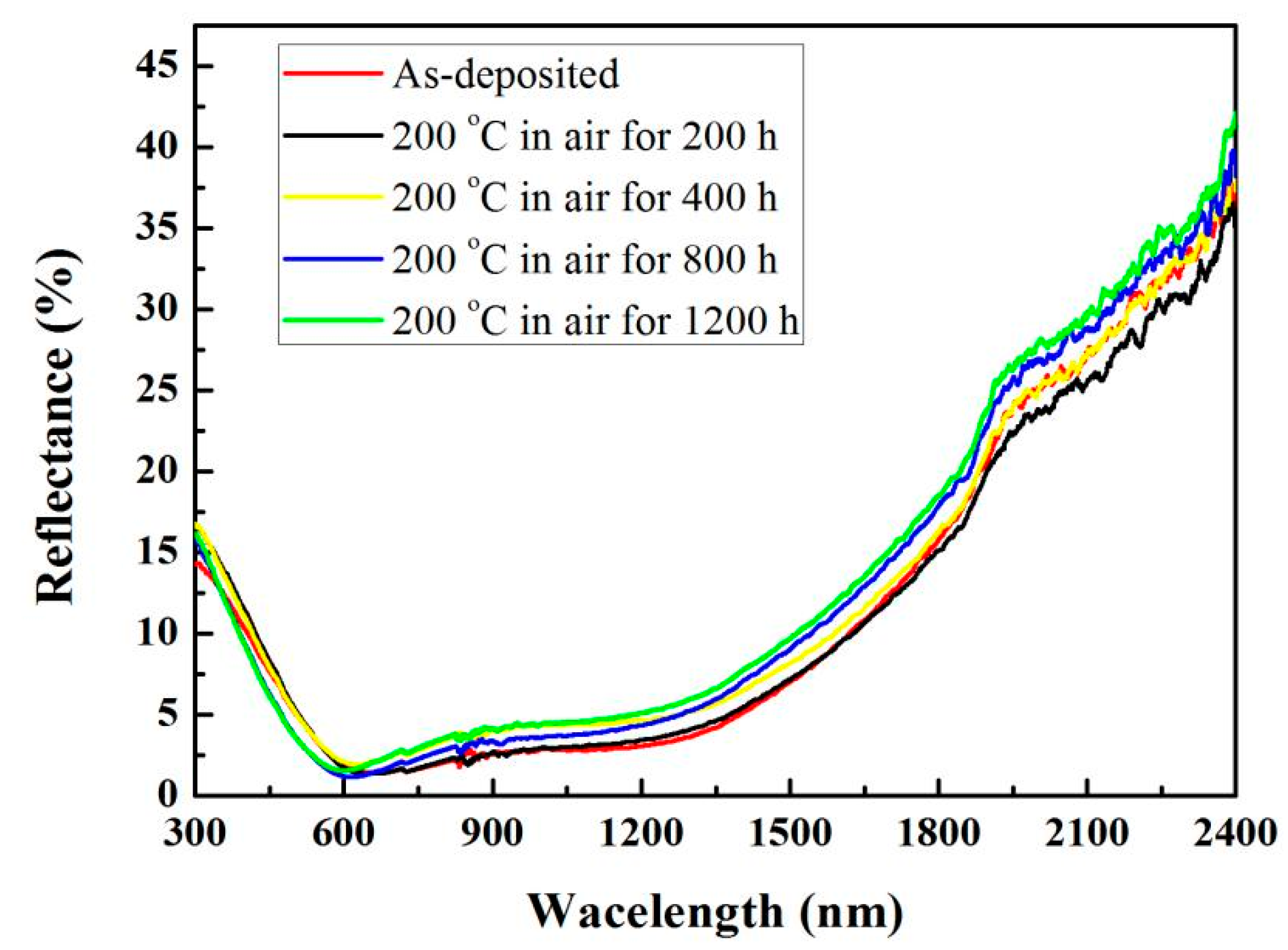

Heat Treatment in Air at 200 °C (h) | Absorptance (α) | Emittance (ε) | PC |
---|---|---|---|
As-deposited | 0.948 | 0.053 | - |
200 | 0.943 | 0.056 | 0.0065 |
400 | 0.939 | 0.058 | 0.0115 |
800 | 0.932 | 0.065 | 0.022 |
1200 | 0.923 | 0.076 | 0.0365 |
