Next Article in Journal
Size-Dependent Thermo- and Photoresponsive Plasmonic Properties of Liquid Crystalline Gold Nanoparticles
Previous Article in Journal
Facile Tailoring of Contact Layer Characteristics of the Triboelectric Nanogenerator Based on Portable Imprinting Device
Open AccessArticle

Synthesis and Characterization of the CaTiO3:Eu3+ Red Phosphor by an Optimized Microwave-Assisted Sintering Process

by Haifeng Wang 1,2,*, Jianwei Lu 1,2, Ruoxuan Wang 1,2, Yungu Dong 1,2 and Linfeng Ding 1,2,*
1
College of Materials Science and Engineering, Donghua University, Shanghai 201620, China
2
Engineering Research Center of Advanced Glass Manufacturing Technology, Ministry of Education, Donghua University, Shanghai 201620, China
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(4), 874; https://doi.org/10.3390/ma13040874 (registering DOI)
Received: 22 January 2020 / Revised: 9 February 2020 / Accepted: 12 February 2020 / Published: 15 February 2020
(This article belongs to the Section Manufacturing Processes and Systems)

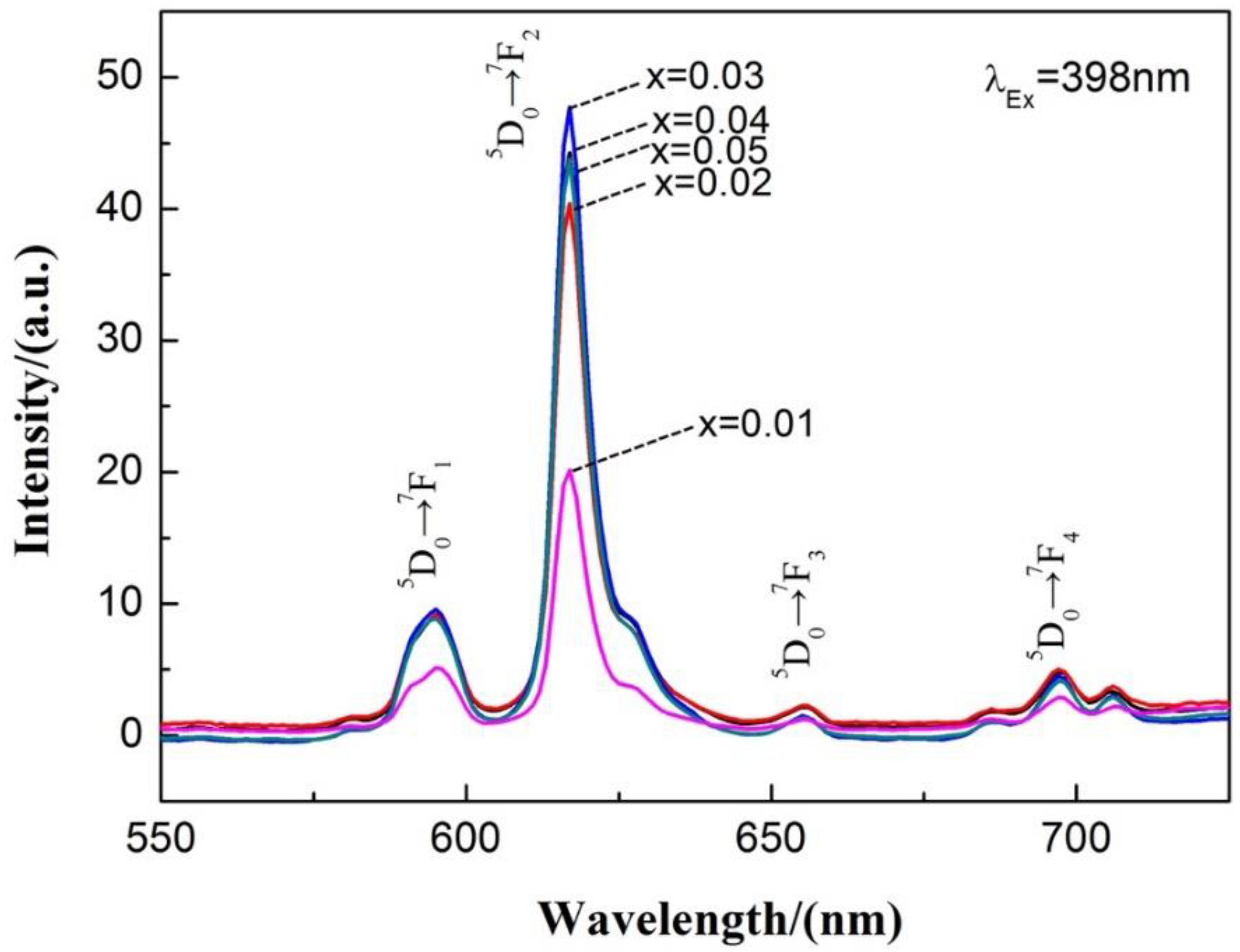

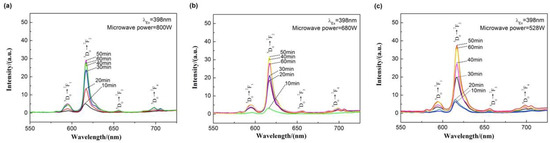

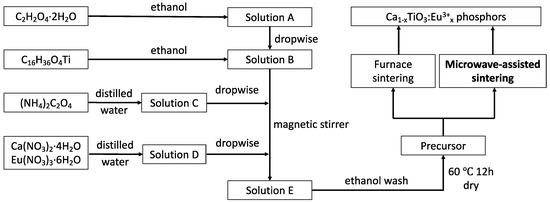

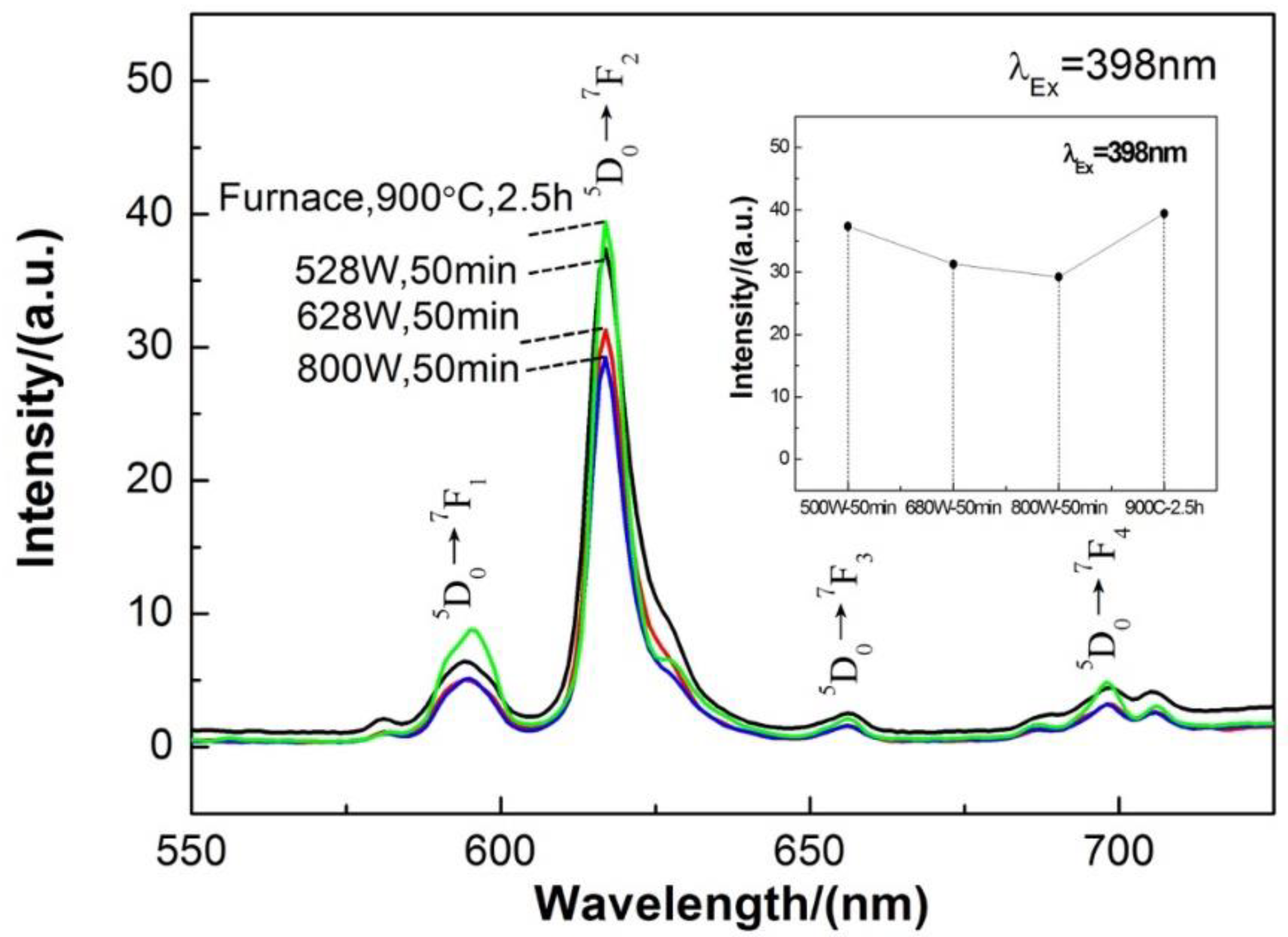

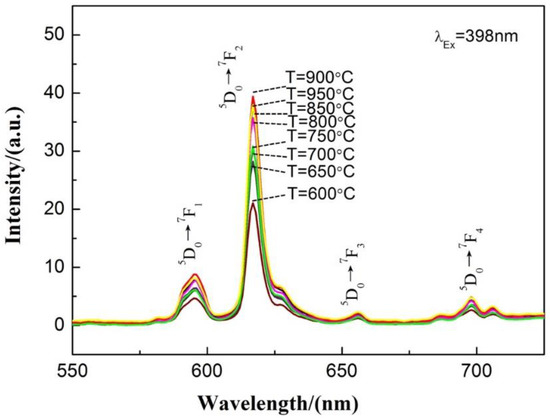

The synthesis process has a significant influence on the properties of Ca1-xTiO3:Eu3+x phosphors; thus, an optimized process will lead to a better performance of the Ca1-xTiO3:Eu3+x phosphors. In this work, the feasibility of synthesizing the Ca1-xTiO3:Eu3+x phosphor with a good luminescent performance by combining the chemical co-precipitation method and microwave-assisted sintering was studied. The precursor of Ca1-xTiO3:Eu3+x phosphors were prepared by the chemical co-precipitation method. To find an optimized process, we applied both of the traditional (furnace) sintering and the microwave-assisted sintering to synthesize the Ca1-xTiO3:Eu3+x phosphors. We found out that a sintering power of 528 W for 50 min (temperature around 950 °C) by a microwave oven resulted in similar emission intensity results compared to traditional furnace sintering at 900 °C for 2.5 h. The synthesized Ca1-xTiO3:Eu3+x phosphors has an emission peak at 617 nm (5D07F2), which corresponds to the red light band. This new synthesized method is an energy efficient, time saving, and environmentally friendly means for the preparation of Ca1-xTiO3:Eu3+x red phosphor with good luminescent performance. View Full-Text
Keywords: CaTiO3:Eu3+ red phosphors; microwave-assisted sintering; chemical co-precipitation method; luminescent properties CaTiO3:Eu3+ red phosphors; microwave-assisted sintering; chemical co-precipitation method; luminescent properties

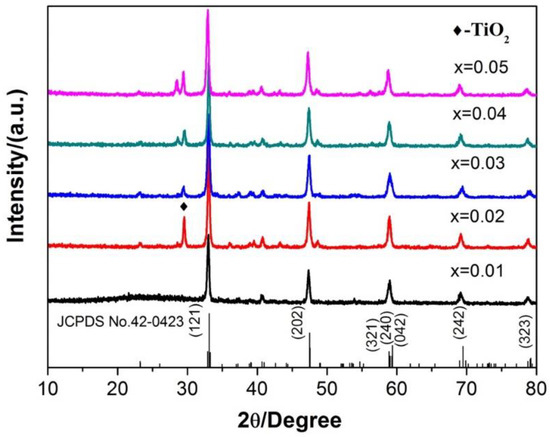

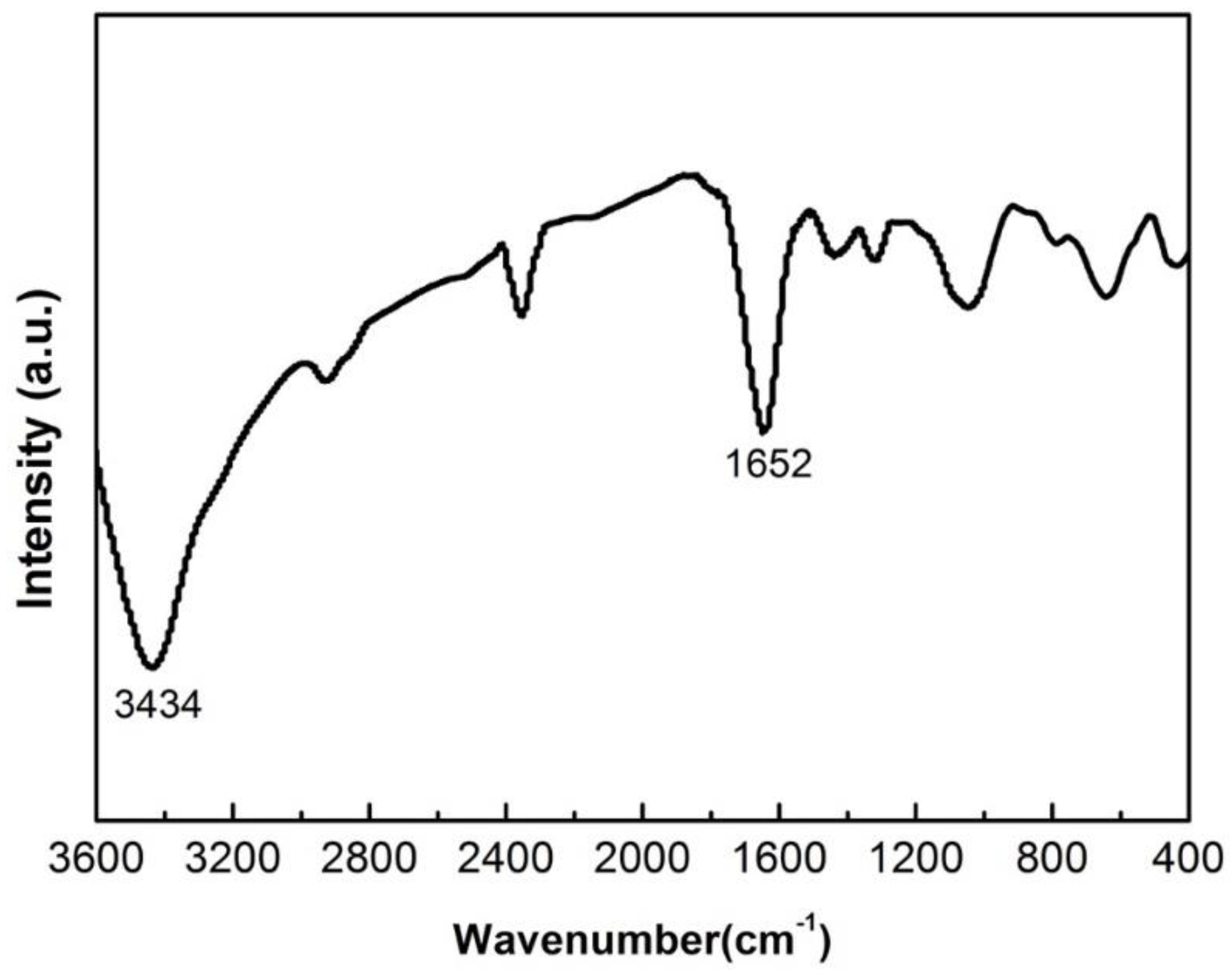

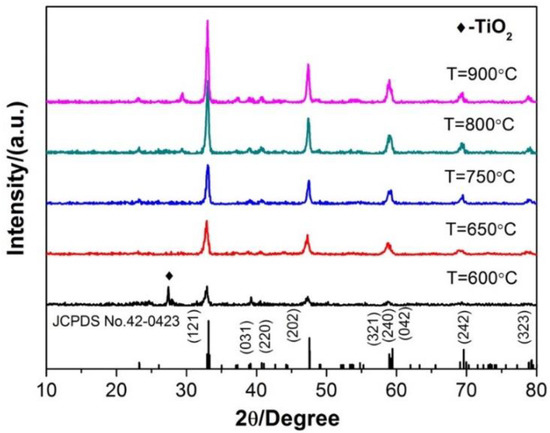

Show Figures

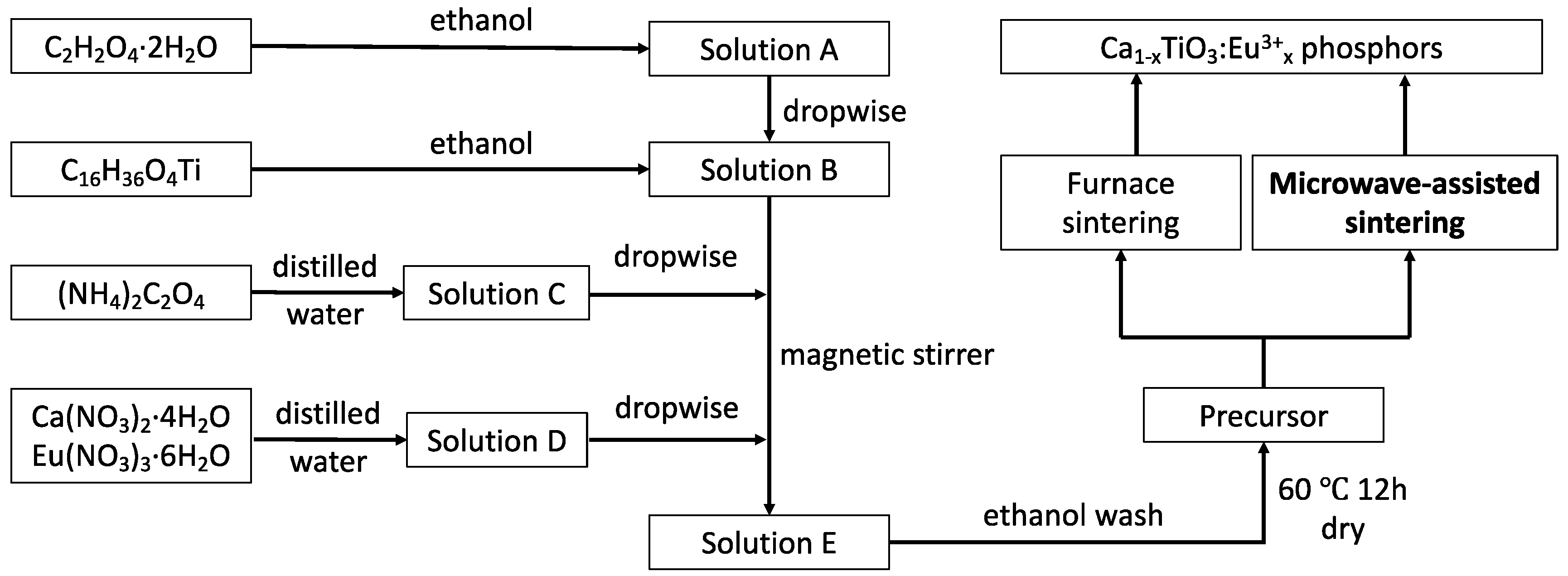

Figure 1

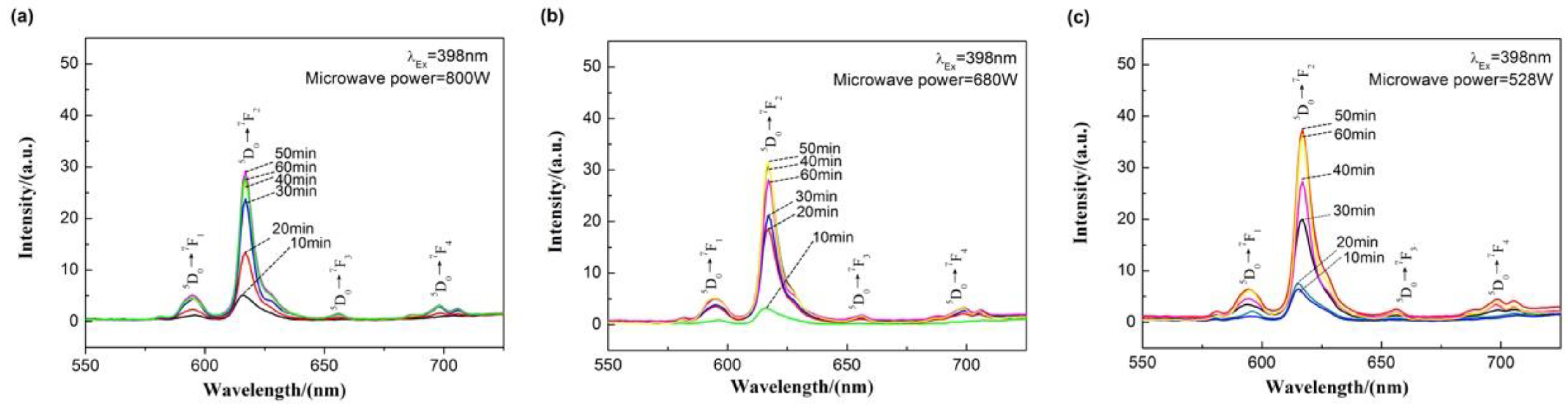

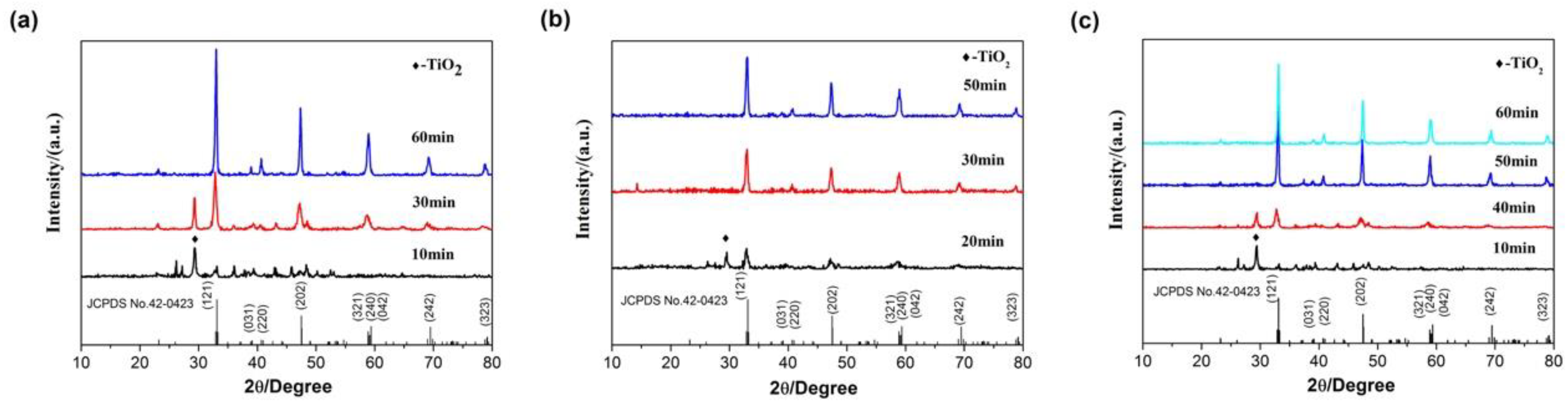

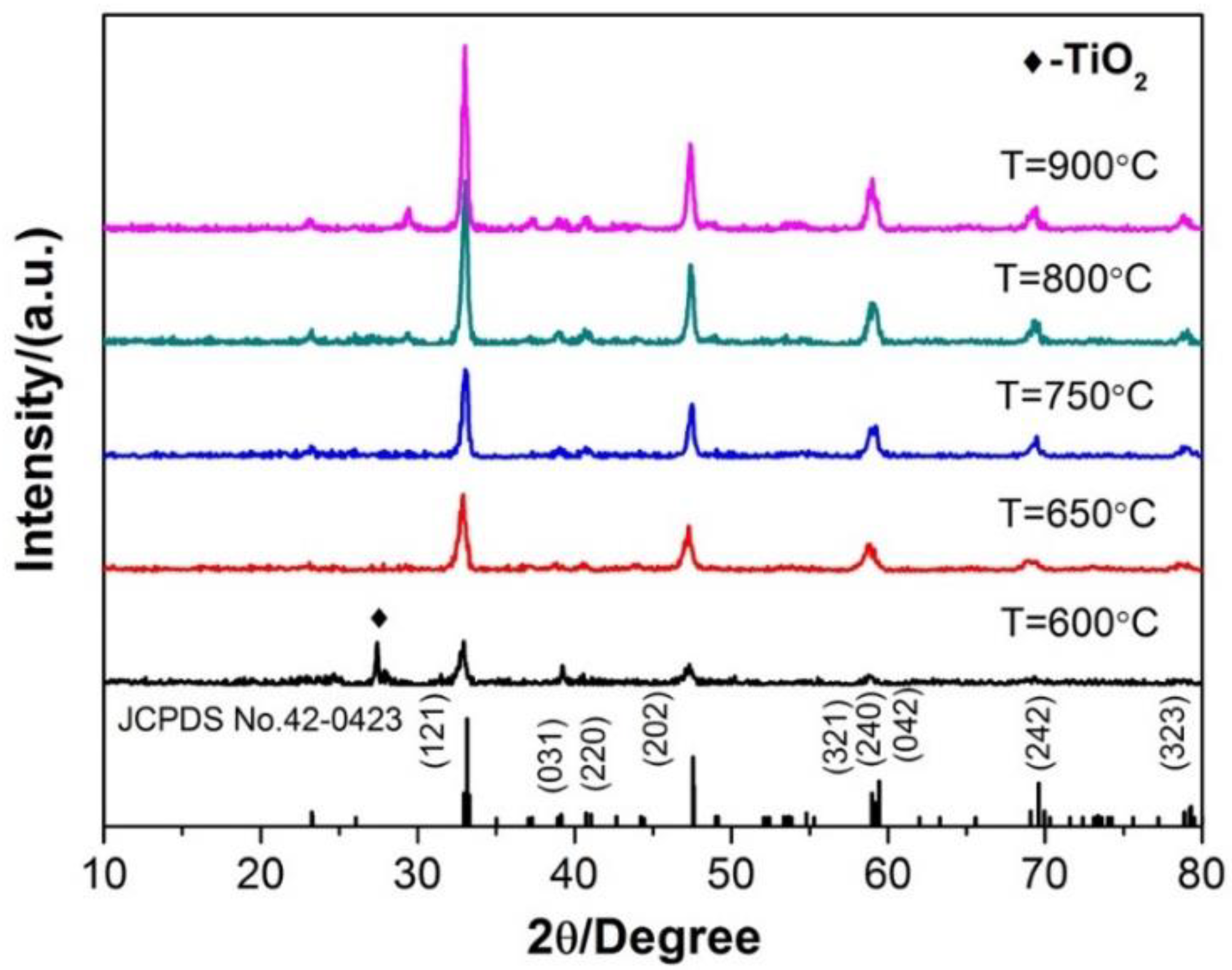

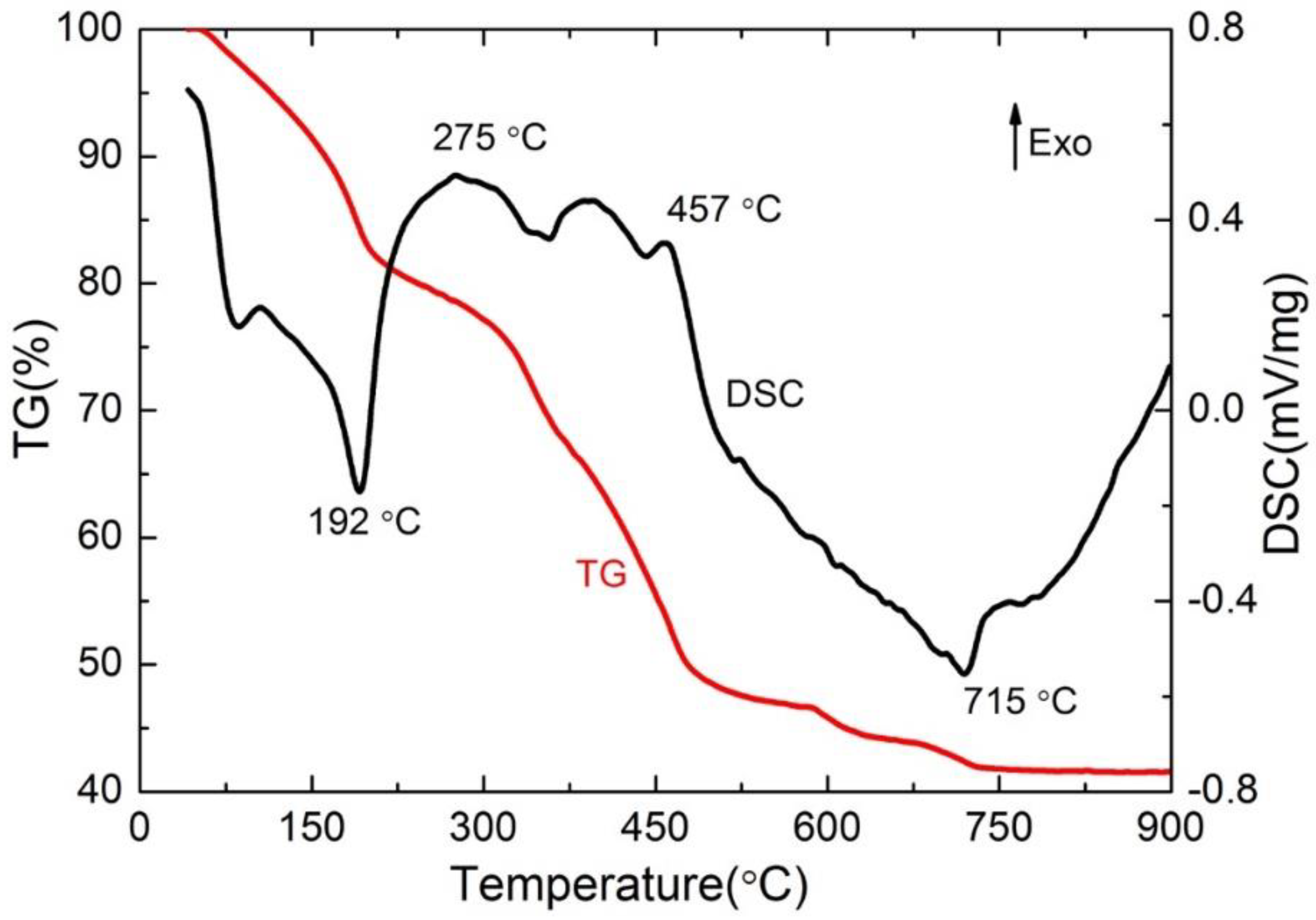

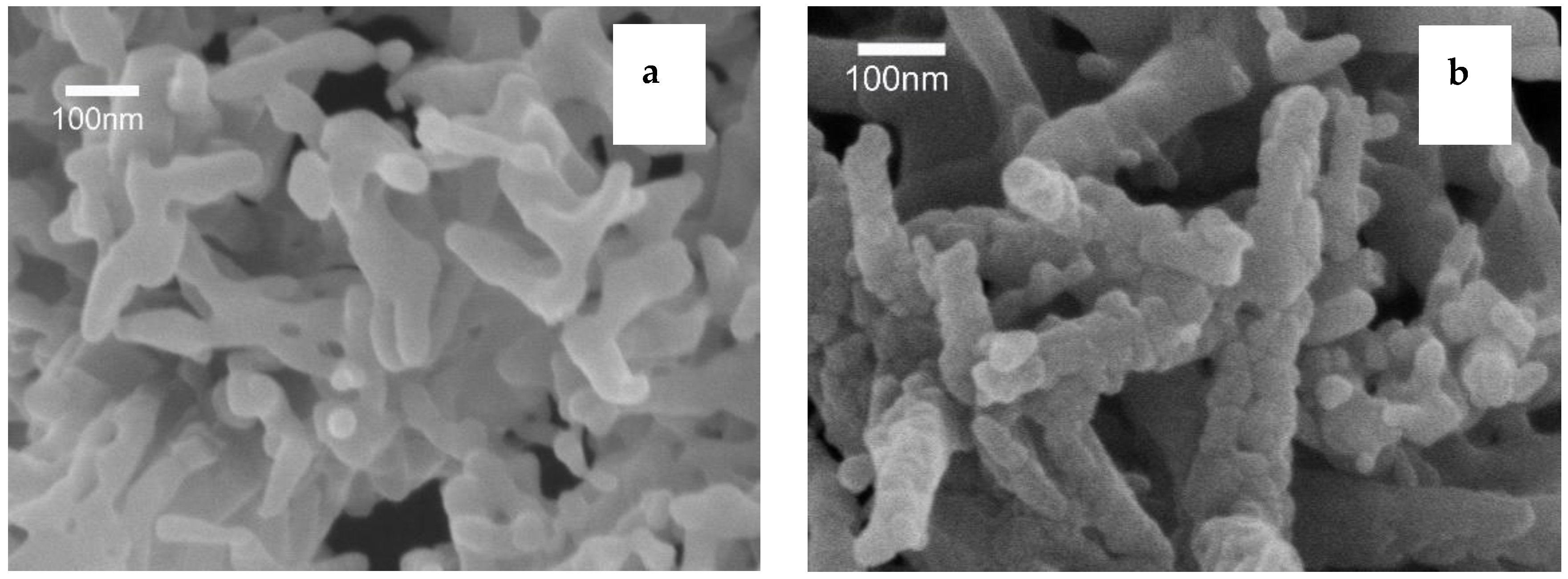

MDPI and ACS Style

Wang, H.; Lu, J.; Wang, R.; Dong, Y.; Ding, L. Synthesis and Characterization of the CaTiO3:Eu3+ Red Phosphor by an Optimized Microwave-Assisted Sintering Process. Materials 2020, 13, 874.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
