Next Article in Journal
An Investigation of Microstructural Evolution, Tensile Properties and Work-Hardening Behavior of Nanosized TiB2/Al-Cu-Mn Composites
Previous Article in Journal
Study of Hydration and Microstructure of Mortar Containing Coral Sand Powder Blended with SCMs
Open AccessArticle

Surface Roughness Influence on Néel-, Crosstie, and Bloch-Type Charged Zigzag Magnetic Domain Walls in Nanostructured Fe Films

1
Laboratory of Magnetism, Department of Science. Physics, Public University of Navarre, Campus Arrosadía s/n, E-31006 Pamplona, Spain
2
Institute for Advanced Materials and Mathematics, INAMAT2, Public University of Navarre, Campus Arrosadía s/n, E-31006 Pamplona, Spain
*
Author to whom correspondence should be addressed.
Materials 2020, 13(19), 4249; https://doi.org/10.3390/ma13194249
Received: 3 September 2020 / Revised: 21 September 2020 / Accepted: 22 September 2020 / Published: 24 September 2020
(This article belongs to the Section Materials Physics)

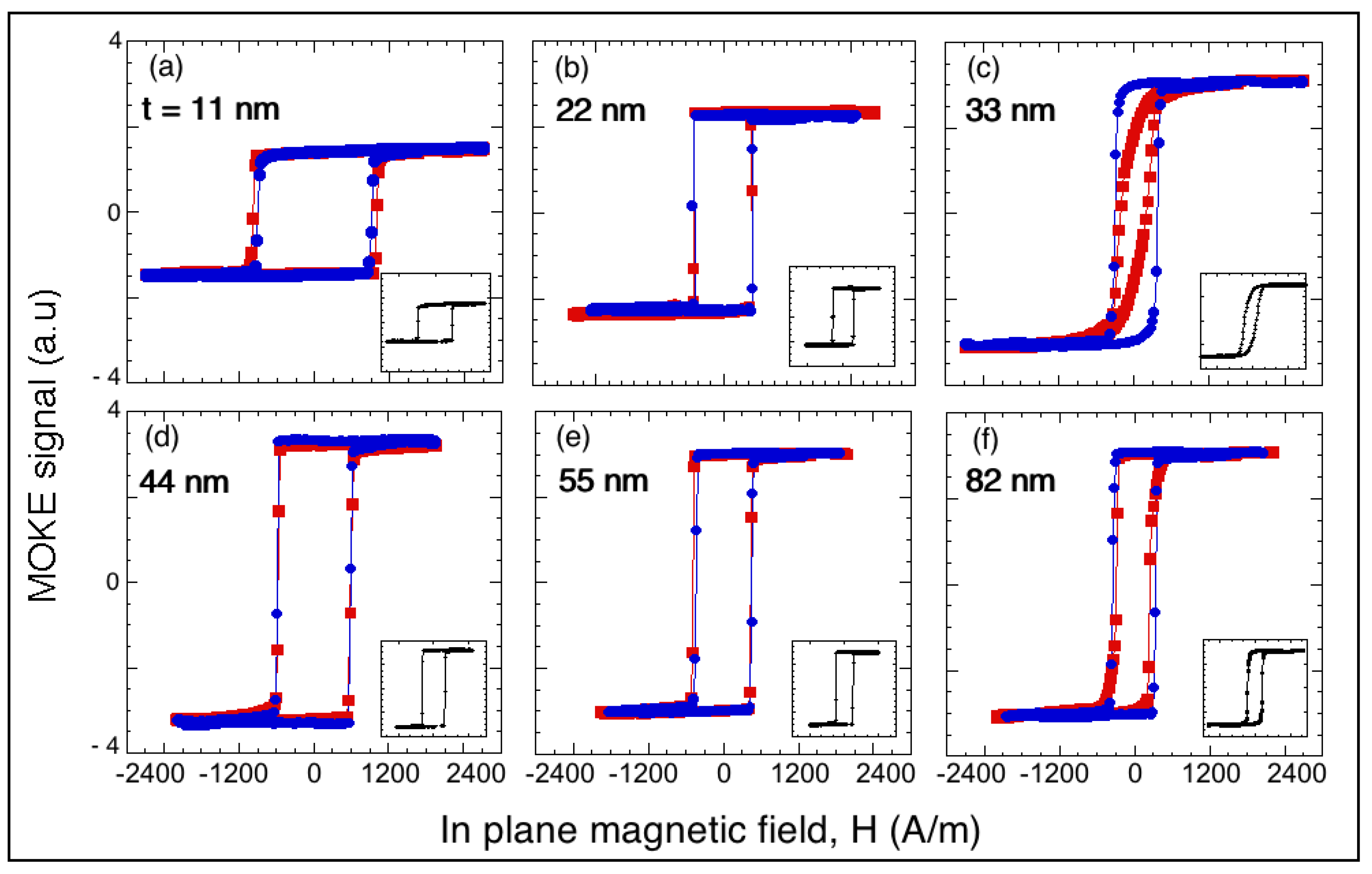

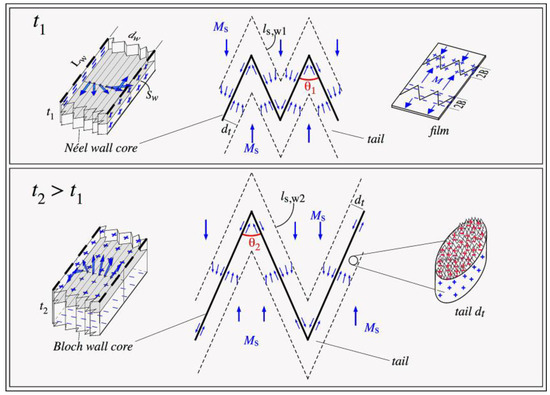

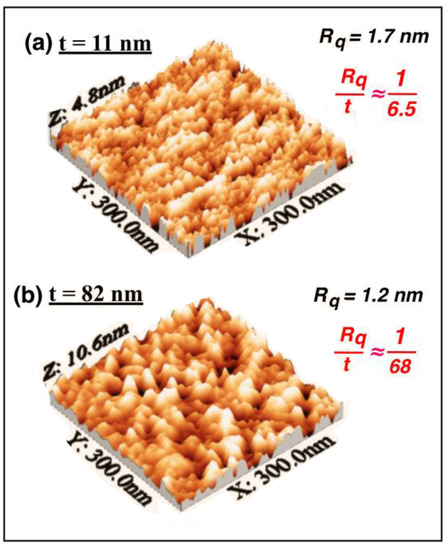

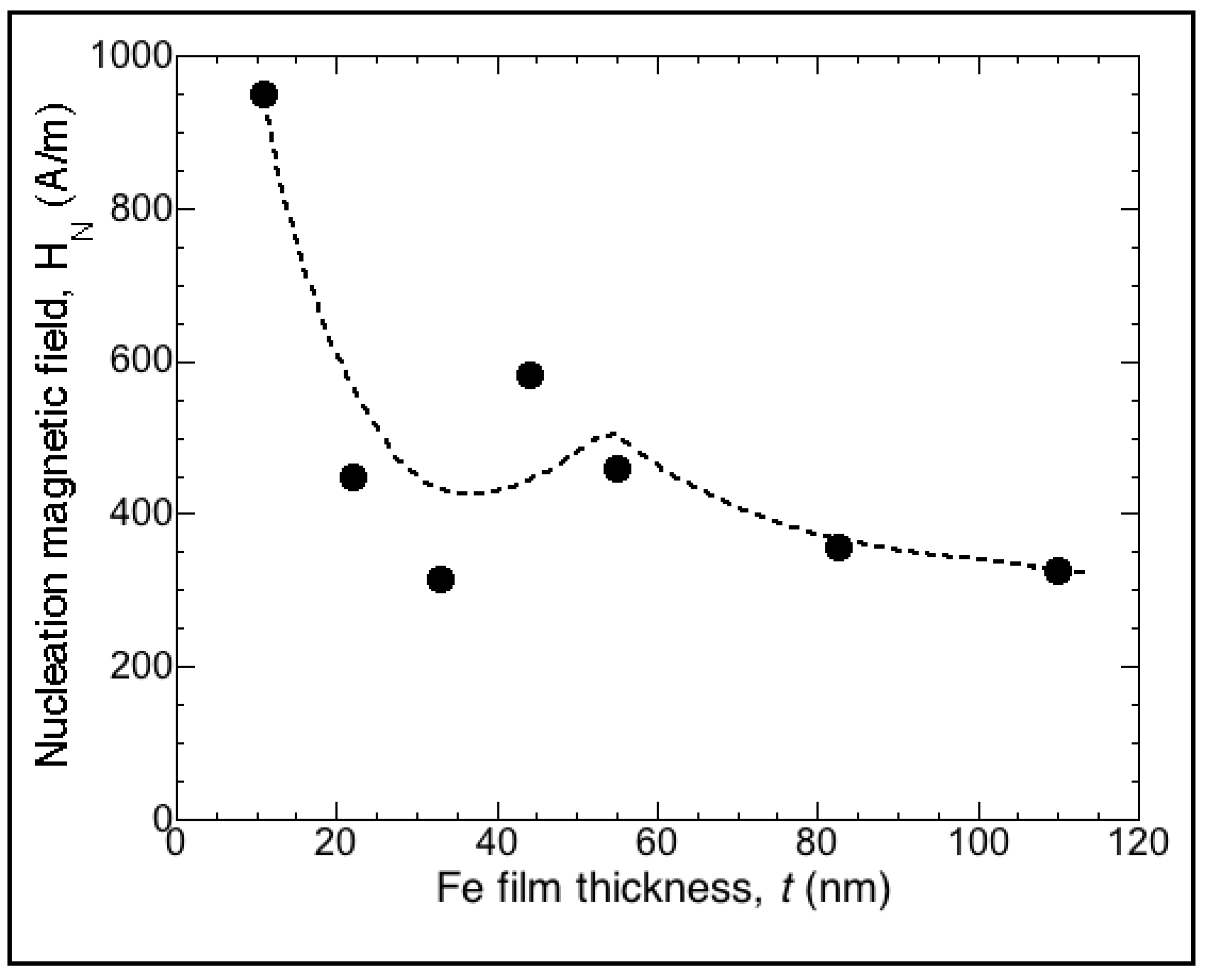

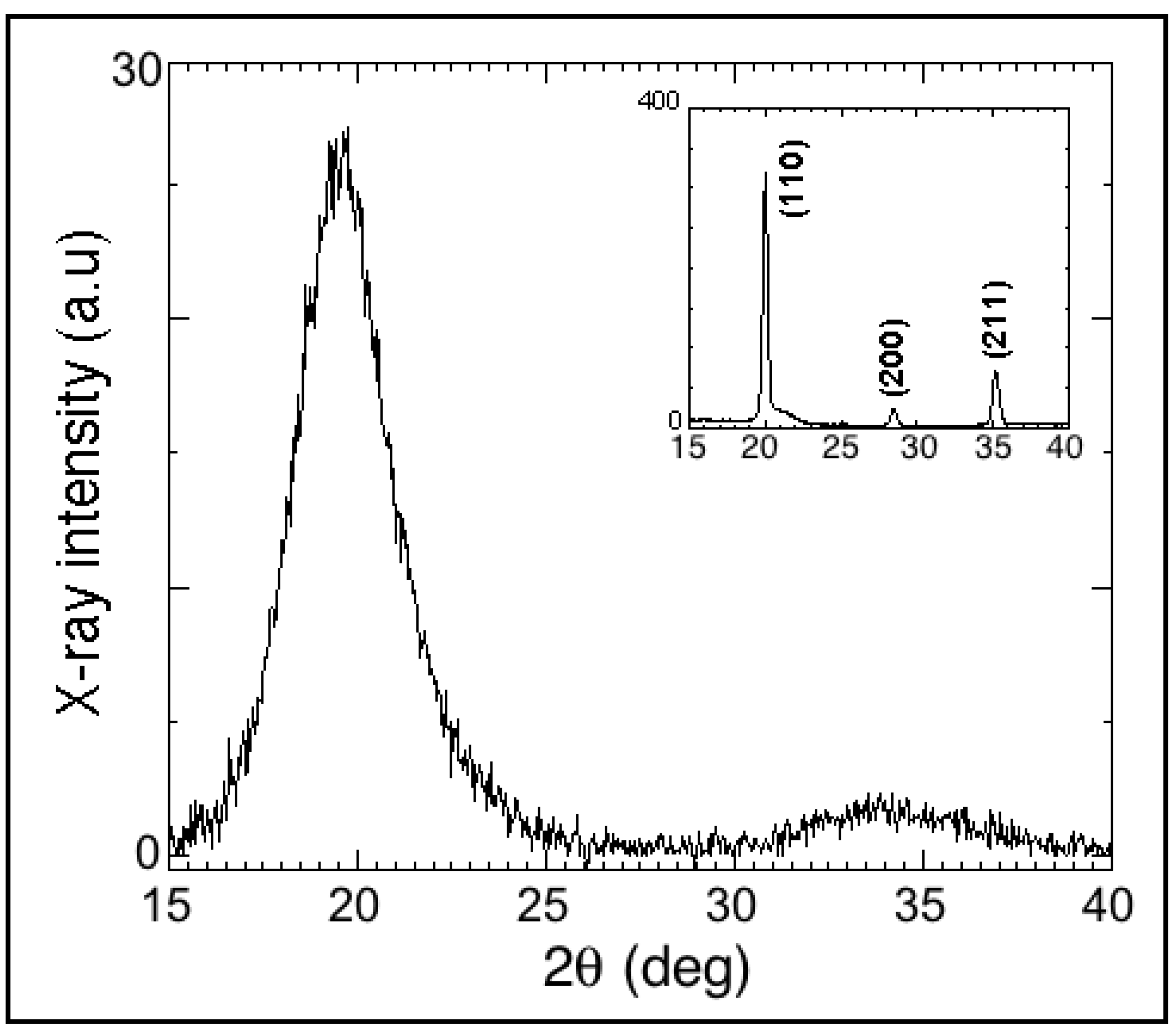

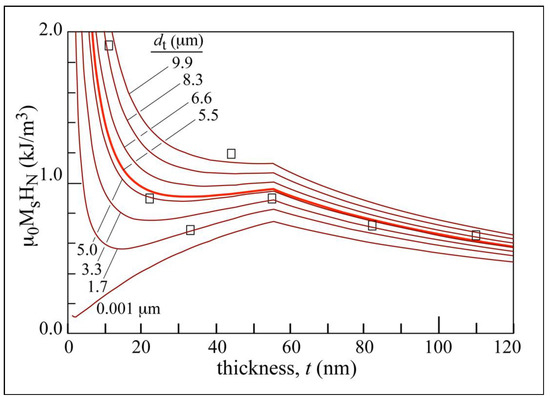

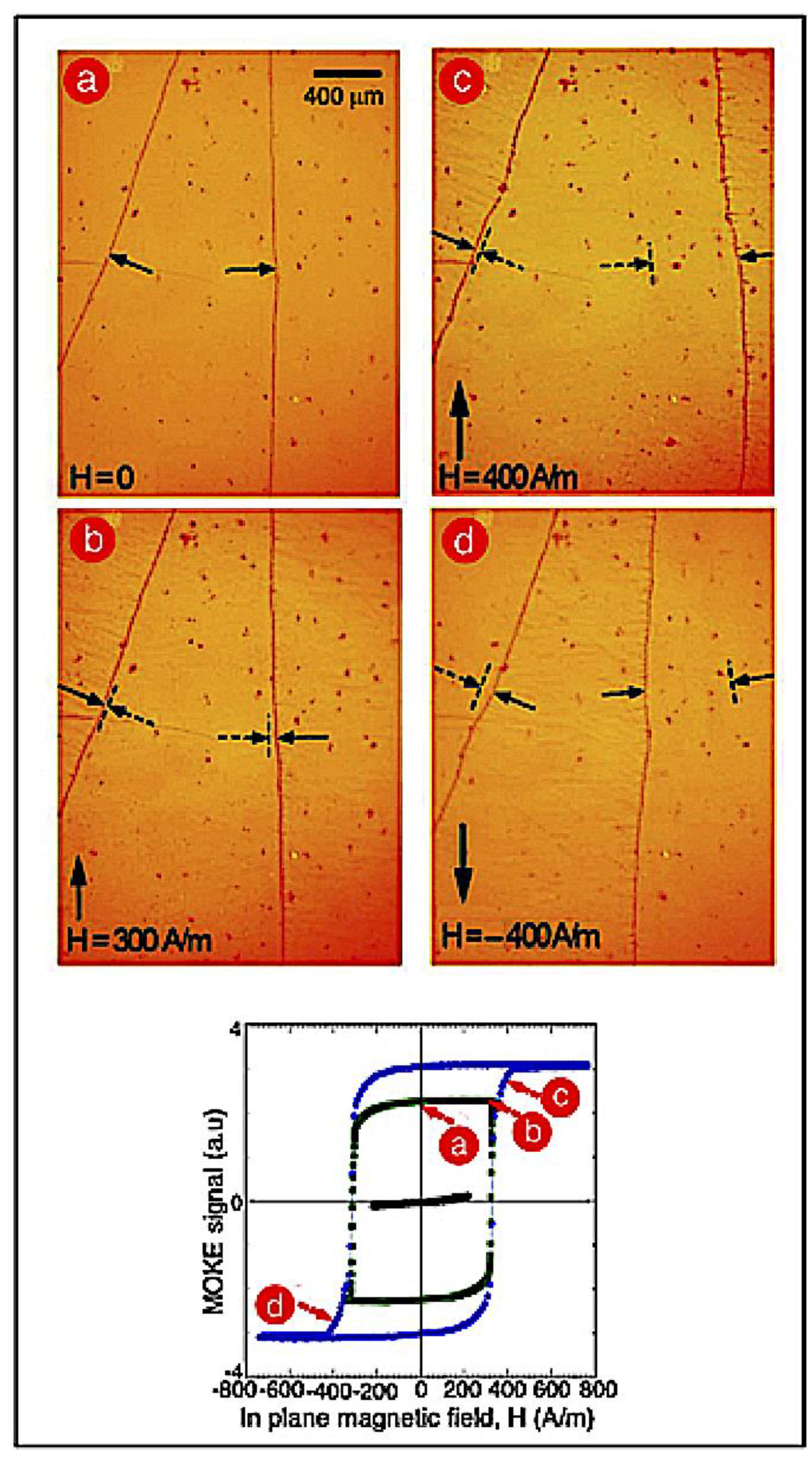

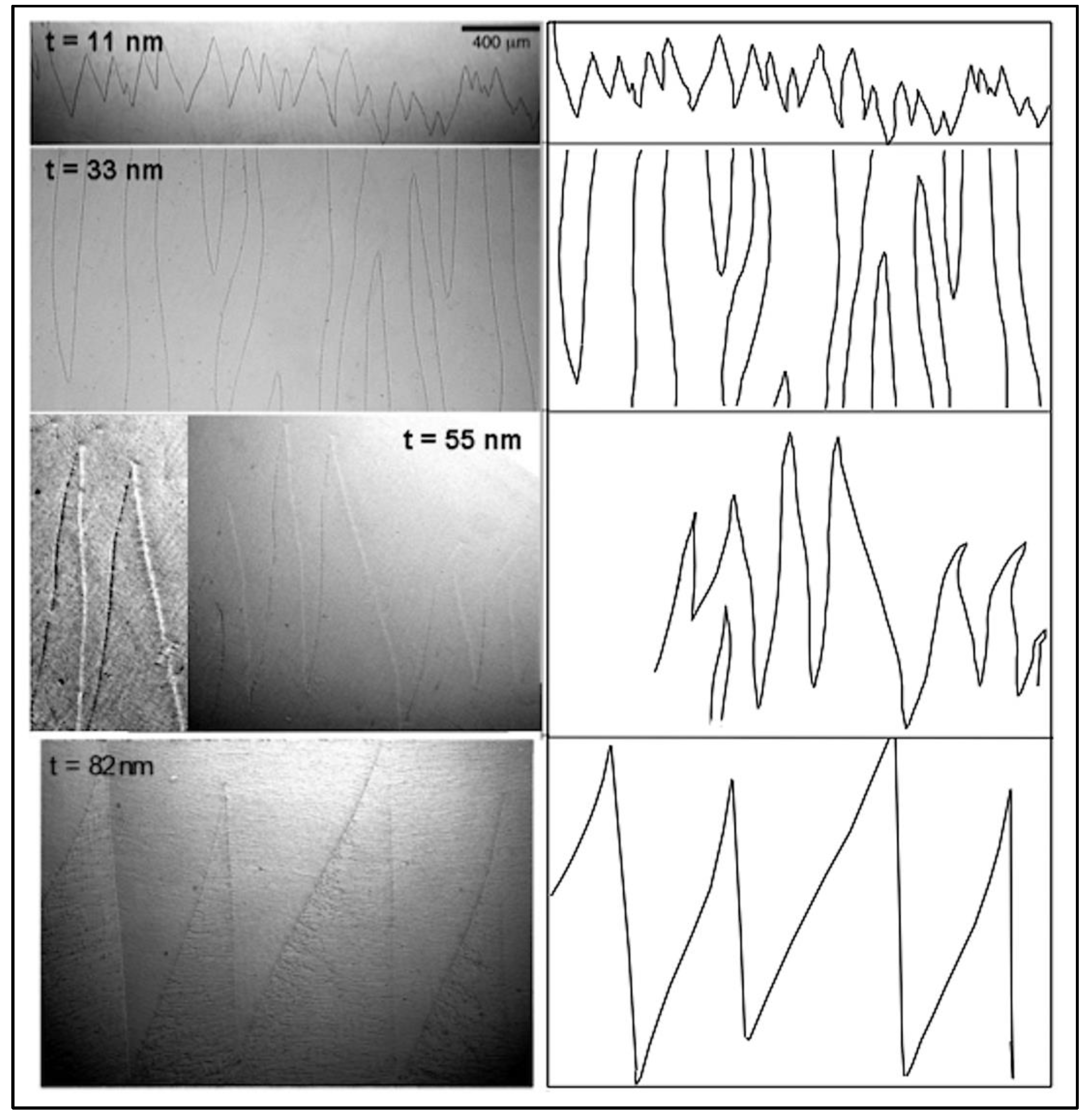

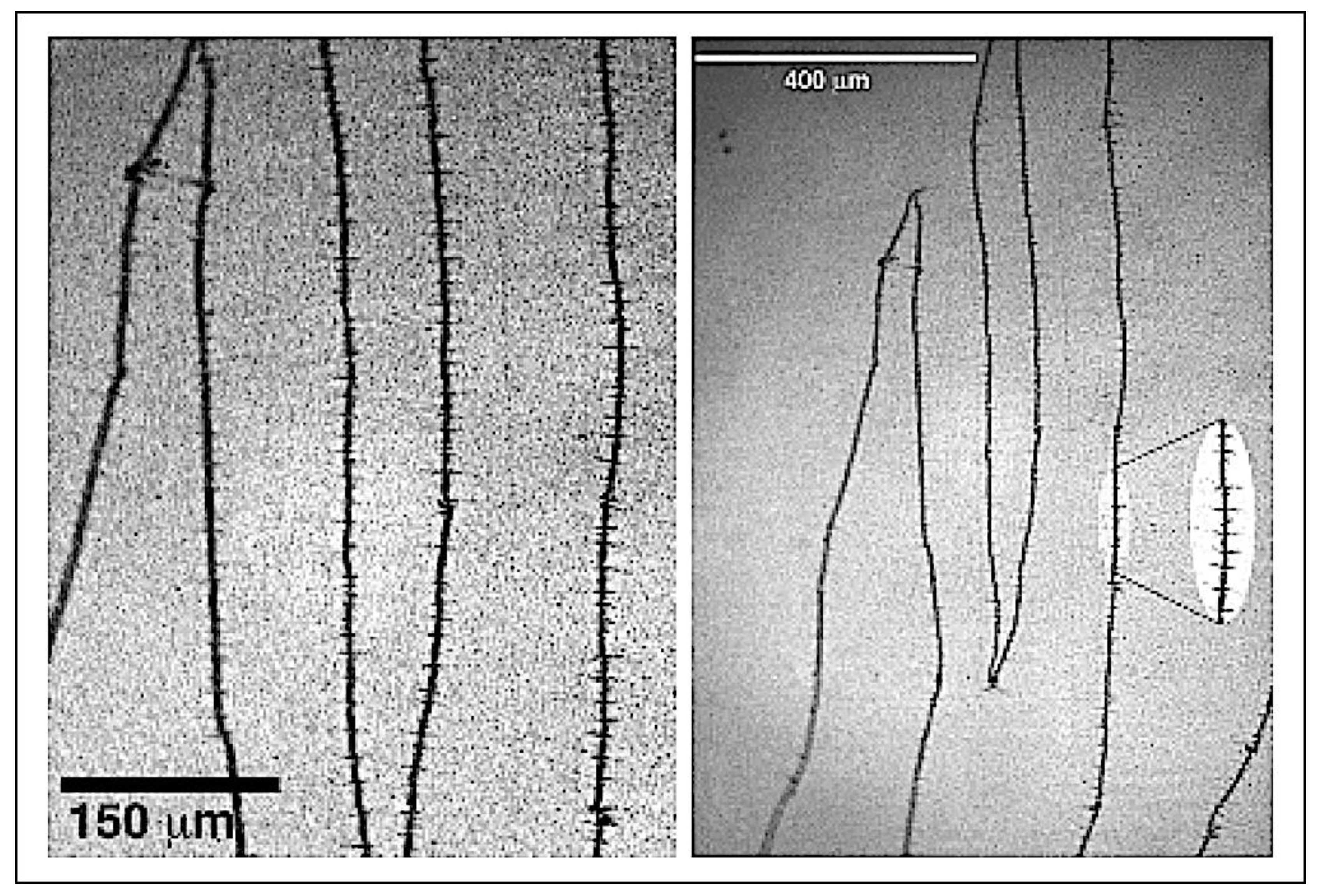

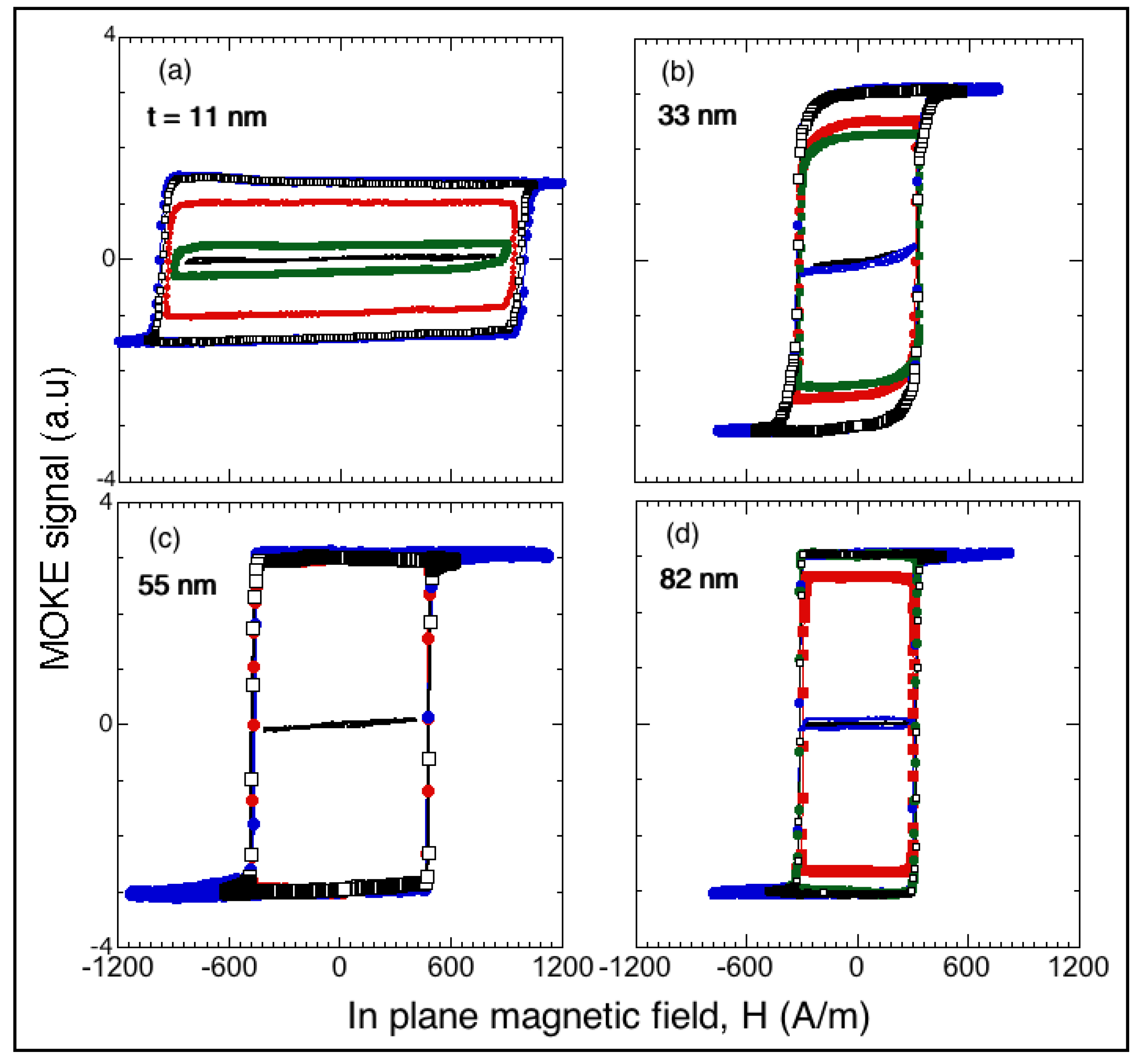

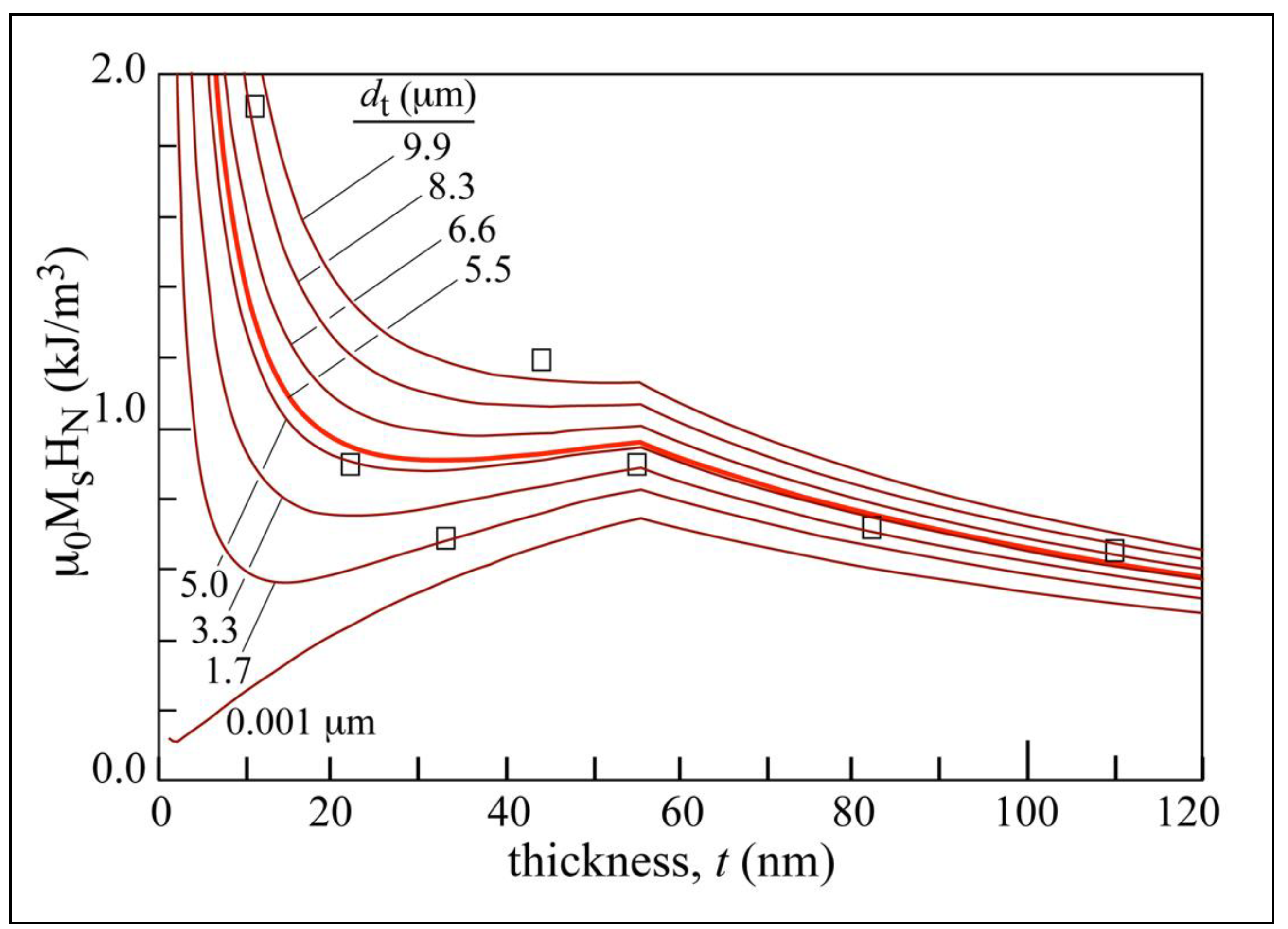

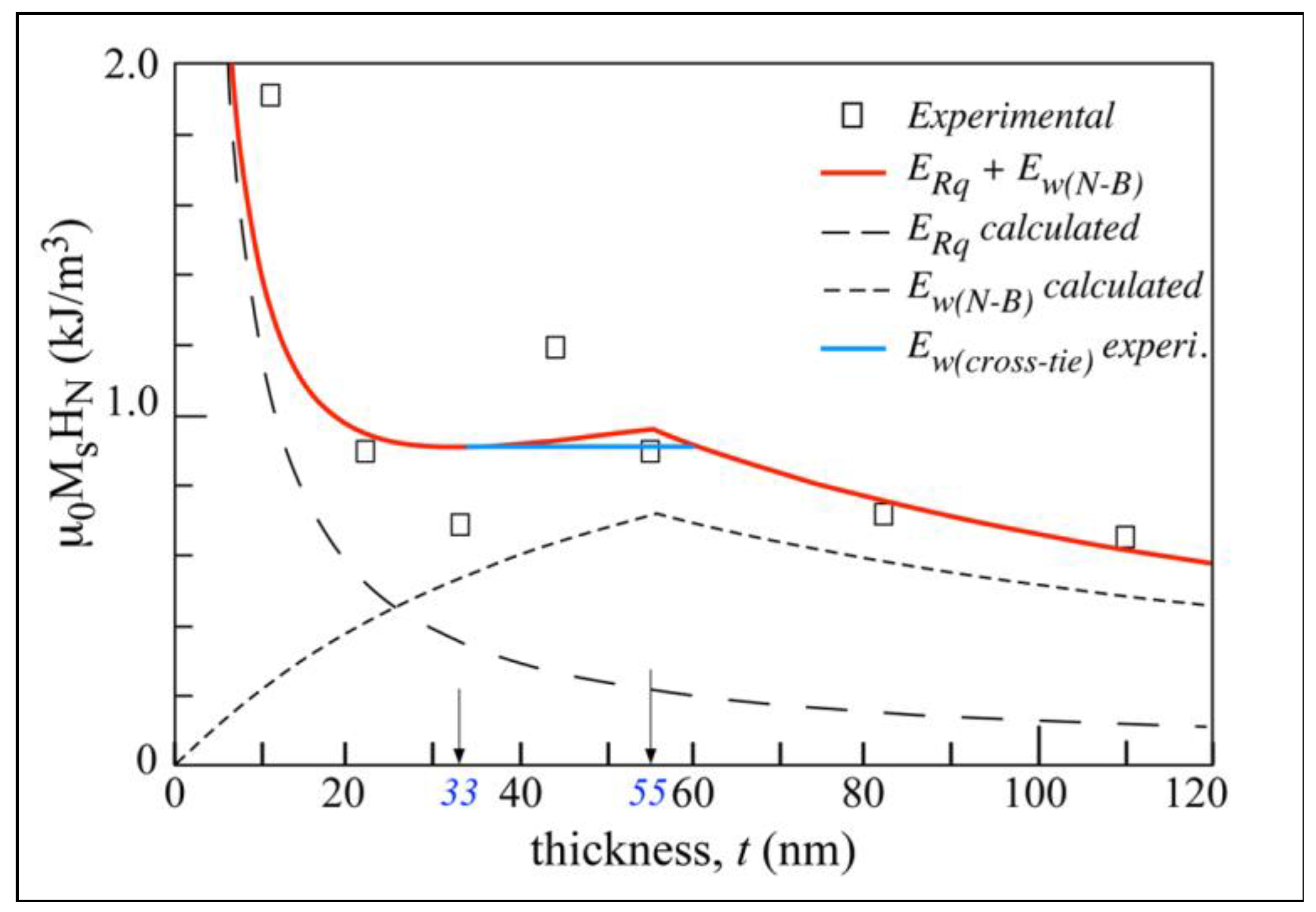

Charged magnetic domain walls have been visualized in soft magnetic nanostructured Fe thin films under both static and dynamic conditions. A transition in the core of these zigzagged magnetic walls from Néel-type to Bloch-type through the formation of crosstie walls has been observed. This transition in charged zigzagged walls was not previously shown experimentally in Fe thin films. For film thicknesses t < 30 nm, Néel-type cores are present, while at t ≈ 33 nm, walls with crosstie cores are observed. At t > 60 nm, Bloch-type cores are observed. Along with the visualization of these critical parameters, the dependence on the film thickness of the characteristic angle and length of the segments of the zigzagged walls has been observed and analyzed. After measuring the bistable magneto-optical behavior, the values of the wall nucleation magnetic field and the surface roughness of the films, an energetic fit to these nucleation values is presented. View Full-Text
Keywords: magnetic thin films; charged domain walls; magneto-optic; roughness energy; magnetic wall energy; pulsed laser deposition (PLD); scanning tunneling microscopy (STM) magnetic thin films; charged domain walls; magneto-optic; roughness energy; magnetic wall energy; pulsed laser deposition (PLD); scanning tunneling microscopy (STM)
Show Figures

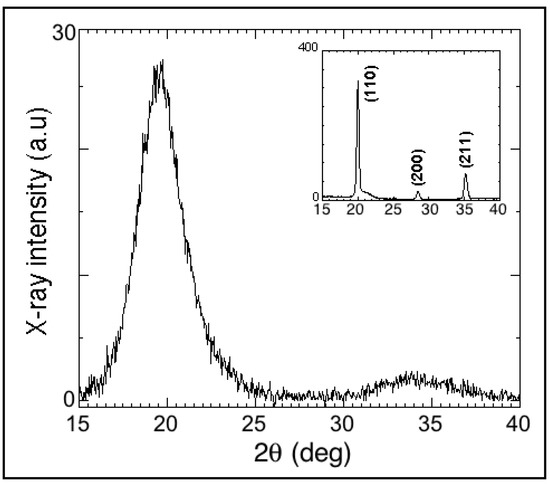

Figure 1

MDPI and ACS Style

Favieres, C.; Vergara, J.; Madurga, V. Surface Roughness Influence on Néel-, Crosstie, and Bloch-Type Charged Zigzag Magnetic Domain Walls in Nanostructured Fe Films. Materials 2020, 13, 4249.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
