Next Article in Journal
Comparative Study on Vibration Fatigue Characteristics of Fuel Tank Material in Fuel and Air Media
Previous Article in Journal
NiO/Carbon Aerogel Microspheres with Plum-Pudding Structure as Anode Materials for Lithium Ion Batteries
Open AccessArticle

Influence of Pore-Size Distribution on the Resistance of Clay Brick to Freeze–Thaw Cycles

1
Faculty of Civil Engineering and Architecture Osijek, Josip Juraj Strossmayer University of Osijek, Vladimira Preloga 3, 31000 Osijek, Croatia
2
Laboratory for Materials Testing, Civil Engineering Institute of Croatia, Drinska 18, 31000 Osijek, Croatia
3
Faculty of Technology, University of Novi Sad, bul cara Lazara 1, 21000 Novi Sad, Serbia
*
Author to whom correspondence should be addressed.
Materials 2020, 13(10), 2364; https://doi.org/10.3390/ma13102364
Received: 28 April 2020 / Revised: 18 May 2020 / Accepted: 19 May 2020 / Published: 21 May 2020

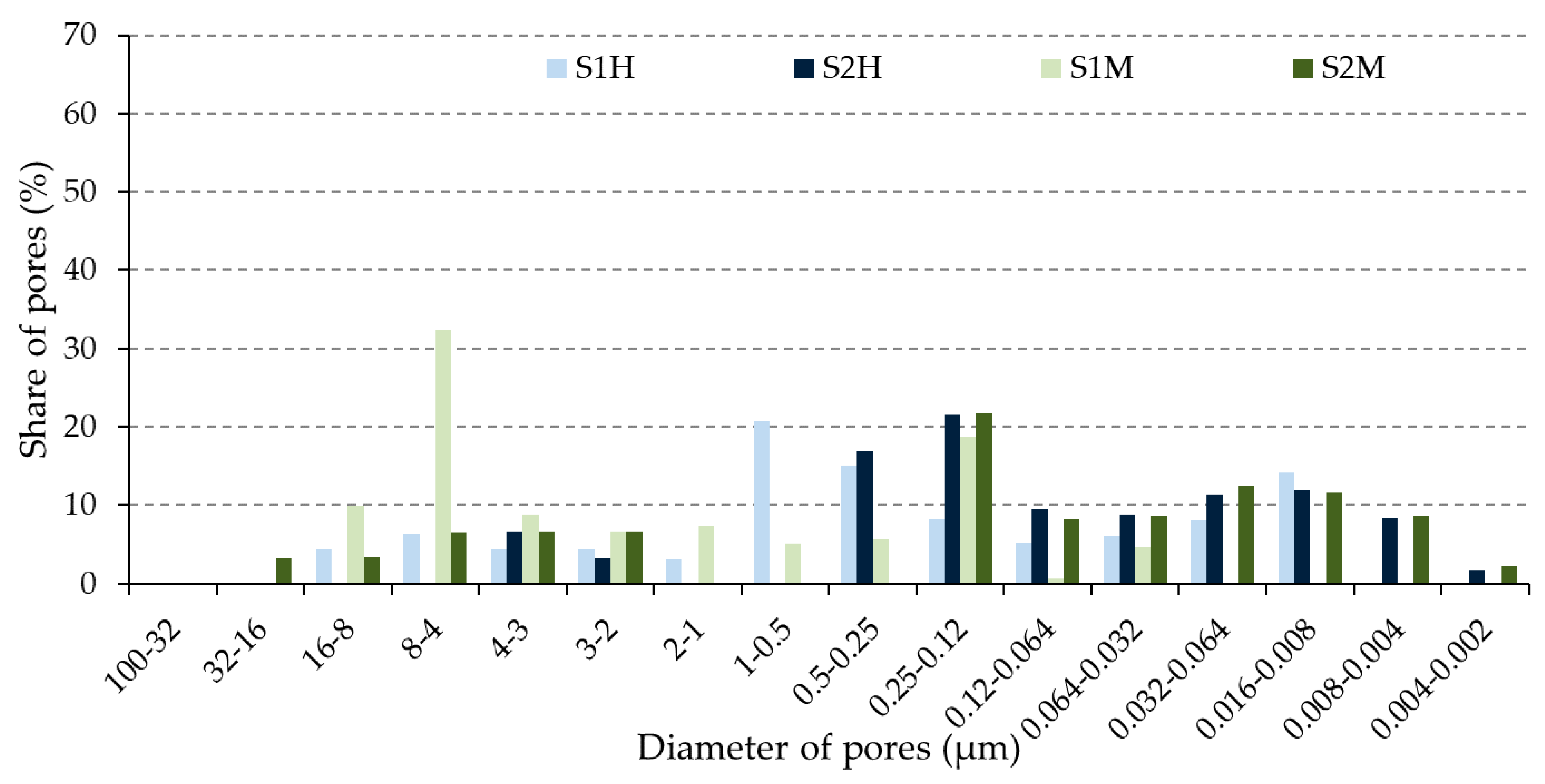

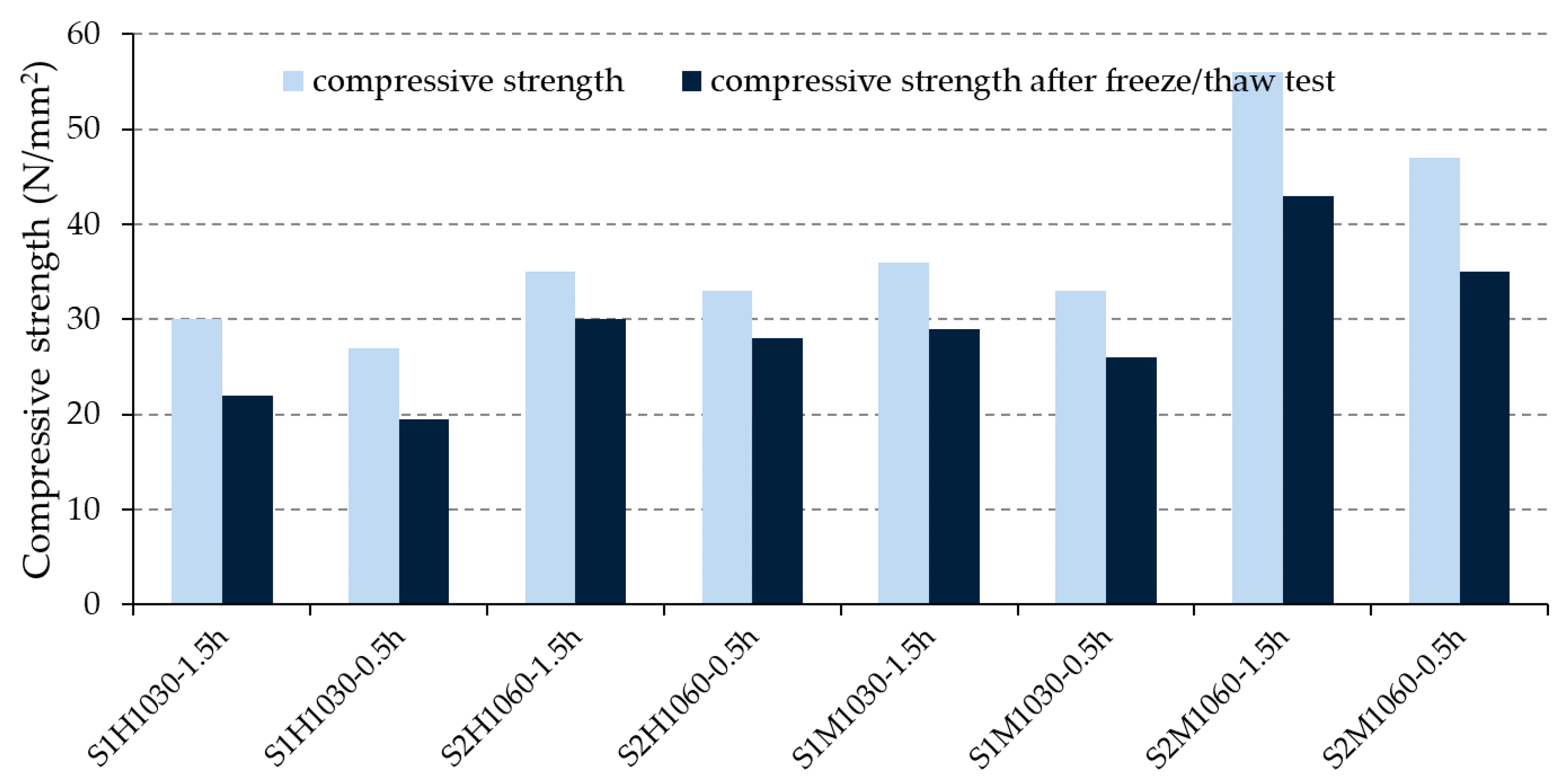

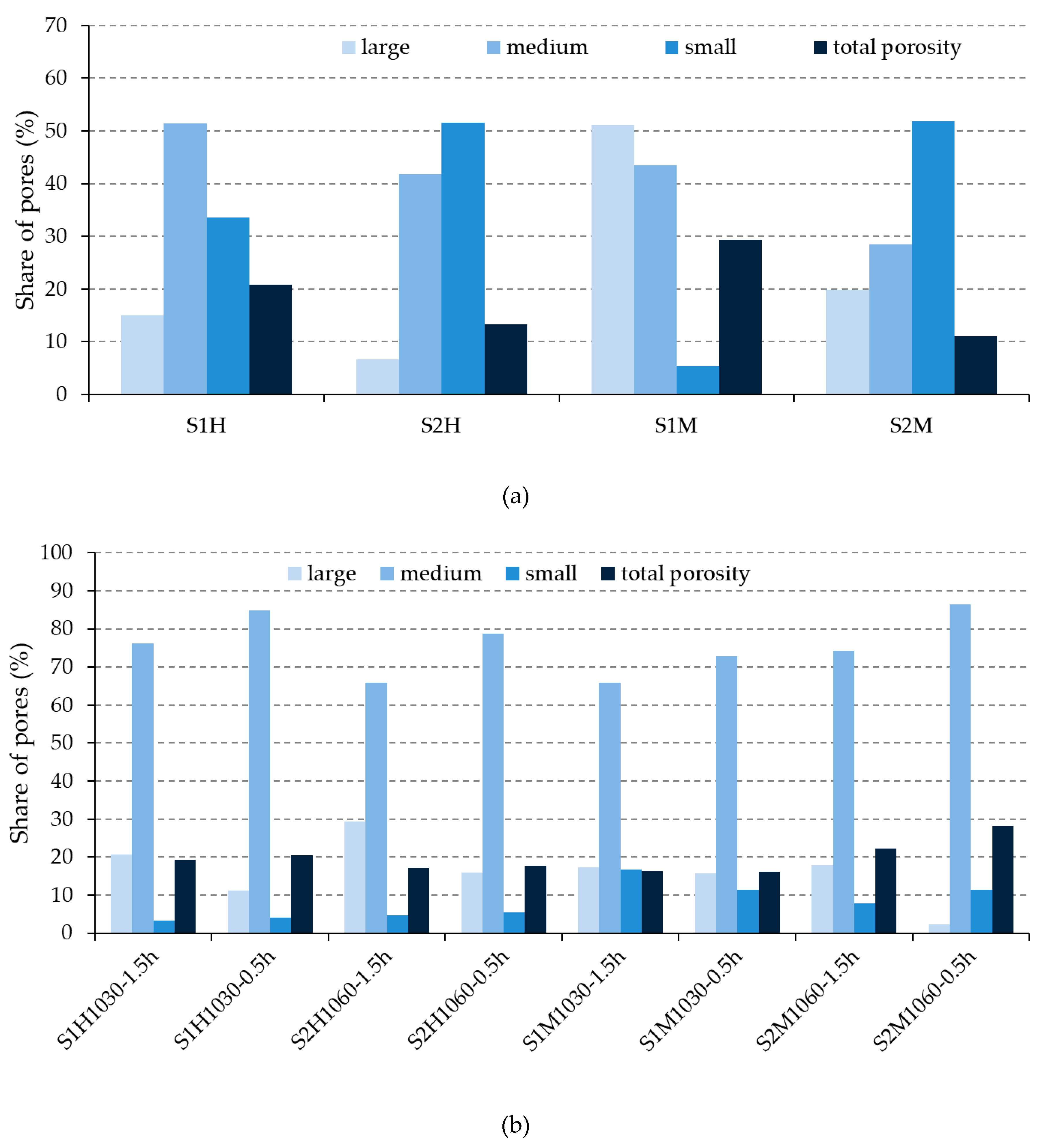

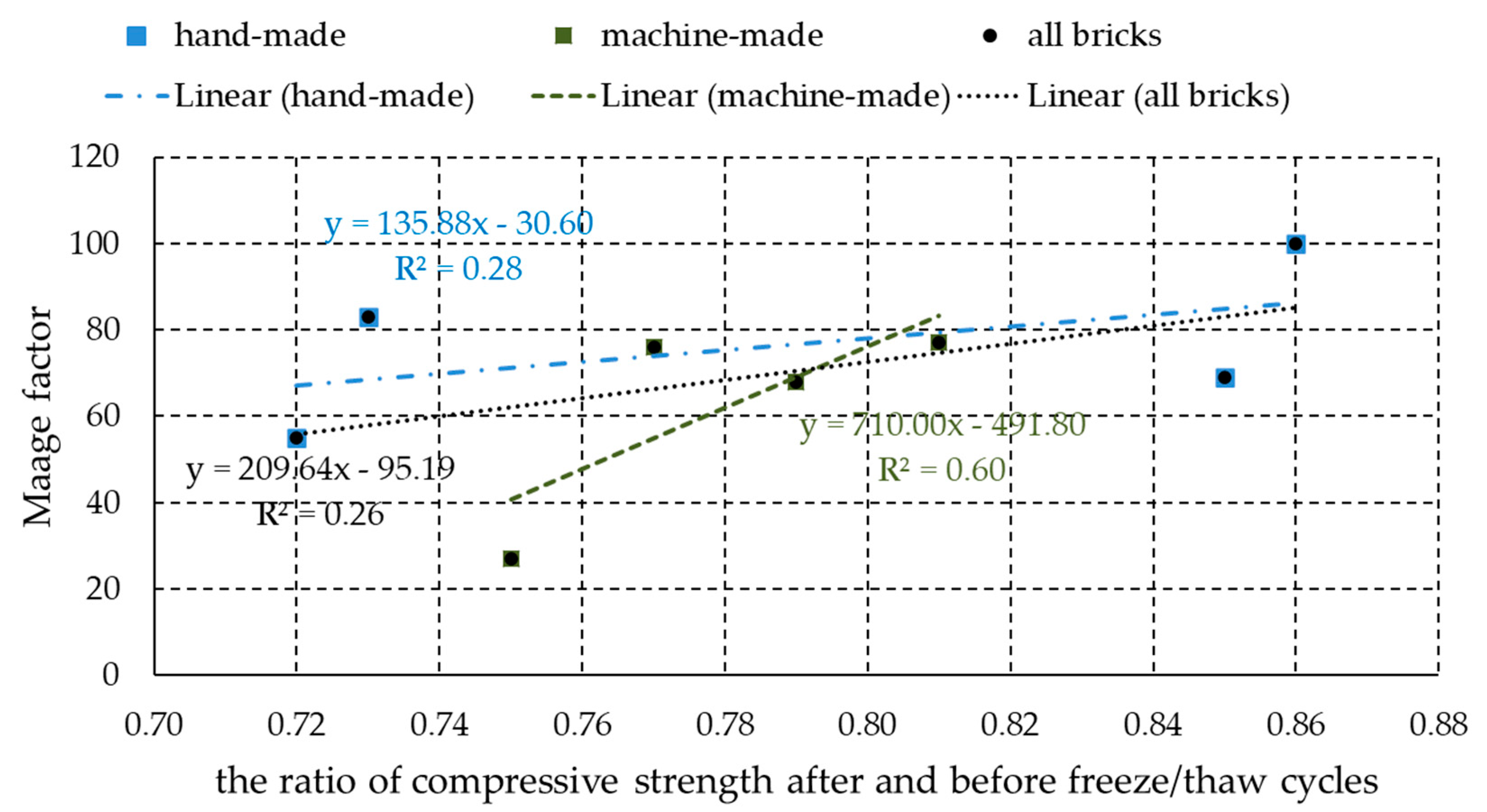

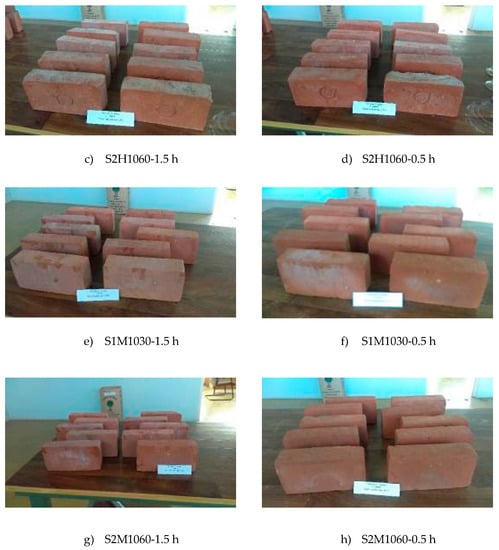

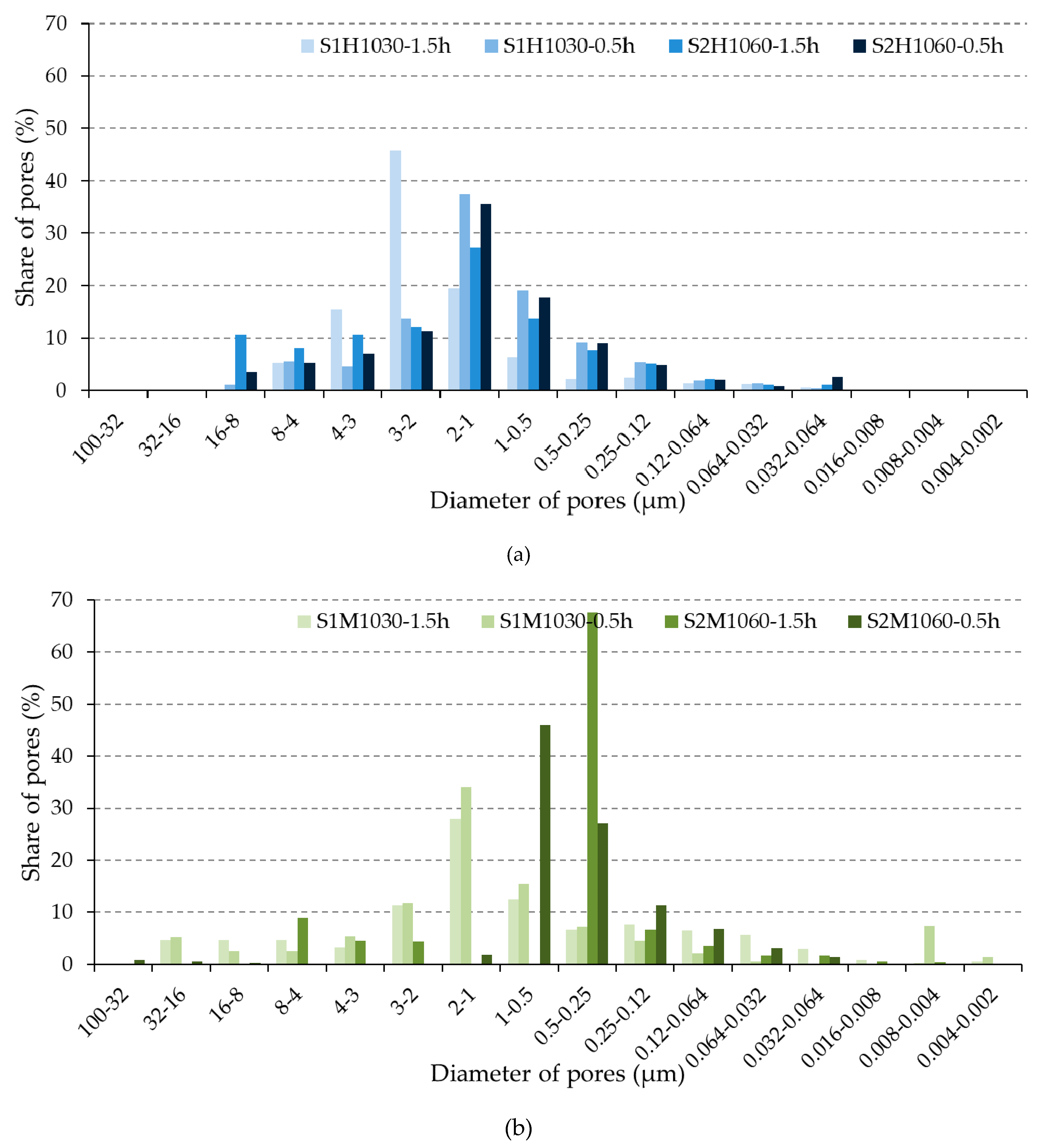

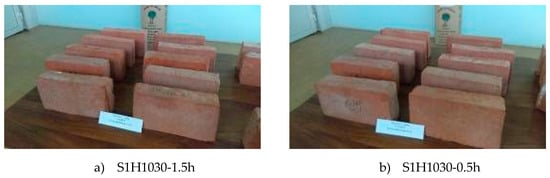

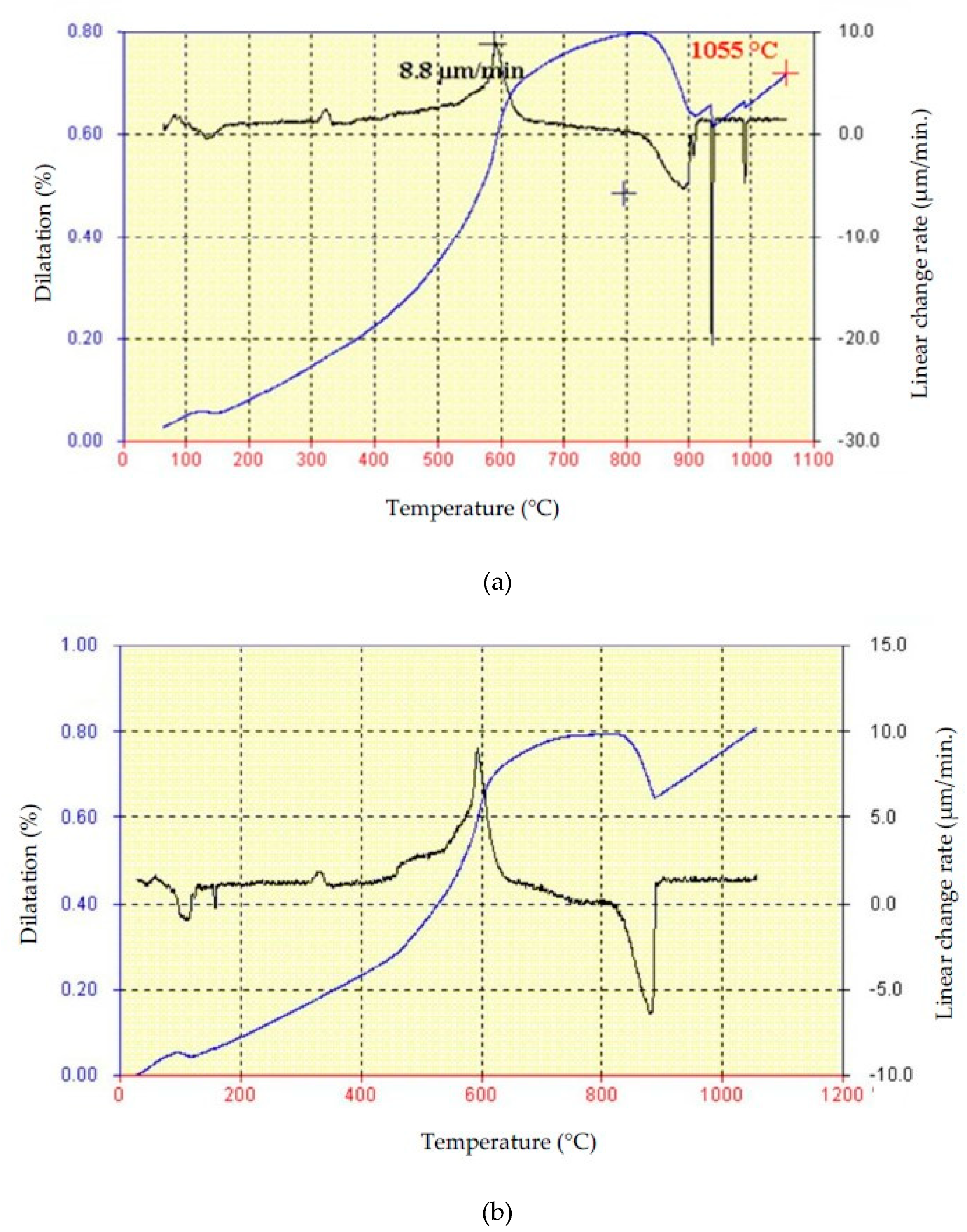

This study examines the influence of raw material characteristics, methods of shaping and of parameters of firing process of clay bricks, on pore-size distribution and on resistance to freeze–thaw cycles (with particular emphasis on the retention time of the specimens at the maximum achieved temperature). Pore-size distribution was measured by mercury-intrusion porosimetry, while the resistance to freeze–thaw cycles was assessed by exposing the bricks to freeze–thaw cycles (HRN B.D8.011 standard) monitoring the appearance of surface changes, decrease of compressive strength as well as the Maage factor. A correlation was set up between the Maage factor and the ratio of the compressive strength before and after freezing as a quantitative indicator of bricks resistance to frost. By using this correlation for all the examined bricks, regardless of their raw material and shaping procedure, a low coefficient of correlation (R2 = 0.26) was obtained. When processed separately, machine-made bricks had a significantly higher correlation coefficient value (R2 = 0.60) than the hand-made bricks (R2 = 0.28). View Full-Text
Keywords: clay bricks; resistance to freeze–thaw cycles; raw materials; shaping procedure; firing regime; pore-size distribution; compressive strength; Maage factor clay bricks; resistance to freeze–thaw cycles; raw materials; shaping procedure; firing regime; pore-size distribution; compressive strength; Maage factor

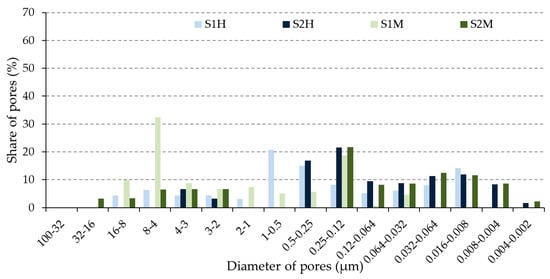

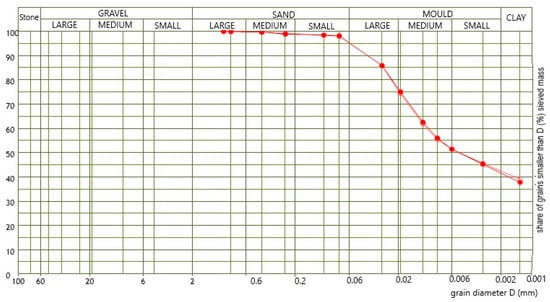

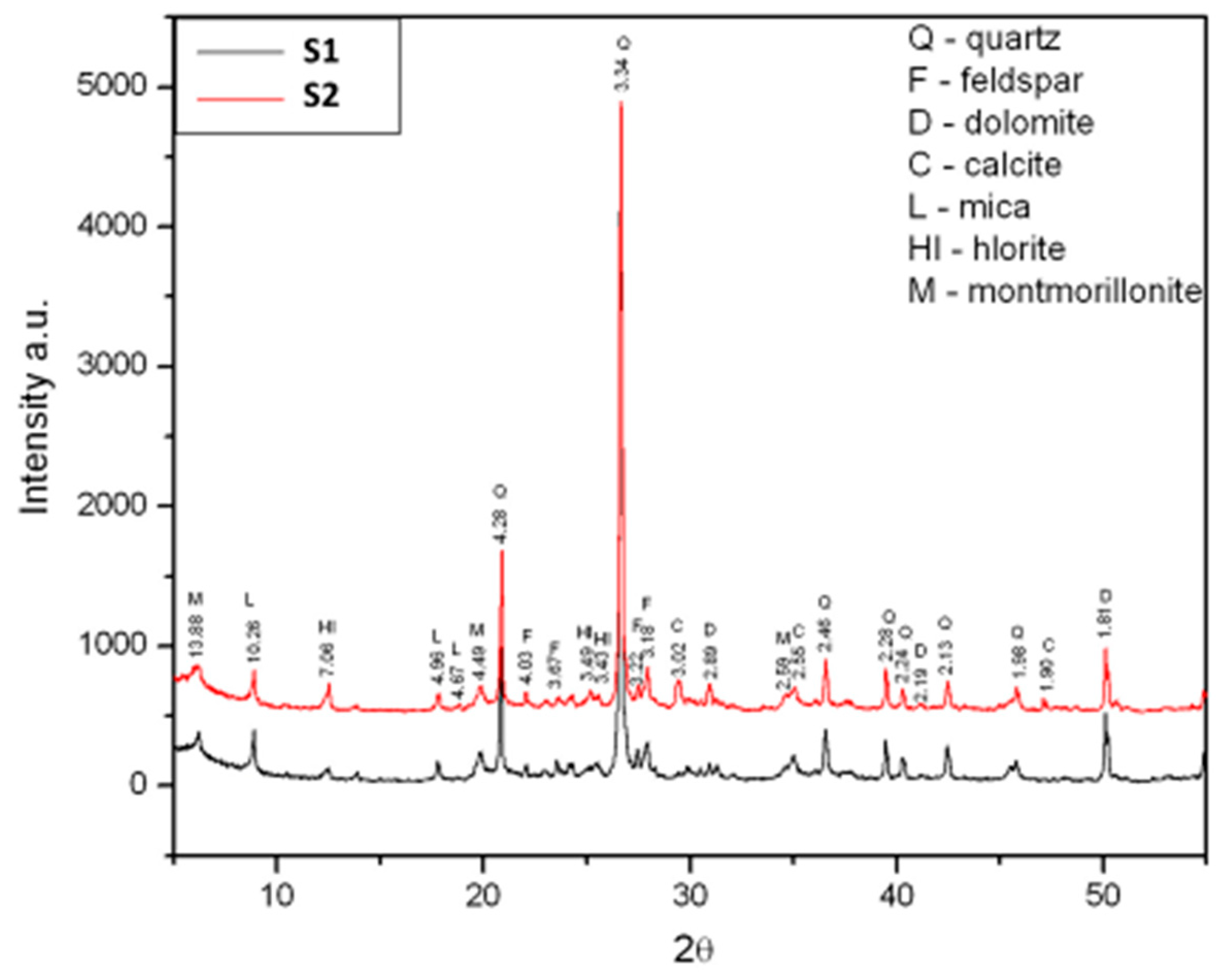

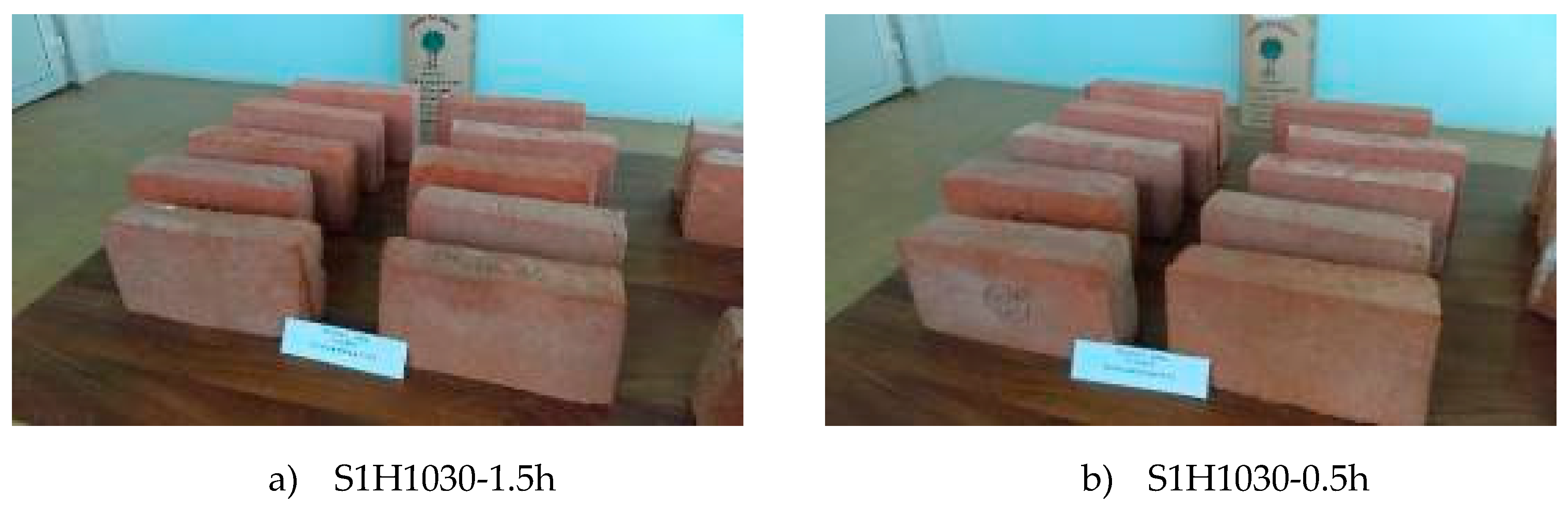

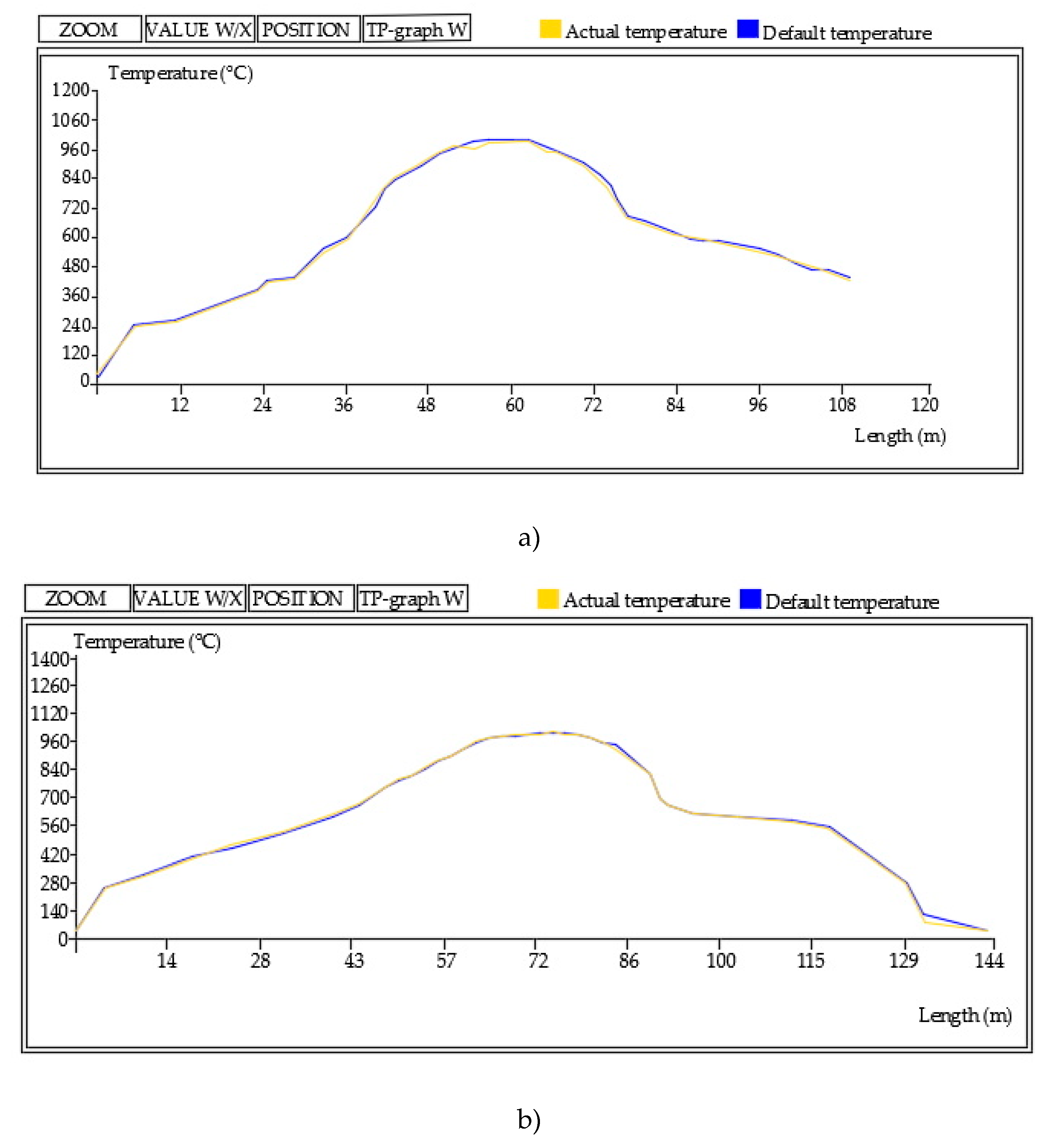

Show Figures

Figure 1

MDPI and ACS Style

Netinger Grubeša, I.; Vračević, M.; Ranogajec, J.; Vučetić, S. Influence of Pore-Size Distribution on the Resistance of Clay Brick to Freeze–Thaw Cycles. Materials 2020, 13, 2364.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
