Development and Validation of a Calibration Gauge for Length Measurement Systems

Design and Manufacturing Engineering Department, Universidad de Zaragoza, María Luna 3, 50018 Zaragoza, Spain
*
Author to whom correspondence should be addressed.
Materials 2019, 12(23), 3960; https://doi.org/10.3390/ma12233960
Received: 31 October 2019 / Revised: 22 November 2019 / Accepted: 27 November 2019 / Published: 29 November 2019

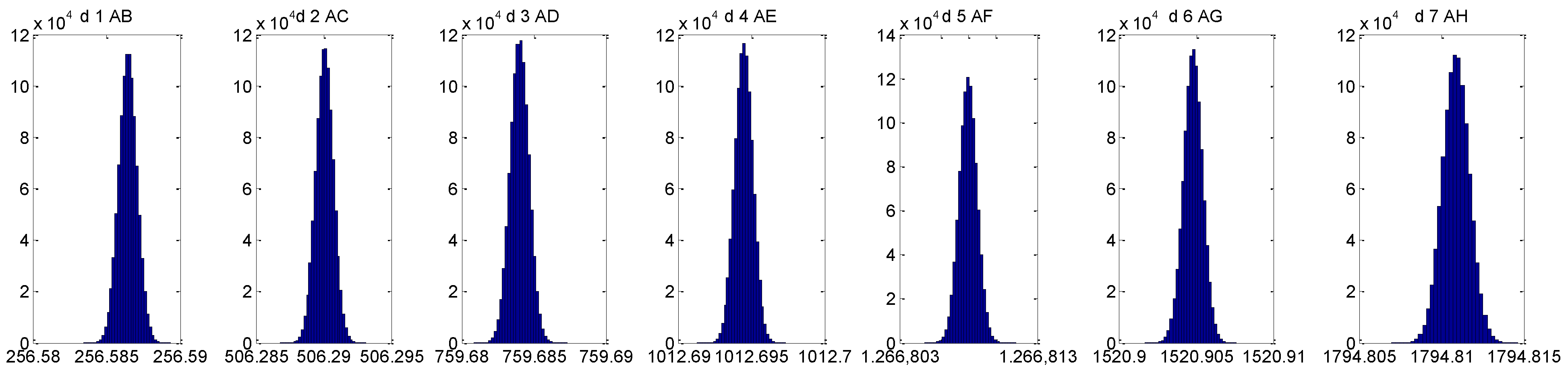

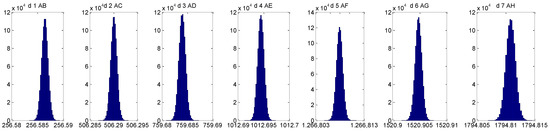

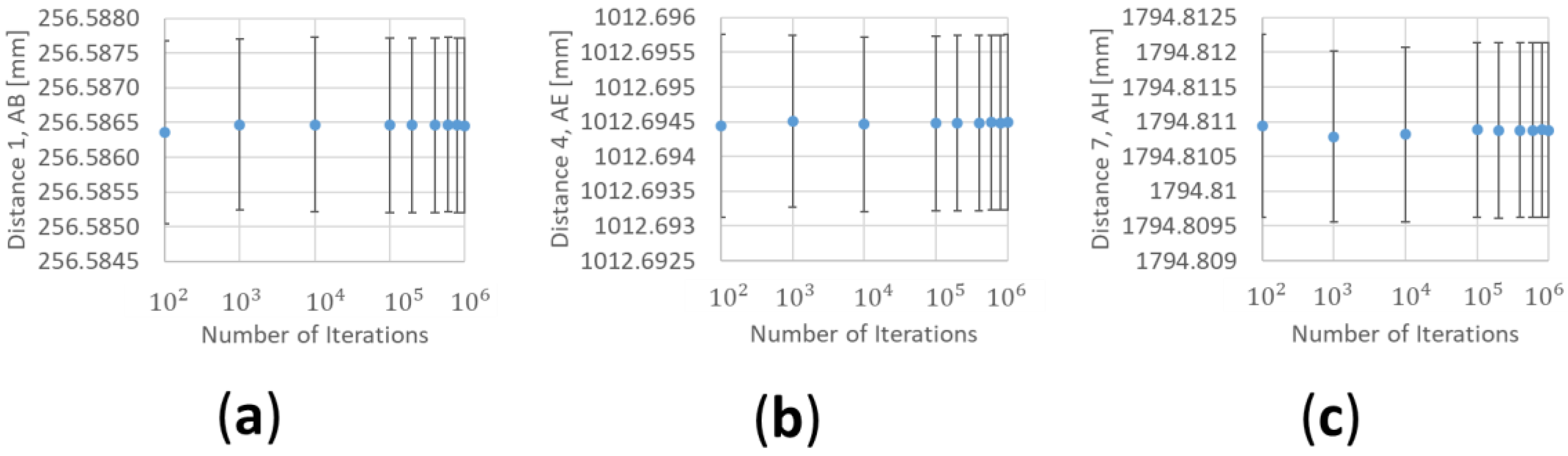

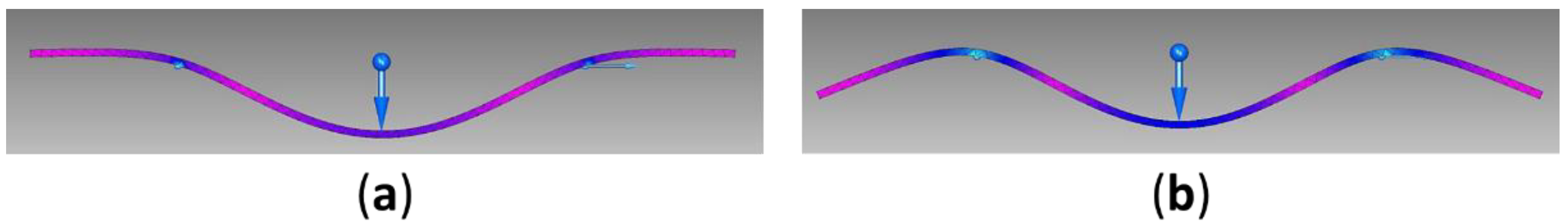

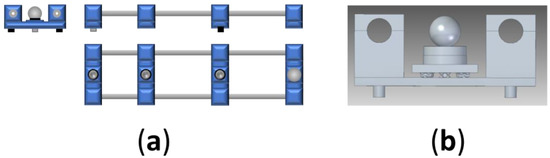

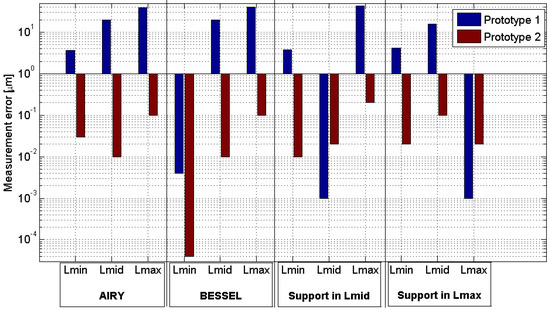

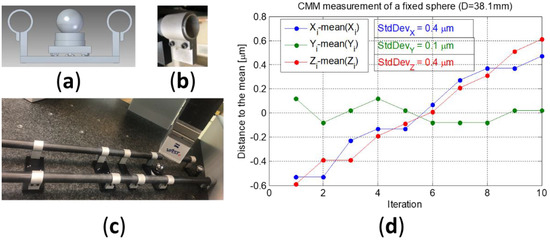

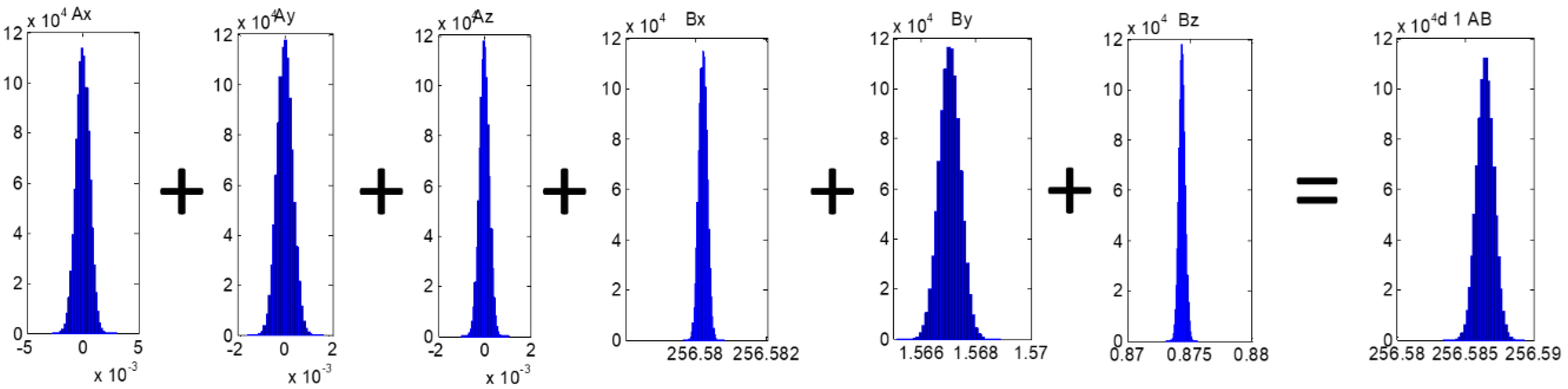

Due to accuracy requirements, robots and machine-tools need to be periodically verified and calibrated through associated verification systems that sometimes use extensible guidance systems. This work presents the development of a reference artefact to evaluate the performance characteristics of different extensible precision guidance systems applicable to robot and machine tool verification. To this end, we present the design, modeling, manufacture and experimental validation of a reference artefact to evaluate the behavior of these extensible guidance systems. The system should be compatible with customized designed guides, as well as with commercial and existing telescopic guidance systems. Different design proposals are evaluated with finite element analysis, and two final prototypes are experimentally tested assuring that the design performs the expected function. An estimation of the uncertainty of the reference artefact is evaluated with a Monte Carlo simulation. View Full-Text
Keywords: calibration artifact; kinematic support; dimensional metrology; machine tool; length measurement calibration artifact; kinematic support; dimensional metrology; machine tool; length measurement
Show Figures

Figure 1

MDPI and ACS Style

Brosed, F.J.; Acero Cacho, R.; Aguado, S.; Herrer, M.; Aguilar, J.J.; Santolaria Mazo, J. Development and Validation of a Calibration Gauge for Length Measurement Systems. Materials 2019, 12, 3960.
