Next Article in Journal
Microstructure and Mechanical Properties of Laser Welded Al-Si Coated Hot-Press-Forming Steel Joints
Next Article in Special Issue
Laser Annealing of P and Al Implanted 4H-SiC Epitaxial Layers
Previous Article in Journal
Investigating the Effects of Polyaluminum Chloride on the Properties of Ordinary Portland Cement
Previous Article in Special Issue
Growth and Coalescence of 3C-SiC on Si(111) Micro-Pillars by a Phase-Field Approach
Open AccessArticle

Temperature Investigation on 3C-SiC Homo-Epitaxy on Four-Inch Wafers

STMicroelectronics, Stradale Primosole, 50, 95121 Catania, Italy
IMM-CNR, VIII Strada, 5, 95121 Catania, Italy
LPE, XVI Strada, 95121 Catania, Italy
Department of Physics and Astronomy, Via S. Sofia 64, 95100 Catania, Italy
Authors to whom correspondence should be addressed.
Materials 2019, 12(20), 3293;
Received: 12 July 2019 / Revised: 27 September 2019 / Accepted: 29 September 2019 / Published: 10 October 2019

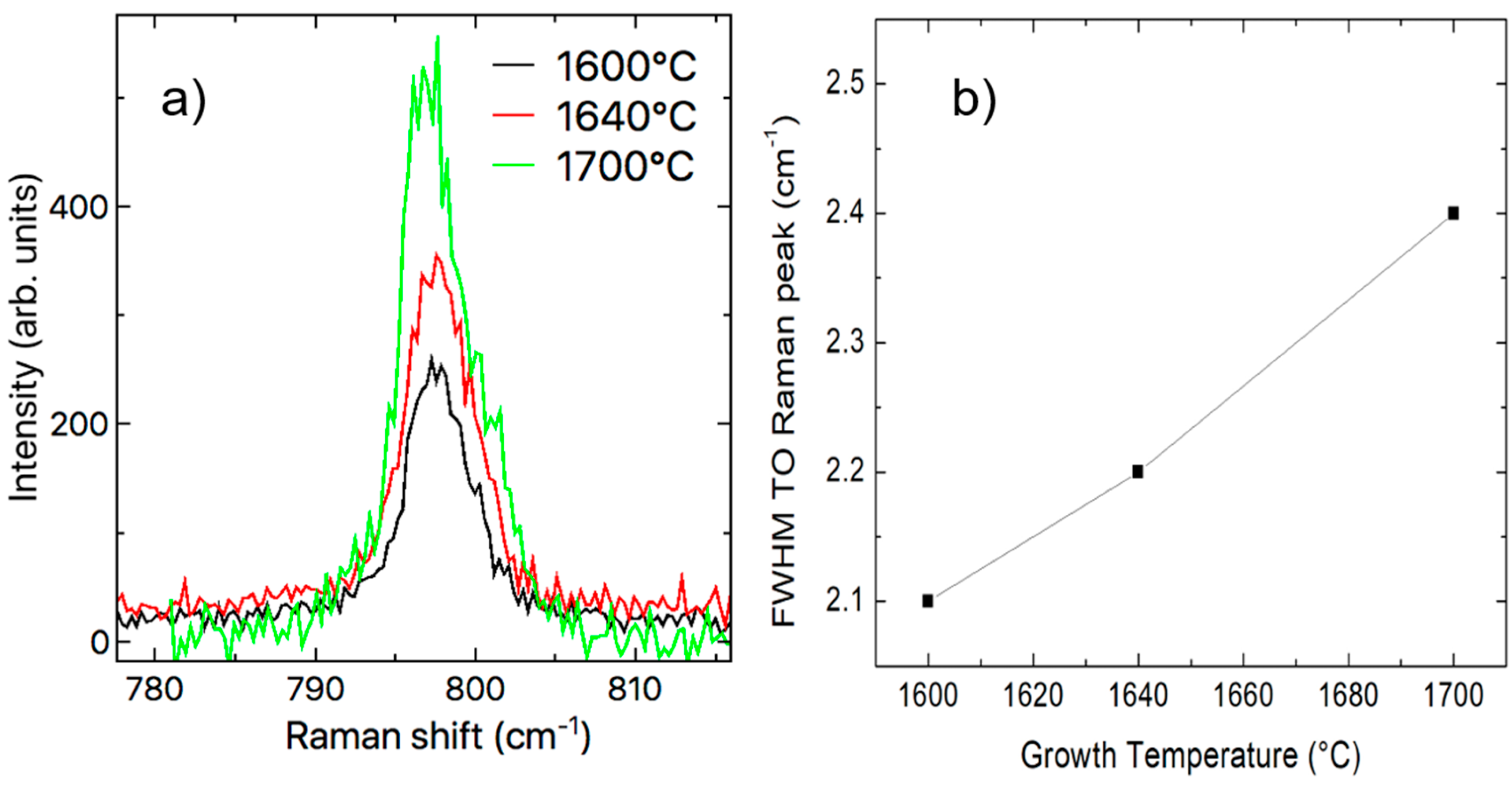

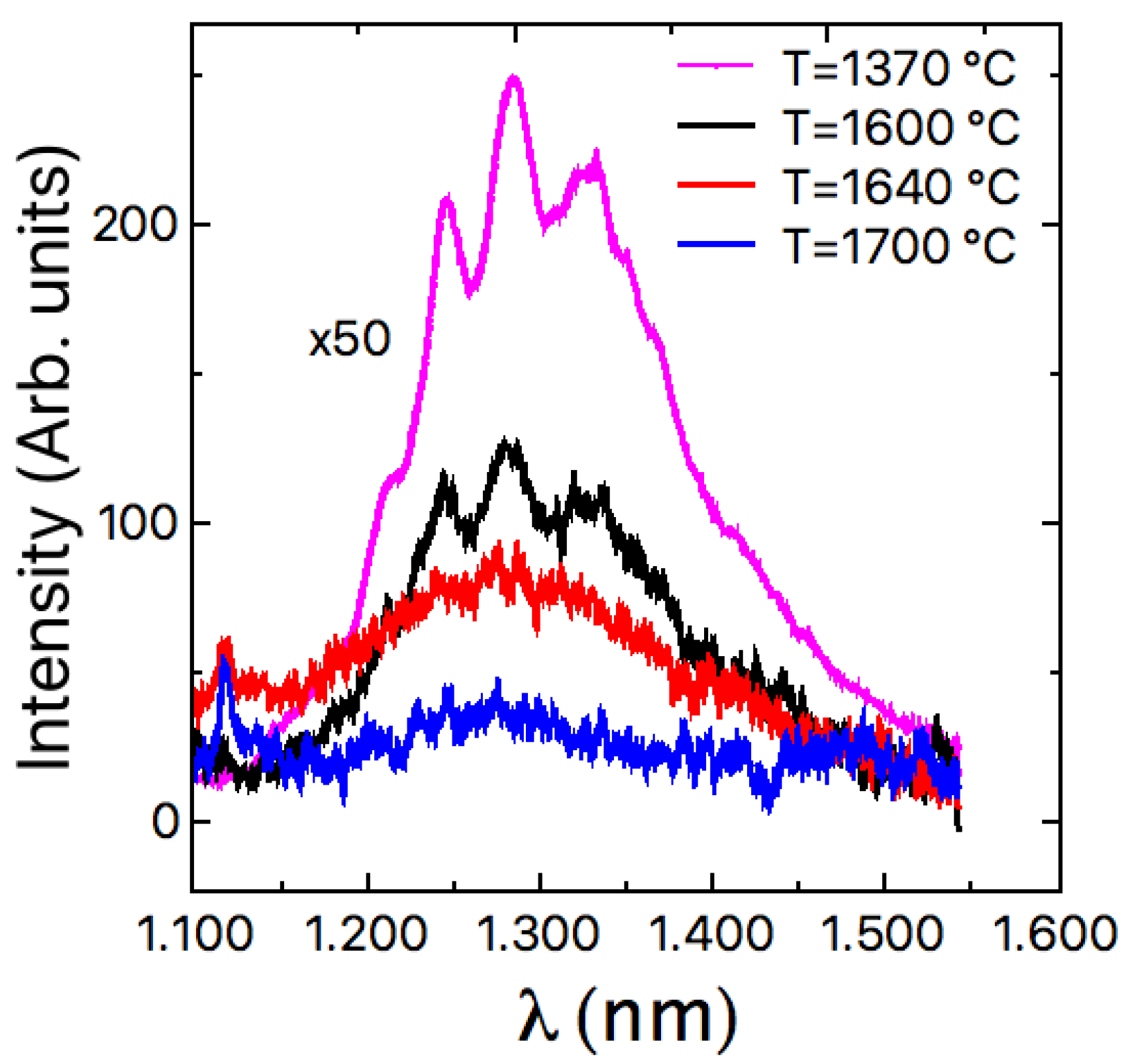

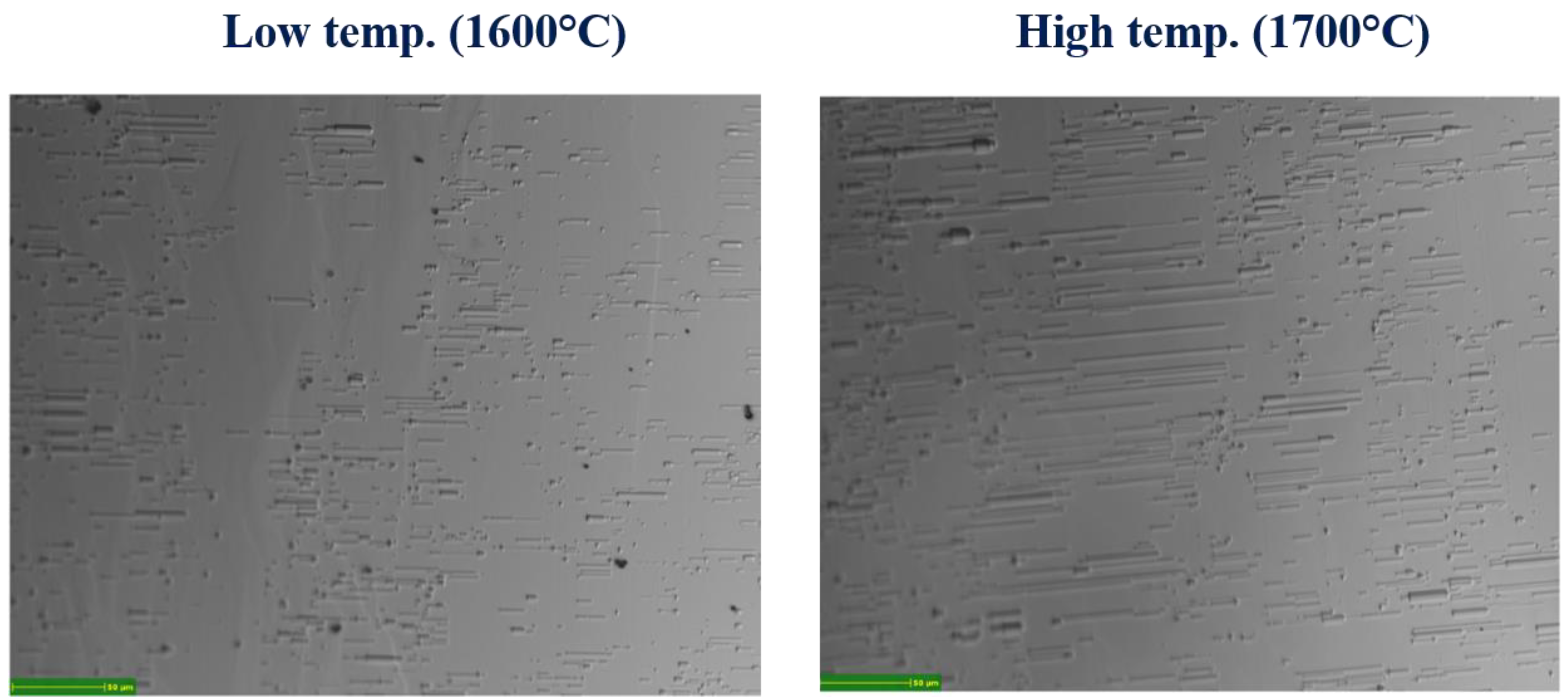

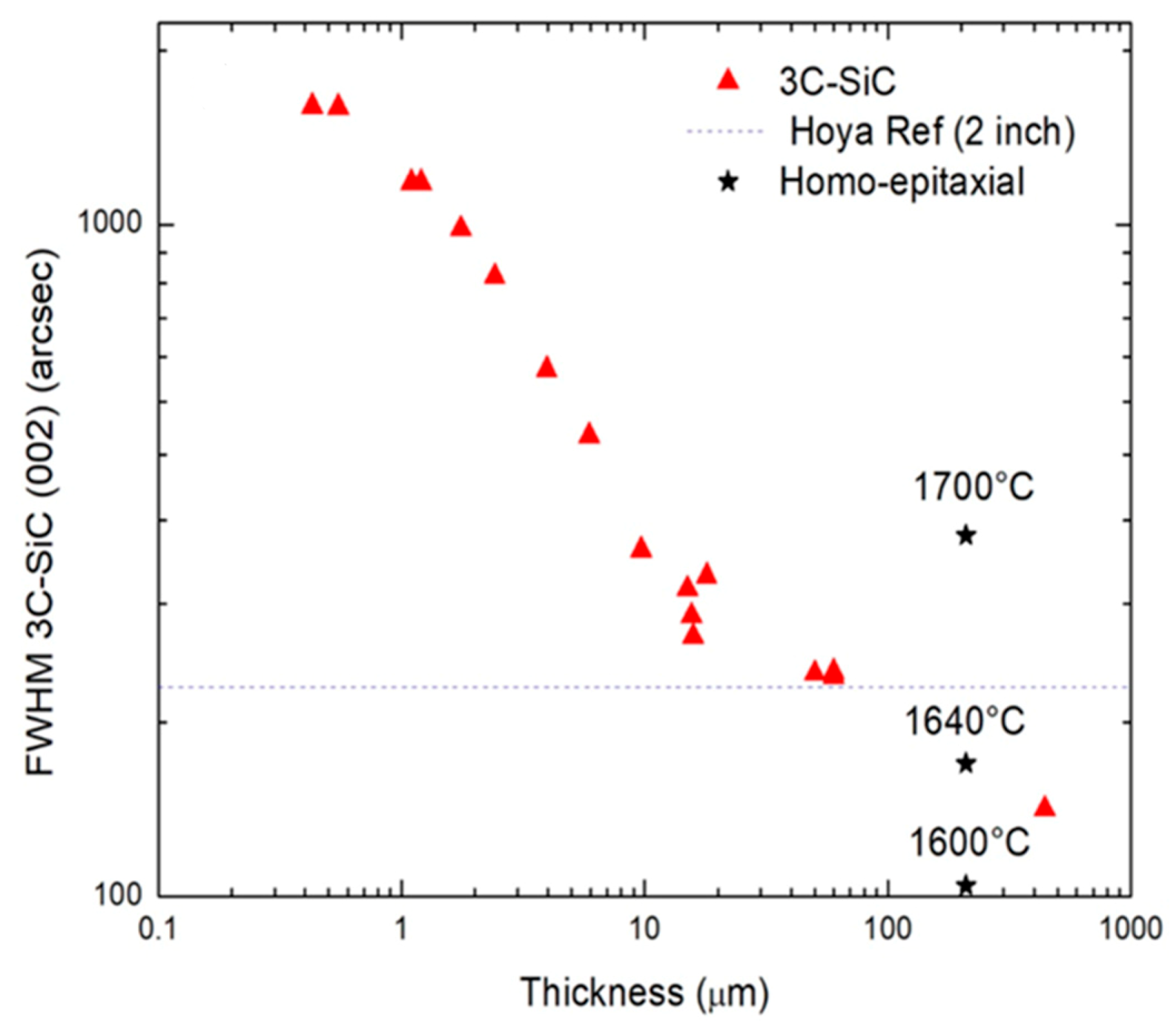

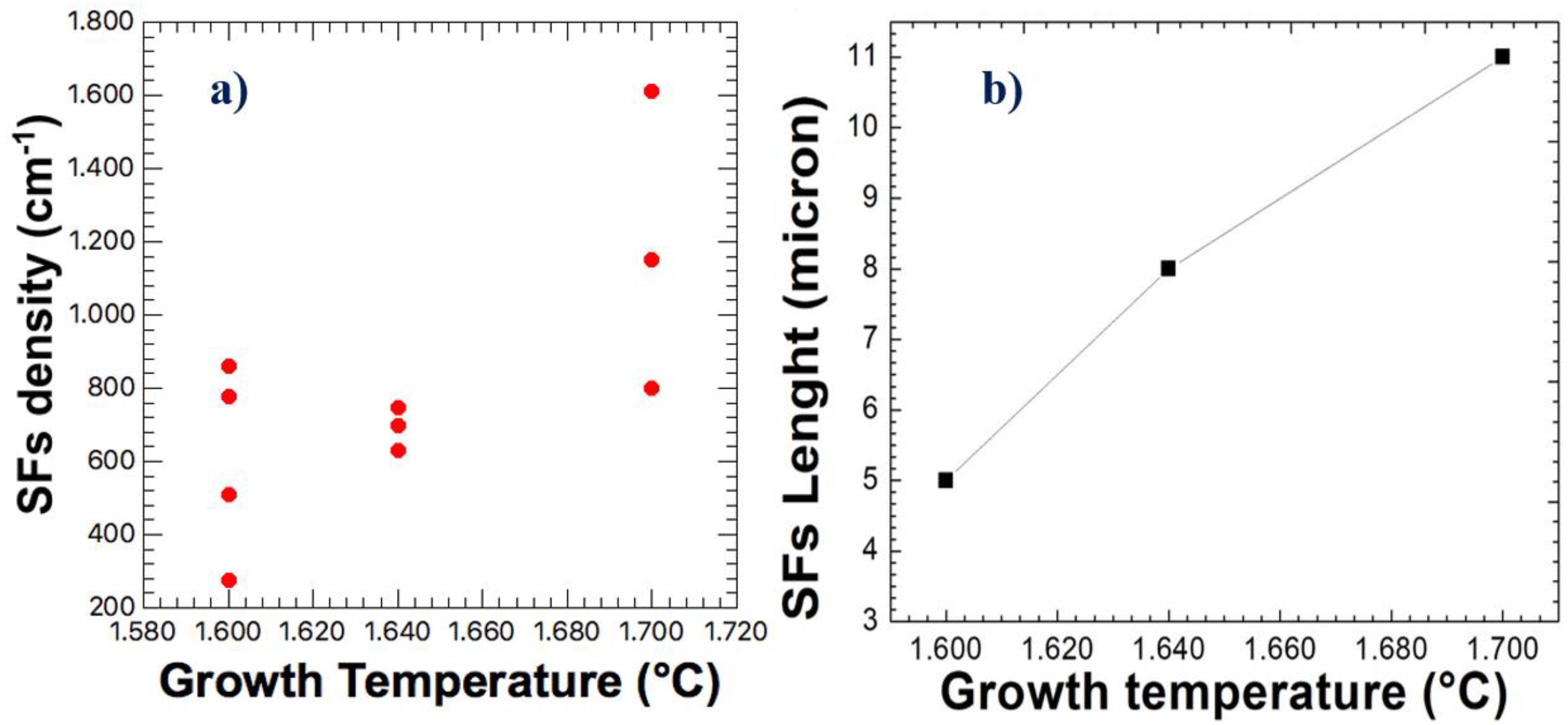

In this work, results related to the temperature influence on the homo-epitaxial growth process of 3C-SiC is presented. The seed for the epitaxial layer was obtained by an innovative technique based on silicon melting: after the first step of the hetero-epitaxial growth process of 3C-SiC on a Si substrate, Si melts, and the remaining freestanding SiC layer was used as a seed layer for the homo-epitaxial growth. Different morphological analyses indicate that the growth temperature and the growth rate play a fundamental role in the stacking faults density. In details, X-ray diffraction and micro-Raman analysis show the strict relationship between growth temperature, crystal quality, and doping incorporation in the homo-epitaxial chemical vapor deposition CVD growth process of a 3C-SiC wafer. Furthermore, photoluminescence spectra show a considerable reduction of point defects during homo-epitaxy at high temperatures. View Full-Text
Keywords: 3C-SiC homo-epitaxy; CVD; bulk growth; growth temperature; KOH; stacking faults 3C-SiC homo-epitaxy; CVD; bulk growth; growth temperature; KOH; stacking faults
Show Figures

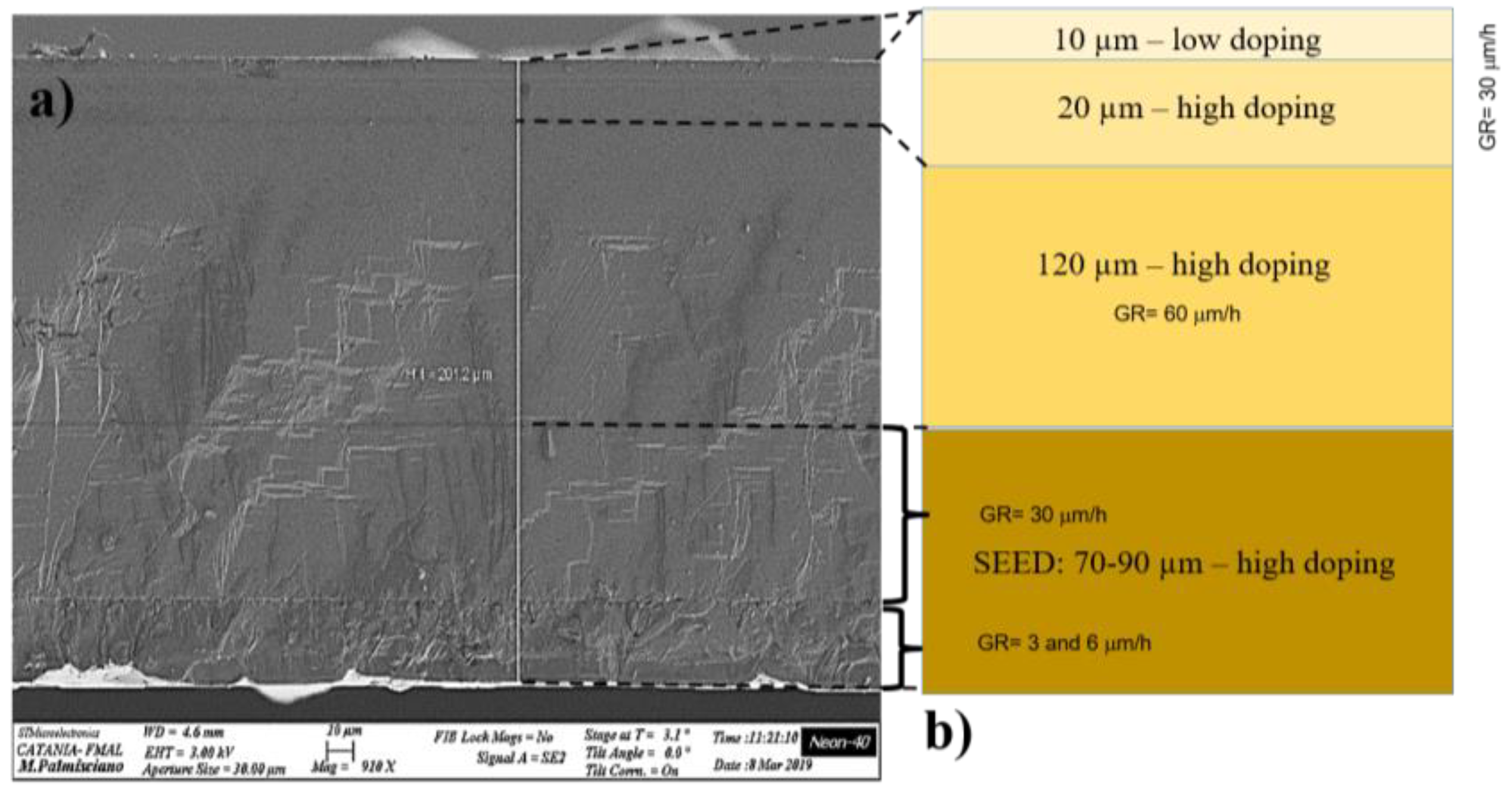

Figure 1

MDPI and ACS Style

Anzalone, R.; Zimbone, M.; Calabretta, C.; Mauceri, M.; Alberti, A.; Reitano, R.; La Via, F. Temperature Investigation on 3C-SiC Homo-Epitaxy on Four-Inch Wafers. Materials 2019, 12, 3293.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
