Next Article in Journal
Ferromagnetic Shape Memory Heusler Materials: Synthesis, Microstructure Characterization and Magnetostructural Properties
Previous Article in Journal
Microstructure and Properties of Thermal Electrode Material Si3N4–MoSi2 Composite Ceramics
Open AccessArticle

Rapid Sintering of Li2O-Nb2O5-TiO2 Solid Solution by Air Pressure Control and Clarification of Its Mechanism

1
Cooperative Research Facility Center, Toyohashi University of Technology, Toyohashi 441-8580, Aichi, Japan
2
Department of Environmental and Life Sciences, Toyohashi University of Technology, Toyohashi 441-8580, Aichi, Japan
3
Department of Materials Design Innovation Engineering, Nagoya University, Nagoya 464-8603, Aichi, Japan
4
FULL-TECH FURNACE Co., Ltd., Yao 581-0037, Osaka, Japan
*
Author to whom correspondence should be addressed.
Materials 2018, 11(6), 987; https://doi.org/10.3390/ma11060987
Received: 24 April 2018 / Revised: 25 May 2018 / Accepted: 9 June 2018 / Published: 11 June 2018

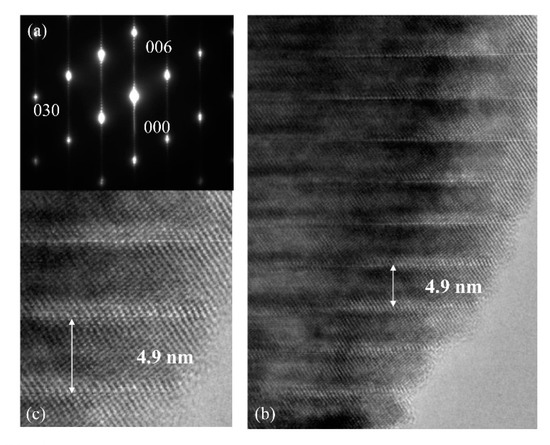

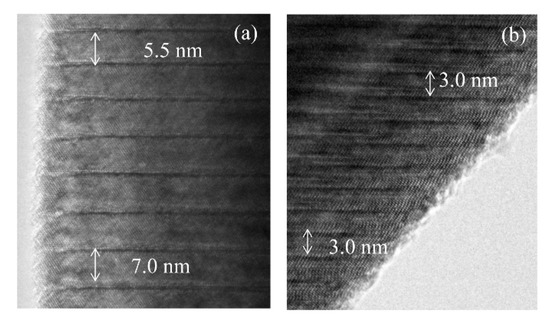

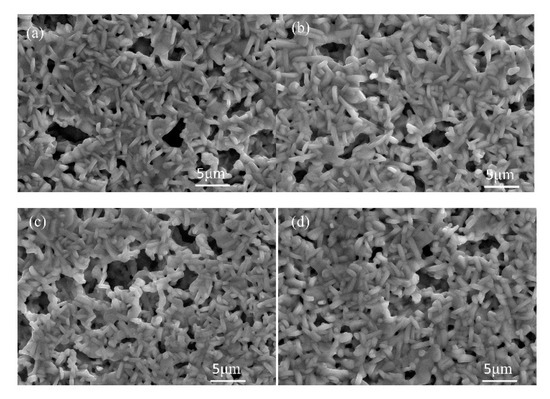

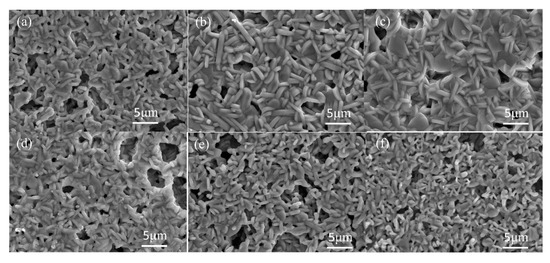

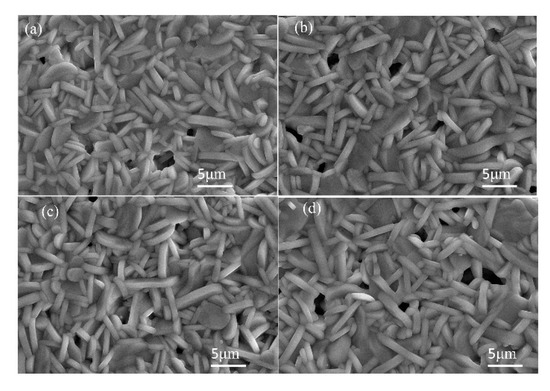

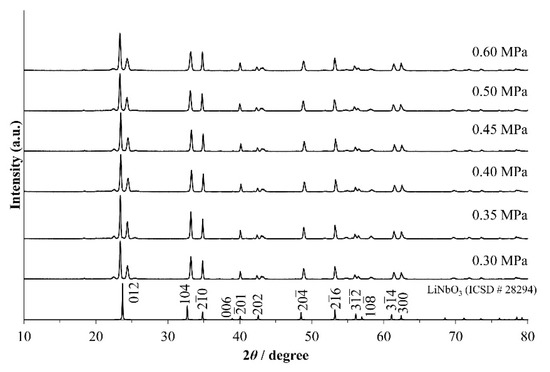

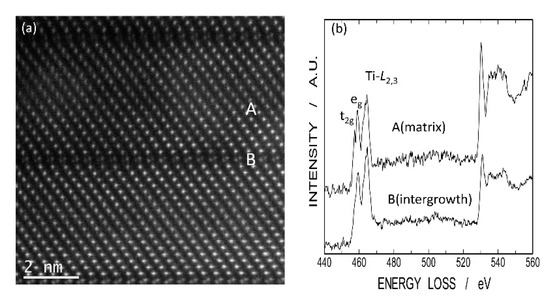

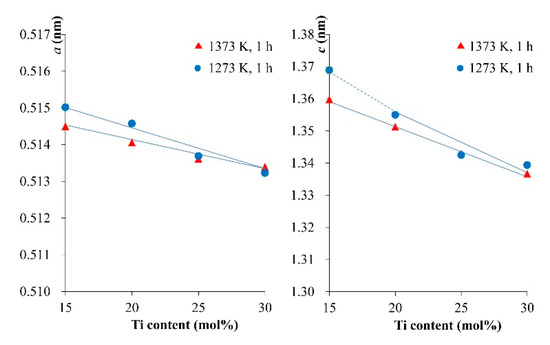

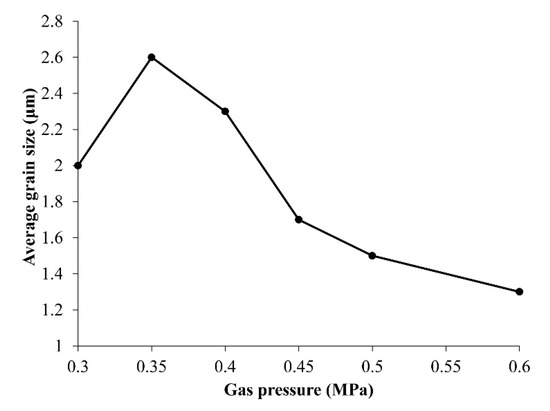

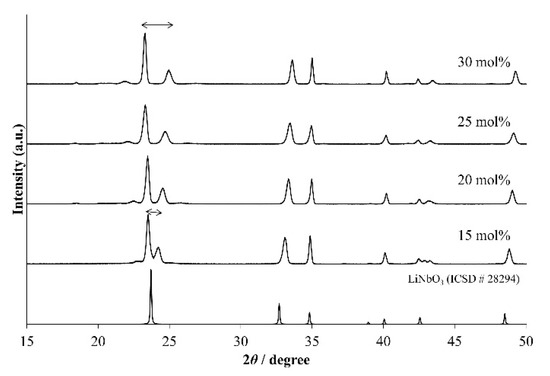

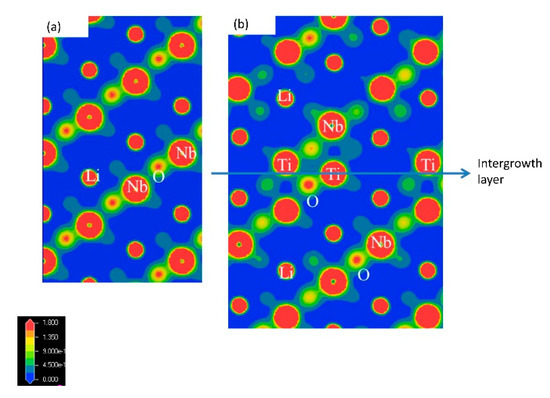

We first successfully synthesized Li1+xyNb1−x−3yTix+4yO3 (LNT) solid solutions (0.13 ≤ x ≤ 0.18, 0 ≤ y ≤ 0.06) rapidly at 1373 K for one hour under 0.35 MPa by the controlling of air pressure using an air-pressure control atmosphere furnace. The composition is a formation area of a superstructure for LNT, in which the periodical intergrowth layer was formed in the matrix, and where it can be controlled by Ti content. Therefore, the sintering time depended on Ti content, and annealing was repeated for over 24 h until a homogeneous structure was formed using a conventional electric furnace. We clarified the mechanism of the rapid sintering using various microscale to nanoscale characterization techniques: X-ray diffraction, a scanning electron microscope, a transmission electron microscope (TEM), a Cs-corrected scanning TEM equipped with electron energy-loss spectroscopy, and X-ray absorption fine structure spectroscopy. View Full-Text
Keywords: oxide materials; rapid sintering; crystal structure; X-ray diffraction; TEM; HAADF-STEM oxide materials; rapid sintering; crystal structure; X-ray diffraction; TEM; HAADF-STEM
Show Figures

Graphical abstract

MDPI and ACS Style

Nakano, H.; Kamimoto, K.; Yamamoto, T.; Furuta, Y. Rapid Sintering of Li2O-Nb2O5-TiO2 Solid Solution by Air Pressure Control and Clarification of Its Mechanism. Materials 2018, 11, 987.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
