Numerical Analysis of Space Charge Behavior and Transient Electric Field under Polarity Reversal of HVDC Extruded Cable
Abstract
:1. Introduction
2. Description of Bipolar Charge Transport Model

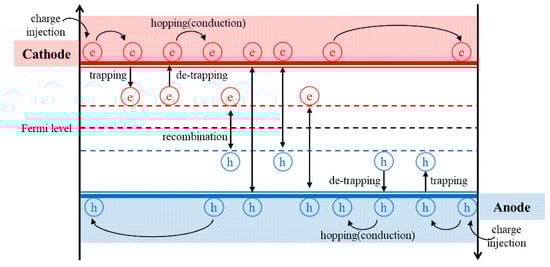

2.1. Overall Bipolar Charge Transport Model
2.2. Governing Equations
3. Application of Bipolar Charge Transport Model to Polarity Reversal Duration

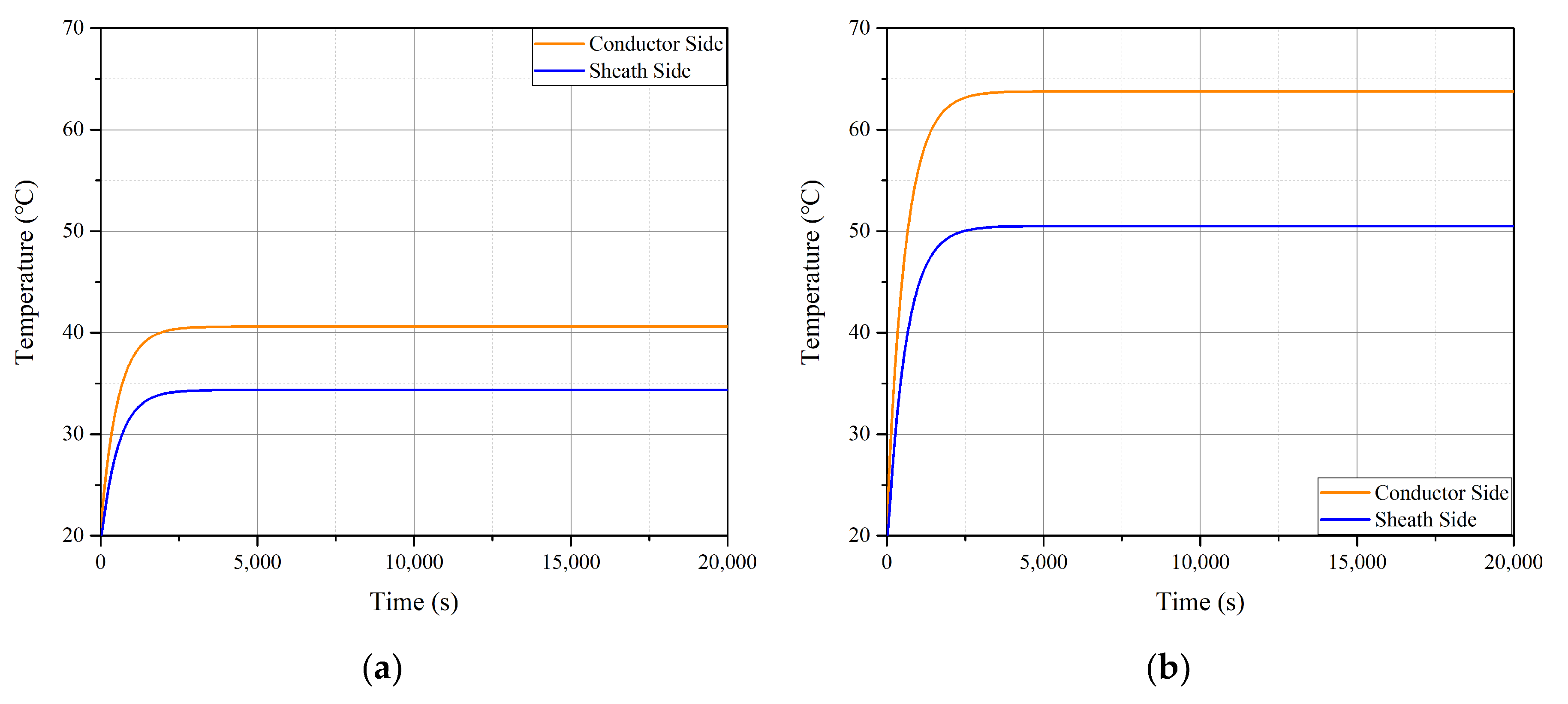

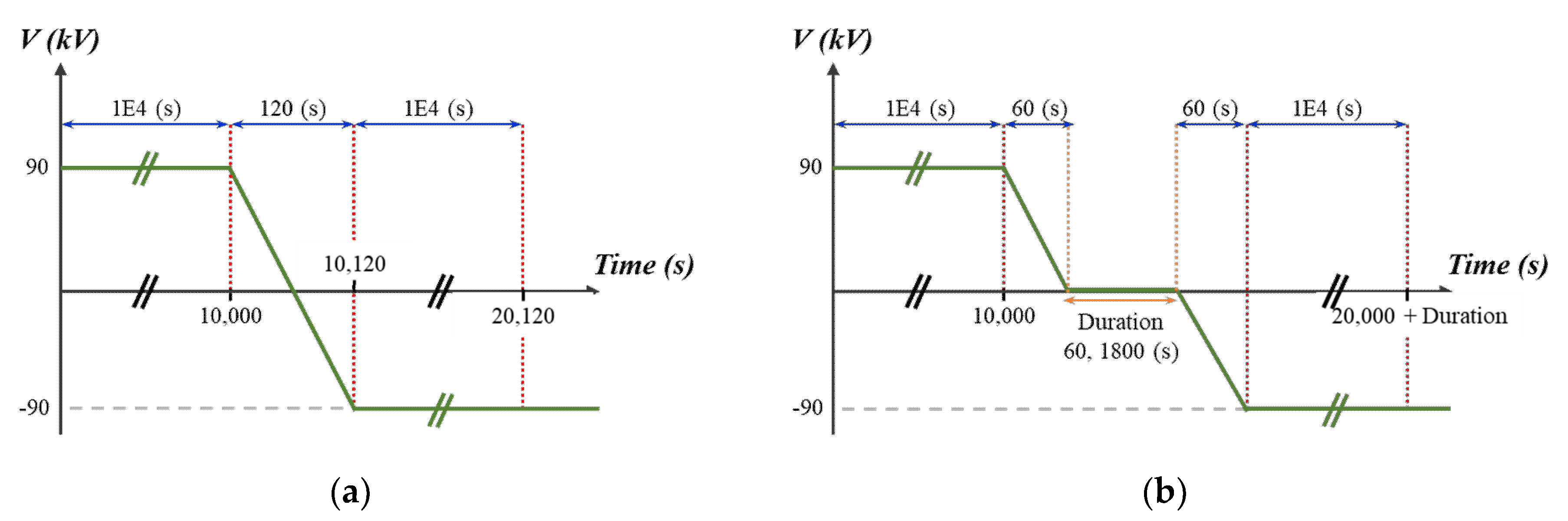

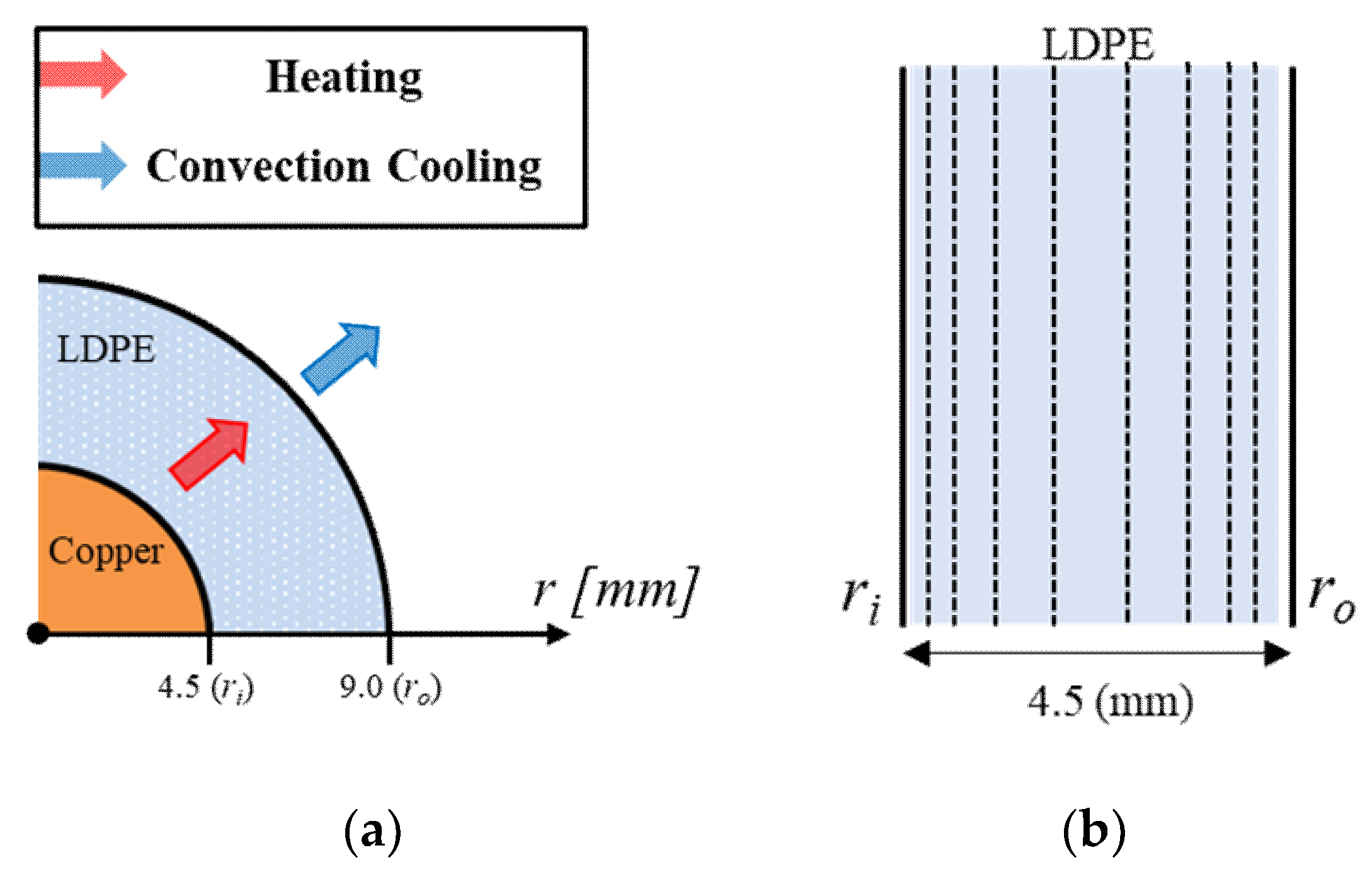

3.1. Simulation Conditions

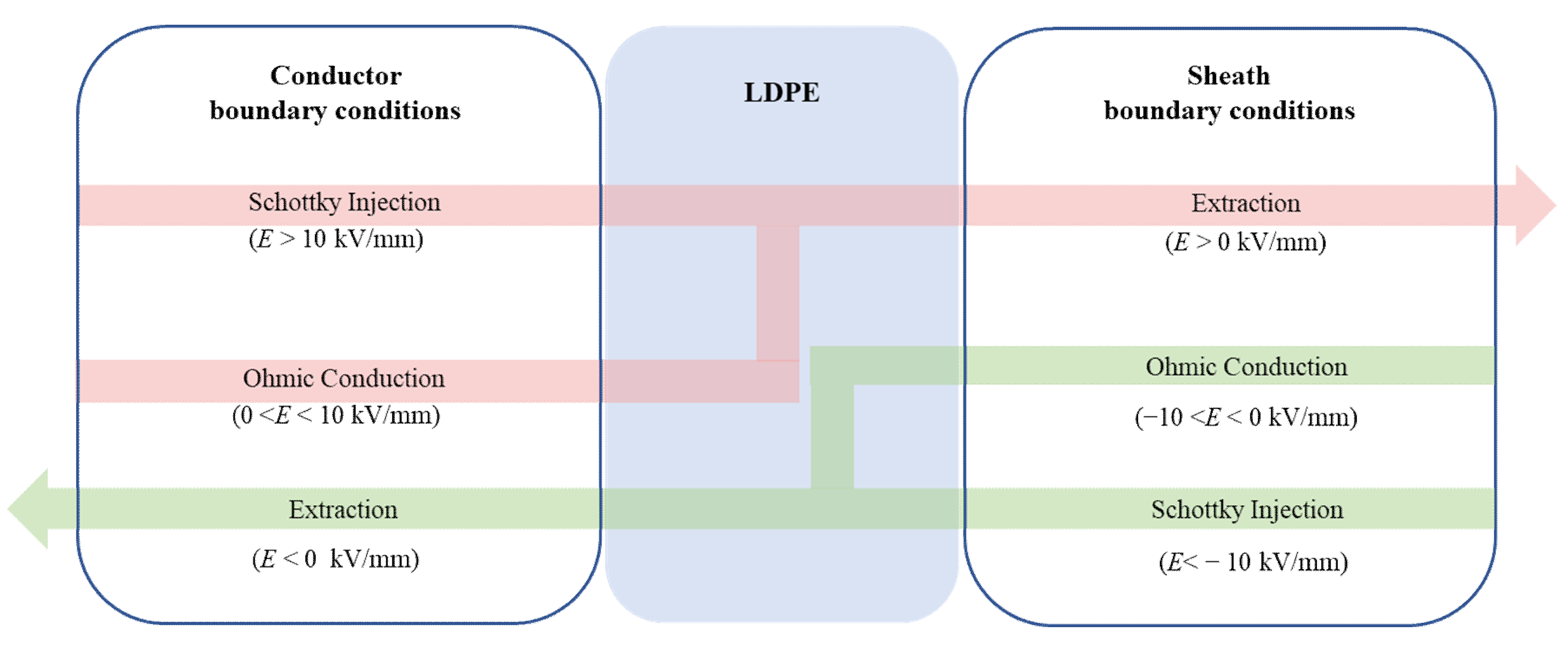

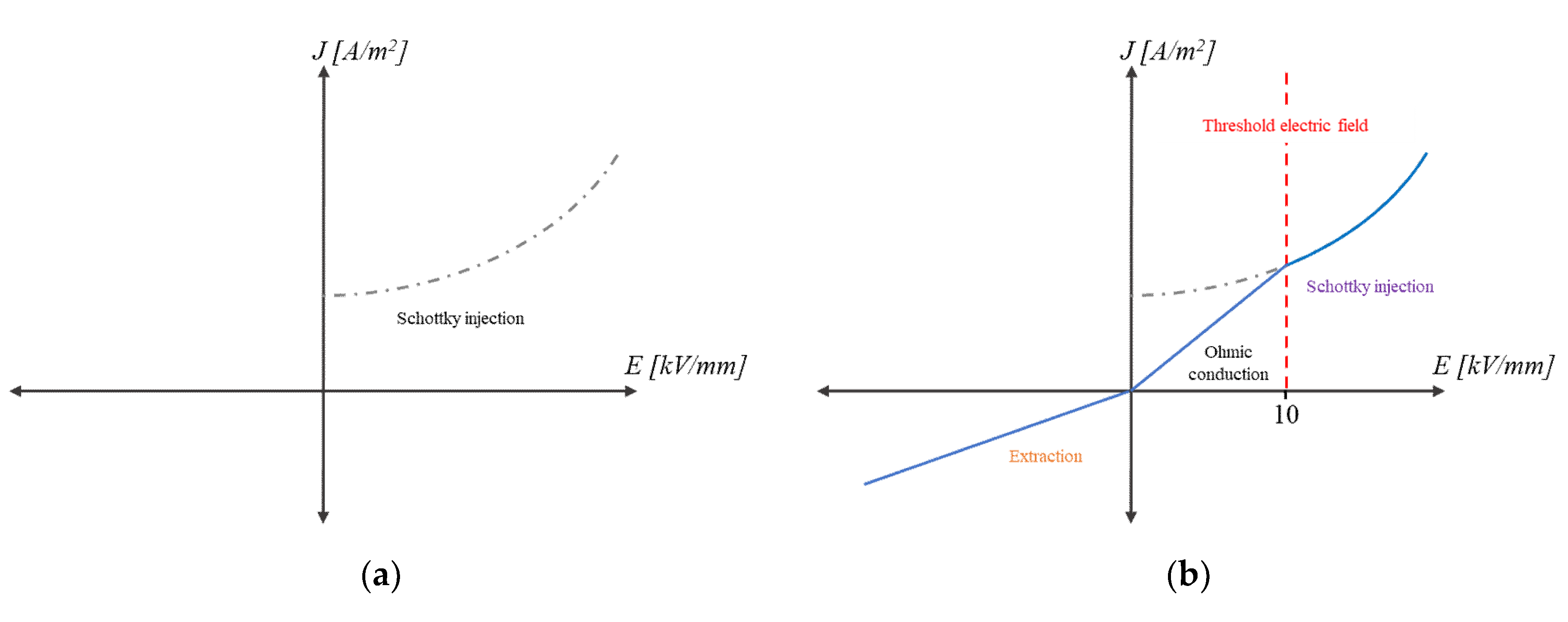

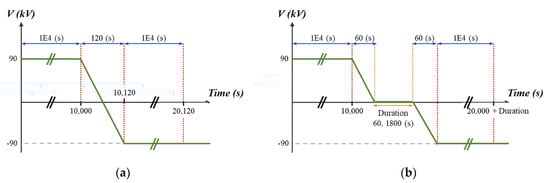

3.2. Modification of Boundary Condition Considering Polarity Reversal
- Since the electric field at the conductor interface after the start of voltage application was above the threshold electric field, mobile holes were injected by the Schottky injection.
- Over time, the electric field at conductor was lowered below the threshold value by homo-charge, and the linear conduction equation was applied.
- When the direction of the electric field was reversed, the conductor became a cathode and the mobile holes were extracted.
- In addition, the reversed electric field strength was gradually intensified over time, and the mobile electrons were injected from the conductor.
4. Results and Discussion

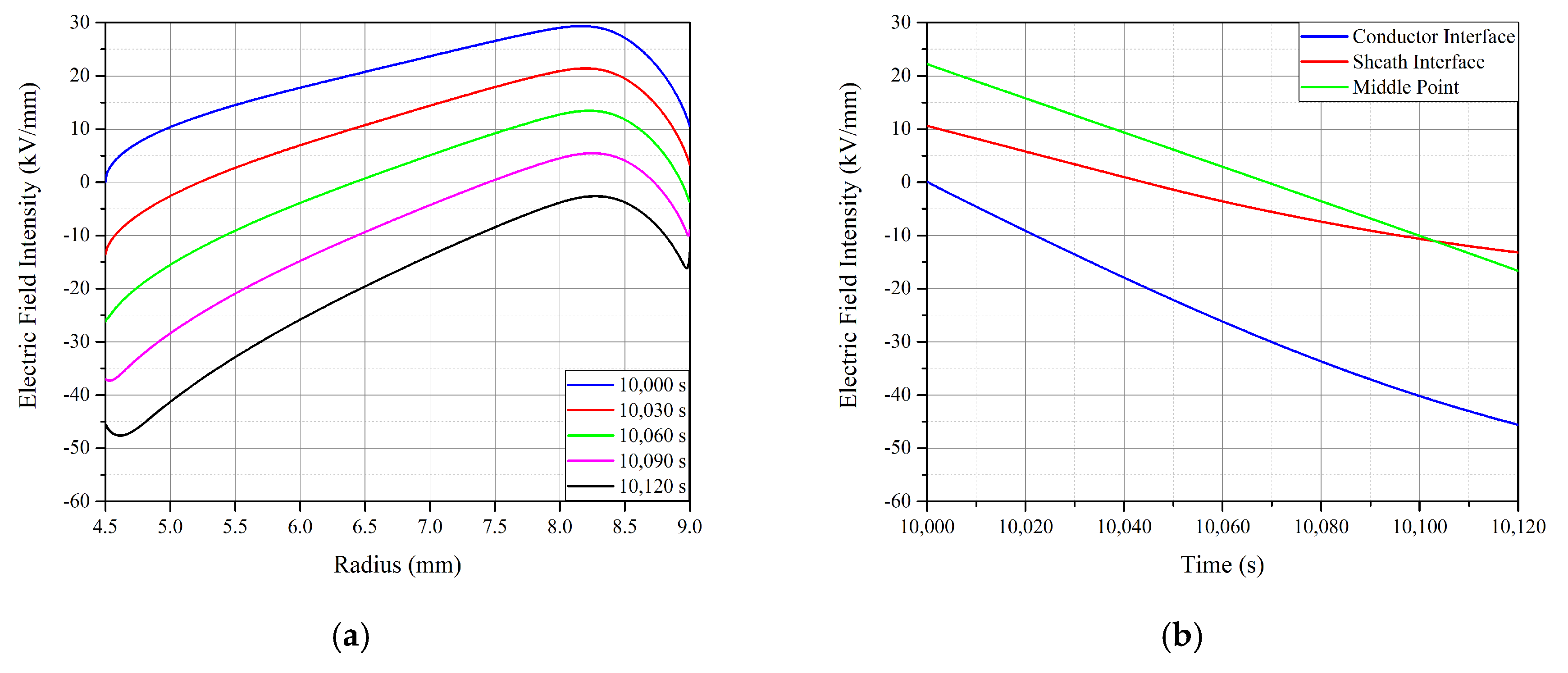

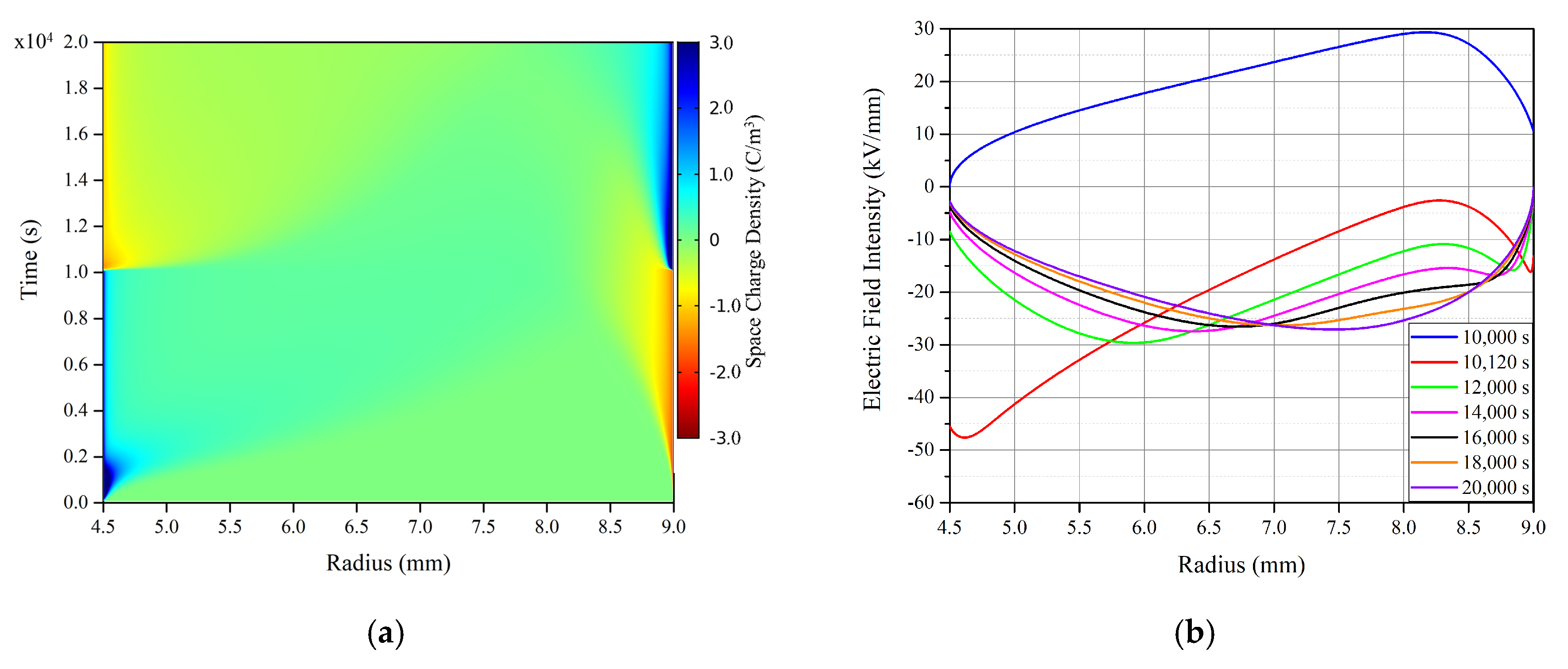

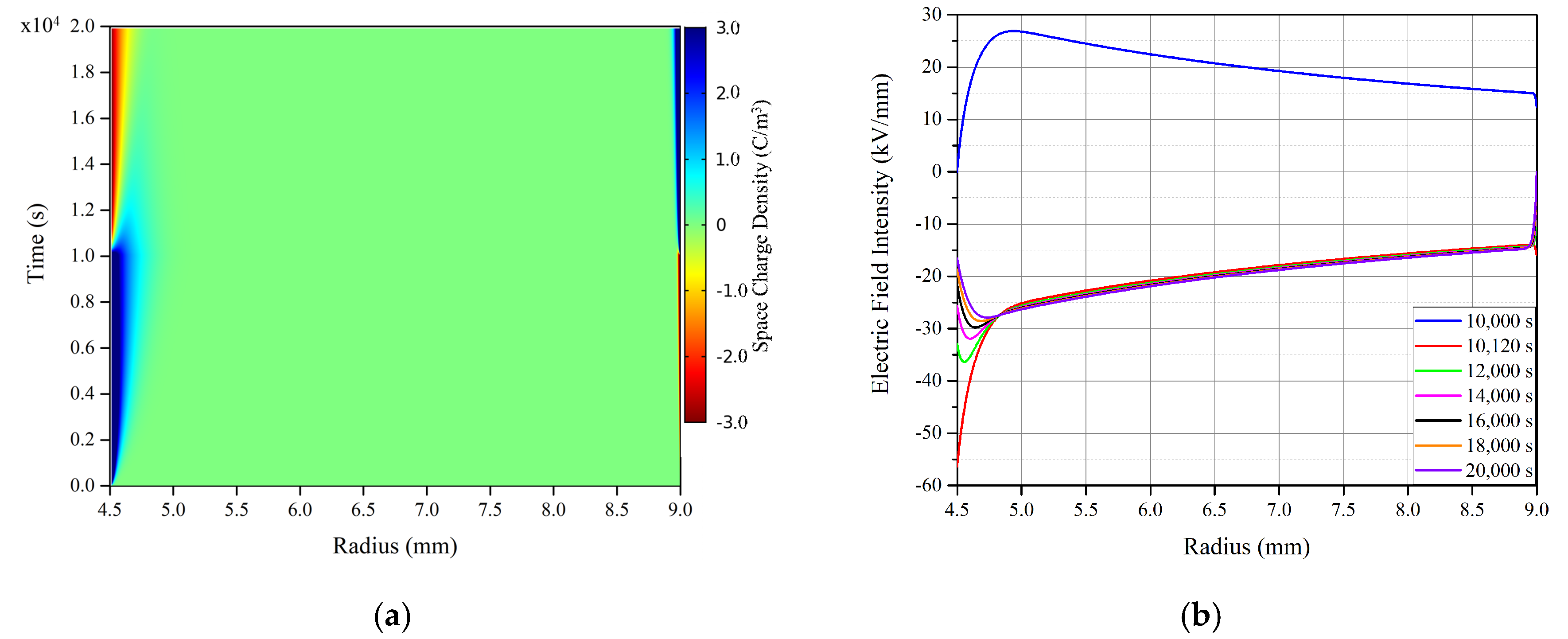

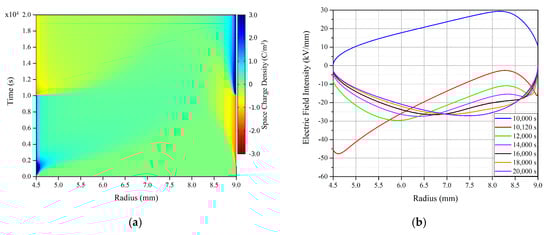

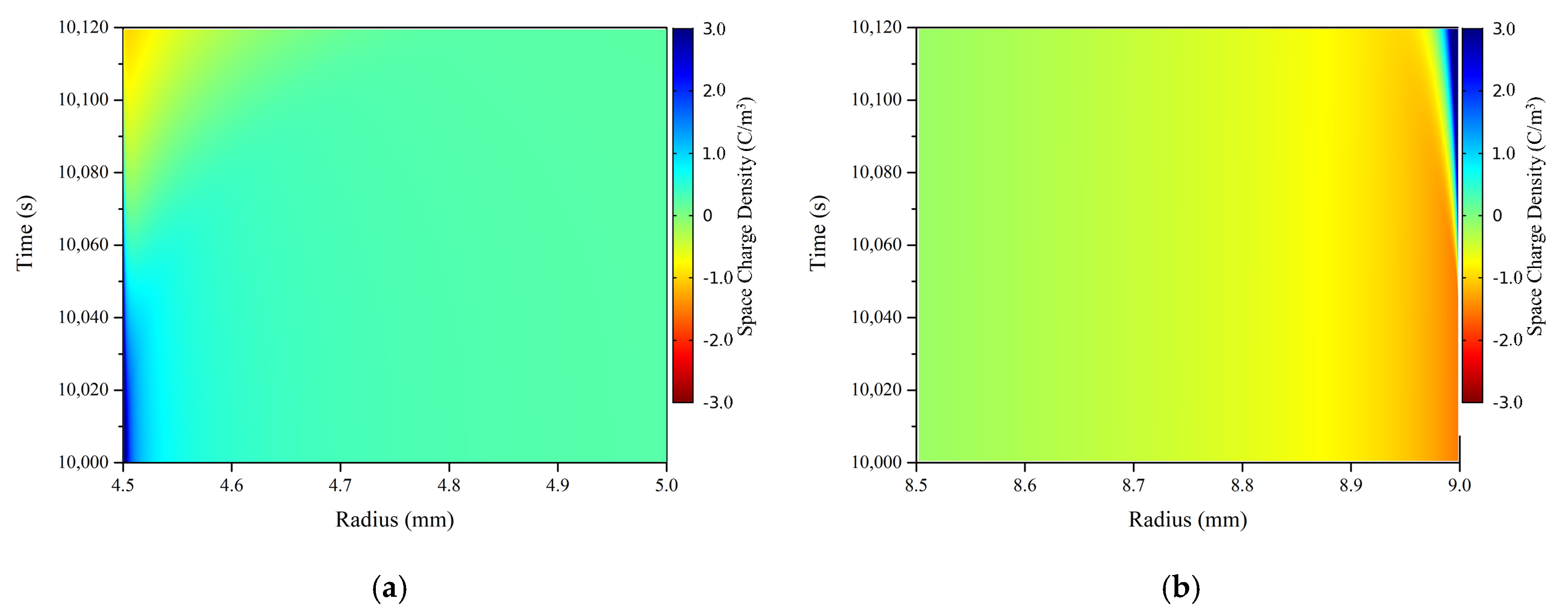

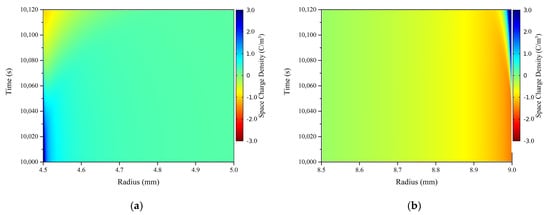

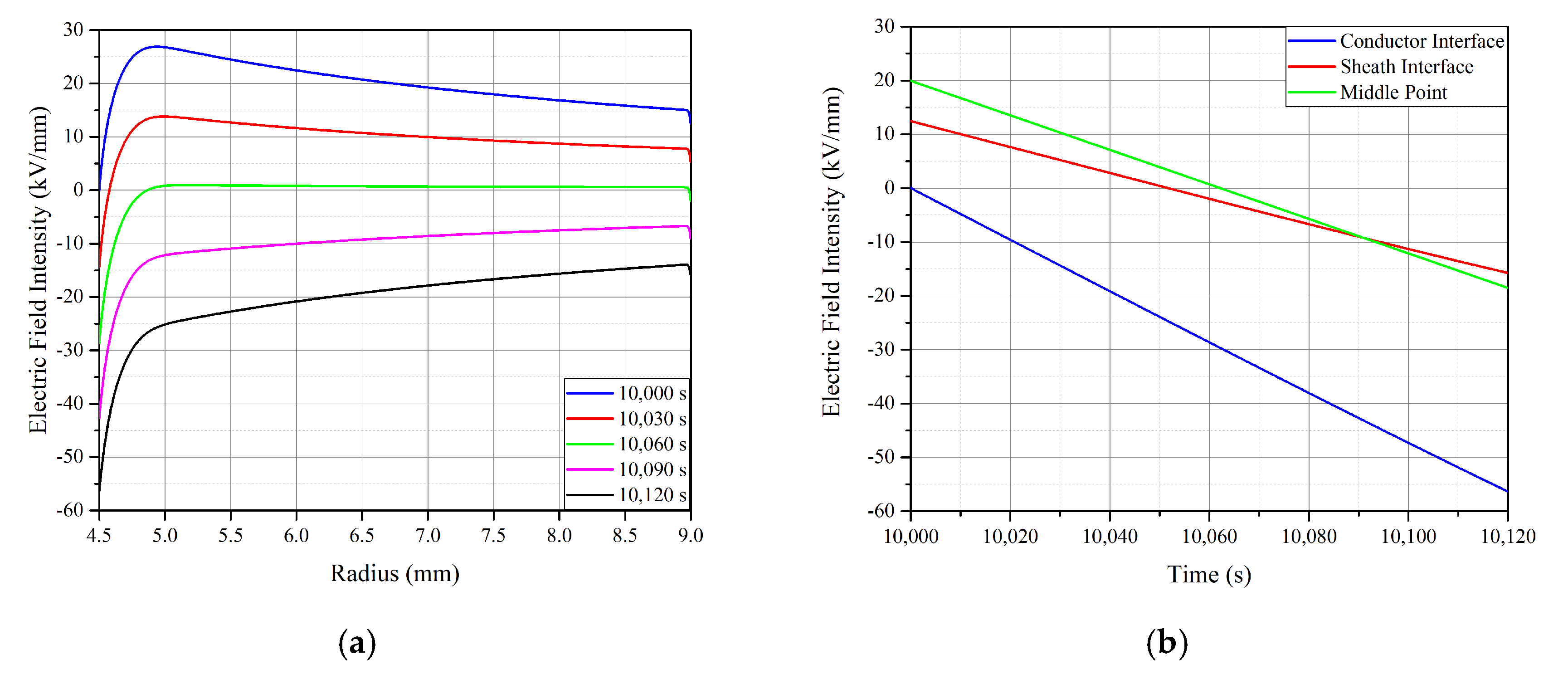

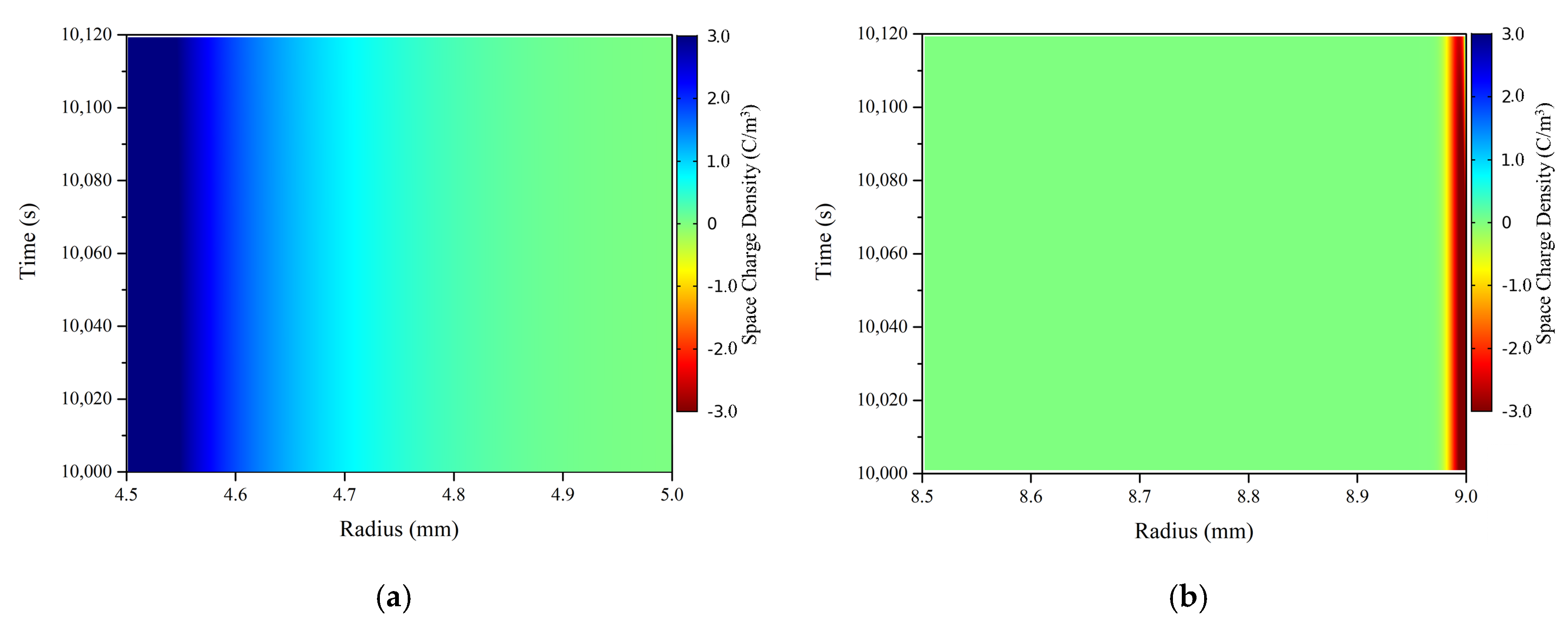

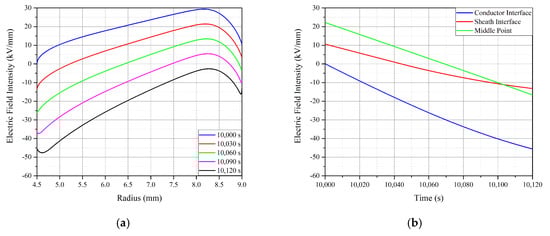

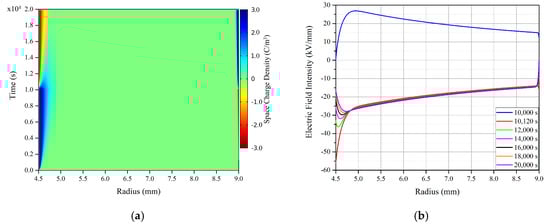

4.1. Polarity Reversal without Electric Potential Zero Duration

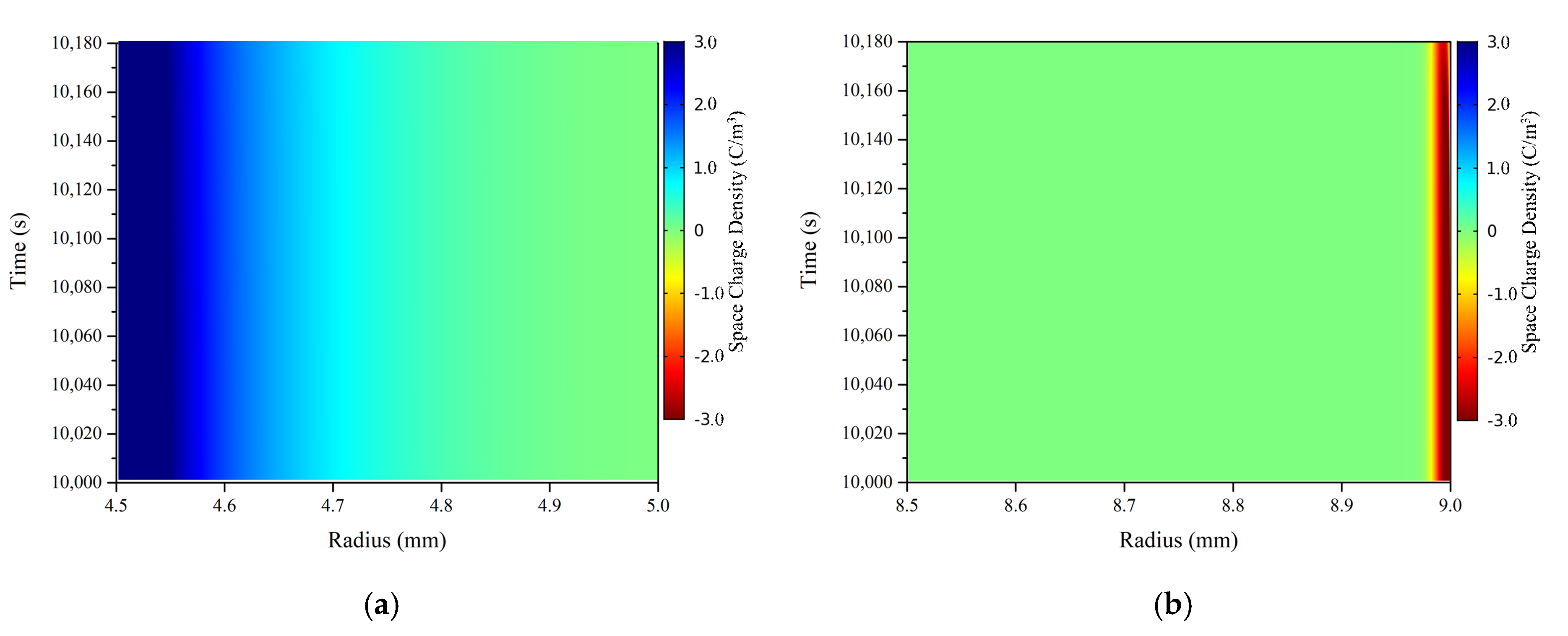

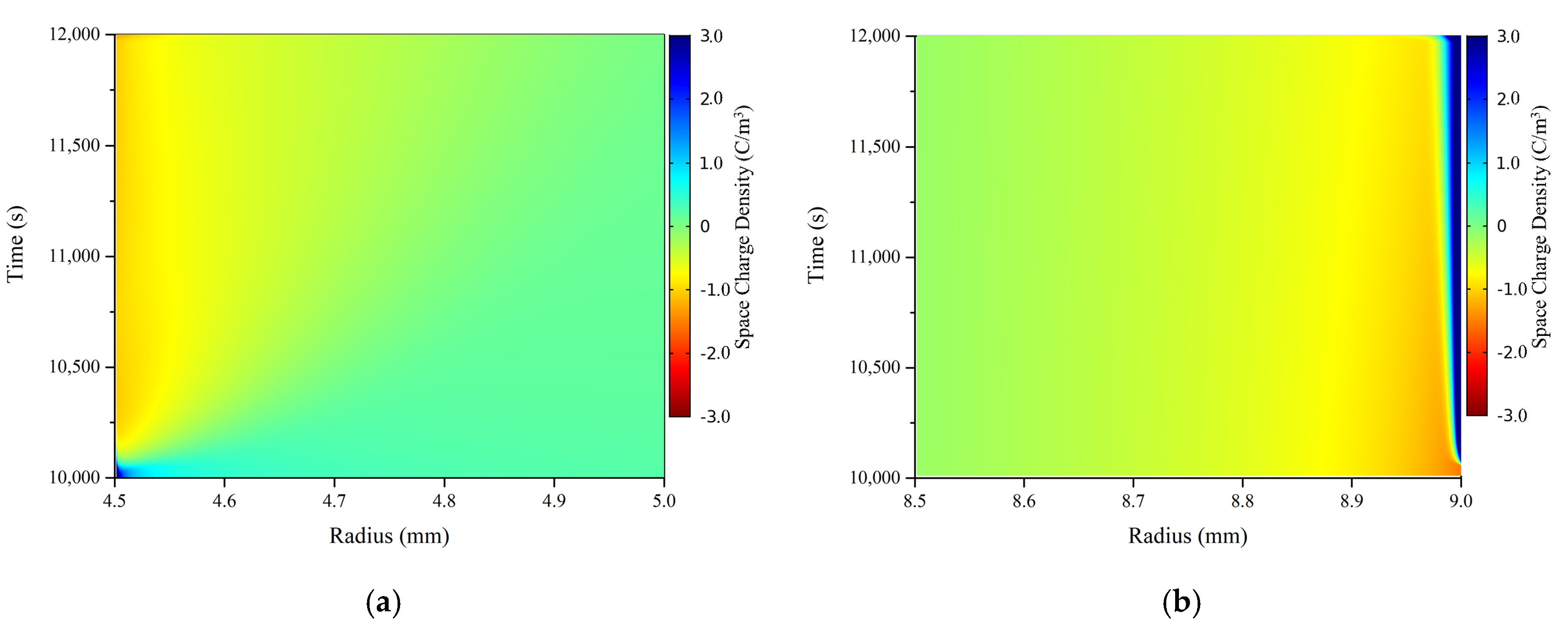

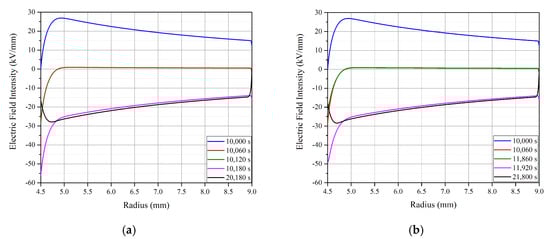

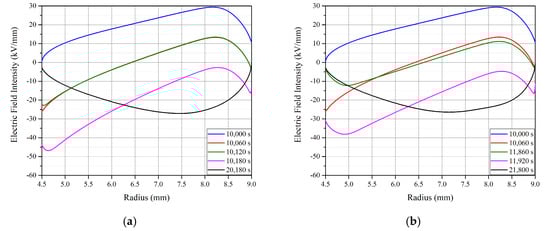

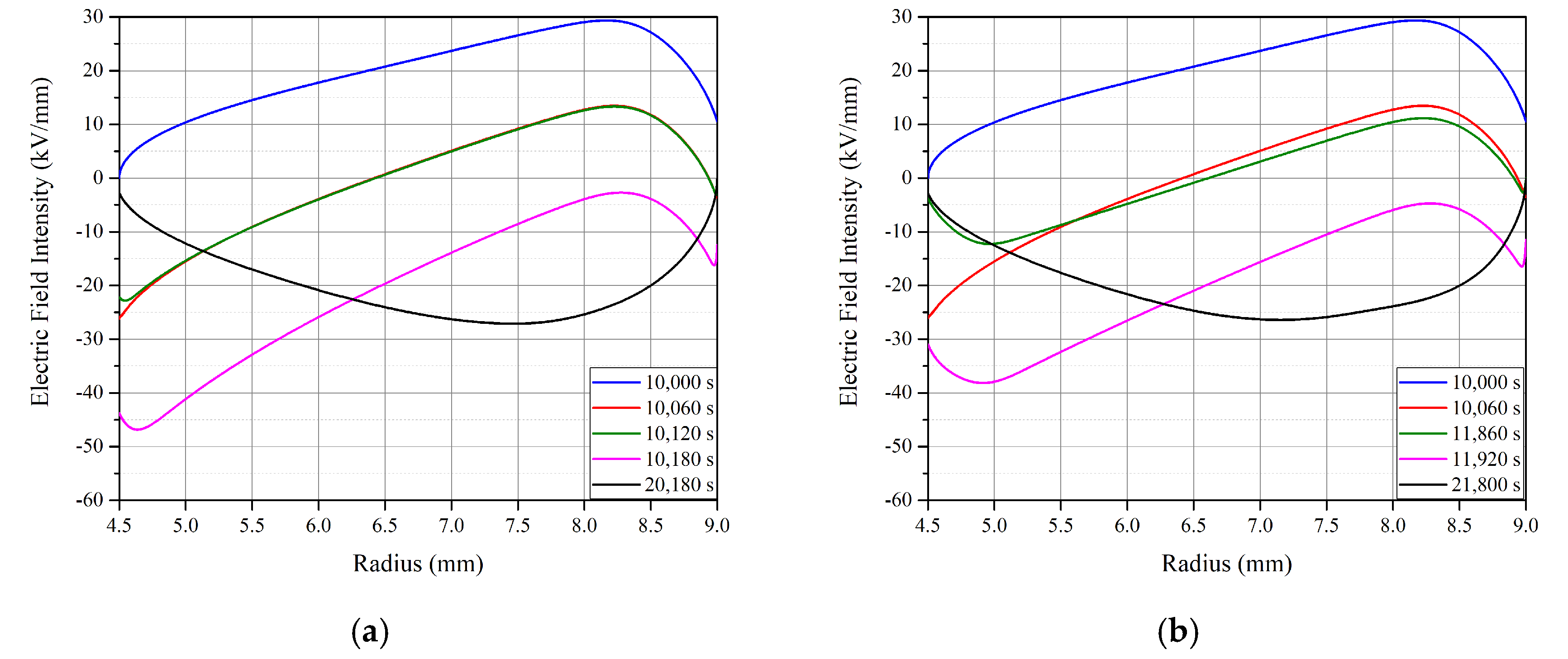

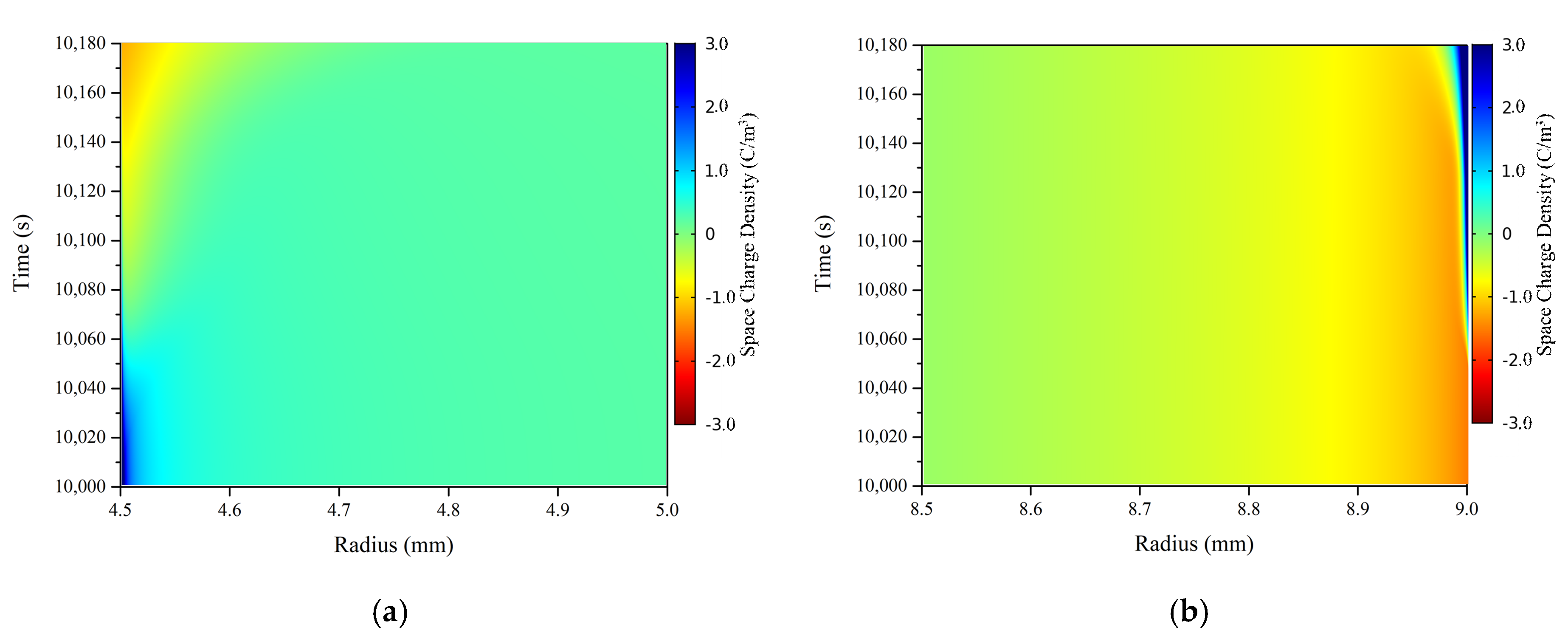

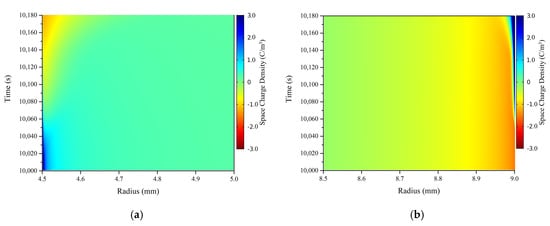

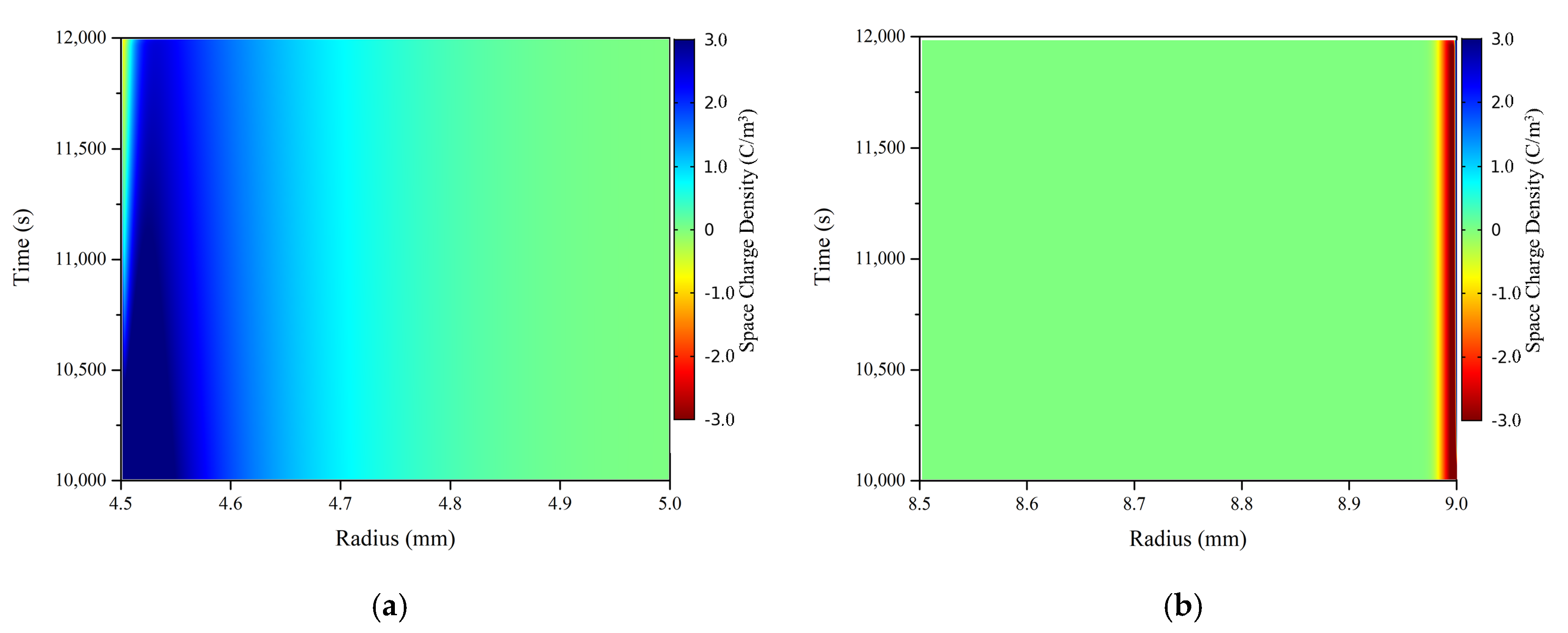

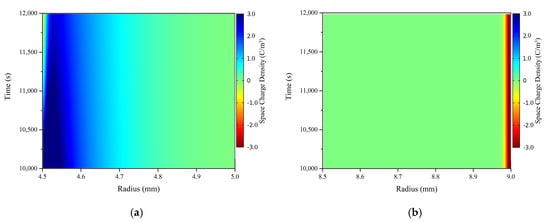

4.2. Polarity Reversal with Electric Potential Zero Duration
5. Conclusions
- The modified model is suggested to analyze space charge behavior at transient states such as polarity reversal by modifying boundary conditions.
- The capacitive field was dominant on the electric field distribution during polarity reversal at the low load currents.
- Due to slow space charge behavior at low currents, electric field at the conductor interface was intensified immediately after the polarity reversal at the low load currents.
- The active space charge behavior caused by the high load currents has the effect of alleviating the electric field concentration by forming the homo-charge near the conductor.
- The longer electric potential zero duration contributed to form a homo-charge at the conductor.
- As a result, high load currents and long electric potential zero duration reduced the maximum field strength by 32.3% compared to low load currents without electric potential zero.
- In conclusion, the polarity reversal needs to be performed at the relatively high load currents and sufficiently long electric potential zero duration.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Bahrman, M.P.; Johnson, B.K. The ABCs of HVDC transmission technologies. IEEE Power Energy Mag. 2007, 5, 32–44. [Google Scholar] [CrossRef]
- Jeroense, M. HVDC, the next generation of transmission: Highlights with focus on extruded cable systems. IEEJ Trans. Electr. Electron. Eng. 2010, 5, 400–404. [Google Scholar] [CrossRef]
- Murata, Y.; Sakamaki, M.; Abe, K.; Inoue, Y.; Mashio, S.; Kashiyama, S.; Matsunaga, O.; Igi, T.; Watanabe, M.; Asai, S. Development of high voltage DC-XLPE cable system. SEI Technol. Rev. 2013, 101, 55–62. [Google Scholar]
- Hanley, T.L.; Burford, R.P.; Fleming, R.J.; Barber, K.W. A general review of polymeric insulation for use in HVDC cables. IEEE Electr. Insul. Mag. 2003, 19, 13–24. [Google Scholar] [CrossRef]
- Morshuis, P.H.; Bodega, R.; Fabiani, D.; Montanari, G.C.; Dissado, L.A.; Smit, J.J. Calculation and measurement of space charge in MV-size extruded cables systems under load conditions. In Proceedings of the 2007 IEEE International Conference on Solid Dielectrics, Winchester, UK, 8–13 July 2007; pp. 502–505. [Google Scholar]
- Le Roy, S.; Teyssedre, G.; Laurent, C.; Montanari, G.C.; Palmieri, F. Description of charge transport in polyethylene using a fluid model with a constant mobility: Fitting model and experiments. J. Phys. D Appl. Phys. 2006, 39, 1427. [Google Scholar] [CrossRef]
- Hoang, A.T.; Serdyuk, Y.V.; Gubanski, S.M. Charge transport in LDPE nanocomposites part II—Computational approach. Polymers 2016, 8, 103. [Google Scholar] [CrossRef] [PubMed]
- Le Roy, S.; Teyssedre, G.; Laurent, C.; Insulation, E. Modelling space charge in a cable geometry. IEEE Trans. Dielectr. Electr. Insul. 2016, 23, 2361–2367. [Google Scholar] [CrossRef]
- Zhan, Y.; Chen, G.; Hao, M. Space charge modelling in HVDC extruded cable insulation. IEEE Trans. Dielectr. Electr. Insul. 2019, 26, 43–50. [Google Scholar] [CrossRef] [Green Version]
- Zhan, Y.; Chen, G.; Hao, M.; Pu, L.; Zhao, X.; Sun, H.; Wang, S.; Guo, A.; Liu, J. Comparison of two models on simulating electric field in HVDC cable insulation. IEEE Trans. Dielectr. Electr. Insul. 2019, 26, 1107–1115. [Google Scholar] [CrossRef]
- Kreuger, F.H. Industrial High DC Voltage: 1. Fields, 2. Breakdowns, 3. Tests; Delft University Press: Delft, The Netherlands, 1995. [Google Scholar]
- Mazzanti, G.; Marzinotto, M. Extruded Cables for High-Voltage Direct-Current Transmission: Advances in Research and Development; John Wiley & Sons: Hoboken, NJ, USA, 2013; Volume 93. [Google Scholar]
- Teyssedre, G.; Laurent, C. Charge transport modeling in insulating polymers: From molecular to macroscopic scale. IEEE Trans. Dielectr. Electr. Insul. 2005, 12, 857–875. [Google Scholar] [CrossRef]
- Montanari, G.; Mazzanti, G.; Palmieri, F.; Motori, A.; Perego, G.; Serra, S. Space-charge trapping and conduction in LDPE, HDPE and XLPE. J. Phys. D Appl. Phys. 2001, 34, 2902. [Google Scholar] [CrossRef]
- Liu, N.; Zhou, C.; Chen, G.; Zhong, L. Determination of threshold electric field for charge injection in polymeric materials. Appl. Phys. Lett. 2015, 106, 192901. [Google Scholar] [CrossRef] [Green Version]
- Vu, T.; Teyssedre, G.; Vissouvanadin, B.; Le Roy, S.; Laurent, C.; Mammeri, M.; Denizet, I. Field distribution in polymeric MV-HVDC model cable under temperature gradient: Simulation and space charge measurements. Eur. J. Electr. Eng. 2014, 17, 307–325. [Google Scholar]
- Moore, G.F. Electric Cables Handbook; Blackwell Science: Hoboken, NJ, USA, 1997. [Google Scholar]
- Mardiana, R. Parameters affecting the ampacity of HVDC submarine power cables. In Proceedings of the 2011 2nd International Conference on Electric Power and Energy Conversion Systems (EPECS), Sharjah, UAE, 15–17 November 2011; pp. 1–6. [Google Scholar]
- Almallah, M.R. Ampacity of HV Multi-Insulation Cables at Different Cooling Methods: HVAC and HVDC Power Cables; Scholars’ Press: Saarbrücken, Germany, 2016. [Google Scholar]
- Jeroense, M.; Morshuis, P. Electric fields in HVDC paper-insulated cables. IEEE Trans. Dielectr. Electr. Insul. 1998, 5, 225–236. [Google Scholar] [CrossRef]
- Takada, T. Acoustic and optical methods for measuring electric charge distributions in dielectrics. In Proceedings of the 1999 Annual Report Conference on Electrical Insulation and Dielectric Phenomena (Cat. No. 99CH36319), Austin, TX, USA, 17–20 October 1999; pp. 1–14. [Google Scholar]
Parameter | Value | Units |
---|---|---|
Injection barrier heights | ||
wei for electrons | 1.27 | eV |
whi for holes | 1.16 | eV |
Trapping coefficients | ||
Be for electrons | 0.1 | 1/s |
Bh for holes | 0.2 | 1/s |
Trap depths (for hopping) | ||
wμe for electrons | 0.71 | eV |
wμh for holes | 0.65 | eV |
Trap densities | ||
noet for electrons | 100 | C/m3 |
noht for holes | 100 | C/m3 |
De-trapping barrier heights | ||
wtre for electrons | 0.96 | eV |
wtrh for electrons | 0.99 | eV |
Material | Resistivity (Ω·m) | Temperature Coefficient (1/K) |
---|---|---|
Copper | 1.7247 × 10−8 | 3.93 × 10−3 |
Aluminum | 2.8264 × 10−8 | 4.03 × 10−3 |
Potential Zero Duration (s) | Applied Current | |||
---|---|---|---|---|
250 A | 350 A | |||
Emax (kV/mm) | Radius (mm) | Emax (kV/mm) | Radius (mm) | |
0 | 56.34 | 4.5 | 47.62 | 4.61 |
60 | 55.93 | 4.5 | 46.82 | 4.63 |
1800 | 48.83 | 4.5 | 38.15 | 4.91 |
