Synthesis of Novel Ethoxylated Quaternary Ammonium Gemini Surfactants for Enhanced Oil Recovery Application

Abstract

Two aspects are always considered in the design and development of new surfactants for oilfield application. One of them is that surfactant must be sufficiently stable at reservoir temperature and the other is the solubility of the surfactant in the injection water (usually seawater) and the formation brine. Most industrially applied surfactants undergo hydrolysis at elevated temperature and the presence of reservoir ions causes surfactant precipitation. In relevance to this, a novel series of quaternary ammonium gemini surfactants with different length of spacer group (C8, C10, and C12) was synthesized and characterized using FT-IR, ¹³C NMR, ¹H NMR, and MALDI-TOF MS. The gemini surfactants were prepared by solvent-free amidation of glycolic acid ethoxylate lauryl ether with 3-(dimethylamino)-1-propylamine followed by reaction with dibromoalkane to obtain quaternary ammonium gemini surfactants. The gemini surfactants were examined by means of surface properties and thermal stabilities. The synthesized gemini surfactants showed excellent solubility in the formation brine, seawater, and deionized water without any precipitation for up to three months at 90 °C. Thermal gravimetric data revealed that all the gemini surfactants were decomposed above 227 °C, which is higher than the oilfield temperature (≥90 °C). The decrease in critical micelle concentration (CMC) and surface tension at CMC (γ_cmc) was detected by enhancing spacer length in the order C8 ˃ C10 ˃ C12 which suggested that the larger the spacer, the better the surface properties. Moreover, a further decrease in CMC and γ_cmc was noticed by enhancing temperature (30 °C ˃ 60 °C) and salinity (deionized water ˃ seawater). The current study provides a comprehensive investigation of quaternary ammonium gemini surfactants that can be further extended potentially to use as a suitable material for oilfield application.

1. Introduction

In the past decades, gemini cationic surfactants containing ammonium headgroup have been extensively used for multiple oilfield applications, such as anti-corrosion in oilfield wells [1], fracturing fluid [2], micellar slug [3], foam generation [4,5], collecting and dispersing the spilled crude oil [6], reservoir stimulation [7] wettability modification [8], and enhanced oil recovery [9,10]. They possess important physicochemical activities including lower critical micelle concentration (CMC), higher interface/surface properties, good solubility, compatible with carbonate rocks, high thermal stability, and unique aggregation behavior as compared to their monomeric counterpart [5,11,12,13].

Gemini cationic surfactants are a comparatively new class that contains two lipophilic tails and two lipophobic headgroups chemically bonded by the spacer. The length of the surfactant tail in gemini cationic surfactants play a significant role to identify the surface properties. For example, increasing the length of the surfactant tail (≥C14) results in lowering CMC and increasing surface tension at CMC (γ_cmc) [4,14,15]. However, a further increase in the surfactant tail leads to poor solubility in water [16]. The spacer group is perhaps the most important parameter in determining solution properties of the gemini amphiphiles [17]. The spacer group can be short (C2) [18], long (C16) [19], rigid (double bond or benzene ring) [20], flexible (methylene units) [21], lipophilic (hydrocarbon) [22], or hydrophilic (ether linkage) [23]. The length of the spacer significantly affects the size, shape, and morphology of the micelle, that eventually determine their physicochemical properties [17]. The larger length of the spacer results in better surface properties and reduces adsorption of the molecule on to the reservoir rocks [24].

Gemini surfactants can be classified as anionic, cationic, nonionic, and zwitterionic surfactants. The thermal stability and salt tolerance of gemini surfactants are the major challenges as they can precipitate in harsh reservoir conditions. Pal et al. examined the effect of the different spacers on the thermal stability of the nonionic bis (monoglyceride-1-hydrocyl-2-fattyacidester)-α-ω-alkanediether gemini surfactants using thermogravimetric analysis (TGA) and concluded that the gemini surfactant retains their structural integrity up to 448 K. However, precipitation was observed at higher NaCl concentration [25]. Nonionic and anionic surfactants can have high retention on the carbonate rock surface. Therefore, cationic gemini surfactant can be an attractive choice for carbonate reservoirs owing to low retention of carbonate rocks. Cationic gemini surfactants are not well studied for enhanced oil recovery applications. There are only a few reports in the literature describing the thermal stability and salt tolerance of gemini cationic surfactants containing ammonium headgroup for EOR application [26]. Recently, Wang et al. reported the synthesis of 1,3-2(lauramide propyl dimethyl ammonium chloride) isopropyl alcohol (gemini surfactant) for potential surfactant flooding material and observed a reduction in IFT value (<0.01 mN/m) upon addition of electrolytes [5]. However, thermal stability and salt tolerance were not studied. Mao et al. revealed the heat resistance and micelle aggregation properties of the viscoelastic (VES) gemini surfactant for oilfield application [2]. Panda and co-workers found enhancement of aqueous solubility of polycyclic aromatic hydrocarbons (PAHs) upon addition of biodegradable ester-linked dicationic geminis of different chain lengths (m-E2-m; m = 12, 14, 16) [27]. The solubility and thermal stability of the gemini cationic surfactants in seawater (SW), which is normally the injected water, and in reservoir brine (FW) remains a big challenge. In our previous work, we observed that the gemini surfactants containing ammonium headgroup were only stable in deionized water and showed precipitation in SW and FW [28]. In this work, we achieved excellent solubility and stability of the gemini cationic surfactants with ammonium headgroup in SW and FW by incorporating a proper number of ethoxy (EO) units between the hydrophobic tail and hydrophilic head group.

In this article, three new quaternary ammonium gemini surfactants (GS8, GS10, and GS12) having flexible larger spacer C8, C10, and C12, respectively, were synthesized and characterized with the aid of NMR, (carbon and proton), FT-IR, and MALDI-TOF MS. Special attention was paid to identify the effect of length of spacer on the surface and thermal properties of the synthesized GSs. The surfactant samples were dissolved in FW, SW, and DW, and kept in an oven for three months at 90 °C. The thermal stability of GSs was determined by thermal gravimetric analysis (TGA). Surface properties, such as CMC, surface tension at CMC (γ_cmc), maximum surface access (г_max), occupied surface area at the interface of air-water (A_min) were measured at different conditions of salinity and temperature. This study mainly focuses on synthesis, characterization, thermal stability, salt tolerance, and surface properties of this novel class of surfactants.

2. Materials and Methods

2.1. Materials

Glycolic acid ethoxylate lauryl ether (average M_n ~ 690), NaF (≥99%), 3-(dimethylamino)-1-propylamine (99%), 1,8-dibromooctane (98%), 1,10-dibromodecane (97%), 1,12-dibromododecane (98%), aluminum oxide (99.99%), were acquired from Aldrich company. The salts, such as CaCl₂, Na₂SO₄, MgCl₂, NaHCO₃, NaCl, were used for the preparation of FW and SW. The concentration of each salt is given in

Table 1. ¹H NMR data exhibiting description of proton-type in GS12 [33,34,35,36,37].

Gemini Surfactants	1H NMR (δ in ppm, CDCl3 Solvent at 500 MHz)
	Alkyl Tail				Ethoxy Chain		Amide	Amido-Amine		Spacer Group
	CH3 (a)	CH2 (b,o)	CH2 (c)	CH2 (d j l)	(CH2)2 (e)	CH2 (f)	NH (g)	CH2 (h) CH3 (k)	CH2 (i)	CH2 (m)	CH2 (n)
GS8	0.88	1.26	1.57	3.44	3.64	4.03	7.96	3.25	1.75	2.06	1.44
GS10	0.88	1.26	1.57	3.44	3.65	4.03	7.97	3.27	1.76	2.06	1.40
GS12	0.88	1.26	1.57	3.44	3.65	4.03	7.98	3.27	1.74	2.07	1.37

and all these salts were purchased from Panreac.

2.2. Elucidation of Chemical Structure

The structure characterization tools including NMR (carbon and proton), FT-IR, MALDI-TOF MS were used to confirm the chemical structure of all the synthesized gemini surfactants (GS8, GS10, and GS12). ¹³C and ¹H/NMR spectra were recorded on a Jeol 1500 spectrometer (Jeol, Tokyo, Japan). The FT-IR data was recorded on a 16F Perkin-Elmer FT-IR spectrometer (Perkin-Elmer, Waltham, MA, USA). MALDI-TOF MS spectra of the GSs were recorded on a Bruker SolariX XR instrument (Bruker, Billerica, MA, USA) in a matrix of Dithranol in dichloromethane.

2.3. Solubility Experiments

The gemini amphiphiles (GS8, GS10, GS12) (10 wt % each) were dissolved in FW, SW, DW, and kept in an oven for three months. The temperature of the oven was set at 90 °C and the solubility was visually observed with elapsed time.

2.4. Thermal Gravimetric Analysis

SDT Q600 machine from TA instrument was used for the TGA measurement (New Castle, DE, USA). The experiment was done with a fixed heating rate (20 °C/min) and fixed nitrogen flow (100 mL/min), and the temperature interval was 30 °C to 500 °C.

2.5. Surface Tension Experiments

Surface tension values for GS8, GS10, and GS12 were investigated with the aid of a force tensiometer (Sigma 702, Biolin Scientific, Gothenburg, Sweden) using the Wilhelmy plate technique. The experiments were conducted at 30 ± 0.1 °C and 60 ± 0.1 °C. Wilhelmy plate was washed using DW and burnt on a blue flame before every experiment. The surface tension of DW was examined as a benchmark.

2.6. Synthesis

Synthesis of GS8

The GS8 was synthesized as depicted in Scheme 1. Glycolic acid ethoxylate lauryl ether (6) (average Mn ~ 690) (10 g, 14.49 mmol) and 3-(dimethylamino)-1-propylamine (5) (2.96 g, 28.99 mmol) were refluxed for 6 h at 160 °C in a 250 mL round bottom flask using sodium fluoride (0.06 g, 1.45 mmol) as a catalyst [29]. An extra 3-(dimethylamino)-1-propylamine (2.22 g, 21.74 mmol) was introduced in order to convert all the glycolic acid into amide intermediate (4) and the reaction progressed an extra four hours. Eventually, the unreacted 3-(dimethylamino)-1-propylamine was extracted and the solid sodium fluoride was removed to acquire intermediate 4. In the second step, intermediate 4 (10.0 g, 12.92 mmol) was refluxed with 1,8-dibromooctane (1.41 g, 5.17 mmol) in anhydrous ethanol (5 mL) for 48 h at 80 °C. Finally, the crude material was refined by column chromatography with ethanol (mobile phase) to acquired GS8 as a thick oil [30].

GS10 and GS12 were synthesized in the exact same manner as GS8.

3. Results

Three quaternary ammonium gemini surfactants (GS8, GS10, and GS12) having flexible larger spacer were synthesized by treating glycolic acid ethoxylate lauryl ether (6) with 3-(dimethylamino)-1-propylamine (5) using NaF catalyst to form intermediate (4) (Scheme 1, Figure 1). The intermediate (4) was then further reacted individually with 1,8-dibromooctane, 1,10-dibromodecane, and 1,12-dibromododecane to acquired GS8, GS10, and GS12, respectively.

3.1. Structure Confirmation

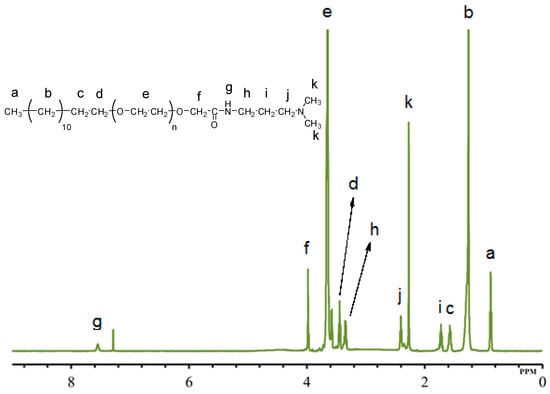

The structure elucidation of all gemini surfactants was done using ¹H NMR, ¹³C NMR, FTIR, and MALDI-TOF MS. The structure elucidation of GS12 is illustrated here, while the data of GS8 and GS10 is given in Supplementary Materials (Figures S1–S8). The ¹H NMR spectra of GS12 (Table 1, Figure 2) showed the existence of characteristic signals at δ 0.88 ppm and δ 1.25 ppm corresponding to the CH₃ and CH₂ moieties constituting hydrophobic tail. The presence of CH₃ groups connected to the quaternary ammonium [–(CH₃)₂–N–(CH₂)₁₂–N–(CH₃)₂–] was evident from a singlet peak at δ 3.27 ppm [5]. The most intense peak at δ 3.65 ppm was attributed to the presence of the ethylene oxide chain (–O–CH₂–CH₂–O–CH₂–CH₂–) [31]. The singlet peak that appeared at δ 4.03 ppm was coupled with the CH₂ group next to the carbonyl group [–CH₂-CH₂–O–CH₂–C=O–NH–]. Characteristic signals at δ 7.98 ppm could be coupled to the proton of the amide group [–CH₂–C=O–NH–CH₂–] [32].

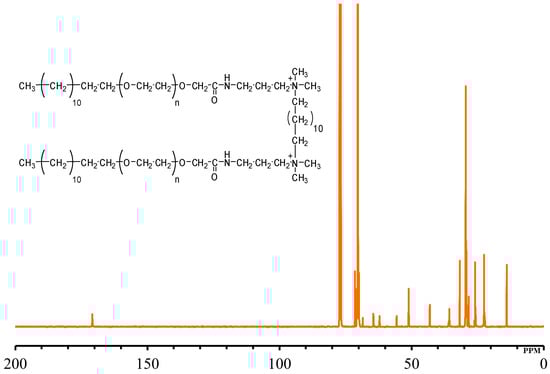

The ¹³C NMR spectra of GS12 (

Table 2. ¹³C NMR data describing the chemical shift values in GS12.

Gemini Surfactants	13C NMR (δ in ppm, CDCl3 Solvent at 125 MHz)
GS8	14.0, 22.6, 25.9, 29.2, 29.4, 29.5, 31.8, 35.7, 51.1, 62.1, 64.6, 70.4, 170.9
GS10	13.9, 22.5, 25.9, 29.2, 29.3, 29.5, 31.7, 35.7, 51.0, 62.0, 64.4, 70.3, 170.9
GS12	14.0, 22.5, 26.0, 29.2, 29.3, 29.4, 31.8, 35.6, 51.1, 62.1, 64.5, 70.4, 170.8

, Figure 3) displayed the signals at δ 14.0 ppm and δ 22.5–31.8 ppm related to the CH₃ and CH₂ groups constituting hydrophobic tail. The existence of CH₃ groups joined to the quaternary ammonium [–(CH₃)₂–N–(CH₂)₁₂–N–(CH₃)₂–] was marked from signals at δ 51.1 ppm. In addition, characteristic signals at δ 62.1 ppm and δ 64.5 ppm correspond to the two CH₂ groups at the quaternary ammonium [–CH₂–N–(CH₃)₂–CH₂–(CH₂)₁₀–CH₂–(CH₃)₂–N–CH₂–] [38]. The most intense peak at δ 70.4 ppm was attributed to the presence of the ethylene oxide chain (–O–CH₂–CH₂–O–CH₂–CH₂–) [31]. Characteristic signals at δ 170.8 ppm could be attributed to the carbon of the amide group [–CH₂–C=O–NH–CH₂–].

The FT-IR data of GS12 (

Table 3. FT-IR spectral data of the quaternary ammonium gemini surfactants (GS12).

Gemini Surfactants	FTIR Adsorption Bands (υ in cm−1)
	(υN–H)	υC–H asym.	υC–H sym.	Amide (I)	Amide (II)	CH2 (Bend)	CH3 (Bend)	C–O–C Stretch	asym. Stretch
GS8	3409	2920	2853	1628	1545	1464	1348	1097	945
GS10	3411	2922	2851	1631	1544	1465	1350	1099	947
GS12	3412	2921	2855	1627	1542	1463	1347	1096	946

, Figure 4) revealed an adsorption band at 3412 cm⁻¹ correspond to N-H stretching vibration. The signals at 2855 cm⁻¹ and 2921 cm⁻¹ can be attributed to the symmetric and asymmetric vibration of the CH₂ groups. Characteristic signals at 1627 cm⁻¹ and 1542 cm⁻¹ could be coupled with the C=O stretch of amide I and amide II band [38]. Resonance signals at 1463 cm⁻¹ and 1347 cm⁻¹ is a result of CH₂ and CH₃ bending vibrations, respectively. The most intense peak at 1096 cm⁻¹ corresponds to the ether (C–O–C) functional group [39].

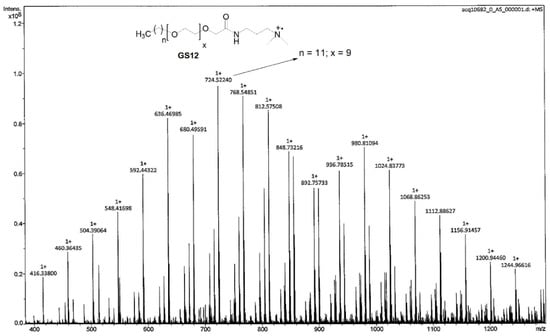

According to MALDI-TOF MS spectra (

Table 4. MALDI-TOF MS analysis of quaternary ammonium gemini surfactants (GS8, GS10, and GS12).

Gemini Surfactants	Intense Peak	Proposed Structure
GS8	768.5
GS10	680.2
GS12	724.5

, Figure 5), the characteristic peak at 724.5 may be attributed to the homolytic bond breaking between quaternary ammonium and terminal carbon of spacer. Such kind of homolytic cleavage gives rise to the radical cation and demonstrates that the GS12 containing n = 11 and x = 9 is the major component.

3.2. Heat Stability

3.2.1. Short-Term Heat Stability

Stability of surfactant in a hot environment is the key factor for its oilfield application [40,41,42]. We examined the heat stability of the three-quaternary ammonium gemini surfactants (GS8, GS10, and GS12) at elevated temperature with the help of TGA. All three GSs exhibited almost similar thermal behavior (Figure 6) and thermal decomposition was observed at two stages. The initial 3.3% loss in weight for all GSs may be associated with the loss of solvent impurities and residual water. A second and sharp loss in weight for all GSs was identified at 227 °C reflecting the degrading effect of temperature on the chemical structure of GS8, GS10, and GS12 and it was significantly higher than the real oilfield temperature (≥90 °C). GS8, GS10, and GS12 contain the same number of hydrophobic units (tail groups) and hydrophilic units (EO groups), and the same ammonium headgroups. They differ with each other by two methylene units in the spacer group. Therefore, a significant difference in thermal properties was not observed. In summary, the variation of spacer length has no significant effect on the thermal stability of the GSs and, overall, GSs were found to be thermally stable at elevated temperature.

3.2.2. Long-Term Heat Stability

Long-term thermal stability is the pre-requisite for the material subjected to oilfield application. The applied surfactants stay in the oilfield for a long time and the high temperature of the oilfield (≥90 °C) can lead to surfactant decomposition. We investigated long-period heat stability of the synthesized GS10 by the aging procedure in which GS10 was dissolved in seawater and left in an oven over a period of three months at 90 °C followed by structure elucidation of the aged GS10 sample with the aid of NMR and FT-IR spectroscopy. As revealed by the ¹H NMR spectra of the aged sample of GS (Figure 7), the terminal CH₃ of the lipophilic tail appeared at δ = 0.88 ppm. The multiple CH₂ groups in the lipophilic tail were observed at δ = 1.26 ppm. The multiple CH₃ groups at the ammonium headgroup were resonated at δ = 3.29 ppm. The CH₂ groups in the ethoxy chain were detected δ = 3.65 ppm. The singlet peak of amide proton was identified at δ = 7.97 ppm. As displayed in the ¹³C NMR spectra of the aged sample of GS10 (Figure 8), the terminal CH₃ of the lipophilic tail was observed at δ = 13.9 ppm. The multiple CH₂ groups in the lipophilic tail were detected at δ = 22.5–31.8 ppm. The multiple CH₃ groups at the ammonium headgroup were identified at δ = 51.1 ppm. Similarly, the CH₂ groups from both sides of ammonium headgroup were resonated at δ = 62.0 ppm and δ = 64.4 ppm. The multiple CH₂ groups in the ethoxy chain were seen by the signals at δ = 69.9 ppm. The signals at δ = 170.9 ppm can be attributed to the carbonyl carbon of the amide group. The FT-IR spectra of GS10 (Figure 9) exhibited an adsorption band at 3414 cm⁻¹ related to N-H stretching. Two sharp peaks at 2853 cm⁻¹ and 2919 cm⁻¹ can be related to the symmetric and asymmetric stretching of the CH₂ groups. Characteristic peaks at 1625 cm⁻¹ and 15,439 cm⁻¹ may be attributed to the carbonyl stretching of amide I and amide II band. The signals at 1461 cm⁻¹ and 1344 cm⁻¹ can be coupled with the CH₂ and CH₃ bending, respectively. The intense peak at 1097 cm⁻¹ can be related to the ether (C–O–C) group. Overall, the NMR and FT-IR spectra of the GS10 before and after aging were in agreement with the structure and no structure decomposition was observed.

3.3. Salt Resistance and Solubility

Surfactant solubility and stability in the presence of reservoir ions is one of the most important properties of any surfactant selected for oilfield application. The presence of different monovalent and divalent salts in injected water (normally seawater) and FW accelerates the formation of precipitates and diminishes the surfactant ability to reduce IFT and alter rock wettability. It was observed that the addition of a proper number of ethoxy (EO) units between the lipophilic tail and lipophobic headgroup enhances the solubility of the GSs in all kinds of water (DW, SW, and FW). The increase in solubility with the addition of EO units can be explained by the hydrogen bonding effect. The oxygen atom in EO units form hydrogen bonding with the hydrogen atom of water molecules and an increasing number of EO units results in more hydrogen bonding which further enhances the surfactant solubility (Figure 10). The aqueous solubility and salt resistance level of GSs were investigated by dissolving the GSs samples in SW and FW, then they were placed in an oven for up to three months at 90 °C. The percentage of all salts in aqueous surfactant solution is outlined in

Table 5. The amount of salts in simulated FW and SW.

Ions	FW (g/L)	SW (g/L)
Na+	59.5	18.3
Ca2+	19.1	0.7
Mg2+	2.5	2.1
SO42−	0.4	4.3
Cl−	132.1	32.2
HCO3−	0.4	0.1
Total	214	57.7

. All three surfactants (GS8, GS10, GS12) exhibited pronounced solubility in DW, SW, and FW without precipitation, phase separation, or cloudiness for up to three months at 90 °C (Figure 11).

3.4. Surface Tension Analysis

The CMC was identified by using surface tension (γ) and log surfactant molar concentration (C) curves at 30 °C and 60 °C. The maximum surface access at the air/solution interface (г_max) and the minimum area (A_min) occupied by the surfactant was studied using Gibbs adsorption equations:

$${\mathsf{г}}_{\max }=-\frac{1}{\mathrm{nRT}}{\left(\frac{\mathrm{d}\mathsf{\gamma }}{\mathrm{dlnC}}\right)}_{\mathrm{T}}$$

(1)

$${\mathrm{A}}_{\min }={10}^{18}/{\mathrm{N}}_{\mathrm{A}}{\mathsf{г}}_{\max }$$

(2)

Here dγ/dlnC is the slope below CMC in surface tension plot, R is the gas constant, C represents the concentration of the surfactant, T represents temperature, N_A is the Avogadro’s number and n is three for the gemini amphiphile [43].

Figure 12, Figure 13 and Figure 14 show the surface tension values of GS8, GS10, and GS12, respectively, at different temperatures and salinities. The derived surface properties are depicted in

Table 6. Surface properties of GS8, GS10 and GS12 at various temperatures and salinities.

Surfactant	Brine	T (°C)	CMC (mol L−1)	γcmc (mN m−1)	гmax × 107 (mol m−2)	Amin (nm2)
GS8	DW	30	1.86 × 10−5	40.31	7.23	2.33
GS8	DW	60	7.12 × 10−6	37.71	6.63	2.50
GS8	SW	30	1.09 × 10−5	34.29	5.94	2.79
GS10	DW	30	1.068 × 10−5	39.70	7.35	2.25
GS10	DW	60	6.85 × 10−6	37.39	6.53	2.48
GS10	SW	30	7.67 × 10−6	34.70	5.78	2.75
GS12	DW	30	8.26 × 10−6	39.55	8.84	1.89
GS12	DW	60	6.55 × 10−6	37.38	8.36	1.99
GS12	SW	30	1.69 × 10−6	33.93	7.85	2.11

. The decrease in surface tension was observed by enhancing the concentration of GS until CMC was achieved. Further addition of GS showed a negligible change in the surface tension beyond CMC. For all GSs with different spacer lengths, the CMC and surface tension at CMC (γ_cmc) decreased upon enhancing salinity and temperature. At any concentration, the CMC and γ_cmc of the GSs were higher in DW as compared to the SW. Similarly, the CMC and γ_cmc were lower at high temperature (60 °C) as compared to low temperature (30 °C).

The surface tension values depend on the interaction of the molecules of GS at the water-micelle interface. Any factor (internal or external) that facilitate the presence of GS at the water-micelle interface will result in surface tension reduction [23]. Increasing the concentration of salts also increases the presence of the GS at the water-micelle interface by lowering the hydration of surfactant molecules. Increasing the concentration of salts also reduces the repulsion of GS molecule which results in more close packing at the water-micelle interface. Therefore, increasing the concentration of salts lowers the CMC and γ_cmc values. The synthesized GS8, GS10, and GS12 have similar alky tail, EO units, and ammonium headgroup. The only difference is the length of the spacer which is the only factor responsible for determining aggregation morphologies. The CMC of GSs at 30 °C and 60 °C, as well as in DW and SW, was in the order of GS12 ˂ GS10 ˂ GS8 because the longer GS12 spacer makes it easier to be situated at the water-micelle interface and forms a more closely packed micelle structure [28]. GS12 showed the minimum CMC (6.55 × 10⁻⁶ mol/L) in DW at 60 °C followed by GS10 and GS8. A similar trend was observed at both salinities and temperatures for GS8, GS10 and GS12 and these results are in agreement with the literature [18,19]. The surface access (г_max) decreased upon enhancing salinity and temperature but increased by increasing spacer length in the order GS12 ˃ GS10 ˃ GS8. A minimum area occupied by GS (A_min) also influenced by the spacer length, salinity, and temperature. A_min reduced upon increasing spacer length in the order of GS12 ˂ GS10 ˂ GS8 but increased by increasing salinity and temperature. In summary, all the synthesized GSs exhibited very low CMC in DW and SW.

4. Conclusions

Environmentally friendly gemini surfactants are comparatively new materials for oilfield application. In this report, three quaternary ammonium gemini surfactants (GS8, GS10, GS12) with the same functionalities, except for the length of the spacer, were synthesized and characterized by FT-IR, ¹³C NMR, ¹H NMR, and MALDI-TOF MS. The effect of flexible larger spacers (C8, C10, and C12) on the thermal and surface properties was studied. According to TGA analysis, the GSs showed almost similar thermograms and exhibited higher decomposition temperature (227 °C) compared to existing oilfield temperature (≥90 °C). The GSs exhibited excellent solubility in normal and saline water and the aqueous solutions of GS8, GS10, GS12 stayed clear for up to three months at 90 °C without precipitation or phase separation. It was noticed that the increase in spacer length shifts the CMC and γ_cmc to lower values in the order of GS8 ˃ GS10 ˃ GS12. The larger spacer in GS12 stimulates micelle formation at the water-micelle interface and creates a more closely packed micelle structure which leads to a lower CMC. The effect of salinity and temperature on micellization was also investigated through surface tension measurements. A significant decrease in CMC and γ_cmc was observed in the presence of salts and at high temperature. The IFT, rheology, and foam analysis are proceeding in our laboratories.
