A Hybrid Predictive Control for a Current Source Converter in an Aircraft DC Microgrid

School of Electrical Engineering, Southeast University, Nanjing 210096, China
*
Author to whom correspondence should be addressed.
Energies 2019, 12(21), 4025; https://doi.org/10.3390/en12214025
Received: 24 September 2019 / Revised: 18 October 2019 / Accepted: 20 October 2019 / Published: 23 October 2019
(This article belongs to the Special Issue Power Electronics and Power Quality 2019)

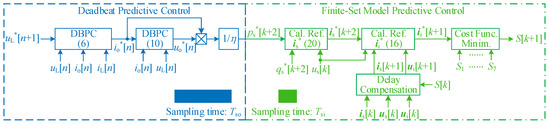

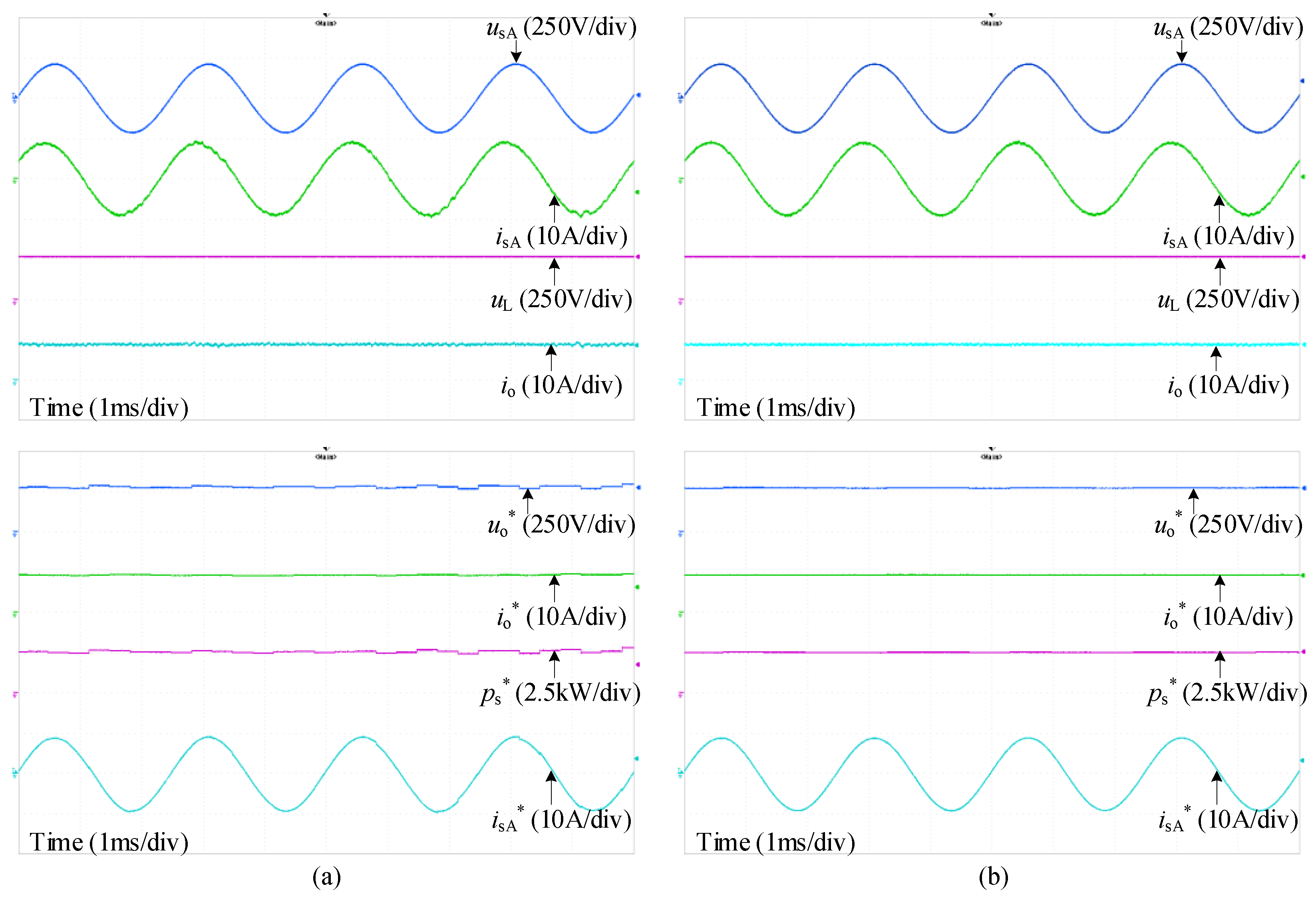

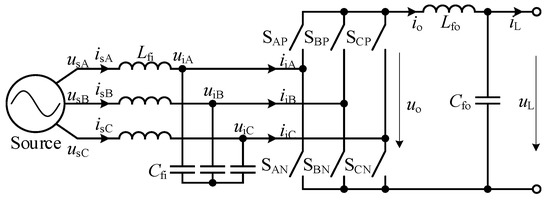

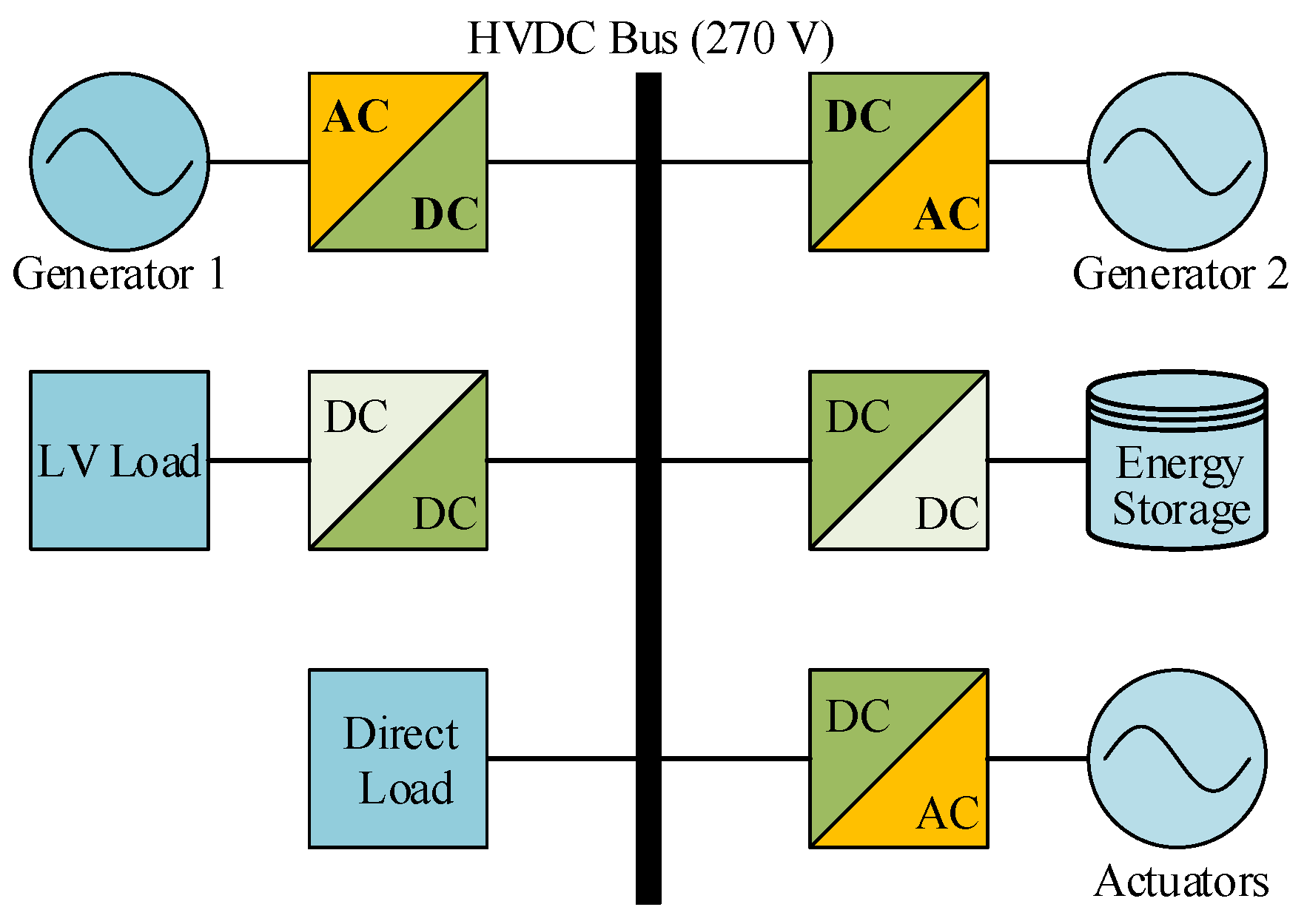

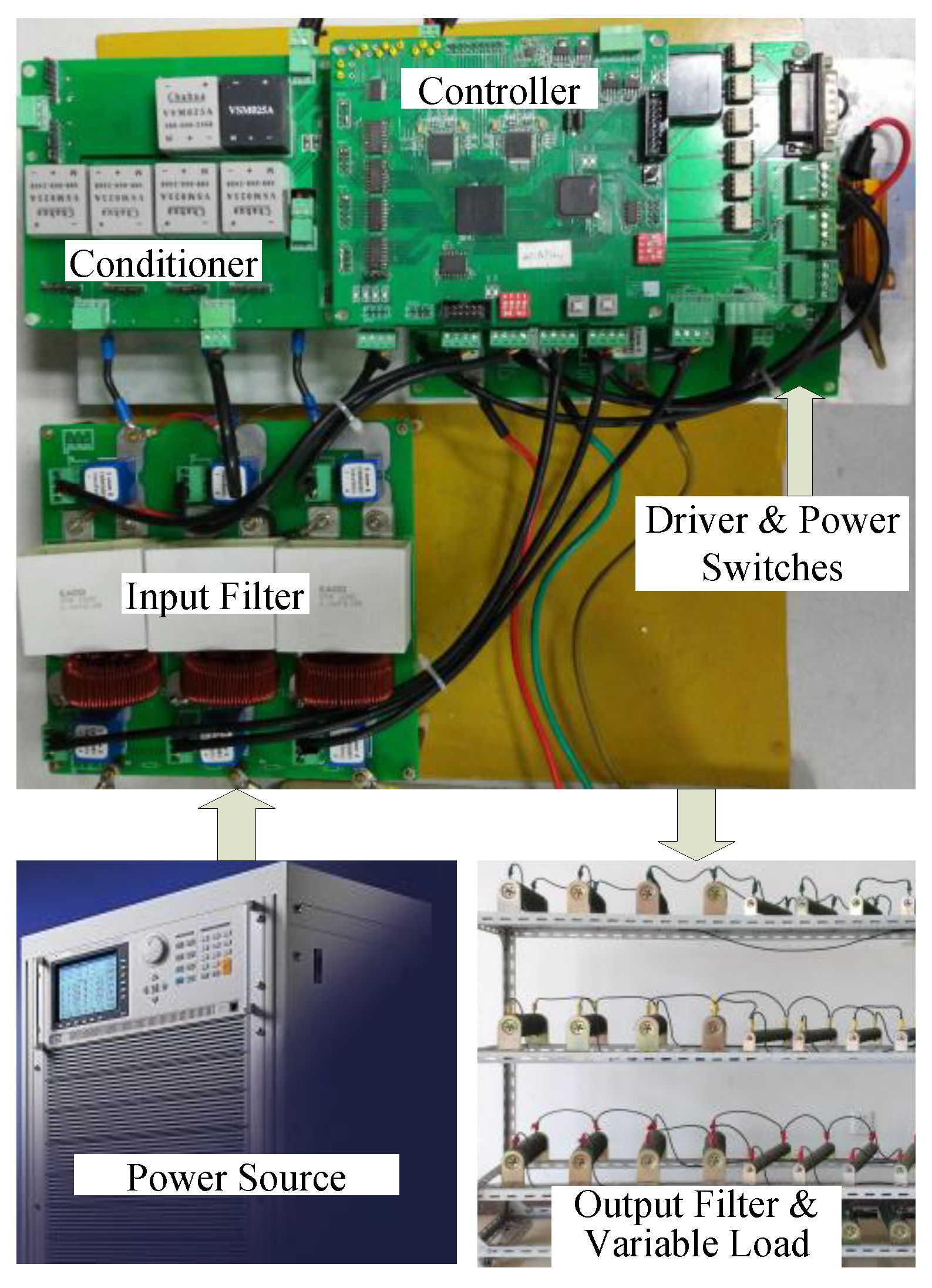

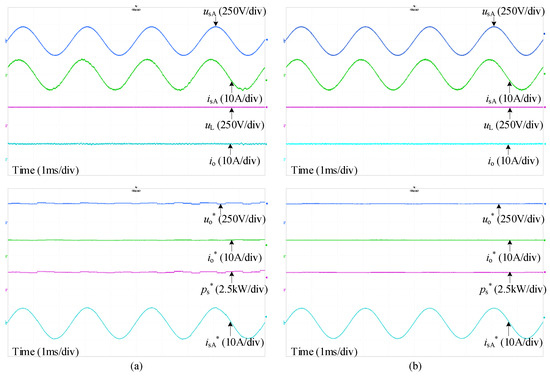

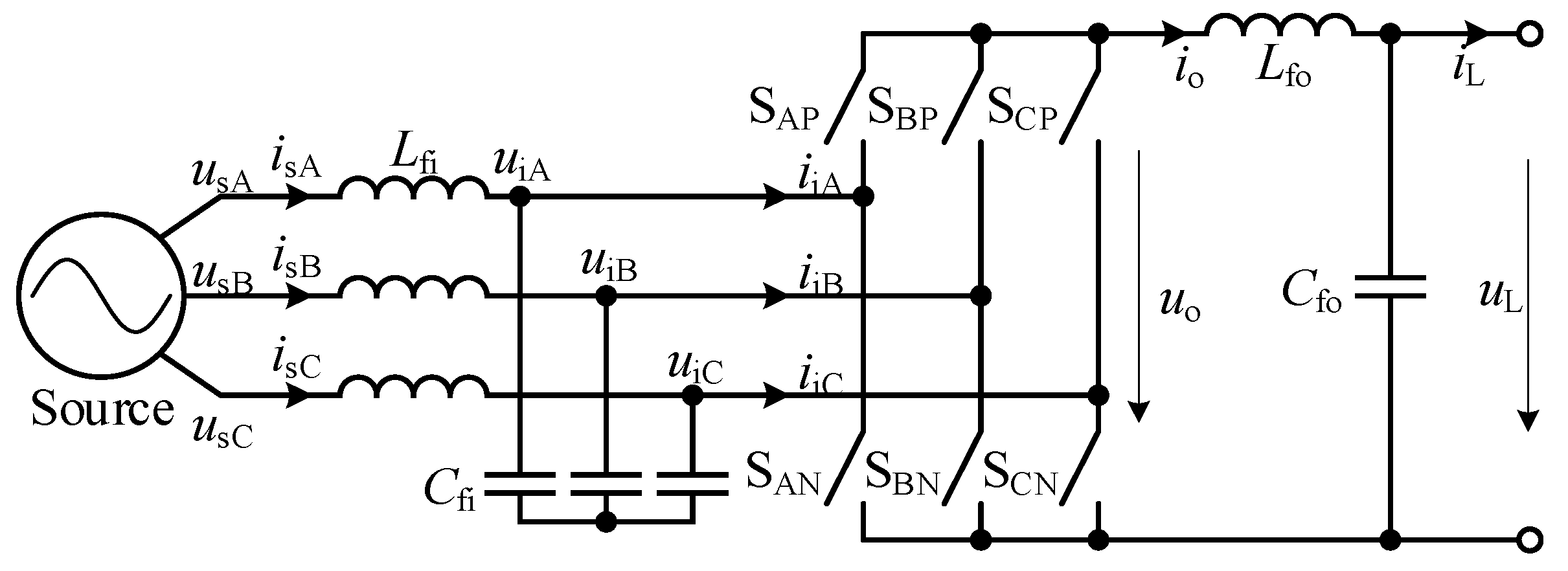

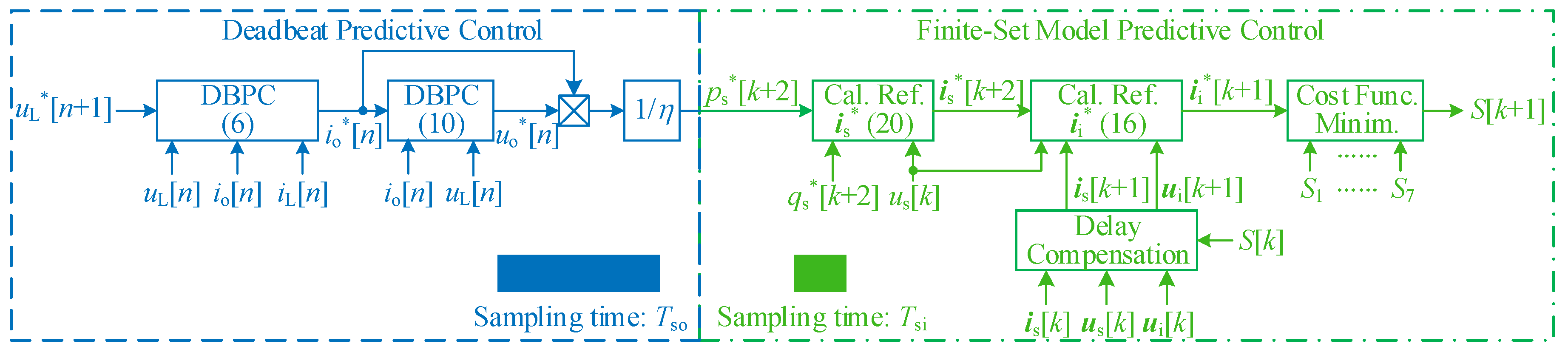

A current source converter (CSC) is a promising topology for interfacing aircraft generators with the onboard DC microgrid. In this paper, a hybrid predictive control is proposed for the CSC with an output LC filter in such application. Deadbeat predictive control with larger sampling time is applied to the output circuit, generating reference source currents. Finite-set model predictive control with smaller sampling time is applied to the input circuit to achieve sinusoidal source currents, which is simplified by saving the source current predictions. The proposed scheme eliminates both the proportional-integral controller and the weighting factor, which are required in the existing studies. Besides, it has lower control complexity. A SiC-MOSFET-based prototype is used to verify the validity of the proposed scheme. Experimental results under 150 V/350–800 Hz AC input and 270 V DC output demonstrate the superior control performance. View Full-Text
Keywords: more electric aircraft; DC microgrid; current source converter; deadbeat predictive control; finite-set model predictive control more electric aircraft; DC microgrid; current source converter; deadbeat predictive control; finite-set model predictive control
