Next Article in Journal
Ultrasonic Guided Wave Phased Array Focusing Technology and Its Application to Defrosting Performance Improvement of Air-Source Heat Pumps
Previous Article in Journal
Control Strategies Applied to Wave Energy Converters: State of the Art
Previous Article in Special Issue
Reversible Efficiency Variation of Tandem Amorphous/Microcrystalline Si Photovoltaic Modules in Outdoor Operation
Open AccessArticle

Effect of Morphology and Mechanical Stability of Nanometric Platinum Layer on Nickel Foam for Hydrogen Evolution Reaction

Consiglio Nazionale delle Ricerche (CNR), Istituto per la Microelettronica e Microsistemi (IMM), Zona Industriale Ottava Strada 5, I95121 Catania, Italy
Author to whom correspondence should be addressed.
Energies 2019, 12(16), 3116;
Received: 27 June 2019 / Revised: 6 August 2019 / Accepted: 11 August 2019 / Published: 14 August 2019
(This article belongs to the Special Issue Materials and Devices for Solar to Hydrogen Energy Conversion)
PDF [2651 KB, uploaded 14 August 2019]

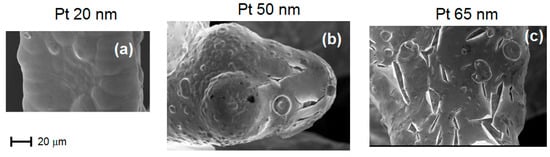

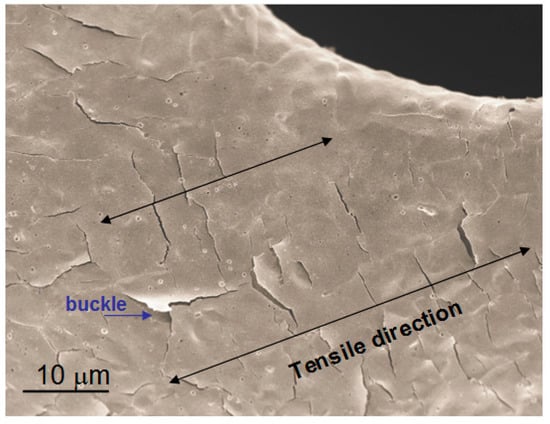

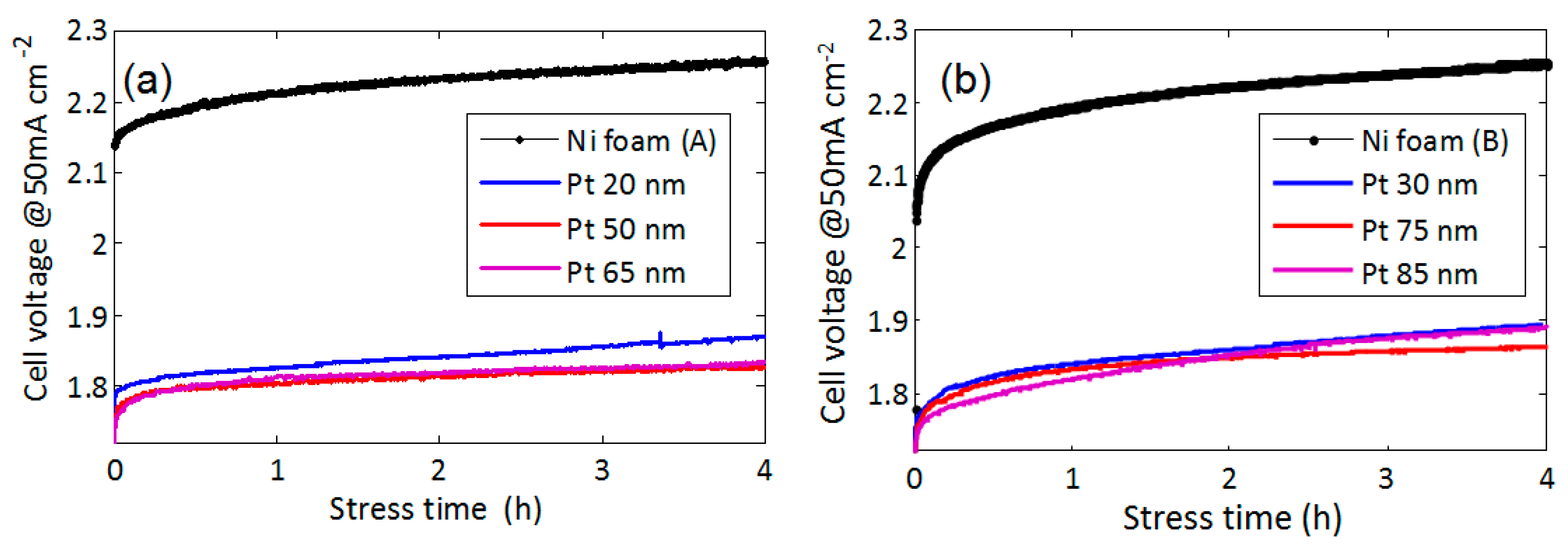

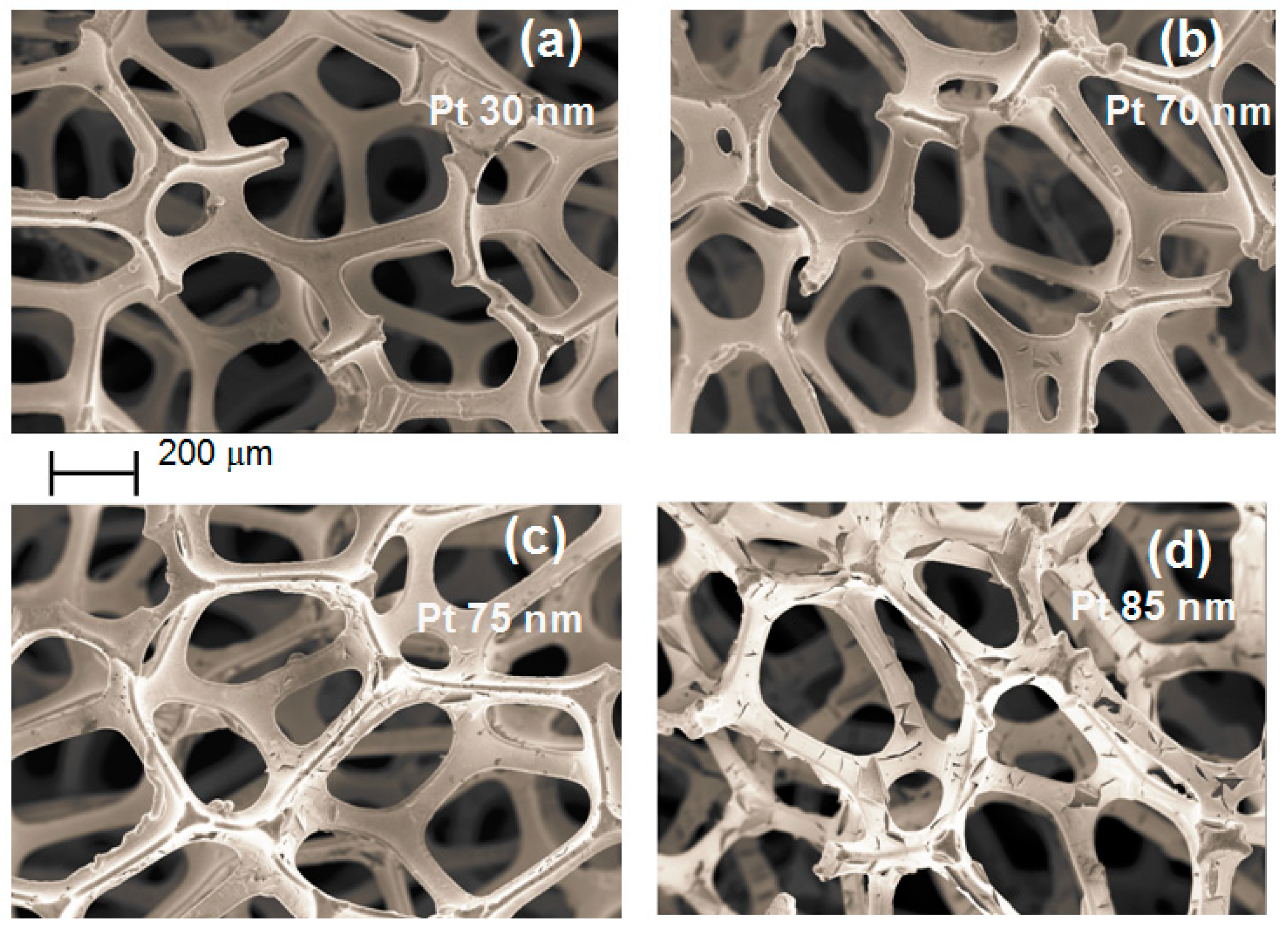

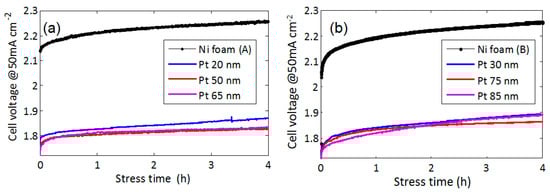

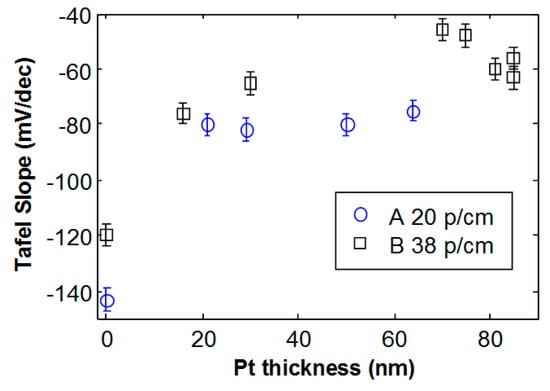

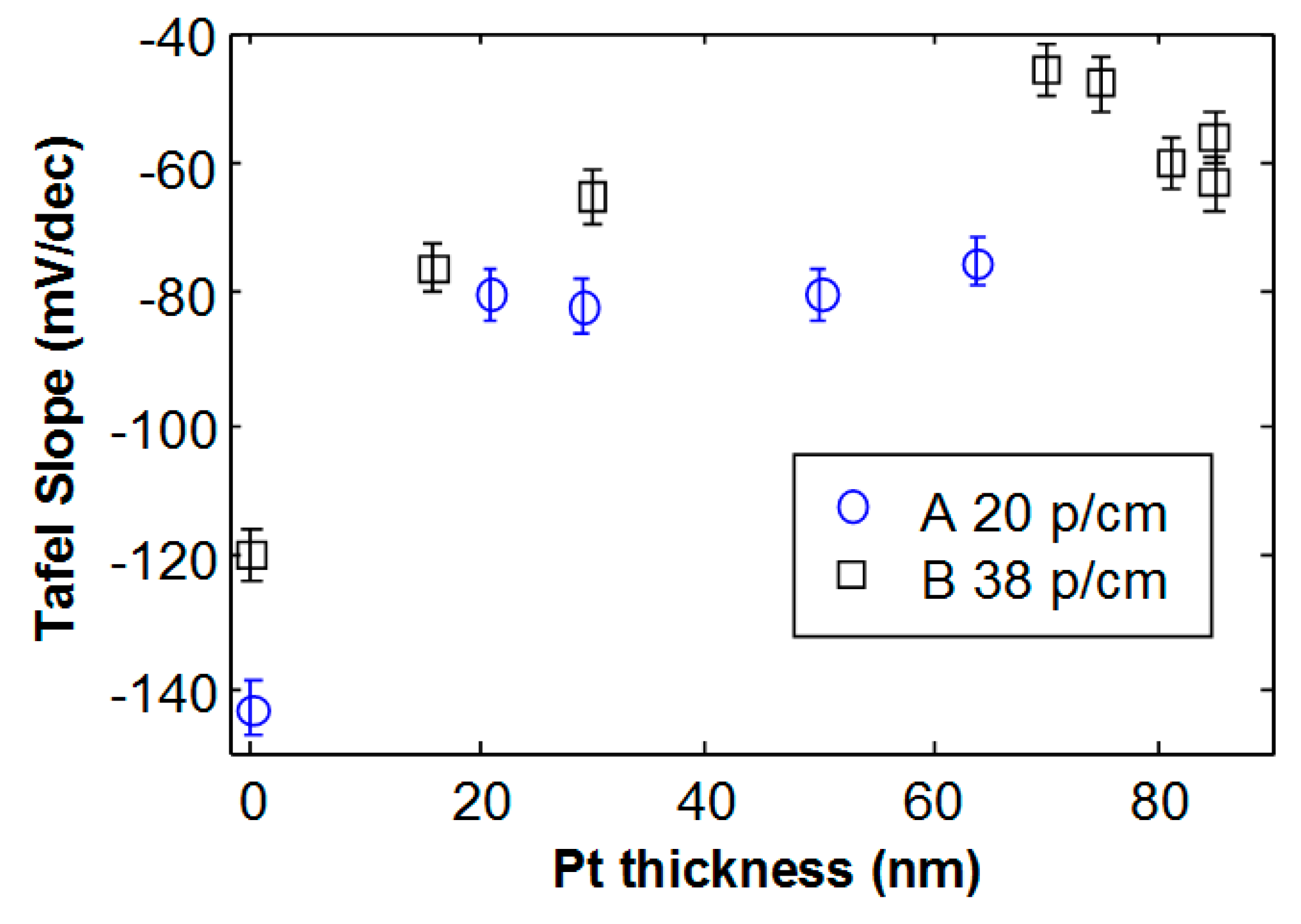

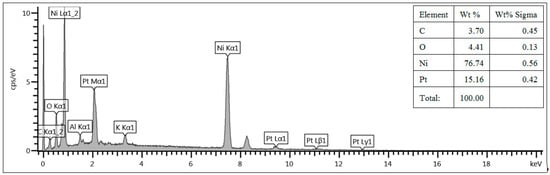

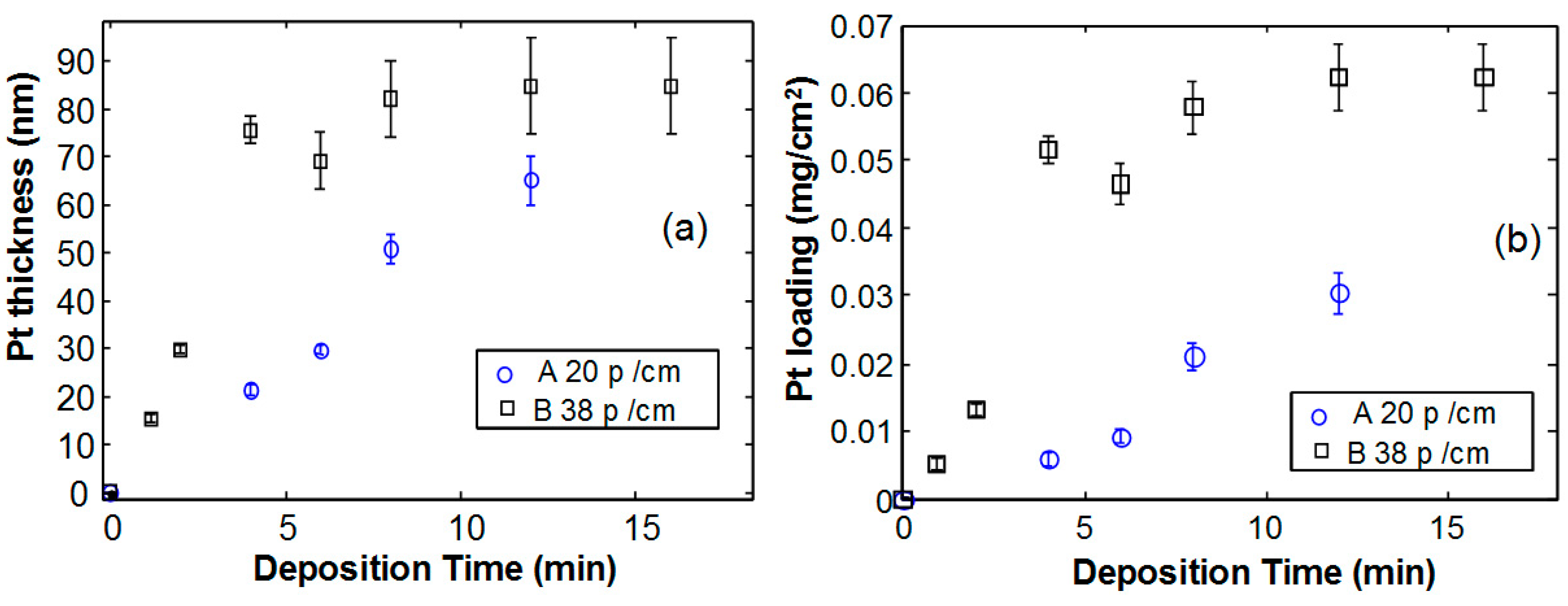

Platinum thin films are deposited on open-cell nickel foam with porosity of 95% via spontaneous galvanic displacement. Ni foams with different morphologies and pore size are compared and characterized by electrochemical and structural analysis techniques. The effect of Pt coating on the electrochemical activity is studied by using the Pt coated foam as electrode material for hydrogen evolution reaction in an aqueous alkaline electrolyte. The electrocatalytic activity of the electrodes is evaluated using linear sweep voltammetry curves and Tafel plots as a function of deposition time. The comparison with scanning electron microscopy analyses demonstrates that the catalytic activity has a maximum when the platinum film completely covers the Ni surface. The further increase of the Pt thickness leads to mechanical instability with crack formation and delamination. The effect of the foam morphology on the Pt deposition rate has been evaluated and discussed, determining the minimum Pt amount required to achieve the maximum electrochemical activity, as well as the maximum thickness in order to assure stable characteristics before delamination occurs. View Full-Text
Keywords: catalysis; hydrogen evolution reaction; mechanical stability catalysis; hydrogen evolution reaction; mechanical stability

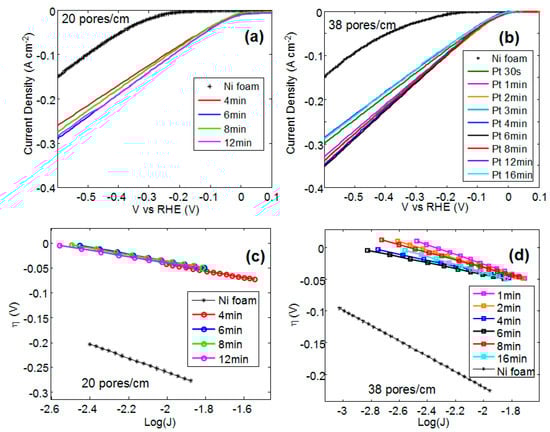

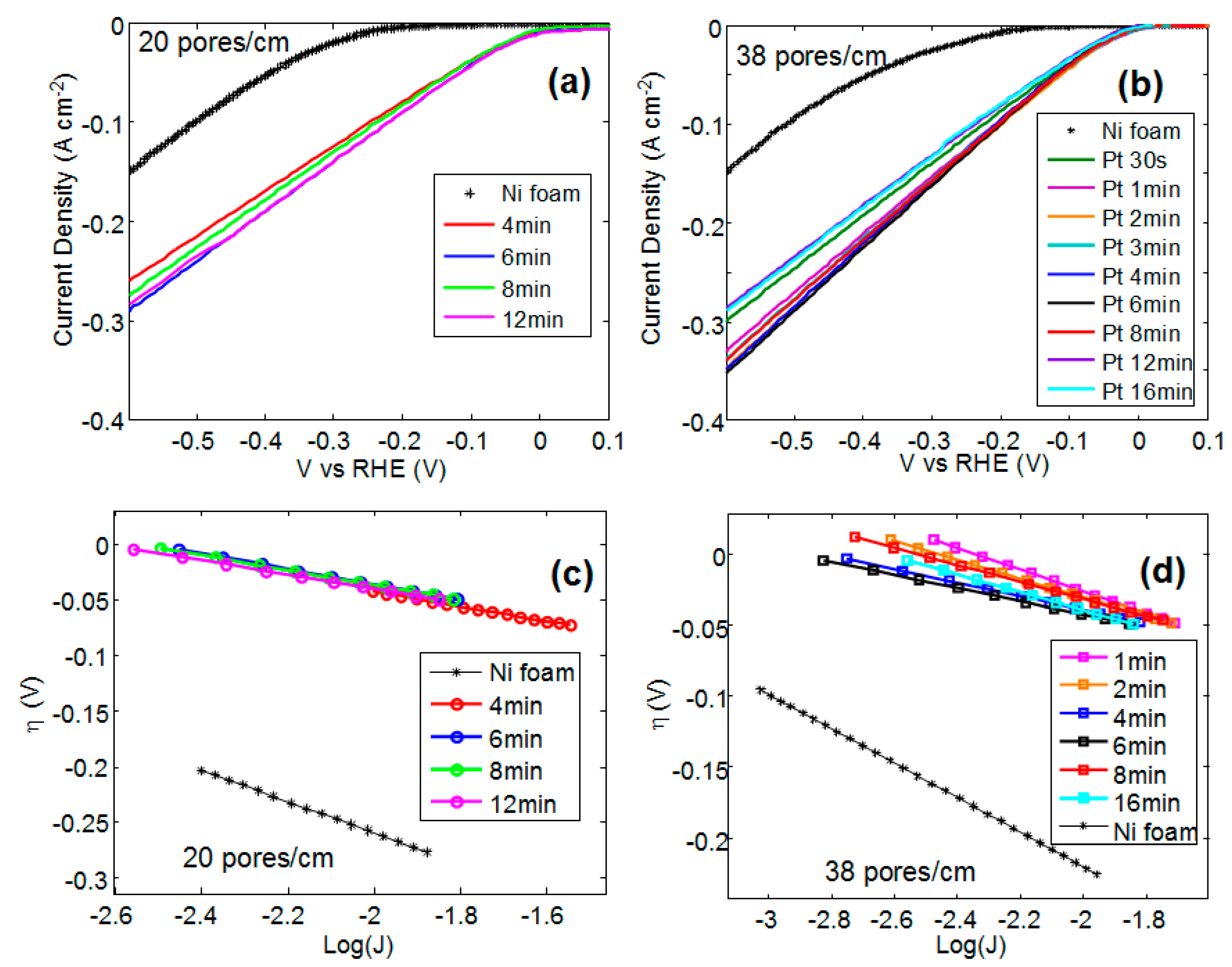

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Milazzo, R.G.; Privitera, S.M.S.; Scalese, S.; Lombardo, S.A. Effect of Morphology and Mechanical Stability of Nanometric Platinum Layer on Nickel Foam for Hydrogen Evolution Reaction. Energies 2019, 12, 3116.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Energies EISSN 1996-1073 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
