Efficient Planar Hybrid n-Si/PEDOT:PSS Solar Cells with Power Conversion Efficiency up to 13.31% Achieved by Controlling the SiOx Interlayer

1
Wide Bandgap Semiconductor Technology Disciplines State Key Laboratory, School of Microelectronics, Xidian University, Xi’an 710071, China
2
School of Electronic Engineering and Automation, Guilin University of Electronic Technology, No. 1 Jinji Road, Guilin 541004, China
*
Authors to whom correspondence should be addressed.
Energies 2018, 11(6), 1397; https://doi.org/10.3390/en11061397
Received: 25 April 2018 / Revised: 15 May 2018 / Accepted: 21 May 2018 / Published: 30 May 2018

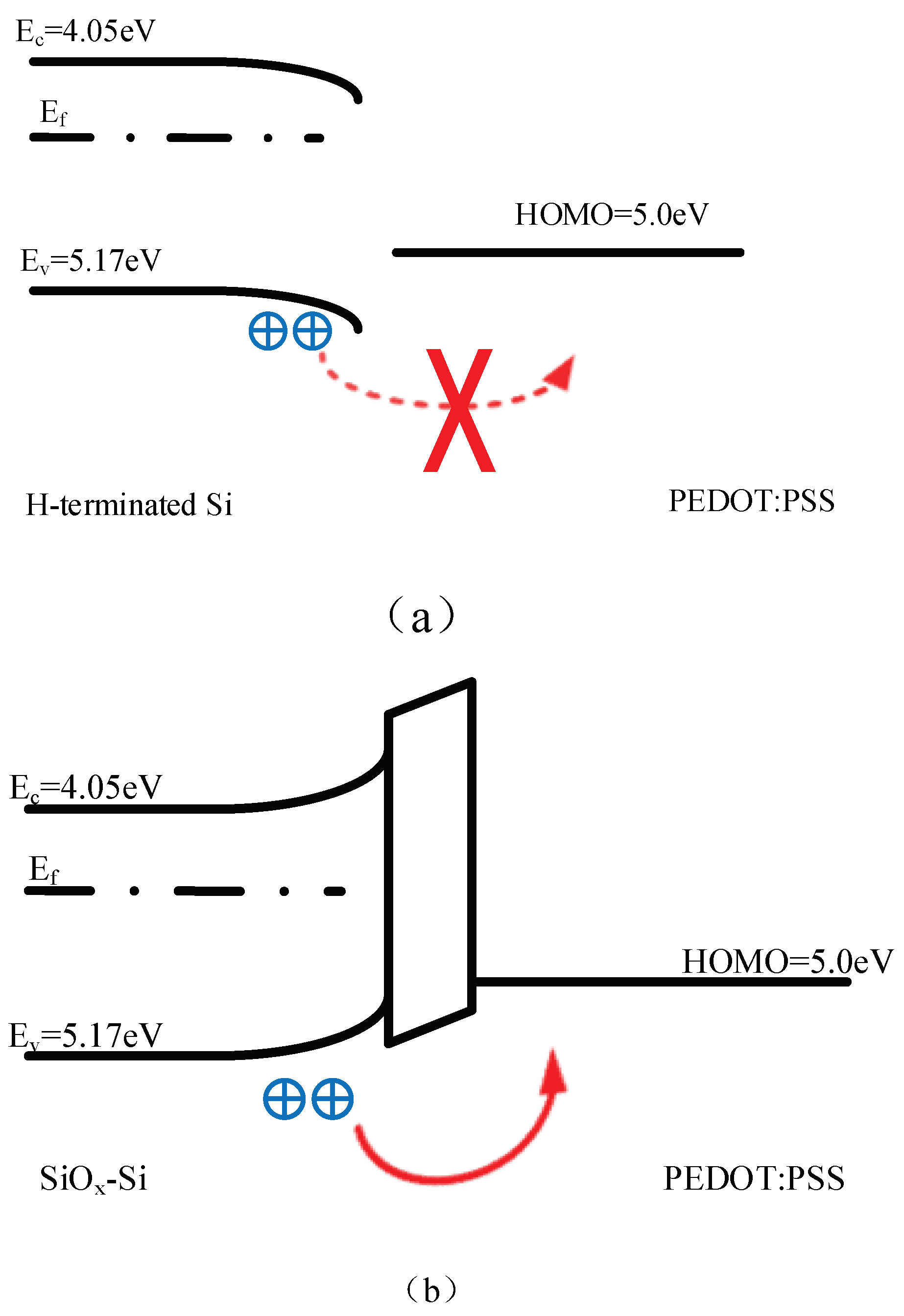

In this work, the effects of the SiOx interface layer grown by exposure in air on the performance of planar hybrid n-Si/poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) solar cells are investigated. Compared to the cell with a hydrogen-terminated Si surface, the cell with an oxygen-terminated Si surface reveals improved characteristics in power conversion efficiency, increased from 10.44% to 13.31%. By introducing the SiOx, the wettability of the Si surface can be improved, allowing an effective spread of the PEDOT:PSS solution and thus a good contact between the PEDOT:PSS film and Si. More importantly, it can change the polarity of the Si surface from a negative dipole to a positive dipole, owing to the introduction of the SiOx interface. The Si energy band will bend up and give rise to a favorable band alignment between Si and PEDOT:PSS to promote carrier separation. These results could be potentially employed to further development of this simple, low-cost heterojunction solar cell. View Full-Text
Keywords: SiOx interface; n-Si/PEDOT:PSS solar cells; surface polarity SiOx interface; n-Si/PEDOT:PSS solar cells; surface polarity
Show Figures

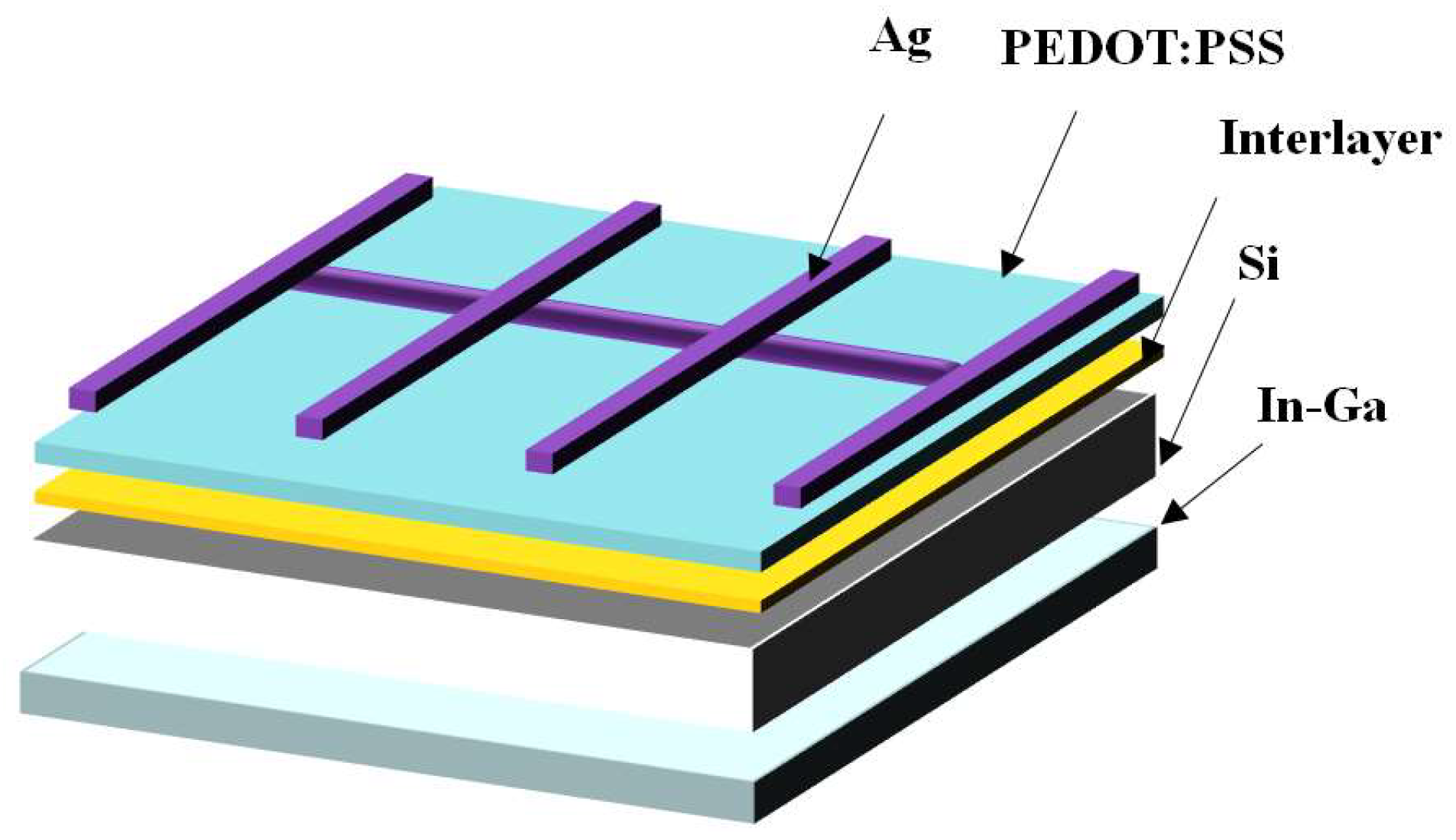

Figure 1

MDPI and ACS Style

Zhang, C.; Zhang, Y.; Guo, H.; Jiang, Q.; Dong, P.; Zhang, C. Efficient Planar Hybrid n-Si/PEDOT:PSS Solar Cells with Power Conversion Efficiency up to 13.31% Achieved by Controlling the SiOx Interlayer. Energies 2018, 11, 1397.
