Identification of Novel Gymnodimines and Spirolides from the Marine Dinoflagellate Alexandrium ostenfeldii

Marine Chemistry, University of Bremen, Leobener Straße 6, 28359 Bremen, Germany
Alfred Wegener Institute, Helmholtz Centre for Polar and Marine Research, Section Ecological Chemistry, Am Handelshafen 12, 27570 Bremerhaven, Germany
Authors to whom correspondence should be addressed.
Mar. Drugs 2018, 16(11), 446;
Received: 13 September 2018 / Revised: 26 October 2018 / Accepted: 5 November 2018 / Published: 14 November 2018
(This article belongs to the Special Issue Marine Toxins Affecting Cholinergic System)
PDF [3942 KB, uploaded 14 November 2018]

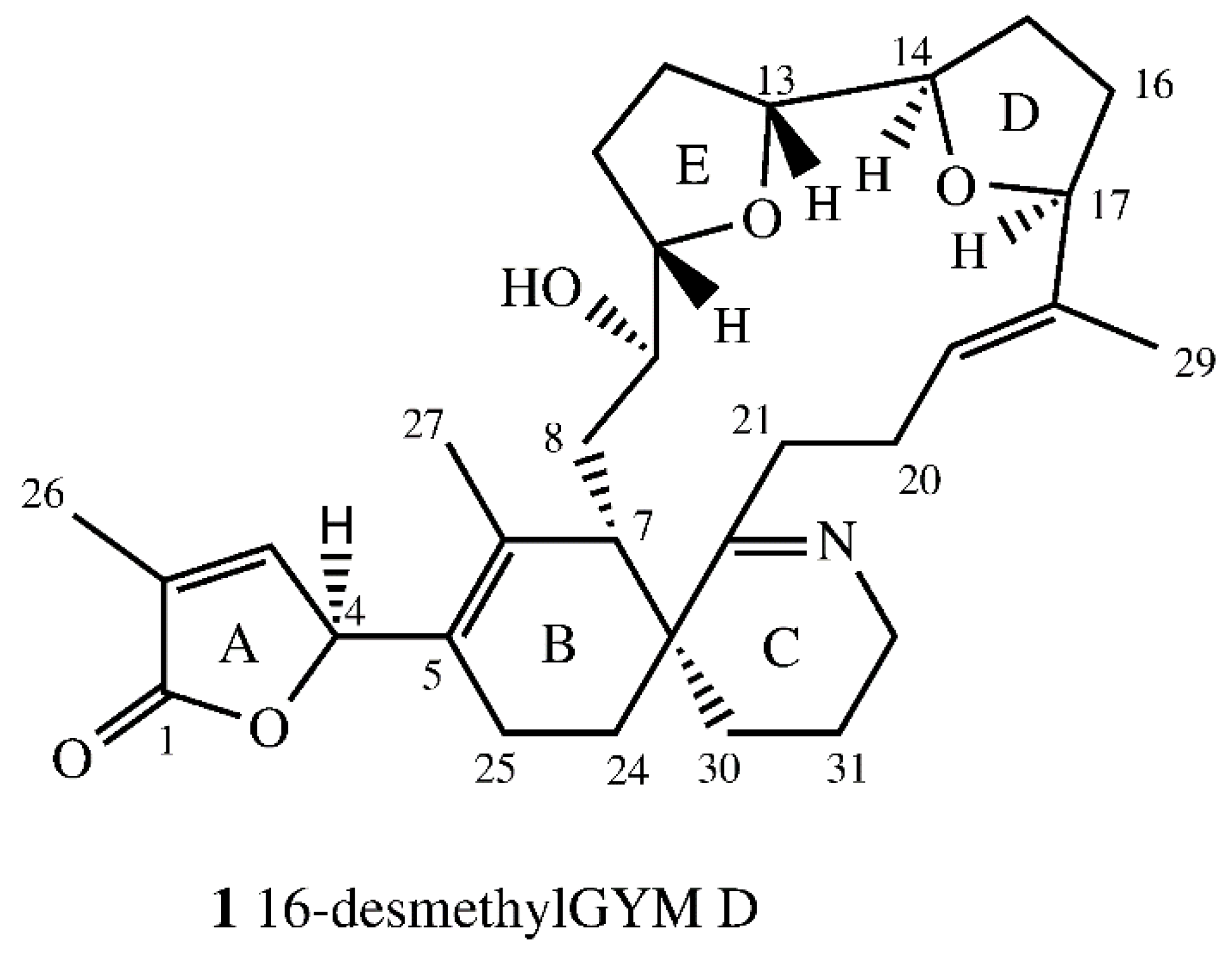

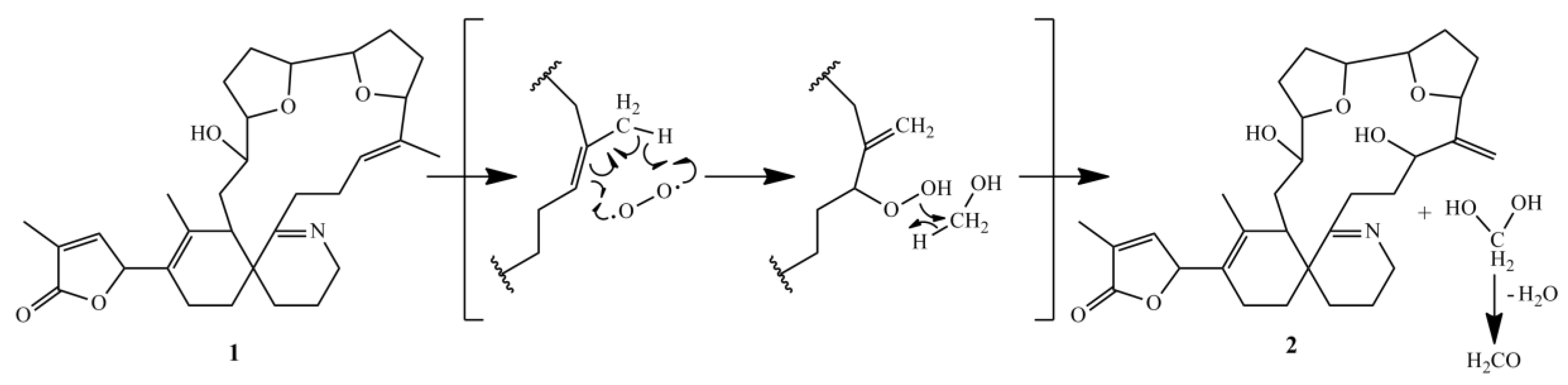

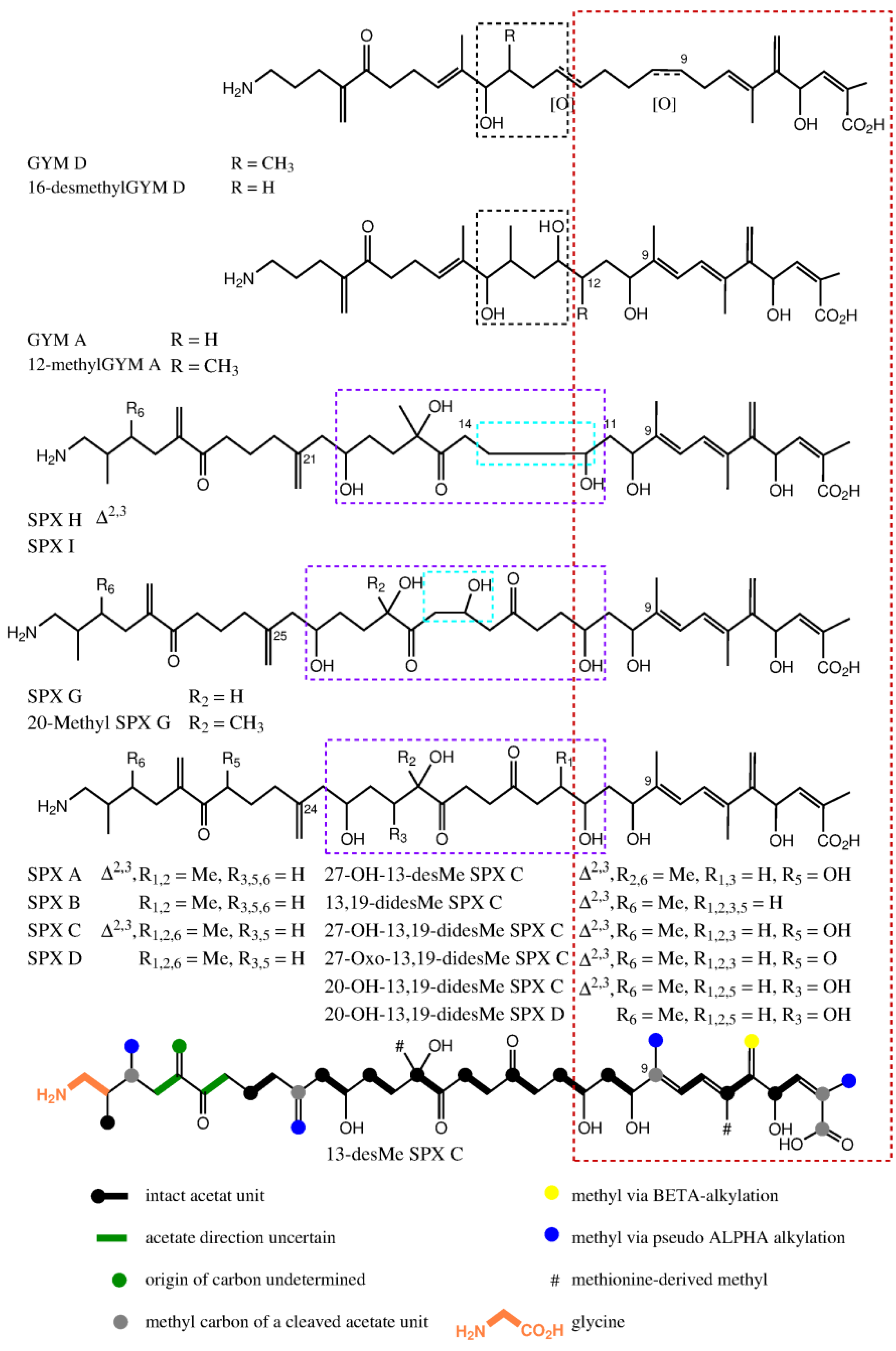

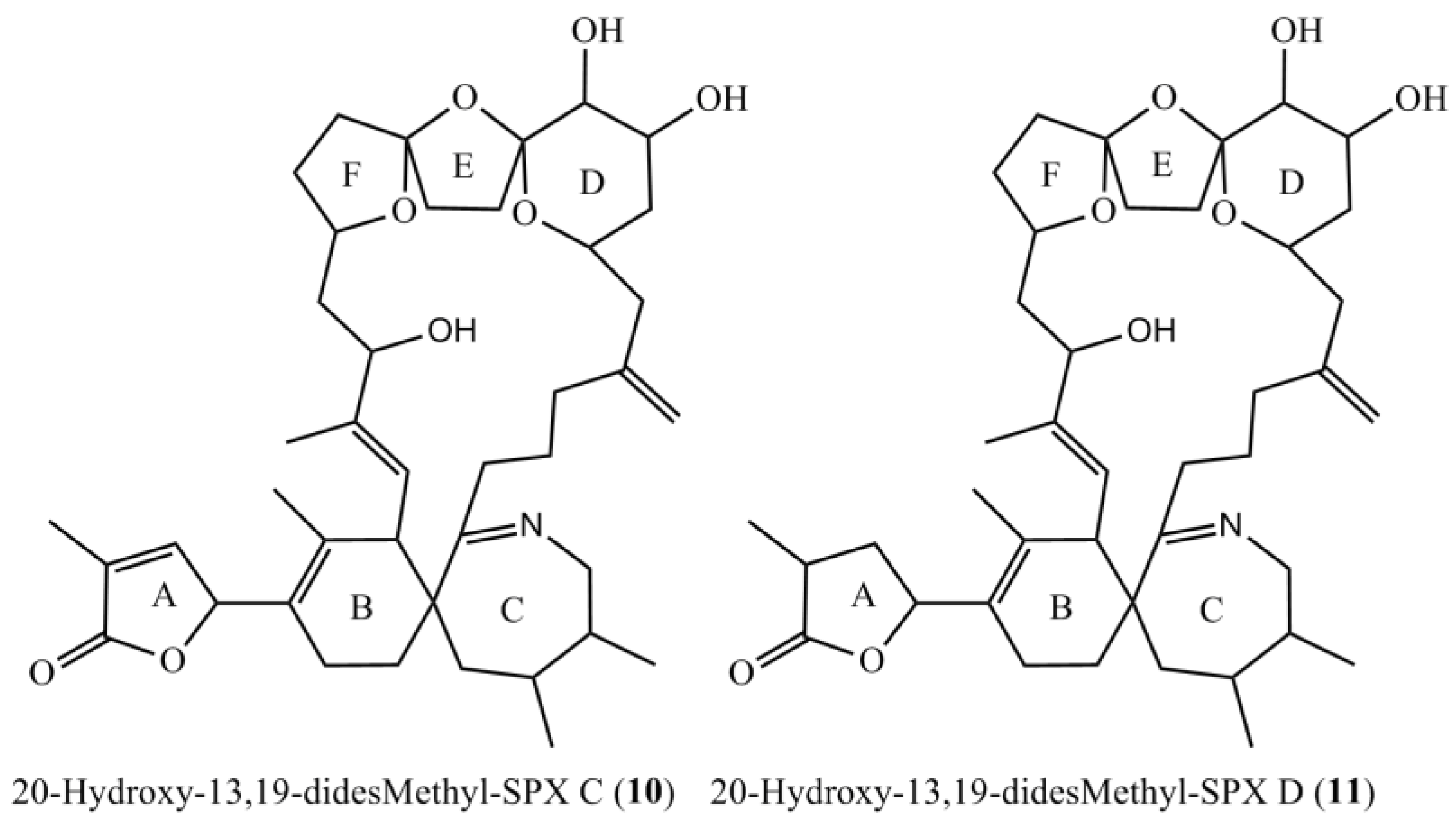

Cyclic imine toxins are neurotoxic, macrocyclic compounds produced by marine dinoflagellates. Mass spectrometric screenings of extracts from natural plankton assemblages revealed a high chemical diversity among this toxin class, yet only few toxins are structurally known. Here we report the structural characterization of four novel cyclic-imine toxins (two gymnodimines (GYMs) and two spirolides (SPXs)) from cultures of Alexandrium ostenfeldii. A GYM with m/z 510 (1) was identified as 16-desmethylGYM D. A GYM with m/z 526 was identified as the hydroxylated degradation product of (1) with an exocyclic methylene at C-17 and an allylic hydroxyl group at C-18. This compound was named GYM E (2). We further identified a SPX with m/z 694 as 20-hydroxy-13,19-didesmethylSPX C (10) and a SPX with m/z 696 as 20-hydroxy-13,19-didesmethylSPX D (11). This is the first report of GYMs without a methyl group at ring D and SPXs with hydroxyl groups at position C-20. These compounds can be conceived as derivatives of the same nascent polyketide chain, supporting the hypothesis that GYMs and SPXs are produced through common biosynthetic genes. Both novel GYMs 1 and 2 were detected in significant amounts in extracts from natural plankton assemblages (1: 447 pg; 2: 1250 pg; 11: 40 pg per mL filtered seawater respectively). View Full-Text
Keywords: gymnodimine; spirolide; structure elucidation; neuro-toxin; Alexandrium ostenfeldii; harmful algal boom (HAB) gymnodimine; spirolide; structure elucidation; neuro-toxin; Alexandrium ostenfeldii; harmful algal boom (HAB)

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary materials

  • Supplementary File 1:

    PDF-Document (PDF, 11656 KB)

  • Externally hosted supplementary file 1

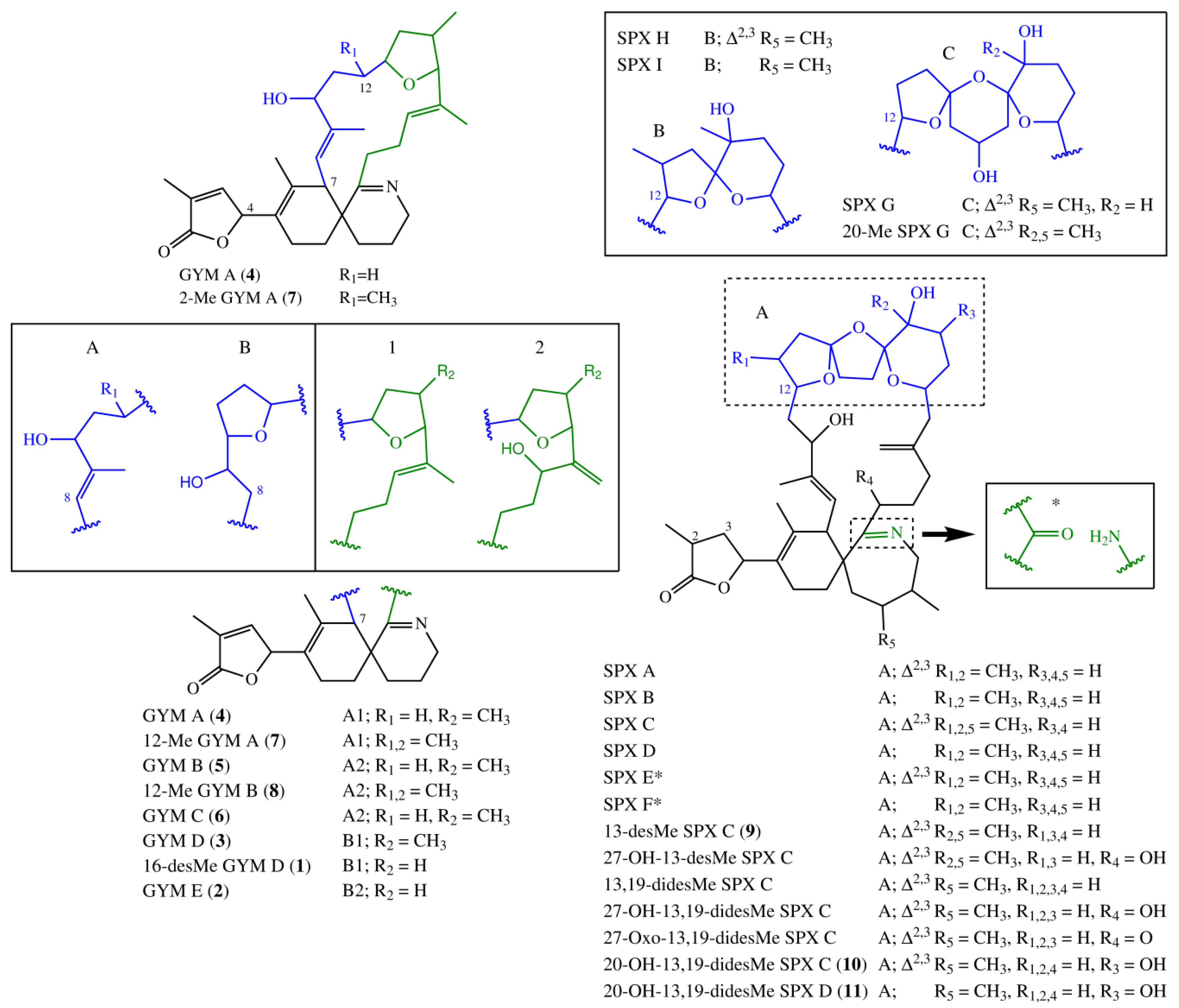

    Description: The following are available online at, Figure S1: Structures of known and novel gymnodimines; Figure S2: Structures of known and novel spirolides; Figure S4-S22 NMR-spectra of 1; Figure S23: CD-spectra of 1 and 4 and simulated CD spectra of 1, S24-S31 NMR-spectra of 2; Figure S32-S53 NMR-spectra of 10; Figure S54-S62 NMR-spectra of 11; Table S1: Mass transitions of spiroimines included in LC-MS/MS analysis; Figure S63: LC-MS/MS chromatogram of station SL92-2. Raw NMR data (Topspin) and annotated Mestre files are available in the data repository PANGAEA .
