Chemical Profiles and Identification of Key Compound Caffeine in Marine-Derived Traditional Chinese Medicine Ostreae concha

by
Xue Yang
1,
Shi-Lu Zhou
2,
Ai-Cui Ma
1,
Hai-Tao Xu
2,
Hua-Shi Guan
1,* and
Hong-Bing Liu
1,*
1
Key Laboratory of Marine Drugs, Chinese Ministry of Education, School of Medicine and Pharmacy, Ocean University of China, Qingdao 266003, China
2
Technology Center of China Tobacco Shandong Industrial Corporation, Qingdao 266101, China
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2012, 10(5), 1180-1191; https://doi.org/10.3390/md10051180
Submission received: 5 March 2012 / Revised: 8 May 2012 / Accepted: 10 May 2012 / Published: 23 May 2012
Browse Figures
Versions Notes

Abstract

:
To compare the chemical differences between the medicinal and cultured oyster shells, their chemical profiles were investigated. Using the ultra performance liquid chromatography-electron spraying ionization-mass spectrometry (UPLC-ESI-MS), combined with principal component analysis (PCA) and orthogonal projection to latent structures discriminant analysis (OPLS-DA), the discrimination of the chemical characteristics among the medicinal and cultured oyster shells was established. Moreover, the chemometric analysis revealed some potential key compounds. After a large-scale extraction and isolation, one target key compound was unambiguously identified as caffeine (1) based on extensive spectroscopic data analysis (1D and 2D NMR, MS, and UV) and comparison with literature data.

1. Introduction

The oyster is a traditional and popular seafood in most coastal countries and its cultivation has become an industry. Over the past twenty years, oyster cultivation has greatly developed in China. Oysters are the largest commercial molluscan group cultured in China, even in the world. According to the statistical data published by the food and agriculture organization of the United Nations (FAO), the production of oysters reached 350 metric tons in 2009 in China, accounting for 81.4% of total oyster production in the world [1]. The oyster meat is eaten, however the shells of oysters were mostly discarded. Enormous “oyster shell-mountains” can be seen in the oyster culture areas and this has become a big environmental issue. The disposal or application of the remaining shells is therefore investigated from many aspects. Actually, Ostreae concha (Pinyin: Mu-li), the shell of oysters has been widely used in traditional Chinese medicine (TCM). It was first documented in Shen Nong Ben Cao Jing and first used in prescriptions by Zhong-jing Zhang (150–219 AD). Ostreae concha is commonly used with other herbs in prescriptions to treat symptoms such as palpitations, insomnia, dizziness, tinnitus, scrofula, subcutaneous nodules, and abdominal mass. Pharmacological effects of Ostreae concha include strengthening the immune system, anti-gastric ulcer, sedation, anti-tumor, anti-virus, etc. [2,3].
The shells of three species of oyster [Crassostrea gigas Thunberg (Ostrea gigas Thunberg), Crassostrea talienwhanensis Crosse and Crassostrea rivularis Gould] are together listed in the 2010 Edition of the Chinese Pharmacopoeia (CP). The process of harvesting the medicinal materials of Ostreae concha involves the collection of oyster shells over the whole year, removal of the meat and drying the clean shell in the sun. Determination of calcium carbonate content is the only quality control measure for Ostreae concha [4]. There are no requirements for declaration of the natural source or cultured source, nor of the nuber of years of growth oysters in the CP. According to our investigation, natural perennial C. gigas is a main source for medicinal materials, while shells of edible oysters that were cultured for one to three years are seldom used in the clinic. It is still unknown whether the cultured oyster shells possess potential medicinal values or if they can replace the natural perennial ones in TCM. As different chemical compositions result in different pharmacological effects, comprehensive quality control methods for Ostreae concha should be established. In view of this situation, it is of urgent importance to clarify the active ingredients of TCM Ostreae concha and compare the ingredients between the medicinal shells and the cultured shells.
Calcium carbonate has been confirmed to be the major effective ingredient in Ostreae concha [5,6]. Its weight proportion should be above 94.0% according to the CP. However, calcium carbonate is also the most abundant component (≥95.0%) in some other marine-shell TCMs, such as Haliotidis Concha (Pinyin: Shi-Jue-Ming), Arcae concha (Pinyin: Wa-Leng-Zi), Meretricis concha (Pinyin: Ge-Ke), Cyclinae concha (Pinyin: Ge-Ke) [4]. Since the function and usage of these other marine shells are different from Ostreae concha, we therefore hypothesize that trace organic components and/or minor inorganic elements are also potential bioactive ingredients. In our research for new biologically active constituents from marine-shell TCM, Ostreae concha attracted our attention as its crude methanol extract showed good cytotoxic activity against the human hepatoma cell line BEL-7402, cervical cancer cell line HeLa and murine leukemic cell line P388 [7].
Until now, only few documents focused on the organic matrix of oyster shells [8]. The analysis of organic components of Ostreae concha remains a difficult task due to its low concentrations and high complexity. To address this problem, the ultra performance liquid chromatography-mass spectrometry (UPLC-MS) is utilized here as it is a powerful tool for analyzing complex mixtures. A typical UPLC-MS chromatogram of a complex chemical mixture contains a large amount of chemical information, provided in a relatively short time [9]. The objectives of this study were to (1) study the chemical profiles of oyster shells from different sources applying the UPLC-MS method; (2) clarify the potential key compounds differing between various sources of oyster shells based on principal component analysis (PCA) and orthogonal projection to latent structures discriminant analysis (OPLS-DA); (3) carry out a preliminary evaluation of the potential medicinal value of cultured oyster shells.

2. Results and Discussion

2.1. Chemical Profiles Analysis

Twenty-four oyster shell samples purchased from different drugstores, aquatic product markets and farms were obtained and prepared for UPLC-MS analysis (Table 1). Both positive and negative ion modes of electrospray interface (ESI) were used in UPLC-MS analysis to result in exhaustive information. After optimization of chromatographic parameters, 459 to 562 masses in positive ion mode and 432 to 595 masses in negative ion mode were recorded in base peak intensity (BPI) chromatograms of each oyster shell. According to the extracted mass-retention time pairs (EMRT) and the intensity of peaks in the BPI chromatograms (Figure 1,others are provided as supplementary files), the 24 shell samples were dissimilar due to the chemical diversity.
Table
Table 1. Oyster shellsamples.
Table 1. Oyster shellsamples.
No.SourceTimeSiteGrowth YearsSpecies
A1Medicinal materials aAugust, 2008Anguo, Hebeiunknown bc
A2December, 2009Bozhou, Anhuiperennial
A3September, 2010Bozhou, Anhuiunknown b
A4May, 2010Yishui, Shandongperennial
A5October, 2010Heze, Shandongperennial
A6August, 2009Kaifeng, Henanunknownb
A7February, 2010Qingdao, Shandongunknown b
A8September,2009Weifang, Shandongperennial
A9October, 2010Beijingunknown b
A10June, 2010Wuhan, Hubeiperennial
A11May, 2010Anguo, Hebeiperennial
A12October, 2011Anguo, Hebeiperennial
B1Cultured materials dOctober, 2009Rongcheng, Shandong2C. gigas
B2October, 2008Rongcheng, Shandong1C. gigas
B3October, 2009Qingdao, Shandong1C. gigas
B4October, 2009Yantai, Shandong1C. gigas
B5October, 2009Rushan, Shandong1C. gigas
B6October, 2009Lianyungang, Jiangsu2C. gigas
B7October, 2010Rongcheng, Shandong2C. talienwhanensis
B8October, 2009Rongcheng, Shandong3C. talienwhanensis
B9June, 2010Zhanjiang, Guangdong2C. rivularis
B10June, 2010Lianyungang, Jiangsu3C.plicatula
B11October, 2008Rongcheng, Shandong1.5C. gigas
B12October, 2009Rongcheng, Shandong1.5C. talienwhanensis
a Purchased from drugstores; b Obtained as crude decoction pieces; c Identification not reliable; d Purchased from aquatic product markets and farms.
Marinedrugs 10 01180 g001 1024

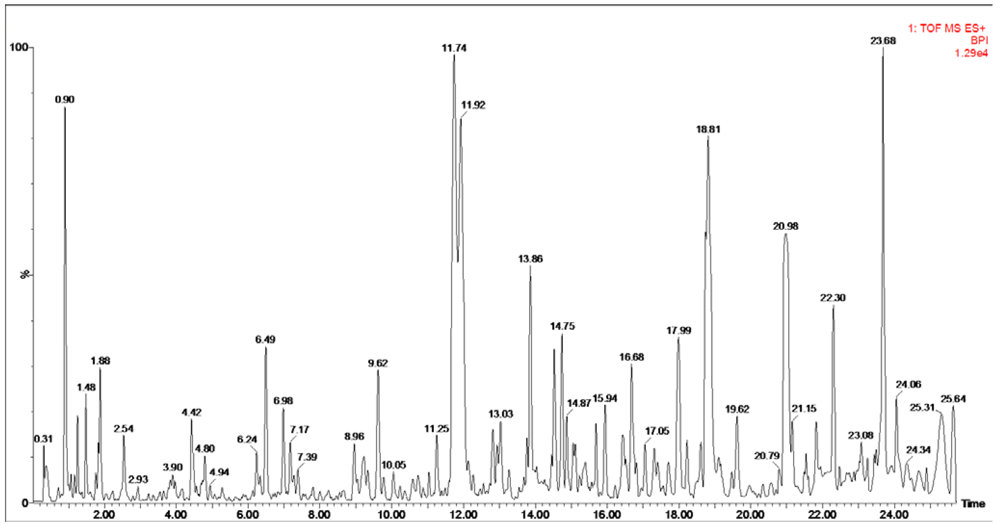

Figure 1. Base peak intensity (BPI) chromatogram of sample A11 in positive ion mode. Column: Waters ACQUITYTM UPLC BEH C18 column (50 mm×2.1 mm i.d., 1.7 μm). Flow rate: 0.4 mL·min−1. Column temperature: 35°C. Mobile phase: a linear gradient elution with 0.1% formic acid in water and 0.1% formic acid in acetonitrile. Ion source: electrospray interface (ESI).
Figure 1. Base peak intensity (BPI) chromatogram of sample A11 in positive ion mode. Column: Waters ACQUITYTM UPLC BEH C18 column (50 mm×2.1 mm i.d., 1.7 μm). Flow rate: 0.4 mL·min−1. Column temperature: 35°C. Mobile phase: a linear gradient elution with 0.1% formic acid in water and 0.1% formic acid in acetonitrile. Ion source: electrospray interface (ESI).
Marinedrugs 10 01180 g001
To facilitate the identification of differences or similarities among the samples, PCA was used for analyzing the chromatographic data. PCA can discriminate between sample categories by reducing the dimensions of the variables in order to simplify subsequent analysis [10]. Twenty-four samples were separated into blocks in the PCA score plots: samples A1-5, A7-11 were one group, while two different clusters of the cultured materials can be seen in the scatter plot of the positive ion mode (Figure 2). It was interesting that samples A1-5, A7-11 were medicinal shells purchased from drugstores, and samples B1-12 were cultured shells grown for 1 to 3 years. Therefore, PCA allows a clear discrimination of the chemical characteristics among perennial medicinal material shells and cultured shells based on UPLC-MS data. The scattered distribution of the cultured samples revealed that chemical differences existed within the same species even from the same geographic provenience. Ecological factors, such as number of years of growth, local environment and food chain, might contribute to the different metabolites. In addition, oyster shell is a kind of constructive material which could absorb the organic matter in sea water during its growth process. All of these elements might result in the differences of the chemical constituents observed. The deviation of samples A6 and A12 from the main trajectory in Figure 2 indicated that they might not be the perennial shells. Moreover, the results suggested that potential key compounds existed in these two groups of shells, which might be potential efficient substances and could be regarded as determination standards for the quality control of Ostreae concha.
Marinedrugs 10 01180 g002 1024

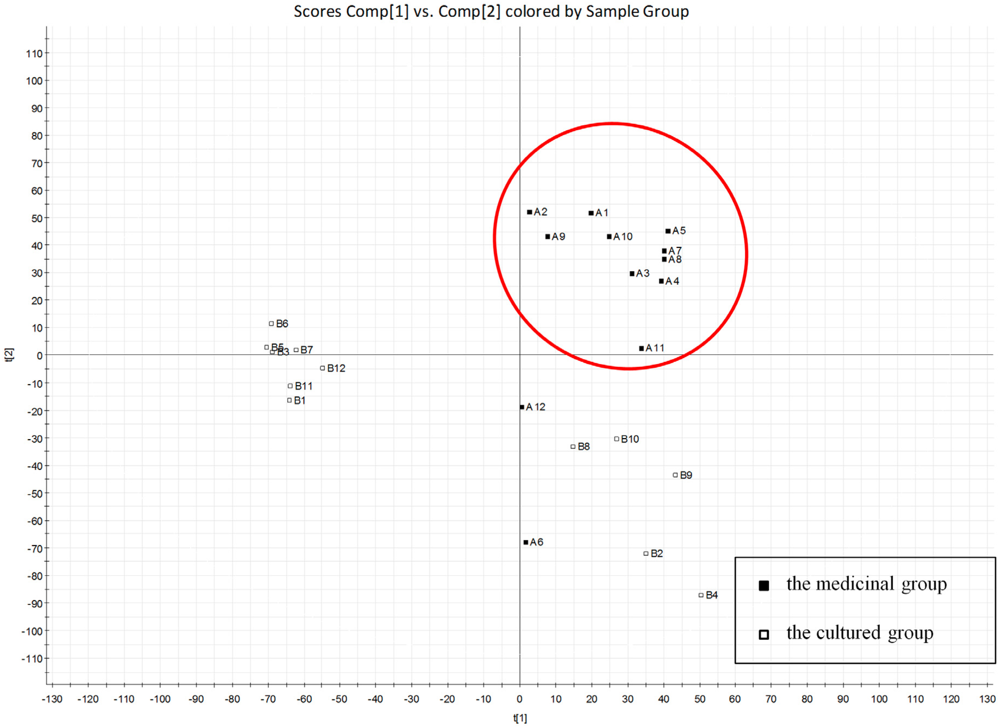

Figure 2. Principal component analysis (PCA) score plot of oyster shell samples in positive ion mode; for their sources refer to Table 1.
Figure 2. Principal component analysis (PCA) score plot of oyster shell samples in positive ion mode; for their sources refer to Table 1.
Marinedrugs 10 01180 g002

2.2. Clarification of Potential Key Compounds

OPLS-DA was applied to the chemical profiles in order to better discriminate between perennial medicinal shells and cultured shells [11]. OPLS-DA score plots in the component P1 direction separated oyster shell samples into two blocks, and component P2 properly explained the individual variation in each group. The ions that sit at both ends of the S-plot contributed significantly to the clustering of the two groups and might be regarded as the potential key compounds (Figure 3). Furthermore, all the detected ions were arranged in descending order according to the variant weight parameters (VIP). The top twenty VIP variables were selected as potential key compounds (Table 2).
Table
Table 2. The top 20variant weight parameters (VIP)variables in positive ion mode.
Table 2. The top 20variant weight parameters (VIP)variables in positive ion mode.
No.Retention Time (min)Mass (m/z)VIP
114.74256.375116.22
212.47482.363215.23
36.98274.282113.12
414.74256.357213.08
510.88318.241612.49
611.73149.155112.12
710.74318.243312.03
821.03891.70311.86
915.19369.300211.48
1011.68149.046711.41
1111.91149.179111.40
1211.91149.152311.20
1322.61536.167511.06
1414.31510.393111.02
1520.99891.675710.99
1620.96457.318410.98
170.90195.096410.97
1822.62541.127210.83
1913.85425.219610.21
207.18318.303710.17
Marinedrugs 10 01180 g003 1024

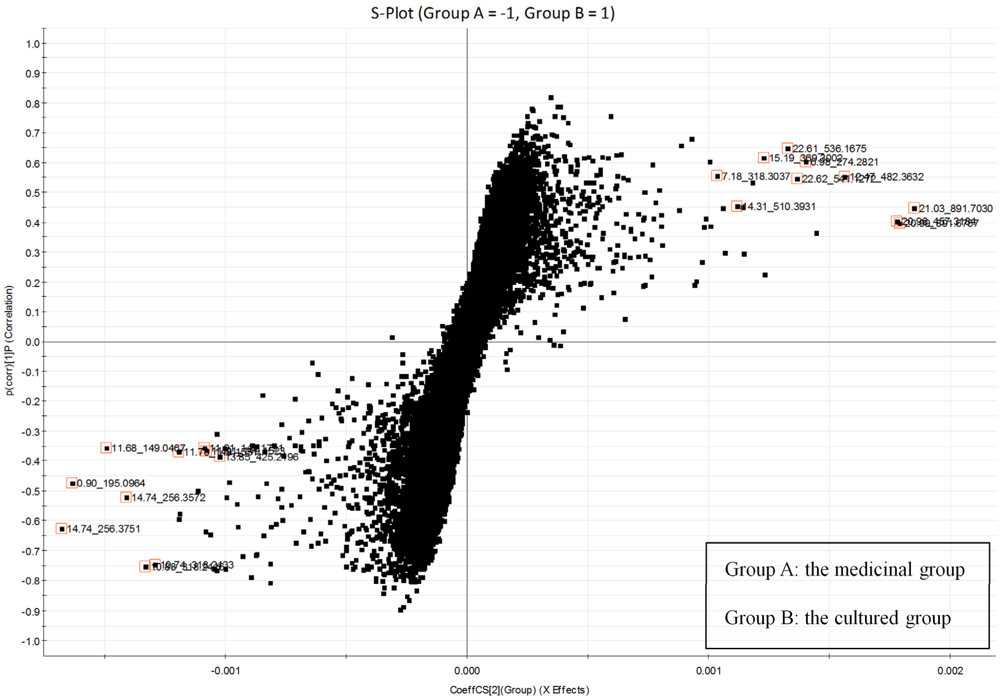

Figure 3. Orthogonal projection to latent structures discriminant analysis (OPLS-DA) S-plot of oyster shell samples in positive ion mode (group A: the medicinal group; group B: the cultured group). Each point represents an individual extracted mass-retention time pair (EMRT). The Y-axis denotes confidence of a marker’s contribution to the group differences, and the X-axis denotes the contribution of a particular marker to the group differences. The top 20 VIP variables were marked in the S-plots.
Figure 3. Orthogonal projection to latent structures discriminant analysis (OPLS-DA) S-plot of oyster shell samples in positive ion mode (group A: the medicinal group; group B: the cultured group). Each point represents an individual extracted mass-retention time pair (EMRT). The Y-axis denotes confidence of a marker’s contribution to the group differences, and the X-axis denotes the contribution of a particular marker to the group differences. The top 20 VIP variables were marked in the S-plots.
Marinedrugs 10 01180 g003
It is difficult to identify all the key compounds due to the very limited database on the chemical constituents of oyster shells. Natural product isolation is still an inefficient strategy to solve this problem, since the challenge of the low content of the chemical constituents is hard to overcome. After a detailed comparison of the mean peak areas of the potential key compounds (Figure 4), five EMRT pairs that existed mainly in perennial medicinal shells were found. They were 0.90_195.0964, 10.74_318.2433, 10.88_318.2416, 14.74_256.3572 and 14.74_256.3751 in positive mode. With comprehensive analyses of the UPLC-DAD chromatograms, the compound (0.90_195.0964) with UV absorption at 205, 274 nm (Figure 5) was suggested to be separable.
Marinedrugs 10 01180 g004 1024

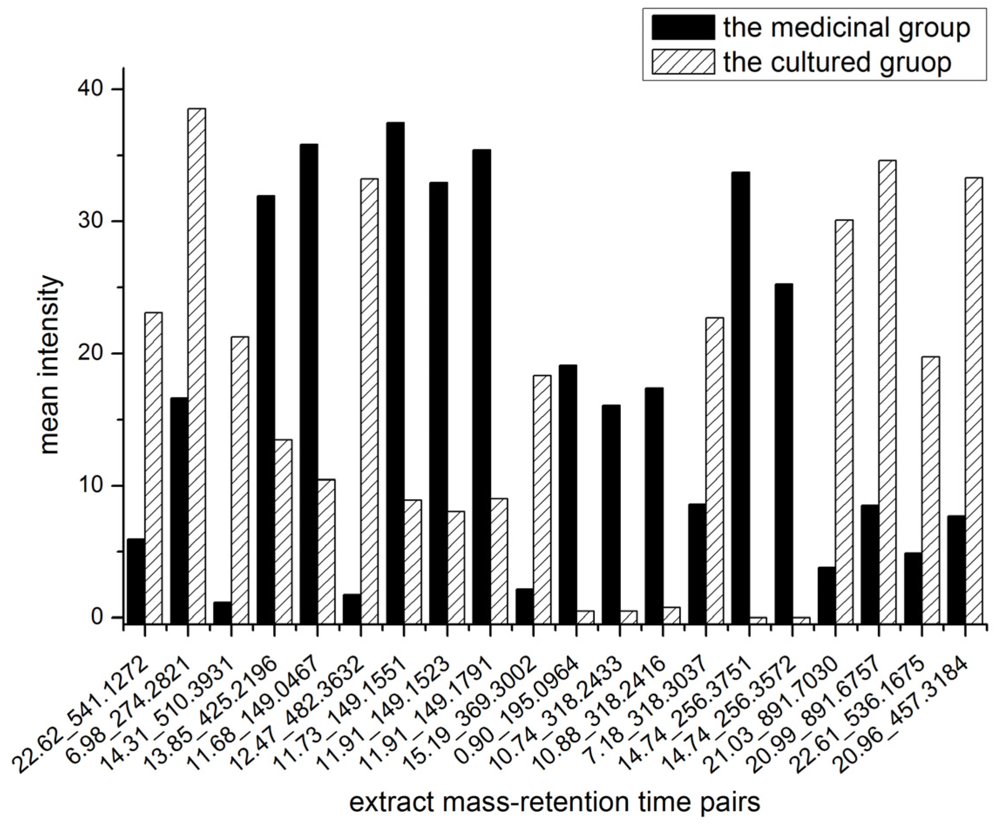

Figure 4. Relative contents of the potential key compounds in medicinal shells and cultured shells in positive ion mode.
Figure 4. Relative contents of the potential key compounds in medicinal shells and cultured shells in positive ion mode.
Marinedrugs 10 01180 g004
Marinedrugs 10 01180 g005 1024

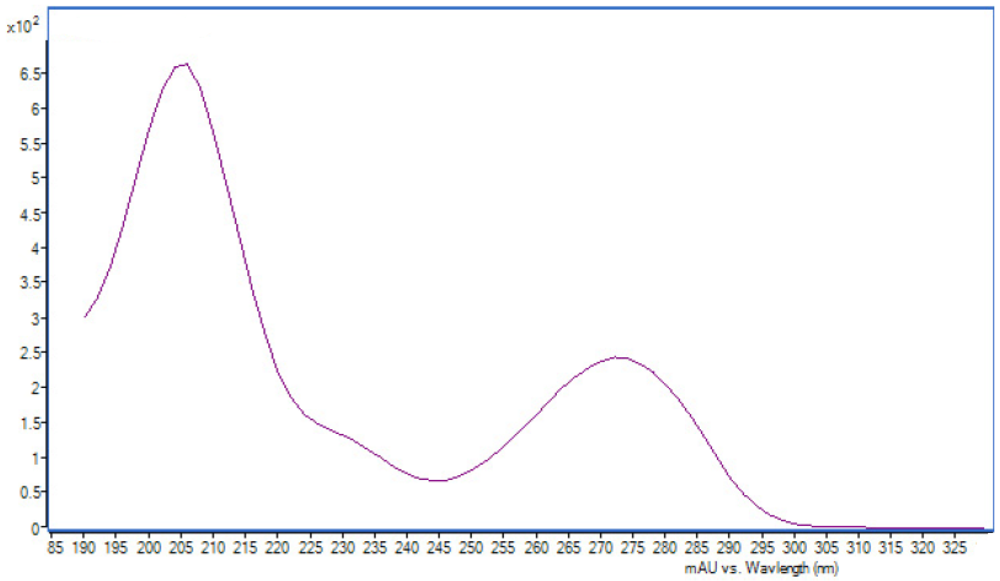

Figure 5. The ultraviolet spectrum of compound 1.
Figure 5. The ultraviolet spectrum of compound 1.
Marinedrugs 10 01180 g005

2.3. Isolation and Identification of Caffeine

The target compound (0.90_195.0964, 1) was obtained through repeated chromatographic methods including semi-preparative HPLC from perennial medicinal material of oyster shells.
Compound 1 was isolated as white needles. The molecular formula C8H10N4O2 was determined from positive HR-ESI-MS (m/z 195.0882 [M + H]+, calc. 195.0886) in association with NMR data. The 1H NMR spectrum in DMSO-d6 exhibited one proton at δH 8.00 (s, H-8), three methyl singles at δH 3.87 (s, N7-CH3), 3.40 (s, N3-CH3) and 3.21 (s, N1-CH3). The 13C NMR spectrum displayed in total 8 resonances, including four carbons in 140 to 155 ppm [C-6 (δC 154.6), C-2 (δC 151.1), C-4 (δC 148.1) and C-8 (δC 142.8)], and one carbon at δC 106.6 (C-5), in addition to three methyls at δC 33.1 (N7-CH3), 29.4 (N3-CH3) and 27.5 (N1-CH3). Based on 2D NMR data analysis (Figure 6) and by comparison with literature data [12,13], compound 1 was identified as caffeine (all spectra are provided as supplementary materials).
Marinedrugs 10 01180 g006 1024

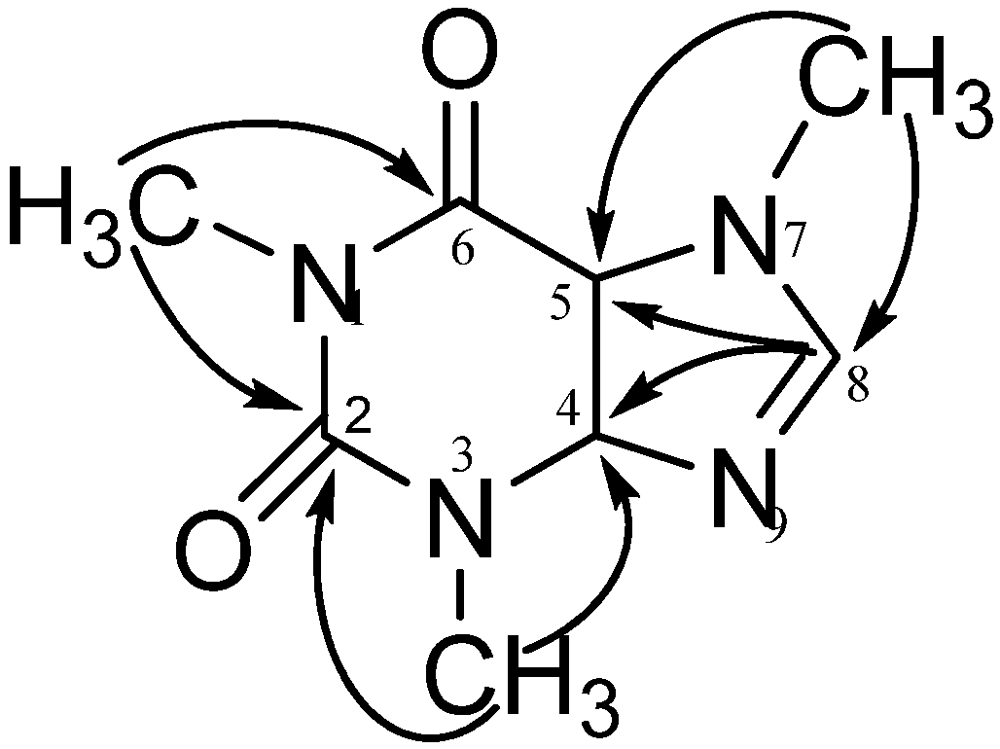

Figure 6. Key HMBC correlations of compound 1.
Figure 6. Key HMBC correlations of compound 1.
Marinedrugs 10 01180 g006
It is well known that caffeine is a plant-derived secondary metabolite and is found in coffee plants, tea trees, cocoa trees, as well as in the leaves and fruits of other plants [14,15]. Moreover, caffeine is a stimulant of the central nervous system. It is able to promote secretion of gastric acid and alleviate migraine, and plays wide-ranging roles in other systems of the body [14,16,17,18]. Our findings represent the first report of caffeine found in marine shells. Until now there is only one report that caffeine was found in marine animals and microorganisms: It was isolated from gorgonian by several research groups [19,20,21,22,23]. However, the biological origin of caffeine should be investigated. There is also a need for thorough evaluation of the action of caffeine on TCM Ostreae concha.

3. Experimental Section

3.1. General Experimental Procedures

The UPLC-MS analysis was carried out using a Waters ACQUITY™ ultra performance liquid chromatography system (Waters Corp., Milford, MA, USA) coupled with a Synapt™ Q-TOF High Definition Mass Spectrometry (Waters Corp., Milford, MA, USA). Chromatographic separations were achieved on an ACQUITY™ UPLC BEH C18 column (50 mm × 2.1 mm i.d., 1.7 μm; Waters Corp., Milford, MA, USA).
1D and 2D NMR spectra were recorded on the JEOL JNM-ECP 600 spectrometers using TMS as internal standard and chemical shifts were recorded as δ-values. ESI-MS analysis was measured on a Waters Q-TOF ULTIMA GLOBAL GAA076LC mass spectrometer. HPLC analysis was performed by using an Aglient 1100 HPLC system coupled to a photodiode array detector. Routine detection was at 210, 230, 254 and 280 nm. The separation column (250 × 4.6 mm i.d., 5 μm) was prefilled with YMC C18, and a linear gradient of 0.02% H3PO4 in H2O and MeOH was used. Semi-preparative HPLC was performed on a Shimadzu LC-6AD using a C-18 column (YMC, 250 × 10 mm i.d., 5 μm; flow rate 4.0 mL·min−1).
The reagents used for UPLC-ESI-MS measurements were of HPLC grade and were obtained from Merck Inc. (Merck KGaA, Darmstadt, Germany). All other reagents were of analytical grade (Yuwang Reagent Company, Yucheng, Shandong, China). The purified water was prepared using a Millipore water purification system (Millipore, Bedford, MA, USA). Spectral grade solvents were used for spectroscopic measurements.

3.2. Collection of Oyster Shell Samples and Preparation for UPLC-MS Analysis

Samples were purchased from different drugstores, aquatic product markets and farms in China. Macroscopic identification was applied according to CP by Dr. Hong-bing Liu (School of Medicine and Pharmacy, Ocean University of China). Voucher specimens have been deposited in the School of Medicine and Pharmacy of Ocean University of China.
After milled to 40 mesh powder, each shell sample (100 g) was refluxed with MeOH for 1.5 h (500 mL, 3×) and the combined supernatant was further concentrated to dryness under reduced pressure. Prior to UPLC analysis, the MeOH extracts of oyster shells were dissolved in acetonitrile and filtered using a 0.22 μm filter.

3.3. UPLC-MS Conditions

Chemical profiles were recorded by UPLC-MS. The column temperature was maintained at 35 °C and the injection volume was fixed at 5 μL. The binary mobile phase consisted of solvent A, composed of 0.1% formic acid in water, and solvent B, which was 0.1% formic acid in acetonitrile. Separations were performed using a linear gradient of B into A at a flow rate of 0.4 mL·min−1 as follows: 0–0.5 min, 5–25% B; 0.5–3 min, 20–30% B; 3–5 min, 30–35% B; 5–10 min, 35–49% B; 10–14 min, 49–71% B; 14–20 min, 71–88% B; 20–23 min, 88–100% B, 23–26 min, 100% B. All the samples were kept at 10 °C during the analysis.
An ESI source with a V-spray interface was used, and each sample was analyzed in both positive and negative ionization modes. The ESI-MS conditions were optimized as follows: capillary voltage, 3 kV; cone voltage, 35 kV; source temperature, 100 °C; and desolvation temperature, 350 °C. Nitrogen was used as the desolvation gas and cone gas with the flow rate of 800 and 50 L·h−1, respectively. MS data were collected in the full scan mode from m/z 100 to 1000 amu over 0 to 26 min.
In order to ensure the stability and reliability of the analysis method, each sample was analyzed in triplicate.

3.4. Data Analysis

Chemical profiles were represented by a BPI chromatogram. All the raw data were processed using the MassLynx V4.1 software with a MarkerLynx program (Waters Corp.: Milford, MA, USA, 2009), which allows the detection of the mass, retention time and intensity of the peak eluted in each chromatogram. The resulting three-dimensional data, containing retention time-extract mass pairs and normalized ion intensities were automatically exported to SIMCA-P 11.5 software (Umetrics: Umea, Sweden, 2009) for further multivariate statistical analysis by PCA and OPLS-DA.

3.5. Separation of Caffeine (1)

The large-scale of crude drug of Ostreae concha was purchased from An-guo drugmarket, Hebei province, which was identified as C. gigas according to morphological attributes. For initial analysis of the natural products, 37.5 kg milled crude drug was extracted with 80% EtOH and then desalted by CH2Cl2 extraction. The CH2Cl2 extract (1.64 g) was fractionated by Sephadex LH-20 (GE Healthcare, Sweden) eluting with CH2Cl2-MeOH (1:1) to yield 4 fractions. Fraction 2 (0.87 g) was repeatedly separated by Sephadex LH-20 eluting with MeOH and further by semi-preparative HPLC (MeOH·H2O, 25:75) to give compound 1 (7.4 mg, 1 μM per kg).

4. Conclusions

The results of this study allow a clear discrimination of the chemical characteristics among perennial medicinal shells and cultured shells based using UPLC-MS data and chemometric analysis. Considering the differences between the cultured and medicinal shells, it is considered inappropriate to replace medicinal shells with the cultured shells as an alternative resource. Further chemical works on minor inorganic elements and bioassay tests are needed to evaluate the potential medicinal values of the cultured shells. Caffeine was isolated and identified as a key compound in medicinal materials of oyster shell,but its biological origin should be investigated. Clarification of more key compounds needs further study using appropriate multi-technologies. This study preliminarily provided the basis for a needed quality standard of marine-derived TCM Ostreae concha.

Acknowledgments

This work was financially supported by a grant from the Scientific Research Foundation for the Excellent Middle-Aged and Youth Scientists of Shandong Province of China (BS2011YY065).
  • Samples Availability: Available from the authors.

References

  1. Bureau of Fisheries, Ministry of Agriculture, China Fishery Statistical Yearbook 2010; China Agriculture Press: Beijing, China, 2010; p. 26.
  2. Guan, H.S.; Wang, S.G. Chinese Marine Materia Medica (III)Ocean Press: Beijing, China; the Science and Technology Press in Shanghai: Shanghai, China, 2009; pp. 321–348, 1st ed. [Google Scholar]
  3. Zhong, J.W.; Chen, J.W.; Li, X.; Cai, B.C.; Hou, K.L. Influence of oyster on the hypnotic effect of pentobarbital sodium in mice. Chin. Arch. Tradit. Chin. Med. 2009, 27, 499–501. [Google Scholar]
  4. China Pharmacopoeia Committee, Chinese Pharmacopoeia (I); China Medica Science Press: Beijing, China, 2010; pp. 161–162.
  5. Zhang, H.; Zhang, L.; Liu, Y. Studies on chemical components and pharmacological activities of Os draconis (Longgu) and Ostreae concha. Chin. J. Chin. Mater. Med. 2011, 36, 1839–1840. [Google Scholar]
  6. Chen, Y.Z.; Lin, S. Analysis of components in Os draconis and oyster shells. J. Fujian Med. Univ. 1999, 33, 432–434. [Google Scholar]
  7. Guan, H.S.; Liu, H.B.; Yang, X. A method of preparation and application of the Ostreae concha extract. China Patent 201010280361.8, 26 January 2011. [Google Scholar]
  8. Choi, C.S.; Kim, Y.W. A study of the correlation between organic matrices and nanocomposite materials in oyster shell formation. Biomaterials 2000, 21, 213–222. [Google Scholar]
  9. Chiuminatto, U.; Gosetti, F.; Dossetto, P.; Mazzucco, E.; Zampieri, D.; Robotti, E.; Gennaro, M.C.; Marengo, E. Automated online solid phase extraction ultra high performance liquid chromatography method coupled with tandem mass spectrometry for determination of forty-two therapeutic drugs and drugs of abuse in human urine. Anal. Chem. 2010, 82, 5636–5645. [Google Scholar]
  10. Gika, H.G.; Theodoridis, G.; Extance, J.; Edge, A.M.; Wilson, I.D. High temperature-ultra performance liquid chromatography-mass spectrometry for the metabonomic analysis of Zucker rat urine. J. Chromatogr. B 2008, 871, 279–287. [Google Scholar]
  11. Kang, J.; Choi, M.Y.; Kang, S.; Kwon, H.N.; Wen, H.; Lee, C.H.; Park, M.; Wilklund, S.; Kim, H.J.; Kwon, S.W.; Park, S. Application of a 1H nuclear magnetic resonance (NMR) metabolomics approach combined with orthogonal projections to latent structure-discriminant analysis as anefficient tool for discriminating between Korean and Chinese herbal medicines. J. Agric. Food. Chem. 2008, 56, 11589–11595. [Google Scholar]
  12. Zhao, N.; Gao, H.Y.; Sun, B.H.; Wu, L.J. Chemical constituents from the leaves of Camellia sinensis. J. Shenyang Pharm. Univ. 2007, 24, 211–214. [Google Scholar]
  13. Sitkowski, J.; Stefaniak, L.; Nicol, L.; Martin, M.L.; Martin, G.J.; Webb, G.A. Complete assignments of the 1H, 13C and 15N NMR spectra of caffeine. Spectrochim. Acta A Mol. Biomol. Spectrosc. 1995, 51, 839–841. [Google Scholar]
  14. Daly, J.W. Caffeine analogs: Biomedical impact. Cell. Mol. Life Sci. 2007, 64, 2153–2169. [Google Scholar]
  15. Nathanson, J.A. Caffeine and related methylxanthines: Possible naturally occurring pesticides. Science 1984, 226, 184–187. [Google Scholar]
  16. Fisone, G.; Borgkvist, A.; Usiello, A. Caffeine as a psychomotor stimulant: Mechanism of action. Cell. Mol. Life Sci. 2004, 61, 857–872. [Google Scholar]
  17. Kang, S.S.; Han, K.S.; Ku, B.M.; Lee, Y.K.; Hong, J.; Shin, H.Y.; Almonte, A.G.; Woo, D.H.; Brat, D.J.; Hwang, E.M.; et al. Caffeine-mediated inhibition of calcium release channel inositol 1,4,5-trisphosphate receptor subtype 3 blocks glioblastoma invasion and extends survival. Cancer Res. 2010, 70, 1173–1183. [Google Scholar]
  18. Eskelinena, M.H.; Kivipelto, M. Caffeine as a protective factor in dementia and Alzheimer’s disease. J. Alzheimers Dis. 2010, 20, S167–S174. [Google Scholar]
  19. Su, J.Y.; Long, K.H.; Jian, Z.G. Chemical constituents of Chinese Gorgonia (V). A new marine C29-sterol from Echinogorgia pseudossapo (Koelliker). J. Sun Yat-sen Univ. (Nat. Sci.) 1984, 1, 97–101. [Google Scholar]
  20. Imre, S.; Oztunc, A.; Celik, T.; Wagner, H. Isolation of caffeine from the gorgonian Paramuricea chamaeleon. J. Nat. Prod. 1987, 50, 1187. [Google Scholar]
  21. Espada, A.; Jimenez, C.; Debitus, C.; Riguera, R. Villagorgin A and B. New type of indole alkaloids with acetylcholine antagonist activity from the gorgonian. Villagorgia rubra. Tetrahedron Lett. 1993, 34, 7773–7776. [Google Scholar]
  22. Yang, J.; Qi, S.H.; Zhang, S.; Li, Q.X. Chemical constituents from the south China sea gorgonian coral Subergorgia reticulate. J. Chin. Med. Mat. 2006, 29, 555–557. [Google Scholar]
  23. Li, T.; Liao, X.J.; Xu, S.H. Chemical constituents of gorgonian coral Paraplexaura sp. from south China sea. Chin. Pharm. J. 2010, 45, 420–422. [Google Scholar]
