Customized 3D-Printed Scaffolds for Alveolar Ridge Augmentation: A Scoping Review of Workflows, Technology, and Materials
Abstract
1. Introduction
2. Materials and Methods
2.1. PICO Question
- P (Population): Adult patients requiring BR for alveolar ridge augmentation.
- I (Intervention): To explicitly include both additive (printing) and subtractive (milling) manufacturing of scaffolds.
- C (Comparison): Conventional BR techniques using preformed or manually shaped barrier membranes and grafts.
- O (Outcomes): Clinical outcomes (e.g., implant success, incidence of complications, operative time) and radiographic outcomes (e.g., residual bone height, immediate and final bone gain).
2.2. Article Eligibility Criteria
2.3. Information Sources and Search Protocol

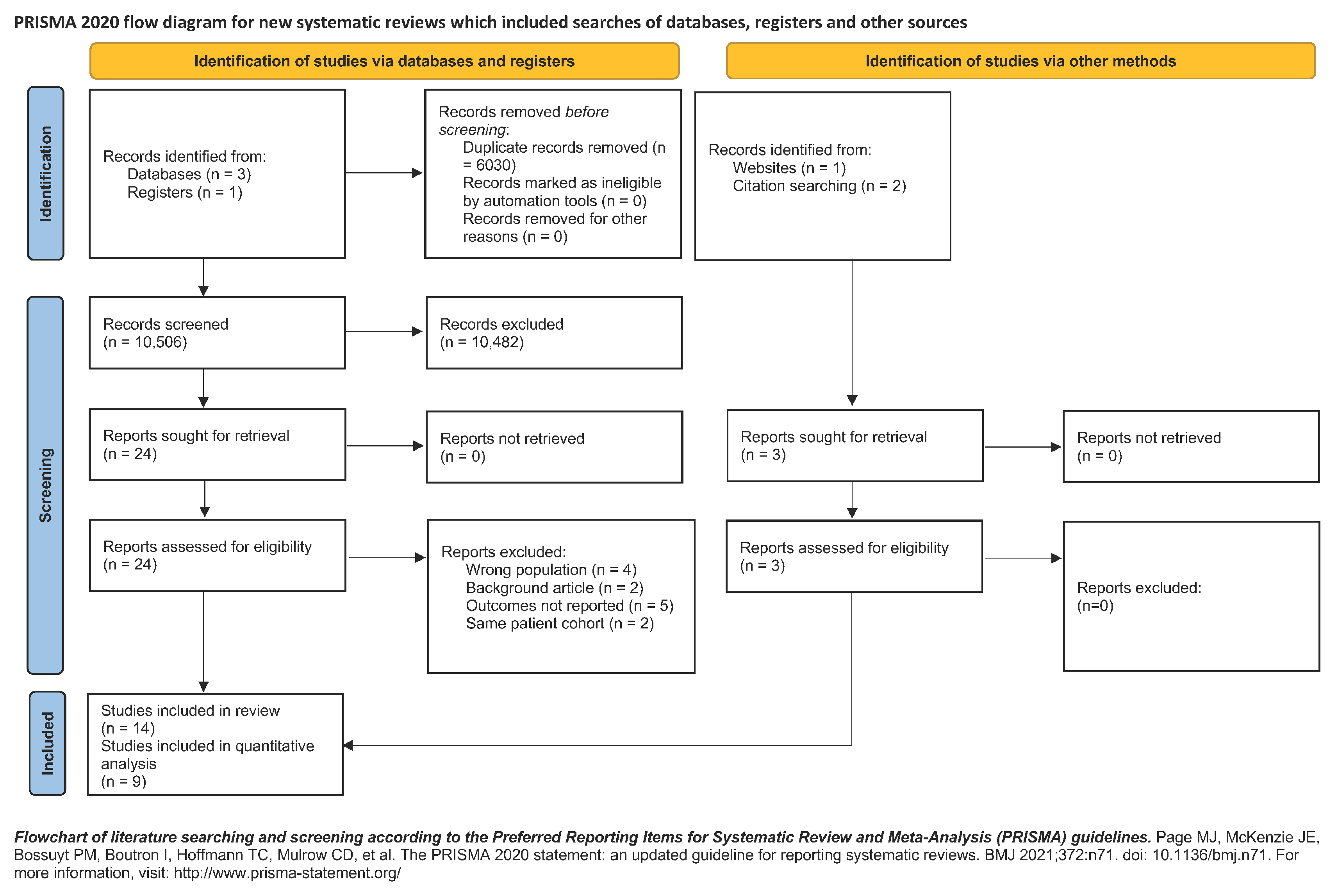

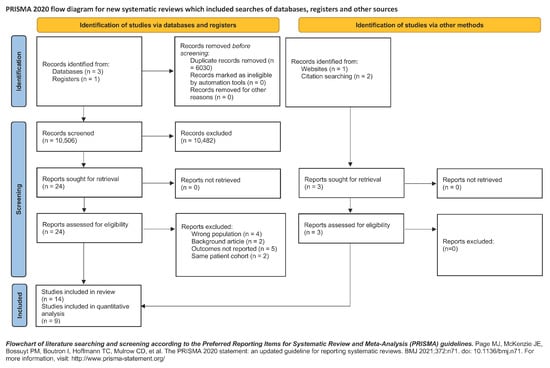

2.4. Article Selection
2.5. Data Extraction
3. Results
3.1. Workflow (Here We Explain the Common Workflow of All Different Scaffolds (Figure 2))

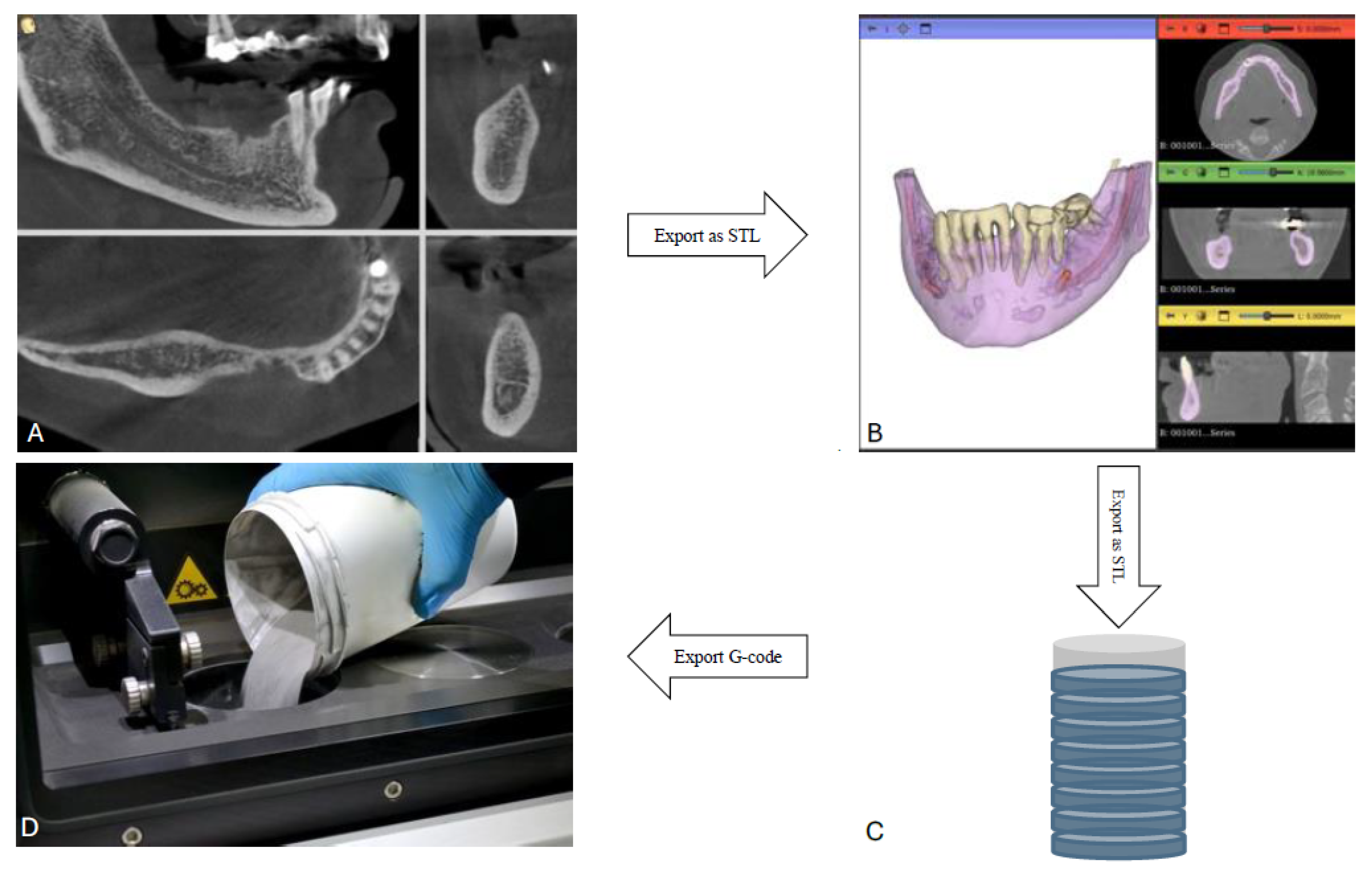

- The first step is to analyze the patient bone condition using cone beam computed tomography (CBCT), which provides the surgeon with a converted Digital Imaging and Communications in Medicine (DICOM) file format (Figure 2A).
- The second step is to transfer these DICOM files to a Standard Triangulation Language (STL)-extension file that can be read that are analyzed using 3D software. Different software could be used, like the Dragonfly software (Figure 2B).

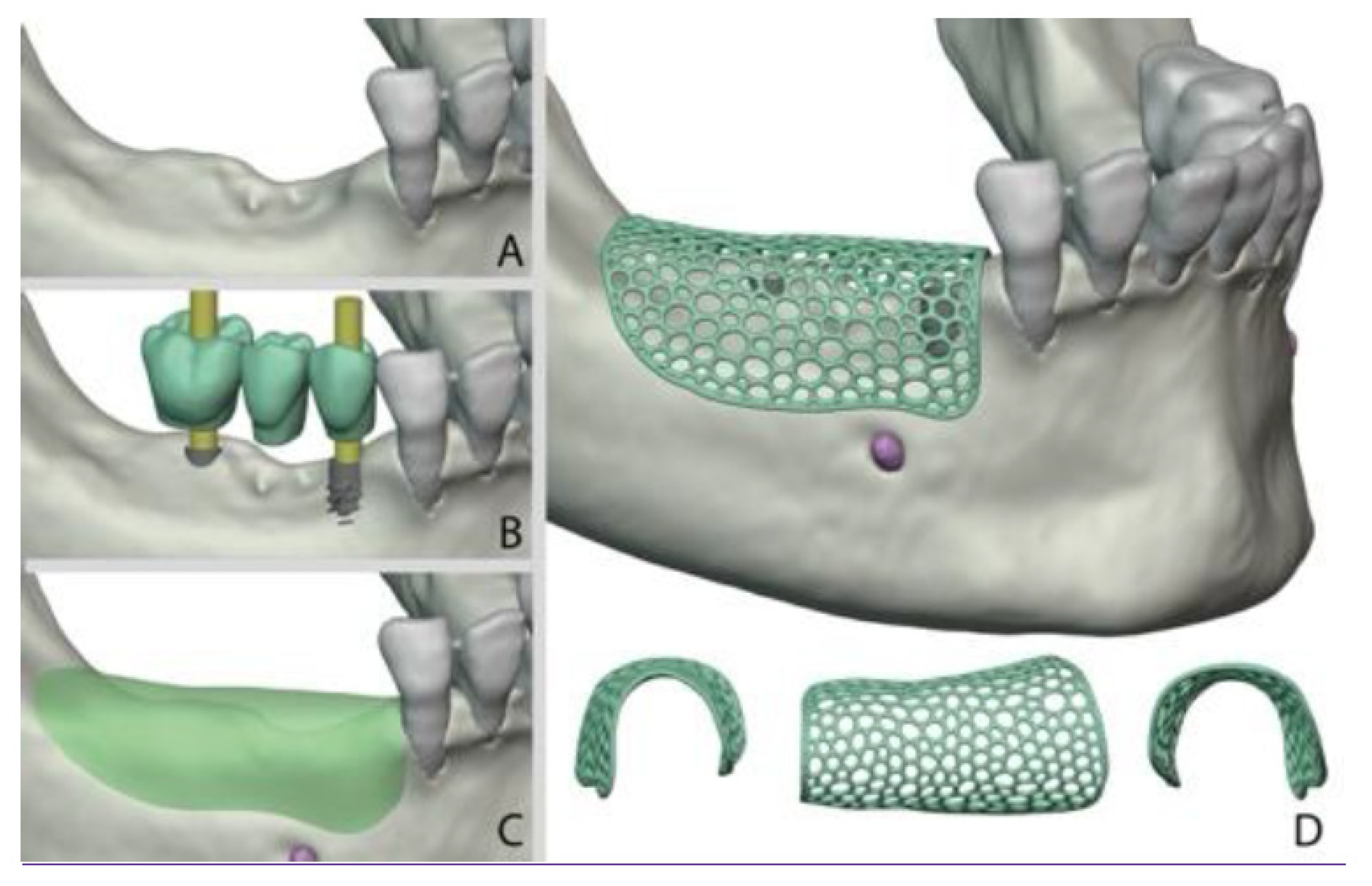

- With the patient data available on the 3D software, the surgeon can augment the defective areas and have a better visualization of what the proposed treatment plan would end up with (Figure 3).
- Then, after augmenting the areas with the desired amount of bone (Figure 3C), the membrane can be designed to correspond to those augmented areas. The thickness of the membrane and design (perforated on non-perforated), number and locations of fixation screws, and implant location opening can be designed in the frame (Figure 3D).
- The preprinting parameters of the desired membrane are predetermined before printing (Figure 3C).
- After the design is confirmed, a 3D printer can then be used to print the desired customized mesh (Figure 2D).
3.2. Digital Planning Software
3.3. Materials Utilized
3.4. Material Thickness
3.5. Type of Mesh
3.6. Printing Method
3.7. Sterilization Method
3.8. Fitting/Fixation
4. Discussion
5. Conclusions
