Speckle Noise Reduction in Digital Holography by 3D Adaptive Filtering
Abstract
1. Introduction
2. Theory
2.1. Holography
2.2. Speckle Suppression Methods
- Computational postprocessing of the acquired hologram set to suppress noise and improve image quality.
- A 3D stack is formed from multiple reconstructed images with different speckle realizations;
- A filtration window of size is defined, where (odd) denotes the spatial dimensions within each image, and is the number of images in the stack;
- For each voxel in the array, the median value within the window is computed and assigned to the corresponding pixel in the output image;
- This process is repeated until the entire image is filtered;
- This 3D filtering approach has shown a notable improvement in hologram quality compared to classical methods, as it effectively leverages both spatial and cross-frame information to suppress speckle noise.
2.3. Frost Filter
- A filtration window I of the image of size pixels is selected, where the window size must be odd to ensure the central position of the filtered pixel ;
- For the window I, the distances from the central pixel to neighboring pixels are calculated and placed in the matrix S. This approach allows for greater consideration of pixels closer to than those farther away;
- The average value and variation are calculated for the pixels in the window;
- The weighting parameter is then calculated, taking into account the statistical deviations of pixel values in the filtration window:
- The pixel weight matrix is calculated based on the obtained parameters;
- The filtered pixel value is calculated: .
3. The Proposed Method
- Recording a series of holograms with varying speckle distributions, enabled by modifying the optical setup;
- Reconstructing the holograms to form a 3D stack of images;
- Applying the modified adaptive Frost filter to the entire 3D dataset, leveraging cross-layer statistics for enhanced speckle reduction;

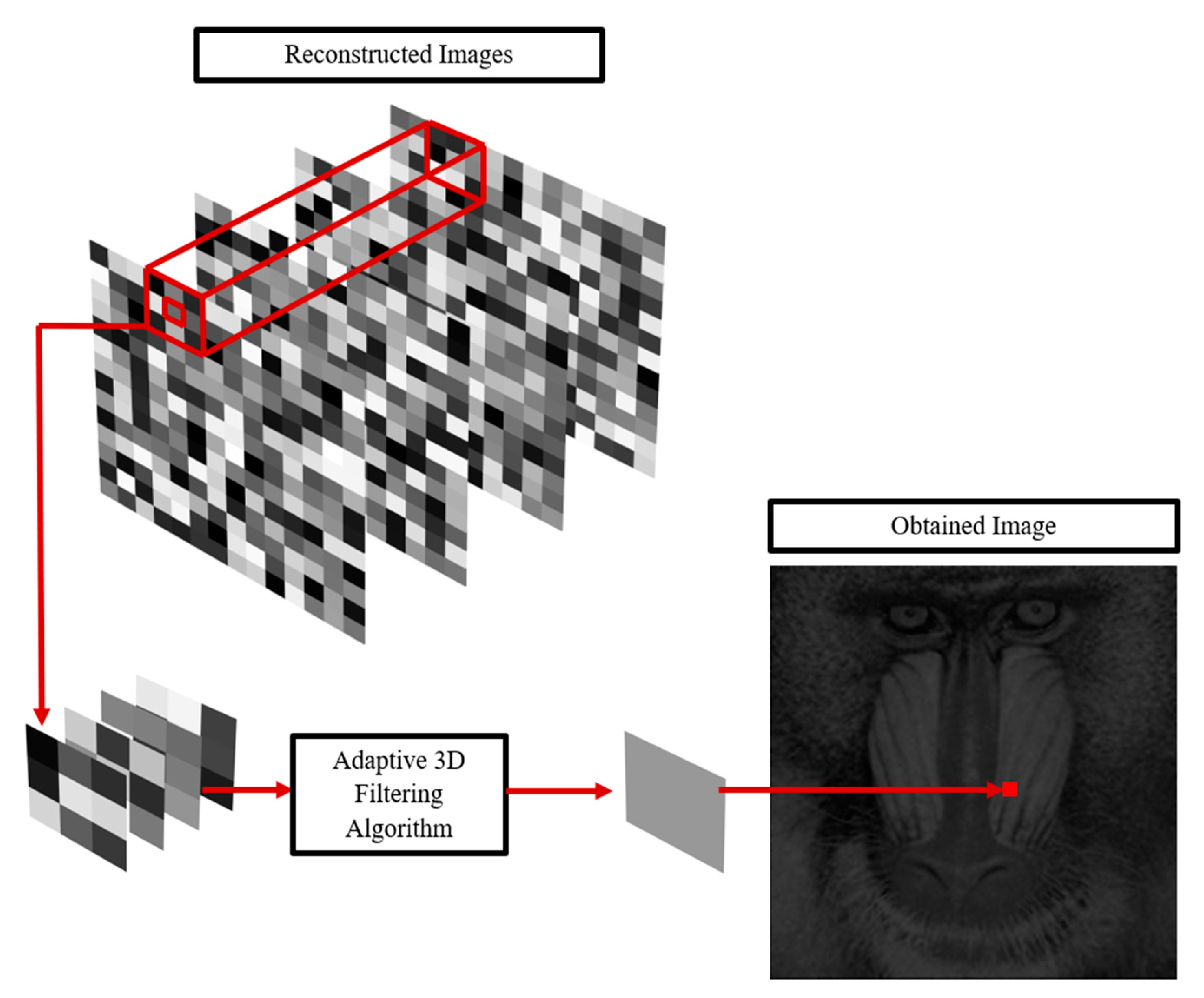

- A schematic overview of the proposed method is provided in Figure 1.

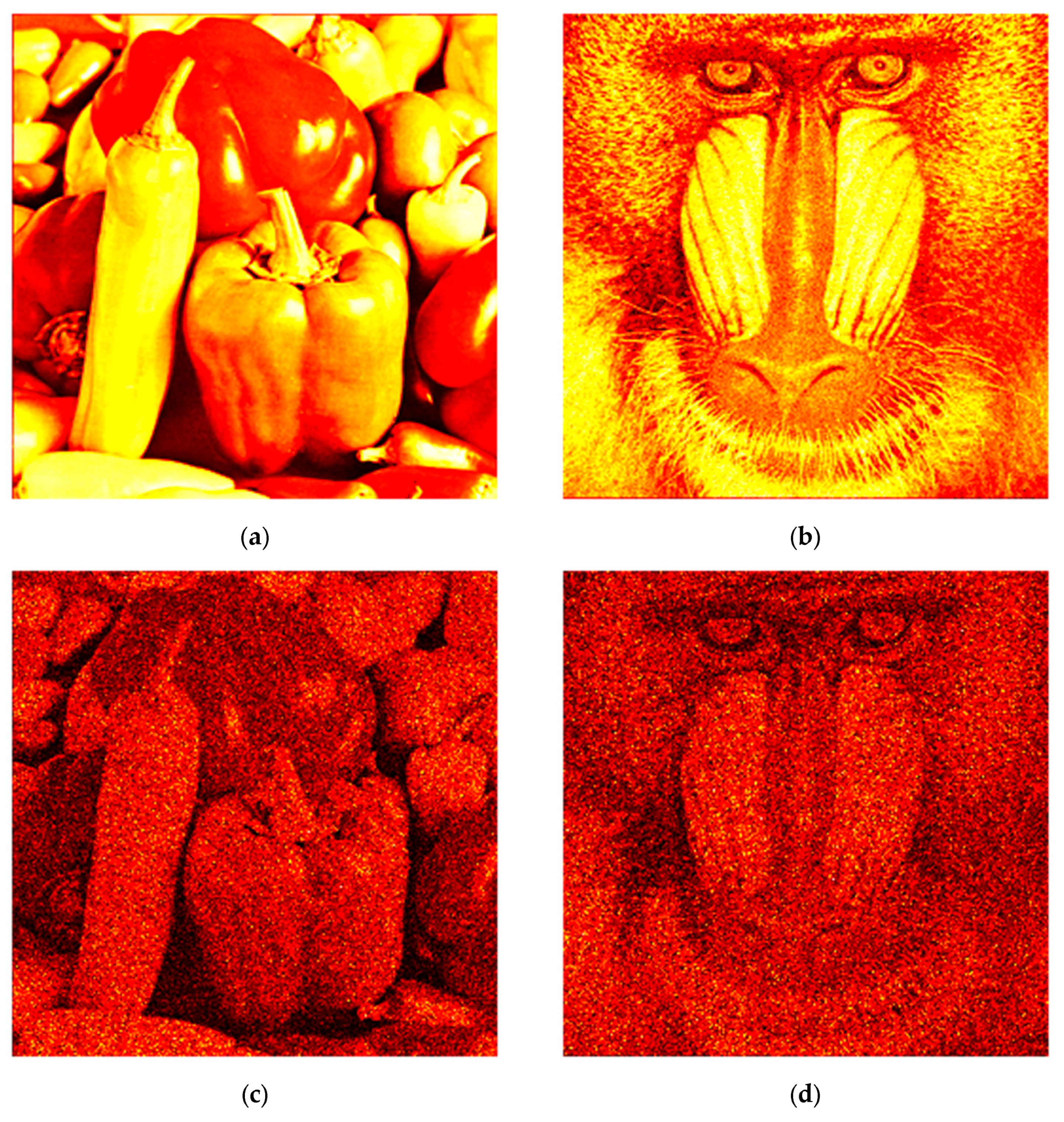

4. Numerical Experiments
4.1. Reconstructed Image Quality Metrics

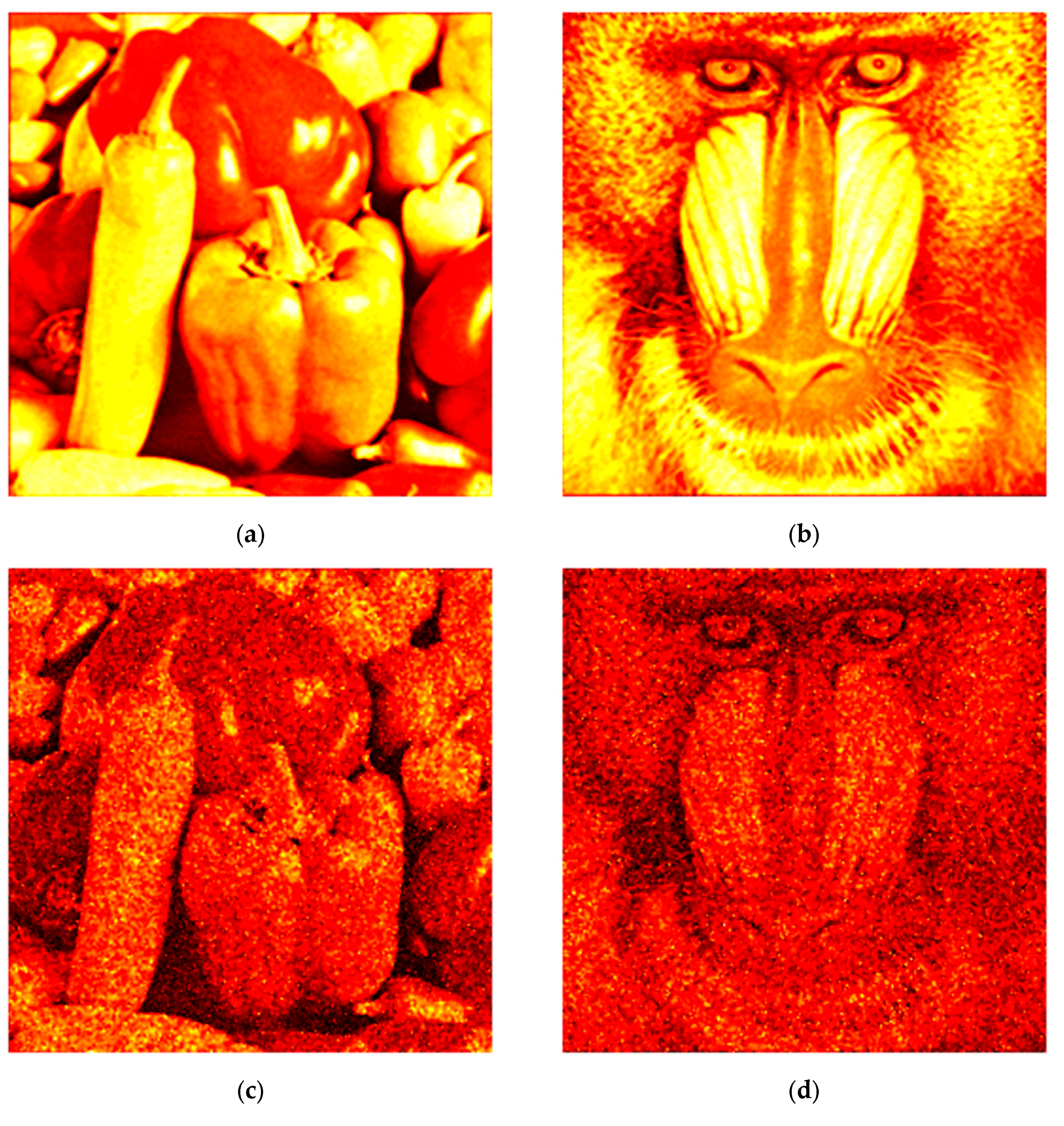

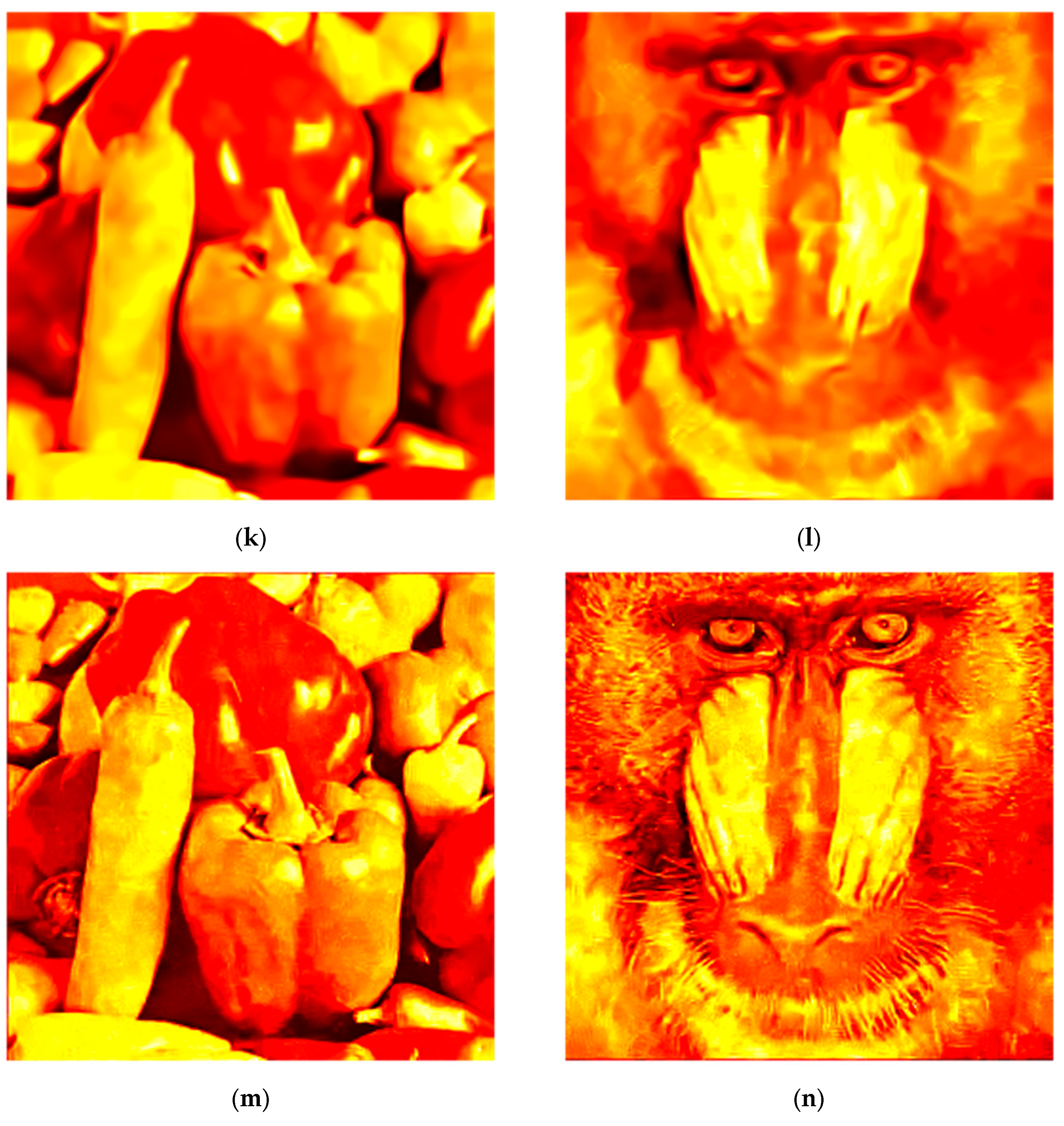

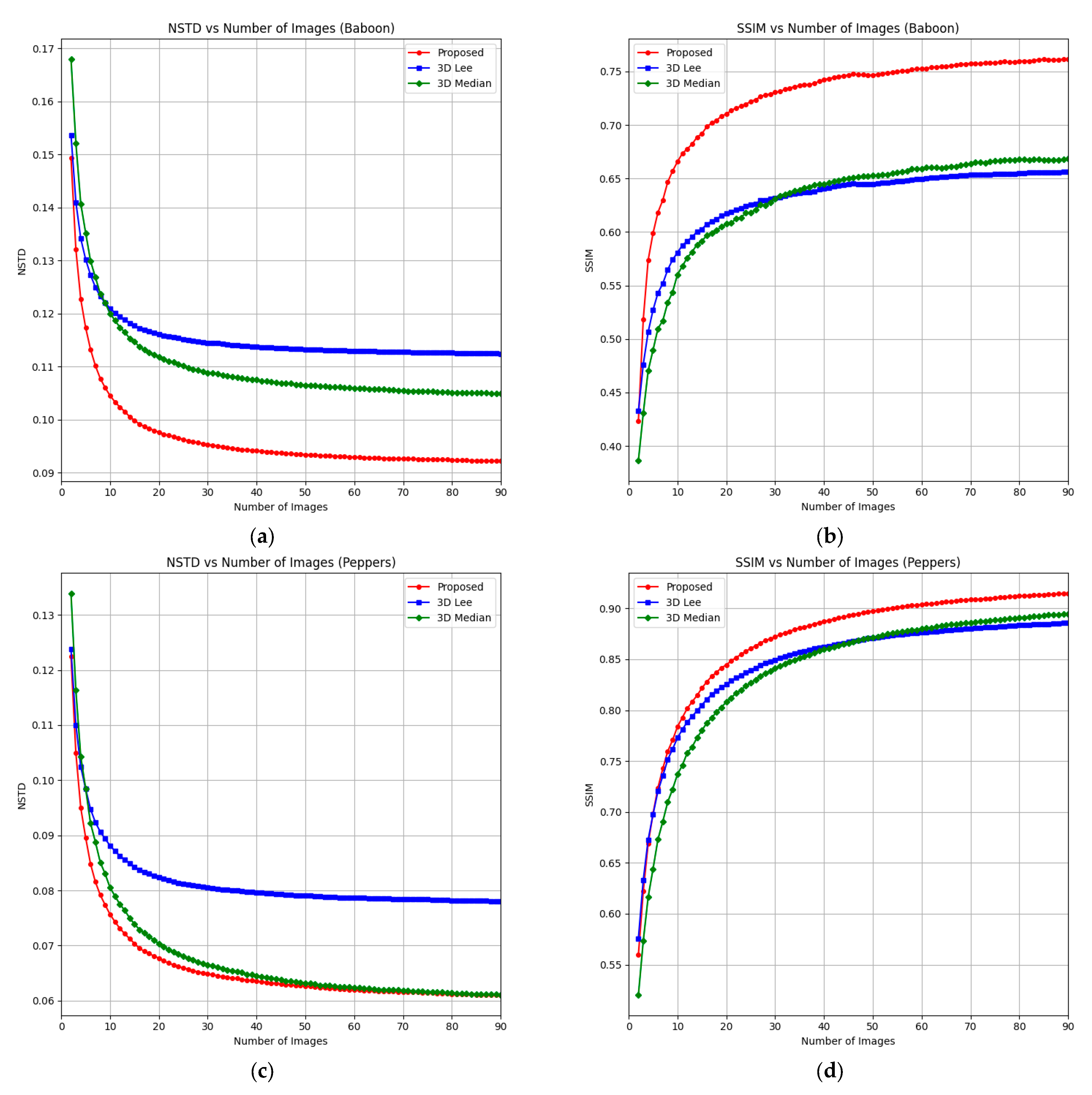

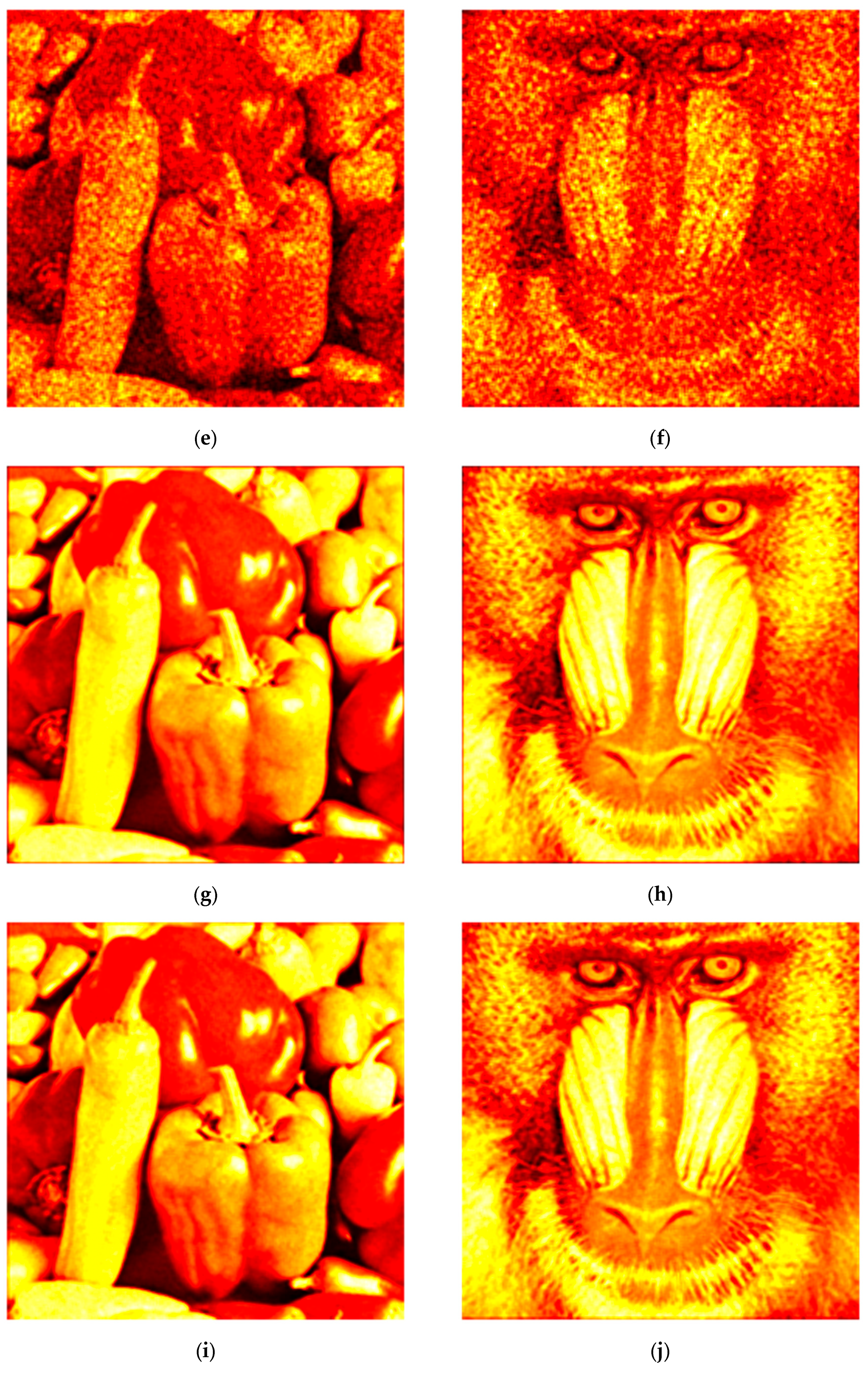

4.2. Filtration Using the Proposed Method
- The classical Frost filter;
- The proposed 3D Frost method applied to multiple reconstructed images;
- The classical Lee filter;
- The newly developed 3D Lee method, applied to multiple reconstructed images;
- The 3D median method, applied to multiple reconstructed images;
- The BM3D filter;
- The BM4D filter, applied to multiple reconstructed images.

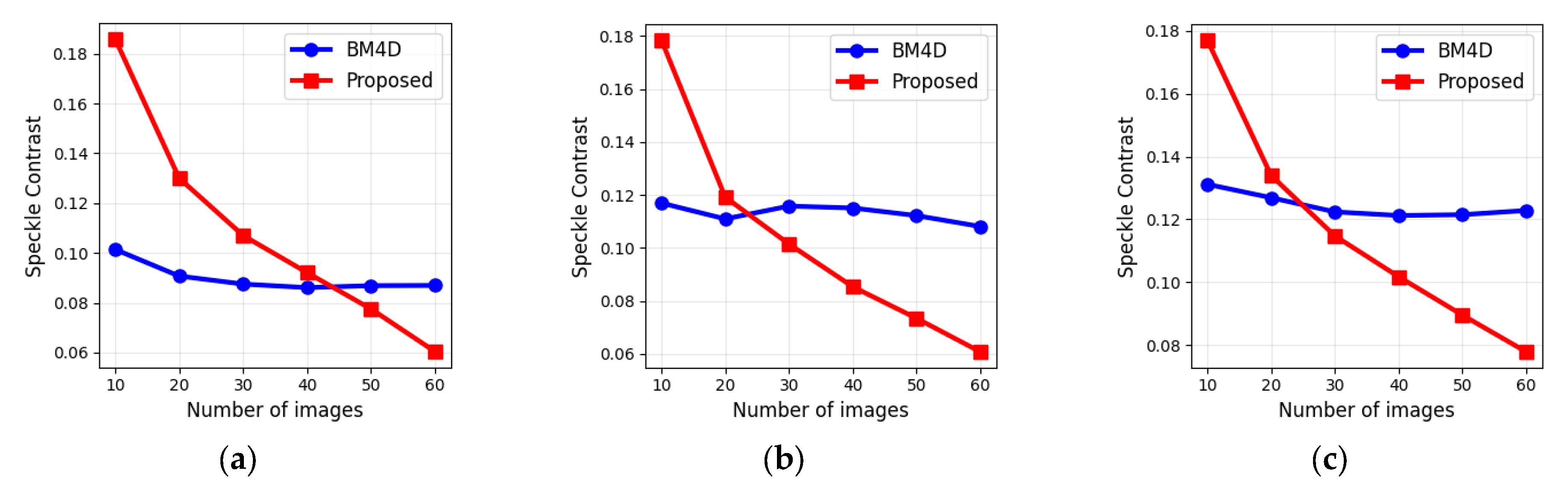

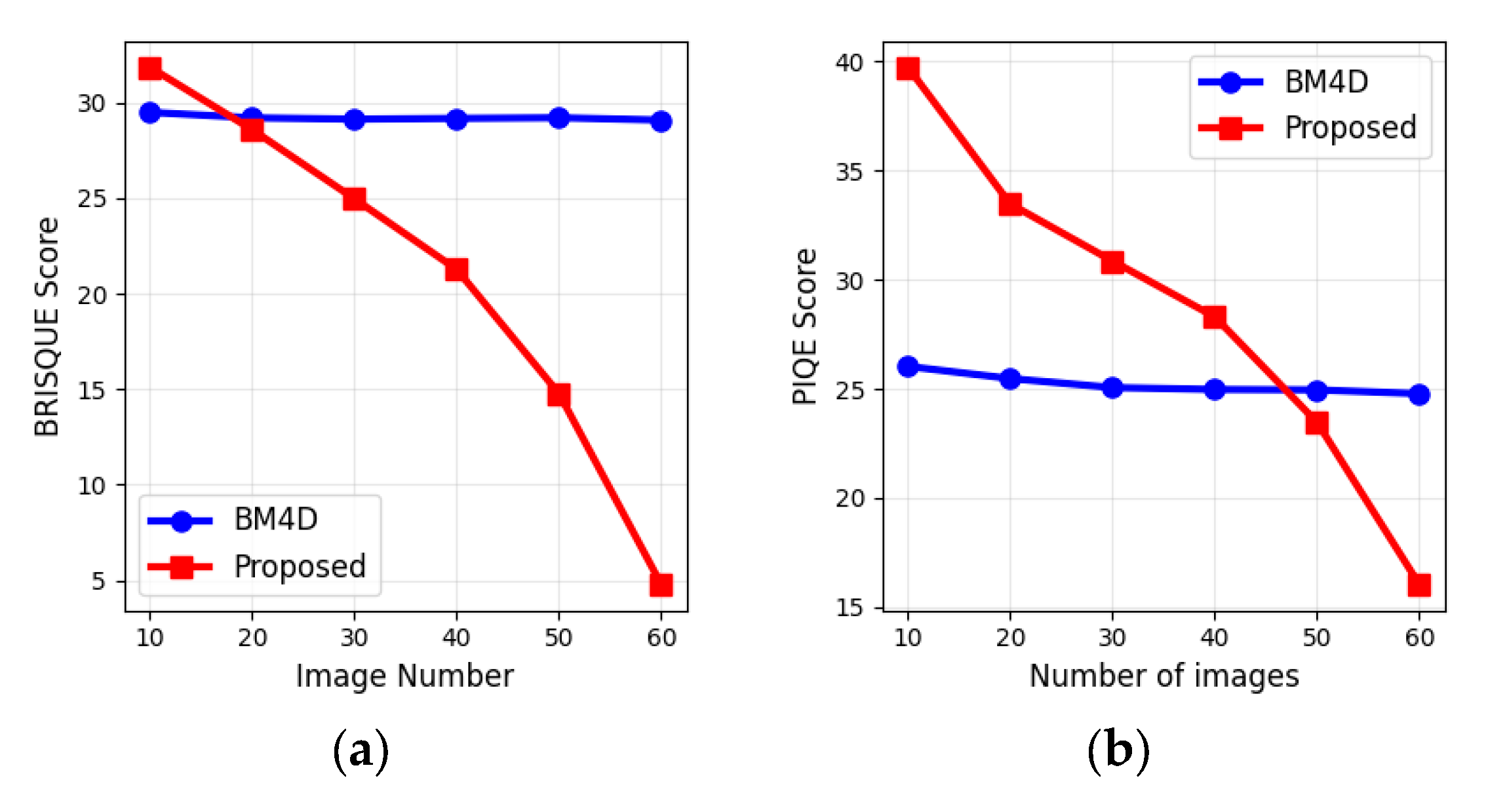

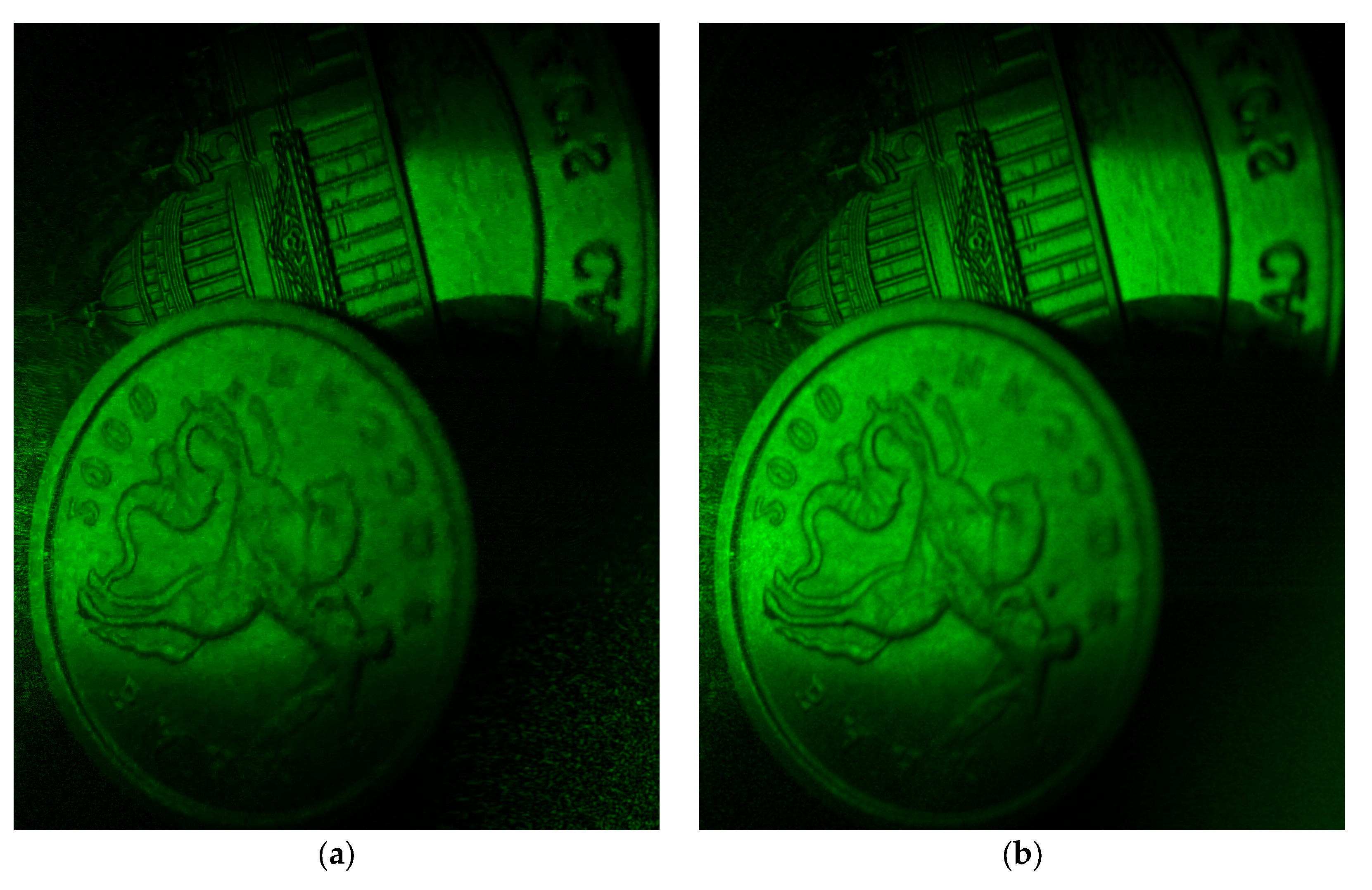

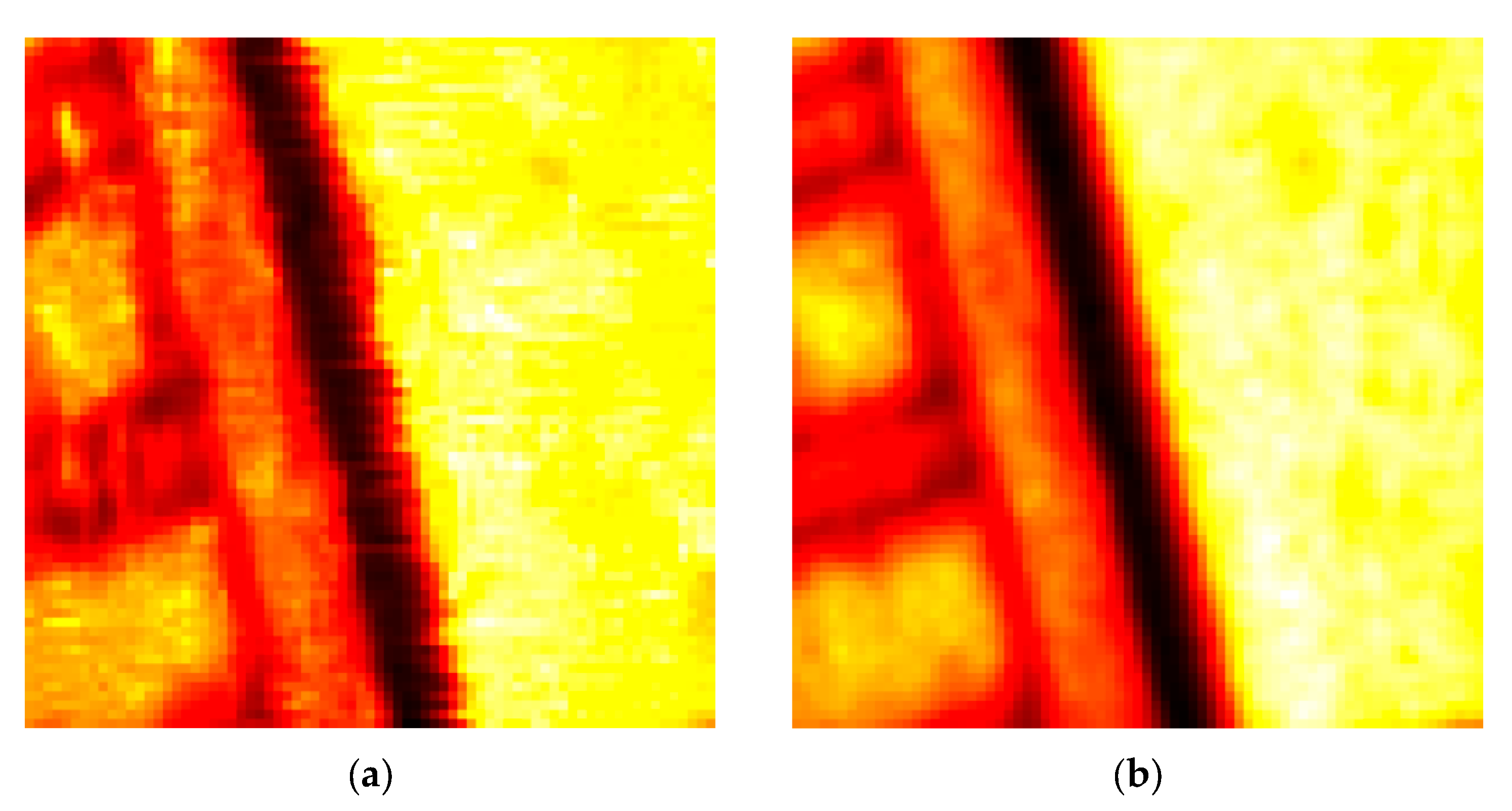

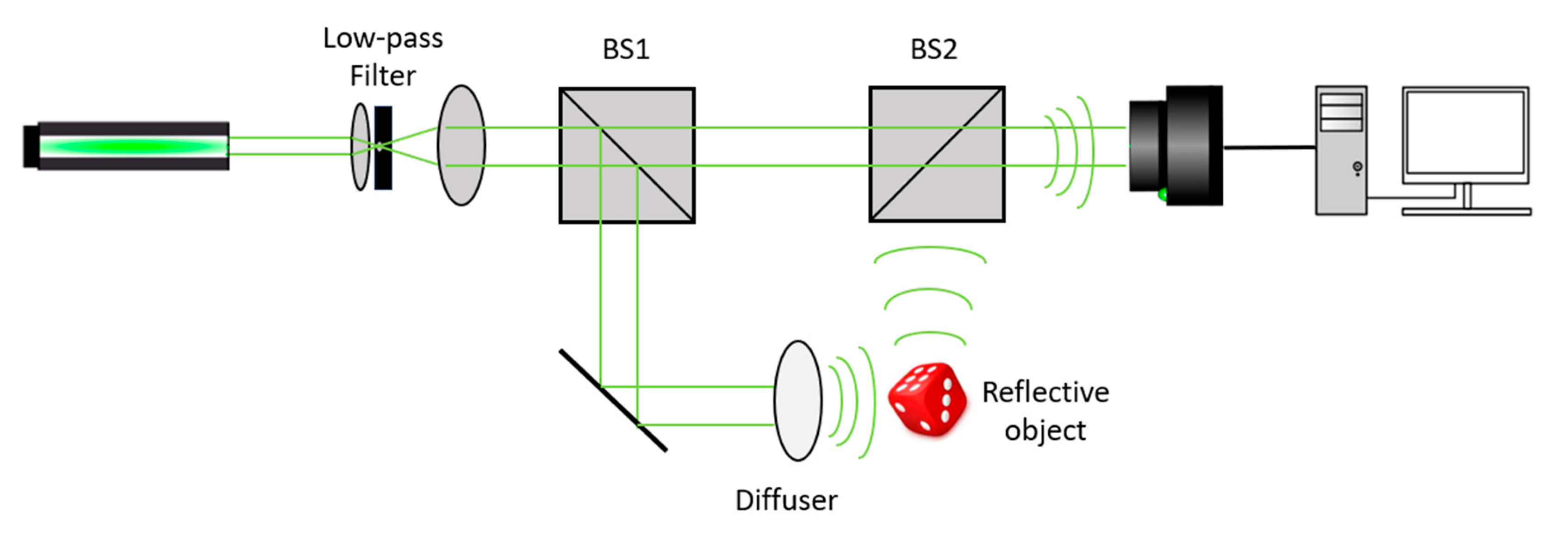

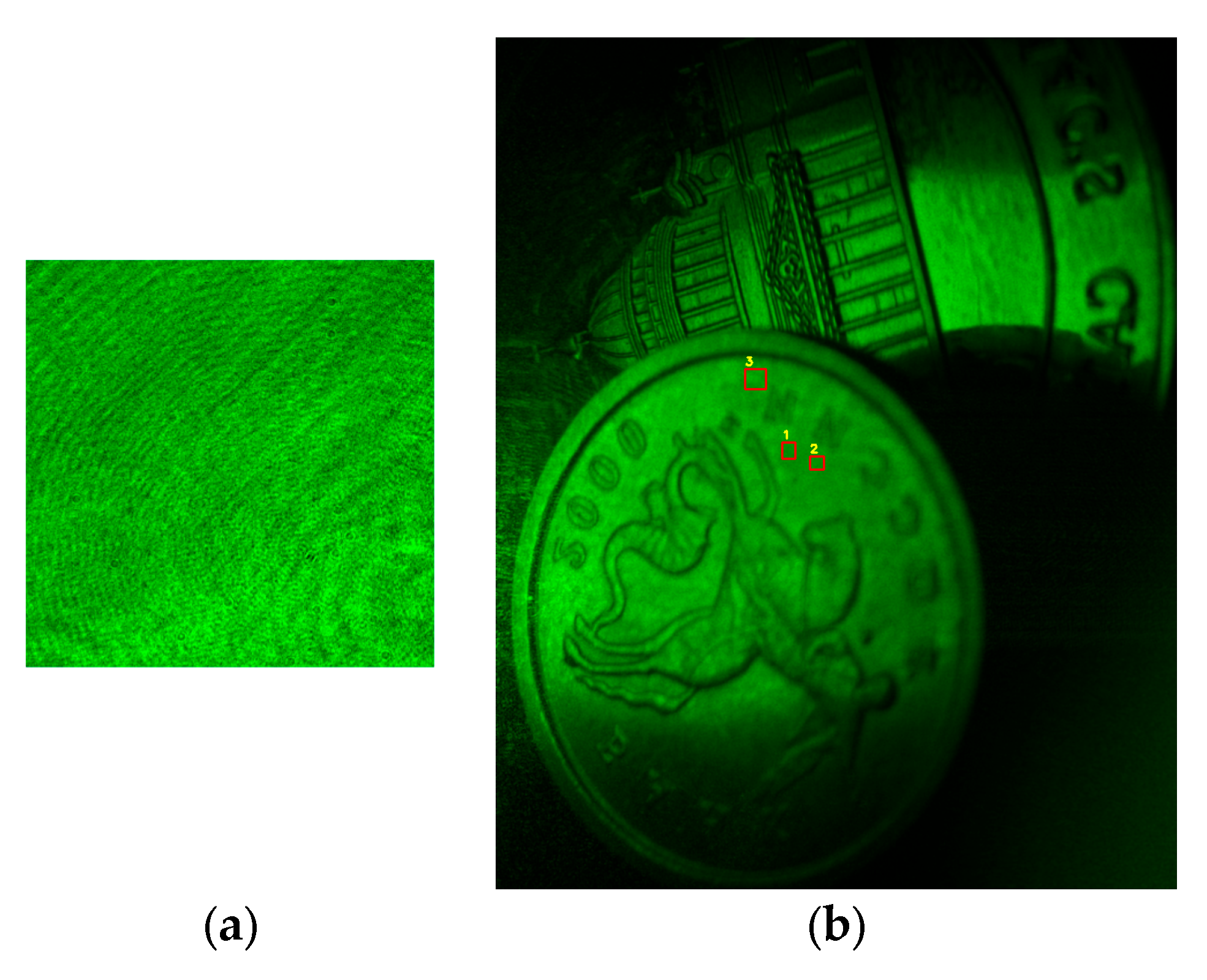

5. Optical Experiments
6. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
BM3D | block-matching and 3D filtering |
BM4D | block matching with 4D filtering |
BRISQUE | blind/referenceless image spatial quality evaluator |
NSTD | normalized standard deviation |
PIQE | perception-based image quality evaluator |
SSIM | structural similarity index measure |
References
