# Two Complementary Approaches toward Geodetic Monitoring of a Historic Wooden Church to Inspect Its Static and Dynamic Behavior

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Test Object and Methodology of Measurement

#### 2.1. Motivation

#### 2.2. Mathematical Model for Measuring the Movements of the Wall of a Wooden Building

#### 2.2.1. One Inclinometer

#### 2.2.2. Two Inclinometers

#### 2.2.3. Required Number of Inclinometers

#### 2.3. Comparison of Results Obtained Using Different Mathematical Models

#### 2.4. Measurements

- an orthogonal coordinate system (grid) was defined, with the x-axis directed along the church, from the center of the entrance door to the middle of the rear wall of the presbytery, and the y-axis directed to the right, in accordance with the geodetic definition of the grid (see Figure 6),
- for static measurements (steady state of the object), the tachymetric method was selected with the use of the automated Total Station Leica TCRP 1201+, with the 1″ precision of angle measurement and 2 mm precision of measured distances, and targets made from reflective foil (for distances of about 6 m, this precision gives the standard error RMSE for determining a horizontal displacement not greater than 0.05 mm),
- for dynamic measurements (vibrations), the electronic inclinometer BWsensing WF/WM series 400 was used, with an inclination measurement accuracy of 0.005 ± 0.001° (for a wall about 7 m high, this corresponds to linear values of 0.60 mm ± 0.12 mm, where the second component is time-variable).

#### 2.5. Preliminary Interpretation of the Measurement Results of a Given Object

- ${w}_{i}$, ${\overline{w}}_{n}$—the i-th value of the slope of the column and the average slope at the level of the ceiling [mm],
- ${u}_{i}$, ${\overline{u}}_{n}$—the i-th gust of wind and the average value of the gust [m/s],
- ${\sigma}_{w},{\sigma}_{u}$—the standard deviation values for the slope and for the gust.

#### 2.6. The Problem of Compliance of the Inclinometer Indications with the Results of the Static Measurement

- the correction of indications using second-degree polynomial equations as a function of time (in a 1-month step of readings),
- the simultaneous measurement of the inclination of the same element with two sensors.

#### 2.7. Selected Final Results after Corrections of Inclinometers

## 3. Discussion

## 4. Conclusions and Further Work

- It provides the results of the classical long-term (static) monitoring of the horizontal and vertical displacements of the object at its critical points;
- It monitors vibrations—horizontal displacements caused by the dynamic impact of atmospheric factors, mainly gusts of wind;
- It enables the calibration of inertial sensors based on the results of static measurements;
- It associates the size of dynamic displacements with the measured values of the weather parameters that cause them;
- It illustrates the variability of displacements of individual fragments of the same structural element, which enables a more complete understanding of the nature of the response of the object at a given place to the external factors;
- It allows the determination of the curvature of the deformed element under load, which makes it possible to estimate the method of support (free rotation or elastic clamping).

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Welsch, W.M.; Heunecke, O. Models and terminology for the analysis of geodetic monitoring observations. In Proceedings of the 10th FIG International Symposium on Deformation Measurement, Orange, CA, USA, 19–22 March 2001. Official Report of the Ad-Hoc Committee of FIG Working Group 6.1. [Google Scholar]
- Woźniak, M. Investigation of using total station with ATR system in monitoring of displacements. Rep. Geod.
**2006**, 1/76, 221–226. [Google Scholar] - Charalampous, E.; Psimoulis, P.; Guillaume, S.; Spiridonakos, M.; Klis, R.; Bürki, B.; Rothacher, M.; Chatzi, E.; Luchsinger, R.; Feltrin, G. Measuring sub-mm structural displacements using QDaedalus: A digital clip-on measuring system developed for total stations. Appl. Geomat.
**2015**, 7, 91–101. [Google Scholar] [CrossRef] - Petrovič, D.; Grigillo, D.; Kosmatin Fras, M.; Urbančič, T.; Trajkovski, K. Geodetic Methods for Documenting and Modelling Cultural Heritage Objects. Int. J. Archit. Herit.
**2019**, 15, 1–12. [Google Scholar] [CrossRef] - Pieraccini, M.; Luzi, G.; Mecatti, D.; Fratini, M.; Noferini, L.; Carissimi, L.; Franchioni, G.; Atzeni, C. Remote sensing of building structural displacements using a microwave interferometer with imaging capability. NDT E Int.
**2004**, 37, 545–550. [Google Scholar] [CrossRef] - Ha, D.W.; Park, H.S.; Choi, S.W.; Kim, Y.A. Wireless MEMS-Based Inclinometer Sensor Node for Structural Health Monitoring. Sensors
**2013**, 13, 16090–16104. [Google Scholar] [CrossRef] [PubMed] - Moreno-Gomez, A.; Perez-Ramirez, C.A.; Dominguez-Gonzalez, A.; Valtierra-Rodriguez, M.; Chavez-Alegria, O.; Amezquita-Sanchez, J.P. Sensors used in Structural Health Monitoring. Arch. Computat. Methods Eng.
**2018**, 25, 901–918. [Google Scholar] [CrossRef] - Barsocchi, P.; Bartoli, G.; Betti, M.; Girardi, M.; Mammolito, S.; Pellegrini, D.; Zini, G. Wireless sensor networks for continuous structural health monitoring of historic masonry towers. Int. J. Archit. Herit.
**2020**, 15, 1–23. [Google Scholar] [CrossRef] - Ha, D.W.; Kim, J.M.; Kim, Y.; Park, H.S. Development and application of a wireless MEMS-based borehole inclinometer for automated measurement of ground movement. Autom. Constr.
**2018**, 87, 49–59. [Google Scholar] [CrossRef] - Paquet, V.L.; Punnett, L.; Buchholz, B. Validity of fixed-interval observations for postural assessment in construction work. Appl. Ergon.
**2001**, 32, 215–224. [Google Scholar] [CrossRef] [PubMed] - Park, H.S.; Shin, Y.; Choi, S.W.; Kim, Y. An integrative structural health monitoring system for the local/global responses of a large-scale irregular building under construction. Sensors
**2013**, 13, 9085–9103. [Google Scholar] [CrossRef] [PubMed] - Vurpillot, S.; Krueger, G.; Benouaich, D.; Clément, D. Vertical deflection of a prestressed concrete bridge obtained using deformation sensors and inclinometer. ACI Struct. J.
**1998**, 95, 518–526. [Google Scholar] - Danisch, L.; Chrzanowski, A.; Bond, J.; Bazanowski, M. Fusion of geodetic and MEMS sensors for integrated monitoring and analysis of deformations. In Proceedings of the 4th IAG Symposium on Geodesy for Geotechnical and Structural Engineering, 13th FIG International Symposium on Deformation Measurements and Analysis, Lisbon, Portugal, 12–15 May 2008. [Google Scholar]
- Antunes, P.; Lima, H.; Varum, H.; André, P. Optical fiber sensors for static and dynamic health monitoring of civil engineering infrastructures: Abode wall case study. Measurement
**2012**, 45, 1695–1705. [Google Scholar] [CrossRef] - Gałęzia, A.; Gontarz, S.; Jasiński, M.; Mączak, J. Distributed system for monitoring of the large scale infrastructure structures based on analysis of changes of its static and dynamic properties. Key Eng. Mater.
**2012**, 518, 106–118. [Google Scholar] [CrossRef] - Różański, A.; Jurek, T.; Marciniak, P.; Łobodzińska, P.; Schaaf, U. Interdisciplinary Research on Wooden Architecture in Poland. A Case Study of the Wooden Church in Domachowo. Archaeol. Hist. Pol.
**2020**, 28, 175–197. [Google Scholar] [CrossRef] - De Araujo, V.A.; Cortez-Barbosa, J.; Gava, M.; Garcia, J.N.; de Souza, A.J.D.; Savi, A.F.; Morales, E.A.M.; Molina, J.C.; Vasconcelos, J.S.; Christoforo, A.L.; et al. Classifying wooden housing. Bioresources
**2016**, 11, 7889–7901. [Google Scholar] [CrossRef] - Wyczałek, I.; Marciniak, P.; Pawlak, Z. Static and dynamic measurements of the historic wooden church in Domachowo. In Proceedings of the FIG Congress 2022 (11355), Warsaw, Poland, 11–15 September 2022. [Google Scholar]
- Lipecki, T. Geodetic and Architectural Inventory of the Historic Wooden Church of St. Szczepan in Mnichów (Poland) in Terms of Safety Assessment of the Geometric Condition of the Structure. Materials Science. Available online: https://www.researchsquare.com/article/rs-107843/v1 (accessed on 22 February 2023).
- Gamerro, J.; Bocquet, J.F.; Weinand, Y.A. Calculation Method for Interconnected Timber Elements Using Wood-Wood Connections. Buildings
**2020**, 10, 61. [Google Scholar] [CrossRef] - Marciniak, P.; Pawlak, Z.; Wyczałek, I. The Dynamic-Static Method (DSM) for Structural Displacement Analysis Using the Example of a Wooden Church in Domachowo (Poland). Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci.
**2023**, XLVIII-M-2-2023, 1001–1006. [Google Scholar] [CrossRef]

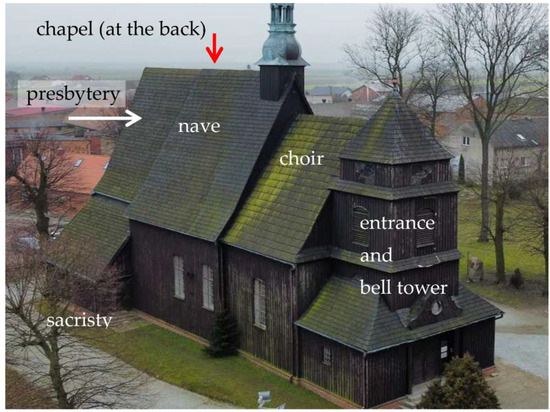

**Figure 1.**Side view of the tested object—individual parts were created at different times and with different techniques, and their connections reveal the different behavior of the joined parts (source: own photograph).

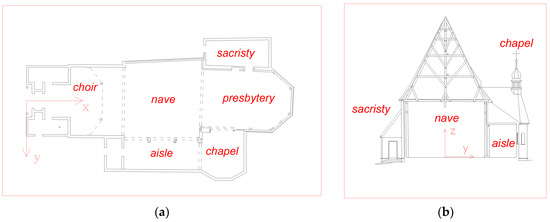

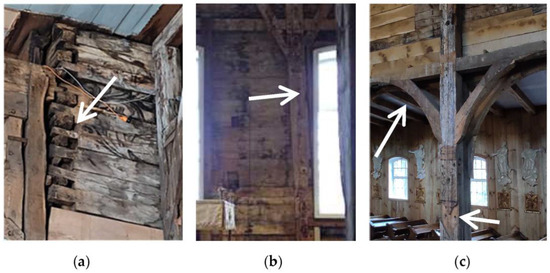

**Figure 3.**Examples of damage or discontinuity in the wall structure: (

**a**) wear to the log construction joints, (

**b**) inclination of the frame structure beams in relation to the (newer) windows, (

**c**) removed or cut struts reinforcing the frame structure (source: own photographs).

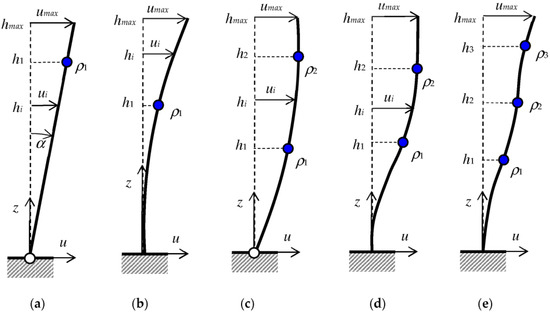

**Figure 4.**Illustration of assumptions for modelling column deflection lines with different bottom supports: (

**a**) hinged, linear function, (

**b**) fixed, quadratic function, (

**c**) hinged, quadratic function, (

**d**) fixed, cubic function, (

**e**) fixed, higher-degree polynomial. The blue circle is the measuring point (inclinometer).

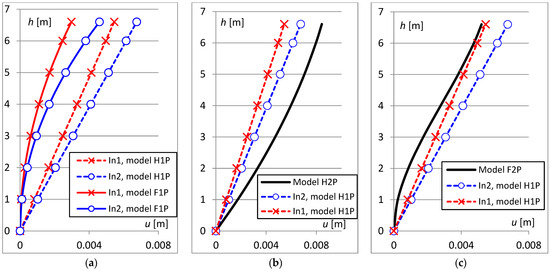

**Figure 5.**Deformation diagrams of the analyzed column determined for different models: (

**a**) hinge and linear functions (dash line), fixed with the quadratic function (solid line), (

**b**) hinge with linear (dash line) and quadratic functions (solid line), (

**c**) hinge and linear functions (dash line), fixed with the cubic function (solid line).

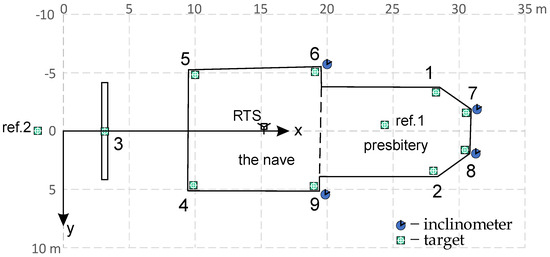

**Figure 6.**Scheme of the body of the church, with the location of the main components of the monitoring system—the robotic total station (RTS), targets (green squares), and inclinometers (blue circles).

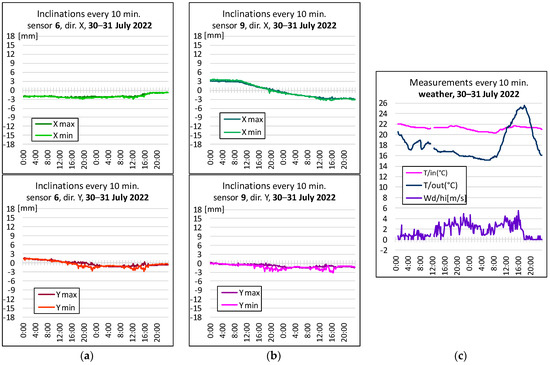

**Figure 7.**Inclinations for calm weather on 30–31 July 2022: (

**a**) in point 6, (

**b**) in point 9, in the longitudinal direction x (at the top), in the transverse direction y (at the bottom), (

**c**) the temperature inside and outside the building (15 ÷ 25 °C) and wind gusts (0 ÷ 5.2 m/s).

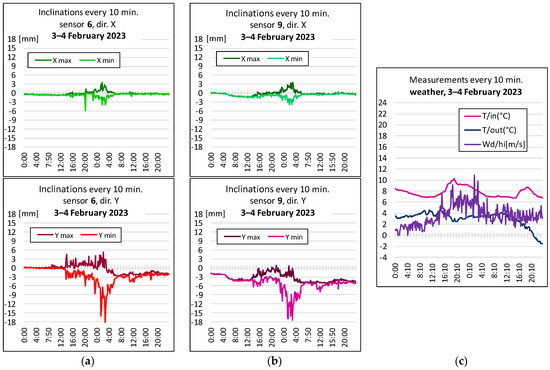

**Figure 8.**Inclinations for windy weather on 3–4 February 2023: (

**a**) in point 6, (

**b**) in point 9, in the longitudinal direction x (at the top), in the transverse direction y (at the bottom), (

**c**) the temperature inside (7.4 ÷ 10.2 °C) and outside the building (−2.0 ÷ 5.3 °C), and wind gusts (0 ÷ 11.0 m/s).

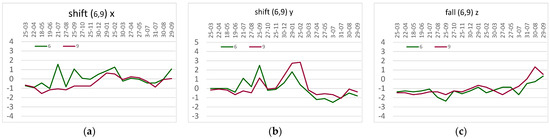

**Figure 9.**Diagrams of horizontal displacements in 19 measurement series at points 6 and 9 most susceptible to vibrations: (

**a**) along the church—x-axis, (

**b**) across the church—y-axis, (

**c**) vertically—z-axis [mm].

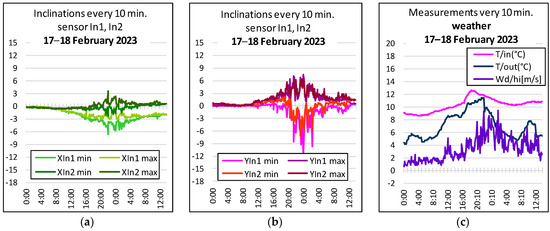

**Figure 10.**Summary of the inclination values of the part of the structure in the most vulnerable location (point 9) at levels 4.6 (In2) and 6.05 m (In1): (

**a**) the inclination along the x-axis, (

**b**) the inclination along the y-axis, and (

**c**) the readings for the wind force (0.2 $\xf7$ 8.6 m/s) and temperature, in a cumulative 10 min cycle.

**Table 1.**The maximum displacement ${u}_{max}$ determined for the considered models at the top of the column (${h}_{max}=6.80\mathrm{m}$).

Model | Polynomial Degree | Bottom Support | Position and Number of Required Inclinometers | Maximum Displacement ${\mathit{u}}_{\mathit{m}\mathit{a}\mathit{x}}\left[\mathbf{m}\mathbf{m}\right]$ |
---|---|---|---|---|

H1P | 1 | hinge | In1 | 5.45 |

H1P | 1 | hinge | In2 | 6.75 |

F1P | 2 | fixed | In1 | 2.97 |

F1P | 2 | fixed | In2 | 4.60 |

H2P | 2 | hinge | In1 and In2 | 8.44 |

F2P | 3 | fixed | In1 and In2 | 5.20 |
