# Hybrid Path Planning for Unmanned Surface Vehicles in Inland Rivers Based on Collision Avoidance Regulations

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

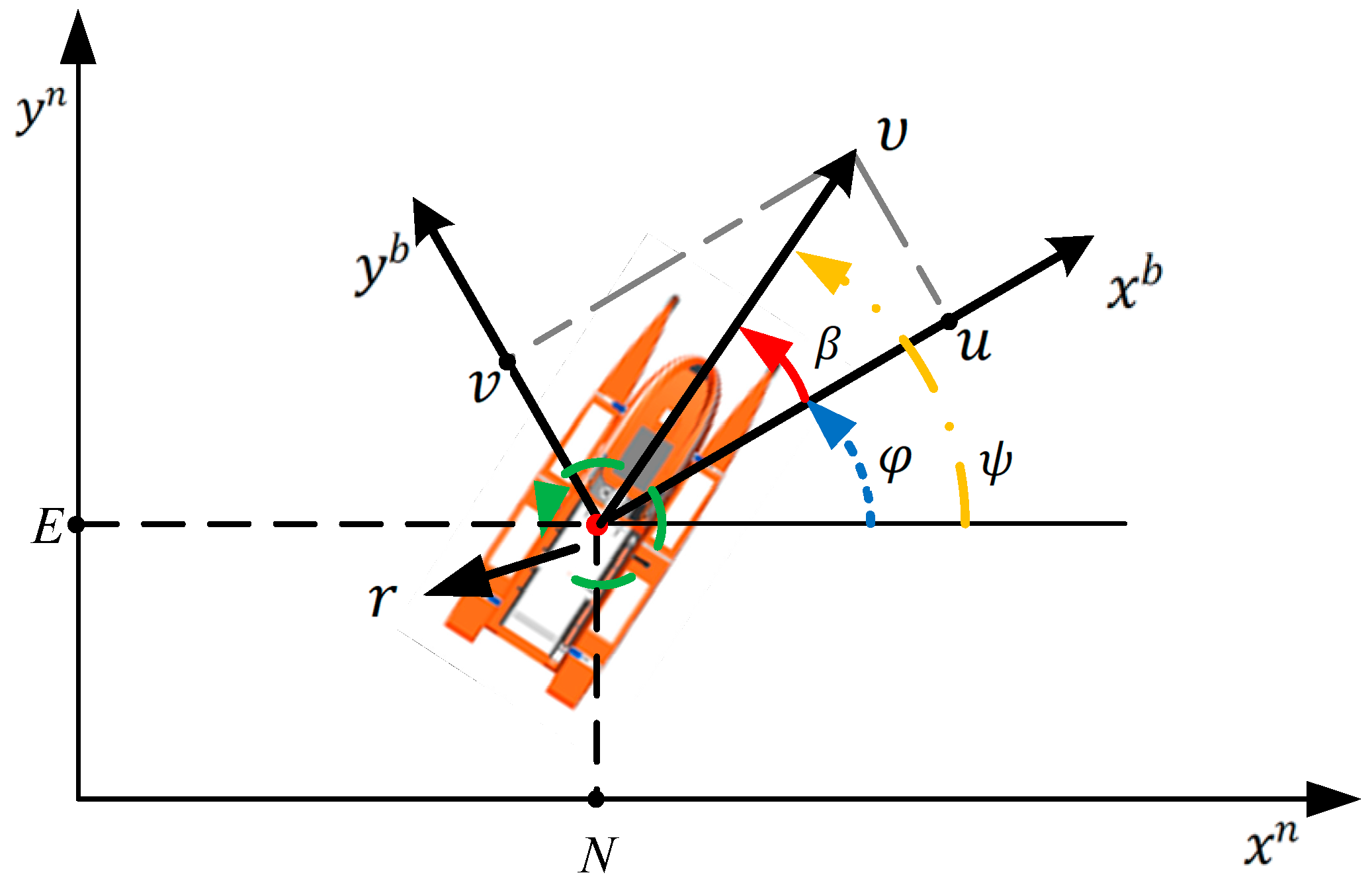

#### 2.1. Mathematical Model of the USV

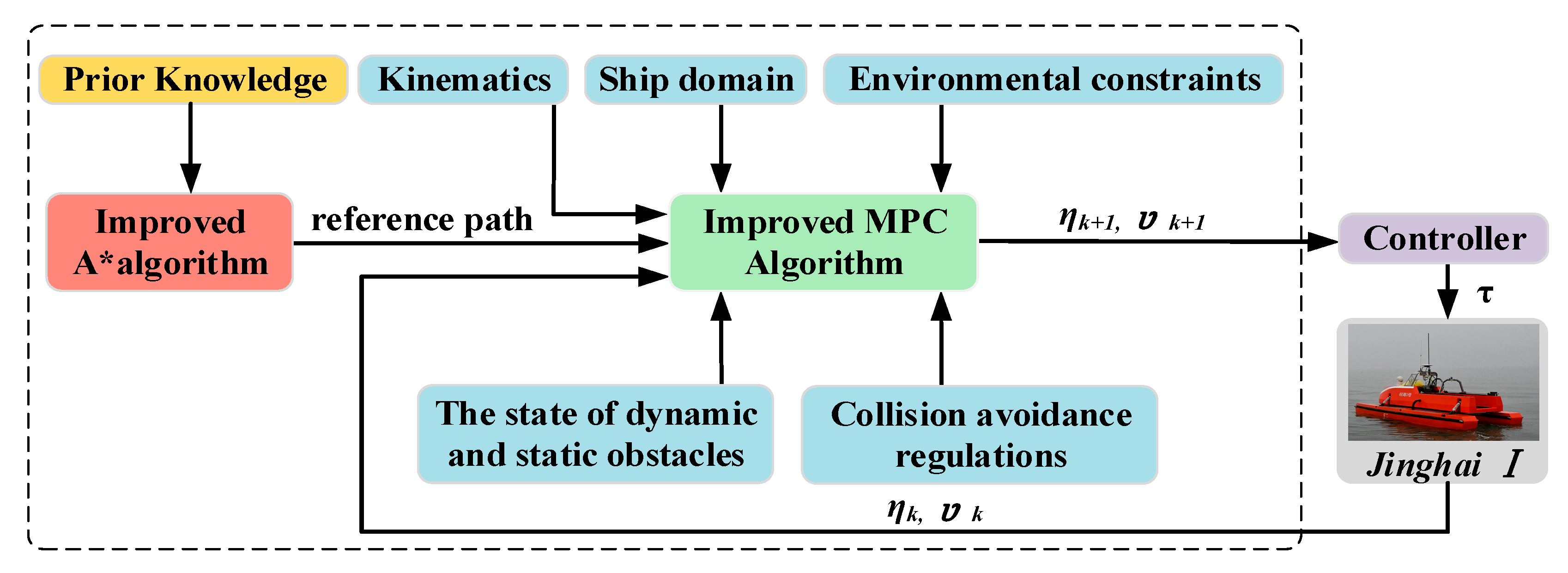

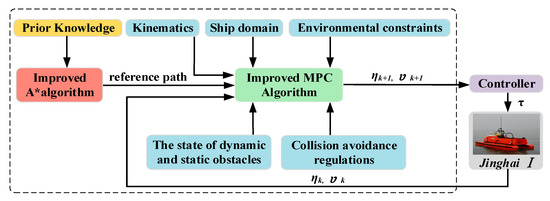

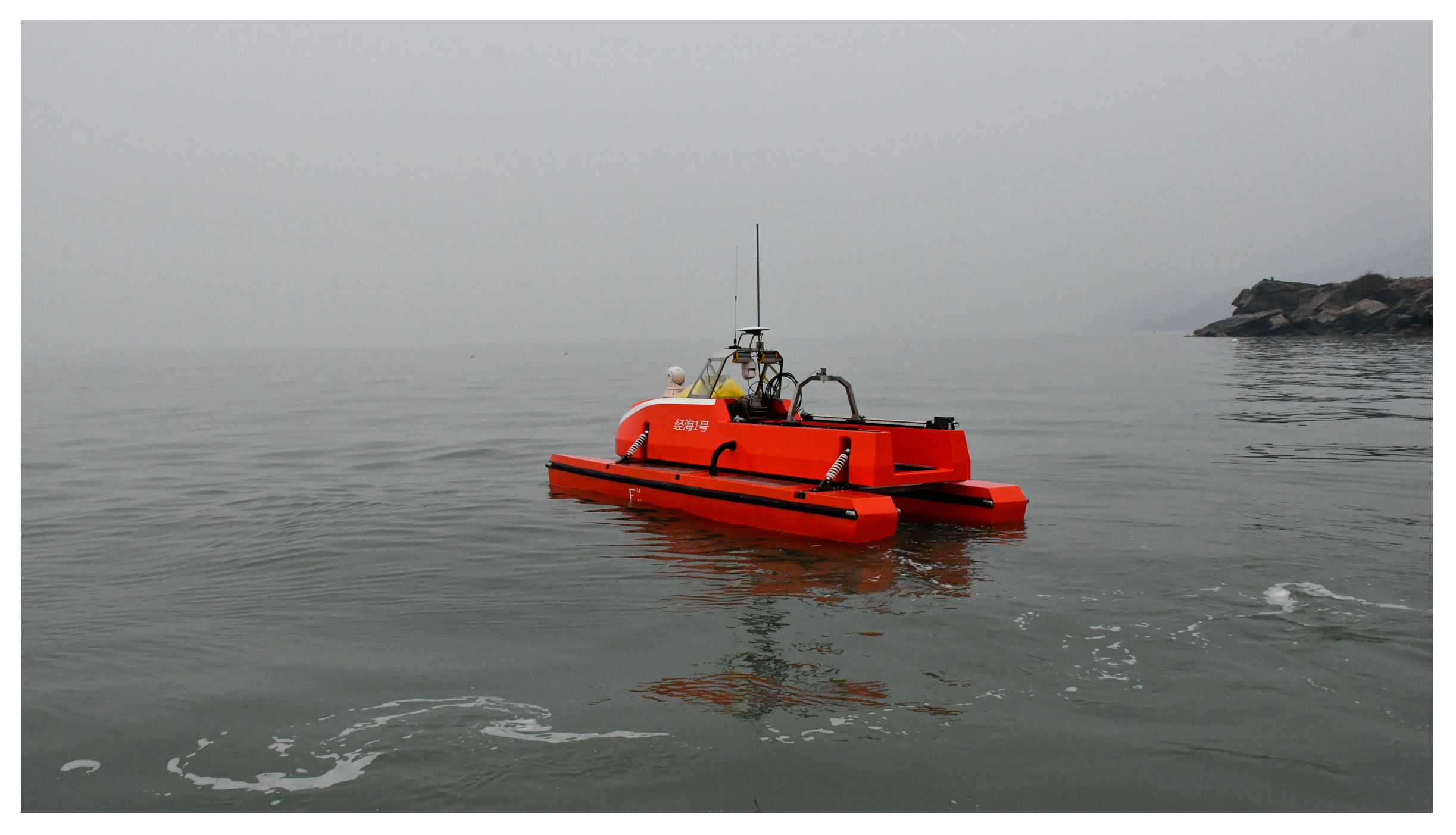

#### 2.2. Hybrid Path Planning of “Jinghai-I” USV

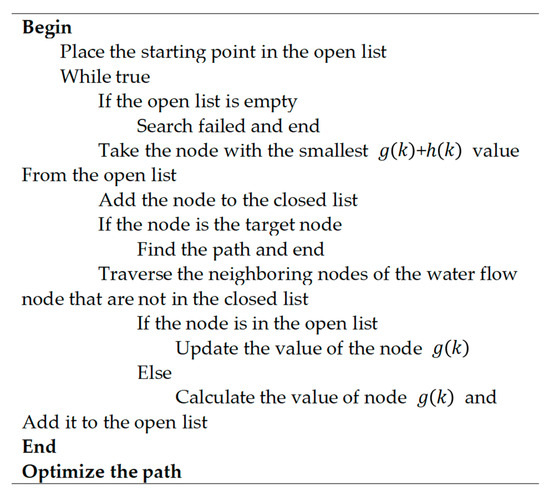

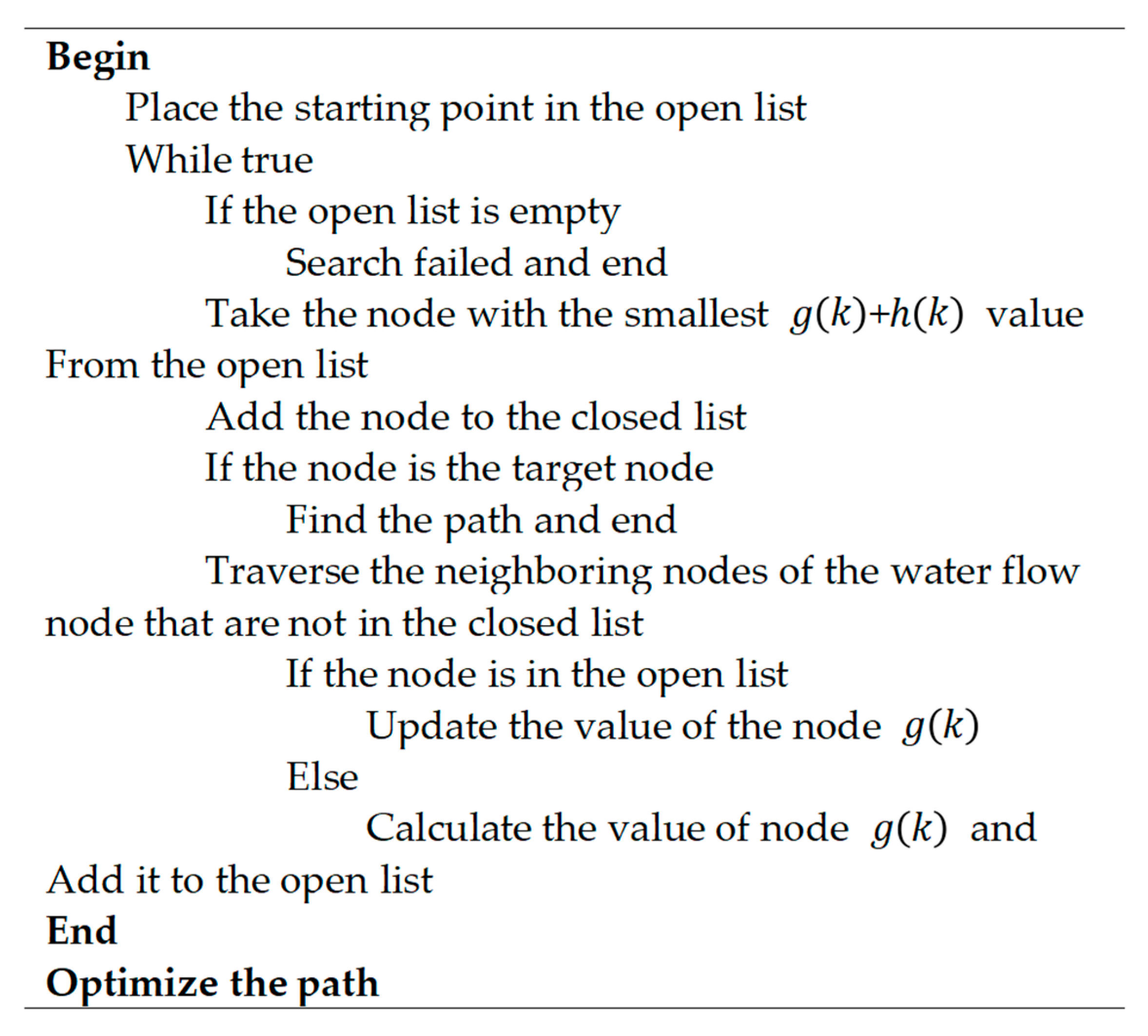

#### 2.2.1. Global Path Planning Based on Improved A*

#### Design of Evaluation Function

#### 2.2.2. Local Path Planning Based on the Model Predictive Control Algorithm

#### Collision Avoidance Regulations for Inland Rivers

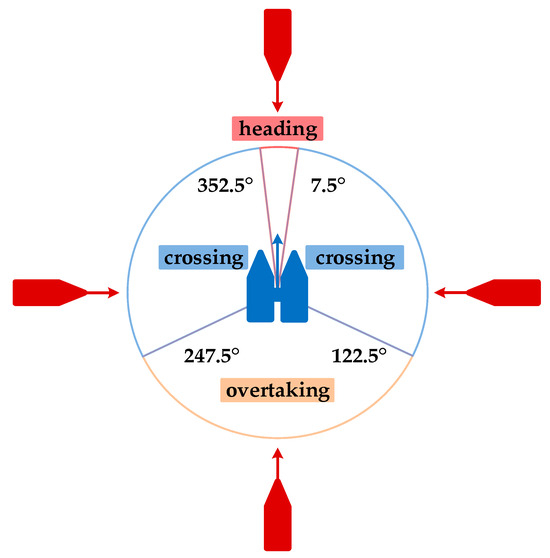

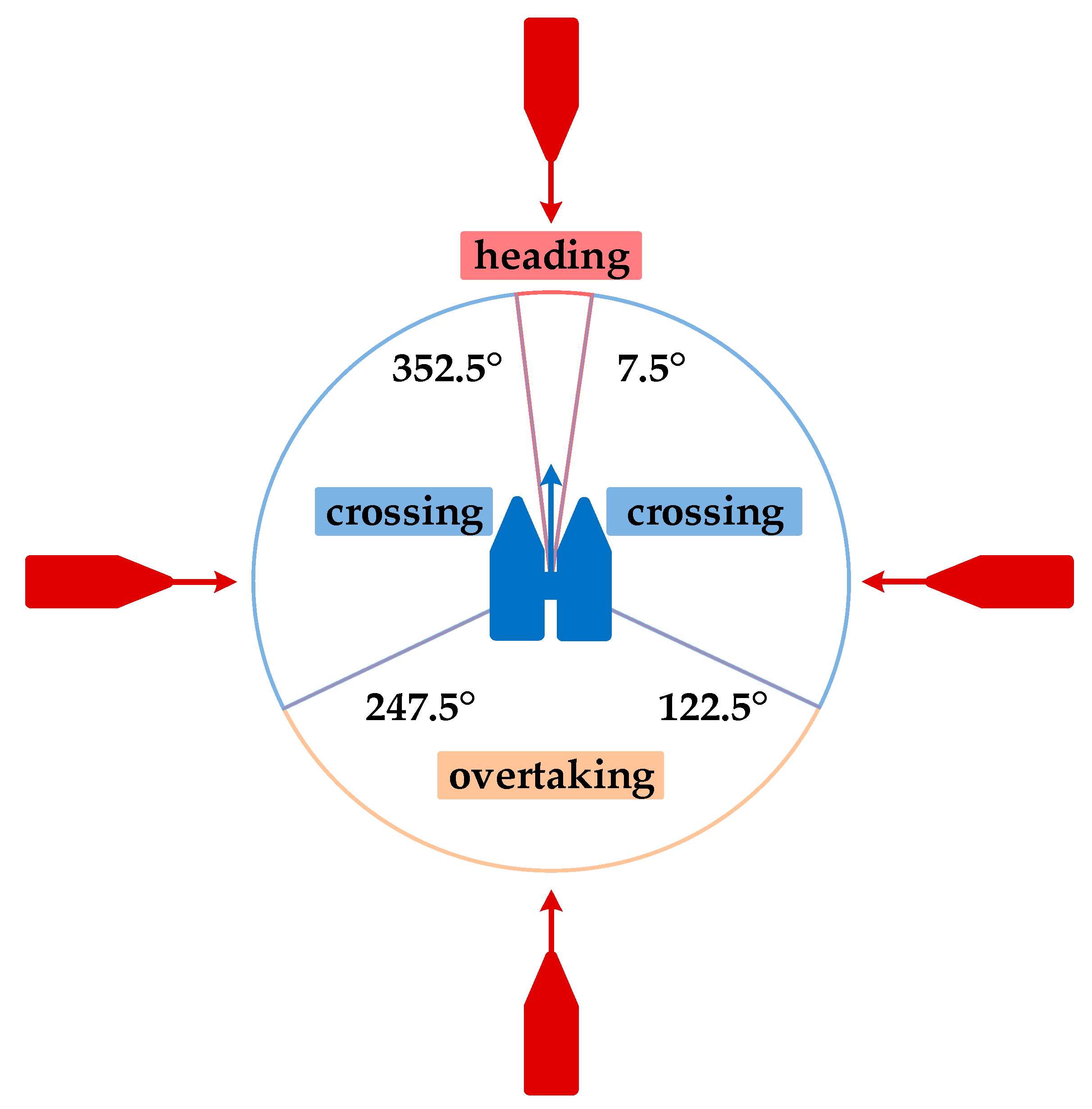

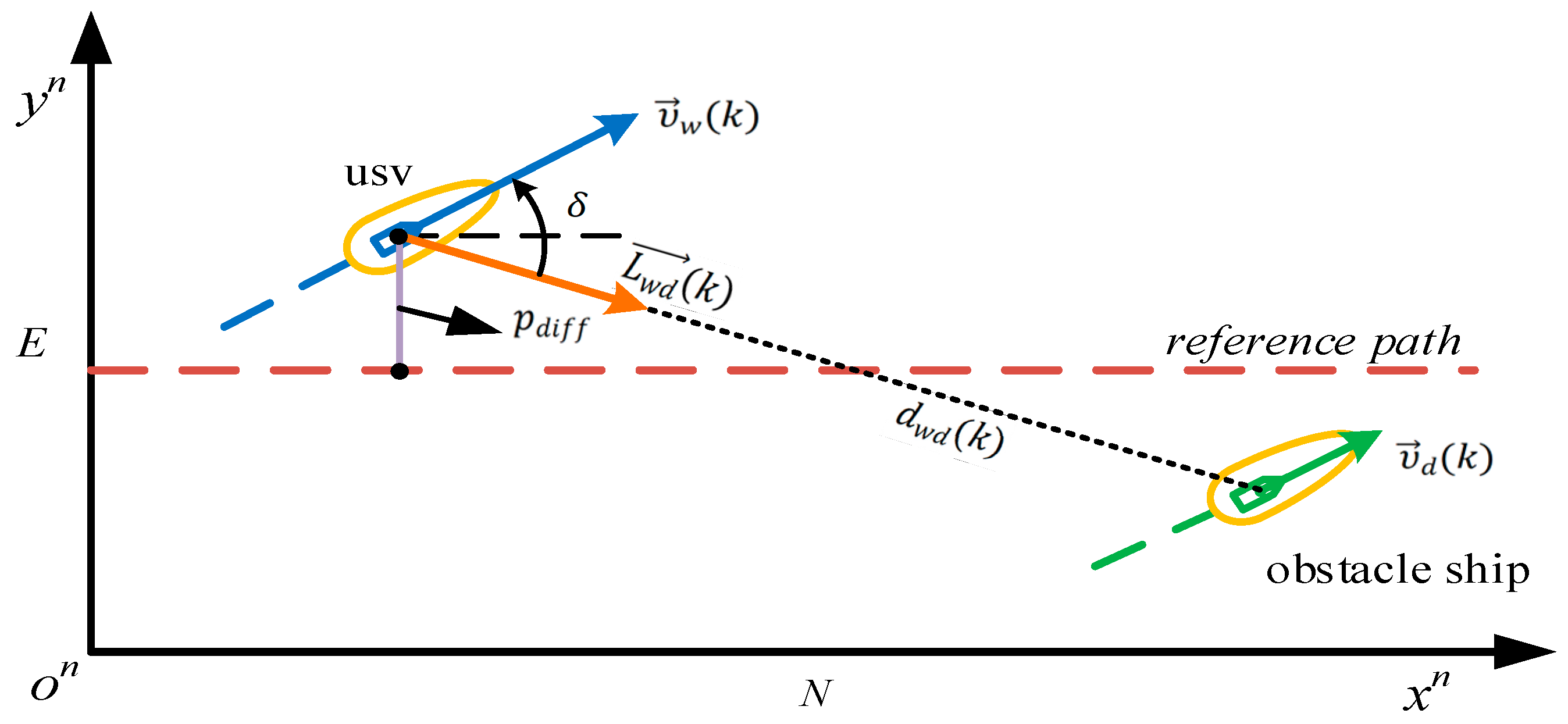

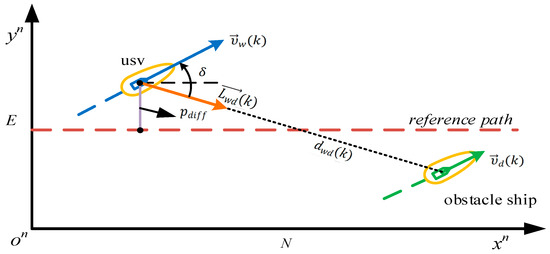

#### Division of Encounter Situation

#### Design of Optimization Problem

## 3. Results

#### 3.1. Global Path Planning Based on Improved A* Algorithm

#### 3.1.1. Simulation Settings

- The green square represents the starting node and the yellow square represents the target node;
- The black area indicates the “Jinghai-I” USV’s inaccessible zones, including two static obstacles and the boundary of the channel;
- The white area indicates the “Jinghai-I” USV’s accessible zones.

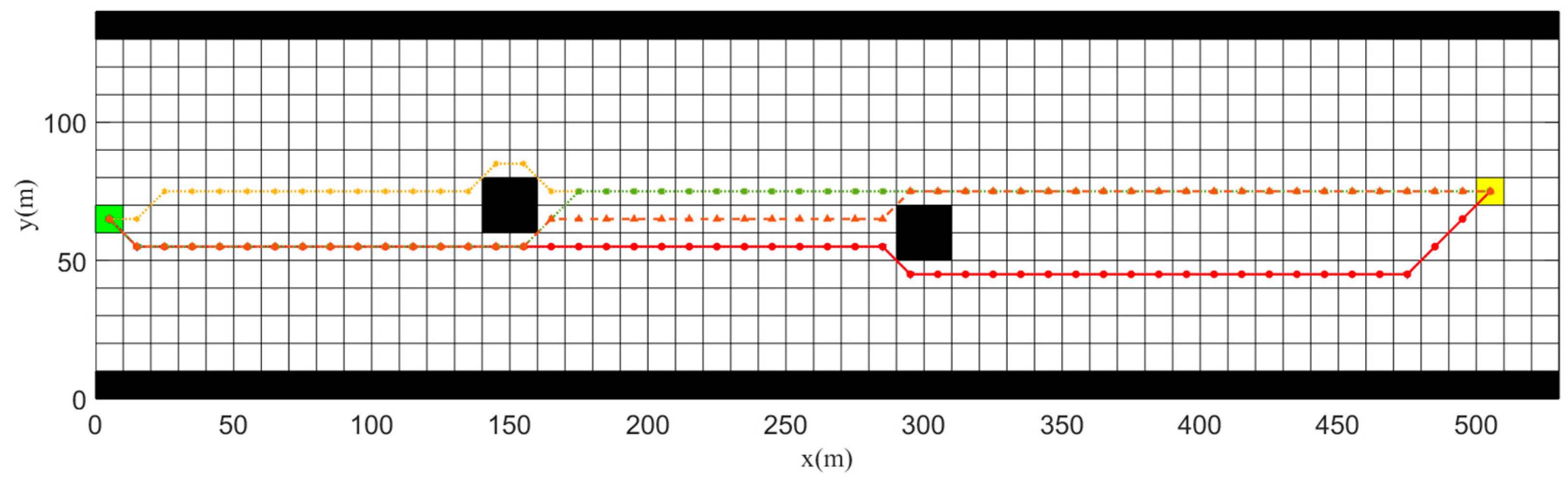

#### 3.1.2. Simulation Results

#### Different Heuristic Functions $h\left(k\right)$

- The red circle line is the global optimal path planned by the improved A* algorithm;
- The yellow hexagon star represents the optimal path planned by the A* algorithm using the Manhattan method as the heuristic function;
- The green square represents the optimal path planned by the A* algorithm using the octave distance method as the heuristic function;
- The orange triangle represents the optimal path planned by the A* algorithm using the Euclidean method as the heuristic function.

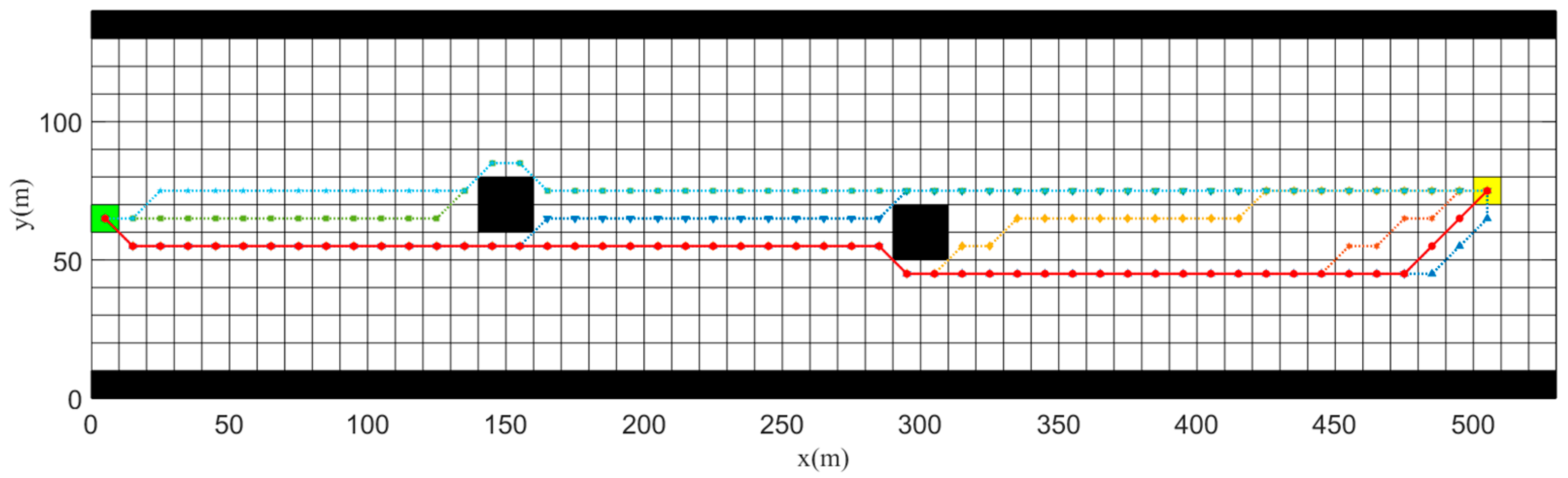

#### Different Coefficients ${\mu}_{4}$

- The blue lower triangle shows the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 0.02;
- The red dot triangle represents the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 0.045;
- The blue upper triangle represents the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 0.6;
- The orange pentagram represents the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 6;
- The golden diamond represents the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 60;
- The green square represents the global optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 600;
- The sky-blue hexagram is the globally optimal path planned by the improved A* algorithm when ${\mu}_{4}$ = 6000.

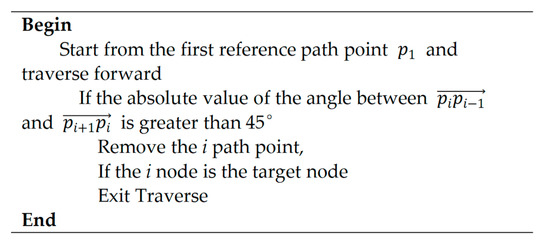

#### Path Smoothing

#### 3.2. Local Path Planning Based on the MPC Algorithm

#### 3.2.1. Simulation Settings

- The yellow boat represents the “Jinghai-I” USV and the blue boat represents the obstacle boat;
- The golden dynamic area indicates the dynamic bumper domain of the “Jinghai-I” USV and the obstacle ship;
- The purple dotted line represents the reference path of the “Jinghai-I” USV;
- The blue dotted line represents the path planned after the cost function I;
- The green dotted line represents the path planned by the cost function II;
- The orange solid line represents the path planned by the cost function III;
- The dotted line in light blue indicates the navigation path of the obstacle ship.

#### 3.2.2. Simulation Result

#### Local Path planning Results without Water Flow

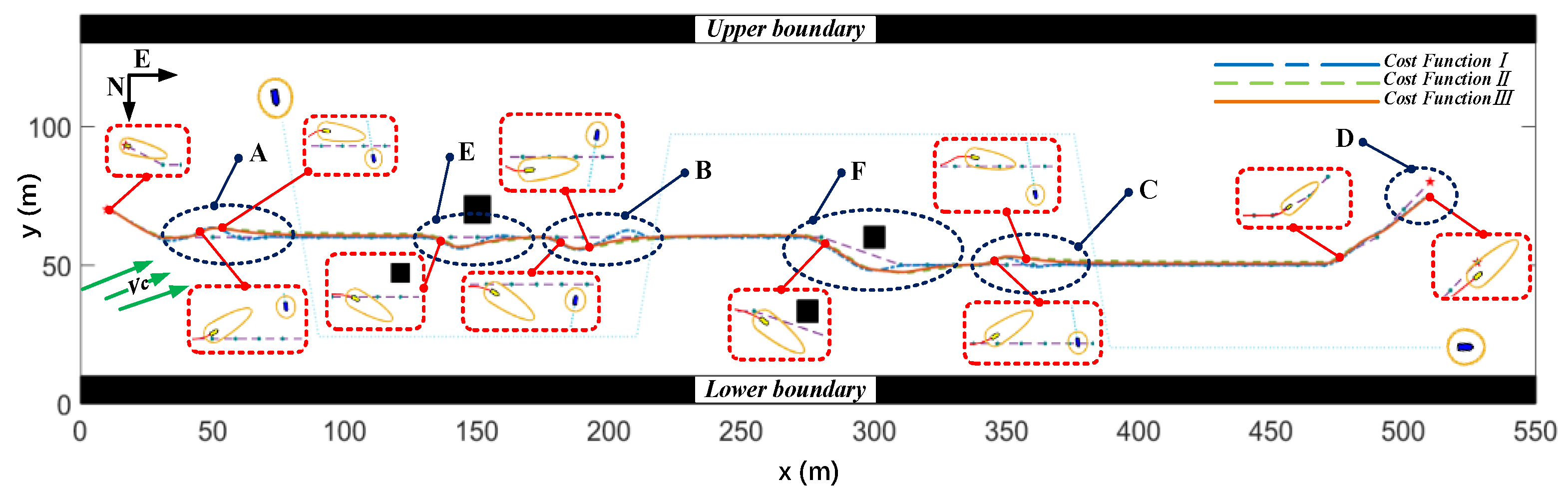

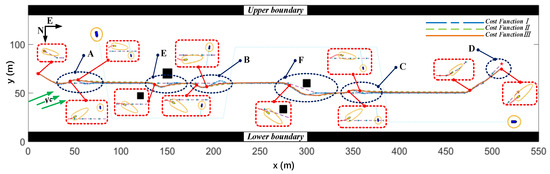

#### Local Path planning Results with Water Flow

## 4. Discussion

## 5. Conclusions

- Continuing to study more complex collision avoidance scenarios for the “Jinghai-I” USV in inland rivers, particularly when it encounters obstacles such as other ships, and further optimizing the collision avoidance behavior of the “Jinghai-I” USV in these scenarios;
- Conducting future research to improve the applicability of the current mathematical models used to differentiate between encounter scenarios, as they are not accurate for some of these scenarios; and
- Validating the research in this paper through practical testing on the “Jinghai-I” USV.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Fossen, T.I. Handbook of Marine Craft Hydrodynamics and Motion Control; John Wiley & Sons Ltd.: Hoboken, NJ, USA, 2011. [Google Scholar]
- Vagale, A.; Oucheikh, R.; Bye, R.T.; Osen, O.L.; Fossen, T.L. Path planning and collision avoidance for autonomous surface vehicles I: A review. J. Mar. Sci. Technol.
**2021**, 26, 1292–1306. [Google Scholar] [CrossRef] - Dijkstra, E.W. A note on two problems in connection with graphs. Numer. Math.
**1959**, 1, 269–271. [Google Scholar] [CrossRef] - Hart, P.E.; Nilsson, N.J.; Raphael, B. A formal basis for the heuristic determination of minimum cost paths. IEEE Trans. Syst. Sci. Cybern.
**1968**, 4, 100–107. [Google Scholar] [CrossRef] - LaValle, S.M.; Kuffner, J.J. Rapidly Exploring Random Trees: Progress and Prospects. In Algorithmic and Computational Robotics: New Directions; CRC Press: Boca Raton, FL, USA, 2000; Volume 2000, pp. 1–17. [Google Scholar]
- Kennedy, J.; Eberhart, R. Particle Awarm Optimization. In Proceedings of the ICNN’95-International Conference on Neural Networks, Perth, WA, Australia, 27 November–1 December 2011; Volume 4, pp. 1942–1948. [Google Scholar]
- Zhu, D.; Cao, X.; Sun, B.; Luo, C. Biologically Inspired Self-Organizing Map Applied to Task Assignment and Path Planning of an AUV System. IEEE Trans. Cogn. Dev. Syst.
**2018**, 10, 304–313. [Google Scholar] [CrossRef] - Xu, P.; Ding, Y.; Luo, J. Complete Coverage Path Planning of an Unmanned Surface Vehicle Based on a Complete Coverage Neural Network Algorithm. J. Mar. Sci. Eng.
**2021**, 9, 1163. [Google Scholar] [CrossRef] - Shen, H. Collision Avoidance Navigation and Control for Unmanned Marine Vessels Based on Reinforcement Learning; Dalian Maritime University: Dalian, China, 2018. [Google Scholar]
- Fiorini, P.; Shiller, Z. Motion Planning in Dynamic Environments using Velocity Obstacels. Int. J. Robot. Res.
**1998**, 17, 760–772. [Google Scholar] [CrossRef] - Richalet, J.; Abu El Ata-Doss, S.; Arber, C.; Kuntze, H.B.; Jacubasch, A.; Schill, W. Predictive Functional Control-Application to Fast and Accurate Robots. IFAC Proc. Vol.
**1987**, 20, 251–258. [Google Scholar] [CrossRef] - Fox, D.; Burgard, W.; Thrun, S. The dynamic window Approach to Collision Avoidance. IEEE Robot. Autom. Mag.
**1997**, 4, 23–33. [Google Scholar] [CrossRef] - Khatib, O. Real-Time obstacle avoidance for manipulators and mobile robots. IEEE Int. Conf. Robot. Autom.
**1985**, 2, 500–505. [Google Scholar] - Johansen, T.A.; Perez, T.; Cristofaro, A. Ship Collision Avoidance and COLREGS Compliance Using Simulation-Based Control Behavior Selection with Predictive Hazard Assessment. IEEE Trans. Intell. Transp. Syst.
**2016**, 17, 3407–3422. [Google Scholar] [CrossRef] - Eriksen, B.-O.H.; Breivik, M. MPC-Based mid-level collision avoidance for asvs using nonlinear programming. In Proceedings of the 2017 IEEE Conference on Control Technology and Applications (CCTA), Mauis, HI, USA, 27–30 August 2017; pp. 766–772. [Google Scholar]
- Yuan, W.; Gao, P. Model Predictive Control-Based Collision Avoidance for Autonomous Surface Vehicles in Congested Inland Waters. Math. Probl. Eng.
**2022**, 2022, 7584489. [Google Scholar] [CrossRef] - Bi, J. The Study on Inland Ship Automatic Collision Avoidance Decision; Dalian Maritime University: Dalian, China, 2016. [Google Scholar]
- Worthmann, K.; Mehrez, M.W.; Zanon, M.; Mann, G.K.I.; Gosine, R.G.; Diehl, M. Model Predictive Control of Nonholonomic Mobile Robots Without Stabilizing Constraints and Costs. IEEE Trans. Control Syst. Technol.
**2016**, 24, 1394–1406. [Google Scholar] [CrossRef]

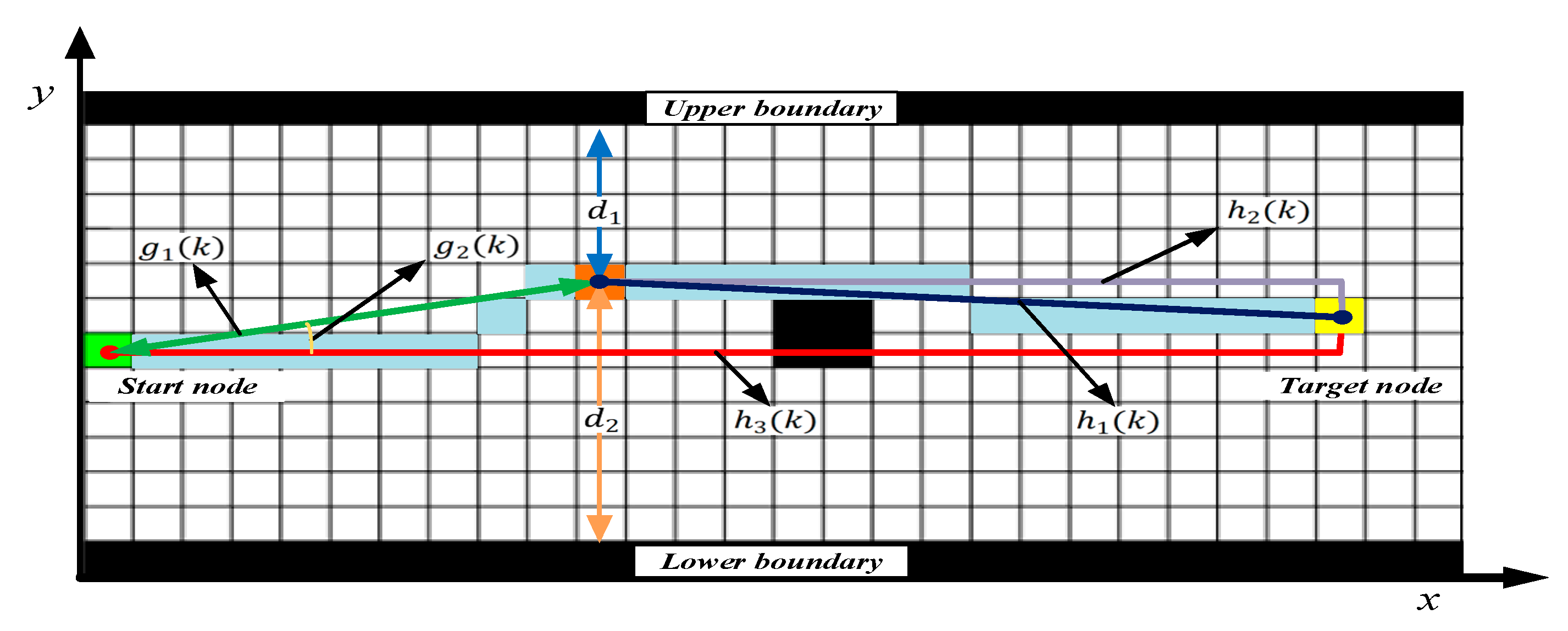

**Figure 4.**The cost function. The left green box represents the start node and the right yellow box represents the target node.

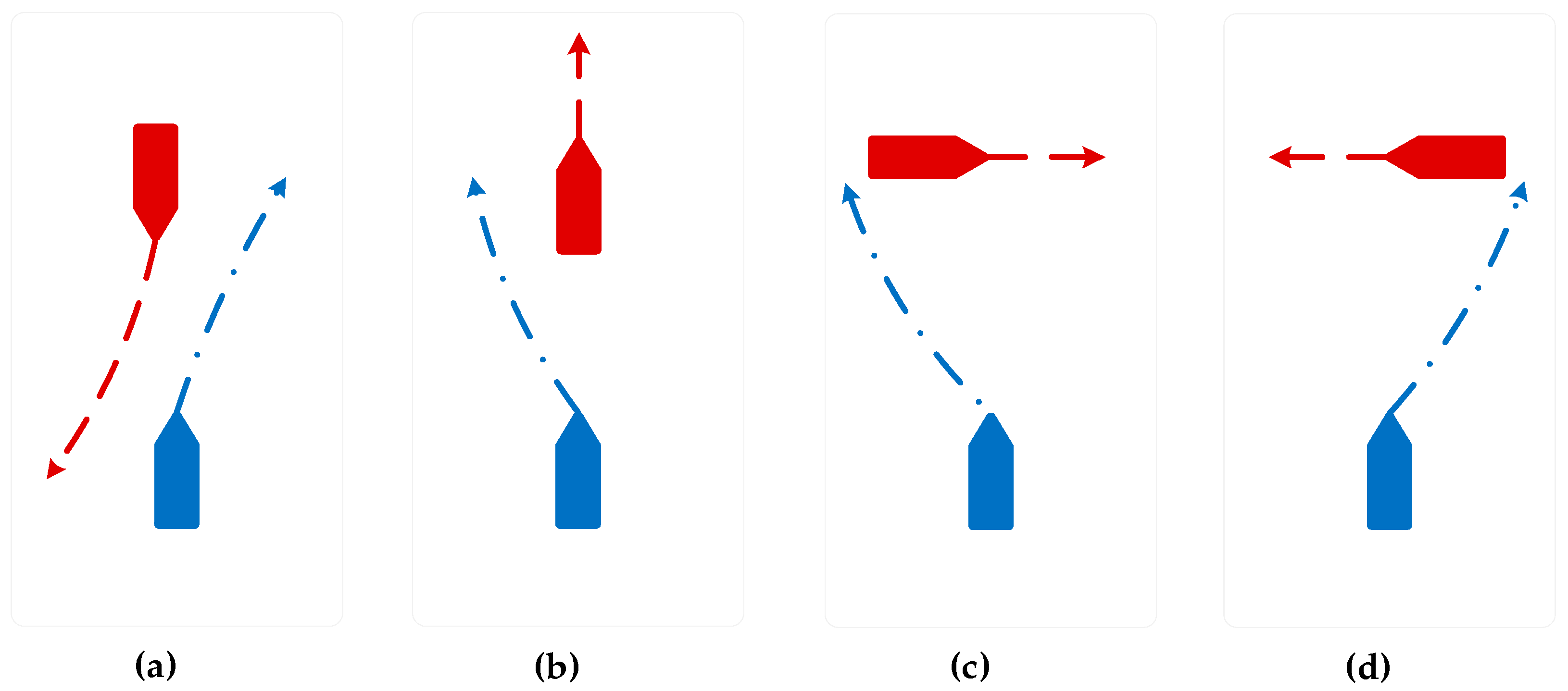

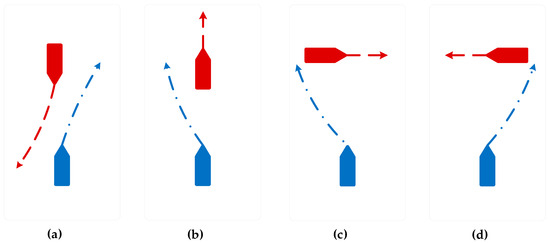

**Figure 8.**Avoidance and maneuvering of the USV in accordance with regulations. The blue ship is the USV and the red ship is an obstacle ship. Where (

**a**) represents heading, (

**b**) represents overtaking, (

**c**) represents crossing from the port side, and (

**d**) represents crossing from the starboard side.

**Figure 12.**Simulation results before and after path smoothing. The red circular dots represent the smoothed path, while the blue lower triangle represents the original path.

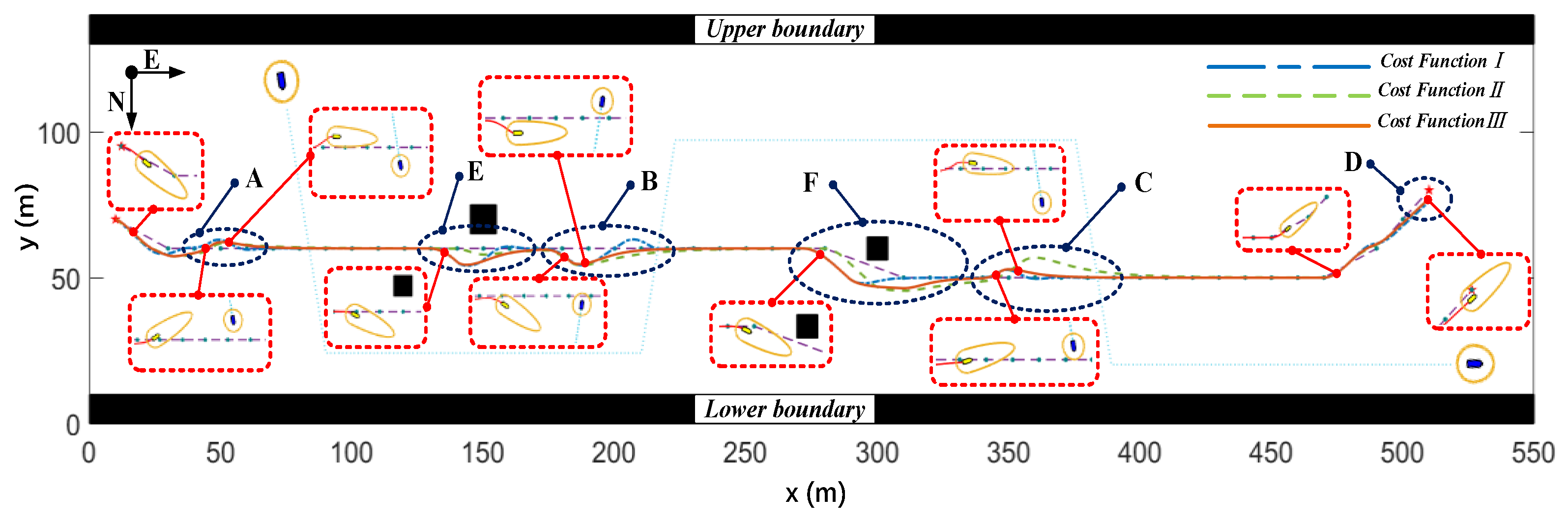

**Figure 13.**The local optimal paths planned by the three cost functions under the condition of no water flow.

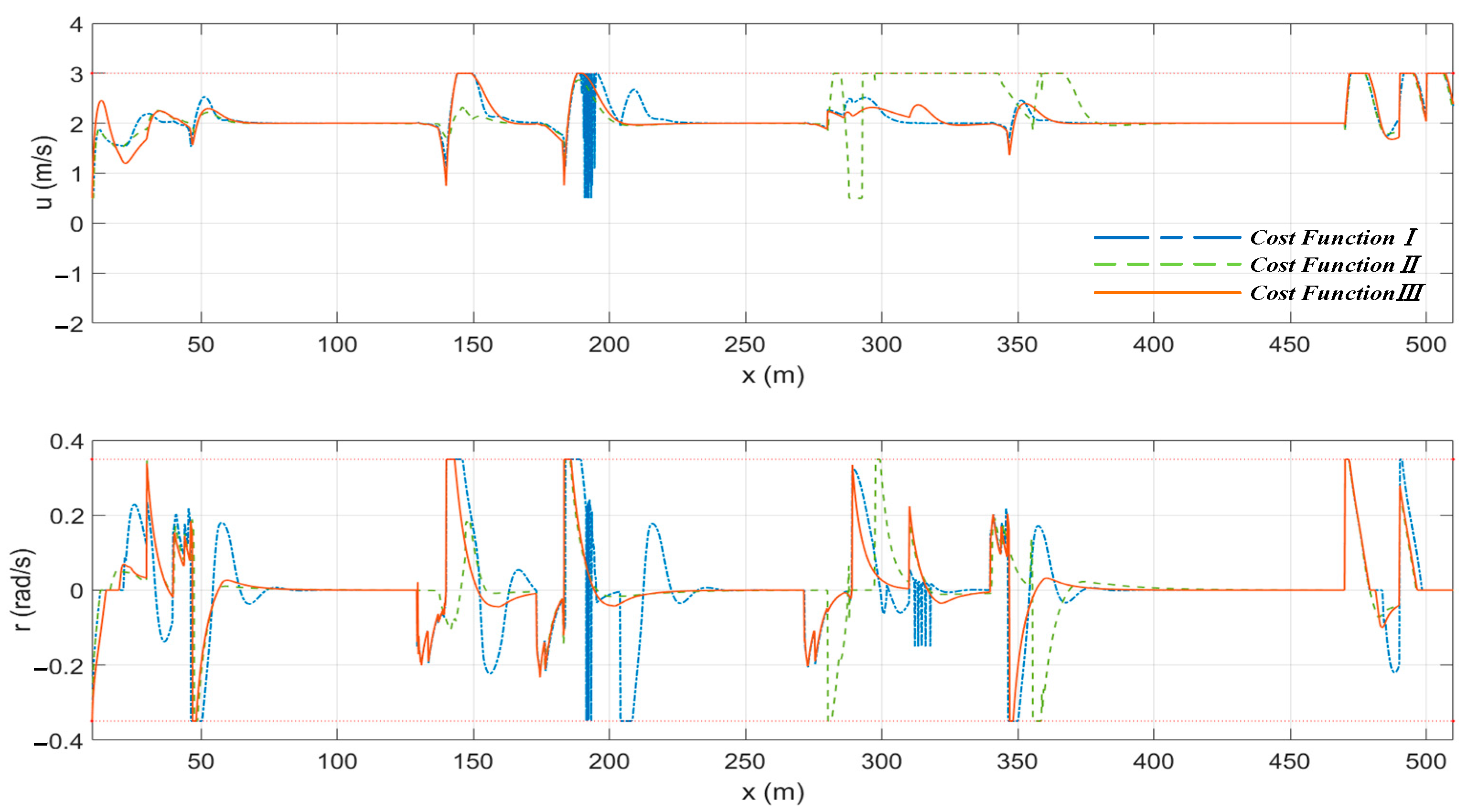

**Figure 14.**The speed of the “Jinghai-I” USV planned by the three cost functions under the condition of no water flow.

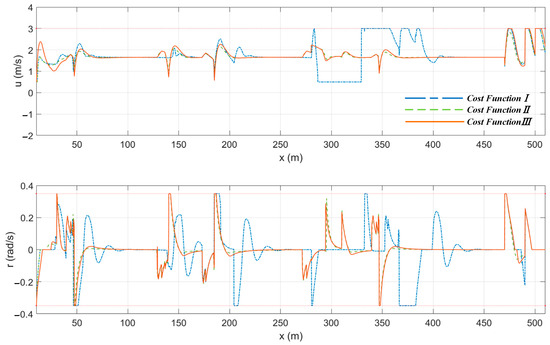

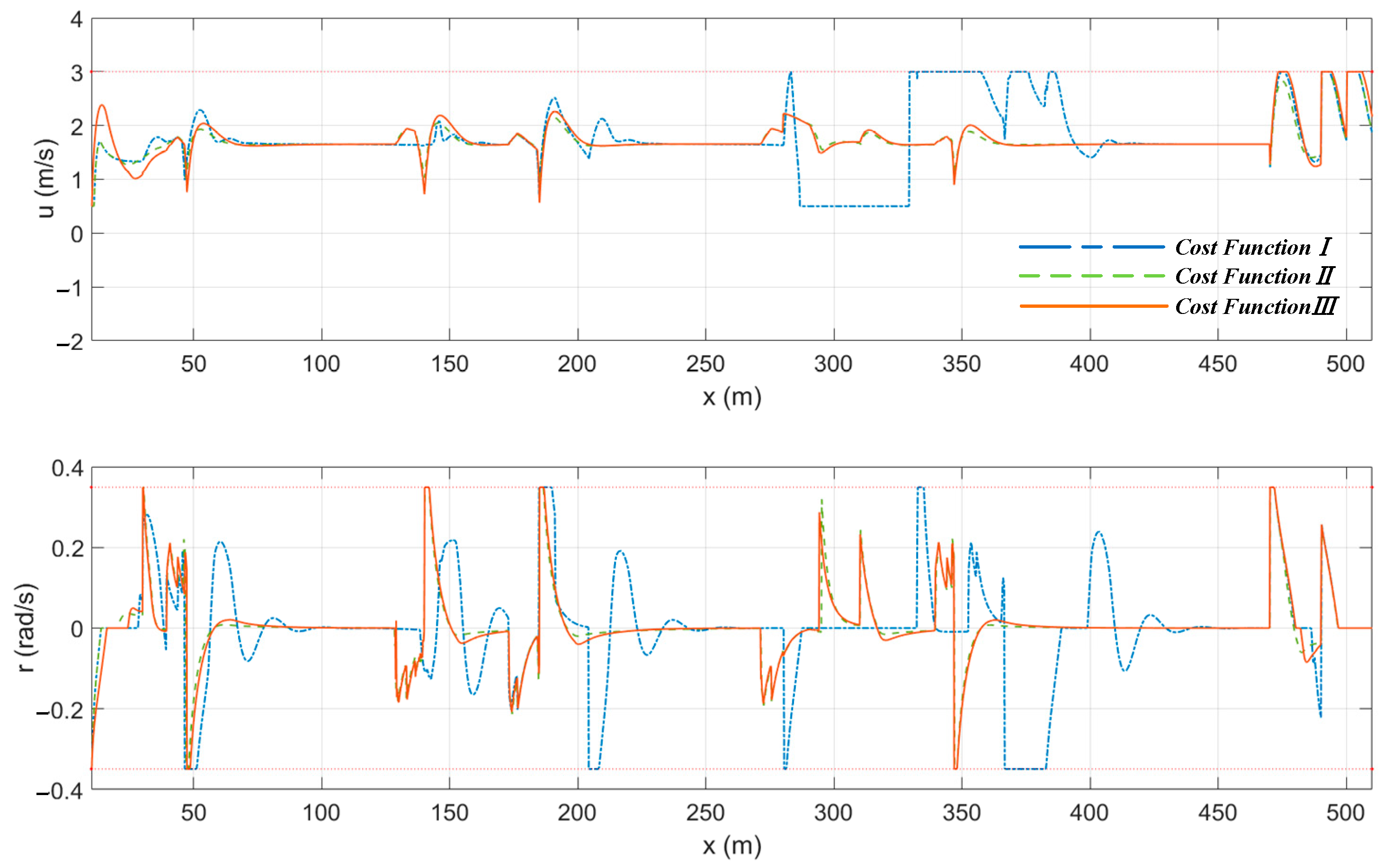

**Figure 16.**The speed of the “Jinghai-I” USV planned by the three cost functions under the condition of water flow.

Parameter | Value | Parameter | Value |
---|---|---|---|

length | $5\mathrm{m}$ | maximum speed | $6\mathrm{k}\mathrm{n}$ |

wide | $2\mathrm{m}$ | cruise speed | $3~4\mathrm{k}\mathrm{n}$ |

height | $1.5\mathrm{m}$ | acceleration | $0.3\mathrm{m}/{\mathrm{s}}^{2}$ |

full load draft | $\le 0.5\mathrm{m}$ | maximum yaw rate | $15\xb0/{\mathrm{s}}^{2}$ |

full load displacement | $\ge 1150\mathrm{k}\mathrm{g}$ | average yaw rate | $5~10\xb0/{\mathrm{s}}^{2}$ |

Parameter | Value |
---|---|

${\delta}_{1}$ | $40\xb0$ |

${\delta}_{2}$ | $7.5\xb0$ |

${\delta}_{3}$ | $68.5\xb0$ |

${\delta}_{4}$ | $68.5\xb0$ |

Parameter | Value | Parameter | Value |
---|---|---|---|

The size of the grid | 5 × 5 m | ${\mu}_{3}$ | $10$ |

${\mu}_{1}$ | 0.1 | ${\epsilon}_{1}$ | $0.5$ |

${\mu}_{2}$ | $1$ | ${\epsilon}_{2}$ | $0.7$ |

$\mathit{h}\left(\mathit{k}\right)$ | Average Time/s |
---|---|

Manhattan distance method | 0.0786 |

Octave distance method | 0.0812 |

Euclidean distance method | 0.2239 |

Dynamic-adjustment heuristic method | 0.1552 |

Parameter | Value | Parameter | Value |
---|---|---|---|

L | 5 m | $[{u}_{min},{u}_{max}]$ | $[0.5,3]\mathrm{m}/\mathrm{s}$ |

N | 20 | $[{r}_{min},{r}_{max}]$ | $\left[-10,10\right]\xb0/\mathrm{s}$ |

T | $0.1\mathrm{s}$ | $[{\dot{u}}_{min},{\dot{u}}_{max}]$ | $\left[-0.05,0.3\right]\mathrm{m}/{\mathrm{s}}^{2}$ |

${d}_{close\_d\_min}$ | $25\mathrm{m}$ | $[{\dot{r}}_{min},{\dot{r}}_{max}]$ | $[-0.6,0.6]\xb0/{\mathrm{s}}^{2}$ |

${d}_{close\_s\_min}$ | 15 m | ${\sigma}_{4}$ | 0.2 |

${d}_{close\_s\_pre}$ | 20 m | ${\sigma}_{5}$ | 10 |

${d}_{close\_d\_pre}$ | 30 m | ${\sigma}_{6}$ | 10 |

$|\chi {|}_{max}$ | (2$\mathsf{\pi}/9$) rad | ${\sigma}_{7}$ | 0.5 |

${u}_{ref}$ | $2\mathrm{m}/\mathrm{s}$ | ${\sigma}_{8}$ | 0.5 |

Encounter Scenarios | ${\mathit{\sigma}}_{1}$ | ${\mathit{\sigma}}_{2}$ | ${\mathit{\sigma}}_{3}$ | ${\mathit{\sigma}}_{\mathit{h}\mathit{e}\mathit{a}\mathit{d}\mathit{i}\mathit{n}\mathit{g}}$ | ${\mathit{\sigma}}_{\mathit{c}\mathit{r}\mathit{o}\mathit{s}\mathit{s}\mathit{i}\mathit{n}\mathit{g}}$ | ${\mathit{\sigma}}_{\mathit{o}\mathit{v}\mathit{e}\mathit{r}\mathit{t}\mathit{a}\mathit{k}\mathit{i}\mathit{n}\mathit{g}}$ | ${\mathit{i}}_{\mathit{o}\mathit{w}\_\mathit{s}\_\mathit{i}}$ |
---|---|---|---|---|---|---|---|

No obstacles | 2.5 | 1.1 | 7 | 0 | 0 | 0 | 0 |

Crossing | 0.7 | 0.2 | 7 | 0 | 1 | 0 | 0 |

Overtaking | 0.5 | 0.1 | 5 | 0 | 0 | 1 | 0 |

Heading | 0.7 | 0.2 | 5 | 1 | 0 | 0 | 0 |

Only static obstacles | 0.25 | 0.1 | 7 | 0 | 0 | 0 | 1 |

**Table 7.**Path and yaw angle errors of three cost functions. Here, ${error}_{max\_A}$ represents the maximum path deviation for Region A.

Cost Function | ${\mathit{v}}_{\mathit{c}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{t}\mathit{o}\mathit{t}\mathit{a}\mathit{l}\_\mathit{p}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{m}\mathit{a}\mathit{x}\_\mathit{A}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{m}\mathit{a}\mathit{x}\_\mathit{B}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{m}\mathit{a}\mathit{x}\_\mathit{C}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{m}\mathit{a}\mathit{x}\_\mathit{D}}$ | ${\mathit{e}\mathit{r}\mathit{r}\mathit{o}\mathit{r}}_{\mathit{t}\mathit{o}\mathit{t}\mathit{a}\mathit{l}\_\mathit{r}}$ |
---|---|---|---|---|---|---|---|

$I$ | $\times $ | 99.0318 m | 2.9882 m | 5.7263 m | 2.6925 m | 3.9568 m | 17.3502 rad |

$\mathit{II}$ | $\times $ | 91.1743 m | 1.8611 m | 5.9423 m | 6.8505 m | 3.0001 m | 10.5379 rad |

$\mathit{III}$ | $\times $ | 90.9654 m | 2.1878 m | 5.3729 m | 2.6234 m | 2.8795 m | 11.4376 rad |

$\mathit{I}$ | $\surd $ | 93.4238 m | 3.4382 m | 4.5093 m | 2.5324 m | 4.3987 m | 16.7966 rad |

$\mathit{II}$ | $\surd $ | 77.4369 m | 3.2110 m | 4.3026 m | 2.8485 m | 4.8261 m | 10.0409 rad |

$\mathit{III}$ | $\surd $ | 79.1045 m | 3.2743 m | 4.0516 m | 3.0425 m | 4.5786 m | 11.0247 rad |
