1. Introduction
Nowadays, people are increasingly interested in the field of mobile robots. This is because mobile robots can help people accomplish more and more tasks. For instance, mobile robots can work in tasks such as elderly care, guidance, office and domestic assistance, inspections and many more. Mobile robots usually work in indoor environments designed for humans, with offices and houses being some of the most typical examples [
1]. Dividing the complex navigation maps or floor plans into simple cells is playing a more and more important role in many tasks executed by mobile robots because robots need to understand the environment so that they can complete their missions smoothly. For example, with the help of semantic maps, robot can obtain navigation trajectories only requiring a small amount of computation [
2].
Besides, one of the other main uses of indoor room semantic segmentation is automatized professional cleaning [
3]. In this task, a sweeping robot need to clean the floor in indoor rooms. After dividing a room into simple semantic cells the sweeping robot can perform cleaning tasks in each unit more autonomously and intelligently. The reasonable segmentation of complex room maps into simple units can make the robots plan the cleaning path faster, and make the whole cleaning task perform better.
Various methods of 2D indoor room map segmentation have been proposed in recent years. The segmentation of individual room units from floor plans can based on the semantic mapping [
4] or places classification [
5]. Morphological segmentation is described in [
6,
7,
8,
9,
10]. It initializes the walls in the map to expand and break down the interconnected area until all areas are blocked into different small cells. Major highlights of this method are the high computing speed and algorithmic simplicity. However, it achieves poor performance when the shape of the room is not very regular. The distance transform watershed-based segmentation method [
11,
12,
13,
14] divides the room by applying a distance transform to find the room centers at optimal threshold, then segmenting with a wavefront propagation. Besides, the lidar point clouds information and laser scanning data are also widely used to classify and segment the maps [
15,
16,
17], but because of its high computational complexity, it’s still a big challenge for low memory consumption devices like the Raspberry Pi. Another approach is a Voronoi graph-based segmentation [
2,
18,
19,
20,
21,
22,
23,
24], which extracts the critical points and lines to divide the Voronoi cells from the Voronoi graph generalized by the original rooms, then segments the room after merging Voronoi cells. It is the most popular approach to segment floor plans and performs well.
However, none of these methods can obtain the semantic labels of the room maps. The segmentation of grid maps into semantically meaningful areas is an important task for many mobile robot applications. It usually enables the robot to understand the current environment and make decisions by obtaining the semantic information of the room maps. For instance, if the sweeping robot can obtain the semantic information of the navigation map, it can plan the cleaning order of each room based on the location of the doorways, and achieve higher sweeping performance in a shorter time. It depends largely on how can robot understand the semantic information of room whether the interaction between humans and robots can be proceed efficiently [
6,
25].
In the particular case of indoor environments, we can find typical semantic divisions of 2D lidar maps such as corridors, rooms, or doorways. Taking these factors into account, a feature-based segmentation [
1,
4,
26,
27,
28] was reported, which simulated a laser scanner measurement within the navigation maps, then segmented the maps by AdaBoost classification. This method can obtain the semantic information of each point on the map by classifying each point. However, it is time-consuming to sample every point on the maps and run the classification method, and these kinds of classification methods are difficult to run on the sweeping robot with low computing power. What’s more, the robustness of the algorithm is not good. Besides, Kleiner, A. [
14] proposed a method can get the rooms and doorways semantic labels of the map, but they are labeled by a human via a cloud service and phone/tablet APP.
In this work, in order to get a better, faster and more effective semantic segmentation method we combine distance transform watershed-based pre-segmentation and a skillfully designed fast neural network sampling classification method to design a low-power and high-performance method to label 2D lidar room maps. In the training stage, we simulate a lidar to collect the lidar detection line maps of each point in the manually labelled map, and then use these line maps and corresponding labels to train the designed neural network. In the testing stage, we first pre-segment the new map into various simple cells with the distance transform watershed method, then by using the result of distance transform generated in the pre-segmentation process the optimized areas of sampling points are selected. Then we classify the lidar detection line maps sampled from optimized areas with the trained neural network and the “winner-take-all” principle. Compared with the distance-transform based method, Voronoi and morphological segmentation method, our method can not only obtain the semantic information of maps, but also still run efficiently. Compared with the widely used ResNet-18 neural network, our method performs better and runs faster.
The rest of this paper is arranged as follows:
Section 2 describes the related works about our method. The proposed architecture of our method is discussed in the
Section 3. The main experimental results and analysis are introduced in
Section 4.
Section 5 concludes the paper.
3. Proposed Method
In this work, we propose a novel approach to get the semantic labels of room maps which consists of two components. In the training stage, the original room map is binarized and manually labelled into three categories (the labelled map): room, corridor and doorway. Then, a simulated lidar goes through all white areas of the map. The lidar line data of each point in the maps and corresponding labels are collected for semantic classification. In order to complete the classification tasks efficiently, a light-weight network named as LCNet is designed and trained with the map data, which is inspired by LeNet [
34] and can run in the Raspberry Pi 3B+.

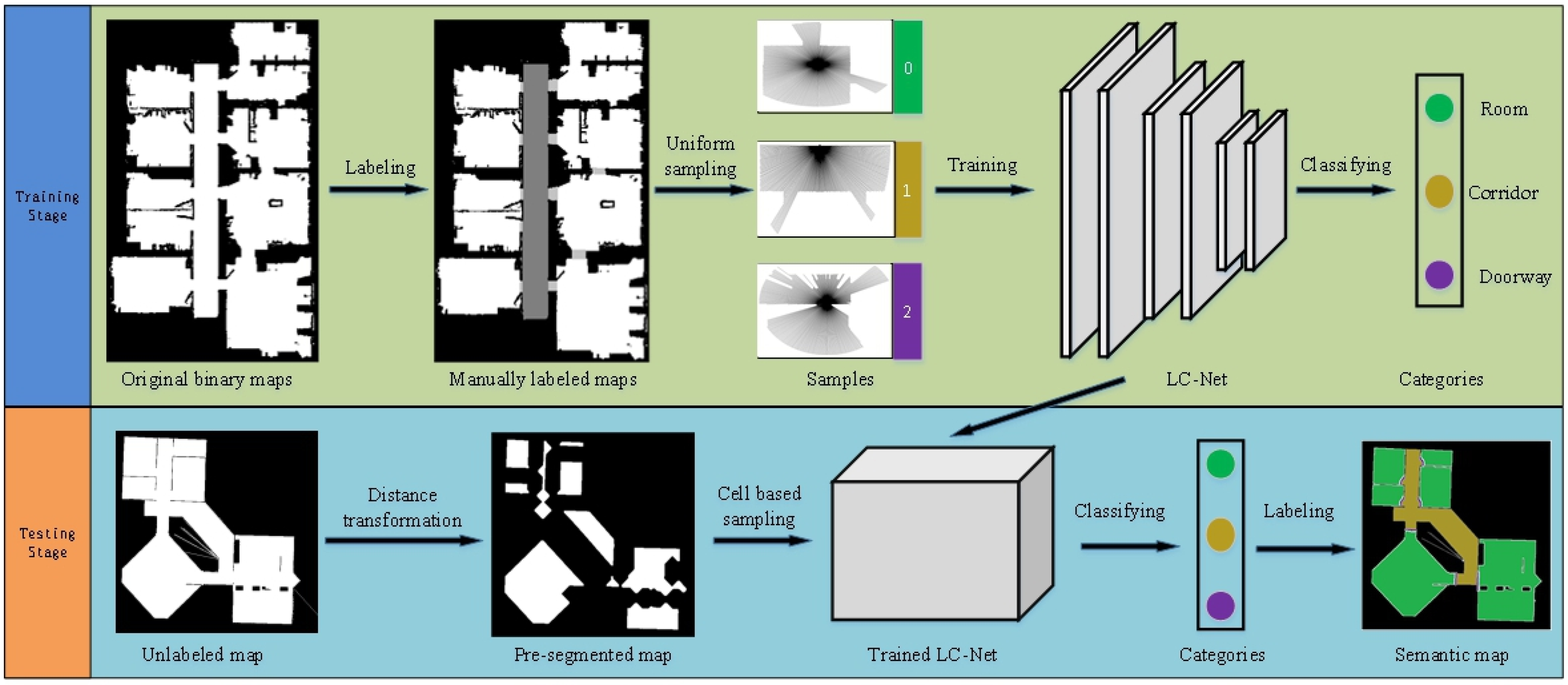

In the test stage, the unlabelled binary map is pre-segmented into many closed simple areas firstly. Then we sample the lidar line data uniformly in each distance transformed pre-segmented area. We use the data sampled in the distance transformed pre-segmented area, which gives a greater distance between classes in rooms, corridors and doorways. Next, the optimized areas based sampling data are inputted into the trained LCNet for classification. Finally, the semantic information in each cell are obtained according to the proposed “winner-take-all” principle. The overall framework of our method is illustrated in

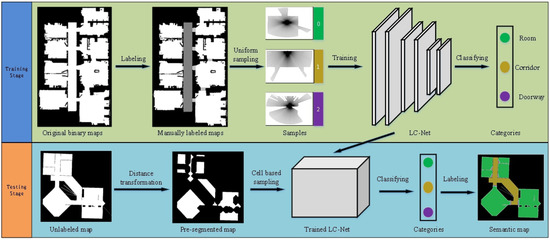

Figure 3.
3.1. Laser Data from Simulated Lidar
The performance of a neural network is greatly affected by the amount of data, but there are few 2D room maps. It is very difficult to train a neural network to segment these maps based on just a few labelled maps, so we turn it into a classification problem inspired by Mozos’ research [
4]. In the process of laser SLAM building of 2D maps, the 2D map is built by laser scanning. In the same way, we can use a simulated robot to extract the laser map information of each point in the maps. The information of each point can provide a large training data set. By classifying the image information of each position, we can realize the semantic labeling of 2D area. The original 2D map built by a 2D lidar is manually labelled into four kinds of regions with four different grayscale values. The details are shown in

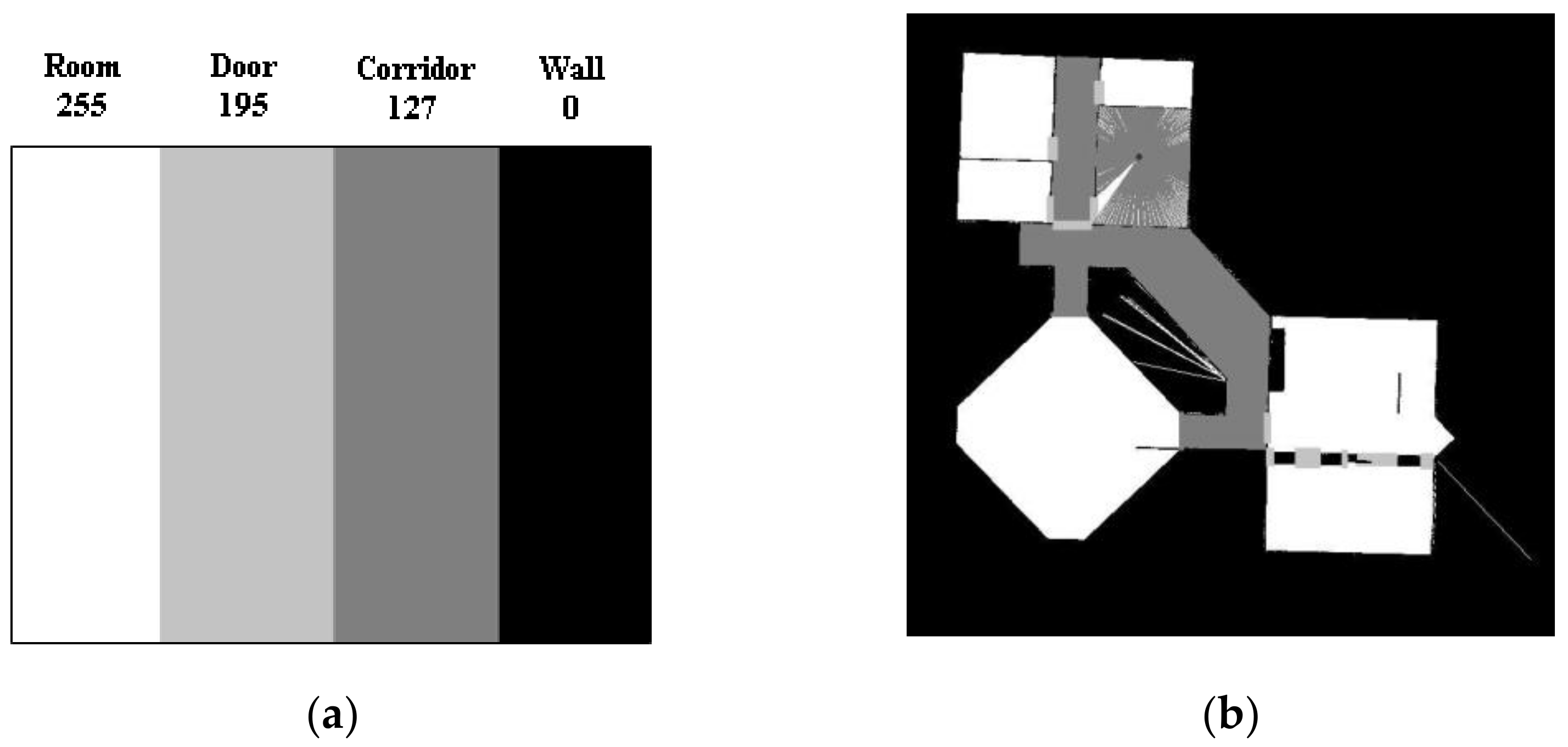

Figure 4.
Our simulated robot is equipped with a 360° field of view laser sensor. Each laser observation consists of 360 beams. With the robot traveling to all the areas where the grayscale values of labels are bigger than zero, as shown in
Figure 4b, the laser map information and labels in every point are uniform sampled as the training data. As shown in

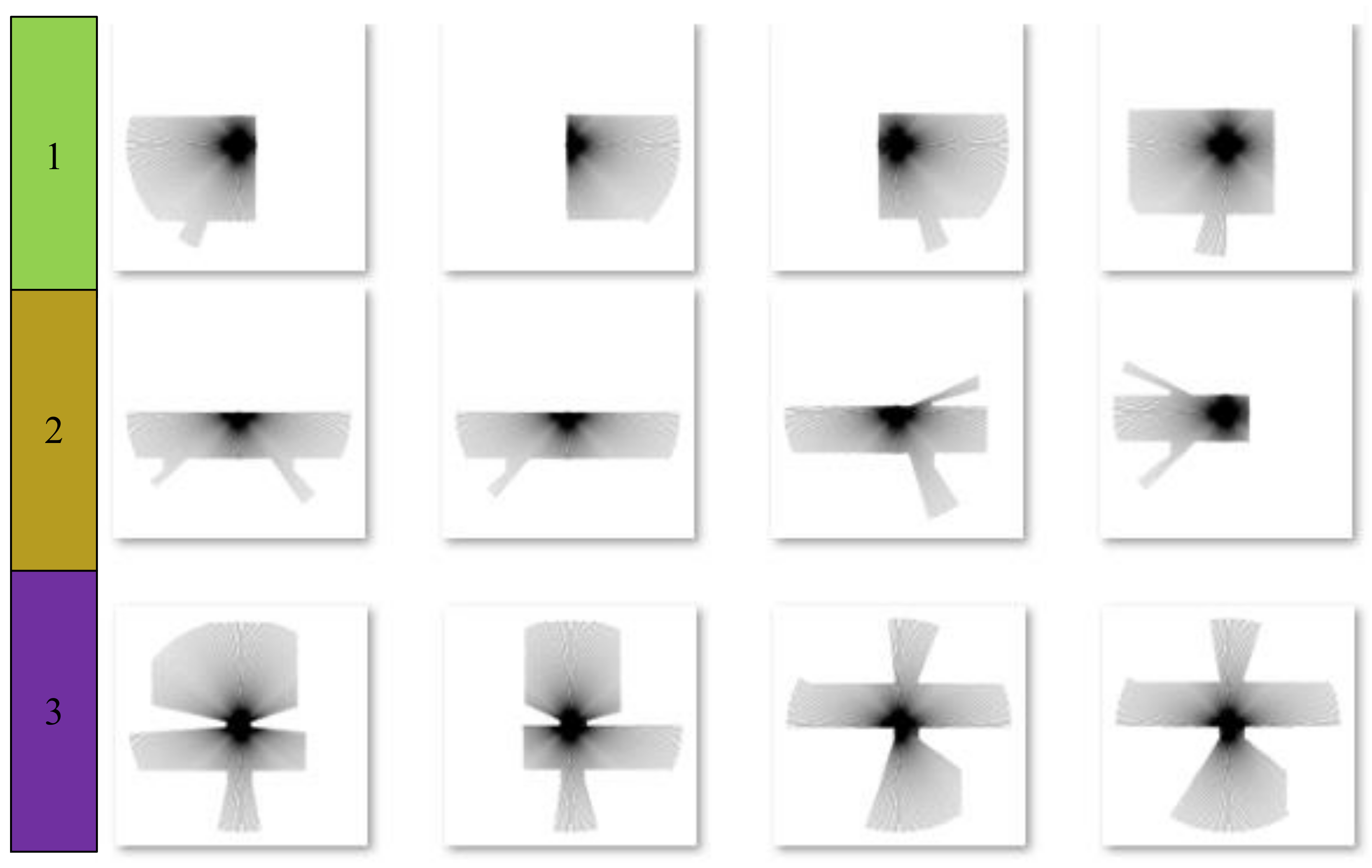

Figure 5, the laser map information collected from different kinds of areas reflect various kinds of appearance information. The beams of corridors are usually long and narrow, while those of rooms are wide and round. With access to ample data, we can train a powerful classifier based on a neural network.
3.2. The Optimized LCNet Network
Nowadays, deep neural networks have become one of the most powerful feature extraction methods. The most widely used is ResNet-18 because this work are very deep compared with previous networks. A deeper feature extraction network can learn more advanced features and can classify better, as has been shown by researchers in recent years. However, substantial computing power is required to implement an efficient network such as ResNet-18, which is a big challenge for low memory consumption devices like Raspberry Pi. In order to reduce the parameters and computing power required by the modelso it can be deployed to a low computing power device, a lightweight network architecture is designed based on ResNet-18 named as LCNet.
In our training stage, the first difference between original ResNet-18 and our LCNet is that we delete the 7 × 7 conv in the first layer, because the features in the low-level layer learning are not enough, while this layer requires a substantial computing power. What’s more, we use a smaller input of 48 × 48 instead of the 112 × 112 one in the original model.
Secondly, as shown in
Table 1, we replace the original ResBlock with LCBlock. The LCBlock is a depthwise style block with an Octconv layer. Deepthwise convolution has been widely used since it was first proposed in [
30]. As an efficient convolution method to reduce the number of parameters and ensure the accuracy, we apply this conv layer instead of a normal conv layer. As a substitute of common convolution, Octconv greatly reduces the memory and computing resources needed by reducing the resolution of low frequency images [
32], so we use the Octconv to extract the features.
By combining the blocks, we build the LCNet. The LCNet contains of four groups of blocks, as shown in
Table 2, and

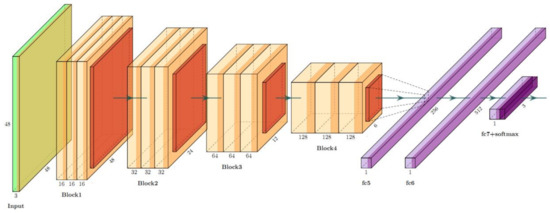

Figure 6 shows the layers and the framework of LCNet of our proposed training stage.
3.3. Classification Based on Pre-Segmentation and Optimized Sampling Areas
3.3.1. Pre-Segmentation
In the training stage, by scanning and classifying each point with the proposed LCNet, we can reconstruct a semantic segmentation map (SSM) to know the labels of each point. There are thousands or much more pixels in a map, which means that there are sufficient data for training the network. However, in the actual testing stage, it would take too much time to scan and classify each point. Moreover, limited by the performance of the lightweight neural network model and low computing power devices, the recognition rate is not very high, which will lead to several different classification results for the same area, that is, the recall rate of recognition results in the same area is not good enough.
Therefore, in the testing stage, it is obviously not desirable to use the point-by-point recognition method alone for semantic segmentation.

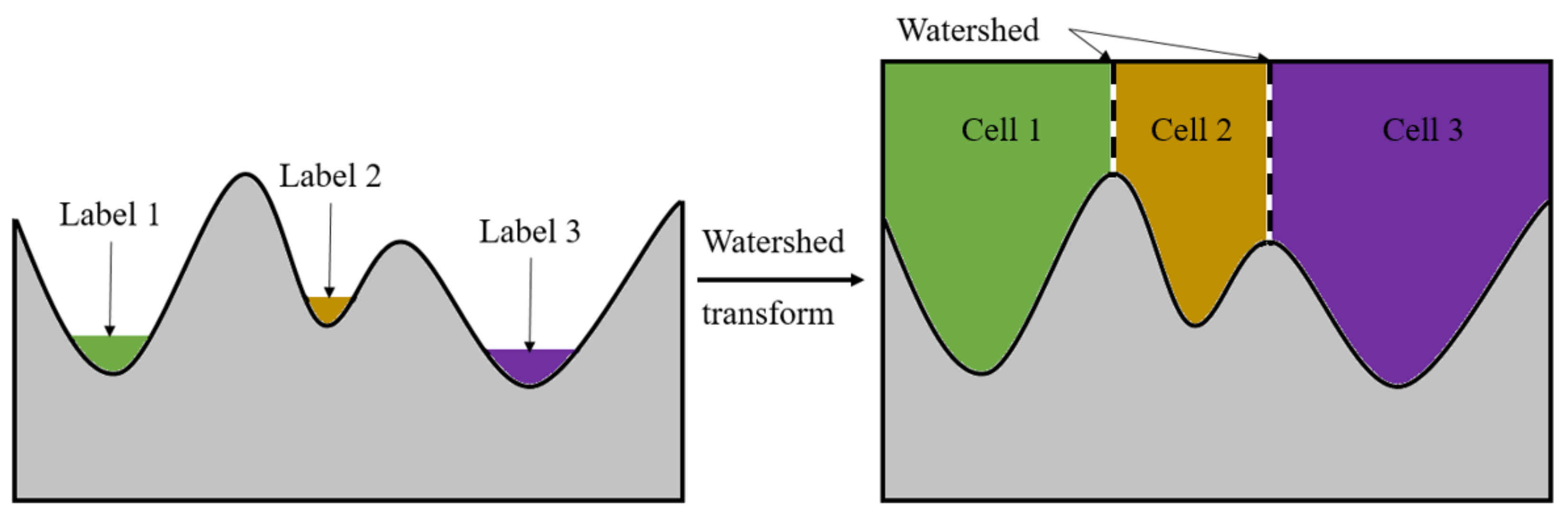

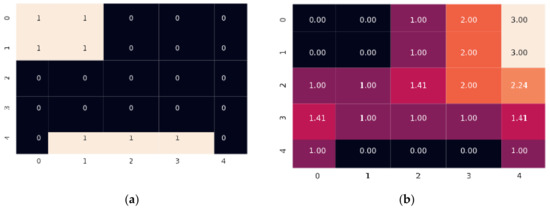

In this work, by combining with distance transform and watershed pre-segmentation, the speed and regional consistency of semantic segmentation can be greatly improved. Specifically, we use distance transformation and a watershed algorithm to pre-segment the map into different cells at first, as shown in

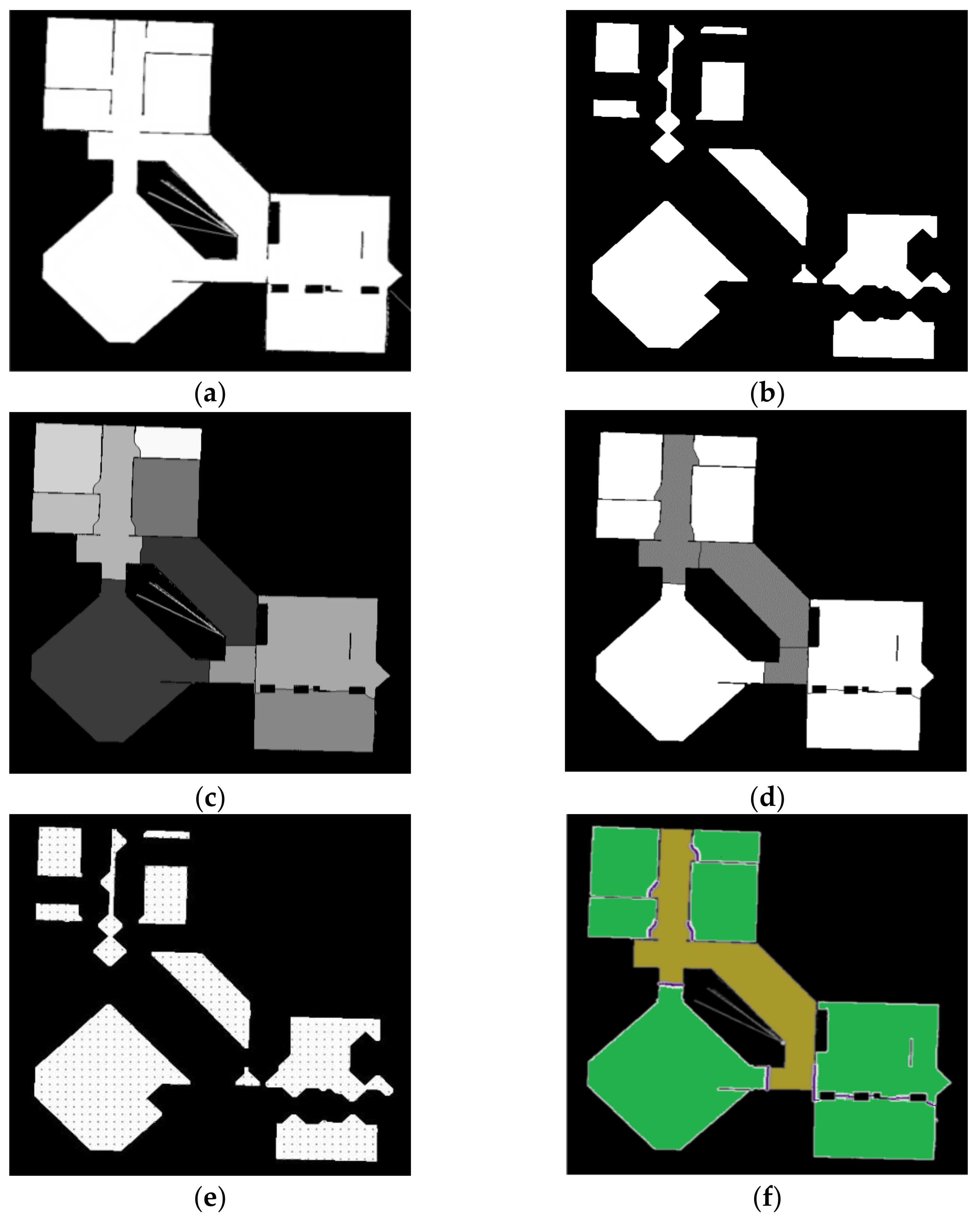

Figure 7b,c.
Then a specific number of points are selected in the pre-segment area, we sample the points every 0.05 m in the four directions of up, down, left and right in each area, and only these sparse sampling points can be scanned and classified, as shown in
Figure 7e. Then the classification results of the sampling points are counted.
According to the “winner-take-all” principle, the label with the highest proportion in each area is adopted as the unified label of this area, thus we get the result shown in
Figure 7d, in Algorithm 1 we show that how the “winner-take-all” principle is implemented.
Algorithm 1 Labeling room areas and corridors areas with “winner-take-all” principle |
Input: Pre-processed map(PPM), Pre-segmented map(PSM), classification results of sampling points; Output: The map with room labels and corridors labels; 1: The classification results of sampling points in each area were counted. m is the number of sampling points identified as rooms in each area, and n is the number of sampling points identified as corridors; 2: for each area of the binarized map do 3: if m >= n then 4: Classify this area as room; 5: else 6: Classify this area as corridors; 7: end if 8: end for |
3.3.2. Optimized Sampling Areas and the Extraction of Doorway Labels
What should not be ignored is that since SSMs of the points distributed at the junctions of rooms and corridors have very similar features to each other, the recognition accuracy of these points in junction areas will be reduced significantly.
In order to prevent the sampling points selected in the boundary area from influencing the results of semantic labeling, the optional range of sampling points should be narrowed to exclude the boundary area, for this purpose, in this work the optimized area of sampling points is proposed by using the result of distance transformation generated in the pre-segmentation process.
After distance transformation and binarization, each cell is reduced to a smaller area around its geometric center, as shown in
Figure 7b, and in this work these areas are adopted as optimized areas of sampling points meeting our requirements, as shown in
Figure 7e. Only these sparse sampling points selected from the optimized areas can be scanned and classified, which can significantly improve the recognition accuracy and the calculation speed.
Besides, from
Figure 7d we can find that only rooms and corridors can be distinguished during the pre-segmentation process, but the area of the doorway was not distinguished. This is because we only do the sampling classification in the optimized sampling area, and do not sample at the junctions areas of rooms and corridors. So the next is the extraction of doorway labels.
In fact, we can find that pixels with the label of doorway are distributed along the dividing line between the different areas, however, watershed algorithm is prone to over-segmentation, so we cannot simply label all dividing lines as doorways, we need to classify the points on the dividing lines, so the first step is to determine all the dividing lines, that is, to find out all the points on the dividing line. Specifically, comparing the pre-processed map
Figure 7a with the map shown in
Figure 7d point by point, and find out all the pixels on the dividing line.
The next step is to determine which dividing line the pixel belongs to. According to the information of
Figure 7d, the grayscale value of areas on both sides of each dividing line can be obtained, since the grayscale value of each area in the pre-segmented map is unique, it can be used to determine which dividing line the pixel belongs to.
The third step is to determine the semantic label of the dividing line. In this work, we automatically mark the dividing line between different semantic areas as doorway without classification, which can speed up the calculation significantly. While the points on the dividing line between the same semantic areas are classified by the trained network. Then according to the “winner-take-all” principle proposed above, if the proportion exceeds the set value, we mark the dividing line as a doorway. We describe the above steps in detail in Algorithm 2.
Algorithm 2 Labeling doorway areas |
Input: Pre-segmented map (PSM), pre-processed map (PPM), classification results of sampling points, the map with room labels and corridors labels; Output: Result of semantic segmentation; 1: Extracting the size of pre-processed map, define rows as number of rows and cols as number of columns, define two-dimensional vector dl_type to store grayscale on both sides of the dividing line, define vector dl_n to store the number of pixels of each dividing line, define vector dl_d to store the number of pixels with “doorway” label of each dividing line; 2: for x in [0, cols - 1] do 3: for y in [0, rows - 1] do 4: if PPM(x, y) != 0 && PSM(x, y) == 0 then 5: if size(dl_type) == 0 then 6: Push {g1, g2}into dl_type, where g1 and g2 are gray values of the both sides of the pixel (x, y) respectively; 7: Push [33] into dl_n, push [33] into dl_d; 8: if pixel (x, y) is classified as “doorway” then 9: dl_d[0]++; 10: end if 11: else 12: if {g1, g2} exists in dl_type then 13: dl_n[i]++, where i is the corresponding subscript when dl_type[i] == {g1, g2}; 14: if pixel (x, y) is classified as “doorway” then 15: dl_d[i]++; 16: end if 11: else 12: Push {g1, g2} into dl_type, push [33] into dl_n, push [33] into dl_d; 13: if pixel (x, y) is classified as “doorway” then 14: dl_d[size(dl_d) - 1]++; 15: end if 16: end if 17: end if 18: end if 19: end for 20: end for 21: Define the threshold thr_d; 22: for j in [0, size(dl_type) - 1] do 23: if dl_d[j] / dl_n[j] >= thr_d then 24: Mark the jth dividing line as doorway; 25: else 26: Erase the jth dividing line; 27: end if 28: end for |
4. Experiments and Analysis
The proposed method has been tested on real robots as well as in simulation. The robot used to carry out the experiments is a mobile robot equipped with a 2D laser (RPLIDAR-A1, SLAMTEC, Shanghai, China), which can perform 360° scans within 12-m range and generate 8000 pulses per second. This system supports programming with Raspberry PI and the Arduino toolkit, as shown in

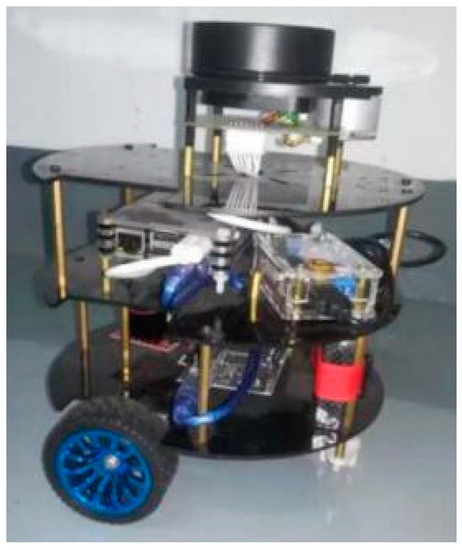

Figure 8. With its compact structure, the robot can move through the room flexibly, and with the adoption of Gmapping package in a ROS framework, it can complete the SLAM task reliably.
The goal of our experiments is to demonstrate that our method is a robust 2D segment framework. Firstly, we compare the accuracy and the speed of LCNet and ResNet-18, which proves that our proposed LCNet can learn the laser data well and performs well. Secondly, we verify the performance of the segmentation effect based on pre-segmentation and optimized sampling areas by applying the proposed method to different 2D maps. Then we test the semantic segmentation performance of our algorithm and compare it with current mainstream methods.
4.1. Results of the LCNet and the ResNet-18

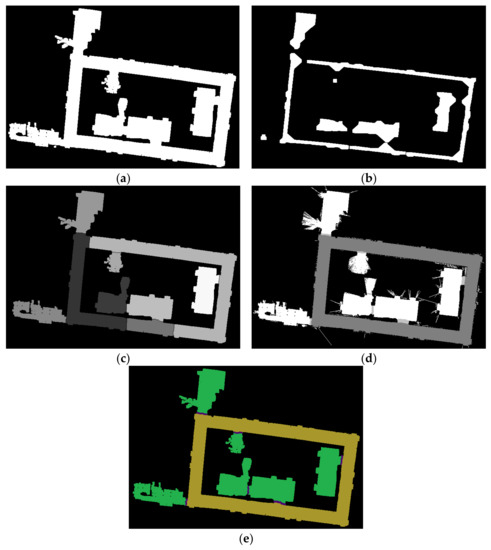

The first experiment was tested using real data from a lab environment in our labs to compare the performance of ResNet-18 and proposed LCNet, the lab map is shown in
Figure 9a. We first get our lab’s 2D map with the designed mobile robot by using Gmapping method. Then we label the 2D lab map with four different grayscale values shown in
Figure 4a based on the map’s real segmented class. A simulated lidar goes through all the white areas. The 80% lidar line data of the map and the corresponding labels are collected as training data. The remaining 20% is used for testing data.
Figure 9 shows the process of the experiment.
By sampling the laser data of each pixel, we collect all 40,950 laser line data in the labelled 2D lab map, 80% of which is collected for training data. The remaining 20% is used for testing data. We train the LCNet and the ResNet-18 model in GPUs and test them in a PC and the Raspberry Pi 3B+ with the same data. ResNet-18 is only tested on the PC because the Raspberry Pi’s computing power is not yet sufficient for ResNet-18 testing. In the training stage, we using the Adam optimizer, learning rate of 0.01, batch-size of 64, and iterated for 20 epochs on an NVIDIA 1070Ti 8G GPU.
As shown in
Figure 10, after 16 epochs of iterative training, ResNet-18 has reached a state of convergence, and its classification accuracy on the test set has reached a stable state. After 18 epochs of iterative training, ResNet-18 has achieved the highest classification accuracy of 93.6% in the 18th epoch. The LCNet converges after training for 18 epochs, and achieves the highest classification accuracy of 91.2% at the 18th epoch. After convergence, the classification accuracy of LCNet is 1.4% lower than that of ResNet.
Then we compared the 18th epoch model of LCNet and the 16th epoch model of ResNet, the classification results of the two models on each category of the test set is analyzed as shown in

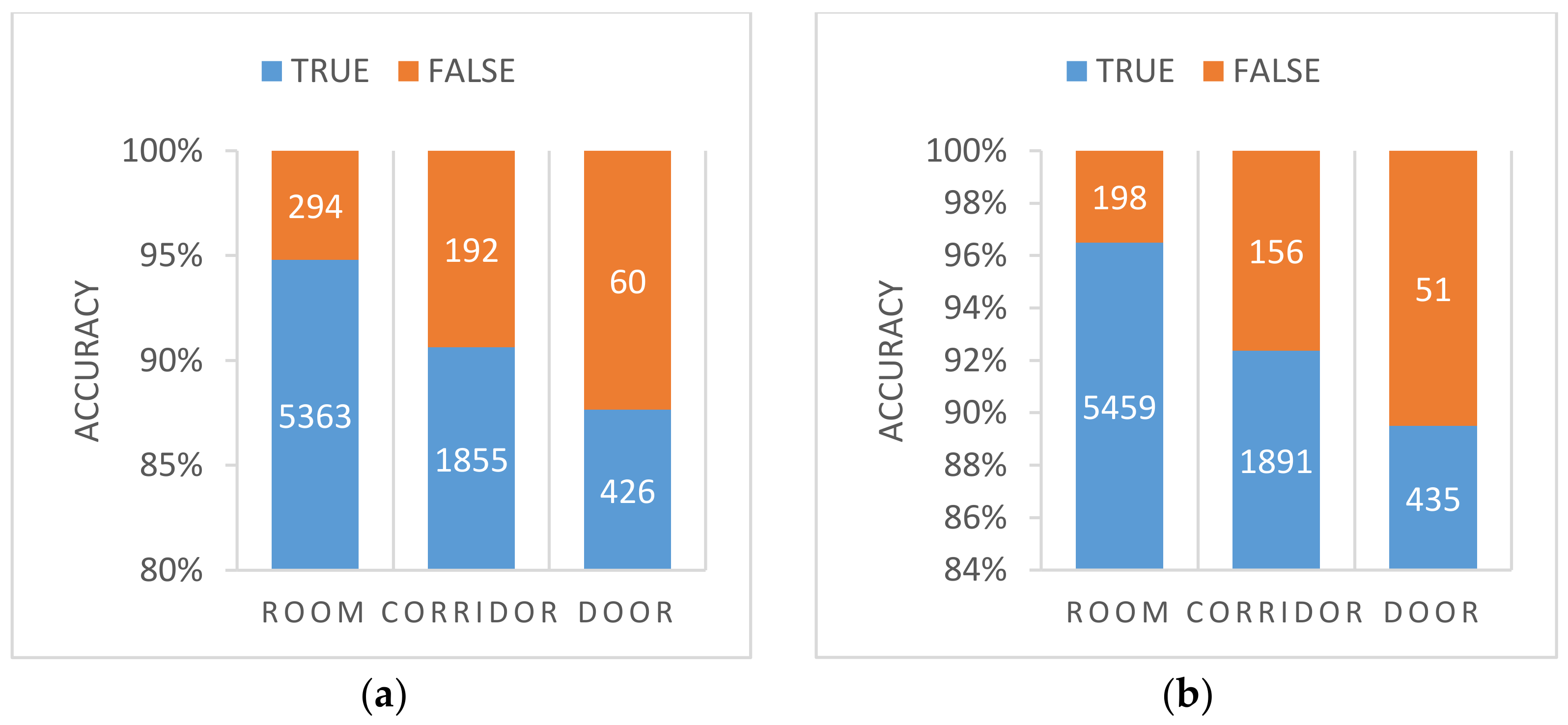

Figure 11. “TRUE” indicates the number of samples with correct predictions and “FALSE” indicates the number of samples with wrong predictions.
It can be found that the accuracy rates for rooms, corridors, and doorways on LCNet networks were 94.8%, 90.6%, and 87.6%, respectively, while for ResNet-18 they were 96.5%, 92.4%, and 89.5%, respectively, i.e., slightly higher than with LCNet, but in terms of running time, we compare the test time of LCNet and ResNet-18, as shown in the following
Table 3.
According to
Table 3, the speed of LCNet is 3.37 times faster than ResNet-18 on a PC, so the speed is significantly improved. Moreover, the size of the model is significantly reduced, and it can be extended to run on a Raspberry Pi device, while ResNet-18 cannot be deployed on Raspberry Pi devices. However, because the test images are sampled pixel by pixel and then converted into pictures, 8190 points need to be classified, so the calculation on Raspberry Pi are time-consuming. By analyzing the characteristics of the images of adjacent sampling points, we find that their features are very similar, so we can reduce the number of classification points and improve the running speed by the proposed sparse sampling above.
4.2. Results of the Proposed Classification Method
As mentioned above, in this paper we have proposed some optimizations using the distance transform watershed method to pre-segment the map first, and then evenly collecting the sample points in each optimized sampling area and inputting them into the proposed LCNet for classification, and then according to the “winner take all” rule, the final semantic labels of the classification results are determined. We used four maps as the training data set for the proposed LCNet, as shown in

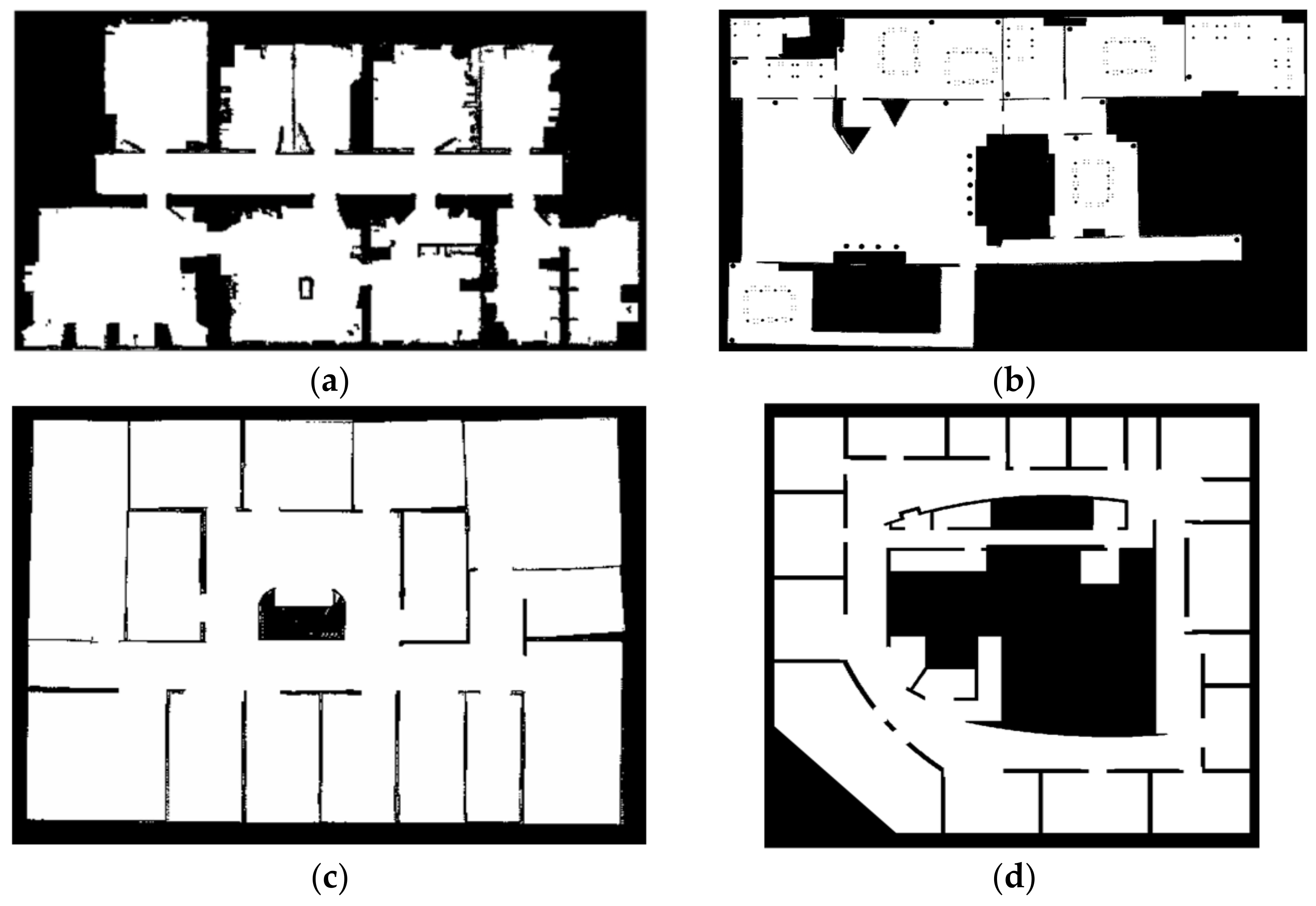

Figure 12, which are publicly available [
3].
The experimental results are shown in
Figure 13, where the proposed algorithm shows amazing results on the three different 2D maps. The first row is the sampling diagram in the optimized sampling areas, the second row is the result of semantic segmented results. It can be seen that rooms, corridors and doorways are clearly labelled out in three different colors, while the number of sampling points of each map is greatly reduced. The specific results of the experiment are shown in
Table 4. The average accuracy rate and average running time are 97.89% and 2.41 s, respectively, which is entirely acceptable for sweeping robots.
4.3. Comparison with Other Algorithms
In order to verify the performance of the proposed method, we used six maps of the public data set in [
3] and two maps collected in our laboratory for comparison. The resolution of each map is 0.05 m/grid. The true area size of the maps ranges from 100 m
2 to 1000 m
2. Based on the above data, we used a unified hardware platform consisting of an Intel i7 8700 h CPU and an NVIDIA 1070ti GPU with 32 G RAM to compare the operation effect of the proposed algorithm with the Voronoi algorithm and the morphological segmentation method. The experimental results are shown in

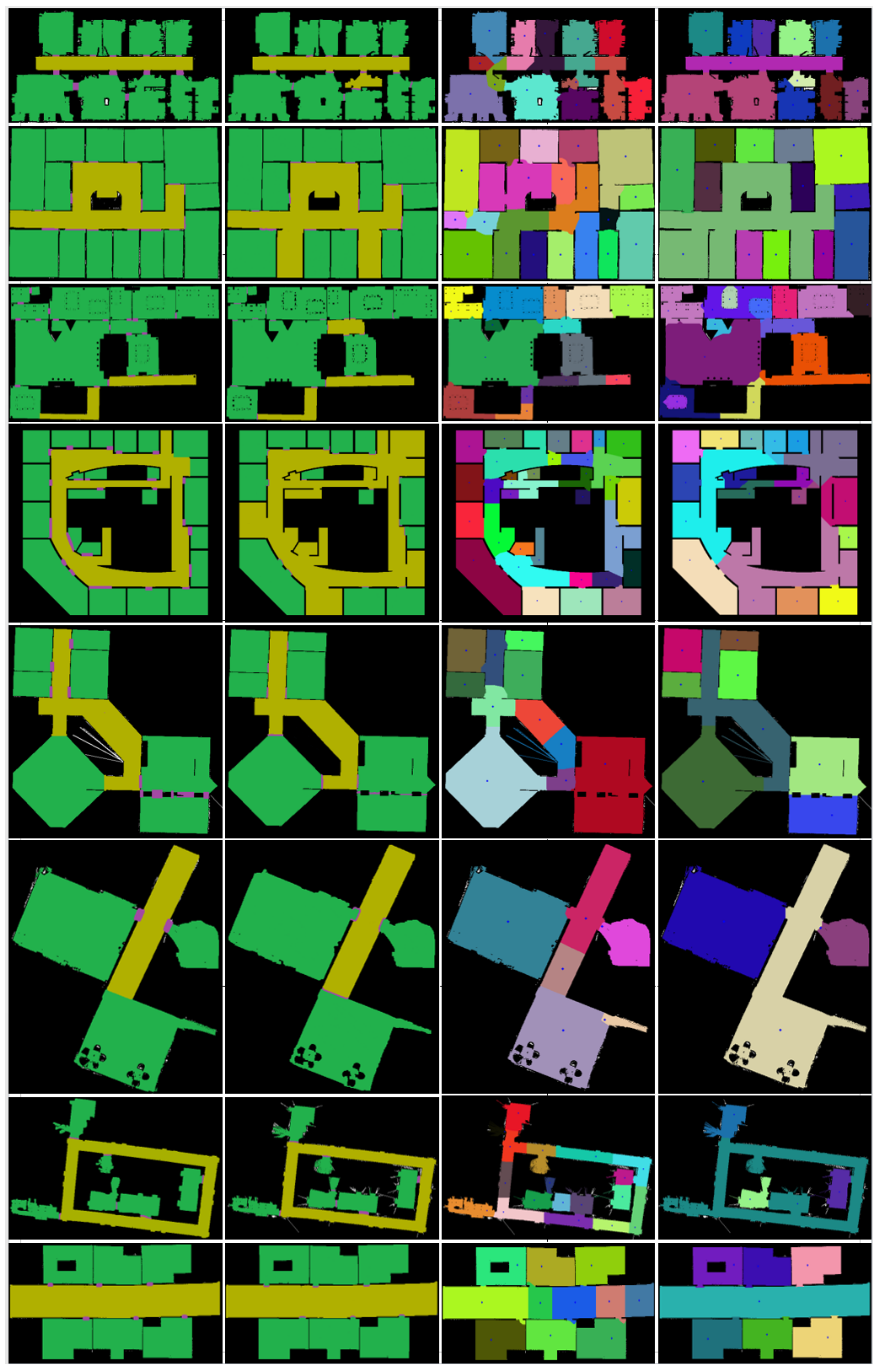

Figure 14, where the first column depicts the ground truth room segmentation from human labeling, the second column shows the proposed method’s segmentation, the third column depicts the Voronoi graph-based segmentation, and column 4 is the morphological-based segmentation. The average statistical results are shown in
Table 5. The parameters in this table are explained as follows:
Recall: the recall rate of the algorithm.
Precision: the accuracy rate of the algorithm.
Average Runtime [s]: the average running time of each map.
Segment area: the average area of the obtained segments in m
2. The evaluation method is expressed as follows:
where
TP is True Positives,
FP is False Positives,
FN is False Negatives and
TN is True Negatives.
It can be seen that the recall rate of the proposed method is the highest, which shows that the method has the least number of missed detections in the same dataset mentioned above. At the same time, in terms of accuracy, the proposed method has achieved the best results. In addition, the maximum average segmentation area is obtained, which shows that the segmentation effect of our method is better than the other two methods. Moreover, compared with the other two segmentation methods, the proposed method can obtain semantic labels accurately, which is of great significance for further application. While the others cannot get the semantic labels.
5. Conclusions
In this work, a new approach to get the semantic labels of 2D lidar room maps by combining the distance transform watershed-based pre-segmentation and a skillfully designed fast and efficient neural network lidar information sampling classification is proposed. A lidar is simulated to collect the lidar detection line maps of each point in the labelled map, and then these line maps and the corresponding labels are used to train the designed neural network, in the training stage. In the testing stage, the new map is first pre-segmented into various simple cells with the distance transformation watershed method, then we classify the lidar detection line maps sampled from these optimized sampling areas with the trained neural network. The speed of the proposed LCNet is 3.37 times faster than ResNet-18 on a PC, so the speed is significantly improved. Moreover, the size of the model is significantly reduced, and it can be extended to run on low computing power Raspberry Pi devices. After using the optimized sampling areas, the algorithm does not need to classify each point, which first improves the efficiency of the algorithm, secondly, due to the optimized sampling and the “winner takes all” classification principle, which effectively filters out the noise points of misclassification and improves the accuracy of the algorithm for semantic annotation. Comparing with the Voronoi algorithm and the morphological segmentation method, the recall rate and the accuracy rate of the proposed method are the highest, In addition, the segmentation effect of our method is better than those of the other two methods. Moreover, the proposed method can obtain semantic labels. Comparing with the distance-transform based method, our method not only can obtain the semantic information of maps, but also still run efficiently. A prototype mobile robot was developed to verify the proposed method, the feasibility, validity and high efficiency were verified by a series of tests. The proposed method achieved higher scores in its recall and precision. Specifically, the proposed method achieved a mean recall of 0.965 and a mean precision of 0.943.
