# SEED-G: Simulated EEG Data Generator for Testing Connectivity Algorithms

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Toolbox Description

- The generation of a predefined ground-truth connectivity model with:
- a selected size (number of signals to be generated);
- a selected density;
- parameters randomly assigned within a given range;
- stationary or time-resolved connectivity values.

- The generation of pseudo-EEG time series with:
- spectral similarity to reference EEG scalp- or source-level data;
- given length in terms of number of samples;
- number of trials;
- predefined SNR;
- inter-trial variability;
- presence of ocular artifacts.

#### 2.1. Simulated Data Generation

#### 2.2. Realistic Features Modeling

## 3. Evaluation of SEED-G Toolbox Performances

#### 3.1. Methods

#### 3.1.1. Pseudo-EEG Time Series Generation

- “Model size” is the number of time series composing the dataset. Levels: (5, 10, 19, 32, 60) nodes, simulating a range between few electrodes and the most commonly used extended 10–20 scalp EEG montage.
- “Network density” is the percentage of non-null coefficients. Levels: (5%, 10%, 20%, 30%) of the possible connections.
- “Real sources” are the percentage of real sources included as sources in the model with respect to all generated signals. Levels: (20%, 30%, 50%) of the number of the generated time series.

#### 3.1.2. Performance Parameters

#### 3.2. Results

## 4. SEED-G Toolbox Application: Evaluation of the Inter-Trial Variability Effect on PDC Estimates

- by increasing/decreasing the value of some existing connections in the ground-truth network (Study I);
- by modifying the ground-truth network density by adding some spurious connections to the existing ones (Study II).

#### 4.1. Methods

#### 4.1.1. Study I: The Effect of Unstable Connectivity Values

- Model size: 5, 10, 20 nodes;
- Network density: 20% of the possible connections;
- Connections’ intensity: randomly selected in the range [−0.5:0.5];
- Percentage of modified trials: 1, 10, 30, 50% of the total number of the generated trials;
- Percentage of modified links across-trials: 10, 20, 50% of existing connections;
- Amplitude of the variation: 20, 50, 70% of the original value of the connection;
- Type of variation: positive (increase), negative (decrease).

#### 4.1.2. Study II: The Effect of Spurious Connections

- Model size: 5, 10, 20 nodes;
- Network density: 20% of the possible connections;
- Connections’ intensity: randomly selected in the range [−0.5:0.5];
- Percentage of modified trials: 1, 10, 30, 50% of the total number of trials generated;
- Percentage of added spurious links: 10, 20, 30% of all existing connections.

#### 4.2. Results

#### 4.2.1. Study I: The Effect of Unstable Connectivity Values

#### 4.2.2. Study II: The Effect of Spurious Connections

## 5. Discussion

## 6. Conclusions

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Appendix A

**main**: it is the core of the toolbox and contains all the functions for the generation of EEG data according to a predefined ground-truth network.**dependencies**: containing parts of other toolboxes required to successfully run SEED-G functions. The links to the full packages can be found in the documentation on the GitHub page. The additional packages are Brain Connectivity Toolbox (BCT) [40], FieldTrip [41], Multivariate Granger Causality Toolbox (MVGC) [24], and AsympPDC Package (PDC_AsympSt) [42,43]. Additionally, the implemented forward model is solved according to the New York Head (NYH) model, whose parameters are contained in the structure available on the ICBM-NY platform [28].**real data**: containing real EEG data acquired from one healthy subject during resting state at scalp level (‘EEG_real_sources.mat’) and its reconstructed version in source domain (‘sLOR_cortical_sources.mat’). These signals can be employed to extract the AR components to be included in the model to generate data with the same spectral properties of the real ones.**demo**: containing examples of MATLAB scripts to be used to learn the different functionalities of the toolbox. For example, the code ‘run_generation.m’ allows to specify the directory containing the real sources and each specific input of the function ‘simulatedData_generation.m’.**auxiliary functions**: containing either original MATLAB functions or modified version of free available functions.

## References

- Lee, L.; Harrison, L.M.; Mechelli, A. The Functional Brain Connectivity Workshop: Report and commentary. Netw. Comput. Neural Syst.
**2003**, 14, 1–15. [Google Scholar] [CrossRef] - Kuś, R.; Kamiński, M.; Blinowska, K.J. Determination of EEG Activity Propagation: Pair-Wise Versus Multichannel Estimate. IEEE Trans. Biomed. Eng.
**2004**, 51, 1501–1510. [Google Scholar] [CrossRef] - Brovelli, A.; Ding, M.; Ledberg, A.; Chen, Y.; Nakamura, R.; Bressler, S.L. Beta oscillations in a large-scale sensorimotor cortical network: Directional influences revealed by Granger causality. Proc. Natl. Acad. Sci. USA
**2004**, 101, 9849–9854. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Brovelli, A.; Lachaux, J.-P.; Kahane, P.; Boussaoud, D. High gamma frequency oscillatory activity dissociates attention from intention in the human premotor cortex. NeuroImage
**2005**, 28, 154–164. [Google Scholar] [CrossRef] [Green Version] - Astolfi, L.; Cincotti, F.; Mattia, D.; Marciani, M.G.; Baccala, L.A.; Fallani, F.D.V.; Salinari, S.; Ursino, M.; Zavaglia, M.; Ding, L.; et al. Comparison of different cortical connectivity estimators for high-resolution EEG recordings. Hum. Brain Mapp.
**2007**, 28, 143–157. [Google Scholar] [CrossRef] [Green Version] - Greenblatt, R.; Pflieger, M.; Ossadtchi, A. Connectivity measures applied to human brain electrophysiological data. J. Neurosci. Methods
**2012**, 207, 1–16. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Bowyer, S.M. Coherence a measure of the brain networks: Past and present. Neuropsychiatr. Electrophysiol.
**2016**, 2, 1. [Google Scholar] [CrossRef] - Anzolin, A.; Presti, P.; Van De Steen, F.; Astolfi, L.; Haufe, S.; Marinazzo, D. Quantifying the Effect of Demixing Approaches on Directed Connectivity Estimated Between Reconstructed EEG Sources. Brain Topogr.
**2019**, 32, 655–674. [Google Scholar] [CrossRef] [PubMed] - Toppi, J.; Petti, M.; Vecchiato, G.; Cincotti, F.; Salinari, S.; Mattia, D.; Babiloni, F.; Astolfi, L. The Effect of Normalization of Partial Directed Coherence on the Statistical Assessment of Connectivity Patterns: A Simulation Study. In Proceedings of the 2013 35th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Osaka, Japan, 3–7 July 2013; pp. 4346–4349. [Google Scholar] [CrossRef]
- Petti, M.; Caschera, S.; Anzolin, A.; Toppi, J.; Pichiorri, F.; Babiloni, F.; Cincotti, F.; Mattia, D.; Astolfi, L. Effect of Inter-Trials Variability on the Estimation of Cortical Connectivity by Partial Directed Coherence. In Proceedings of the 2015 37th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Milano, Italy, 25–29 August 2015; pp. 3791–3794. [Google Scholar] [CrossRef]
- Wang, H.E.; Bénar, C.G.; Quilichini, P.P.; Friston, K.J.; Jirsa, V.K.; Ebernard, C. A systematic framework for functional connectivity measures. Front. Neurosci.
**2014**, 8, 405. [Google Scholar] [CrossRef] [PubMed] - Silfverhuth, M.J.; Hintsala, H.; Kortelainen, J.; Seppänen, T. Experimental Comparison of Connectivity Measures with Simulated EEG Signals. Med. Biol. Eng. Comput.
**2012**, 50, 683–688. [Google Scholar] [CrossRef] - Ghumare, E.; Schrooten, M.; Vandenberghe, R.; Dupont, P. Comparison of Different Kalman Filter Approaches in Deriving Time Varying Connectivity from EEG Data. In Proceedings of the 2015 37th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Milano, Italy, 25–29 August 2015; pp. 2199–2202. [Google Scholar]
- Plomp, G.; Quairiaux, C.; Michel, C.M.; Astolfi, L. The physiological plausibility of time-varying Granger-causal modeling: Normalization and weighting by spectral power. NeuroImage
**2014**, 97, 206–216. [Google Scholar] [CrossRef] [PubMed] - Mill, R.D.; Bagic, A.; Bostan, A.; Schneider, W.; Cole, M.W. Empirical validation of directed functional connectivity. NeuroImage
**2017**, 146, 275–287. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Baccalá, L.A.; Sameshima, K. Chapter 3 Overcoming the limitations of correlation analysis for many simultaneously processed neural structures. Prog. Brain Res.
**2001**, 130, 33–47. [Google Scholar] [CrossRef] - Sameshima, K.; Takahashi, D.Y.; Baccalá, L.A. Partial Directed Coherence Statistical Performance Characteristics in Frequency Domain. In Proceedings of the 2015 37th Annual International Conference of the IEEE Engineering in Medicine and Biology Society (EMBC), Milano, Italy, 25–29 August 2015; pp. 5388–5391. [Google Scholar] [CrossRef]
- Schelter, B.; Winterhalder, M.; Hellwig, B.; Guschlbauer, B.; Lücking, C.H.; Timmer, J. Direct or indirect? Graphical models for neural oscillators. J. Physiol.
**2006**, 99, 37–46. [Google Scholar] [CrossRef] [PubMed] - Faes, L.; Nollo, L.F.A.G. Multivariate Frequency Domain Analysis of Causal Interactions in Physiological Time Series. Biomed. Eng. Trends Electron. Commun. Softw.
**2011**, 8, 403–428. [Google Scholar] - Astolfi, L.; Cincotti, F.; Mattia, D.; Fallani, F.D.V.; Tocci, A.; Colosimo, A.; Salinari, S.; Marciani, M.G.; Hesse, W.; Witte, H.; et al. Tracking the Time-Varying Cortical Connectivity Patterns by Adaptive Multivariate Estimators. IEEE Trans. Biomed. Eng.
**2008**, 55, 902–913. [Google Scholar] [CrossRef] [PubMed] - Ghumare, E.G.; Schrooten, M.; Vandenberghe, R.; Dupont, P. A Time-Varying Connectivity Analysis from Distributed EEG Sources: A Simulation Study. Brain Topogr.
**2018**, 31, 721–737. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Moran, R.J.; Pinotsis, D.A.; Friston, K.J. Neural masses and fields in dynamic causal modeling. Front. Comput. Neurosci.
**2013**, 7, 57. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Seth, A.K. A MATLAB toolbox for Granger causal connectivity analysis. J. Neurosci. Methods
**2010**, 186, 262–273. [Google Scholar] [CrossRef] [PubMed] - Barnett, L.; Seth, A.K. The MVGC multivariate Granger causality toolbox: A new approach to Granger-causal inference. J. Neurosci. Methods
**2014**, 223, 50–68. [Google Scholar] [CrossRef] [Green Version] - Haufe, S.; Ewald, A. A Simulation Framework for Benchmarking EEG-Based Brain Connectivity Estimation Methodologies. Brain Topogr.
**2019**, 32, 625–642. [Google Scholar] [CrossRef] [PubMed] - Corbetta, M.; Patel, G.; Shulman, G.L. The Reorienting System of the Human Brain: From Environment to Theory of Mind. Neuron
**2008**, 58, 306–324. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Pascual-Marqui, R.D. Standardized low-resolution brain electromagnetic tomography (sLORETA): Technical details. Methods Find. Exp. Clin. Pharmacol.
**2002**, 24 (Suppl. D), 5–12. [Google Scholar] - Huang, Y.; Parra, L.C.; Haufe, S. The New York Head—A precise standardized volume conductor model for EEG source localization and tES targeting. NeuroImage
**2016**, 140, 150–162. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Benjamini, Y.; Hochberg, Y. Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing. J. R. Stat. Soc. Ser. B
**1995**, 57, 289–300. [Google Scholar] [CrossRef] - Takahashi, D.Y.; Baccal, L.A.; Sameshima, K. Connectivity Inference between Neural Structures via Partial Directed Coherence. J. Appl. Stat.
**2007**, 34, 1259–1273. [Google Scholar] [CrossRef] - Toppi, J.; Mattia, D.; Risetti, M.; Formisano, R.; Babiloni, F.; Astolfi, L. Testing the Significance of Connectivity Networks: Comparison of Different Assessing Procedures. IEEE Trans. Biomed. Eng.
**2016**, 63, 2461–2473. [Google Scholar] [CrossRef] - Hutchison, R.M.; Womelsdorf, T.; Allen, E.A.; Bandettini, P.A.; Calhoun, V.D.; Corbetta, M.; Della Penna, S.; Duyn, J.H.; Glover, G.H.; Gonzalez-Castillo, J.; et al. Dynamic functional connectivity: Promise, issues, and interpretations. NeuroImage
**2013**, 80, 360–378. [Google Scholar] [CrossRef] [Green Version] - Islam, K.; Rastegarnia, A.; Yang, Z. Methods for artifact detection and removal from scalp EEG: A review. Neurophysiol. Clin. Neurophysiol.
**2016**, 46, 287–305. [Google Scholar] [CrossRef] - Robbins, K.A.; Touryan, J.; Mullen, T.; Kothe, C.; Bigdely-Shamlo, N. How Sensitive Are EEG Results to Preprocessing Methods: A Benchmarking Study. IEEE Trans. Neural Syst. Rehabil. Eng.
**2020**, 28, 1081–1090. [Google Scholar] [CrossRef] - Grech, R.; Cassar, T.; Muscat, J.; Camilleri, K.P.; Fabri, S.G.; Zervakis, M.; Xanthopoulos, P.; Sakkalis, V.; Vanrumste, B. Review on solving the inverse problem in EEG source analysis. J. Neuroeng. Rehabil.
**2008**, 5, 25. [Google Scholar] [CrossRef] [Green Version] - Mahjoory, K.; Nikulin, V.V.; Botrel, L.; Linkenkaer-Hansen, K.; Fato, M.M.; Haufe, S. Consistency of EEG source localization and connectivity estimates. Neuroimage
**2017**, 152, 590–601. [Google Scholar] [CrossRef] [PubMed] - Hedrich, T.; Pellegrino, G.; Kobayashi, E.; Lina, J.; Grova, C. Comparison of the spatial resolution of source imaging techniques in high-density EEG and MEG. Neuroimage
**2017**, 157, 531–544. [Google Scholar] [CrossRef] [PubMed] - Daniel, E.; Meindertsma, T.; Arazi, A.; Donner, T.H.; Dinstein, I. The Relationship between Trial-by-Trial Variability and Oscillations of Cortical Population Activity. Sci. Rep.
**2019**, 9, 16901. [Google Scholar] [CrossRef] - Latinus, M.; Mofid, Y.; Kovarski, K.; Charpentier, J.; Batty, M.; Bonnet-Brilhault, F. Atypical Sound Perception in ASD Explained by Inter-Trial (In)consistency in EEG. Front. Psychol.
**2019**, 10. [Google Scholar] [CrossRef] [PubMed] - Rubinov, M.; Sporns, O. Complex network measures of brain connectivity: Uses and interpretations. Neuroimage
**2010**, 52, 1059–1069. [Google Scholar] [CrossRef] [PubMed] - Oostenveld, R.; Fries, P.; Maris, E.; Schoffelen, J.-M. FieldTrip: Open Source Software for Advanced Analysis of MEG, EEG, and Invasive Electrophysiological Data. Comput. Intell. Neurosci.
**2010**, 2011, 1–9. [Google Scholar] [CrossRef] [PubMed] - Sameshima, K.; Baccala, L.A. Methods in Brain Connectivity Inference through Multivariate Time Series Analysis, 1st ed.; CRC Press: Boca Raton, FL, USA, 2014. [Google Scholar]
- Sameshima, K.; Takahashi, D.Y.; Baccala, L.A. On the statistical performance of Granger-causal connectivity estimators. Brain Inform.
**2015**, 2, 119–133. [Google Scholar] [CrossRef] [PubMed] [Green Version]

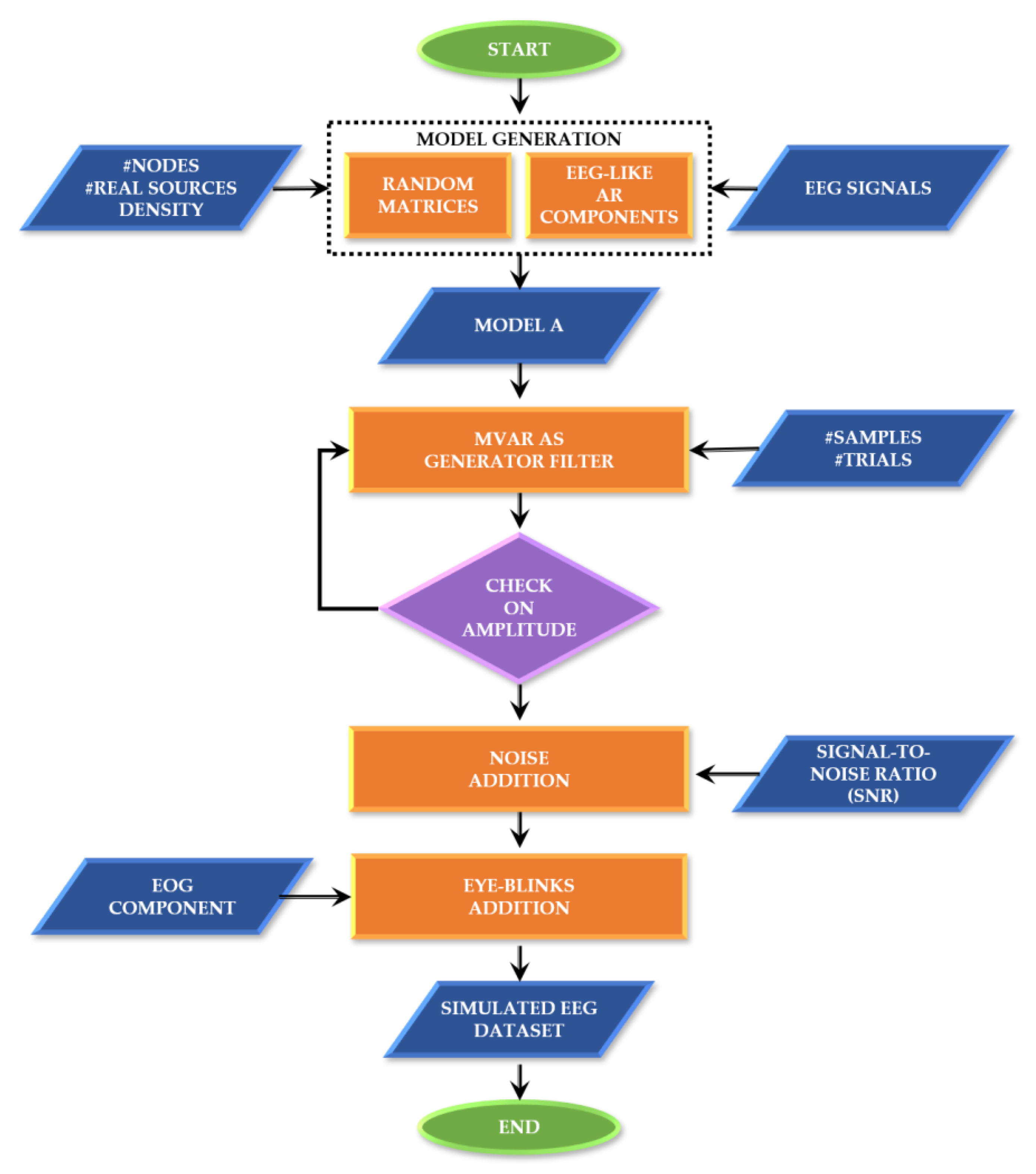

**Figure 1.**SEED-G generator framework. Block diagram describing the main steps at the basis of the data generator.

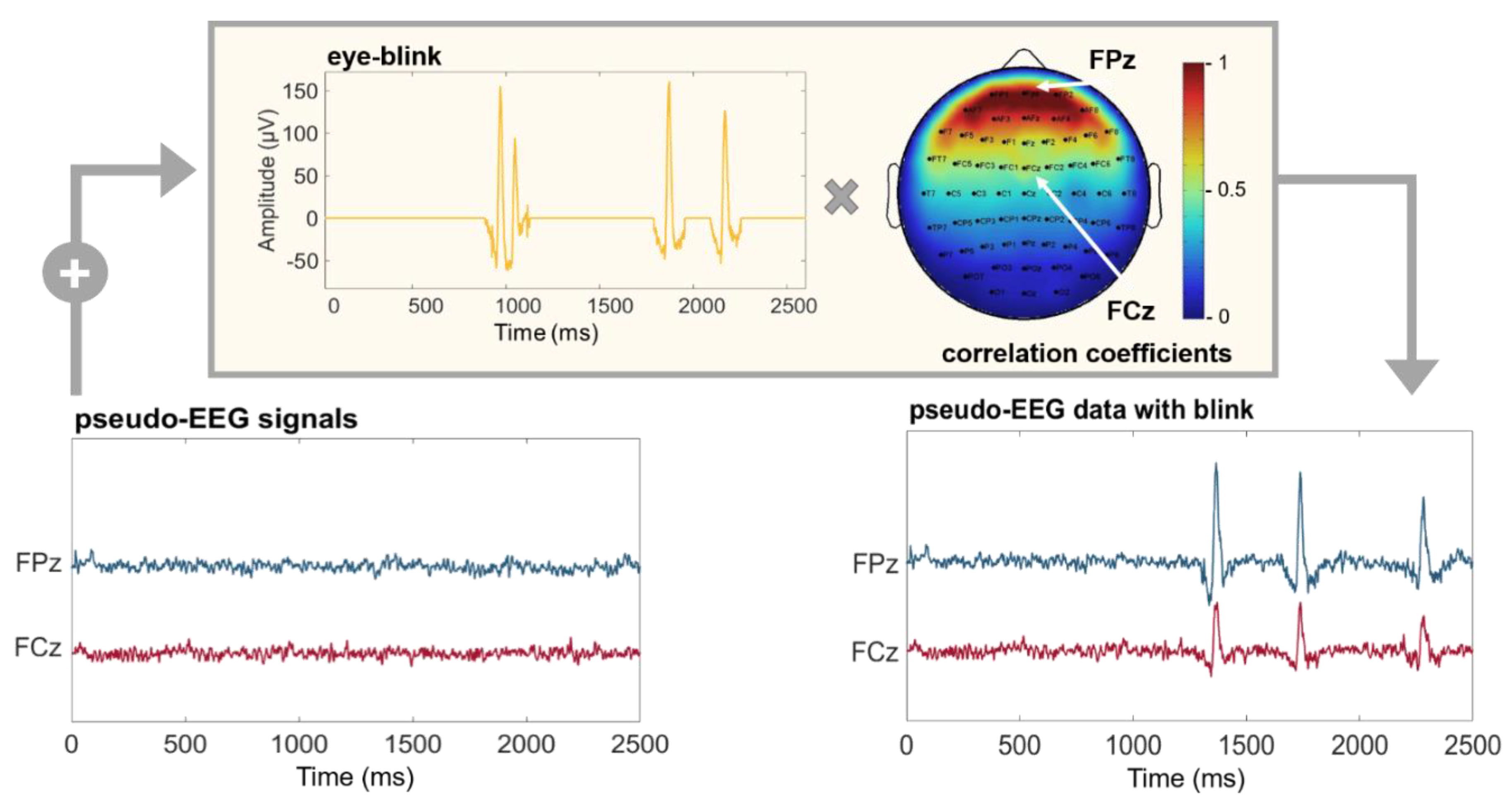

**Figure 2.**Pseudo-EEG data with ocular artifacts. Time series simulated using SEED-G toolbox (pseudo-EEG signals) and real ocular blinks (eye-blink) were summed up to obtain a realistic dataset (pseudo-EEG data with blink). The eye-blink component was weighted by a correlation coefficient whose value depends on the position of the simulated sensor (Pearson’s correlation between real EEG dataset acquired with a standard 60-channel montage, and an EOG channel). Frontal electrodes are maximally affected by the presence of the blinks; indeed, the correlation coefficient is equal to 1 for the electrode FPz (red portion of the mask). The same coefficient is equal to 0.5 for the sensor FCz, reflecting the fact that more central sensors show attenuated ocular components.

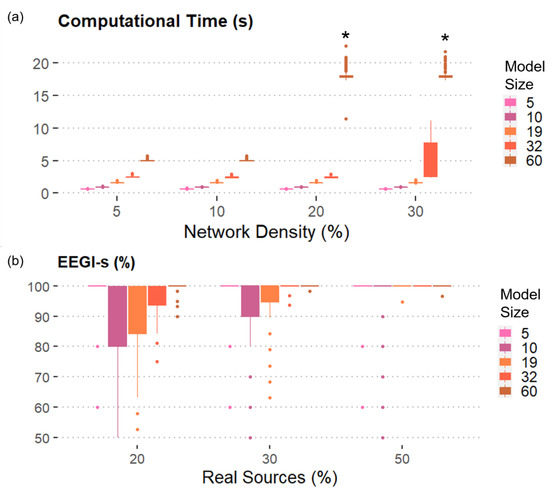

**Figure 3.**SEED-G performances in terms of computational time and percentage of realistic data generated: (

**a**) Mean and standard deviation of the computational time computed over 300 iterations were shown as functions of the number of time series (Model size) and the number of existing connections (Network density). The number of real sources included is equal to 30%. Except for some 60-node models, all the simulated datasets composed by 100 trials were generated in less than 10 s. (*) encodes the fact that no dataset with that specific combination of features could be generated with 1000 attempts; (

**b**) Mean and standard deviation of the percentage of EEG-like signals (EEGl-s) computed over 300 iterations were reported as functions of Model size and of the number of real sources included in the connectivity model (Real sources). The density of the network is equal to 10%. On average, more than 80% of the generated data reported EEG-like spectral properties.

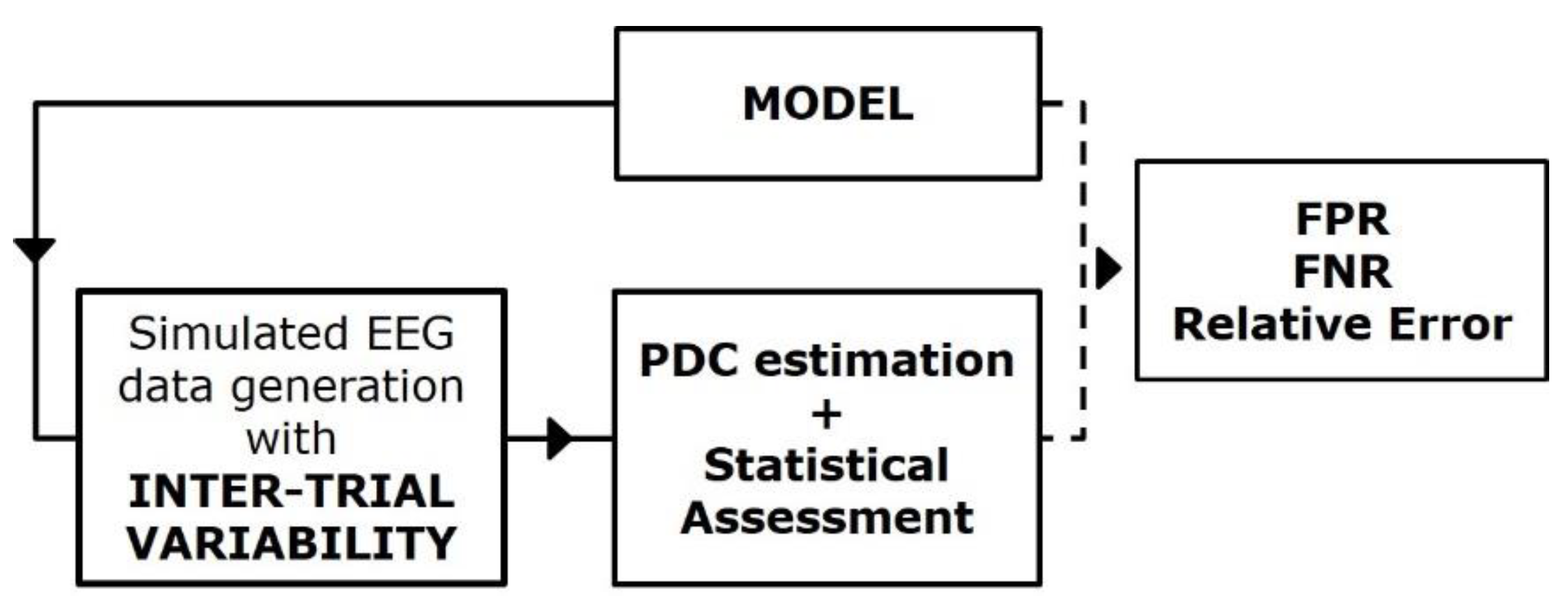

**Figure 4.**Simulation study for the PDC robustness assessment. Block diagram describing the simulation framework built for quantifying the effect of the inter-trial variability on connectivity estimates’ performances.

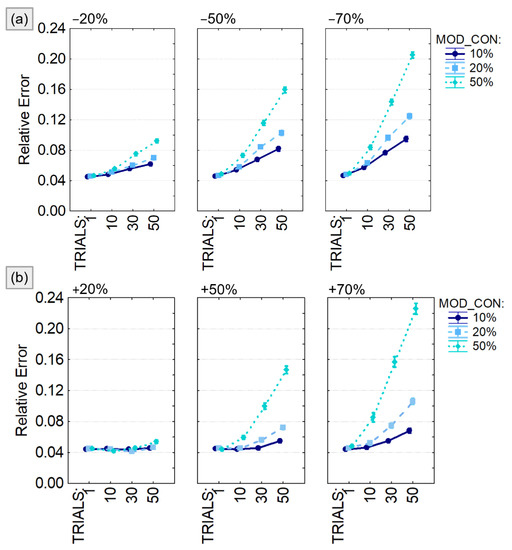

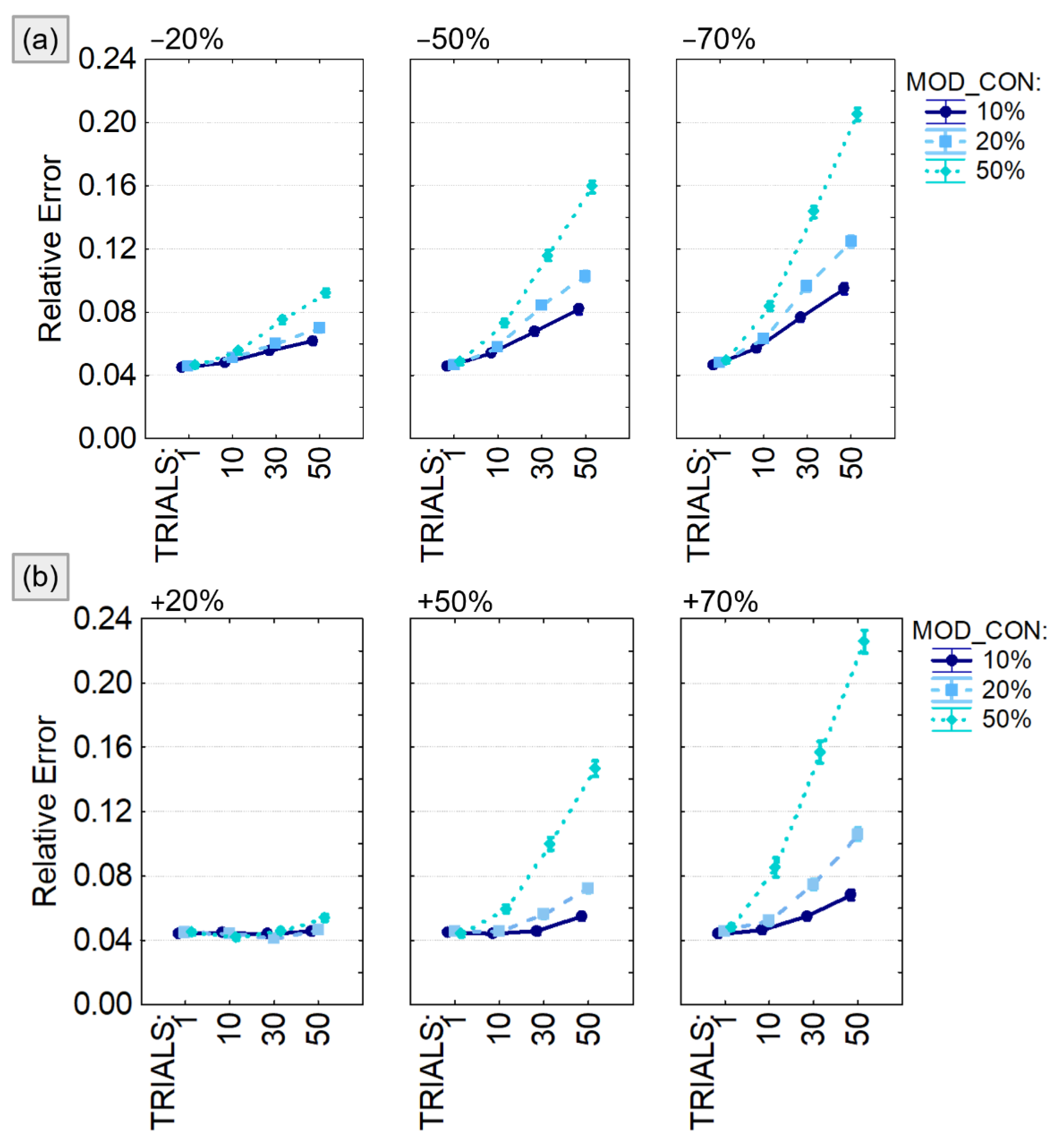

**Figure 5.**PDC percentage estimate error with respect to the imposed connectivity model. Results of the four-way ANOVA performed using Relative Error as dependent variable. The investigated factors are: the number of connections with variable weight (MOD_CON), the amplitude of the weight variation quantified as percentage of the initial value (VAR), the percentage of modified trials (TRIALS), and the type of variation (number of connections on which to apply a value variation (VAR_DIR) which can be either a reduction (panel

**a**) or an increase (panel

**b**). The bars represent the 95% confidence interval.

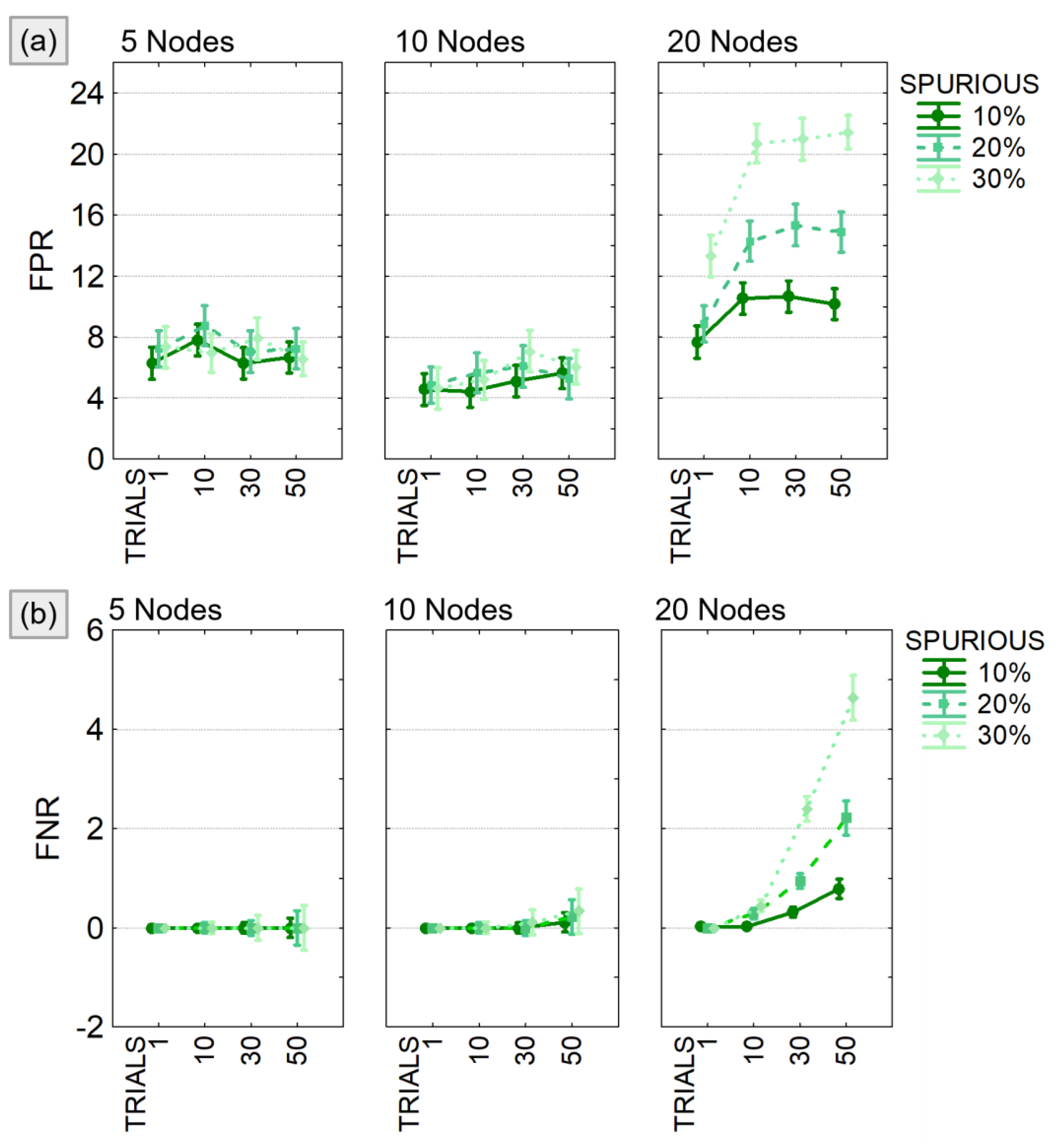

**Figure 6.**False positive and false negative in PDC estimates. Results of the three-way ANOVA performed to compare FPR (panel

**a**) and FNR (panel

**b**) in different experimental conditions defined by the number of existing spurious connections (SPURIOUS), the percentage of modified trials (TRIALS), and the dimension of the model (MOD_SIZE). The bars represent the 95% confidence interval.

**Table 1.**Results of the four-way ANOVA (F-value) performed on the Relative Error evaluated after estimating PDC values on 5-, 10- and 20-node models.

5 Nodes | 10 Nodes | 20 Nodes | |
---|---|---|---|

VAR_DIR | 98 | 162 | 15 |

VAR | 995 | 2992 | 7275 |

MOD_CON | 1237 | 4290 | 10176 |

TRIALS | 1415 | 2860 | 6190 |

VAR × VAR_DIR | 5 | 33 | 904 |

MOD_CON × VAR_DIR | 2.91^{(NS)} | 22 | 558 |

MOD_CON × VAR | 340 | 1806 | 5205 |

TRIALS × VAR_DIR | 37 | 87 | 45 |

TRIALS × VAR | 756 | 1676 | 4061 |

TRIALS × MOD_CON | 690 | 1994 | 6458 |

MOD_CON × VAR × VAR_DIR | 13 | 167 | 1361 |

TRIALS × VAR × VAR_DIR | 8 | 28 | 539 |

TRIALS × MOD_CON × VAR_DIR | 4 | 24 | 376 |

MOD_CON × VAR × TRIALS | 132 | 405 | 1345 |

MOD_CON × VAR × TRIALS × VAR_DIR | 4 | 39 | 322 |

^{NS}Factor of the ANOVA non-significant. When nothing is specified, p < 0.001.

**Table 2.**Results of the three-way ANOVA (F-value) performed on the performance parameters FPR and FNR, evaluated after estimating and validating PDC matrices.

FPR * | FNR * | |
---|---|---|

MOD_SIZE | 740.7 | 251.1 |

SPURIOUS | 237.3 | 118.7 |

TRIALS | 77.3 | 189.4 |

SPURIOUS × MOD_SIZE | 186.8 | 88.0 |

TRIALS × MOD_SIZE | 39.6 | 149.3 |

SPURIOUS × TRIALS | 4.2 | 50.7 |

SPURIOUS × TRIALS × MOD_SIZE | 6.8 | 33.6 |
