Ultra-Sensitive Minute Mass Sensing Using a Microcantilever Virtually Coupled with a Virtual Cantilever

1
Graduate School of System and Information Engineering, University of Tsukuba, Tsukuba, Ibaraki 305-8573, Japan
2
Fluid Property Standards Group, Research Institute for Engineering Measurement, National Metrology Institute of Japan (NMIJ), National Institute of Advanced Industrial Science and Technology (AIST), Tsukuba, Ibaraki 305-8563, Japan
3
Research Center for Ubiquitous MEMS and Micro Engineering, National Institute of Advanced Industrial Science and Technology (AIST), Tsukuba, Ibaraki 305-8564, Japan
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(7), 1823; https://doi.org/10.3390/s20071823 (registering DOI)
Received: 27 February 2020 / Revised: 15 March 2020 / Accepted: 19 March 2020 / Published: 25 March 2020
(This article belongs to the Special Issue Development of Piezoelectric Sensors and Actuators)

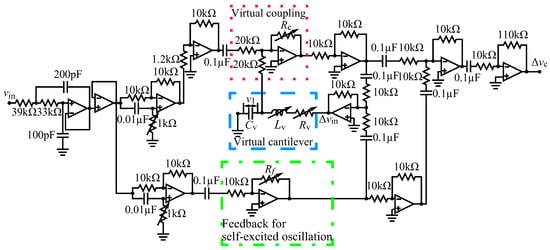

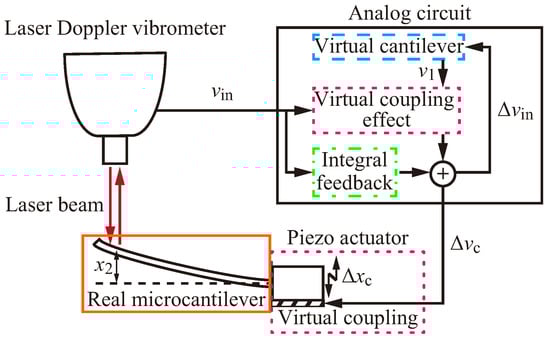

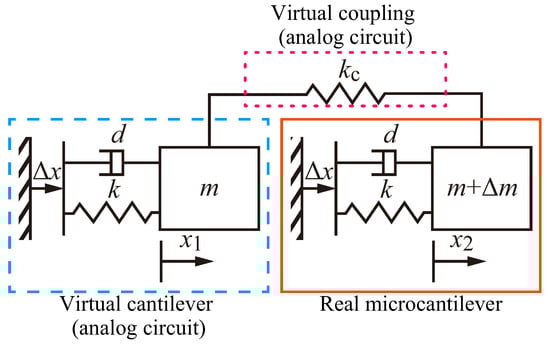

Mass sensors based on the eigenmode shift of coupled cantilevers achieve much higher sensitivity than those based on the single cantilever’s eigenfrequency shift. In the former sensors, two identical cantilevers and a weak coupling stiffness between them are required to achieve high sensitivity. However, conventional coupled cantilevers cannot satisfy these requirements because of machining accuracy. To satisfy both requirements, a virtual coupling between a real macrocantilever and a virtual cantilever, whose dynamics was calculated using a digital computer, was proposed in our previous research. The sensitive mass sensing of mg-order masses was achieved. In the present work, for minute mass sensing, we replace the real macrocantilever with a real microcantilever. The calculation speed of a digital computer is not fast enough to calculate the virtual cantilever’s dynamics because the natural frequency of the microcantilver is much higher than that of the macrocantilever. Therefore, we use an analog circuit instead of a digital computer to achieve virtual coupling with the virtual cantilever. The proposed system enables us to tune the virtual cantilever’s parameters to satisfy both requirements for high sensitivity by changing the analog circuit parameters. We verified experimentally that the proposed system achieved high sensitivity for mass sensing of the order of nanograms. View Full-Text
Keywords: minute mass sensor; mode localization; coupled resonator; MEMS sensor; RLC series circuit minute mass sensor; mode localization; coupled resonator; MEMS sensor; RLC series circuit
Show Figures

Figure 1

MDPI and ACS Style

Kasai, Y.; Yabuno, H.; Yamamoto, Y.; Matsumoto, S. Ultra-Sensitive Minute Mass Sensing Using a Microcantilever Virtually Coupled with a Virtual Cantilever. Sensors 2020, 20, 1823.
