# Structural Damage Localization and Quantification Based on a CEEMDAN Hilbert Transform Neural Network Approach: A Model Steel Truss Bridge Case Study

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

#### 1.1. Background

#### 1.2. Motivation

## 2. Theoretical Background

#### 2.1. Complete Ensemble Empirical Mode Decomposition with Adaptive Noise

_{j}[w

_{i}(t)] at each step of the decomposition process, instead of adding the white Gaussian noise that is obtained with a unique residue after the extraction of each IMF. The CEEMDAN method can be defined as the following steps:

- Add E1(wi(t)) (i = 1, 2, …, I), to the initial signal, x(t), where wi, β, and I indicate the ith added white Gaussian noise, the amplitude of the ith added white noise, and ensemble size, respectively:x
_{i}(t) = x(t) + β_{0}E_{1}(w_{i}(t)) - Calculate the first IMF (${\overline{c}}_{1}\left(t\right)$) through the first residue (i.e., r
_{1}(t)) as follows:$${\overline{c}}_{1}(t)=x(t)-{r}_{1}(t),\text{}\mathrm{where}\text{}{r}_{1}(t)=\frac{1}{I}{\displaystyle \sum _{i=1}^{I}M({x}_{i}}(t))$$ - Obtain the second IMF ${\overline{c}}_{2}(t)={r}_{1}(t)-{r}_{2}(t)$, where ${r}_{2}(t)=\frac{1}{I}{\displaystyle \sum _{i=1}^{I}M\left({r}_{1}(t)+{\beta}_{1}{E}_{2}({w}_{i}(t))\right)}$, and E
_{2}(w_{i}(t)) is the second IMF of EEMD. - Repeat Step 3 to obtain jth IMF of CEEMDAN ${\overline{c}}_{j}(t)={r}_{j-1}(t)-{r}_{j}(t)$ where$${r}_{j}(t)=\frac{1}{I}{\displaystyle \sum _{i=1}^{I}M\left({r}_{j-1}(t)+{\beta}_{j-1}{E}_{j}({w}_{i}(t))\right)}$$
_{j}= ε_{0}std[r_{j}(t)] is the signal-noise ratio (SNR).

#### 2.2. Hilbert–Huang Transform (HHT)

#### 2.3. Applications of ANNs

#### 2.4. Damage Indices Based on the CEEMDAN-HT-ANN Model

_{Healthy}and E

_{Damaged}represent the output of the CEEMDAN-HT-ANN model based on the acceleration response of the healthy and damaged states, respectively.

_{IMF}are used as the input and target layers of a healthy state of the truss in the training process of the ANN, respectively. Then, the IMFs of the damage scenarios are used to test the ANN. Accordingly, the damage index based on IA can be defined as follows:

_{Healthy}and IA

_{Damaged}represent the output of the CEEMDAN-HT-ANN model based on the acceleration response of the healthy and damaged states, respectively.

_{IMF}are used as input and target layers of the healthy state of the truss in the training process of the ANN, respectively, then the IMFs of the damage scenarios are used to test the ANN. Accordingly, the damage index based on P can be defined as follows:

_{Healthy}and P

_{Damaged}represent the output of the CEEMDAN-HT-ANN model based on the acceleration response of the healthy and damaged states, respectively.

## 3. Applications

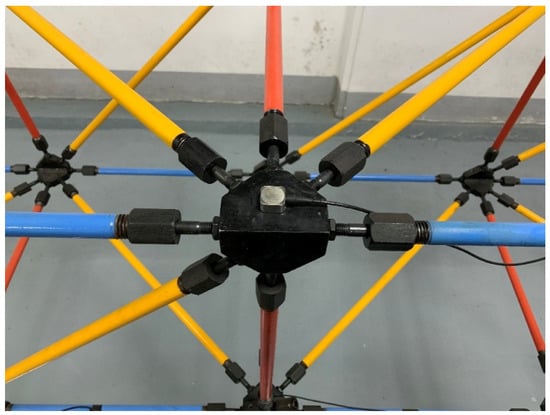

#### 3.1. Experimental Setup

#### 3.2. Procedure of the CEEMDAN-HHT-ANN Damage Detection Method

## 4. Result and Discussion

#### 4.1. Detection of the Presence and Severity of Damage

_{1}, T

_{2}, and T

_{3}are 0.051, 0.025, and 0.016 s, respectively. Hence, considering 1.0 s of the acceleration response of the bridge (about 20T

_{1}) is a reasonable time window to analyze in this study.

#### 4.2. Detection of Damage Location

## 5. Summary and Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Zhang, F.L.; Yang, Y.P.; Xiong, H.B.; Yang, J.H.; Yu, Z. Structural health monitoring of a 250-M super-Tall building and operational modal analysis using the fast Bayesian FFT method. Struct. Control Health Monit.
**2019**, 26, e2383. [Google Scholar] [CrossRef] - Ruocci, G.; Cumunel, G.; Le, T.; Argoul, P.; Point, N.; Dieng, L. Damage assessment of pre-Stressed structures: A SVD-Based approach to deal with time-Varying loading. Mech. Syst. Signal Process.
**2014**, 47, 50–65. [Google Scholar] [CrossRef][Green Version] - Cheraghi, N.; Zou, G.P.; Taheri, F. Piezoelectric-Based degradation assessment of a pipe using fourier and wavelet analyses. Comput. Aided Civ. Infrastruct. Eng.
**2005**, 20, 369–382. [Google Scholar] [CrossRef] - Nagata, Y.; Iwasaki, S.; Hariyama, T.; Fujioka, T.; Obara, T.; Wakatake, T. Binaural localization based on weighted wiener gain improved by incremental source attenuation. IEEE Trans. Audio Speech Lang. Process.
**2009**, 17, 52–65. [Google Scholar] [CrossRef][Green Version] - Yesilyurt, I.; Gursoy, H. Estimation of elastic and modal parameters in composites using vibration analysis. Vibr. Control
**2015**, 21, 509–524. [Google Scholar] [CrossRef] - Sun, L.; Li, C.; Li, J.; Zhang, C.; Ding, X. Strain transfer analysis of a clamped fiber Bragg grating sensor. Appl. Sci.-Basel
**2017**, 7, 188. [Google Scholar] [CrossRef][Green Version] - Sun, L.; Hao, H.; Zhang, B.; Ren, X.; Li, J. Strain transfer analysis of embedded fiber bragg grating strain sensor. J. Test. Eval.
**2016**, 44, 2312–2320. [Google Scholar] [CrossRef][Green Version] - Huang, N.E.; Shen, Z.; Long, S.R.; Wu, M.C.; Shih, H.H.; Zheng, Q.; Yen, N.C.; Tung, C.C.; Liu, H.H. The empirical mode decomposition and the Hilbert spectrum for nonlinear and nonstationary time series analysis. Proc. R. Soc. Lond.
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Huang, N.E.; Long, S.R.; Shen, Z. The mechanism for frequency downshift in nonlinear wave evolution. Adv. Appl. Mech.
**1996**, 32, 59–111. [Google Scholar] - Vincent, H.T.; Hu, S.L.J.; Hou, Z. Damage detection using empirical mode decomposition method and a comparison with wavelet analysis. In Proceedings of the Second International Workshop on Structural Health Monitoring, Stanford, CA, USA, 8–10 September 1999. [Google Scholar]
- Pines, D.; Salvino, L. Structural health monitoring using empirical mode decomposition and the Hilbert phase. Sound. Vib.
**2006**, 294, 97–124. [Google Scholar] [CrossRef] - Yan, B.; Miyamoto, A. A comparative study of modal parameter identification based on Wavelet and Hilbert–Huang transforms. Comput. Aided Civ. Infrastruct. Eng.
**2006**, 21, 9–23. [Google Scholar] [CrossRef] - Mohammadi Ghazi, R.; Büyüköztürk, O. Damage detection with small data set using energy-Based nonlinear features. Struct. Control Health Monit.
**2016**, 23, 333–348. [Google Scholar] [CrossRef][Green Version] - Xu, Y.L.; Chen, J. Structural damage detection using empirical modes decomposition: Experimental investigation. Eng. Mech. ASCE
**2004**, 130, 1279–1288. [Google Scholar] [CrossRef] - Simon Carbajo, E.; Simon Carbajo, R.; Mc Goldrick, C.; Basu, B. ASDAH: An automated structural change detection algorithm based on the Hilbert–Huang transform. Mech. Syst. Signal Process.
**2014**, 47, 78–93. [Google Scholar] [CrossRef] - Zhu, X.; Cao, M.; Ostachowicz, W.; Xu, W. Damage Identification in Bridges by Processing Dynamic Responses to Moving Loads: Features and Evaluation. Sensors
**2019**, 19, 463. [Google Scholar] [CrossRef][Green Version] - Quek, S.; Tua, P.; Wang, Q. Detecting anomalies in beams and plate based on the Hilbert–Huang transform of real signals. Smart Mater. Struct.
**2003**, 12, 447–460. [Google Scholar] [CrossRef] - Liu, J.; Wang, X.; Yuan, S.; Li, G. On Hilbert–Huang transform approach for structural health monitoring. Intell. Mater. Syst. Struct.
**2006**, 17, 721–728. [Google Scholar] [CrossRef] - Yang, J.N.; Lei, Y.; Linand, S.; Huang, N. Hilbert–Huang based approach for structural damage detection. J. Eng. Mech. ASCE
**2004**, 130, 85–95. [Google Scholar] [CrossRef] - Kumari, P.; Vaish, A. Information-Theoretic measures on intrinsic mode function for the individual identification using EEG sensors. IEEE Sens. J.
**2015**, 15, 4950–4960. [Google Scholar] [CrossRef] - Petrantonakis, P.C.; Hadjileontiadis, L.J. Emotion recognition from brain signals using hybrid adaptive filtering and higher order crossings analysis. IEEE Trans. Affect. Comput.
**2010**, 1, 81–97. [Google Scholar] [CrossRef] - Gunturkun, U. Bivariate empirical mode decomposition for cognitive radar scene analysis. IEEE Signal Proc. Lett.
**2015**, 22, 603–607. [Google Scholar] [CrossRef] - Sherr, Y.; Zhang, Y.; Wang, Z. Satellite fault diagnosis method based on predictive filter and empirical mode decomposition. J. Syst. Eng. Electron.
**2011**, 22, 83–87. [Google Scholar] [CrossRef] - Khaldi, K.; Boudraa, A.O. Audio watermarking via EMD. IEEE Trans. Audio Speech
**2013**, 21, 675–680. [Google Scholar] [CrossRef][Green Version] - Nunes, J.C.; Bouaoune, Y.; Delechelle, E.; Niang, O.; Bunel, P. Image analysis by bidimensional empirical mode decomposition. Image Vis. Comput.
**2003**, 21, 1019–1026. [Google Scholar] [CrossRef] - Chopin, N.; Jacob, P.E.; Papaspiliopoulos, O. SMC
^{2}: An efficient algorithm for sequential analysis of state-Space models. J. R. Stat. Soc. B**2013**, 75, 397–426. [Google Scholar] [CrossRef][Green Version] - Drovandi, C.C.; McGree, J.; Pettitt, A.N. A sequential Monte Carlo algorithm to incorporate model uncertainty in Bayesian sequential design. J. Comput. Graph. Stat.
**2014**, 23, 3–24. [Google Scholar] [CrossRef][Green Version] - Martino, L.; Elvira, V.; Camps-Valls, G. Group importance sampling for particle filtering and MCMC. Digit. Signal Process.
**2018**, 82, 133–151. [Google Scholar] [CrossRef][Green Version] - Martino, L.; Elvira, V.; Camps-Valls, G. Distributed particle Metropolis-Hastings schemes. In Proceedings of the 2018 IEEE Statistical Signal Processing Workshop (SSP), Freiburg, Germany, 10–13 June 2018; pp. 553–557. [Google Scholar]
- Wu, Z.; Huang, N.E. A study of the characteristics of white noise using the empirical mode decomposition method. Proc. R. Soc. London A Math. Phys. Eng. Sci.
**2004**, 460, 1597–1611. [Google Scholar] [CrossRef] - Schlotthauer, G.; Torres, M.E.; Rufiner, H.L.; Flandrin, P. EMD of Gaussian white noise: Effects of signal length and sifting number on the statistical properties of Intrinsic Mode Functions. Adv. Adapt. Data Anal.
**2009**, 1, 517–527. [Google Scholar] [CrossRef][Green Version] - Tseng, C.Y.; Lee, H.C. Entropic interpretation of empirical mode decomposition and its applications in signal processing. Adv. Adapt. Data Anal.
**2010**, 2, 429–449. [Google Scholar] [CrossRef] - Sameni, R.; Shamsollahi, M.B.; Jutten, C.; Clifford, G.D. A nonlinear Bayesian filtering framework for ECG denoising. IEEE Trans. Bio Med. Eng.
**2007**, 54, 2172–2185. [Google Scholar] [CrossRef] [PubMed][Green Version] - Torres, M.E.; Colominas, M.A.; Schlotthauer, G.; Flandrin, P. A complete ensemble empirical mode decomposition with adaptive noise. In Proceedings of the IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Prague, Czech Republic, 22–27 May 2011; pp. 4144–4147. [Google Scholar]
- Adeli, H. Neural networks in civil engineering: 1989–2000. Comput. Aided Civ. Infrastruct. Eng. J.
**2001**, 16, 126–142. [Google Scholar] [CrossRef] - Nazarko, P.; Ziemianski, L. Application of artificial neural networks in the damage identification of structural elements. Comput. Assist. Mech. Eng. Sci.
**2011**, 18, 175–189. [Google Scholar] - Gordan, M.; Razak, H.A.; Ismail, Z.; Ghaedi, K. Recent Developments in Damage Identification of Structures Using Data Mining. Lat. Am. J. Solids Struct.
**2017**, 14, 2373–2401. [Google Scholar] [CrossRef] - Adeli, H.; Jiang, X. Dynamic Fuzzy Wavelet Neural Network Model for Structural System Identification. J. Struct. Eng.
**2006**, 132, 102–111. [Google Scholar] [CrossRef] - Qian, Y.; Mita, A. Acceleration-Based damage indicators for building structures using neural network emulators. Struct. Control Health Monit. J.
**2008**, 15, 901–920. [Google Scholar] [CrossRef] - Masri, S.F.; Nakamura, M.; Chassiakos, A.G.; Caughey, T.K. Neural network approach to detection of changes in structural parameters. J. Eng. Mech. ASCE
**1996**, 122, 350–360. [Google Scholar] [CrossRef] - Masri, S.F.; Smyth, A.W.; Chassiakos, A.G.; Caughey, T.K.; Hunter, N.F. Application of neural networks for detection of changes in nonlinear systems. J. Eng. Mech. ASCE
**2000**, 126, 666–676. [Google Scholar] [CrossRef] - Dackermann, U.; Smith, W.A.; Randall, R.B. Damage identification based on response-Only measurements using cepstrum analysis and artificial neural networks. Struct. Health Monit.
**2014**, 13, 430–444. [Google Scholar] [CrossRef] - Arangio, S.; Bontempi, F. Structural health monitoring of a cable-Stayed bridge with Bayesian neural networks. Struct. Infrastruct. Eng.
**2015**, 11, 575–587. [Google Scholar] [CrossRef] - Zang, C.; Friswell, M.I.; Imregun, M. Structural damage detection using independent component analysis. Struct. Health Monit.
**2004**, 3, 69–83. [Google Scholar] [CrossRef] - Yan, Y.J.; Cheng, L.; Wu, Z.Y.; Yam, L.H. Development in vibration based structural damage detection technique. Mech. Syst. Signal Process.
**2007**, 21, 2198–2211. [Google Scholar] [CrossRef] - Garcia-Perez, A.; Amezquita-Sanchez, J.P.; Dominguez-Gonzalez, A.; Sedaghati, R.; Osornio-Rios, R.; Romero-Troncoso, R.J. Fused empirical mode decomposition and wavelets for locating combined damage in a truss-Type structure through vibration analysis. J. Zhejiang Univ. Sci. A
**2013**, 14, 615–630. [Google Scholar] [CrossRef] - Xun, J.; Yan, S. A revised Hilbert–Huang transformation based on the neural networks and its application in vibration signal analysis of a deployable structure. Mech. Syst. Signal Process.
**2008**, 22, 1705–1723. [Google Scholar] [CrossRef] - Vazirizade, S.M.; Bakhshi, A.; Bahar, O. Online nonlinear structural damage detection using Hilbert Huang transform and artificial neural networks. Sci. Iran.
**2019**, 26, 1266–1279. [Google Scholar] [CrossRef][Green Version] - Timmermann, A.; Granger, C. Efficient market hypothesis and forecasting. Int. J. Forecast.
**2004**, 20, 15–27. [Google Scholar] [CrossRef] - Lai, K.K.; Yu, L.; Wang, S.; Huang, W. Hybridizing exponential smoothing and neural network for financial time series predication. In International Conference on Computational Science 2006; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
- Liu, H.; Zhou, J.; Zheng, Y.; Jiang, W.; Zhang, Y. Fault diagnosis of rolling bearings with recurrent neural network-Based autoencoders. ISA Trans.
**2018**, 77, 167–178. [Google Scholar] [CrossRef] - Gholipour, G.; Zhang, C.; Mousavi, A.A. Nonlinear numerical analysis and progressive damage assessment of a cable-Stayed bridge pier subjected to ship collision. Mar. Struct.
**2020**, 69, 102662. [Google Scholar] [CrossRef] - Zhang, C. Control force characteristics of different control strategies for the wind-excited 76-story benchmark building structure. Adv. Struct. Eng.
**2014**, 17, 543–560. [Google Scholar] [CrossRef] - Gao, Y.; Spencer, B.F., Jr. Experimental verification of a distributed computing strategy for structural health monitoring. Smart Struct. Syst.
**2007**, 3, 455–474. [Google Scholar] [CrossRef]

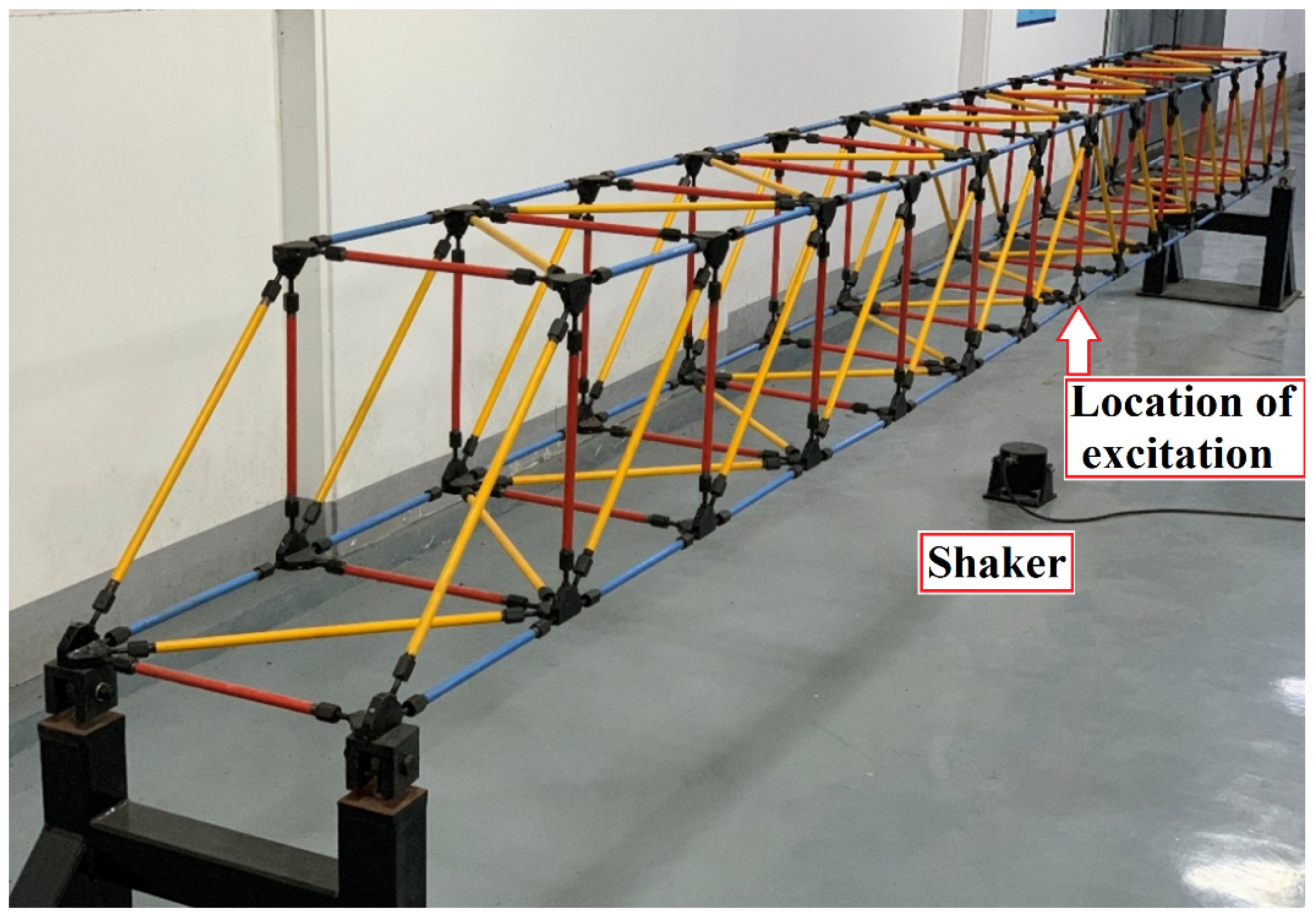

**Figure 1.**A perspective view of the steel truss bridge model as the case study in the present work established in the Qingdao University of Technology (QUT) laboratory.

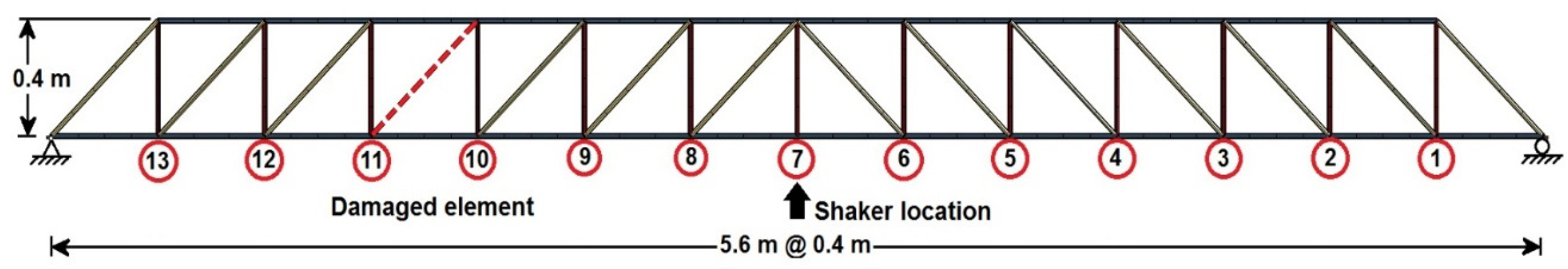

**Figure 3.**A schematic view of the truss bridge model by showing the uniform distribution of the locations of sensors, and the location of the damaged element.

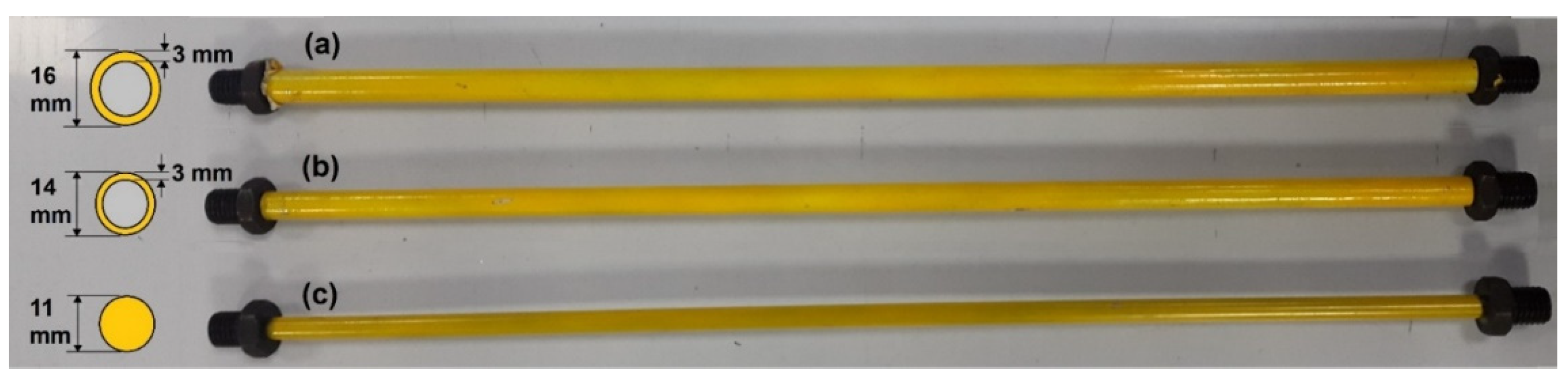

**Figure 4.**Details of the damaged elements with; (

**a**) 20%, (

**b**) 50%, and (

**c**) 80% reduced percentages of the cross-section stiffness.

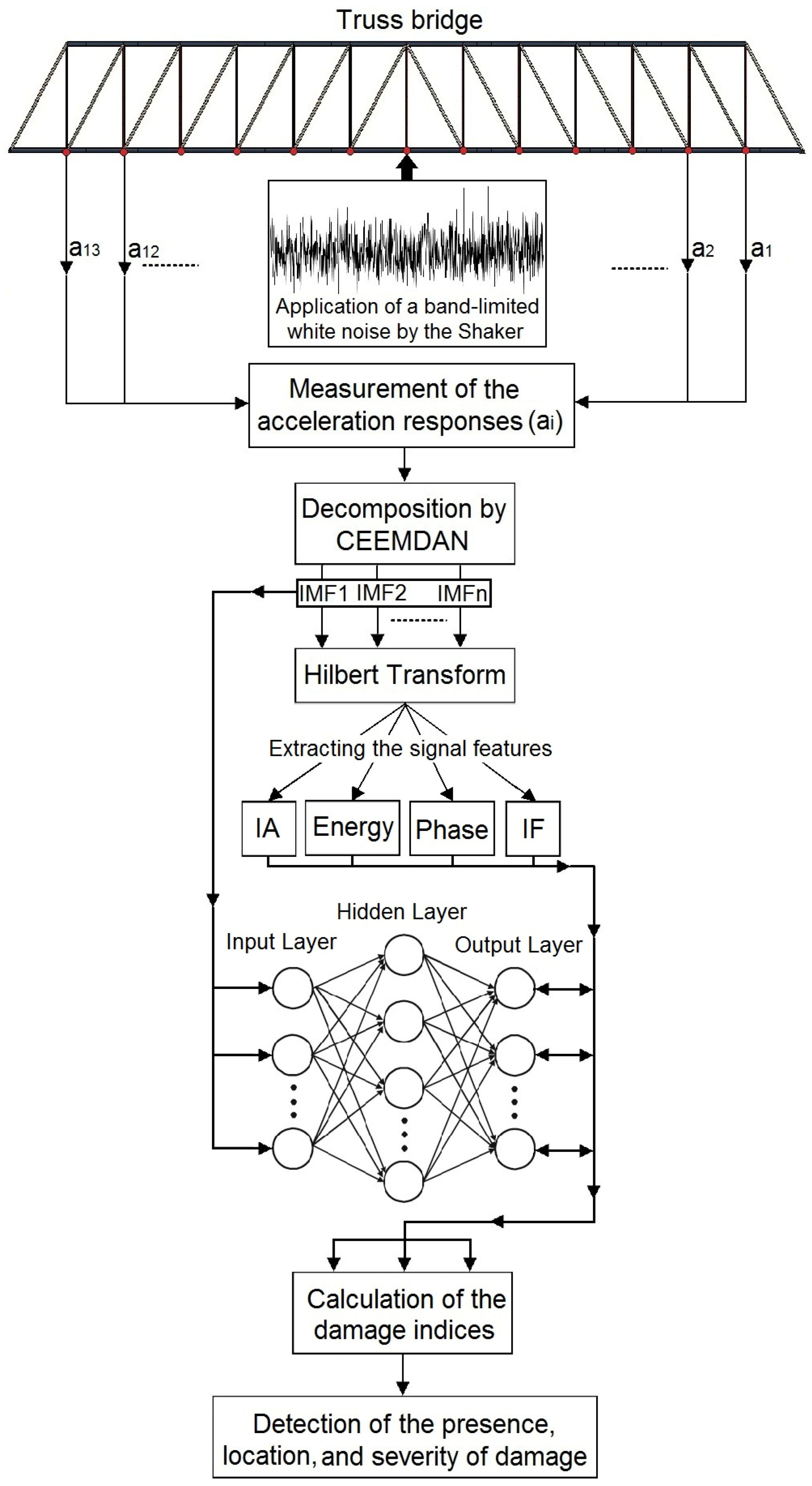

**Figure 5.**The framework flowchart of the proposed CEEMDAN-HT-ANN model to detect, locate, and classify the severity of the damage.

**Figure 6.**(

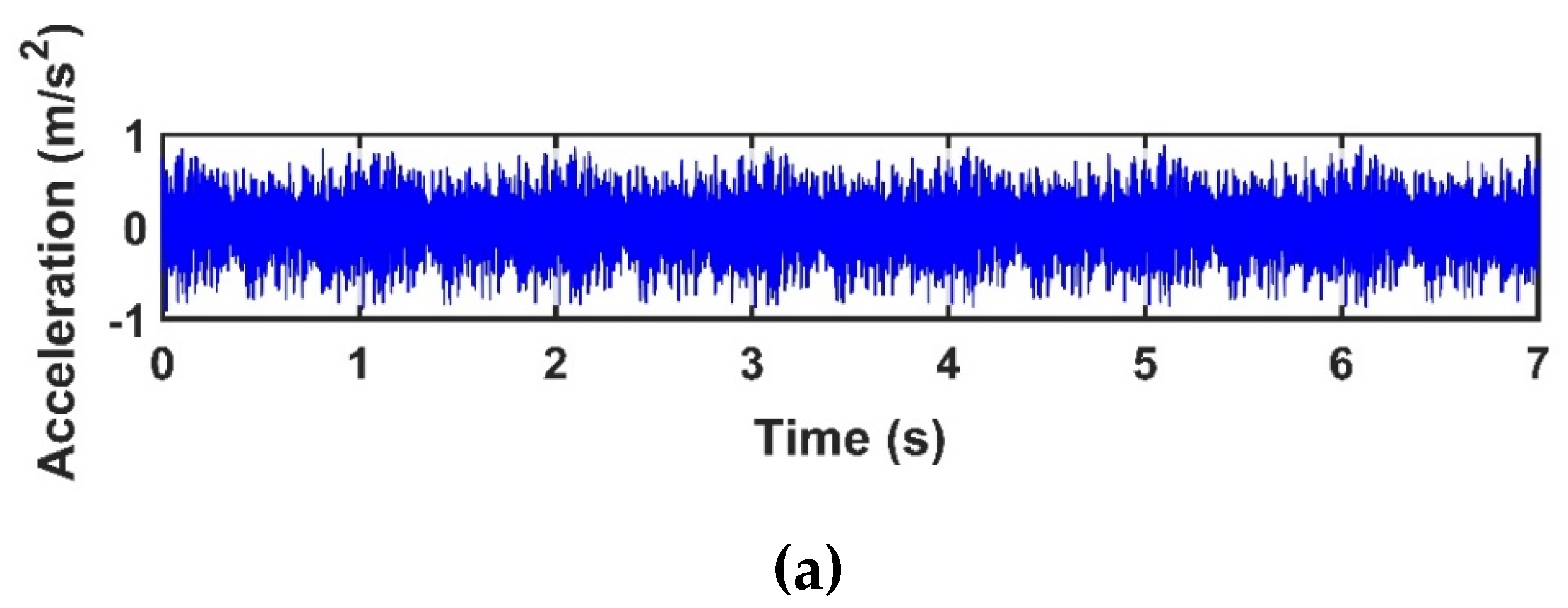

**a**) acceleration response of sensor-10 for a healthy state of the bridge; (

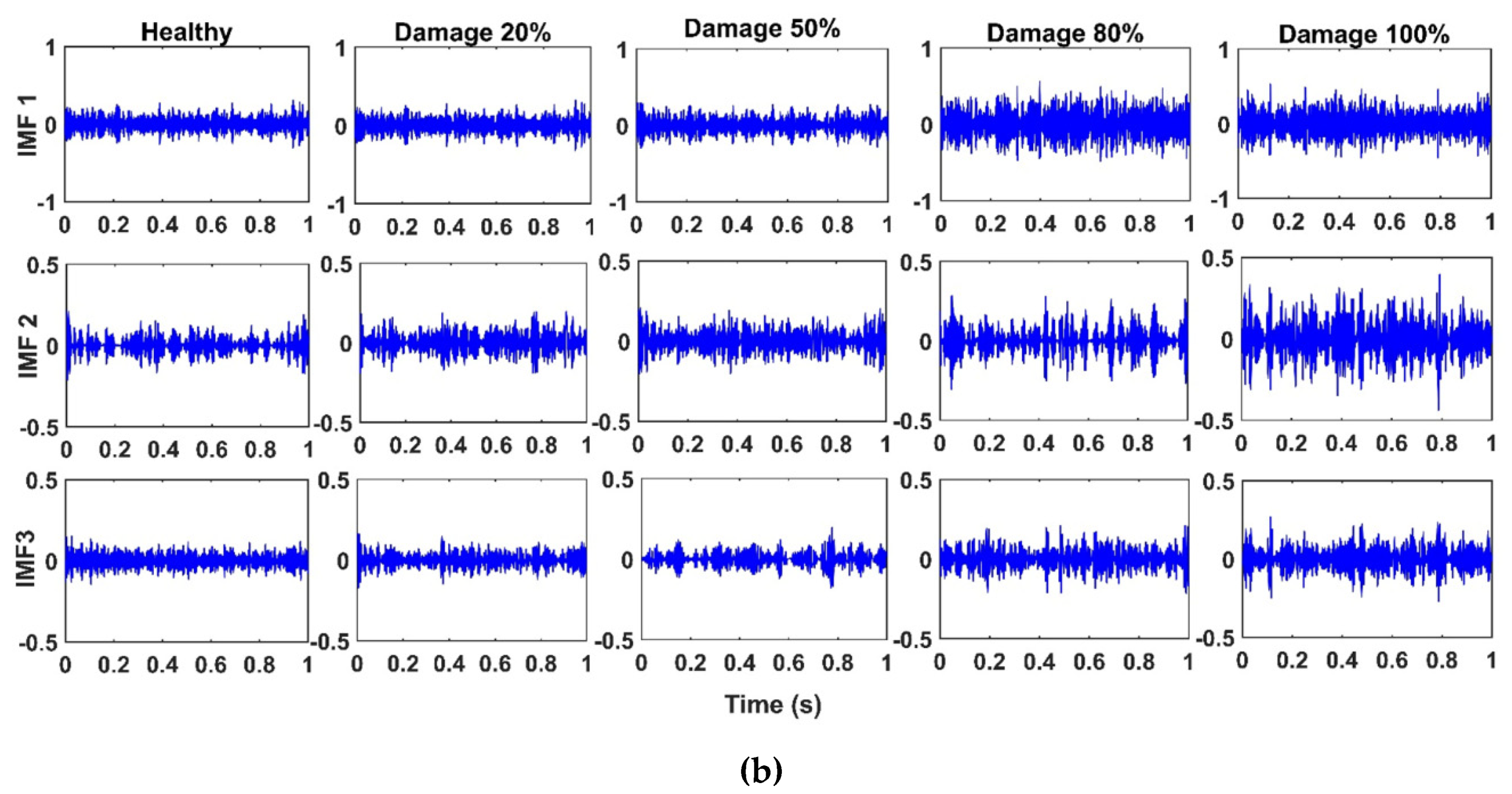

**b**) the first three intrinsic mode functions (IMFs) extracted by the CEEMDAN for sensor-10 for the healthy state and different damage levels.

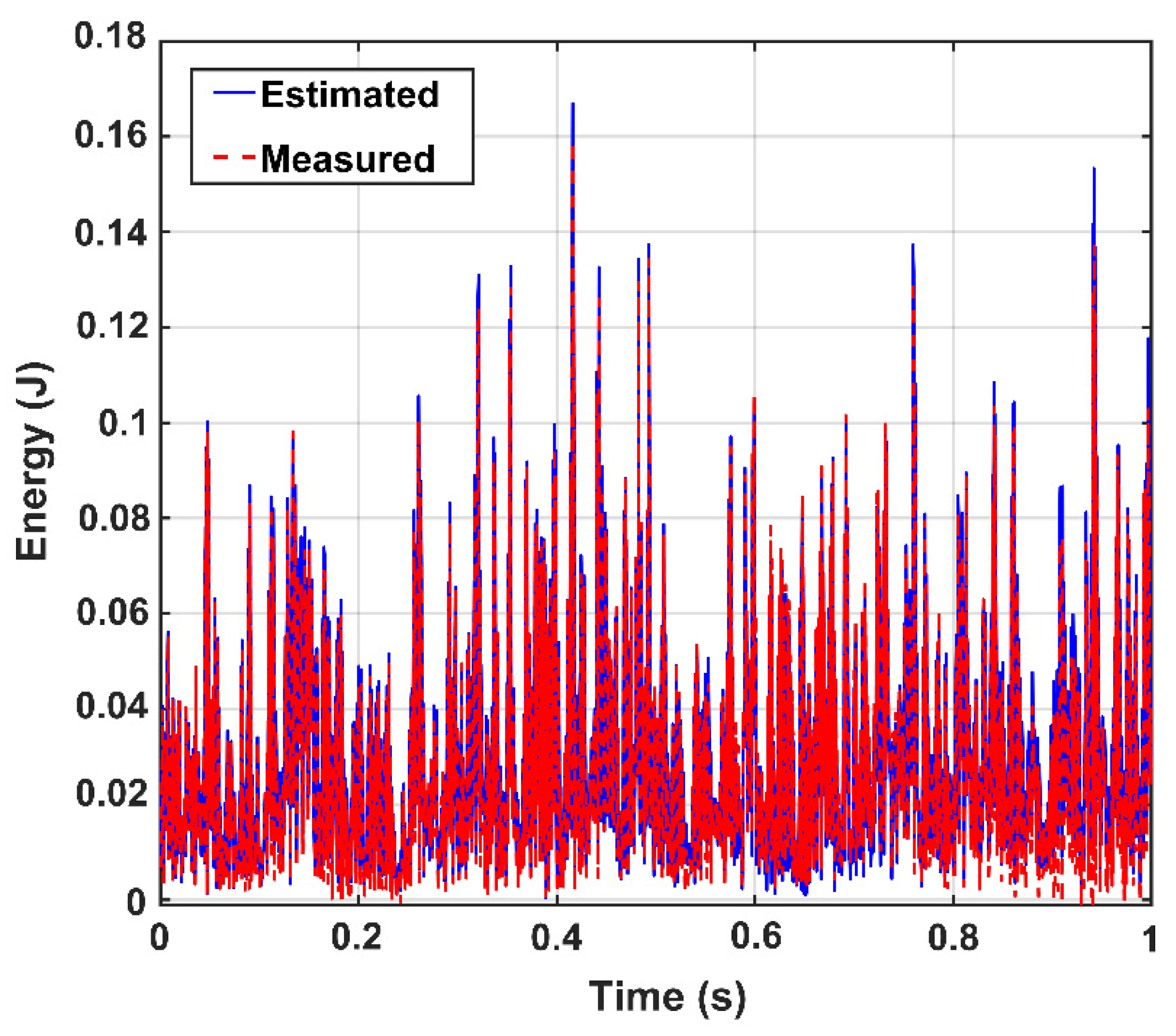

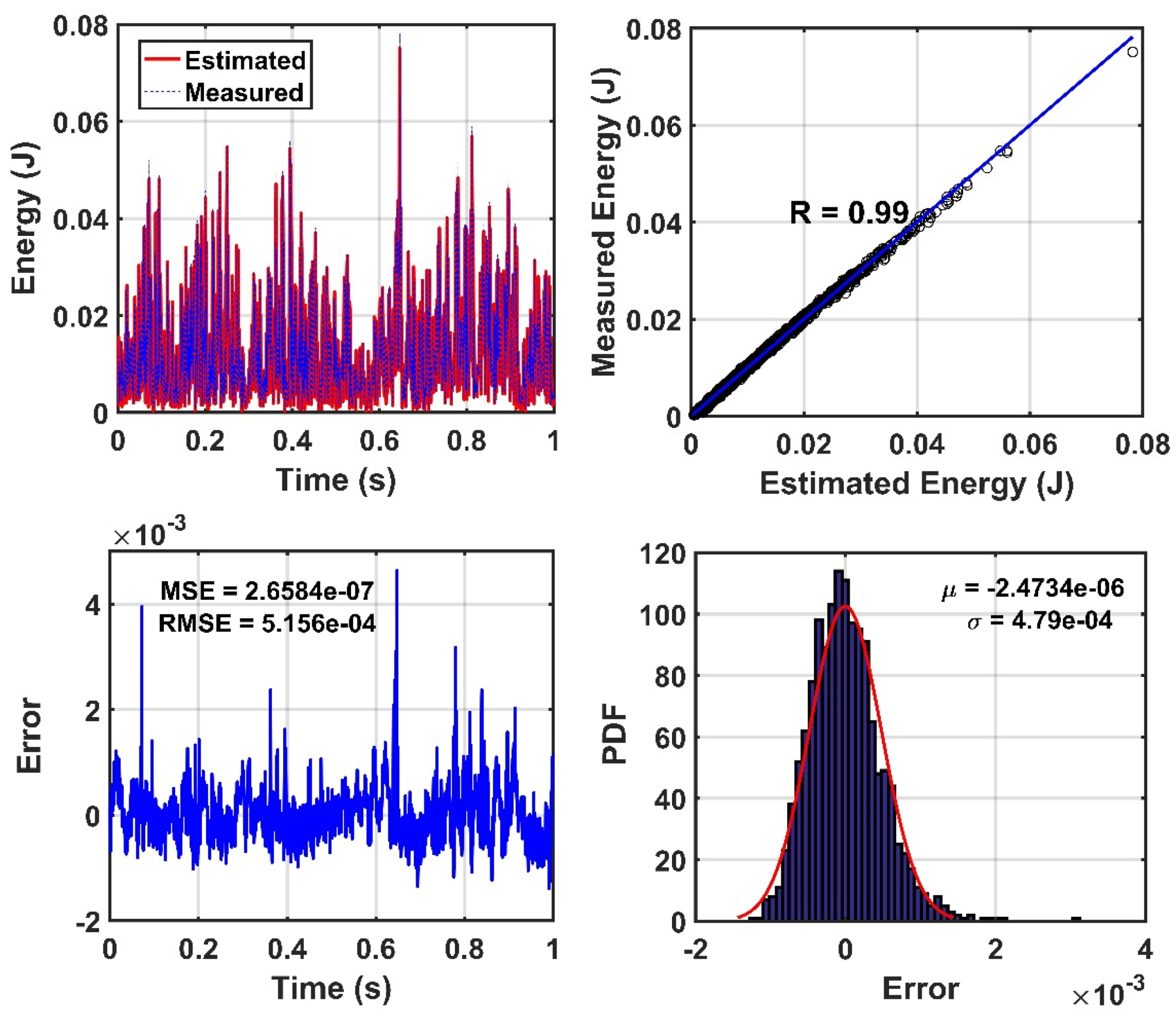

**Figure 7.**Evaluation of the accuracy performance of training the Artificial Neural Network (ANN) based on the energy parameter of sensor-10 for the healthy state of the truss. (where R, µ, σ, MSE, and RMSE denotes the value of regression, mean, standard division, mean square error, and root mean square error, respectively).

**Figure 8.**Comparison of the IMFs’ energy of sensor-10 between the outputs of the trained model (i.e., estimated) and the measured data for 100% damage state of the truss.

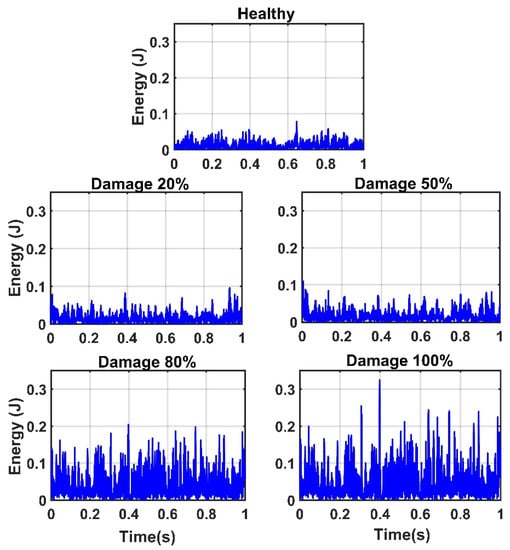

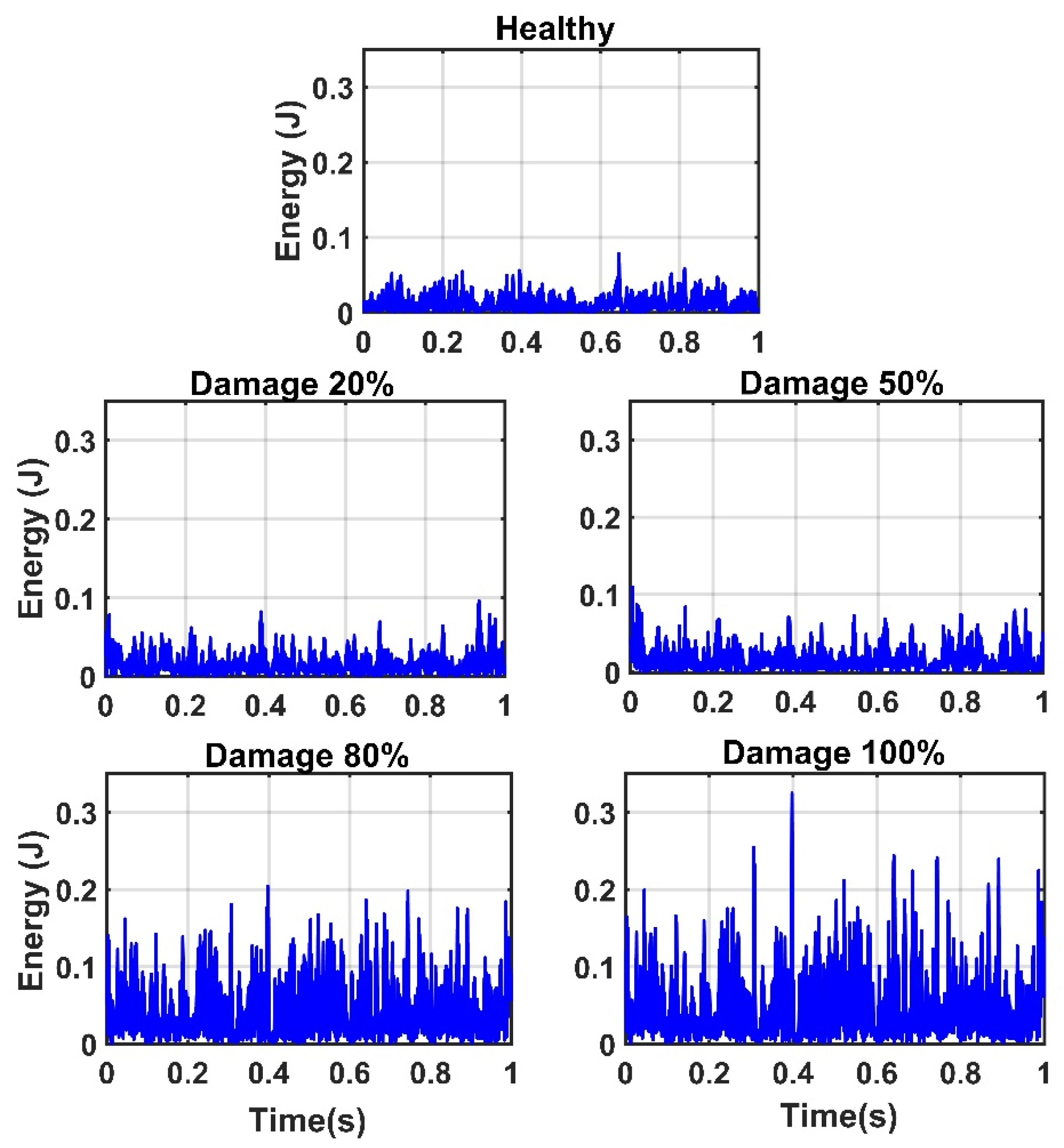

**Figure 9.**The energy of IMFs of the sensor-10 estimated by the proposed model for the healthy state and different damage levels of the truss.

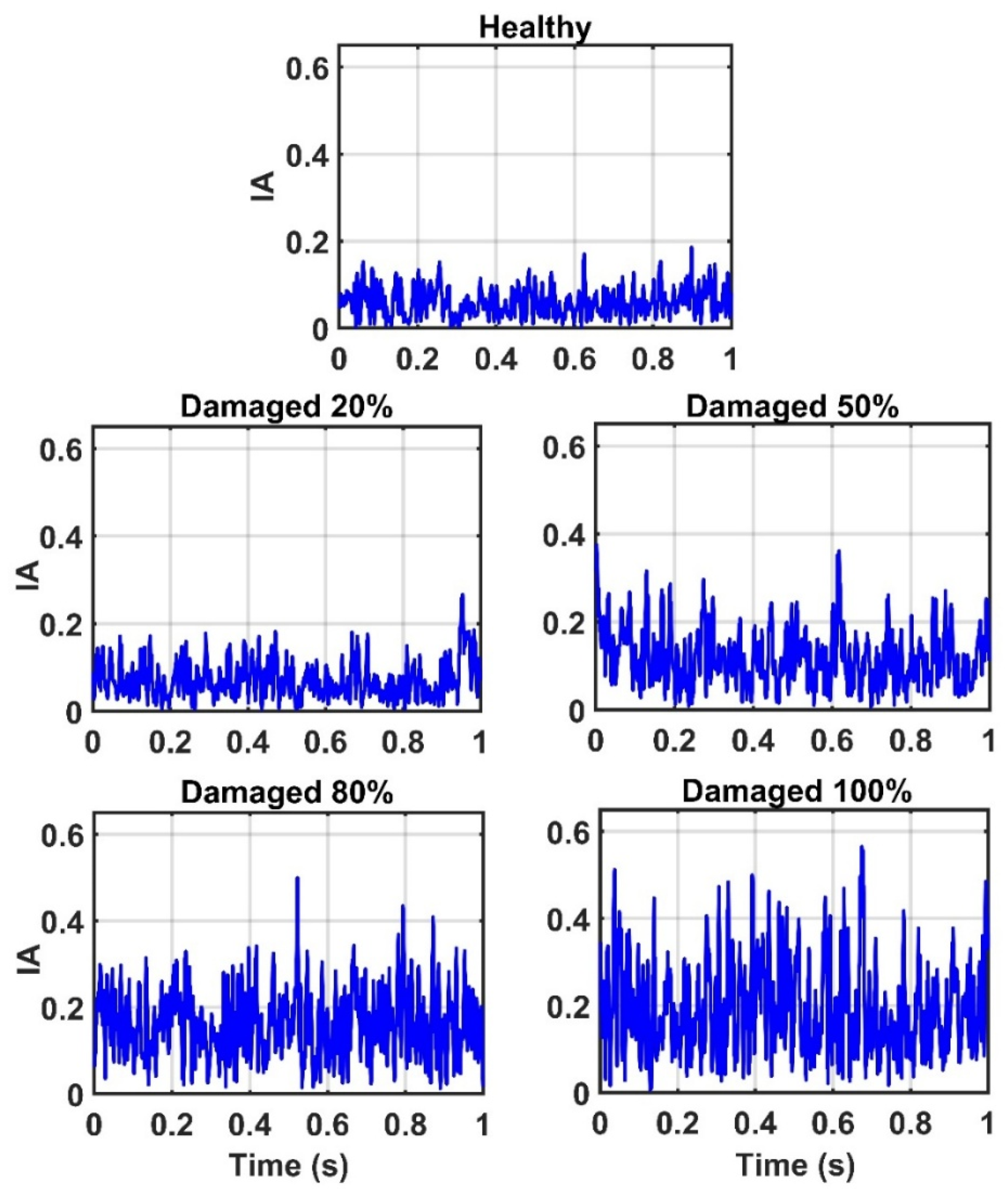

**Figure 10.**The estimated instantaneous amplitude (IA) of the sensor-10 by the proposed model for the healthy state and different damage levels of the truss.

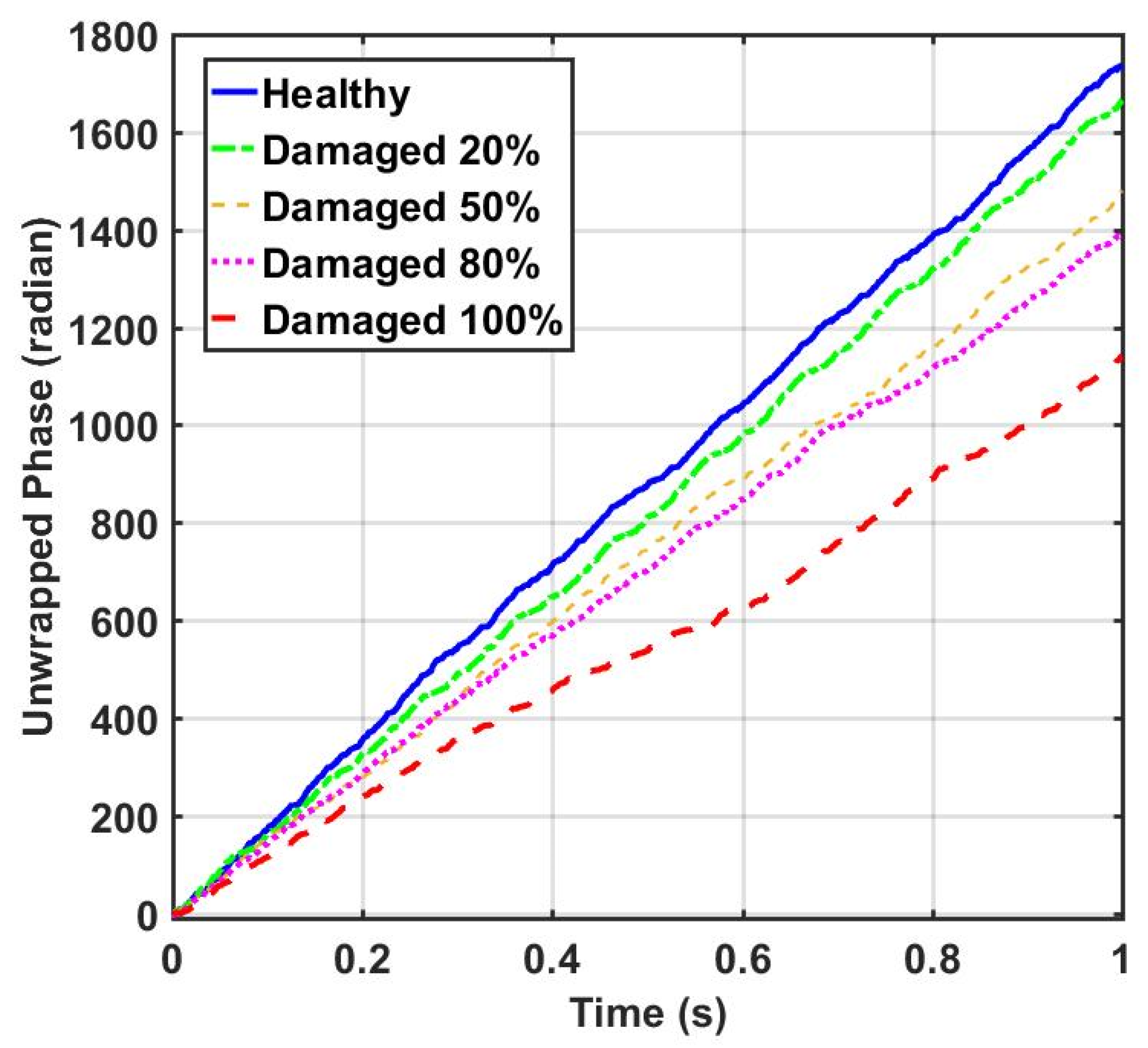

**Figure 11.**Comparison of the IMFs’ unwrapped phase of acceleration responses of sensor-10 estimated by the proposed model for the healthy and different damage levels the truss.

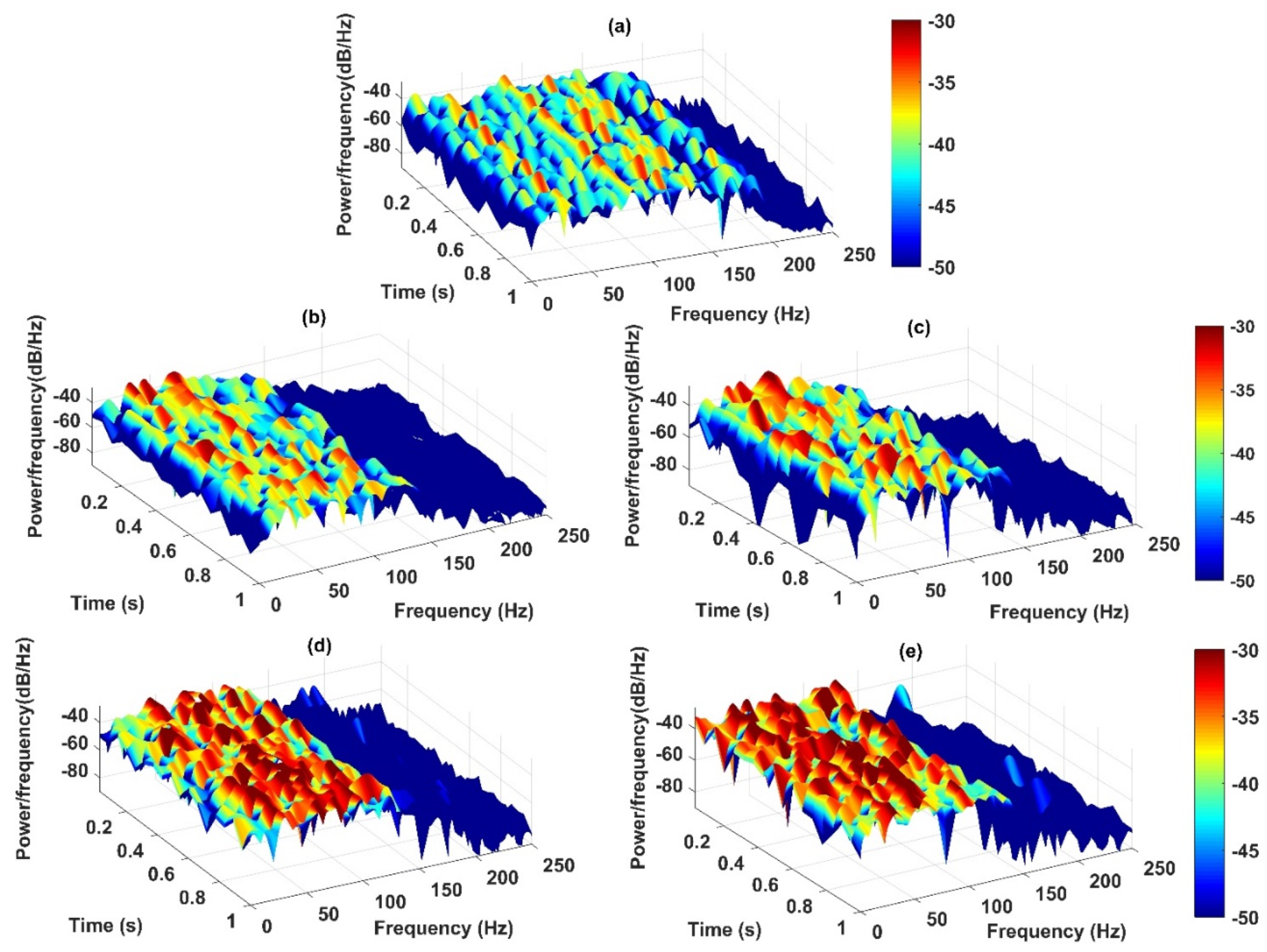

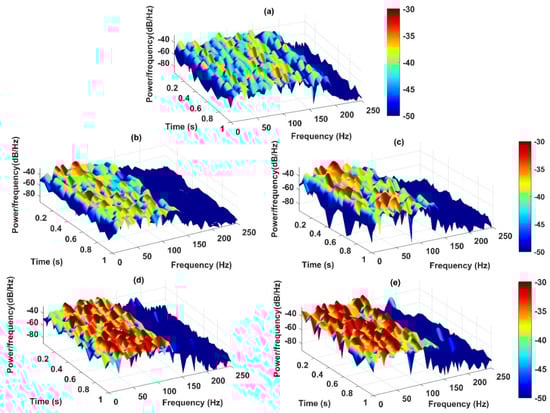

**Figure 12.**Spectrograms output of the IMFs of sensor-10 under five states of the structure including; (

**a**) healthy; (

**b**) 20% damage; (

**c**) 50% damage; (

**d**) 80% damage; and (

**e**) 100% damage by the CEEMDAN-HT-ANN model.

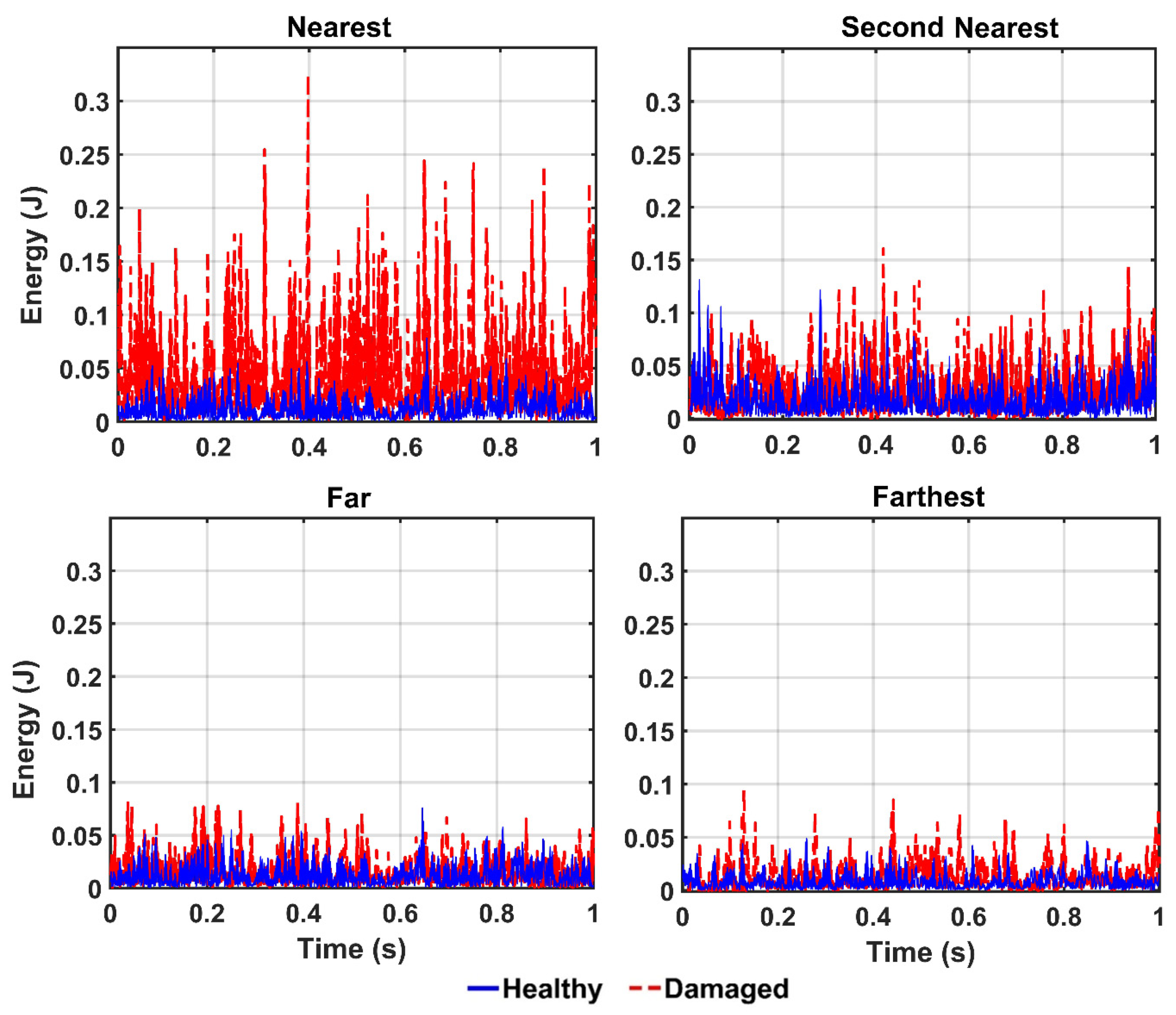

**Figure 13.**The energy output of the IMFs for different sensor locations from the damaged element by the proposed model.

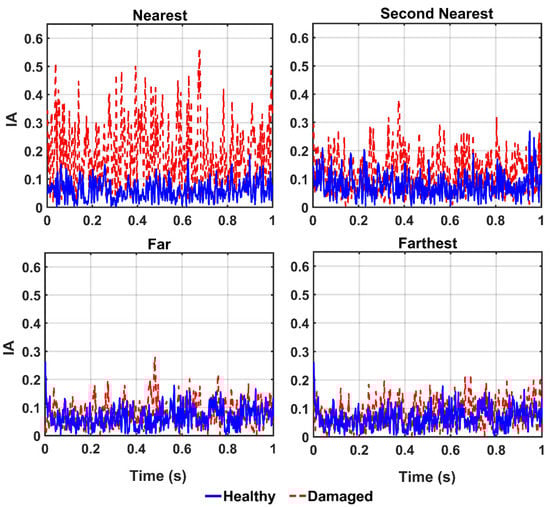

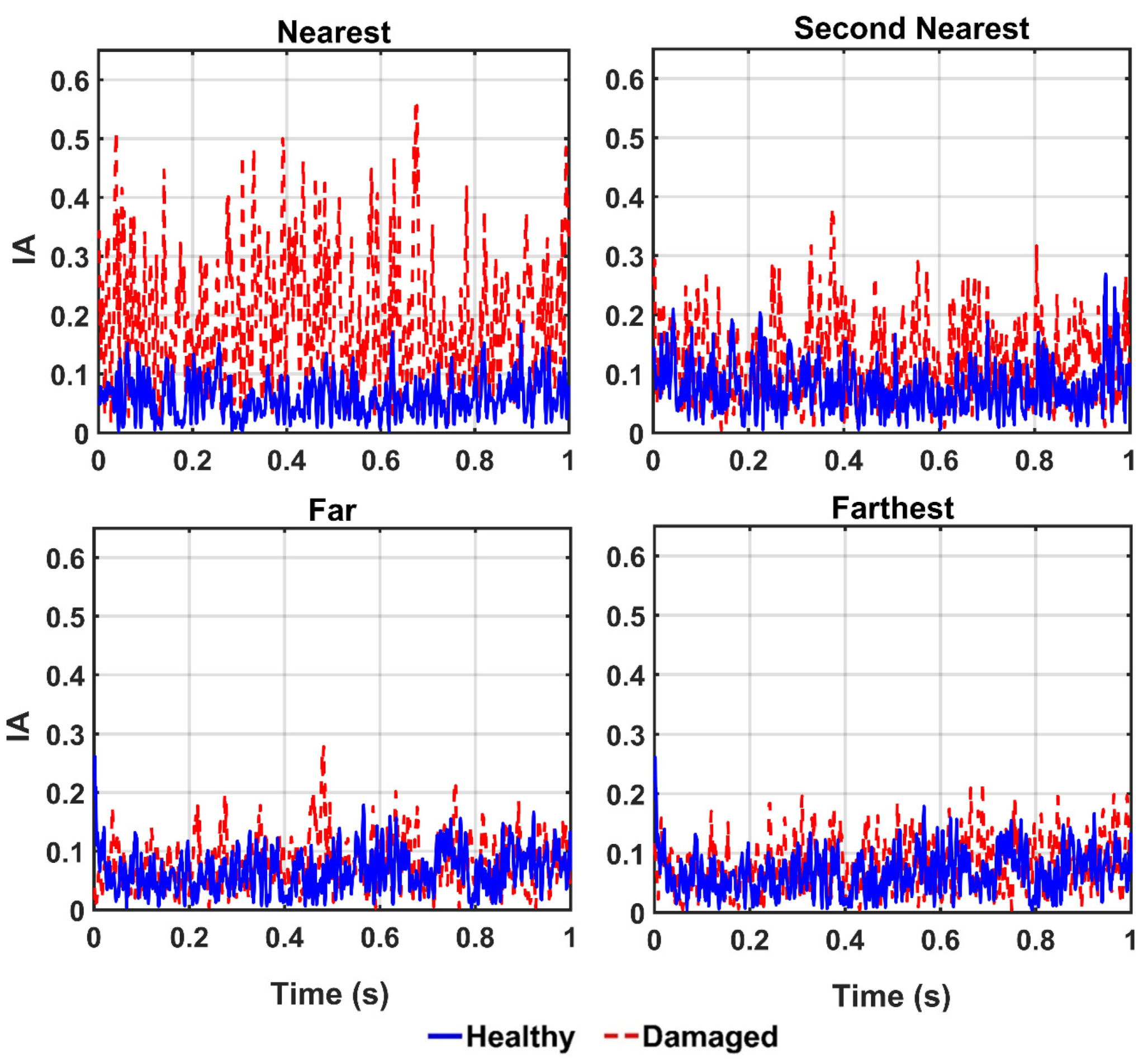

**Figure 14.**The IA output of the IMFs for different locations from the damaged element by the proposed model.

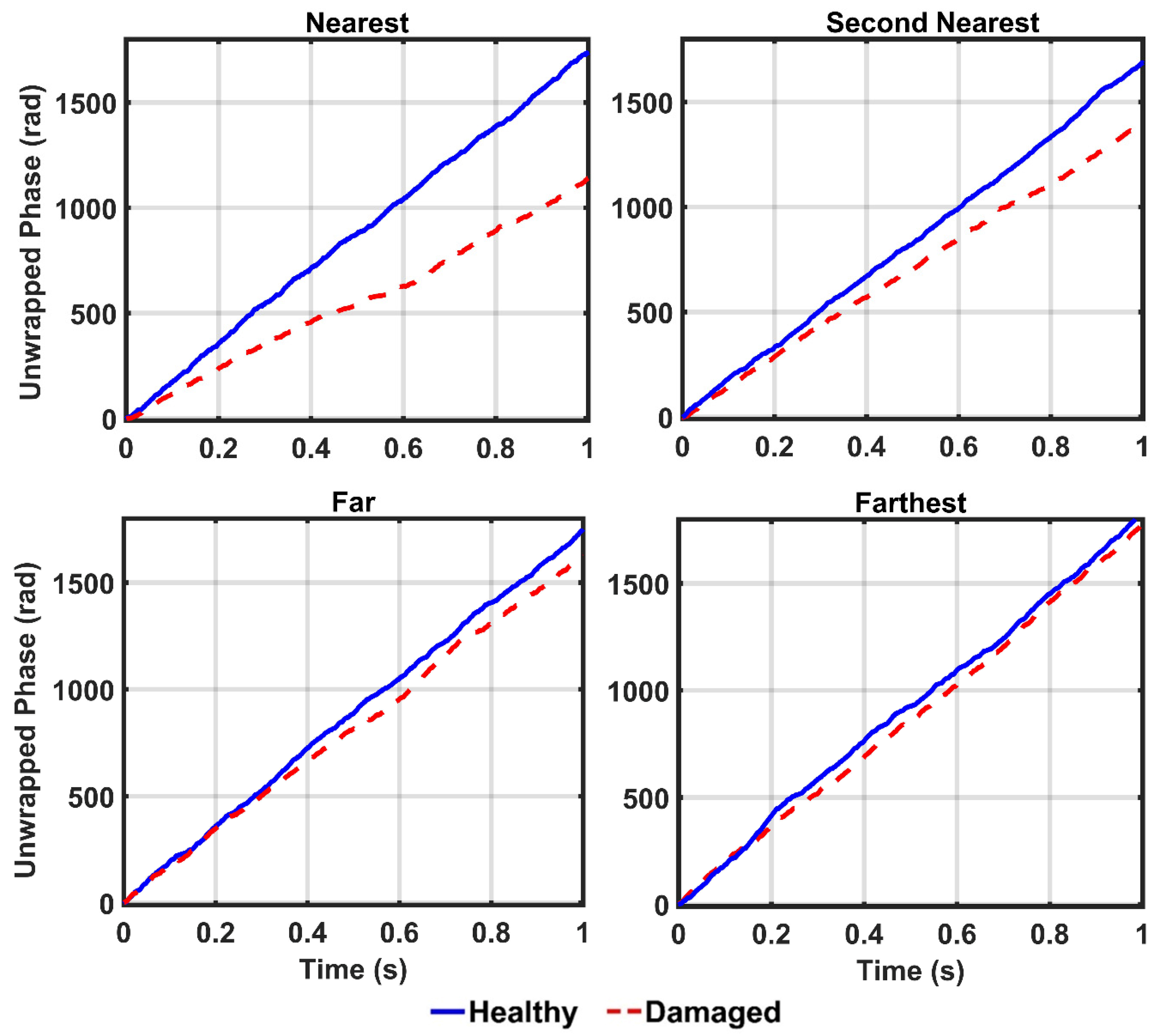

**Figure 15.**Comparison of the IMFs’ unwrapped phase outputs of the acceleration responses by the proposed model for different sensor locations from the damaged element.

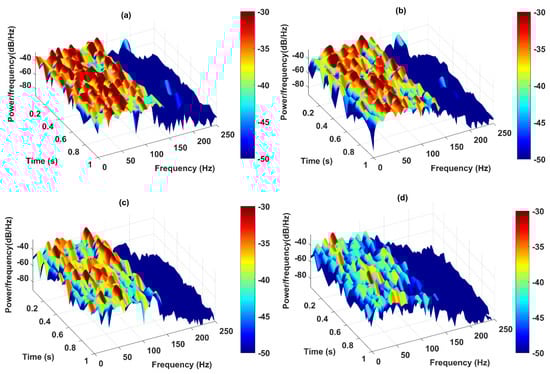

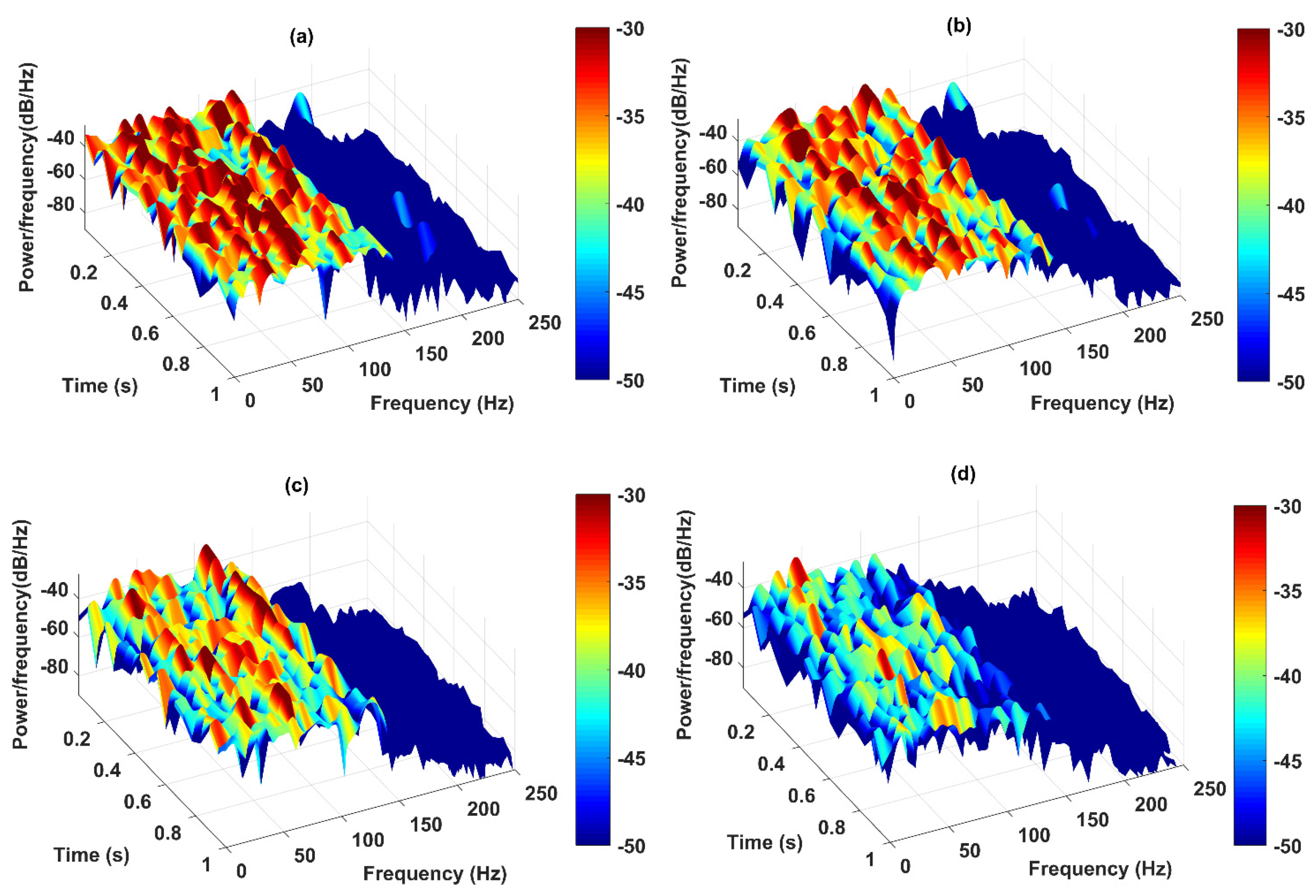

**Figure 16.**Spectrograms output of the IMFs for different locations of (
