# Real-Time PPP-RTK Performance Analysis Using Ionospheric Corrections from Multi-Scale Network Configurations

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Methodology

#### 2.1. GNSS Observation Equations

#### 2.2. PPP-RTK Network

#### 2.3. Prediction of Ionospheric Corrections

#### 2.4. PPP-RTK User

#### 2.4.1. Ionosphere-Float Model

#### 2.4.2. Ionosphere-Weighted Model

## 3. Results and Analysis

#### 3.1. Data and Processing Strategy

#### 3.2. PPP-RTK Network Corrections

#### 3.3. Real-Time PPP-RTK Performance

#### 3.3.1. Convergence Time

#### 3.3.2. Positioning Accuracy

## 4. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Wübbena, G.; Schmitz, M.; Bagge, A. PPP-RTK: Precise Point Positioning Using State-Space Representation in RTK networks. In Proceedings of the 18th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS 2005), Long Beach, CA, USA, 13–16 September 2005; pp. 2584–2594. [Google Scholar]
- Zumberge, J.; Heflin, M.; Jefferson, D.; Watkins, M.; Webb, F. Precise point positioning for the efficient and robust analysis of GPS data from large networks. J. Geophys. Res.
**1997**, 102, 5005–5017. [Google Scholar] [CrossRef] [Green Version] - Kouba, J.; Heroux, P. Precise Point Positioning Using IGS Orbit and Clock Products. GPS Solut.
**2001**, 5, 12–28. [Google Scholar] [CrossRef] - Bisnath, S.; Gao, Y. Current State of Precise Point Positioning, Future Prospects and Limitations. In Observing our Changing Earth; Sideris, M., Ed.; Springer: Berlin/Heidelberg, Germany, 2009. [Google Scholar]
- Leandro, R.; Landau, H.; Nitschke, M.; Glocker, M.; Seeger, S.; Chen, X.; Deking, A.; BenTahar, M.; Zhang, F.; Ferguson, K.; et al. RTX Positioning: The Next Generation of cm-accurate Real-time GNSS Positioning. In Proceedings of the 24th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS 2011), Portland, OR, USA, 20–23 September 2011; pp. 1460–1475. [Google Scholar]
- Banville, S.; Collins, P.; Zhang, W.; Langley, R.B. Global and Regional Ionospheric Corrections for Faster PPP Convergence. Navigation
**2014**, 61, 115–124. [Google Scholar] [CrossRef] - Ge, M.; Gendt, G.; Rothacher, M.; Shi, C.; Liu, J. Resolution of GPS carrier-phase ambiguities in Precise Point Positioning (PPP) with daily observations. J. Geod.
**2005**, 82, 389–399. [Google Scholar] [CrossRef] - Collins, P. Isolating and Estimating Undifferenced GPS Integer Ambiguities. In Proceedings of the 2008 National Technical Meeting of The Institute of Navigation (ION ITM 2008), San Diego, CA, USA, 28–30 January 2008; pp. 720–732. [Google Scholar]
- Mervart, L.; Lukes, Z.; Rocken, C.; Iwabuchi, T. Precise Point Positioning with Ambiguity Resolution in Real-Time. In Proceedings of the 21st International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GNSS 2008), Savannah, GA, USA, 16–19 September 2008; pp. 397–405. [Google Scholar]
- Laurichesse, D.; Mercier, F.; Berthias, J.; Broca, P.; Cerri, L. Integer Ambiguity Resolution on Undifferenced GPS Phase Measurements and its Applications to PPP and Satellite Precise Orbit Determination. Navigation
**2009**, 56, 135–149. [Google Scholar] [CrossRef] - Teunissen, P.J.G.; Odijk, D.; Zhang, B. PPP-RTK: Results of CORS network-based PPP with integer ambiguity resolution. J. Aeronaut. Astronaut. Aviat.
**2010**, 42, 223–230. [Google Scholar] - Geng, J.; Shi, C.; Ge, M.; Dodson, A.; Lou, Y.; Zhao, Q.; Liu, J. Improving the estimation of fractional-cycle biases for ambiguity resolution in precise point positioning. J. Geod.
**2012**, 86, 579–589. [Google Scholar] [CrossRef] - Odijk, D.; Khodabandeh, A.; Nadarajah, N.; Choudhury, M.; Zhang, B.; Li, W.; Teunissen, P.J.G. PPP-RTK by means of S-system theory: Australian network and user demonstration. J. Spat. Sci.
**2017**, 62, 3–27. [Google Scholar] [CrossRef] [Green Version] - Goad, C. Precise relative position determination using global positioning system carrier phase measurements in nondifference mode. In Proceedings of the 1st international symposium on precise positioning with GPS, Rockville, MD, USA, 15–19 April 1985; pp. 347–356. [Google Scholar]
- Teunissen, P.J.G. The least-squares ambiguity decorrelation adjustment: A method for fast GPS integer ambiguity estimation. J. Geod.
**1995**, 70, 65–82. [Google Scholar] [CrossRef] - De Jonge, P. A Processing Strategy for the Application of the GPS in Networks; Publications on Geodesy 46; Geodetic Commission: Delft, The Netherlands, 1998. [Google Scholar]
- Schönemann, E.; Becker, M.; Springer, T. A new approach for GNSS analysis in a multi-GNSS and multi-signal environment. J. Geod. Sci.
**2011**, 1, 204–214. [Google Scholar] [CrossRef] [Green Version] - Nadarajah, N.; Khodabandeh, A.; Wang, K.; Choudhury, M.; Teunissen, P.J.G. Multi-GNSS PPP-RTK: From Large- to Small-Scale Networks. Sensors
**2018**, 18, 1078. [Google Scholar] - Li, X.; Liu, G.; Li, X.; Zhou, F.; Feng, G.; Yuan, Y.; Zhang, K. Galileo PPP rapid ambiguity resolution with five-frequency observations. GPS Solut.
**2020**, 24, 24. [Google Scholar] [CrossRef] - Zhang, B.; Teunissen, P.J.G.; Odijk, D. A Novel Un-differenced PPP-RTK Concept. J. Navig.
**2011**, 64, S180–S191. [Google Scholar] - Li, X.; Zhang, X.; Ge, M. Regional reference network augmented precise point positioning for instantaneous ambiguity resolution. J. Geod.
**2011**, 85, 151–158. [Google Scholar] [CrossRef] - Li, X.; Zhang, X.; Guo, G. Predicting atmospheric delays for rapid ambiguity resolution in precise point positioning. Adv. Space Res.
**2014**, 54, 840–850. [Google Scholar] [CrossRef] - Wang, K.; Khodabandeh, A.; Teunissen, P.J.G. A study on predicting network corrections in PPP-RTK processing. Adv. Space Res.
**2017**, 60, 1463–1477. [Google Scholar] [CrossRef] [Green Version] - Zhang, B.; Chen, Y.; Yuan, Y. PPP-RTK based on undifferenced and uncombined observations: Theoretical and practical aspects. J. Geod.
**2019**, 93, 1011–1024. [Google Scholar] - Teunissen, P.J.G.; Kleusberg, A. GPS for Geodesy, 2nd ed.; Springer: Berlin/Heidelberg, Germany, 1998. [Google Scholar]
- Teunissen, P.J.G.; Montenbruck, O. Springer Handbook of Global Navigation Satellite Systems, 1st ed.; Springer International Publishing: Cham, Switzerland, 2017. [Google Scholar]
- Baarda, W. S-Transformations and Criterion Matrices; Publications on Geodesy 18; Geodetic Commission: Delft, The Netherlands, 1973. [Google Scholar]
- Teunissen, P.J.G. Zero Order Design: Generalized Inverses, Adjustment, the Datum Problem and S-transformation. In Optimization and Design of Geodetic Networks; Grafarend, E.W., Sanso, F., Eds.; Springer: Berlin/Heidelberg, Germany, 1985. [Google Scholar]
- Odijk, D.; Zhang, B.; Khodabandeh, A.; Odolinski, R.; Teunissen, P.J.G. On the estimability of parameters in undifferenced, uncombined GNSS network and PPP-RTK user models by means of S-system theory. J. Geod.
**2016**, 90, 15–44. [Google Scholar] - Schaffrin, B.; Bock, Y. A unified scheme for processing GPS dual-band observations. Bull. Geod.
**1988**, 62, 142–160. [Google Scholar] - Dai, L.; Han, S.; Wang, J.; Rizos, C. Comparison of interpolation algorithms in network-based GPS techniques. Navigation
**2003**, 50, 277–293. [Google Scholar] - Teunissen, P.J.G. Least-squares prediction in linear models with integer unknowns. J. Geod.
**2007**, 81, 565–579. [Google Scholar] - Moritz, H. Least-squares collocation. Rev. Geophys. Space Phys.
**1978**, 16, 421–430. [Google Scholar] [CrossRef] - Moritz, H. Covariance Functions in Least-Squares Collocation; Reports of the Department of Geodetic Science, Report No. 240; The Ohio State University, Department of Geodetic Science: Columbus, OH, USA, 1976. [Google Scholar]
- Goldberger, A. Best linear unbiased prediction in the generalized linear regression model. J. Am. Stat. Assoc.
**1962**, 57, 369–375. [Google Scholar] [CrossRef] - Odijk, D. Weighting ionospheric corrections to improve fast GPS positioning over medium distances. In Proceedings of the 13th International Technical Meeting of the Satellite Division of The Institute of Navigation (ION GPS 2000), Salta Lake City, UT, USA, 19–22 September 2000; pp. 1113–1123. [Google Scholar]
- Bock, Y.; Gourevitch, S.; Counselman, C.; King, R.; Abbot, R. Interferometric analysis of GPS phase observations. Manuscripta Geod.
**1986**, 11, 282–288. [Google Scholar] - GeoForschungsZentrum—Geomagnetic Kp Index. Available online: Https://www.gfz-potsdam.de/en/kp-index/ (accessed on 25 October 2019).
- Zhang, B.; Teunissen, P.J.G. Characterization of multi-GNSS between-receiver differential code biases using zero and short baselines. Sci. Bull.
**2015**, 60, 1840–1849. [Google Scholar] [CrossRef] [Green Version] - Zha, J.; Zhang, B.; Yuan, Y.; Zhang, X.; Li, M. Use of modified carrier-to-code leveling to analyze temperature dependence of multi-GNSS receiver DCB and to retrieve ionospheric TEC. GPS Solut.
**2019**, 23, 103. [Google Scholar] - Li, B.; Shen, Y.; Xu, P. Assessment of stochastic models for GPS measurements with different types of receivers. Chin. Sci. Bull.
**2008**, 53, 3219–3225. [Google Scholar] - Teunissen, P.J.G.; Joosten, P.; Tiberius, C. Geometry-free ambiguity success rates in case of partial fixing. In Proceedings of the 1999 National Technical Meeting of The Institute of Navigation, San Diego, CA, USA, 25–27 January 1999; pp. 201–207. [Google Scholar]
- Teunissen, P.J.G. Least-squares estimation of the integer GPS ambiguities. In Proceedings of the Invited Lecture, Section IV Theory and Methodology, IAG General Meeting, Beijing, China, August 1993. [Google Scholar]
- Teunissen, P.J.G. On the GPS widelane and its decorrelating property. J. Geod.
**1997**, 71, 577–587. [Google Scholar] - Teunissen, P.J.G.; Verhagen, S. The GNSS ambiguity ratio-test revisited: A better way of using it. Surv. Rev.
**2009**, 41, 138–151. [Google Scholar] - Wang, K.; Khodabandeh, A.; Teunissen, P.J.G. Five-frequency Galileo long-baseline ambiguity resolution with multipath mitigation. GPS Solut.
**2018**, 22, 75. [Google Scholar]

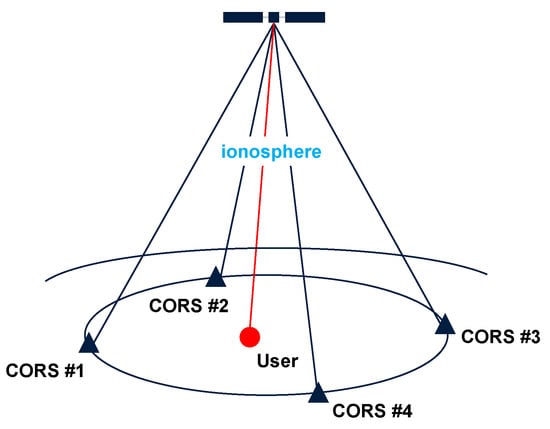

**Figure 1.**Schematic principle of the satellite-by-satellite approach used in predicting user-specific slant ionospheric corrections per satellite and per epoch.

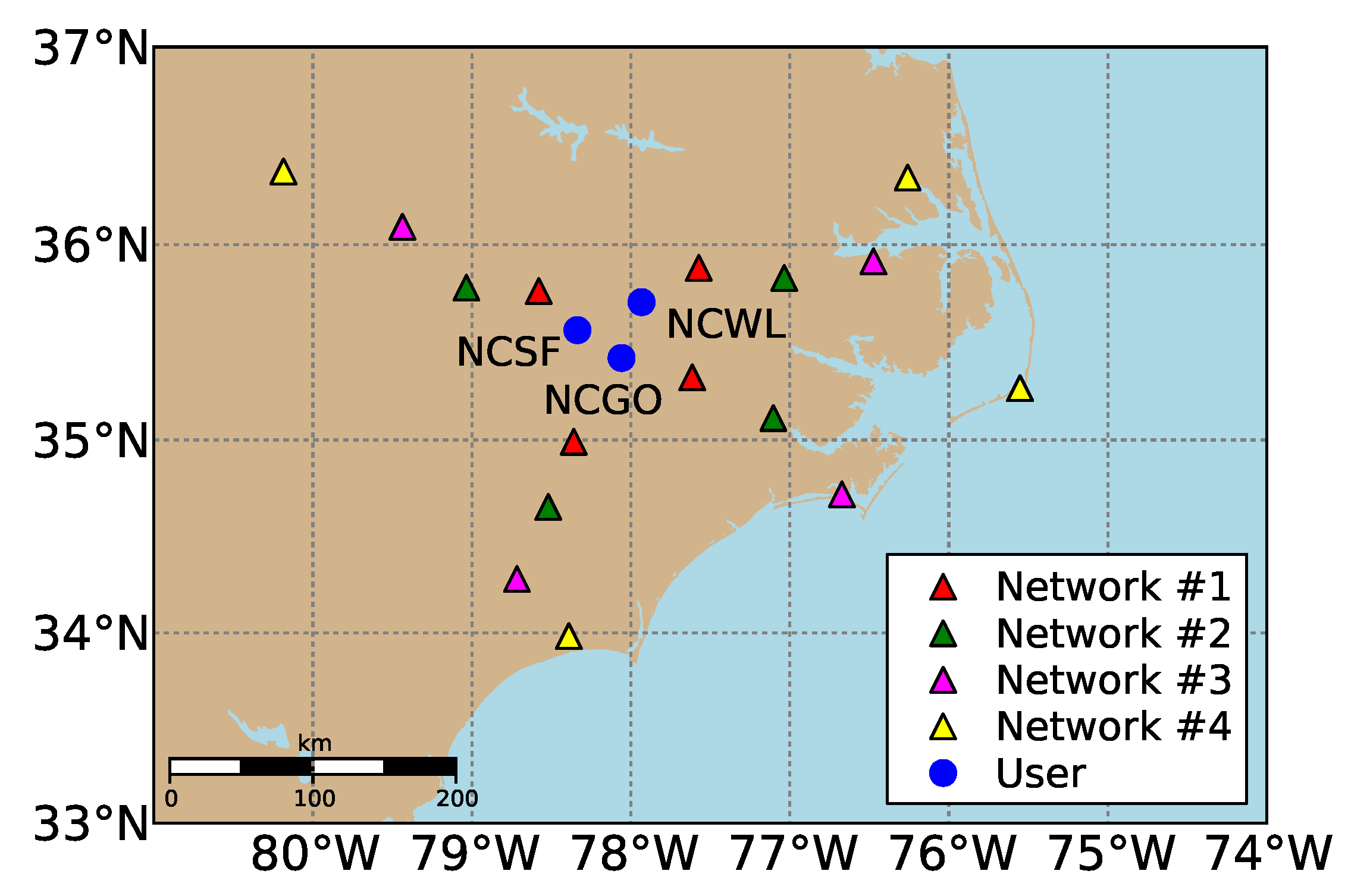

**Figure 2.**Geographic distribution of the selected CORS receivers in North Carolina used for the PPP-RTK network and user processing. The network receivers are classified in groups of four to form networks of varying inter-station distance and are denoted by red, green, magenta and yellow triangles in ascending order by distance. The remaining three receivers, denoted by blue dots, represent the user stations.

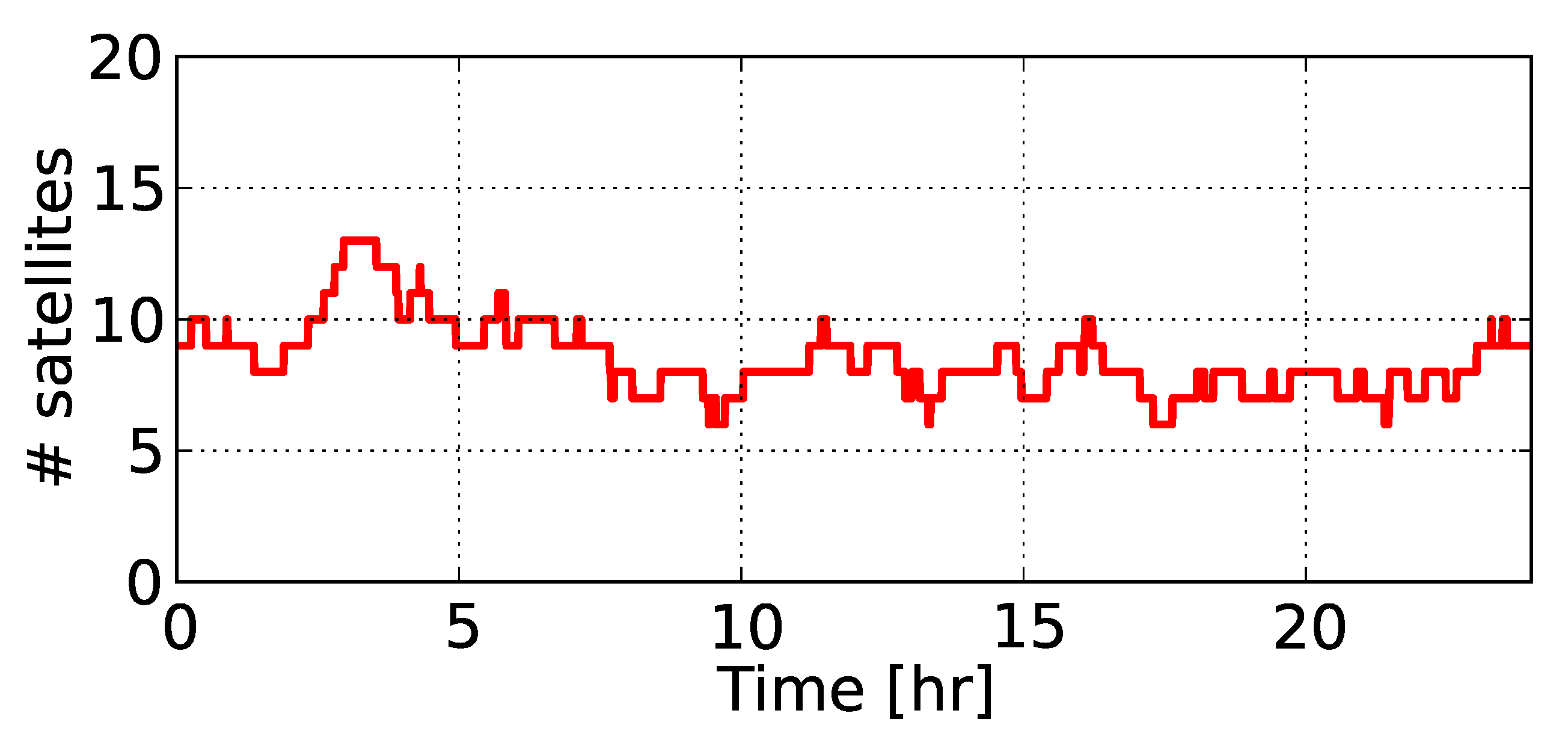

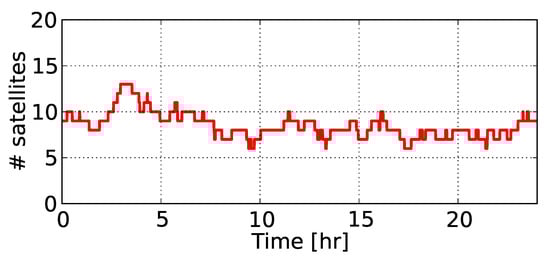

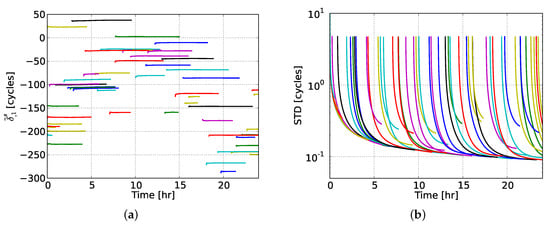

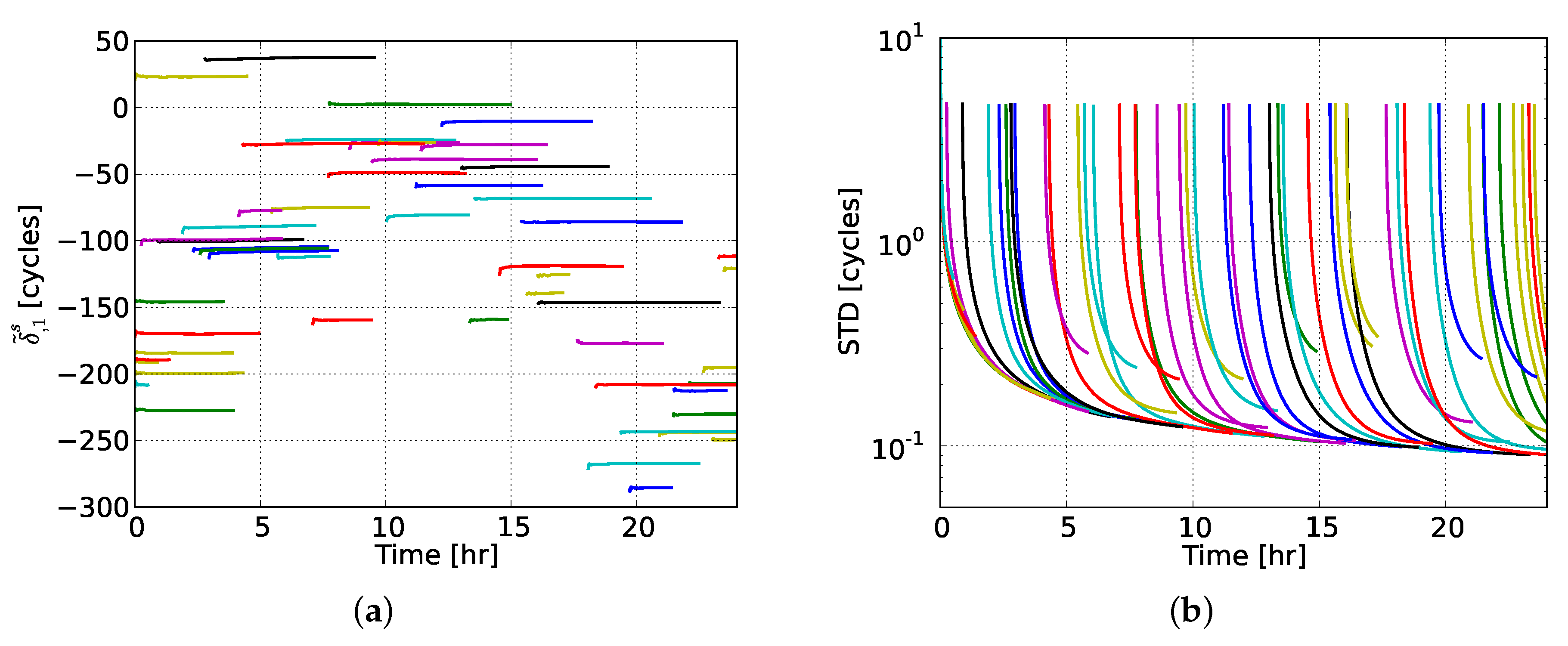

**Figure 4.**(

**a**) Satellite phase bias estimates on L1 (in cycles) and (

**b**) their formal standard deviations for all GPS satellites during the selected day. Each color represents a different GPS satellite.

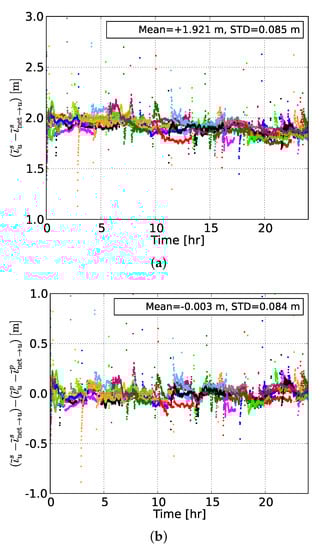

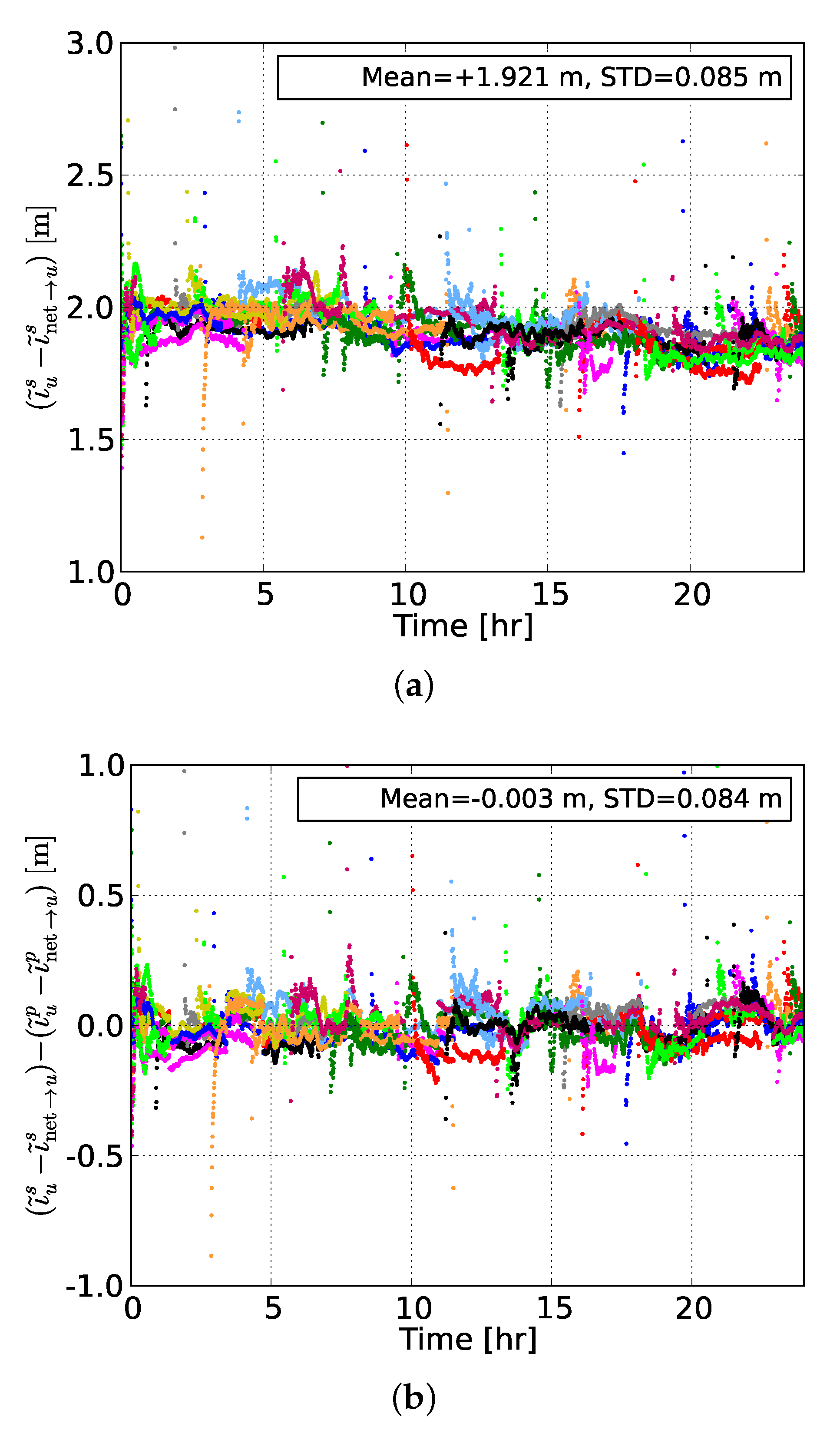

**Figure 5.**(

**a**) Differences (in meters) of the undifferenced regionally network-derived user-predicted slant ionospheric delays and their counterparts estimated by the user NCWL, and (

**b**) their between-satellite single-differenced results. Each color represents a different GPS satellite. This ionospheric correction prediction is referred to network $\#2$ (mean station spacing of 115 km). The empirical mean and STDs were calculated for the complete 24-h time-series.

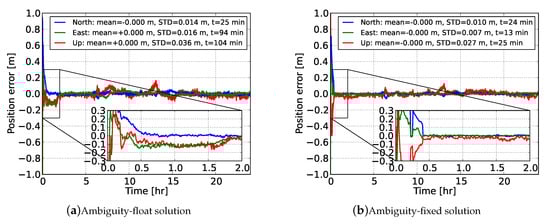

**Figure 6.**Time-series of the GPS dual-frequency ionosphere-float (

**a**) PPP and (

**b**) Full integer ambiguity resolution (FAR)-based PPP-RTK kinematic user position for station NCWL with respect to its ground-truth. The empirical means and STDs are calculated for the estimated positions after 2 h. A zoom-in window during the first 2 h is provided.

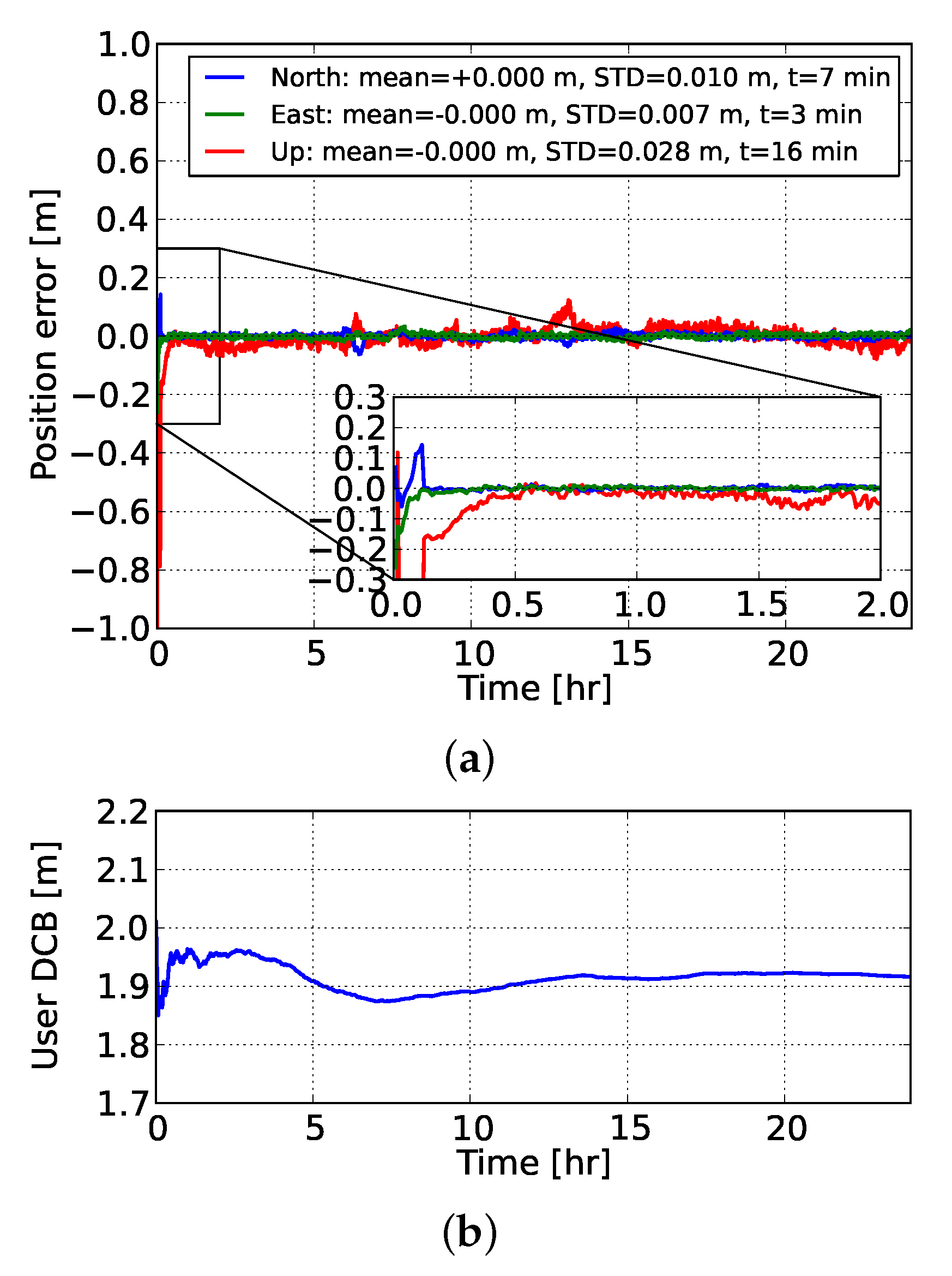

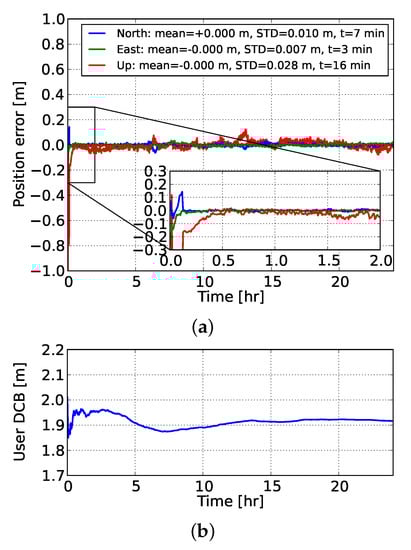

**Figure 7.**Time-series of (

**a**) the GPS dual-frequency ionosphere-weighted FAR-based PPP-RTK kinematic user position for station NCWL with respect to its ground-truth, and (

**b**) its associated network-user scaled DCB estimate. The ionospheric corrections were determined from network #2. The empirical means and STDs are calculated for the estimated positions after 2 h. A zoom-in window during the first 2 h is provided.

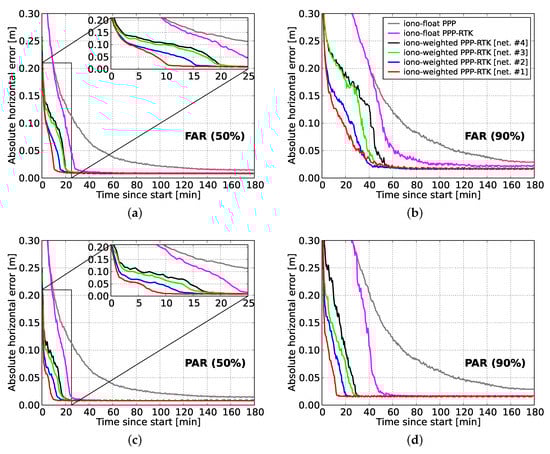

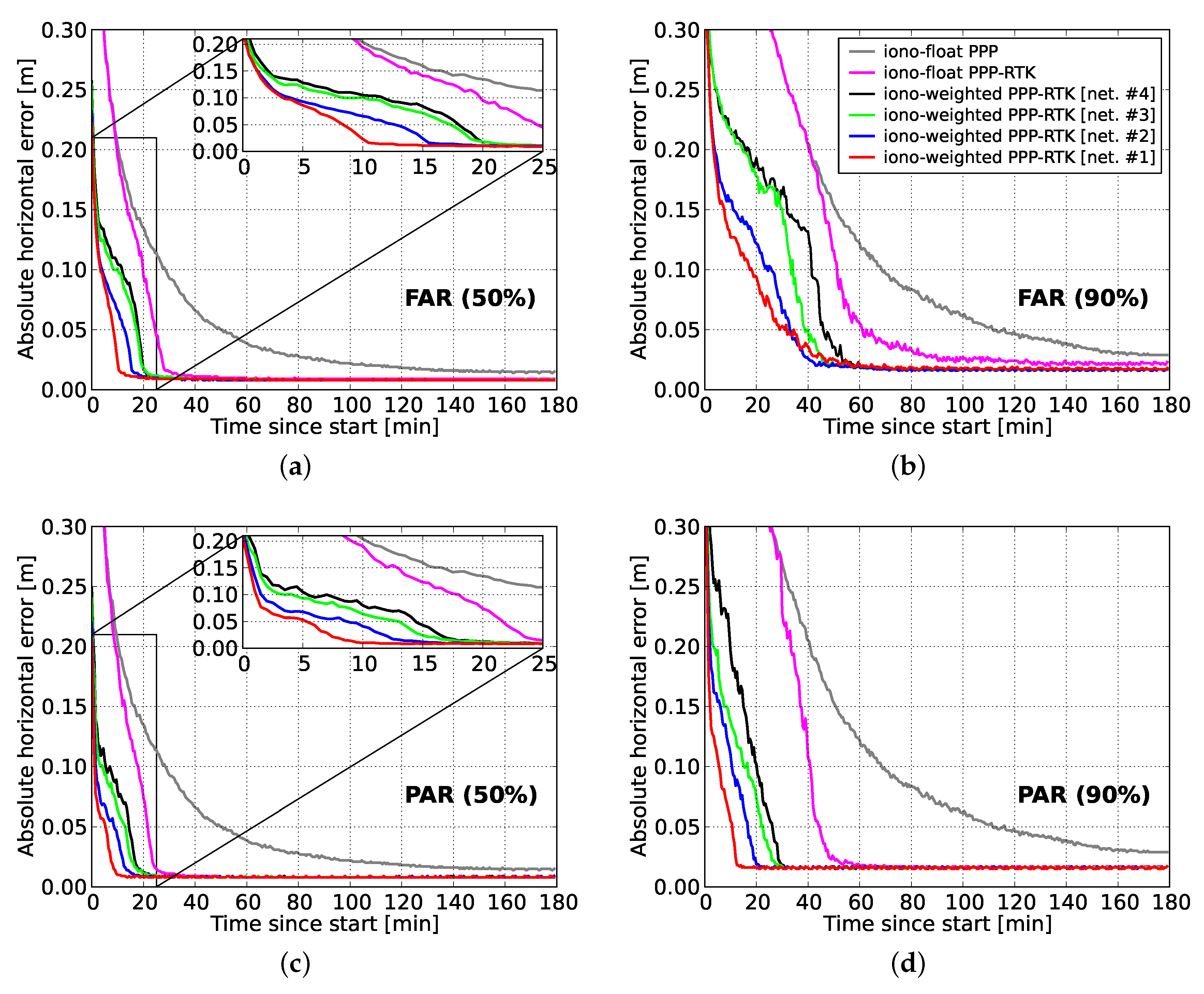

**Figure 8.**Convergence behavior of the horizontal radial positioning errors for (

**a**) 50% of the FAR-based solutions, (

**b**) 90% of the FAR-based solutions, (

**c**) 50% of the PAR-based solutions, and (

**d**) 90% of the PAR-based solutions of all user stations as a function of time since the processing start. The processing window has been re-initialized every 1 min within the selected day for all available solutions and networks.

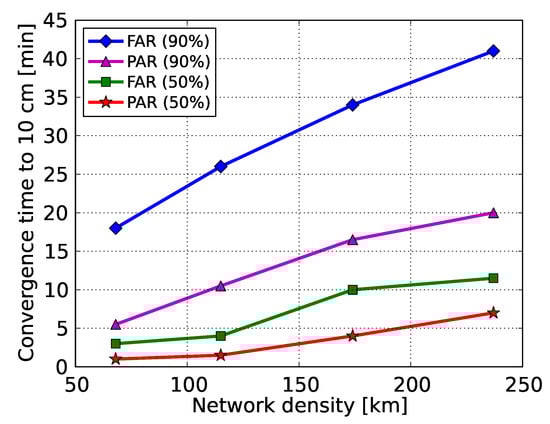

**Figure 9.**Convergence time of the horizontal radial position errors to 10 cm as a function of the network density for both FAR and PAR, based on 50% and 90% of the sample solutions.

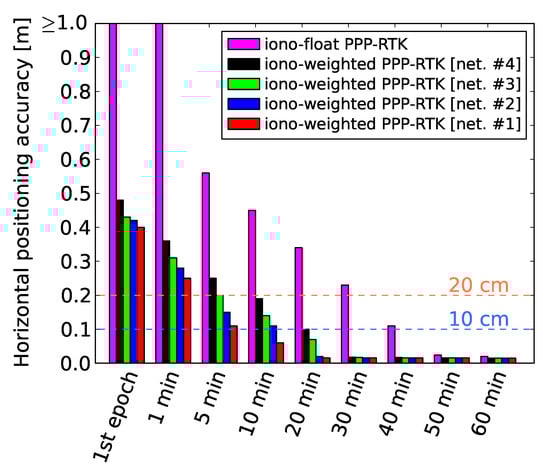

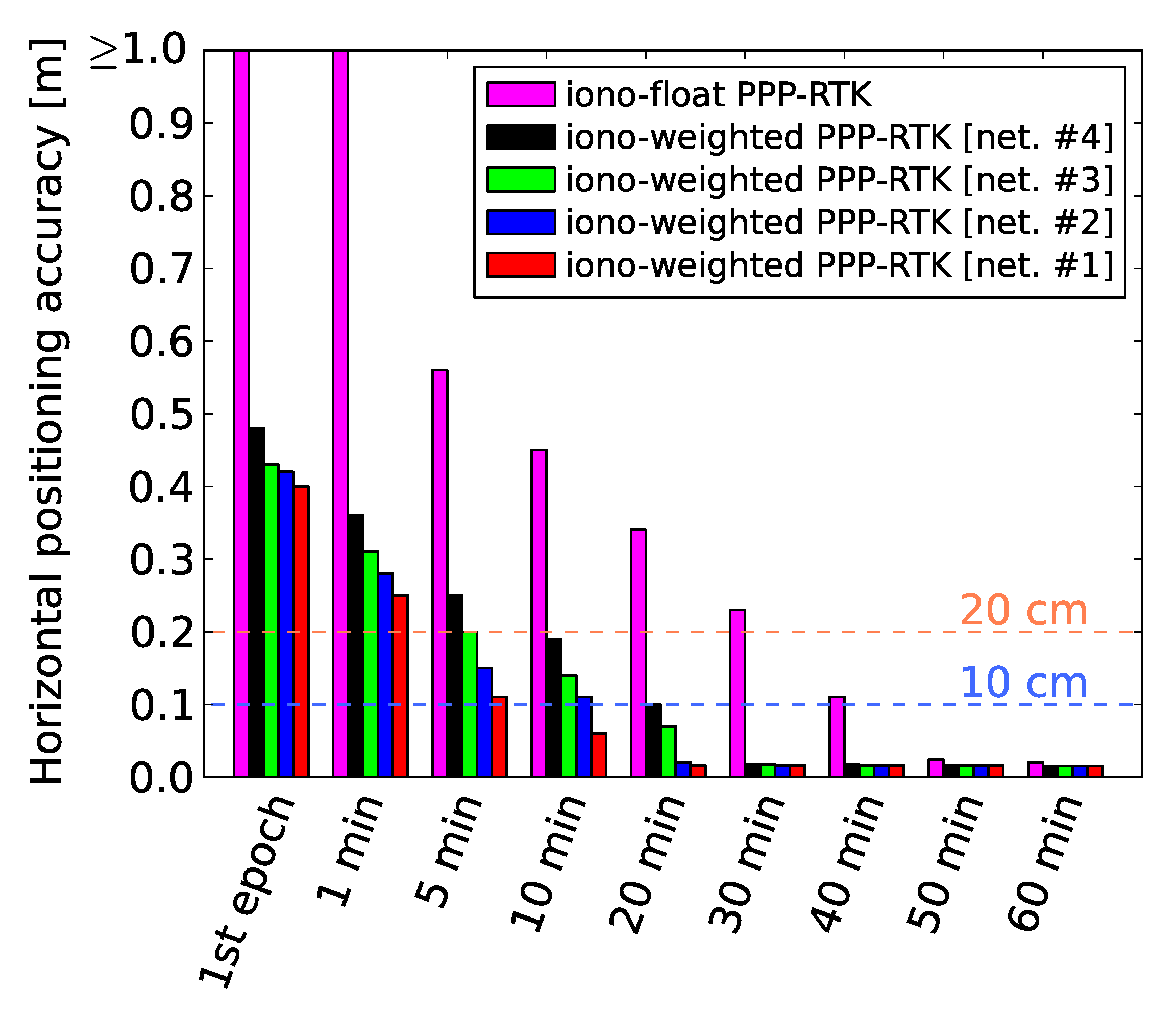

**Figure 10.**Horizontal positioning accuracy (90th percentile) at the first epoch and 1, 5, 10, 20, 30, 40, 50, 60 min since start for the PAR-based PPP-RTK user solutions.

**Table 1.**Estimable dual-frequency PPP-RTK network parameters and their interpretation using the Common Clocks $\mathcal{S}$-system (the symbol p denotes the pivot satellite/receiver if it is used as superscript/subscript).

Estimable Parameter | Interpretation |
---|---|

Receiver clock | $d{\tilde{t}}_{r\ne p}=d{t}_{pr}+{d}_{pr,\mathrm{IF}}$ |

Satellite clock | $d{\tilde{t}}^{s}=(d{t}^{s}+{d}_{,\mathrm{IF}}^{s})-(d{t}_{p}+{d}_{p,\mathrm{IF}})$ |

Ionospheric slant delay | ${\tilde{\iota}}_{r}^{s}={\iota}_{r}^{s}+{d}_{r,\mathrm{GF}}-{d}_{,\mathrm{GF}}^{s}$ |

Receiver phase bias | ${\tilde{\delta}}_{r\ne p,j}={\delta}_{pr,j}-\frac{1}{{\lambda}_{j}}({d}_{pr,\mathrm{IF}}-{\mu}_{j}{d}_{pr,\mathrm{GF}})+{a}_{pr,j}^{p}$ |

Satellite phase bias | ${\tilde{\delta}}_{,j}^{s}={\delta}_{,j}^{s}-\frac{1}{{\lambda}_{j}}\left([{d}_{,\mathrm{IF}}^{s}-{d}_{p,\mathrm{IF}}]-{\mu}_{j}[{d}_{,\mathrm{GF}}^{s}-{d}_{p,\mathrm{GF}}]\right)-{\delta}_{p,j}-{a}_{p,j}^{s}$ |

Phase ambiguity | ${\tilde{a}}_{r\ne p,j}^{s\ne p}={a}_{pr,j}^{s}-{a}_{pr,j}^{p}$ |

**Table 2.**Changes in parameter estimability and interpretation in the PPP-RTK user model due to the introduction of external ionospheric corrections.

Estimable Parameter | Interpretation |
---|---|

Receiver phase bias | ${\tilde{\delta}}_{u,j}={\delta}_{pu,j}-\frac{1}{{\lambda}_{j}}({d}_{pu,\mathrm{IF}}-{\mu}_{j}{d}_{p{p}^{\prime},\mathrm{GF}})+{a}_{pu,j}^{p}$ |

Receiver code bias | ${\tilde{d}}_{u,\mathrm{GF}}={d}_{u,\mathrm{GF}}-{d}_{{p}^{\prime},\mathrm{GF}}$ |
