Calibration of Displacement Laser Interferometer Systems for Industrial Metrology
Abstract

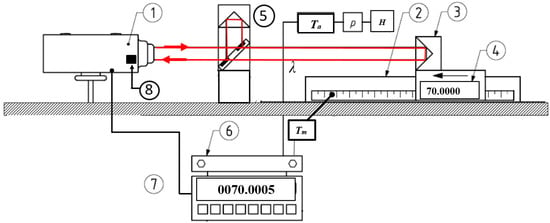

:1. Introduction
2. Laser Frequency Calibration: λv

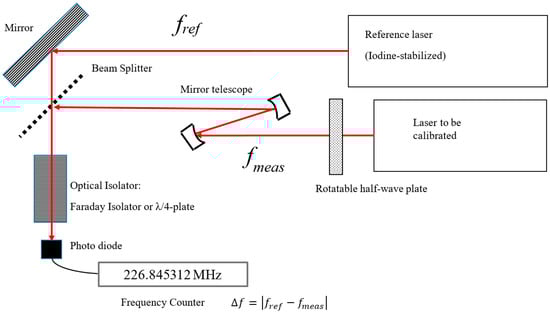

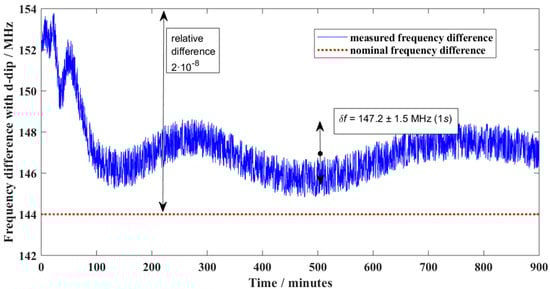

2.1. Calibration Against an Iodine Stabilized Laser
2.2. Calibration Against Another Stabilized Laser
2.3. Omitting Calibration by Considering the Laser as a Primary Standard
2.4. Indirect Calibration by Comparing to a Reference System

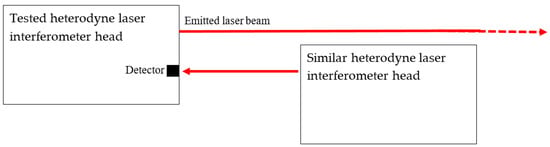

3. Counting System: The Comparison Test Bench: N

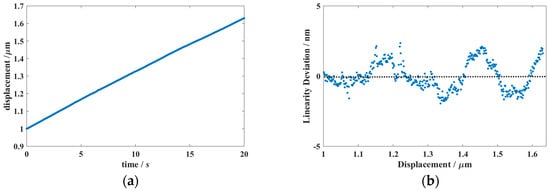

4. Short Range Interpolation and Nonlinearity Errors: δ
5. Software Checks on Environmental Conditions: na,Tm
Birch and Downs: | na = 1.000271376 | |
Ciddor | na = 1.000271373 | |
Bönsch | na = 1.000271374 |
5.1. Indirect Software Check
5.2. Direct Software Check

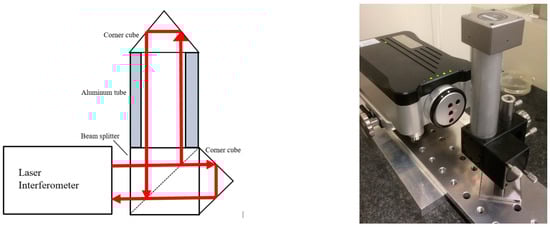

5.3. Indirect and Direct Check of Material Temperature Compensation
5.4. Complete System Check
6. Environmental and Material Temperature Sensor Calibration: Ta, Tm, p, H

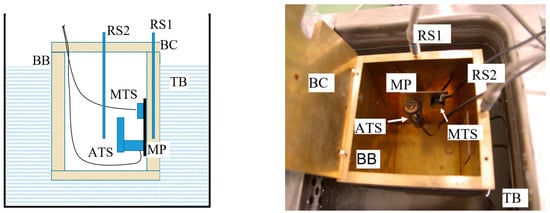

6.1. Material Temperature Calibration: Tm
6.2. Air Temperature Calibration Ta
6.3. Air Pressure Calibration: p
6.4. Air Humidity Calibration: H
7. Calibration of Laser Interferometer Optics
7.1. Calibration of Linear Optics

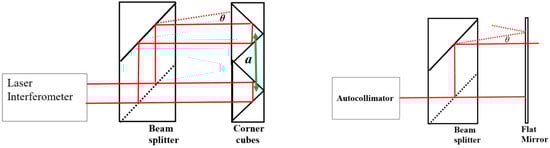

7.2. Calibration of Angular Optics

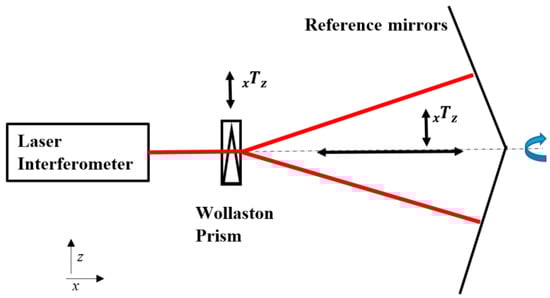

7.3. Calibration of Straightness Optics
7.4. Calibration of Squareness Optics
8. Reporting and Discussion
9. Conclusions
Supplementary Materials
Funding
Conflicts of Interest
References
- Dukes, J.N.; Gordon, G.B. A Two-Hundred-Foot Yardstick with Graduations Every Micro Inch. Hewlett-Packard J. 1970, 21, 2–8. [Google Scholar]
- Yang, S.; Zhang, G. A review of interferometry for geometric measurement. Meas. Sci. Technol. 2018, 29, 102001. [Google Scholar] [CrossRef]
- Giacomo, P. Documents Concerning the New Definition of the Metre. Metrologia 1984, 19, 163–178. [Google Scholar] [CrossRef]
- Leach, R. Some Basics of Measurement. In Fundamental Principles of Engineering Nanometrology, 2nd ed.; Leach, R., Ed.; Elsevier: Oxford, UK, 2014; pp. 7–39. [Google Scholar]
- Cosijns, S.J.A.G.; Jansen, M.J.; Haitjema, H. Advanced Optical Incremental Sensors: Encoders and Interferometers. In Smart Sensors and MEMS, 2nd ed.; Nihtionov, S., Luque, A., Eds.; Elsevier Inc.: Duxshire, UK, 2018; pp. 245–290. [Google Scholar]
- Schellekens, P.H.J.; Koning, J.; Veenstra, P.C. Accuracy of Commercially Available Laser Measurement Systems. CIRP Ann. Manuf. Technol. 1982, 31, 427–429. [Google Scholar] [CrossRef]
- Schellekens, P.H.J. Absolute Meetnauwkeurigheid van Technische Laserinterferometers (Absolute Measurement Accuracy of Technical Laser Interferometers). Ph.D. Thesis, Eindhoven University of Technology, Eindhoven, The Netherlands, 1986. [Google Scholar]
- Quinn, T.J. Practical realization of the definition of the metre, including recommended radiations of other optical frequency standards (2001). Metrologia 2003, 40, 103–133. [Google Scholar] [CrossRef]
- Darnedde, H.; Rowley, W.R.C.; Bertinetto, F.; Millerioux, Y.; Haitjema, H.; Wetzels, S.; Pirée, H.; Prieto, E.; Mar Pérez, M.; Vaucher, B.; et al. International comparisons of He-Ne lasers stabilized with 127I2 at λ≈633 nm (July 1993 to September 1995). Part IV: Comparison of Western European lasers at λ≈633 nm. Metrologia 1999, 36, 199–206. [Google Scholar] [CrossRef]
- Quinn, T.J. Mise en pratique of the definition of the metre (1992). Metrologia 1994, 30, 523–541. [Google Scholar] [CrossRef]
- Samoudi, B.; Pérez, M.M.; Ferreira-Barragáns, S.; Prieto, E. Absolute optical frequency measurements of iodine-stabilized He-Ne laser at 633 nm by using a femtosecond laser frequency comb. Int. J. Metrol. Qual. Eng. 2012, 3, 101–106. [Google Scholar] [CrossRef] [Green Version]
- Lipus, L.C.; Matus, M.; Acko, B. Optimization of Calibrating HeNe Laser Interferometers by Sample-Period Simulation. Int. J. Simul. Model. 2013, 12, 154–163. [Google Scholar] [CrossRef]
- Lee, W.-K.; Suh, H.S.; Kang, C.-S. Vacuum wavelength calibration of frequency-stabilized He-Ne lasers used in commercial laser interferometers. Opt. Eng. 2011, 50, 054301. [Google Scholar] [CrossRef]
- Silva, I.L.M.; Couceiro, I.B.; Torres, M.A.C.; Costa, P.A.; Grieneisen, H.P.H. Traceability of laser frequency/wavelength calibration through the frequency comb at Inmetro. J. Phys. Conf. Ser. 2016, 733, 12058. [Google Scholar] [CrossRef] [Green Version]
- Köchert, P.; Blumröder, U.; Manske, E. Ultrastable metrology laser at 633 nm using an optical frequency comb. In Proceedings of the Optical Micro Nanometrology VII, Strasbourg, France, 22–26 April 2018; Volume 10678. [Google Scholar]
- Burgwald, G.M.; Kruger, W.P. An Instant-On Laser for Length Measurement. Hewlett-Packard J. 1970, 21, 14–16. [Google Scholar]
- Baer, T.; Kowalski, F.V.; Hall, J.L. Frequency stabilization of a 0633-μm He–Ne longitudinal Zeeman laser. Appl. Opt. 1980, 19, 3173–3177. [Google Scholar] [CrossRef] [PubMed]
- Stone, J.A.; Decker, J.E.; Gill, P.; Juncar, P.; Lewis, A.; Rovera, G.D.; Viliesid, M. Advice from the CCL on the use of unstabilized lasers as standards of wavelength: The helium-neon laser at 633 nm. Metrologia 2009, 46, 11–18. [Google Scholar] [CrossRef]
- Kunzmann, H.; Herrmann, K. Calibration and Testing of Laser Interferometers; PTB Report PTB-F-15; PTB: Braunschweig, Germany, 1992; p. 105. [Google Scholar]
- Schüssler, D.-I.H.-H. Comparison and calibration of laser interferometer systems. Measurement 1985, 3, 175–184. [Google Scholar] [CrossRef]
- Sparrer, G.; Abou-Zeid, A. Uncertainty Analysis of the PTB Measuring Equipment for the Investigation of Laser Interferometers (2006). In Nanoscale Calibration Standards and Methods: Dimensional and Related Measurements in the Micro and Nanometer Range; Wilkening, G., Koenders, L., Eds.; PTB: Braunschweig, Germany, 2006; pp. 345–357. [Google Scholar]
- Wedde, M.; Meiners-Hagen, K.; Abou-Zeid, A. Interferometric calibration of line measurements, laser interferometers and distance measuring devices: The geodetic basis of the PTB [Interferometrische Kalibrierung von Strichmaßen, Laserinterferometern und Entfernungsmessgeräten: Die Geodätische Basis der PTB]. PTB Mitt. Forsch. Prufen 2010, 120, 115–119. [Google Scholar]
- Stone, J. Test and calibration of displacement measuring interferometers. In Proceedings of the 3rd International Conference on Mechanical Metrology (CIMMEC III), Gramado, Brazil, 14–16 October 2014. [Google Scholar]
- ASME. B89.1.8-2011, Performance Evaluation of Displacement-Measuring Laser Interferometers; ANSI: New York, NY, USA, 2011; ISBN 9780791833728. [Google Scholar]
- Tang, S.; Wang, Z.; Gao, J.; Zhong, L. Influence of tilt on collinear calibration of a laser interferometer. Appl. Opt. 2013, 52, B46–B51. [Google Scholar] [CrossRef]
- Tang, C.-C.; Cheng, K.-Y. Automated calibration system for laser interferometers. In Proceedings of the Optical Science and Technology, SPIE’s 48th Annual Meeting, San Diego, CA, USA, 3–8 August 2003; pp. 300–307. [Google Scholar]
- Bobroff, N. Residual errors in laser interferometry from air turbulence and nonlinearity. Appl. Opt. 1987, 26, 2676–2682. [Google Scholar] [CrossRef]
- Cosijns, S.; Haitjema, H.; Schellekens, P. Modeling and verifying non-linearities in heterodyne displacement interferometry. Precis. Eng. 2002, 26, 448–455. [Google Scholar] [CrossRef]
- Chen, H.; Jiang, B.; Shi, Z. Synthetic model of nonlinearity errors in laser heterodyne interferometry. Appl. Opt. 2018, 57, 3890–3901. [Google Scholar] [CrossRef]
- Çelik, M.; Hamid, R.; Kuetgens, U.; Yacoot, A. Picometre displacement measurements using a differential Fabry–Perot optical interferometer and an x-ray interferometer. Meas. Sci. Technol. 2012, 23, 085901. [Google Scholar] [CrossRef]
- Haitjema, H.; Schellekens, P.H.J.; Wetzels, S.F.C.L. Calibration of displacement sensors up to 300 m with nanometre accuracy and direct traceability to a primary standard of length. Metrologia 2000, 37, 25–33. [Google Scholar] [CrossRef]
- Voigt, D.; Bergmans, R.H. Dimensional stability validation and sensor calibration with sub-nanometer accuracy. In Proceedings of the SPIE—The International Society for Optical Engineering, Corsica, France, 9–12 October 2012. [Google Scholar]
- Yokoyama, S.; Hori, Y.; Yokoyama, T.; Hirai, A. A heterodyne interferometer constructed in an integrated optics and its metrological evaluation of a picometre-order periodic error. Precis. Eng. 2018, 54, 206–211. [Google Scholar] [CrossRef]
- Haitjema, H. Dynamic probe calibration in the μm m region with nanometric accuracy. Precis. Eng. 1996, 19, 98–104. [Google Scholar] [CrossRef]
- Haitjema, H.; Cosijns, S.J.A.G.; Roset, N.J.J.; Jansen, M.J. Improving a commercially available heterodyne laser interferometer to sub-nm uncertainty. In Proceedings of the SPIE 5190 Recent Developments in Traceable Dimensional Measurements II, San Diego, CA, USA, 4–6 August 2003; pp. 347–354. [Google Scholar] [CrossRef]
- Thijsse, J.; Jamting, Å.K.; Brown, N.; Haitjema, H. The detection of cyclic nonlinearities in a ZMI2000 heterodyne interferometer. In Proceedings of the SPIE 5879, Recent Developments in Traceable Dimensional Measurements III, San Diego, CA, USA, 31 July–1 August 2005; pp. 1–11. [Google Scholar] [CrossRef]
- Birch, K.P.; Downs, M.J. Correction to the Updated Edlén Equation for the Refractive Index of Air. Metrologia 1994, 31, 315–316. [Google Scholar] [CrossRef]
- Muijlwijk, R. Update of the Edlén Formulae for the Refractive Index of Air. Metrologia 1988, 25, 189. [Google Scholar] [CrossRef]
- Bönsch, G.B.; Potulski, E. Measurement of the refractive index of air and comparison with modified Edl n’s formulae. Metrologia 1998, 35, 133–139. [Google Scholar]
- Ciddor, P.E. Refractive index of air: New equations for the visible and near infrared. Appl. Opt. 1996, 35, 1566–1573. [Google Scholar] [CrossRef]
- Index of Refraction of Air. Available online: https://emtoolbox.nist.gov/Wavelength/Abstract.asp (accessed on 5 August 2019).
- Baldwin, R.R.; Truhe, L.E.; Woodruff, D.C. Laser Optical Components for Machine Tool and Other Calibrations. Hewlett-Packard J. 1983, 34, 14–16. [Google Scholar]
- Olarra, A.; Delgado, A.; Zubieta, M.; Kortaberria, G.; Prieto, E.; Perez, M.D.M.; Morlanes, T. Development of a novel high precision large range small angle generator. In Proceedings of the 16th International Conference of the European Society for Precision Engineering and Nanotechnology, Nottingham, UK, 30 May–3 June 2016; pp. 264–267. [Google Scholar]
- Geckeler, R.D.; Krause, M.; Just, A.; Kranz, O.; Bosse, H. New frontiers in angle metrology at the PTB. Measurement 2015, 73, 231–238. [Google Scholar] [CrossRef]
- Evans, C.J.; Hocken, R.J.; Estler, W.T. Self-Calibration: Reversal, Redundancy, Error Separation, and ‘Absolute Testing’. CIRP Ann. Manuf. Technol. 1996, 45, 617–634. [Google Scholar] [CrossRef]
- Weichert, C.; Köchert, P.; Schötka, E.; Flügge, J.; Manske, E.; Fluegge, J. Investigation into the limitations of straightness interferometers using a multisensor-based error separation method. Meas. Sci. Technol. 2018, 29, 064001. [Google Scholar] [CrossRef]
- Reeve, C.P.; Veale, R.C. The Calibration of a Pentaprism; NIST Publication NBSIR 76-993; Institute for Basic Standards, National Bureau of Standards: Washington, DC, USA, 1976.
- Esala, V.-P.; Hemming, B.; Nyholm, K.; Lassila, A. MIKES’ facility for calibration of commercial laser interferometers. In Proceedings of the 5th Euspen International Conference, Montpellier, France, 8–11 May 2005; pp. 205–208. [Google Scholar]
Year | Mean Frequency | Standard Uncertainty | Relative Standard Uncertainty | Iodine Cell Temperature | Modulation Frequency | Reference |
---|---|---|---|---|---|---|
ff in MHz | u/kHz | urel | T(I)/°C | Mod/MHz | ||
1983 | 473,612,353.692 | 161 | 3.4 × 10−10 | 15.0 ± 1.0 | 6.0 ± 1.0 | [3] |
1992 | 473,612,353.597 | 12 | 2.5 × 10−11 | 15.0 ± 0.2 | 6.0 ± 0.3 | [10] |
2001 | 473,612,353.604 | 10 50 | 2.1 × 10−11 1.0 × 10−10 | 15.0 ± 0.2 15.0 ± 1.0 | 6.0 ± 0.3 6.0 ± 1.0 | [8] |
Influencing Factor | Deviation | Deviation in Indication of Length l Uncertainty Based on k = 2 | |
---|---|---|---|
Wavelength λ nominal vacuum wavelength λnom = 632.991370 nm | +(7 ± 6) × 10−9 × λnom | −(7 ± 6) × 10−9 × l | |
or | Frequency f nominal frequency fnom = 473.612236 MHz | −(7 ± 6) × 10−9 × f | −(7 ± 6) × 10−9 × l |
or | Wavelength λ nominal vacuum wavelength λnom = 632.991370 nm | (0 ± 2.4) × 10−8 × λnom | (0 ± 2.4) × 10−8 × l |
Laser Type | Nominal Wavelength in nm | Nominal Frequency fnom in MHz | Nominal Beat Frequency with Iodine d-dip fd = 473,612,379.821 ∆f = fnom − fd in MHz |
---|---|---|---|
HP5526 (before 1980) | 632.991480 | 473,612,154 | −226 |
HP5526 (after 1980) | 632.991400 | 473,612,213 | −167 |
HP5528 (before 1990) | 632.991393 | 473,612,219 | −161 |
HP5528 (after 1990) | 632.991370 | 473,612,236 | −144 |
HP5529 | 632.991354 | 473,612,248 | −132 |
Renishaw ML10 | 632.990580 | 473,612,827 | 447 |
Renishaw RLU | 632.990000 | 473,613,261 | 881 |
Heidenhain ILM1101 | 632.991257 | 473,612,320 | −60 |
SIOS | 632.991400 | 473,612,213 | −167 |
ZYGO | 632.991193 | 473,612,368 | −12 |
Influencing Factor | Deviation | Deviation in Indication of Length l | |
---|---|---|---|
Calculation of na | −(8 ± 2) × 10−8 | +(8 ± 2) × 10−8 × l | |
or | Compensation factor ca | +(8 ± 2) × 10−8 | +(8 ± 2) × 10−8 × l |
or | VOL factor (HP/Agilent) | +(8 ± 2) × 10−5 | +(8 ± 2) × 10−8 × l |
Tested Laser Interferometer/mm | Reference Laser Interferometer/mm | Drift/mm | |
---|---|---|---|
Laser readings without compensation | 6988.25646 | 6988.25626 | 0 |
Tested laser with compensation Reference without compensation | 6986.36065 | 6988.25578 | −0.00048 |
Influencing Factor | Deviation | Deviation in Indication of Length l |
---|---|---|
Material temperature Tm | +(0.07 ± 0.02) °C | +(0.07 ± 0.02) × αm × l |
Influencing Factor | Deviation | Deviation in Indication of Length l |
---|---|---|
Air temperature Ta | −(0.10 ± 0.10) °C | −(1.0 ± 1.0) × 10 −7 × l |
Influencing Factor | Deviation | Deviation in Indication of Length l |
---|---|---|
Air pressure p | −(1.2 ± 0.3) hPa | +(3.2 ± 0.8) × 10−7 × l |
Influencing Factor | Deviation | Deviation in Indication of Length l |
---|---|---|
Air humidity H | +(20 ± 10) %Rh | +(1.7 ± 0.8) × 10−7 × l |
Measured Angle | Angle When Zeroing φ0 | |||
---|---|---|---|---|
6′ | 30′ | 1° | 2° | |
maximum deviation | ||||
6′ | <0.01″ | 0.02″ | 0.06″ | 0.2″ |
1° | 0.06″ | 0.4″ | 1.1″ | 3.2″ |
2° | 0.2″ | 1.4″ | 3.2″ | 8.8″ |
5° | 1.4″ | 7.5″ | 17″ | 39″ |
10° | 5.6″ | 29″ | 1′ | 1′48″ |
15° | 12.8″ | 1′06″ | 2′16″ | 4′05″ |
Influencing Factor | Deviation and Standard Uncertainty | Deviation in Length Indication l and Standard Uncertainty | |
---|---|---|---|
1 | Vacuum wavelength | +(0.07 ± 0.06) × 10−7 × λ | −(0.07 ± 0.06) × 10−7 × l |
2 | Counting system | <(0.01 µm + 2 × 10−8 × l) | (0.00 ± 0.01) µm ± 0.2 ×10−7 × l |
3 | Air pressure | +(0.4 ± 0.1) hPa | − (1.0 ± 0.3) ×10−7 × l |
4 | Air temperature | −(0.06 ± 0.10) °C | −(0.6 ± 1.0) ×10−7 × l |
5 | Air humidity | +(20 ± 10) %Rh | +(1.7 ± 0.8) ×10−7 × l |
6 | Calculation of air refractive index na | −(0.8 ± 0.3) × 10−7 × na | +(0.8 ± 0.3) × 10−7 × l |
Total deviation in length measurement without material-temperature correction | (0.00 ± 0.01) µm − (0.8 ± 1.4) × 10−7 × l | ||
7 | Material temperature sensor | −(0.02 ± 0.01) °C | −(0.02 ± 0.01) × α × l |
