Sensors 2018, 18(9), 2922; https://doi.org/10.3390/s18092922

Analysis of High Sensitivity Photonic Crystal Fiber Sensor Based on Surface Plasmon Resonance of Refractive Indexes of Liquids

College of Information Science and Engineering, State Key Laboratory of Synthetical Automation for Process Industries, Northeastern University, Shenyang 110819, China
*
Author to whom correspondence should be addressed.
Received: 7 August 2018 / Revised: 30 August 2018 / Accepted: 31 August 2018 / Published: 3 September 2018
(This article belongs to the Special Issue Optical Sensors Using Microstructured and Photonics Crystal Fibers)
Full-Text   |   PDF [2682 KB, uploaded 4 September 2018]   |

Abstract

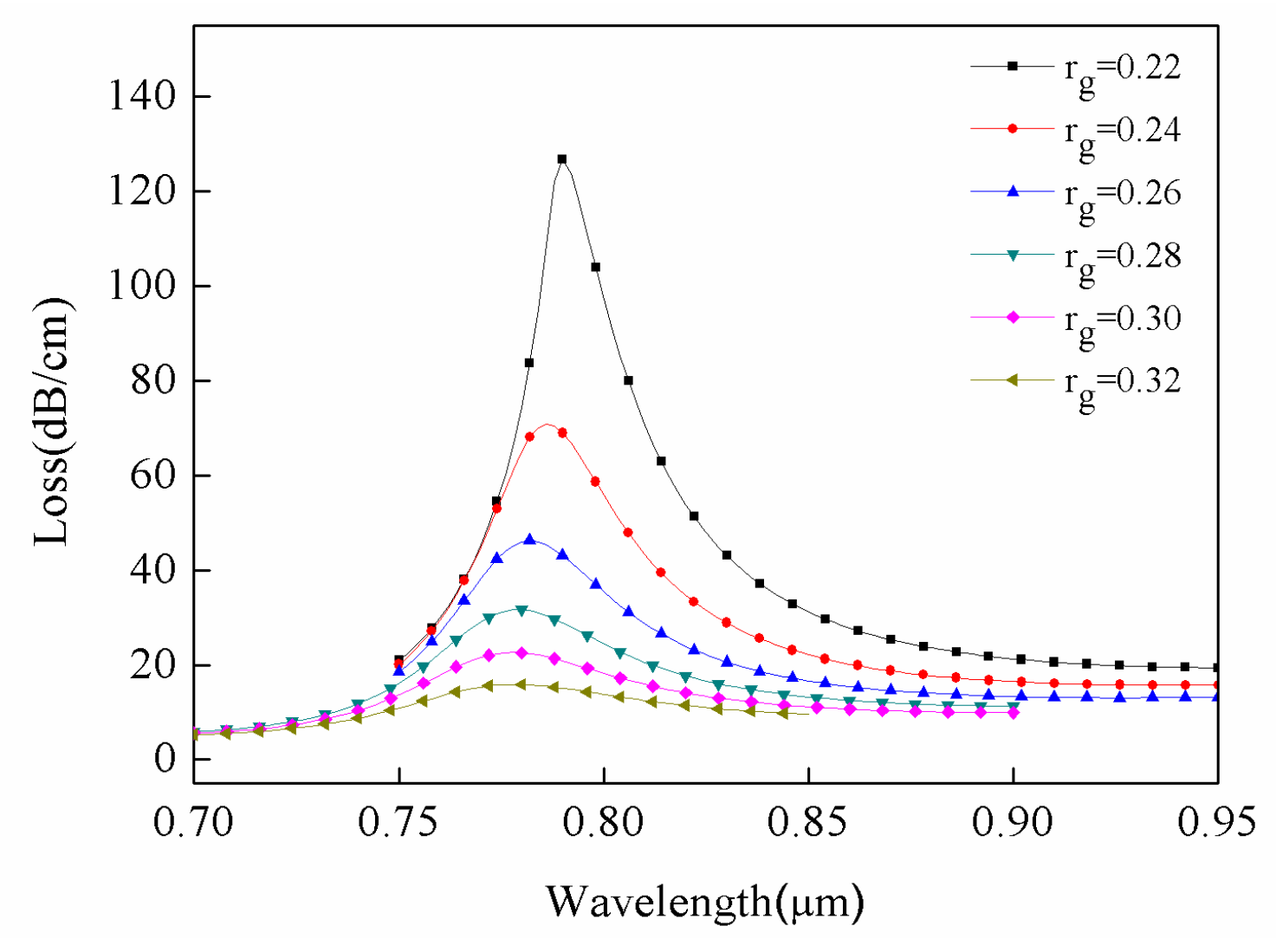

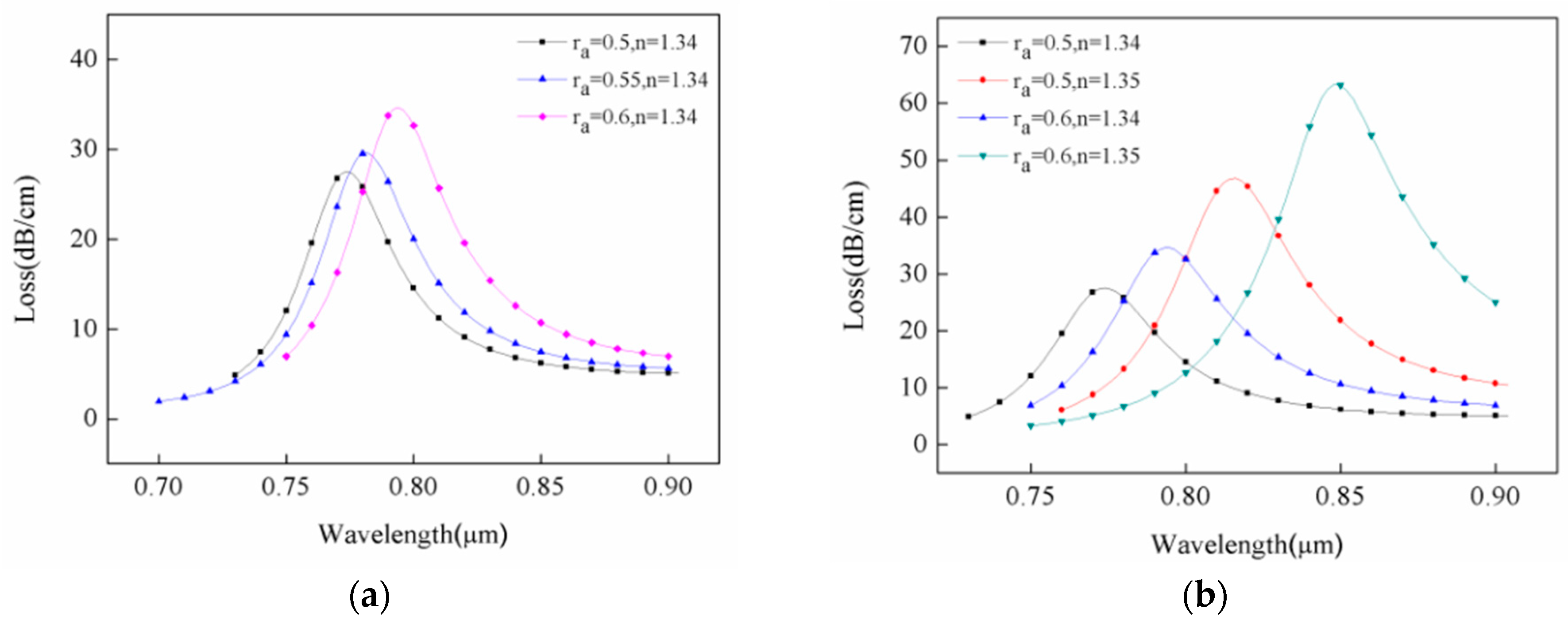

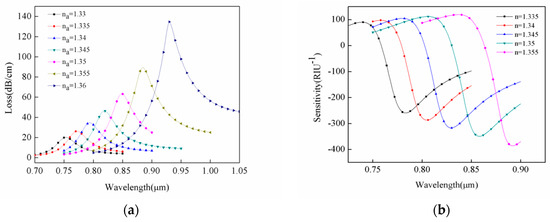

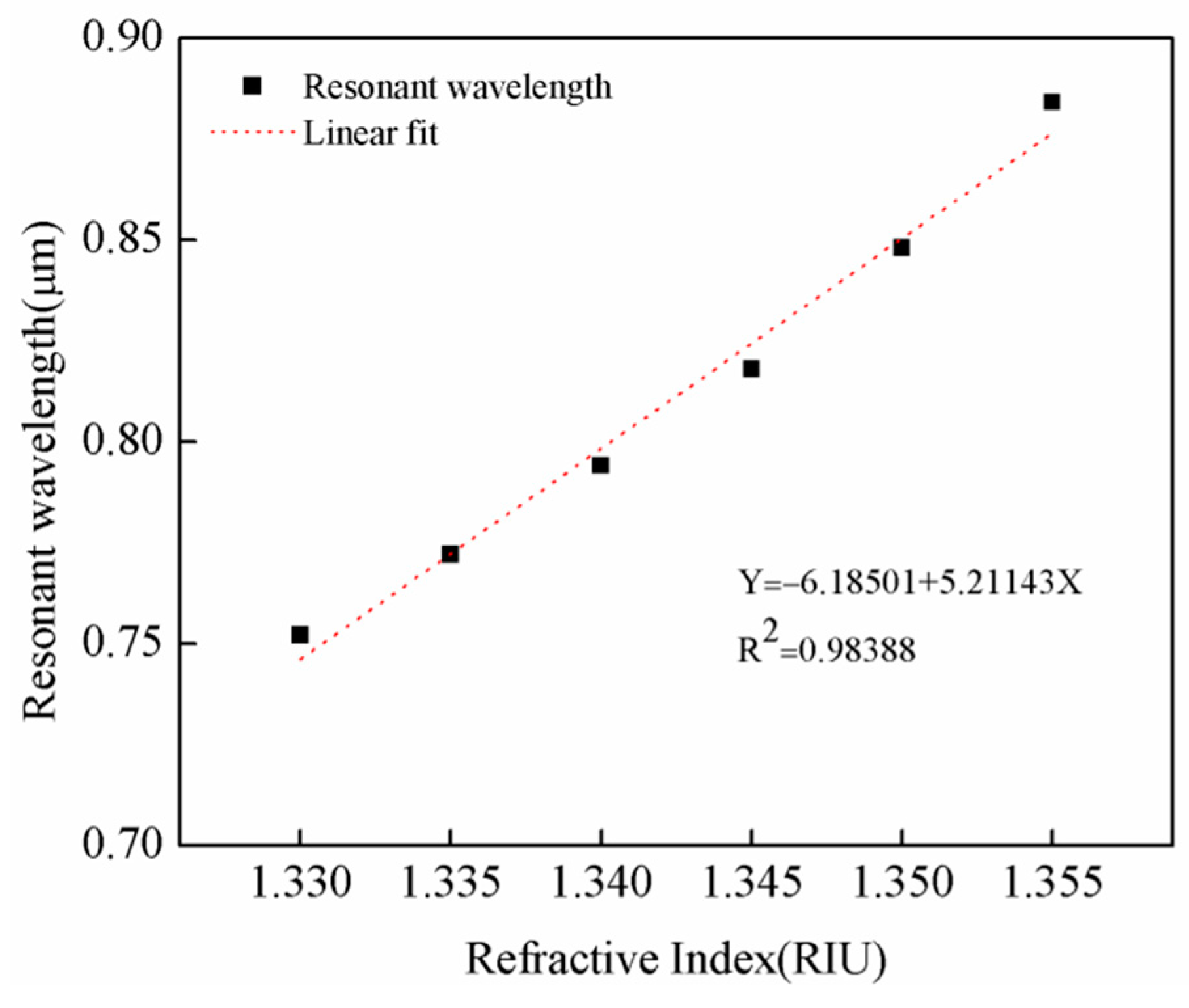

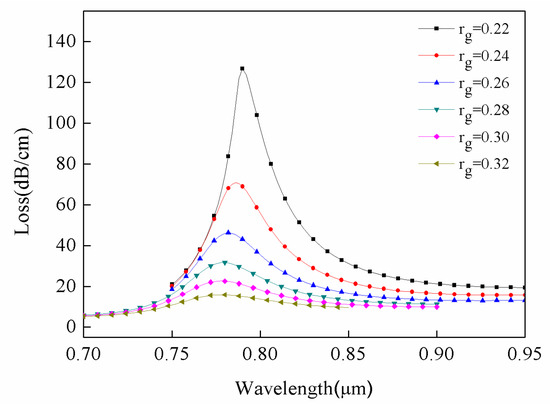

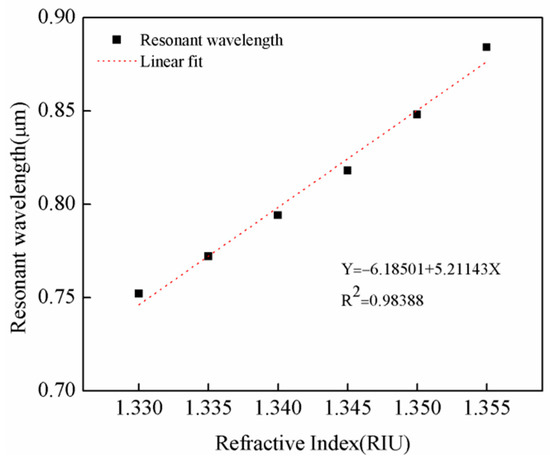

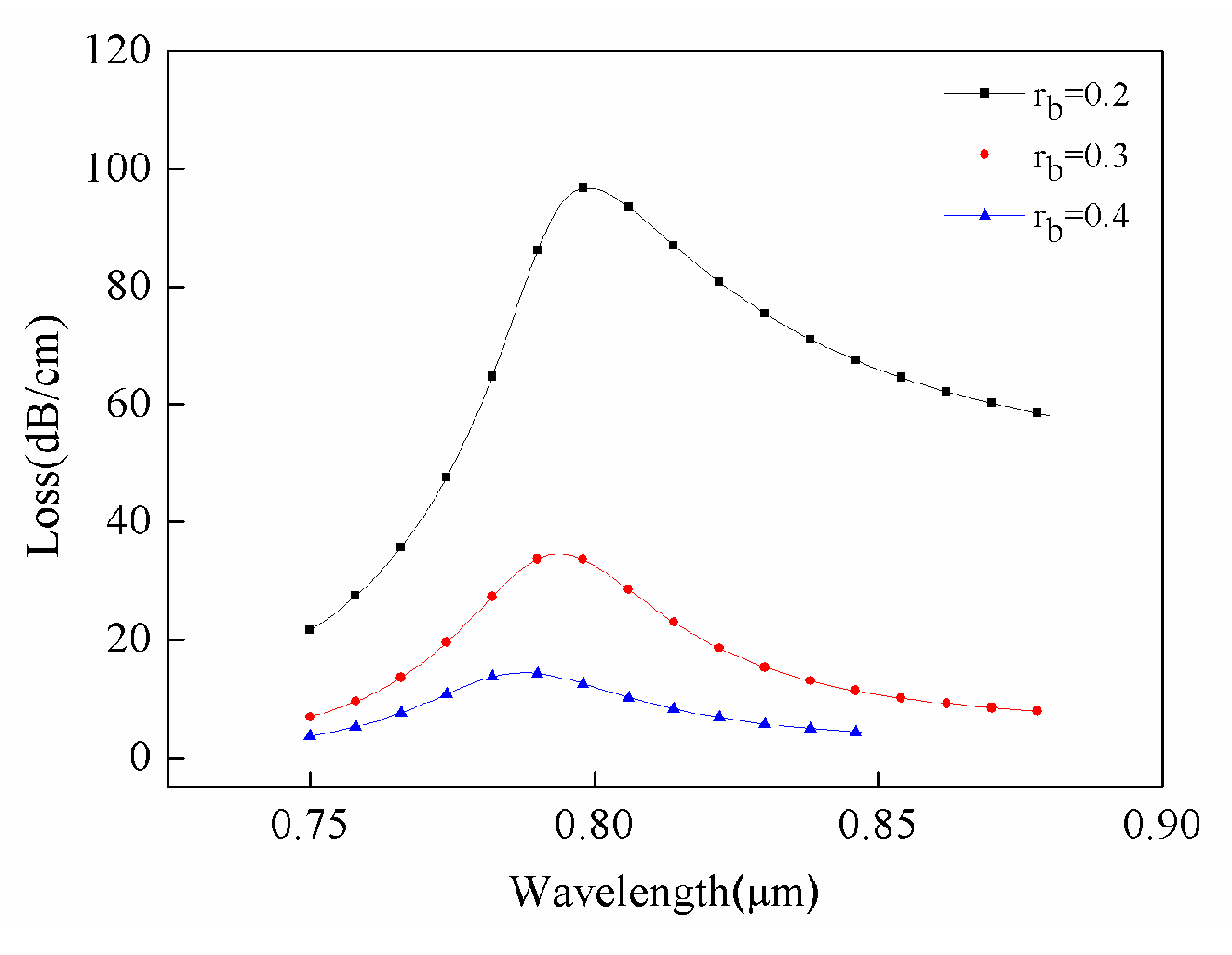

A photonic crystal fiber (PCF) sensor based on gold nanowires able to detect changes in surface plasmon resonance (SPR) was proposed and numerically investigated through the finite element method. To facilitate real-time detection, the analyte in this sensor was located outside the optical fiber. The effects of diameters of both air hole and gold wires on the sensing characteristics of the sensor were discussed. The sensor was designed to detect liquids with refractive indexes ranging between 1.33 and 1.36. The numerical simulations indicated that sensor structure improved its functionality. The maximum spectral sensitivity reached 9200 nm/RIU over the entire refractive index range. The average spectral sensitivity was estimated to be 5933 nm/RIU, and corresponded to a sensor resolution of 2.81 × 10−6 RIU. These findings look very promising for future use in detection of liquid. View Full-Text
Keywords: photonic crystal fiber; surface plasmon resonance; sensors; refractive index photonic crystal fiber; surface plasmon resonance; sensors; refractive index
Figures

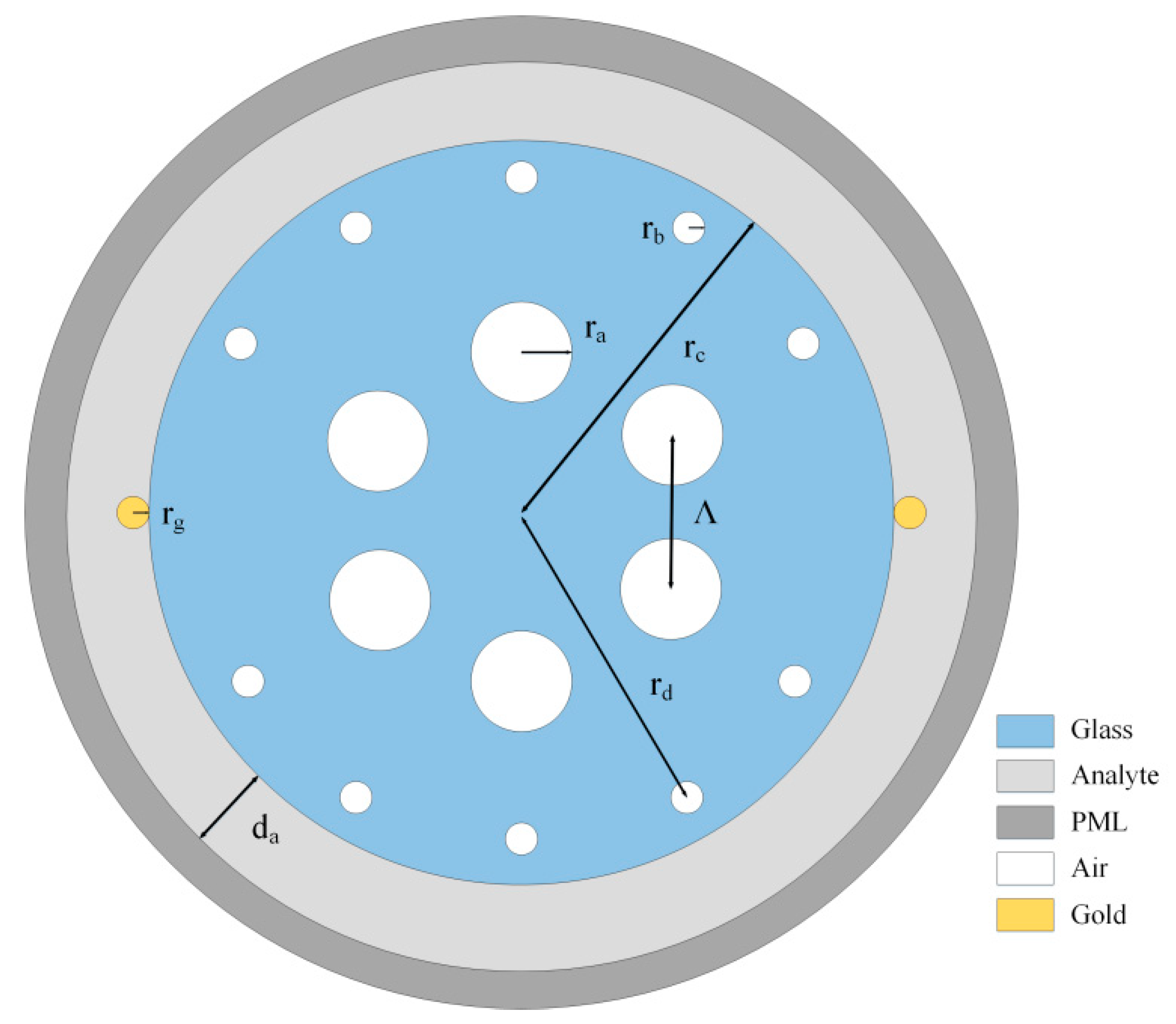

Figure 1
