Sensors 2018, 18(11), 3813; https://doi.org/10.3390/s18113813

A Smartphone-Based System for Automated Bedside Detection of Crackle Sounds in Diffuse Interstitial Pneumonia Patients

1
Faculty of Sciences, Universidad Autónoma de San Luis Potosí, San Luis Potosi 78290, Mexico
2
Electrical Engineering Department, Universidad Autónoma Metropolitana Iztapalapa, Mexico City 09340, Mexico
3
Health Science Department, Universidad Autónoma Metropolitana Iztapalapa, Mexico City 09340, Mexico
4
National Institute of Respiratory Diseases, Mexico City 14080, Mexico
*
Author to whom correspondence should be addressed.
Received: 28 September 2018 / Revised: 30 October 2018 / Accepted: 3 November 2018 / Published: 7 November 2018
(This article belongs to the Special Issue Sensors for Biosignal Processing)
Full-Text   |   PDF [5103 KB, uploaded 7 November 2018]   |

Abstract

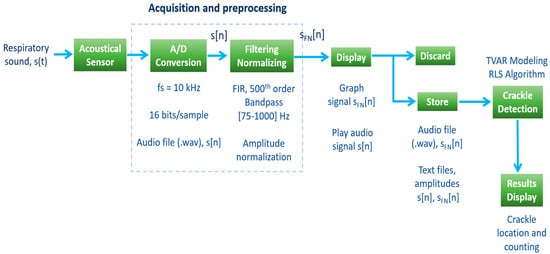

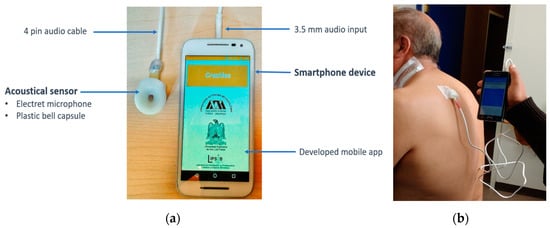

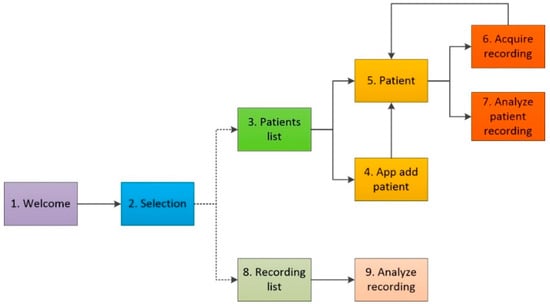

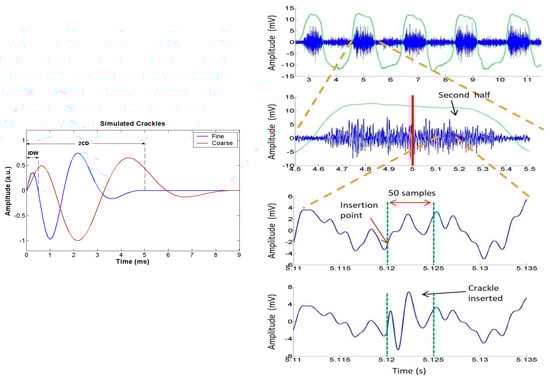

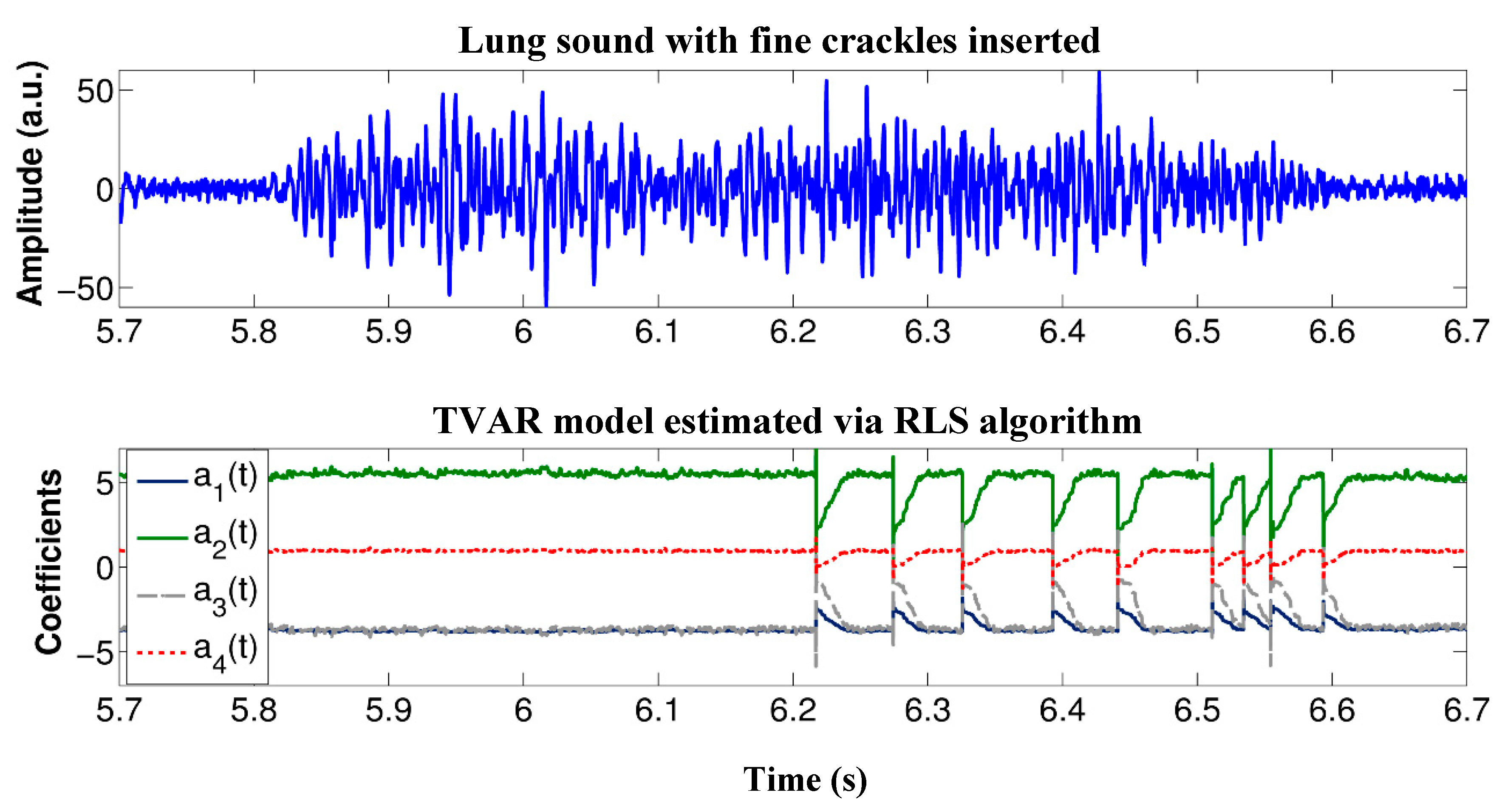

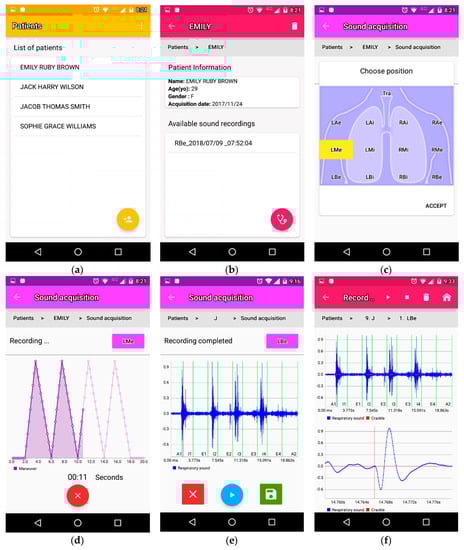

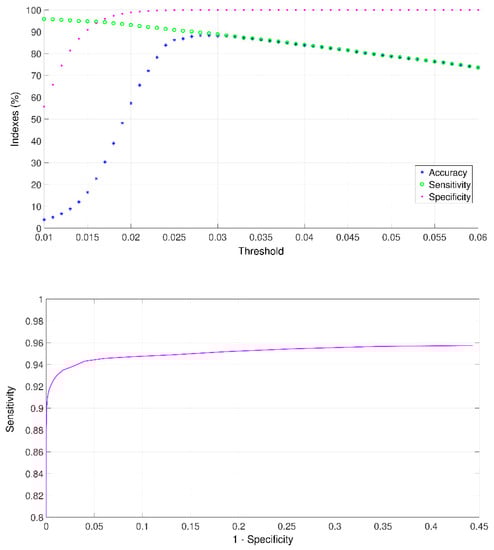

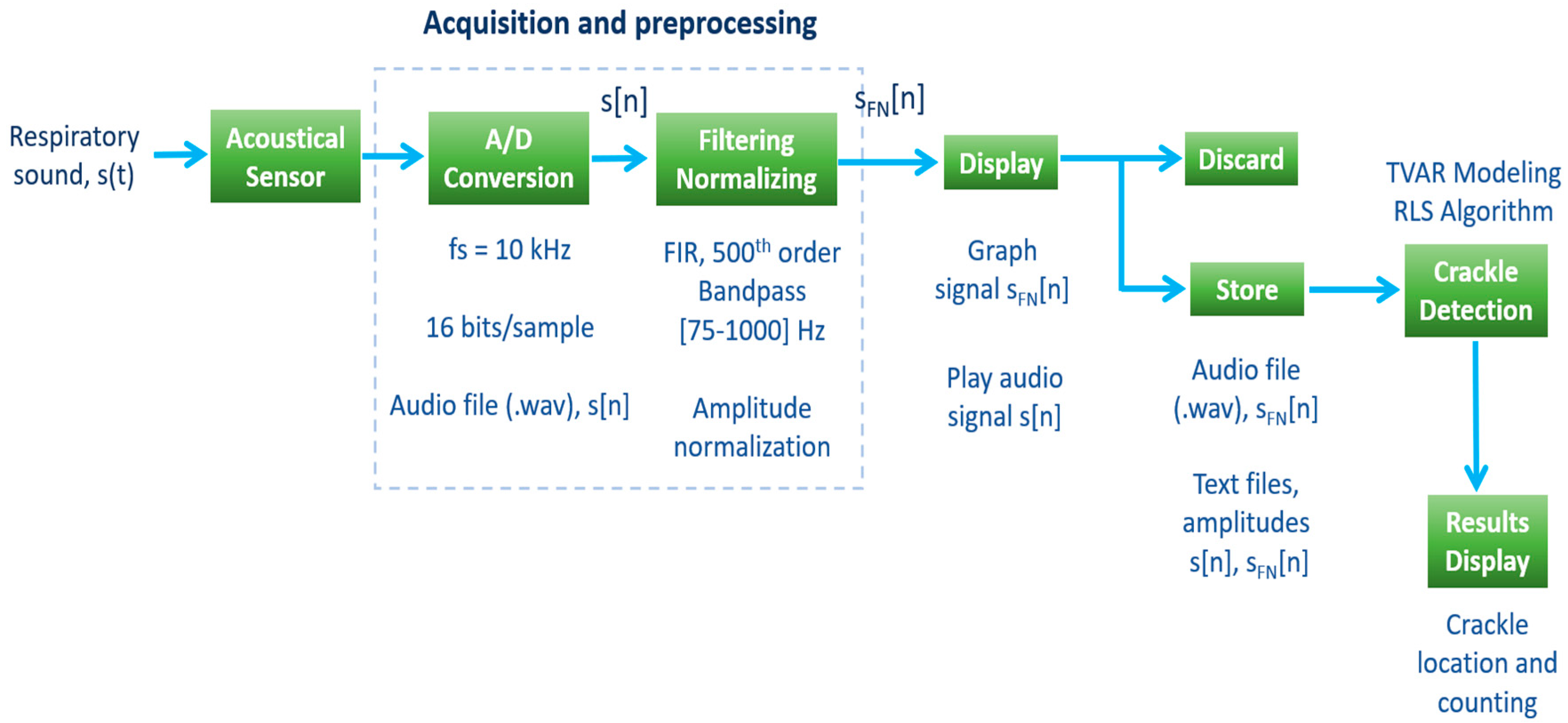

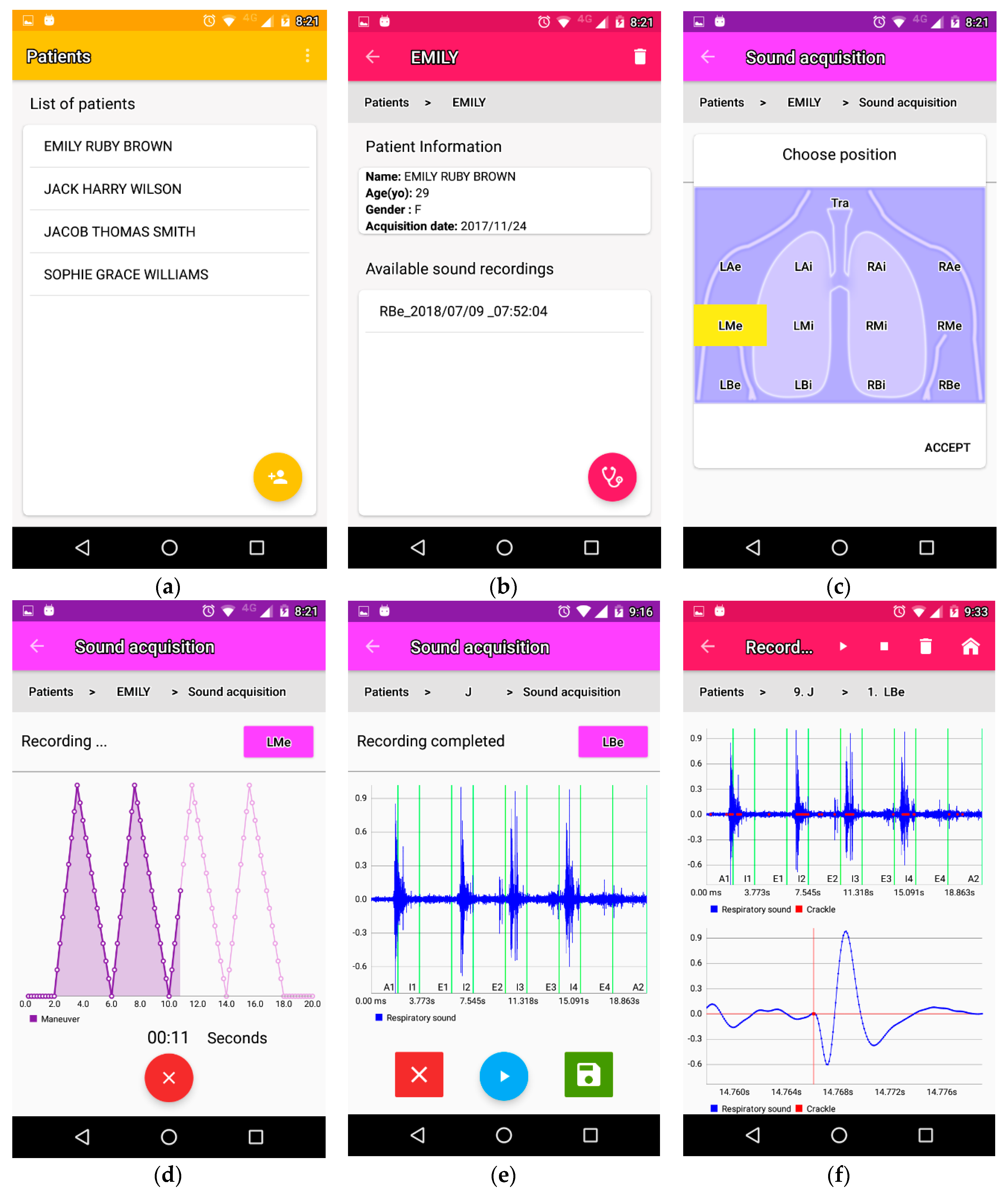

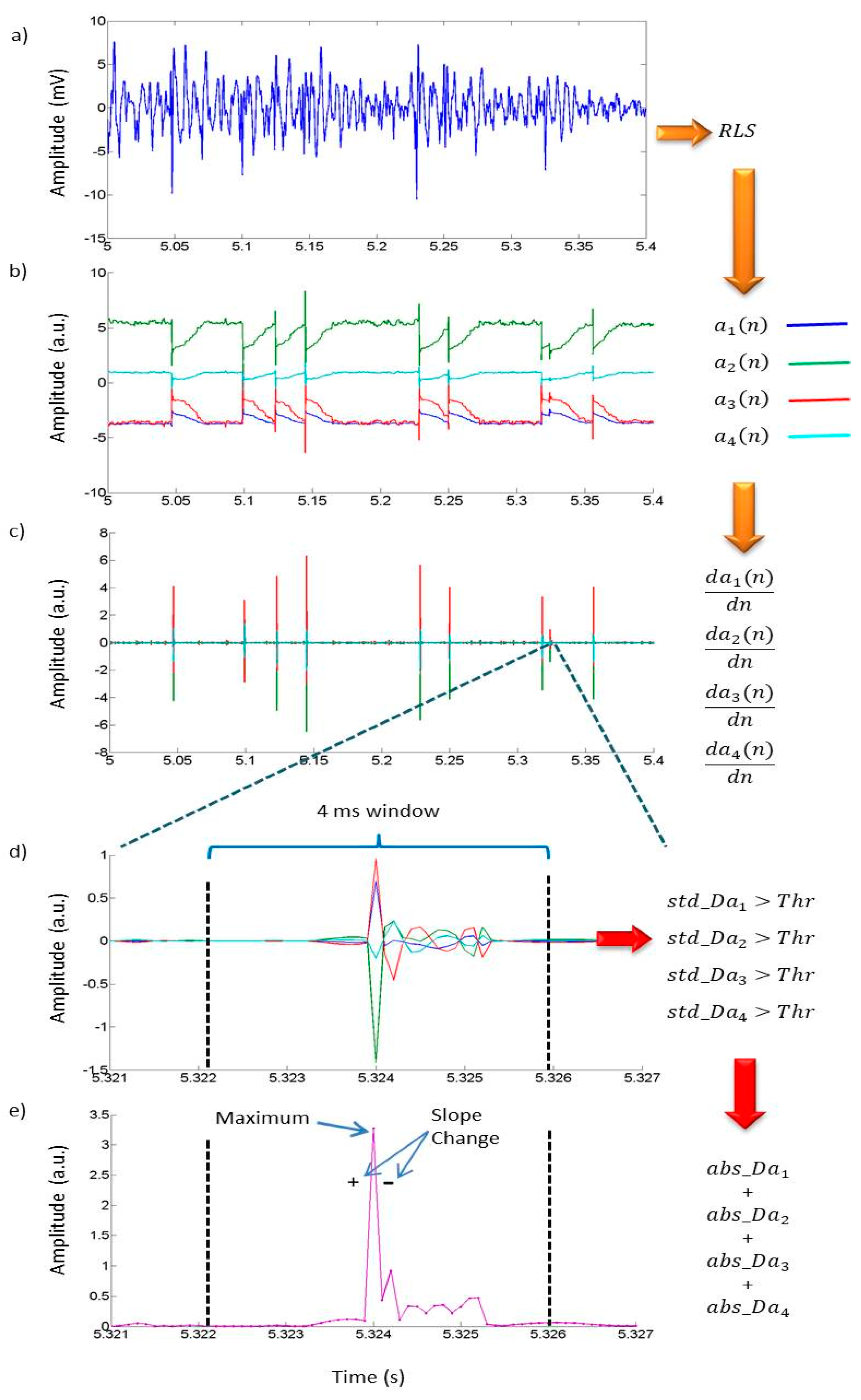

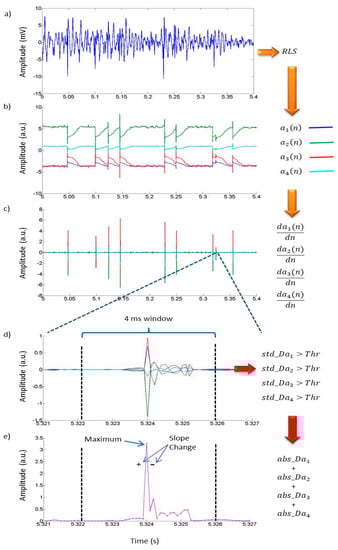

In this work, we present a mobile health system for the automated detection of crackle sounds comprised by an acoustical sensor, a smartphone device, and a mobile application (app) implemented in Android. Although pulmonary auscultation with traditional stethoscopes had been used for decades, it has limitations for detecting discontinuous adventitious respiratory sounds (crackles) that commonly occur in respiratory diseases. The proposed app allows the physician to record, store, reproduce, and analyze respiratory sounds directly on the smartphone. Furthermore, the algorithm for crackle detection was based on a time-varying autoregressive modeling. The performance of the automated detector was analyzed using: (1) synthetic fine and coarse crackle sounds randomly inserted to the basal respiratory sounds acquired from healthy subjects with different signal to noise ratios, and (2) real bedside acquired respiratory sounds from patients with interstitial diffuse pneumonia. In simulated scenarios, for fine crackles, an accuracy ranging from 84.86% to 89.16%, a sensitivity ranging from 93.45% to 97.65%, and a specificity ranging from 99.82% to 99.84% were found. The detection of coarse crackles was found to be a more challenging task in the simulated scenarios. In the case of real data, the results show the feasibility of using the developed mobile health system in clinical no controlled environment to help the expert in evaluating the pulmonary state of a subject. View Full-Text
Keywords: respiratory sounds; smartphone; time-varying autoregressive model; crackles; automatic detection respiratory sounds; smartphone; time-varying autoregressive model; crackles; automatic detection
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
