Sensors 2018, 18(11), 3796; https://doi.org/10.3390/s18113796

Enhanced Sensitivity of a Hydrogen Sulfide Sensor Based on Surface Acoustic Waves at Room Temperature

1
Institute of Acoustics, Chinese Academy of Sciences, Beijing 100190, China
2
School of Electronic, Electrical and Communication Engineering, University of Chinese Academy of Sciences, Beijing 100190, China
3
State Key Laboratory of NBC Protection for Civilian, Beijing 102205, China
*
Authors to whom correspondence should be addressed.
Received: 11 October 2018 / Revised: 1 November 2018 / Accepted: 2 November 2018 / Published: 6 November 2018
(This article belongs to the Special Issue Surface Acoustic Wave Sensors)
Full-Text   |   PDF [3877 KB, uploaded 6 November 2018]   |

Abstract

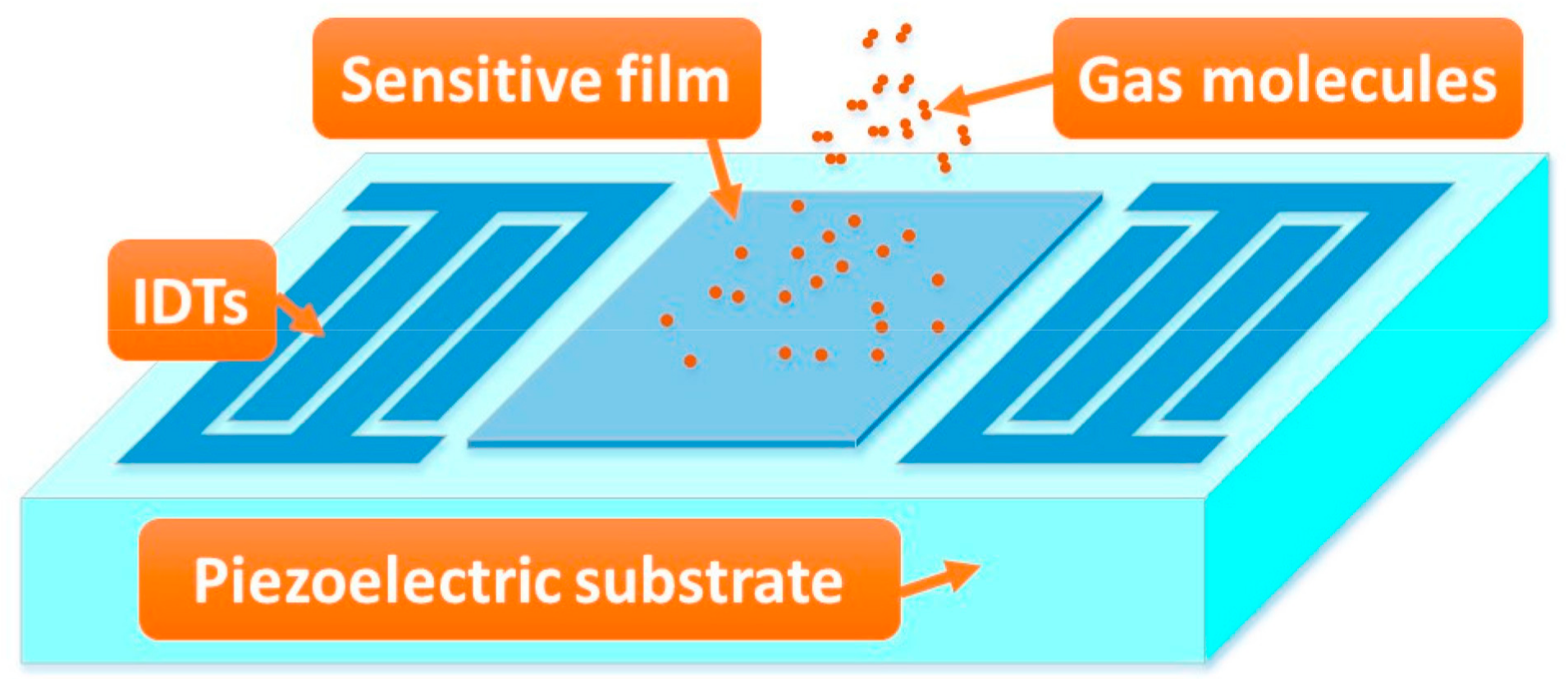

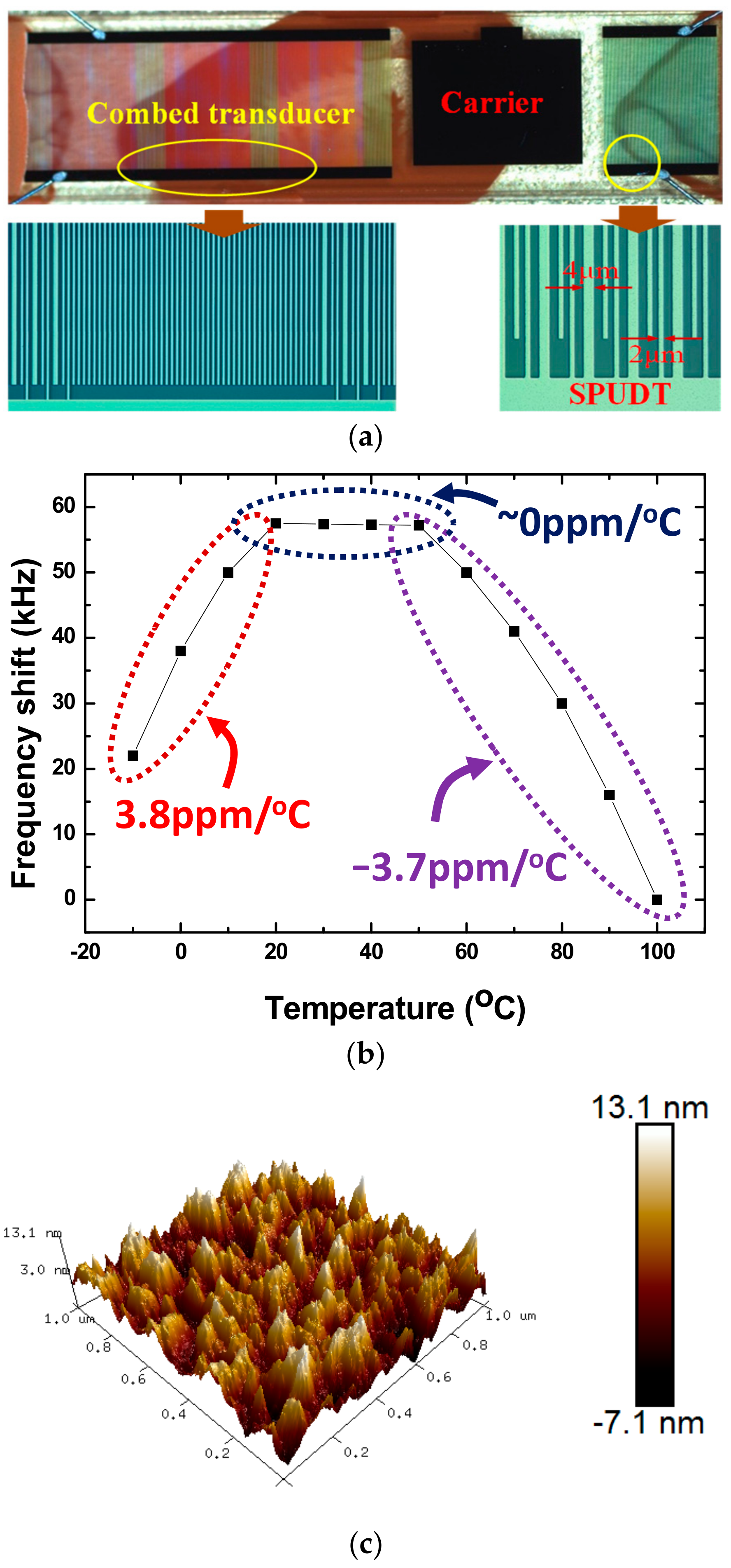

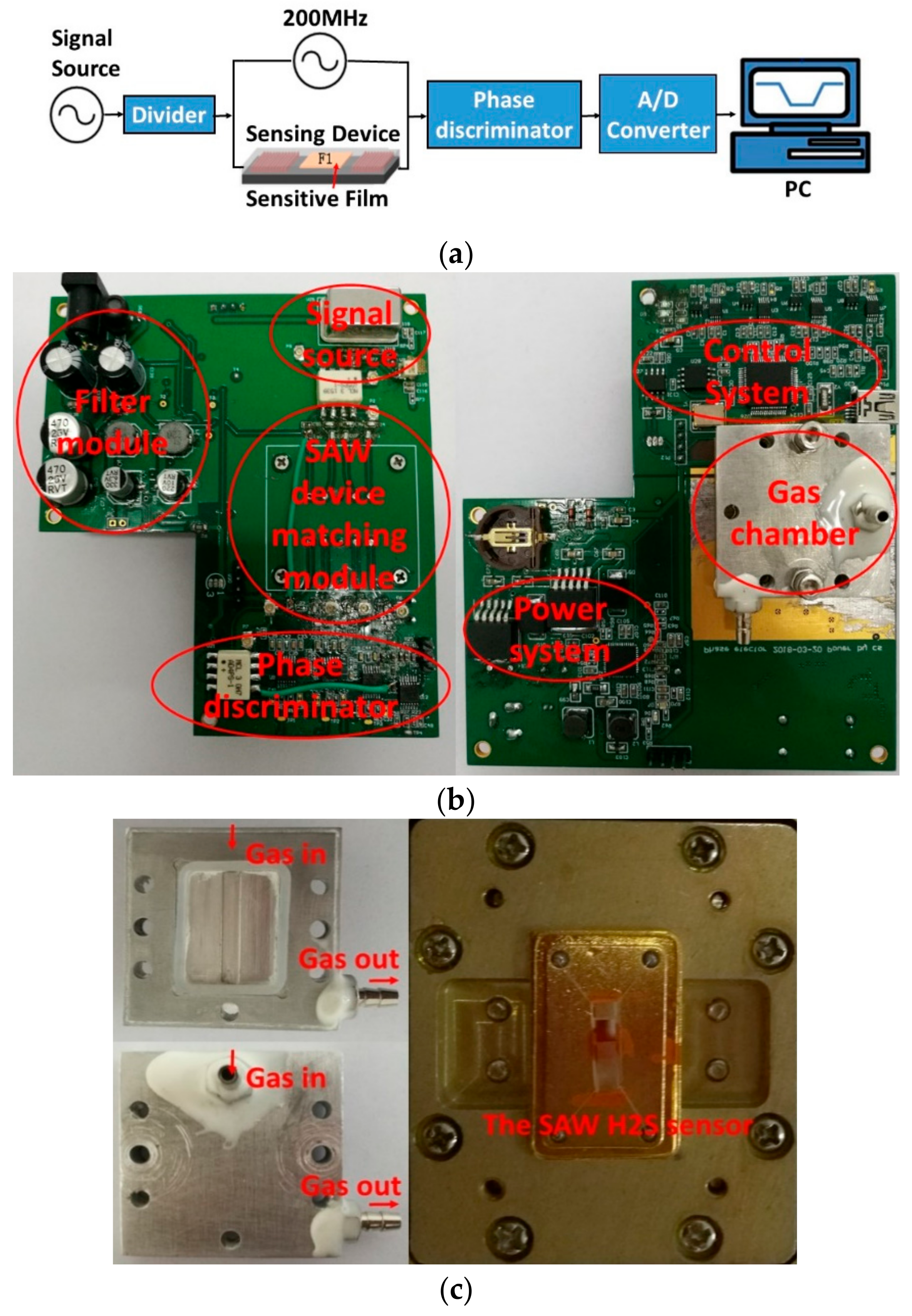

In this contribution, a new surface acoustic wave (SAW)-based sensor was proposed for sensing hydrogen sulfide (H2S) at room temperature (30 °C), which was composed of a phase discrimination circuit, a SAW-sensing device patterned with delay line, and a triethanolamine (TEA) coating along the SAW propagation path of the sensing device. The TEA was chosen as the sensitive interface for H2S sensing, owing to the high adsorption efficiency by van der Waals’ interactions and hydrogen bonds with H2S molecules at room temperature. The adsorption in TEA towards H2S modulates the SAW propagation, and the change in the corresponding phase was converted into voltage signal proportional to H2S concentration was collected as the sensor signal. A SAW delay line patterned on Y-cut quartz substrate with Al metallization was developed photographically, and lower insertion and excellent temperature stability were achieved thanks to the single-phase unidirectional transducers (SPUDTs) and lower cross-sensitivity of the piezoelectric substrate. The synthesized TEA by the reaction of ethylene oxide and ammonia was dropped into the SAW propagation path of the developed SAW device to build the H2S sensor. The developed SAW sensor was characterized by being collecting into the phase discrimination circuit. The gas experimental results appear that fast response (7 s at 4 ppm H2S), high sensitivity (0.152 mV/ppm) and lower detection limit (0.15 ppm) were achieved at room temperature. It means the proposed SAW sensor will be promising for H2S sensing. View Full-Text
Keywords: surface acoustic wave (SAW); hydrogen sulfide (H2S); triethanolamine (TEA); phase discrimination; room temperature surface acoustic wave (SAW); hydrogen sulfide (H2S); triethanolamine (TEA); phase discrimination; room temperature
