# Effect of the Matching Circuit on the Electromechanical Characteristics of Sandwiched Piezoelectric Transducers

^{*}

## Abstract

**:**

## 1. Introduction

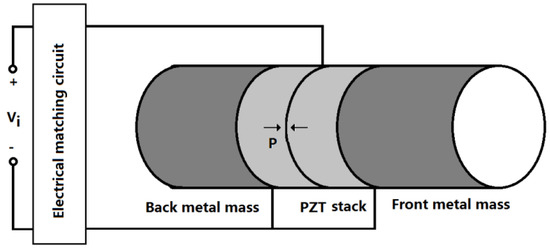

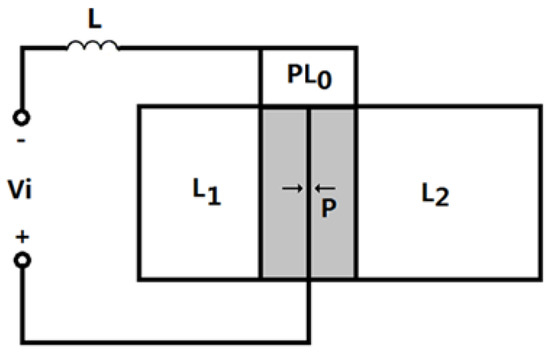

## 2. Theoretical Analysis of a Sandwiched Piezoelectric Transducer with Series Matching Inductor

## 3. Effect of the Series Matching Inductor on the Electromechanical Characteristics of a Piezoelectric Transducers

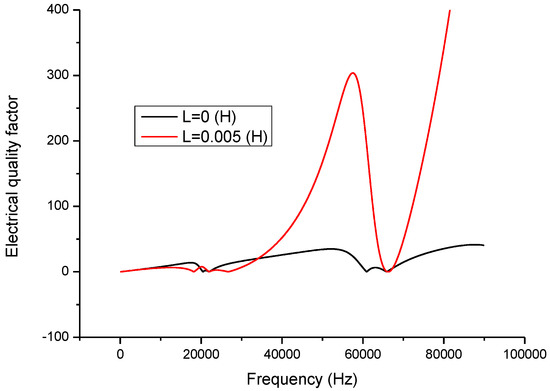

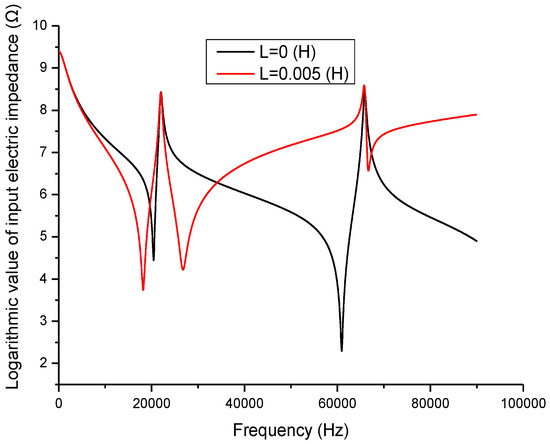

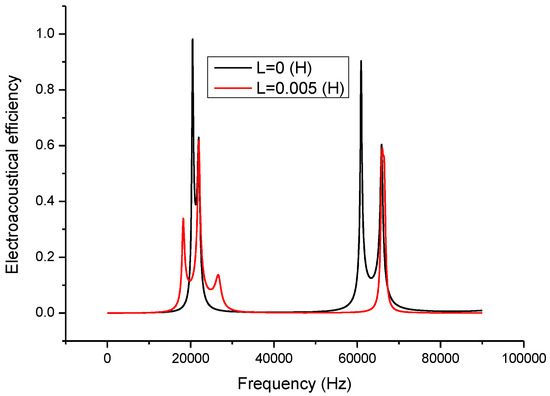

#### 3.1. Effect of the Series Matching Inductor on the Frequency Response

#### 3.2. Dependency of the Electromechanical Parameters on the Series Matching Inductor

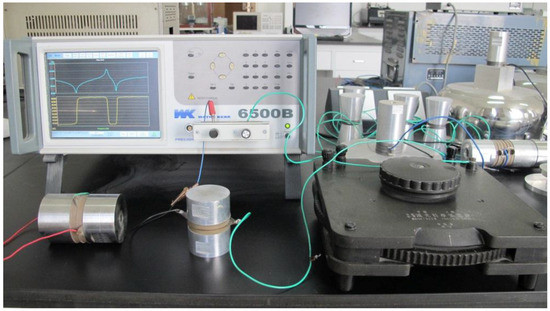

## 4. Experiments

_{r}, f

_{a}, K

_{effc}and f

_{mr}, f

_{ma}, K

_{meffc}are the theoretical and measured resonance/anti-resonance frequencies and effective electromechanical coupling coefficient.

## 5. Conclusions

- When a matching inductor is connected in series with a sandwiched piezoelectric transducer, the resonance frequency is decreased and the anti-resonance frequency is almost unchanged; the effective electromechanical coupling coefficient is increased.

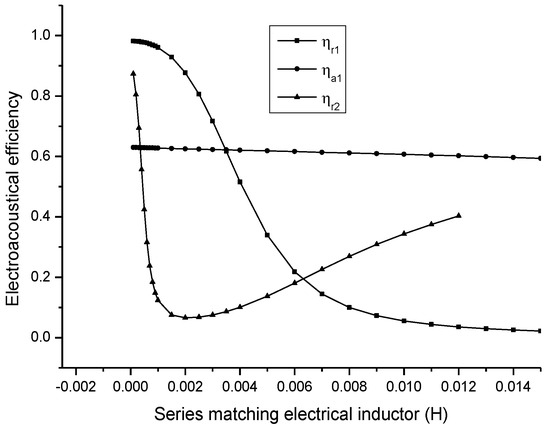

- Without a series matching inductor, the electro-acoustical efficiency at resonance frequency is larger than that at anti-resonance frequency. When a series matching inductor is added, the electro-acoustical efficiency at resonance frequency is decreased and remains unchanged at anti-resonance frequency, and the electro-acoustical efficiency at resonance frequency is lower than at anti-resonance frequency.
- When the series matching inductor is increased, the electric quality factor corresponding to resonance frequency is decreased, while the electric quality factor corresponding to anti-resonance frequency is increased.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Suzuki, T.; Ikeda, H.; Yoshida, H.; Shinohara, S. Megasonic Transducer Drive Utilizing MOSFET DC-to-RF Inverter with Output Power of 600 W at 1 MHz. IEEE Trans. Ind. Electron.
**1999**, 46, 1159–1173. [Google Scholar] [CrossRef] - Ben-Yaakov, S.; Lineykin, S. Maximum power of piezoelectric transformer HV converters under load variations. IEEE Trans. Power Electron.
**2006**, 21, 73–78. [Google Scholar] [CrossRef] - Roundy, S.; Wright, P.K. A piezoelectric vibration based generator for wireless electronics. Smart Mater. Struct.
**2004**, 13, 1131–1142. [Google Scholar] [CrossRef] - Wevers, M.; Lafaut, J.P.; Baert, L.; Chilibon, I. Low-frequency ultrasonic piezoceramic sandwich transducer. Sens. Actuators A Phys.
**2005**, 122, 284–289. [Google Scholar] [CrossRef] - Abramov, O.V. High-Intensity Ultrasonics: Theory and Industrial Applications; Gorden and Breach Science Publishers: Amsterdam, The Netherlands, 1998; pp. 416–445. [Google Scholar]
- Wai, R.; Lee, J. Comparison of voltage-source resonant driving schemes for a linear piezoelectric ceramic motor. IEEE Trans. Ind. Electron.
**2008**, 55, 871–879. [Google Scholar] [CrossRef] - Su, W.C.; Chen, C.L. ZVS for PT backlight inverter utilizing high order current harmonic. IEEE Trans. Power Electron.
**2008**, 23, 4–10. [Google Scholar] [CrossRef] - Choi, S.J.; Lee, K.C.; Cho, B.H. Design of fluorescent lamp ballast with PFC using a power piezoelectric transformer. IEEE Trans. Ind. Electron.
**2005**, 52, 1573–1581. [Google Scholar] [CrossRef] - Huang, W.; Chen, D.; Baker, E.M.; Zhou, J.; Hsieh, H.I.; Lee, F.C. Design of a power piezoelectric transformer for a PFC electronic ballast. IEEE Trans. Ind. Electron.
**2007**, 54, 3197–3204. [Google Scholar] [CrossRef] - Yan, W.; Chen, W.Q. Structural Health Monitoring Using High-Frequency Electromechanical Impedance Signatures. Adv. Civ. Eng.
**2010**, 2010, 429148. [Google Scholar] [CrossRef] - Annamdas, V.G.M.; Radhika, M.A. Electromechanical Impedance of Piezoelectric Transducers for Monitoring Metallic and Non Metallic Structures: A review of Wired, Wireless and Energy Harvesting Methods. J. Intell. Mater. Syst. Struct.
**2013**, 24, 1019–1040. [Google Scholar] [CrossRef] - Tadigadapa, S.; Mateti, K. Piezoelectric MEMS sensors: State-of-the-art and perspectives. Meas. Sci. Technol.
**2009**, 20, 092001. [Google Scholar] [CrossRef] - Dorey, R.A. Challenges in Integration of Piezoelectric Ceramics in Micro Electromechanical Systems. Mater. Sci. Forum
**2009**, 606, 43–50. [Google Scholar] [CrossRef] - Mason, W.P. Physical Acoustics: Principles and Methods; Academic Press: New York, NY, USA; London, UK, 1964; pp. 242–248. [Google Scholar]
- Safari, A.; Akdogan, E.K. Piezoelectric and Acoustic Materials for Transducer Applications; Springer Science + Business Media, LLC: New York, NY, USA, 2008; pp. 191–239. [Google Scholar]
- Sherman, C.H.; Butler, J.L. Transducers and Arrays for Underwater Sound; Springer Science + Business Media, LLC: New York, NY, USA, 2007; pp. 76–100. [Google Scholar]
- Lin, C.H.; Lu, Y.; Chiu, H.J.; Ou, C.L. Eliminating the temperature effect of piezoelectric transformer in backlight electronic ballast by applying the digital phase-locked-loop technique. IEEE Trans. Ind. Electron.
**2007**, 54, 1024–1031. [Google Scholar] [CrossRef] - Alonso, J.M.; Ordiz, C.; Dalla Costa, M.A. A novel control method for piezoelectric-transformer based power supplies assuring zero voltage-switching operation. IEEE Trans. Ind. Electron.
**2008**, 55, 1085–1089. [Google Scholar] [CrossRef] - Liu, X.; Colli-Menchi, A.I.; Gilbert, J.; Friedrichs, D.A.; Malang, K.; Sánchez-Sinencio, E. An automatic resonance tracking scheme with maximum power transfer for piezoelectric transducers. IEEE Trans. Ind. Electron.
**2015**, 62, 7136–7145. [Google Scholar] [CrossRef] - Cheng, H.; Cheng, C.; Fang, C.; Yen, H. Single-Switch High-Power-Factor Inverter Driving Piezoelectric Ceramic Transducer for Ultrasonic Cleaner. IEEE Trans. Ind. Electron.
**2011**, 58, 2898–2905. [Google Scholar] [CrossRef] - Cheng, L.; Kang, Y.; Chen, C.A. resonance-frequency-tracing method for a current-fed piezoelectric transducer. IEEE Trans. Ind. Electron.
**2014**, 61, 6031–6040. [Google Scholar] [CrossRef] - Zhang, H.J.; Wang, F.J.; Zhang, D.W.; Wang, L.J.; Hou, Y.Y.; Xia, T. A new automatic resonance frequency tracking method for piezoelectric ultrasonic transducers used in thermosonic wire bonding. Sens. Actuators A Phys.
**2015**, 235, 140–150. [Google Scholar] [CrossRef] - Kuang, Y.; Jin, Y.; Cochran, S.; Huang, Z. Resonance tracking and vibration stablilization for high power ultrasonic transducers. Ultrasonics
**2014**, 54, 187–194. [Google Scholar] [CrossRef] [PubMed] - Lin, S.Y. Load characteristics of high power sandwich piezoelectric ultrasonic transducers. Ultrasonics
**2005**, 43, 365–373. [Google Scholar] - Lin, S.Y. Analysis of multifrequency Langevin composite ultrasonic transducers. IEEE Trans. UFFC
**2009**, 56, 1990–1998. [Google Scholar] - Arun, N.; Subramaniam, K.V.L. Experimental evaluation of load-induced damage in concrete from distributed microcracks to localized cracking on electro-mechanical impedance response of bonded PZT. Constr. Build. Mater.
**2016**, 105, 536–544. [Google Scholar] - Ai, D.M.; Zhu, H.P.; Luo, H.; Yang, W. An effective electromechanical impedance technique for steel structural health monitoring. Constr. Build. Mater.
**2014**, 73, 97–104. [Google Scholar] [CrossRef] - Song, H.; Lim, H.J.; Sohn, H. Electromechanical impedance measurement from large structures using a dual piezoelectric transducer. J. Sound Vib.
**2013**, 332, 6580–6595. [Google Scholar] [CrossRef] - Yan, W.; Cai, J.B.; Chen, W.Q. An electro-mechanical impedance model of a cracked composite beam with adhesively bonded piezoelectric patches. J. Sound Vib.
**2011**, 330, 287–307. [Google Scholar] [CrossRef]

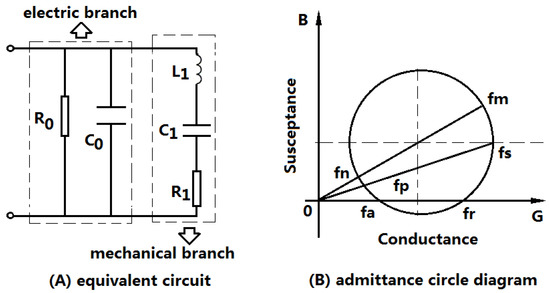

**Figure 1.**A lumped electromechanical equivalent circuit and admittance circle diagram of a piezoelectric transducer at resonance.

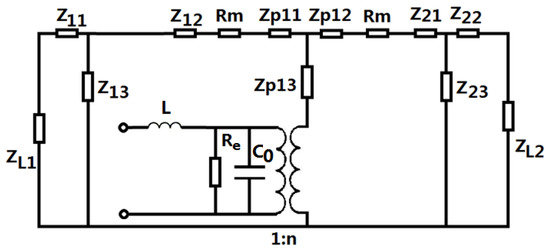

**Figure 4.**Electro-mechanical equivalent circuit of a sandwiched piezoelectric transducer with a series matching inductor.

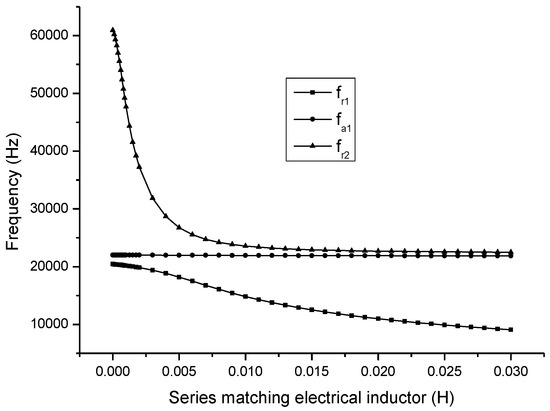

**Figure 8.**Theoretical relationship between the resonance/anti-resonance frequency and the series matching inductor.

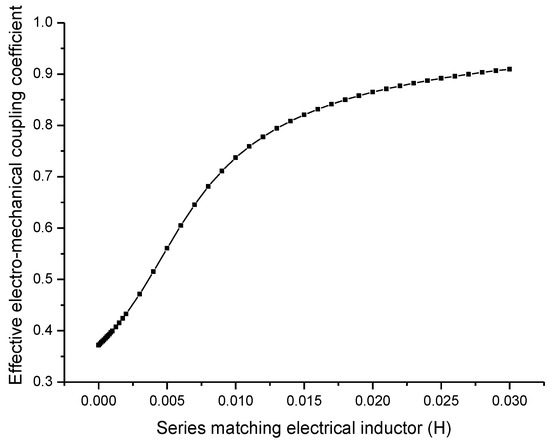

**Figure 9.**Dependency of the effective electromechanical coupling coefficient on the series matching inductor.

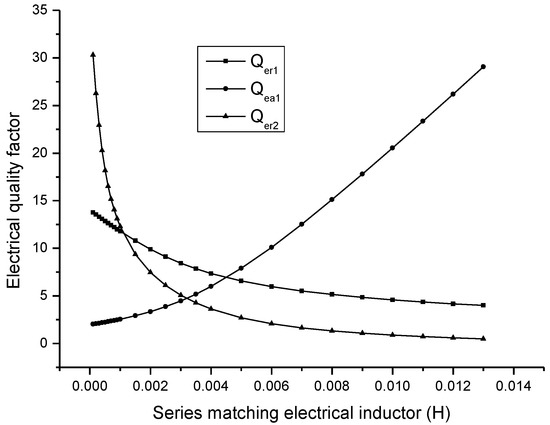

**Figure 10.**Theoretical relationship between the electric quality factor and the series matching inductor.

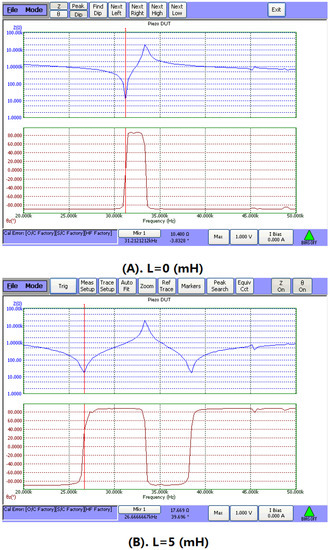

**Figure 13.**Measured frequency response of the input electric impedance of a sandwich piezoelectric transducer. (

**A**) L = 0 (mH); (

**B**) L = 5 (mH).

**Table 1.**Experimental resonance/anti-resonance frequencies and effective electromechanical coupling coefficient of the piezoelectric transducers.

No. | L (mH) | f_{r} (Hz) | f_{a} (Hz) | f_{mr} (Hz) | f_{ma} (Hz) | K_{effc} | K_{meffc} |
---|---|---|---|---|---|---|---|

1 | 0 | 33805 | 39570 | 31212 | 33333 | 0.52 | 0.35 |

5 | 17823 | 39554 | 26607 | 33333 | 0.89 | 0.60 | |

10 | 12990 | 39539 | 20606 | 33333 | 0.94 | 0.79 | |

2 | 0 | 20585 | 28706 | 18182 | 20000 | 0.70 | 0.42 |

5 | 14699 | 28677 | 17727 | 20000 | 0.86 | 0.46 | |

10 | 11560 | 28650 | 16364 | 20000 | 0.91 | 0.57 |
