Sensors 2017, 17(11), 2635; https://doi.org/10.3390/s17112635

A Passive and Wireless Sensor for Bone Plate Strain Monitoring

School of Mechanical Engineering, Northeast Electric Power University, Jilin 132012, China
*
Author to whom correspondence should be addressed.
Received: 22 August 2017 / Revised: 11 November 2017 / Accepted: 13 November 2017 / Published: 16 November 2017
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [3899 KB, uploaded 16 November 2017]   |

Abstract

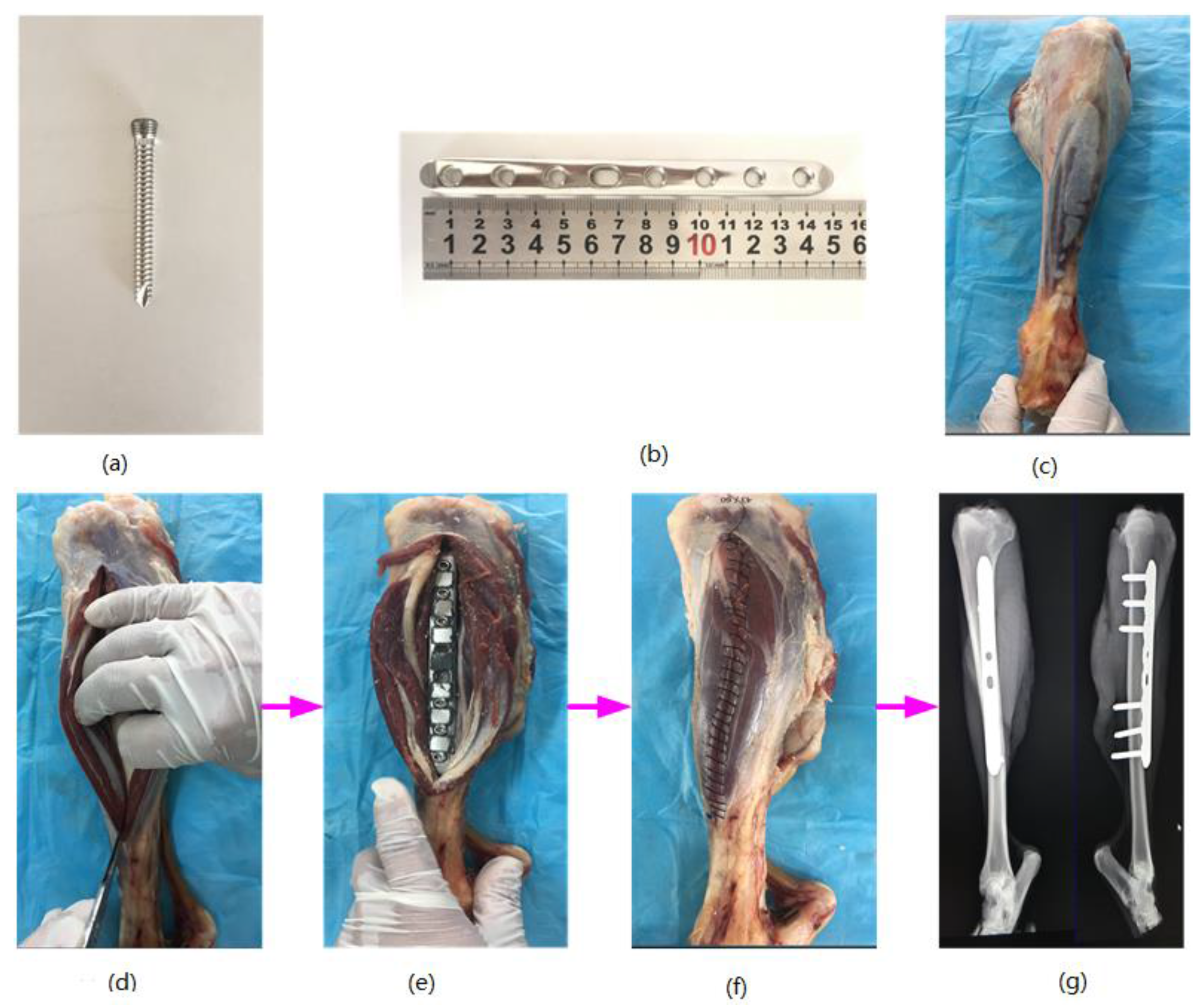

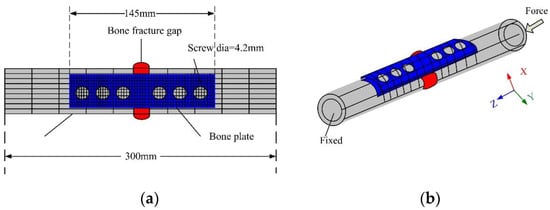

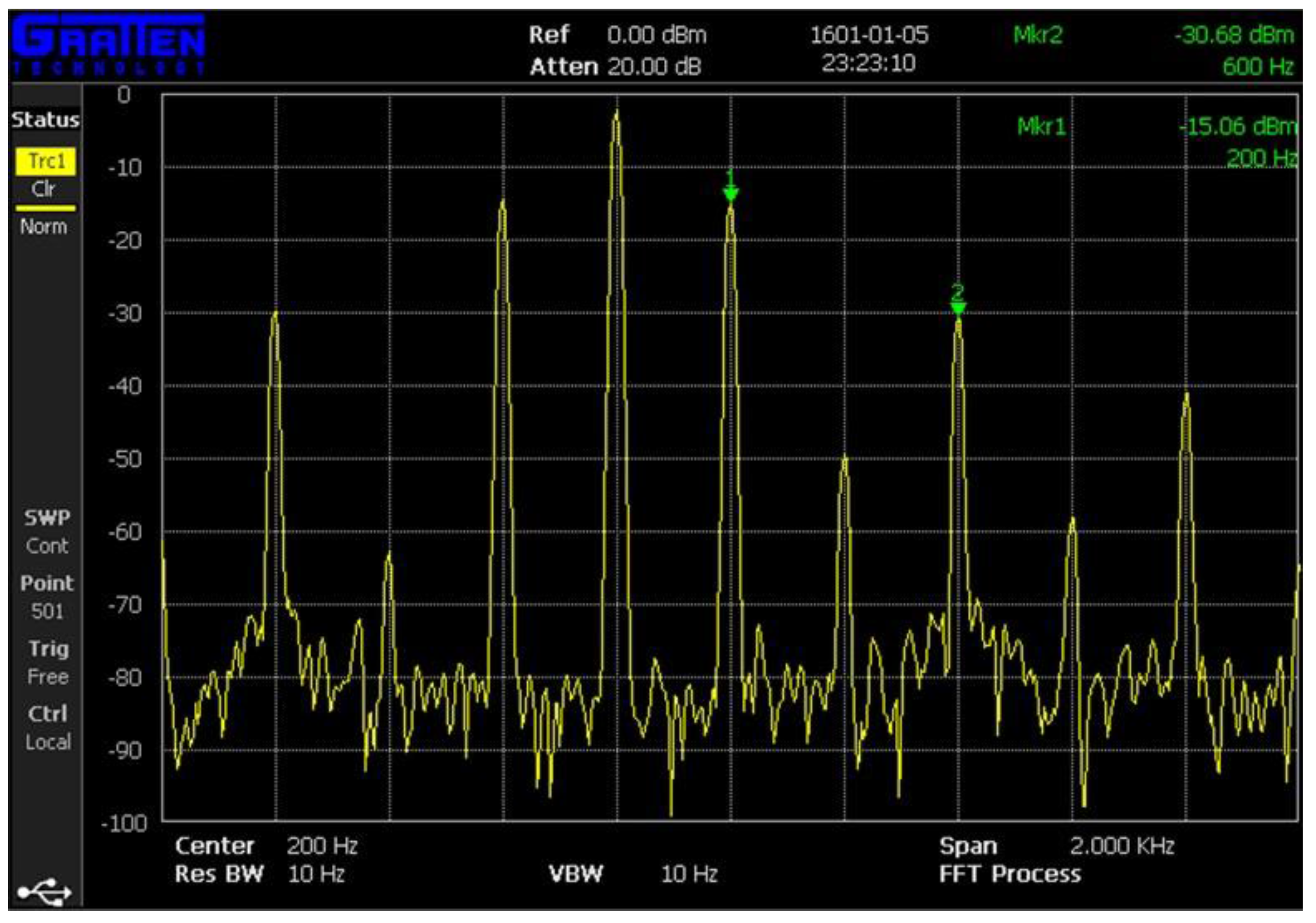

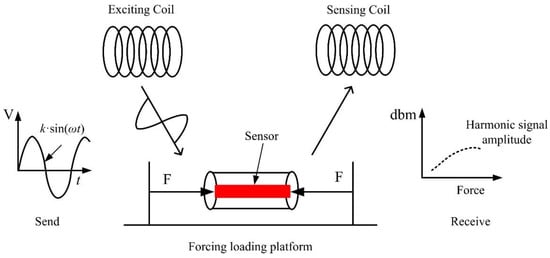

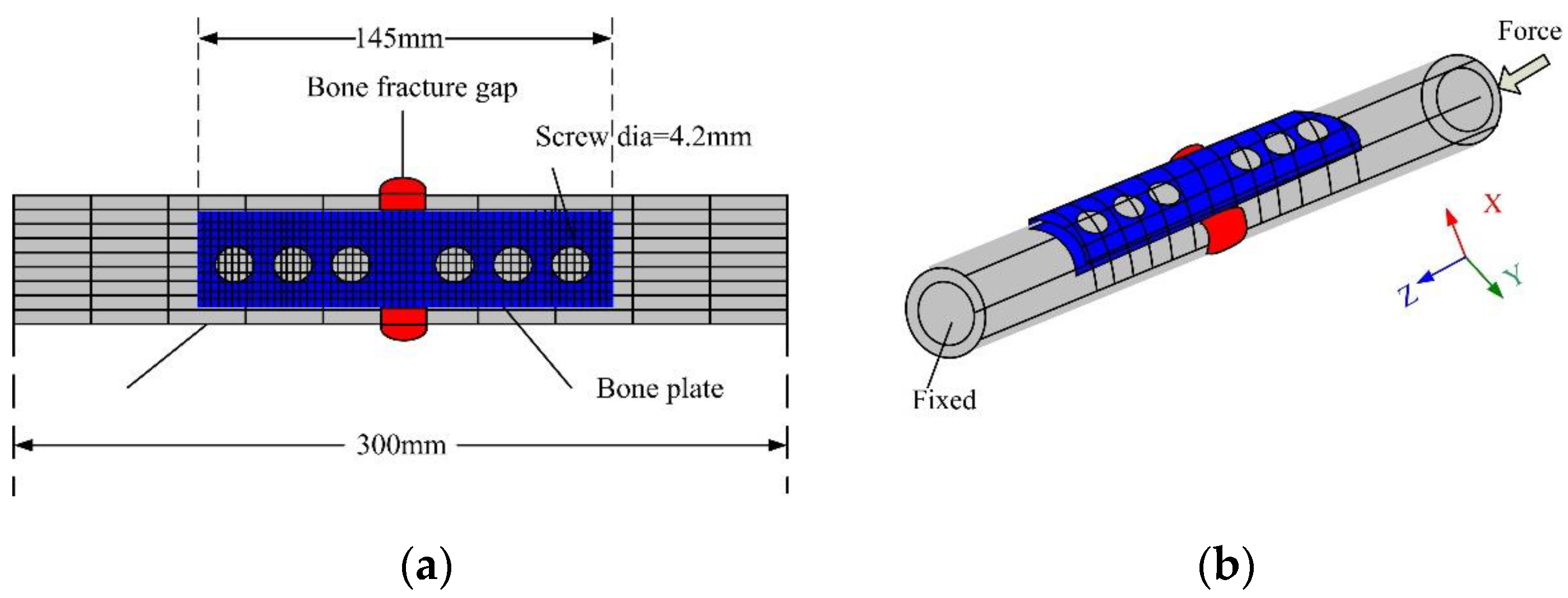

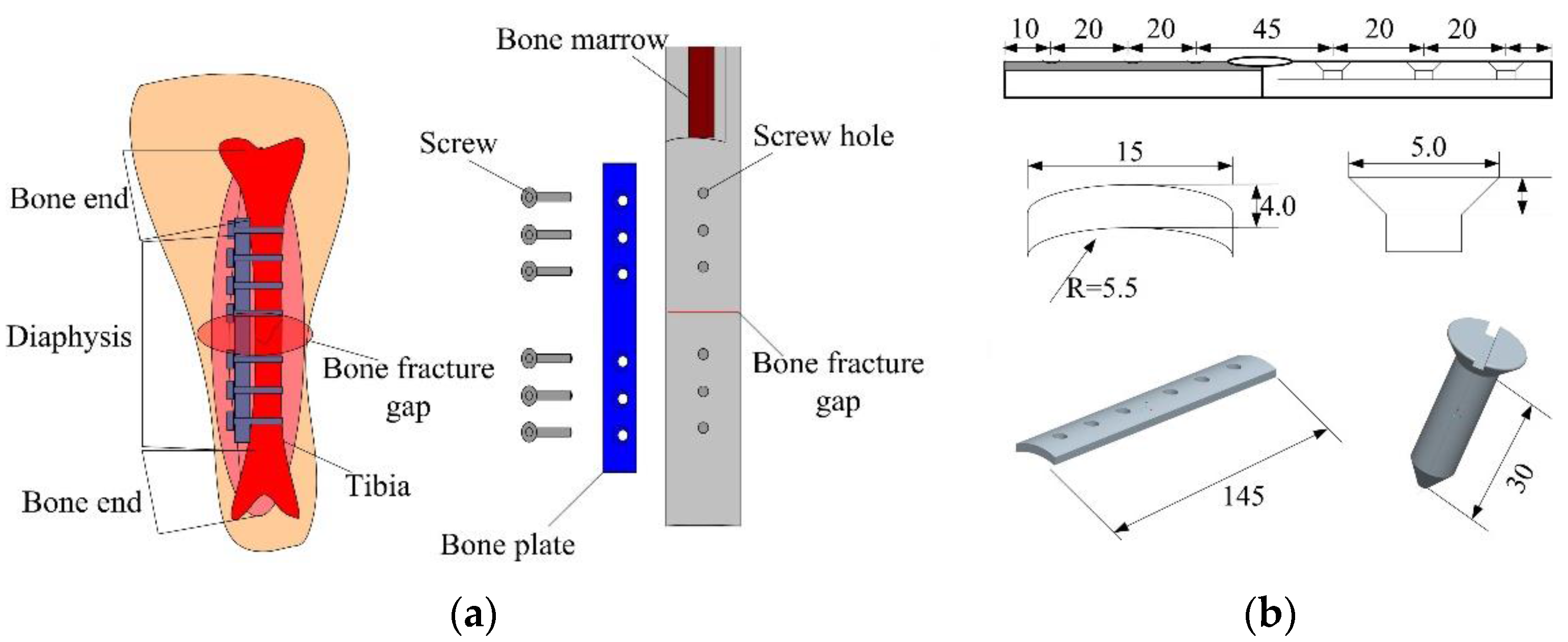

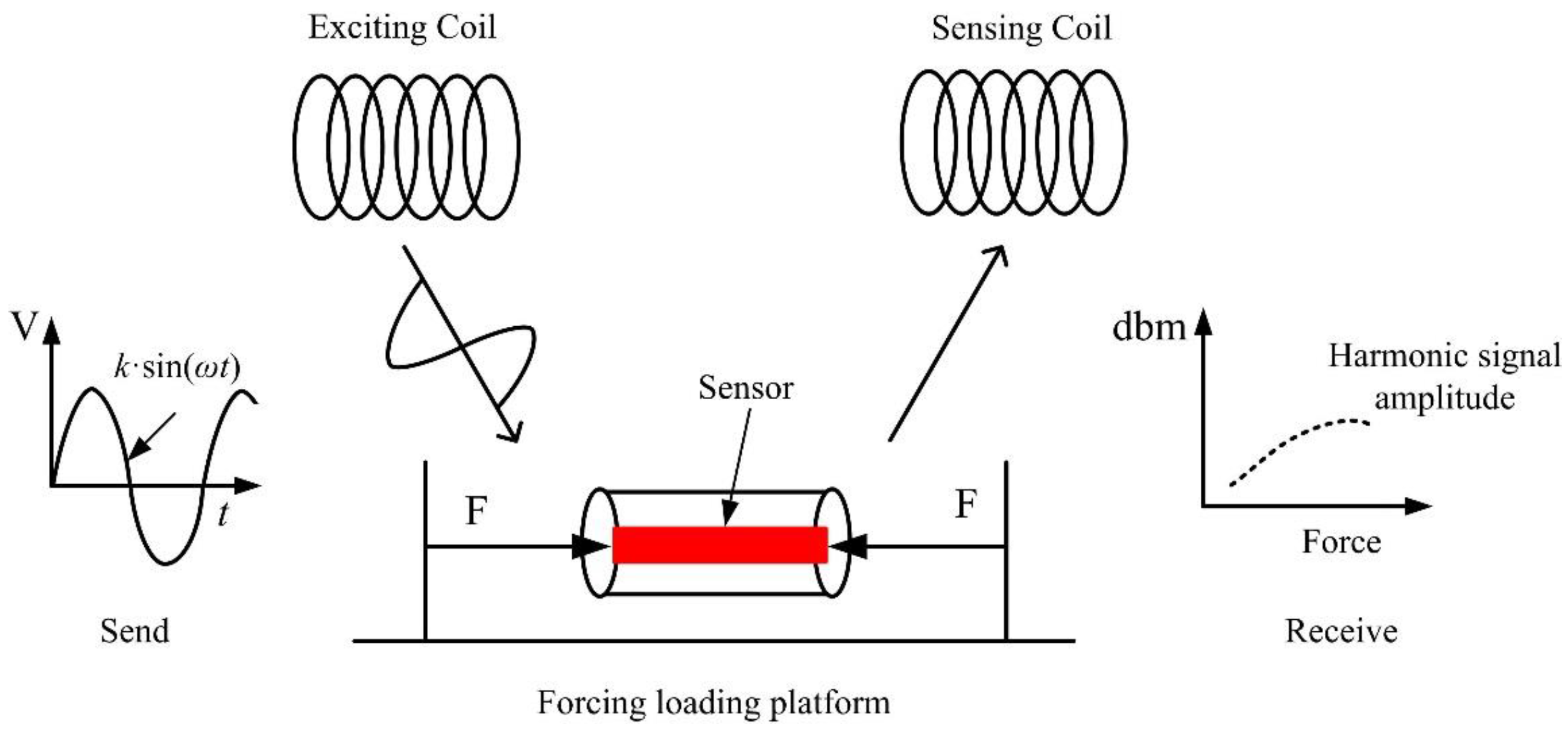

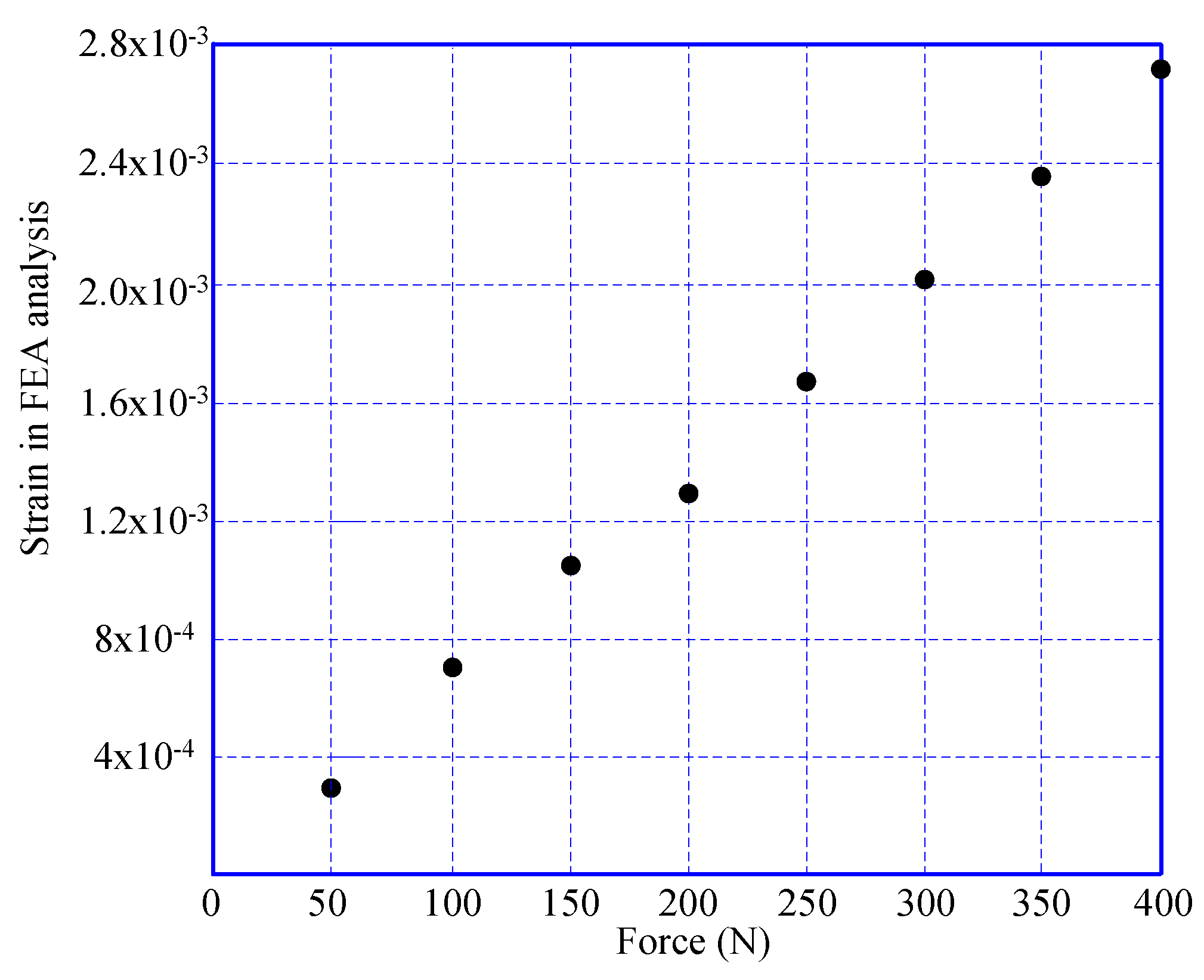

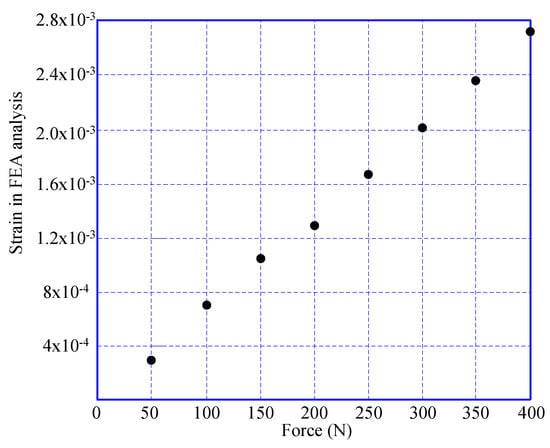

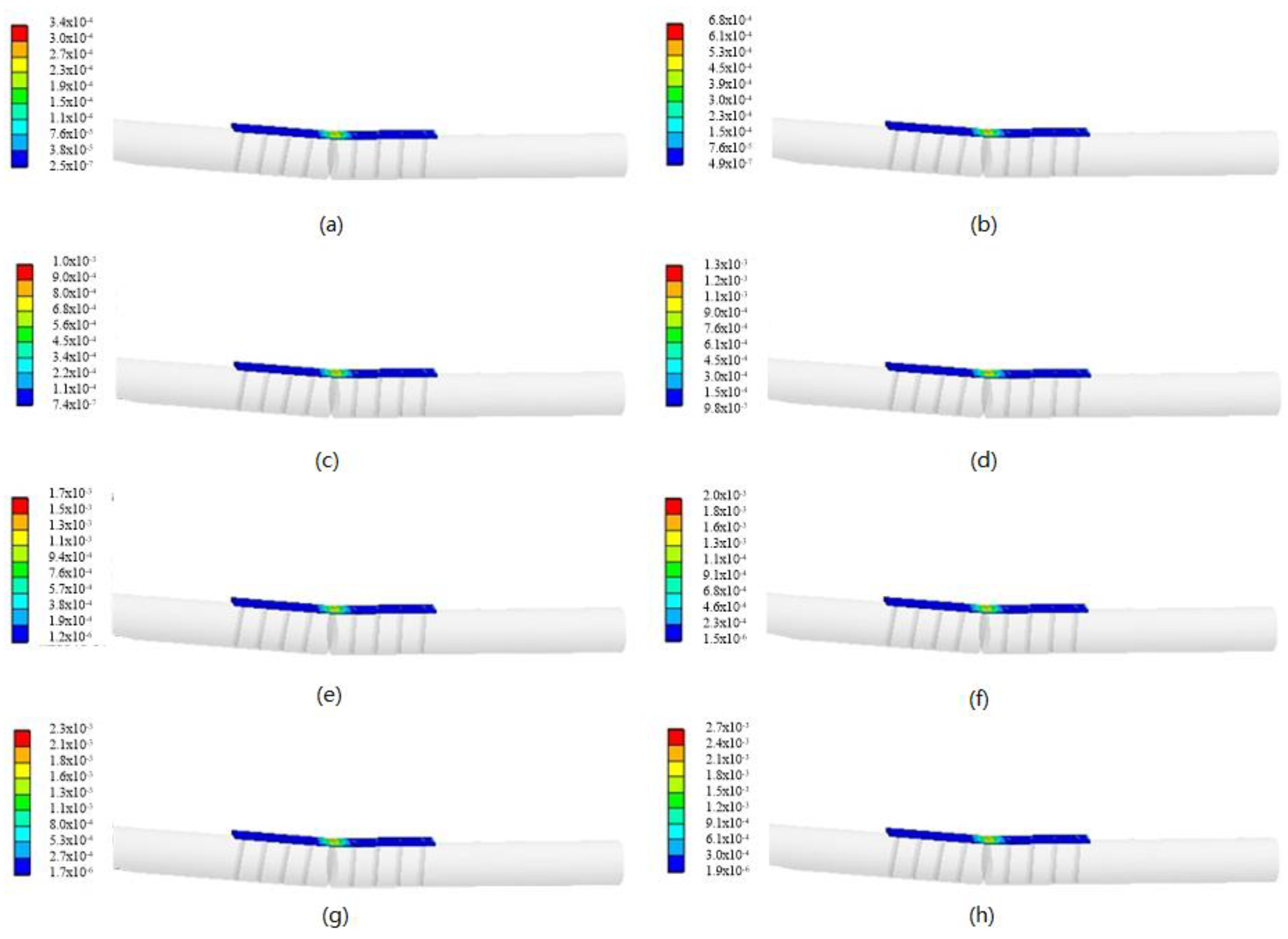

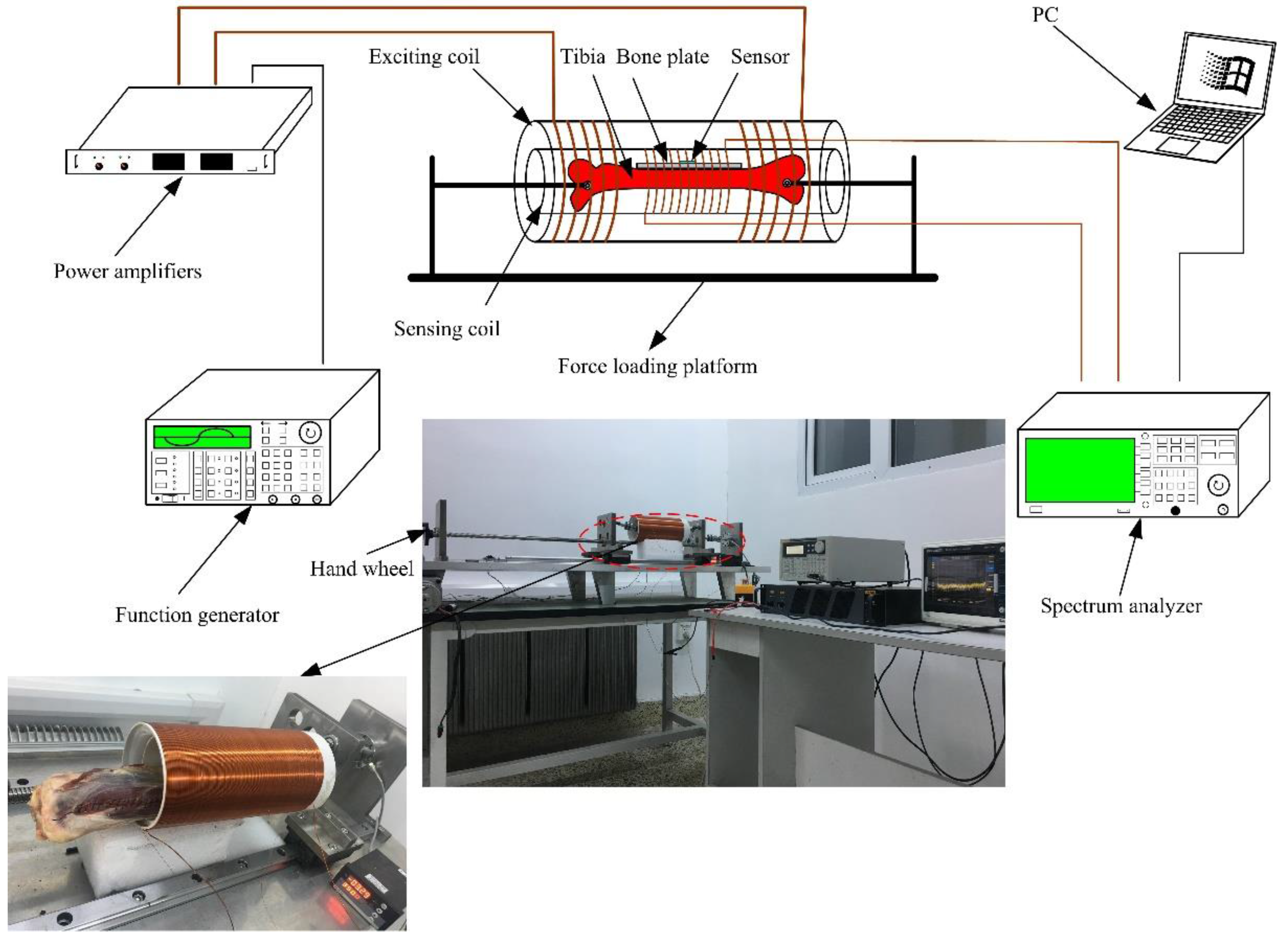

This paper reports on a sensor for monitoring bone plate strain in real time. The detected bone plate strain could be used for judging the healing state of fractures in patients. The sensor consists of a magnetoelastic material, which can be wirelessly connected and passively embedded. In order to verify the effectiveness of the sensor, a tibia-bone plate-screw (TBS) model was established using the finite element analysis method. A variation of the bone plate strain was obtained via this model. A goat hindquarter tibia was selected as the bone fracture model in the experiment. The tibia was fixed on a high precision load platform and an external force was applied. Bone plate strain variation during the bone fracture healing process was acquired with sensing coils. Simulation results indicated that bone plate strain decreases as the bone gradually heals, which is consistent with the finite element analysis results. This validated the soundness of the sensor reported here. This sensor has wireless connections, no in vivo battery requirement, and long-term embedding. These results can be used not only for clinical practices of bone fracture healing, but also for bone fracture treatment and rehabilitation equipment design. View Full-Text
Keywords: bone plate; tibia-bone plate-screw model; magnetic material; passive and wireless sensor; finite element analysis bone plate; tibia-bone plate-screw model; magnetic material; passive and wireless sensor; finite element analysis
