Open AccessArticle
Sensors 2017, 17(1), 75;

Estimation of Ground Reaction Forces and Moments During Gait Using Only Inertial Motion Capture

Xsens Technologies B.V., Enschede 7521 PR, The Netherlands
Department of Health Science and Technology, Aalborg University, Aalborg 9220, Denmark
Department of Mechanical and Manufacturing Engineering, Aalborg University, Aalborg 9220, Denmark
Institute for Biomedical Technology and Technical Medicine (MIRA), University of Twente, Enschede 7500 AE, The Netherlands
Author to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 29 September 2016 / Revised: 21 December 2016 / Accepted: 28 December 2016 / Published: 31 December 2016
(This article belongs to the Special Issue Body Worn Behavior Sensing)
Full-Text   |   PDF [6215 KB, uploaded 31 December 2016]   |

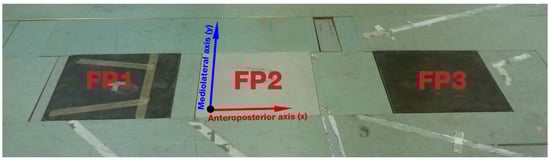

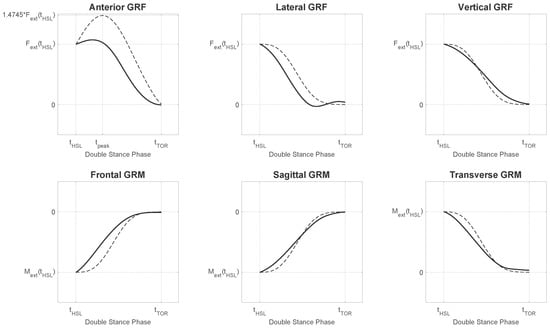

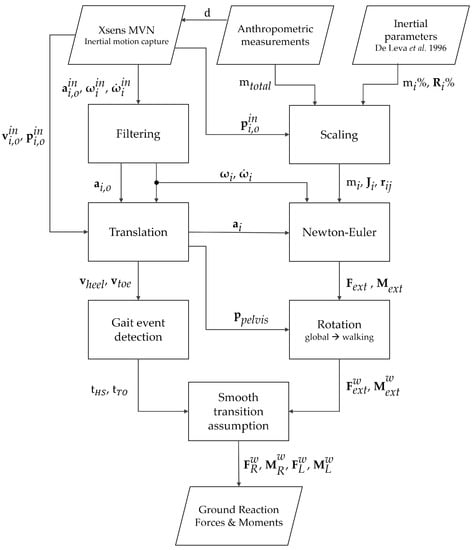

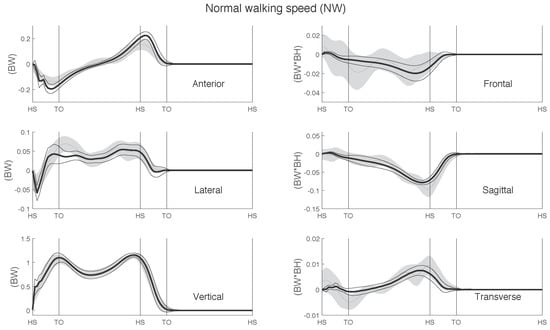

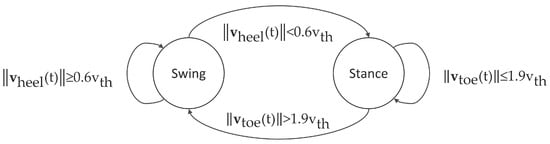

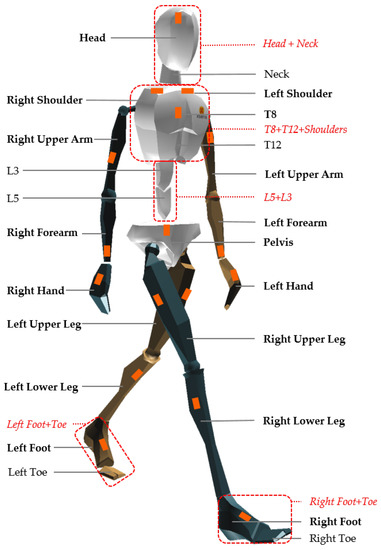

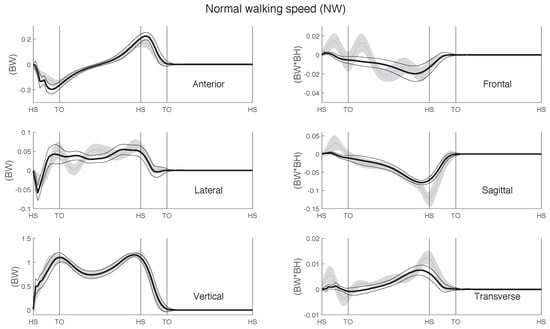

Ground reaction forces and moments (GRF&M) are important measures used as input in biomechanical analysis to estimate joint kinetics, which often are used to infer information for many musculoskeletal diseases. Their assessment is conventionally achieved using laboratory-based equipment that cannot be applied in daily life monitoring. In this study, we propose a method to predict GRF&M during walking, using exclusively kinematic information from fully-ambulatory inertial motion capture (IMC). From the equations of motion, we derive the total external forces and moments. Then, we solve the indeterminacy problem during double stance using a distribution algorithm based on a smooth transition assumption. The agreement between the IMC-predicted and reference GRF&M was categorized over normal walking speed as excellent for the vertical (ρ = 0.992, rRMSE = 5.3%), anterior (ρ = 0.965, rRMSE = 9.4%) and sagittal (ρ = 0.933, rRMSE = 12.4%) GRF&M components and as strong for the lateral (ρ = 0.862, rRMSE = 13.1%), frontal (ρ = 0.710, rRMSE = 29.6%), and transverse GRF&M (ρ = 0.826, rRMSE = 18.2%). Sensitivity analysis was performed on the effect of the cut-off frequency used in the filtering of the input kinematics, as well as the threshold velocities for the gait event detection algorithm. This study was the first to use only inertial motion capture to estimate 3D GRF&M during gait, providing comparable accuracy with optical motion capture prediction. This approach enables applications that require estimation of the kinetics during walking outside the gait laboratory. View Full-Text
Keywords: ground reaction force and moment; inertial motion capture; inverse dynamics; gait analysis ground reaction force and moment; inertial motion capture; inverse dynamics; gait analysis

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
