Open AccessArticle
Sensors 2015, 15(12), 31566-31580;

Multidirectional Image Sensing for Microscopy Based on a Rotatable Robot

Mechanical and Biomedical Engineering Department, City University of Hong Kong, Tat Chee Avenue, Kowloon, Hong Kong, China
CityU Shenzhen Research Institute, Shen Zhen, 8 Yuexing 1st Road, Shenzhen 518000, China
Institute of Electrical Engineering, Yanshan University, 438 Hebei Street West Section, Haigang, Qinhuangdao 066004, China
College of Electromechanical Engineering, University of Petroleum (East China), No. 66, Changjiang West Road, Huangdao District, Qingdao 266580, China
Authors to whom correspondence should be addressed.
Academic Editor: Vittorio M. N. Passaro
Received: 7 October 2015 / Revised: 3 December 2015 / Accepted: 10 December 2015 / Published: 15 December 2015
(This article belongs to the Special Issue Sensors for Robots)
Full-Text   |   PDF [1889 KB, uploaded 15 December 2015]   |

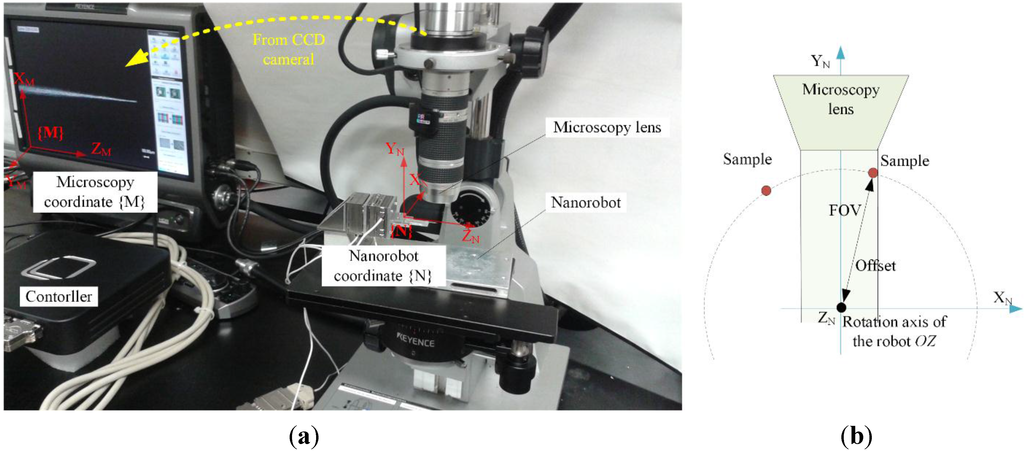

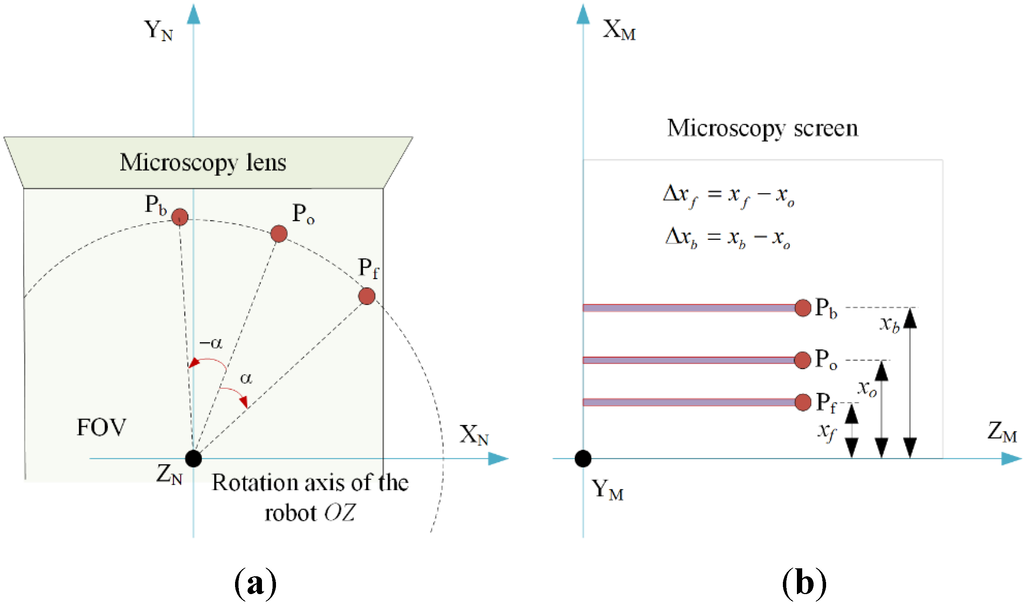

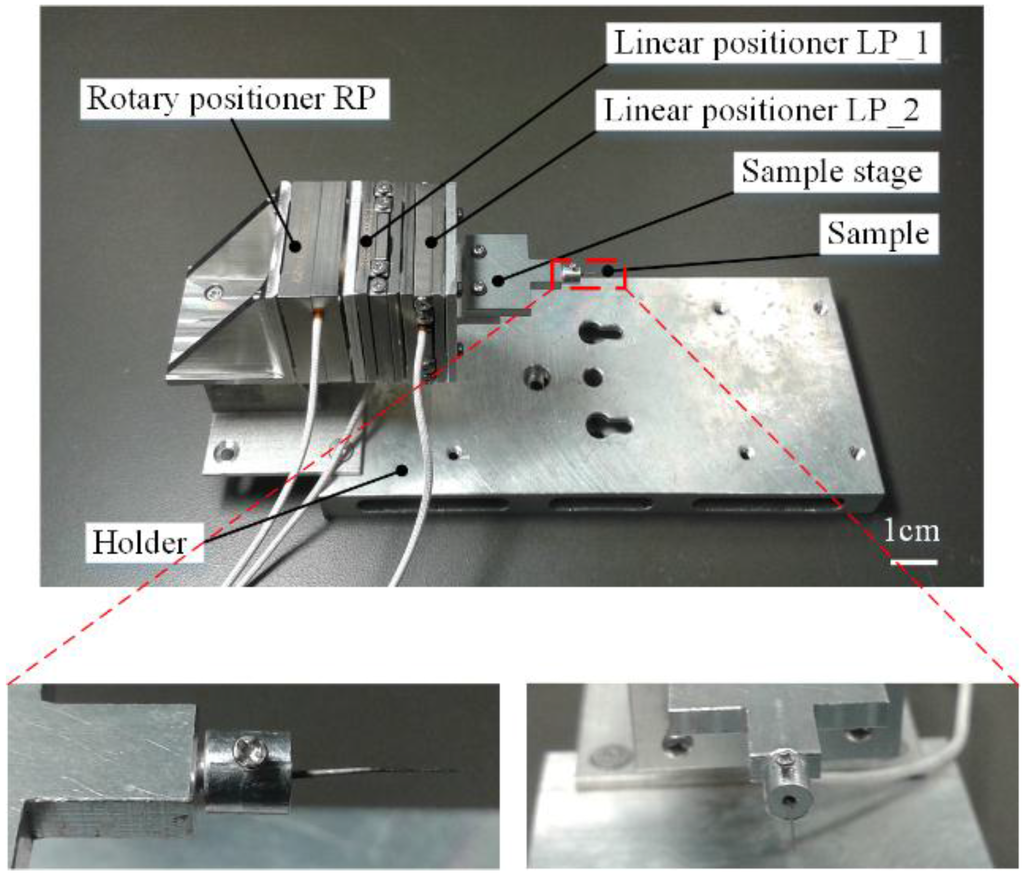

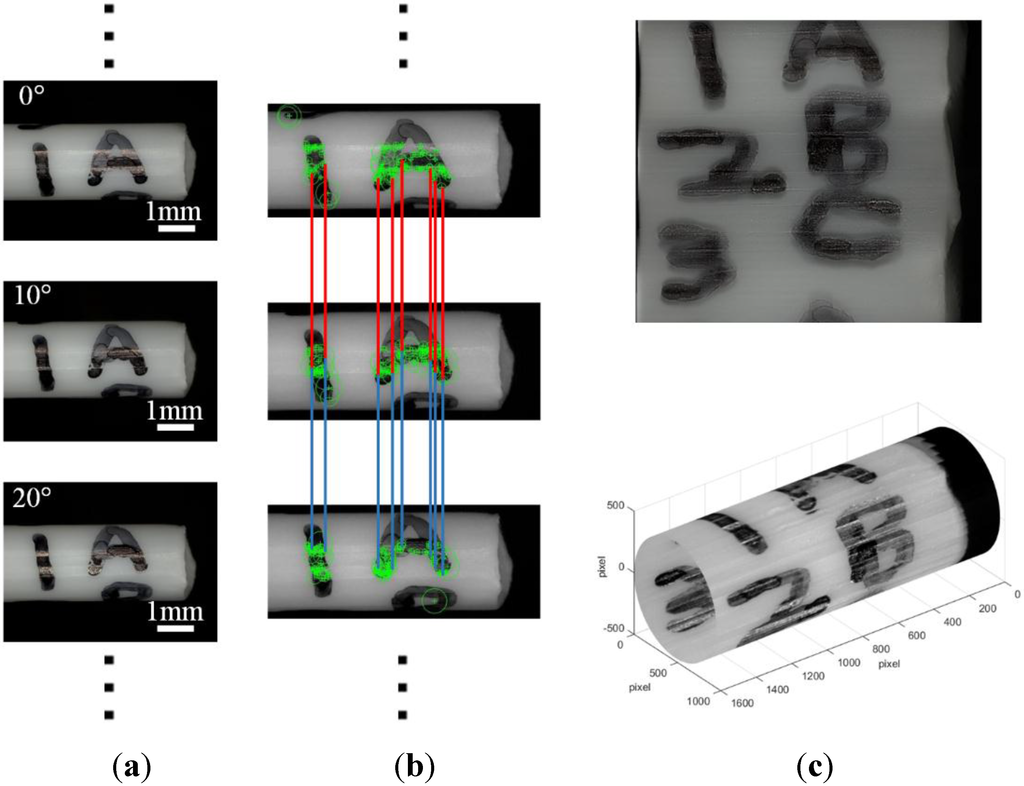

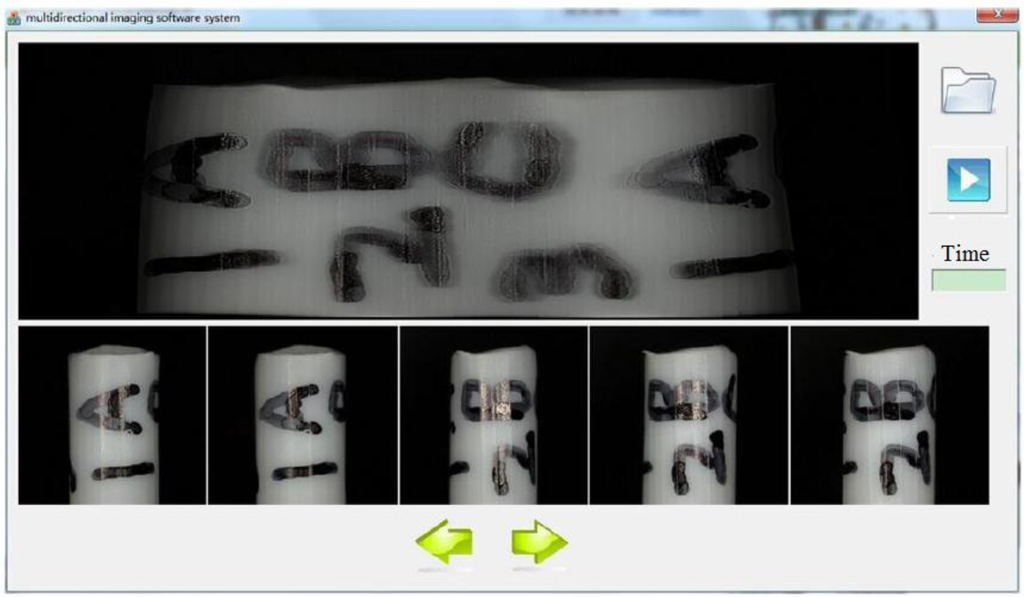

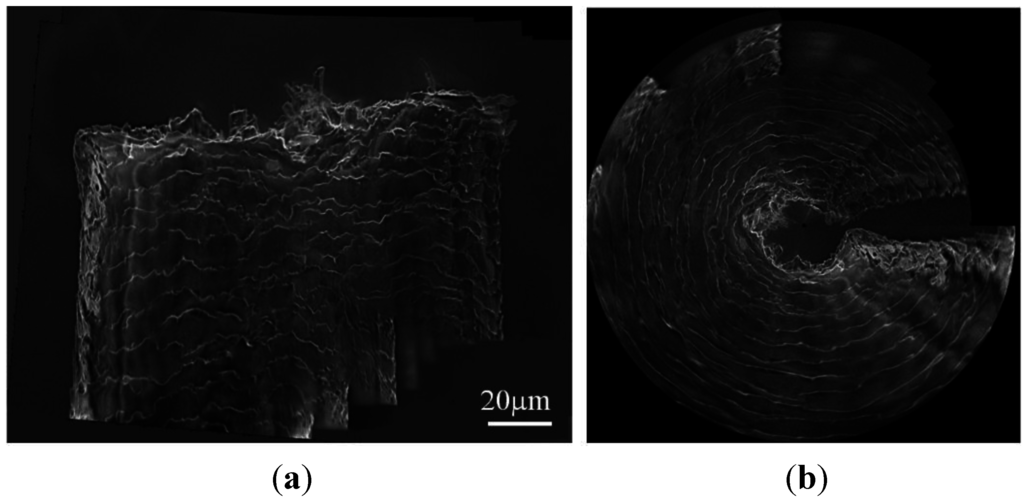

Image sensing at a small scale is essentially important in many fields, including microsample observation, defect inspection, material characterization and so on. However, nowadays, multi-directional micro object imaging is still very challenging due to the limited field of view (FOV) of microscopes. This paper reports a novel approach for multi-directional image sensing in microscopes by developing a rotatable robot. First, a robot with endless rotation ability is designed and integrated with the microscope. Then, the micro object is aligned to the rotation axis of the robot automatically based on the proposed forward-backward alignment strategy. After that, multi-directional images of the sample can be obtained by rotating the robot within one revolution under the microscope. To demonstrate the versatility of this approach, we view various types of micro samples from multiple directions in both optical microscopy and scanning electron microscopy, and panoramic images of the samples are processed as well. The proposed method paves a new way for the microscopy image sensing, and we believe it could have significant impact in many fields, especially for sample detection, manipulation and characterization at a small scale. View Full-Text
Keywords: multidirectional imaging; robot; microscopy image sensing; micromanipulation multidirectional imaging; robot; microscopy image sensing; micromanipulation

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Shen, Y.; Wan, W.; Zhang, L.; Yong, L.; Lu, H.; Ding, W. Multidirectional Image Sensing for Microscopy Based on a Rotatable Robot. Sensors 2015, 15, 31566-31580.
