An Ultra-Sensitive Electrochemical Sensor for the Detection of Carcinogen Oxidative Stress 4-Nitroquinoline N-Oxide in Biologic Matrices Based on Hierarchical Spinel Structured NiCo2O4 and NiCo2S4; A Comparative Study

by
Tse-Wei Chen
1,†,
Elayappan Tamilalagan
2,†,
Shen-Ming Chen
2,*,
Muthumariappan Akilarasan
2,
Selvarasu Maheshwaran
2 and
Xiaoheng Liu
3,*
1
Department of Materials, Imperial College London, London SW7 2AZ, UK
2
Department of Chemical Engineering and Biotechnology, National Taipei University of Technology, Taipei 106, Taiwan
3
Key Laboratory of Education Ministry for Soft Chemistry and Functional Materials, Nanjing University of Science and Technology, Nanjing 210094, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2020, 21(9), 3273; https://doi.org/10.3390/ijms21093273
Submission received: 19 March 2020 / Revised: 27 April 2020 / Accepted: 28 April 2020 / Published: 5 May 2020
(This article belongs to the Special Issue Electrocatalysts for Electrochemical Sensors and Energy-Related Devices)
Browse Figures
Versions Notes

Abstract

:
Various factors leads to cancer; among them oxidative damage is believed to play an important role. Moreover, it is important to identify a method to detect the oxidative damage. Recently, electrochemical sensors have been considered as the one of the most important techniques to detect DNA damage, owing to its rapid detection. However, electrode materials play an important role in the properties of electrochemical sensor. Currently, researchers have aimed to develop novel electrode materials for low-level detection of biomarkers. Herein, we report the facile hydrothermal synthesis of NiCo2O4 micro flowers (MFs) and NiCo2S4 micro spheres (Ms) and evaluate their electrochemical properties for the detection of carcinogen-causing biomarker 4-nitroquinoline n-oxide (4-NQO) in human blood serum and saliva samples. Moreover, as-prepared composites were fabricated on a glass carbon electrode (GCE), and its electrochemical activities for the determination of 4-NQO were investigated by using various electrochemical techniques. Fascinatingly, the NiCo2S4-Ms showed a very low detection limit of 2.29 nM and a wider range of 0.005 to 596.64 µM for detecting 4-NQO. Finally, the practical applicability of NiCo2S4-Ms in the 4-NQO spiked human blood serum and saliva samples were also investigated.

1. Introduction

Currently, bimetallic oxide and sulfide-based nanoparticles have been widely used in the field of electrochemical application [1,2,3]. A well-known electrode material with superior electrocatalytic property prepared based on nickel and cobalt due its higher surface area, structures and unique morphologies than monometallic oxides or sulfides [4,5,6,7,8]. Thus, we have synthesized hierarchical spinel NiCo2O4-MFs and NiCo2S4-Ms as an electrode material for the electrocatalytic reduction of 4-NQO detection. The better response occurs on the NiCo2S4-Ms modified electrode because sulfides provide the lower bandgap energy and less electronegativity than oxides [8,9,10]. The synthesis method for NiCo2S4 and NiCo2O4 with various structures such as, micro flowers, nanoprism [11], nanoplates [12] and nanorods [13] and their electrocatalytic properties were previously reported. However, the hydrothermal method are more convenient to synthesis nanomaterials with different morphology then other available methods [14,15,16]. The chemical reaction in hydrothermal process occurs due to the influential high-temperature and pressure, which results the formation of exceptional products [17].
The term oxidative stress is defined to be the imbalance or the excessive production of reactive oxygen species (ROS) in cellular metabolism [18,19]. It plays an important role in living organisms such as maintenance of cell growth and production of important biologic substances, etc. [20]. However, in living organisms free radicals such as nitric oxide, peroxynitrite produce the ROS, which undergoes nitration in protein molecules, forms the 4-nitroquinoline n-oxide [21]. Thus, the excess level of 4-NQO leads to various types of disorders such as cancer, neurodegeneration and lung diseases, etc. [22]. Therefore, it is essential and important to develop analytical techniques to identify the oxidative stress biomarker 4-NQO in biologic matrices. The current analytical techniques that are used to determine 4-NQO ions are fluorescence-based screening assay, high performance liquid chromatography (HPLC) and electrochemical methods [22]. Among the aforementioned techniques, electrochemical techniques are easy to handle, require low consumption of samples, are rapid and most importantly, are low-cost [22,23]. Moreover, the fabrication of the electrode surface with the suitable materials will precisely improve the electrochemical parameters such as stability and sensitivity [24].
Herein, we reported that the facile synthesis of hierarchical spinel structure of NiCo2S4 microspheres and NiCo2O4 micro flowers for the effective detection of oxidative stress biomarker 4-NQO. The as-prepared NiCo2S4-Ms shows the excellent electrochemical activities for the determination of 4-NQO on comparing with NiCo2O4-MFs. Furthermore, the differential pulse voltammetry (DPV) results exhibited a low limit of detection and a wider linear range for the detection of biomarker 4-NQO. Moreover, the prepared NiCo2S4-Ms shows excellent long-term stability and selectivity. Finally, real samples of the sensor were tested in 4-NQO spiked human blood serum and saliva samples.

2. Results and Discussion

2.1. Microscopic and Elemental Analysis of Synthesized Nanomaterials

The morphologic structure of synthesis nanoparticles micro flowers and microspheres were obtained using FESEM. Figure 1A characteristic the morphology of NiCo2O4, which appears as a flower-like structure and Figure 1B, shows the magnified microscopic image of NiCo2O4 in which clearly demonstrated that the numerous nano-needles are shrinks together and forms a micro spiky structure. Moreover, the FESEM images of the NiCo2S4 Figure 1C,D show that obtained particles were micro structured spheres, which were regularly distributed with an average particle size of 1.64 µm. Figure 2A–D illustrates the elemental mapping of NiCo2S4 Ms (A), which confirmed the presence of Ni (B), Co (C) and S (D) elements. In addition, the EDX analysis were taken to investigate the elemental composition present in NiCo2S4 Ms. Figure 2E shows the EDX spectrum of NiCo2S4 Ms with the expected signal response of the elements Ni, Co and S. The inset image of Figure 2E presents the weight percent NiCo2S4 Ms. Moreover, the elemental mapping and EDX spectrum including the weight percentage of NiCo2O4 MFs are presented in supplementary Figure S1A–E.

2.2. XRD and XPS Analysis of NiCo2S4-Ms and NiCo2O4-MFs

The XRD patterns of the as synthesized NiCo2S4-Ms and NiCo2O4-MFs are shown in Figure 3A. The XRD pattern of NiCo2S4-Ms Figure 3Aa shows the characteristic peaks at 16.3° (111), 26.8° (220), 31.6° (311), 38.3° (400), 50.4° (511), 55.3° (440). These peaks were reliable with the standard XRD pattern of NiCo2S4-Ms (JCPDS NO: 20-0782) [25]. Moreover, Figure 3Ab shows the signal response at 18.9° (111), 31.1° (220), 36.7° (311), 44.6° (400), 55.4° (422), 59.1° (511), 64.9° (440) shows the maximum crystallization, which confirms the formation of NiCo2O4-MFs (JCPDS NO: 20-0781) [26]. In addition, the XPS were taken to conform the chemical composition and the oxidation state of NiCo2S4-Ms and NiCo2O4-MFs. Figure 3B,C shows the XPS survey spectra of NiCo2S4-Ms and NiCo2O4-MFs confirms that, the presence of Ni, Co, S and O [27,28]. Thus, the XRD and XPS studies clearly confirms that the excellent formation of NiCo2S4-Ms and NiCo2O4-MFs.

2.3. EIS and Electrochemical Investigation of Different Electrodes

Electrochemical impedance spectroscopy (EIS) is a method to investigate the interfacial effects between electrolyte and surface of the electrode. Figure 4A depicts the EIS curves of bare GCE (a), NiCo2O4-MFs/GCE (b) and NiCo2S4-Ms/GCE (c) in 0.1-M KCl containing 0.05 M of [Fe(CN)6]−3/−4 solution and the frequency range was set to be of 100 MHz to 100 kHz. The obtained impedance data were fit according to the Randle’s equivalent circuit model shows in the inset Figure 4A, where Rct denotes the charge transfer resistance, ZW, Rs and Cdl refer to Warburg impedance, ohmic resistance and the double layer electron-transfer resistance, respectively. Moreover, the Rct value of bare GCE, NiCo2O4-MFs/GCE and NiCo2S4-Ms/GCE were measured to be 250.7 Ω, 214.2 Ω and 64.25 Ω, respectively. As can be seen that the lowest Rct value were obtained for NiCo2S4-Ms electrode. This was due to the microsphere structure possessing the larger surface area; when it contacted the electrolyte, it may be more effective and efficient in capturing the active materials.
In addition, the cyclic voltammetry (CV’s) were performed to investigate the electrochemical behavior of bare GCE (a), NiCo2O4-MFs/GCE (b) and NiCo2S4-Ms/GCE (c) in 0.1-M KCl containing 0.05 M of [Fe(CN)6]−3/−4 solution. In Figure 4B as can be seen that, the highest reduction and reduction peak current and lower peak-to-peak separation (∆Ep) value of 89.24 mV were observed for the NiCo2S4-Ms/GCE. Moreover, the peak-to-peak separation (∆Ep) of unmodified electrode (a) and NiCo2O4-MFs/GCE (b) were measured to be 189.51 and 145.36 mV, respectively. Figure 4C shows the different scan rates at NiCo2S4-Ms/GCE, in which the redox peak current increased consistently and their linear relationship with the square root of scan rates were plotted as shown in Figure 4D. Furthermore, the electrochemical active surface area value was measured based on the Randel’s Sevcik equation (I). The electrochemical active surface area of bare GCE (a), NiCo2O4-MFs/GCE (b) and NiCo2S4-Ms/GCE were calculated to be 0.082, 0.102 and 0.161 cm2, respectively. The results indicate the combination of bimetallic sulfides increased the surface area and showed excellent electrochemical contact between the surface of electrode and electrolyte solution.
Ip = 2.69 × 105n3/2AD1/2Cv1/2

2.4. Electrochemical Activity and Different pH at NiCo2S4-Ms/GCE

As shown in Figure 5A, the CV’s with different electrodes, bare GCE (a), NiCo2O4-MFs/GCE (b) and NiCo2S4-Ms/GCE (c) were recorded in 0.1 M of phosphate buffer solution (PB) pH 7 containing 100-µM 4-NQO with the fixed scan rate of 0.05 V/s. The lower reduction peak current exhibited an unmodified GCE, which suggest the poor conductivity on the electrode surface. Furthermore, when the electrode was modified with NiCo2O4-MFs/GCE there was a drastically increase in the current. The excellent peak current of −26 µA with the minimized reduction potential of −0.29 V was noted on NiCo2S4-Ms/GCE, which suggest that the larger surface area of NiCo2S4-Ms can considerably enhance the sensitivity of the electrode. Moreover, the probable electrochemical reduction mechanism of 4-NQO on NiCo2S4-Ms/GCE are shown in Figure 6. Typically, 4-nitroquinoline n-oxide is irreversibly reduced to form 4-hydroxyaminoquinoline n-oxide. After this, the oxidation of 4-hydroxyaminoquinoline n-oxide occurs, which is subsequently reduced to 4-nitrosoquinoline n-oxide at the increasing scan. The accumulation time is one of the important parameters in electrochemical sensors to improve the sensitivity. Therefore, the accumulation time of the proposed sensor was studied in 0.1-M pH 7 containing 100-µM 4-NQO using the CV technique and the corresponding current response versus time were plotted as shown in Figure S2. The obtained results indicate that the reduction peak increased with the increasing accumulation time. However, the accumulation time exceeds 20 s, the reduction peak current of 4-NQO decreased. This was due to the adsorption taken at the surface of the electrode, which may have resisted the active site of the NiCo2S4-Ms and the surface reached its saturation point at 20 s. Thus, the optimal accumulation time of 20 s was preferred to achieve the high sensitivity for the proposed sensor.
Furthermore, the influence of pH at NiCo2S4-Ms/GCE for the detection of 4-NQO was investigated by varying the PB pH from 3 to 11 at a fixed scan rate of 0.05 Vs−1. Figure 5B displays the CV’s curves of different pH 3 to 11 containing 100-µM 4-NQO. The well-shaped peak with higher reduction peak current of −5.29 µA was noted at pH 7 Figure 5C. At some point, the peak current started to decrease, which indicates that the biomolecules reached its maximum pH value of 9–11. Hence, the pH 7 was chosen as the enhanced pH for the reduction of 4-NQO. In addition, the plot between the reduction peak potential and pH were plotted as shown in Figure 5D, which was linear, and its regression equation were represented as Ep (V) = −0.056 pH −0.624. The obtained slope value of −56 mV/pH indicates that the reaction was equal number of proton and electron transferred.

2.5. Influence of Different Concentration and Scan Rate

In addition, the influence of various concentration of 4-NQO at as-prepared NiCo2S4-Ms/GCE were analyzed in 0.1-M pH 7 at fixed scan window of 0.05 Vs−1. As shown in Figure 7A, the CV curve were recorded for the increasing concentration of 4-NQO. For every sequential addition of 4-NQO from 25 to 250 µM the reduction peak current also increased linearly. Finally, the linear relationship of reduction peak current versus the concentration of 4-NQO were plotted as Figure 7B. Moreover, the regression equation is written to be y = 0.0253x + 2.2034 with the correlation coefficient of R2 = 0.9938. The obtained results confirm that, the as-prepared NiCo2S4-Ms is a promising electrode material for the rapid detection of 4-NQO without fouling.
In order to study the effects of scan rates at NiCo2S4-Ms/GCE was investigated by CV techniques. Figure 7C, indicates the CVs of different scant rates from 20 to 300 mVs−1 in 0.1-M PB pH 7 contains 100-µM 4-NQO.With consistently increasing scan rates, there was a linear increase in the cathodic peak current. Figure 7D shows the linear relationship between the cathodic peak current of 4-NQO versus square root of the scan rates. In addition, the regression equation was calculated to be y = 8.3872x − 0.0241 with the correlation coefficient of R2 = 0.9908, which indicates that reduction of 4-NQO at NiCo2S4-Ms/GCE was a diffusion-controlled process.

2.6. DPV Analysis of 4-NQO Ions at NiCo2S4-Ms/GCE Techniques

Differential pulse voltammetry common techniques were used to measure the essential electrochemical parameters such as linear range, sensitivity and limit of detection (LOD). Hence, the DPV technique was used to detect the 4-NQO at NiCo2S4-Ms/GCE in 0.1-M pH 7 at a fixed potential of 0.4 to −0.6 V. Figure 8A displays the DPV curve of increasing concentration of 4-NQO. The obtained results indicate the reduction peak current increased with increasing concentration of 4-NQO. The NiCo2S4-Ms/GCE modified electrode showed an excellent linear relationship between the reduction peak current and the concentration of 4-NQO, which were plotted as shown in Figure 8B. Moreover, the linear regression equation was calculated to be ipa (μA) = 0.4014 μM –0.0153 (R2 = 0.9985). Wherein, the NiCo2S4-Ms/GCE shows the wider range of 0.005 to 596.64-µM 4-NQO. In addition, the LOD of the as-prepared sensor was measured using the standard formula of LOD = 3σ/S, where the σ and S, is the standard deviation and slope of the curve, respectively. Moreover, the LOD of NiCo2S4-Ms/GCE for the detection of 4-NQO were measured to be 2.29 nM. Moreover, the proposed sensor wes compared with previously reported 4-NQO sensor as the results as-prepared NiCo2S4-Ms/GCE shows the very low detection limit Table 1. Thus, it is a promising electrode material for the detection of 4-NQO.

2.7. Interference and Stability Studies of NiCo2S4-Ms/GCE

Selectivity and stability are the most considered parameter in electrochemical studies. Hence, the selectivity of the sensor was examined using NiCo2S4-Ms/GCE with 4-NQO, as well as in the presence of possible bioactive and nitro compounds. The selectivity of the prepared sensor was studied using DPV techniques. The DPV results of the NiCo2S4-Ms/GCE in presence of 0.5 µM 4-NQO and 0.7 µM possible interferents such as 3-nitro-l-tryosine (3-NT), 4-nitrophenol (4-NP), chloramphenicol (CAP), nitro benzene (NB) and continued addition of 1.5 µM common biologic analytes glucose (Glu), ascorbic acid (AA), hydrogen peroxide (H2O2) and dopamine (DA) are shown in Figure S3. The related nitro compounds such as 3-NT, 4-NP, NB, CAP showed minor interference with the 4-NQO due to structural similarity. However, the corresponding relative error was found less than 7% as shown in Figure 9A. Notably, most of the other nitro compounds show their reduction peaks at high overpotential of −0.50 to −0.60 V, which is far from the reduction potential of 4-NQO. In other words, although all these compounds have nitro groups, they require different energy to be reduced, which provides the electrode a good selectivity. Approximately three-fold excess concentrations of Glu, AA, H2O2 and DA did not show any significant interference, indicating that the method is selective in biologic samples. Moreover, the working stability of NiCo2S4-Ms/GCE were examined using the DPV technique. Figure 9B shows the stability current response of the prepared sensor in 0.1 M pH 7 containing 10-µM 4-NQO. After 15 days usage, the sensor maintained a stability of 94.59%. Thus, the stability test of the NiCo2S4-Ms/GCE confirms the outstanding working stability for the detection of 4-NQO.

2.8. Real Sample Analysis

The practical applicability of prepared sensor was examined in the biologic sample human blood serum and saliva samples. The preparation of biologic samples was diluted with buffer solution and the known concentration of 4-NQO were spiked. Finally, DPV techniques were carried out for the prepared real samples. Fascinatingly, the blood serum and saliva samples were showed outstanding found and recovery rates, which are tabulated in Table 2. At the end, the prepared NiCo2S4-Ms/GCE established as the effective electrode for the real time applicability.

3. Experimental Section

3.1. Synthesis Method for NiCo2S4-Ms and NiCo2O4-MFs

All chemicals were purchased from Sigma-Aldrich in analytical grade and used without any further purification. The details of chemical purchases, preparation methods of buffer solutions and instrumentation techniques are detailed in the supplementary data (S1). The NiCo2O4-MFs and NiC2S4-Ms were synthesized by the hydrothermal method. Briefly, a 1:2 molar ratio of Ni(CH3COO)2·4H2O and Co(CH3COO)2·4H2O were thoroughly dissolved in 50 mL of C2H6O2 under magnetic stirring for 30 min. Then the mixture was carefully transferred into a 100 mL Teflon-lined stainless-steel autoclave and maintained for 180 °C for 12 h in a hydrothermal oven. After 12 h, the reaction mixture was allowed to cool room temperature and centrifuged with water and ethanol to collect the NiCo2O4-MFs precipitate. Finally, the collected precipitate was dried in air at 80 °C for 10 h [30]. To synthesis, the NiCo2S4-Ms, a 1:2 molar ratio of the NiSO4·6H2O and CoSO4·7H2O were dissolved in 0.5 M Na2S·5H2O. Then the same procedure was followed to obtain the NiCo2S4-Ms (Scheme 1).

3.2. Fabrication of NiCo2S4-Ms Modified GCE

The surface of GCE was cleaned by 0.5 mg of alum in a slurry. Then the GCE was dipped into an ethanol solution and sonicated for 10 min. After this, the GCE was pre-cleaned by cycling between −0.8 to 0.8 V in PB pH 7 for the 25 continuous cycle. Then, 1 mg of as-prepared NiCo2S4-Ms was dispersed in 1 mL of ethanol and sonicated for 20 min. Approximately 6 µL of NiCo2S4-Ms suspension was drop-cast on the surface of GCE and dried in a 50 °C oven. Finally, the as-prepared NiCo2S4-Ms modified GCE was used for the electrochemical characterization.

4. Materials and Reagents

Nickel acetate Ni(CH3COO)2·4H2O, cobalt acetate Co(CH3COO)2·4H2O, ammonium hydroxide (NH4OH), nickel sulfate NiSO4·6H2O, cobalt sulfate CoSO4·7H2O, 4-nitroquinoline n-oxide, uric acid (UA), ascorbic acid (AA), dopamine (DA), glucose (GLU), 3-nitrotyrosine (3-NT), L-cysteine and H2O2 and all other chemicals were purchased from Sigma-Aldrich and used as received. Double-distilled water was used for all the experiments. 0.1-M phosphate buffer (PB) (pH 7.0) prepared from sodium dihydrogen phosphate and disodium hydrogen phosphate was used as supporting electrolyte. Human blood serum and saliva samples were acquired from Chang Gung Medical Hospital, Taoyuan, Taiwan. The research protocols of human blood serum and saliva samples experiments were followed as per the laws and institutional guidelines of Chang Gung Medical Hospital (CGMH), Taiwan.

5. Methods

The surface modification of the as-formed composite was examined using field emission scanning electron microscope (FESEM-JEOL-7600F, Jeol instruments, Musashino, Akishima, Tokyo, Japan): Ingredients of the elemental composition and elemental mapping were analyzed by energy-dispersive X-ray spectroscopy (EDX) with HORIBA EMAX X-ACT (Horiba instruments, AkzoNobel House, Singapore). The quantitative analysis and defects and disordered nature of the as-prepared composite were investigated by PerkinElmer PHI-5702 (PerkinElmer Inc., Waltham, MA, USA).
The crystalline nature of the composite was examined by XRD, XPERT-PRO spectrometer (Malvern Panalytical B.V., Almelose Aa, Netherland). The electrochemical properties and electrocatalytic activity were examined using electrochemical impedance spectroscopy (EIS) and cyclic voltammetry (CV); i-t amperometry was carried out CHI 1205A (CH instruments, Inc. Austin, TX, USA). The CHI instrument consists of a three-electrode system, in which the platinum wire and Ag/AgCl (sat. KCl) were used as auxiliary and reference electrodes, and a pre-washed GCE (glassy carbon electrode) acted as a working electrode.

6. Conclusions

In summary, we successfully synthesized NiCo2S4-Ms and NiCo2O4-MFs through the hydrothermal method. The formation of NiCo2S4-Ms and NiCo2O4-MFs were conformed through the several analytical techniques such as FESEM, EDX, XPS and XRD. Further, the as-prepared nanocomposites were used as electrode materials for the detection of 4-NQO. Fascinatingly, the NiCo2S4-Ms modified electrode showed excellent electrochemical performances such as a wider range, low limit detection, higher selectivity and outstanding stability for the detection of 4-NQO. In addition, the practical applicability of the as-prepared nanocomposite were scrutinized in the human blood serum and saliva samples, which showed good recovery for both samples. To our knowledge, the hydrothermally synthesized NiCo2S4-Ms is the one of the most effective electrocatalysts for the detection of 4-NQO.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/9/3273/s1, Figure S1. Mapping image of NiCo2O4-MFs (A). (B-D) conforms the presence of Ni (B), Co (C), O (D). (E) EDX profile for NiCo2O4-MFs; Figure S2. Effect of accumulation time on the reduction peak current of 100 µM 4-NQO at NiCo2S4-MS/GCE; Figure S3. DPV curve of obtained at NiCo2S4-Ms/GCE in the 0.1M pH-7 containing 0.5 µM of 4-NQO with other bioactive and electro active nitro species.

Author Contributions

T.-W.C. and E.T. developed the theory and performed the computations and carried out the analytical techniques. S.-M.C. and X.L. helped supervise the project, finical support and helped to written the draft manuscript M.A. and S.M. performed the analytic calculations and performed the numerical simulations. All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by the Ministry of Science and Technology (MOST 107-2113-M-027 -005 -MY3), Taiwan (ROC). This work also jointly supported by the projects from NTUT-NUST-109-01 and NSFC51872141, National Taipei University of Technology and Nanjing University of Science and Technology.

Conflicts of Interest

The authors declare that there is no conflict of interest.

References

  1. Kim, J.-H.; Kang, S.H.; Zhu, K.; Kim, J.Y.; Neale, N.R.; Frank, A.J. Ni–NiO core–shell inverse opal electrodes for supercapacitors. Chem. Commun. 2011, 47, 5214. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, L.; Cheng, S.; Ding, Y.; Zhu, X.; Wang, Z.L.; Liu, M. Hierarchical Network Architectures of Carbon Fiber Paper Supported Cobalt Oxide Nanonet for High-Capacity Pseudocapacitors. Nano Lett. 2011, 12, 321–325. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Sun, M.; Tie, J.; Cheng, G.; Lin, T.; Peng, S.; Deng, F.; Ye, F.; Yu, L. In situ growth of burl-like nickel cobalt sulfide on carbon fibers as high-performance supercapacitors. J. Mater. Chem. A 2015, 3, 1730–1736. [Google Scholar] [CrossRef]
  4. An, W.; Liu, L.; Gao, Y. Ni 0.9 Co 1.92 Se 4 nanostructures: Binder-free electrode of coral-like bimetallic selenide for supercapacitors. RSC Adv. 2016, 6, 75251–75257. [Google Scholar] [CrossRef]
  5. Chen, H.C.; Jiang, J.; Zhang, L.; Qi, T.; Xia, D.; Wan, H. Facilely synthesized porous NiCo2O4 flowerlike nanostructure for high-rate supercapacitors. J. Power Sources 2014, 248, 28–36. [Google Scholar] [CrossRef]
  6. Zhou, Q.; Xing, J.; Gao, Y.; Lv, X.; He, Y.; Guo, Z.; Li, Y. Ordered Assembly of NiCo2O4Multiple Hierarchical Structures for High-Performance Pseudocapacitors. ACS Appl. Mater. Interfaces 2014, 6, 11394–11402. [Google Scholar] [CrossRef]
  7. Li, L.; Yang, H.; Zhang, L.; Miao, J.; Sun, C.; Huang, W.; Dong, X.; Liu, B. Hierarchical carbon@Ni 3 S 2 @MoS 2 double core–shell nanorods for high-performance supercapacitors. J. Mater. Chem. A 2016, 4, 1319–1325. [Google Scholar] [CrossRef]
  8. Shen, M.; Ruan, C.; Chen, Y.; Jiang, C.; Ai, K.; Lu, L. Covalent Entrapment of Cobalt–Iron Sulfides in N-Doped Mesoporous Carbon: Extraordinary Bifunctional Electrocatalysts for Oxygen Reduction and Evolution Reactions. ACS Appl. Mater. Interfaces 2015, 7, 1207–1218. [Google Scholar] [CrossRef]
  9. Wang, X.; Shi, B.; Fang, Y.; Rong, F.; Huang, F.; Que, R.; Shao, M. High capacitance and rate capability of a Ni 3 S 2 @CdS core–shell nanostructure supercapacitor. J. Mater. Chem. A 2017, 5, 7165–7172. [Google Scholar] [CrossRef]
  10. Ouyang, Y.; Ye, H.; Xia, X.; Jiao, X.; Li, G.; Mutahir, S.; Wang, L.; Mandler, D.; Lei, W.; Hao, Q.; et al. Hierarchical electrodes of NiCo2S4 nanosheets-anchored sulfur-doped Co3O4 nanoneedles with advanced performance for battery-supercapacitor hybrid devices. J. Mater. Chem. A 2019, 7, 3228–3237. [Google Scholar] [CrossRef]
  11. Yu, L.; Zhang, L.; Bin Wu, H.; Lou, X.W. (David) Formation of NixCo3−xS4Hollow Nanoprisms with Enhanced Pseudocapacitive Properties. Angew. Chem. Int. Ed. 2014, 53, 3711–3714. [Google Scholar] [CrossRef] [PubMed]
  12. Pu, J.; Cui, F.; Chu, S.; Wang, T.; Sheng, E.; Wang, Z. Preparation and Electrochemical Characterization of Hollow Hexagonal NiCo2S4 Nanoplates as Pseudocapacitor Materials. ACS Sustain. Chem. Eng. 2013, 2, 809–815. [Google Scholar] [CrossRef]
  13. Xiao, T.; Li, J.; Zhuang, X.; Zhang, W.; Wang, S.; Chen, X.; Xiang, P.; Jiang, L.; Tan, X. Wide potential window and high specific capacitance triggered via rough NiCo2S4 nanorod arrays with open top for symmetric supercapacitors. Electrochim. Acta 2018, 269, 397–404. [Google Scholar] [CrossRef]
  14. Padmanathan, N.; Selladurai, S. In AIP Conference Proceeding: Sonochemically precipitated spinel Co[sub 3]O[sub 4] and NiCo[sub 2]O[sub 4] nanostructures as an electrode materials for supercapacitor; AIP Publishing: Melville, NY, USA, 2013; pp. 1216–1217. [Google Scholar]
  15. Elaiyappillai, E.; Akilarasan, M.; Chen, S.-M.; Kogularasu, S.; Johnson, P.M.; Tamilarasan, E.B. Sonochemically Recovered Aluminum Oxide Nanoparticles from Domestic Aluminum Wastes as a Highly Stable Electrocatalyst for Proton-Pump Inhibitor (Omeprazole) Detection. J. Electrochem. Soc. 2020, 167, 027544. [Google Scholar] [CrossRef]
  16. Rajaji, U.; Muthumariappan, A.; Chen, S.-M.; Chen, T.-W.; Tseng, T.-W.; Wang, K.; Qi, D.; Jiang, J. Facile sonochemical synthesis of porous and hierarchical manganese(III) oxide tiny nanostructures for super sensitive electrocatalytic detection of antibiotic (chloramphenicol) in fresh milk. Ultrason. Sonochemistry 2019, 58, 104648. [Google Scholar] [CrossRef] [PubMed]
  17. Pinjari, D.V.; Pandit, A.B. Room temperature synthesis of crystalline CeO2 nanopowder: Advantage of sonochemical method over conventional method. Ultrason. Sonochemistry 2011, 18, 1118–1123. [Google Scholar] [CrossRef]
  18. Chen, S.-M.; Muthumariappan, A.; Chen, S.-M.; Chen, T.-W.; Ramalingam, R.J. A novel electrochemical sensor for the detection of oxidative stress and cancer biomarker (4-nitroquinoline N-oxide) based on iron nitride nanoparticles with multilayer reduced graphene nanosheets modified electrode. Sens. Actuators B: Chem. 2019, 291, 120–129. [Google Scholar] [CrossRef]
  19. Chen, T.-W.; Rajaji, U.; Chen, S.-M.; Al Mogren, M.M.; Hochlaf, M.; Al Harbi, S.D.A.; Ramalingam, R.J. A novel nanocomposite with superior electrocatalytic activity: A magnetic property based ZnFe2O4 nanocubes embellished with reduced graphene oxide by facile ultrasonic approach. Ultrason. Sonochemistry 2019, 57, 116–124. [Google Scholar] [CrossRef]
  20. Nunoshiba, T.; Demple, B. Potent intracellular oxidative stress exerted by the carcinogen 4-nitroquinoline-N-oxide. Cancer Res. 1993, 53, 3250–3252. [Google Scholar]
  21. Poot, M.; Gollahon, K.A.; Emond, M.J.; Silber, J.R.; Rabinovitch, P.S. Werner syndrome diploid fibroblasts are sensitive to 4-nitroquinoline-N-oxide and 8-methoxypsoralen: Implications for the disease phenotype. FASEB J. 2002, 16, 757–758. [Google Scholar] [CrossRef]
  22. Muthumariyappan, A.; Rajaji, U.; Chen, S.-M.; Chen, T.-W.; Li, Y.-L.; Ramalingam, R.J. One-pot sonochemical synthesis of Bi2WO6 nanospheres with multilayer reduced graphene nanosheets modified electrode as rapid electrochemical sensing platform for high sensitive detection of oxidative stress biomarker in biological sample. Ultrason. Sonochemistry 2019, 57, 233–241. [Google Scholar] [CrossRef] [PubMed]
  23. Roy, N.; Yasmin, S.; Jeon, S. Effective electrochemical detection of dopamine with highly active molybdenum oxide nanoparticles decorated on 2, 6 diaminopyridine/reduced graphene oxide. Microchem. J. 2020, 153, 104501. [Google Scholar] [CrossRef]
  24. Li, Y.; Han, X.; Yi, T.-F.; He, Y.-B.; Li, X. Review and prospect of NiCo2O4-based composite materials for supercapacitor electrodes. J. Energy Chem. 2019, 31, 54–78. [Google Scholar] [CrossRef] [Green Version]
  25. Sui, Y.W.; Zhang, Y.M.; Hou, P.H.; Qi, J.Q.; Wei, F.X.; He, Y.Z.; Meng, Q.K.; Sun, Z. Three-dimensional NiCo2S4 nanosheets as high-performance electrodes materials for supercapacitors. J. Mater. Sci. 2017, 52, 7100–7109. [Google Scholar] [CrossRef]
  26. Khalid, S.; Caoa, C.; Wang, L.; Zhu, Y. Microwave Assisted Synthesis of Porous NiCo2O4 Microspheres: Application as High Performance Asymmetric and Symmetric Supercapacitors with Large Areal Capacitance. Sci. Rep. 2016, 6, 22699. [Google Scholar] [CrossRef] [PubMed]
  27. Chen, Z.; Zhao, H.; Zhang, J.; Xu, J. IrNi nanoparticle-decorated flower-shaped NiCo2O4 nanostructures: Controllable synthesis and enhanced electrochemical activity for oxygen evolution reaction. Sci. China Mater. 2016, 60, 119–130. [Google Scholar] [CrossRef]
  28. Wen, Y.; Peng, S.; Wang, Z.; Hao, J.; Qin, T.; Lu, S.; Zhang, J.; He, D.; Fan, X.; Cao, G. Facile synthesis of ultrathin NiCo 2 S 4 nano-petals inspired by blooming buds for high-performance supercapacitors. J. Mater. Chem. A 2017, 5, 7144–7152. [Google Scholar] [CrossRef]
  29. Abdelkader, A.; Osman, A.I.; Halawy, S.A.; Mohamed, M.A. Preparation and characterization of mesoporous γ-Al2O3 recovered from aluminum cans waste and its use in the dehydration of methanol to dimethyl ether. J. Mater. Cycles Waste Manag. 2018, 20, 1428–1436. [Google Scholar] [CrossRef]
  30. Muthumariappan, A.; Sakthivel, K.; Chen, S.-M.; Chen, T.-W.; Elgorban, A.M.; Elshikh, M.S.; Marraiki, N. Evaluating an effective electrocatalyst for the rapid determination of triptan drug (Maxalt™) from (mono and binary) transition metal (Co, Mn, CoMn, MnCo) oxides via electrochemical approaches. New J. Chem. 2020, 44, 605–613. [Google Scholar] [CrossRef]
Ijms 21 03273 g001 550
Figure 1. (A) FE-SEM of NiCo2O4-MFs, (B) magnified image of NiCo2O4-MFs and (C,D) NiCo2S4-Ms. Scale bar 100 nm.
Figure 1. (A) FE-SEM of NiCo2O4-MFs, (B) magnified image of NiCo2O4-MFs and (C,D) NiCo2S4-Ms. Scale bar 100 nm.
Ijms 21 03273 g001
Ijms 21 03273 g002 550

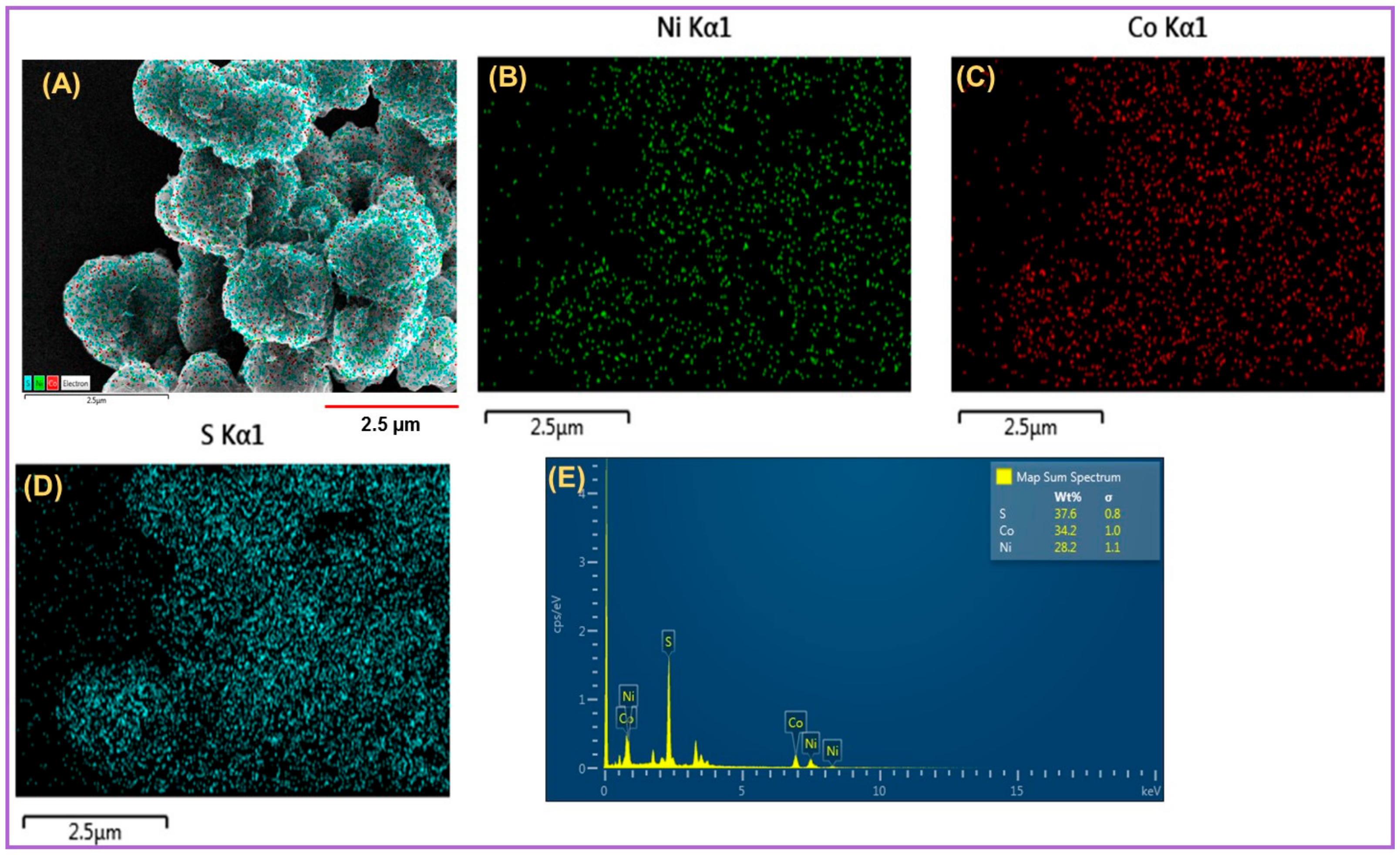

Figure 2. (A) Mapping image NiCo2S4-Ms mix, (B) Ni, (C) Co and (D) S. (E) EDX profile of NiCo2S4-Ms. Inset weight percentage of NiCo2S4-Ms. Scale bar 2.5 μm.
Figure 2. (A) Mapping image NiCo2S4-Ms mix, (B) Ni, (C) Co and (D) S. (E) EDX profile of NiCo2S4-Ms. Inset weight percentage of NiCo2S4-Ms. Scale bar 2.5 μm.
Ijms 21 03273 g002
Ijms 21 03273 g003 550

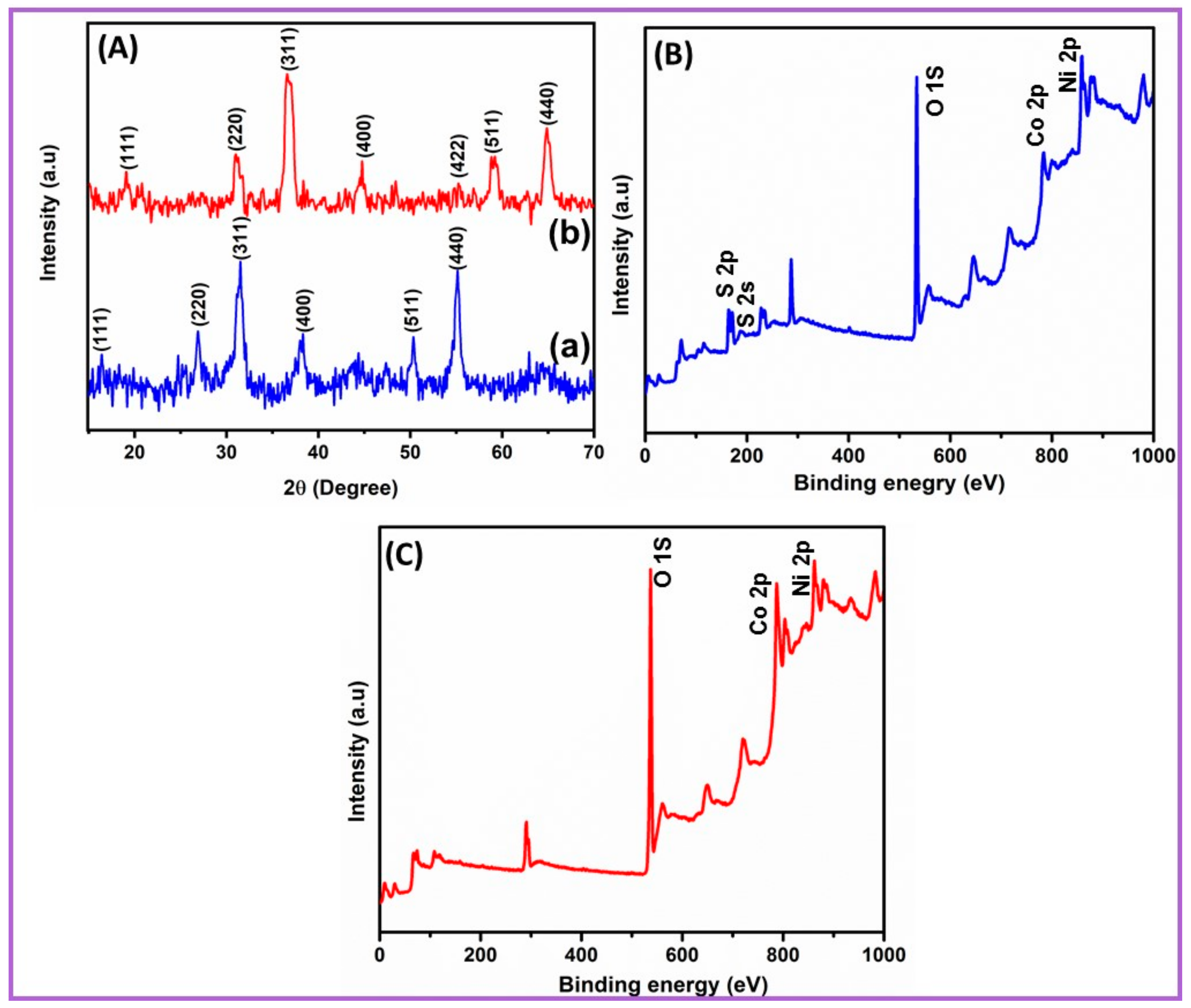

Figure 3. (A)—(a) XRD study of NiCo2S4-Ms and (b) NiCo2O4-MFs. (B) XPS survey spectrum of NiCo2S4-Ms and (C) NiCo2O4-MFs.
Figure 3. (A)—(a) XRD study of NiCo2S4-Ms and (b) NiCo2O4-MFs. (B) XPS survey spectrum of NiCo2S4-Ms and (C) NiCo2O4-MFs.
Ijms 21 03273 g003
Ijms 21 03273 g004 550

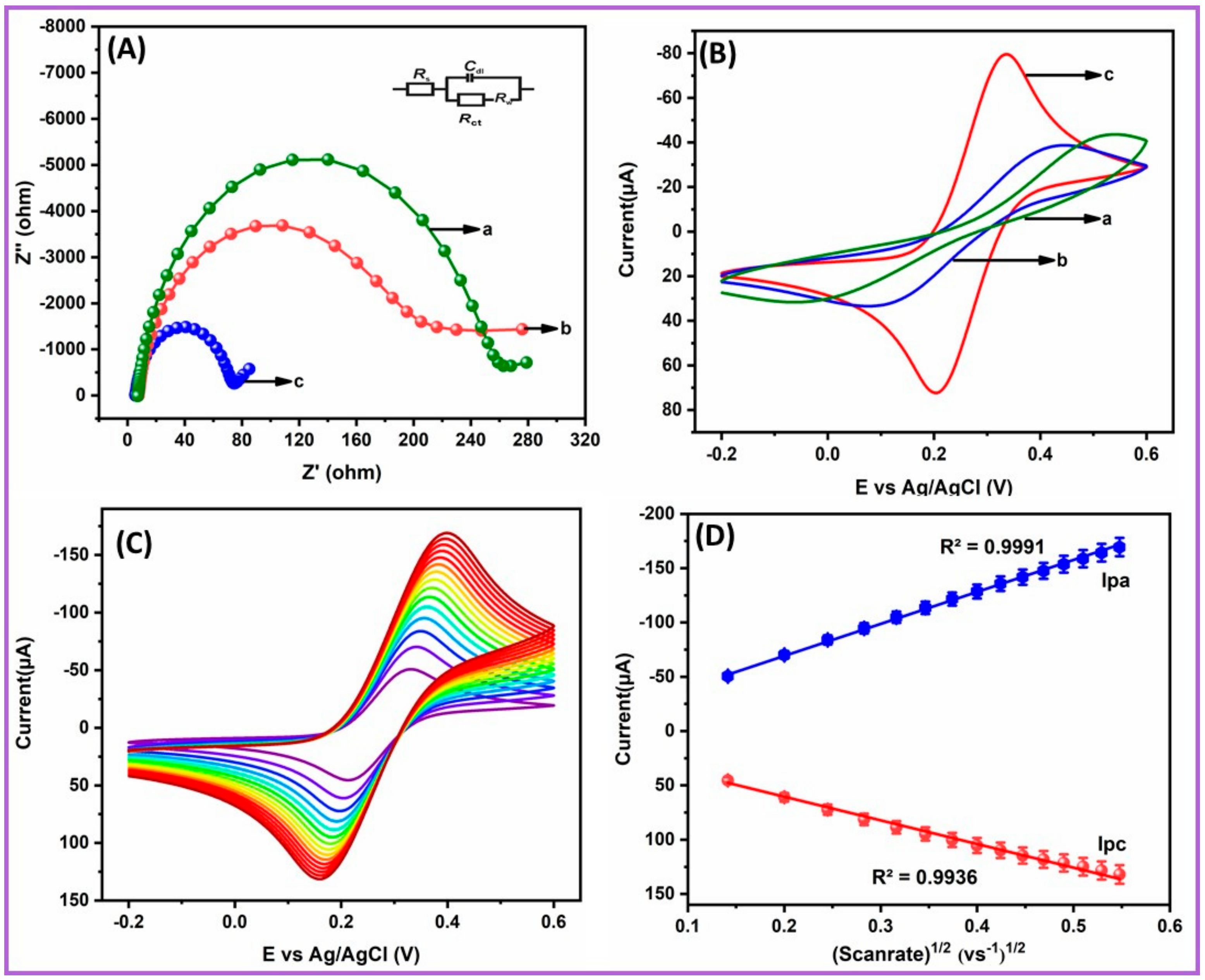

Figure 4. (A) EIS and (B) cyclic voltammetry (CV’s) (a) of unmodified electrode, (b) NiCo2O4-MFs/GCE and (c) NiCo2S4-Ms/GCE in 0.1-M KCl containing 0.05 M of [Fe(CN)6]−3/−4. (C) Scan rate of the nanocomposite modified electrode. (D) Calibration plot of (v vs. Vs−1)1/2.
Figure 4. (A) EIS and (B) cyclic voltammetry (CV’s) (a) of unmodified electrode, (b) NiCo2O4-MFs/GCE and (c) NiCo2S4-Ms/GCE in 0.1-M KCl containing 0.05 M of [Fe(CN)6]−3/−4. (C) Scan rate of the nanocomposite modified electrode. (D) Calibration plot of (v vs. Vs−1)1/2.
Ijms 21 03273 g004
Ijms 21 03273 g005 550

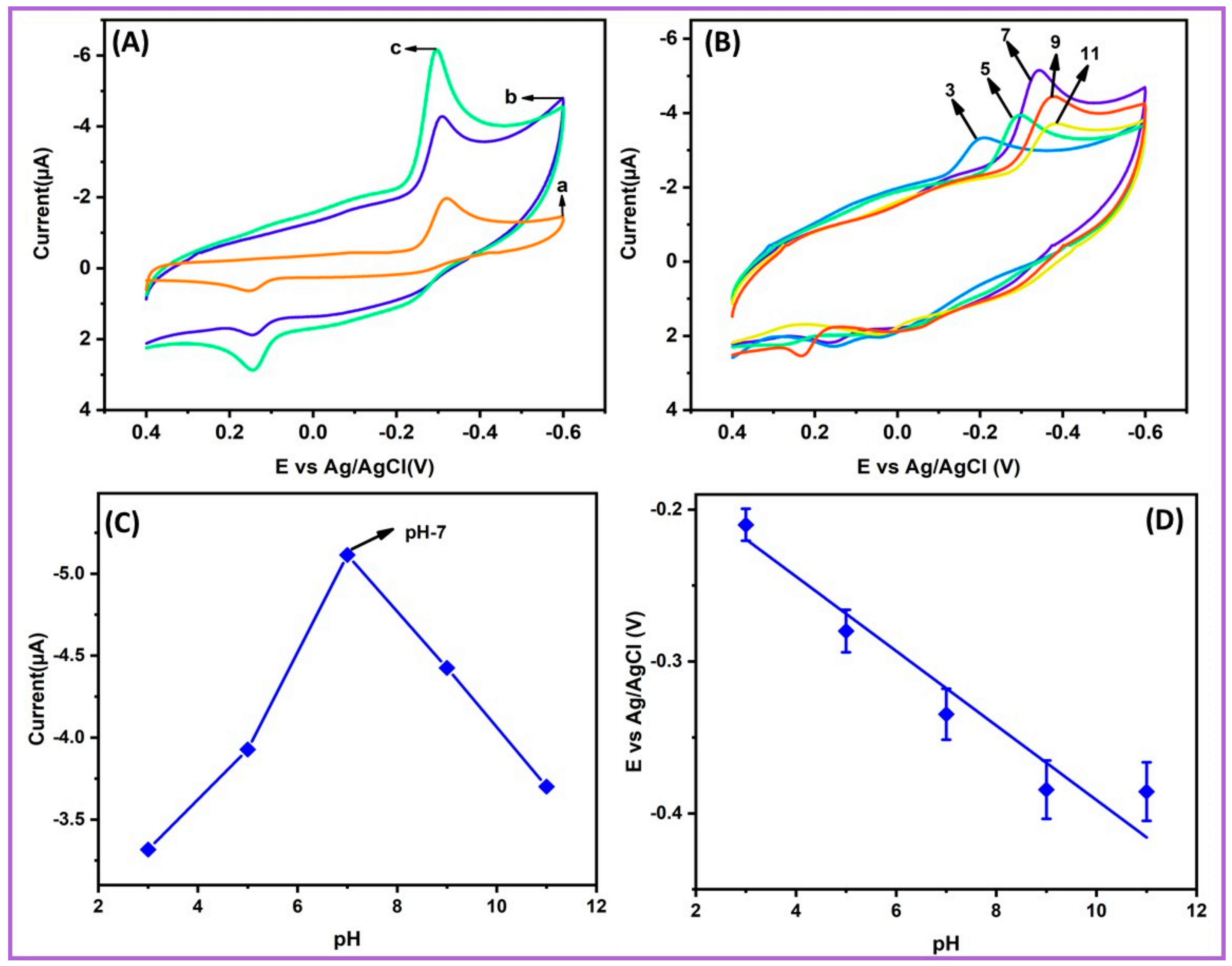

Figure 5. (A)—(a) CV’s of unmodified glass carbon electrode (GCE), (b) NiCo2O4-MFs/GCE, and (c) NiCo2S4-Ms/GCE in 0.1-M pH 7 containing 100-µM 4-NQO. (B) CV’s obtained at NiCo2S4-Ms/GCE for the varied pH from (3 to 11) containing 100-µM 4-NQO. (C) The plot current (µA) versus pH and (D) potential versus pH.
Figure 5. (A)—(a) CV’s of unmodified glass carbon electrode (GCE), (b) NiCo2O4-MFs/GCE, and (c) NiCo2S4-Ms/GCE in 0.1-M pH 7 containing 100-µM 4-NQO. (B) CV’s obtained at NiCo2S4-Ms/GCE for the varied pH from (3 to 11) containing 100-µM 4-NQO. (C) The plot current (µA) versus pH and (D) potential versus pH.
Ijms 21 03273 g005
Ijms 21 03273 g006 550

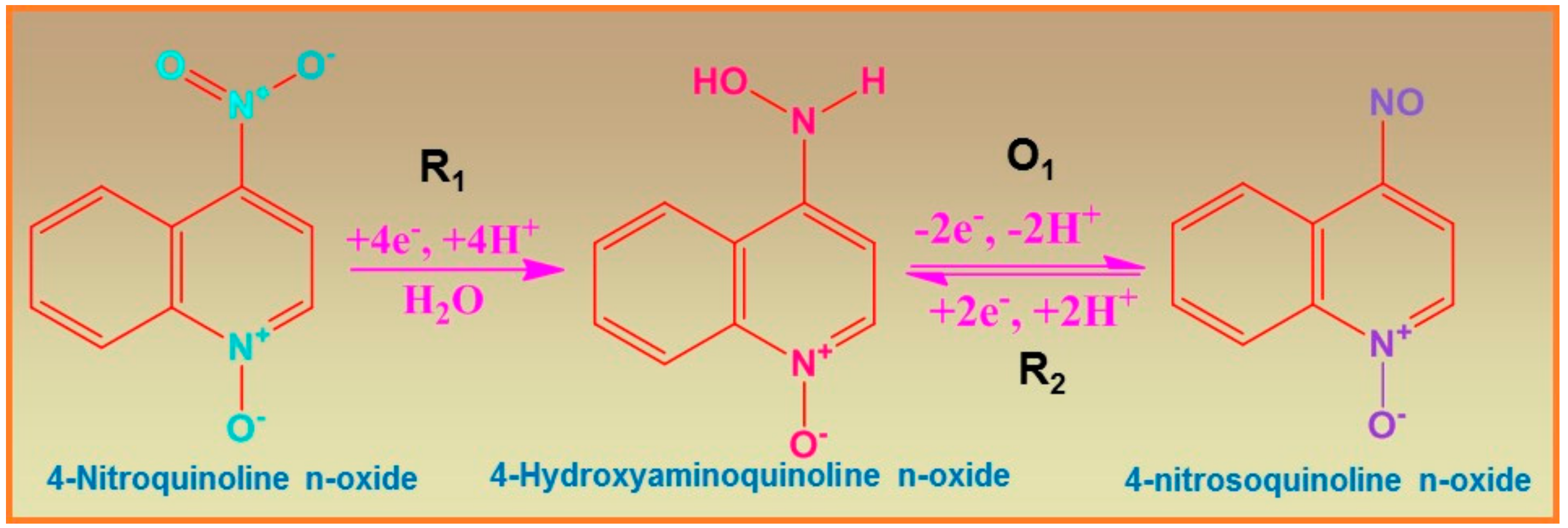

Figure 6. Possible reduction mechanism of 4-NQO at NiCo2S4-Ms/GCE.
Figure 6. Possible reduction mechanism of 4-NQO at NiCo2S4-Ms/GCE.
Ijms 21 03273 g006
Ijms 21 03273 g007 550

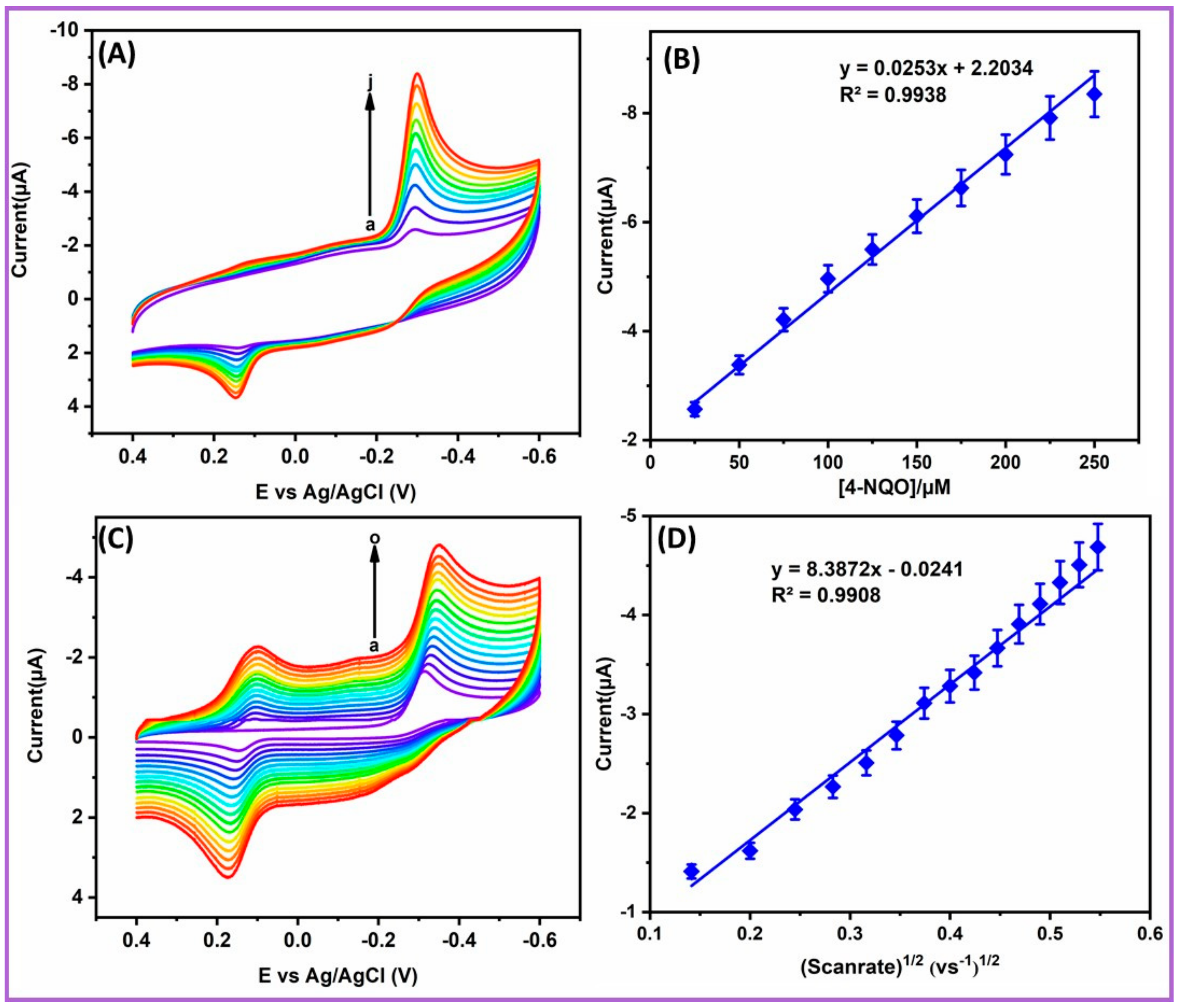

Figure 7. (A) CVs obtained at different concentration of 4-NQO (a–j 25–250 µM) and (B) Linear relationship between the current (µA) and 4-NQO concentration. (C) CVs attained for the different scan rate (a–o 20 to 300 mVs−1) in 0.1-M pH 7 at NiCo2S4-Ms/GCE. (D) Calibration plot of the cathodic peak current and scan rates.
Figure 7. (A) CVs obtained at different concentration of 4-NQO (a–j 25–250 µM) and (B) Linear relationship between the current (µA) and 4-NQO concentration. (C) CVs attained for the different scan rate (a–o 20 to 300 mVs−1) in 0.1-M pH 7 at NiCo2S4-Ms/GCE. (D) Calibration plot of the cathodic peak current and scan rates.
Ijms 21 03273 g007
Ijms 21 03273 g008 550

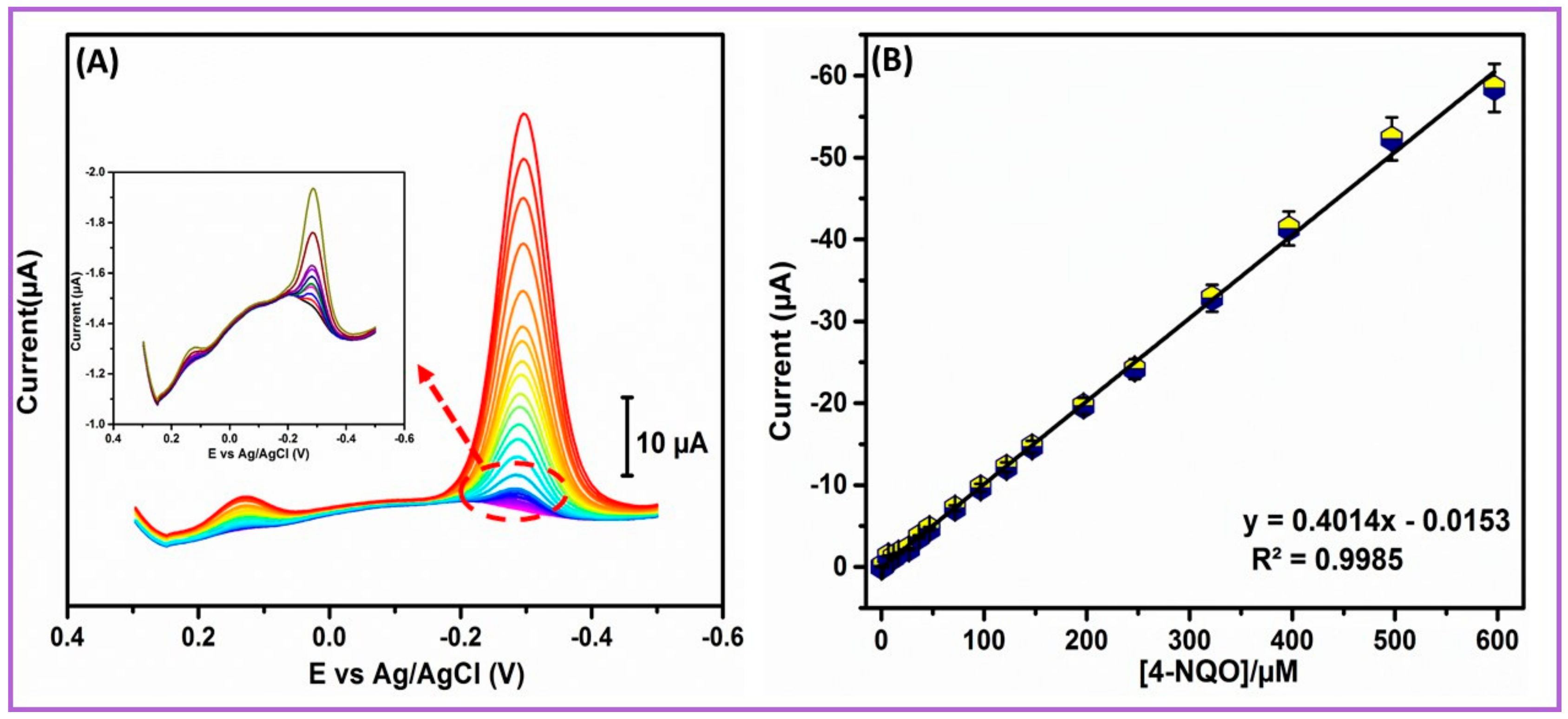

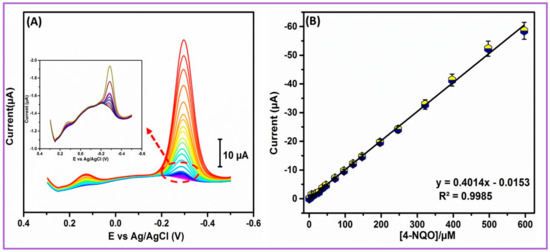

Figure 8. (A) DPV response of the different concentration of 4-NQO; (B) linear response of the reduction peak current versus concentration of 4-NQO.
Figure 8. (A) DPV response of the different concentration of 4-NQO; (B) linear response of the reduction peak current versus concentration of 4-NQO.
Ijms 21 03273 g008
Ijms 21 03273 g009 550

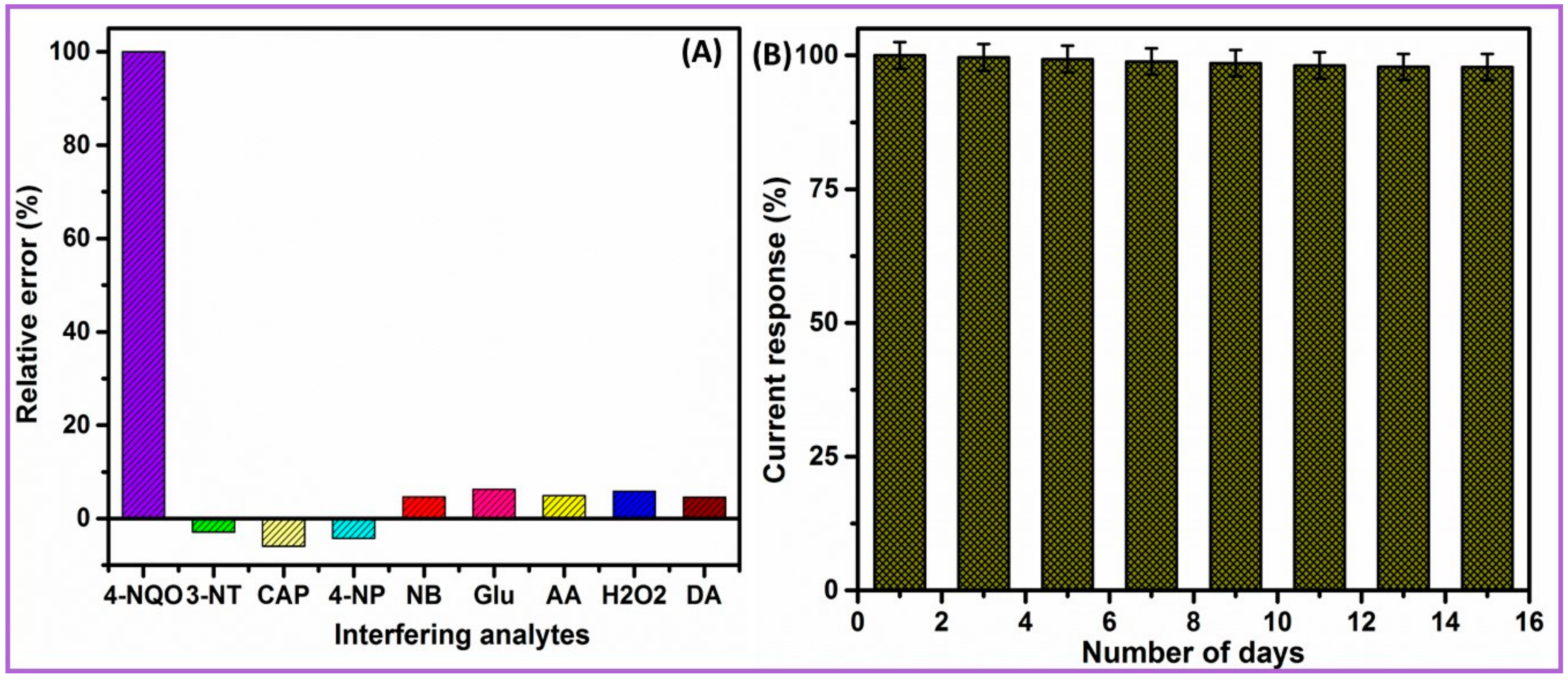

Figure 9. (A) Influence of interfering ions in 0.1-M pH 7 containing 0.5 µM of 4-NQO and higher concentration of interfering analytes; (B) stability plot of NiCo2S4-Ms/GCE of its usage for 15 days.
Figure 9. (A) Influence of interfering ions in 0.1-M pH 7 containing 0.5 µM of 4-NQO and higher concentration of interfering analytes; (B) stability plot of NiCo2S4-Ms/GCE of its usage for 15 days.
Ijms 21 03273 g009
Ijms 21 03273 sch001 550

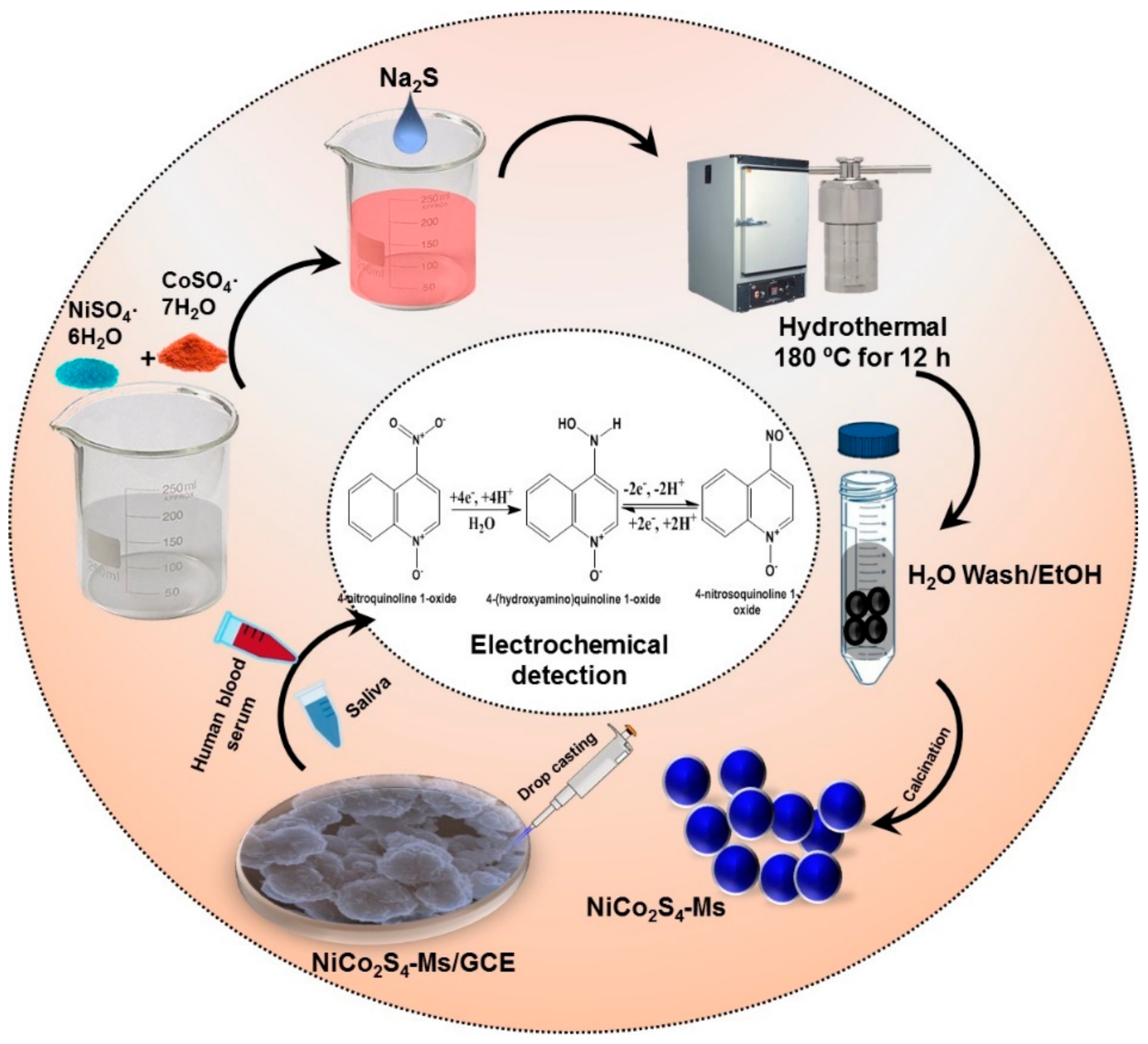

Scheme 1. Synthesis methodology of NiCo2S4-Ms and its electrocatalytic properties for the detection of 4-nitroquinoline n-oxide.
Scheme 1. Synthesis methodology of NiCo2S4-Ms and its electrocatalytic properties for the detection of 4-nitroquinoline n-oxide.
Ijms 21 03273 sch001
Table
Table 1. Comparison of as-prepared sensor with the other previously reported 4-NQO sensor.
Table 1. Comparison of as-prepared sensor with the other previously reported 4-NQO sensor.
MethodLinear Range (µM)LOD (nM)Ref
Bi2WO6/rGOs·NC/a GCE/b it0.025–718 6.11[22]
Fe2 N·NPs@rGOS/c SPCE/d DPV0.05–574.29.24[16]
ZnFe2O4·NCs/rGO/a GCE/d DPV0.025–534.12 8.27 [19]
e HPLC-0.157[29]
NiCo2S4-Ms/GCE/DPV0.005–596.642.29This work
a Glassy carbon electrode; b (i–t) amperometric; c screen printed carbon electrode; d differential pulse voltammetry; e high-performance liquid chromatography.
Table
Table 2. Determination of 4-NQO in biologic samples at NiCo2S4-Ms/GCE modified electrode.
Table 2. Determination of 4-NQO in biologic samples at NiCo2S4-Ms/GCE modified electrode.
Real SamplesAdded/nMFound/nMRecovery/%* RSD/%
Human blood serum5047.5895.162.45
10096.4896.482.81
Saliva5049.1298.242.56
10094.2994.292.76
* Related standard deviation (RSD) of n = 3.
