Article

Identification of the Core Pollen-Specific Regulation in the Rice OsSUT3 Promoter

by
Dandan Li
1,2,†,
Rucong Xu
3,†,
Dong Lv
3,
Chunlong Zhang
3,
Hong Yang
3,
Jianbo Zhang
3,
Jiancheng Wen
3,
Chengyun Li
1,2,* and
Xuelin Tan
3,4,*
1
State Key Laboratory for Conservation and Utilization of Bio-Resources in Yunnan, Yunnan Agricultural University, Kunming 650201, Yunnan, China
2
Post-Doctoral Research Station of Plant Protection as first class discipline, Yunnan Agricultural University, Kunming 650201, Yunnan, China
3
Rice Research Institute, Yunnan Agricultural University, Kunming 650201, Yunnan, China
4
Yunnan Engineering Research Center for Japonica Hybrid Rice, Kunming 650201, Yunnan, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2020, 21(6), 1909; https://doi.org/10.3390/ijms21061909
Submission received: 17 January 2020 / Revised: 6 March 2020 / Accepted: 9 March 2020 / Published: 11 March 2020
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
The regulatory mechanisms of pollen development have potential value for applications in agriculture, such as better understanding plant reproductive regularity. Pollen-specific promoters are of vital importance for the ectopic expression of functional genes associated with pollen development in plants. However, there is a limited number of successful applications using pollen-specific promoters in genetic engineering for crop breeding and hybrid generation. Our previous work led to the identification and isolation of the OsSUT3 promoter from rice. In this study, to analyze the effects of different putative regulatory motifs in the OsSUT3 promoter, a series of promoter deletions were fused to a GUS reporter gene and then stably introduced into rice and Arabidopsis. Histochemical GUS analysis of transgenic plants revealed that p385 (from −385 to −1) specifically mediated maximal GUS expression in pollen tissues. The S region (from −385 to −203) was the key region for controlling the pollen-specific expression of a downstream gene. The E1 (−967 to −606), E2 (−202 to −120), and E3 (−119 to −1) regions enhanced ectopic promoter activity to different degrees. Moreover, the p385 promoter could alter the expression pattern of the 35S promoter and improve its activity when they were fused together. In summary, the p385 promoter, a short and high-activity promoter, can function to drive pollen-specific expression of transgenes in monocotyledon and dicotyledon transformation experiments.

1. Introduction

Promoters, the upstream sequences of the gene coding sequences, are important molecular biological tools that play a crucial role in the regulation of expression of target genes. This region harbors many cis-elements influencing the expression of a downstream gene, for example, 5′ untranslated region (5′ UTR). In general, constitutive promoters, which drive the expression of target genes uniformly in most parts of a host plant, are commonly used as a means to introduce genes of interest in cereals crops, such as the CaMV35S [1], actin [2], and maize ubiquitin [3] promoters. However, the continuous and efficient expression pattern driven by these is usually unnecessary and results in a large amount of nutrition consumption in the plant body, which negatively affects plant growth and development [4,5,6]. Therefore, it is particularly urgent to exploit tissue-specific (space) or time-specific (temporal) promoters for bio-fortifying target gene products restrictedly to only specific parts or time periods in a host plant in order to avoid a yield penalty from ubiquitous target gene expression.
In flowering plants, the proper development of viable pollen is crucial for successful sexual reproduction and maintaining the continuity of a species. As an important cereal crop, rice (Oryza sativa) has been shown to require well-developed pollen for obtaining a high yield, utilizing heterosis, and breeding new varieties. At present, a large number of modern biotechnological studies have focused on the molecular mechanisms of pollen-specific gene regulation to increase pollen activity and viability [7,8,9,10]. Pollen-specific promoters are extremely useful tools for studying pollen development by molecular genetics and have quickened molecular breeding with male sterile lines [11].
To date, many promoters have been identified as pollen-specific in several species, but strong pollen-specific promoters that can be used for research in various crops are limited [12]. The maize Zm13 gene was first described to be expressed specifically in pollen [13,14], and its regulatory region was shown to activate expression during microgametophyte development [15]. In addition, the promoters of the late pollen-specific family (Latency-associated transcript, LAT) from Lycopersicum esculentum have been well-studied and are the best characterized sequences regulating the pollen-specific expression of genes [16,17]. Some cis-acting elements from the sequences of promoters regulating pollen-specific gene expression have been recently identified and were found to be highly-conserved across multiple species [6]. The PB core motif (GTGA), the POLLEN1LeLA52 motif (AGAAA) and the “TCCACCATA” motif were all identified in the LAT52 pollen-specific promoter in tomato [18,19,20]. The GTGANTG10 motif (CCAC) in the tobacco g10 gene promoter was demonstrated to play an important role in the regulation of pollen-specific gene expression [21]. Moreover, enhancer motifs in the promoter region have been found to be essential for high levels of tissue-specific gene expression, such as hTERT and CMV elements [22], the photoreceptor regulatory element-1 [23], and the C-repeat/dehydration-responsive element [24]. Thus, detailed research on pollen-specific promoters should further our understanding of the molecular regulation mechanism of pollen development and sexual reproduction.
Compared to other crop plants, fewer promoters that control pollen-specific expression have been identified in rice, limited to promoters such as Osg6B, OsIPP3, OsCPK21, OsIPP3, OsIPA, OsRA8, OsMADS63 and OsMADS68 [6,25,26,27,28,29]. Among these, many promoters could not maintain strong and specific expression in pollen when they were transported into a heterologous system, such as Arabidopsis [30]. Thus, such promoters are limited and problematic for routine use as a regulatory tool in most cereal transformation initiatives.
OsSUT3, a member of the sucrose transporter (SUT) gene family in rice, is highly expressed in developing pollen and may play a major role in transporting sucrose into pollen for starch accumulation [31,32]. The isolation and characterization of the OsSUT3 gene started more than a decade ago, but to date, its regulatory region and specific function in pollen development has not been studied. In a previous study, we isolated the OsSUT3 gene promoter for the first time, providing a convenient tool for the research of promoter function [33].
In this study, we further identified the core regulatory regions in the pollen-specific promoter of the OsSUT3 gene by fusion with the GUS reporter gene. The activities of different regulatory regions of the OsSUT3 promoter were evaluated both in rice (a monocot model plant) and Arabidopsis (a dicot model plant). Based on molecular and biochemical analyses of the transformants, we characterized a key region for pollen-specific control of gene expression.

2. Results

2.1. Pollen-Specific Motifs in the OsSUT3 Promoter and the Deletion

In our previous study, the promoter of the OsSUT3 gene was cloned and was determined to be 2029 bp [33]. In the present study, this version of the promoter was termed “pOsSUT3” (Figure 1). Motif analysis of pollen-specific elements in this region revealed three different types of cis-elements that control pollen-specific expression, which were respectively POLLEN1LeLA52, PB CORE, and GTGANTG10. Six POLLEN1LeLA52 sites (AGAAA, at −1387, −1301, −1252, −1037, −302, and −286), seven PB CORE sites (GTGA, at −1598, −1006, −865, −606, −348, −242, and −154), and ten GTGANTG10 sites (CCAC, at −1572, −1399, −1345, −1017, −900, −852, −807, −732, −469, +347, and +428) were identified in the OsSUT3 promoter (Figure 1).
Based on the location of POLLEN1LeLA52, five specific primers were designed (Table 1), and a full 5′ UTR sequence was synthesized, obtaining six promoter variants that we termed p1016, p847, p486, p426, p385, and p746 (Figure 1). pOsSUT3 was further divided into eight parts, P1–P8, according to the intersection and overlap of the promoter fragments above (Figure 1). The pollen-specific motifs that fell within every part are summarized in Table 2.

2.2. Identification of the Core Pollen-Specific Region in the OsSUT3 Promoter

Next, six promoter fragments were independently fused to the GUS reporter gene and used in the Agrobacterium-mediated genetic transformation of rice (Figure 2A). We chose transformed rice plants with the constitutive CaMV35S promoter-GUS vector and non-carrier plants as references for comparative analysis. To determine the localization of the product of the GUS reporter gene under the control of variants of the OsSUT3 promoter, several organs and tissues were analyzed using histochemistry, including the root, stem, leaf, and panicle (Figure 2B). In Nipponbare untransformed plants, no GUS activity was observed in discolored tissues. The GUS activity under the control of the 35S promoter was high and relatively coincident in every tissue. However, in panicles, the GUS activity driven by the 35S promoter was observed only in the paddy hull and not in the pollen. Stained plant lines carrying different promoter fragments showed that the p1016, p847, p486, p426, and p385 fragments were all able to drive pollen-specific expression of GUS in rice, but the p746 insert lacked tissue-specificity and drove GUS gene expression in all tested tissues, thus serving as a constitutive promoter. Among the five pollen-specific promoter fragments, the GUS activities induced by p847and p385 were higher in pollen than those of the p1016, p486, and p426 fragments. These results indicated that two regions in the OsSUT3 promoter were sufficient to highly express a reporter gene in a pollen-specific manner.
To determine the strength of the six OsSUT3 promoter variants, the quantitative expressions of GUS mRNA in leaves, stems, panicles, and roots were determined (Figure 2C). Consistent with the histochemical staining of GUS, the levels of GUS transcript could be designated as “no expression” in untransformed rice, and high and relatively balanced GUS expression was detected in various tissues of lines transformed with CaMV35S::GUS. Further, the GUS expression in other independent transgenic lines, except for the p746 insert line, exhibited significant increases and distinct specificity in pollen compared with that in the leaf, stem, and root. These results also confirmed that p1016, p847, p486, p426, and p385 all had regulatory sequences necessary for downstream pollen-specific gene expression. Compared to p746, which had no tissue-specific expression in pollen and was relatively long, p385, the shortest pollen-specific promoter fragment, only contained 182 bp of the 5′-region from −203 to −385 (Figure 3. However, this 182-bp sequence led to noticeably specific expression of a reporter gene in pollen. Therefore, this region (from −203 to −385) was confirmed to be a core pollen-specific region of the OsSUT3 promoter.

2.3. Identification Three Enhancer Regions (E1, E2, and E3) That Control GUS Expression in pOsSUT3

GUS gene expressions driven by various promoter variants exhibited different levels in the same tissue, for example, in the panicle (Figure 2B,C). Based on the expression level of GUS mRNA and the location of the promoter fragments, we identified three enhancer regions in the pOsSUT3 sequence, which we named Enhancer Region 1 (E1, 362 bp, from −967 to −606), Enhancer Region 2 (E2, 84 bp, from −203 to −120), and Enhancer Region 3 (E3, 119 bp, from −119 to −1) from the 5′ side (Figure 3). Our previous findings showed that the GUS expression driven by pOsSUT3 harboring E1, E2, and E3 was higher than that in any other promoter fragments and was 10.75-times the expression controlled by the 35S promoter in the panicle. In this study, the highest GUS expression in the panicle was detected in plants harboring p385::GUS; this expression increased approximately 8.27-fold compared with that in plants carrying 35S::GUS (Figure 2C). The second-highest GUS expression in the panicle was found in transgenic plants induced by p746::GUS, though this was not specific to any tissue, despite being 8.49-fold as high as that in 35S::GUS lines (Figure 2C). However, compared with pOsSUT3, there was a 13.76% and 21.04% reduction in the panicle GUS expression driven by p385 and p746, respectively. The absence of E3 in p847, which was 2.18 times the expression of 35S::GUS lines, resulted in a significant reduction (79.72%). When we removed E1 and E3 together (p486), the GUS expression was only 21.57% of 35S::GUS lines. The removal of E2 and E3 at the same time, for instance, in construct p1016, drastically reduced the GUS expression to 18.66% of 35S::GUS plants. Finally, when we deleted all three enhancer regions with only a small part of E2, the GUS expression reached a minimum that was 5.72% of 35S::GUS plants. Taken together, these results suggested that the deletion of E1 relatively decreased GUS expression, but a higher expression could still be maintained by E2 and E3. E2 had the greatest enhancement effect on reporter gene expression, followed by E3. The three regions showed the additive up-regulation effect on a downstream gene.
Comprehensive sequence analyses of enhancer motifs were carried out in E1, E2, and E3 regions (Table 3). These results revealed core binding sites (ACGT and AAAG) that control gene expression and cis-acting enhancers. E1 had three cis-acting elements, which respectively were one AAAG motif and two CAAT-boxes, while E2 had one CAAT-box and E3 had one ACGT motif. These factors might play an important role in mediating the high-level expression of a downstream gene.

2.4. p385 Can Drive Pollen-Specific Expression in the Dicotyledonous Model Plant Arabidopsis thaliana

Our OsSUT3 promoter fragment activity analysis suggested that the regulatory regions required for pollen-specificity and high expression were located in the p385 fragment identified by rice transgenic engineering. To test whether p385 was able to drive reporter gene expression specifically in the pollen of other species, we fused this fragment to the GUS gene and introduced a p385::GUS vector into the dicotyledonous model plant Arabidopsis (Figure 4A). Histochemical GUS analysis on a wide range of tissues from transgenic plants carrying p385::GUS showed that the p385 fragment could drive pollen-specific expression, with little to no expression detectable in other tissues examined compared with lines carrying 35S::GUS (Figure 4B). Further analysis by quantitative real-time polymerase chain reaction (qRT-PCR) demonstrated consistent results as compared to GUS lines (Figure 4C). However, the GUS expression in the panicles of p385::GUS lines, 52.19% of the level of that of 35S::GUS plants, was significantly weaker. These results indicated that the p385 region of the OsSUT3 promoter was effective for expressing a downstream gene in a pollen-specific manner, despite the gene expression level being observably decreased compared to the level as a gene driven by the 35S promoter.

2.5. p385 Alters the Expression Pattern of the CaMV35S Promoter in Rice

The GUS expression driven by the p385 fragment in Arabidopsis pollen was lower than that driven by 35S; thus, we hypothesized that gene expression would increase when a strong promoter was fused in front of p385. A reporter construct fusing two promoters (35S and p385) to the GUS gene was developed and used to generate transgenic rice lines (Figure 5A). Histochemical analysis of different tissues showed that p385 from the OsSUT3 promoter changed the 35S expression pattern and expressed the reporter gene only in rice pollen. A quantitative evaluation of GUS transcript levels also suggested that the GUS expression induced by both 35S and two-promoters were consistent with previously observed GUS signaling levels (Figure 5B). Compared with the wide GUS expression driven by only the 35S promoter, prominent and higher pollen-specific expression (2.15-fold) was detected in transgenic lines carrying both 35S and p385. These results demonstrated that the p385 promoter might play an important role in the regulation of gene expression location in plants, and an enhancement effect of gene expression also existed.

3. Discussion

3.1. p385 Is the Core Pollen-Specific Regulatory Region of the OsSUT3 Promoter

As an important means for driving gene expression, several exogenous promoters have been widely used for genetic engineering in plants. However, it has been demonstrated that the constitutive expression of genes may cause energy consumption, metabolic disturbance, and some unexpected traits [37,38]. For more precisely targeted studies of gene function, the use of tissue-specific promoters that harbor specific motifs for controlling exogenous gene expression in specific organs and tissues have many advantages [39]. Similar to other tissue-specific promoters, the core promoter of OsSUT3 includes the minimal region of the DNA sequence, including a TATA-box, initiator, and tissue-specific regulatory elements [40]. The TATA-box has been verified to positively regulate the expression of the Sea urchin H2A gene, and the deletion of this region reduces H2A expression by 15 to 20-fold [41,42]. Pollen-specific activation elements (AGAAA, GTGA, and CCAC) were found to be essential for gene pollen-specific expression [17,20,21]. These cis-acting regulatory elements were all detected in the OsSUT3 promoter region (Table 3, Figure 1). To use the OsSUT3 promoter more efficiently and conveniently in transgenic plants, the aim of this study was to clarify which region was the core sequence in this promoter for the purpose of regulating gene pollen-specific expression.
Rice transformants, p1016, p847, p486, p426, p385, and p746, with different regions of the OsSUT3 promoter showed varied levels of GUS pollen-specific expression. Histochemical and quantitative analyses of GUS expression all showed that p847 and p385 promoted high-level and pollen-specific reporter gene expression; p385 was the minimal fragment in all versions (Figure 2B,C). Between the two promoters, p385 not only drove the highest expression of GUS in pollen but also revealed a small significant expression in leaf. However, p847 also drove a relatively good expression in pollen but with no apparent leakage in other tissues. We speculate that the 119-bp region (from −119 to −1) next to ATG contained some cis-elements that could regulate downstream gene expression in leaves. Similar to our finding, GUS pollen-specific activity was not detected in rice transformants carrying p746, which removed the 5′ 183-bp region from p385 (from −385 to −203) (Figure 3). However, further research is needed to confirm this point. In addition, bioinformatic analysis of pollen-specific elements showed there were four key regulators, two POLLEN1LeLA52 elements (AGAAA), and two PB CORE elements (GTGA) located in this region. Therefore, this region was the core pollen-specific fragment of the OsSUT3 promoter and played a critical role in the determination of promoter strength and its specific expression.
However, the promoter activity was weaker than expected in heterologous systems, and even exhibited non-specificity at times [43,44]. Many reports have suggested that most regulatory functions of cis-acting elements between monocots and dicots are different. For instance, the most efficient promoters in tobacco cells show significant differences from the gene specificity expression in rice cells [45]. In this study, the p385 promoter activity was analyzed in Arabidopsis to investigate the function of this promoter in various species (Figure 4B). These results revealed that the p385 promoter could drive high GUS gene expression specifically in Arabidopsis pollen, which suggests p385 has the same pollen-specific activity in a heterologous system.
An overview of the results in transgenic rice and Arabidopsis indicated that p385 facilitates high reporter gene activity in the pollen of monocots and dicots. The core pollen-specific regulatory motif was present in the 183 bp region located in the 5′ region of p385.

3.2. p385 Was Characterized by Two Gene Expression Motifs

In most studies, it is a widely used strategy to functionally dissect the parts of a gene promoter for the analysis of regulatory regions [46,47]. Although the p385 promoter containing a minimal 183-bp fragment was demonstrated to control pollen-specific expression, the other 1846-bp region carrying a large amount of cis-regulators was required for conferring high-level expression in pollen. Various cis-acting regulatory elements, such as ACGT, AAAG, and CAAT-box enhancer elements involved in pollen-specific expression, were detected in the OsSUT3 promoter region (Table 2). The ACGT and AAAG core binding sites, known to enhance gene expression in many genes (e.g., AtGEX2, OsGEX2, and PtGEX2) [48,49] were verified to act as target sequences for bZIP DNA-binding regulatory proteins [36,50] and for Dof transcription factors [51], respectively. Moreover, the CAAT-box is a common cis-acting element in the enhancer region of promoters [52].
In this investigation, minor variations in the OsSUT3 promoter were found to drive the different levels expression in rice pollen (Figure 2B,C), which suggested that deletions in promoters contained some motifs to enhance reporter gene expression. Histochemical and qRT-PCR analyses of panicles from transgenic rice demonstrated that there were three enhancing regions in the OsSUT3 promoter: E1, E2, and E3 (Figure 3). Maximum GUS expression was observed in the panicle of p385 and p746 rice transformants, whereas p1016 and p426 showed negligible GUS expression. The main reason for the large difference in GUS expression between the two groups was likely the presence of E2 and E3 enhancer elements. Additionally, the E1 region caused higher expression of the GUS gene in p847 transformants compared to p486 transgenic plants, which suggests that E1 might be attributed to the high-level expression of a downstream gene. This was consistent with previous results, where different regions of promoters have been used to transcribe the downstream gene at variable strengths depending on the specific cell or tissue [53].
By contrast, the presence of cis-acting enhancers in these regions also demonstrates a potential interaction between the cis-elements present within these three regions and other regulators. However, these results do not exclude that some other enhancers that have not been reported previously are located in these regions.

3.3. p385 Changes the Expression Pattern of the Constitutive Promoter CaMV35S

In order to further exploit the usage pattern of p385 from the OsSUT3 promoter, we used a two-promoter vector-mediated GUS expression system and analyzed the expression sites and quantitative traits of the resultant transgenic GUS gene (Figure 5). We found that p385 adjacent to the 35S promoter worked as a directed promoter with pollen specificity. p385 altered the 35S promoter characteristics, which constitutively expressed the GUS gene in all tested organs or tissues and specifically guided the promoter activity only in pollen tissue. These results suggest that the p385 fragment has cis-acting regulatory elements that were indispensable for robust and pollen-specific promote activity. Additionally, the GUS expression of rice panicles with two-promoters was much higher than those with only the 35S promoter.
In most studies, double 35S promoters are widely used to drastically enhance the expression of exogenous target genes [54,55], suggesting that the connection of two strong promoters shows additive effects for driving activity. In this study, we first connected two different types of promoters in front of a reporter gene and confirmed that p385 located adjacent to the GUS gene might play a major role in driving the expression pattern in plants. Further, the 35S promoter enhanced the activity of the p385 promoter for expressing a gene at a higher level.
In conclusion, p385 was the strongest driver of six tested promoters to determinate the pollen-specific expression of target genes. In addition, p385 also had been proved to have good stability and high activity of pollen-specific expression in heterologous systems. Therefore, it was a potential tool in agriculture, especially in male-sterility. For instance, the transgenic male sterile lines and maintainer lines can be generated by introducing a pollen-killer gene, fertility-restoration gene. This method is suitable for most flowering plants for breeding new varieties and increasing production of hybrid seeds.

4. Materials and Methods

4.1. Sequence Analysis and Promoter Deletion

In order to investigate the pollen-specific cis-acting elements in the OsSUT3 promoter, the full-length promoter sequence cloned in a previous study [33] was used to perform motif alignment with PlantCARE. To verify the function of each part, a total of five promoter deletion fragments were PCR amplified, named p1016 (−1196/−180), p847 (−967/−120), p486 (−606/−120), p426 (−606/−180), and p746 (−203/+543), as well as one promoter deletion fragment, p385 (−385/−1, 5′ UTR of OsSUT3 gene). The sequences of the specific primers used to amplify fragments are given in Table 1.

4.2. Plasmid Construction and Transformation

Subsequently, promoter deletion fragments were fused with the GUS reporter gene in the pBI121 vector (KIB, CAS, Kunming, Yunnan, China) using Hind III and Nco I restriction sites. The recombinant constructs were mobilized into A. tumefaciens (strain GV3101) using a protocol described in earlier studies [56].

4.3. Plant Materials and Growth Conditions

For rice transformants, seeds of the japonica rice cultivar Nipponbare, obtained from the Rice Research Institute of Yunnan Agricultural University (Kunming, China), were surface sterilized with a 0.1% HgCl2 solution, followed by washing with autoclaved water that was used for genetic transformation. Calli derived from the mature embryos were infected with Agrobacterium culture, and putatively transformed calli were selected on the Murashige and Skoog (MS) medium [57] containing 100 mg/L kanamycin (Kan). Plants regenerated from the selected Kan-tolerant calli were grown to maturity for 6–8 weeks at 26 ± 2 °C under a 16/8 h light/dark cycle in a greenhouse.
For Arabidopsis transformants, wild type Arabidopsis thaliana (Columbia) plants (KIB, China) were infected with Agrobacterium (GV3101) harboring various recombinant vectors carrying different expression units of the OsSUT3 promoter, respectively, using the floral dip method [58]. Next, all plants were grown for 3–4 weeks at 23 °C under a 16/8 h light/dark cycle.

4.4. Histochemical Localization of β-Glucuronidase (GUS) Activity

Histochemical analysis of GUS activity was carried out essentially as described by Jefferson et al. [59]. T1 and T2 plants of rice and Arabidopsis transformants were grown to 1–3 days before flowering under controlled conditions. The roots, stems, leaves, and panicles of transgenic lines, as well as control rice plants, were collected and tested for GUS expression. All the explants were incubated at 37 °C for 24 h in a staining buffer containing 1 mM 5-bromo-4-chloro-3-indolyl-β-D-glucuronide (X-gluc), 100 mM sodium phosphate buffer (pH 7.0), 2 mM potassium ferrocyanide and potassium ferrocyanide, and 0.1% Triton X-100. Next, the explants were rinsed 3–5 times with 70% ethanol in an 80 °C water bath and then observed under a microscope.

4.5. Genome DNA and Total RNA Extraction

Total genomic DNA was isolated from rice leaf tissue using the CTAB method for PCR amplification [60]. All tissues (root, stem, leaf, panicle) prepared for RNA extraction were ground into a fine powder using liquid nitrogen and mini pestles in a 2.0 mL Eppendorf tube. Total RNA was isolated from different tissues (50–100 mg fresh weight) using TRIzol (TIANGEN, Beijing, China) following the manufacturer’s instructions. Next, 1 μL of DNAse was added to the RNA solution (30–50 µL) for eliminating DNA contamination. The quality of RNA samples was by checked using a 1.2% denaturing agarose gel, and the quantity and concentration were estimated using a NanoDrop 1000 (Thermo Scientific Inc., Waltham, MA, USA) spectrophotometer, respectively. First-strand cDNA was synthesized by adding an equal quantity of RNA using the FastKing RT Kit (With gDNase) (TIANGEN) for qRT-PCR.

4.6. qRT-PCR

qRT-PCR was performed using a CFX96 Real Time System (Bio-Rad, Hercules, CA, USA) and SuperReal PreMix Plus (SYBR Green) (TIANGEN, Beijing, China) following the manufacturer’s instructions. The β-actin gene was used as an endogenous control. PCR reactions were assembled in a reaction volume of 20 μL containing 10 μL (2×) SYBR green, 0.6 μL (12 μM) of each primer, and 1 μL of 40–50 ng of cDNA. PCR amplification was carried out using the following protocol: UDG activation at 50 °C for 2 min, then held at 95 °C for 5 min, followed by 40 cycles of 95 °C for 5 s and 61 °C for 30 s. Melt curve analysis was performed afterward using default settings. Three independent biological replicates were analyzed. Relative quantification values were calculated using lg2−ΔΔCt; the 2−ΔΔCt method can be reviewed in [61].

5. Conclusions

In this study, we identified a 183 bp core region from the 2029 bp OsSUT3 promoter that regulates the pollen-specific expression of a downstream gene in homogenous or heterologous plants. Future work should investigate if the E1, E2, and E3 modules from the OsSUT3 promoter regulate gene expression at a higher level. Our study also indicated that the p385 promoter containing the 183-bp core region and E2 and E3 enhanced regions could alter the expression pattern of the 35S constitutive promoter and highly express a reporter gene only in pollen. The present study demonstrates that p385 may be exploited as a potential candidate for genetic engineering and the generation of male-sterile lines in higher plants.

Author Contributions

D.L. (Dandan Li), C.L., and X.T. conceived and designed the experiments; D.L. (Dandan Li), R.X., D.L. (Dong Lv) and C.Z. performed the experiments; H.Y., J.Z. and J.W. analyzed the data; D.L. (Dandan Li) and X.T. wrote the paper. All authors reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Key R&D Program of China (2016YFD0101101), the project of Academician Workstation by Yunnan Provincial Science and Technology Department (2018IC065), and the open project of the National Key Laboratory of Biological Resources Protection and Utilization in Yunnan (2019) (gzkf201903).

Acknowledgments

We are thankful to X.X. Kong and C.T. Wang from Kunming Institute of Botany, Chinese Academy of Sciences (KIB, CAS) for providing the pBI121 vector and Arabidopsis seeds.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Odell, J.T.; Nagy, F.; Chua, N.H. Identification of DNA sequences required for activity of the cauliflower mosaic virus 35S promoter. Nature 1985, 313, 810–812. [Google Scholar] [CrossRef]
  2. McElroy, D.; Zhang, W.; Cao, J.; Wu, R. Isolation of an efficient actin promoter for use in rice transformation. Plant Cell 1990, 2, 163–171. [Google Scholar] [PubMed]
  3. Christensen, A.H.; Sharrock, R.A.; Quail, P.H. Maize polyubiquitin genes: Structure, thermal perturbation of expression and transcript splicing, and promoter activity following transfer to protoplasts by electroporation. Plant Mol. Biol. 1992, 18, 675–689. [Google Scholar] [CrossRef] [PubMed]
  4. Joshi, J.B.; Geetha, S.; Singh, B.; Kumar, K.K.; Kokiladevi, E.; Arul, L.; Balasubramanian, P.; Sudhakar, D. A maize α-zein promoter drives an endosperm-specific expression of transgene in rice. Physiol. Mol. Biol. Plants 2015, 21, 35–42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Anami, S.; Njuguna, E.; Coussens, G.; Aesaert, S.; Van Lijsebettens, M. Higher plant transformation: Principles and molecular tools. Int. J. Dev. Biol. 2013, 57, 483–494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Yan, S.; Wang, Z.; Liu, Y.; Li, W.; Wu, F.; Lin, X.; Meng, Z. Functional architecture of two exclusively late stage pollen-specific promoters in rice (Oryza sativa L.). Plant Mol. Biol. 2015, 88, 415–428. [Google Scholar] [CrossRef]
  7. Zhu, Q.; Zhang, X.L.; Nadir, S.; DongChen, W.H.; Guo, X.Q.; Zhang, H.X.; Li, C.Y.; Chen, L.J.; Lee, D.S. A lysM domain-containing gene OsEMSA1 involved in embryo sac development in rice (Oryza sativa L.). Front Plant Sci. 2017, 8, 1596. [Google Scholar] [CrossRef] [Green Version]
  8. Knoch, E.; Sugawara, S.; Mori, T.; Nakabayashi, R.; Saito, K.; Yonekura-Sakakibara, K. UGT79B31 is responsible for the final modification step of pollen-specific flavonoid biosynthesis in Petunia hybrida. Planta 2018, 247, 779–790. [Google Scholar] [CrossRef] [Green Version]
  9. Garrido, D.; Busscher, J.; van Tunen, A.J. P Promoter activity of a putative pollen monosaccharide transporter in Petunia hybrida and characterisation of a transposon insertion mutant. Protoplasma 2006, 228, 3–11. [Google Scholar] [CrossRef]
  10. Choi, H.; Jin, J.Y.; Choi, S.; Hwang, J.U.; Kim, Y.Y.; Suh, M.C.; Lee, Y. An ABCG/WBC-type ABC transporter is essential for transport of sporopollenin precursors for exine formation in developing pollen. Plant J. 2011, 65, 181–193. [Google Scholar] [CrossRef]
  11. Millwood, R.J.; Moon, H.S.; Poovaiah, C.R.; Muthukumar, B.; Rice, J.H.; Abercrombie, J.M.; Abercrombie, L.L.; Green, W.D.; Stewart, C.N., Jr. Engineered selective plant male sterility through pollen-specific expression of the EcoRI restriction endonuclease. Plant Biotechnol. J. 2016, 14, 1281–1290. [Google Scholar] [CrossRef] [PubMed]
  12. Khurana, R.; Kapoor, S.; Tyagi, A. Anthology of anther/pollen-specific promoters and transcription factors. Crit. Rev. Plant Sci. 2012, 31, 359–390. [Google Scholar] [CrossRef]
  13. Turcich, M.P.; Hamilton, D.A.; Mascarenhas, J.P. Isolation and characterization of pollen-specific maize genes with sequence homology to ragweed allergens and pectate lyases. Plant Mol. Biol. 1993, 23, 1061–1065. [Google Scholar] [CrossRef]
  14. Hanson, D.D.; Hamilton, D.A.; Travis, J.L.; Bashe, D.M.; Mascarenhas, J.P. Characterization of a pollen-specific cDNA clone from Zea mays and its expression. Plant Cell 1989, 1, 173–179. [Google Scholar] [PubMed] [Green Version]
  15. Guerrero, F.D.; Crossland, L.; Smutzer, G.S.; Hamilton, D.A.; Mascarenhas, J.P. Promoter sequences from a maize pollen-specific gene direct tissue-specific transcription in tobacco. Mol. Gen. Genet. 1990, 224, 161–168. [Google Scholar] [CrossRef]
  16. Twell, D.; Wing, R.; Yamaguchi, J.; McCormick, S. Isolation and expression of an anther-specific gene from tomato. Mol. Gen. Genet. 1989, 217, 240–245. [Google Scholar] [CrossRef] [PubMed]
  17. Eyal, Y.; Curie, C.; McCormick, S. Pollen specificity elements reside in 30 bp of the proximal promoters of two pollen-expressed genes. Plant Cell 1995, 7, 373–384. [Google Scholar]
  18. Bate, N.; Twell, D. Functional architecture of a late pollen promoter: Pollen-specific transcription is developmentally regulated by multiple stage-specific and co-dependent activator elements. Plant Mol. Biol. 1998, 37, 859–869. [Google Scholar] [CrossRef]
  19. Twell, D.; Klein, T.M.; Fromm, M.E.; McCormick, S. Transient expression of chimeric genes delivered into pollen by microprojectile bombardment. Plant Physiol. 1989, 91, 1270–1274. [Google Scholar] [CrossRef] [Green Version]
  20. Twell, D.; Yamaguchi, J.; Wing, R.A.; Ushiba, J.; McCormick, S. Promoter analysis of genes that are coordinately expressed during pollen development reveals pollen-specific enhancer sequences and shared regulatory elements. Genes Dev. 1991, 5, 496–507. [Google Scholar] [CrossRef] [Green Version]
  21. Rogers, H.J.; Bate, N.; Combe, J.; Sullivan, J.; Sweetman, J.; Swan, C.; Lonsdale, D.M.; Twell, D. Functional analysis of cis-regulatory elements within the promoter of the tobacco late pollen gene g10. Plant Mol. Biol. 2001, 45, 577–585. [Google Scholar] [CrossRef]
  22. Yoo, J.; Kohlbrenner, E.; Kim, O.; Hajjar, R.J.; Jeong, D. Enhancing atrial-specific gene expression using a calsequestrin cis-regulatory module 4 with a sarcolipin promoter. J. Gene Med. 2018, 20, e3060. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Morrissey, M.E.; Shelton, S.; Brockerhoff, S.E.; Hurley, J.B.; Kennedy, B.N. PRE-1, a cis element sufficient to enhance cone- and rod- specific expression in differentiating zebrafish photoreceptors. BMC Dev. Biol. 2011, 11, 3. [Google Scholar] [CrossRef] [Green Version]
  24. Li, M.; Xie, C.; Song, B.; Ou, Y.; Lin, Y.; Liu, X.; Zhang, H.; Liu, J. Construction of efficient, tuber-specific, and cold-inducible promoters in potato. Plant Sci. 2015, 235, 14–24. [Google Scholar] [CrossRef] [PubMed]
  25. Yokoi, S.; Tsuchiya, T.; Toriyama, K.; Hinata, K. Tapetum-specific expression of the Osg6B promoter-β-glucuronidase gene in transgenic rice. Plant Cell Rep. 1997, 16, 363–367. [Google Scholar] [CrossRef] [PubMed]
  26. Swapna, L.; Khurana, R.; Kumar, S.V.; Tyagi, A.K.; Rao, K.V. Pollen-specific expression of Oryza sativa indica pollen allergen gene (OSIPA) promoter in rice and Arabidopsis transgenic systems. Mol. Biotechnol. 2011, 48, 49–59. [Google Scholar] [CrossRef] [PubMed]
  27. Khurana, R.; Kathuria, H.; Mukhopadhyay, A.; Kapoor, S.; Tyagi, A.K. A 286 bp upstream regulatory region of a rice anther-specific gene, OSIPP3, confers pollen-specific expression in Arabidopsis. Biotechnol. Lett. 2013, 35, 455–462. [Google Scholar] [CrossRef]
  28. Wen, K.; Chen, Y.; Zhou, X.; Chang, S.; Feng, H.; Zhang, J.; Chu, Z.; Han, X.; Li, J.; Liu, J.; et al. OsCPK21 is required for pollen late-stage development in rice. J. Plant Physiol. 2019, 240, 153000. [Google Scholar] [CrossRef]
  29. Jeon, J.S.; Chung, Y.Y.; Lee, S.; Yi, G.H.; Oh, B.G.; An, G. Isolation and characterization of an anther-specific gene, RA8, from rice (Oryza sativa L.). Plant Mol. Biol. 1999, 39, 35–44. [Google Scholar] [CrossRef]
  30. Oo, M.M.; Bae, H.K.; Nguyen, T.D.; Moon, S.; Oh, S.A.; Kim, J.H.; Soh, M.S.; Song, J.T.; Jung, K.H.; Park, S.K. Evaluation of rice promoters conferring pollen-specific expression in a heterologous system, Arabidopsis. Plant Reprod. 2014, 27, 47–58. [Google Scholar] [CrossRef]
  31. Aoki, N.; Hirose, T.; Scofield, G.N.; Whitfeld, P.R.; Furbank, R.T. The sucrose transporter gene family in rice. Plant Cell Physiol. 2003, 44, 223–232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Hirose, T.; Zhang, Z.; Miyao, A.; Hirochika, H.; Ohsugi, R.; Terao, T. Disruption of a gene for rice sucrose transporter, OsSUT1, impairs pollen function but pollen maturation is unaffected. J. Exp. Bot. 2010, 61, 3639–3646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Li, D.D.; Li, J.; Luan, Y.F.; Zhang, C.L.; Xu, R.C.; Lv, D.; Tan, Y.L.; Tan, X.L. Cloning and expression analysis of OsSUT3 gene Promoter from Oryza sativa. Mole Plant Breed. 2018, 16, 7225–7233. [Google Scholar]
  34. Welchen, E.; Viola, I.L.; Kim, H.J.; Prendes, L.P.; Comelli, R.N.; Hong, J.C.; Gonzalez, D.H. A segment containing a G-box and an ACGT motif confers differential expression characteristics and responses to the Arabidopsis Cytc-2 gene, encoding an isoform of cytochrome c. J. Exp. Bot. 2009, 60, 829–845. [Google Scholar] [CrossRef] [Green Version]
  35. Ravel, C.; Nagy, I.J.; Martre, P.; Sourdille, P.; Dardevet, M.; Balfourier, F.; Pont, C.; Giancola, S.; Praud, S.; Charmet, G. Single nucleotide polymorphism, genetic mapping, and expression of genes coding for the DOF wheat prolamin-box binding factor. Funct. Integr. Genomics. 2006, 6, 310–321. [Google Scholar] [CrossRef]
  36. Williams, M.E.; Foster, R.; Chua, N.H. Sequences flanking the hexameric G-box core CACGTG affect the specificity of protein binding. Plant Cell 1992, 4, 485–496. [Google Scholar]
  37. Kasuga, M.; Liu, Q.; Miura, S.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Improving plant drought, salt and freezing tolerance by gene transfer of a single stress-inducible transcription factor. Nat. Biotechnol. 1999, 17, 287–291. [Google Scholar] [CrossRef]
  38. Hsieh, T.H.; Lee, J.T.; Charng, Y.Y.; Chan, M.T. Tomato plants ectopically expressing Arabidopsis CBF1 show enhanced resistance to water deficit stress. Plant Physiol. 2002, 130, 618–626. [Google Scholar] [CrossRef] [Green Version]
  39. Gao, L.; Tian, Y.; Chen, M.C.; Wei, L.; Gao, T.G.; Yin, H.J.; Zhang, J.L.; Kumar, T.; Liu, L.B.; Wang, S.M. Cloning and functional characterization of epidermis-specific promoter MtML1 from Medicago truncatula. J. Biotechnol. 2019, 300, 32–39. [Google Scholar] [CrossRef]
  40. Smale, S.T.; Kadonaga, J.T. The RNA polymerase II core promoter. Annu. Rev. Biochem. 2003, 72, 449–479. [Google Scholar] [CrossRef] [Green Version]
  41. Grosschedl, R.; Birnstiel, M.L. Spacer DNA sequences upstream of the T-A-T-A-A-A-T-A sequence are essential for promotion of H2A histone gene transcription in vivo. Proc. Natl. Acad. Sci. USA 1980, 77, 7102–7106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Benoist, C.; Chambon, P. In vivo sequence requirements of the Sv40 early promotor region. Nature 1981, 290, 304–310. [Google Scholar] [CrossRef] [PubMed]
  43. Tissier, A. Trichome specific expression: Promoters and their applications. In Transgenic Plants-Advances and Limitations; Ciftci, Y.O., Ed.; InTech: London, UK, 2012; Volume 17, pp. 353–378. [Google Scholar]
  44. Delaney, S.K.; Orford, S.J.; Martin-Harris, M.; Timmis, J.N. The fiber specificity of the cotton FSltp4 gene promoter is regulated by an AT-rich promoter region and the AT-hook transcription factor GhAT1. Plant Cell Physiol. 2007, 48, 1426–1437. [Google Scholar] [CrossRef] [Green Version]
  45. Gutiérrez-Alcalá, G.; Calo, L.; Gros, F.; Caissard, J.C.; Gotor, C.; Romero, L.C. A versatile promoter for the expression of proteins in glandular and non-glandular trichomes from a variety of plants. J. Exp. Bot. 2005, 56, 2487–2494. [Google Scholar] [CrossRef] [Green Version]
  46. Yadav, V.K.; Yadav, V.K.; Pant, P.; Singh, S.P.; Maurya, R.; Sable, A.; Sawant, S.V. GhMYB1 regulates SCW stage-specific expression of the GhGDSL promoter in the fibres of Gossypium hirsutum L. Plant Biotechnol. J. 2017, 15, 1163–1174. [Google Scholar] [CrossRef] [Green Version]
  47. Dong, H.; Liu, L.; Fan, X.; Asghar, S.; Li, Y.; Wang, Y.; Xu, X.; Wu, T.; Zhang, X.; Qiu, C.; et al. The artificial promoter rMdAG2I confers flower-specific activity in Malus. Int. J. Mol. Sci. 2019, 20, 4551. [Google Scholar] [CrossRef] [Green Version]
  48. Singh, M.; Bhalla, P.L.; Xu, H.; Singh, M.B. Isolation and characterization of a flowering plant male gametic cell-specific promoter. FEBS Lett. 2003, 542, 47–52. [Google Scholar] [CrossRef] [Green Version]
  49. Engel, M.L.; Holmes-Davis, R.; McCormick, S. Green Sperm. Identification of male gamete promoters in Arabidopsis. Plant Physiol. 2005, 138, 2124–2133. [Google Scholar] [CrossRef] [Green Version]
  50. Lamb, P.; McKnight, S.L. Diversity and specificity in transcriptional regulation: The benefits of heterotypic dimerization. Trends Biochem. Sci. 1991, 16, 417–422. [Google Scholar] [CrossRef]
  51. Yanagisawa, S.; Schmidt, R.J. Diversity and similarity among recognition sequences of Dof transcription factors. Plant J. 1999, 17, 209–214. [Google Scholar] [CrossRef] [PubMed]
  52. Rossouw, C.M.; Vergeer, W.P.; du Plooy, S.J.; Bernard, M.P.; Ramirez, F.; de Wet, W.J. DNA sequences in the first intron of the human pro-alpha1 (I) collagen gene enhance transcription. J. Biol. Chem. 1987, 262, 15151–15157. [Google Scholar] [PubMed]
  53. Schibler, U.; Sierra, F. Alternative promoters in developmental gene expression. Annu. Rev. Genet. 1987, 21, 237–257. [Google Scholar] [CrossRef] [PubMed]
  54. Ortega, J.L.; Temple, S.J.; Bagga, S.; Ghoshroy, S.; Sengupta-Gopalan, C. Biochemical and molecular characterization of transgenic Lotus japonicus plants constitutively over-expressing a cytosolic glutamine synthetase gene. Planta 2004, 19, 807–818. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Seger, M.; Ortega, J.L.; Bagga, S.; Gopalan, C.S. Repercussion of mesophyll-specific overexpression of a soybean cytosolic glutamine synthetase gene in alfalfa (Medicago sativa L.) and tobacco (Nicotiana tabaccum L.). Plant Sci. 2009, 176, 119–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Saha, D.; Kumar, V.; Bhat, S.R.; Srinivasan, R. Upstream sequences of the LOJ gene leads to identification of a novel enhancer element conferring lateral organ junction-specific expression in Arabidopsis thaliana. Plant Molec. Bio. Rep. 2011, 29, 265–277. [Google Scholar] [CrossRef]
  57. Murashige, T.; Skoog, F. A revised medium for rapid growth and bio assays with tobacco tissue cultures. Physiol. Plant 1962, 15, 473–497. [Google Scholar] [CrossRef]
  58. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for Agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar]
  59. Jefferson, R.A.; Kavanagh, T.A.; Bevan, M.W. GUS fusions: Beta-glucuronidase as a sensitive and versatile gene fusion marker in higher plants. EMBO J. 1987, 6, 3901–3907. [Google Scholar] [CrossRef]
  60. Clarke, J.D. Cetyltrimethyl ammonium bromide (CTAB) DNA miniprep for plant DNA isolation. Cold Spring Harb. Lab. Protoc. 2009, 4. [Google Scholar] [CrossRef]
  61. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar]
Ijms 21 01909 g001 550

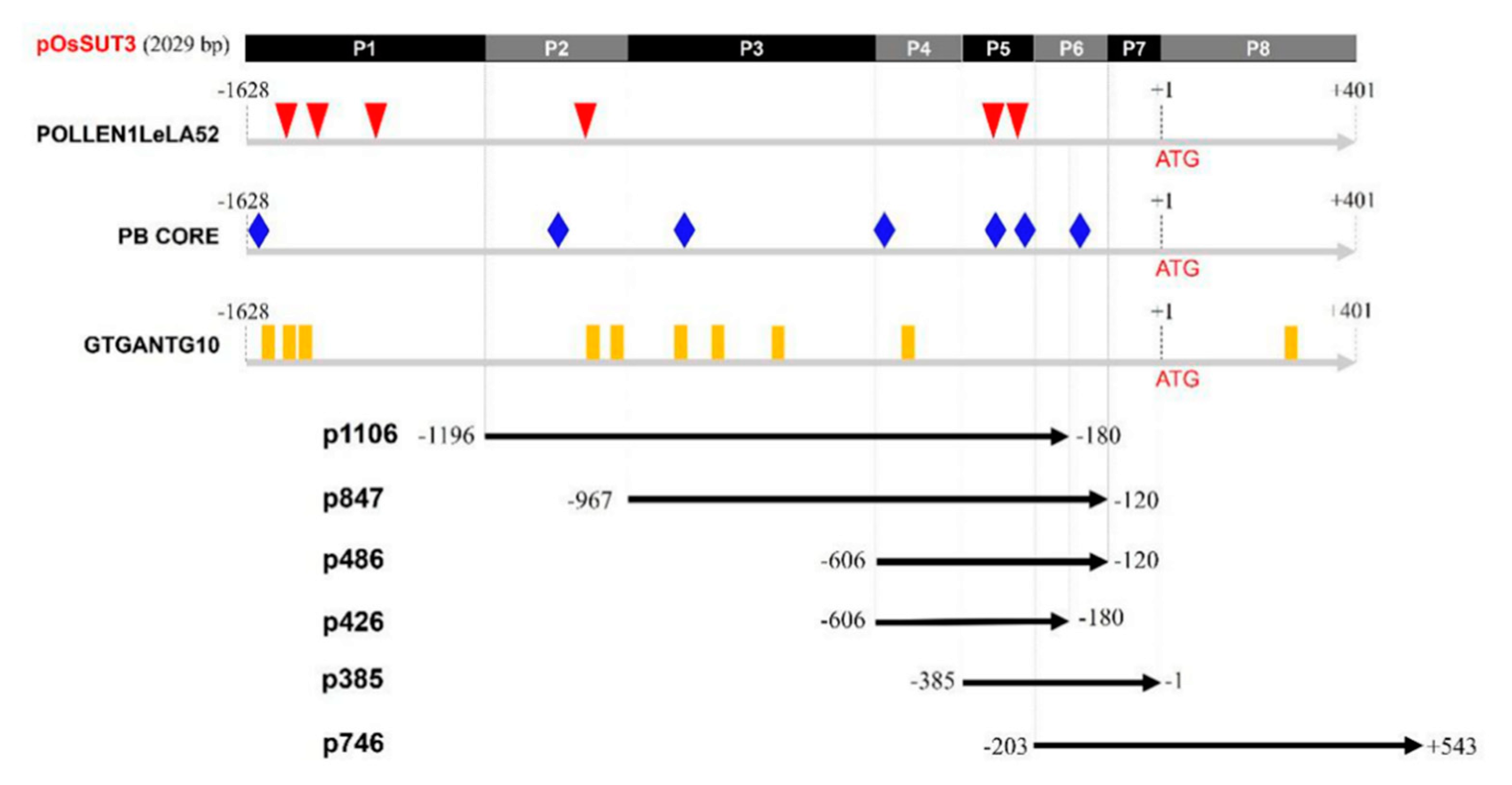

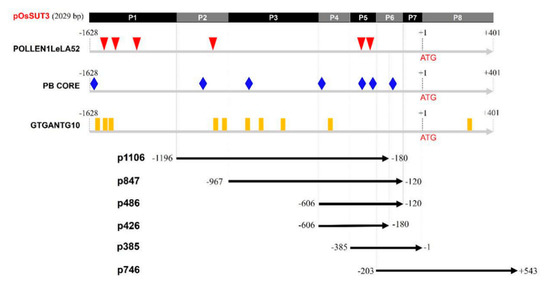

Figure 1. Schematic representation and pollen-specific motifs of various pOsSUT3 deletion constructs (p1016, p847, p486, p426, p385, and p746) used to transform rice. The numbers on the left indicate the upstream end of the promoter fragment present in each construct. The downstream end was on the right side. The top rectangle indicates the full length OsSUT3 promoter named pOsSUT3. P1–P8 represents the eight parts from pOsSUT3 divided according to pollen-specific elements. Different colored symbols represent the position of three pollen-specific elements, POLLEN1LeLA52, PB CORE, and GTGANTG10.
Figure 1. Schematic representation and pollen-specific motifs of various pOsSUT3 deletion constructs (p1016, p847, p486, p426, p385, and p746) used to transform rice. The numbers on the left indicate the upstream end of the promoter fragment present in each construct. The downstream end was on the right side. The top rectangle indicates the full length OsSUT3 promoter named pOsSUT3. P1–P8 represents the eight parts from pOsSUT3 divided according to pollen-specific elements. Different colored symbols represent the position of three pollen-specific elements, POLLEN1LeLA52, PB CORE, and GTGANTG10.
Ijms 21 01909 g001
Ijms 21 01909 g002 550

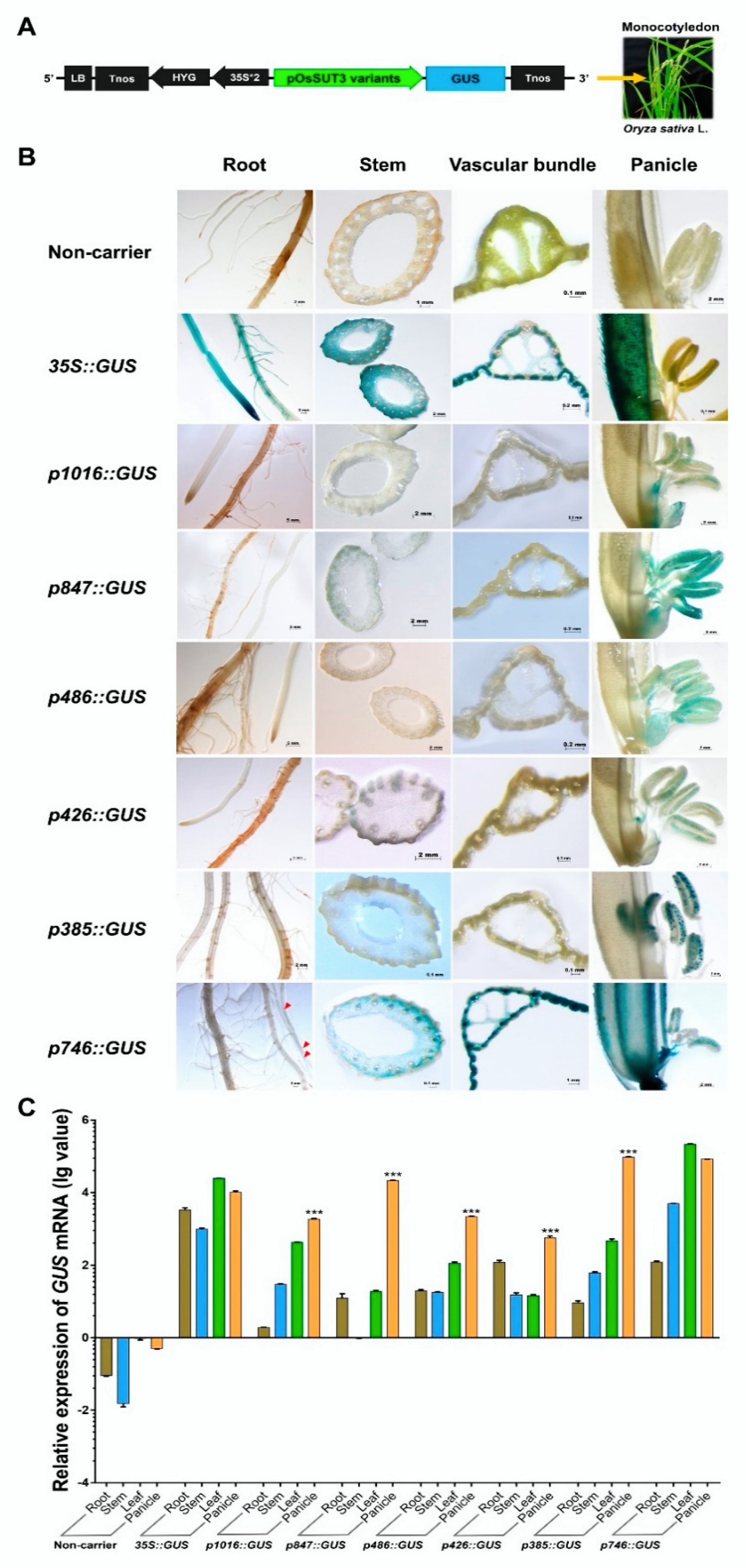

Figure 2. GUS expression in various rice transformants and non-carrier plants. (A) Linear map of different pOsSUT3 variants for transgenic rice. (B) Histochemical localization of GUS activity in vegetative tissues from stably transformed rice plants. The columns from left to right indicate the root, stem, leaf, and panicle. The lines from top to bottom indicate the tissues from non-carrier, 35S, p1016, p847, p486, p426, p358, and p746 lines. The red arrows of p746 staining root indicate GUS activity. (C) The relative GUS transcript expression assayed by qRT-PCR in the root, stem, leaf, and panicle harvested from p1016, p847, p486, p426, p358, and p746 rice transformants compared to non-carrier plants and 35S::GUS transgenic lines. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as the mean ± SD (n = 3), student’s t-test. *** represents highly significant differences from all tested tissues from each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Figure 2. GUS expression in various rice transformants and non-carrier plants. (A) Linear map of different pOsSUT3 variants for transgenic rice. (B) Histochemical localization of GUS activity in vegetative tissues from stably transformed rice plants. The columns from left to right indicate the root, stem, leaf, and panicle. The lines from top to bottom indicate the tissues from non-carrier, 35S, p1016, p847, p486, p426, p358, and p746 lines. The red arrows of p746 staining root indicate GUS activity. (C) The relative GUS transcript expression assayed by qRT-PCR in the root, stem, leaf, and panicle harvested from p1016, p847, p486, p426, p358, and p746 rice transformants compared to non-carrier plants and 35S::GUS transgenic lines. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as the mean ± SD (n = 3), student’s t-test. *** represents highly significant differences from all tested tissues from each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Ijms 21 01909 g002
Ijms 21 01909 g003 550

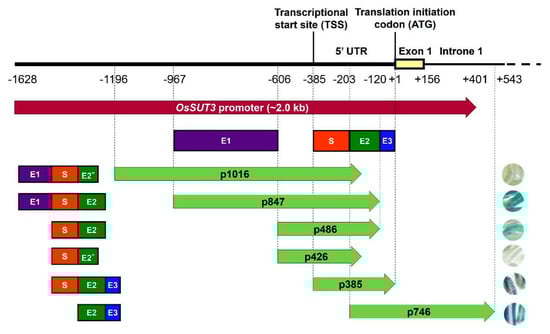

Figure 3. Contribution of four regions from pOsSUT3 to the expression of the GUS reporter gene in pollen. Purple rectangle, enhancer region 1 (E1); dark green rectangle, enhancer region 2 (E2); blue rectangle, enhancer region 3 (E3); red rectangle, specific expression region (S). E2− represents the 5′ part of the E2 deleted 60 bp at the 3′ end. The frameworks of rectangular structures on the left of the arrowed rectangle represent the functional regions contained in various promoter deletions. The right circles represent the staining strength of GUS in pollen from transformant lines carrying different promoter fragments.
Figure 3. Contribution of four regions from pOsSUT3 to the expression of the GUS reporter gene in pollen. Purple rectangle, enhancer region 1 (E1); dark green rectangle, enhancer region 2 (E2); blue rectangle, enhancer region 3 (E3); red rectangle, specific expression region (S). E2− represents the 5′ part of the E2 deleted 60 bp at the 3′ end. The frameworks of rectangular structures on the left of the arrowed rectangle represent the functional regions contained in various promoter deletions. The right circles represent the staining strength of GUS in pollen from transformant lines carrying different promoter fragments.
Ijms 21 01909 g003
Ijms 21 01909 g004 550

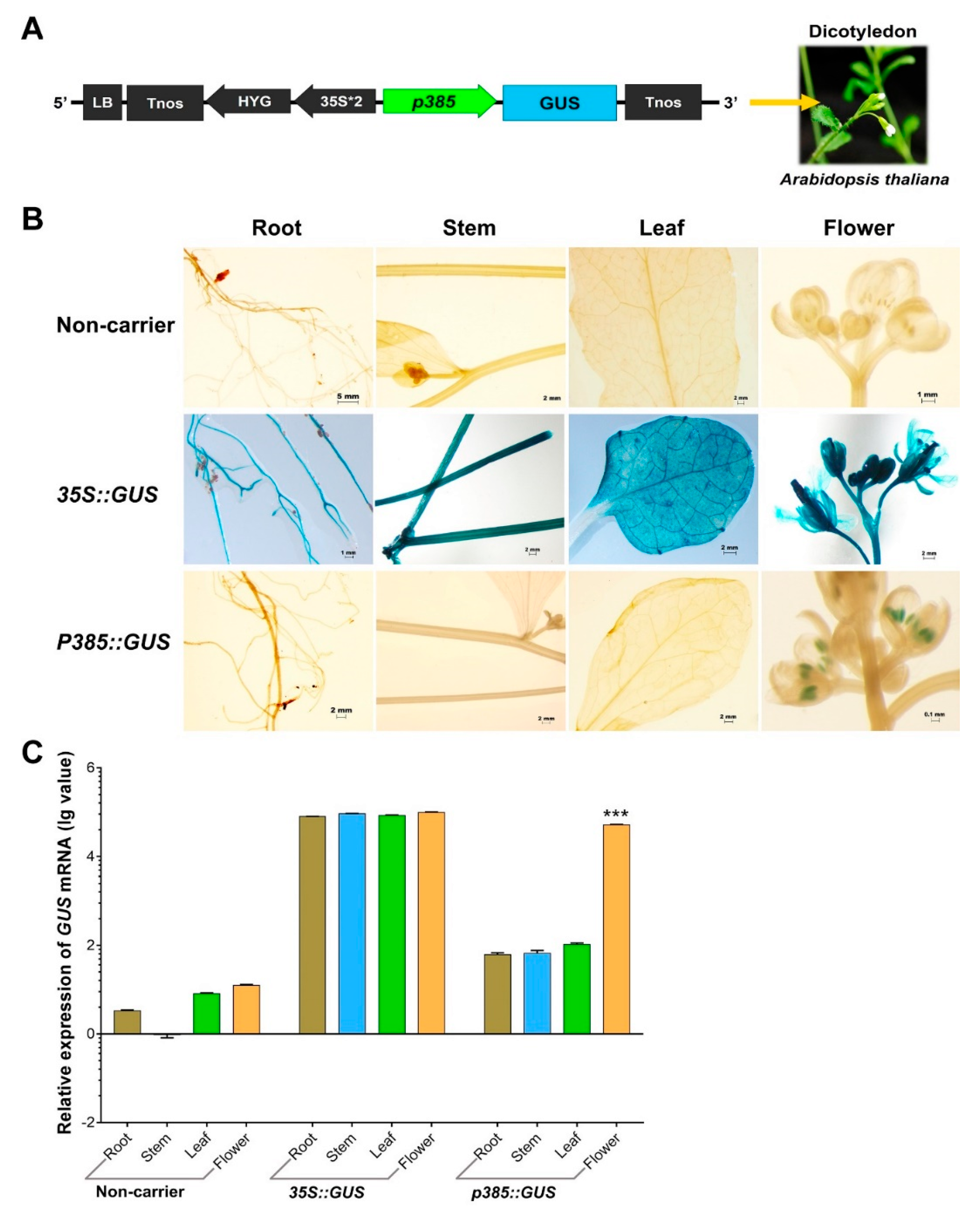

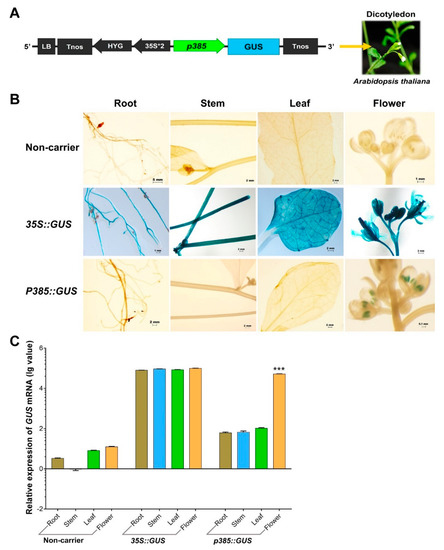

Figure 4. GUS expression in p385::GUS rice transformants in contrast to non-carrier plants and 35S::GUS lines. (A) Linear map of the p385::GUS vector for transgenic Arabidopsis. (B) Histochemical localization of GUS activity in vegetative tissues from stably transformed rice plants. The columns from left to right indicate the root, stem, leaf, and panicle. The lines from top to bottom indicate the tissues from non-carrier, 35S, and p385 lines. (C) The relative GUS transcript expression assayed by qRT-PCR in the root, stem, leaf, and panicle tissues harvested from p358 rice transformants compared to non-carrier plants and 35S::GUS transgenic lines. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as mean ± SD (n = 3), student’s t-test. *** represents highly significant differences from all tested tissues of each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Figure 4. GUS expression in p385::GUS rice transformants in contrast to non-carrier plants and 35S::GUS lines. (A) Linear map of the p385::GUS vector for transgenic Arabidopsis. (B) Histochemical localization of GUS activity in vegetative tissues from stably transformed rice plants. The columns from left to right indicate the root, stem, leaf, and panicle. The lines from top to bottom indicate the tissues from non-carrier, 35S, and p385 lines. (C) The relative GUS transcript expression assayed by qRT-PCR in the root, stem, leaf, and panicle tissues harvested from p358 rice transformants compared to non-carrier plants and 35S::GUS transgenic lines. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as mean ± SD (n = 3), student’s t-test. *** represents highly significant differences from all tested tissues of each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Ijms 21 01909 g004
Ijms 21 01909 g005 550

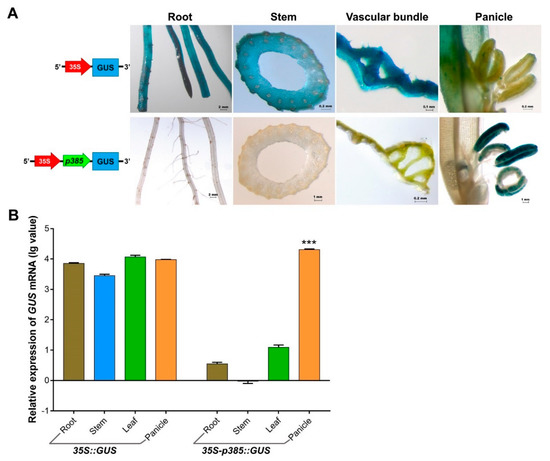

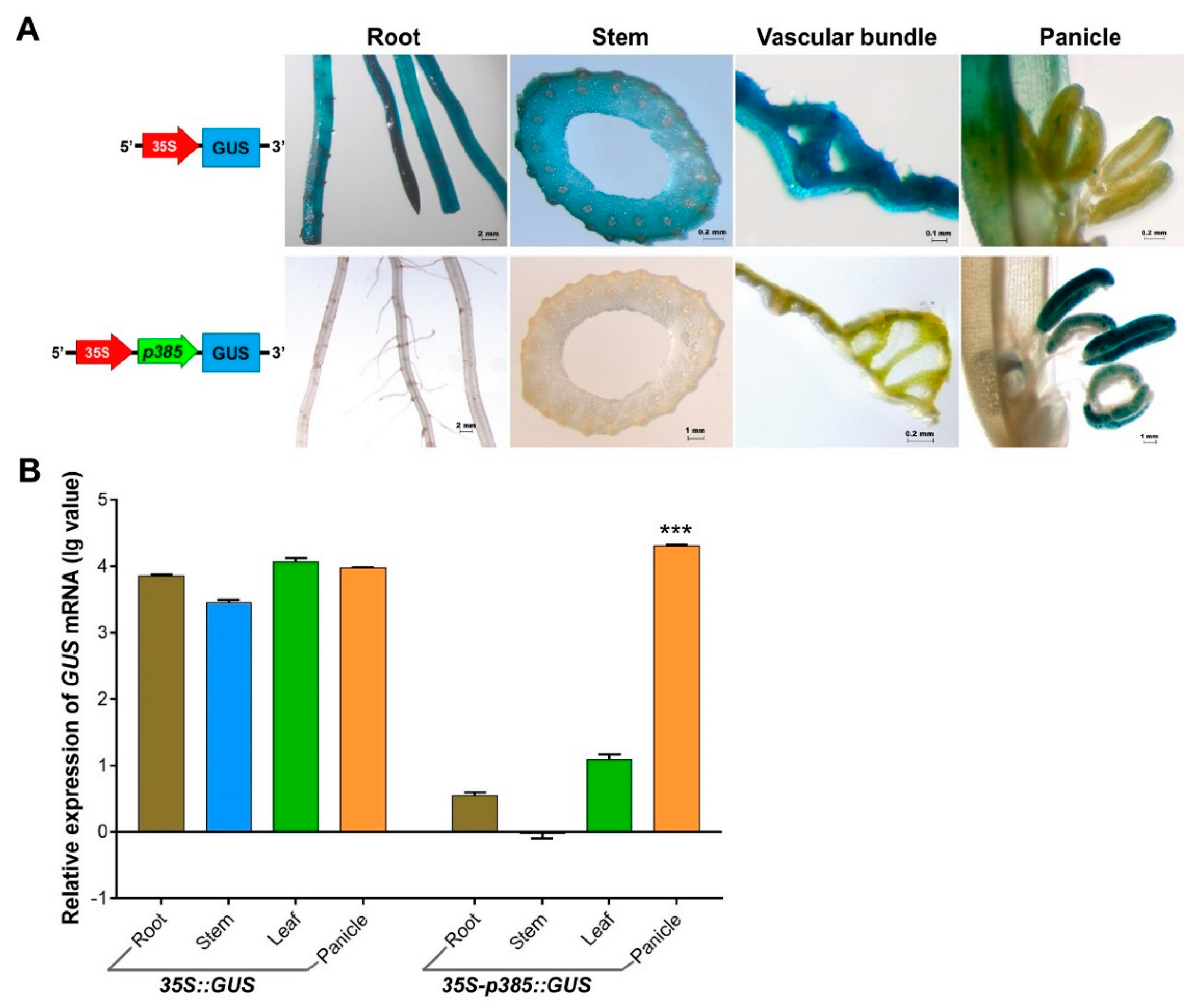

Figure 5. GUS expression in various rice transformants as contrasted with non-carrier plants. (A) Histochemical analysis of GUS expression in different tissues from non-carrier and transgenic rice plants harboring 35S-p385::GUS and p385::GUS constructs. Linear maps for transgenic rice are located on the corresponding left of stained tissues. (B) Quantitative qRT-PCR analysis of GUS transcripts from the root, stem, leaf, and panicle of non-carrier plant and transgenic rice plants harboring 35S-p385::GUS and p385::GUS constructs. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as mean ± SD (n = 3), student’s t-test. *** indicates highly significant differences from all tested tissues for each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Figure 5. GUS expression in various rice transformants as contrasted with non-carrier plants. (A) Histochemical analysis of GUS expression in different tissues from non-carrier and transgenic rice plants harboring 35S-p385::GUS and p385::GUS constructs. Linear maps for transgenic rice are located on the corresponding left of stained tissues. (B) Quantitative qRT-PCR analysis of GUS transcripts from the root, stem, leaf, and panicle of non-carrier plant and transgenic rice plants harboring 35S-p385::GUS and p385::GUS constructs. Brown bar chart: root; blue bar chart: stem; green bar chart: leaf; orange bar chart: panicle. Data are shown as mean ± SD (n = 3), student’s t-test. *** indicates highly significant differences from all tested tissues for each transgenic plant. Relative expression was calculated as: lg2−ΔΔCt.
Ijms 21 01909 g005
Table
Table 1. Primer sequences used in this study.
Table 1. Primer sequences used in this study.
Primer NameSequences (from 5′ to 3′) *Application
p1016-FCCCAAGCTTGGGGGTATGTTATAAGGGTCTGGTAGGAPromoter cloning
p1016-RCATGCCATGGCATGAGAGGAGGGAGCGGTGAGAPromoter cloning
p847-FCCCAAGCTTGGGCCTTCGTATGTAAGGGACGCTPromoter cloning
p847-RCATGCCATGGCATGGACCAAGACGACGACGGATAPromoter cloning
p486-FCCCAAGCTTGGGCCGCAATGAACTCTGCCTATPromoter cloning
p486-RCATGCCATGGCATGGACCAAGACGACGACGGATAPromoter cloning
p426-FCCCAAGCTTGGGCCGCAATGAACTCTGCCTATPromoter cloning
p426-RCATGCCATGGCATGGAGGAGGGAGCGGTGAGAPromoter cloning
p746-FCCCAAGCTTGGGCAATGTCTCACCGCTCCCPromoter cloning
p746-RCATGCCATGGCATGGCAAACAGGCAGCATAAGAGPromoter cloning
GUS-FATCCTCTGGGAACCACTGAACCReal-time RT-PCR
GUS-RCATCACATTGCTCGCTTCGTTAReal-time RT-PCR
Actin-FATCCTTGTATGCTAGCGGTCGAReal-time RT-PCR
Actin-RATCCAACCGGAGGATAGCATGReal-time RT-PCR
* Underlined letters represent the sites recognized by Hind III and Nco I.
Table
Table 2. Pollen-specific motif analysis of the pOsSUT3 promoter.
Table 2. Pollen-specific motif analysis of the pOsSUT3 promoter.
Pollen-Specific cis ElementSequence MotifNo. in P1No. in P2No. in P3No. in P4No. in P5No. in P6No. in P7No. in P8References
POLLEN1LeLA52AGAAA31002000[18]
PB COREGTGA11112100[16]
GTGANTG10CCAC32310001[21]
Table
Table 3. Enhancer motif analysis of E1, E2, and E3.
Table 3. Enhancer motif analysis of E1, E2, and E3.
Enhancer cis ElementSequence MotifNo. in E1No. in E2No. in E3References
ACGT MOTIFACGT001[34]
Prolamin box (P-box)AAAG100[35]
CAAT boxCAAT/CAAAT/CCAAT210[36]

Share and Cite

MDPI and ACS Style

Li, D.; Xu, R.; Lv, D.; Zhang, C.; Yang, H.; Zhang, J.; Wen, J.; Li, C.; Tan, X. Identification of the Core Pollen-Specific Regulation in the Rice OsSUT3 Promoter. Int. J. Mol. Sci. 2020, 21, 1909. https://doi.org/10.3390/ijms21061909

AMA Style

Li D, Xu R, Lv D, Zhang C, Yang H, Zhang J, Wen J, Li C, Tan X. Identification of the Core Pollen-Specific Regulation in the Rice OsSUT3 Promoter. International Journal of Molecular Sciences. 2020; 21(6):1909. https://doi.org/10.3390/ijms21061909

Chicago/Turabian Style

Li, Dandan, Rucong Xu, Dong Lv, Chunlong Zhang, Hong Yang, Jianbo Zhang, Jiancheng Wen, Chengyun Li, and Xuelin Tan. 2020. "Identification of the Core Pollen-Specific Regulation in the Rice OsSUT3 Promoter" International Journal of Molecular Sciences 21, no. 6: 1909. https://doi.org/10.3390/ijms21061909

APA Style

Li, D., Xu, R., Lv, D., Zhang, C., Yang, H., Zhang, J., Wen, J., Li, C., & Tan, X. (2020). Identification of the Core Pollen-Specific Regulation in the Rice OsSUT3 Promoter. International Journal of Molecular Sciences, 21(6), 1909. https://doi.org/10.3390/ijms21061909

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
