ZmASR3 from the Maize ASR Gene Family Positively Regulates Drought Tolerance in Transgenic Arabidopsis

by
Yani Liang
1,†,
Yingli Jiang
1,†,
Ming Du
1,†,
Baoyan Li
2,
Long Chen
1,
Mingchao Chen
1,
Demiao Jin
1 and
Jiandong Wu
1,*
1
National Engineering Laboratory of Crop Stress Resistance Breeding, School of Life Sciences, Anhui Agricultural University, Hefei 230036, China
2
Institute of Plant Protection, Yantai Academy of Agricultural Sciences, Yantai 265500, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2019, 20(9), 2278; https://doi.org/10.3390/ijms20092278
Submission received: 11 March 2019 / Revised: 4 May 2019 / Accepted: 6 May 2019 / Published: 8 May 2019
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
Abscisic acid (ABA)-, stress-, and ripening-induced (ASR) proteins are reported to be involved in drought stress responses. However, the function of maize ASR genes in enhancing drought tolerance is not known. Here, nine maize ASR members were cloned, and the molecular features of these genes were analyzed. Phenotype results of overexpression of maize ZmASR3 gene in Arabidopsis showed lower malondialdehyde (MDA) levels and higher relative water content (RWC) and proline content than the wild type under drought conditions, demonstrating that ZmASR3 can improve drought tolerance. Further experiments showed that ZmASR3-overexpressing transgenic lines displayed increased stomatal closure and reduced reactive oxygen species (ROS) accumulation by increasing the enzyme activities of superoxide dismutase (SOD) and catalase (CAT) under drought conditions. Moreover, overexpression of ZmASR3 in Arabidopsis increased ABA content and reduced sensitivity to exogenous ABA in both the germination and post-germination stages. In addition, the ROS-related, stress-responsive, and ABA-dependent pathway genes were activated in transgenic lines under drought stress. Taken together, these results suggest that ZmASR3 acts as a positive regulator of drought tolerance in plants.

Graphical Abstract

1. Introduction

Plants are often exposed to many severe environmental conditions, among which drought is a major factor that adversely affects growth and development, subsequently reducing the yield of crops. To survive and adapt to these abiotic stresses, plant cells possess regulatory mechanisms and stress response pathways that allow the plant to respond rapidly to environmental changes [1]. An increasing number of studies have shown that plants can defend themselves against various stresses through synthesizing and activating a group of functional proteins, including transcription factors, enzymes, molecular chaperones, signaling molecules, antioxidants, and detoxification proteins [2,3,4,5]. For example, overexpression of ZmHDZ4 is able to increase drought tolerance in transgenic rice [6]. The pepper ethylene-responsive transcription factor, CaAIEF1, confers tolerance to drought stress via an abscisic acid (ABA)-dependent pathway [7]. Although a series of stress-responsive genes have been identified, the functions of these stress-related genes are still not well characterized.
ABA is an important phytohormone that is involved in many physiological and biochemical processes in response to complex environmental stresses. Under drought stress, ABA accumulates in the leaf tissue and subsequently induces stomatal closure, as well as the formation of various protective metabolites and expression of stress-related genes [8]. In the ABA signaling pathway, ABA stimulates the generation of H2O2 by Nicotinamide Adenine Dinucleotide Phosphate (NADPH) oxidase in guard cells, and the generated H2O2 plays a vital role as an important signaling molecule in regulating stomatal closure by activating plasma membrane calcium channels [9]. For example, transgenic rice lines overexpressing OsASR5 exhibited increasing endogenous ABA levels and stomatal closure compared with those of the wild type (WT) under drought stress conditions [7].
ABA-, stress-, and ripening-induced (ASR) proteins are part of a small protein family whose members are heat stable and highly hydrophilic [10]. ASR genes were first identified in tomatoes, and since then, many ASR genes have been reported in various species, including dicotyledonous, monocotyledonous, xylophyta, and herbaceous plants, whereas no ASR genes have been found in Arabidopsis [11,12,13,14,15,16,17]. ASR proteins have been reported to participate in the processes of plant development, senescence, and fruit ripening [18,19,20]. ASR genes have also been reported to respond to ABA and abiotic stresses. Overexpression of wheat ASR (TaASR1) in tobacco increased tolerance to drought by regulating the expression of stress/reactive oxygen species (ROS)-related genes [15]. A Salicornia brachiata ASR gene, SbASR1, increased tolerance to salt and drought stress by decreasing H2O2 and O2.- content and regulating the expression of stress-related genes [21]. Although ASR genes were discovered and reported in response to abiotic stresses based on the transcriptomic analysis of maize leaves [14], little is known about the exact functions of maize ASR genes under abiotic stresses.
Maize (Zea mays L.) serves as an important food crop, whose production is adversely affected by abiotic stresses, especially drought conditions. Therefore, screening and characterization of the roles of stress-related genes from maize is essential to improve the resistance towards abiotic stresses. Here, we analyzed the ASR gene family from maize and investigated their function in transgenic lines under drought conditions. Overexpression of ZmASR3 resulted in increased drought stress tolerance in plants by activating the antioxidant system and regulating the ABA-dependent pathway. Therefore, our results indicate that ZmASR3 serves as an important target gene for enhancing the tolerance of drought stress in crop breeding programs.

2. Results

2.1. Identification and Sequence Analysis of ZmASR Proteins

A number of ASR genes have been identified to respond to abiotic stresses [1,15,21], but the function of maize ASR genes in drought stress is still not known. To identify ASR proteins, the conserved ASR domain (PF02496) based on the hidden Markov model (HMM) from the Pfam database was used as a query in BLASTp searches of homologous sequences in the maize genome, and nine ASR members were identified. The exact information, including the open reading frame (ORF), molecular weight (MW), isoelectric point (pI), and chromosomal location of each ASR gene, is listed in Supplemental Table S1. Multiple sequence alignment revealed that these ZmASRs all harbor an N-terminal zinc-binding domain, a C-terminal nuclear targeting signal, and two abscisic acid/water deficit stress domains (ABA/WDS), similar to other known ASR protein family members (Figure 1).

2.2. Expression of the ZmASR Genes in Different Tissues

Publicly available genome-wide transcript profiling was used to detect the expression patterns of ZmASRs from various tissues and organs of maize [22]. Most of the ZmASRs were ubiquitously expressed in all analyzed tissues, implying the function of ZmASRs in many development processes (Figure 2A). An exception to this was ZmASR8, which was rarely expressed in any tissue or organ. These results were also confirmed by quantitative real-time PCR (qRT-PCR) analysis of seven representative tissues of maize (Figure 2B). The ZmASRs have higher expression levels in roots and leaves compared with other tissues, except with respect to ZmASR8.

2.3. Sub-Cellular Localization and Interaction Analysis of ZmASRs

To investigate the sub-cellular localization of ZmASRs, the ZmASR open reading frame (ORF) without the termination codon was fused upstream of the GFP reporter, under the control of the CaMV 35S promoter. The construct was introduced into leaves of Nicotiana benthamiana L. plants and observed under a confocal microscope. The results showed that ZmASR1, ZmASR2, ZmASR3, ZmASR4, ZmASR6, ZmASR7, ZmASR8, and ZmASR9 fusion proteins were only localized in the nucleus, whereas ZmASR5-GFP was localized in the cytosol (Figure 3). These results imply that ZmASR3 and other ASR proteins in the nucleus might act as transcription factors or function as chaperone-like proteins.
A previous study reported that ASR proteins may act as molecular chaperones in plants [23]. We therefore hypothesized that ZmASRs serve as molecular chaperones in the formation of homodimers or heterodimers. To confirm this point, we generated pGBKT7-ZmASR and pGADT7-ZmASR constructs and performed yeast two-hybrid assays to analyze the interaction between these members. The results showed that only the yeast cells carrying pGBKT7-ZmASR3/pGADT7-ZmASR3 and pGBKT7-ZmASR4/pGADT7-ZmASR4 grew well on SD/-Ade/-His/-Leu/-Trp/X-α-Gal plates (Supplemental Figure S1), suggesting that ZmASR3 and ZmASR4 may form a homodimer in plants.

2.4. Characterization of the Function of ZmASRs in Drought Tolerance

Although a previous study based on transcriptomic analysis of maize leaves showed that ZmASR1, ZmASR2, ZmASR4, and ZmASR7 were up-regulated under drought conditions, and ZmASR1, ZmASR3, and ZmASR4 were up-regulated under ABA treatment [14], the function of ZmASRs in response to abiotic stresses in plants is still unclear. Therefore, we constructed a pCAMBIA1301 overexpression vector with ZmASRs and transformed these into Arabidopsis to analyze their function under conditions of mannitol stress and ABA treatment. Subsequently, three independent homozygous T3 lines (OE3-1, OE3-2, and OE3-3), carrying different constructs with different expression levels, were chosen for further studies (Supplemental Figure S2). Phenotypic analysis showed that the transgenic lines overexpressing ZmASR3 had longer roots than WT under mannitol treatment, whereas other ZmASR-overexpressing transgenic lines displayed no obvious differences (Supplemental Figure S3). In addition, longer roots were also detected with ABA treatment of transgenic lines overexpressing ZmASR2 and ZmASR3 compared with WT. Based on this phenotype, the ZmASR3-overexpressing line was chosen for further studies in the following experiments.

2.5. Overexpression of ZmASR3 Enhances Drought Tolerance in Arabidopsis

To further evaluate the function of ZmASR3 in drought tolerance, we performed a detailed analysis of ZmASR3 transgenic lines and WT plants. We first examined the germination rates in transgenic plants and WT under 200 mM mannitol treatment. Almost 85.7% of ZmASR3-overexpressing seeds were able to germinate compared with only 70.2% of the WT seeds (Figure 4A,B). We then analyzed the root lengths and fresh weights under different concentrations of mannitol. Longer roots and increased fresh weights were detected in the ZmASR3-overexpressing lines compared with WT (Figure 4C–E).
To analyze the phenotype of ZmASR3 transgenic lines in soil under drought conditions, water was withheld for 15 days from two-week-old ZmASR3-overexpressing and WT seedlings, and then, the seedlings were transferred to normal conditions and grown for five days (Figure 5A). The survival rate of WT plants was only 38.5%, while an average of 79.4% of transgenic plants were recovered (Figure 5B). In addition, lower malondialdehyde (MDA) content and higher proline levels and relative water content were measured in ZmASR3-overexpressing lines compared with those of WT (Figure 5C–E). These results showed that overexpression of ZmASR3 results in enhancing drought stress tolerance in Arabidopsis.

2.6. Overexpression of ZmASR3 Increases Stomatal Closure

Stomata play an important role in drought stress tolerance by regulating water and gas exchange in plants [24]. Therefore, we observed the stomatal closure of leaves in ZmASR3-overexpressing transgenic Arabidopsis and WT plants. As shown in Figure 6A,B, there were no apparent differences between completely open, partially open, and completely closed stomata in ZmASR3-overexpressing transgenic lines and WT plants under normal conditions. However, an average of 53.6% stomata completely closed in three different transgenic lines, while 22.1% completely closed in WT plants under drought conditions. In contrast, an average of 37.3% partially open and 9.1% completely open stomata were observed in transgenic lines compared with WT plants, which showed 58.3% partially open and 19.6% completely open stomata. These results show that overexpression of ZmASR3 increases stomatal closure.

2.7. Overexpression of ZmASR3 Increases Drought Tolerance by Decreasing H2O2 Accumulation and Increasing Superoxide Dismutase (SOD) and Catalase (CAT) Activities

In a previous study, it was shown that H2O2 accumulation can lead to stomatal closure [7]. Therefore, it was necessary to examine ROS levels in the ZmASR3-overexpressing lines and WT. After 15 days under drought conditions, leaf samples were collected and stained with diaminobenzidine tetrahydrochloride (DAB) solution. There was no obvious difference between transgenic Arabidopsis and WT plants under normal conditions. In contrast, under drought stress, leaves of WT plants exhibited stronger staining than those of transgenic lines (Figure 7A). These results show that WT leaves accumulated more ROS compared with leaves of transgenic lines under drought stress.
Enzymatic antioxidants play important roles in ROS scavenging. Therefore, the activities of antioxidant enzymes were measured in WT and transgenic plants. The activities of SOD and CAT were not apparently different between transgenic and WT plants under normal conditions. Under drought conditions, the three transgenic lines all exhibited obviously higher SOD and CAT activities compared with those of WT plants (Figure 7B,C). However, no obvious difference in peroxidase (POD) activities was observed between transgenic and WT plants under drought conditions (Figure S4). These results showed that overexpression of ZmASR3 reduced ROS accumulation by increasing the activities of SOD and CAT enzymes under drought conditions.

2.8. ZmASR3 Regulates the Expression of ROS-Related and Stress-Responsive Genes under Drought Conditions

The mRNA expression levels of stress-related genes were also analyzed to confirm the function of ZmASR3 in drought tolerance. Selected genes for this analysis included AtCAT3 and AtSOD1 involved in ROS detoxification, and AtLTP3, AtSOS1, and AtRD29B related to stress defense. The results showed that the expression of all tested genes was up-regulated in the ZmASR3-overexpressing transgenic line under drought conditions (Figure 8), suggesting that ZmASR3 can affect the expression of ROS-related and stress-responsive genes under drought conditions.

2.9. Overexpression of ZmASR3 Increased Endogenous ABA Levels and Reduced Sensitivity to Exogenous ABA

ABA can result in stomatal closure and enhance drought tolerance, so we measured the endogenous ABA levels in ZmASR3-overexpressing lines and WT. As shown in Figure 9, the ABA levels were clearly higher in WT and transgenic lines after they were subjected to drought conditions compared with the controls. In addition, ABA content was higher in ZmASR3-overexpressing lines than that in WT plants after they were subjected to drought conditions. However, there was no apparent difference between ABA levels in WT and transgenic lines under normal conditions. These results suggest that ZmASR3 may play an important role in ABA signaling. To confirm this speculation, we investigated the ABA sensitivity of ZmASR3-overexpressing lines in the germination and post-germination stages. As shown in Supplemental Figure S5, no obvious difference in germination rates, root lengths, and lateral root numbers were observed between ZmASR3-overexpressing lines and WT under normal conditions. However, higher germination rates, longer root lengths, and an increase in lateral root numbers were detected in ZmASR3-overexpressing lines compared with WT lines following ABA treatment.

2.10. Overexpression of ZmASR3 Enhances Drought Tolerance via an ABA-Dependent Pathway

In order to explore whether ZmASR3 functions in the ABA signaling pathway under mannitol stress, tungstate (Tu), a well-known inhibitor of ABA biosynthesis, was applied [25]. The results show that root lengths were noticeably reduced in the transgenic lines and WT in the medium with Tu treatment under normal conditions, with no obvious difference between transgenic lines and WT (Figure S6). Under drought conditions, a higher percentage of leaf opening and greening and longer roots were detected in ZmASR3-overexpressing lines compared with WT plants in the medium with Tu treatment (Figure 10). These results indicate that ZmASR3 enhances the tolerance to drought probably via an ABA pathway. To further confirm this hypothesis, the transcript levels of well-known marker genes in the ABA-dependent pathway (NCED3 and SnRK2.6) and ABA-independent pathway (COR15 and DREB2A) [15,26,27,28,29,30,31] were analyzed in ZmASR3-overexpressing lines under different treatments. As shown in Figure 11, ZmASR3 expression was 10.4-fold and 3.6-fold higher after mannitol and ABA treatments, respectively, while treatment with Tu reduced the fold increase to 2.3-fold at 12 h after mannitol treatment. No obvious difference in ZmASR3 expression was detected between treatment with Tu and the controls. Additionally, the marker genes NCED3 and SnRK2.6 in the ABA-dependent pathway, presented a similar trend with ZmASR3 expression after different treatments. However, Tu treatment showed no noticeable reduction in the expression of COR15 and DREB2A in the ABA-independent pathway under mannitol treatment.

3. Discussion

Since the first discovery of tomato ASR1, an increasing number of ASR proteins have been reported in different species. ASR proteins play important roles in plant development, responding to abiotic stresses, and fruit ripening [32]. Maize, which serves as an important crop for humans and livestock, has been less studied than other crops. Although maize ASR genes can be induced by different stress treatments based on transcriptomic analysis [14], little is known about the detailed function of ZmASRs under abiotic stress. In this study, we identified nine ASR genes and characterized the function of ASR proteins in response to drought.
Multiple sequence alignment results show that all the ZmASR proteins contained an N-terminal zinc-binding domain and a C-terminal nuclear targeting signal, which was consistent with a previous report [33]. Interestingly, sub-cellular localization studies showed that ZmASR5 localized to the cytosol, whereas other ZmASRs only localized to the nucleus. These results implied that ZmASR3 and other ASR proteins in the nucleus might act as transcription factors or function as chaperone-like proteins. In fact, this has also been speculated by others [32,34]. For example, SbASR-1 can enhance salinity and drought endurance in transgenic groundnuts and act as a transcription factor [21]. In addition, ASR proteins act as molecular chaperones in plants [23]. To confirm this point, we also detected an interaction between these proteins and found that ZmASR3 and ZmASR4 could form a homodimer in yeast, suggesting that they may serve as molecular chaperones in plants. More experiments would be needed to confirm this theory in the future.
ASR proteins are involved in abiotic stress responses in many plants [14,15,35]. Here, we obtained transgenic Arabidopsis lines overexpressing nine maize ASR genes and analyzed their root lengths under mannitol and ABA treatment. Apparent differences in root lengths were observed only in ZmASR2- and ZmASR3-overexpressing transgenic lines under ABA treatment. However, there was a noticeable difference in root length only in the ZmASR3-overexpressing transgenic line under mannitol treatment. Therefore, ZmASR3 was selected for further studies. Overexpression of ZmASR3 in Arabidopsis obviously increased drought stress tolerance, as demonstrated by transgenic lines exhibiting better growth performance and higher survival rates compared with WT under drought conditions. These data indicate that ZmASR3 may play an important role in abiotic stress tolerance in maize. Additionally, ZmASR3-overexpressing transgenic lines displaying various physiological traits may explain the mechanisms underpinning abiotic stress tolerance. Firstly, MDA and proline are two important indicators in responses to plant stress [36,37,38,39]. In agreement with this, ZmASR3-overexpressing transgenic lines had lower MDA content and higher proline content compared with WT under drought conditions. Secondly, in general, plants can maintain the balance of ROS in cells. However, plants can overproduce ROS, which leads to cell damage by oxidizing DNA and proteins under abiotic stresses [38,40,41]. In addition, oxidative damage can be minimized by increasing the activities of CAT, POD, and SOD enzymes under drought and salt conditions [42,43]. For example, TaASR1-overexpressing transgenic tobacco lines reduced the accumulation of ROS [15]. In this study, high CAT and SOD enzyme activities were also detected in transgenic lines under drought conditions, which was helpful for maintaining low ROS levels. Lastly, ROS-related and stress-responsive genes were activated in transgenic lines.
ABA serves as a key phytohormone that is involved in many biology processes in plants, including plant growth and development, regulation of stomatal movements and abiotic stress responses [44]. Previous studies have reported that WRKY57 enhanced drought stress tolerance by accumulating ABA, which limits transpirational water loss by regulating the stomatal apertures in Arabidopsis [45]. In agreement with this, higher ABA content was also present in ZmASR3-overexpressing transgenic lines. This leads to the closure of stomata to limit transpirational water loss, which thereby improves drought stress tolerance. In addition, plants confer abiotic stress tolerance mainly through the ABA-dependent and ABA-independent pathways [46]. In this study, the marker genes of the ABA-dependent pathway (NCED3 and SnRK2.6), were activated in ZmASR3-overexpressing transgenic lines under drought stress. However, the expression of NCED3 and SnRK2.6 genes were reduced with Tu treatment. These results suggest that ZmASR3 enhances drought tolerance via an ABA-dependent pathway. Surprisingly, an increased resistance to exogenous ABA in transgenic plants (Figure S5) was also detected. In fact, similar to ZmASR3-overexpressing plants, abi1-1 is ABA-insensitive at the germination stage and has higher ABA content, but it also has a high leaf transpiration rate and low proline content [47]. In addition, the constitutive expression of OsABIL2 or OsABIL2G183D in Arabidopsis or rice decreased ABA sensitivity to differing degrees. Moreover, the transgenic rice expressing OsABIL2G183D exhibited improved seedling growth under low temperature [48]. Our results could suggest that ZmASR3 uses an ABA signaling pathway that probably does not require ABI1-like PP2Cs.
In conclusion, our study has shown that overexpression of ZmASR3 confers drought stress tolerance in Arabidopsis. ZmASR3 conferred drought tolerance by regulating the expression of antioxidant and drought-related genes and enhancing antioxidant enzyme activity. Furthermore, ZmASR3 used the ABA signaling pathway by accumulating ABA to regulate stomatal closure under drought conditions and regulating the expression of ABA/stress-responsive genes.

4. Methods and Materials

4.1. Identification and Multiple Sequence Alignment of ASR Proteins

To identify ASR proteins, the conserved ASR domain (PF02496) was used in BLASTp queries for searching maize homologous ASR proteins. All candidate protein sequences of genes were verified using Pfam software (PF00642; http://pfam.sanger.ac.uk/) and SMART tool databases (http://smart.embl-heidelberg.de/), based on the conserved ABA/WDS domain. The online ExPASy program (http://www.expasy.org/tools/) was used to analyze the features of ASR proteins, including the molecular weight (kDa), isoelectric point (pI), and protein length. Different sequences of ZmASR proteins were characterized based on ClustalX software (vl.83, Invitrogen, Carlsbad, CA, USA).

4.2. Plant Growing Conditions and Stress Treatments

All plant materials (maize, Arabidopsis thaliana, Nicotiana benthamiana) were grown for different experiments as described previously [49]. Different maize tissues, including roots, stems, leaves, tassels, cornsilk, embryo, and stegophyll were collected for tissue expression profile analysis. For drought stress treatments, sterilized seeds of T3 Arabidopsis were grown on Murashige and Skoog (MS) solid medium at 4 °C for three days and then placed in MS agar plates supplemented with different concentrations of mannitol and cultured vertically for 10 days. For drought conditions, two-week-old seedlings grown in soil were exposed to drought stress by withholding water for 15 days and then re-watered for five days.

4.3. Constructs and Plant Transformation

Gene-specific primers (Supplemental Table S2) were designed to clone ZmASR using the PCR-based infusion clone system (GBclonart, Takara, Tokyo, Japan). The PCR products were inserted into different vectors for subsequent experiments.
Wild-type plants (Col-0) were transformed using the floral dipping method to acquire 35S::ZmASR transgenic lines. Seeds from each T1 plant were individually collected and selected on MS medium containing 25 μg mL−1 hygromycin.

4.4. Sub-Cellular Localization Assay

Full-length cDNAs of ZmASRs were amplified and then inserted into a pCAMBIAI1305 vector driven by a Cauliflower Mosaic Virus 35S (CaMV35S) promoter. The 35S::ZmASR-GFP and GFP control vector were transformed into Agrobacterium tumefaciens (strain GV3101) cells. Agrobacteria carrying the constructs were infiltrated into the leaves of five- to six-week-old Nicotiana benthamiana plants. After 48 h, the infected leaves were observed using a Zeiss Microsystems LSM710 microscope (Jena, Germany).

4.5. Yeast Two-Hybrid Assays

For analyzing the interaction between ZmASRs, pGADT7-ZmASR and pGBKT7-ZmASR fusion vectors were generated and transformed into yeast strain AH109, according to the manufacturer’s instructions (Clontech, Mountain View, CA, USA). The fusion vectors were transformed into AH109 yeast competent cells and were then grown on culture medium (SD/-Trp/-Leu, SD/-Trp/-Leu/-Ade/-His) at 30 °C constant temperature.

4.6. Total RNA Isolation and qRT-PCR analysis

Total RNA from both Arabidopsis and maize (B73) tissues was extracted by the RNAiso plus (TaKaRa, Dalian, China) method. The cDNA synthesis reaction was performed with SuperScriptTM III reverse transcriptase (Invitrogen). qRT-PCR was performed on each cDNA template using SYBR Green Master Mix on an ABI 7300 Real-Time system, according to the manufacturer’s protocol (Applied Biosystems). Each 20 μL of mixture sample was used for the following PCR cycles: 95 °C for 10 s and 60 °C for 60 s. The data were analyzed by 2−ΔΔCt method. The primers are listed in Supplemental Table S2. Each qRT-PCR was run in quadruplicate.

4.7. Sensitivity Analysis of Exogenous ABA

Plants of WT and transgenic seeds were grown on MS medium plates containing 0, 0.3, 20, and 40 µM ABA solutions. Subsequently, the germination rates, root lengths, and the number of lateral roots of transgenic and WT seedlings were analyzed.
Measurement of the stomatal aperture was carried out as described previously [50]. Leaves of WT and overexpressing ZmASR3 plants were soaked in the buffer solution: CaCl2 (0.2 mM), KCl (10 mM), MES (10 mM), and KOH (pH 6.15). After soaking in the buffer for 2 h in the light, the samples were transferred into 10 µM ABA solution immediately for 2 h. Then, samples were observed under the microscope.

4.8. DAB Staining, Determination of Physiological and Biochemical Activities, and ABA Content

Rosette leaves of transgenic Arabidopsis and wild-type plants were collected for detecting H2O2 accumulation using DAB. The leaves were soaked in DAB solution (1 mg mL−1 DAB in 10 mM sodium phosphate buffer) and were treated for 24 h with gentle shaking in the darkness. Leaves were washed with absolute ethyl alcohol solution, transferred to 100 °C for 10 min, and photographed.
We measured the CAT, POD and SOD activities by spectrophotometric analysis: about 0.5 g seedlings were extracted with 5 mL of buffer solution containing 50 µmol L−1 phosphate. The activity of CAT and SOD was measured following previous methods [51,52]. POD activity was measured as the absorbance at 470 nm [53]. To determine ABA content, 1 g seedlings in the four-leaf stage were homogenized in 30 mL of buffer solution (isopropyl alcohol–hydrochloric acid/dichloromethane, 1:2). A HPLC-MS/MS method was used to measure the ABA content [54].

4.9. Measurement of RWC and Proline and MDA Contents

RWC was measured by the method previously described [6]. RWC was calculated according to the equation: RWC (%) = [(FW − DW)/(TW − DW)] × 100; FW and TW represent the fresh weight and turgid weight (leaves were soaked in water), respectively; DW represents the dry weight (leaves were treated at 80 °C for 24 h). Proline and MDA contents were measured by the methods described previously [55,56,57,58].

4.10. Statistical Analysis

The data are expressed as the mean values ± standard errors (S.E.) of at least three replicates and three biological repeats. Two-factor multivariate analysis of variance was used to test for the effects of Tu, ABA, and mannitol on gene expression. Differences between means were tested using LSD tests at a 0.05 significance level. All statistical tests were performed using the DPSv7.05 software to compare the means of different treatments (n ≥ 3).

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/20/9/2278/s1. Table S1. The molecular features of ASR genes. Table S2. Primer sequences in this study. Figure S1. ZmASR3 and ZmASR4 can form a homodimer in yeast. Figure S2. Expression analysis of ZmASRs in transgenic Arabidopsis assessed by qRT-PCR. Figure S3. Photographs and measurements of root lengths of WT and ZmASR transgenic seedlings at the post-germination stage on half MS with different mannitol and ABA concentrations. Figure S4. Analysis of POD activity of the three ZmASR3 transgenic lines and WT plants. Figure S5. ABA sensitivity analysis in ZmASR3 transgenic and WT plants. Figure S6. Effects of Tu on ZmASR3-overexpressing transgenic lines and WT plants.

Author Contributions

J.W., Y.L., and Y.J. conceived the experiments. Y.L., Y.J., B.L. and M.D. performed the research and collected the data. J.W., L.C., M.C., and D.J. analyzed the data and wrote the manuscript. All authors reviewed and approved this submission.

Funding

This research was funded by the Natural Science Foundation of Anhui Province for Outstanding Young Talents (gxyqZD2017018).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, J.; Li, Y.; Yin, Z.; Jiang, J.; Zhang, M.; Guo, X.; Ye, Z.; Zhao, Y.; Xiong, H.; Zhang, Z. OsASR5 enhances drought tolerance through a stomatal closure pathway associated with ABA and H2O2 signalling in rice. Plant Biotechnol. J. 2017, 15, 183–196. [Google Scholar] [CrossRef]
  2. Baldoni, E.; Genga, A.; Cominelli, E. Plant MYB Transcription Factors: Their Role in Drought Response Mechanisms. Int. J. Mol. Sci. 2015, 16, 15811–15851. [Google Scholar] [CrossRef]
  3. Du, Y.; Liu, L.; Li, M.; Fang, S.; Shen, X.; Chu, J.; Zhang, Z. UNBRANCHED3 regulates branching by modulating cytokinin biosynthesis and signaling in maize and rice. New Phytol. 2017, 214, 721–733. [Google Scholar] [CrossRef] [PubMed]
  4. Shengxue, L.; Xianglan, W.; Hongwei, W.; Haibo, X.; Xiaohong, Y.; Jianbing, Y.; Jiansheng, L.; Lam-Son Phan, T.; Kazuo, S.; Kazuko, Y.S. Genome-wide analysis of ZmDREB genes and their association with natural variation in drought tolerance at seedling stage of Zea mays L. PLoS Genet. 2013, 9, e1003790. [Google Scholar]
  5. Xu, N.; Chu, Y.; Chen, H.; Li, X.; Wu, Q.; Jin, L.; Wang, G.; Huang, J.; Muday, G.K. Rice transcription factor OsMADS25 modulates root growth and confers salinity tolerance via the ABA–mediated regulatory pathway and ROS scavenging. PLoS Genet. 2018, 14, e1007662. [Google Scholar] [CrossRef] [PubMed]
  6. Wu, J.; Wei, Z.; Gong, X.; Cheng, B. Expression of ZmHDZ4, a Maize Homeodomain-Leucine Zipper I Gene, Confers Tolerance to Drought Stress in Transgenic Rice. Plant Mol. Biol. Report. 2016, 34, 845–853. [Google Scholar] [CrossRef]
  7. Hong, E.; Lim, C.W.; Han, S.W.; Lee, S.C. Functional Analysis of the Pepper Ethylene-Responsive Transcription Factor, CaAIEF1, in Enhanced ABA Sensitivity and Drought Tolerance. Front. Plant Sci. 2017, 8, 1407. [Google Scholar] [CrossRef]
  8. Bao-Cai, T.; Joseph, L.M.; Wen-Tao, D.; Lijuan, L.; Qin-Bao, L.; Kenneth, C.; Mccarty, D.R. Molecular characterization of the Arabidopsis 9-cis epoxycarotenoid dioxygenase gene family. Plant J. Cell Mol. Biol. 2010, 35, 44–56. [Google Scholar]
  9. Ic, K.J.M.; Pei, Z.M.; Leonhardt, N.; Torres, M.A.; Dangl, J.L.; Bloom, R.E.; Bodde, S.; Jdg, J.; Schroeder, J.I. NADPH oxidase AtrbohD and AtrbohF genes function in ROS-dependent ABA signaling in Arabidopsis. Embo. J. 2014, 22, 2623–2633. [Google Scholar]
  10. Iusem, N.D.; Bartholomew, D.M.; Hitz, W.D.; Scolnik, P.A. Tomato (Lycopersicon esculentum) transcript induced by water deficit and ripening. Plant Physiol. 1993, 102, 1353–1354. [Google Scholar] [CrossRef]
  11. Dominguez, P.G.; Carrari, F. ASR1 transcription factor and its role in metabolism. Plant Signal. Behav. 2015, 10, e992751. [Google Scholar] [CrossRef] [PubMed]
  12. Joo, J.; Lee, Y.H.; Kim, Y.-K.; Nahm, B.H; Song, S.I. Abiotic stress responsive rice ASR1 and ASR3 exhibit different;tissue-dependent sugar and hormone-sensitivities. Mol. Cells 2013, 35, 421–435. [Google Scholar] [CrossRef]
  13. Frankel, N.; Carrari, F.; Hasson, E.; Iusem, N.D. Evolutionary history of the Asr gene family. Gene 2006, 378, 74–83. [Google Scholar] [CrossRef]
  14. Laetitia, V.; Marie-Pierre, J.; Denise, G.; Hélène, C.; Sophie, B.; Françoise, G.; Benoît, V.; Jacques, T.; Guillaume, T.; Matthieu, F. The ZmASR1 protein influences branched-chain amino acid biosynthesis and maintains kernel yield in maize under water-limited conditions. Plant Physiol. 2011, 157, 917–936. [Google Scholar]
  15. Wei, H.; Chao, H.; Xiaomin, D.; Shiyi, Z.; Lihong, C.; Yin, L.; Cheng, W.; Zhanbing, M.; Qianqian, Y.; Yan, W. TaASR1, a transcription factor gene in wheat, confers drought stress tolerance in transgenic tobacco. Plant Cell Environ. 2013, 36, 1449–1464. [Google Scholar]
  16. Wong, C.E.; Yong, L.; Aurelie, L.; David, G.; Paulo, N.; Brett, W.; Claudia, D.; G Brian, G.; Gray, G.R.; Weretilnyk, E.A. Transcriptional profiling implicates novel interactions between abiotic stress and hormonal responses in Thellungiella, a close relative of Arabidopsis. Plant Physiol. 2006, 140, 1437–1450. [Google Scholar] [CrossRef]
  17. Laura, M.; Nicolás, F.; Gustavo, G.; Demergasso, M.J.; Pietrasanta, L.I.; Iusem, N.D. Dimerization and DNA-binding of ASR1, a small hydrophilic protein abundant in plant tissues suffering from water loss. Biochem. Biophys. Res. Commun. 2007, 352, 831–835. [Google Scholar]
  18. Kim, I.S.; Kim, Y.S.; Yoon, H.S. Rice ASR1 protein with reactive oxygen species scavenging and chaperone-like activities enhances acquired tolerance to abiotic stresses in Saccharomyces cerevisiae. Mol. Cells 2012, 33, 285–293. [Google Scholar] [CrossRef]
  19. Zheng, J.; Zhang, H.; Su, H.; Xia, K.; Jian, S.; Zhang, M. Ipomoea pes-caprae IpASR improves salinity and drought tolerance in transgenic Escherichia coli and Arabidopsis. Int. J. Mol. Sci. 2018, 19, 2252. [Google Scholar] [CrossRef]
  20. Jian-Ye, C.; Du-Juan, L.; Yue-Ming, J.; Ming-Lei, Z.; Wei, S.; Jian-Fei, K.; Wang-Jin, L. Molecular characterization of a strawberry FaASR gene in relation to fruit ripening. PLoS ONE 2011, 6, e24649. [Google Scholar]
  21. Vivekanand, T.; Amit Kumar, C.; Avinash, M.; Bhavanath, J. Introgression of the SbASR-1 gene cloned from a halophyte Salicornia brachiate enhances salinity and drought endurance in transgenic groundnut (Arachis hypogaea) and acts as a transcription factor. PLoS ONE 2015, 10, e0131567. [Google Scholar]
  22. Cai, R.; Dai, W.; Zhang, C.; Wang, Y.; Wu, M.; Zhao, Y.; Ma, Q.; Xiang, Y.; Cheng, B. The maize WRKY transcription factor ZmWRKY17 negatively regulates salt stress tolerance in transgenic Arabidopsis plants. Planta 2017, 246, 1215–1231. [Google Scholar] [CrossRef] [PubMed]
  23. Zvia, K.; Dudy, B.Z. Synergism between the chaperone-like activity of the stress regulated ASR1 protein and the osmolyte glycine-betaine. Planta 2008, 227, 1213–1219. [Google Scholar]
  24. Murata, Y.; Mori, I.C.; Munemasa, S. Diverse Stomatal Signaling and the Signal Integration Mechanism. Annu. Rev. Plant Biol. 2015, 66, 369. [Google Scholar] [CrossRef]
  25. Aying, Z.; Jun, Z.; Jianhua, Z.; Nenghui, Y.; Hong, Z.; Mingpu, T.; Mingyi, J. Nitric oxide mediates brassinosteroid-induced ABA biosynthesis involved in oxidative stress tolerance in maize leaves. Plant Cell Physiol. 2011, 52, 181. [Google Scholar]
  26. June-Sik, K.; Junya, M.; Satoshi, K.; Kyonoshin, M.; Jun, N.; Kazuo, N.; Nobutaka, M.; Yuko, T.; Masaru, O.T.; Youichi, K. Arabidopsis growth-regulating factor7 functions as a transcriptional repressor of abscisic acid- and osmotic stress-responsive genes, including DREB2A. Plant Cell 2012, 24, 3393–3405. [Google Scholar]
  27. Liang, J.; Guo, S.; Sun, B.; Liu, Q.; Chen, X.; Peng, H.; Zhang, Z.; Xie, Q. Constitutive expression of REL1 confers the rice response to drought stress and abscisic acid. Rice 2018. [Google Scholar] [CrossRef]
  28. Zhang, H.; Mao, X.; Jing, R.; Chang, X.; Xie, H. Characterization of a common wheat (Triticum aestivum L.) TaSnRK2.7 gene involved in abiotic stress responses. J. Exp. Bot. 2011, 62, 975–988. [Google Scholar] [CrossRef] [PubMed]
  29. Zhao, L.; Zhang, H.; Zhang, B.; Bai, X.; Zhou, C. Physiological and Molecular Changes of Detached Wheat Leaves in Responding to Various Treatments. J. Integr. Plant Biol. 2012, 54, 10. [Google Scholar] [CrossRef]
  30. Wang, Y.; Ren, X.; Yu, Z. Transformation of Salt-tolerance Gene DREB2A into Maize Mediated by Agrobacterium Tumefaciens. Mol. Plant Breed. 2013, 11, 48–52. [Google Scholar]
  31. Anja, T.; Hincha, D.K. A mechanistic model of COR15 protein function in plant freezing tolerance: Integration of structural and functional characteristics. Plant Signal. Behav. 2014, 9, e977722. [Google Scholar]
  32. Yossi, K.; Ayelet, G.; Zvia, K.; Michele, Z.; Scolnik, P.A.; Dudy, B.Z. The water- and salt-stress-regulated Asr1 (abscisic acid stress ripening) gene encodes a zinc-dependent DNA-binding protein. Biochem. J. 2004, 381, 373. [Google Scholar]
  33. Birsen, C.; Alice, A.; Cécile, G.; Amélie, S.; Serge, D.; Rossitza, A. A grape ASR protein involved in sugar and abscisic acid signaling. Plant Cell 2003, 15, 2165–2180. [Google Scholar]
  34. Padmanabhan, V.; Dias, D.M.A.L.; Newton, R.J. Expression analysis of a gene family in loblolly pine (Pinus taeda L.) induced by water deficit stress. Plant Mol. Biol. 1997, 35, 801–807. [Google Scholar] [CrossRef]
  35. Jorge, P.D.; Tsung-Meng, W.; Ricardo, P.D.; Simón, R.L.; Chwan-Yang, H.; Casaretto, J.A. Organ- and stress-specific expression of the ASR genes in rice. Plant Cell Rep. 2014, 33, 61–73. [Google Scholar]
  36. Li, X.; Hou, S.; Gao, Q.; Zhao, P.; Chen, S.; Qi, D.; Lee, B.H.; Cheng, L.; Liu, G. LcSAIN1, a Novel Salt-Induced Gene from SheepGrass, Confers Salt Stress Tolerance in Transgenic Arabidopsis and Rice. Plant Cell Physiol. 2013, 54, 1172–1185. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zsigmond, L.; Szepesi, Á.; Tari, I.; Rigó, G.; Király, A.; Szabados, L. Overexpression of the mitochondrial PPR40 gene improves salt tolerance in Arabidopsis. Plant Sci. 2012, 182, 87–93. [Google Scholar] [CrossRef] [PubMed]
  38. Jing, N.; Xianghua, L.; Hicks, L.M.; Lizhong, X. A Raf-like MAPKKK gene DSM1 mediates drought resistance through reactive oxygen species scavenging in rice. Plant Physiol. 2010, 152, 876–890. [Google Scholar]
  39. Aoyagi, L.N.; Lopes-Caitar, V.S.; Carvalho, M.C.C.G.D.; Darben, L.M.; Polizel-Podanosqui, A.; Kuwahara, M.K.; Nepomuceno, A.L.; Abdelnoor, R.V. Genomic and transcriptomic characterization of the transcription factor family R2R3-MYB in soybean and its involvement in the resistance responses to Phakopsora pachyrhizi. Plant Sci. Int. J. Exp. Plant Biol. 2014, 229, 32–42. [Google Scholar] [CrossRef]
  40. Polle, A. Dissecting the superoxide dismutase-ascorbate-glutathione-pathway in chloroplasts by metabolic modeling. Computer simulations as a step towards flux analysis. Plant Physiol. 2001, 126, 445–462. [Google Scholar] [CrossRef]
  41. Ron, M.; Sandy, V.; Martin, G.; Frank, V.B. Reactive oxygen gene network of plants. Trends Plant Sci. 2004, 9, 490–498. [Google Scholar]
  42. Diaz-Vivancos, P.; Faize, M.; Barba-Espin, G.; Faize, L.; Petri, C.; Hernández, J.A.; Burgos, L. Ectopic expression of cytosolic superoxide dismutase and ascorbate peroxidase leads to salt stress tolerance in transgenic plums. Plant Biotechnol. J. 2013, 11, 976–985. [Google Scholar] [CrossRef] [Green Version]
  43. Farooq, M.; Hussain, M.; Wahid, A.; Siddique, K.H.M. Drought Stress in Plants: An Overview. In Plant Responses to Drought Stress; Springer: Berlin/Heidelberg, Germany, 2012; pp. 1–33. [Google Scholar]
  44. Yoshida, T.; Mogami, J.; Yamaguchi-Shinozaki, K. ABA-dependent and ABA-independent signaling in response to osmotic stress in plants. Curr. Opin. Plant Biol. 2014, 21, 133–139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Jiang, Y.; Gang, L.; Yu, D. Activated Expression of WRKY57 Confers Drought Tolerance in Arabidopsis. Mol. Plant 2012, 5, 1375–1388. [Google Scholar] [CrossRef]
  46. Tran, L.S.; Nakashima, K.; Shinozaki, K.; Yamaguchishinozaki, K. Plant gene networks in osmotic stress response: From genes to regulatory networks. Methods Enzymol. 2007, 428, 109–128. [Google Scholar] [PubMed]
  47. Meyer, K.; Leube, M.P.; Grill, E. A protein phosphatase 2C involved in ABA signal transduction in Arabidopsis thaliana. Science 1994, 264, 1452–1455. [Google Scholar] [CrossRef]
  48. Endo, A.; Egawa, C.; Oohashi, M.; Meguro-Maoka, A.; Shimosaka, E.; Sato, Y. Ectopic expression of mutated type 2C protein phosphataseOsABI-LIKE2decreases abscisic acid sensitivity in Arabidopsis and rice. Sci. Rep. 2018, 8. [Google Scholar] [CrossRef]
  49. Jiang, Y.; Zheng, Q.; Long, C.; Liang, Y.; Wu, J. Ectopic overexpression of maize heat shock transcription factor gene ZmHsf04 confers increased thermo and salt-stress tolerance in transgenic Arabidopsis. Acta Physiol. Plant. 2018, 40, 9. [Google Scholar] [CrossRef]
  50. Lim, C.W.; Lee, S.C. Pepper protein phosphatase type 2C, CaADIP1 and its interacting partner CaRLP1 antagonistically regulate ABA signalling and drought response. Plant Cell Environ. 2016, 39, 1559–1575. [Google Scholar] [CrossRef]
  51. Beauchamp, C.; Fridovich, I. Superoxide dismutase: Improved assays and an assay applicable to acrylamide gels. Anal. Biochem. 1971, 44, 276–287. [Google Scholar] [CrossRef]
  52. Chance, B.; Maehly, A.C. Assay of catalases and peroxidases. Methods Enzymol. 1955, 2, 764–775. [Google Scholar]
  53. Polle, A.; Otter, T.; Seifert, F. Apoplastic Peroxidases and Lignification in Needles of Norway Spruce (Picea abies L.). Plant Physiol. 1994, 106, 53–60. [Google Scholar] [CrossRef]
  54. Jiu-Feng, L.; Jun, D.; Bi-Feng, Y.; Yu-Qi, F. Magnetic solid phase extraction coupled with in situ derivatization for the highly sensitive determination of acidic phytohormones in rice leaves by UPLC-MS/MS. Analyst 2014, 139, 5605. [Google Scholar]
  55. Lu, X.; Yang, L.; Yu, M.; Lai, J.; Wang, C.; Mcneil, D.; Zhou, M.; Yang, C. A novel Zea mays ssp. mexicana L. MYC-type ICE -like transcription factor gene ZmmICE1, enhances freezing tolerance in transgenic Arabidopsis thaliana. Plant Physiol. Biochem. 2017, 113, 78–88. [Google Scholar] [CrossRef]
  56. Mittler, R. Oxidative stress, antioxidants and stress tolerance. Trends Plant Sci. 2002, 7, 405–410. [Google Scholar] [CrossRef]
  57. Yang, Z.; Qing, M.; Xiaolei, J.; Xiaojian, P.; Jinyang, L.; Lin, D.; Hanwei, Y.; Lei, S.; Haiyang, J.; Beijiu, C. A novel maize homeodomain-leucine zipper (HD-Zip) I gene, Zmhdz10, positively regulates drought and salt tolerance in both rice and Arabidopsis. Plant Cell Physiol. 2014, 55, 1142–1156. [Google Scholar]
  58. Zhang, S.; Li, N.; Gao, F.; Yang, A.; Zhang, J. Over-expression of TsCBF1 gene confers improved drought tolerance in transgenic maize. Mol. Breed. 2010, 26, 455–465. [Google Scholar] [CrossRef]
Ijms 20 02278 g001 550

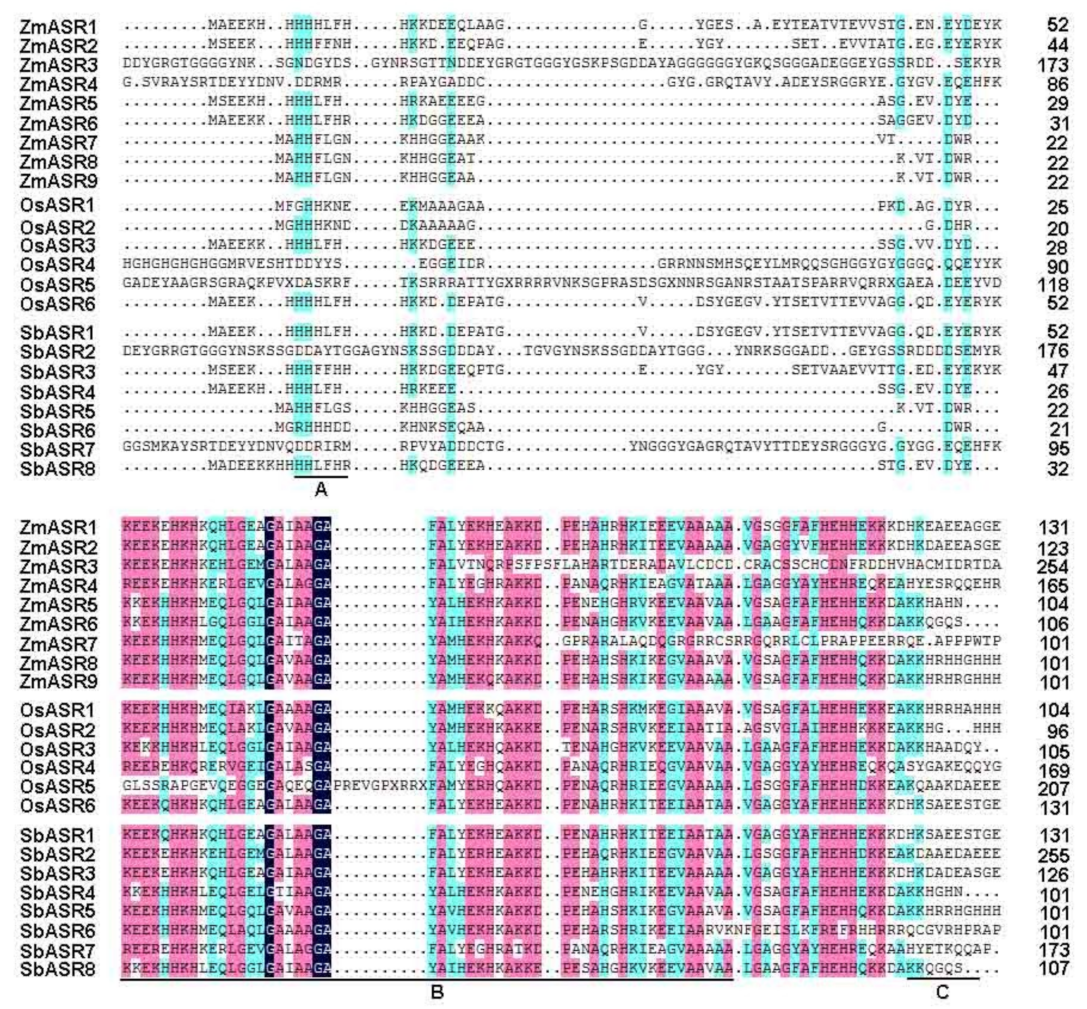

Figure 1. Alignment of amino acid sequences of abscisic acid (ABA)-, stress-, and ripening-induced (ASR) proteins. (A) The zinc-binding region; (B) the ABA/water deficit stress (WDS) domain; and (C) the putative nuclear targeting signal. The shading of the alignment presents identical residues in magenta, blue and dark blue colors, and the high conserved amino are marked at the bottom.
Figure 1. Alignment of amino acid sequences of abscisic acid (ABA)-, stress-, and ripening-induced (ASR) proteins. (A) The zinc-binding region; (B) the ABA/water deficit stress (WDS) domain; and (C) the putative nuclear targeting signal. The shading of the alignment presents identical residues in magenta, blue and dark blue colors, and the high conserved amino are marked at the bottom.
Ijms 20 02278 g001
Ijms 20 02278 g002 550

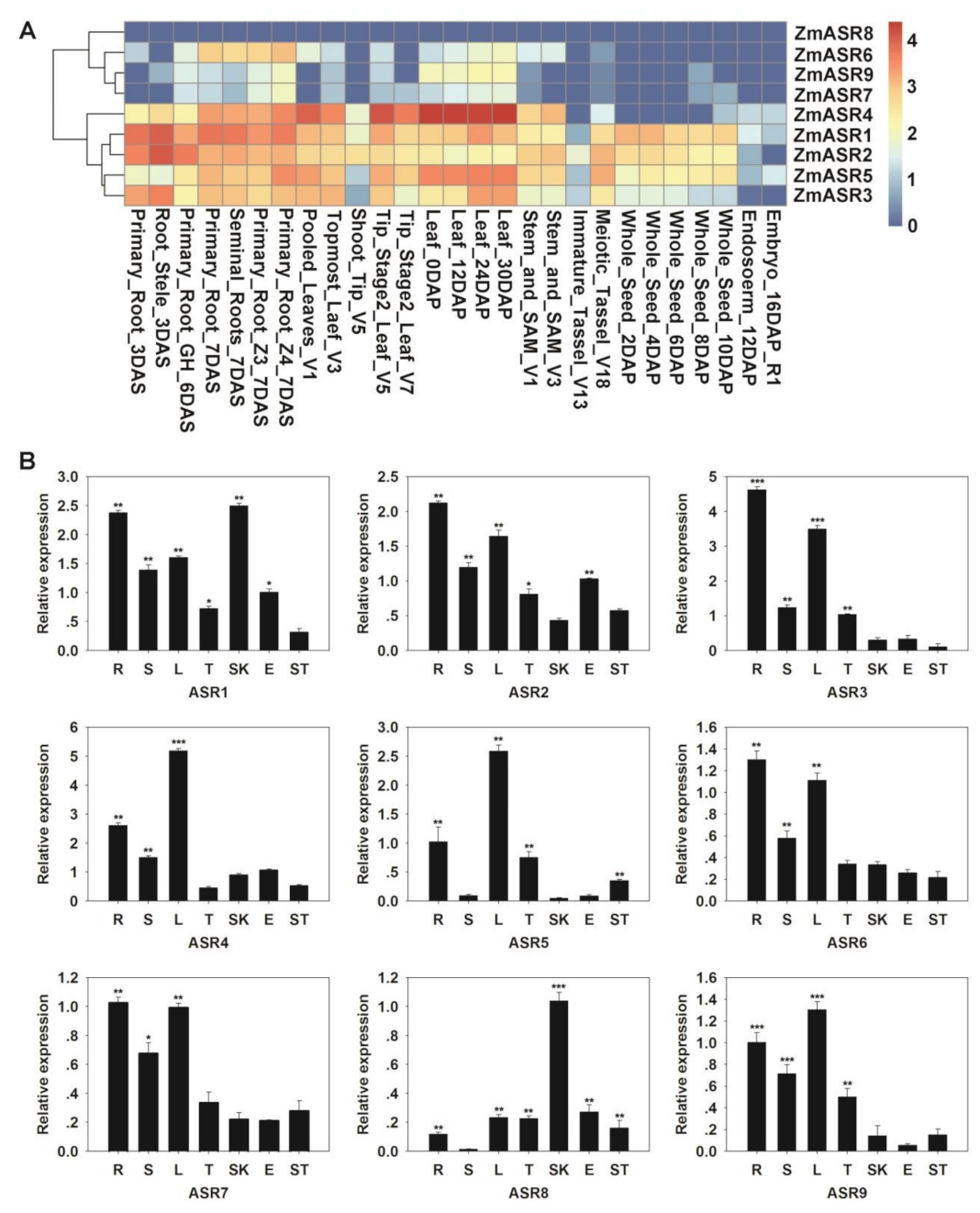

Figure 2. Expression pattern analysis of ZmASR genes. (A) Expression patterns of ZmASRs in different tissues. Red, yellow, and white indicate high, medium, and low levels of gene expression, respectively. (B) Tissue-specific expression patterns of the ZmASR genes. R (root); S (stem); L (leaf); T (tassel); SK (cornsilk); E (embryo); and ST (stegophyll). Vertical bars indicate means ± S.E. Significant differences: * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 2. Expression pattern analysis of ZmASR genes. (A) Expression patterns of ZmASRs in different tissues. Red, yellow, and white indicate high, medium, and low levels of gene expression, respectively. (B) Tissue-specific expression patterns of the ZmASR genes. R (root); S (stem); L (leaf); T (tassel); SK (cornsilk); E (embryo); and ST (stegophyll). Vertical bars indicate means ± S.E. Significant differences: * p < 0.05; ** p < 0.01; *** p < 0.001.
Ijms 20 02278 g002
Ijms 20 02278 g003 550
Figure 3. Sub-cellular localization analysis of ZmASRs. Sub-cellular localization of the ZmASR-GFP constructs in tobacco leaf epidermal cells. Green color is GFP protein signal, and blue color represents DAPI stained for nucleus. Scale bar = 50 µm.
Figure 3. Sub-cellular localization analysis of ZmASRs. Sub-cellular localization of the ZmASR-GFP constructs in tobacco leaf epidermal cells. Green color is GFP protein signal, and blue color represents DAPI stained for nucleus. Scale bar = 50 µm.
Ijms 20 02278 g003

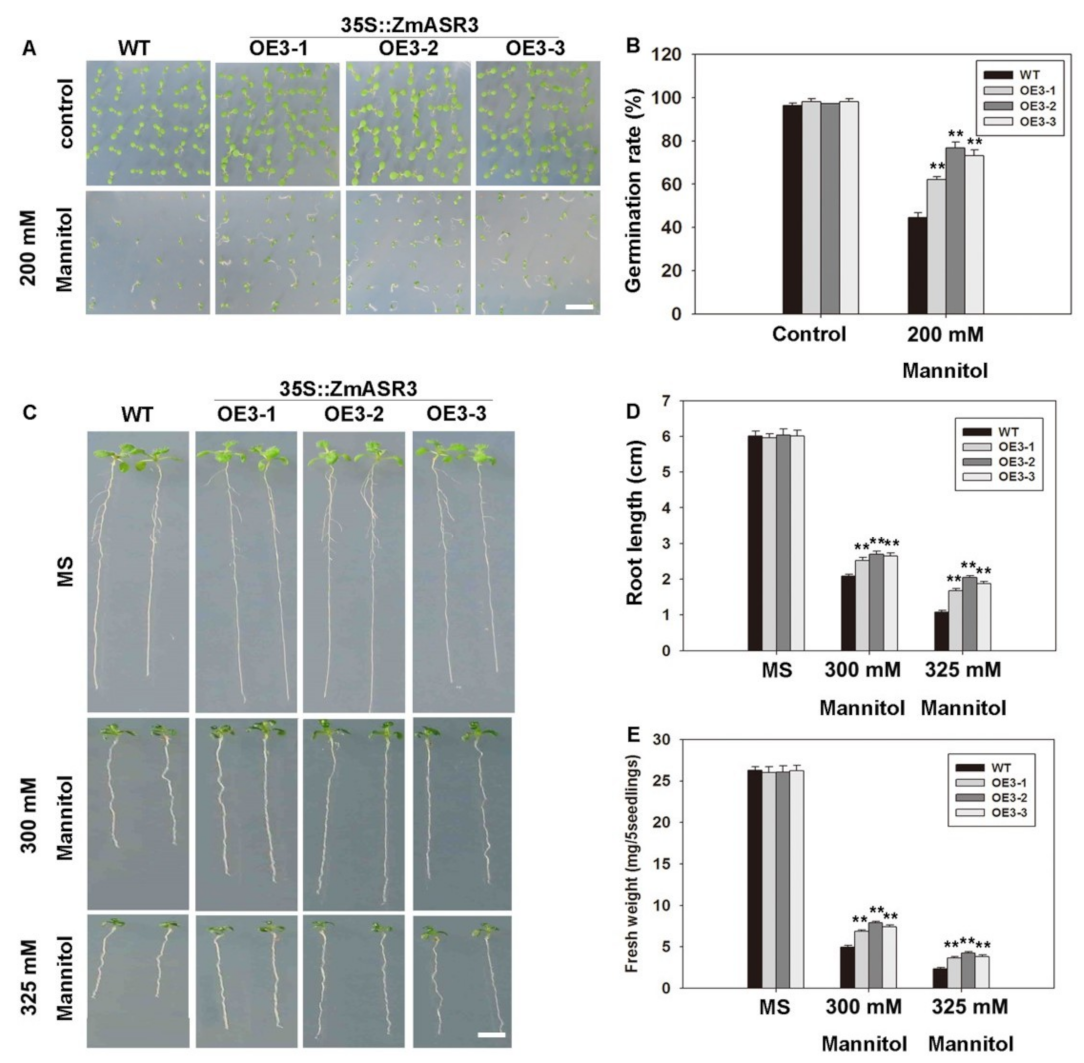

Ijms 20 02278 g004 550
Figure 4. Overexpression of ZmASR3 enhances drought tolerance in the germination and post-germination stages in Arabidopsis. (A) Phenotype and (B) quantitative evaluation of germination rates of the wild-type (WT) and three transgenic lines. Photographs were taken eight days after germination. (C) Photographs and measurements of (D) root lengths and (E) fresh weights of WT and transgenic seedlings in the post-germination stage under control (Murashige and Skoog (MS)) and osmotic stress (mannitol) conditions. All samples were measured in three independent experiments (each with 100 seeds for each line). Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01. Scale bar = 1 cm.
Figure 4. Overexpression of ZmASR3 enhances drought tolerance in the germination and post-germination stages in Arabidopsis. (A) Phenotype and (B) quantitative evaluation of germination rates of the wild-type (WT) and three transgenic lines. Photographs were taken eight days after germination. (C) Photographs and measurements of (D) root lengths and (E) fresh weights of WT and transgenic seedlings in the post-germination stage under control (Murashige and Skoog (MS)) and osmotic stress (mannitol) conditions. All samples were measured in three independent experiments (each with 100 seeds for each line). Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01. Scale bar = 1 cm.
Ijms 20 02278 g004
Ijms 20 02278 g005 550

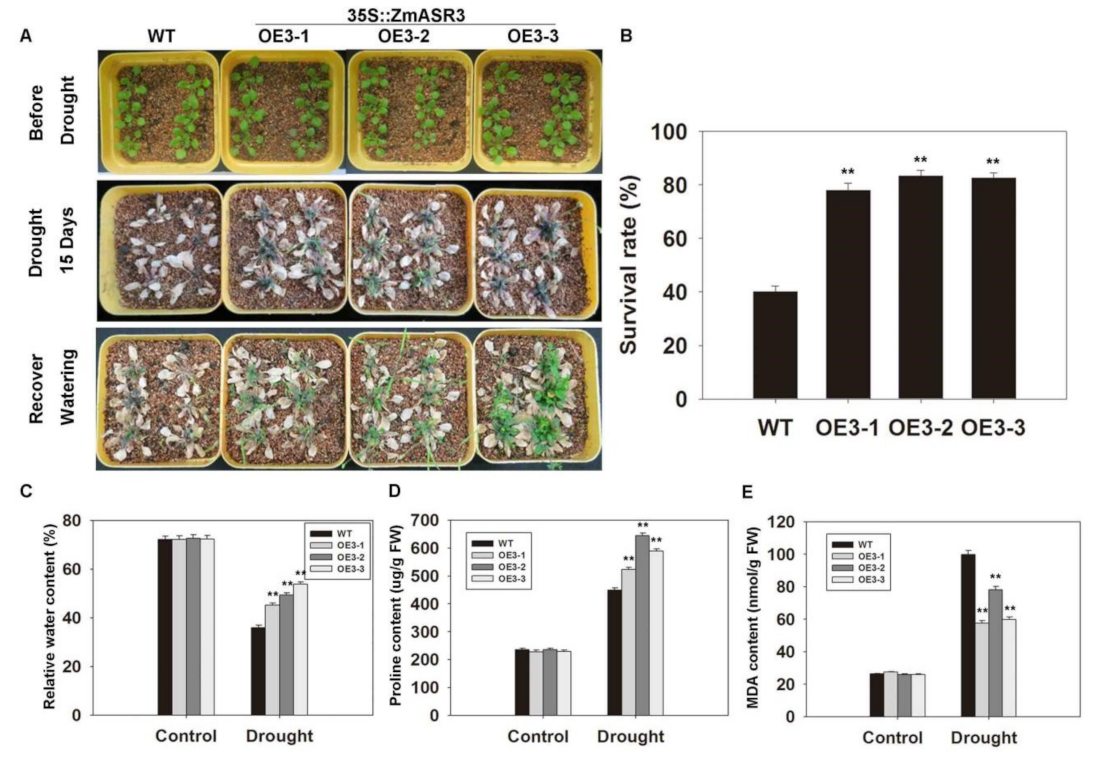

Figure 5. Overexpression of ZmASR3 enhances drought tolerance in Arabidopsis in soil. (A) Drought tolerance of three transgenic lines and wild-type plants. (B) Survival rate, (C) relative water content, (D) proline content, and (E) MDA content were subsequently measured. All samples were measured in three independent experiments (each with 50 seedlings for each line). In (B–E), vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01.
Figure 5. Overexpression of ZmASR3 enhances drought tolerance in Arabidopsis in soil. (A) Drought tolerance of three transgenic lines and wild-type plants. (B) Survival rate, (C) relative water content, (D) proline content, and (E) MDA content were subsequently measured. All samples were measured in three independent experiments (each with 50 seedlings for each line). In (B–E), vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01.
Ijms 20 02278 g005
Ijms 20 02278 g006 550

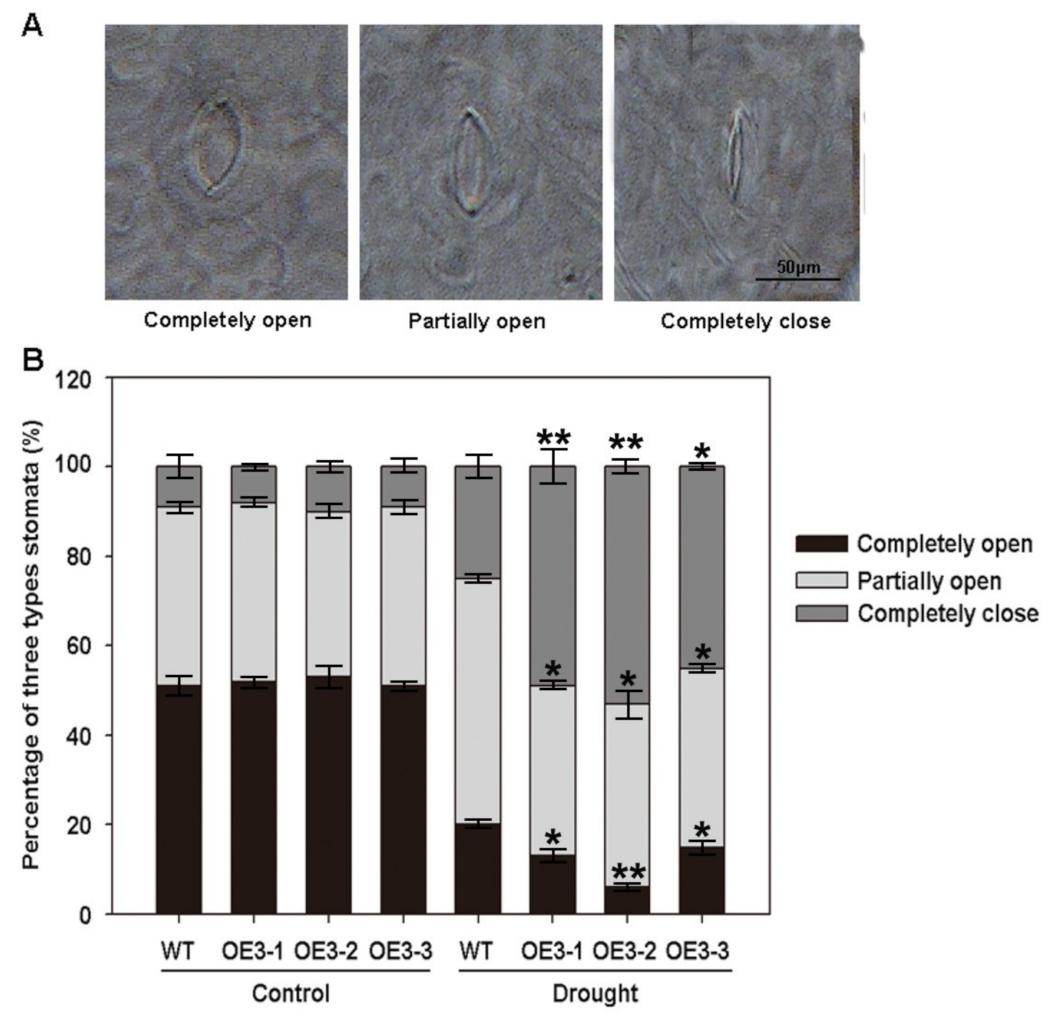

Figure 6. Overexpression of ZmASR3 increases stomatal closure. (A) Observation of stomatal closure in transgenic Arabidopsis and WT plant leaves. Scale bar = 50 μm. (B) The percentage of completely open, partially open, and completely closed stomata were analyzed in the leaves of ZmASR3 transgenic Arabidopsis and WT plants under normal conditions and drought stress (200 stomata were analyzed for each line). Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: * p < 0.05; ** p < 0.01. Scale bar = 50 μm.
Figure 6. Overexpression of ZmASR3 increases stomatal closure. (A) Observation of stomatal closure in transgenic Arabidopsis and WT plant leaves. Scale bar = 50 μm. (B) The percentage of completely open, partially open, and completely closed stomata were analyzed in the leaves of ZmASR3 transgenic Arabidopsis and WT plants under normal conditions and drought stress (200 stomata were analyzed for each line). Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: * p < 0.05; ** p < 0.01. Scale bar = 50 μm.
Ijms 20 02278 g006
Ijms 20 02278 g007 550

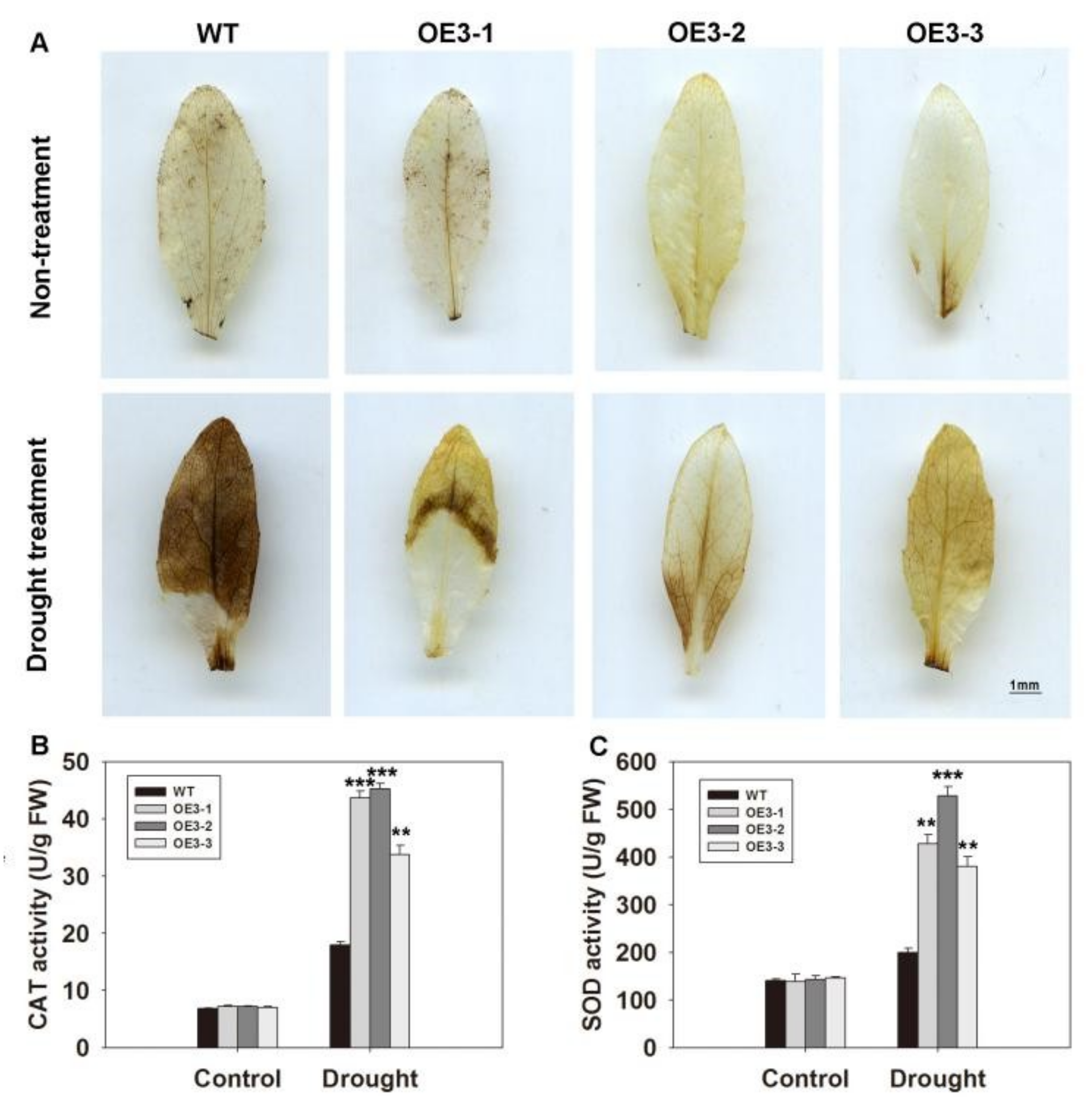

Figure 7. Overexpression of ZmASR3 increases drought tolerance by decreasing H2O2 accumulation and increasing SOD and CAT activities. (A) H2O2 accumulation in the three transgenic lines and wild-type plants. Two-week-old Arabidopsis plants had water withheld for 15 days and were analyzed. Scale bar = 1 mm. (B) Analysis of CAT activity. (C) Analysis of SOD activity. All samples were measured in three independent experiments. For (B,C), vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01; *** p < 0.001.
Figure 7. Overexpression of ZmASR3 increases drought tolerance by decreasing H2O2 accumulation and increasing SOD and CAT activities. (A) H2O2 accumulation in the three transgenic lines and wild-type plants. Two-week-old Arabidopsis plants had water withheld for 15 days and were analyzed. Scale bar = 1 mm. (B) Analysis of CAT activity. (C) Analysis of SOD activity. All samples were measured in three independent experiments. For (B,C), vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01; *** p < 0.001.
Ijms 20 02278 g007
Ijms 20 02278 g008 550

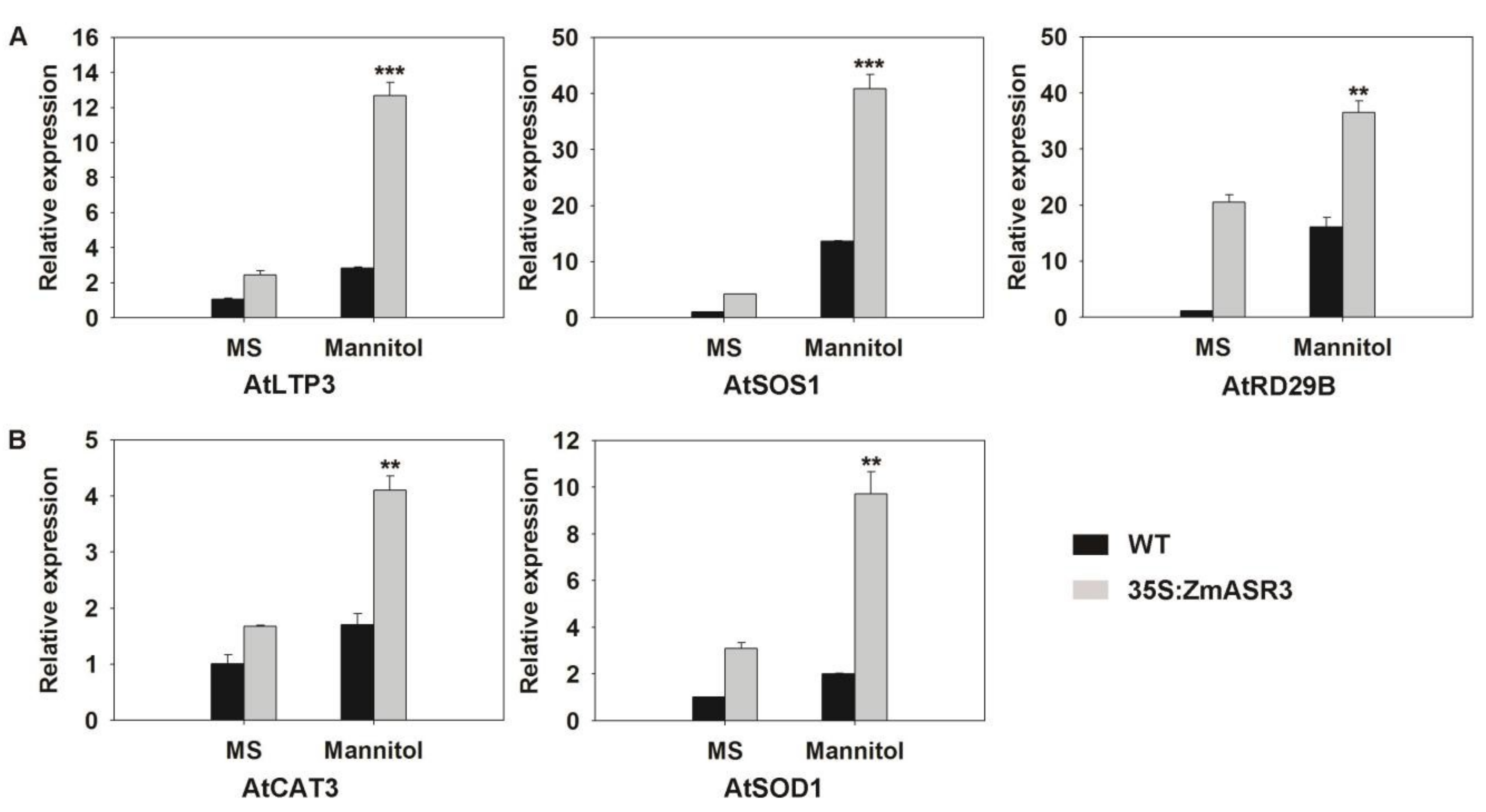

Figure 8. Analysis of expression levels of (A) stress-responsive and (B) reactive oxygen species (ROS)-related genes in the WT and transgenic line under control and osmotic stress conditions. The experiment was repeated three times with three biological repeats. Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01; *** p < 0.001.
Figure 8. Analysis of expression levels of (A) stress-responsive and (B) reactive oxygen species (ROS)-related genes in the WT and transgenic line under control and osmotic stress conditions. The experiment was repeated three times with three biological repeats. Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01; *** p < 0.001.
Ijms 20 02278 g008

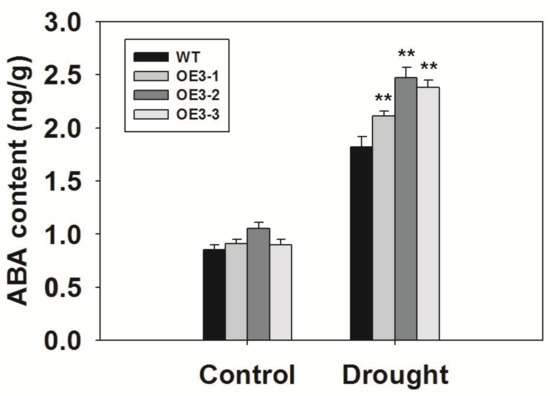

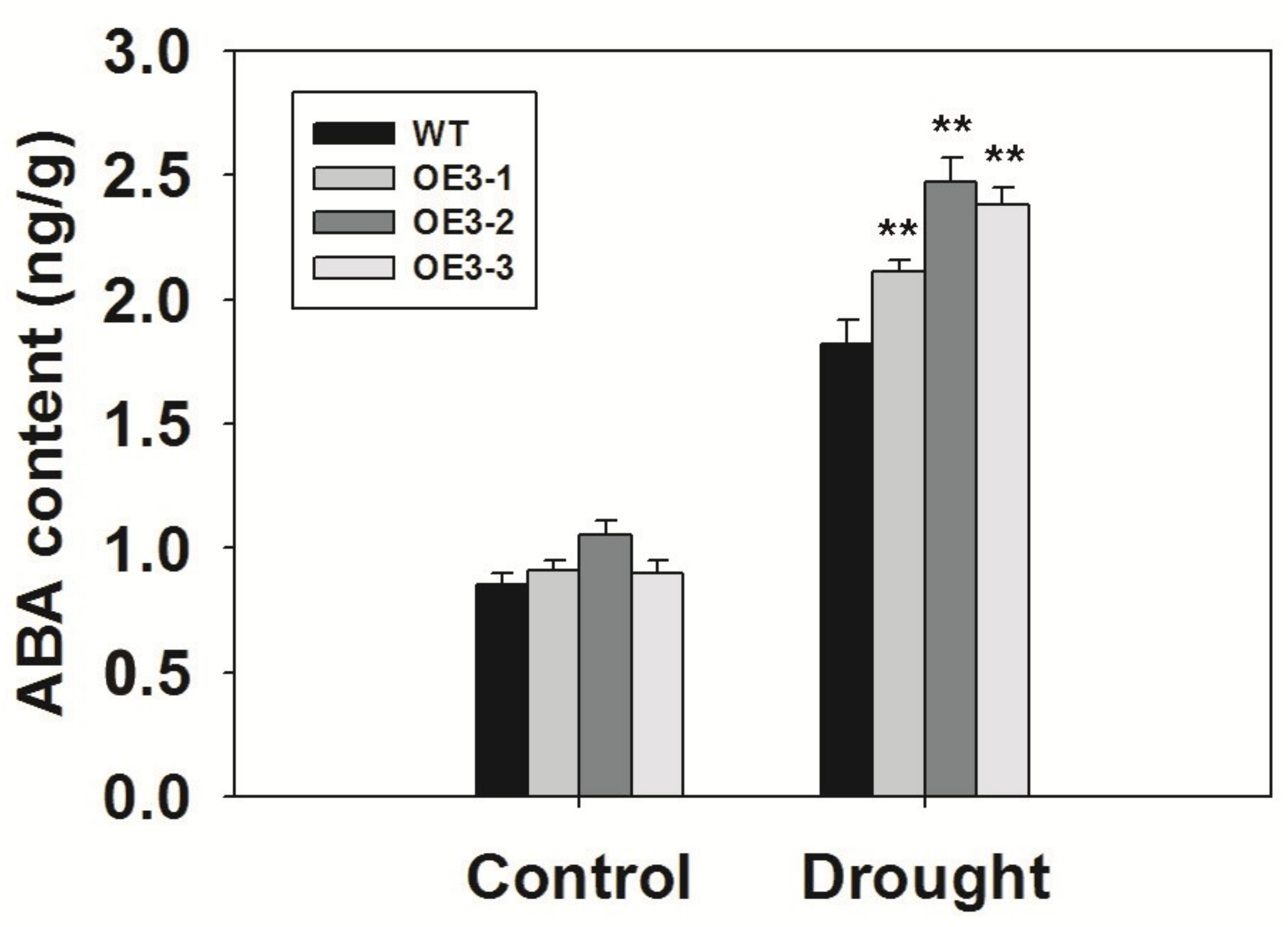

Ijms 20 02278 g009 550
Figure 9. Overexpression of ZmASR3 increases the ABA content under drought treatment. The experiment was repeated three times with three biological replicates. Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01.
Figure 9. Overexpression of ZmASR3 increases the ABA content under drought treatment. The experiment was repeated three times with three biological replicates. Vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: ** p < 0.01.
Ijms 20 02278 g009
Ijms 20 02278 g010 550

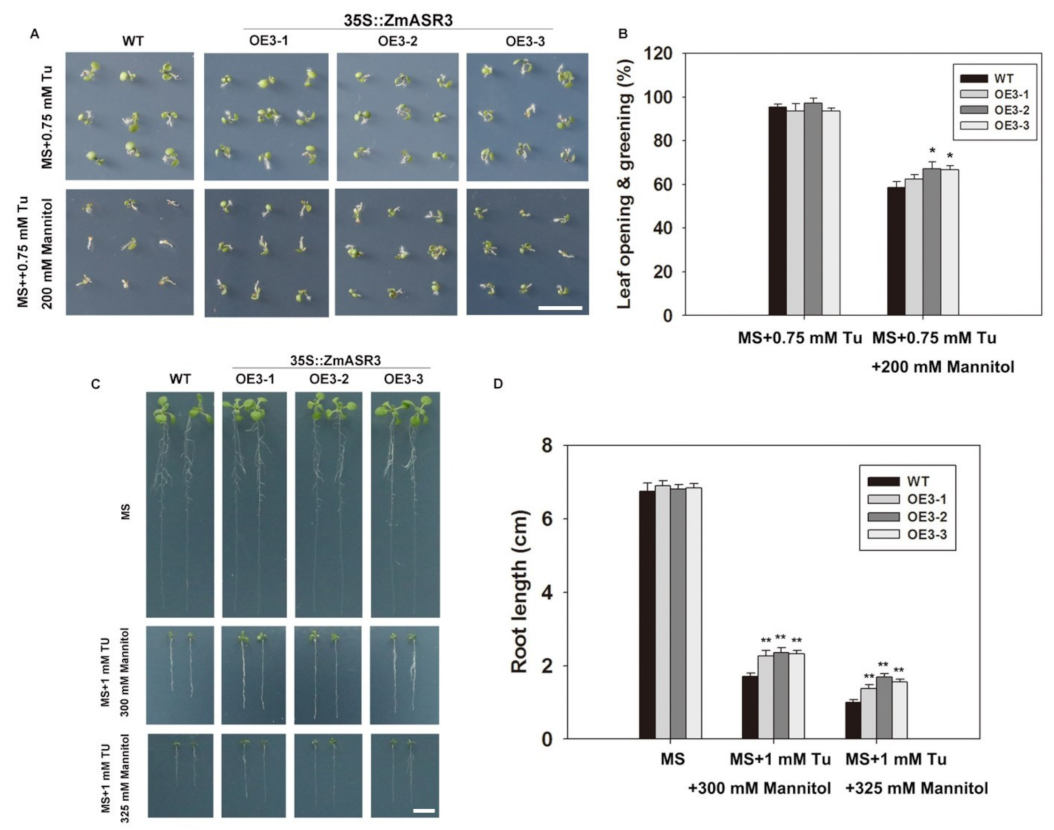

Figure 10. ABA signaling is involved in induction of ZmASR3 with mannitol treatment. (A) Analysis of the germination of the three transgenic lines and wild-type plants. Seeds were germinated and grown for eight days on half MS medium containing 0.75 mM Tu and 0.75 mM Tu + 200 mM mannitol. (B) Germination rates of seeds shown in (A), as counted by leaf opening and greening. All samples were measured in triplicate. (C) Three-day-old seedlings grown on MS medium were transferred to fresh medium containing 1 mM Tu + 300 mM mannitol and 1 mM Tu + 325 mM mannitol for seven days. (D) Root lengths of the seedlings shown in (C). For (B,D), Scale bar = 1 cm vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: * p < 0.05; ** p < 0.01.
Figure 10. ABA signaling is involved in induction of ZmASR3 with mannitol treatment. (A) Analysis of the germination of the three transgenic lines and wild-type plants. Seeds were germinated and grown for eight days on half MS medium containing 0.75 mM Tu and 0.75 mM Tu + 200 mM mannitol. (B) Germination rates of seeds shown in (A), as counted by leaf opening and greening. All samples were measured in triplicate. (C) Three-day-old seedlings grown on MS medium were transferred to fresh medium containing 1 mM Tu + 300 mM mannitol and 1 mM Tu + 325 mM mannitol for seven days. (D) Root lengths of the seedlings shown in (C). For (B,D), Scale bar = 1 cm vertical bars indicate means ± S.E. (n ≥ 3). Significant differences: * p < 0.05; ** p < 0.01.
Ijms 20 02278 g010
Ijms 20 02278 g011 550

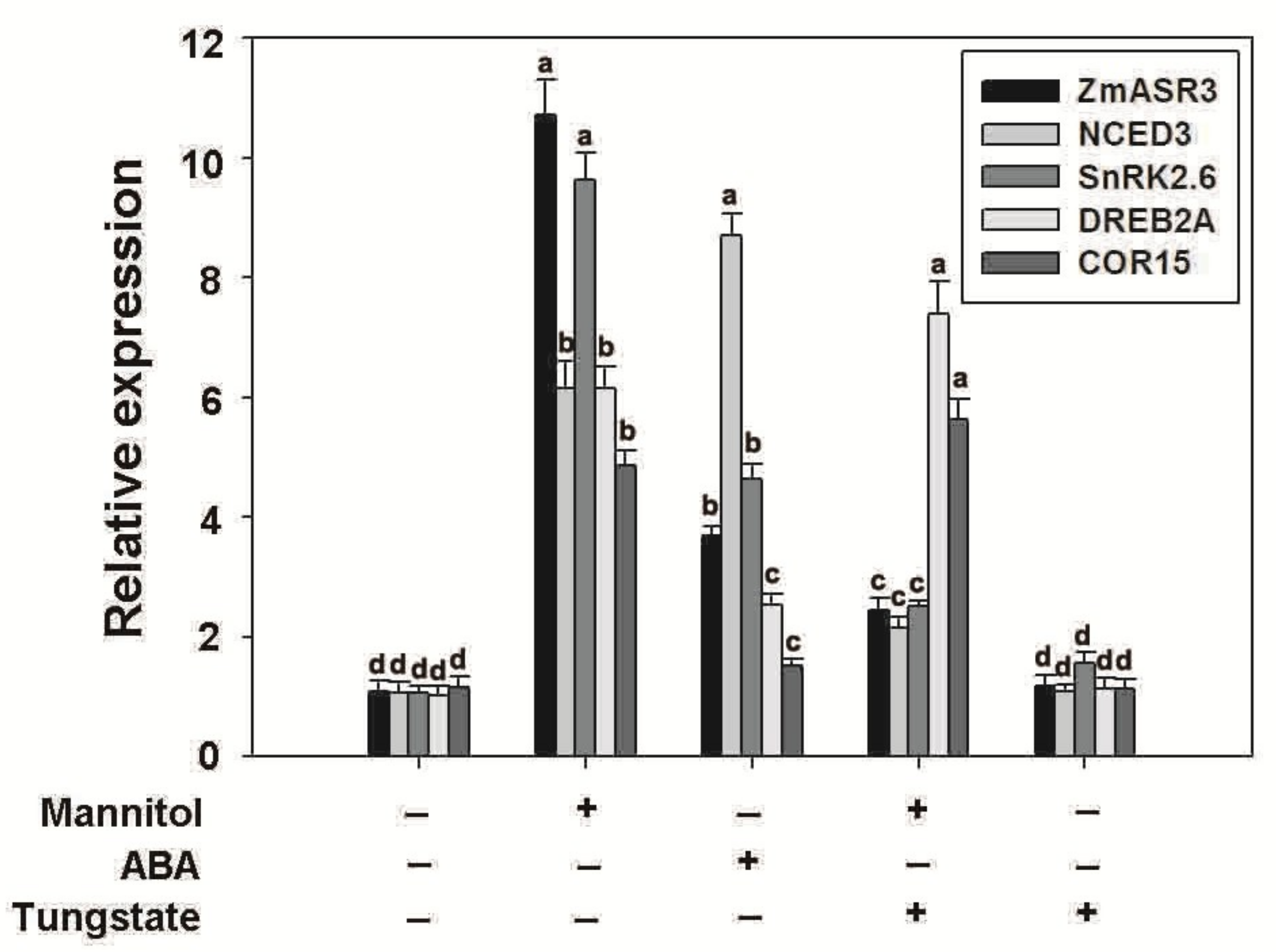

Figure 11. Effects of Tu and mannitol on the expression of stress/ABA-related genes in ZmASR3-overexpressing transgenic lines and WT. Marker genes in the ABA-dependent pathway (NCED3 and SnRK2.6) and ABA-independent pathway (COR15 and DREB2A) were analyzed in ZmASR3-overexpressing lines under different treatments. Vertical bars indicate means ± S.E. (n ≥ 3). ANOVA was used to reveal significant differences. Different letters above the column indicate statistical significance at the p = 0.05 level. + presents “treatment”, − presents “no treatment”.
Figure 11. Effects of Tu and mannitol on the expression of stress/ABA-related genes in ZmASR3-overexpressing transgenic lines and WT. Marker genes in the ABA-dependent pathway (NCED3 and SnRK2.6) and ABA-independent pathway (COR15 and DREB2A) were analyzed in ZmASR3-overexpressing lines under different treatments. Vertical bars indicate means ± S.E. (n ≥ 3). ANOVA was used to reveal significant differences. Different letters above the column indicate statistical significance at the p = 0.05 level. + presents “treatment”, − presents “no treatment”.
Ijms 20 02278 g011

Share and Cite

MDPI and ACS Style

Liang, Y.; Jiang, Y.; Du, M.; Li, B.; Chen, L.; Chen, M.; Jin, D.; Wu, J. ZmASR3 from the Maize ASR Gene Family Positively Regulates Drought Tolerance in Transgenic Arabidopsis. Int. J. Mol. Sci. 2019, 20, 2278. https://doi.org/10.3390/ijms20092278

AMA Style

Liang Y, Jiang Y, Du M, Li B, Chen L, Chen M, Jin D, Wu J. ZmASR3 from the Maize ASR Gene Family Positively Regulates Drought Tolerance in Transgenic Arabidopsis. International Journal of Molecular Sciences. 2019; 20(9):2278. https://doi.org/10.3390/ijms20092278

Chicago/Turabian Style

Liang, Yani, Yingli Jiang, Ming Du, Baoyan Li, Long Chen, Mingchao Chen, Demiao Jin, and Jiandong Wu. 2019. "ZmASR3 from the Maize ASR Gene Family Positively Regulates Drought Tolerance in Transgenic Arabidopsis" International Journal of Molecular Sciences 20, no. 9: 2278. https://doi.org/10.3390/ijms20092278

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
