Structural, Mechanical, and Electronic Properties of High-Hardness Silicon Tetranitride

Abstract

Materials with high hardness are critical for industrial and aerospace applications, prompting the search for novel compounds with robust covalent networks. Using a first-principles structure prediction method, we systematically explored the phase stability of Si–N compounds under high pressure. We identified two thermodynamically stable phases: Si₆N with P-1 symmetry and SiN₄ with space group R-3c. Phonon spectra and ab initio molecular dynamics simulations confirm the dynamical and thermal stability of R-3c SiN₄ at ambient pressure and up to 2000 K. Notably, R-3c SiN₄ exhibits exceptional mechanical properties with a Vickers hardness of 31 GPa, a bulk modulus of 259.53 GPa, and a Young’s modulus of 485.38 GPa. Furthermore, SiN₄ possesses a high energy density (1.1 kJ·g⁻¹) and outstanding detonation pressure and velocity (228 kbar, 7.11 km·s⁻¹), both exceeding those of TNT, making it a potential high-energy-density materials. In addition, electronic structure analysis reveals SiN₄ has a band gap of 2.5 eV, confirming its nonmetallic characteristics and strongly covalent nature. These findings provide theoretical guidance for the future synthesis of Si–N phases and establish a foundation for designing novel materials that combine high hardness with high-energy density performance.

1. Introduction

High-hardness materials combine superior hardness with excellent resistance to deformation, maintaining stable physical and chemical properties under extreme conditions such as high temperature and high pressure [1]. These features make them indispensable in advanced manufacturing, aerospace engineering, and defense applications [2,3]. Motivated by rising industrial and technological demands, researchers are devoted to exploring and developing novel multifunctional hard materials [4,5].

In recent years, experimental and theoretical research on hard materials has concentrated on compounds composed of light elements such as boron, carbon, nitrogen, and oxygen, owing to their ability to form strong covalent bonds that result in high hardness and superior resistance to deformation [6]. Among these, nitrides have been extensively studied due to their stable covalent bond structure (single bonds, 167 kJ·mol⁻¹; double bonds, 419 kJ·mol⁻¹) [7,8,9]. High-pressure synthesis has become a key strategy for preparing polymeric nitrogen, and various polymeric nitrogen phases have been experimentally prepared under high-pressure and high-temperature conditions [10]. However, the synthesis of pure nitrogen materials remains challenging due to the extremely high pressures (>110 GPa) required and the kinetic instability of elemental nitrogen phases. To overcome these limitations, the introduction of other elements under compression to synthesize stable nitrides at a relatively low pressure has been proven to be an effective method. The current goal is not only to obtain stable nitrides but also to achieve materials with high hardness.

Notably, the silicon-nitrogen compounds have attracted considerable attention because the Si–N bond enables the formation of covalent networks, while the incorporation of Si facilitates the stabilization and synthesis of diverse nitrides, thereby enhancing the potential for designing new high-hardness materials [11,12,13,14]. For example, theoretical investigations by Cui et al. have predicted several novel high-hardness phases of Si₃N₄ through first-principles calculations, namely t-Si₃N₄, m-Si₃N₄, and o-Si₃N₄ [15]. These phases exhibit lower energies under specific pressures than the conventional trigonal α-Si₃N₄ and hexagonal β-Si₃N₄, and possess higher Vickers hardness values [16]. Experimentally, two major Si–N stoichiometric materials, Si₃N₄ and SiN₂, have been synthesized. Using synchrotron X-ray diffraction under high pressure, Qin et al. identified a new monoclinic phase of Si₃N₄, providing new insights into its high-pressure behavior [17]. In addition, α-Si₃N₄ (P3₁c), β-Si₃N₄ (P6₃/m), and γ-Si₃N₄ (Fd3/m) have also been reported. Weihrich et al. synthesized a pyrite-type SiN₂ with a Pa-3 structure, which remains energetically stable above 15 GPa [18]. Niwa et al. further synthesized SiN₂ (Pa-3) above 460 GPa and successfully recovered it at ambient conditions [19]. By contrast, Jurzick et al. synthesized SiN₂ at 140 GPa [20]. Recently, dense Si₃N₄ ceramics were successfully fabricated via high pressure (5.5 GPa) and high temperature (900–1400 °C) [21]. Beyond these stoichiometries, recent studies have expanded the compositional and structural diversity of the Si–N system. Si-rich nitrides such as Si₆₄N with cubic P-43m and rhombohedral R3m structures [22], as well as Cr-incorporated Si–N compounds forming bulk Cr₂SiN₄ phases [23] have been reported. However, these theoretical and experimental studies mainly focused on the nitrogen-rich Si₃N₄ and SiN₂ compounds. In contrast, the existence of silicon-rich nitrides or other nitrogen-rich polymorphs in the Si–N system remains underexplored. Moreover, the potential existence of additional high-hardness structures in this system is still unknown. In addition, the systematic investigation of their mechanical and electronic properties is crucial for expanding the application potential of Si-N-based materials [24,25,26]. Therefore, exploring new Si-N structures is not only critical for discovering new materials, but also provides reliable theoretical guidance for the experimental synthesis of multifunctional Si-N compounds in the future.

In this work, we employed an ab initio structure prediction method [27,28] to comprehensively explore the high-pressure phase stability and material properties of Si–N compounds, leading to the identification of several novel thermodynamically stable phases, including SiN₄ and Si₆N. Phase diagram analysis indicates that Si₆N becomes stable at approximately 25 GPa, while SiN₄ becomes stable at around 29 GPa. Notably, R-3c SiN₄ remains kinetically, dynamically, and thermally stable under both ambient and high-pressure, high-temperature conditions. Mechanical properties analysis indicates its outstanding hardness and elasticity. Furthermore, explosive performance calculations suggest that R-3c SiN₄ exhibits a high detonation pressure of 228 kbar and detonation velocity of 7.11 km·s⁻¹, underscoring its potential as a multifunctional material.

2. Results and Discussion

2.1. Stable Si−N Compounds

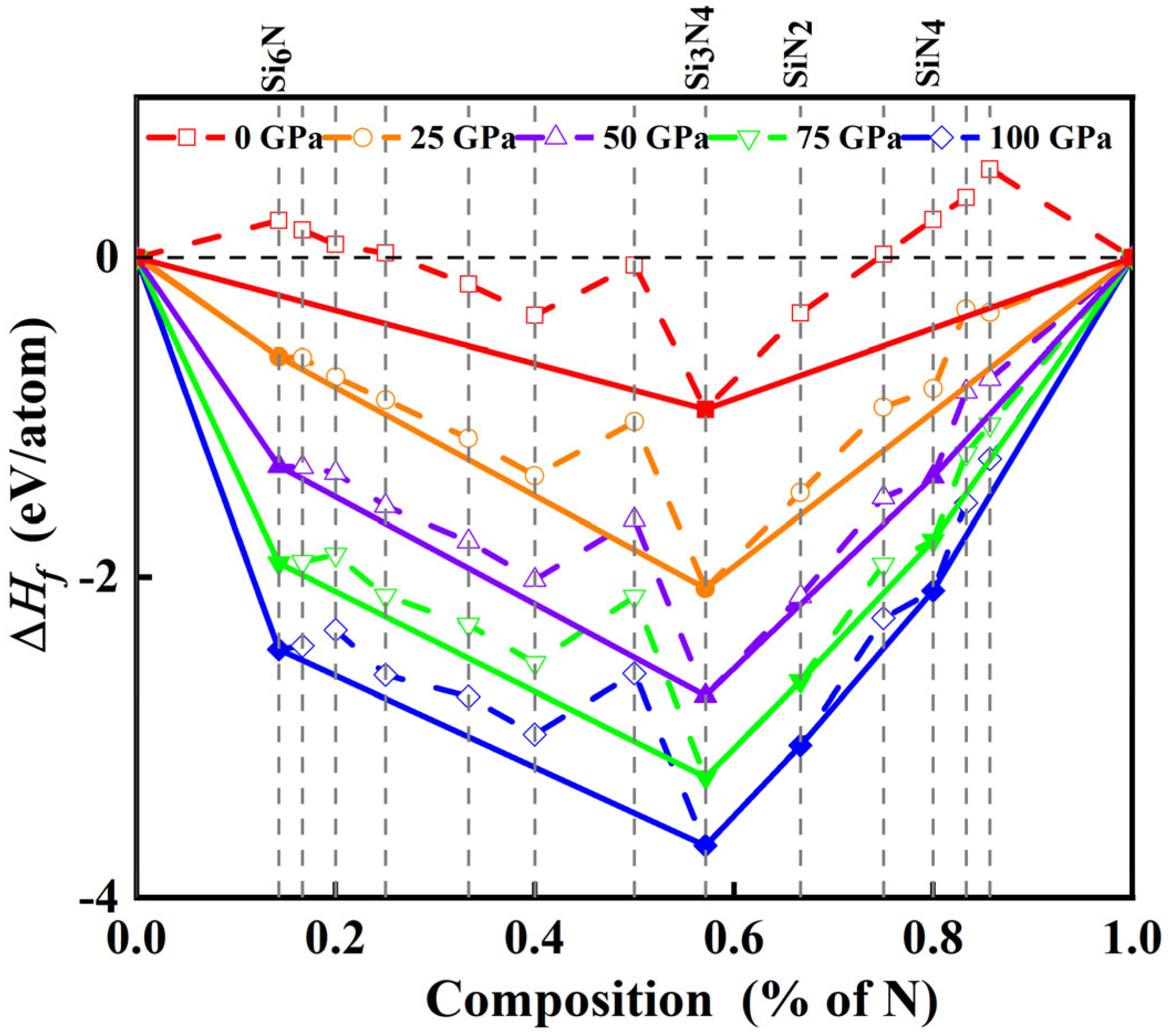

To assess the thermodynamic stability of the predicted structures, the relative stability of Si_xN_y (x = 1–6, y = 1; x = 1, y = 1–6; x = 3, y = 4) compounds across varying pressures (i.e., 0, 25, 50, 75, and 100 GPa) was systematically examined through convex hull diagrams, as shown in Figure 1. The formation enthalpy per atom was obtained using the relation:

$$∆H_f = {\displaystyle \frac{1}{(\mathrm{x}+\mathrm{y})}}\left[H\right({\mathrm{Si}}_{\mathrm{x}}{\mathrm{N}}_{\mathrm{y}})-\mathrm{x}H{\displaystyle (\mathrm{Si})}-{\displaystyle \frac{\mathrm{y}}{2}}H{\displaystyle \left({\mathrm{N}}_2\right)}]$$

(1)

where H(Si_xN_y) is the enthalpy of Si_xN_y compound, H(Si) and H(N₂) are the enthalpies of elemental silicon and nitrogen phases. For reference, the diamond-structured Si was adopted, while Pa-3 and P4₁2₁2 molecular nitrogen were used as reference phases for computing the formation enthalpy [29,30]. As shown in the convex hull diagrams (Figure 1), the formation enthalpy per atom is obtained by dividing the total formation enthalpy of Si_xN_γ by the total number of atoms (x + y). Solid symbols connected by solid lines denote thermodynamically stable compositions. In contrast, hollow symbols linked by dashed lines correspond to metastable or unstable phases. The negative formation enthalpy of cubic Si₃N₄ (Fd-3m) confirms its stability under ambient conditions (~0 GPa), consistent with previous theoretical and experimental reports demonstrating successful synthesis in a diamond anvil cell. Likewise, the predicted Pa-3 SiN₂ phase remains stable under high pressure, further validating the reliability of the employed structure-search methodology [20].

In addition to Si₃N₄ and SiN₂, two new compositions, SiN₄ and Si₆N, are predicted to be thermodynamically stable. At ambient pressure, both lie slightly above the convex hull, indicating slightly metastable behavior. Upon compression, the formation enthalpy of Si₆N decreases sharply, and this phase becomes thermodynamically stable above ~25 GPa, indicating that pressure effectively reduces the energetic barrier for forming this Si-rich compound. By contrast, SiN₄ displays a more gradual enthalpy-pressure dependence, remaining metastable over intermediate pressures and only approaching the convex hull near 50 GPa. To determine the precise pressure, enthalpy difference calculations show that SiN₄ is stabilized at ~3 GPa relative to elemental Si and N₂, and at ~29 GPa relative to competing phases such as Si₃N₄ (see Supplemental Material, Figure S1). Overall, the enthalpy-pressure relationships indicate that the synthesis pressures for newly identified Si₆N and SiN₄ are below moderate pressure (~50 GPa). In contrast, nitrogen-rich compositions generally require higher stabilization pressures than Si-rich ones, reflecting the significant energetic barriers associated with breaking nitrogen’s triple bond and forming polymeric nitrogen frameworks. These results elucidate the pressure-driven stabilization pathways of both Si-rich and N-rich Si–N compounds and highlight potential routes for synthesizing novel structures.

2.2. Crystal Structures

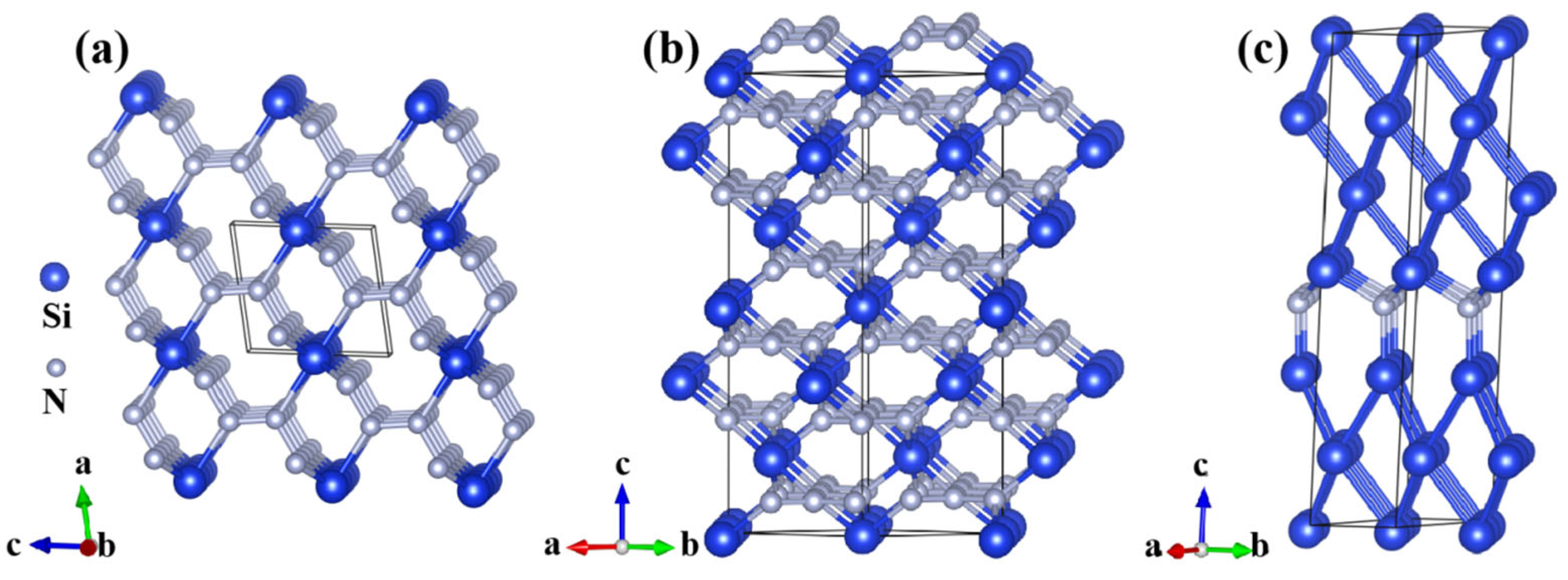

Two SiN₄ polymorphs (P-1 SiN₄ and R-3c SiN₄) and the Cm Si₆N phase are predicted to be thermodynamically stable at high pressure. The atomic configurations of the predicted phases are shown in Figure 2. As shown in Figure 2a, the P-1 SiN₄ phase crystallizes in a triclinic symmetry, where each Si atom is coordinated by six N atoms to form a structural unit. Among the coordinated N atoms, four are shared with adjacent units, while the remaining two are connected to other units through additional N linkages. The average Si–N bond length is 1.89 Å, whereas all N–N bonds maintain a uniform length of 1.31 Å at 0 GPa. In contrast, the R-3c SiN₄ phase belongs to the trigonal crystal system and is stabilized by adopting a three-dimensional octahedral network. At 0 GPa, all Si–N bonds are identical, with a length of 1.91 Å, while all N–N bond lengths are 1.32 Å. These bond lengths lie within the characteristic range of stable covalent bonds. Each Si atom is bonded to six surrounding N atoms, forming an octahedral coordination geometry. Meanwhile, the ∠NSiN angle is 90 degrees, maximizing the balance of atomic repulsion. This uniform octahedral coordination imparts high bond energy, ensuring robust interatomic cohesion and compact connectivity resistant to dissociation. As shown in Figure S2, the lattice constant (a = b = c) of the R-3c SiN₄ decreases continuously with increasing pressure, exhibiting an overall contraction of approximately 10% at 100 GPa. Overall, the cooperative bonding interactions effectively constrain atomic displacement, thereby reinforcing the resilience of the crystal framework.

For the Cm Si₆N phase, which crystallizes in a monoclinic symmetry, the average Si–N bond length is 1.79 Å. In addition, Si-Si bonds have an average length of 2.51 Å at 25 GPa. Although the relatively longer bond lengths suggest lower bond energy and slightly weaker interatomic interactions, the overall configuration represents a balanced bonding state that preserves structural stability. The Si–N bonds provide supplementary connectivity channels within the crystal lattice, further reinforcing its structural stability in three-dimensional space.

2.3. Mechanical, High-Energy Density, and Electronic Properties

A quantitative assessment of hardness is critical to the theoretical design of high-hardness materials. Several semi-empirical models correlate hardness with the intrinsic properties of crystals [31,32,33,34]. Although these models employ different calculation approaches, their predicted values are generally very similar [35,36]. Among these, the Chen model is widely used and has been successfully applied to predict the hardness of many single-crystal materials, showing good agreement with experimental data [36,37,38,39,40,41,42,43]. For instance, it accurately predicts the Vickers hardness of diamond and cubic boron nitride (c-BN) in close agreement with measured values. Its broad applicability and proven reliability make it well-suited for the comparative screening of high-hardness materials, and it was therefore adopted in this study. While the model was originally formulated for polycrystalline materials, it is applied here to single-crystal structures, disregarding the influence of plastic deformation and dislocation motion. Therefore, the obtained values correspond to the intrinsic hardness of the materials under idealized conditions. Our analysis reveals that R-3c SiN₄ has a Vickers hardness of 31 GPa, thereby surpassing the empirical threshold of 30 GPa that defines high-hardness materials. For the other two structures, the Vickers hardness values of P-1 SiN₄ and Cm Si₆N phases are 17 and 8 GPa, respectively, both much lower than that of R-3c SiN₄. Evaluating elastic constants is essential for understanding the mechanical properties of the predicted Si–N compounds. The calculated elastic constants show that all values of the R-3c SiN₄ satisfy the established mechanical stability criteria [44]. In addition, we computed the bulk modulus (B), shear modulus (G), Young’s modulus (E), and Poisson’s ratio (ν) to further assess the mechanical properties (

Table 1. Calculated mechanical moduli and Vickers hardness values of R-3c SiN₄ and P-1 SiN₄. Except for v, all other parameters are given in GPa.

	B	G	E	v	HV
R-3c SiN4	259.53	204.23	485.38	0.18	31
P-1 SiN4	227.38	139.45	347.35	0.25	17

). The R-3c SiN₄ phase displays an exceptionally high bulk modulus of 259.53 GPa, reflecting its outstanding resistance to volume compression. Meanwhile, the shear modulus and Young’s modulus reach 204.23 and 485.38 GPa, respectively, indicating superior resistance against shape deformation and external stress. Poisson’s ratio is 0.18. Materials with a low Poisson’s ratio have very little change in lateral dimensions when subjected to axial load. These results demonstrate that the R-3c SiN₄ combines remarkable hardness with extraordinary incompressibility and shear strength, making it a promising high-hardness material. The mechanical moduli of the P-1 SiN₄ are listed in Table 1; all of which are inferior to those of R-3c SiN₄. A comprehensive comparison integrating key properties of the R-3c and P-1 SiN₄ is presented in Table S1 in the Supplemental Material.

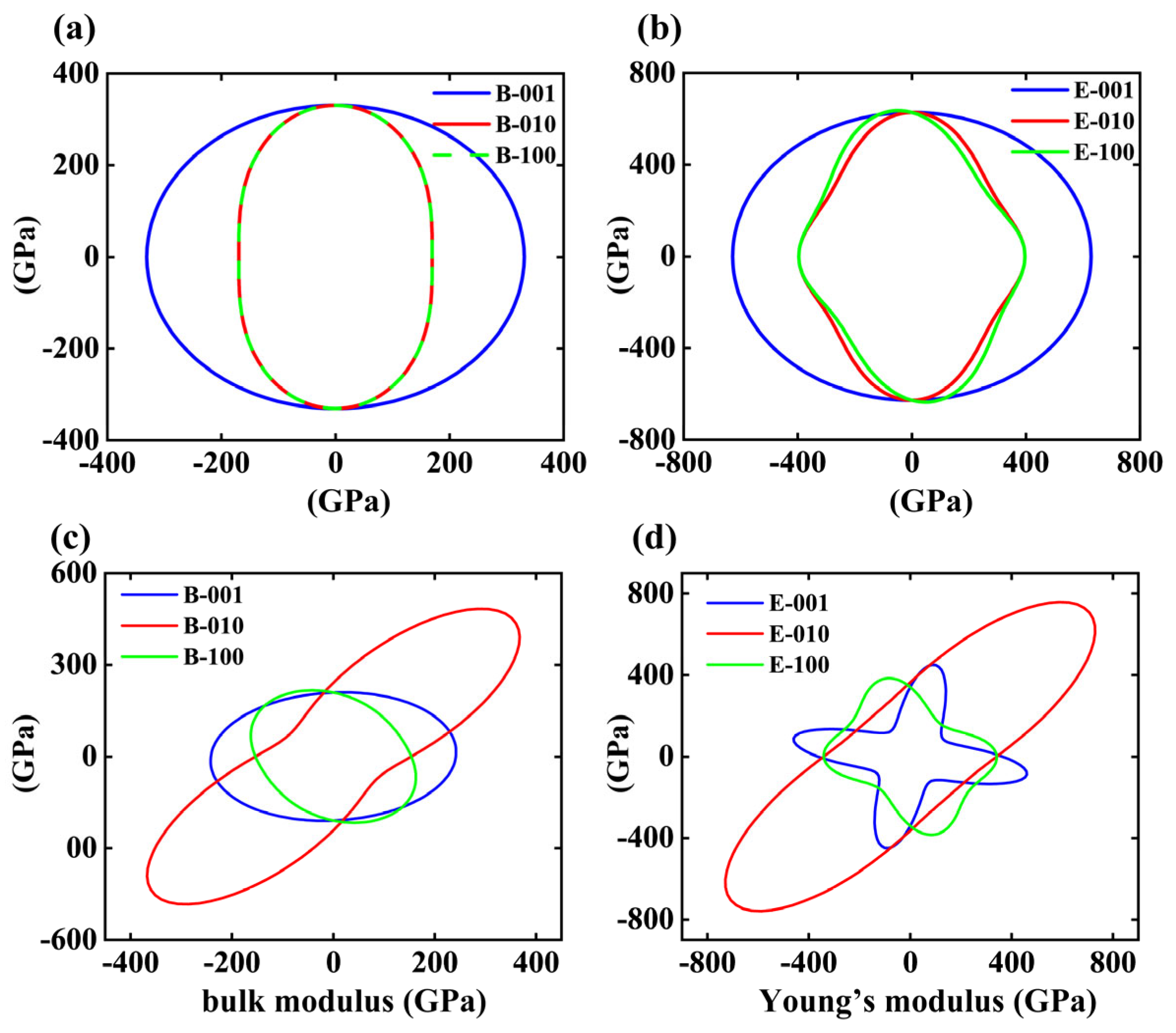

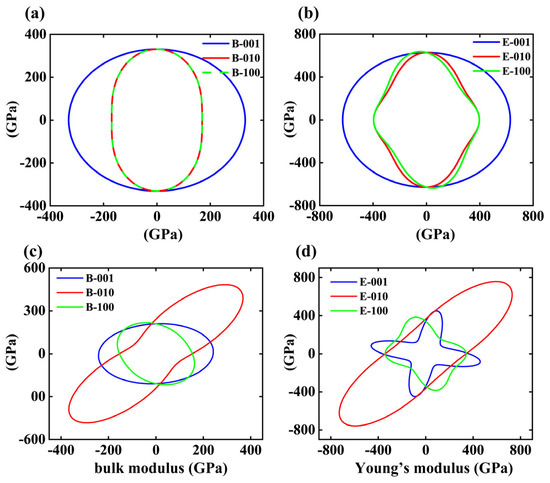

The bulk and Young’s moduli were analyzed in spherical coordinates, and the corresponding elastic anisotropy was visualized by projecting these moduli onto selected crystallographic planes (001), (010), and (100) based on the formulations. The results for these two SiN₄ polymorphs are illustrated in Figure 3. For the trigonal R-3c SiN₄ phase, the contour projections of the bulk modulus on the (010) and (100) planes nearly overlap. This feature indicates that the bulk modulus is essentially isotropic in these directions. The (001) plane exhibits an almost spherical distribution with slightly higher values than those on the (010) and (100) planes. A similar trend is observed for Young’s modulus on the (001), which exhibits an isotropic distribution analogous to that of the bulk modulus and is approximately twice the magnitude of the latter. In contrast, Young’s modulus on the (010) and (100) planes deviates from a perfectly spherical pattern, displaying only weak isotropy along these directions. These results indicate that the R-3c SiN₄ structure possesses excellent incompressibility and shear resistance along all three crystallographic orientations. In contrast, the triclinic P-1 SiN₄ phase exhibits pronounced elastic anisotropy due to its very low crystal symmetry. Both the bulk and Young’s moduli reveal significant directional dependence across all three planes, with the (010) plane showing the most distinct anisotropy, characterized by a rod-like contour. The (001) and (100) planes also display anisotropy, though to a lesser degree. Overall, a direct comparison between the two polymorphs highlights that the elastic anisotropy of both bulk and Young’s moduli is much more pronounced in the P-1 phase than in the R-3c phase. Furthermore, the lower moduli values in the P-1 structure are consistent with its reduced hardness. These observations indicate that even at the same stoichiometric ratio, variations in atomic bonding configurations can induce substantial differences in the mechanical behavior of the structures. Although the Cm Si₆N phase satisfies the mechanical stability criteria, its moderate hardness of 8.8 GPa limits its practical relevance as a hardness material; therefore, we will not discuss this structure in detail in the subsequent description of properties. Considering its high hardness, large elastic moduli, and distinctive anisotropic features, the R-3c SiN₄ phase emerges as a promising high-hardness material with superior mechanical performance and was thus selected as the primary candidate for subsequent in-depth analyses.

As can be seen from Figure 1, R-3c SiN₄ has a positive formation enthalpy, which is about 0.238 eV·atom⁻¹ higher than the enthalpy of elemental Si plus nitrogen at 0 K and 0 GPa. After detonation, R-3c SiN₄ may decompose in the following way: SiN₄ (solid) → Si (solid) + 2N₂ (gas). Further calculations show that R-3c SiN₄ can release about 1.1 kJ·g⁻¹ of energy, reaching the standard of high-energy-density materials (1.0 kJ·g⁻¹). Typically, detonation velocities (V_d) and pressures (P_d) provide insights into the material’s explosive power and performance, which can be estimated based on Kamlet–Jacobs empirical equation. This method has been successfully applied to evaluate the explosive properties of nitrides and other energetic materials [45,46,47,48,49]. The corresponding expressions are given below:

V_d = 1.01(N M^0.5 E^d0.5)^0.5(1 + 1.30 ρ)

(2)

P_d = 1.58 ρ² N M 0.5 E_d^0.5

(3)

Herein, N, M, and ρ stand for the concentration of N₂ in terms of moles per gram of explosive material (expressed as mol·g⁻¹), the molecular weight of N₂ gas (equivalent to 28 g·mol⁻¹), and the density (measured in g·cm⁻³), respectively. In the above formulas, the units of gravimetric chemical energy density (E_d) should be converted to kJ·kg⁻¹. In addition, our research results show that R-3c SiN₄ releases a large amount of nitrogen upon detonation, with a detonation pressure of 228 kbar and a detonation velocity of 7.11 km·s⁻¹—both of which exceed those of the famous explosive material trinitrotoluene (TNT, 190 kbar for detonation pressure and 6.90 km·s⁻¹ for detonation velocity) (Table S3) [50,51]. These data demonstrate that R-3c SiN₄ may be a potentially high-energy-density material that exhibits excellent detonation performance.

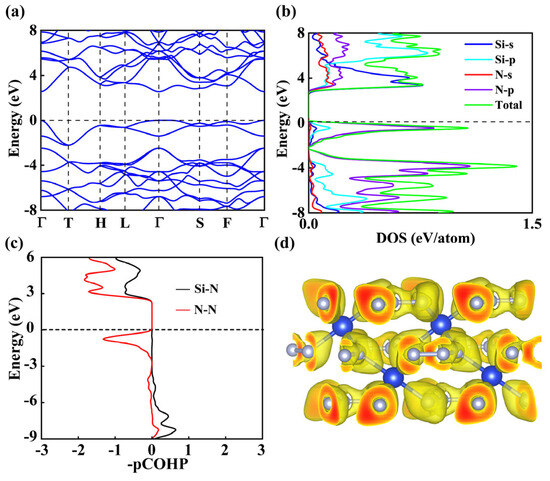

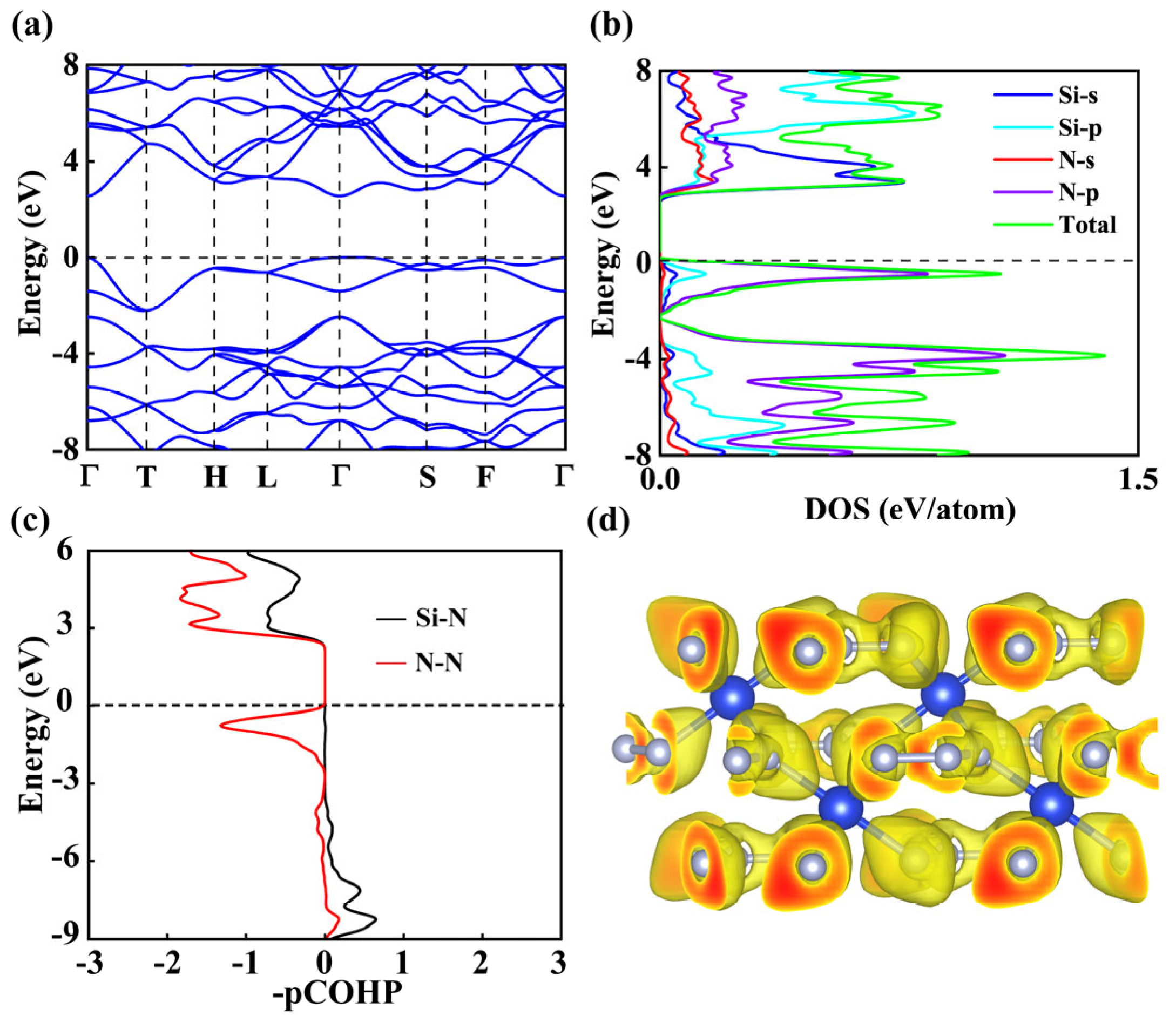

To systematically investigate the electronic properties and bonding characteristics of R-3c SiN₄, we calculated its electronic band structure and density of states (DOS) at ambient pressure, as shown in Figure 4a,b. The band structure reveals a band gap of 2.5 eV, confirming the non-metallic nature of R-3c SiN₄. Further band calculations at 100 GPa show that this structure has a band gap of 2.6 eV, which is almost the same as that at normal pressure, and still maintains non-metallic properties (Figure S3). The analysis of the total and partial DOS indicates that states near the Fermi level are primarily derived from the Si 3s and N 2p orbitals. The Si 3s states exhibit a prominent peak below the Fermi level, while the N 2p orbitals contribute significantly across a similar energy range, indicating strong s-p orbital hybridization. The hybridized orbitals suggest the formation of covalent bonds between Si and N atoms. For comparison, we also examined the P-1 SiN₄ phase, which shows a semiconducting nature with a narrower band gap of 1.4 eV compared to that of R-3c SiN₄ (see Figure S4 in the Supplemental Material).

To further clarify bonding and antibonding interactions, we employed the negative projected Crystal Orbital Hamiltonian population (−pCOHP), a widely used quantum chemical method. As shown in Figure 4c, a significant −pCOHP value appears below the Fermi level, confirming the existence of bonding states. Integral COHP (ICOHP) analysis of the R-3c SiN₄ phase shows that the strength of the nearest-neighbor N–N bond (−14.13 eV per pair) is approximately twice that of the Si–N bond (−5.59 eV·pair⁻¹). Similarly, the Integrated Crystal Orbital Overlap Population (ICOOP) values (0.40 eV per pair for N–N and 0.24 eV·pair⁻¹ for Si–N) indicate that the N–N bond has greater orbital overlap and stronger covalency. The total Madelung (Ewald) energies per atom calculated using Mulliken and Rödinger charges are −4.10 eV and −3.09 eV, respectively, indicating that the contribution of ionic bonds to overall bonding is not negligible. These results indicate that N-N bonds in R-3c SiN₄ dominate covalent interactions, while Si-N bonds play a relatively minor role, leading to a synergistic stabilizing effect of both covalent and ionic components. Covalent bonding behavior was also observed in the −pCOHP diagram of the P-1 SiN₄ phase (Figure S5). For the P-1 SiN₄ phase, the ICOHP value of the nearest-neighbor N-N bond is −14.83 eV·pair⁻¹, approximately twice that of the Si-N bond (−5.96 eV·pair⁻¹), with corresponding ICOOP values of 0.39 and 0.18 eV·pair⁻¹, respectively. The calculated Madelung energies per atom are −4.18 eV (Mulliken) and −2.67 eV (Rödinger), which are nearly identical to those of the R-3c SiN₄ phase. As shown in Table S1, the results suggest that these two phases have similar bonding characteristics, primarily composed of N-N covalent interactions and ionic stabilizing effects.

Further insight into the intrinsic bonding of R-3c SiN₄ was obtained from the ELF (Figure 4d) and Bader charge analysis. The ELF exhibits strong localization around N atoms and along Si–N bonds, confirming the directional covalent nature of these interactions. The pronounced red regions near N highlight the concentration of electron density in these areas. Bader charge analysis showed that each Si atom donates approximately 3e, while only partial N atoms gain about 1e. This is not a complete transfer but rather a covalent sharing of electron density between Si and N atoms, primarily through covalent bonds. This charge redistribution stems from the strong electronegativity of nitrogen atoms, resulting in a shift in electron density toward neighboring N atoms. The Bader charge is consistent with the ELF results and the octahedral network observed in the R-3c SiN₄ structure. These results provide consistent evidence for covalent bonding with significant ionic characteristics in R-3c SiN₄. We also calculated the Bader charge of P-1 SiN₄, which exhibits similar electron transfer characteristics to R-3c SiN₄ as shown in Table S2.

2.4. Dynamic and Thermal Stabilities

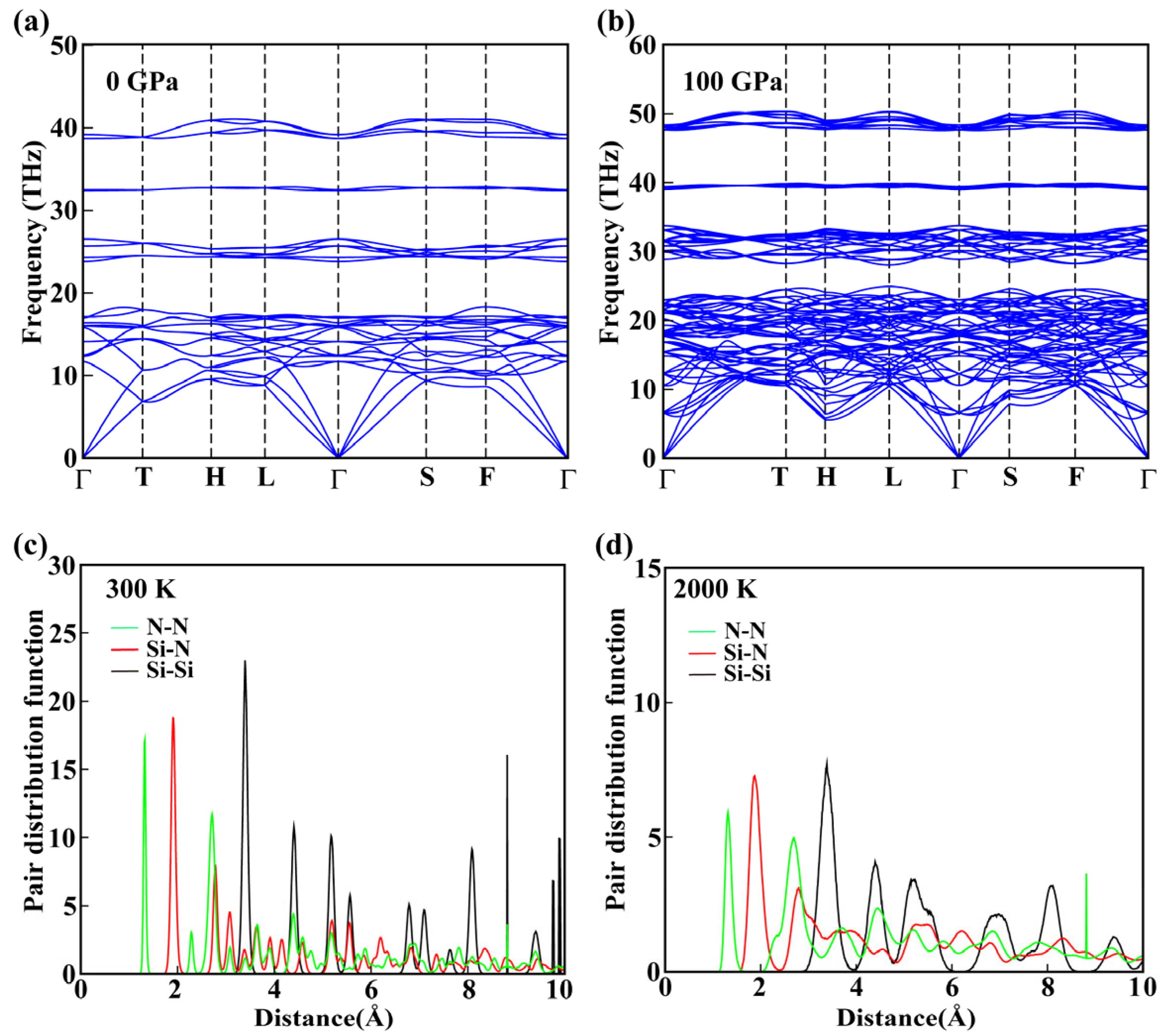

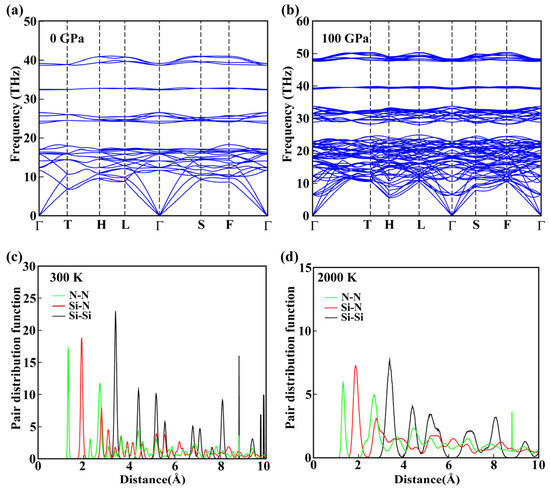

To assess the dynamic stability of R-3c SiN₄, we calculated its phonon dispersion curves at 0 and 100 GPa, as shown in Figure 5a,b. The phonon spectra exhibit no imaginary frequencies along the entire Brillouin zone, confirming the dynamic stability of R-3c SiN₄ under both ambient and high-pressure conditions. Comparison of the phonon patterns reveals that increasing the pressure to 100 GPa shifts all vibration modes to higher frequencies, with a notable enhancement in the intensity of N atom vibrations in the middle and high-frequency regions. This behavior arises from the shortened interatomic distances and increased lattice stiffness under high pressure, which elevates the restoring force constants of atomic vibrations and suppresses the lattice vibrational degrees of freedom. We further computed the phonon spectra of the P-1 SiN₄ phase, which confirms its dynamic stability at 0 GPa (Figure S6).

The thermal stability of R-3c SiN₄ was evaluated using ab initio molecular dynamics (AIMD) simulations at 300 and 2000 K, as shown in Figure 5c,d. Equilibrium structures were extracted from the final steps of the AIMD runs. At 300 K, the bond length distribution for the shortest N–N bond (green line) is 1.32 Å, that for the nearest Si–N bond (red line) is 1.91 Å, and that for the Si–Si distance (black line) is 3.40 Å, which closely match those of the relaxed structure, indicating negligible deviation from the original bond lengths and confirming the stability of R-3c SiN₄ at ambient temperature. At 2000 K, similar behavior is observed: the first peaks of all bond length distributions are aligned with those of the initial structure, demonstrating that the system preserves its bonding network under high-temperature conditions. As shown in Figure S7, the final structures obtained from AIMD simulations at both temperatures maintain the original bonding framework without significant deformation or distortion, confirming that R-3c SiN₄ remains solid and structurally intact up to 2000 K. Pair distribution functions of P-1 SiN₄ at 0 GPa and at 300 and 1000 K are presented in Figure S8. These results indicate excellent thermal stability over a wide temperature range, providing a solid theoretical basis for its potential experimental synthesis and high-temperature applications.

3. Calculation Methods and Details

The search for possible crystal structures was performed using the swarm-intelligence-based evolutionary algorithm as implemented in the CALYPSO code [27,28]. First-principles density functional theory (DFT) calculations [52] were employed to investigate the structural, electronic, elastic, and vibrational properties under high pressure, as well as to evaluate phase stability via total energy calculations. In recent years, DFT calculations, combined with the CALYPSO particle swarm optimization algorithm, have enabled the identification of thermodynamically stable structures given the chemical composition alone. These approaches provide predictive insights into phase stability and serve as a guide for experimental discovery of novel high-pressure materials [9,42,53,54,55,56]. Subsequent first-principles calculations, including structural optimization and electronic structure analyses, were carried out with the Perdew–Burke–Ernzerhof (PBE) [57] functional of the generalized gradient approximation (GGA) [58] as implemented in the Vienna Ab initio Simulation Package (VASP) [59]. The projector augmented wave (PAW) formalism [60] was employed with pseudopotentials explicitly considering the valence electrons, namely 3s²3p² for Si and 2s²2p³ for N. Numerical accuracy was ensured by adopting a plane-wave cutoff energy of 700 eV and a Monkhorst–Pack k-point mesh with a reciprocal space resolution of 2π × 0.025 Å⁻¹, resulting in a total energy convergence better than 1 meV per atom [61]. The elastic moduli were computed using the Voigt–Reuss–Hill averaging method [62,63]. The detonation velocity and pressure were estimated based on the Kamlet-Jacobs Empirical Equation [50,51]. Furthermore, the Vickers hardness was estimated using a microscopic hardness model [33]. The phonon dispersions were calculated using the direct supercell method implemented in the PHONOPY package (V.2.43.6) [64] in conjunction with the VASP code. For the R-3c SiN₄ phase, 80-atom and 100-atom supercells were employed at 0 and 100 GPa, respectively. Ab initio molecular dynamics (AIMD) simulations were performed within the NpT ensemble employing a Langevin thermostat, based on the R-3c SiN₄ supercell model containing 80 atoms [65]. A time step of 1 fs and a total simulation time of 8 ps were used in the molecular dynamics simulations. The electron localization function (ELF) was employed to analyze the electron localization behavior [66], and the results were displayed using the Visualization for Electronic and Structural Analysis (VESTA) software (Version 3) [67]. Chemical bonding characteristics were quantitatively analyzed through Crystal Orbital Hamilton population (COHP), Crystal Orbital Overlap Population (COOP), and Madelung energy calculations performed using the LOBSTER code with the PBEVaspFit2015 basis set [68]. The following basis functions were applied: Si: 3s, 3p and N: 2s, 2p. All calculations employed wavefunctions obtained from VASP using the PBE exchange–correlation functional and the PAW method. Additional computational details are provided in the Supplemental Material.

4. Conclusions

Using first-principles structure prediction methods, we systematically explored the high-pressure phase stability of Si–N compounds, identifying novel thermodynamically stable phases, including SiN₄ and Si₆N. Phase diagram analysis shows that Si₆N stabilizes at ~25 GPa, while SiN₄ becomes stable at ~29 GPa, indicating that their synthesis pressures are relatively low. Notably, SiN₄ with R-3c symmetry remains kinetically and dynamically stable at both ambient and high pressures, and dynamically stable up to 2000 K. Mechanical evaluations reveal exceptional hardness (31 GPa) and high bulk (259.53 GPa), shear (204.23 GPa), and Young’s modulus (485.38 GPa). Its excellent explosive properties make this nitrogen-rich compound a potential high-energy-density material. Electronic structure analysis reveals a band gap of 2.5 eV, characterized by strong covalent bonds. The results demonstrate that R-3c SiN₄ is a high-hardness material that combines high stability, mechanical strength, and high energy density. This work deepens our understanding of the structural, mechanical, and electronic properties of Si–N compounds and provides theoretical guidance for the synthesis of multifunctional nitride materials.
