Tailoring Carbene–Metal–Amides for Thermally Activated Delayed Fluorescence: A Computationally Guided Study on the Effect of Cyclic (Alkyl)(amino)carbenes

by
Nguyen Le Phuoc
1,
Alexander C. Brannan
2,
Alexander S. Romanov
2,* and
Mikko Linnolahti
1,*
1
Department of Chemistry, University of Eastern Finland, FI-80101 Joensuu, Finland
2
Department of Chemistry, University of Manchester, Oxford Rd., Manchester M13 9PL, UK
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(11), 4398; https://doi.org/10.3390/molecules28114398
Submission received: 1 May 2023 / Revised: 25 May 2023 / Accepted: 26 May 2023 / Published: 28 May 2023

Abstract

:
Gold-centered carbene–metal–amides (CMAs) containing cyclic (alkyl)(amino)carbenes (CAACs) are promising emitters for thermally activated delayed fluorescence (TADF). Aiming at the design and optimization of new TADF emitters, we report a density functional theory study of over 60 CMAs with various CAAC ligands, systematically evaluating computed parameters in relation to photoluminescence properties. The CMA structures were primarily selected based on experimental synthesis prospects. We demonstrate that TADF efficiency of the CMA materials originates from a compromise between oscillator strength coefficients and exchange energy (ΔEST). The latter is governed by the overlap of HOMO and LUMO orbitals, where HOMO is localized on the amide and LUMO over the Au–carbene bond. The S0 ground and excited T1 states of the CMAs adopt approximately coplanar geometry of carbene and amide ligands, but rotate perpendicular in the excited S1 states, resulting in degeneracy or near-degeneracy of S1 and T1, accompanied by a decrease in the S1-S0 oscillator strength from its maximum at coplanar geometries to near zero at rotated geometries. Based on the computations, promising new TADF emitters are proposed and synthesized. Bright CMA complex (Et2CAAC)Au(carbazolide) is obtained and fully characterized in order to demonstrate that excellent stability and high radiative rates up to 106 s−1 can be obtained for the gold–CMA complexes with small CAAC–carbene ligands.

Graphical Abstract

1. Introduction

Organic light-emitting diodes (OLEDs) are widely employed in display technology due to their low power consumption and high efficiency in light production, along with other desirable properties. The efficiency of OLEDs relies on the selection of appropriate materials, especially for the emitting layer, which converts electrical energy into light. Emitters operating via fluorescence demonstrate a maximum internal quantum efficiency (IQE) of 25% due to exclusive harvesting of the singlet excitons, while 75% of the “dark” triplet states are lost via non-radiative pathways. Phosphorescent emitters are capable of harvesting both singlet and triplet excitons to achieve 100% efficiency due to large spin–orbit coupling, which originates from the heavy metals in the structure of the phosphorescent organometallic compounds [1]. Unlike commercial red and green PhOLED devices, blue PhOLEDs suffer from poor device operating stability, which makes them incompatible with commercial applications. The blue PhOLED problem is associated with chemical bond dissociation or degradation of the blue phosphorescent material [1], which has a typical excited state lifetime of several microseconds. This is long enough for the bimolecular quenching event to occur, resulting in the formation of high energy excitons (>3 eV) and the degradation of the material [1]. Therefore, in order to develop efficient and stable materials for OLEDs, thermally activated delayed fluorescence (TADF) emitters [2] have been extensively studied, as they demonstrate energy efficiency similar to the phosphorescent emitters in OLED devices [3]. The molecular design for TADF emitters is diverse, holding great promise for the realization of deep blue, energy efficient, and stable OLEDs by designing TADF materials with submicrosecond excited state lifetimes [4].
Carbene–metal–amides (CMAs) [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20] have emerged as a promising class of TADF emitters, thanks to their exceptional photoluminescence (PL) behaviors. These complexes are composed of carbene and amide ligands bridged by a coinage metal, such that the carbene acts as an electron acceptor and the amide as an electron donor. The two-coordinate metal center mediates the electron transfer between the donor and acceptor moieties, while inducing rotational flexibility [5]. The TADF mechanism manifests in CMAs when the singlet excitons decay radiatively with prompt fluorescence and transform into triplet excitons via an intersystem crossing (ISC) process. Simultaneously, low-energy triplet excitons undergo a fast reverse ISC (RISC) to the emissive singlet level, followed by a delayed fluorescence to the ground (S0) state. The efficiency of TADF emitters depends on the energy difference between the lowest excited singlet (S1) and triplet (T1) states, referred to as the exchange energy or singlet–triplet energy gap (ΔEST) [21].
Cyclic (alkyl)(amino)carbenes (CAACs) [22] have recently attracted attention as effective π-acceptor ligands in the design of CMA materials [5,6,7,8,9,10,11,12,13,14,15,16]. The most prominent complex, CMA1 (Figure 1), contains a gold atom as a bridge between a carbazolide ligand and a five-membered CAAC. CMA1 demonstrates a considerably short excited state lifetime of 0.95 µs at ambient temperature with near unity photoluminescence quantum yields (PLQY). The CMA1 OLED emits green light with an external quantum efficiency surpassing 25% [6]. Inspired by CMA1, similar coinage metal complexes have been recently reported [5,7,8,9,10,11,12,13,14,15,16], including CMA-based emitters with a CAAC substituted by groups such as methyl, ethyl (Et), menthyl, adamantyl (Ad), and 2,6-diisopropylphenyl (Dipp) [7,8,9]. For example, the menthyl-CAAC–copper complex exhibits broad emission with near unity quantum efficiency of 100% and a 2.5 µs lifetime, resulting in an efficient blue-emitting OLED device [7], whereas the silver analogue exhibits a significantly shorter emission lifetime (0.33 µs) [8]. Furthermore, CMAs of Cu, Ag, and Au metals based on 6-membered monocyclic and bicyclic CAACs have been reported to manifest quantum yields of up to 100%. Among these, a gold complex contains a bicyclic carbene ligand displays remarkable photostability when subjected to hard and soft UV light [10].
This paper reports a systematic computational study of the effect of CAACs on the PL properties of CMAs. We focus on the design and optimization of new TADF emitters based on carbene–gold–carbazolide complexes, employing density functional theory (DFT) calculations in order to explore the electronic structures of the ground and excited states of the molecules as a function of the structure of CAACs. We describe how the structural modifications of the CAACs affect the calculated parameters that directly relate to PL quantum yield (PLQY), thereby ultimately making proposals for new promising TADF emitters within the CMA family, as well as synthesizing one.

2. Results and Discussion

We begin from CMA1 (Figure 1), the archetypical emitter in the CMA family, which exhibits high PLQY (80–90%) [6]. This molecule has been thoroughly studied elsewhere, both experimentally and computationally [6,23,24,25,26]. We consider CMA1 as our reference structure, summarizing the relevant parameters for evaluation of its PL behavior, which are recomputed here for this purpose using the MN15 [27]/def2-TZVP [28,29] method, with Tamm–Dancoff approximation [30] for time-dependent DFT (TD-DFT) calculations.
The HOMO and LUMO orbitals of CMA1 are visualized in Figure 1, including the percentages of calculated Au contributions to the frontier orbitals, which illustrate localization of HOMO on carbazole (Cz) and LUMO on Au–carbene. These two orbitals mainly contribute to the charge transfer (CT) between the S0 state and the excited S1 and T1 states, as indicated by the Natural Transition Orbitals (NTOs) of the S0-S1 and S0-T1 excitations having HOMO-LUMO characters of 97% and 95%, for S0-S1 and S0-T1 transfer, respectively.
An overlap integral of the HOMO and LUMO orbitals provides a quantitative measure of the spatial separation of the orbitals participating in CT, which is connected to the ΔEST, such that a lower overlap integral indicates a smaller gap [31]. For CMA1, the HOMO and LUMO overlap integral is calculated as 0.36, which appears to be low enough for an efficient TADF mechanism [32], as is observed in the experiments. Vertical excitation energies on optimized S0 geometry are calculated as 3.07 eV for S1 and 2.77 eV for T1, thus obtaining ΔEST = 0.30 eV. The calculations are consistent with broad peaks in the steady-state absorption spectra: namely, at 390 nm (3.15 eV) for amorphous or crystallized CMA1 thin film, and 405 nm (3.06 eV) for CMA1 in toluene solution [26].
The localized triplet excitation (3LE) within the Cz ligand, 3LE(Cz), corresponds to the T2 state, with 92% HOMO-LUMO+3 character, and is calculated as having vertical excitation energy of 3.34 eV—in agreement with the experimental peak at 370 nm (3.35 eV) [26]. The energy of the 3LE state relative to the CT states is of major importance, as it contributes to the emission mechanism. For the sake of efficient TADF, the 3LE state should lie well above the CT states [5].
Upon geometry optimization of the S1 and T1 states of CMA1, the calculated ΔEST decreases from 0.3 eV to 0.16 eV, which is low enough to enable the RISC process [21]. Due to the Stokes shift [33], the calculated energies for fluorescence (S1-S0@S1) and phosphorescence (T1-S0@T1) are lower than the corresponding absorption energies: 2.12 eV vs. 3.07 eV and 2.23 eV vs. 2.77 eV for S1 and T1, respectively. Like the S0 state, the carbene and amide remain nearly coplanar in the relaxed T1 geometry, but adopt a perpendicular orientation in the relaxed S1 geometry (Figure 1). High PLQY requires high oscillator strength coefficients (f or probability to emit electromagnetic radiation) in order for the radiative decay to outpace the nonradiative decay [34], which is hence compromised upon rotation. This is due to the lowering of the oscillator strength coefficients with an increasing torsion angle between the ligands of CMA1. In the nearly coplanar S0 geometry, the S0-S1 oscillator strength (0.1927) is larger compared to the maximum S1-S0 oscillator strength (0.1110) in the twisted S1 geometry. This is due to f being directly proportional to the squared value of the transition dipole moment (|µS1→S0|2) [35], which, in turn, is directly proportional to the overlap integral between HOMO and LUMO. The fully rotated S1 state geometry possesses lower values for both HOMO-LUMO overlap integral and oscillator strength coefficient compared to S1 state in near co-planar geometry, while remaining significantly high at twisted S1 geometries, thereby explaining radiative transitions. This parallels with the lowest calculated ΔEST for the fully rotated S1 geometry (0.16 eV) and the largest (0.29 eV) for the S1 geometry fixed to coplanar orientation between the ligands.
Two more measurements are useful to add for the purpose of this work: namely, electrostatic dipole moments together with Au-C and Au-N bond dissociation energies. In the S0 ground state of CMA1, a dipole of 10.5D is calculated roughly along the C(carbene)–Au–N(amide) axis towards the carbene, reversing its direction in the S1@S0 state, while decreasing in magnitude down to 2.9D. The change arises from the CT character of the S1 state, leading to the electron displacement from the Cz moiety to the carbene moiety [24]. The bond dissociation energies provide measures for the stability of the complexes. For CMA1, the dissociation energies are 394.9 kJ/mol vs. 376.5 kJ/mol for the Au-C and Au-N bond, respectively.
Targeting molecular design strategies for improved PLQY via structure–property relationships, we systematically modified the CAAC ligand of CMA1, as detailed in Figure 2. Since our primary focus was on experimental synthetic prospects, we made the structure selection based on experimentally available carbenes, extending the dataset by hypothetical structures for the sake of a more thorough structural analysis. The structures were modified at positions 1, 2, and 3, while retaining the CAAC-5 backbone.
Regarding position 1, much of the previous work on CAACs has focused on the Dipp structure [6,7,8,11,12,13,14,15,36,37], while the 1,3,5-trimethylphenyl group (Mes) has been reported for N-heterocyclic carbenes (NHC) [17] and for diamidocarbenes [38]. Li et al. [17] synthesized a two-coordinate NHC(Mes)-Cu-Cz complex, which displays unique dual-emissive features from fluorescence (11.24 ns) and long-lived phosphorescence (32 ms) with total PLQY of 12.7%. Therefore, we included an aromatic C6-ring at position 1, substituted with various electron withdrawing and/or electron donating groups in order to evaluate the influence of electron density on the calculated parameters. We also included cyclohexanyl and cyclohexenyl substituents in the same position for comparison with the aromatic ring. Regarding position 2, CMA emitters with groups such as methyl, ethyl, menthyl, and adamantyl substituted on CAAC have been reported [7,8,9]. Particularly, the experimentally synthesized e-6-1 gold complex in the 2-MeTHF solution exhibits a high PLQY of 95% and a 1.2 µs lifetime [8]. In our work, we supplemented the previously reported functional groups with various others in order to evaluate, e.g., π systems at this position. Correspondingly, we evaluated a smaller subset of substituents at position 3, where previous reports concerning CAACs have focused on substituent 1 [5,6,7,8,9,11,12,13,14,15,16].

2.1. Composition of the Frontier Orbitals

All the studied molecules have nearly identical HOMO orbitals, localized on the Cz moiety, which is the same for all complexes. Hence, HOMO is only slightly affected by the studied variations in the CAAC moiety where the calculated Au contributions are around 3%, as in CMA1. The effect is the strongest for position 1, where combining the phenyl group with m-(CF3)2C6H3 substituents at ortho-position (f-1-1) provides the lowest (2.5%), and HSO3 groups at meta-positions (p-1-1 and s-1-1) the second highest (3.4%) contribution of Au.
Because the HOMO remains nearly unchanged, the spatial separation of the frontier orbitals, measured in terms of the HOMO-LUMO overlap integral, depends mainly on the LUMO orbital. Since the LUMO is localized on Au–carbene, the percentage of Au contribution varies strongly as a function of CAAC, ranging from 1% to 16%, and consequently the overlap integral ranges between 0.14 and 0.38. It follows that the Au contribution of LUMO and the overlap integral are strongly correlated—decreasing Au contribution indicates localization of LUMO towards CAAC, and, hence, farther away from the Cz-localized HOMO, increasing spatial separation of the orbitals. Therefore, we simplify the discussion of the effects of structural variations so as to focus on HOMO-LUMO overlap integrals. The results are tabulated in Tables S1–S3.
Position 1 has the strongest influence on the overlap integral, followed by position 2, while position 3 makes little contribution to the LUMO orbital and, hence, to the orbital overlap, as it is located far from the N C ¨ Au center. Concerning position 1, electron-withdrawing and electron-donating substituents play an expectedly major role. The former substituents have a stronger effect, arising from electron withdrawal from Au such that LUMO becomes primarily localized on CAAC at position 1. Combining the phenyl group with electron-withdrawing meta-substituents leads to a reduction in the overlap integral, from 0.31 to 0.14, in the order CF3 (r-1-1) > CCl3 (q-1-1) HSO3 > (p-1-1) > CN (o-1-1) > NO2 (n-1-1), due to the gradual shift in the LUMO distribution from N C ¨ to the substituted phenyl ring (Figure S1). The order of CF3 > HSO3 is reproduced in the presence of methyl-substituents (t-1-1 vs. s-1-1). Electron-donating ortho-NH2-substituents (b-1-1) increase the overlap integral to its maximum value of 0.38 for this dataset. Ortho-substituents, being closest to the CAAC-5 backbone, have a stronger impact than the para-substituents. This is best exemplified by electron-withdrawing fluoroalkyl groups in ortho vs. para positions, where the two ortho-substituents decrease the overlap integral from 0.36 of CMA1 down to 0.23 (f-1-1) or 0.20 (g-1-1), while remaining at 0.33 with the para-substituent (i-1-1), the combination of ortho- and para-substituents (m-1-1) resulting in an overlap integral of 0.21. Direct comparison of CF3 substituents (m-1-1, r-1-1) indicates a stronger effect for the ortho- than for the meta-position. Chloride (l-1-1) has a weaker withdrawing effect, while fluoride (k-1-1), hydroxyl (c-1-1), methoxy (d-1-1), and alkyl groups (e-1-1, h-1-1, and j-1-1) have little effect on the overlap integral, and the same is true for saturation of the phenyl ring (u-1-1, v-1-1, w-1-1).
Concerning position 2, alkyl (1,2) and cycloalkyl (37) groups have no significant effect on the overlap integral. A modest effect arises from the bulky adamantyl (3) at position 2 canceling some of the electron withdrawal at position 1. This is best exemplified by f-1-1 vs. f-3-1, where the overlap integral consequently increases from 0.23 to 0.27. More notable effects are observed for the conjugated rings at position 2, which we explored in conjunction with substituent e at position 1. These substituents tend to shift the LUMO orbital towards position 2, hence lowering the overlap integral, and the effect can be strengthened by ring substitutions. The effect is particularly strong for chlorides, where the maximum effect among the dataset is obtained for e-19-1, the resulting electron withdrawal decreasing the orbital overlap from 0.36 to 0.21. A similar but weaker effect is seen for e-12-1 having fewer chlorides.

2.2. Vertical Excitations

As summarized in Tables S1–S3, vertical S0-S1 excitation energies at optimized S0 geometries are within the visible region, ranging from 1.73 eV to 3.36 eV, i.e., ca. 400–700 nm, while the corresponding S0-T1 energies range from 1.68 eV to 3.14 eV. Based on the NTOs, both the S0-S1 and S0-T1 excitations are characterized primarily as CT from HOMO to LUMO. For S1, HOMO-LUMO accounts for 97 ± 2% of CT in most cases, vs. 97% for CMA1, hence remaining practically unaffected by any of the structural modifications employed in this dataset. T1 shows slightly more variation, but only concerning position 1, where the range of HOMO-LUMO character is 70–95%, the upper limit roughly representing the contribution in CMA1 and in any of its employed structural modifications at positions 2 and 3. Hence, the effects of structural modifications are limited to the substitutions at position 1 having the potential to lower the HOMO-LUMO character of the S0-T1 excitation, where the lower limit of 70% is obtained for f-1-1.
A general overview of S0-S1 and S0-T1 vertical excitation energies is presented in Figure 3. Structural modifications at positions 1, 2, and 3 generally result in S1 states being above the T1 states by an approximate factor of 1.1, indicating that excitation energies are directly proportional to the S1-T1 energy gap. Hence, a low ΔEST, which is desirable for efficient TADF, is most easily achieved when the excitation energies at the lower end of the desired color range. For our dataset, ΔEST ranges between 0.05 and 0.33 eV, vs. 0.30 eV for CMA1, which is known to operate via TADF. From that point of view, TADF cannot be excluded for any of the molecules included here.
As illustrated in Figure 4, ΔEST is strongly correlated with the orbital integral discussed above; thus, it is unnecessary to repeat the discussion of the effects of structural modifications in this context. Likewise, ΔEST is strongly correlated with S0-S1 and S0-T1 excitation energies, as well as with S0-S1 oscillator strength, with a major implication of the desired low ΔEST being unachievable with the desired high oscillator strength. Therefore, compromises are necessary in molecular design for improved PLQY.
In addition, one needs to consider the 3LE(Cz), due to its interference on TADF. This usually corresponds to the T2 state, but is, in some cases, found at higher triplet states, T3-T6. The employed modifications of CAAC have little effect on 3LE(Cz), the energies averaging at 3.34 eV with a standard deviation of 0.04 eV, and are thus much higher than the energy of S1 (Figure 3, Tables S1–S3), which is beneficial for the TADF mechanism [5]. The few exceptions are those having high S1 energy, while for e-17-1, with the highest S1 energy, the order becomes reversed. The 3LE-1CT (and 3LE-3CT) gap is hence strongly correlated to vertical S0-S1 (and S0-T1) excitation energies, as illustrated in Figure 3—the larger the excitation energy, the smaller the gap.

2.3. Electrostatic Dipole Moments

The transition dipole moment, which represents the difference between the ground and excited states, is directly proportional to the square root of the oscillator strength coefficient [35]. Therefore, maximizing the transition dipole moment effectively enhances the oscillator strength. This facilitates the prospect of devising and prognosticating bright CMA materials using this value as a selection criterion.
Our calculated results indicate that, in the S0 ground state, the dipole moment vector points toward the carbene roughly along the C ¨ Au N axis, with a magnitude ranging between 8.7D and 12.7D for this dataset. The direction reverses for the S1@S0 state, originating from the amide–carbene electron rearrangement due to the CT character of the S1 state, as was discussed for CMA1 [24]. At the same time, the magnitude extends over a wider range, 2.5D–14.3D, (Tables S1–S3), but it is usually below 6D, and therefore lower than in the S0 state. Exceptions where S1@S0 is above 6D and comparable in magnitude to S0 arise from ortho-substitution of the phenyl group at position 1 by electron-withdrawing fluoroalkyls (f-1-1, g-1-1, and m-1-1). In the case of strongly electron-withdrawing meta-substituents on the phenyl group at position 1, the magnitude of the S1@S0 dipole reaches its maximum within the dataset of over 13D, hence exceeding the magnitude of the opposite S0 dipole (n-1-1, o-1-1, and p-1-1). Regarding position 2, approximately equal magnitudes of S0 and of S1@S0 dipoles are calculated for Cl- and CF3-substituted e-19-1 and e-20-1, while substitutions at position 3 have, in practice, no effect.

2.4. Au-C and Au-N Bond Dissociation Energies

The calculated bond dissociation energy of the Au-N bond varies between 355 and 398 kJ/mol, while the corresponding range for the Au-C bond is somewhat wider, 365–420 kJ/mol, which is due to focus of this work on the modification of CAAC, rather than on the amide ligand. Both bonds are stabilized particularly by HSO3 groups on the phenyl ring at position 1 (p-1-1 and s-1-1) and OCH3 groups on the aromatic rings at position 2 (e-17-1), and correspondingly destabilized by halogens and electron-withdrawing fluoroalkyls substituted to the rings. Comparing the Au-C and Au-N bond dissociation energies, the former are systematically higher, by 5% on average.

2.5. S1 and T1 Excited State Optimizations

Subsequently, we selected promising candidates for the study of emissions by fluorescence and phosphorescence, which required geometry optimizations of the excited S1 and T1 states, respectively. The selection was made based on consideration of ∆EST, oscillator strength and the HOMO-LUMO overlap integral, while the fourth decisive criterion, that 3LE must not interfere with the charge transfer, is satisfied by almost all studied complexes (Figure 3). For ∆EST, we set a threshold of 0.27 eV so as to be measurably lower than that of our reference, CMA1 (0.30 eV). The threshold for oscillator strength was set at 0.13, which is lower than for CMA1 (0.1927), thus compromising oscillator strength in favor of ∆EST. For the overlap integral, strongly correlating with ∆EST, the threshold was set at 0.32, and hence measurably lower than for CMA1 (0.36). Based on these three criteria, six complexes were selected for excited state geometry optimizations: f-1-1, f-5-1, r-1-1, e-8-1, e-12-1, and e-18-1 (Figure 5).
The optimized excited state energies are summarized in Table 1, with corresponding vertical excitations included for comparison. The carbene and amide ligands remain nearly coplanar in the optimized T1 geometries, analogous to the S0 ground state, but rotate perpendicular to each other in the S1 geometries. The rotation significantly lowers the S1 energy such that S1 and T1 energy levels reach degeneracy for f-1-1, f-5-1, and r-1-1 and near-degeneracy for e-8-1, e-12-1, and e-18-1, where ΔEST ranges from 0.10 eV to 0.14 eV, and is thus lower than for the reference CMA1 (0.16 eV). The 3LE energy remains nearly constant and desirably high above the CT states. The S1-S0 oscillator strength decreases to almost zero at full rotation, while reaching its maximum value at a fixed coplanar orientation of carbene and amide, such that twisted geometry is required for efficient fluorescence. Among the studied complexes, a full rotation to coplanarity requires 0.12–0.27 eV energy, thus bringing ΔEST to the range of 0.2–0.3 eV, i.e., the magnitude calculated for the vertical excitations, which is low enough for efficient TADF.
For complexes lacking a bulky group in position 2 (f-1-1, f-5-1, and r-1-1), the oscillator strength remains lower at the coplanar orientation, while for the bulky e-substituents (e-8-1, e-12-1, and e-18-1), the maximum oscillator strength is calculated as being comparable to or even higher than that for CMA1 (0.1110). The latter substituents are calculated to emit fluorescence well within the visible region, 2.0–2.3 eV, corresponding roughly to an orange–green color.

2.6. Synthesis, Structure, and Photophysical Properties for e-2-1

Finally, we develop our discussion and focus more on the factor of the steric protection of the metal atom in the CMA complexes. We and others recently demonstrated the importance of the bulky groups in position 2 in order to obtain bright CMA emitters [6,7,39]. It has been demonstrated that an increase in the steric protection of position 2 (methyl < ethyl < cyclohexyl < adamantyl < menthyl) results in an increase in the PLQY values, from 30% up to 100% in a series of copper CMA complexes analogous to CMA1. Distortion of the linear geometry around the metal atom (or Renner–Teller distortion [10,18]) results in poor quantum yields in the case of the less sterically protected CMA–copper complexes. We synthesized and fully characterized the gold complex e-2-1, with two ethyl groups in position 2, comparing it with the reference CMA1, which contains a bulky adamantyl, AdCAAC-carbene. Complex e-2-1 is obtained from the (Et2CAAC)AuCl and carbazole in the presence of the KOtBu base in 82% yield. It is fully spectroscopically characterized and demonstrates stability in air for months. The molecular structure of e-2-1 was confirmed by single-crystal X-ray diffraction (Figure 6). Complexes e-2-1 and CMA1 have a similar two-coordinate geometry for the gold atom, with negligible deviation from linearity, with differences in Au-C and Au-N bond lengths laying within the error of the experiment. The torsion angle (C1-N1-N2-C23, Figure 6) between carbene and carbazole ligands for e-2-1 is ca. 15.1(1)°, which is close to the 17.7(2)° of CMA1, indicating the near coplanar orientation of the ligands.
The thermal stability of the complex was evaluated with thermogravimetric analysis (TGA, under nitrogen, Figure 6b). The decomposition temperature (Td) for the gold complex e-2-1 is 304.5 °C, which is 30 °C lower than that for CMA1 (334 °C). Thereafter, we performed the photostability test for complex e-2-1 in a PS matrix with 1% concentration by weight under nitrogen, while irradiating the sample with hard UV light at 290 nm using a 75 W xenon lamp. Complex e-2-1 shows excellent photostability LT96 = 120 min (Figure 6c), without any noticeable degradation. Similar CMA complexes [10] with monocyclic CAAC (LT50 = 90 min) and bicyclic BiCAAC (LT85 = 150 min) carbene ligands exhibit greater or comparable photostability to the 290 nm UV light exposure when compared with complex e-2-1. Our results indicate that complex e-2-1 is highly suitable for the fabrication of the OLED, while holding a great promise for improving the operational stability of the OLED device.
The redox behavior of e-2-1 was analyzed in THF solution using [nBu4N]PF6 as the supporting electrolyte (Figure S5, Table S5). Complex e-2-1 shows a quasi-reversible, carbene ligand-centered reduction process at E1/2 value −2.72 V. All oxidation processes are centered on the carbazole (similar to CMA1) and irreversible, with Ep values at +0.15, +0.37, and +0.93 V (Table S5). The redox potentials and energy levels of HOMO (−5.61 eV) and LUMO (−2.67 eV) for e-2-1 are similar to those of CMA1. The UV-vis absorption spectra in solvents with different polarity (Figure 7a) show a broad L(M)L charge transfer absorption. Negative solvatochromism for the L(M)L CT band is characteristic for the CMA complexes. We measured a 65 nm blue shift upon an increase in the solvent polarity from methylcyclohexane (MCH) to dichloromethane (DCM, Figure 7a).
The PL spectra were measured in toluene solution and PS matrix at 295 and 77K (Table 2 and Figure 7b,c). Compound e-2-1 shows a broad CT PL profile with up to 14 nm blue shift in both toluene (484 nm) and PS matrix (518 nm) compared to CMA1 (Table 2). The excited state lifetime is ca. 1.1 µs, which is only slightly shorter compared to that of CMA1 (ca. 1.2 µs). Upon cooling to 77K, the e-2-1 PL spectra are blue-shifted to 425 nm, while exhibiting a vibronically resolved profile indicative of a significant contribution in PL from both CT and 3LE(Cz) states, where the 3LE(Cz) contribution is clearly visible after applying a 500 µs delay (Figure 7d). The frozen toluene solution for the excited state lifetime of e-2-1 increased to several hundred microseconds, although it is shorter than that of CMA1 (301 µs at 77K). The energy difference between CT and 3LE(Cz) states is slightly smaller for compound e-2-1 (0.16 eV) compared with CMA1 (0.19 eV), while the 3LE(Cz) state is higher in energy compared with CT state for both complexes (Table 2). The steric protection of the metal center in the CMA complexes is usually considered as an important factor to rationalize high observed PLQY (Φ) values in solutions. However, the less sterically protected complex e-2-1 shows unity PLQY values in toluene solution similar to those of the archetype CMA1 complex (Table 2), or three-fold higher PLQY values compared to copper-based analogue of e-2-1 [7]. Unity PLQY values, together with a shorter excited state lifetime for the e-2-1 complex, result in spectacular radiative rates approaching 106 s−1. Such a difference in PL performance for e-2-1 can be associated with a stronger preference for the gold(I) complexes to retain linear geometry, thus avoiding Renner–Teller distortion. This, together with the higher spin–orbit coupling values for gold compared with copper complexes, may outcompete the importance of the steric protection for the gold complexes. This enables the use of much more affordable CAAC carbenes with smaller substituents compared with bulky and expensive adamantyl-substituted CAAC carbenes.

3. Materials and Methods

3.1. Computational Details

Gas-phase DFT calculations of CMAs were carried out using the global hybrid MN15 functional by Truhlar and coworkers [27], in combination with the def2-TZVP basis set by Ahlrichs and coworkers [28,29]. The relativistic effective core potential of 60 electrons was used to describe the core electron of Au [40]. The ground states were studied by DFT, and the excited states by TD-DFT [41], using Tamm–Dancoff approximation [30]. The employed method provides excited state energies that do not suffer from the underestimation typical for TD-DFT [42,43], as indicated by previous calculations of CMAs [7,11,16], as well as by earlier comparison to T1 energies calculated by unrestricted DFT, such that the unrestricted and TD-DFT T1 energies differed by only 0.004 eV [25]. All calculations were carried out by Gaussian 16 [44]. Metal contributions to HOMO and LUMO were calculated by the Mulliken population analysis, and HOMO-LUMO overlap integrals were calculated using the Multiwfn program [45].

3.2. Experimental Details

Synthesis of e-2-1: In a Schlenk flask, (Et2CAAC)AuCl [39] (1 mmol, 545 mg), carbazole (1 mmol, 168 mg), and tBuOK (1 mmol, 112 mg) in THF (20 mL) were stirred for 8 h. The mixture was evaporated, extracted with CH2Cl2, and filtered through Celite®. The filtrate was concentrated and washed with hexane to afford the pure product as an off-white solid. Yield: 554 mg (0.82 mmol; 82%).
1H NMR (500 MHz, CD2Cl2): δ 7.94 (d, J = 7.6 Hz, 2H, CH Cz), 7.65 (t, J = 7.8 Hz, 1H, CH-aromatic CAAC), 7.45 (d, J = 7.6 Hz, 2H, CH-aromatic CAAC), 7.12 (t, J = 9 Hz, 2H, CH Cz), 6.94–6.91 (m, 4H, overlapping CH Cz), 2.97 (sept, J = 6.7 Hz, 2H, CH(CH3)2), 2.17 (s, 2H, CH2), 2.13–2.00 (m, 4H, CH2CH3), 1.48 (s, 6H, 2CH3), 1.38 (d, J = 6.7 Hz, 6H, CH(CH3)2), 1.35 (d, J = 6.7 Hz, 6H, CH(CH3)2), 1.22 (t, J = 7.5 Hz, 6H, CH2CH3) ppm. 13C NMR (125 MHz, CD2Cl2): δ 242.2 (C carbene), 150.0 (Cipso, Cz), 146.2 (Cipso), 135.6 (Cipso), 130.1 (p-CH CAAC), 125.6 (m-CH), 124.3 (Cipso, Cz), 123.7 (CH, Cz), 119.5 (CH, Cz), 116.2 (CH, Cz), 114.1 (CH, Cz), 80.5 (Cq), 62.7 (Cq), 42.7 (CH2), 32.2 (CH2), 29.6 (CH3), 29.5 (CH3), 26.7 (CH), 23.1 (CH3), 9.8 (CH2CH3) ppm. Anal. Calcd. for C34H43AuN2 (676.70): C, 60.35; H, 6.41; N, 4.14. Found: C, 60.61; H, 6.53; N, 4.20. C34H44AuN2 theoretical [M+H+] = 677.3165, HRMS (APCI(ASAP)) = 677.3172.

4. Conclusions

In summary, we have carried out a DFT study of over 60 CMA complexes in order to evaluate their potential as TADF emitters, focusing on the specific effects of the CAAC ligand. Several parameters that have been previously shown to be important for the PL properties of this family of complexes were studied as a function of CAAC, where the choice of its structural modifications was primarily based on experimental synthesis prospects. As a consequence, a diverse dataset of structures was generated, encompassing their predicted photoluminescence properties, and serving as the basis for making selections for the synthesis of efficient CMA emitters for OLED devices. However, we note that modification of the CAAC ligand alone offers limited design strategies, such that future computational work will need to focus on the combined effect of the CAAC and amide ligands.
We demonstrated that the properties of the CMAs are governed by the overlap integral between the HOMO and LUMO orbitals, where the HOMO is localized on the amide and the LUMO along the metal–carbene bond. The HOMO-LUMO transition accounts for nearly 100% of the charge transfer between the ground state and the lowest excited states. The states corresponding to localized triplet excitations usually lie well above the CT states. The HOMO-LUMO overlap was shown to be strongly correlated with vertical S0-S1 and S0-T1 excitation energies, exchange energies, and S0-S1 oscillator strength coefficients. The optimal combination of low exchange energy and high oscillator strength serves as a compromise required in order to design a bright CMA emitter.
Prioritizing low exchange energy over oscillator strength in making the compromise, we selected six CMAs for the geometry optimization of T1 and S1 states. The former relaxes to geometry analogous to S0, having carbene and amide nearly coplanar, while the latter rotate to perpendicular orientation, lowering both exchange energy and oscillator strength to near zero. Efficient fluorescence thus requires rotation toward coplanarity, which comes at the cost of increasing exchange energy. The highest oscillator strength coefficients are calculated for the CMA complexes with bulky substituents on the CAAC ligand.
Guided by the computational results, we synthesized and obtained a novel CMA complex, e-2-1, with spectacular luminescence properties (up to unity PLQY values and one microsecond excited state lifetime). We demonstrated that we could use much more affordable CAAC ligands with little steric protection. For instance, an ethyl-substituted CAAC-carbene is already sufficient to obtain gold-based CMA complexes with excellent performance. This finding paves the way towards more environmentally friendly and more sustainable production of the CMA complexes by eliminating the need for complex, multistep synthesis towards CAAC-carbenes with bulky substituents (such as adamantyl, menthyl, and others). Excellent photo and thermal stability of the CMA complex e-2-1 makes it highly suitable for the fabrication of the OLED, while holding great promise for improving the operational stability of the OLED device.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28114398/s1, Figure S1: LUMO orbitals of complexes modified at positions 1 and 3; Figure S2: Schematic energy of e-8-1, e-12-1, and e-18-1 complexes: (a) vertical excitation energies indicated by the upward arrows; (b) energy levels at optimized S1 and T1 geometries with fluorescence (left) and phosphorescence (right) indicated by the downward arrows; Table S1: Calculated parameters for complexes modified at position 1; Table S2: Calculated parameters for complexes modified at position 2; Table S3: Calculated parameters for complexes modified at position 3; Figure S3: 1H NMR (500 MHz, CD2Cl2) for e-2-1; Figure S4: 13C NMR (125 MHz, CD2Cl2) for e-2-1; Table S4: UV-vis data for e-2-1 in various solvents; Figure S5: Full range cyclic voltammogram for e-2-1. Recorded using a glassy carbon electrode in THF solution (1.4 mM) with [n-Bu4N]PF6 as supporting electrolyte (0.13 M), scan rate 0.1 Vs−1; Table S5: Formal electrode potentials (peak position Ep for irreversible and E1/2 for quasi-reversible processes (*), V, vs. FeCp2), onset potentials (E, V, vs. FeCp2), peak-to-peak separation, in parentheses for quasi-reversible processes (ΔEp in mV), EHOMO/ELUMO (eV), and band gap values (ΔE, eV) for the redox changes exhibited. Refs. [46,47] cited in SM file.

Author Contributions

Conceptualization, A.S.R. and M.L.; methodology, A.S.R. and M.L.; investigation, N.L.P. and A.C.B.; resources, A.S.R. and M.L.; writing—original draft preparation, N.L.P. and A.C.B.; writing—review and editing, A.S.R. and M.L.; visualization, N.L.P.; supervision, A.S.R. and M.L. All authors have read and agreed to the published version of the manuscript.

Funding

N.L.P. acknowledges the Doctoral Programme in Science, Technology, and Computing (Sciteco, University of Eastern Finland), decision 264/2021. A.S.R. acknowledges the support from the Royal Society (grant nos. URF\R1\180288 and RGF\EA\181008). M.L. acknowledges the Academy of Finland Flagship Programme, Photonics Research and Innovation (PREIN), decision 320166.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Cartesian coordinates of optimized structures for reproduction of the computations are available as Supplementary Materials.

Acknowledgments

DFT computations were made possible by use of the Finnish Grid and Cloud Infrastructure resources (urn:nbn:fi:research-infras-2016072533).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of complex e-2-1 are available from the authors.

References

  1. Yersin, H.; Rausch, A.F.; Czerwieniec, R.; Hofbeck, T.; Fischer, T. The triplet state of organo-transition metal compounds. Triplet harvesting and singlet harvesting for efficient OLEDs. Coord. Chem. Rev. 2011, 255, 2622–2652. [Google Scholar] [CrossRef]
  2. Uoyama, H.; Goushi, K.; Shizu, K.; Nomura, H.; Adachi, C. Highly efficient organic light-emitting diodes from delayed fluorescence. Nature 2012, 492, 234–238. [Google Scholar] [CrossRef]
  3. Wong, M.Y.; Zysman-Colman, E. Purely Organic Thermally Activated Delayed Fluorescence Materials for Organic Light-Emitting Diodes. Adv. Mater. 2017, 29, 1605444. [Google Scholar] [CrossRef]
  4. Hong, G.; Gan, X.; Leonhardt, C.; Zhang, Z.; Seibert, J.; Busch, J.M.; Bräse, S. A Brief History of OLEDs—Emitter Development and Industry Milestones. Adv. Mater. 2021, 33, 2005630. [Google Scholar] [CrossRef] [PubMed]
  5. Reponen, A.-P.M.; Chotard, F.; Lempelto, A.; Shekhovtsev, V.; Credgington, D.; Bochmann, M.; Linnolahti, M.; Greenham, N.C.; Romanov, A.S. Donor N-Substitution as Design Principle for Fast and Blue Luminescence in Carbene-Metal-Amides. Adv. Opt. Mater. 2022, 10, 2200312. [Google Scholar] [CrossRef]
  6. Di, D.; Romanov, A.S.; Yang, L.; Richter, J.M.; Rivett, J.P.; Jones, S.; Thomas, T.H.; Jalebi, M.A.; Friend, R.H.; Linnolahti, M.; et al. High-performance light-emitting diodes based on carbene-metal-amides. Science 2017, 356, 159–163. [Google Scholar] [CrossRef]
  7. Hamze, R.; Peltier, J.L.; Sylvinson, D.; Jung, M.; Cardenas, J.; Haiges, R.; Soleilhavoup, M.; Jazzar, R.; Djurovich, P.I.; Bertrand, G.; et al. Eliminating nonradiative decay in Cu(I) emitters: >99% quantum efficiency and microsecond lifetime. Science 2019, 363, 601–606. [Google Scholar] [CrossRef]
  8. Hamze, R.; Shi, S.; Kapper, S.C.; Muthiah Ravinson, D.S.; Estergreen, L.; Jung, M.-C.; Tadle, A.C.; Haiges, R.; Djurovich, P.I.; Peltier, J.L.; et al. “Quick-Silver” from a Systematic Study of Highly Luminescent, TwoCoordinate, d10 Coinage Metal Complexes. J. Am. Chem. Soc. 2019, 141, 8616–8626. [Google Scholar] [CrossRef]
  9. Jazzar, R.; Soleilhavoup, M.; Bertrand, G. Cyclic (Alkyl)- and (Aryl)-(amino)carbene Coinage Metal Complexes and Their Applications. Chem. Rev. 2020, 120, 4141–4168. [Google Scholar] [CrossRef] [PubMed]
  10. Chotard, F.; Sivchik, V.; Linnolahti, M.; Bochmann, M.; Romanov, A.S. Mono- versus Bicyclic Carbene Metal Amide Photoemitters: Which Design Leads to Best Performance? Chem. Mater. 2020, 32, 6114–6122. [Google Scholar] [CrossRef]
  11. Romanov, A.S.; Jones, S.T.E.; Yang, L.; Conaghan, P.J.; Di, D.; Linnolahti, M.; Credgington, D.; Bochmann, M. Mononuclear Silver Complexes for Efficient Solution and Vacuum-Processed OLEDs. Adv. Opt. Mater. 2018, 6, 1801347. [Google Scholar] [CrossRef]
  12. Hossain, J.; Akhtar, R.; Khan, S. Luminescent coinage metal complexes of carbenes. Polyhedron 2021, 201, 115151. [Google Scholar] [CrossRef]
  13. Conaghan, P.J.; Menke, S.M.; Romanov, A.S.; Jones, S.T.E.; Pearson, A.J.; Evans, E.W.; Bochmann, M.; Greenham, N.C.; Credgington, D. Efficient Vacuum-Processed Light-Emitting Diodes Based on Carbene–Metal–Amides. Adv. Mater. 2018, 30, 1802285. [Google Scholar] [CrossRef] [PubMed]
  14. Conaghan, P.J.; Matthews, C.S.B.; Chotard, F.; Jones, S.T.E.; Greenham, N.C.; Bochmann, M.; Credgington, D.; Romanov, A.S. Highly efficient blue organic light-emitting diodes based on carbene-metal-amides. Nat. Commun. 2020, 11, 1758. [Google Scholar] [CrossRef] [PubMed]
  15. Romanov, A.S.; Jones, S.T.E.; Gu, Q.; Conaghan, P.J.; Drummond, B.H.; Feng, J.; Chotard, F.; Buizza, L.; Foley, M.; Linnolahti, M.; et al. Carbene metal amide photoemitters: Tailoring conformationally flexible amides for full color range emissions including white-emitting OLED. Chem. Sci. 2020, 11, 435–446. [Google Scholar] [CrossRef]
  16. Romanov, A.S.; Yang, L.; Jones, S.T.E.; Di, D.; Morley, O.J.; Drummond, B.H.; Reponen, A.P.M.; Linnolahti, M.; Credgington, D.; Bochmann, M. Dendritic Carbene Metal Carbazole Complexes as Photo-Emitters for Fully Solution-Processed OLEDs. Chem. Mater. 2019, 31, 3613–3623. [Google Scholar] [CrossRef]
  17. Li, J.; Wang, L.; Zhao, Z.; Li, X.; Yu, X.; Huo, P.; Jin, Q.; Liu, Z.; Bian, Z.; Huang, C. Two-Coordinate Copper(I)/NHC Complexes: Dual-Emissive Property and Ultralong Room-Temperature Phosphorescence. Angew. Chem. Int. Ed. 2020, 59, 8210–8217. [Google Scholar] [CrossRef] [PubMed]
  18. Shi, S.; Jung, M.C.; Coburn, C.; Tadle, A.; Sylvinson, M.R.D.; Djurovich, P.I.; Forrest, S.R.; Thompson, M.E. Highly Efficient Photo- and Electroluminescence from Two-Coordinate Cu(I) Complexes Featuring Nonconventional N-Heterocyclic Carbenes. J. Am. Chem. Soc. 2019, 141, 3576–3588. [Google Scholar] [CrossRef]
  19. Gildner, M.B.; Hudnall, T.W. Cyclic (aryl)(amido)carbenes: Pushing the π-acidity of amidocarbenes through benzannulation. Chem. Commun. 2019, 55, 12300–12303. [Google Scholar] [CrossRef]
  20. Gernert, M.; Balles-Wolf, L.; Kerner, F.; Müller, U.; Schmiedel, A.; Holzapfel, M.; Marian, C.M.; Pflaum, J.; Lambert, C.; Steffen, A. Cyclic (Amino)(aryl)carbenes Enter the Field of Chromophore Ligands: Expanded π System Leads to Unusually Deep Red Emitting CuI Compounds. J. Am. Chem. Soc. 2020, 142, 8897–8909. [Google Scholar] [CrossRef]
  21. Liu, Y.; Li, C.; Ren, Z.; Yan, S.; Bryce, M. All-organic thermally activated delayed fluorescence materials for organic light-emitting diodes. Nat. Rev. Mater. 2018, 3, 18020. [Google Scholar] [CrossRef]
  22. Lavallo, V.; Canac, Y.; Präsang, C.; Donnadieu, B.; Bertrand, G. Stable Cyclic (Alkyl)(Amino)Carbenes as Rigid or Flexible, Bulky, Electron-Rich Ligands for Transition-Metal Catalysts: A Quaternary Carbon Atom Makes the Difference. Angew. Chem. Int. Ed. 2005, 44, 5705–5709. [Google Scholar] [CrossRef]
  23. Thompson, S.; Eng, J.; Penfold, T.J. The intersystem crossing of a cyclic (alkyl)(amino) carbene gold (i) complex. J. Chem. Phys. 2018, 149, 14304. [Google Scholar] [CrossRef] [PubMed]
  24. Hall, C.R.; Romanov, A.S.; Bochmann, M.; Meech, S.R. Ultrafast Structure and Dynamics in the Thermally Activated Delayed Fluorescence of a Carbene-Metal-Amide. J. Phys. Chem. Lett. 2018, 9, 5873–5876. [Google Scholar] [CrossRef] [PubMed]
  25. Feng, J.; Yang, L.; Romanov, A.S.; Ratanapreechachai, J.; Reponen, A.M.; Jones, S.T.E.; Linnolahti, M.; Hele, T.J.H.; Köhler, A.; Bässler, H.; et al. Environmental Control of Triplet Emission in Donor–Bridge–Acceptor Organometallics. Adv. Funct. Mater. 2020, 30, 1908715. [Google Scholar] [CrossRef]
  26. Feng, J.; Taffet, E.J.; Reponen, A.-P.M.; Romanov, A.S.; Olivier, Y.; Lemaur, V.; Yang, L.; Linnolahti, M.; Bochmann, M.; Beljonne, D.; et al. Carbene-Metal-Amide Polycrystalline Materials Feature Blue Shifted Energy yet Unchanged Kinetics of Emission. Chem. Mater. 2020, 32, 4743–4753. [Google Scholar] [CrossRef]
  27. Yu, H.S.; He, X.; Li, S.L.; Truhlar, D.G. MN15: A Kohn–Sham global-hybrid exchange–correlation density functional with broad accuracy for multi-reference and single-reference systems and noncovalent interactions. Chem. Sci. 2016, 7, 5032–5051. [Google Scholar] [CrossRef] [PubMed]
  28. Weigend, F.; Häser, M.; Patzelt, H.; Ahlrichs, R. RI-MP2: Optimized auxiliary basis sets and demonstration of efficiency. Chem. Phys. Lett. 1998, 294, 143–152. [Google Scholar] [CrossRef]
  29. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef]
  30. Hirata, S.; Head-Gordon, M. Time-dependent density functional theory within the Tamm–Dancoff approximation. Chem. Phys. Let. 1999, 314, 291–299. [Google Scholar] [CrossRef]
  31. Endo, A.; Ogasawara, M.; Takahashi, A.; Yokoyama, D.; Kato, Y.; Adachi, C. Thermally Activated Delayed Fluorescence from Sn4+–Porphyrin Complexes and Their Application to Organic Light Emitting Diodes—A Novel Mechanism for Electroluminescence. Adv. Mater. 2009, 21, 4802–4806. [Google Scholar] [CrossRef] [PubMed]
  32. Chen, T.; Zheng, L.; Yuan, J.; An, Z.; Chen, R.; Tao, Y.; Li, H.; Xie, X.; Huang, W. Understanding the Control of Singlet-Triplet Splitting for Organic Exciton Manipulating: A Combined Theoretical and Experimental Approach. Sci. Rep. 2015, 5, 10923. [Google Scholar] [CrossRef] [PubMed]
  33. Gispert, J.R. Coordination Chemistry, 1st ed.; Wiley–VCH: Weinheim, Germany, 2008; p. 483. [Google Scholar]
  34. Robinson, J.W. Atomic Spectroscopy, 2nd ed.; Marcel Dekker Inc.: New York, NY, USA, 1996; p. 26. [Google Scholar]
  35. Kanzler, A.W.; Sun, H.; Freed, K.F. Dipole moments, transition moments, oscillator strengths, radiative lifetimes, and overtone intensities for CH and CH+ as computed by quasi-degenerate many-body perturbation theory. Int. J. Quantum Chem. 1991, 39, 269–286. [Google Scholar] [CrossRef]
  36. Soleilhavoup, M.; Bertrand, G. Cyclic (Alkyl)(Amino)Carbenes (CAACs): Stable Carbenes on the Rise. Acc. Chem. Res. 2015, 48, 256–266. [Google Scholar] [CrossRef]
  37. Roy, S.; Mondal, K.C.; Roesky, H.W. Cyclic Alkyl(amino) Carbene Stabilized Complexes with Low Coordinate Metals of Enduring Nature. Acc. Chem. Res. 2016, 49, 357–369. [Google Scholar] [CrossRef]
  38. Vujkovic, N.; César, V.; Lugan, N.; Lavigne, G. An Ambidentate Janus-Type Ligand System Based on Fused Carbene and Imidato Functionalities. Chem. Eur. J. 2011, 17, 13151–13155. [Google Scholar] [CrossRef]
  39. Romanov, A.S.; Becker, C.R.; James, C.E.; Di, D.; Credgington, D.; Linnolahti, M.; Bochmann, M. Copper and Gold Cyclic (Alkyl)(amino)carbene Complexes with Sub-Microsecond Photoemissions: Structure and Substituent Effects on Redox and Luminescent Properties. Chem. Eur. J. 2017, 23, 4625–4637. [Google Scholar] [CrossRef]
  40. Andrae, D.; Häußermann, U.; Dolg, M.; Stoll, H.; Preuß, H. Energy-adjustedab initio pseudopotentials for the second and third row transition elements. Theoret. Chim. Acta 1990, 77, 123–141. [Google Scholar] [CrossRef]
  41. Furche, F.; Rappoport, D. Density Functional Methods for Excited States: Equilibrium Structure and Electronic Spectra. In Computational Photochemistry; Olivuccim, M., Ed.; Elsevier: Amsterdam, The Netherlands, 2005; Volume 16, pp. 93–128. [Google Scholar]
  42. Dreuw, A.; Head-Gordon, M. Single-Reference ab Initio Methods for the Calculation of Excited States of Large Molecules. Chem. Rev. 2005, 105, 4009–4037. [Google Scholar] [CrossRef]
  43. Moore, B.; Sun, H.; Govind, N.; Kowalski, K.; Autschbach, J. Charge-Transfer Versus Charge-Transfer-Like Excitations Revisited. J. Chem. Theory Comput. 2015, 11, 3305–3320. [Google Scholar] [CrossRef]
  44. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R. Gaussian 16; Revision A. 03; Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  45. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  46. Gritzner, G.; Kůta, J. Recommendations on reporting electrode potentials in nonaqueous solvents: IUPC commission on electrochemistry. Electrochim. Acta. 1984, 29, 869–873. [Google Scholar] [CrossRef]
  47. Cardona, C.M.; Li, W.; Kaifer, A.E.; Stockdale, D.; Bazan, G.C. Electrochemical Considerations for Determining Absolute Frontier Orbital Energy Levels of Conjugated Polymers for Solar Cell Applications. Adv. Mater. 2011, 23, 2367–2371. [Google Scholar] [CrossRef] [PubMed]

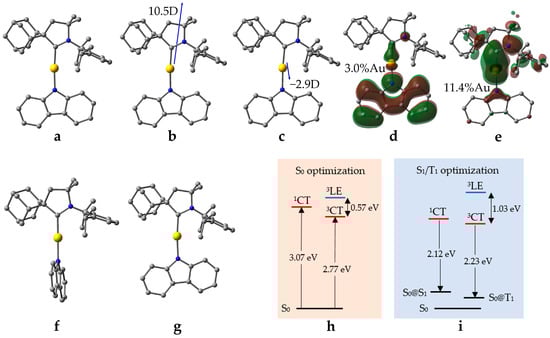

Figure 1. Computed structures and properties of CMA1: (a) optimized S0 ground state; (b) dipole moments for S0 and (c) S1@S0 geometry; (d) the highest occupied molecular (HOMO) and (e) lowest unoccupied molecular (LUMO) orbitals; (f) optimized S1; (g) optimized T1; (h) vertical excitation energies indicated by the upward arrows; (i) energy levels at optimized S1 and T1 geometries with fluorescence (left) and phosphorescence (right) indicated by the downward arrows.
Figure 1. Computed structures and properties of CMA1: (a) optimized S0 ground state; (b) dipole moments for S0 and (c) S1@S0 geometry; (d) the highest occupied molecular (HOMO) and (e) lowest unoccupied molecular (LUMO) orbitals; (f) optimized S1; (g) optimized T1; (h) vertical excitation energies indicated by the upward arrows; (i) energy levels at optimized S1 and T1 geometries with fluorescence (left) and phosphorescence (right) indicated by the downward arrows.
Molecules 28 04398 g001

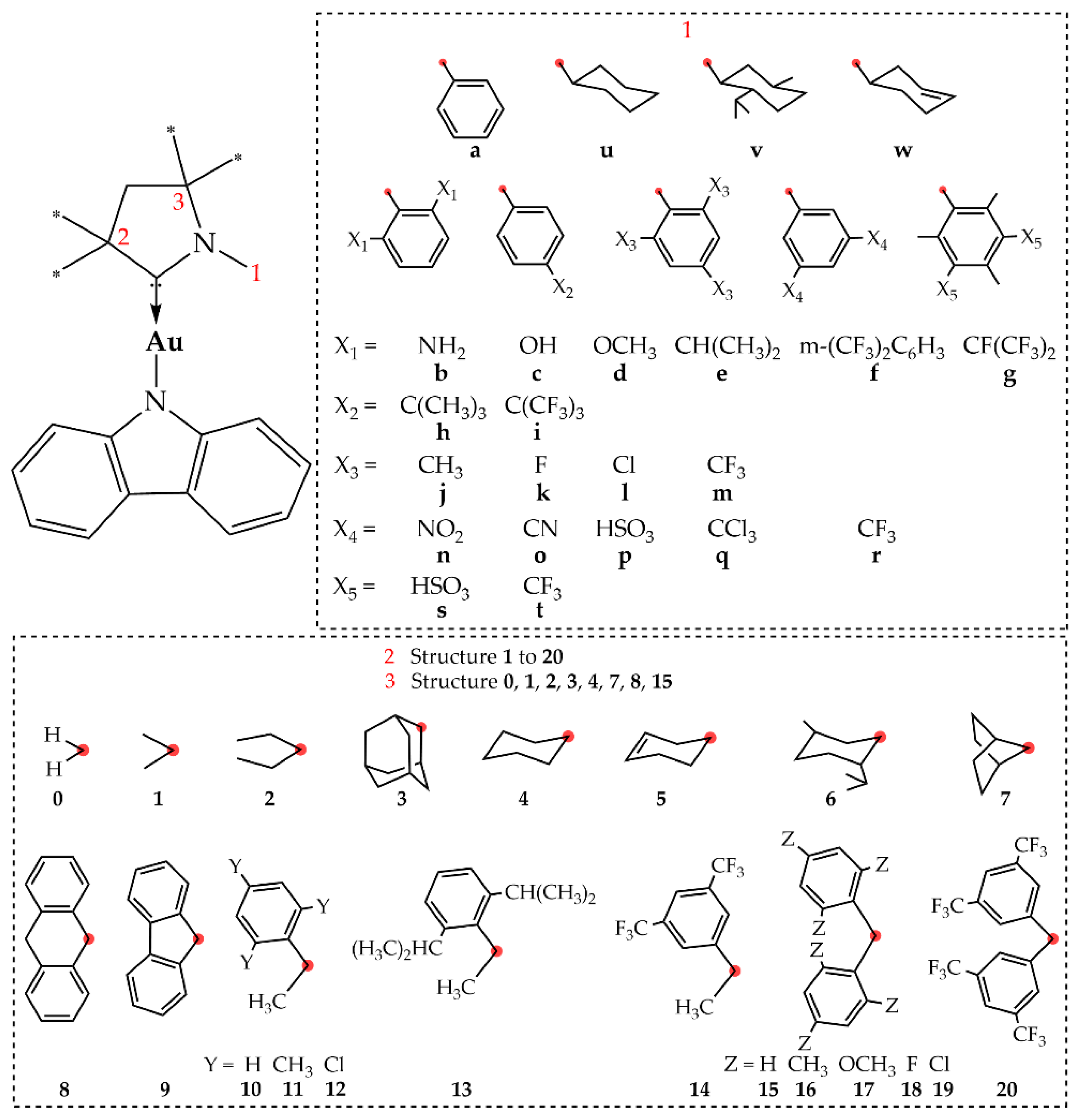

Figure 2. Employed structural modifications of CMA1, which are labeled as position 1-position 2-position 3, such that, e.g., e-3-1 = CMA1.
Figure 2. Employed structural modifications of CMA1, which are labeled as position 1-position 2-position 3, such that, e.g., e-3-1 = CMA1.
Molecules 28 04398 g002

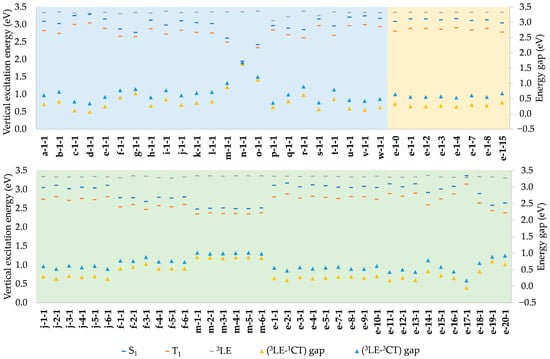

Figure 3. Vertical excitation energies and (3LE-1CT) and (3LE-3CT) gaps of complexes modified at positions 1 (blue), 2 (green), and 3 (yellow), where 1CT and 3CT are singlet and triplet CT characters, respectively.
Figure 3. Vertical excitation energies and (3LE-1CT) and (3LE-3CT) gaps of complexes modified at positions 1 (blue), 2 (green), and 3 (yellow), where 1CT and 3CT are singlet and triplet CT characters, respectively.
Molecules 28 04398 g003

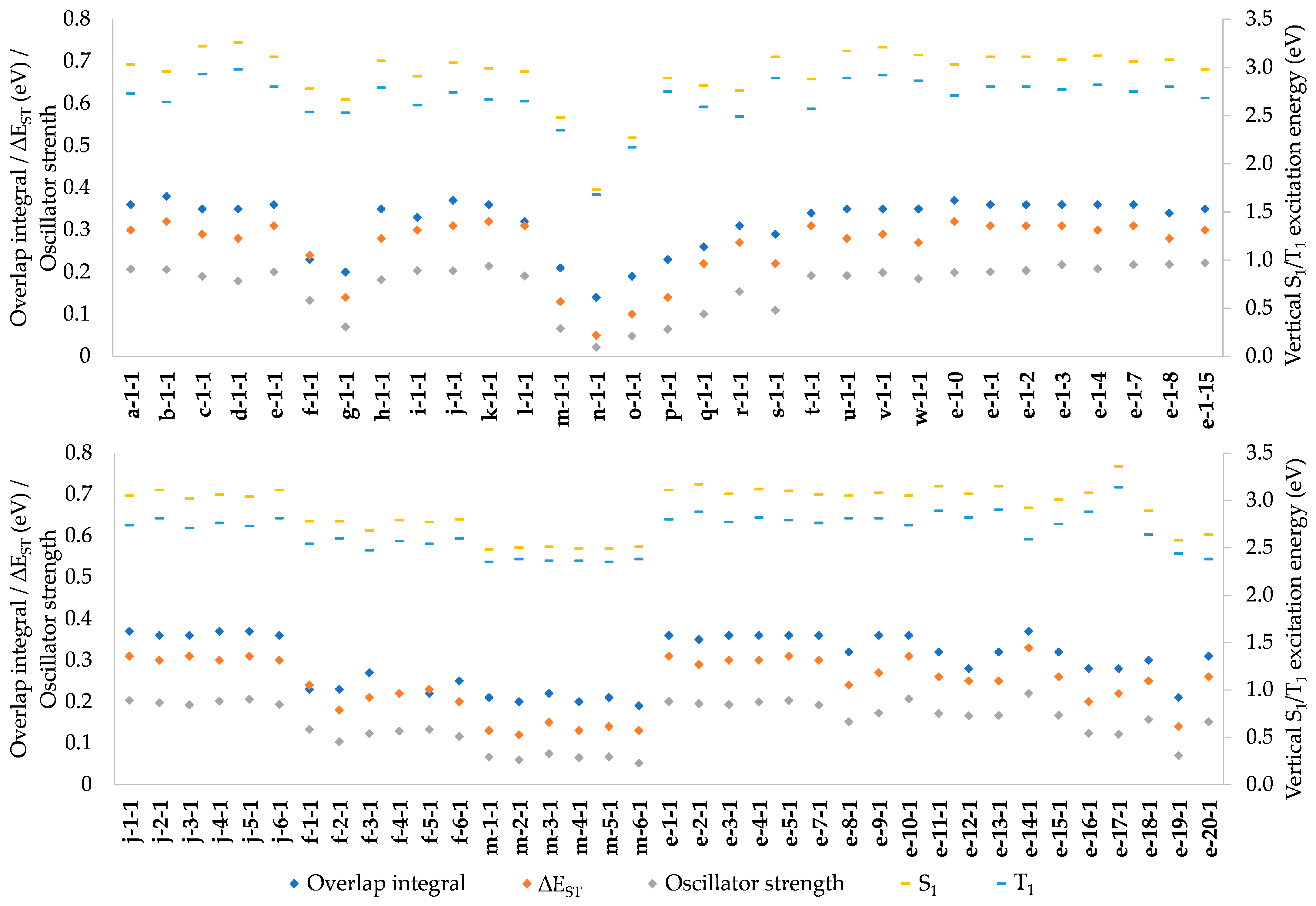

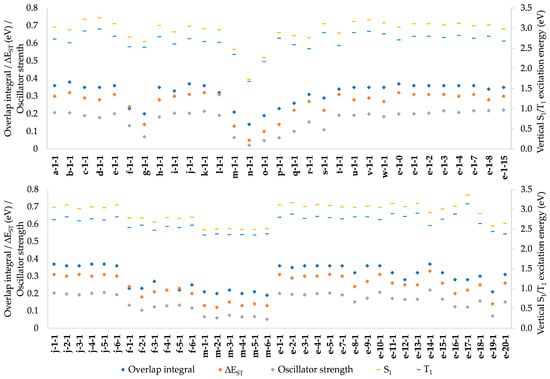

Figure 4. Comparison of the HOMO-LUMO overlap integral, S0-S1 oscillator strength, ∆EST, and vertical excitation energies.
Figure 4. Comparison of the HOMO-LUMO overlap integral, S0-S1 oscillator strength, ∆EST, and vertical excitation energies.
Molecules 28 04398 g004

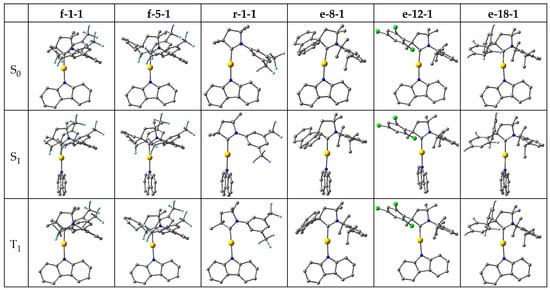

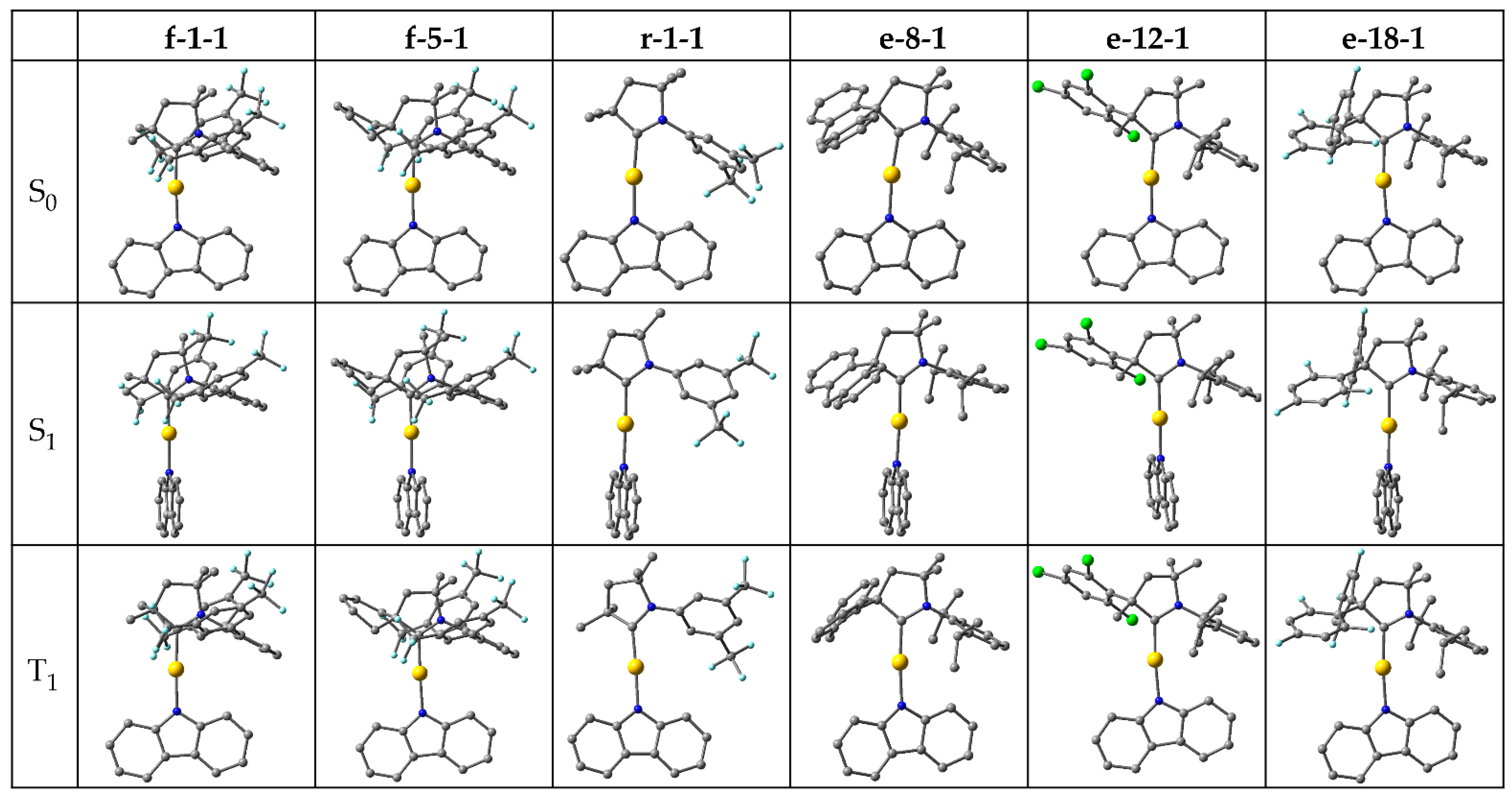

Figure 5. Optimized structures in S0, S1, and T1 states.
Figure 5. Optimized structures in S0, S1, and T1 states.
Molecules 28 04398 g005

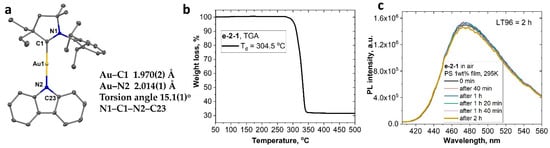

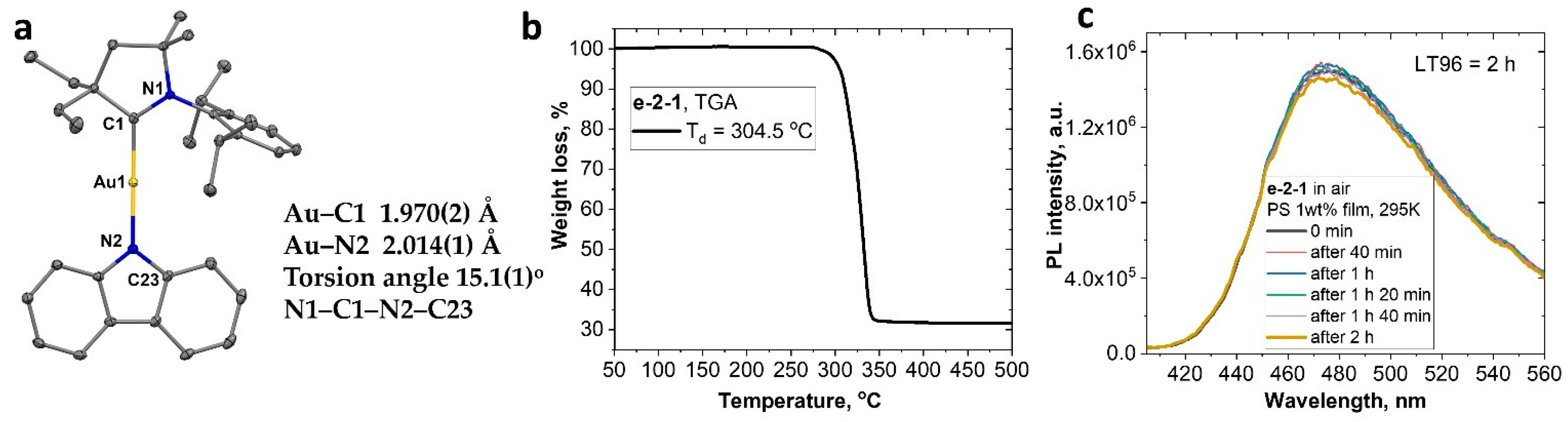

Figure 6. Single-crystal X-ray structure of e-2-1 (a). The ellipsoids are shown at 50% probability. Thermogravimetric analysis curve for complex e-2-1 (b); a 290 nm UV light photostability test for complex e-2-1 in polystyrene (PS) 1% matrix. LT96 denotes the time after initial CT intensity dropped by 4% (c).
Figure 6. Single-crystal X-ray structure of e-2-1 (a). The ellipsoids are shown at 50% probability. Thermogravimetric analysis curve for complex e-2-1 (b); a 290 nm UV light photostability test for complex e-2-1 in polystyrene (PS) 1% matrix. LT96 denotes the time after initial CT intensity dropped by 4% (c).
Molecules 28 04398 g006

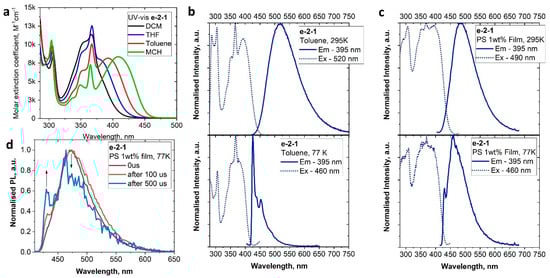

Figure 7. UV-vis spectra in various solvents for complex e-2-1 (a); PL (em—emission; ex—excitation spectrum) of e-2-1 in toluene solution at 295K ((b), top) and 77K ((b), bottom); PL in PS matrix with 1% concentration by weight at 295K ((c), top PS 1%wt), and 77K ((c), bottom). The PL profiles after various delays (0, 100, and 500 µs) for e-2-1 at 77K in PS 1%wt film (d) demonstrating a contribution of the 3LE(Cz) phosphorescence.
Figure 7. UV-vis spectra in various solvents for complex e-2-1 (a); PL (em—emission; ex—excitation spectrum) of e-2-1 in toluene solution at 295K ((b), top) and 77K ((b), bottom); PL in PS matrix with 1% concentration by weight at 295K ((c), top PS 1%wt), and 77K ((c), bottom). The PL profiles after various delays (0, 100, and 500 µs) for e-2-1 at 77K in PS 1%wt film (d) demonstrating a contribution of the 3LE(Cz) phosphorescence.
Molecules 28 04398 g007
Table 1. S1 and T1 excited state optimizations.
Table 1. S1 and T1 excited state optimizations.
f-1-1f-5-1r-1-1e-8-1e-12-1e-18-1
Vertical S1 excitation energy (eV)2.782.772.763.053.072.89
Vertical T1 excitation energy (eV)2.542.542.492.812.822.64
∆EST (eV) a0.240.230.270.240.250.25
Energy relative to optimized S0 (eV)Optimized coplanar S12.492.492.382.822.772.63
Optimized rotated S12.272.282.112.672.592.51
Optimized coplanar T12.292.292.112.572.482.37
∆EST (eV) b−0.02−0.010.000.100.110.14
3LE energy (eV) c3.203.193.273.243.253.26
Maximum S1-S0 oscillator strength d0.02560.02520.03300.09860.13470.1035
Fluorescence (S1-S0@S1) (eV)1.851.871.472.292.062.01
Phosphorescence (T1-S0@T1) (eV)2.002.001.422.282.142.07
a Vertical S1 and T1 excitations. b Optimized S1 and T1 geometries. c Optimized T1 geometry. d Carbene and amide fixed coplanar.
Table 2. Photophysical properties of complexes e-2-1 and CMA1 in various media.
Table 2. Photophysical properties of complexes e-2-1 and CMA1 in various media.
λem (nm)τ
(µs)
Φ (%) akr
(105 s−1) b
knr
(105 s−1) c
CT/3LE(Cz)
(eV) d
λem
(nm, 77 K)
τ
(µs, 77 K)
Toluene Solutione-2-15181.09999.10.092.79/2.9542548.6 (45%),
196.6 (55%)
CMA15281.25987.80.162.76/2.95426302
Polystyrene Matrixe-2-1
(1 wt%)
4841.07827.661.682.92/2.9545848.0 (63%),
188.3 (32%)
CMA1
(5 wt%)
4981.2736.12.32.86/–
a Quantum yields determined using an integrating sphere. b Radiative rate constant kr = Φ/τ. c Nonradiative constant knr = (1 − Φ)/τ. d CT/3LE(Cz) energies based on the onset values of the emission spectra blue edge in MeTHF glasses at 77 K and 295 K.
