Visible-Light-Induced Catalytic Selective Halogenation with Photocatalyst

Abstract

Halide moieties are essential structures of compounds in organic chemistry due to their popularity and wide applications in many fields such as natural compounds, agrochemicals, and pharmaceuticals. Thus, many methods have been developed to introduce halides into various organic molecules. Recently, visible-light-driven reactions have emerged as useful methods of organic synthesis. Particularly, halogenation strategies using visible light have significantly improved the reaction efficiency and reduced toxicity, as well as promoted reactions under mild conditions. In this review, we have summarized recent studies in visible-light-mediated halogenation (chlorination, bromination, and iodination) with photocatalysts.

1. Introduction

Halogenation is one of the most important modifications in organic synthesis because of its extremely wide applications. Halogen derivatives are useful building blocks in organic synthesis for the construction of complicated, high-activity molecules [1,2,3]. Moreover, as halogenation can be applied to a wide variety of organic compounds without altering their basic structures, halogen-substituted compounds have become popular intermediates for transformation to create different functional groups [4,5,6]. Various areas such as pharmaceuticals, material sciences, industrial chemicals, and bioactive compounds have all benefited from halogen-containing compounds [7,8,9,10]. So far, more than 5000 halogenated natural compounds have been identified, with several of them exhibiting intriguing pharmacological characteristics (Figure 1) [11]. Thus, developing halogenation methods is an interesting area of research, which has received the attention of scientists for decades.

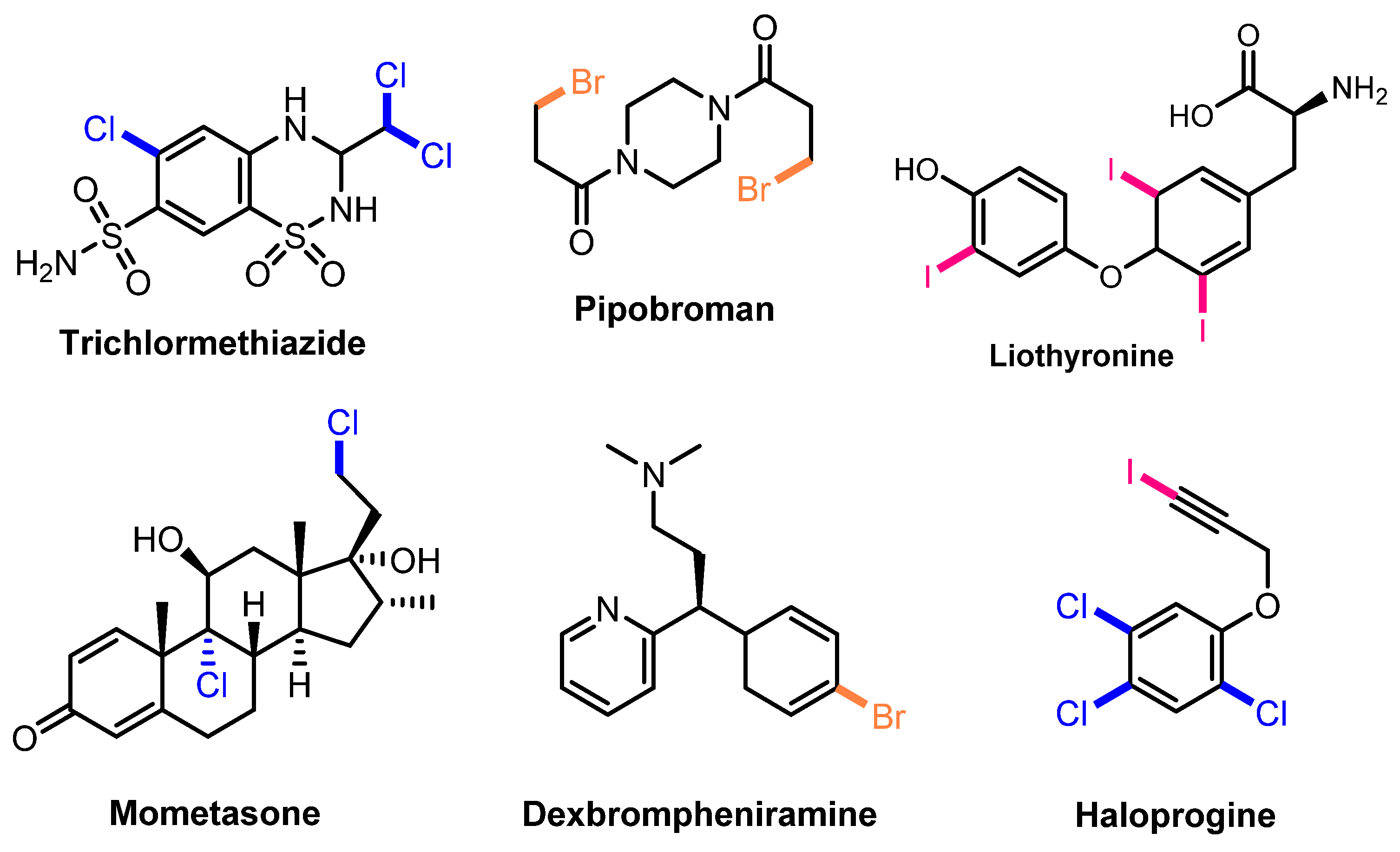

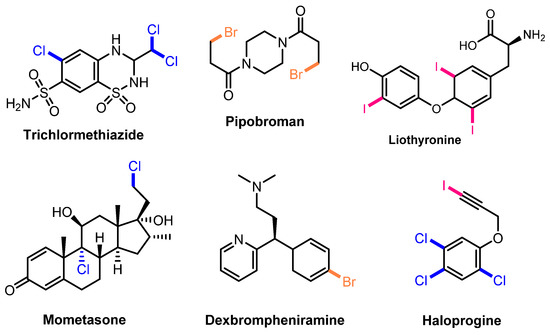

Figure 1. Several halogenated compounds in pharmaceuticals.

Traditional halogenation methods include addition reactions to multiple bonds, nucleophilic substitution, or radical substitution reactions [12,13,14,15,16,17,18]. One of the most fundamental halogenation reactions in organic chemistry is the addition of halide reagents to C-C multiple bonds. Halogen electrophiles are the most common type of electrophile, and they are commonly employed to generate electrophilic addition reactions to unsaturated carbon [12]. Multiple-bond compounds (alkenes and alkynes) are easily transformed directly to halogenated products by reacting with halogen molecules or hydrohalic acids. However, this technique has significant weaknesses, such as low selectivity, extremely volatility, and the toxic nature of some halogens, and environmental risks [13].

On the other hand, electrophilic substitution and radical substitution reactions are the most feasible and well-recognized approaches for the production of aryl halides, alkyl halides, and many other halide compounds [14]. To produce a carbon-halogen bond, the C-H bond was broken, and then the hydrogen atom was replaced by a halide anion or radical. Halide substitution reactions often require harsh reaction conditions such as high temperature, inert pressure, or an excess of halogen agent and initiator compounds [13,14,15,16,17,18,19,20]. These requirements have increased the purification and treatment costs of the actual halogenation process.

Several classic or modified halogen sources including N-bromo- and N-chlorosuccinimide, plus Selectfluor for halogenation, have also been used. However, the existence of special reagents has limited the application scope and decreased functional group tolerance. Besides, these reactions have been generally carried out under difficult circumstances with poor atom economy [13,14].

Photocatalysis refers to chemical reactions that use light as an energy source. Under irradiation of light, the ground state photocatalyst receives or releases one electron to transfer to the excited state, which subsequently interacts with the substrates or reagents to cause chemical reactions. Generally, photocatalysts can be divided into three main types, including metal complexes, organic dyes, and heterogeneous catalysts [21,22].

In recent years, visible light photocatalysis has emerged as an effective alternative in organic synthesis. Many studies have demonstrated the effectiveness of the visible-light-mediated method in overcoming the inherent disadvantages of traditional organic synthesis methods, such as proceeding under milder reaction conditions, reducing the amount of initiator, introducing outstanding functional group tolerance, and maintaining good regioselectivity [23]. Using photocatalysts for halogenation improves selectivity, allows better reaction control, and lowers costs [24,25].

Many new discoveries in halogenation utilizing visible light via photoredox catalysis have been made in the last decade, and many positive results from reactions with a variety of substrates involving alkyl, aryl, alcohol, carboxyl, etc., have been achieved. In this review, recent advances in halogenation (chlorination, bromination, and iodination) of a variety of organic molecules via photocatalysis are presented.

2. Photo-Catalyzed Halogenation of Aliphatic C-H Bonds

Scheme 1 shows schematic diagrams of the comparison of the traditional methods with visible-light-induced halogenation of aliphatic C-H bonds.

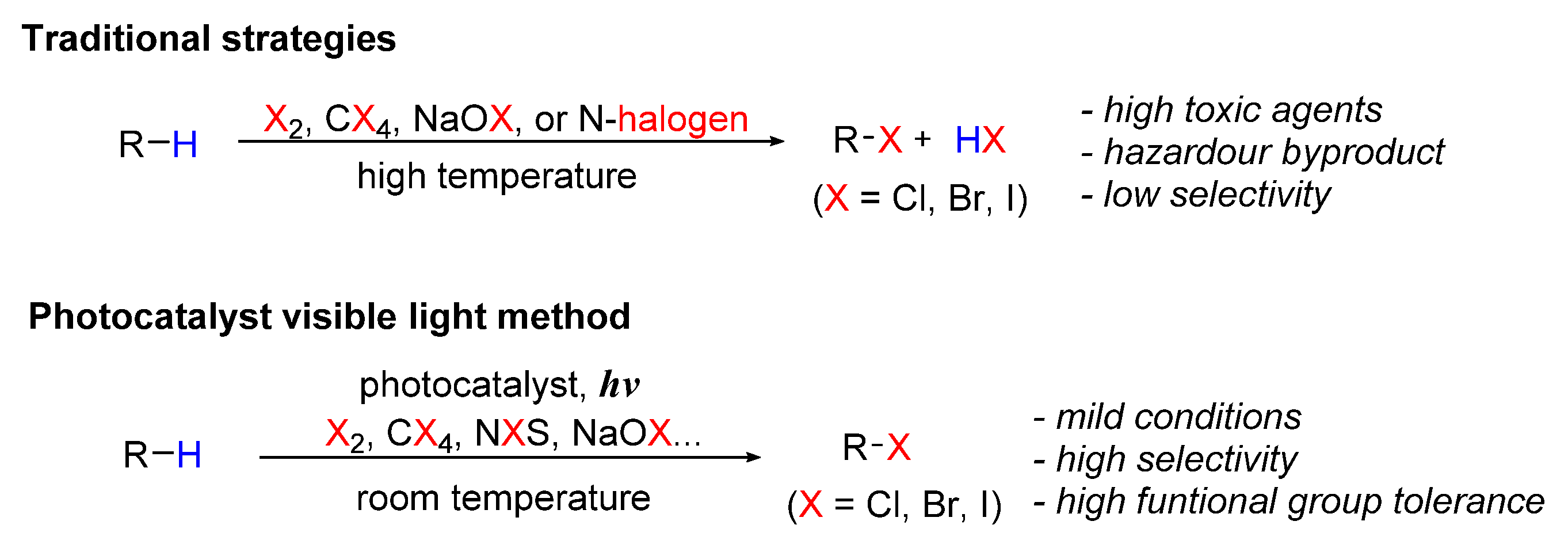

Scheme 1. Synthetic methods for halogenation of aliphatic C-H bonds.

2.1. Chlorination of Aliphatic C-H bBonds

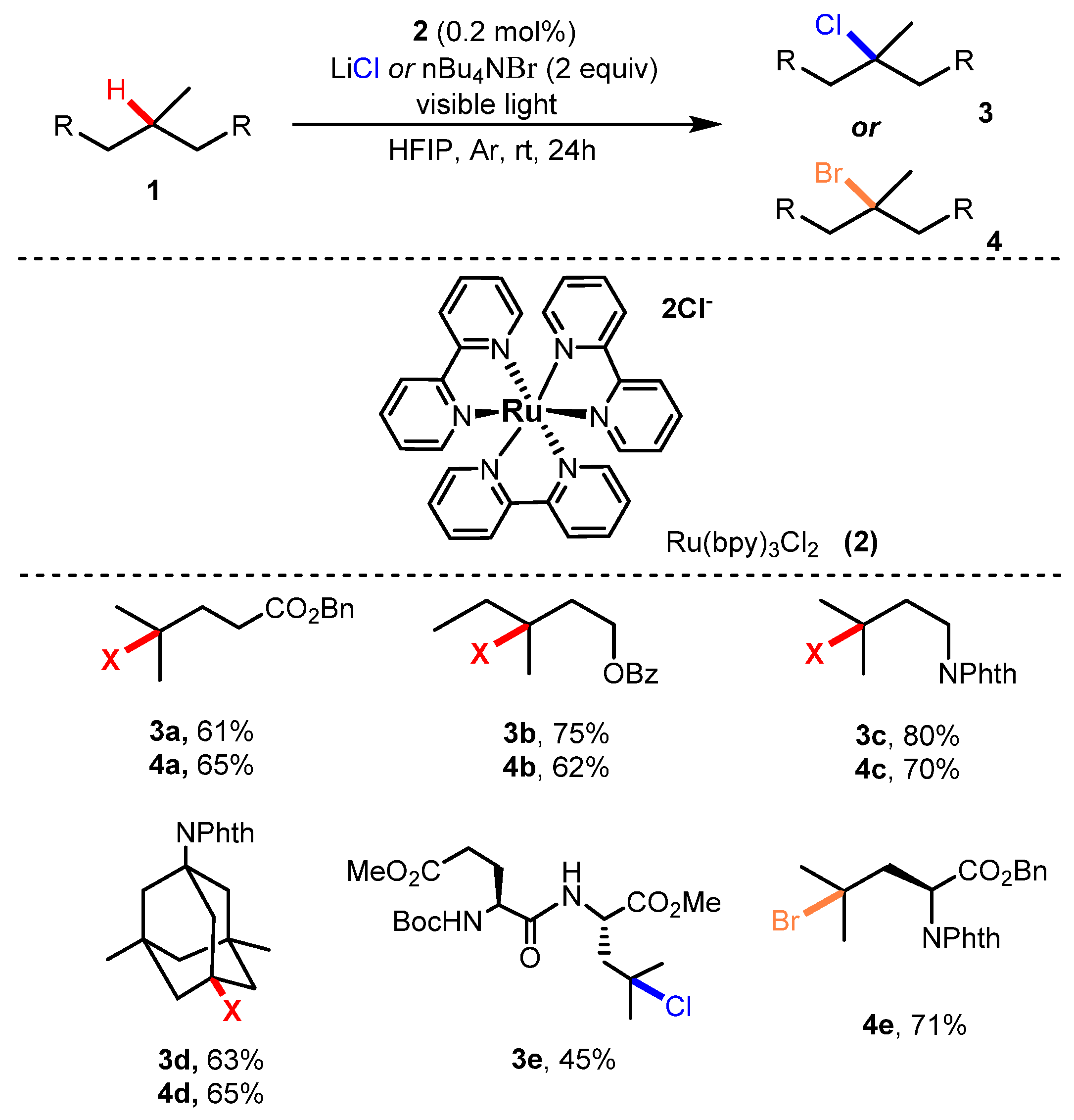

In 2016, Gong Chen and co-workers developed nucleophilic halogenation of tertiary aliphatic C-H bonds [26]. In the reaction, starting substance 1 reacted with LiCl as a chlorinating source in the presence of (Ru(bpy)₃Cl₂) 2 as a photocatalyst and azidoiodane in hexafluoroisopropanol (HFIP) under the irradiation of a fluorescent bulb at room temperature to give the corresponding products (Scheme 2). This protocol successfully demonstrated site-selectivity for specific tertiary C-H bonds and functional group tolerance. Substrates bearing functional groups such as ester (3a, 4a), ether (3b, 4b), and amide (3c–3e; 4c–4e) provided the corresponding products with moderate to excellent yields (45–80%). This method was also applied for bromination of tertiary C-H bonds. n-Bu₄NBr was employed as a brominating source, and the bromination was proved to be more efficient than chlorination and showed better yields.

Scheme 2. Photocatalysis halogenation of tertiary aliphatic C-H bonds.

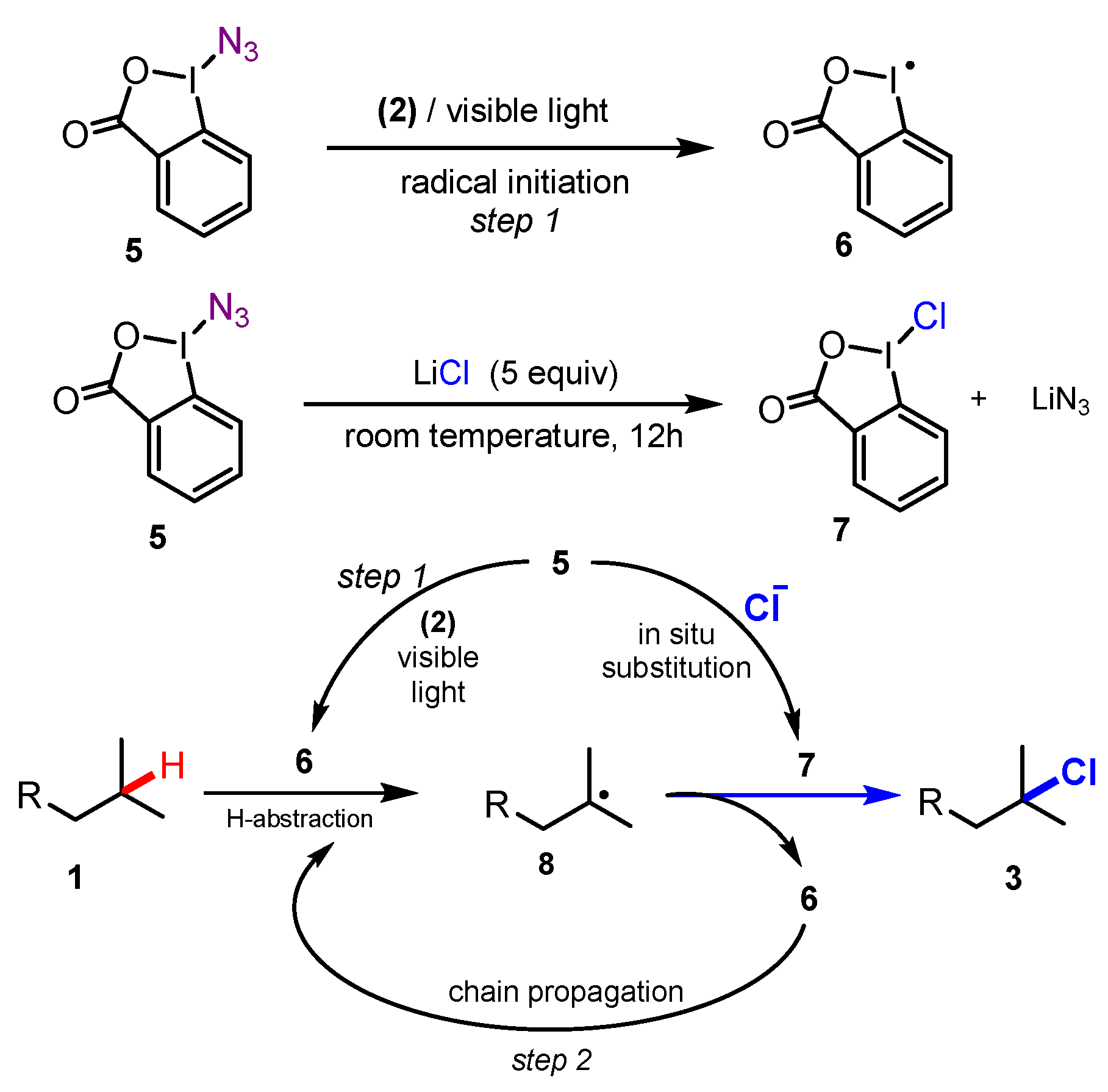

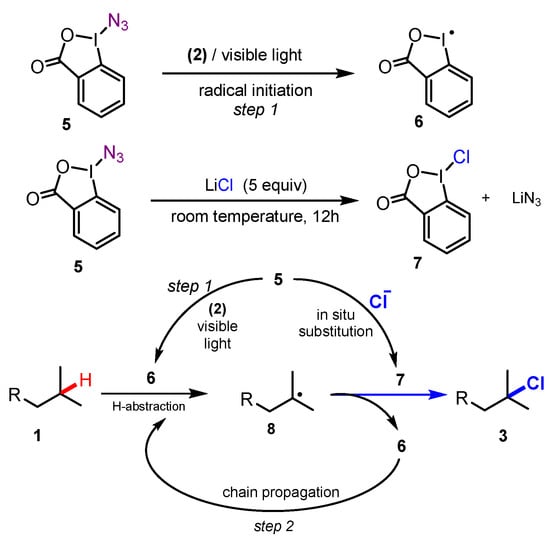

A plausible mechanism for chlorination is illustrated in Scheme 3, in which azidoiodane 5 participated in two processes simultaneously. Under irradiation of visible light and photocatalyst Ru(bpy)₃Cl₂ 2, homolytic break of the I–N₃ bond of azidoiodane 5 yielded an iodanyl radical 6 and an azido radical. Azidoiodane 5 also reacted with chlorinating source LiCl to generate chloroiodane 7. Capture of an H atom of substrate 1 by radical 6 gave the intermediate radical 8. In the meanwhile, chloroiodane 7 provided a Cl atom to radical 8 to form the desired product 3 and then recovered iodanyl radical 6.

Scheme 3. Proposed mechanism of photocatalyzed tertiary aliphatic C-H bond chlorination.

Another photo-mediated C(sp³)-H chlorination was reported by Chuo Chen and co-workers in 2017 [27]. In this reaction, aryl ketones such as benzophenone were employed as a photocatalyst to assist in the chlorination of C-H groups in the presence of N-chlorosuccinimide (NCS) as a chloride source under irradiation of a household compact fluorescence lamp (CFL) in acetonitrile at room temperature (Scheme 4). The benzylic C-H chlorination was readily performed regardless of the position (ortho, meta, or para) of an electron-withdrawing group on the benzene ring (12a–c). Chlorinations of the primary and tertiary benzylic C-H groups (12d) were successfully achieved, and the ester group at the β-position (12e) was tolerated for this protocol. This method was also highly effective for non-benzylic chlorination, when acetophenone was used as the photocatalyst instead of benzophenone (Scheme 5). Particularly, chlorination of cyclo-compounds was carried out smoothly at high yield (15a–b), whereas the dichlorination of the tert-butyl group (15c–d) was conducted with a lower yield.

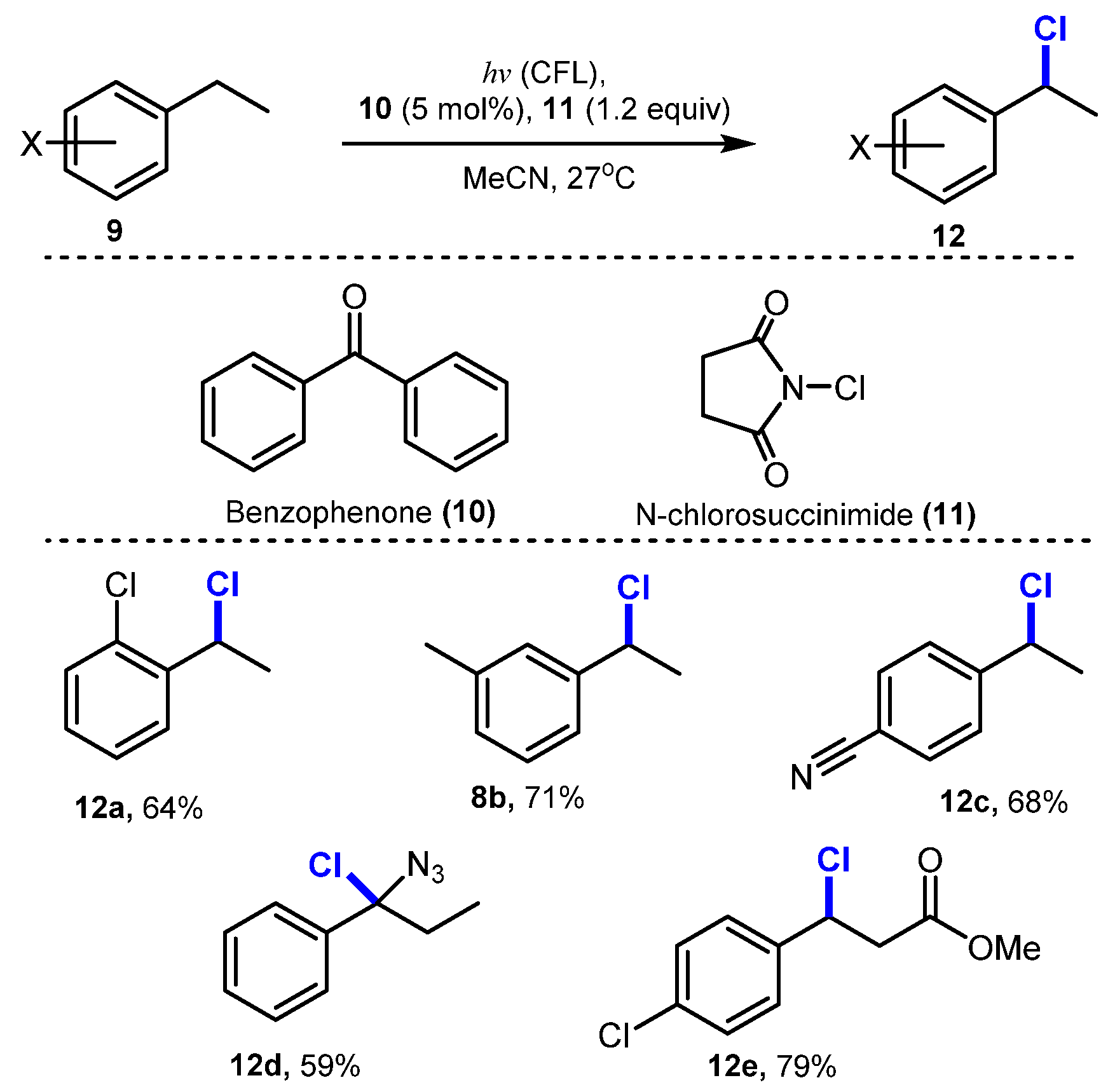

Scheme 4. Benzophenone-catalyzed photochemical C(sp³)-H chlorination.

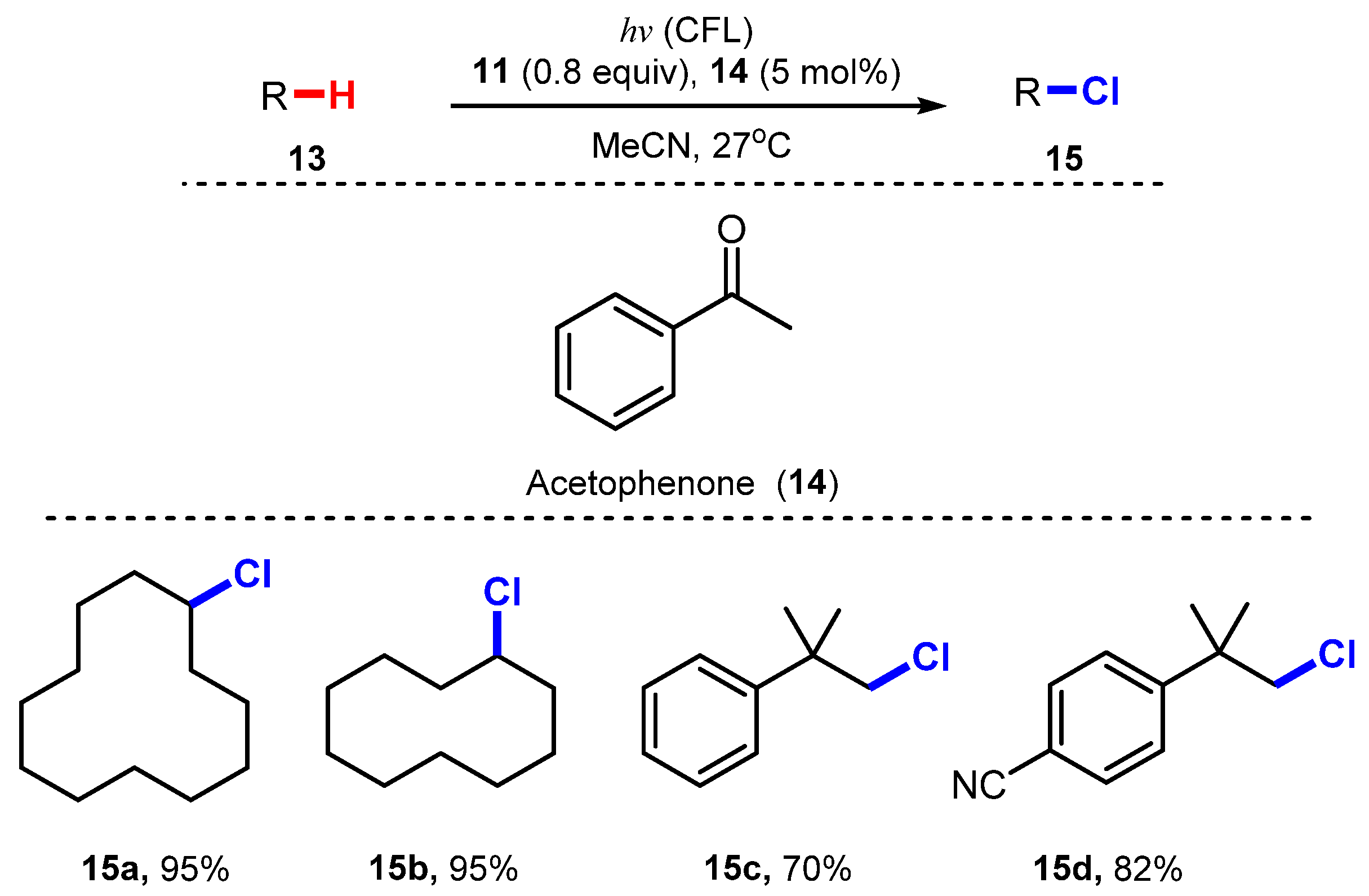

Scheme 5. Acetophenone-catalyzed photochemical C(sp³)-H chlorination.

In 2020, Wu and co-workers reported a novel strategy for benzylic chlorination using N-chlorosuccinimide (NCS) as a chloride source and Acr⁺-Mes as a photocatalyst under radiation of blue LED light in dichloromethane (Scheme 6) [28]. Several typical alkylbenzene derivatives were tested to assess the scope of this chlorination method. Reaction of toluene 18a had a higher reaction yield than that of ethylbenzene 18b (78% for 18a and 64% for 18b). Substrates containing different groups such as phenyl 18e and carbonyl 18d on the aromatic ring were smoothly converted to target chlorides in moderate to good yields (64–77%), while reaction of nitro group 18c on the aromatic ring achieved a lower yield (21%).

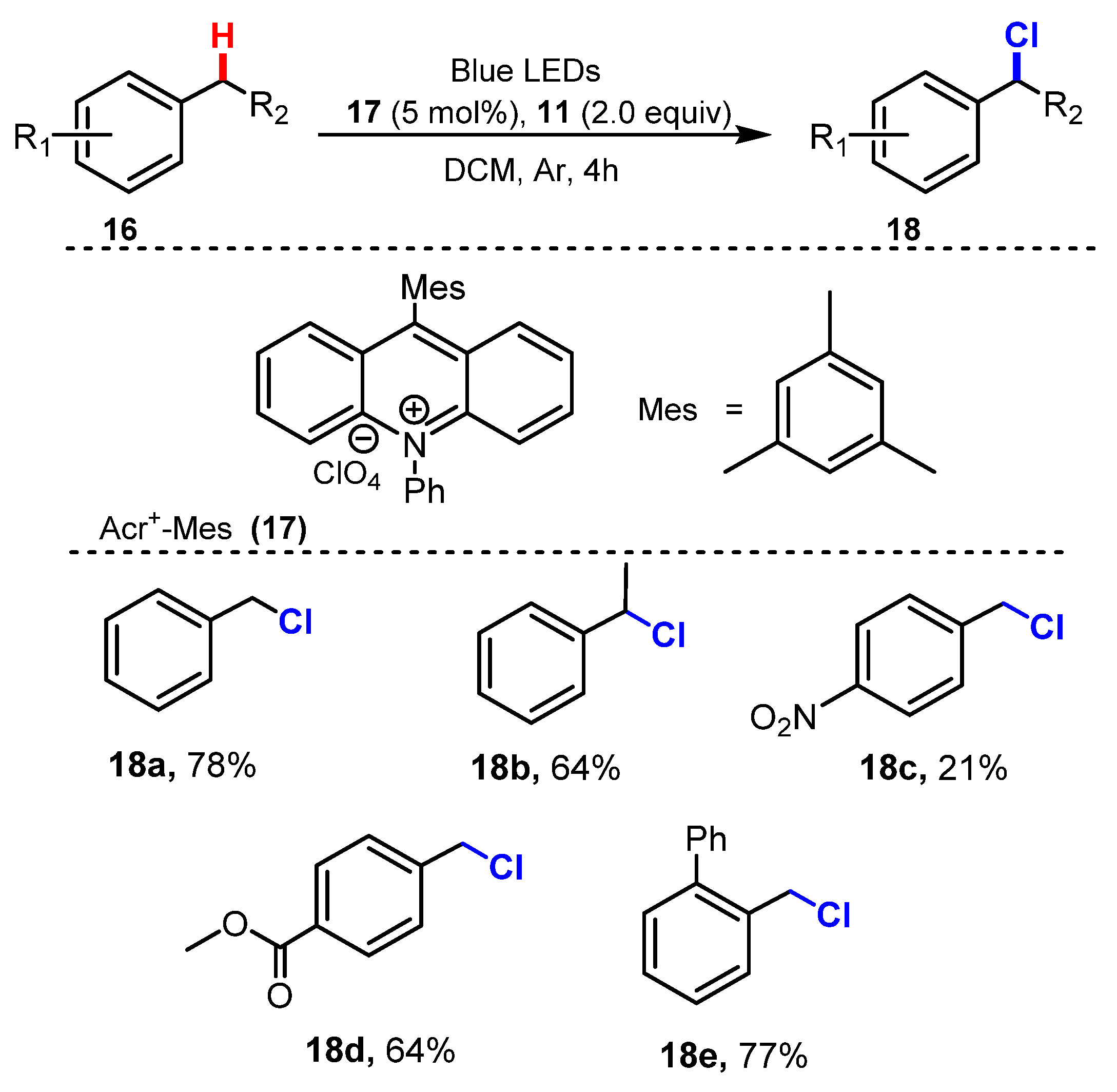

Scheme 6. Visible-light-catalyzed benzylic C-H bond chlorination.

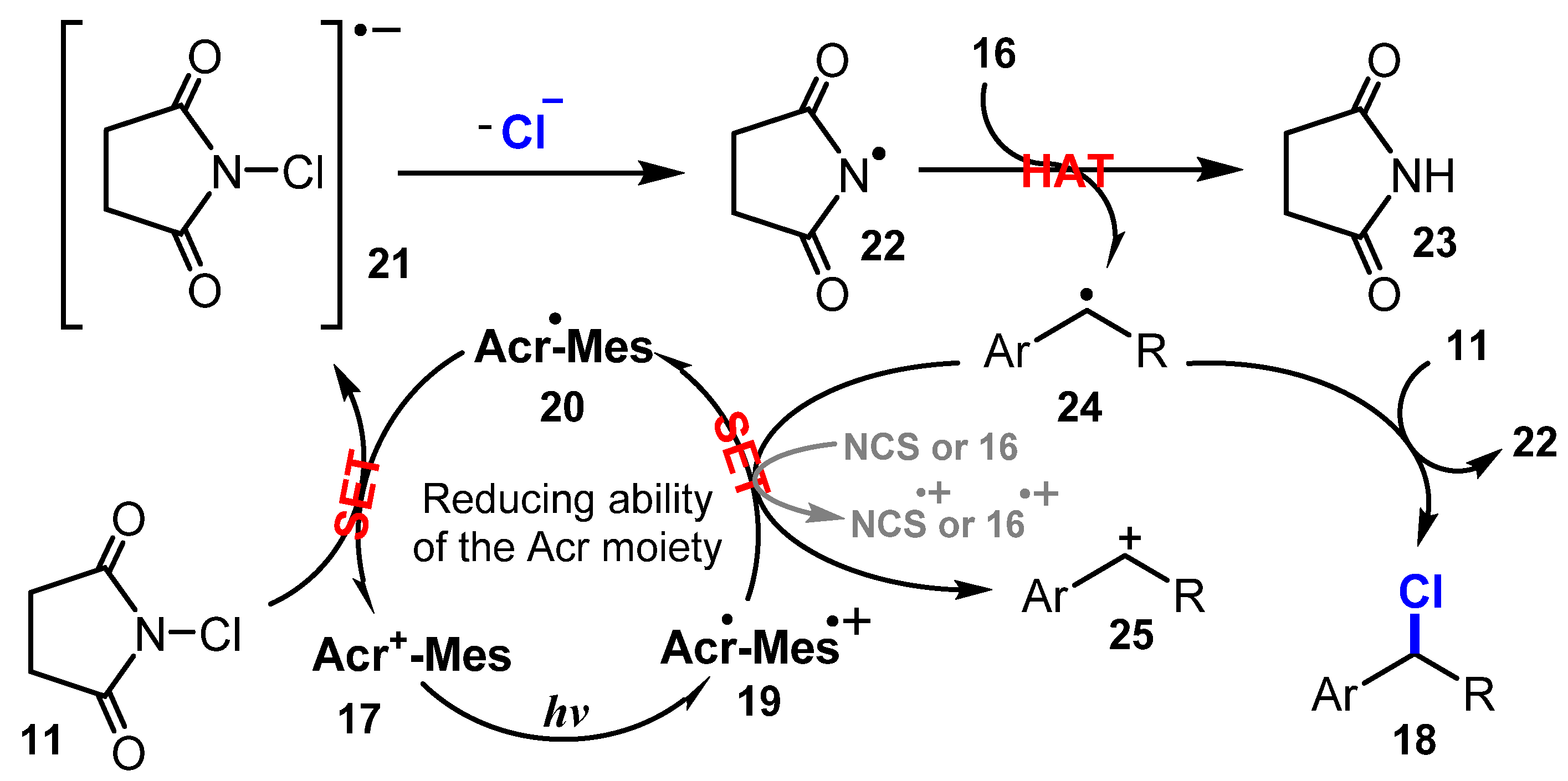

A plausible mechanism for chlorination proposed by Wu and co-workers is depicted in Scheme 7. Visible light excited Acr⁺-Mes 17 to give the charge state Acr^•-Mes^•+ 19, which caused the oxidization of N-chlorosuccinimide (NCS) or substrate 16 to provide Acr^•-Mes radical 20. This radical 20 reacted with NCS 11 to yield NCS^•− 21 via the SET process and to recover Acr⁺-Mes 17. Then, NCS^•− 21 lost a chlorine anion to give N-centered radical 22, which underwent the hydro atom transfer (HAT) process with substrate 16 to afford benzylic radical 24. The radical 24 captured a chloride atom of NCS 11 to form benzylic chloride product 18.

Scheme 7. Proposed mechanism of benzylic C-H bond chlorination method.

In the same year, Wei Yu and co-workers developed a method for the chlorination of aliphatic sulfonamides [29]. The chlorination was achieved via a reaction with NaOCl·5H₂O crystals as a chlorinating agent, NaHSO₄, and Ru(bpy)₃Cl₂ as a photocatalyst under blue LED irradiation at room temperature in a mixture of acetonitrile and water (4:1) (Scheme 8). A wide range of sulfonamide substitutes with variations at the sulfonyl moiety were chlorinated at the δ-position with 71% to 95% yields (27a–27e), while the substituents on the amide moiety led to a significant decrease in reaction yield (27f–27h).

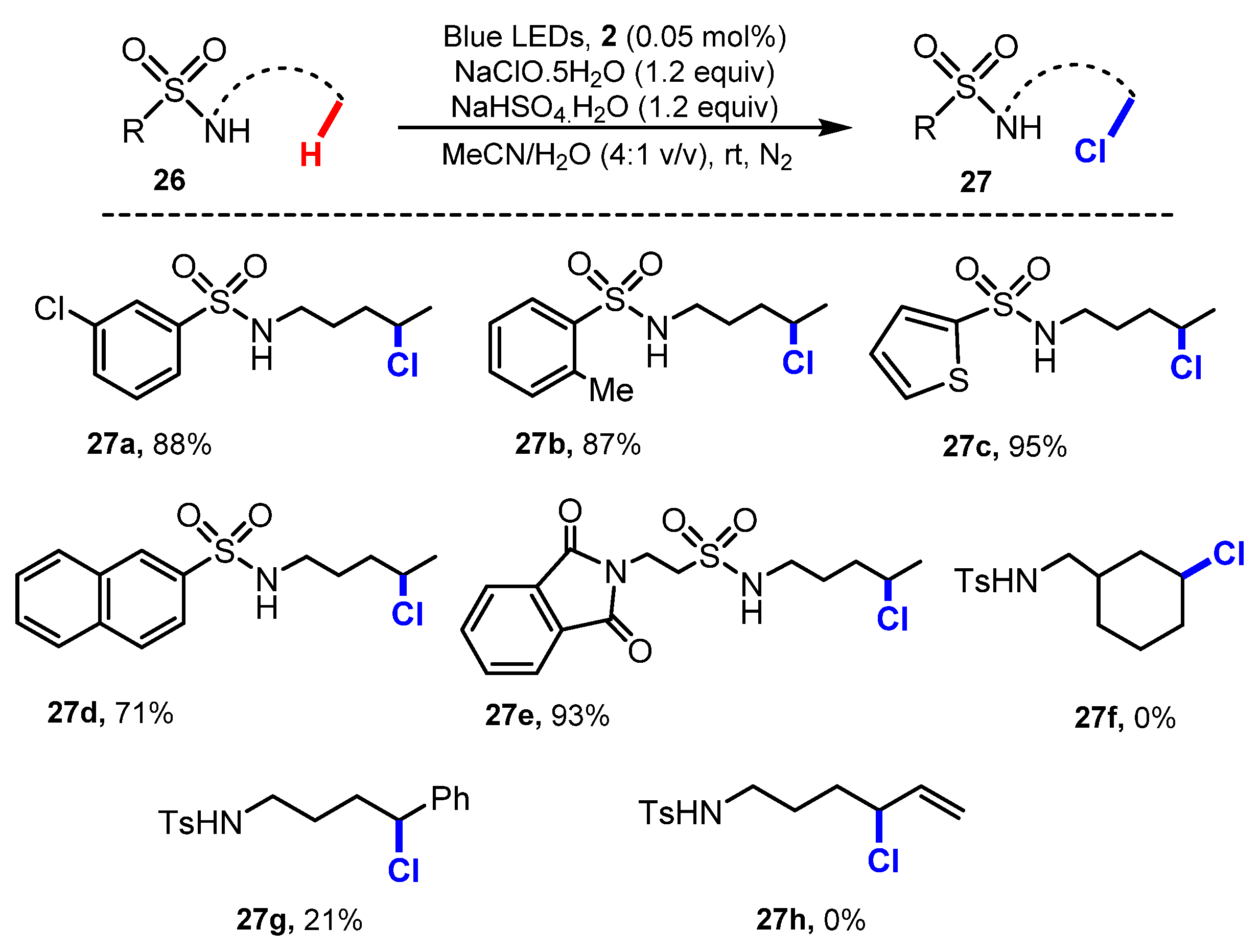

Scheme 8. Chlorination of aliphatic sulfonamides.

A probable mechanism of the reaction is presented in Scheme 9. Substrate 26 reacted with NaOCl 30 to form N-chlorosulfonamides 31, which was transformed to sulfonamide radical 32 under the effect of the photocatalyst Ru*(bpy)₃²⁺ 28, which was generated from Ru(bpy)₃²⁺ 2 by light. This radical 32 underwent the 1,5-hydrogen atom transfer (1,5-HAT) process to form carbon-centered radical 34 at the C₅ position. The carbon-centered radical 34 then participated in two reactions. Firstly, radical 34 was oxidized by photocatalyst Ru(bpy)₃³⁺ 29 to give carbocation 35 and Ru(bpy)₃²⁺ 2, and then carbocation 35 obtained Cl anions to form the final product 27. On the other hand, radical 34 also picked the chloride atom of compound 31 to generate the final compound 27 and sulfonamide radical 32.

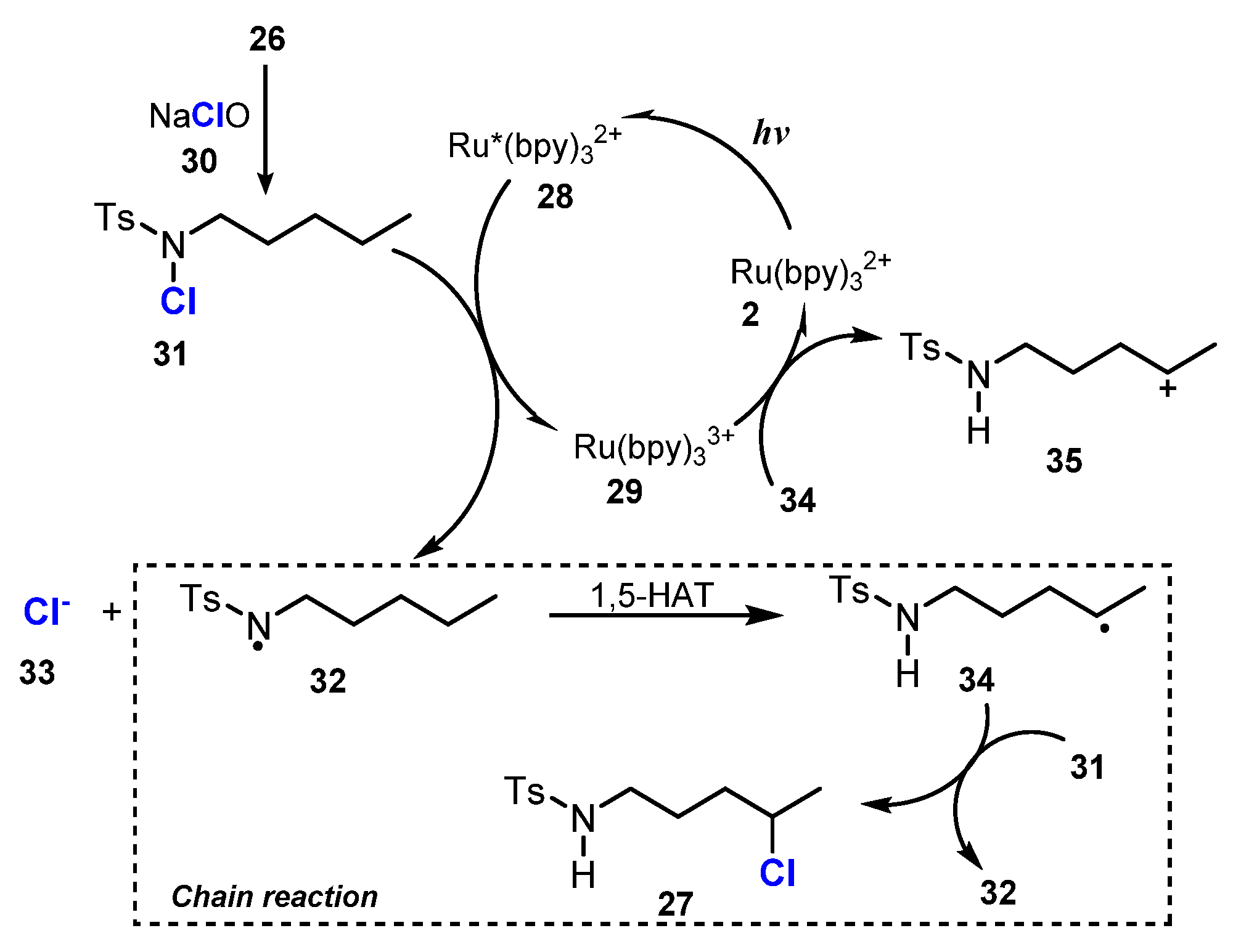

Scheme 9. Mechanism of the aliphatic sulfonamide chlorination.

2.2. Bromination of Aliphatic C-H Bonds

In 2013, Nishina and co-workers reported mono-bromination of hydrocarbons [30]. In the reaction, starting substances reacted with Br₂ in the presence of Li₂MnO₃ as a photocatalyst under irradiation of fluorescent light under O₂ pressure to give brominated products (Scheme 10). This reaction showed higher selectivity to the secondary C-H bonds of n-hexane than to the primary C-H bonds (37b), and bromination of the 2-position had priority over that of the 3-position with a ratio of 2:1. Some other compounds, such as adamantane (37c), benzine (37d), and tert-butylbenzene (37e), were all tolerated for this method with good to excellent yield (42–93%). Furthermore, N-bromosuccinimide, a bromine source, could be used rather than Br₂ to brominate a wide range of substrates, which broadened the scope and applicability of this method without the need for harsh reaction conditions (39a–b) (Scheme 11).

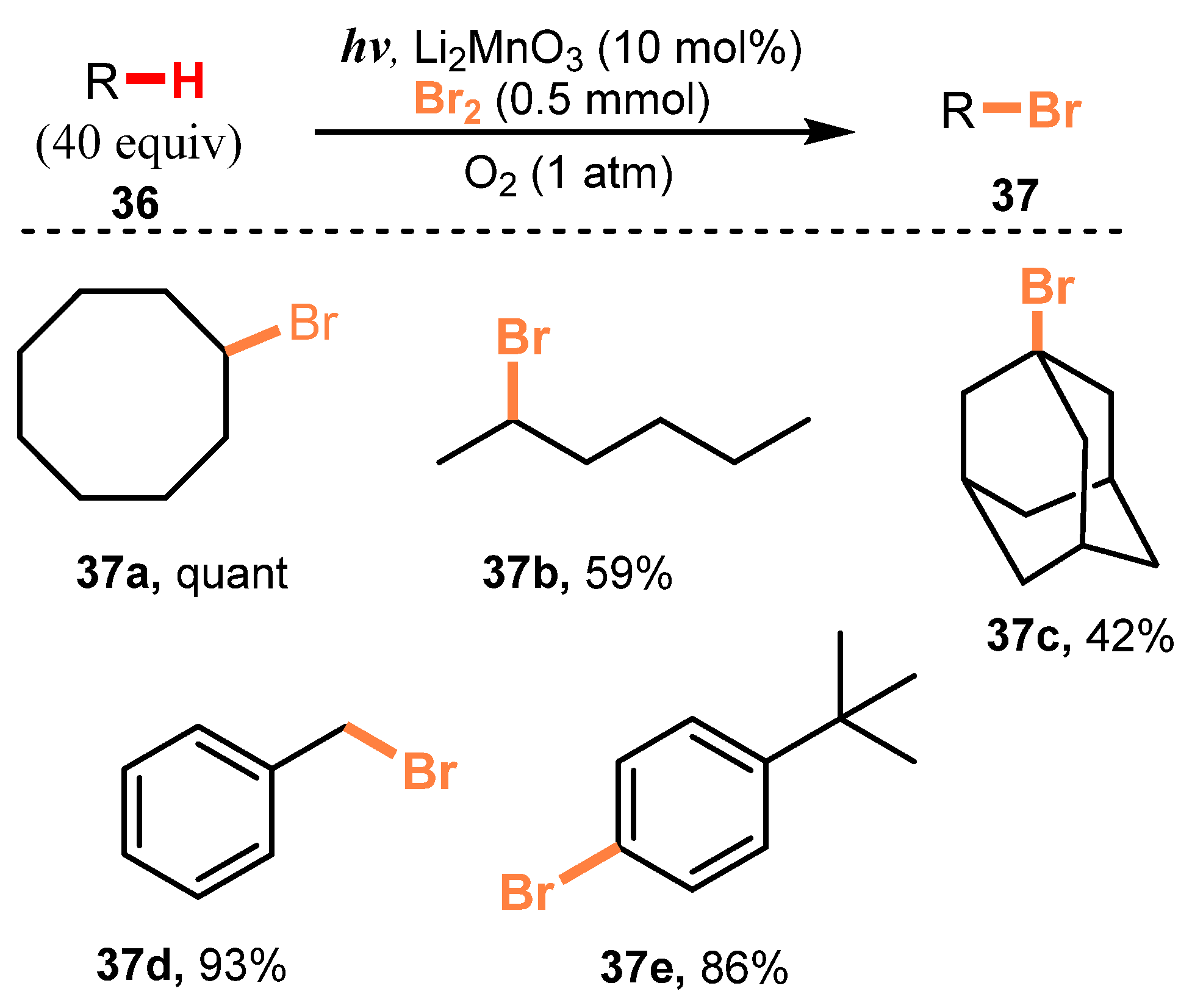

Scheme 10. Li₂MnO₃-induced photocatalytic bromination of hydrocarbons.

Scheme 11. Bromination of hydrocarbons by N-bromosuccinimide.

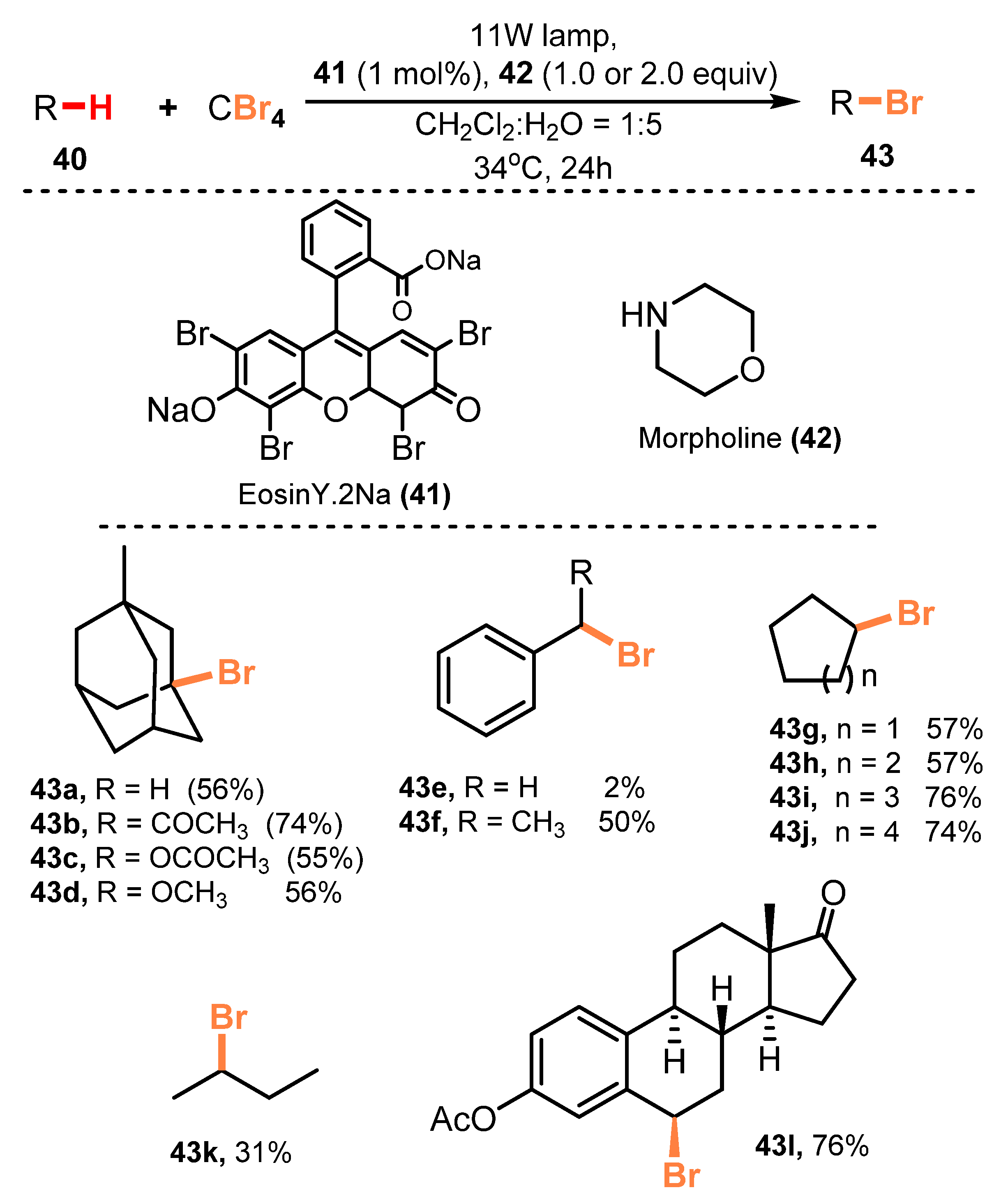

In 2014, an efficient C-H bond bromination process on aliphatic and benzylic compounds, without the use of an inert environment or anhydrous solvent, was reported by Tan and co-workers [31]. Eosin Y disodium salt, as a photoredox catalyst, and reductive compound morpholine were employed to perform bromination of aliphatic and benzylic compounds under irradiation of an 11 W lamp in a mixture of dichloromethane and water (1:1) at 34 °C for 24 h (Scheme 12). Bromination of adamantane derivatives containing ketones, esters, and ether functional groups were successfully achieved (43a–d) (55–74% yield). The reaction did not occur with unsaturated C-H, but C(sp³)-H on toluene derivatives (43e–f) and alkyls (43g–k) were brominated with 2–76% yields. Additionally, they applied this bromination method to some useful compounds that could be utilized in the pharmaceutical and medical fields, and a Terpenoid and an Estrone derivative (43l) were brominated with good efficiency.

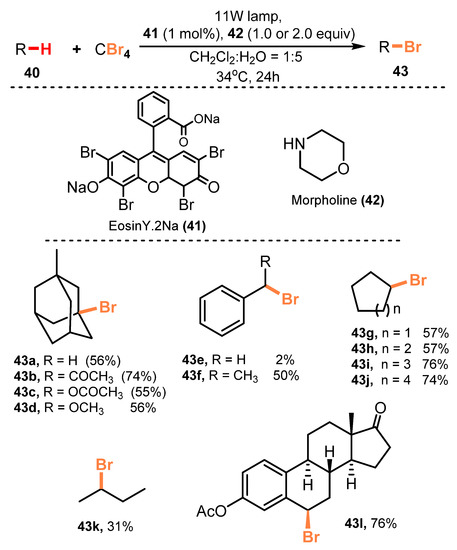

Scheme 12. Selective bromination of sp³ C-H bonds by organophotoredox catalysis.

The proposed mechanism of this reaction is shown in Scheme 13. Absorbing light of photocatalyst Eosin Y²⁻ 41 formed Eosin Y^2−* (singlet) 44, which underwent an intersystem crossing process (ISC) to generate Eosin Y^2−* (triplet) 45. When CBr₄ 47 was reduced to CBr₄⁻ 48 by Eosin Y^2−* (triplet) 45, the C-Br bonds of CBr₄⁻ 48 became less stable, and a Br atom of CBr₄⁻ 48 was lost to form CBr₃ radical 49. The CBr₃ radical 49 then captured a proton from substrate 40 to create CHBr₃ 51 and carbon-radical R^• 50, which was linked to the free Br atom or received Br from CBr₄ to give the product RBr 43. Morpholine 42 reduced Eosin Y⁻ 46 to Eosin Y²⁻ 41 and afforded compound 52. Compound 52 reacted with morpholine 42 to give radical 53, which captured a proton from substrate 40 to afford carbon radical R^• 50.

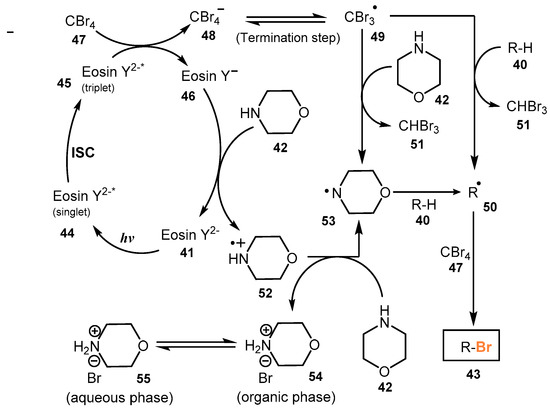

Scheme 13. Mechanism for bromination of sp³ C-H bond promoted by Eosin Y and morpholine.

In 2018, Franzén and co-workers reported a chemoselective protocol for benzylic C(sp³)-H bromination without observation of competing arene C(sp²)-H bromination [32]. This process was carried out in the presence of NBS as a bromide source, trityl cation (TrBF₄) as a Lewis acid organocatalyst, and in dichloromethane under irradiation of fluorescent light (55W F. L.) at room temperature (Scheme 14). In the reaction of toluene, benzyl bromide was generated in 82% yield (58a). The toluene derivatives with different substitutes (including halogen, nitrozo, cyanide, ester, and sulfochloride) were tolerated for this protocol with good to excellent yields (88–91%) (58b–d). Reaction of ethylbenzene also gave the corresponding product in 92% yield. Naphthalene and heterocycle derivatives were smoothly brominated via this process to produce target compounds in good yield (82–96%) (58e–f). For the reaction of diphenylmethane (58g), the desired benzyl bromide could be observed by ¹H NMR. However, this bromide was spontaneously hydrolyzed during isolation and purification to produce the corresponding alcohols.

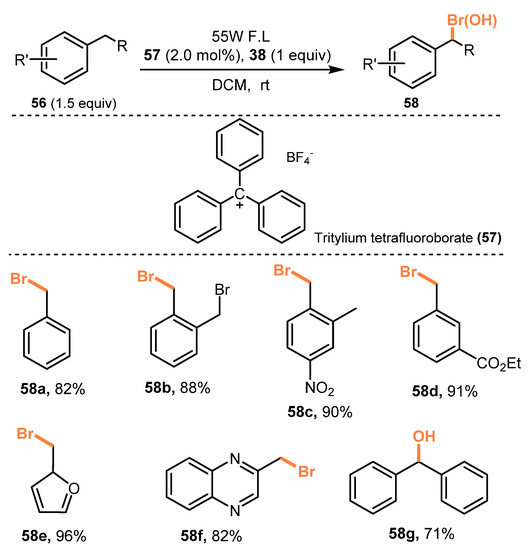

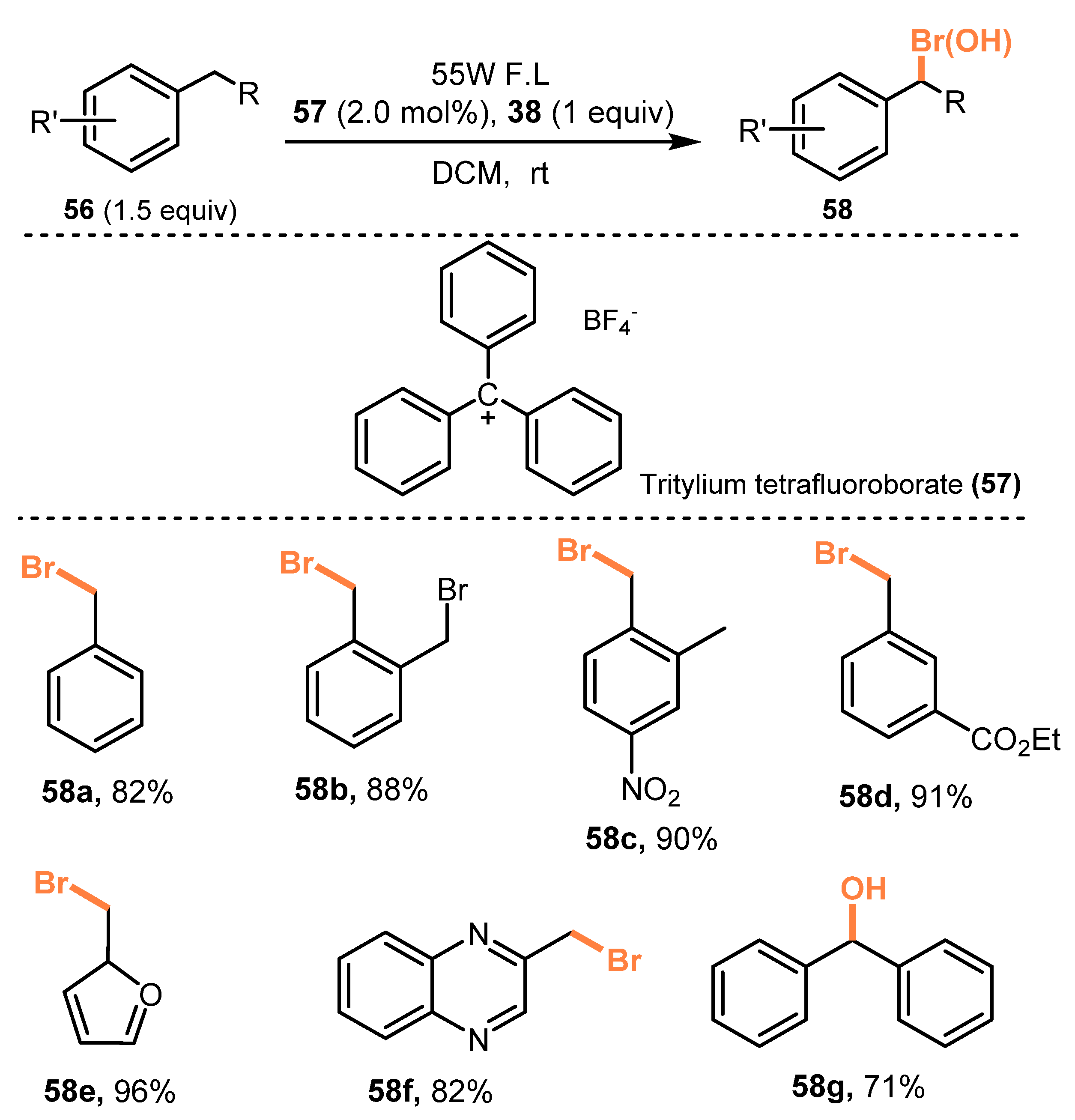

Scheme 14. Conversion of alkyl arenes C(sp³)-H bond to brominated products.

3. Photo-Catalyzed Halogenations of Aliphatic Multiple Bonds

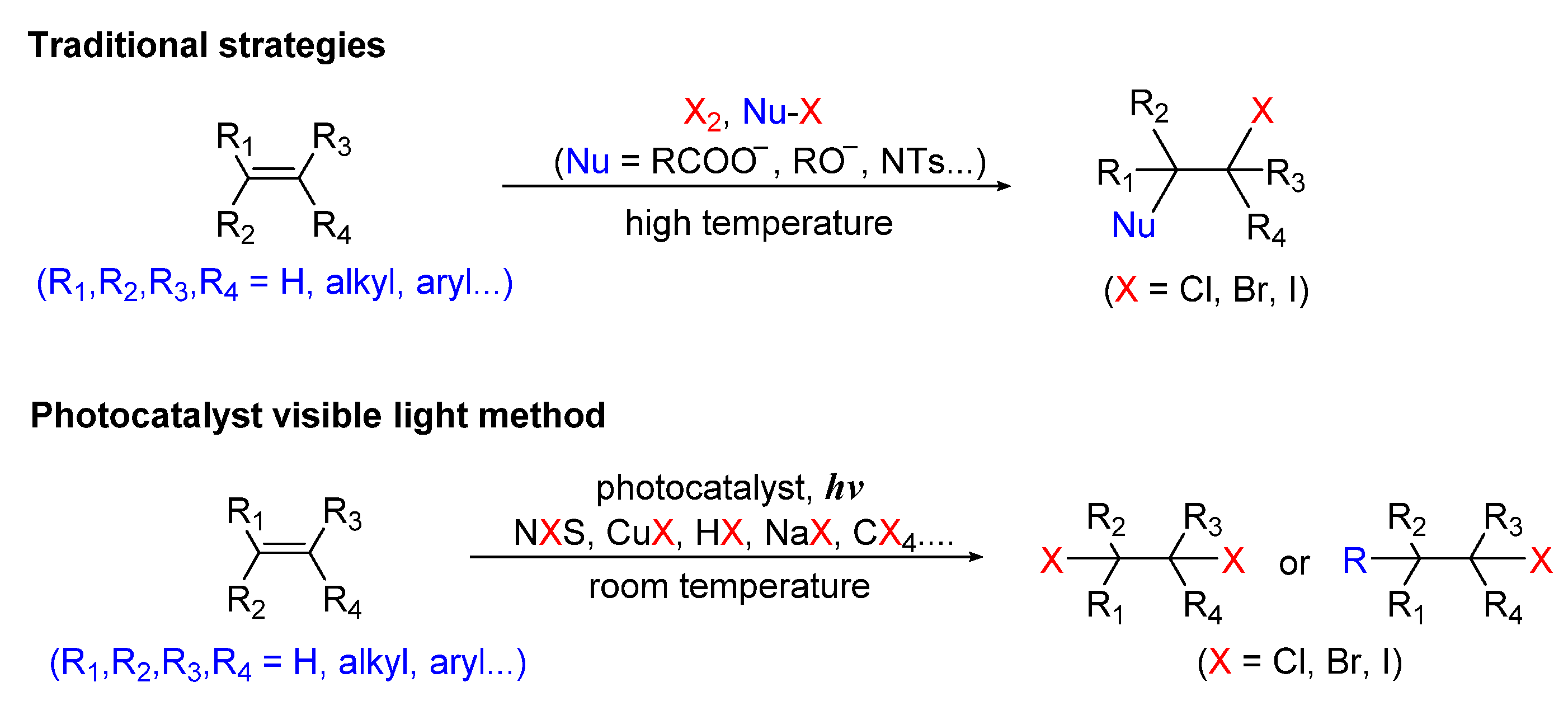

Scheme 15 shows schematic diagrams of the comparison of the traditional methods with visible-light-induced halogenation of aliphatic multiple bonds.

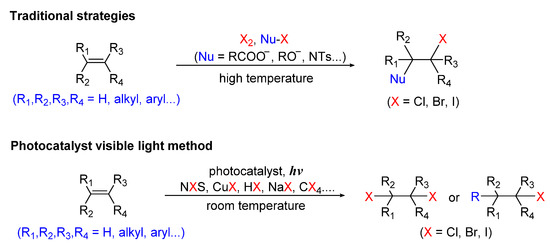

Scheme 15. Synthetic methods for halogenation of aliphatic multiple bonds.

3.1. Chlorination of Aliphatic Multiple Bonds

In 2020, Nicewicz and co-workers developed an organic photoredox catalyst system for the regioselective addition of strong Bronsted acidic nucleophiles such as HCl to alkenes (Scheme 16) [33]. Two different techniques were employed for chlorinating β-methylstyrene derivatives using 9-mesityl-10-methylacridinium as a catalyst under irradiation of 450 nm light. In the first method, a reaction with in situ anhydrous HCl (from pivaloyl chloride and 2,2,2-trifluoroethanol (TFE)) in thiophenol and 2,6-lutidine in chloroform was performed under irradiation of 450 nm light. In the second method, substrates reacted with 2,6-lutidine HCl and 4-methoxythiophenol in a mixture of CHCl₃ and TFE under irradiation of 450 nm light. Reaction using in situ anhydrous hydrogen chloride (HCl) yielded an anti-Markovnikov hydrohalogenation product. For the reaction of styrene substrates with electron-withdrawing groups, the corresponding products were generated with moderate yields (51–99%) (61a–d), and few to no Markovnikov addition compounds were observed. Chlorination of substrates containing electron-releasing substituents showed lower yields and favored the undesirable Markovnikov reaction (61e–g). The anti-Markovnikov hydrohalogenation of α-methylstyrene was completed in less than 5 h with a 93% yield using 2,6-lutidine hydrochloride. Reaction of several α-methylstyrene compounds gave the products with more than 60% yields, whereas reaction of mono-substituted styrenyl alkenes provided slightly lower yields.

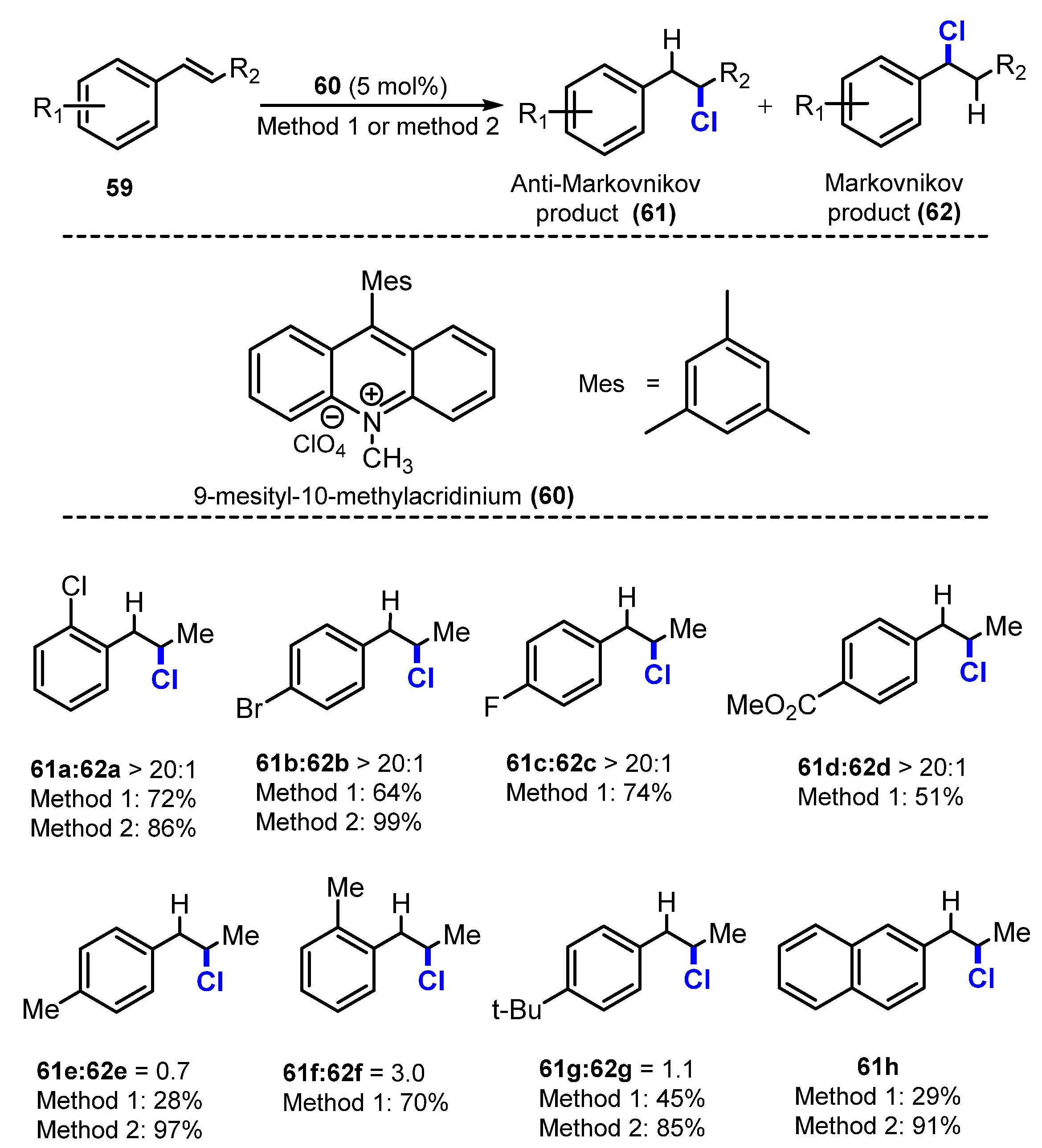

Scheme 16. Photoredox anti-Markovnikov hydrochlorination of styrenes.

Vicinal chloro-trifluoromethylation of alkenes was reported by Han and co-workers in 2014 [34]. In the chloro-trifluoromethylation, alkenes reacted with CF₃SO₂Cl 64 in the presence of Ru(Phen)₃Cl₂ 65 as a photocatalyst and K₂HPO₄ as an additive in acetonitrile under visible light at room temperature to give the corresponding products (Scheme 17). In general, terminal alkenes showed high reactivity. Alkenes containing N-tosyl- and N-Boc-protected amines were readily chloro-trifluoromethylated (66a–b) (99% and 91% yields, respectively), and the reaction of an alkene bearing a phthalimide group generated the corresponding product (66c) (88% yield). Notably, unprotected hydroxyl and formyl groups of alkenes (66d) were tolerated for the reaction procedure, giving 75% and 83% yields, respectively. Furthermore, reactions of alkenes containing ether (66e), ester (66f), amide, and halogen functional groups on the aromatic ring generated target compounds in high yields (71–88%).

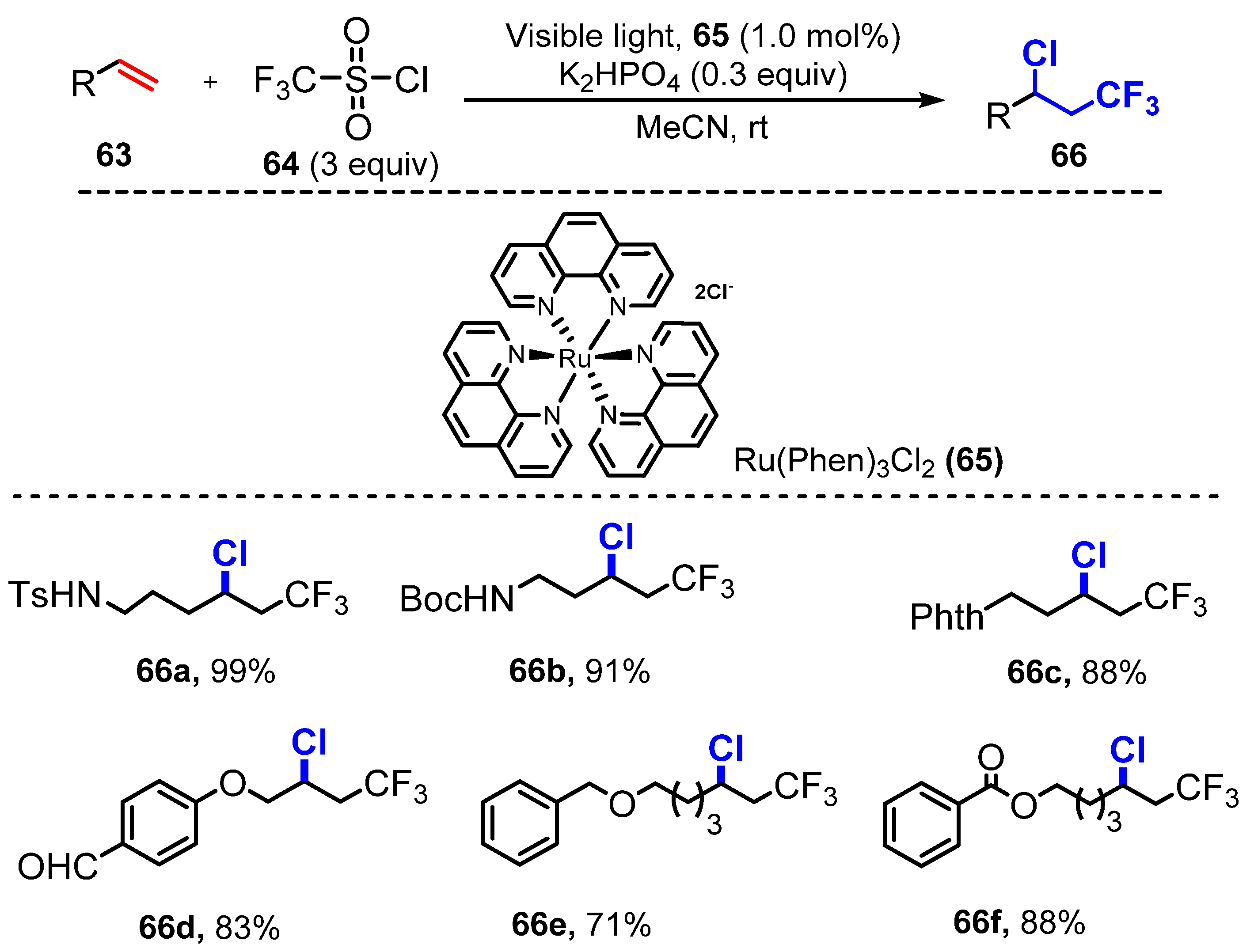

Scheme 17. Chlorotrifluoromethylation of alkenes with CF₃SO₂Cl by photoredox catalysis.

A proposed mechanism of this reaction is shown in Scheme 18. When being exposed to visible light, Ru(Phen)₃²⁺ 65 became the excited state *Ru(Phen)₃²⁺ 67. Reduction of triflyl chloride CF₃SO₂Cl 64 by *Ru(Phen)₃²⁺ 67 was then cleaved to CF₃^• 69, SO₂, and Cl⁻ 70. After that, *Ru(Phen)₃²⁺ 67 became the highest oxidation state Ru(Phen)₃³⁺ 68. CF₃^• radical 69 attacked alkene 63 to generate radical intermediate 71, which was later oxidized by Ru(Phen)₃³⁺ 68 to give the carbonation intermediate 72 and Ru(Phen)₃²⁺ 65. Finally, Cl⁻ anion 70 was captured by carbonation intermediate 72 to produce product 66.

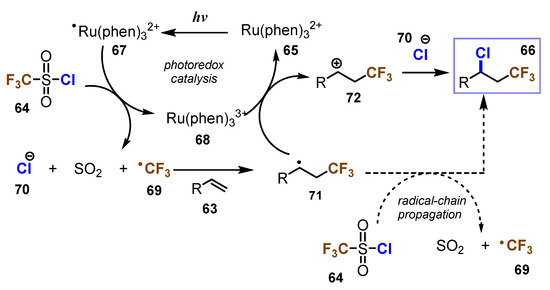

Scheme 18. Proposed mechanism of chlorotrifluoromethylation of alkenes.

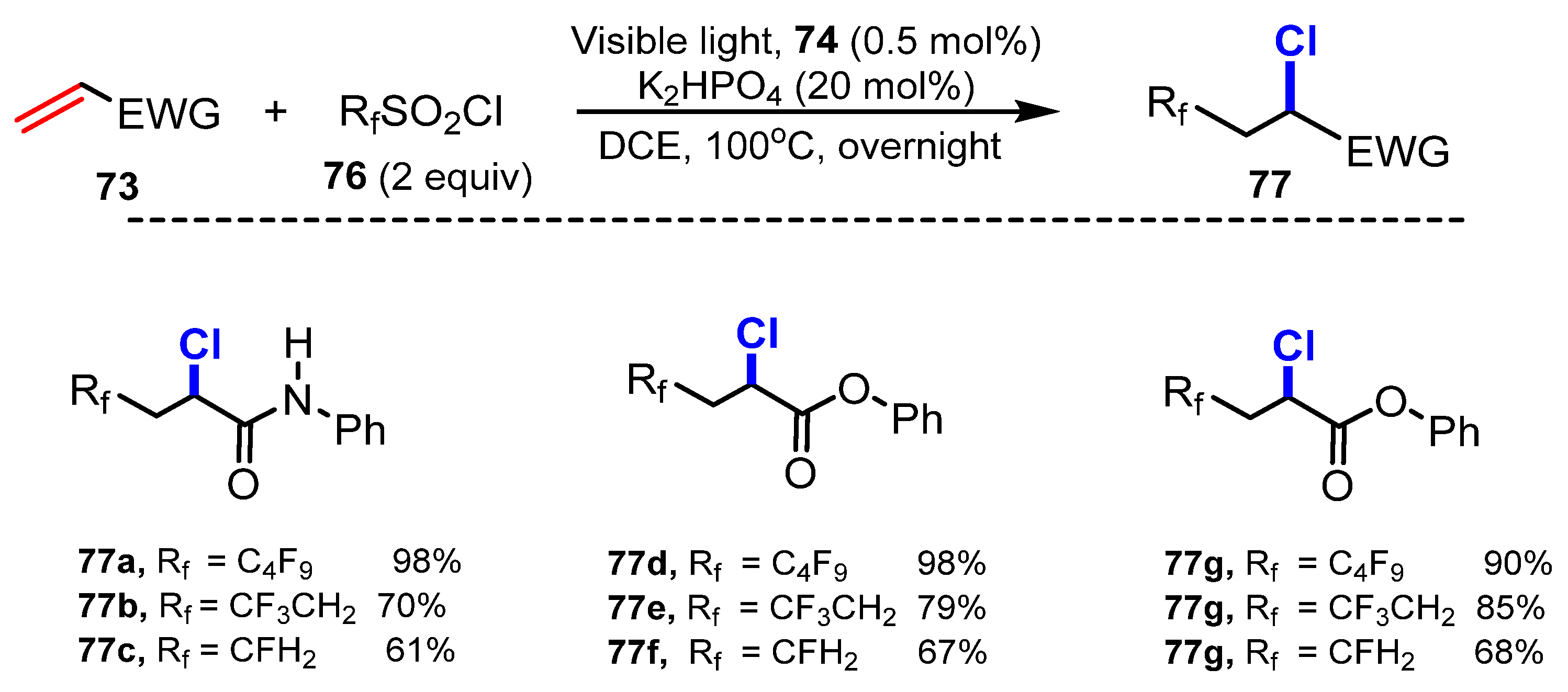

In 2015, Dolbier and co-workers reported photoinduced atom transfer radical addition (ATRA) reactions of alkenes using fluoroalkylsulfonyl chlorides (CF₃SO₂Cl) [35]. For chlorination, alkenes reacted with CF₃SO₂Cl in the presence of Cu(dap)₂Cl 74 as an efficient photocatalyst and K₂HPO₄ as a promoter in dichloromethane under irradiation of visible light, which produced the corresponding products in high yields (Scheme 19). Various alkenes were successfully tested for the reaction with CF₃SO₂Cl to generate target products. Reactions of unsaturated carbonyl substrates such as amides (75a–e), esters (75g–75h), and cyanide (75f) led to the production of target products in moderate to excellent yields. Unsubstituted and α-substituted substrates smoothly underwent this process, while synthetic yields were considerably decreased to 52%, when the substrate was replaced at the β-position (75d). Other fluoroalkylsulfonyl chlorides, such as HCF₂SO₂Cl, H₂CFSO₂Cl, and CF₃CH₂SO₂Cl, were tested in this reaction process. Even though, it was discovered that their reactions required higher temperatures (108 °C), this reaction procedure of alkenes provided desired products with good to excellent yields (61–98%) (Scheme 20). (77a–77i).

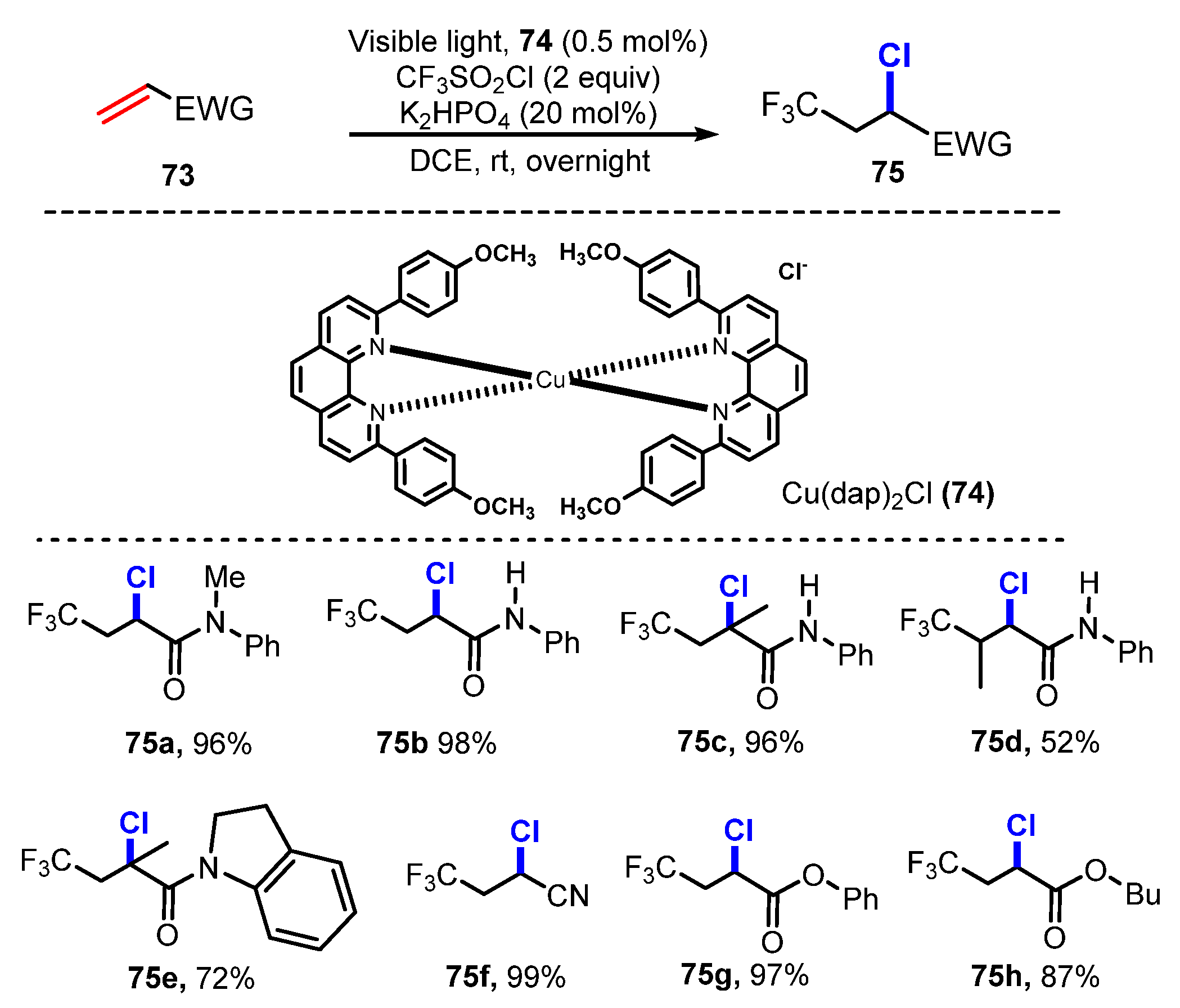

Scheme 19. Conversion of electron-deficient alkenes to chlorinated products.

Scheme 20. Another preparation of β-chlorinated phenyl amine and phenyl ester.

In 2020, Wan and co-workers demonstrated photoredox vicinal dichlorination of alkenes [36]. For this transformation, CuCl₂ (20 mol%) as a catalyst and hydrochloric acid (2.5 equiv.) as a chlorine source were used for dichlorination in acetonitrile under irradiation of a 38W white LED (Scheme 21). A variety of phenolic esters with electron-withdrawing groups (NO₂, SO₂, carbonyl, CN, ester, CF₃, and halides) (79a–c) and electron-donating groups (phthalimide, N-hydroxyphthalimide, acetal, Me, t-Bu, and ether) (79d–e) on benzene rings were well tolerated for this reaction with moderate to good yields (50–71%). Reaction of sulphonamides (79f) with free N-H groups was successfully conducted, providing dichlorinated compounds with acceptable yield (75%). The presence of heteroatoms such as oxygen and sulfur had no effect on the efficiency of this reaction, while alkenes with oxidatively labile amine groups were readily converted into dichloride products.

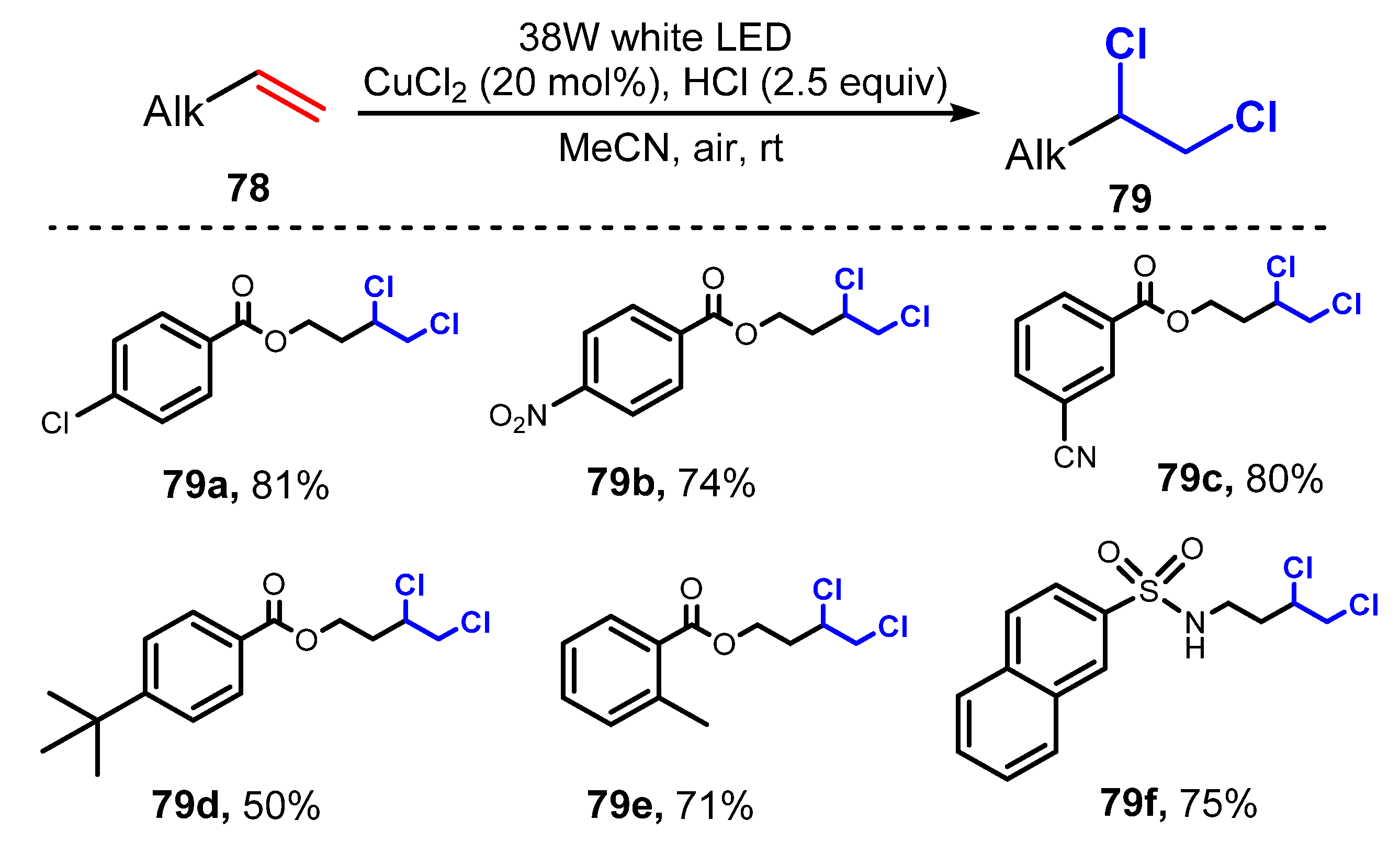

Scheme 21. Visible-light-induced dichlorination of alkenes.

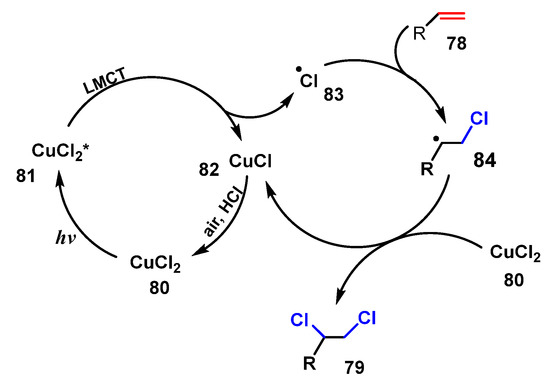

A proposed mechanism of this reaction is shown in Scheme 22. When CuCl₂ 80 was irradiated by visible light, it was excited to CuCl₂* state 81. After that, ligand to metal charge transfer (LMCT) excitation occurred, forming chlorine radical 83, which quickly reacted with alkene 78 to give radical 84. Finally, radical 84 reacted with CuCl₂ 80 to afford the desired product 79 and CuCl. Then, oxidation of CuCl by HCl recovered CuCl₂ 80.

Scheme 22. Proposed mechanism for conversion of alkenes to alkyldichlorides.

3.2. Bromination of Aliphatic Multiple Bonds

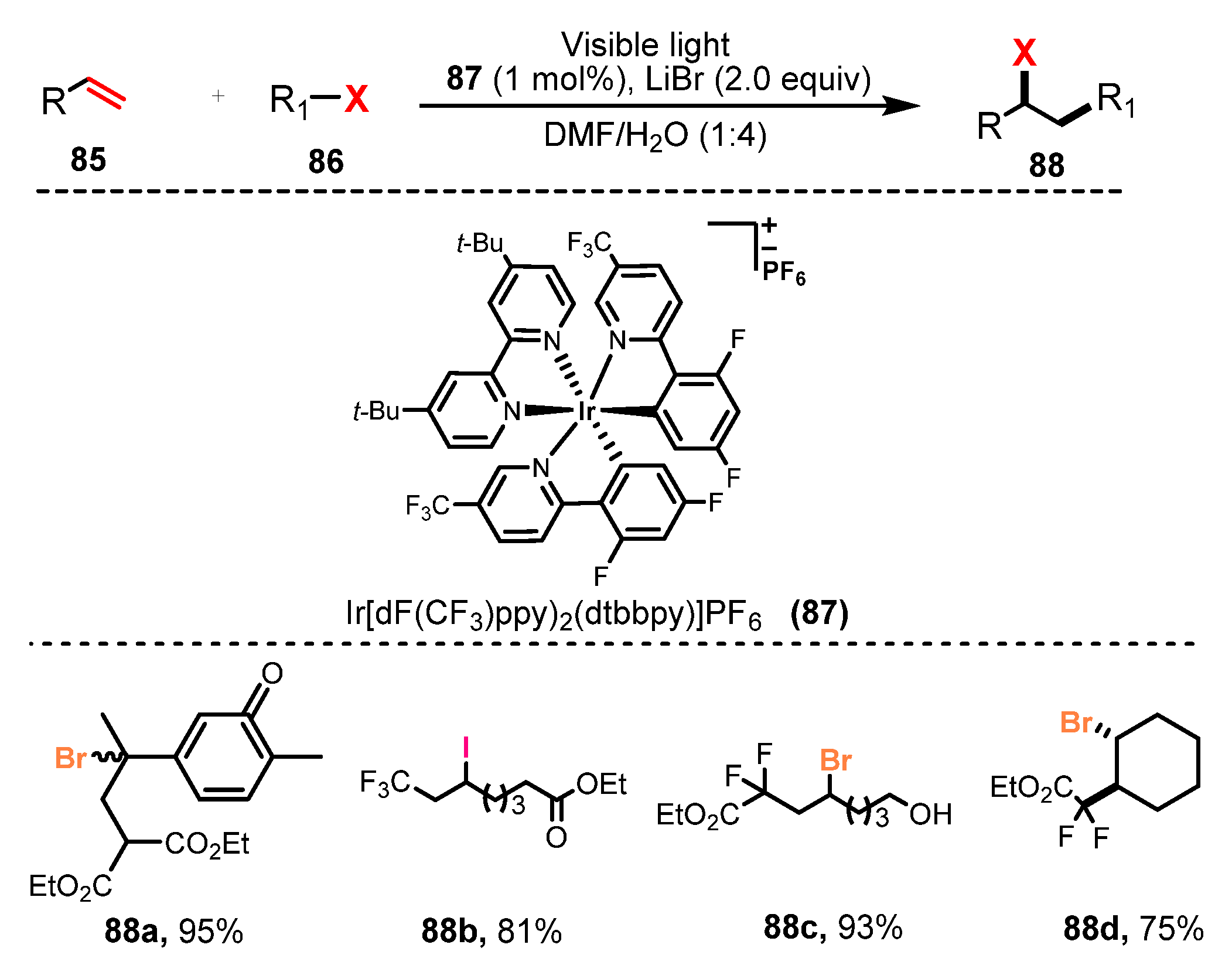

In 2011, Stephenson and co-workers developed a photoredox-catalyzed halogenation via atom transfer radical addition (ATRA) of haloalkanes and α-halocarbonyls to olefins [37]. By using Ir[(dF(CF₃)ppy)₂(dtbbpy)]PF₆ as a photocatalyst and LiBF₄ as a Lewis acid additive, they carried out the addition of various haloalkanes and α-halocarbonyls to different olefins under irradiation of visible light in a mixture of DMF and H₂O (1:4) (Scheme 23). Using diethyl 2-bromomalonate as a halide source, the reaction of monosubstituted and 1,1-disubstituted olefins was carried out smoothly (67–99% yields). Olefin functional groups that were well tolerated included free alcohols, silyloxy ethers, benzyl ethers, alkyl bromides, esters, enones, carbamates, and aromatic rings (88a–b). A number of α-halocarbonyls and haloalkanes could be used as halogen sources. A variety of fluorinated compounds were successfully employed for this reaction, generating products with high yields (75–93%) (88c–d).

Scheme 23. Photocatalysis halogenation of several olefins.

A mechanism of this reaction was proposed as shown in Scheme 24. Ir³⁺ 87 was changed to excited state Ir³⁺* 89 under irradiation of visible light, and Ir³⁺* 89 subsequently reacted with haloalkane 86 or α-halocarbonyl to give radical 91 and Ir⁴⁺[X⁻] complex 90. The electrophilic radical 91 then underwent an atom transfer radical addition (ATRA) process with olefin 85 to generate a new radical 92. This radical 92 was oxidized by Ir⁴⁺ and then captured X⁻ to give the product 88. On other hand, the new radical 92 also received X⁻ from haloalkane 86 or α-halocarbonyl to give the product 88.

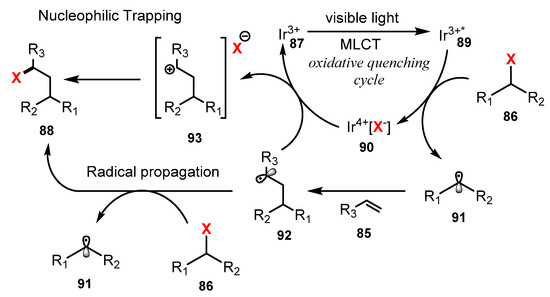

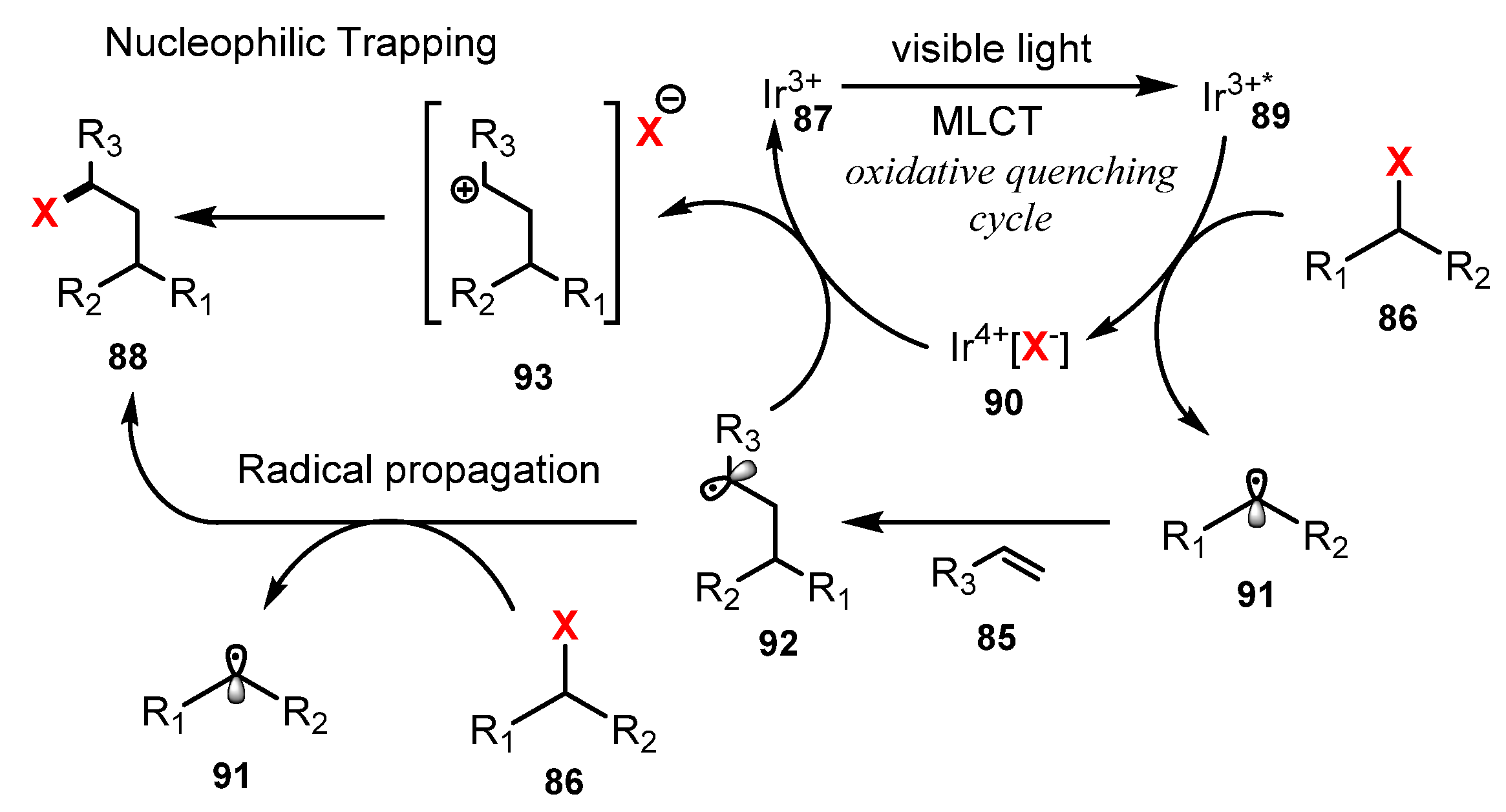

Scheme 24. Proposed mechanism for conversion of olefins to products.

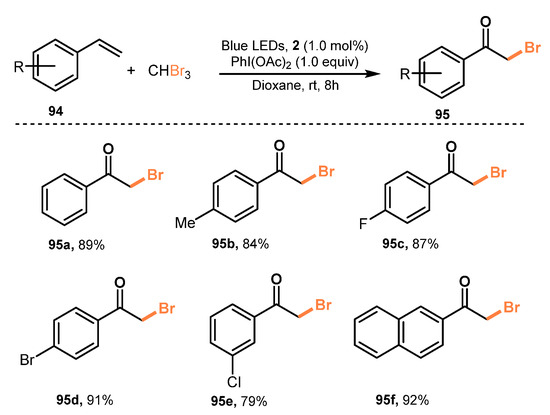

Synthesis of α-bromoketones from olefins was reported by Zhang and co-workers in 2021 [38]. In this method, the reactions of styrenes with CHBr₃ in the presence of Ru(bpy)₃Cl₂ (1.0 mol%) as a photocatalyst and PhI(OAc)₂ (1.0 equiv) as a promoter in dioxane under irradiation of a blue LED (450–455 nm) was carried out to produce α-bromoketone products in good yields (Scheme 25). Using this protocol, various olefin derivatives were transformed to α-bromoketones. Styrene with different substitutes such as methyl groups and halides were readily treated with tribromomethane to give the corresponding products in good to excellent yields (95a–e) (79–91%). In addition, 2-vinylnaphthalene was transformed to a desired product with high yield (92%) via this protocol (95f). This visible-light-irradiation protocol was also applied to the synthesis of α-iodo/chloroketones from olefins, and it successfully provided target products.

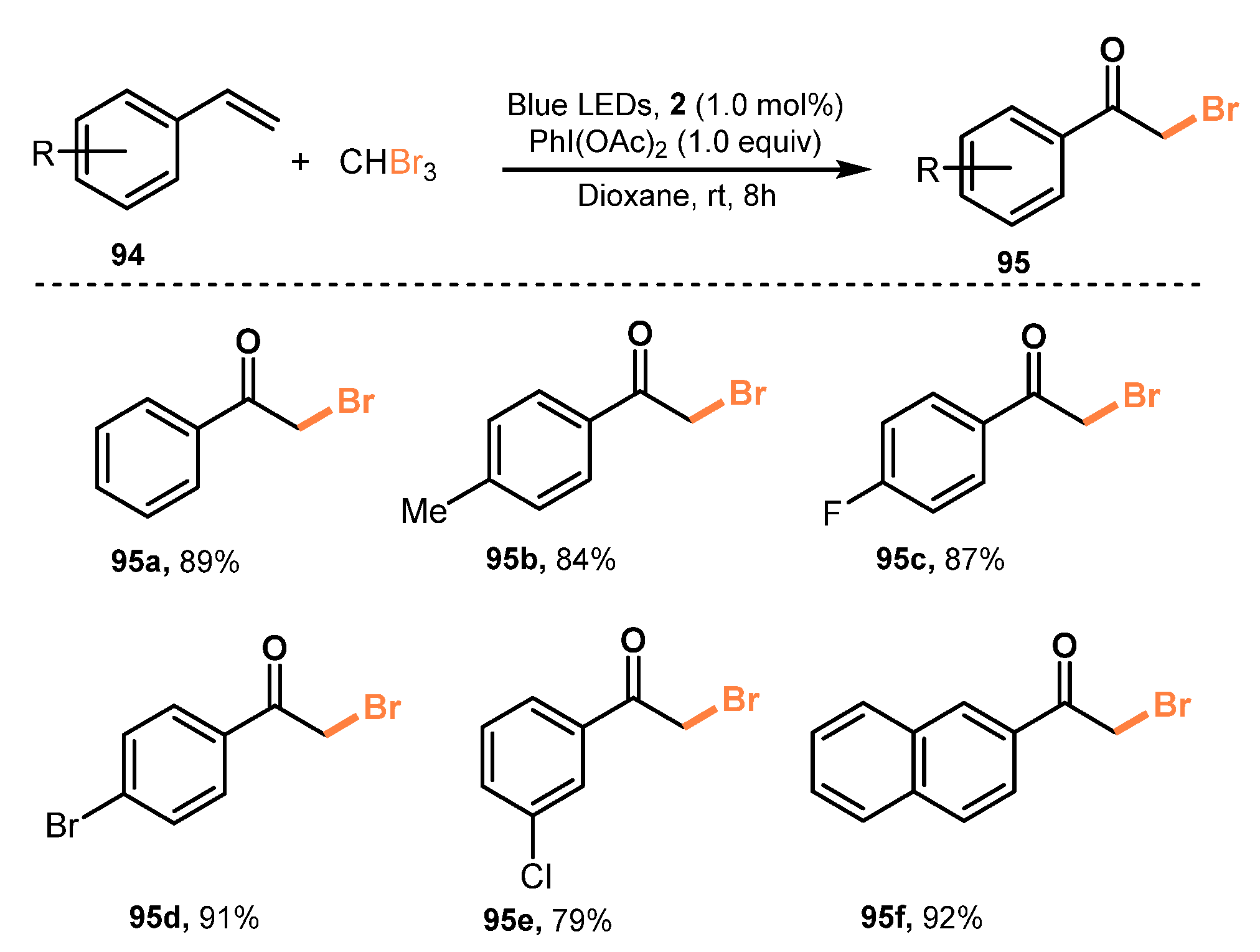

Scheme 25. Several α-bromoketones from olefin sunder visible light irradiation.

A proposed mechanism of this method is illustrated in Scheme 26. First, photocatalyst (PC) 2 was activated under irradiation of visible light to produce the excited state (PC)* 28. The generated (PC)* 28 then reacted with halide reagent 96, yielding halide radicals (X^• 97 and (CHX₂)^• 98) through C-X bond cleavage. Addition of X^• radical 97 to substrate 94 yielded radical intermediate 99, which was then incorporated with ³O₂ to give intermediate radical 100. The radical 100 captured a hydrogen atom from (CHX₂)^• radical 98 to form compound 101, which subsequently underwent a dehydration process to provide the final product 95.

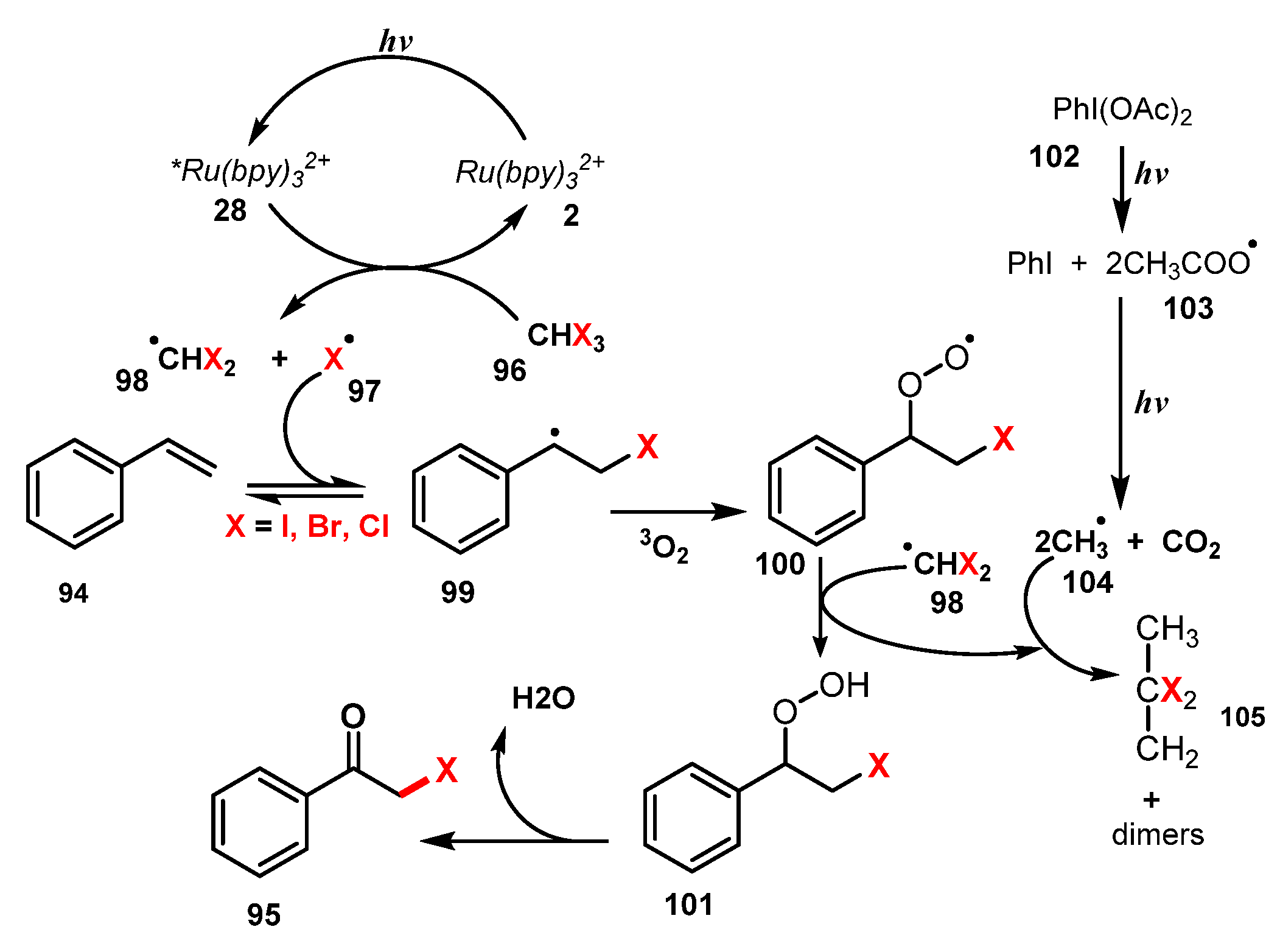

Scheme 26. The synthesis mechanism of α-bromoketones from styrenes.

4. Photo-Catalyzed Halogenations of Alcohols

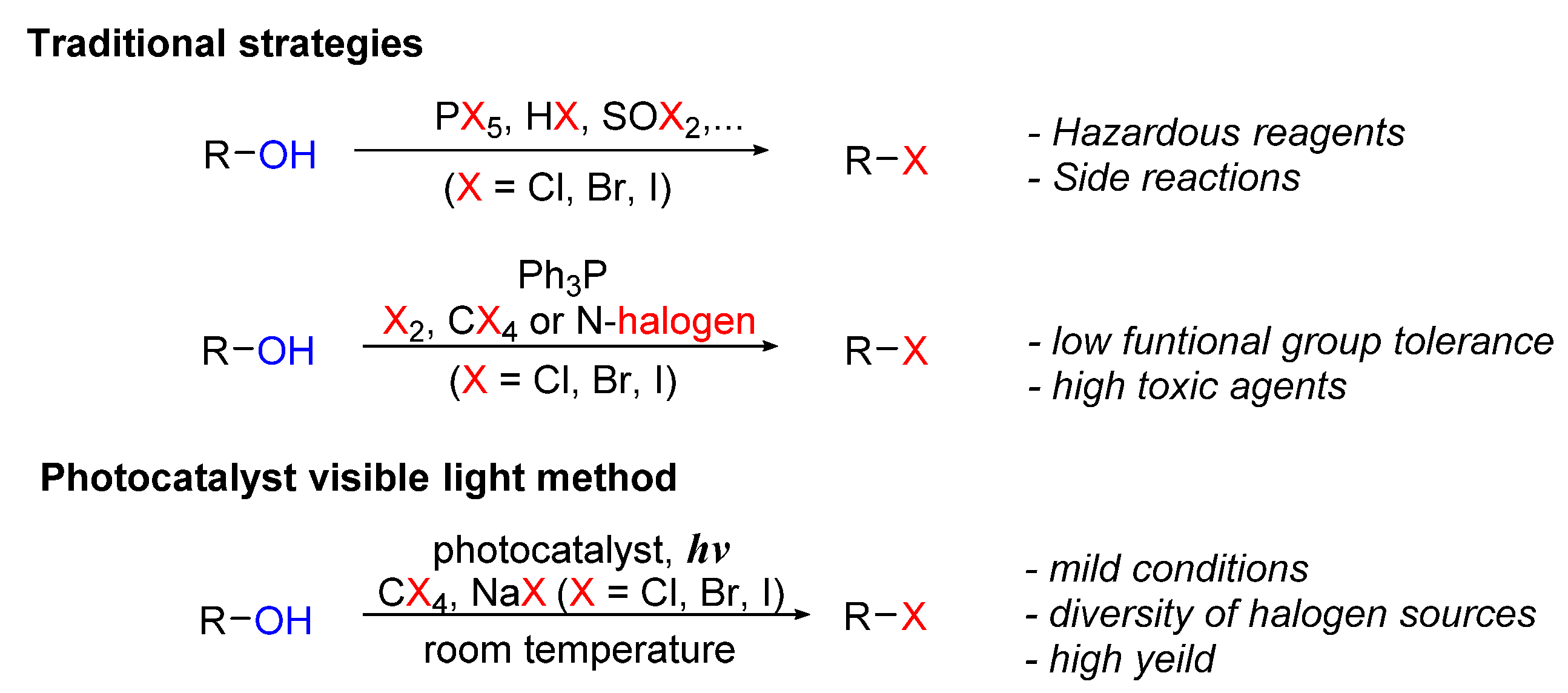

Scheme 27 shows schematic diagrams of the comparison of the traditional methods with visible light-induced halogenation of alcohols.

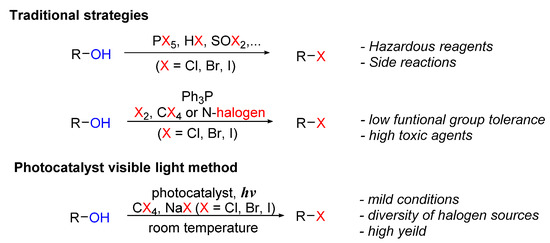

Scheme 27. Synthetic methods for halogenation of alcohols.

In 2011, Stephenson and co-workers performed halogenation of alcohols in the presence of CBr₄ or CHI₃ as halide sources and Ru(bpy)₃Cl₂ as a photocatalyst in DMF under radiation of blue LED irradiation at room temperature (Scheme 28) [39]. Substrates bearing various functional groups such as ethers, silyl ethers, alkene, alkynes, carbamates, and phenols were tolerated for this reaction procedure (107a–h). In this reaction, primary alcohols were successfully converted to the corresponding halides with yields ranging from 77 to 98%. Reactions of secondary alcohols were smoothly conducted for the bromination and iodination processes (107i–j), although the reaction rates were slower than those of primary alcohols.

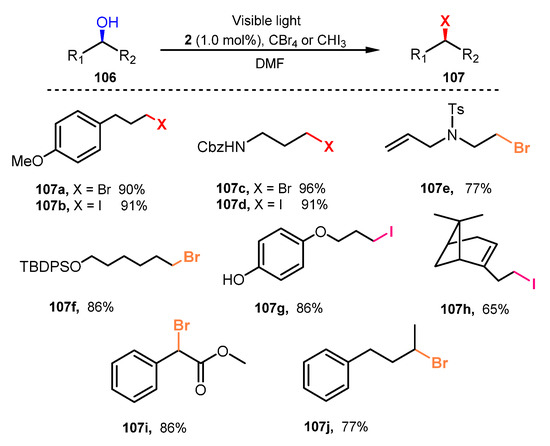

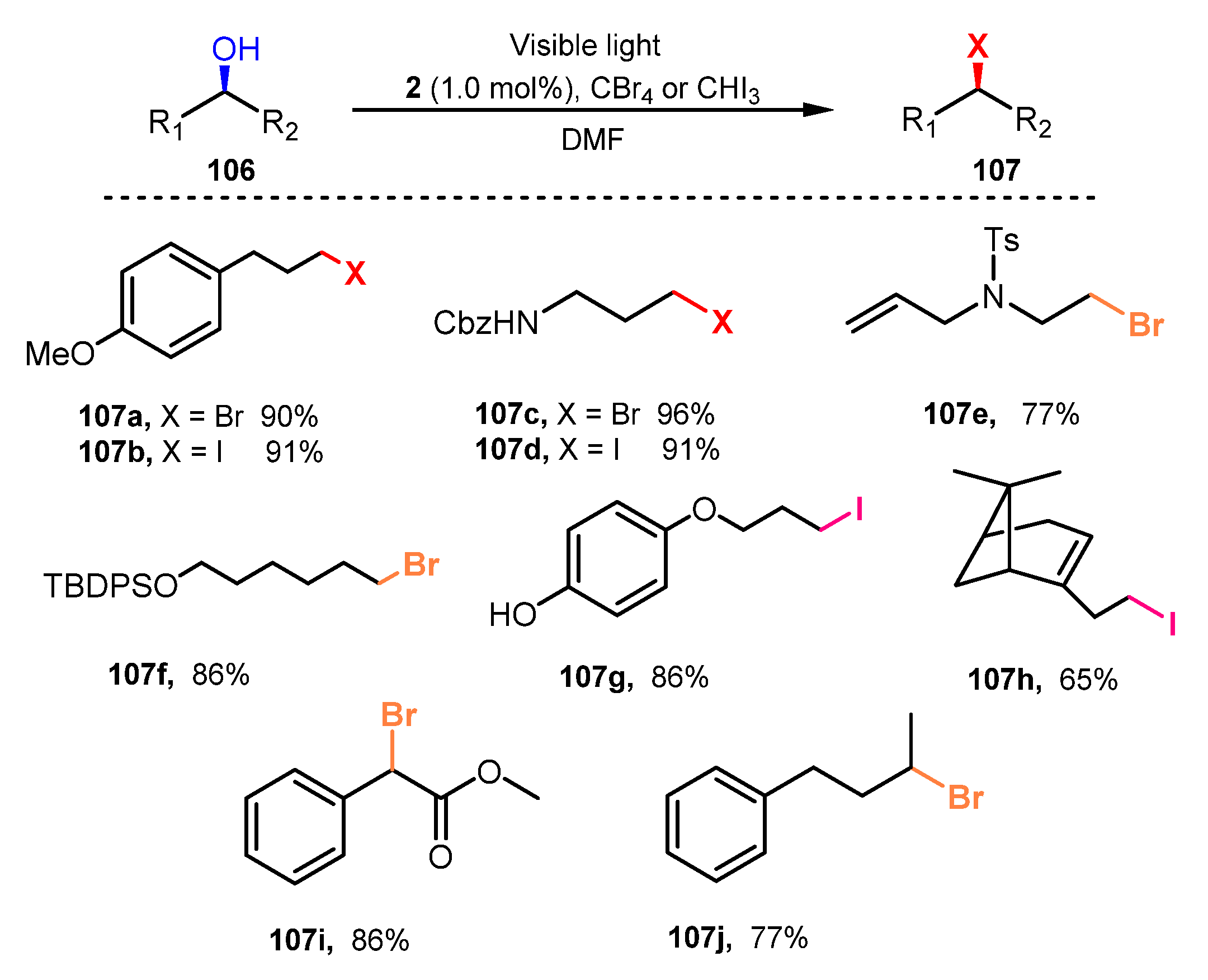

Scheme 28. Conversion of alcohols to bromides or iodides using photoredox catalysis.

A possible mechanism was proposed as shown in Scheme 29. Under visible light irradiation, the photocatalyst Ru(bpy)₃²⁺ 2 was changed to excited state Ru(bpy)₃^2+* 28, which underwent single-electron oxidation by CBr₄ 47 to generate Ru(bpy)₃³⁺ 29 and electron-deficient radical ^•CBr₃ 49. The ^•CBr₃ radical 49 then reacted with DMF 108, resulting in stable radical 109. Ru(bpy)₃³⁺ 29 was reduced by radical 109 to return Ru(bpy)₃²⁺ 2 and produced intermediate 110. On the other hand, intermediate 110 was also generated through the reaction of radical 109 with CBr₄ 47. At this point, there are two possible ways to afford the target product. The first way involved the reaction of alcohol with compound 110 to create intermediate 112. In the second process, the bromide anion directly attacked intermediate 110 to generate Vilsmeier–Haack reagent 111, which then reacted with alcohol 106 to form intermediate 112. Finally, the SN₂ substitution reaction of 112 with bromide anion provided the desired product 107.

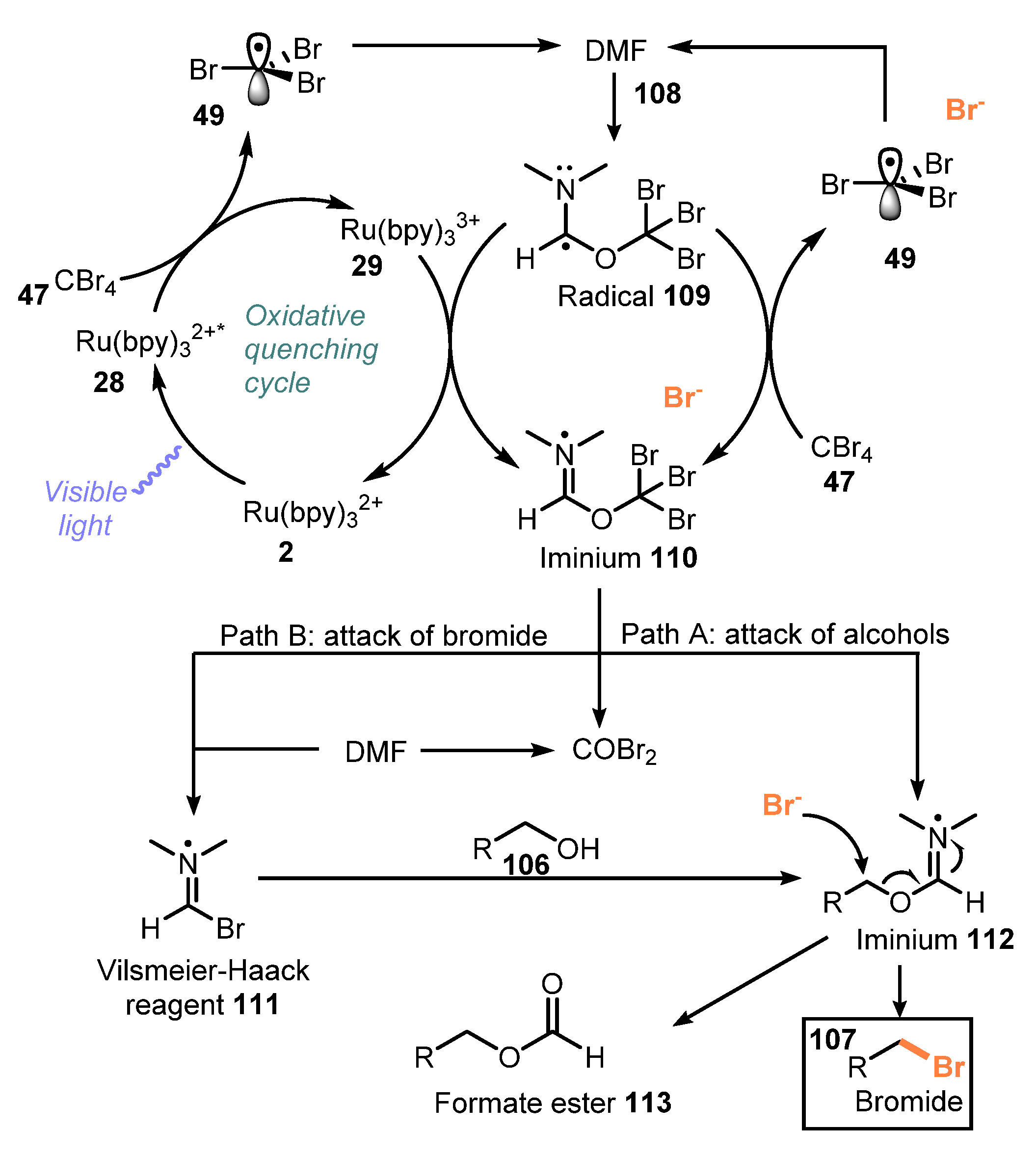

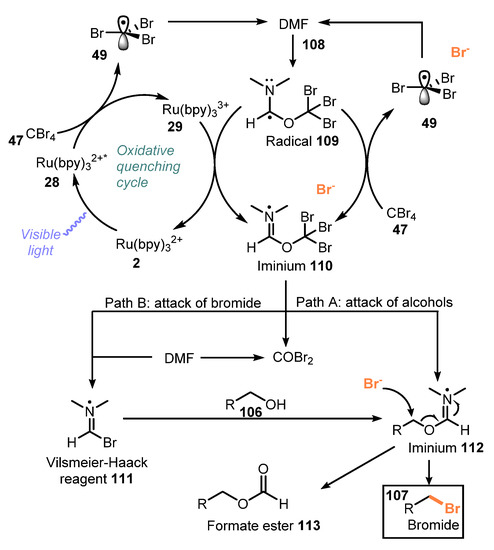

Scheme 29. Mechanism of alcohols halogenation reaction.

Bromination of alcohols using metal-free organic photocatalyst was demonstrated by Li and co-workers in 2019 [40]. The bromination reaction of alcohols was carried out in the presence of CBr₄ as a bromide source and 4,7-diphenyl-2,1,3-benzothiadiazole (Ph-BT-Ph) as a photocatalyst under blue LEDs irradiation in DMF at room temperature to yield the corresponding products (Scheme 30). Both primary and secondary alcohols were readily converted into desired bromides in the use of Ph-BT-Ph. Reaction yields of primary alcohols (116a–c) were somewhat greater than those of secondary alcohols (116d–e). It was noted that formate ester was observed as a minor side product from the reaction of alcohols, and, in the reaction of cyclododecanol, cyclododecyl formate (116f) was generated as a main product. No photobleaching impact of photocatalyst was discovered.

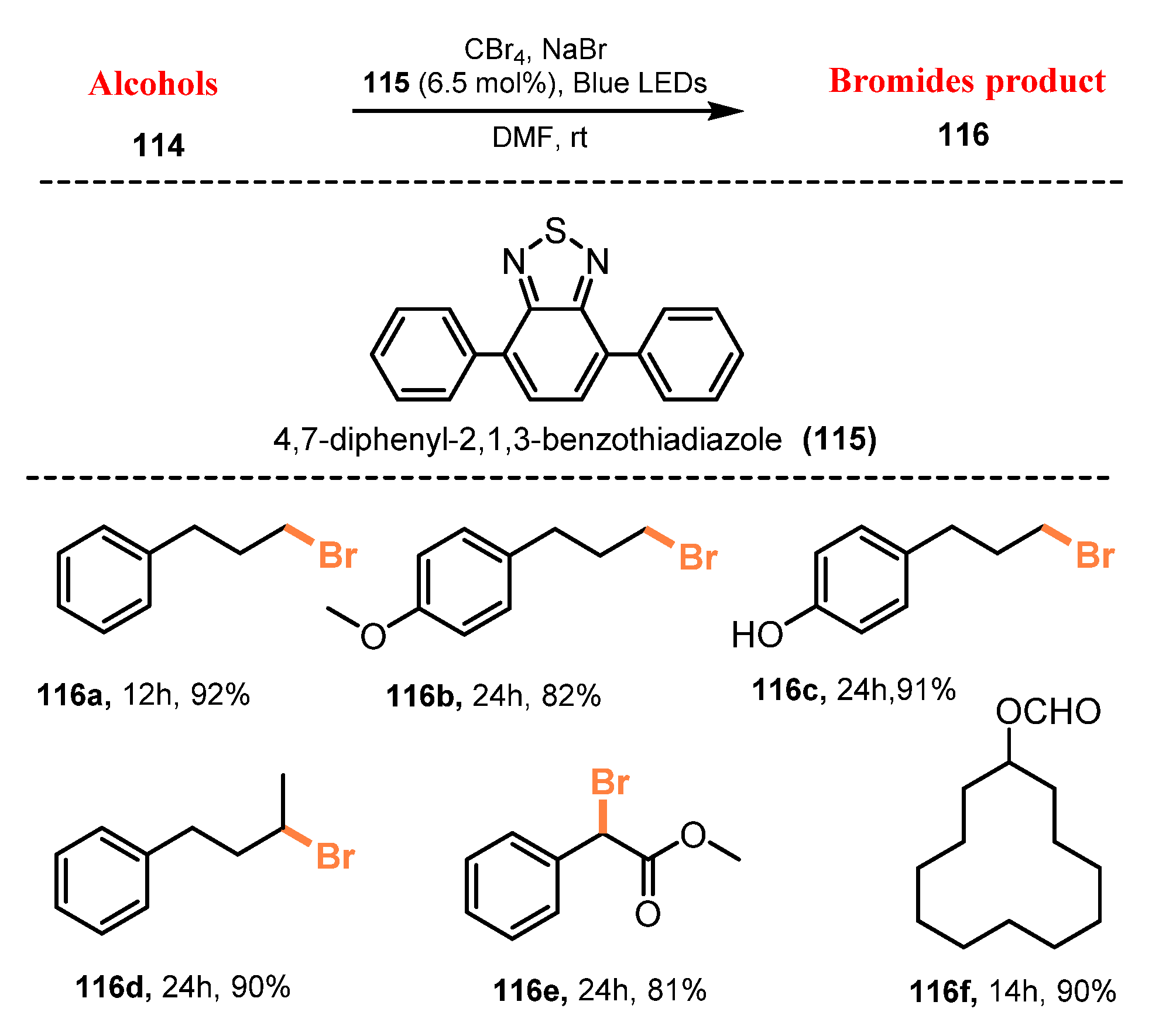

Scheme 30. Conversion of alcohols to bromides by metal-free organic photocatalyst.

A mechanism was proposed as shown in Scheme 31. Under irradiation of visible light, one electron was transferred from the lowest unoccupied molecular orbital (LUMO) of the photocatalyst Ph-BT-Ph 115 to CBr₄ 47 to afford ^•CBr₃ radical 49 and Br⁻. DMF captured radical 49 to give intermediate 109, which subsequently delivered an electron, resulting in iminium compound 110. The bromide ion reacted with intermediate 110 to generate Vilsmeier–Haack reagent 118, which then interacted with alcohol 114 to produce the desired compound 119. In another pathway, reduction of CBr₄ 47 by photocatalyst Ph-BT-Ph 115 gave carbene CBr₂ 120. Then, reaction of carbene CBr₂ 120 with DMF produced CO and (dibromomethyl) dimethylamine intermediate 121, which was also converted to Vilsmeier–Haack reagent 118 after losing one bromide atom.

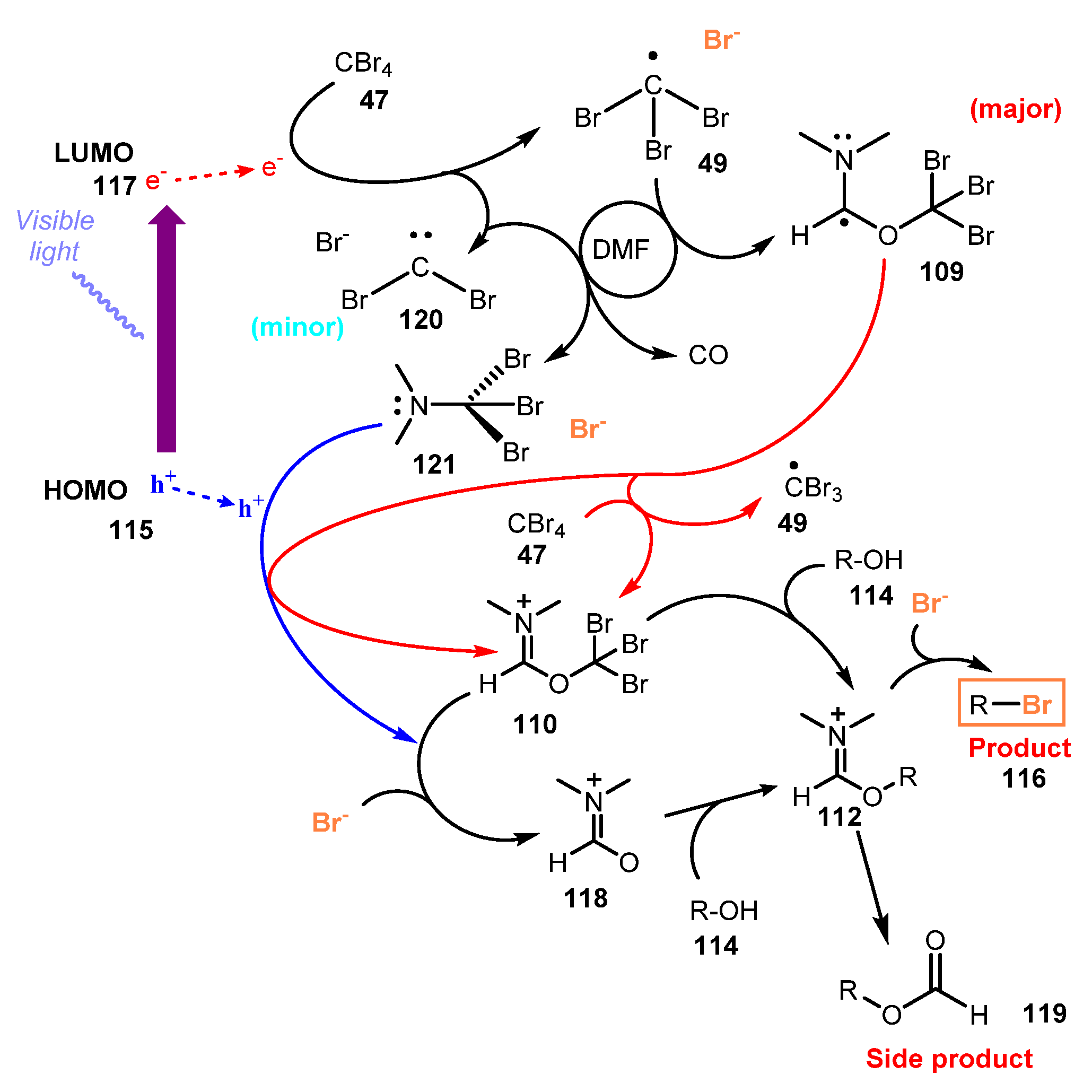

Scheme 31. Proposed mechanism of photocatalytic direct conversion of alcohols to bromides.

5. Photo-Catalyzed Halogenations of Carboxylic Acids

Scheme 32 shows schematic diagrams of the comparison of the traditional methods with visible-light-induced halogenation of carboxylic acids.

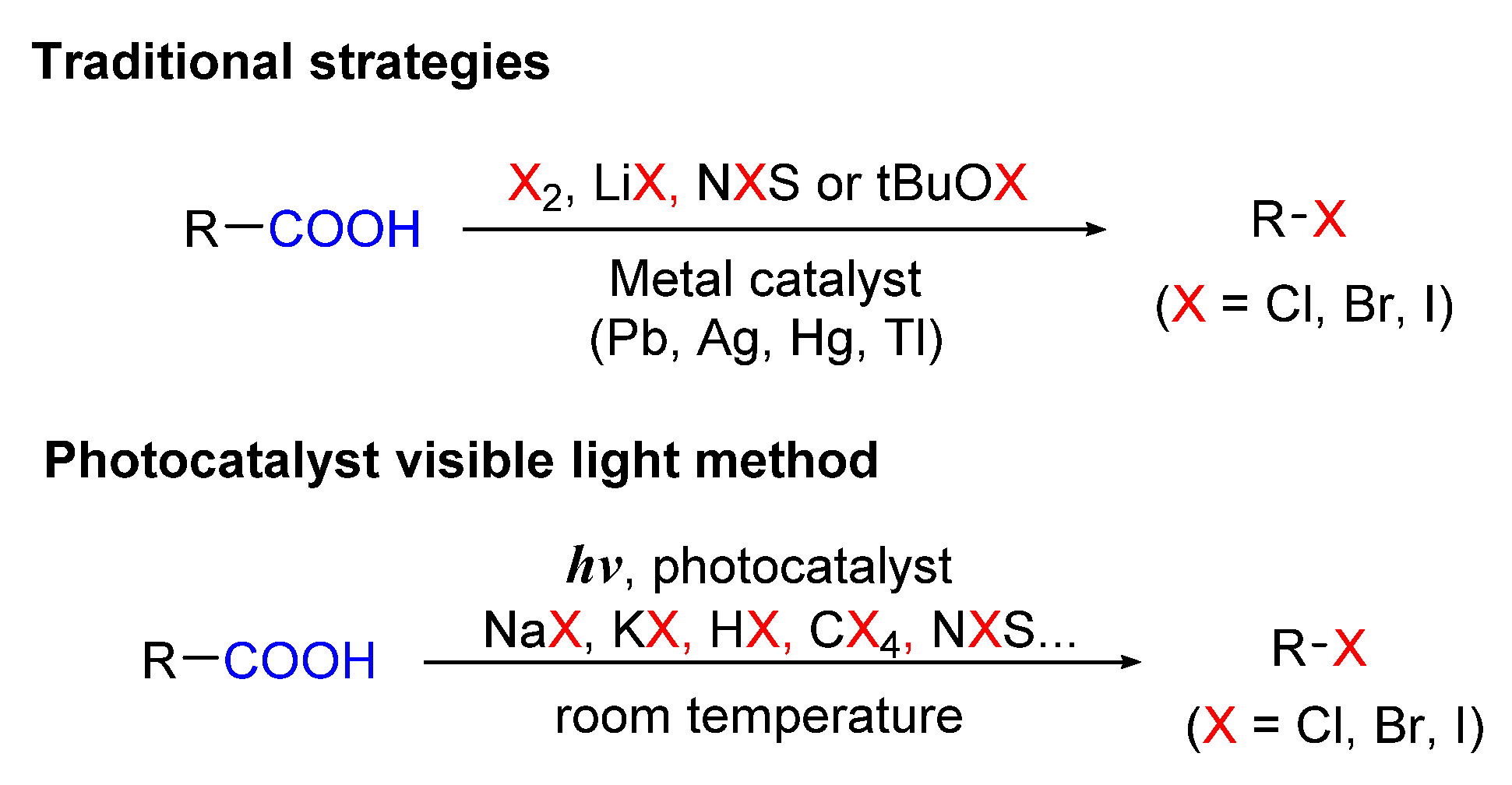

Scheme 32. Synthetic methods for halogenation of carboxylic acids.

5.1. Chlorination of Carboxylic Acids

In 2016, Glorius and co-workers reported photocatalytic Hunsdiecker-type decarboxylative halogenation (bromination, chlorination and iodination) of alkyl carboxylic acids [41]. Diethyl bromomalonate, N-chlorosuccinimide (NCS), and N-iodosuccinimide (NIS) were used as halide sources, Cs₂CO₃ was a promoter, and [Ir(dF(CF₃)ppy)₂(dtbbpy)]PF₆ was a photocatalyst in chlorobenzene to perform this decarboxylative halogenation of carboxylic acids under irradiation of blue LEDs (lmax = 455nm) (Scheme 33). Primary, secondary, and tertiary carboxylic acid substrates were all tolerated for this method. A broad range of functional groups such as esters, protected amines, aryl, and silyl ethers were successfully used in this protocol to produce target products with good to high yields (124a–w) (25–86%). It was discovered that the reaction could also be achieved with excellent product yields in ethyl acetate instead of chlorinated solvents. Besides, this reaction could be conducted on a gram scale (5 mmol) without reducing the yield, even though a longer reaction time was required.

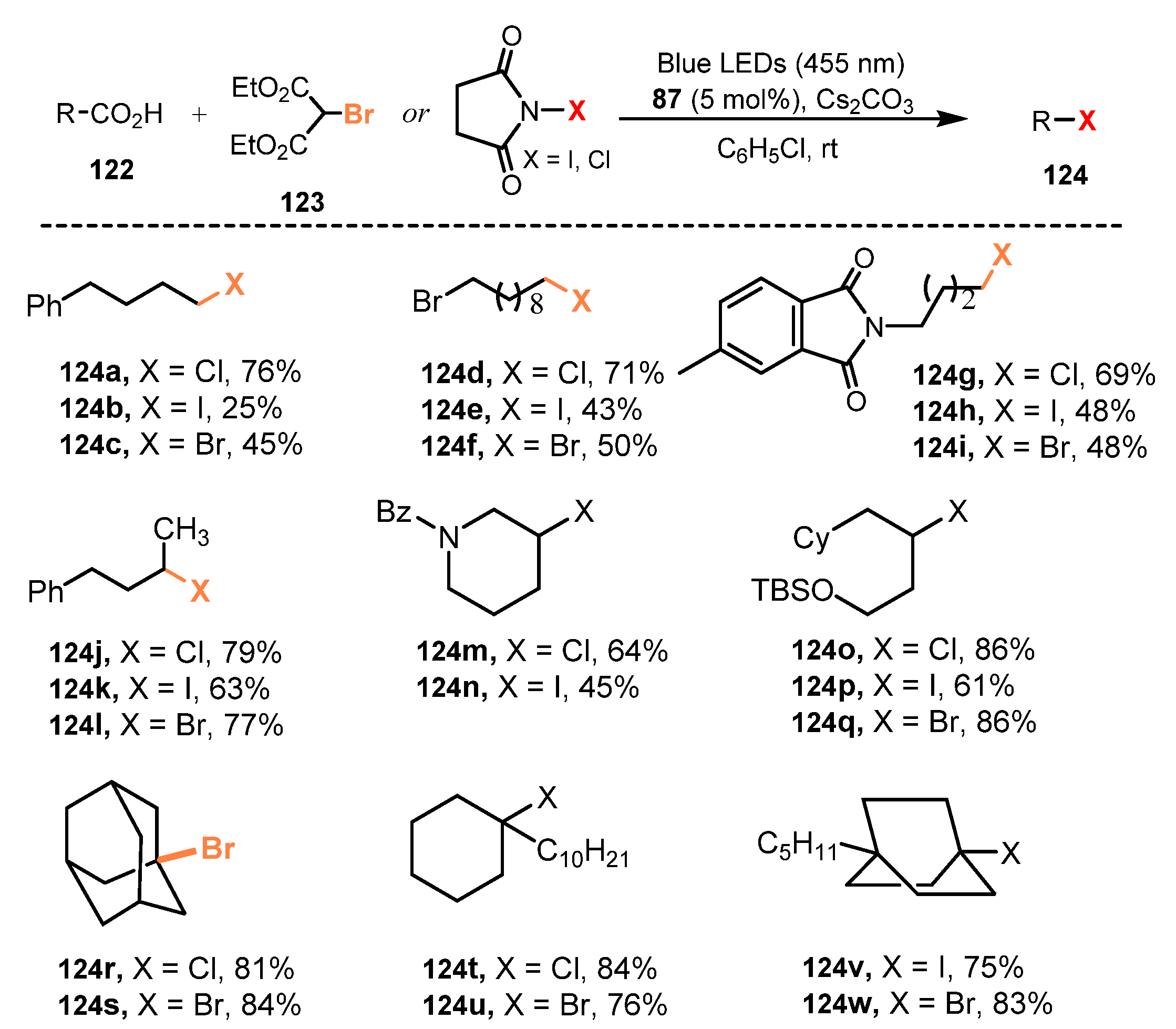

Scheme 33. Decarboxylative halogenation reaction via visible light.

A proposed mechanism for this method is illustrated in Scheme 34. Photocatalyst Ir^III 87 was transformed to Ir^III* 89 under the irradiation of visible light. Photoexcitation of photocatalyst Ir^III* 89 facilitated decarboxylation of substrate 122 to give Ir^II 125 and appropriate alkyl radical 126, which captured a halide atom from the halide source 123 to give the final product 124 and malonyl radical 127 as a byproduct. The malonyl radical 127 received one electron from Ir^II 125 to recover photocatalyst Ir^III 87 and yielded the malonate anion 128.

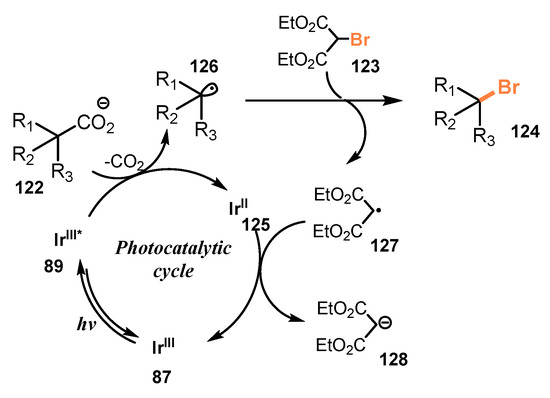

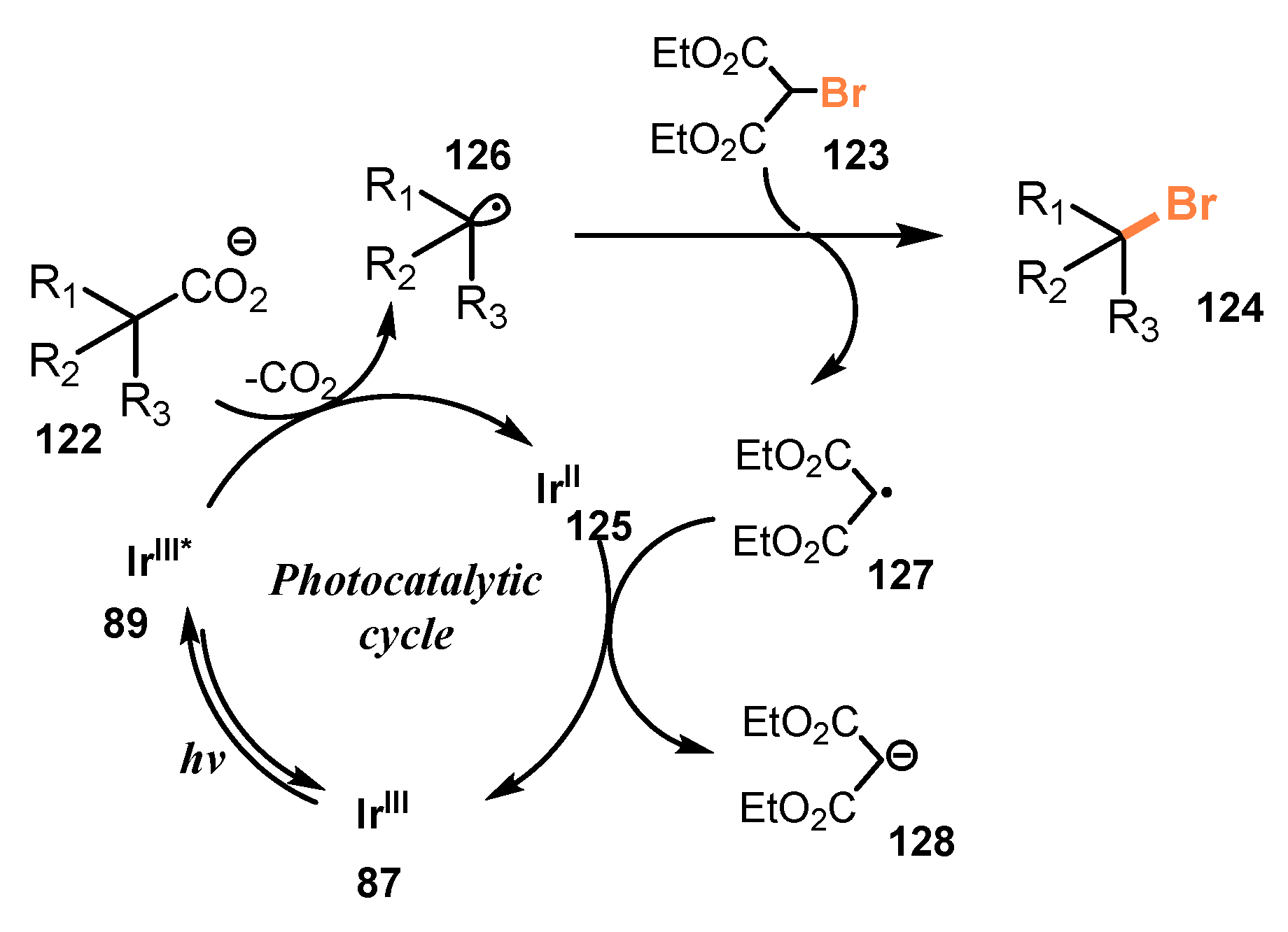

Scheme 34. Proposed mechanism for the visible-light-promoted bromination.

5.2. Bromination of Carboxylic Acids

Another decarboxylative bromination of carboxylic acids using potassium bromide was reported by Uchiyama and co-workers in 2020 [42]. In this protocol, a series of sterically hindered primary, secondary, and tertiary carboxylic acids, bearing different structures such as acyclic, cyclic, caged, and bridgehead, were treated with potassium bromide in the presence of (diacetoxyiodo)benzene as a photocatalyst in CH₂Cl₂ or PhCF₃ under irradiation of a ceiling fluorescent light at room temperature to generate the corresponding products without rearrangement or fragmentation (Scheme 35). Substrates bearing nitro, ester/lactone (131d–e), amide/sulfonamide/2-nitrophenylsulfonyl (nosyl)/imide (131i), ketone (131b, 131f–g), and bromide/fluoride (131h) functionalities were tolerated for this brominating procedure. Additionally, reaction of carboxylic acid with the extremely radical-sensitive ether group was also successfully achieved with 87% yield.

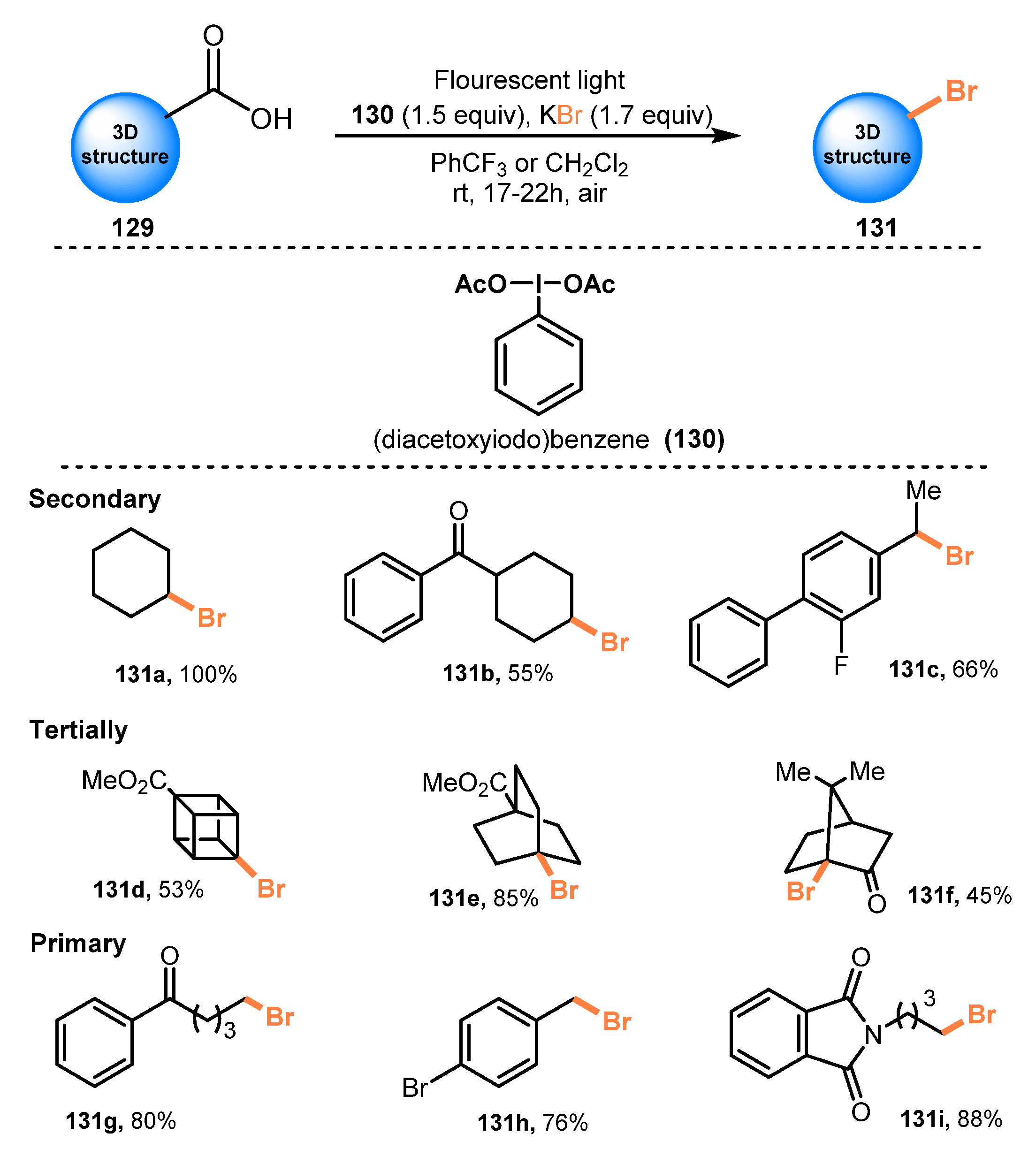

Scheme 35. Decarboxylative bromination of sterically hindered carboxylic acids.

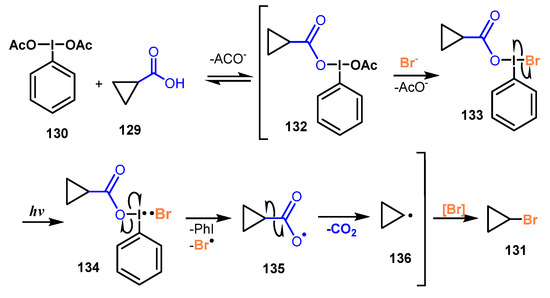

A possible mechanism was proposed as shown in Scheme 36. The hypervalent iodine reagent PhI(OAc)₂ 130 reacted with substrate 129, followed by treatment with KBr, to provide intermediate 133. Intermediate 133 was triggered by visible light to yield ^•Br radical and iodo-radical intermediate 134. The I-O bond in radical 134 was cleaved to afford acyloxy radical 135. Removal of CO₂ from 135 gave cyclopropyl radical 136. At last, radical 136 captured the bromide source to generate the desired product 131.

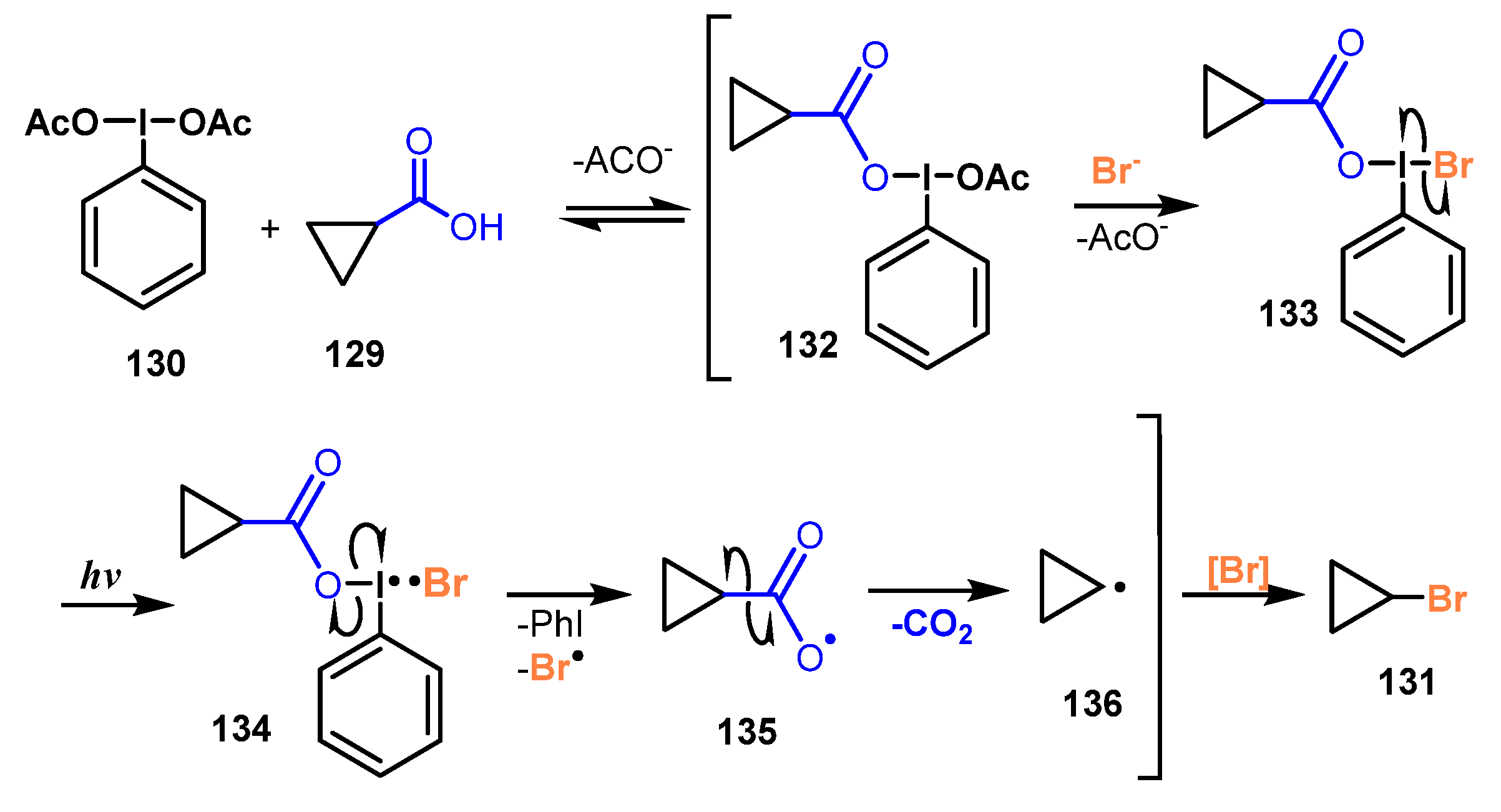

Scheme 36. Mechanism of decarboxylative bromination using hypervalent iodine(III) reagents.

6. Photo-Catalyzed Halogenations of Aromatic C-H Bonds

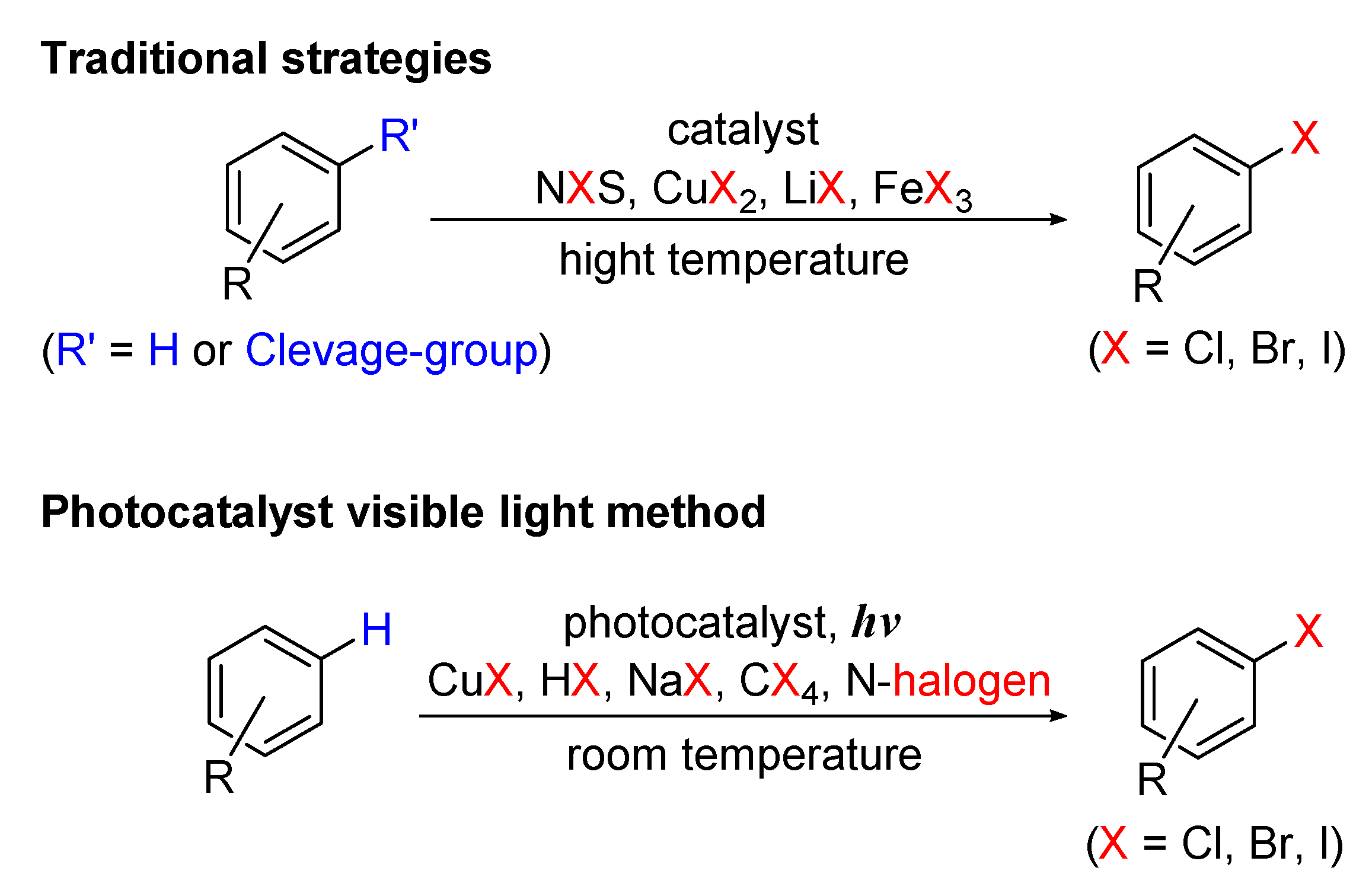

Scheme 37 shows schematic diagrams of the comparison of the traditional methods with visible-light-induced halogenation of aromatic C-H bonds.

Scheme 37. Synthetic methods for halogenation of aromatic C-H bonds.

6.1. Halogenation of Aromatic C-H Bonds

In 2015, Ghosh and co-workers reported halogenation of aromatic C-H bonds utilizing Cu-MnO as a heterogeneous catalyst [43]. In this methodology, Cu-MnO as a catalyst, N-halogen succinimide as a halide source, and O₂ as an oxidant reagent were employed to perform the halogenation in nitrobenzene at 125 °C under irradiation of visible light to provide the corresponding products (Scheme 38). It was reported that good yield and high regioselective halogenation of aromatic C-H bonds can be well achieved with other transition metal catalysts (Pd, Au, Ru, Co) [44,45,46,47]. However, in this study, a heterogeneous Cu-MnO catalyst was employed due to the cost-efficiency, ubiquity, and versatility properties of Cu. This halogenation (chlorination, bromination, and iodination) produced monohalogenated products selectively in moderate to high yields (32–83%). In this method, chlorination performance was generally better than that of bromination and ionization. Using this protocol, the monohalogenated products from substrates bearing electron-donating groups such as methyl and methoxy groups in the para position of the aromatic ring were prepared with high yield (136d–i), whereas the monohalogenated products from substrates bearing an electron-withdrawing group, such as the trifluoro-methyl group (139j–l), were obtained with moderate to good yields (32–44%).

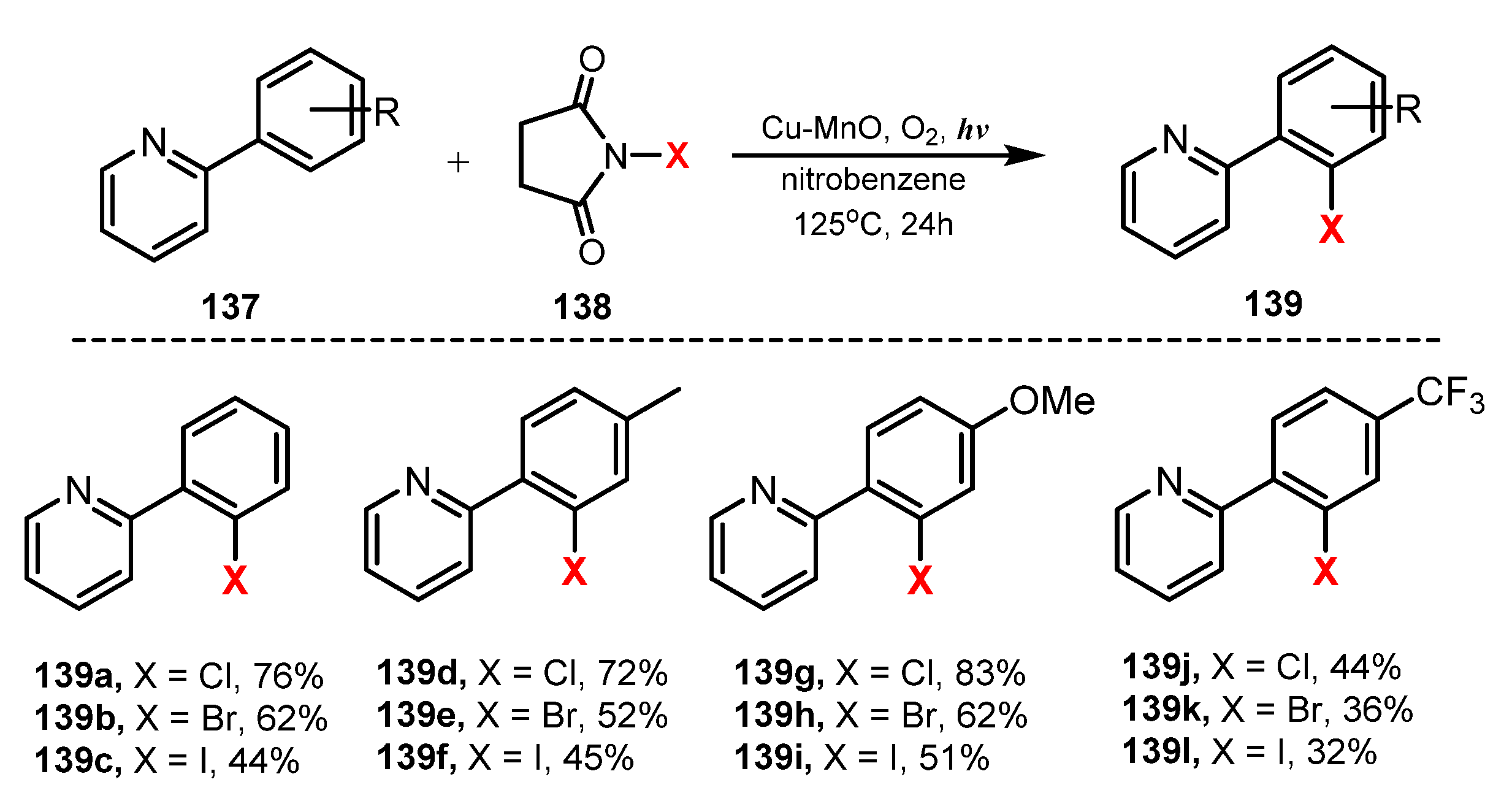

Scheme 38. Photocatalysis halogenation of 2-arylpyridines.

A plausible mechanism of this halogenation as proposed by Ghosh and co-workers is shown in Scheme 39. After oxidization of Cu^I 140 to Cu^II 141 by O₂, Cu^II 141 reacted with 2-phenylpyridine 137 and halide ion, which was generated from NXS 138 under irradiation of visible light to produce complex 142. A single electron transfer (SET) process between the phenyl ring and Cu^II caused complex 142 to become cationic radical 143. Then, intramolecular transfer of the halide anion to the phenyl ring of 143 yielded compound 144 and recovered Cu^I 140. Finally, 144 underwent another single electron transfer (SET) process to lose a proton to give the desired product 139.

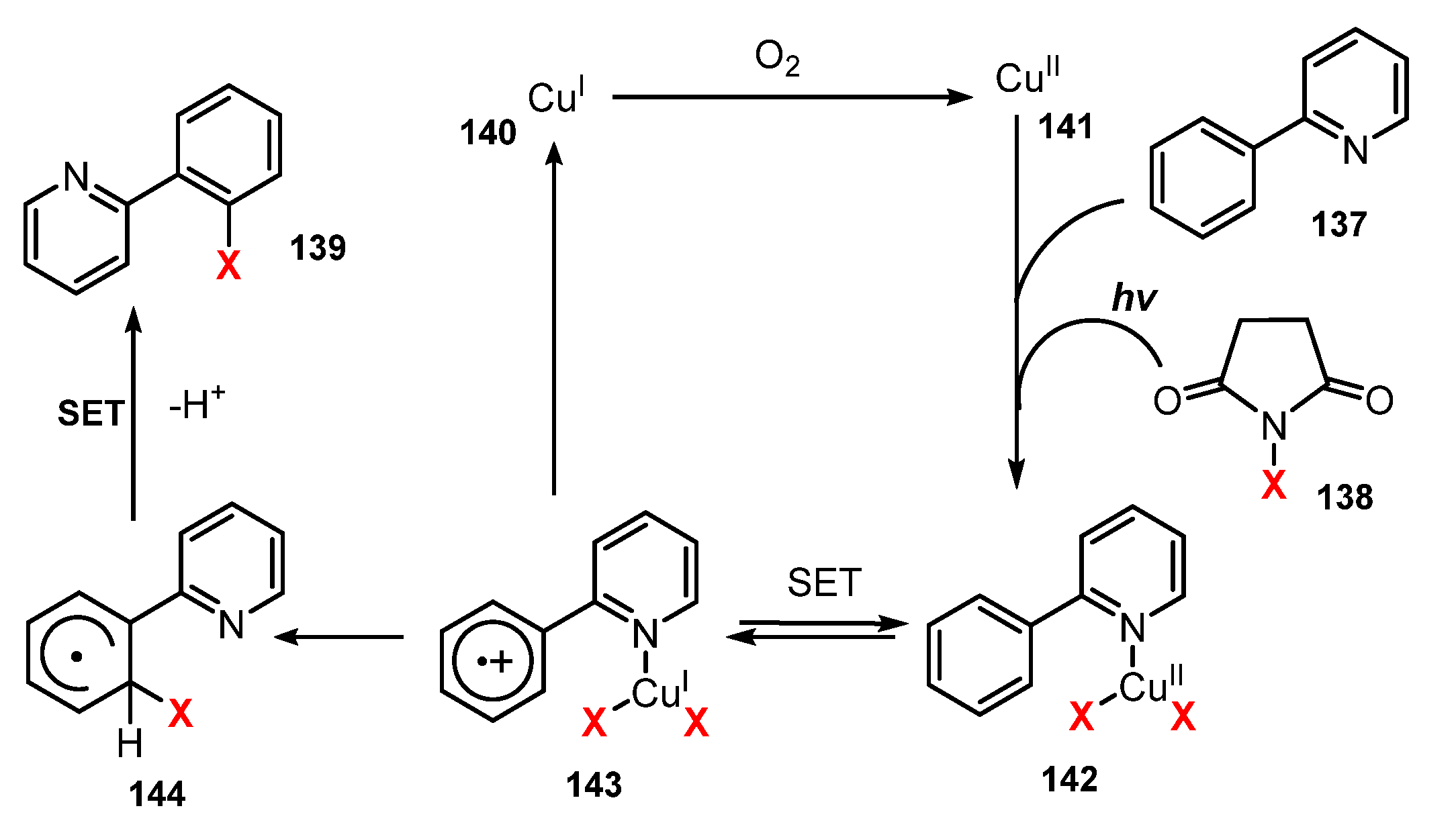

Scheme 39. Proposed mechanism for 2-arylpyridines C-H halogenation.

In 2017, Wu and co-workers demonstrated halogenation of quinoline using a photoredox process in mild conditions [48]. This halogenation was achieved in the presence of alizarin red S as a photocatalyst, FeCl₃ as a catalyst, K₂S₂O₈ as an oxidant, and potassium halides as halogen sources under irradiation of CFL in water at room temperature (Scheme 40). Being abundant, readily obtainable, inexpensive, and non-toxic, water is more environmentally friendly compared to other organic solvents. However, most organic substrates are poorly soluble in neat water, and, thus, the reactions that take place in neat water are often inefficient and generate the products with low yields. On the other hand, organic substrates are easily soluble in organic solvents such as DMF, and organic solvents help increase the reaction yields even though they are harmful and not environmentally friendly. Wu’s method used water as a solvent, but could overcome the disadvantage of aqueous solvents to still achieve high yields. Using this reaction procedure, all target compounds were readily prepared in good to outstanding yields, but the effect of substitute groups on the benzene ring of benzamides on the reaction efficiency was not clearly understood. Bromination was conducted more effectively than iodination. Substrates with methoxy, methyl, and halide groups on the quinoline ring yielded the desired products in good yields (75–98%) (147a–f). Additionally, the reaction of heterocyclic amide substrate produced the halogenated product in high yields (70–83%) (147g–j).

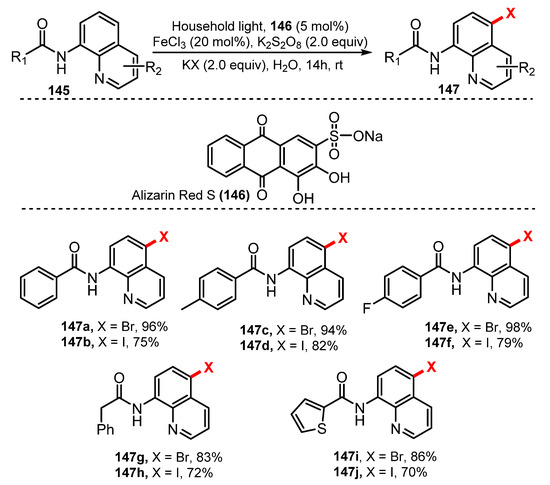

Scheme 40. Halogenation of 8-aminoquinoline amide compounds.

A plausible mechanism is illustrated in Scheme 41. Initially, the household light excited photocatalyst alizarin red S 146, resulting in the excited state alizarin red S* 148. Alizarin red S* 148 was reductively quenched by Br^-, affording a ^•Br radical 151 and an alizarin red S^*− 149. K₂S₂O₈ 152 then oxidized alizarin red S^•− 149 to recover the ground state alizarin red S 146 and provided SO₄^•− 153. FeCl₃ incorporated with substrate 145 to give chelated compound 150, which reacted with ^•Br radical to give intermediate radical 154. Then, intermediate radical 154 was oxidized by SO₄^•− 153 to generate cation intermediate 155. Finally, intermediate 155 interacted with a chloride anion to give the final product 147, while recovering FeCl₃ 156.

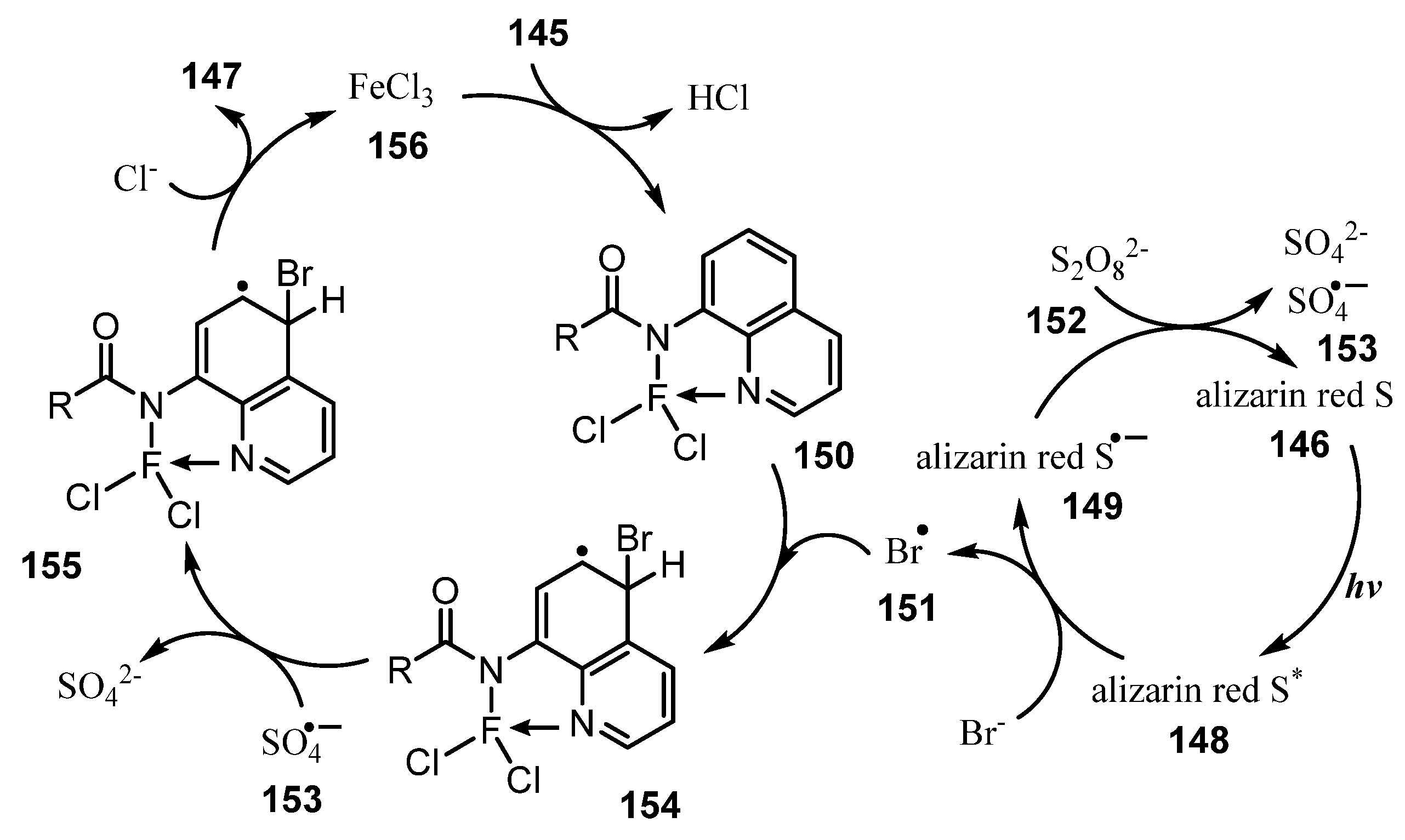

Scheme 41. General mechanism for halogenation of quinolone.

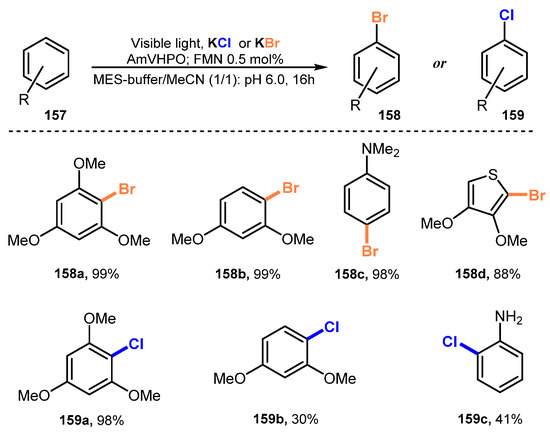

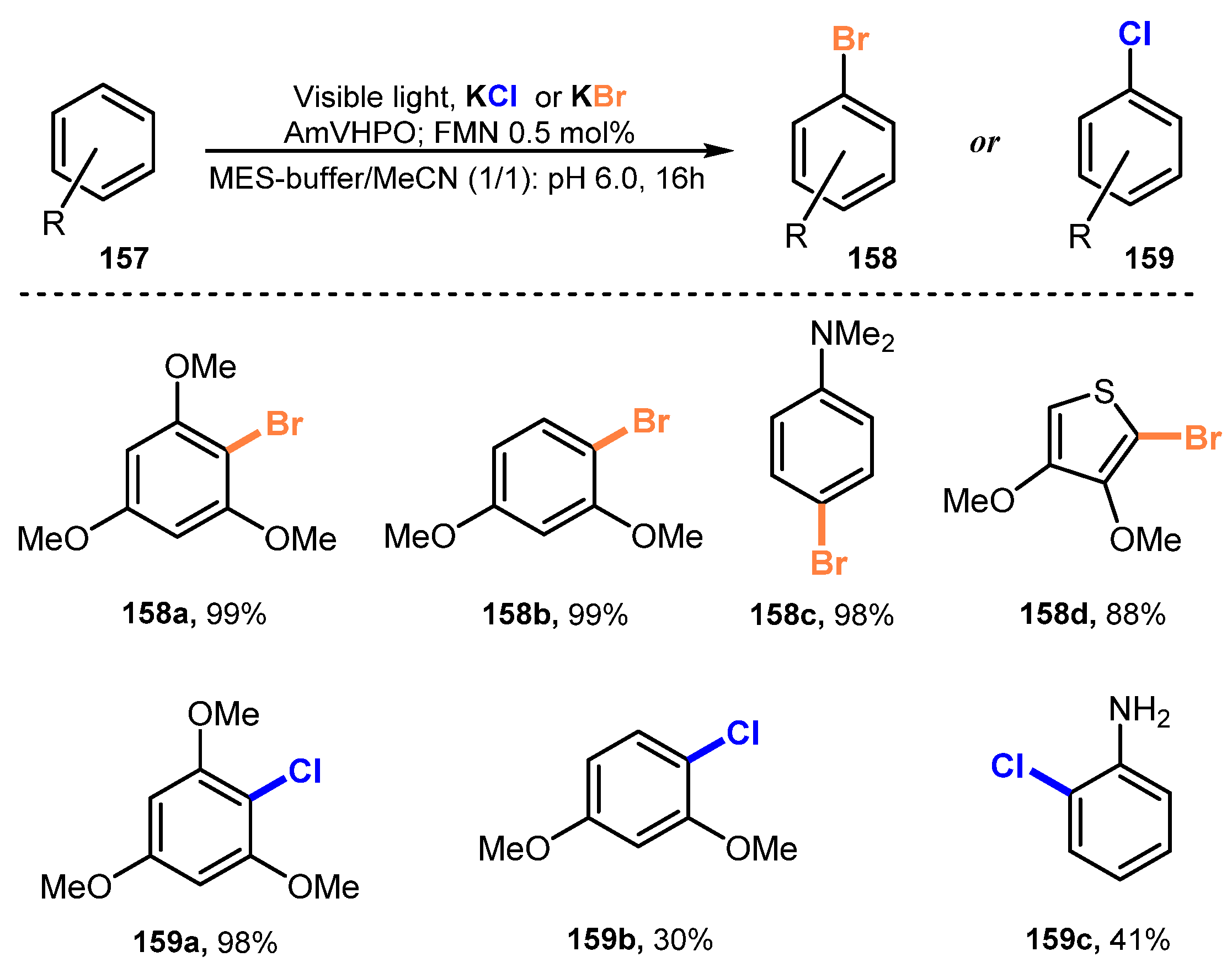

Combining photocatalysis and biocatalysis for halogenation of aromatic compounds was described by Gulder and co-workers in 2018 [49]. They employed vanadium-dependent haloperoxidase (VHPO) from Acaryochloris marina (AmVHPO) and Curvularia inaequalis (CiVHPO) as biocatalysts, flavin mononucleotide (FMN) as a photocatalyst, and KBr or KCl as halide providers for halogenation under irradiation of blue LEDs in a mixture of MES buffer (pH = 6.0) and MeCN to yield the corresponding products (Scheme 42). The method was highly effective for the bromination process. Reactions of substrates with benzene ring containing methoxy substituents provided target products in excellent yield (99%) (158a–b). Substrates with a heterocycle ring were halogenated with moderate performance (158d). Regarding chlorination, this method was less efficient for one- and two-substituent derivatives (159b–c).

Scheme 42. Photobiocatalytic aromatic bromination using AmVHPO.

In 2018, Ghosh and co-workers reported extensive application of Cu-MnO catalyst for halogenations of anilides and quinolones [50]. They used Cu-MnO as a catalyst and N-halosuccinimide as a halogenating source in acetonitrile under visible light irradiation to achieve halogenations of anilides and quinolines with good regioselectivity (Scheme 43 and Scheme 44). For anilide derivatives, reaction of para-substituted substrates containing both electron-withdrawing and electron-donating groups, such as anilides bearing isopropyl, tert-butyl, hexyl, and cyclohexyl groups in the amide chain and chloro, bromo, fluoro, and trifluoromethyl groups in the phenyl ring in acetanilide, successfully produced mono ortho-halogenated products in high yields (81–98%) (161a–h). The protocol showed that halogenation of 8-aminoquinoline amides with a variety of functional groups was also successful and worked well with an aryl amide group and an alkyl amide group (163a–i). Benzamides containing both electron-donating and electron-withdrawing groups were readily halogenated. In addition, the reactions of alkyl amides such as acetamide, cyclopentanecarboxamide, and decanamide were successfully conducted to give desired products.

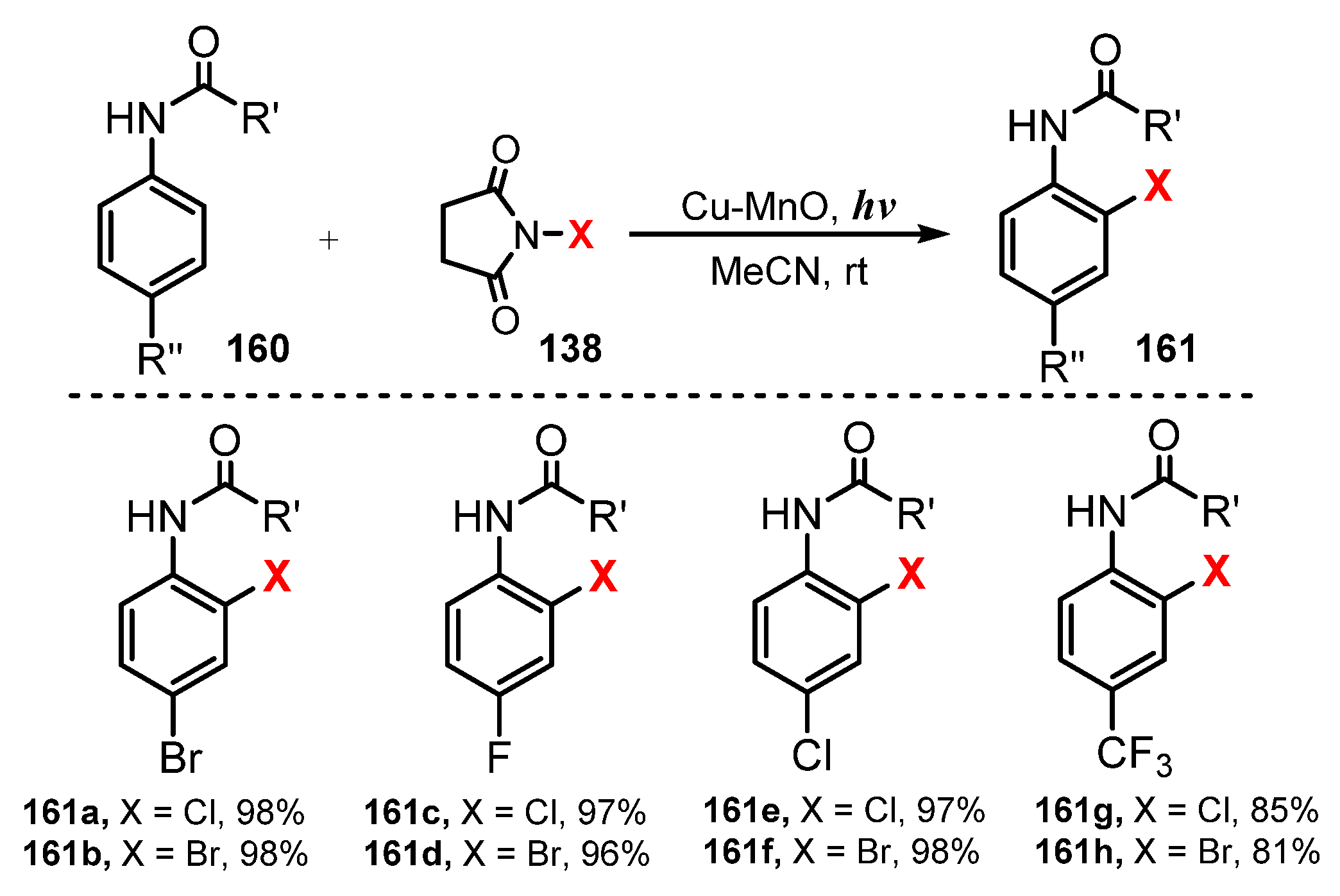

Scheme 43. Chlorination and bromination of anilide compounds.

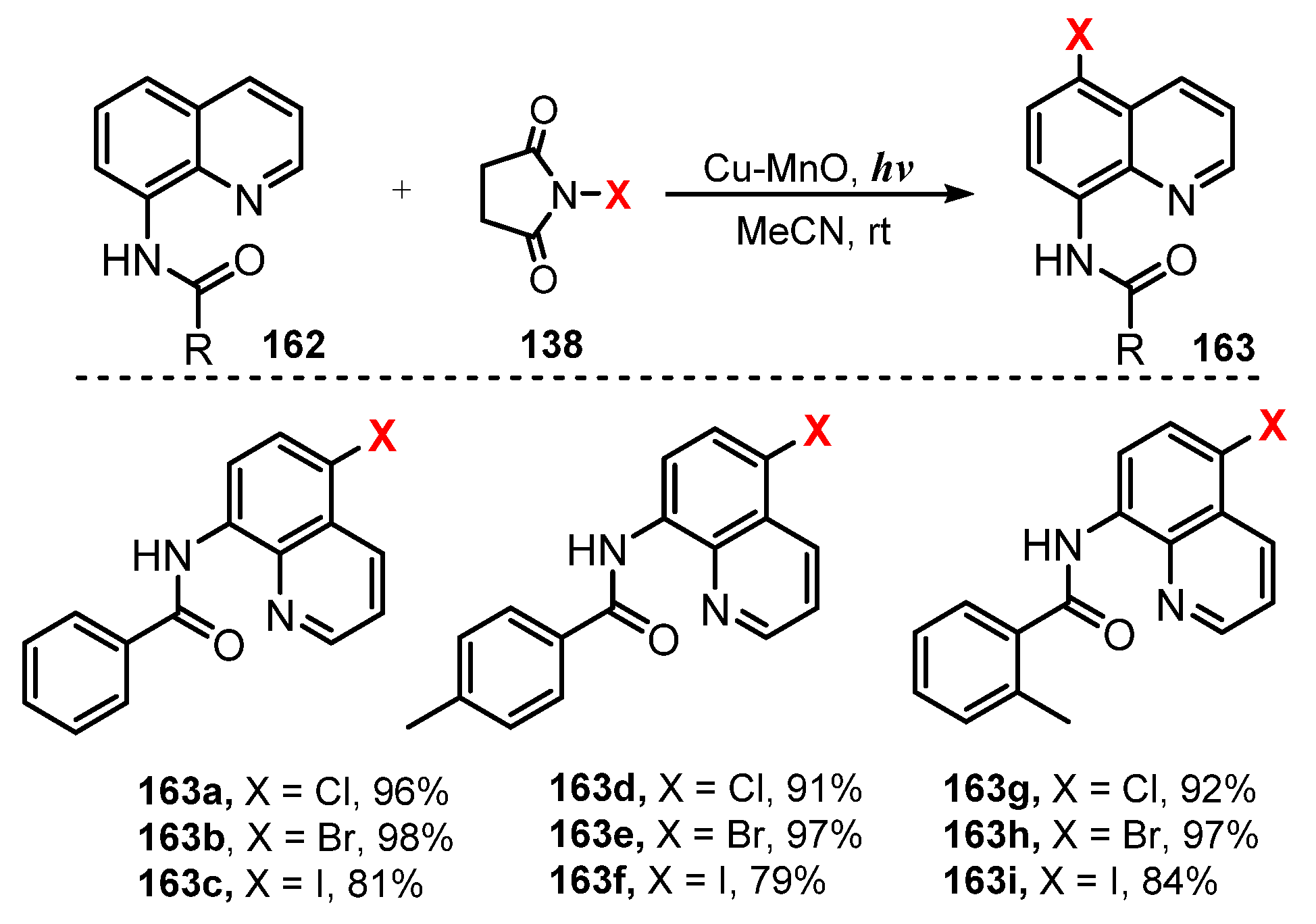

Scheme 44. Chlorination, bromination, and iodination of quinoline derivatives.

A possible mechanism for this halogenation was proposed as shown in Scheme 45. For anilides, nitrogen of substrate 160 was coordinated with Cu^II to generate complex 164, and then visible light caused the N–Cu bond of 164 to homolytically break to give the nitrogen radical 165 and Cu^I, which was oxidized by O₂ to recover Cu^II. The radical 165 was subsequently converted to intermediate aryl cation radical 166. Reaction of 166 with the halide radical produced from N-halosuccinimide 138 under visible light occurred, followed by rearomatization to afford the final product 161. For the 8-amidoquinoline derivatives, a similar chemical mechanism was presented. This method showed regioselective addition of halide radical to the amide group at ortho- and para-positions, the most electrophilic locations.

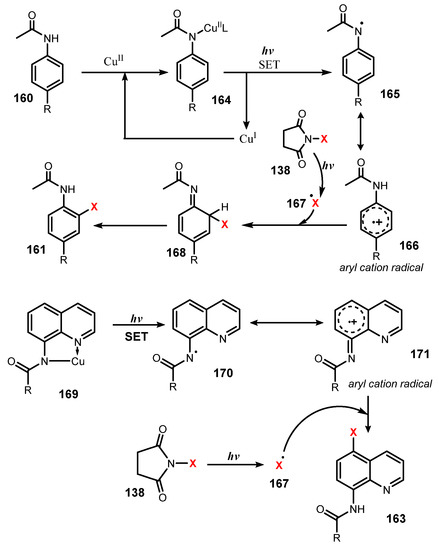

Scheme 45. Proposed reaction mechanism for regioselective halogenation of anilides and quinolines.

6.2. Chlorination of Aromatic C-H Bonds

In 2016, Konig and co-workers proposed chlorination of arenes via reaction with N-chlorosuccinimide (NCS) or N-chloramines in the presence of [Ru(bpy)₃]Cl₂ as a photocatalyst and ammonium peroxodisulfate as an oxidant under irradiation of blue LEDs in a mixture of acetonitrile and water (4:1) (Scheme 46) [51]. In these reaction conditions, substrates with electron-donating groups such as anisole (174a–b), methoxybenzene, phenol, and acetanilide were chlorinated in good yields (92–95%) via treatment of both N-chlorosuccinimide 11 and N-chloramines 173. However, reaction of aromatic amines (174c), xylene, and toluene (174e) provided chlorinated products with low yields when N-chloramines were used. Besides, electron-poor substrates such as chlorobenzene (174k) did not provide chlorination. When compared to N-chloramines 173, the electron density on the nitrogen atom was significantly lowered by two electron withdrawing groups in N-chlorosuccinimide 11, and it was able to chlorinate fewer electron-dense substrates such as xylene and toluene by NCS.

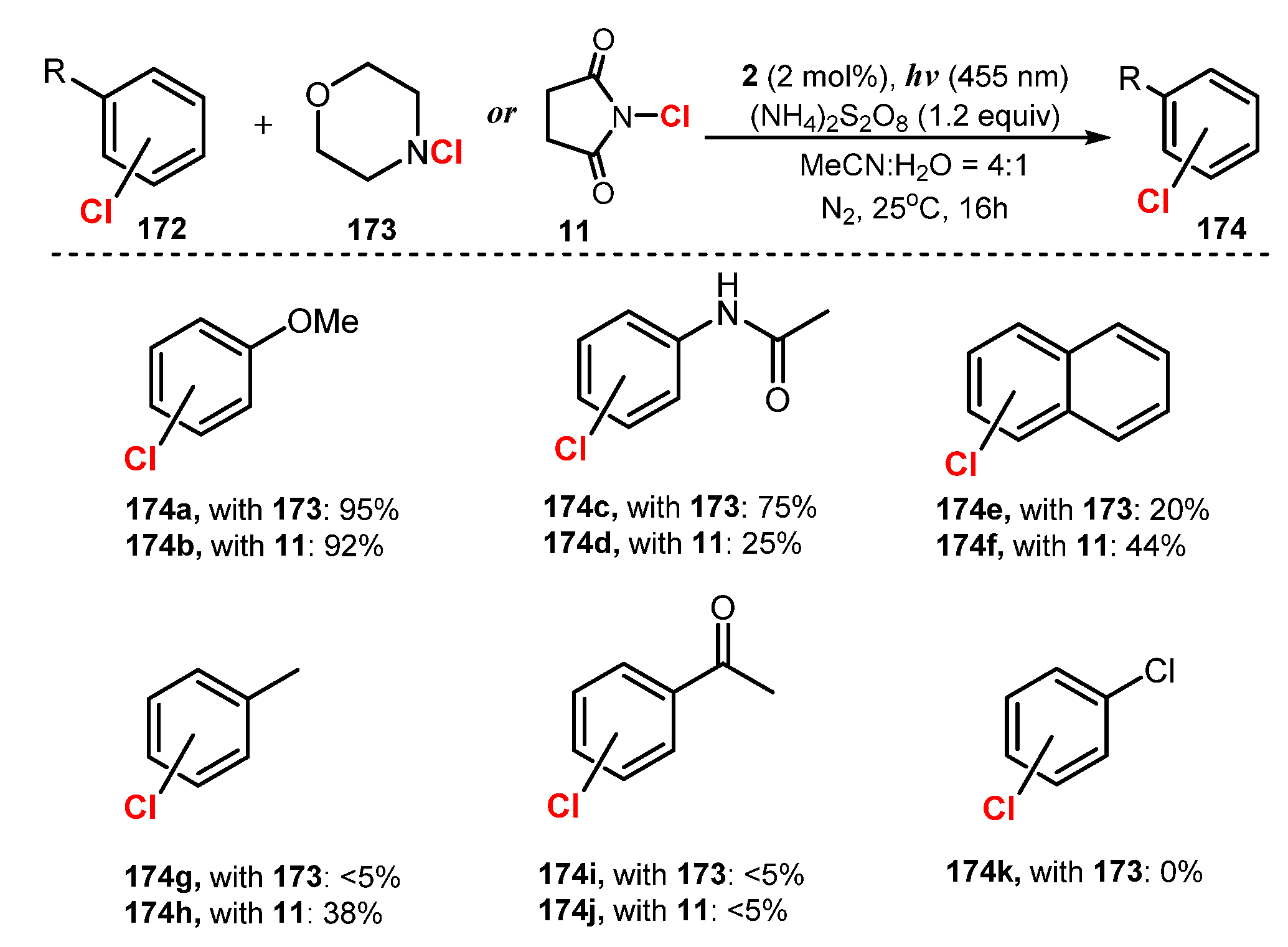

Scheme 46. The visible-light-mediated chlorination of arenes with N-chloramines.

Selective chlorination of aryl C-H bonds using NaCl as a chlorine source, Ru(bpy)₃Cl₂∙6H₂O as a photocatalyst, and Na₂S₂O₈ as an oxidant under irradiation of a blue LED in a mixture of acetonitrile and water (1:1) at room temperature and air pressure was reported by Hu and co-workers in 2017 (Scheme 47) [52]. In this reaction, substrates bearing electron-donating groups such as isopropyl (176a–b) and methoxy groups (176c–d) on the phenyl ring were chlorinated in good yields (82–94%). Both para- and ortho-chlorinated products were also readily formed. Chlorination of substrates bearing -CN, an ester, or a halogen connected to the benzene ring via an alkyl chain worked well in good yields (89–91%) (176e–h). On the other hand, the substrates containing only an electron-withdrawing group such as nitrobenzene and (trifluoromethoxy)benzene were not tolerated for this method. However, the yields from these substrates were improved when combining an electron-withdrawing group and an election-donating group on the aryl ring.

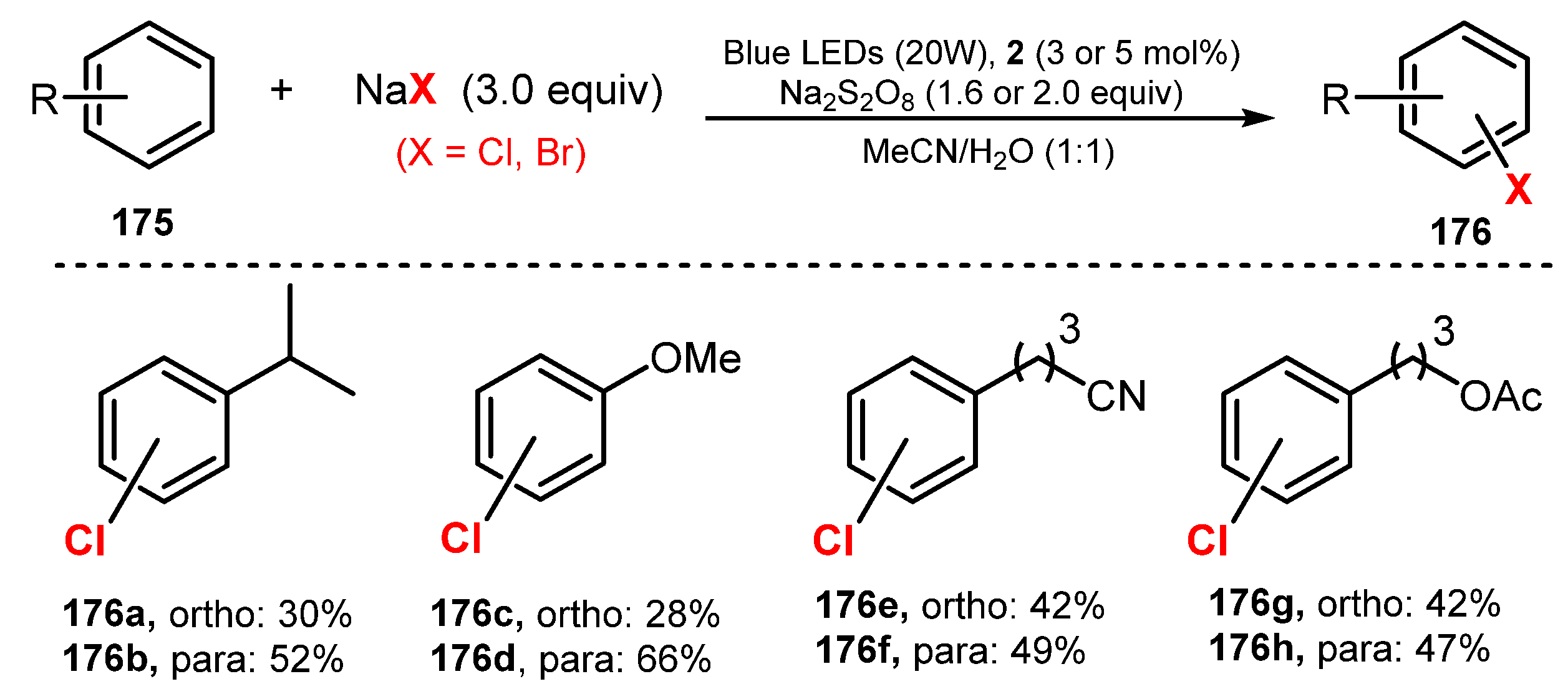

Scheme 47. Arene oxidative chlorination via photoredox catalysis.

A proposed mechanism of this reaction was presented in Scheme 48. Under light, the photocatalyst Ru^II 2 was excited to *Ru^II 28, which reacted with Na₂S₂O₈ 152 to generate Ru^III 29 and SO₄^•−. SO₄^•− directly oxidized Ru^II 29 to give Ru^III 2. Then, Ru^III 29 reacted with Cl⁻ to regenerate Ru^II 2 and form Cl⁺ 177. Cl⁺ 177 then reacted with aromatic compounds 175 to give the chlorination products 176 through the electrophilic addition of 178.

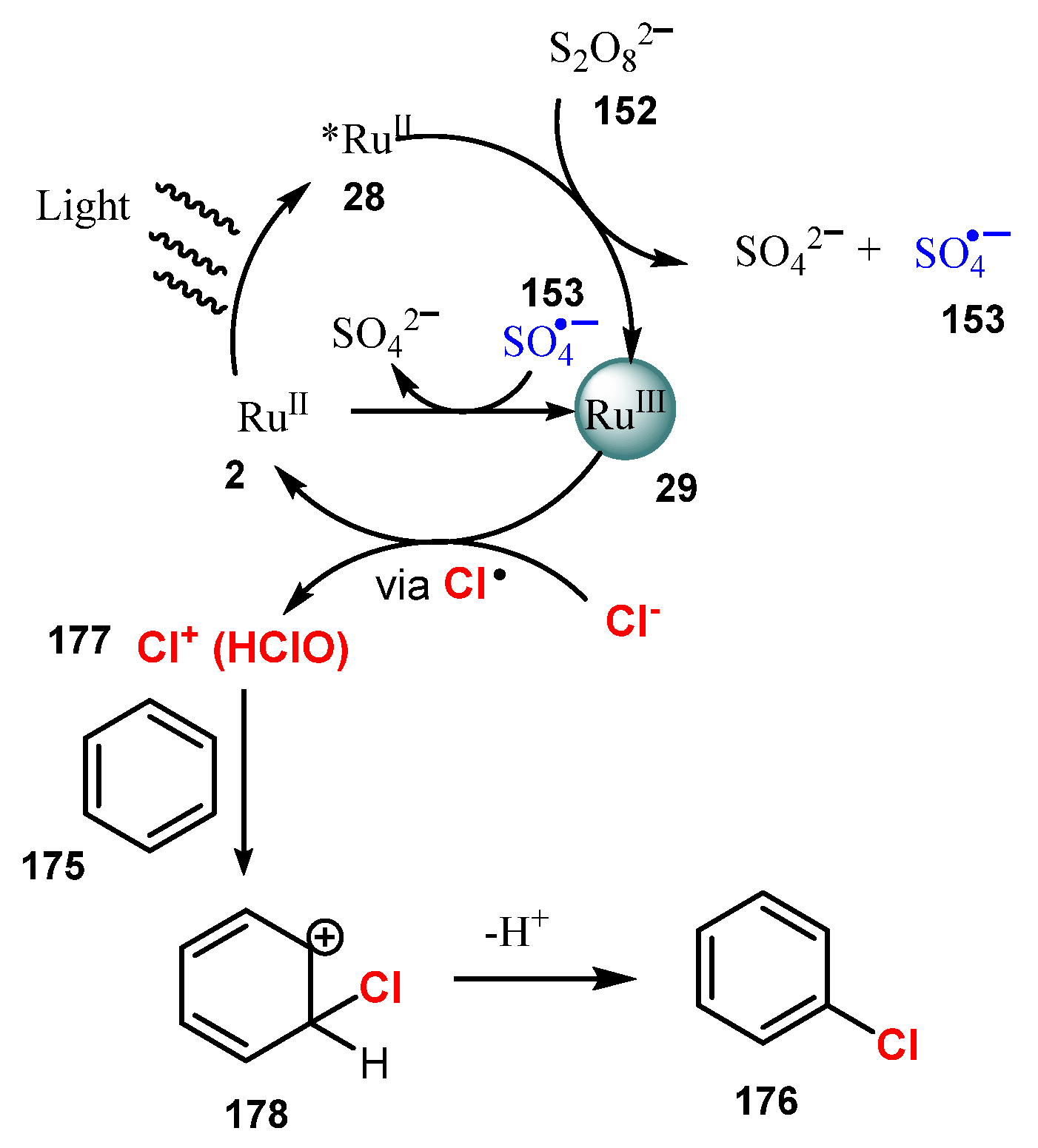

Scheme 48. Proposed mechanism of the photocatalytic oxidative chlorination reaction.

Lamar and his co-workers developed chlorination of arenes and heteroarenes using organic dyes as visible light photoredox catalysts in 2019 [53]. The reaction was carried out via treatment with NCS as a chlorine source in the presence of methylene green as an organic dye photocatalyst under irradiation of a white LED in acetonitrile (Scheme 49). Under the optimized conditions, reactions of disubstituted benzene derivatives bearing activating (electron-donating) and deactivating (electron-withdrawing) groups readily provided the corresponding products with good to high yields (58–86%) (181b–d). Various heteroarenes such as pyridine, pyrrole, indazole, and indole were tolerated for the reaction (181e–h), giving chlorinated products with moderate to excellent yields (63–93%).

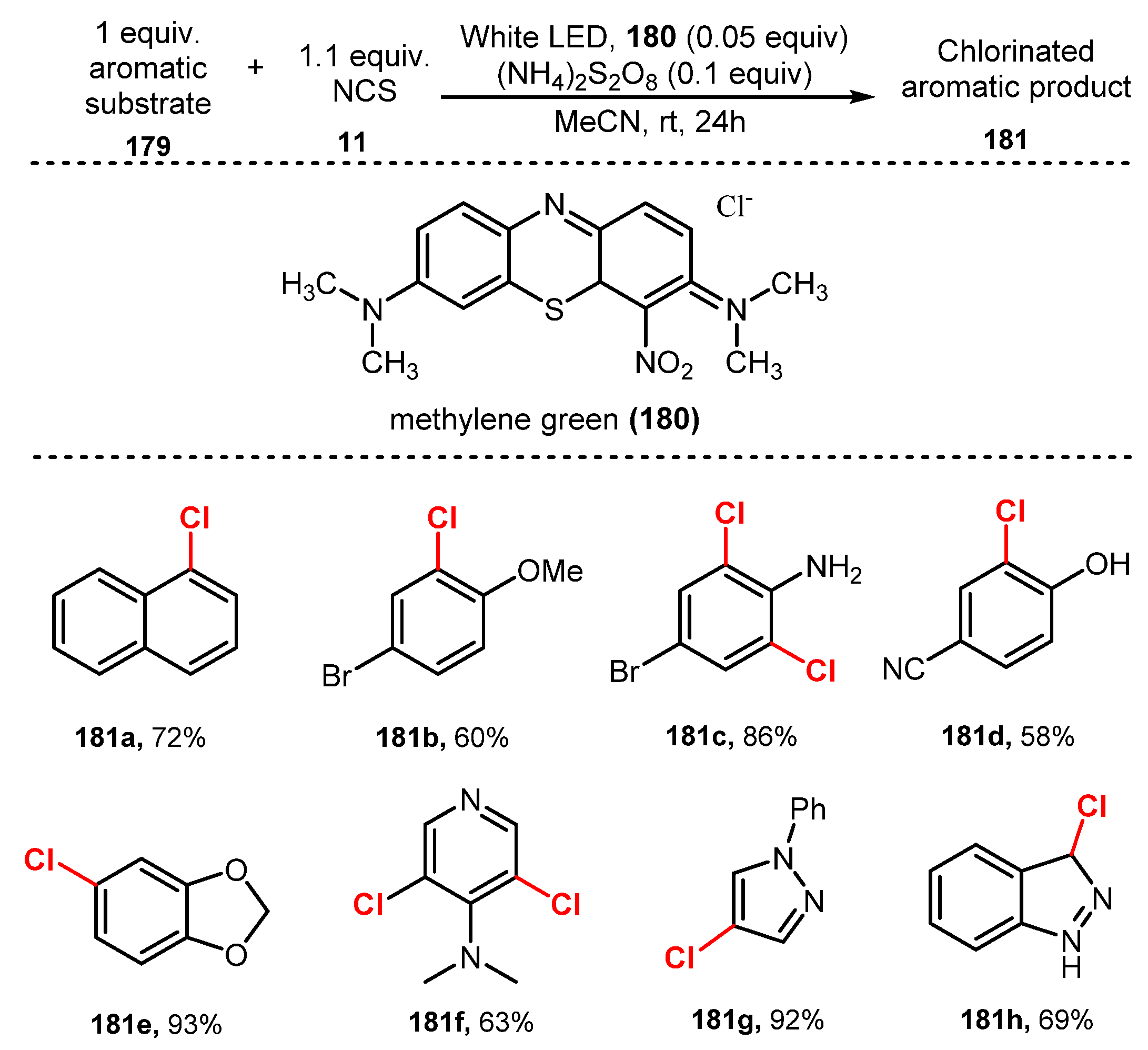

Scheme 49. Chlorination of arenes and heteroarenes via organic dyes.

A plausible reaction mechanism was proposed as shown in Scheme 50. Irradiation of light allowed methylene green to transfer from ground state methylene green 180 to excited state methylene green 182. Then, 182 led to the single-electron oxidation of NCS 11, giving cationic radical 184 and providing reduced state methylene green 183. The radical 184 reacted with substrate 179 to generate arene chloride cation intermediate 186 and charged succinimide 185. Capture of a proton from intermediate 186 by anion 187 yielded final product 181. In addition, the reduced state methylene green 183 was oxidized to give back ground state methylene green 180 and to provide succinimide anion 187 by other oxidants (for example ammonium peroxodisulfate or oxygen gas in air) or by charged succinimide 185.

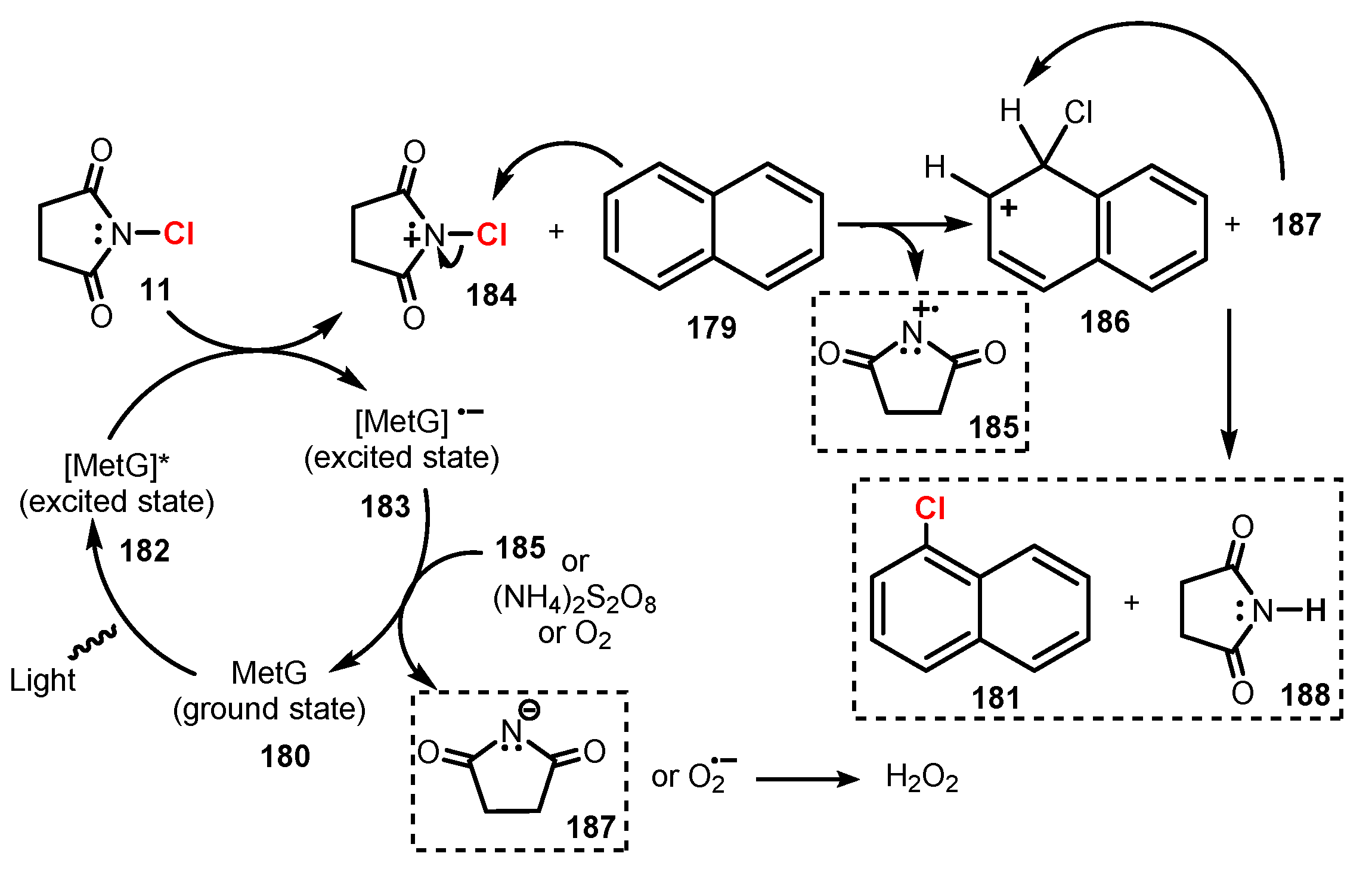

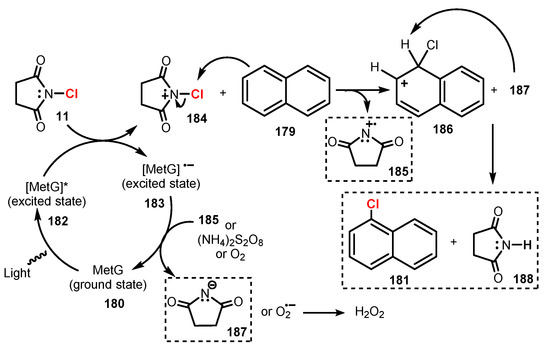

Scheme 50. Mechanism for chlorination of arenes and heteroarenes by N-chlorosuccinimide.

Hammond and co-workers proposed a novel strategy for chlorination of arenes and heteroarenes using brilliant green (BG) in 2019 [54]. The chlorination was conducted via treatment of trichloroisocyanuric acid (TCCA) as a chlorine source in the presence of brilliant green (BG) under irradiation of white LEDs in acetonitrile (Scheme 51). For monosubstituted benzene, reactions of substrates with an electron-donating group smoothly afforded the corresponding products with high yields (74–92%) (192a–b), while the chlorination of substrates with an electron-withdrawing group such as nitrobenzene (192c) and acetophenone (192d) was unsuccessful. On the other hand, reactions of naphthalene derivatives bearing electron-withdrawing groups or electron-donating groups successfully yielded monochlorinated products in good to high yields (63–96%) (192e–f). Various functional groups including halogens, carbonyls (ketone, aldehyde and amide), phenol, ethers, amines, nitro, nitrile, and benzylic C-Hs were tolerated for this method. Additionally, heterocyclic compounds were successfully chlorinated using this reaction as compared with the failure of the general reaction of TCCA using acidic conditions.

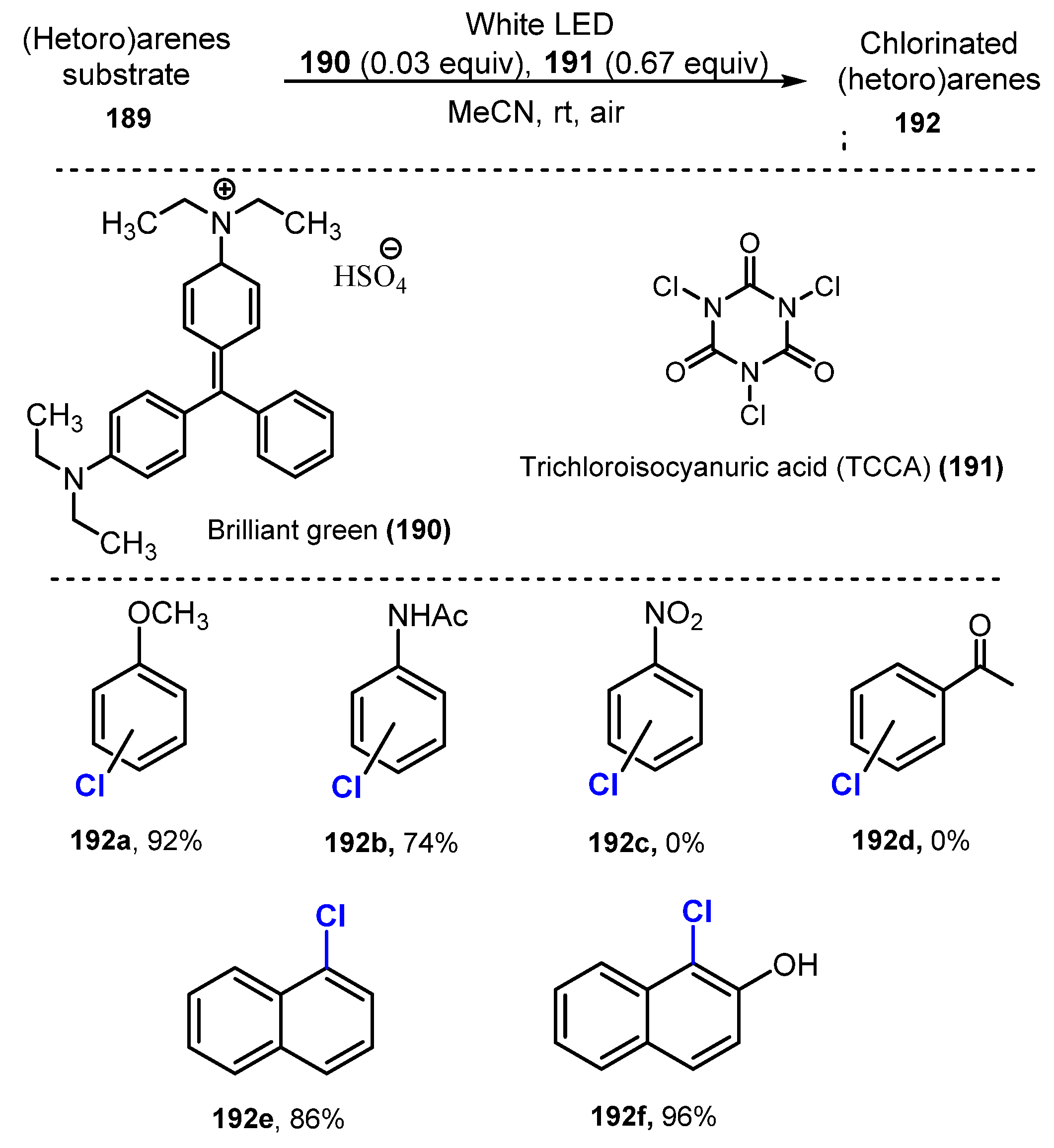

Scheme 51. Chlorination of arenes and heteroarenes via catalytic organic dye activation.

A possible mechanism was proposed as shown in Scheme 52. Photocatalyst brilliant green BG 190 was transferred to excited state BG* 193 by visible light, and reaction of excited state BG* 193 with TCCA 191 caused the single-electron oxidation to generate electrophilic chlorine species 195 and reduced state photocatalyst BG⁻ 194. 195 reacted with substrate 189 to give chlorination product 192 via electrophilic aromatic chlorination, and to provide 196, which reacted with TCCA 191 to give 197. The reduced state photocatalyst BG⁻ 194 was oxidized by 196 or O₂ to return to its ground state BG 190.

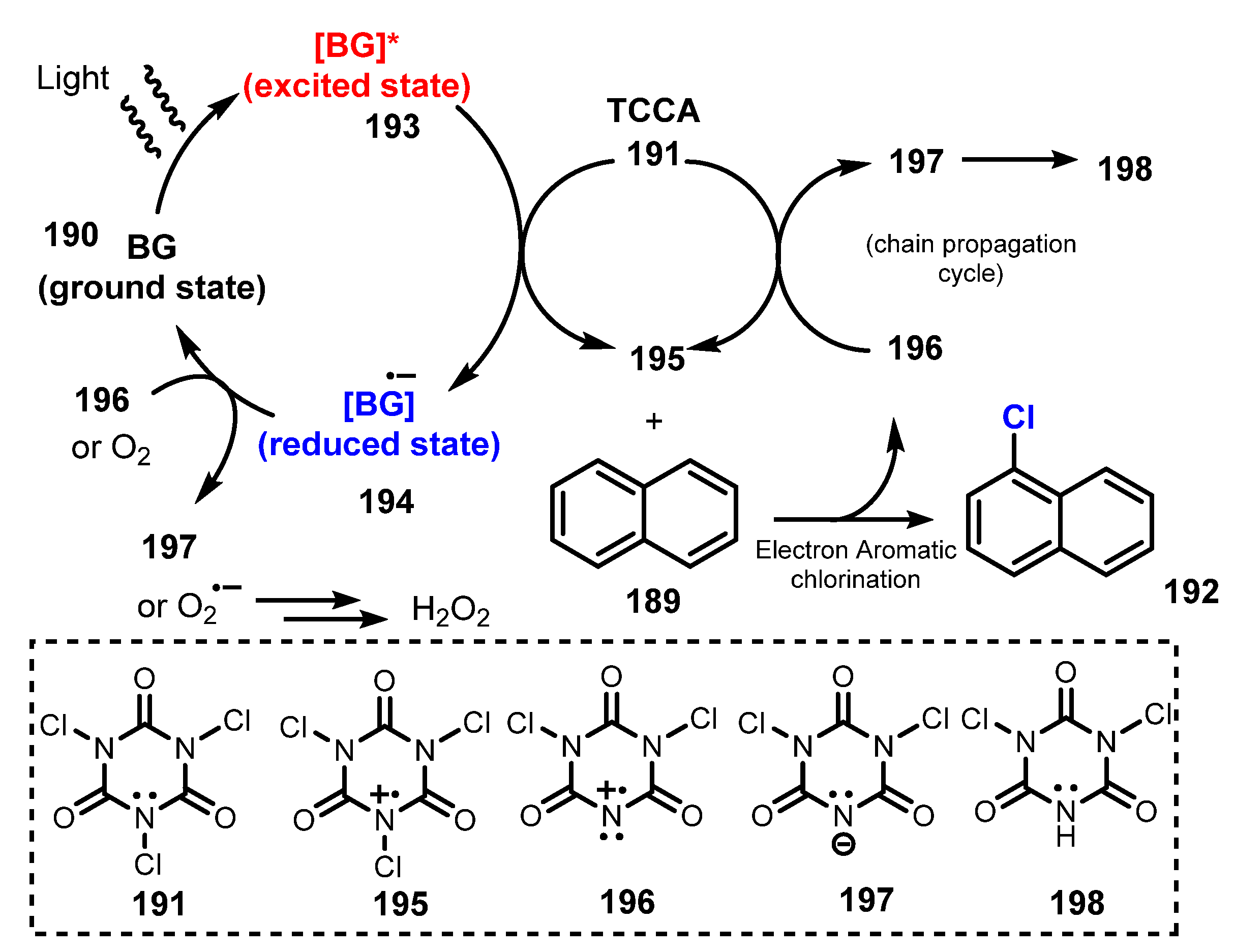

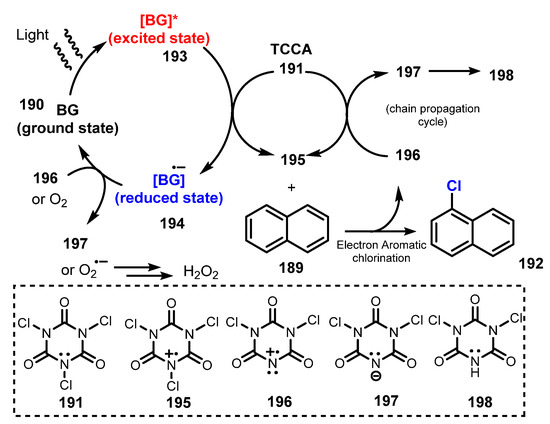

Scheme 52. Mechanism for conversion of arenes and heteroarenes to chlorinated products using organic dye.

In 2020, Lamar and co-workers reported FDA-certified food dye mediated-chlorination of aromatic and heteroaromatic substrates [55]. The chlorination of aromatic compound was achieved via reaction with N-chlorosaccharin (NCS) as a chloride source in the presence of Fast Green FCF as photoredox catalyst under irradiation of white LED in acetonitrile (Scheme 53). Reaction of substrate with at least one electron-withdrawing group produced chlorinated product in moderate to good yields (47–70%). Electron-rich aromatics (201a) and naphthalene derivatives (201f–g) were readily chlorinated to give monochlorinated products in high to exceptional yields (90–94%). Pyrrole (201e), indole, indazole, and pyridine heteroaromatic substrates were also well tolerated for this reaction procedure, which showed considerably higher efficiency than uncatalyzed reaction processes. A reaction using 1,3-dichloro-5,5-dimethylhydantoin (DCDMH)/Brilliant Blue FCF system showed similar results to those of the NCS/Fast Green FCF system. However, a study of dichlorination reactions indicated that the chlorination using a DCDMH/Brilliant Blue FCF system was more efficient than chlorination using an NCS/Fast Green FCF system.

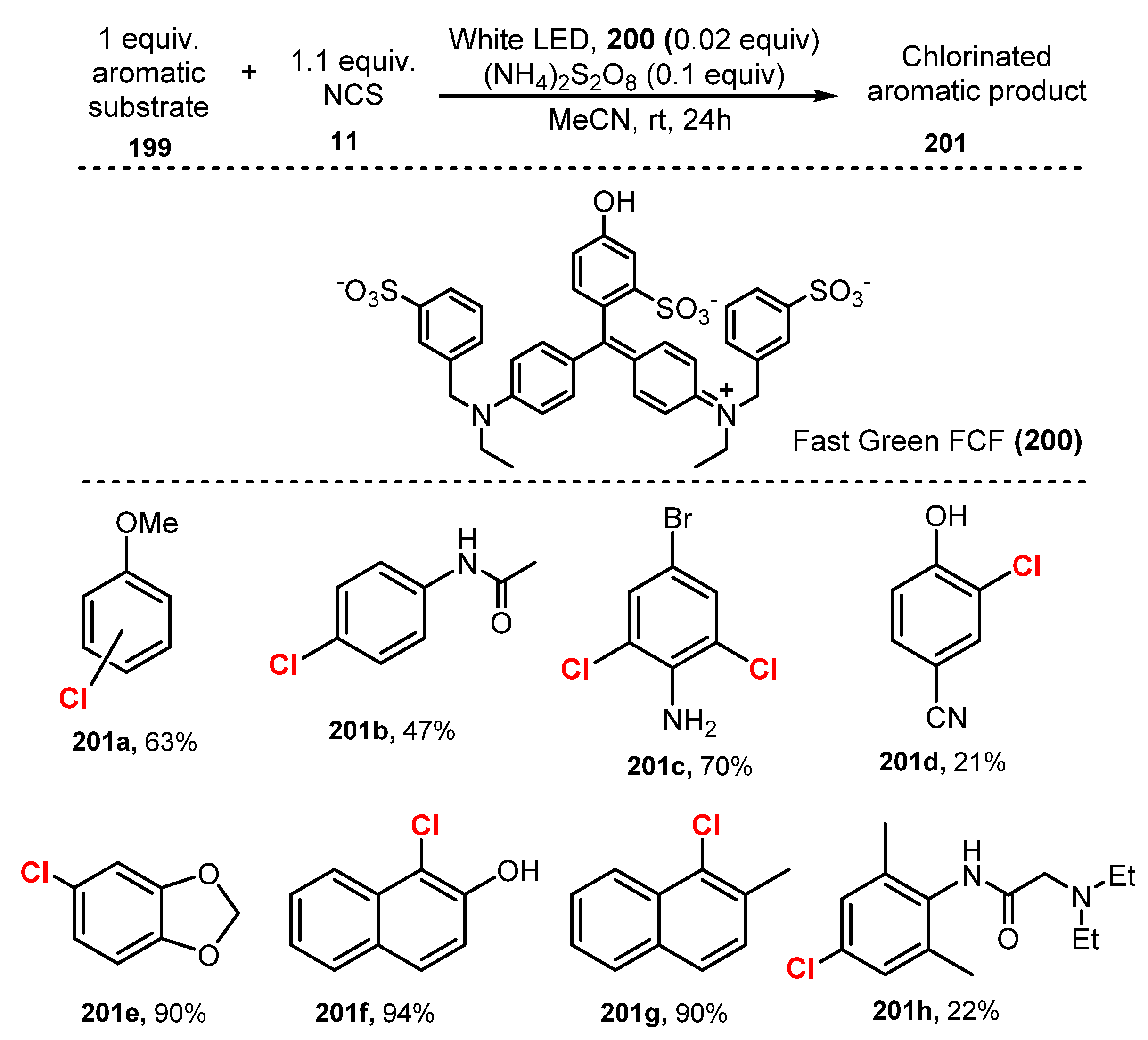

Scheme 53. Visible-light-promoted chlorination of aromatics and heteroaromatics.

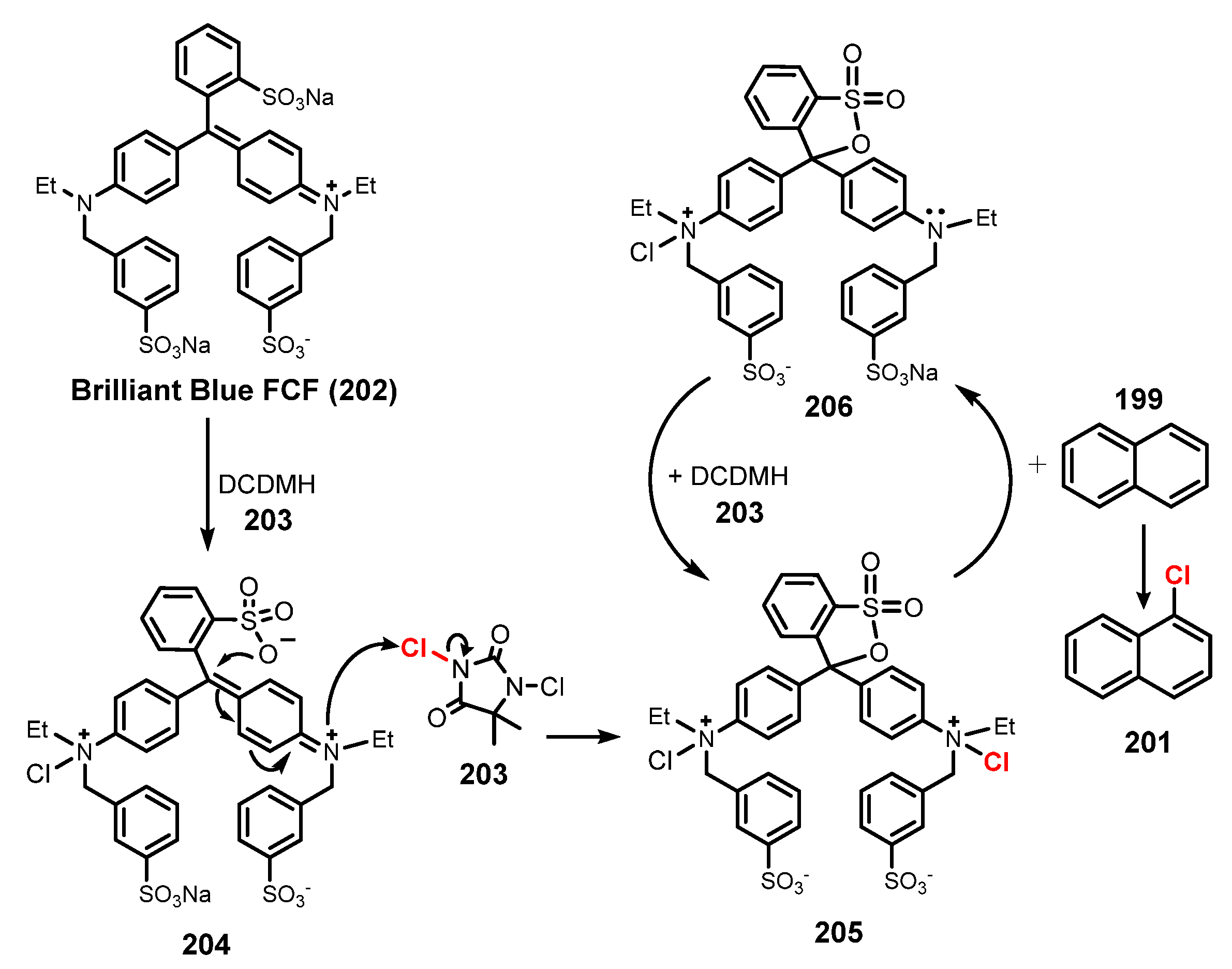

A plausible mechanism is shown in Scheme 54. Chlorination of brilliant blue 202 by DCDMH 203 was carried out to generate intermediate 204, which was subsequently converted to dichlorinated sulfonphthalein 205. Compound 205 then provided the electrophilic chlorine to aromatic compound 199 or heterocycle arenes to give chlorinated product 201, and, after that, 205 became a monochlorinated sulfonphthalein species 206, which obtained a chlorine atom from DCDMH 203 to recover dichlorinated compound 205.

Scheme 54. Mechanism of brilliant blue/DCDMH chlorination of arenes.

6.3. Bromination of Aromatic C-H Bonds

In 2011, Fukuzumi and co-workers developed selective bromination of aromatic hydrocarbons and thiophenes via reaction with a solution of 50% of HBr in O₂-saturated acetonitrile in the presence of [Acr⁺-Mes][ClO₄⁻] as a photocatalyst under irradiation of a xenon light (Scheme 55) [56]. For methoxy-substituted benzenes, bromination reactions were successfully achieved regardless of position or number of substituents. The reaction was highly selective, and the bromination yield was more than 99% (208a–b) without observation of dibromo- or tribromo-derivatives during the process. Toluene derivatives were also brominated (208c), even though the yield of bromination in the presence of methyl-substituted groups was lower than that of methoxy-substituted benzenes (208d). Besides, brominations of thiophenes were readily achieved with high yield (81–99%).

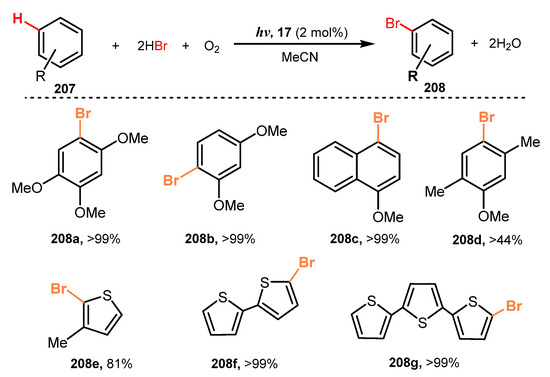

Scheme 55. Selective photocatalytic bromination with hydrogen bromide.

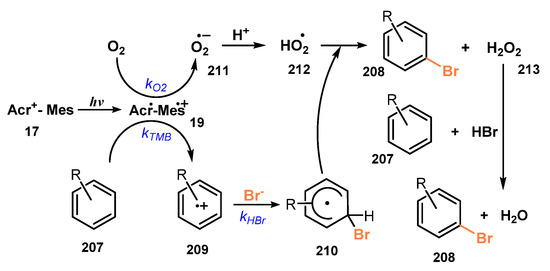

A plausible mechanism of this bromination of aromatic hydrocarbons is presented in Scheme 56. Under irradiation of light, intramolecular electron transfer caused Acr⁺-Mes 17 to become the excited state Acr^•-Mes^•+ 19, which oxidized substrate TMB 207 to give radical cation 209. At the same time, Acr^•-Mes^•+ 19 reduced O₂ to provide radical HO₂^• 212. Reaction of 209 with Br⁻ generated the aromatic ring radical 210, and then radical 210 reacted with HO₂^• 212 via dehydrogenated process to give brominated product 208 and H₂O₂. Besides, when H₂O₂ interacted with HBr and substrate 207, another brominated compound 208 and H₂O were obtained.

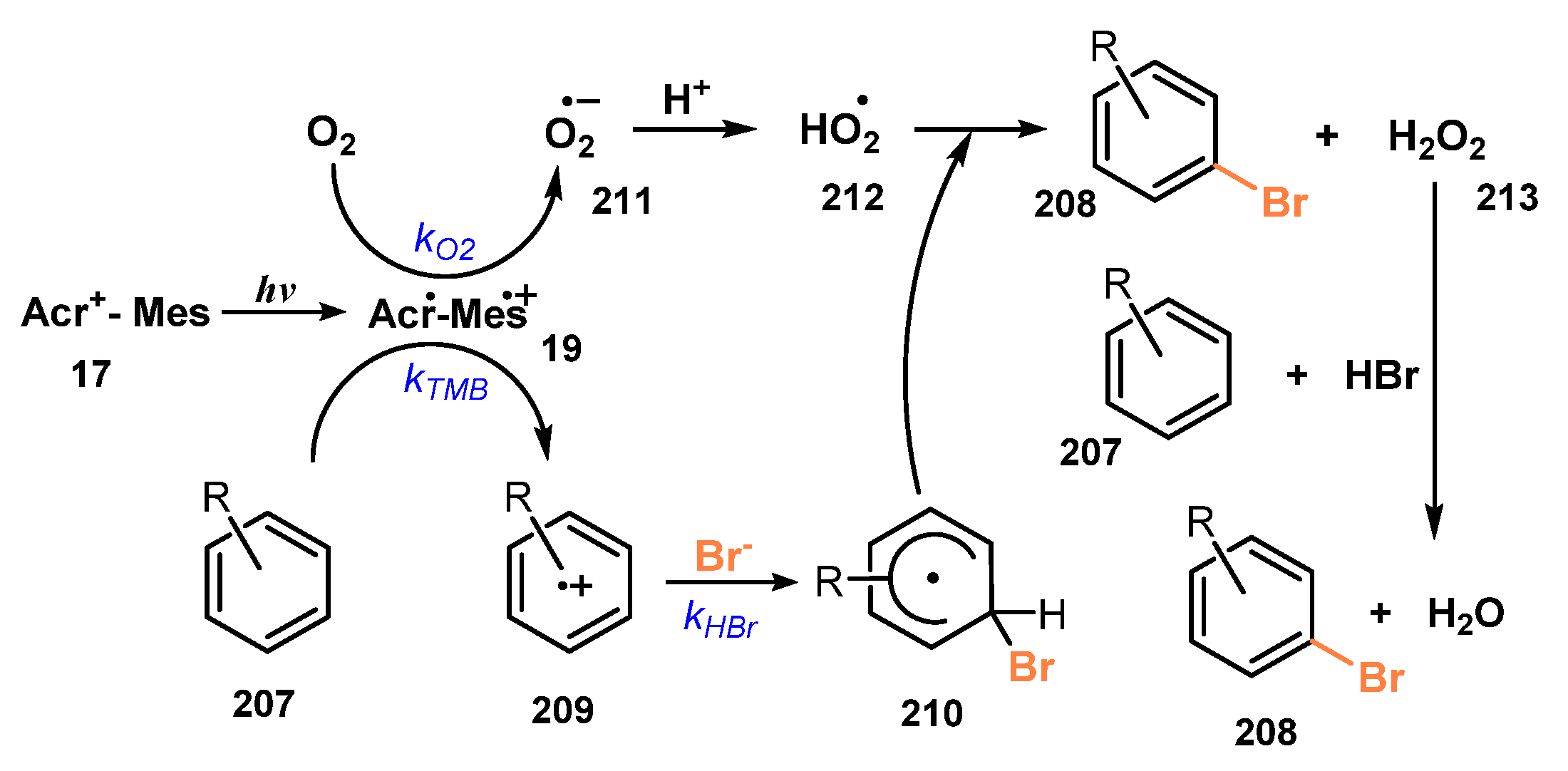

Scheme 56. Proposed photocatalytic reaction mechanism of bromination with hydrogen bromide.

An efficient strategy for bromination of phenols was presented by Xia and co-workers in 2014 [57]. The reaction was carried out with CBr₄ in the presence of Ru(bpy)₃Cl₂ (5.0 mol%) under visible light irradiation (blue LEDs, λ_max = 435 nm) in acetonitrile (Scheme 57). Both electron-withdrawing and electron-donating groups as substituents in the benzene ring were tested. Reactions of aromatic substrates bearing TMS (trimethylsilyl), TBS (tert-butyldimethylsilyl), MOM (methoxymethyl), and THP (tetrahydropyranyl) groups (215a–e) at the para- and ortho-positions yielded 2- and 4-bromophenol in good to outstanding yields (58–97%), respectively. TMS and methyl-protected naphthalen-2-ol were readily employed to produce 1-bromonaphthalen-2-ol and 1-bromo-2-methoxynaphthalene in high yields (76–98%), with great selectivity (215f–g). Additionally, reactions of Bn or Ms-protected phenols gave target 2- and 4-bromophenol derivatives with no loss of Bn or Ms groups in good yields (215h–i).

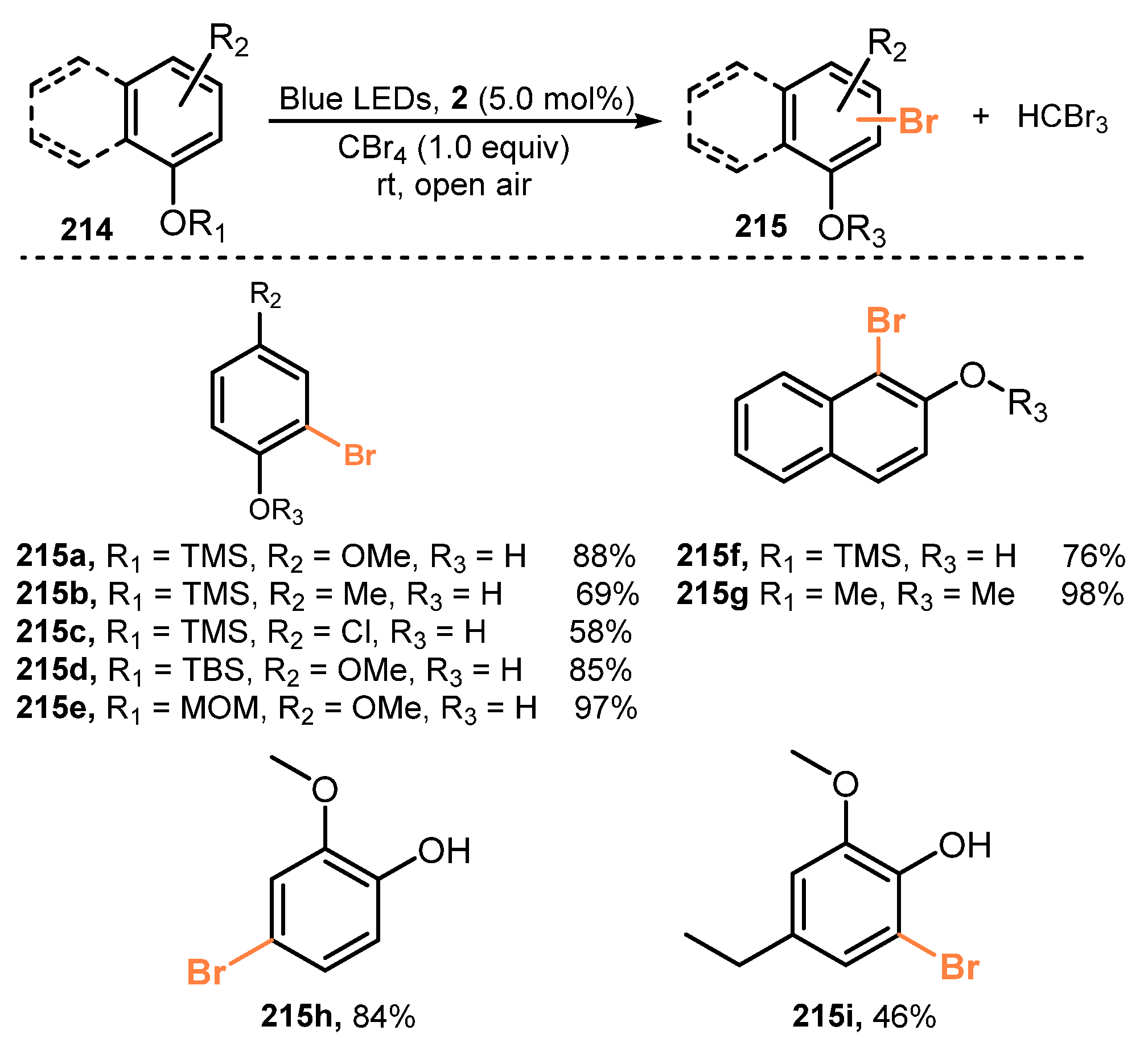

Scheme 57. Visible-light-photoredox catalysis enabled bromination of phenols.

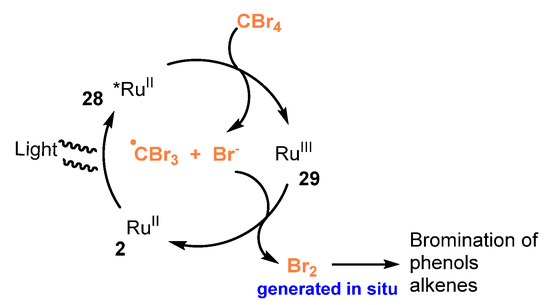

A mechanism of this conversion was shown in Scheme 58. First, visible light excited Ru(bpy)₃²⁺ 2 to give Ru(bpy)₃^2+* 28. Oxidation reaction of Ru(bpy)₃^2+* 28 with CBr₄ occurred as oxidative quenchers generated Br⁻, ^•CBr₃ and Ru(bpy)₃³⁺ 29. Then, anion Br⁻ was oxidized by Ru(bpy)₃³⁺ 29 to produce Br₂ in situ for bromination of phenols and alkenes, and to regenerate Ru(bpy)₃²⁺ 2.

Scheme 58. General mechanism for in situ generation of bromine.

Employment of microporous organic polymers (MOPs) for selective bromination of aromatic compounds was reported by Zhang and co-workers in 2016 [58]. The bromination was achieved via reaction with HBr as a bromine source in the presence of MOPs as heterogeneous photocatalysts and molecular oxygen as a clean oxidant under irradiation of visible light in acetonitrile (Scheme 59). Electron-rich aromatic compounds were readily brominated in good to excellent yields (55–89%). In addition, benzene, naphthalene, thiophene, and 3-methylbenzo[b]thiophene derivatives were well tolerated for this protocol (221a–e). In this study, it was discovered that the methyl group on the aromatic ring led to lower bromination efficiency than that of methoxy groups. Toluene was not brominated under the same reaction conditions (221f).

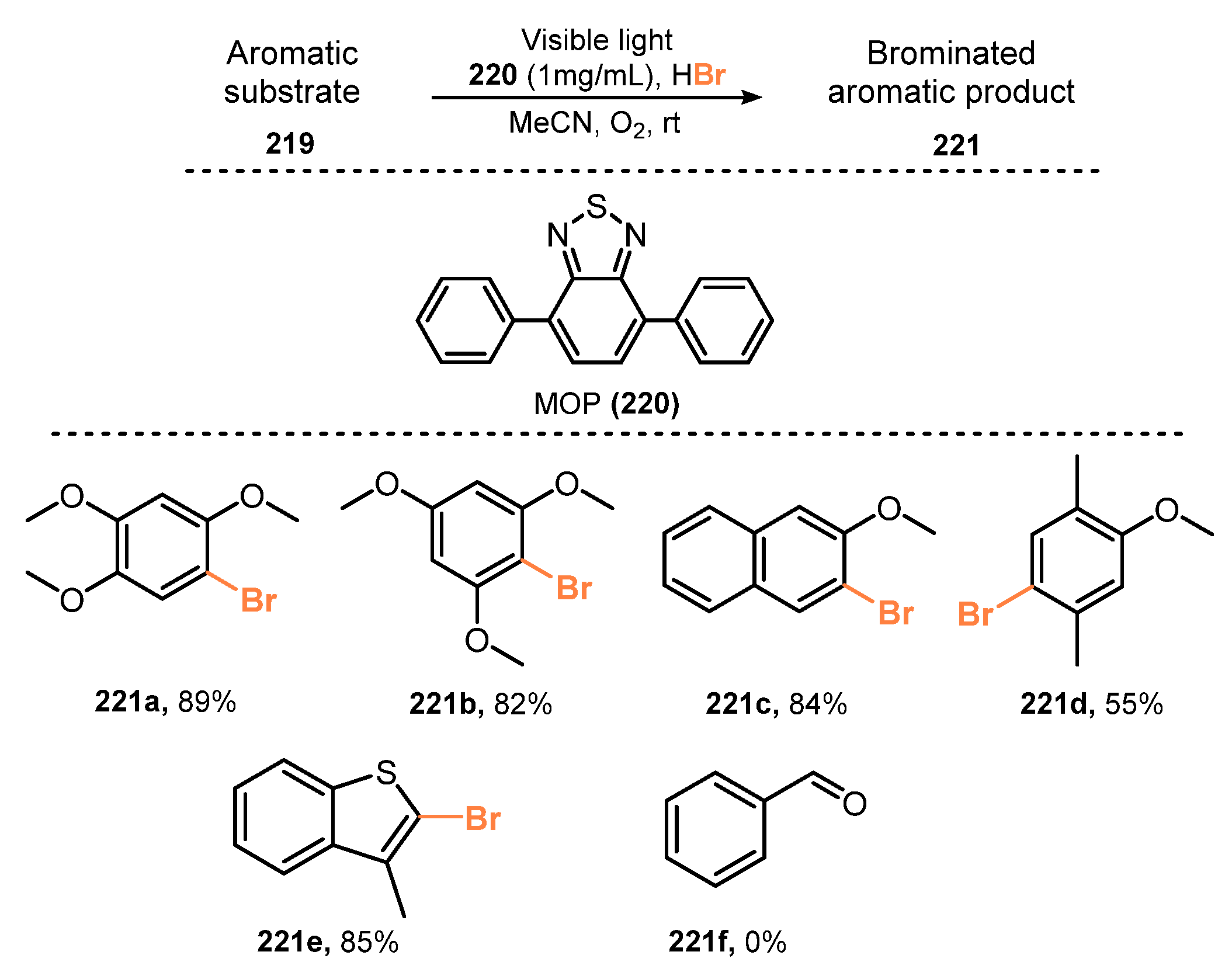

Scheme 59. Photocatalytic-selective bromination of aromatic compounds using MOPs.

A proposed mechanism of this reaction is shown in Scheme 60. Under irradiation of light, MOPs material 220 oxidized substrate (TMB) 219 to generate cationic radical TMB^•+ 222. Reaction of TMB^•+ 222 with Br⁻ anion from HBr formed TMB^•-Br radical 226. Besides, the activation of oxygen by MOPs material 220 gave its active forms of O₂^•− and ¹O₂. These activated oxygen species oxidized TMB^•-Br radical 226 to create the desired product 221, along with H₂O₂ 227 as a byproduct. However, H₂O₂ 227 also reacted with substrate TMB 219 and HBr in a minor side reaction to form final product 221.

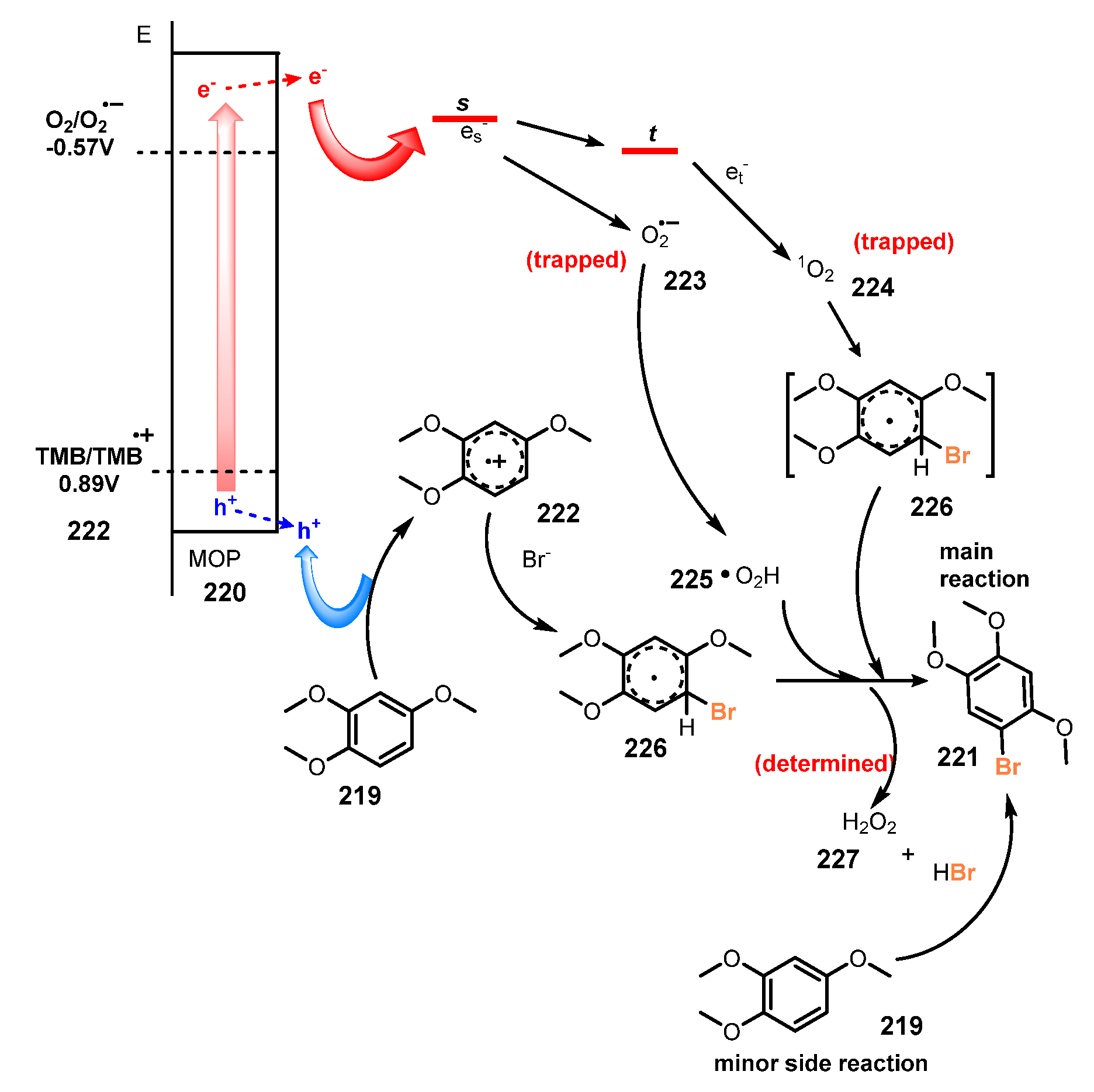

Scheme 60. Mechanism of photocatalytic bromination of TMB using the MOPs as photocatalyst.

Organic dye-catalyzed bromination of arenes and heteroarenes was demonstrated by Lamar and co-workers in 2018 [59]. In this method, arenes reacted with N-bromosuccinimide (NBS) in the presence of erythrosine B as a photocatalyst and ammonium peroxodisulfate as an oxidant reagent under irradiation of white LED light in acetonitrile to give the corresponding products (Scheme 61). Erythrosine B is a xanthene dye, commonly used in daily life as a food colorant and a painting ink, and it is difficult to degrade under visible light without other supporting agents. In this study, the optimization reactions using Erythrosine B were performed in 2, 6, and 24 h, which gave the target products in high yields. Based on these results, it can be believed that it is stable under irradiation of light around 24 h. Under the optimized reaction conditions, naphthalene and anisole derivatives were efficiently brominated on the aromatic ring without byproducts. Brominations of aryl ether-containing substrates, phenol derivatives, aniline derivatives, acetanilide, and the anesthetic lidocaine were also successfully conducted. However, arenes with electron-withdrawing groups such as chlorobenzene and nitrobenzene did not work well. On the other hand, reactions of N-containing heteroarenes (pyrrole, pyrazole, indole, and indazole) successfully afforded brominated products in acceptable to good yields (37–99%).

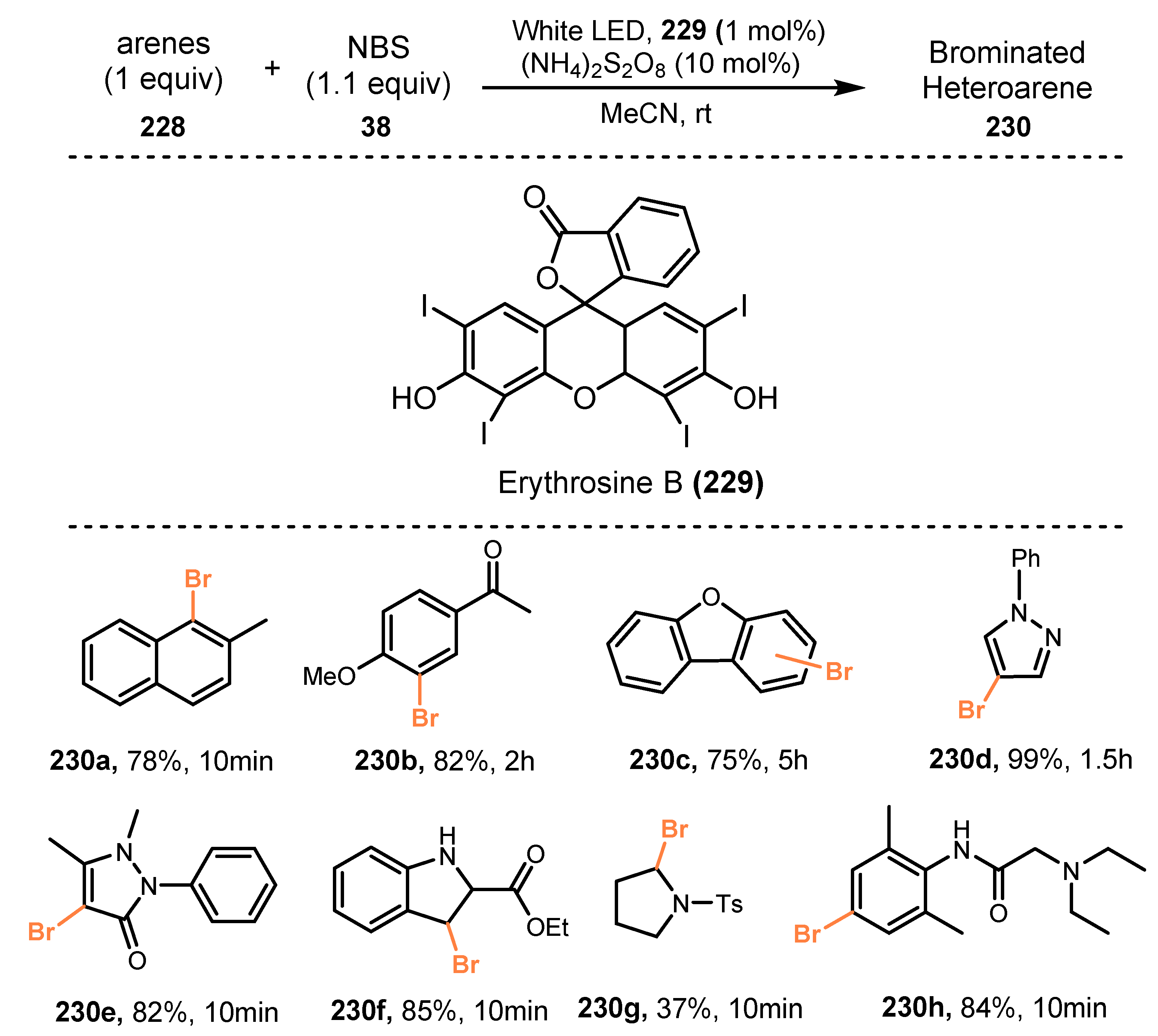

Scheme 61. Visible-light-photoredox bromination of arenes and heteroarenes.

They proposed a possible reaction mechanism as shown in Scheme 62. Under irradiation of light, ground state erythrosine B 229 was converted to excited state erythrosine B 231, which oxidized the nitrogen of N-bromosuccinimide 38 to provide cationic radical 233 and reduced state erythrosine B 232. The cationic radical 233 reacted directly with arene substrate 228 to generate the desired product 230 and charged succinimide species 234 as a byproduct via electrophilic aromatic bromination. The succinimide 234 or external oxidant such as O₂, (NH₄)₂S₂O₈, or H₂O₂ oxidized reduced state erythrosine B 232 to return to its ground state erythrosine B 229 and generate succinimide anion 236.

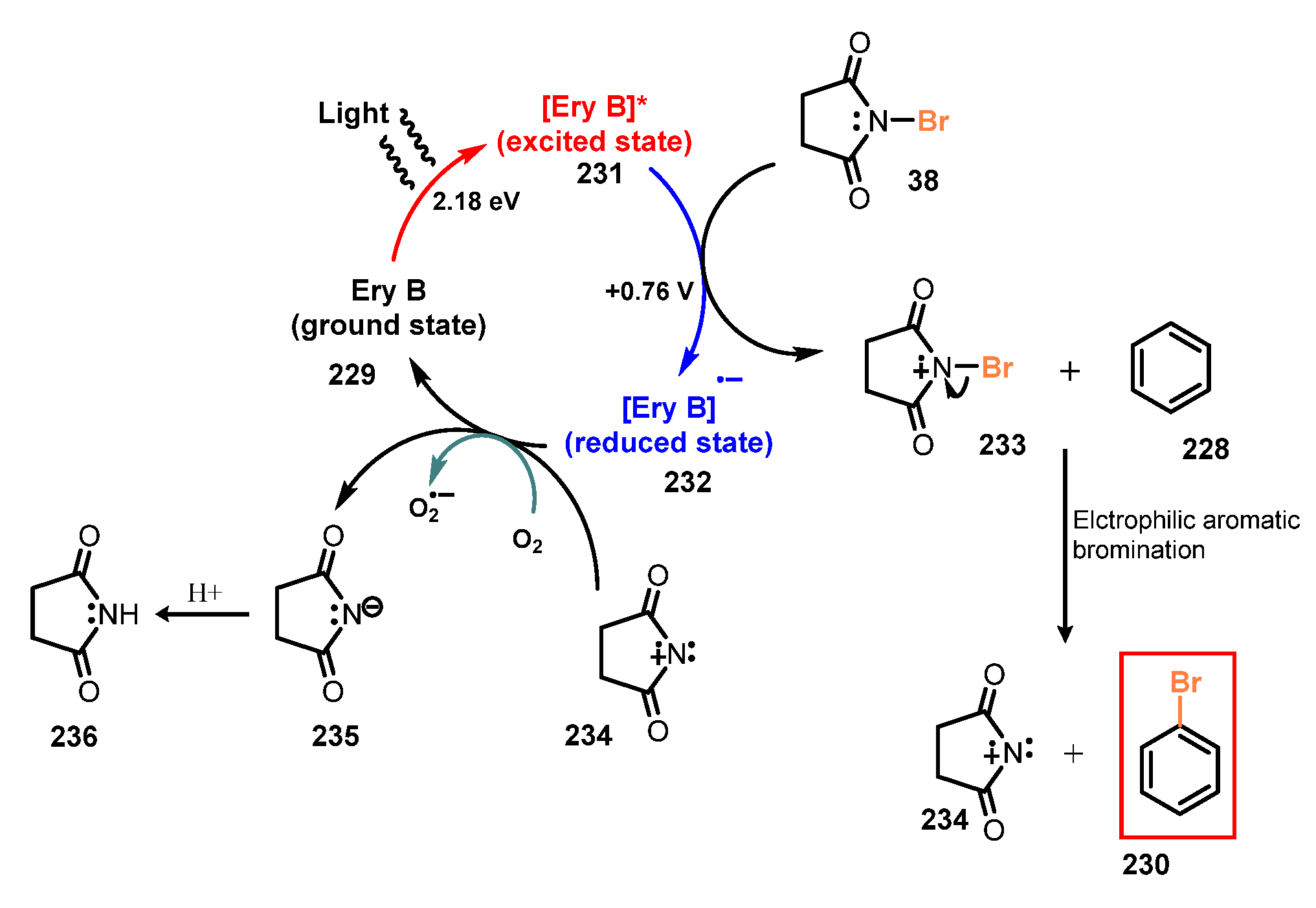

Scheme 62. General mechanism for bromination reaction using N-bromosuccinimide and organic dye catalysis.

Anthraquinones were employed as photocatalysts in bromination of arenes and heteroarenes by König and co-workers in 2018 [60]. The bromination reaction was carried out by using sodium bromide as a bromide source, sodium anthraquinone sulfonate (SAS) as a photocatalyst, and TFA acid as an activator for anthraquinone under irradiation of LEDs in a mixture of acetonitrile and water (1:1) (Scheme 63). All the methoxy arenes were successfully brominated in high isolated yields (56–100%) (239a–c). Bromination of substrates bearing Boc-protected amine (239e) was readily achieved in good yield (73% yield), even though there was an acidic environment. In contrast, reactions of substrates with an electron-withdrawing substituent provided desired products with lower yields. In addition, heteroarenes such as indole derivative 239g and benzimidazole 239h derivatives were also brominated in modest yields (49–63%). This procedure using SAS was also successful to oxidize pyrazole derivatives to generate the corresponding products in high yields. Besides, several bioactive compounds such as phenazone, tramadol, and alkaloid strychnine were tested in this procedure and yielded the brominated products in good to excellent yields (25–97%).

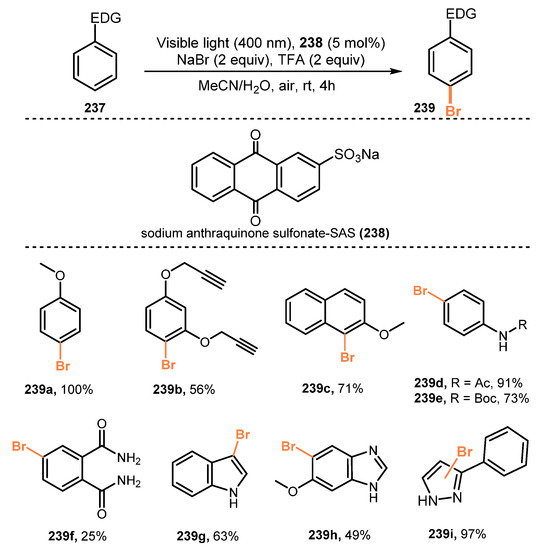

Scheme 63. Bromination of electron-rich arenes and heteroarenes by anthraquinone.

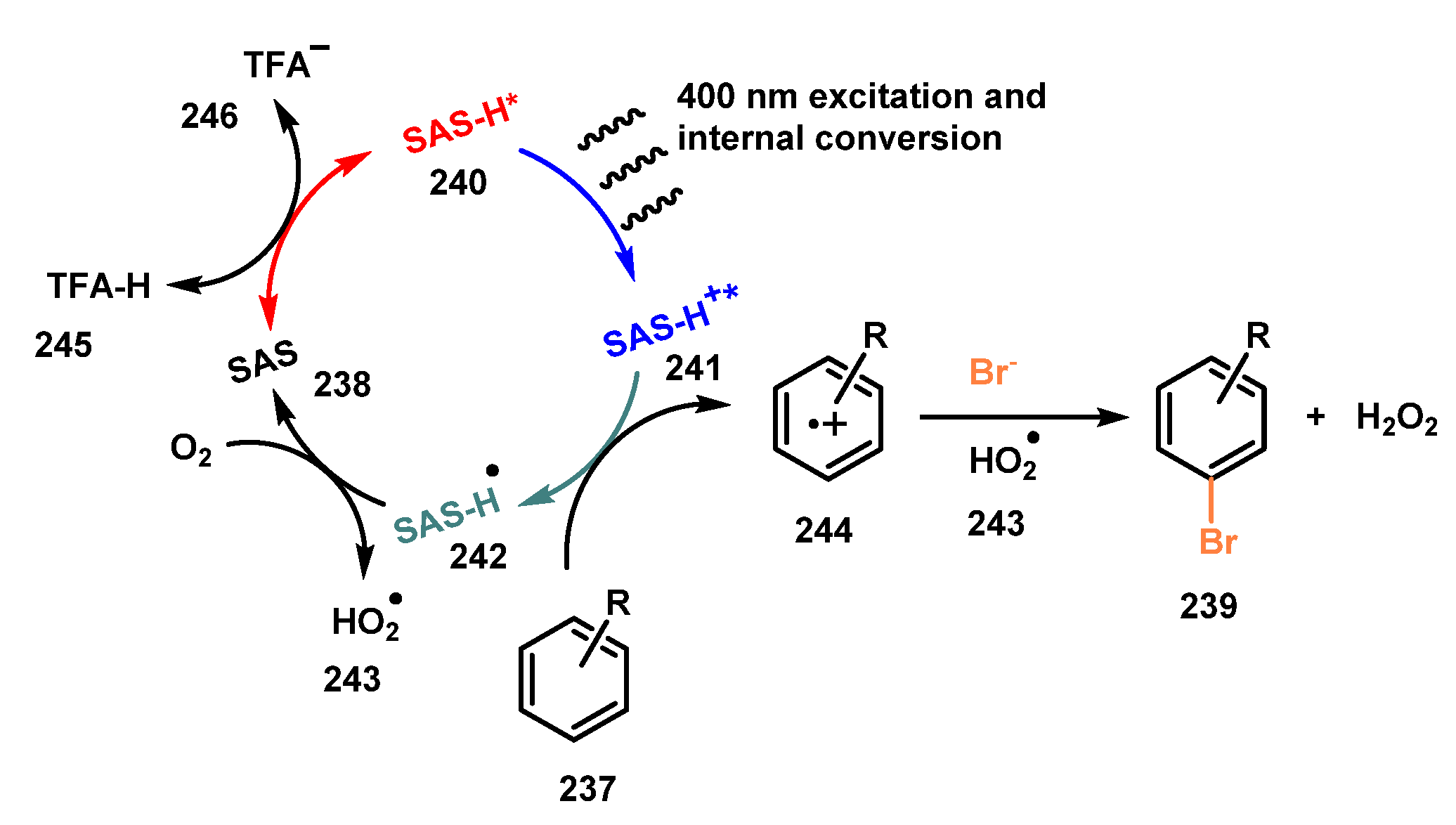

A possible mechanism of this bromination reaction was proposed as shown in Scheme 64. TFA 245 reacted with SAS 238 to give the active state SAS-H⁺ 240, which was stimulated by visible light to yield the triplet state SAS-H^+* 241. SAS-H^+* 241 caused oxidation of arenes 237 to produce radical cation 244, which in turn reacted with bromide anions and HO₂^• 243 to afford the brominated product 239 and hydrogen peroxide. Besides, SAS-H^• 242 radical was oxidized by O₂ to regenerate SAS 238.

Scheme 64. Mechanism for the photocatalytic bromination of arenes and heteroarenes.

Lei and co-workers described selective bromination at the C₅ position of 8-aminoquinoline amides in 2019 [61]. In the reaction, aminoquinoline amides reacted with CBr₄ as a bromine source in the presence of 10-phenylphenothiazine (PTH) as an organophotoredox catalysis and K₂CO₃ as the base under the irradiation of blue light in acetonitrile to give the corresponding products (Scheme 65). Both linear and cyclo alkyl-substituted carboxamides were successfully brominated with good or moderate yields (56–83%). Reaction of dodecyl and bulky group-substituted carboxamides produced desired products in 88% and 83% yields, respectively (249a–b). However, this process was less effective for aryl-substituted carboxamide substrates. Target product was obtained in 80% yield by reaction of substrate with phenyl (249c), while brominated product was prepared in only 16% yield when the phenyl group was replaced by para methoxy groups (249d).

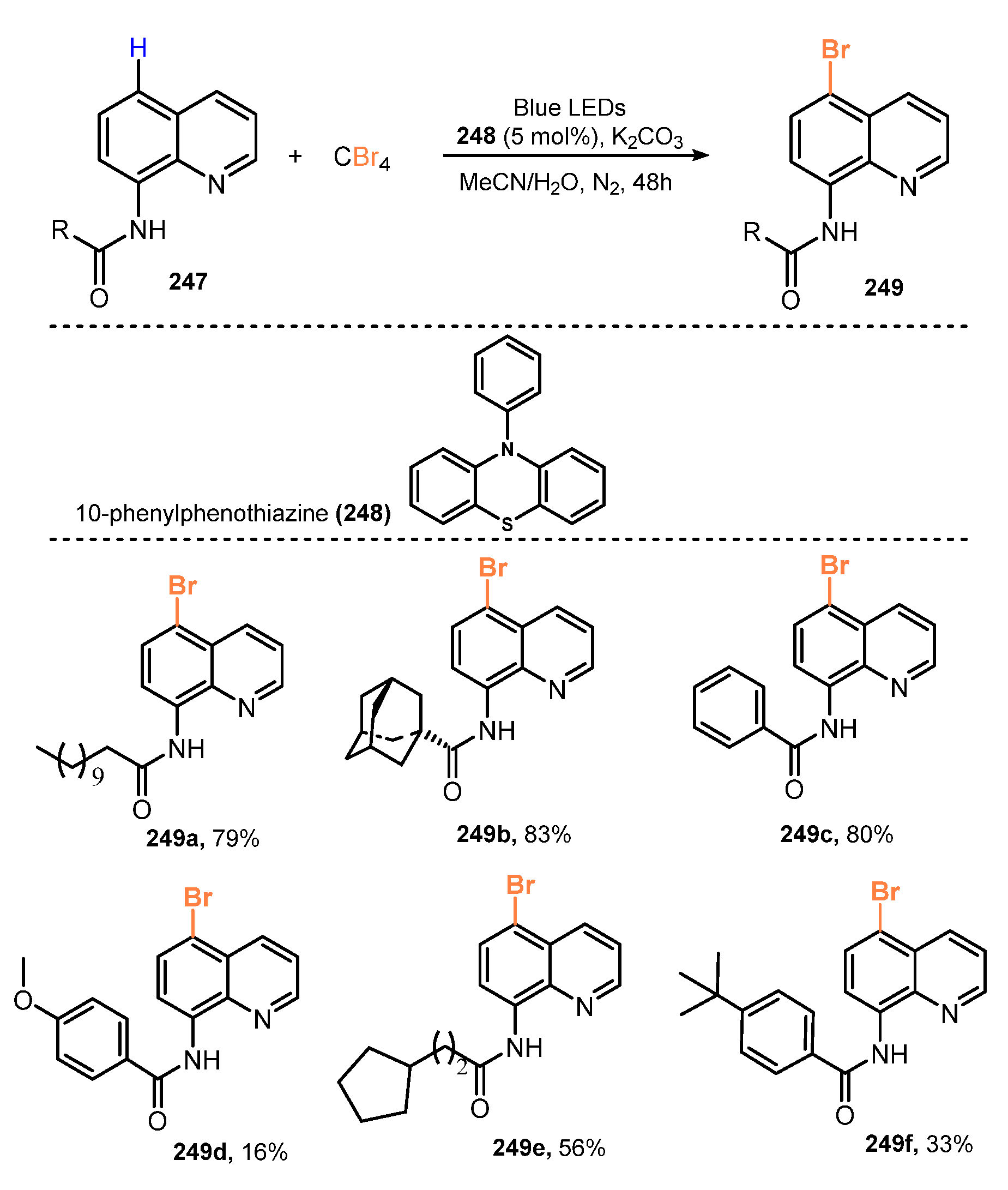

Scheme 65. Selective C₅ bromination of 8-aminoquinoline amides.

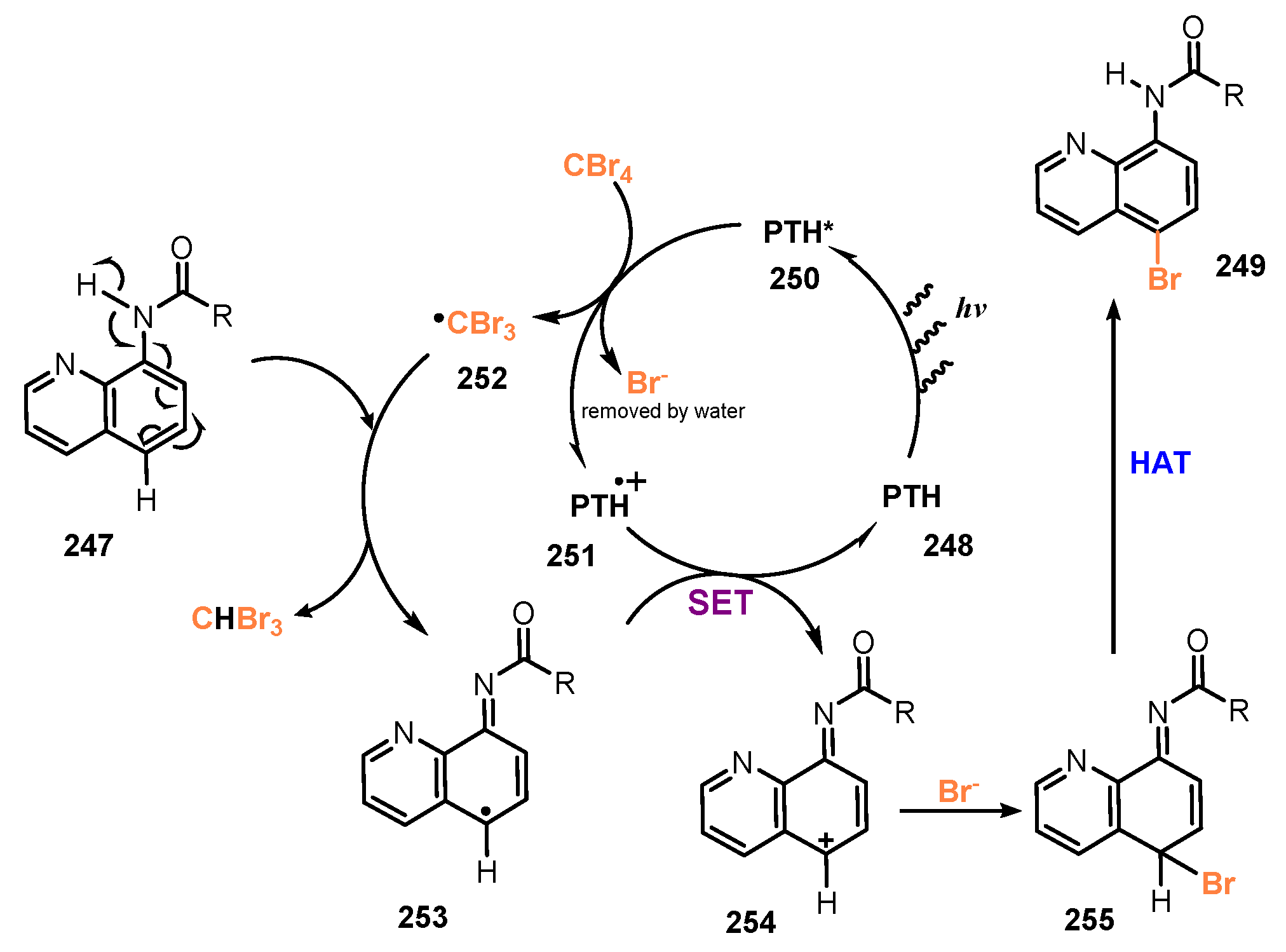

A plausible mechanism of this bromination reaction proposed by Lei and co-workers is shown in Scheme 66. Visible light excited photocatalyst PTH 248 to PTH* 250, which was then oxidatively quenched by CBr₄ to provide ^•CBr₃ radical 252 and bromide anion. ^•CBr₃ radical 252 reacted with substrate 247 to give radical intermediate 253, which underwent single electron transfer with PTH^*+ 251 to form radical intermediate 254 and recover ground state photocatalyst PTH 248. Reaction of radical 254 with Br⁻ anion produced compound 255, which was then used in the hydro atom transfer (HAT) process to prepare the final product 249.

Scheme 66. Proposed mechanism for transformation of 8-aminoquinoline amides to brominated product.

Bromotrichloromethane (BrCCl₃)-mediated efficient and regioselective mono-bromination of electron-rich arenes was developed by Loh and co-workers in 2021 [62]. Reaction of arenes and heteroarene with BrCCl₃ as a bromine source in the presence of Ru^II bipyridyl complex photocatalyst and 2-bromopyridine under irradiation of white light (23W) and air atmosphere gave the corresponding products (Scheme 67). Various electron-rich arenes and heteroarenes bearing different substitute groups, such as amino, N,N′-dimethyl, hydroxyl, methoxy, and other heterocyclic amino groups, were successfully brominated (257a–j). Brominations of protected anilines (257f) with acid-sensitive protective groups (BOC) and oxidation-sensitive groups (hydroxyl) of the phenol ring (257j) were also readily modified to provide target products. However, reactions of substrates baring various functional groups, such as naphthalene, weak electron-withdrawing groups (EDGs), or the combination of EDG and electron-withdrawing groups, did not work well to give desired products.

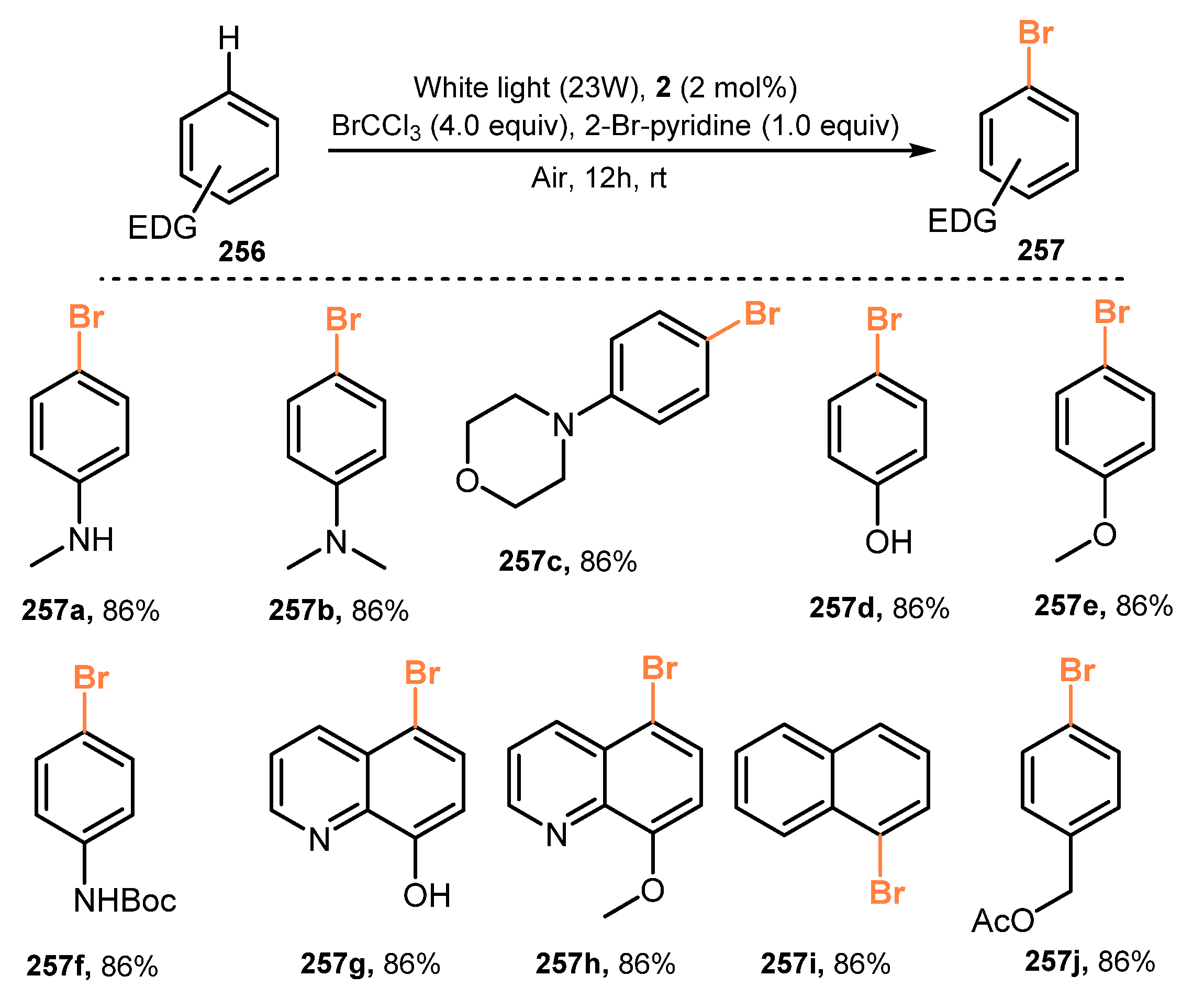

Scheme 67. Visible-light-induced mono-bromination of arenes with BrCCl₃.

They proposed a probable mechanism for this protocol as described in Scheme 68. Light irradiation made photocatalyst Ru^II 2 excited to Ru^II* 28. The substrate 256 was oxidized by Ru^II* 28 to give radical cation 259 and Ru^I 258, which was then oxidized by O₂ to Ru^II 2. The radical cation 259 was converted to cation radical 260, which in turn reacted with BrCCl₃ 261 to yield intermediate 264. Intermediate 264 was deprotonated by a base to afford the brominated product 257.

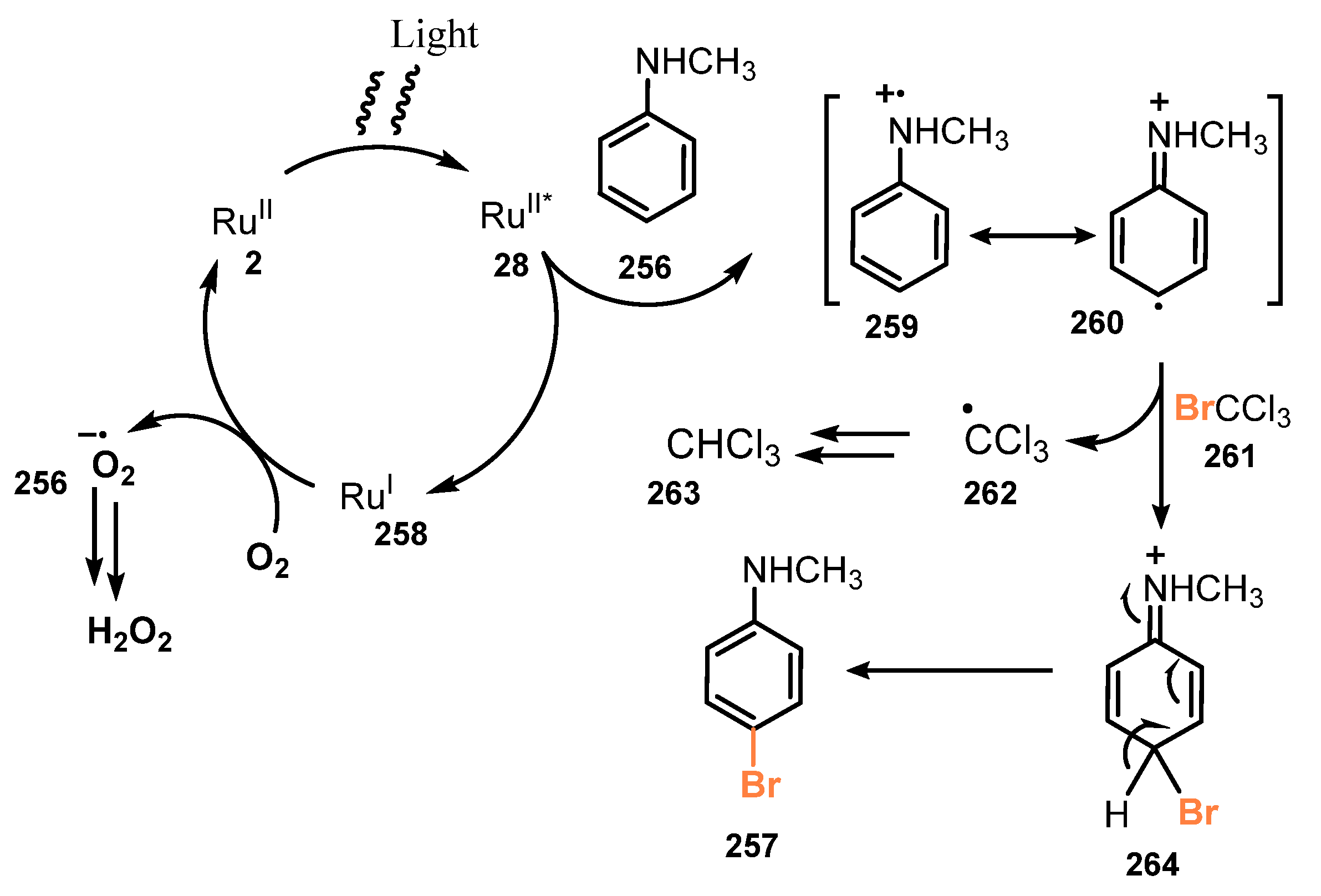

Scheme 68. Mechanism for para-bromination of active aniline.

6.4. Iodination of Aromatic C-H Bonds

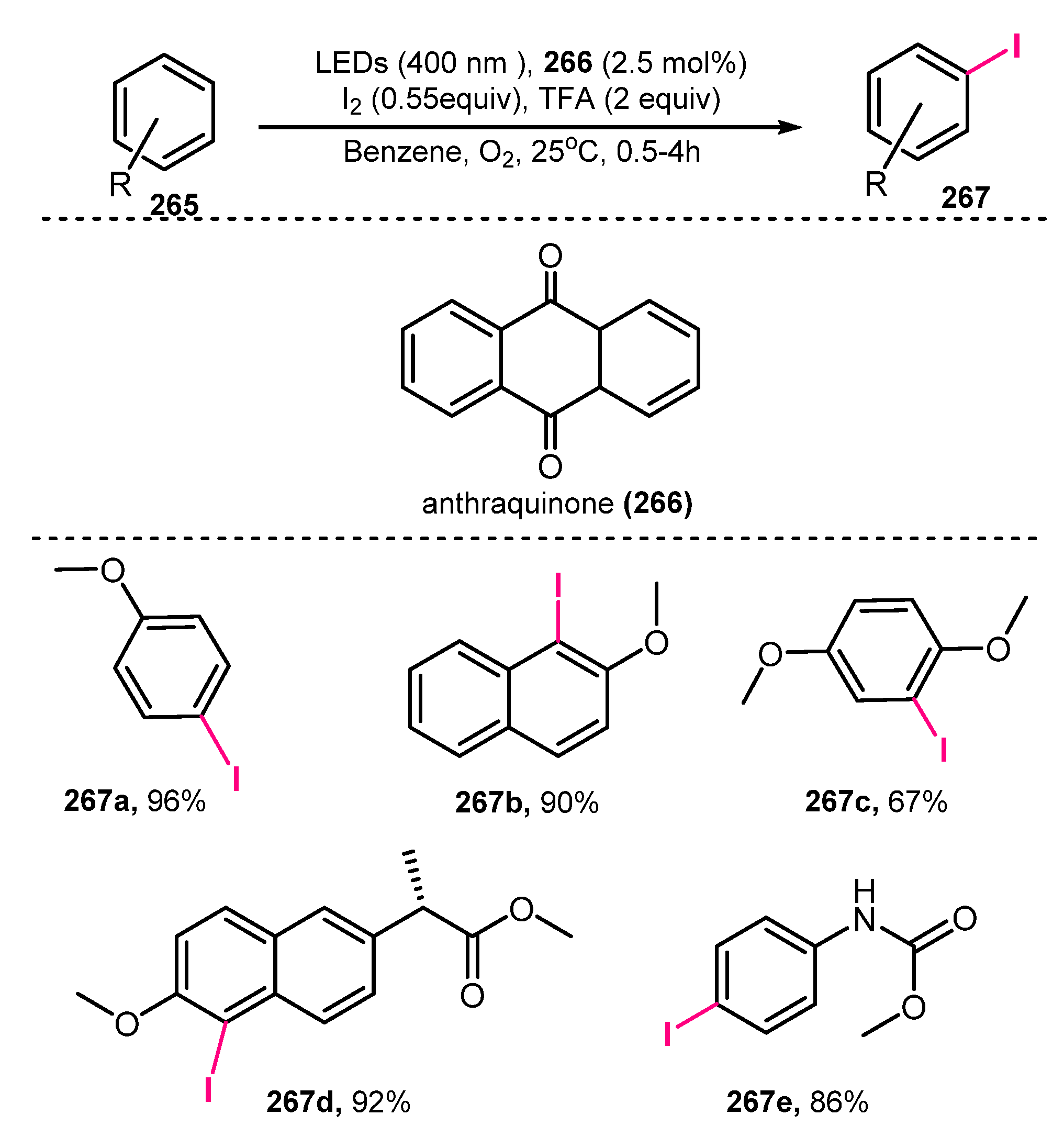

In 2019, König and co-workers demonstrated oxidative iodination of arenes [63]. The iodination was achieved via treatment of arenes with I₂ as an iodine source, TFA, O₂ as an oxidizing agent, and anthraquinone (AQ) as a photocatalyst under irradiation of LED (400 nm) in benzene (Scheme 69). In the reaction, synthetic protocol allowed arenes-bearing electron-donating groups to readily produce the desired iodinated products in good to high yields (56–96%). When arenes9bearing methyl groups were used, they were successfully iodinated without generation of any side reactions on the benzylic position. Besides, reaction of both trimethylbenzene and tert-butyl substituted arenes also worked well, although they have potential steric effects. It was found out that the acid-sensitive ester functionality (267d) was unchangeable when conducting this reaction method. In addition, nitrogen-containing compounds in the substrate (267e) were also stable during the reaction, which successfully afforded target products in high yields (86–92%).

Scheme 69. Photocatalytic oxidative iodination of electron-rich arenes.

A plausible mechanism of this iodination was presented in Scheme 70. Reaction of photocatalyst AQ 266 with TFA 274 to receive a proton provided the protonated AQ-H⁺ 268. Light excited AQ-H⁺ 268 to the excited state AQ-H^+* 269, which then oxidized arenes to give arene radical cation 271 and AQ-H^• radical 270. The generated arene radical cation 271 then captured the iodine atom from iodine molecule 272 to produce iodinated product 267 and iodine radical I^• 273, which recombined with another I^• to give I₂ 272. AQ-H^• 270 radical was oxidized by oxygen to regenerate AQ 266.

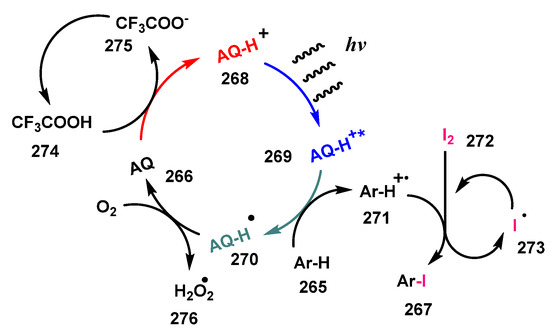

Scheme 70. Proposed mechanism of the photocatalytic oxidative iodination reaction.

7. Conclusions

A lot of breakthroughs using photocatalytic reactions have been achieved in this decade. Current developments in the application of visible light photocatalysts for halogenation, including chlorination, bromination, and iodination, are described in this study.

Visible light and photocatalyst-mediated halogenation technologies have many attractive advantages that make them good candidates to replace the old methods. Mild reaction conditions are useful in multi-step synthetic chemistry and selective halogenation at specific positions. Being able to replace hazardous or expensive chemicals is another big advantage. In addition, the excellent functional group tolerance provides the possibility of applying this protocol to various organic compounds including aliphatic C-H bonds, multiple bonds, carboxylic acids, and aromatics. In particular, it can also be applied to halogenation of natural compounds involved in various pharmaceutical applications.

The visible-light-photocatalytic halogenation technique allows the use of several halogen sources (Br₂, Cl₂, CBr₄, HCl, etc.) without the need for initiators or harsh reaction conditions, thereby reducing costs and making the reactions “greener”.

On the other hand, using green solvents is also a big challenge. Organic solvents were utilized in the majority of the reactions described in this investigation. In spite of improving the efficiency of halogenation processes, most of them have negative impacts on the environment and require higher solvent removal and recovery costs. Replacing organic solvents with water would be a challenging research field in the future.

Despite considerable advancements in this procedure, there is still a lot of room for development at this point. Nearly all photocatalysts contain iridium, ruthenium, lithium, and transition metals (Cu, etc), or have a very complicated structure (Eoxin Y), resulting in high prices that obstruct their commercial implementation. Besides, the removal of catalysts from the products should be taken into account. The heterogeneous catalysts can be easily separated through filtration. Generally, homogeneous metal catalysts are typically used in the form of soluble salts or chelating complexes and can be easily eluted via extraction with water. However, the criteria for product purity are becoming increasingly stringent, particularly for medicinal items. Therefore, it would be great to come up with approaches to employ other photocatalysts, which are more popular and cost effective.

Out of the studies on visible-light-mediated photocatalytic halogenation, those on halogenation of C-H aliphatic compounds and halogenation of arenes are dominant because aliphatic and aromatic halide derivatives have a wide range of applications in medicine and industrial chemistry. In the future, there will be a need to discover additional methods for direct halogenation from other functional groups.

In conclusion, the application of visible-light-mediated photocatalysis represents a major advance in the field of halogenation of organic compounds, offering a significant difference from traditional methods. Further research in the future may help overcome the limitations of photocatalytic halogenation and expand the applications to other functional groups.
